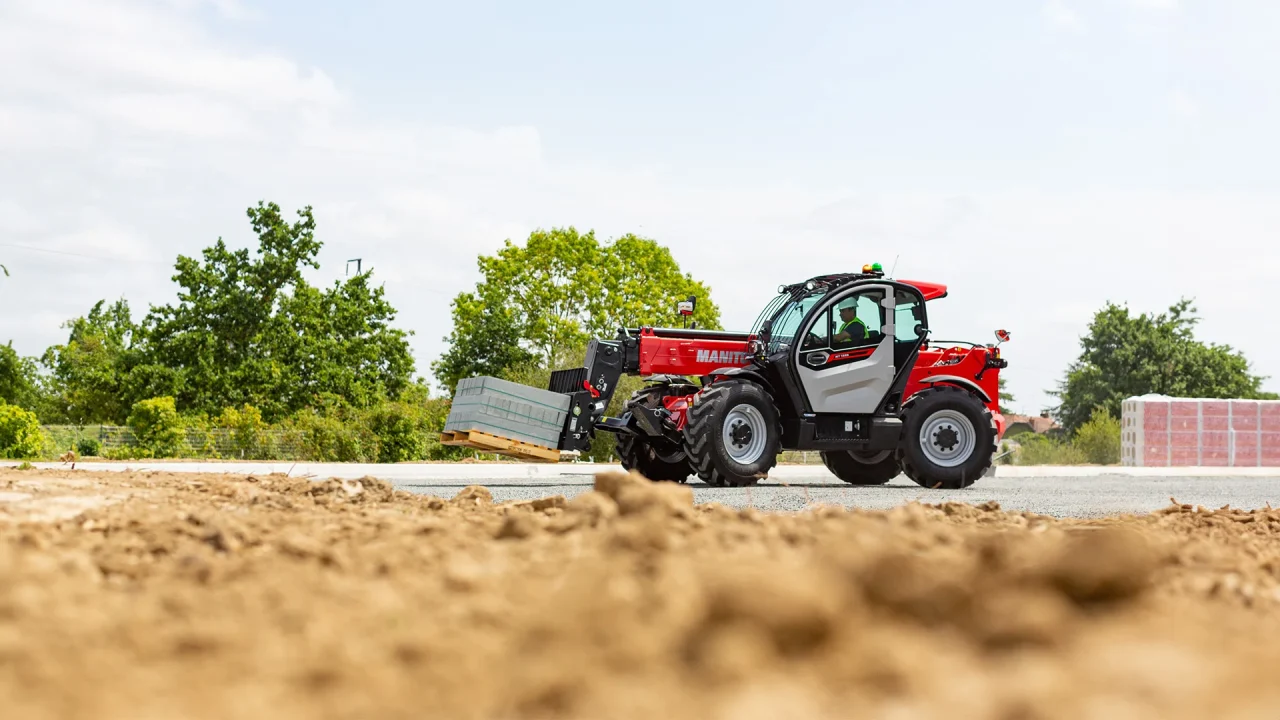

Manitou MT Telehandlers
High Performance, Small Footprint
For tight sitework, or inside warehouses, the MT series is a great option that takes up a small space, yet has the capacity and reach to be a versatile fit for many work scenarios.

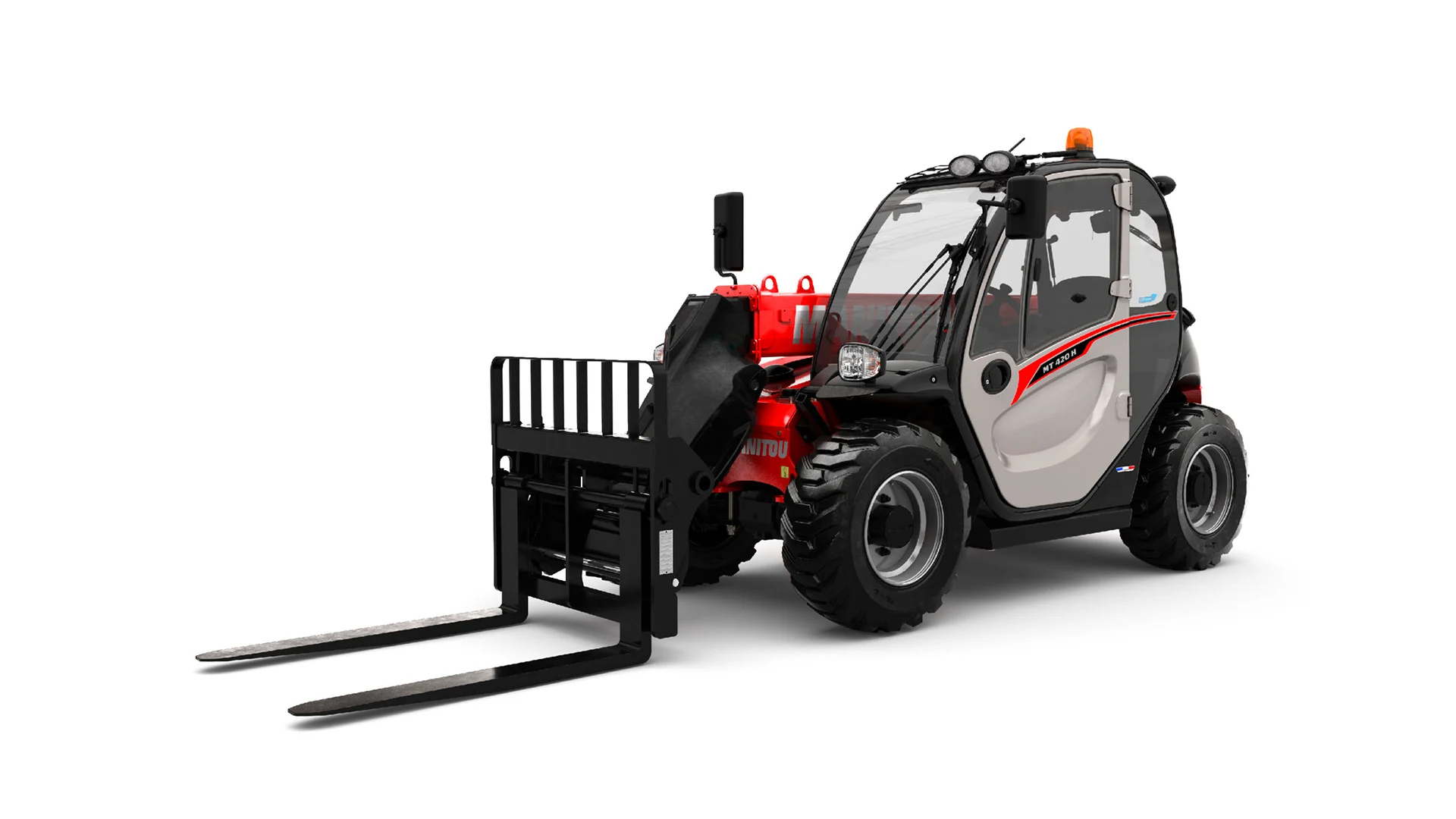

MT 420

4,400 lbs x 14’-3″ reach
- Lift Capacity | 4,400 lbs
- Lift Height | 14′-3″
- Max Reach | 9′-0″
- Engine HP | 56.3
- Turning Radius | 10′-1″
- Length | 11′-11″
- Width | 4′-11″
- Height | 6′-3″
- Weight | 9,237 lbs
MT 625

5,500 lbs x 19’-2″ reach
- Lift Capacity | 5,500 lbs
- Lift Height | 19′-2″
- Max Reach | 11′-1″
- Engine HP | 74
- Turning Radius | 10′-10″
- Length | 12′-9″
- Width | 5′-11″
- Height | 6′-4″
- Weight | 10,582 lbs
MT 733

7,200 lbs x 22’-8″ reach
- Lift Capacity | 7,200 lbs
- Lift Height | 22′-8″
- Max Reach | 12′-10″
- Engine HP | 74
- Turning Radius | 12′-6″
- Length | 15′-7″
- Width | 7′-8″
- Height | 7′-7″
- Weight | 14,770 lbs

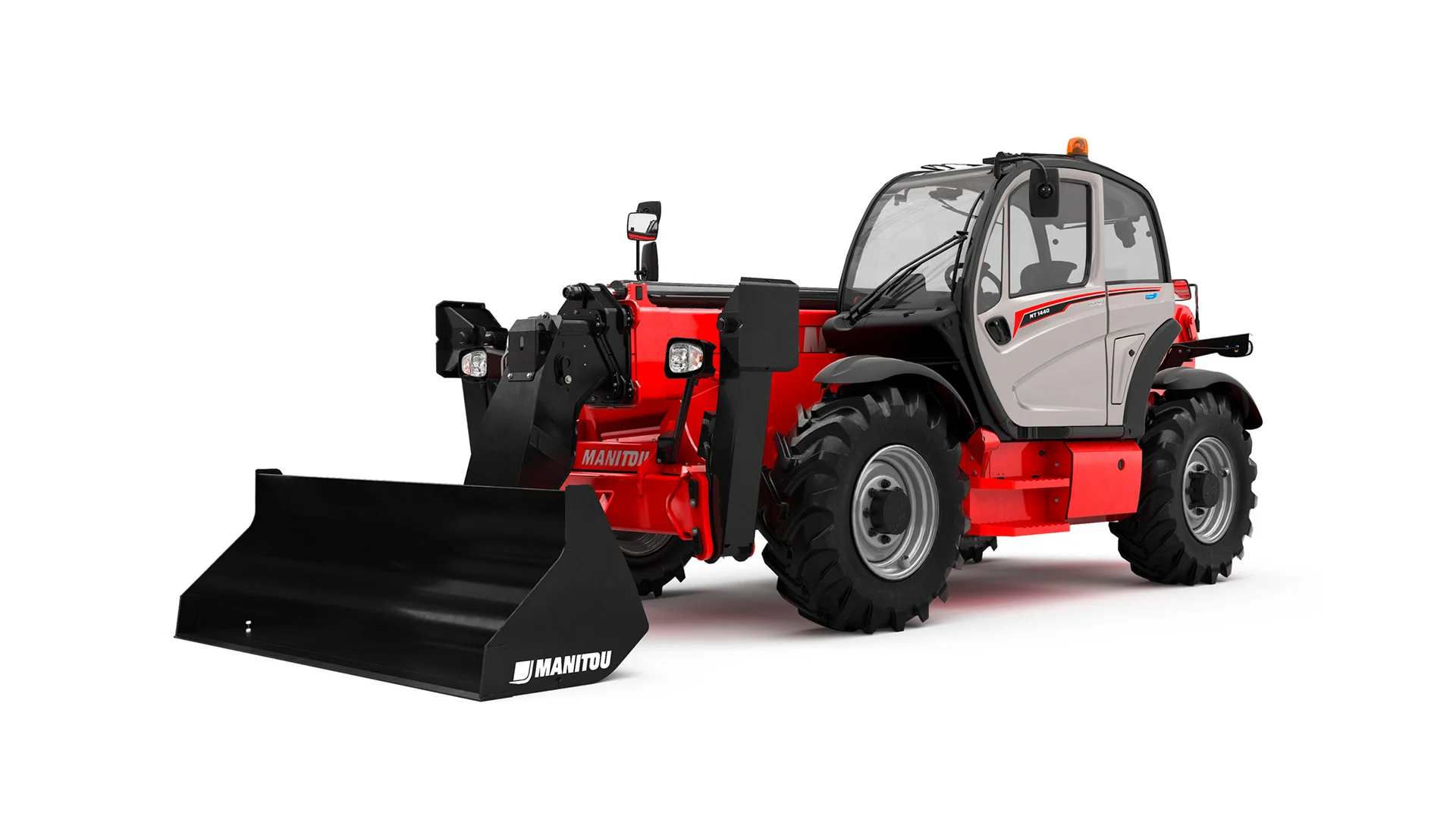

MT 1440

9,000 lbs x 44’-4″ reach
- Lift Capacity | 9,000 lbs
- Lift Height | 44′-4″
- Max Reach | 31′-0″
- Engine HP | 74 / 100
- Turning Radius | 13′-1″
- Length | 20′-2″
- Width | 7′-9″
- Height | 8′-1″
- Weight | 23,931 lbs
- Stabilizers | Standard

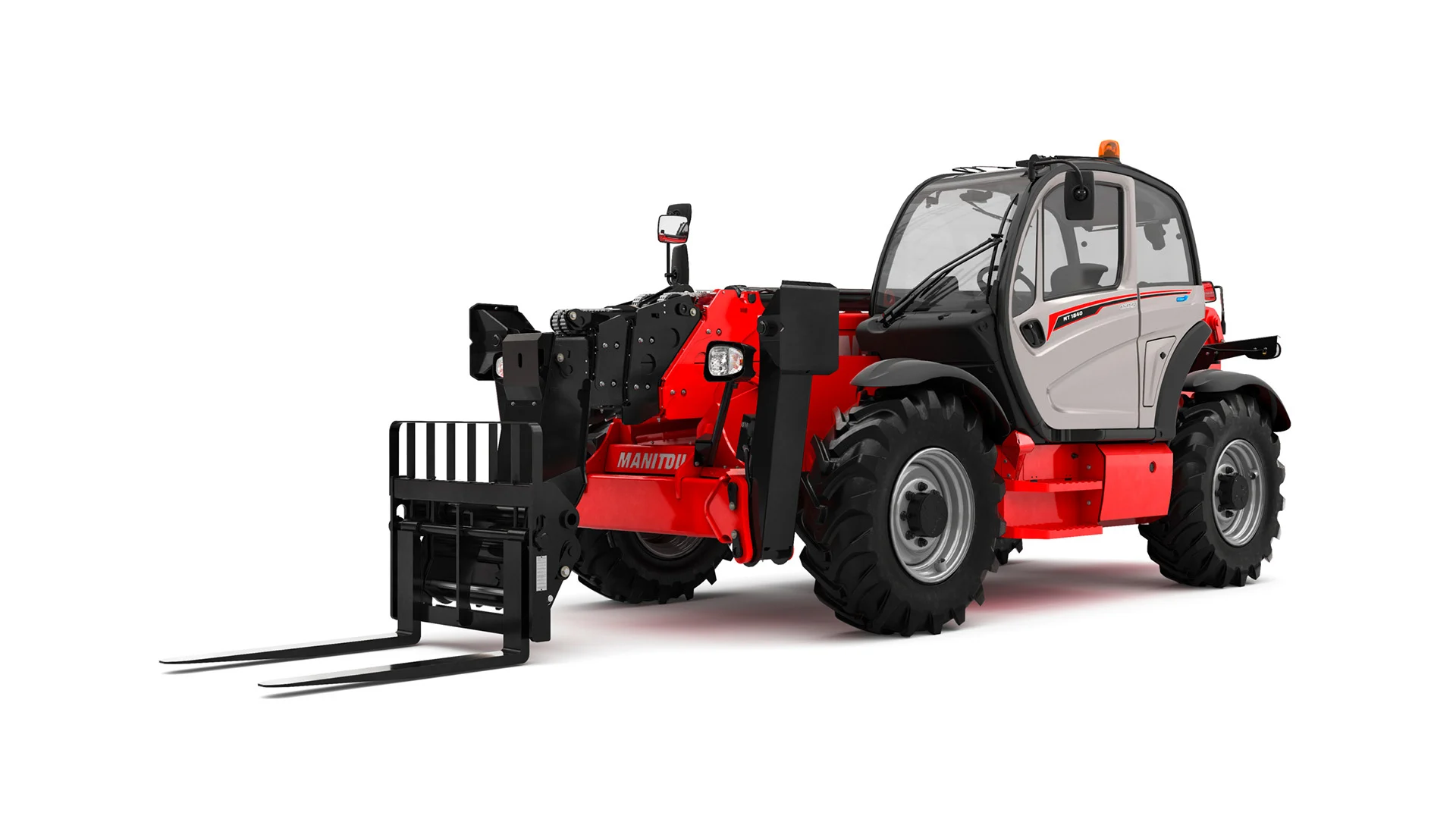

MT 1840

9,000 lbs x 57’-7″ reach
- Lift Capacity | 9,000 lbs
- Lift Height | 57’-7″
- Max Reach | 42′-11″
- Engine HP | 74 / 100
- Turning Radius | 13′-2″
- Length | 20′-7″
- Width | 7′-11″
- Height | 8′-3″
- Weight | 25,794 lbs
- Stabilizers | Standard
MT 1840 A

9,000 lbs x 57’-7″ reach
- Lift Capacity | 9,000 lbs
- Lift Height | 57’-7″
- Max Reach | 42′-11″
- Engine HP | 100
- Turning Radius | 13′-2″
- Length | 20′-7″
- Width | 7′-11″
- Height | 8′-3″
- Weight | 27,337 lbs
- Stabilizers | Standard
