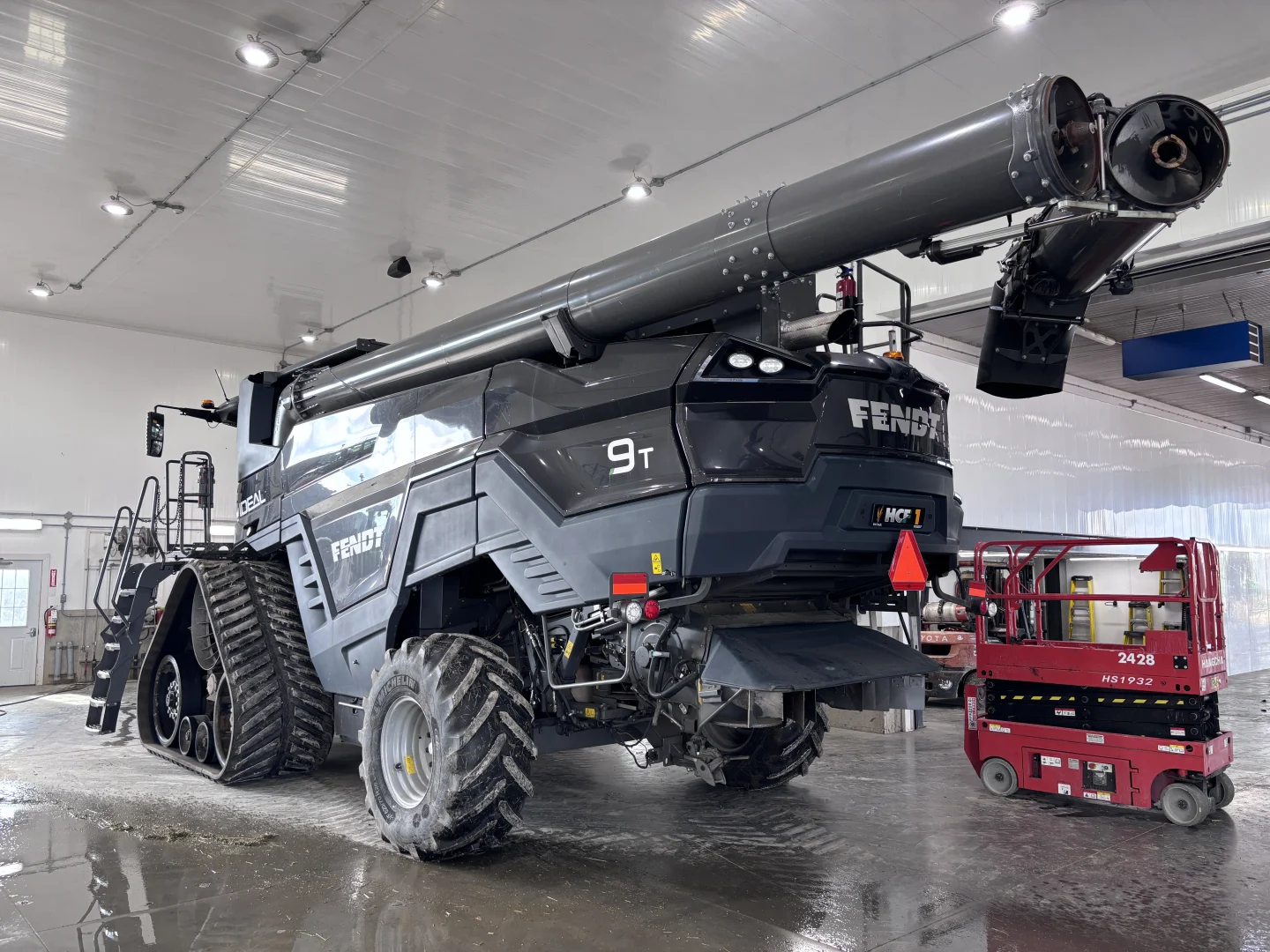

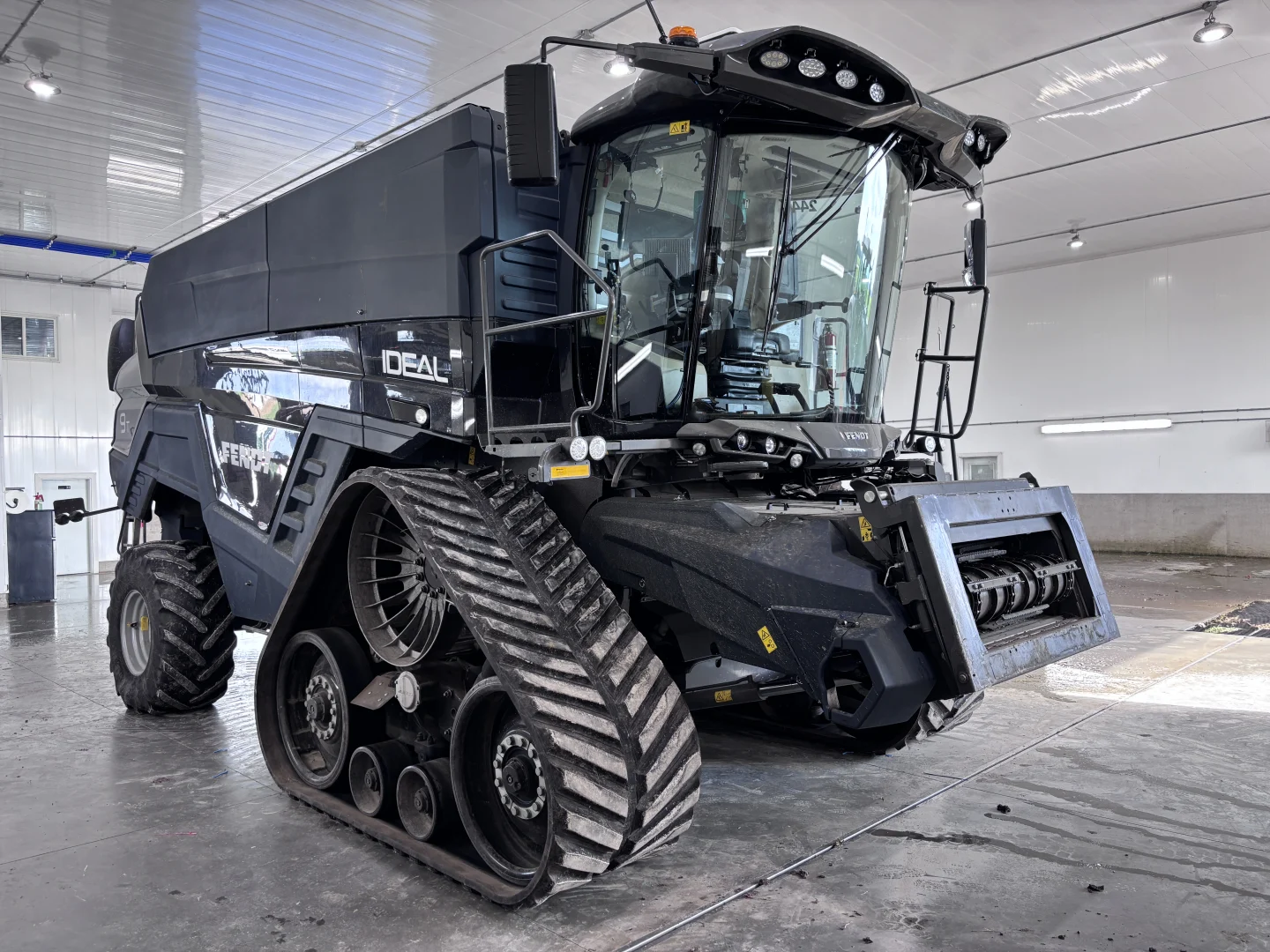

Used 2024 Fendt IDEAL 9T
| Description | |
|---|---|
| 2024 MY, (estimated 1900 engine hrs, 1275 separator hrs after 2026 season), will be inspected and field ready, Goldstar+ warranty and maintenance until July 2029 or 2000 engine hrs, MAN 15.2L , 6 cylinder engine, 564 rated hp, 650 Max HP, TrackRide with 36″ tracks, VF620/70R30 rear tires, Ideal Drive joystick steering, non powered rear axle, variable speed Dual Helix rotor, large and small grains configurations, 220 KW variable speed header drive, high capacity 6000 kg header lift, 485 bu. grain hyd folding grain tank, high wear package, 36′ Streamer 6.0 high capacity folding unload auger, adjustable end spout, active powered tailboard, 112 knife fine cut chopper, power adjust chaff spreader, Premium Plus cab package- leather seat, LED lights, wireless phone charger, Deluxe Technology Package- Ideal Harvest automation, Auto headland turn, Fendt Guide complete, onboard air compressor, reversing cooling fan | |
| Categories | Combines |
| Unit Number | 27867R |
| Condition | Used |
| Usage | 1,900 Hours |
| Year | 2024 |
| Cost | $514,900.00 CAD |
Financing calculator not available for this equipment. Contact us for details.
Rentals not available for this equipment
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 420.57kW (564hp) | |
| Rated Engine Speed | 1,900r/min | |
| Make | MAN 15.2L Tier 6 Cylinder | |
| Displacement | 15,190.80cm^3 (927cu. in.) | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 330.22gal. (1,250L) | |
| DEF Tank Capacity | 47.55gal. (180L) | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Road Speed | 24.85mph (40km/h) | |
| Type | Hydrostatic | |
| Ranges | 2 | |
| Speed Control | Cruise | |
| Drive | 2WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Steering Mode | rear wheel steer | |
| Hydraulics | ||
|---|---|---|
| Total System Oil Volume | 29.06gal. (110L) | |
| Available Remote Flow Capacity | 21.13gal. (80L) | |
| Steering | Hydraulic Power | |
| Wheels | ||
|---|---|---|
| Front | FD TrakRide 36 | |
| Track Width | 91.44cm (3') | |
| Tensioning | Terminal Display | |
| Front Idler | Belt Tensioning Cylinder | |
| Rear Idler | Suspension Cylinder | |
| Boggie Wheels | 2 | |
| Footprint Length | 193.55cm (6' 4-3/16") | |
| Footprint Area | 3.52m^2 (37.90sq. ft.) | |
| Electrical | ||
|---|---|---|
| Alternator | 320A | |
| Battery Cold Start | 1,000CCA | |
| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Steering Controls | Joystick | |
| Technology | ||
|---|---|---|
| Display | 10.4" Varioterminal | |
| Data Transfer | TaskDoc Pro | |
| Telemetry | 5 Year Fendt Connect Subscription | |
| Agronomy | 3 Year PTx FarmENGAGE Operations Subscription | |
| Threshing | ||
|---|---|---|
| Class | 9 | |
| Rotor Length | 15' 10-7/16" (4,837mm) | |
| Rotor Diameter | 1' 11-5/8" (600mm) | |
| Maximum Rotor Speed | 1,160r/min | |
| Threshing Area | 17.87sq. ft. (1.66m^2) | |
| Separation Area | 26.26sq. ft. (2.44m^2) | |
| Total Separation Area | 43.70sq. ft. (4.06m^2) | |
| Separator Type | Dual Rotor | |
| Cleaning | ||
|---|---|---|
| Chaffer Area | 32.08sq. ft. (2.98m^2) | |
| Sieve Area | 58.13sq. ft. (5.40m^2) | |
| Total Cleaning Area | 85.57sq. ft. (7.95m^2) | |
| Sieve Adjustment | Electric | |
| Maximum Cleaning Fan Speed | 1,400r/min | |
| Return System | Separate | |
| Feeding System | ||
|---|---|---|
| Feeder House Lifting Capacity | 12,998.46lb. (5,896kg) | |
| Lift Cylinder Diameter | 3-5/8" (92mm) | |
| Feeder Housing Chains | 4 | |
| Feeder Width | 4' 2" (1,270mm) | |
| Reverse | Electro Hydraulic | |
| Rock Trap | Right Hand | |
| Cross Conveyor | 27.94cm (11") | |
| Grain Handling | ||
|---|---|---|
| Unloading Rate | 6bu. per second | |
| Grain Tank | Dependent on: Grain Handling/Unloading Rate/6 bu. per second | |
| Auger Diameter | 1' 6" (457mm) | |
| Maximum Auger Reach | 30' 1/4" (9,150mm) | |
| Residue Management | ||
|---|---|---|
| Straw Chopper Knives | 112 | |
| Maximum Chopper Speed | 3,600r/min | |
| Chaff Spreader | Hydraulic | |
| Dimensions | ||
|---|---|---|
| Length | 38' 5-7/16" (11,720mm) | |
| Wheelbase | 13' 4-7/16" (4,075mm) | |
| Width | 16' 9-3/16" (5,110mm) | |
| Height | 13' 1-1/2" (4,000mm) | |
| Turning Radius | 15' 9" (4,800mm) | |
| Cab Width | 5' 3" (1,600mm) | |
