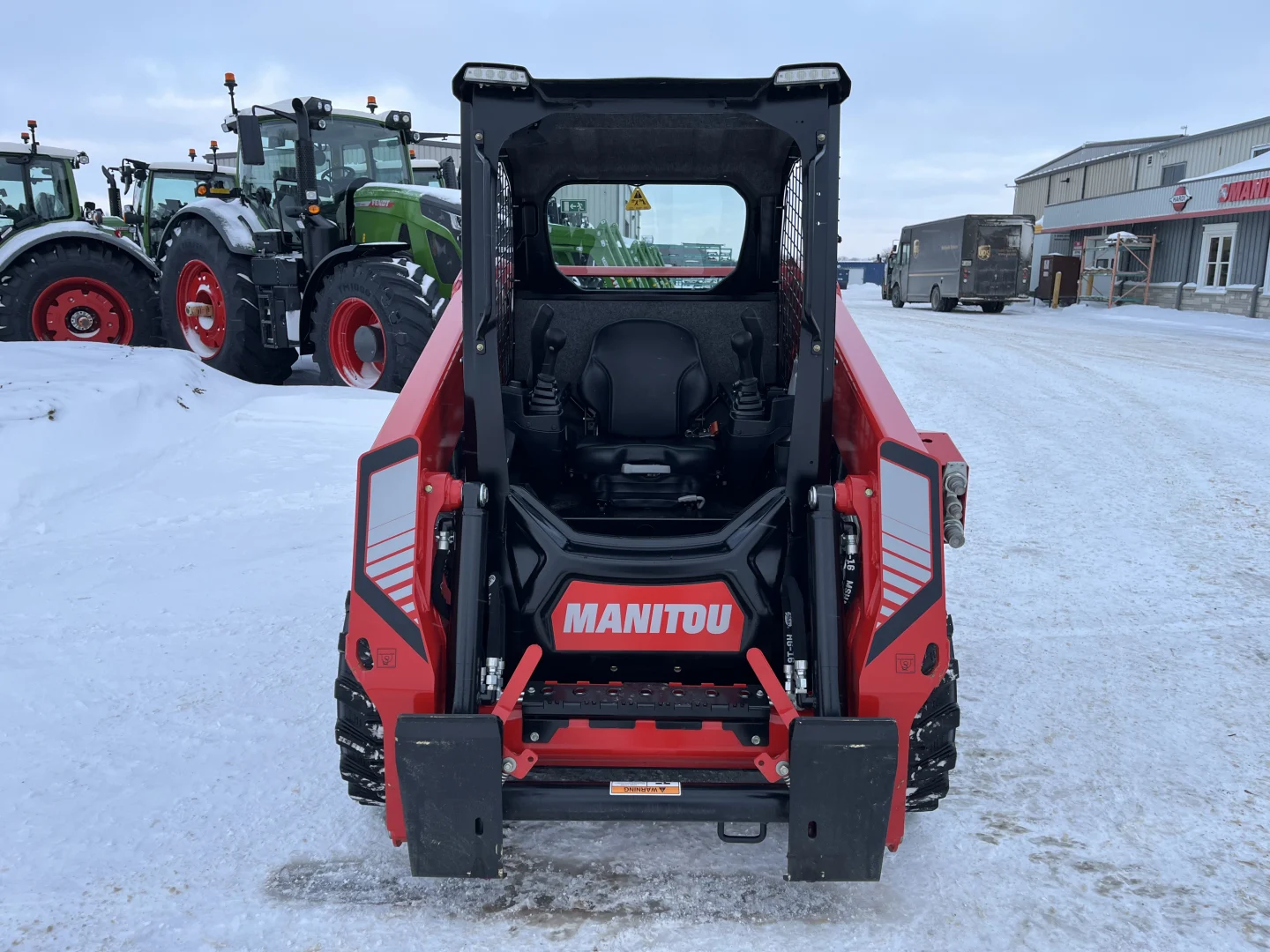

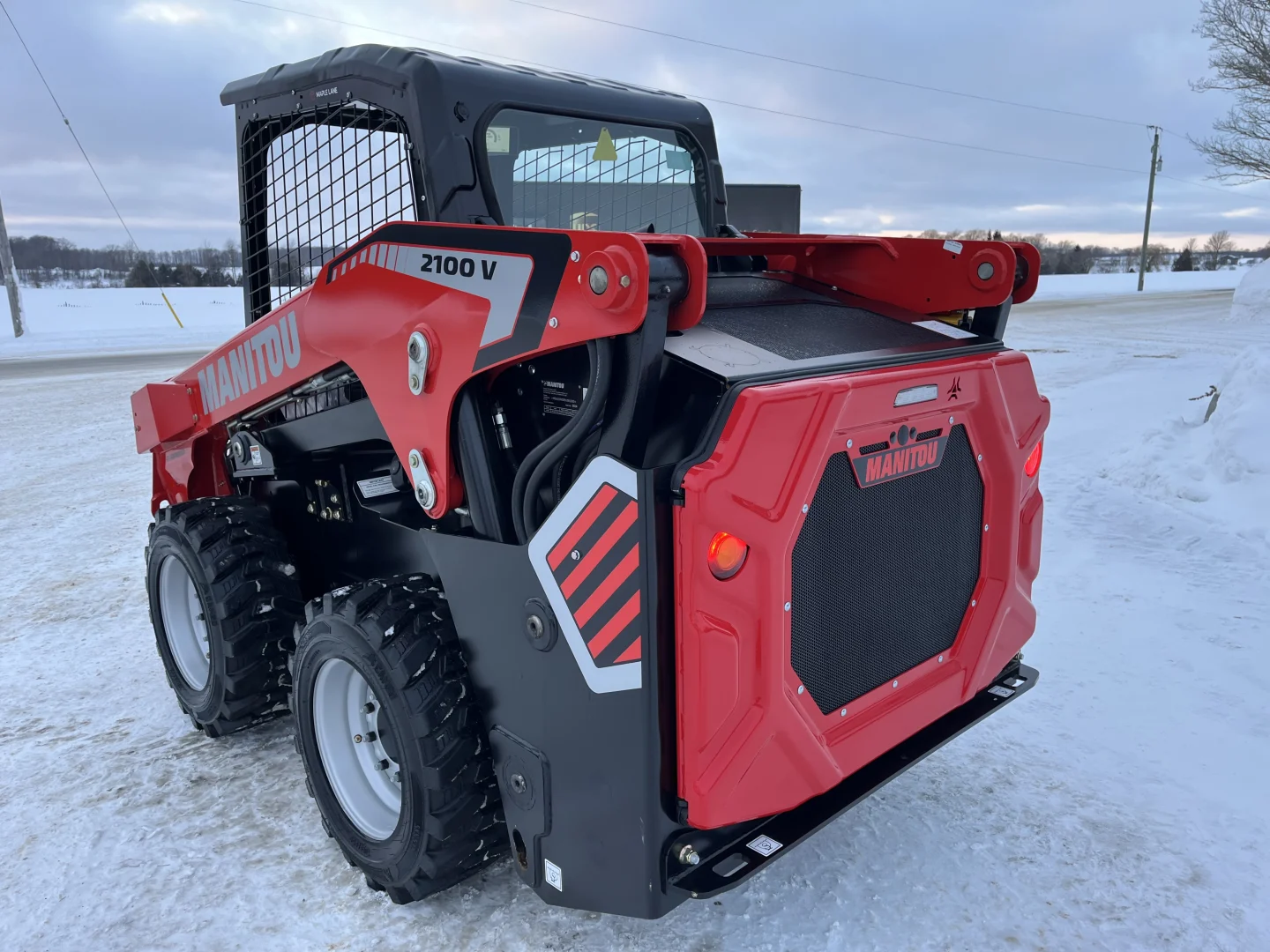

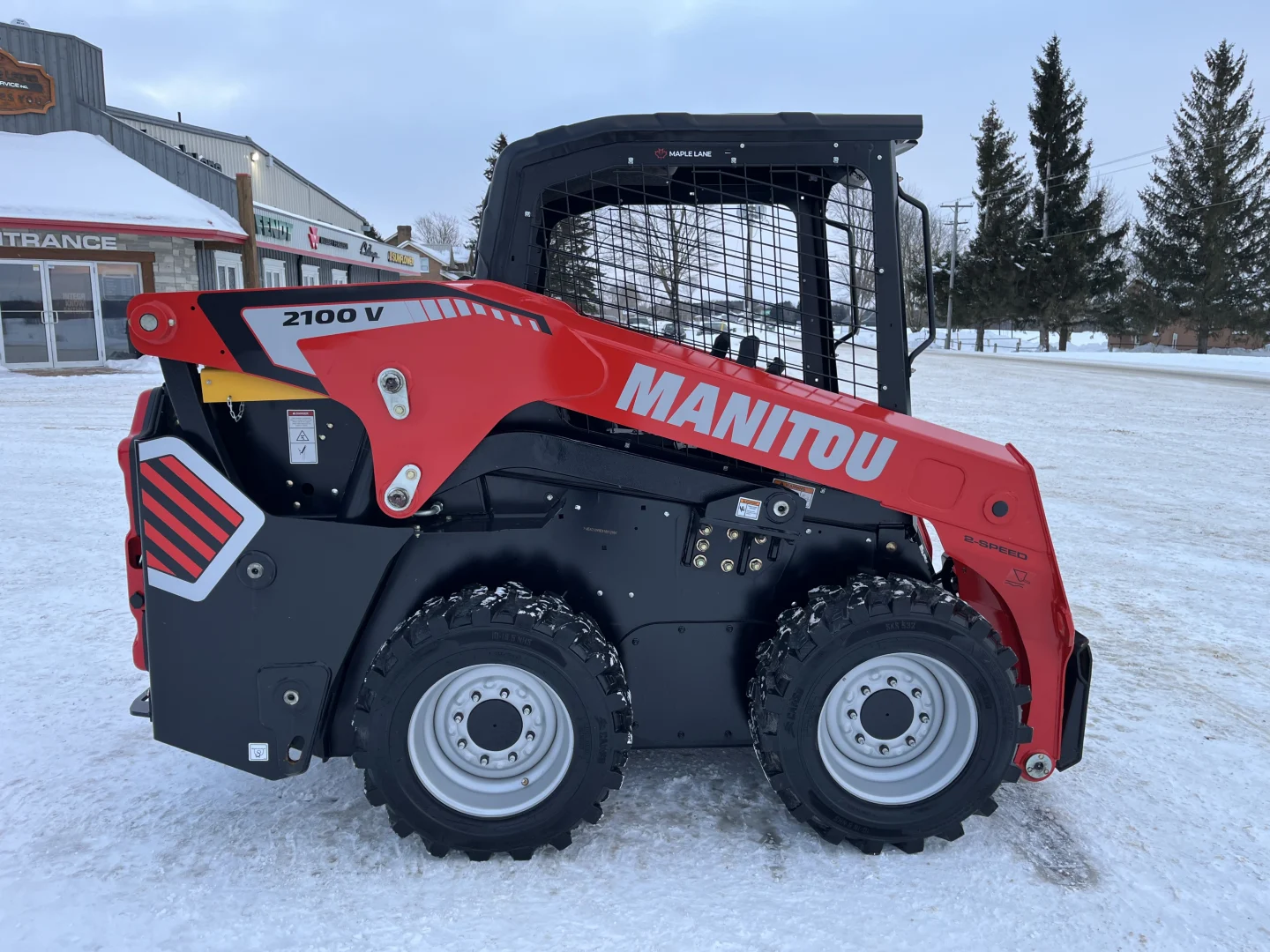

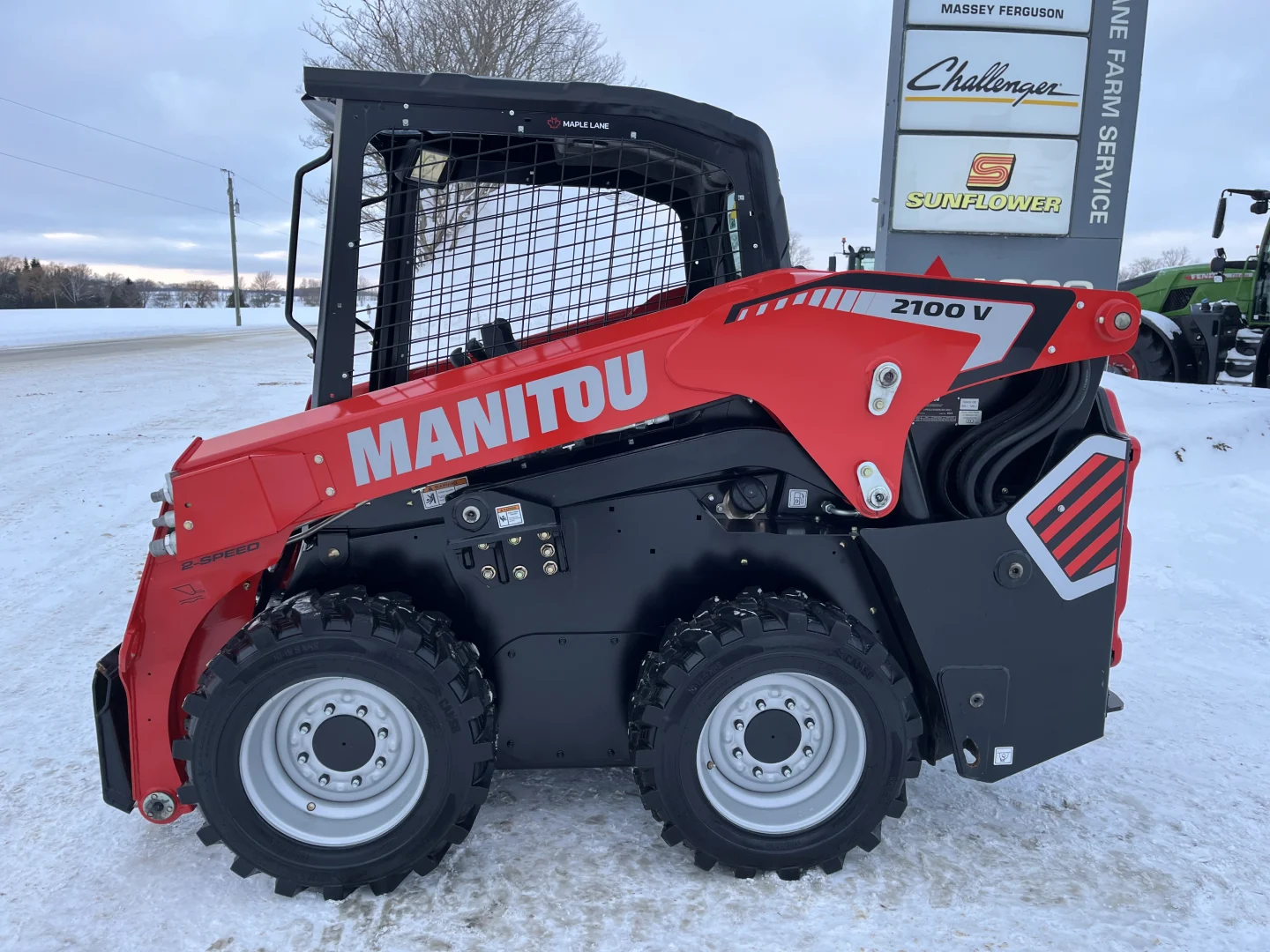

New 2024 Manitou 2100V

Used EquipmentUsed Construction EquipmentNew 2024 Manitou 2100V

Description

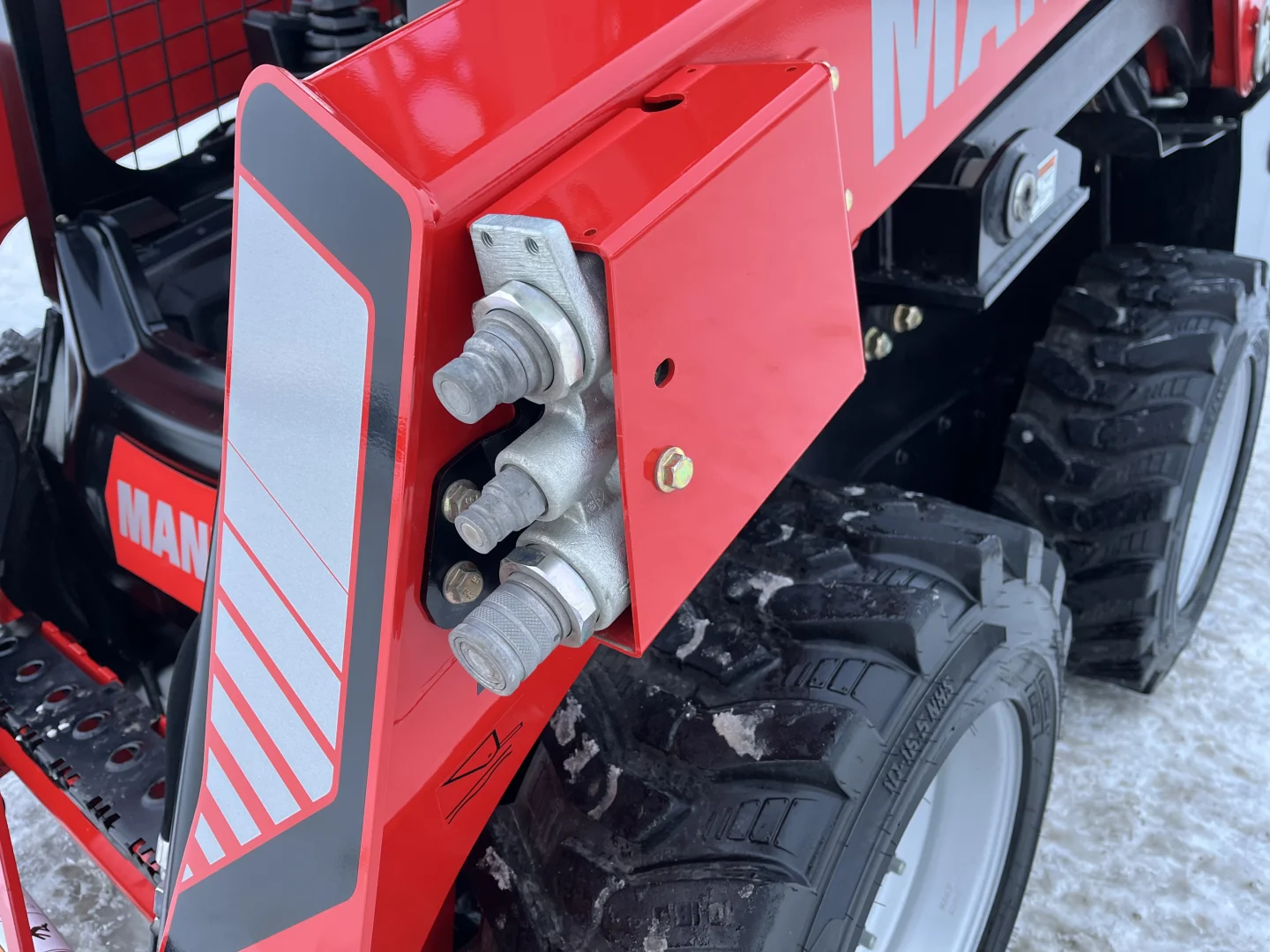

New old stock, open ROPS, 2-speed drive, joystick with ride control, manual quick-tach, regular flow front auxiliary hydraulics, 10.00×16.5 tires.
Categories Skid Steers
Unit Number 18354B
Condition New
Usage 15 Hours
Year 2024

Rentals not available for this equipment

Financing calculator not available for this equipment. Contact us for details.

Call SMS

Specifications


Engine
Engine Power51.45kW (69hp)
Rated Engine Speed2,500r/min
MakeYN 4TNV98C
Displacement0.87gal. (3.30L)
Number of Cylinders4
Fuel TypeDiesel
Fuel InjectionDirect Injection
CoolingLiquid Cooled
Fuel Tank Capacity28.00gal. (106L)

Transmission
Maximum Road Speed11.62mph (18.70km/h)

Hydraulics
PumpMNTOU 90 LPM
Total System Oil Volume22.71L (6gal.)
Maximum Operating Pressure23,897.23kPa (3,466psi)
Front Remote Valves1

Wheels

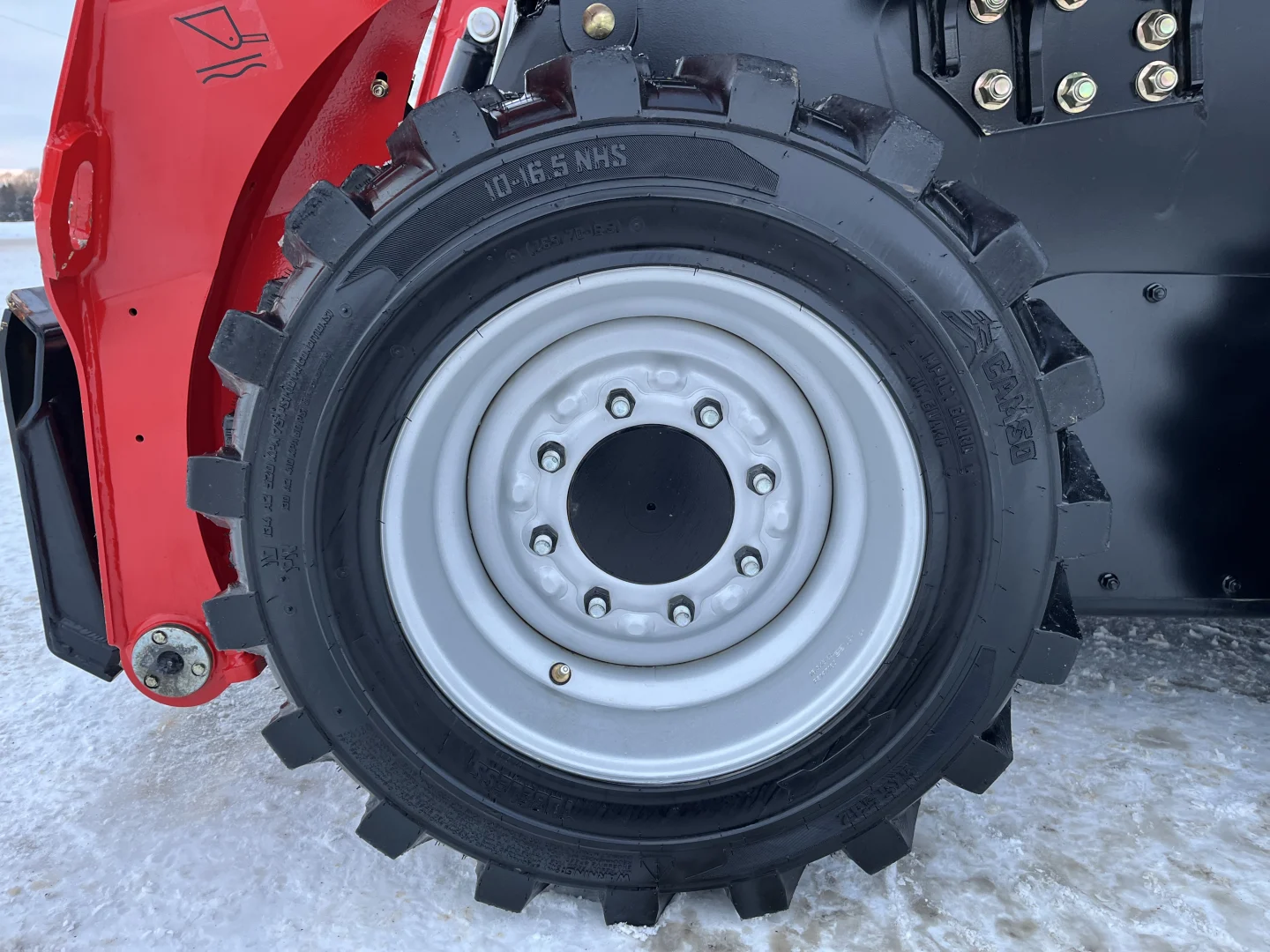

FrontCAMSO SKS 532 10-16.5 NHS
Size10-16.5
Ply10PR
Tread PatternR4 (Ind)
Section Width27.69cm (10-7/8")
Overall Diameter76.71cm (2' 6-3/16")
Static Loaded Radius35.56cm (1' 2")
Rolling Circumference231.65cm (7' 7-3/16")
RearCAMSO SKS 532 10-16.5 NHS
Size10-16.5
Ply10PR
Tread PatternR4 (Ind)
Section Width27.69cm (10-7/8")
Overall Diameter76.71cm (2' 6-3/16")
Static Loaded Radius35.56cm (1' 2")
Rolling Circumference231.65cm (7' 7-3/16")

Electrical
Worklight TypeHalogen

Operator Station

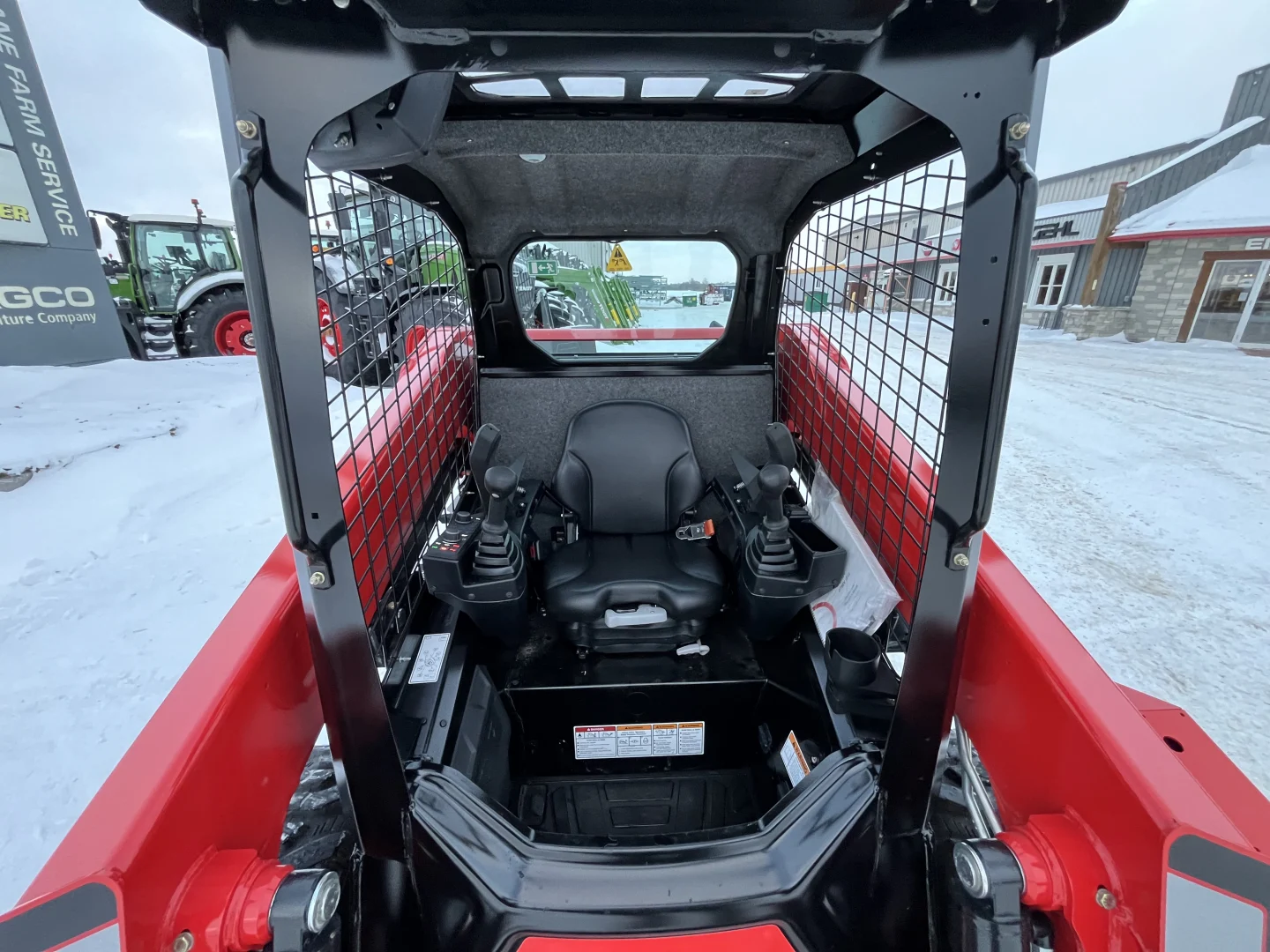

ConfigurationOpen ROPS

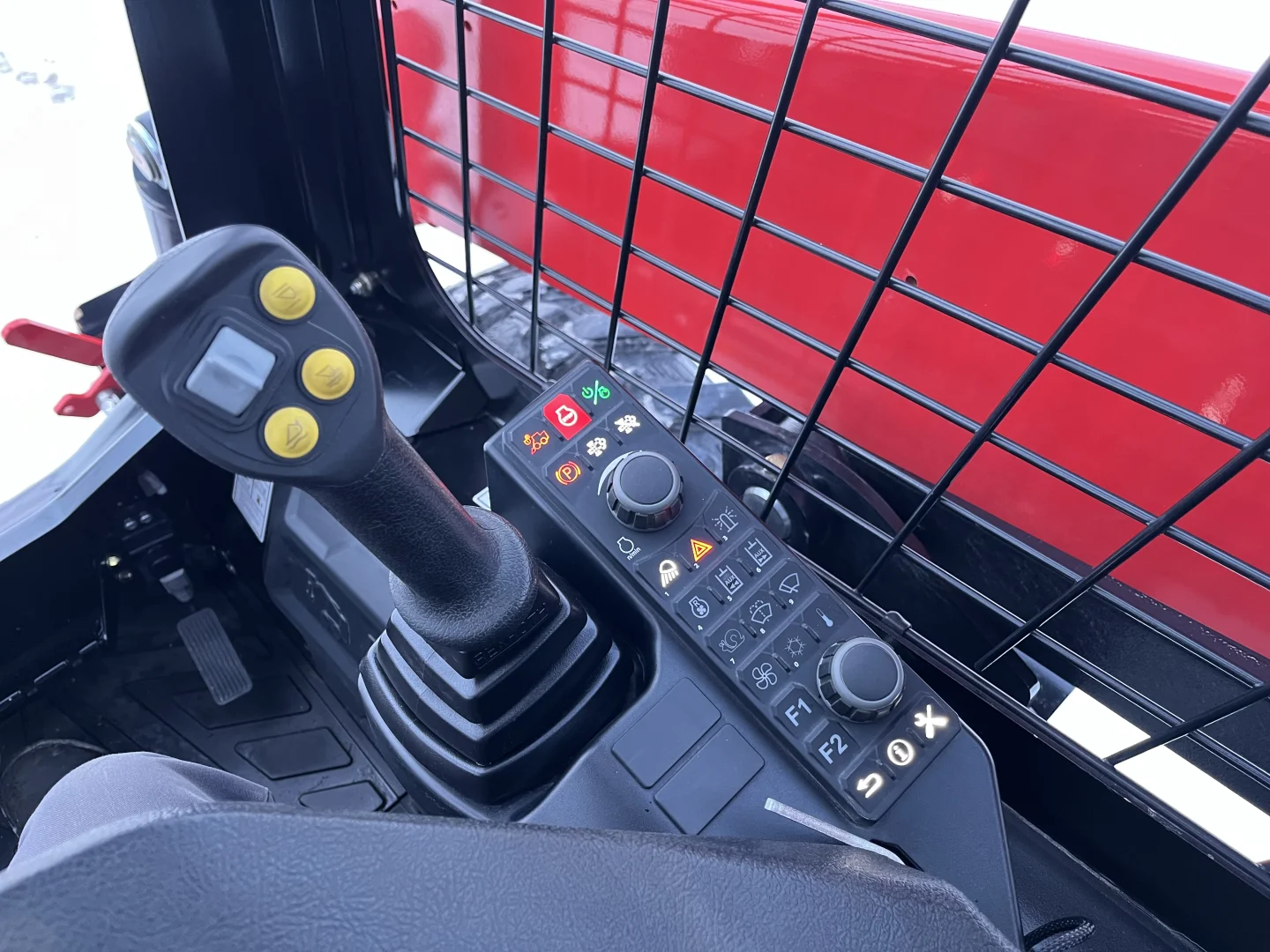

Steering ControlsJoystick
ThrottleHand, Foot Pedal
Operator SeatMNTOU High Back Adjustable
MaterialVinyl
Safety Arrest2pt Belt

Weights

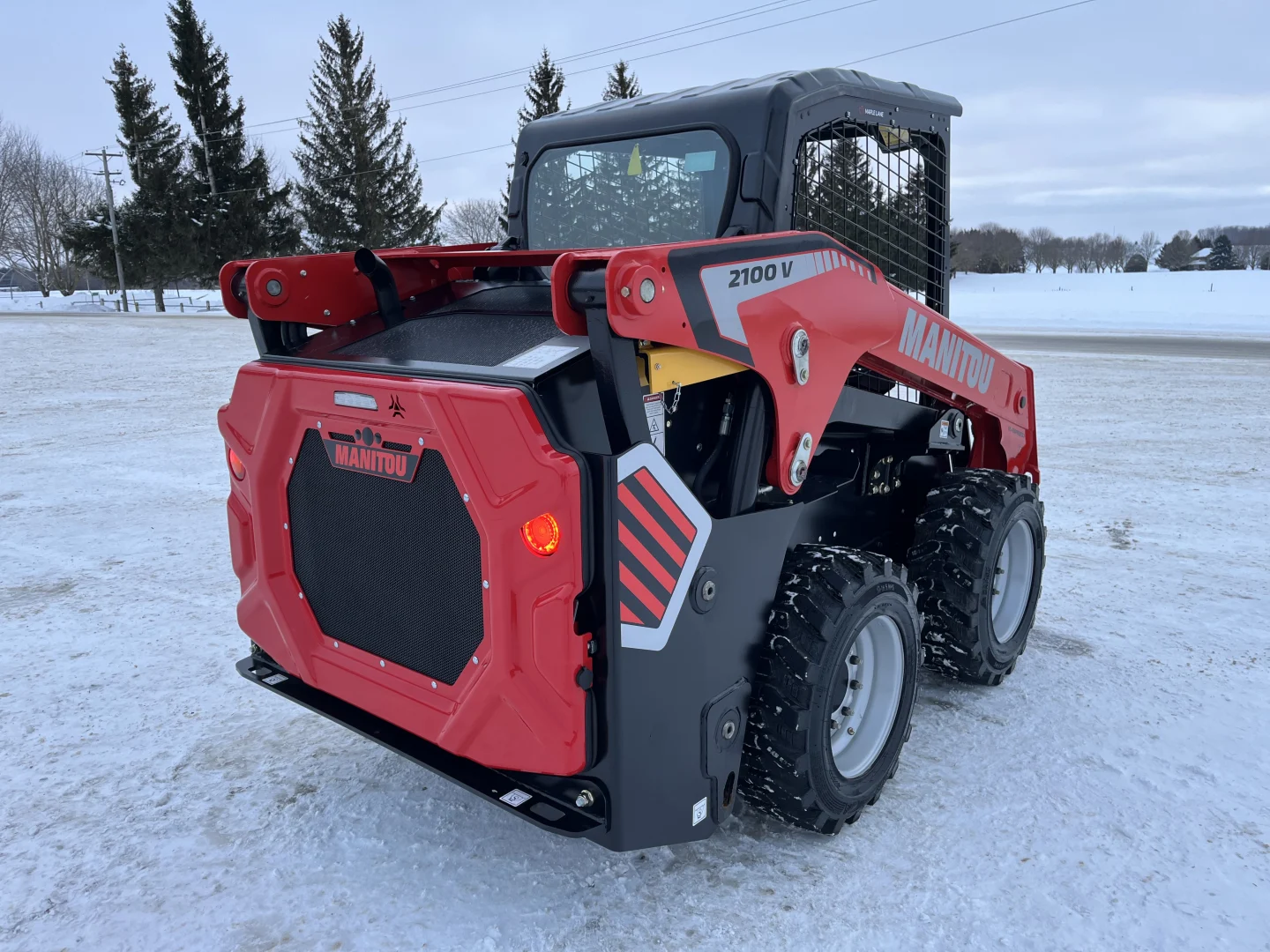

Rear WeightsMNTOU Bumper Counterweight
MountBolt
TypeBlock
Weight68.04kg (150lb.)

Dimensions
Length274.32cm (9')
Wheelbase109.22cm (3' 7")
Width162.56cm (5' 4")
Height203.20cm (6' 8")
Minimum Ground Clearance20.32cm (8")
Weight3,392.87kg (7,480lb.)

Boom
Lift Capacity952.54kg (2,100lb.)
Maximum Lift Height – Pivot Pin307.34cm (10' 1")
SAE Tipping Point1,905.09kg (4,200lb.)
Ranges1
Max Dump Angle42deg
ComfortDependent on: Operator Station/Steering Controls/Joystick
Tool CarrierSkid Steer Quick Attach
Lift PathVertical
