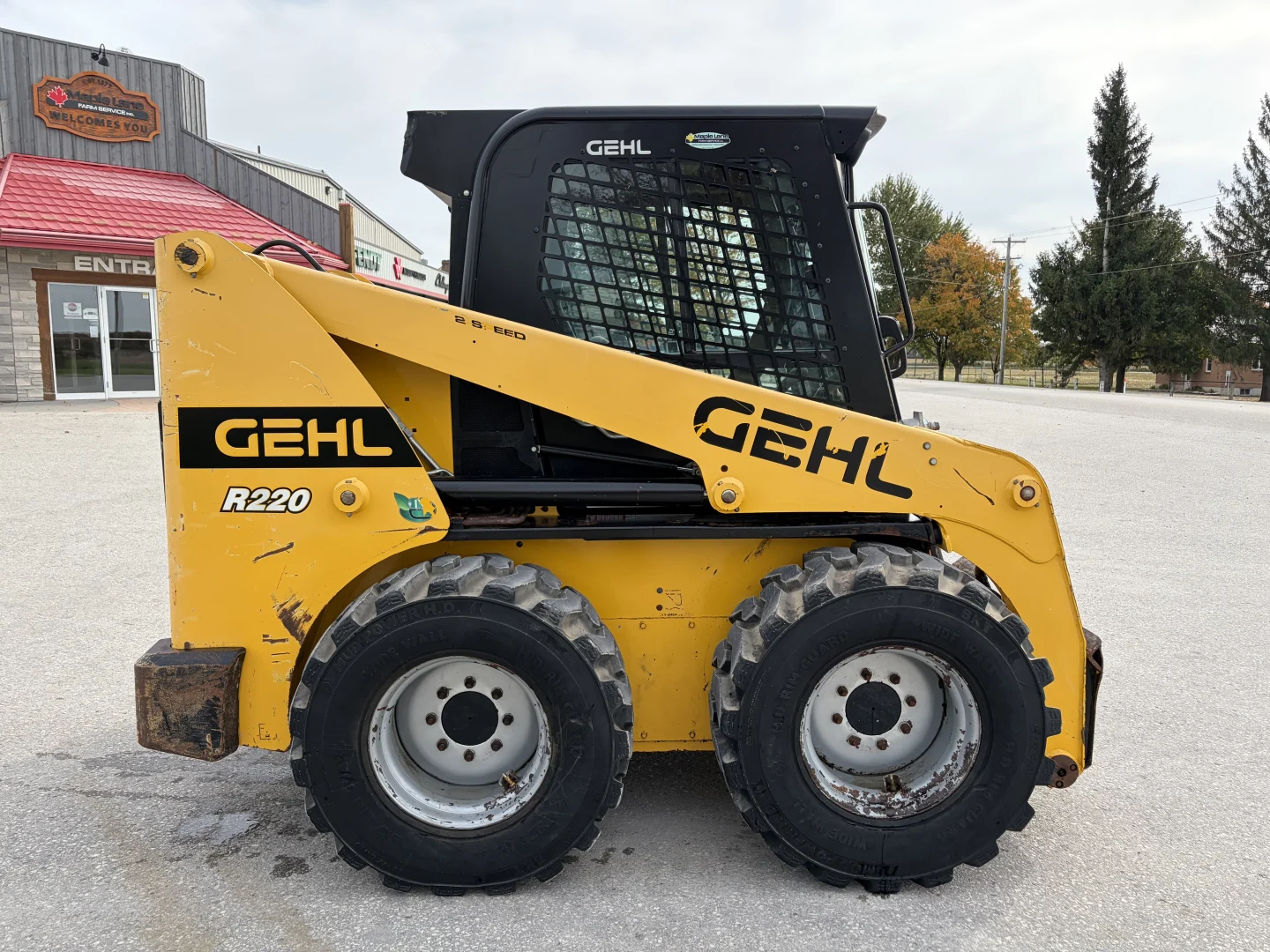

Used 2020 GEHL R220

Used Equipment › Used Construction Equipment › Used 2020 GEHL R220

Description

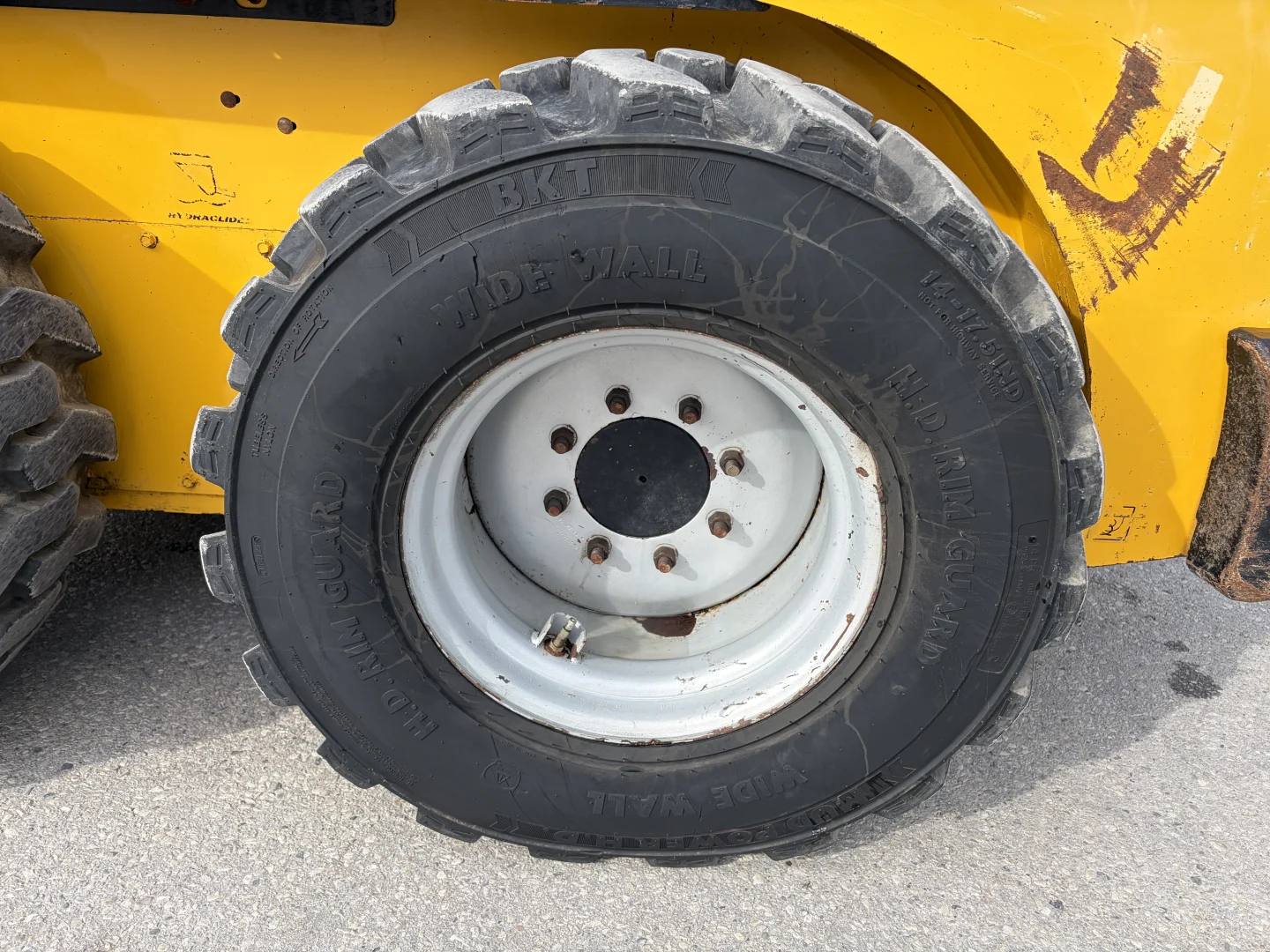

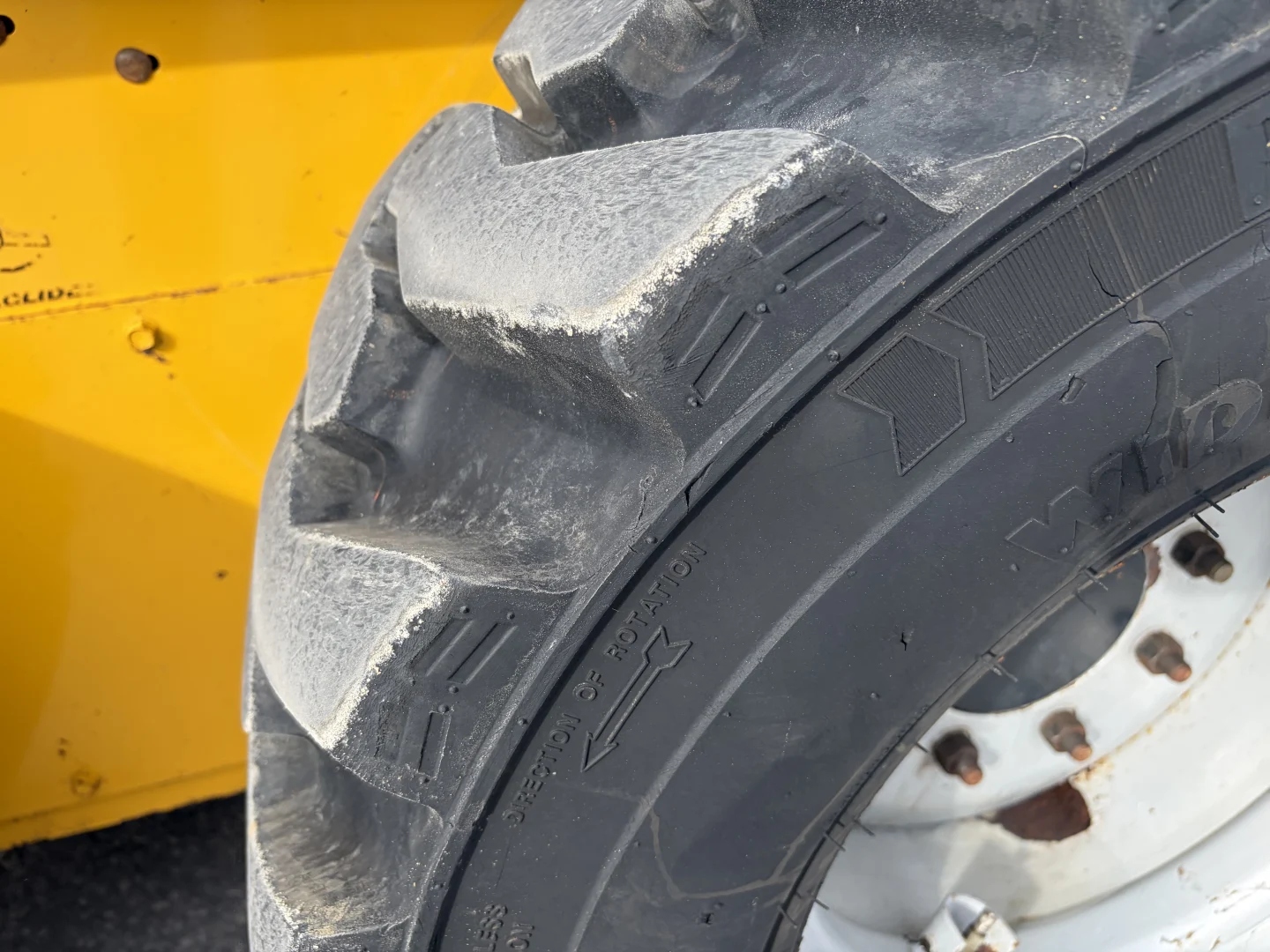

Cab & heater, joystick with ride control, 2-speed, hydraulic quick-tach, hi-flow front auxiliary, 14.00×17.5 tires.
Categories Skid Steers
Unit Number 18404B
Condition Used
Usage 2,875 Hours
Year 2020
Cost $44,900.00 CAD

Financing calculator not available for this equipment. Contact us for details.

Call SMS

Rentals not available for this equipment

Specifications

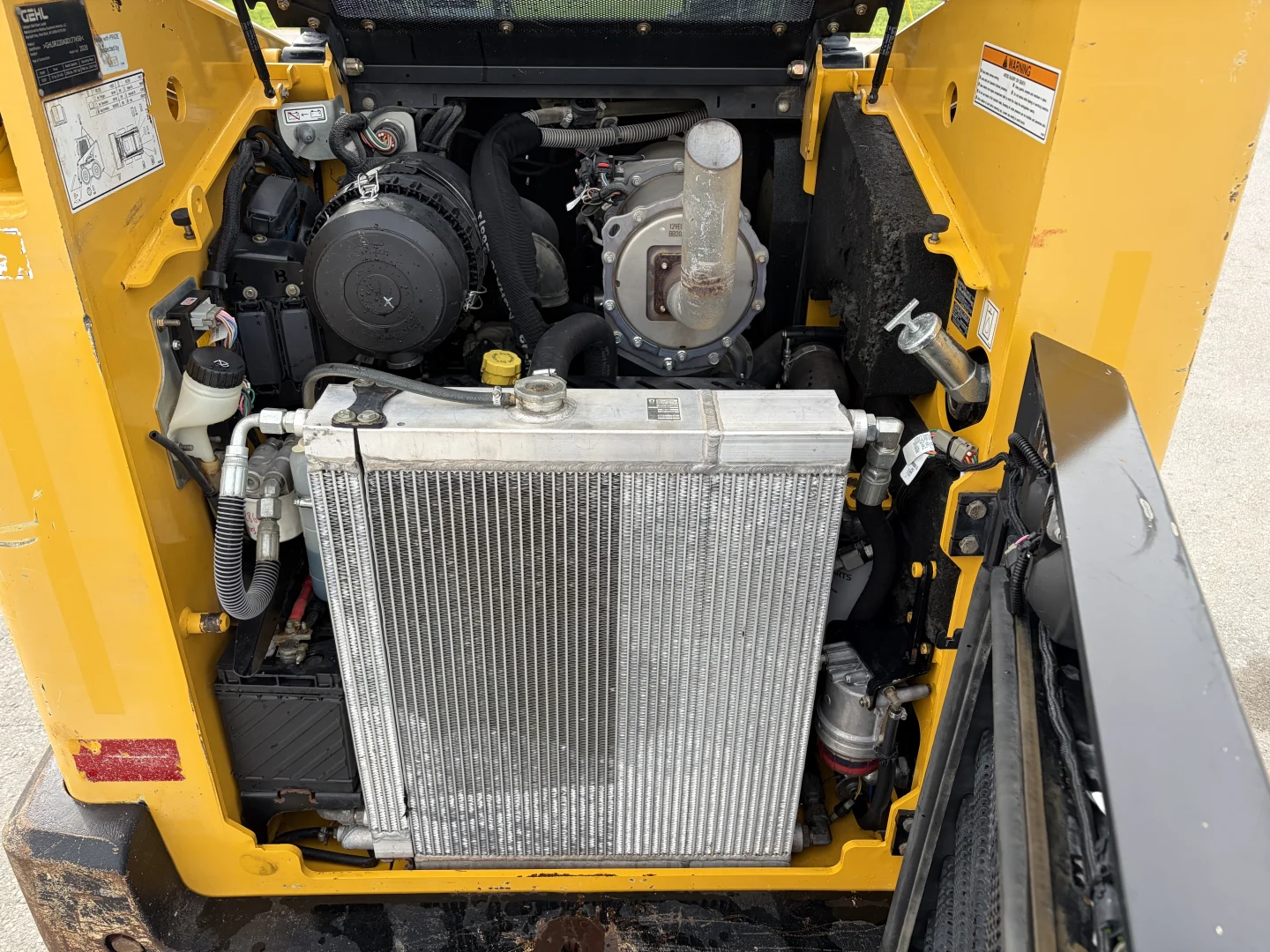

Engine
Engine Power52.72kW (70.70hp)
Rated Engine Speed2,500r/min
MakeYN 4TNV98CT
Displacement0.87gal. (3.30L)
Number of Cylinders4
Fuel TypeDiesel
Fuel InjectionDirect Injection
AspirationTurbocharged
CoolingLiquid Cooled
Emission ComplianceStage V, Tier 4F
Fuel Tank Capacity17.99gal. (68.10L)

Transmission
Maximum Road SpeedDependent on: Transmission/Ranges/2
TypeHydrostatic
Ranges2

Hydraulics
PumpGH 35 GPM
Maximum Flow35.01GPM (132.50L/min)
Maximum Operating Pressure22,063.22kPa (3,200psi)
Available Remote Flow Capacity8.00gal. (30.30L)
Front Remote Valves1

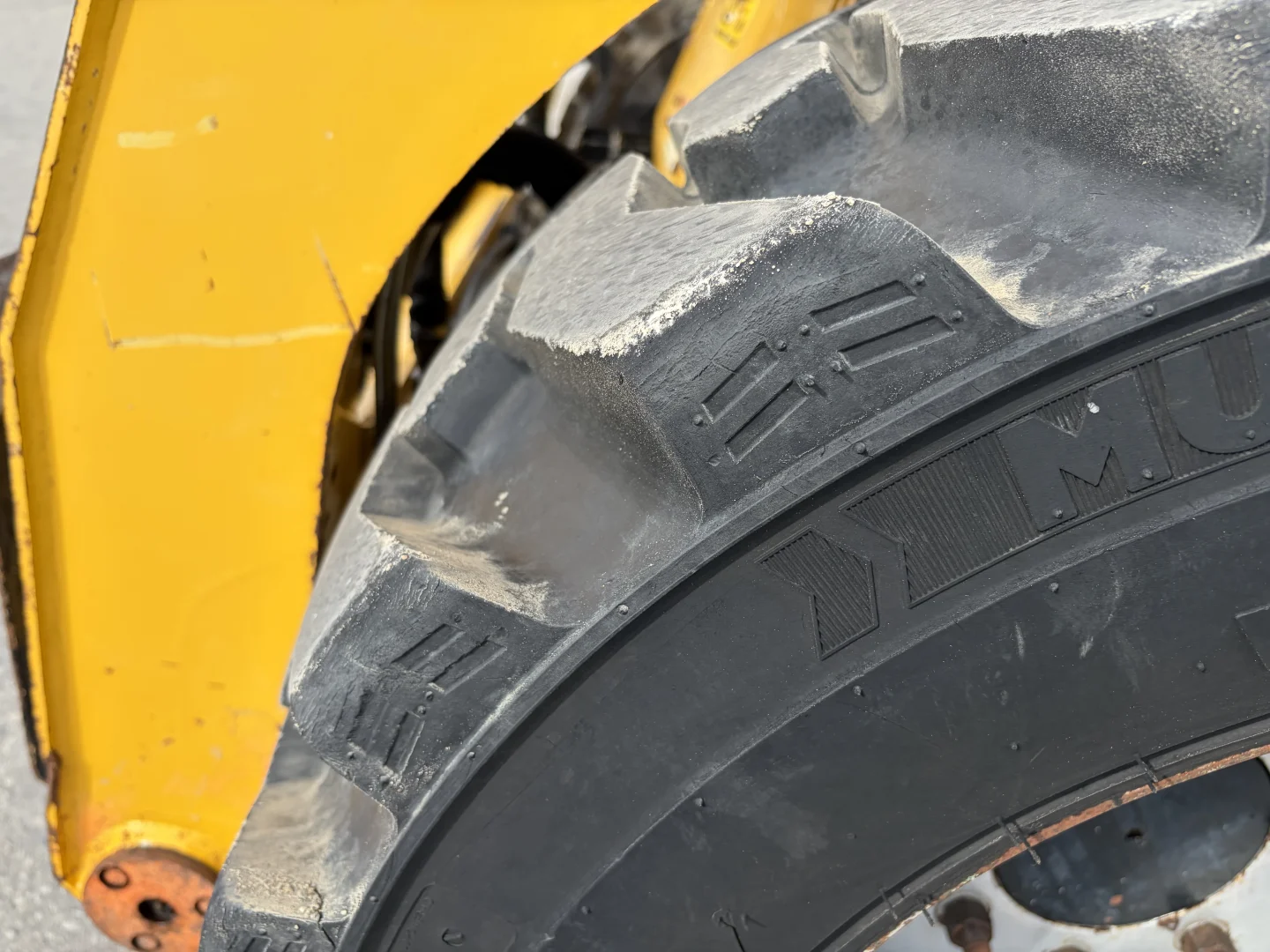

Wheels
FrontCAMSO SKS 532 12-16.5 NHS
Size12-16.5
Ply12PR
Tread PatternR4 (Ind)
Section Width33.02cm (1' 1")
Overall Diameter83.06cm (2' 8-11/16")
Static Loaded Radius38.35cm (1' 3-1/8")
Rolling Circumference251.21cm (8' 2-7/8")
ConstructionBias
Flexion ClassStandard
RearCAMSO SKS 532 12-16.5 NHS
Size12-16.5
Ply12PR
Tread PatternR4 (Ind)
Section Width33.02cm (1' 1")
Overall Diameter83.06cm (2' 8-11/16")
Static Loaded Radius38.35cm (1' 3-1/8")
Rolling Circumference251.21cm (8' 2-7/8")
ConstructionBias
Flexion ClassStandard

Electrical
Worklight TypeHalogen
Front Lights2
Rear Lights2
Alternator100A
Battery Cold Start950CCA

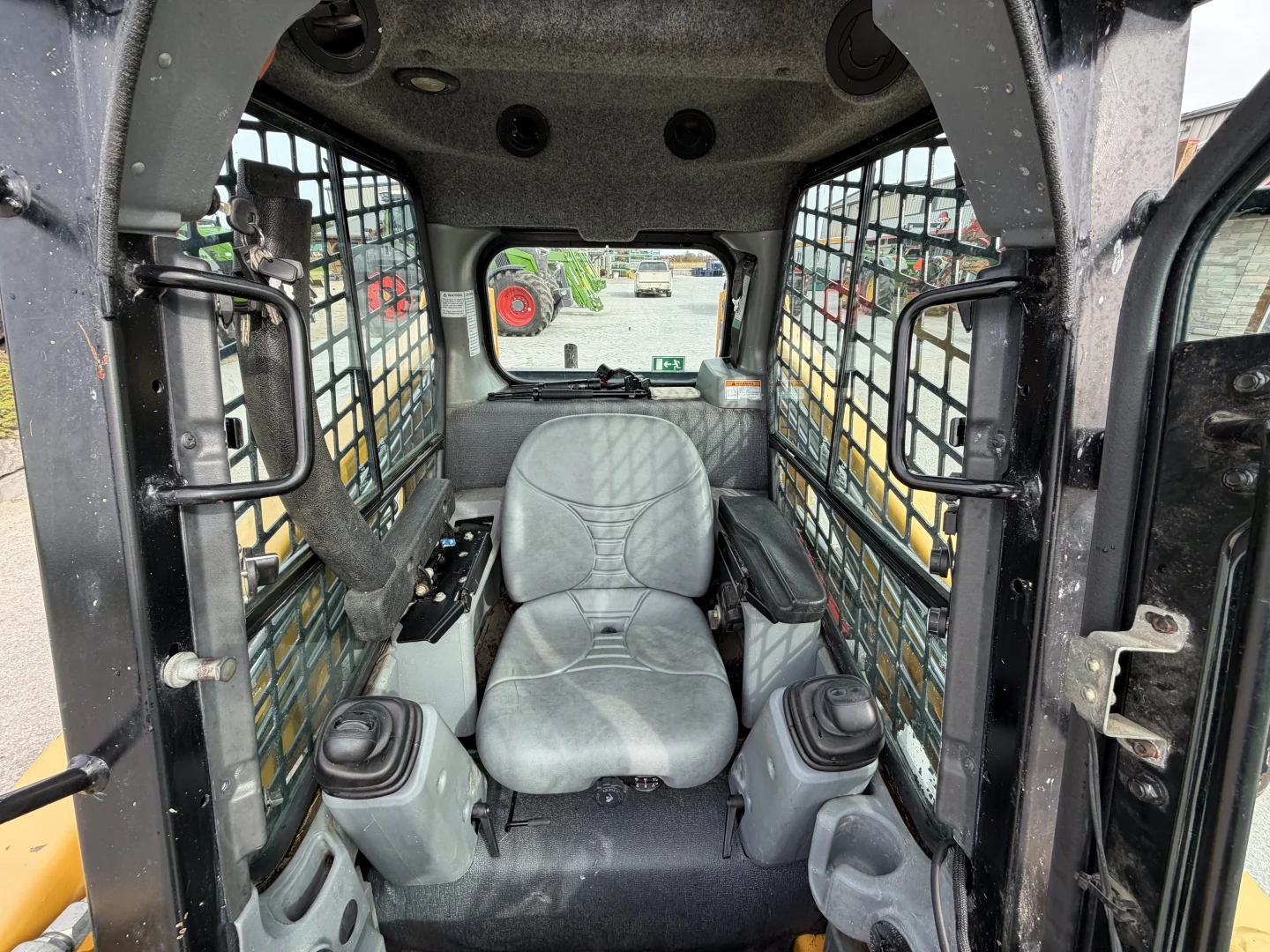

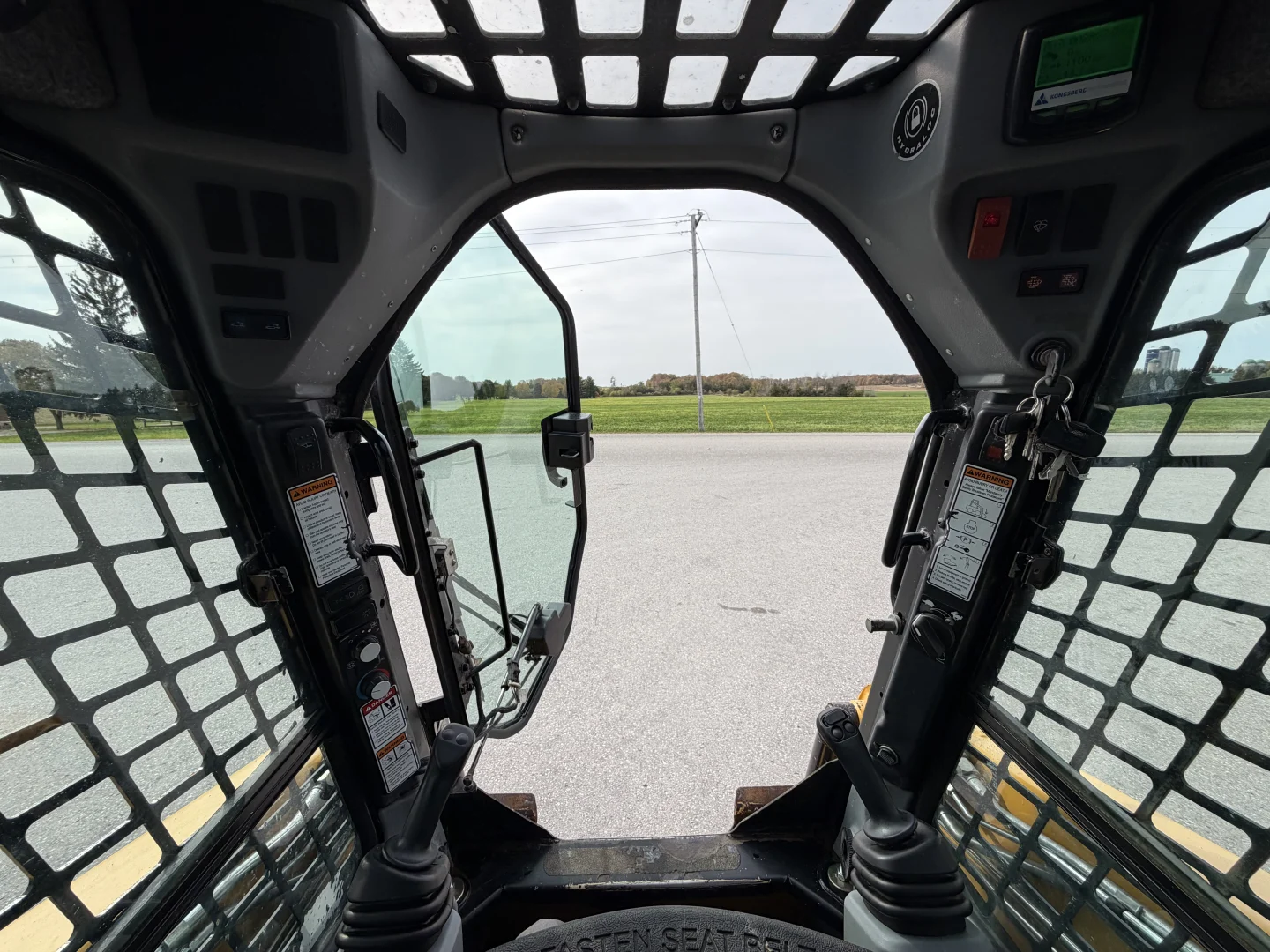

Operator Station
ConfigurationCab, Side Windows
Steering ControlsJoystick

Technology
Instrument DisplayDigital Dash Display

Weights
Rear WeightsGH Bumper Counterweight
MountBolt
TypeBlock
Base Weight68.04kg (150lb.)

Dimensions
LengthDependent on: Weights/Rear Weights/GH Bumper Counterweight
Wheelbase3' 7" (1,092mm)
Width5' 5-1/2" (1,664mm)
Height6' 9" (2,057mm)
Minimum Ground Clearance8" (203mm)

Boom
Maximum Lift Height – Pivot Pin10' 3" (3,124mm)
Lift Capacity to Max Height – Pivot PinDependent on: Weights/Rear Weights/GH Bumper Counterweight
SAE Tipping Point4,400.43lb. (1,996kg)
Breakout Force – Pivot Pin5,599.74lb. (2,540kg)
Max Rollback Angle28deg
Max Dump Angle40deg
ComfortHydraulic Bucket Lock, Dependent on: Operator Station/Steering Controls/Joystick

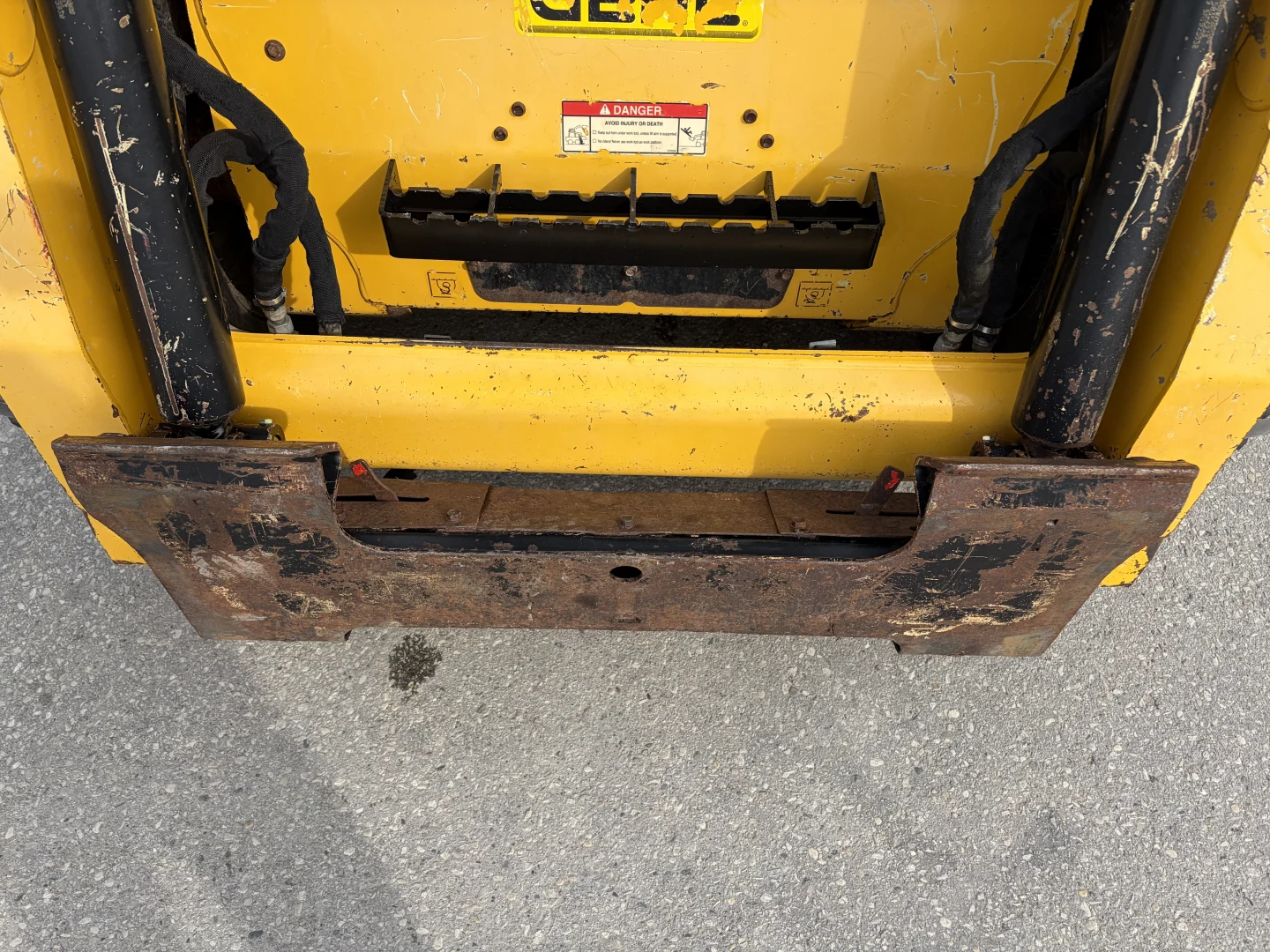

Tool CarrierSkid Steer Quick Attach
Lift PathRadial
