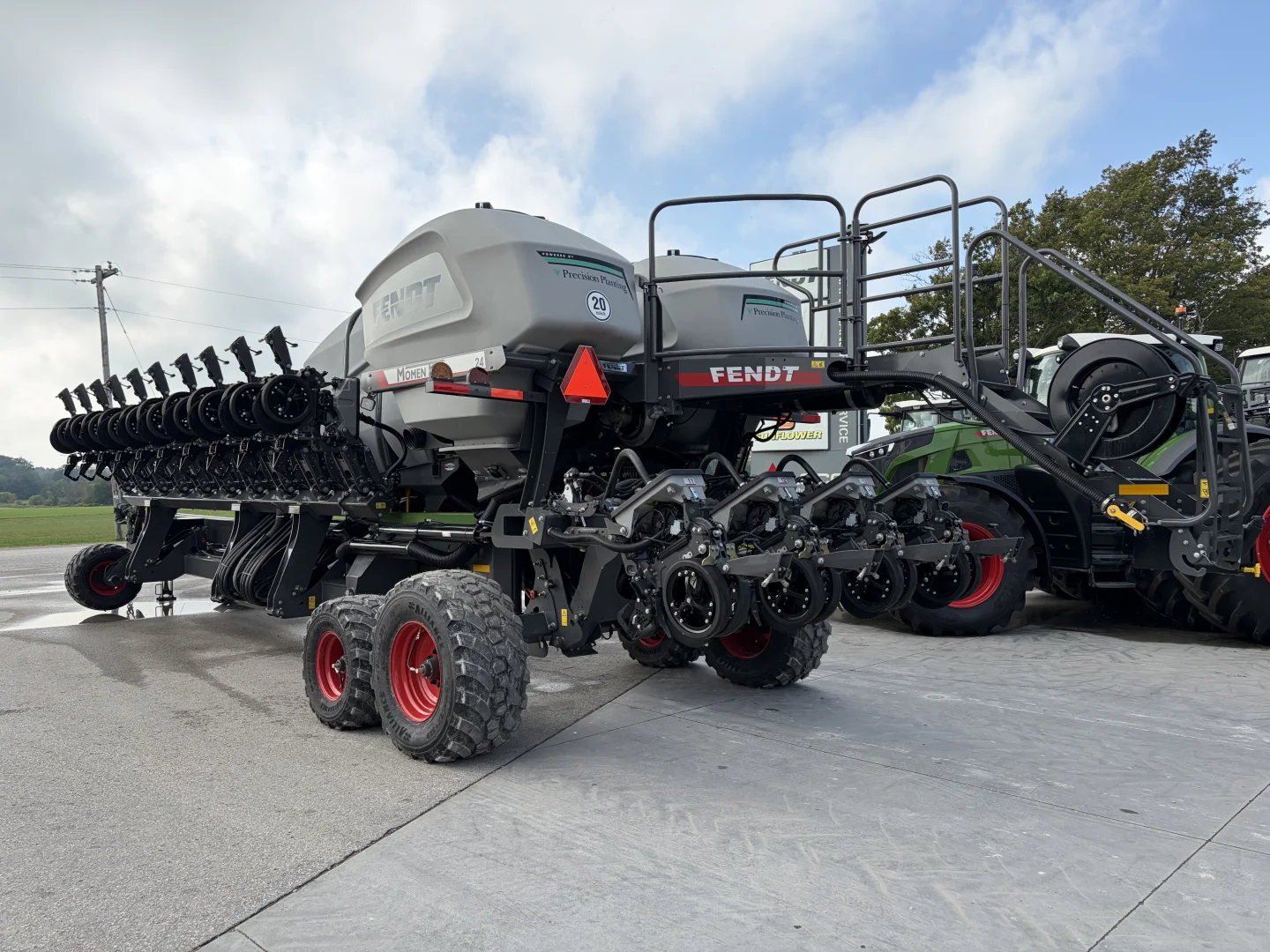

New 2023 Fendt Momentum 24R30

Used EquipmentUsed PlantingNew 2023 Fendt Momentum 24R30

Description

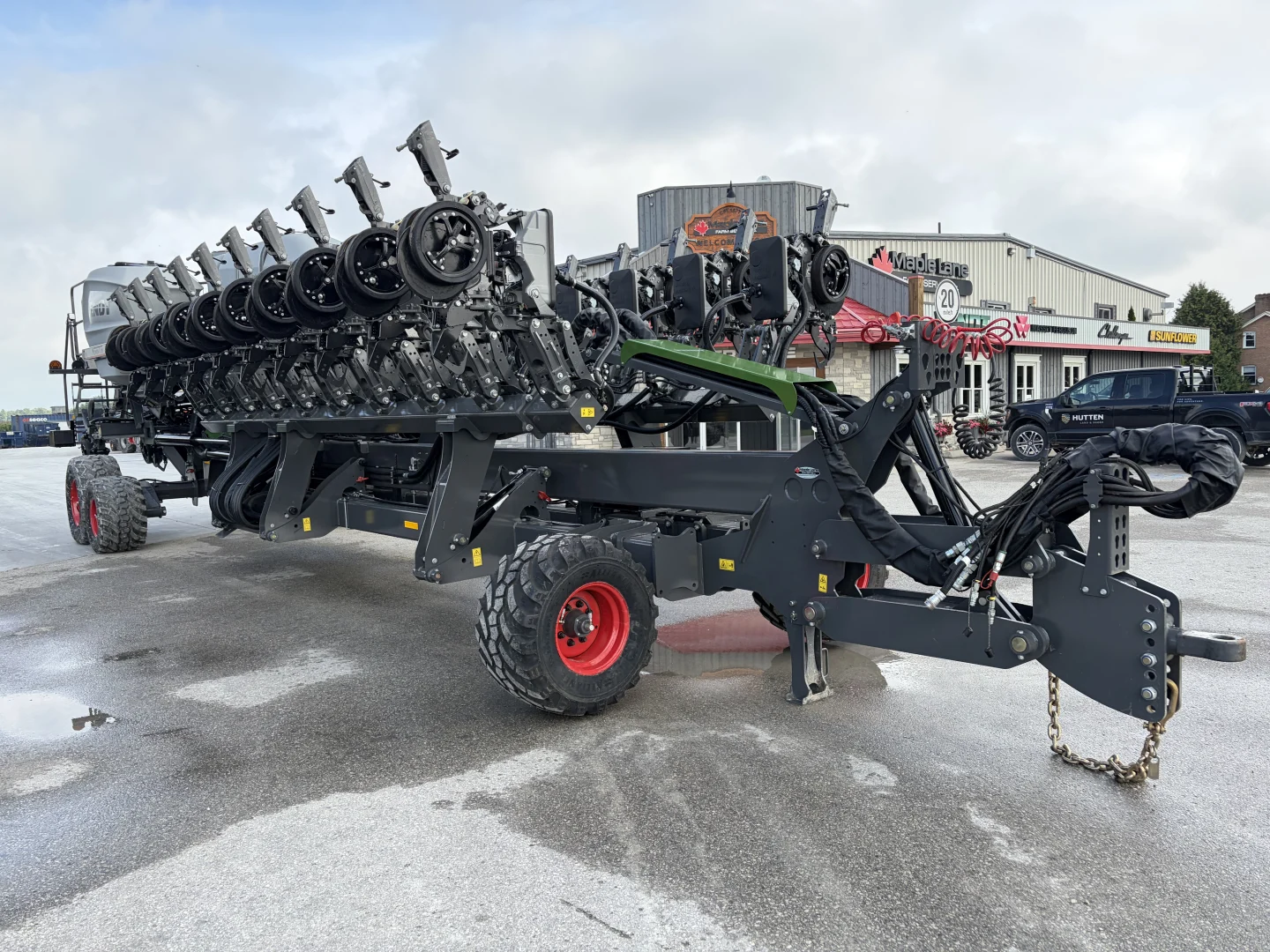

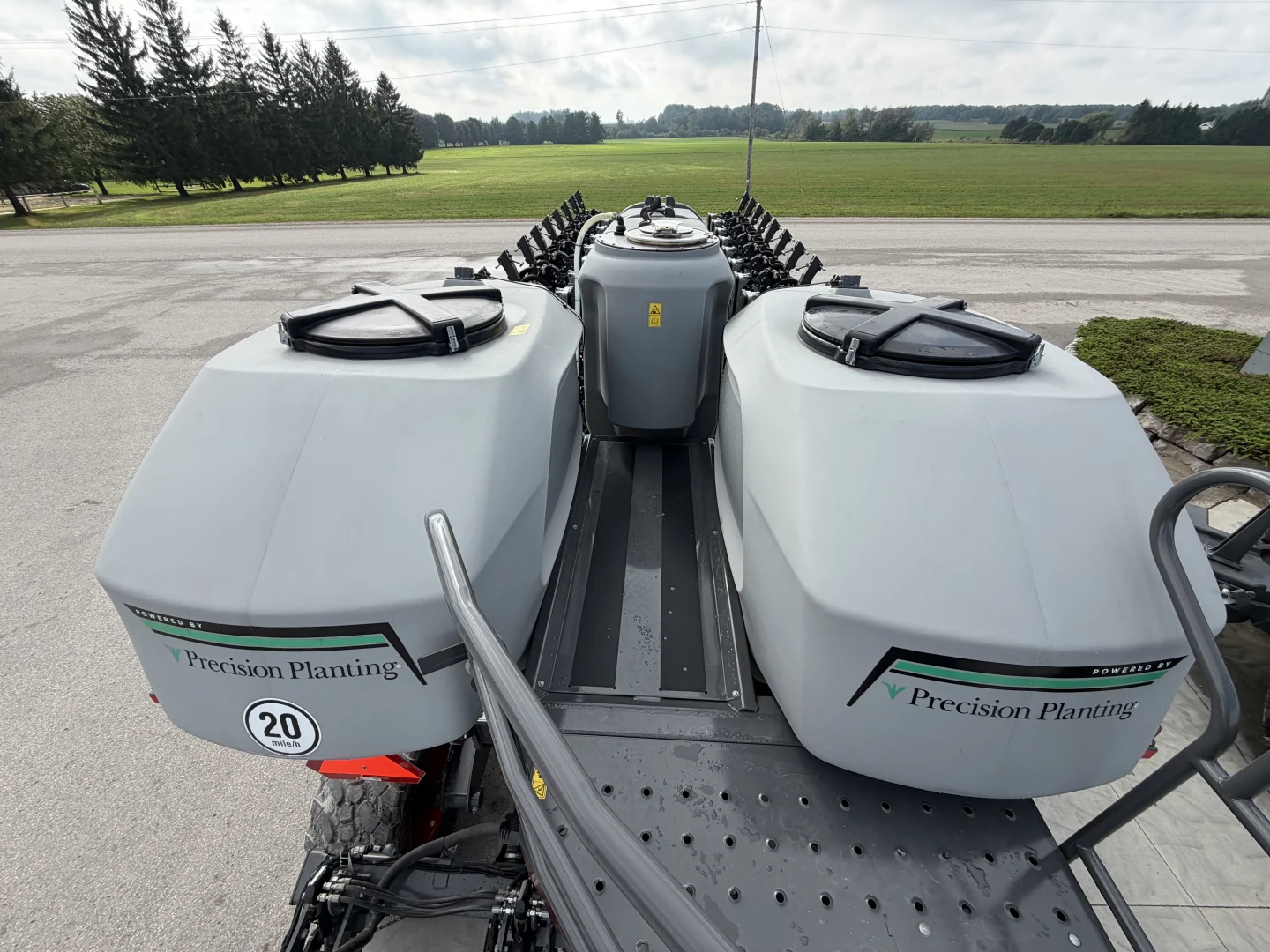

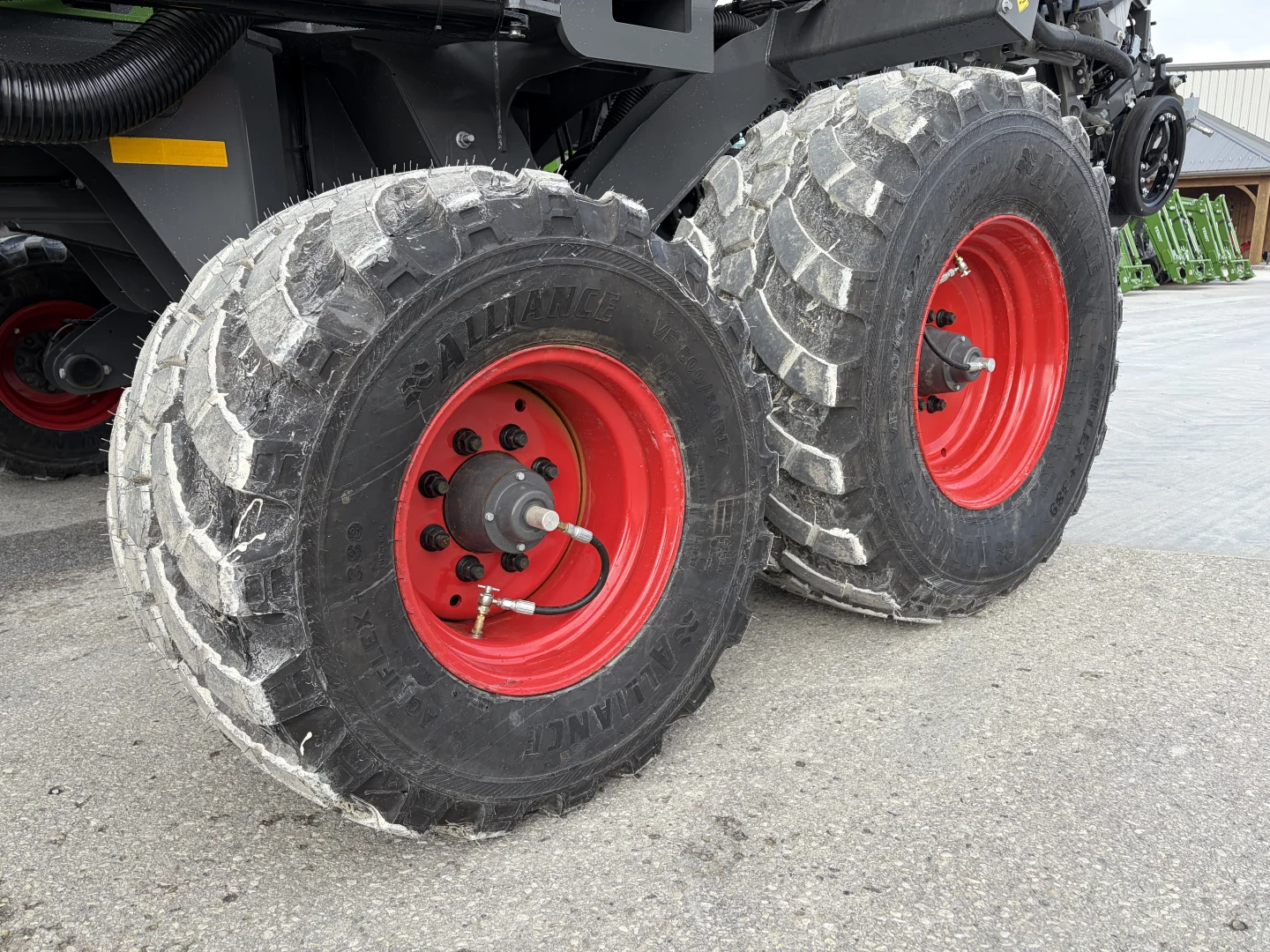

*New*, 2023 model year, 24 row, 30″ spacing, 3 section vertical contouring toolbar, Load Logic- automatic weight distribution and automatic tire inflation, inline tandems- VF500/60R22.5, VF500/70R17 tires, drawbar hitch, twin 65 bu. seed tanks, 3″ spoked gauge wheels, vSet 2 meters with corn discs, DeltaForce hydraulic downforce, Speed Tubes, Gen3 20/20 monitor, 1000 gallon liquid fertilizer tank, Yetter Sharktooth row cleaners, Gold Star Customer Care 3 year/12,000 acre warranty and maintenance programReady to be fitted with a wide range of Precision Planting components!
Categories Planters
Unit Number 18079B
Condition New
Year 2023

Financing calculator not available for this equipment. Contact us for details.

Call SMS

Rentals not available for this equipment

Specifications


Frame
Linkage2 Point
Drawbar Weight8,000.58lb. (3,629kg)
ToolbarVertical Contouring
Maximum Working Width18.29m (60')
Sections3
Wing Travel172.72cm (5' 8")
Wing Flex21deg
Foldhydraulic
Fold TypeFront Fold
Jack StandManual

Row Units
Row Count24
Row Spacing76.20cm (2' 6")
Row Shut OffIndividual
Hopper0.33bu.
MetervSet 2
Meter DrivevDrive
Opener Diameter40.64cm (1' 4")
OpenersSmooth Double Disc
Minimum Seed Depth0.64cm (1/4")
Maximum Seed Depth11.43cm (4-1/2")
Seed PlacementGravity Tube
Gauge Wheels3" Solid
Gauge Wheel ScraperDependent on: Row Units/Gauge Wheels/3" Solid
Closing SystemRubber Wheel
Down ForceDeltaForce
Minimum Downforce-90.72kg (-200lb.)
Maximum Downforce294.83kg (650lb.)
Seed SensingDependent on: Row Units/Meter/vSet 2

Technology
Display20/20 Gen3
Section ControlSectionControl
Variable Rate ControlVariable Rate Control

Power Requirements
Minimum Engine Horsepower143.17kW (192hp)
Minimum Hydraulic Flow20.00GPM (75.70L/min)
Maximum Hydraulic Flow40.00GPM (151.40L/min)
Maximum Hydraulic Pressure20,684.27kPa (3,000psi)
Minimum Hydraulic Pressure16,547.42kPa (2,400psi)
Hydraulic InterfacePower Beyond
Double Acting Remote1
Electrical Power90A
Drive SystemHydraulic

Transport
Transport Width3.66m (12')
Transport Height3.51m (11' 6")
Transport Length13.41m (44')
Transport Wheels6
AxleWalking Tandem

Inputs
Seed DistributionCentral Fill

Electrical
Alternator160A

Capacity
Grain Tank130bu.

Dimensions
Minimum Ground Clearance1' 3" (381mm)
Weight30,492.14lb. (13,831kg)
