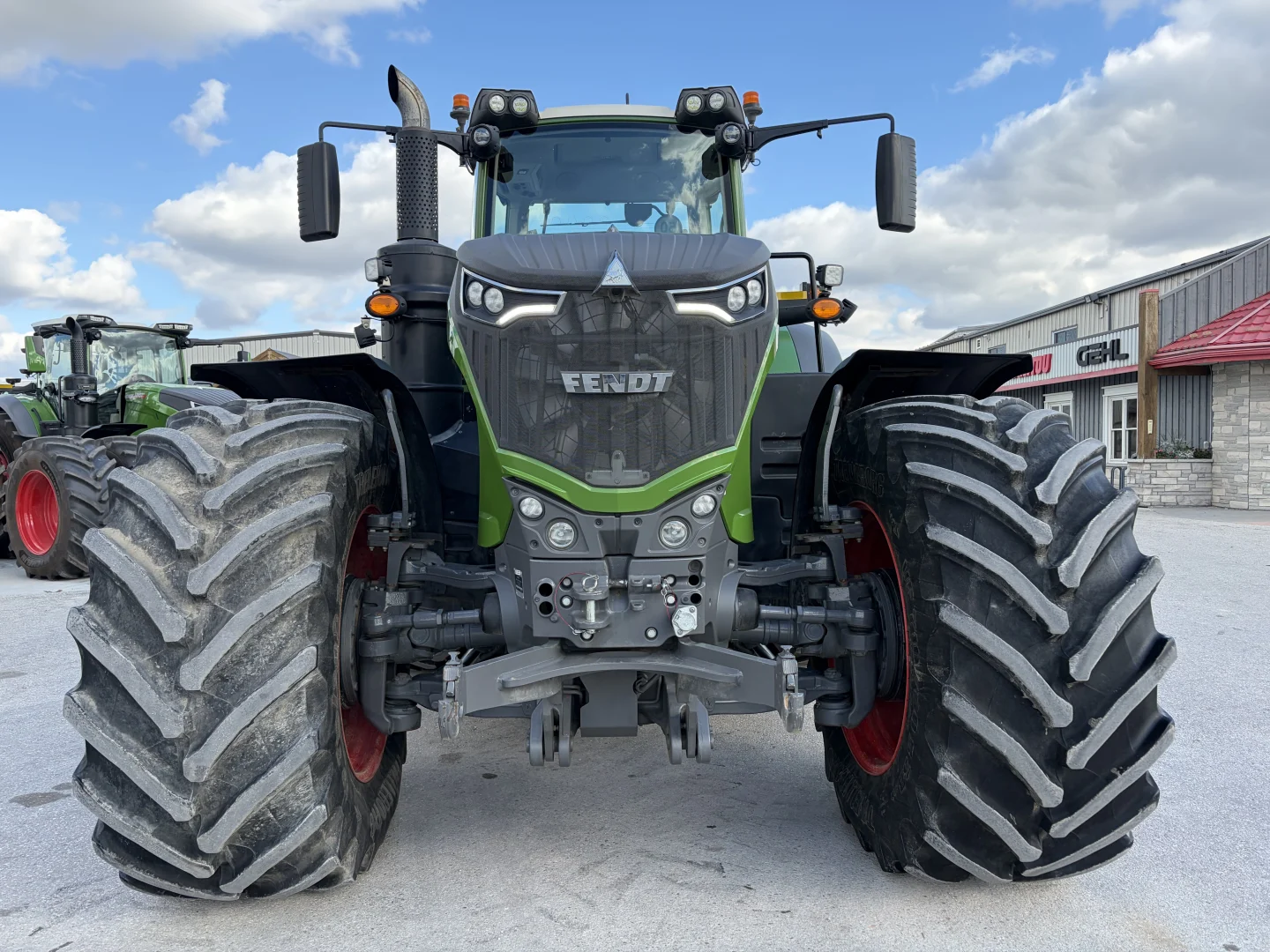

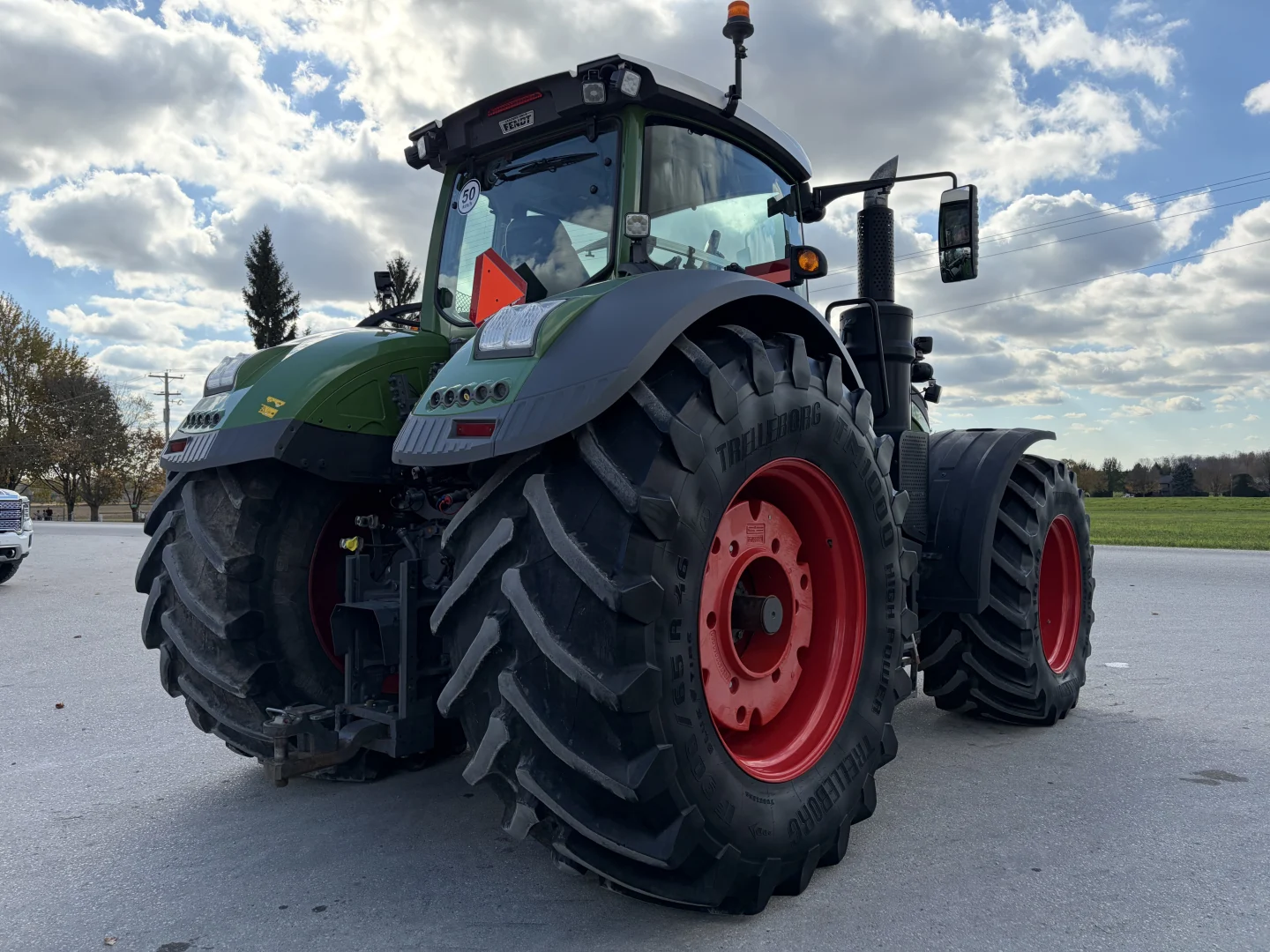

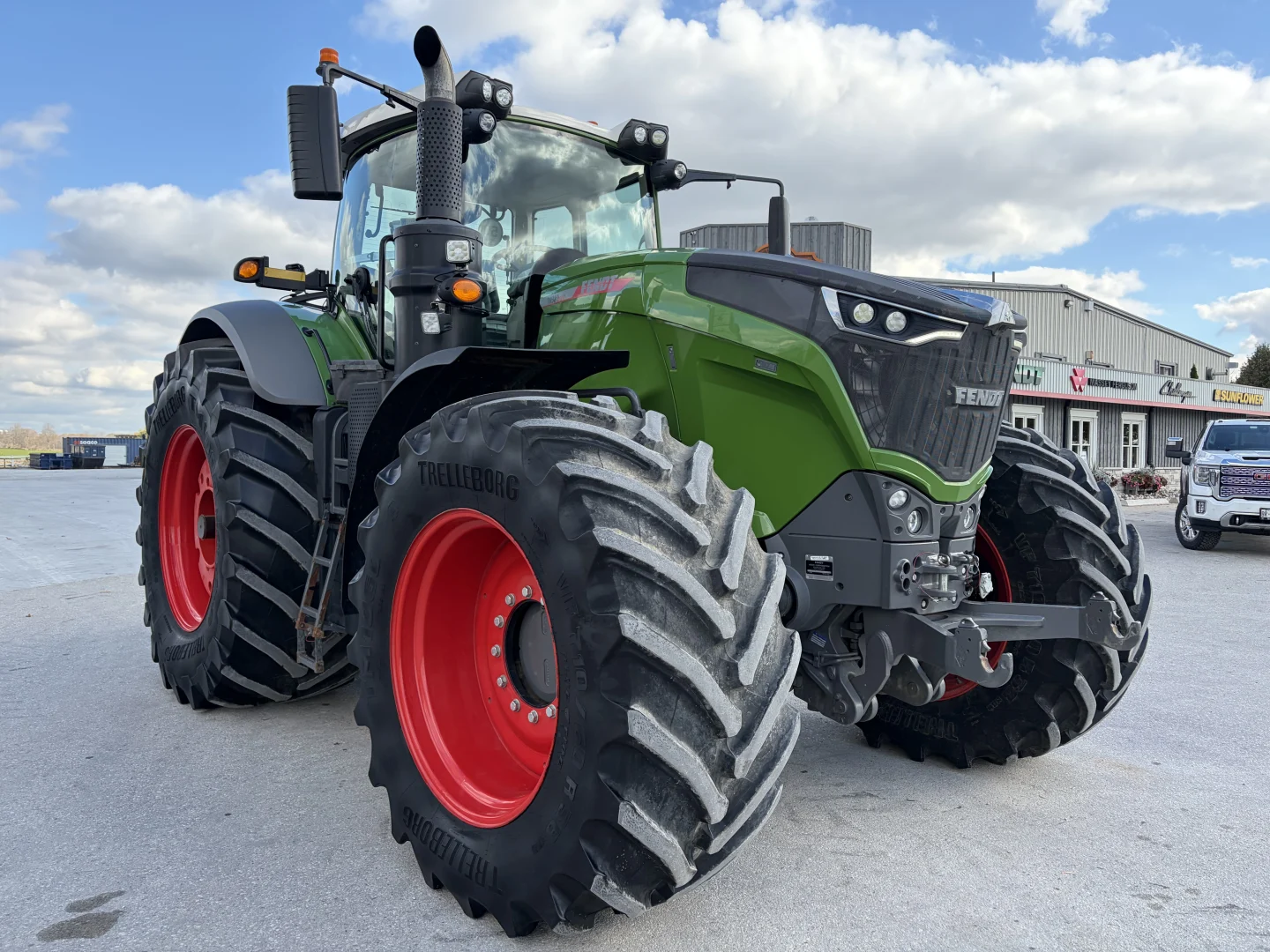

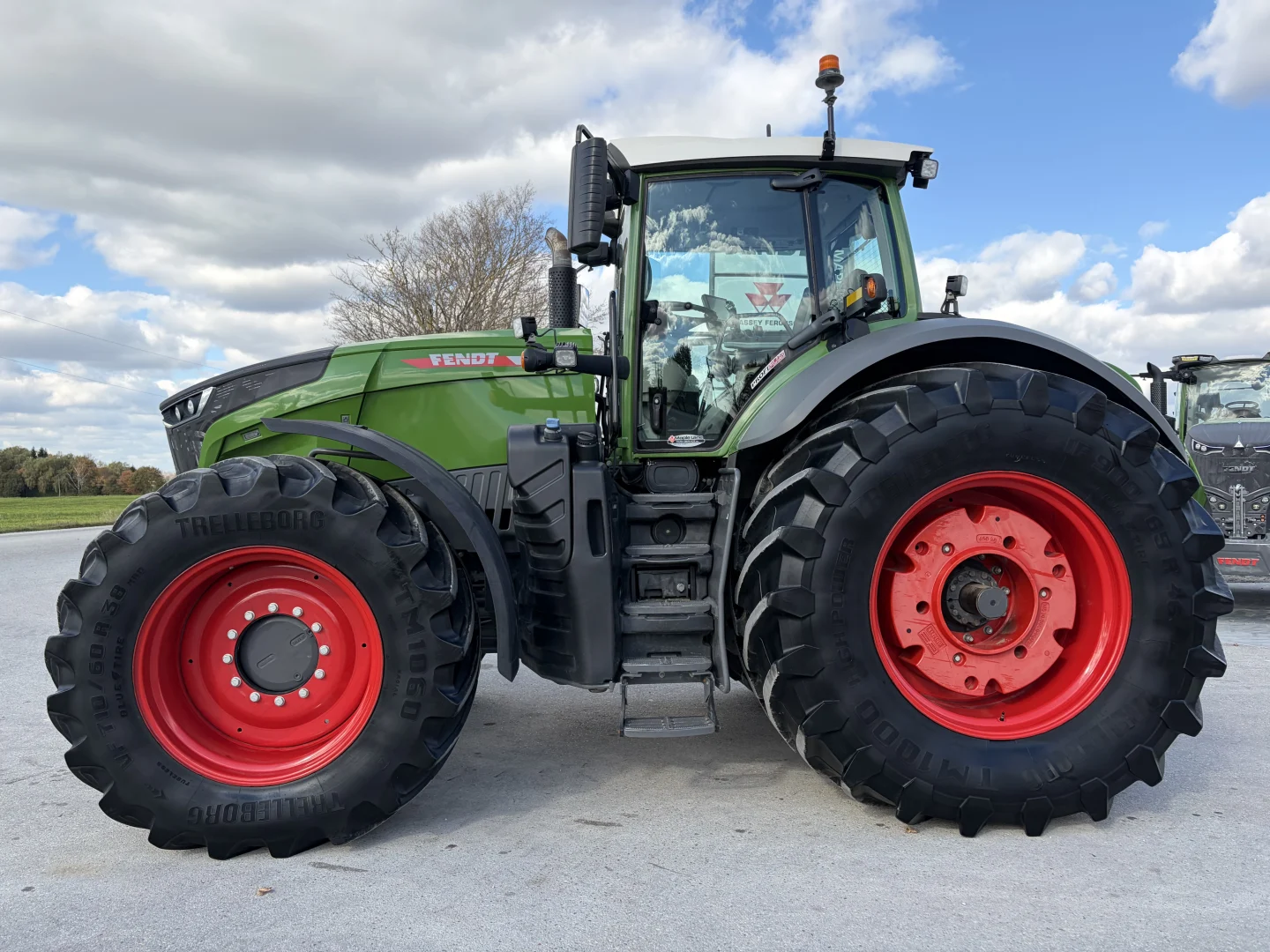

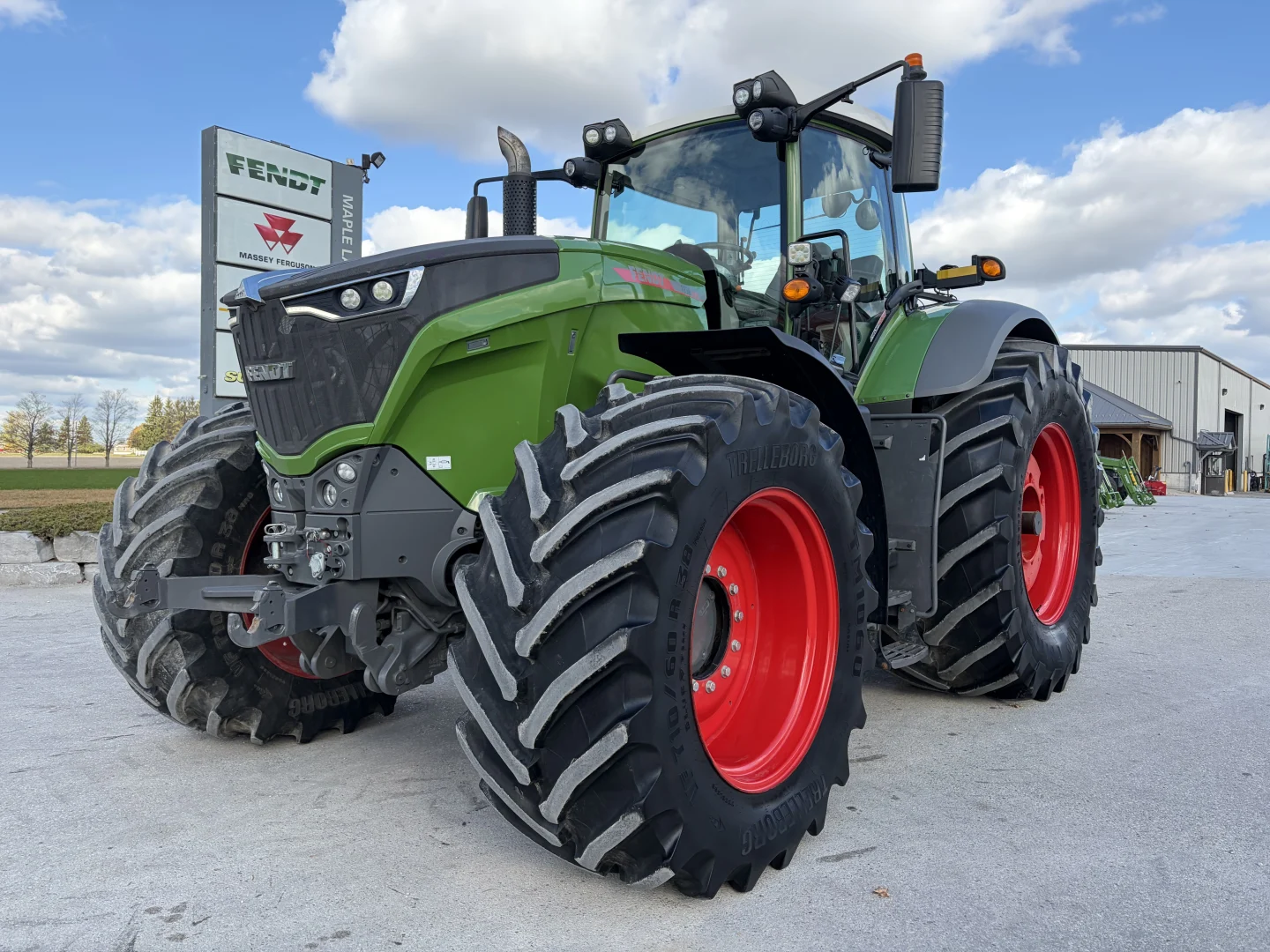

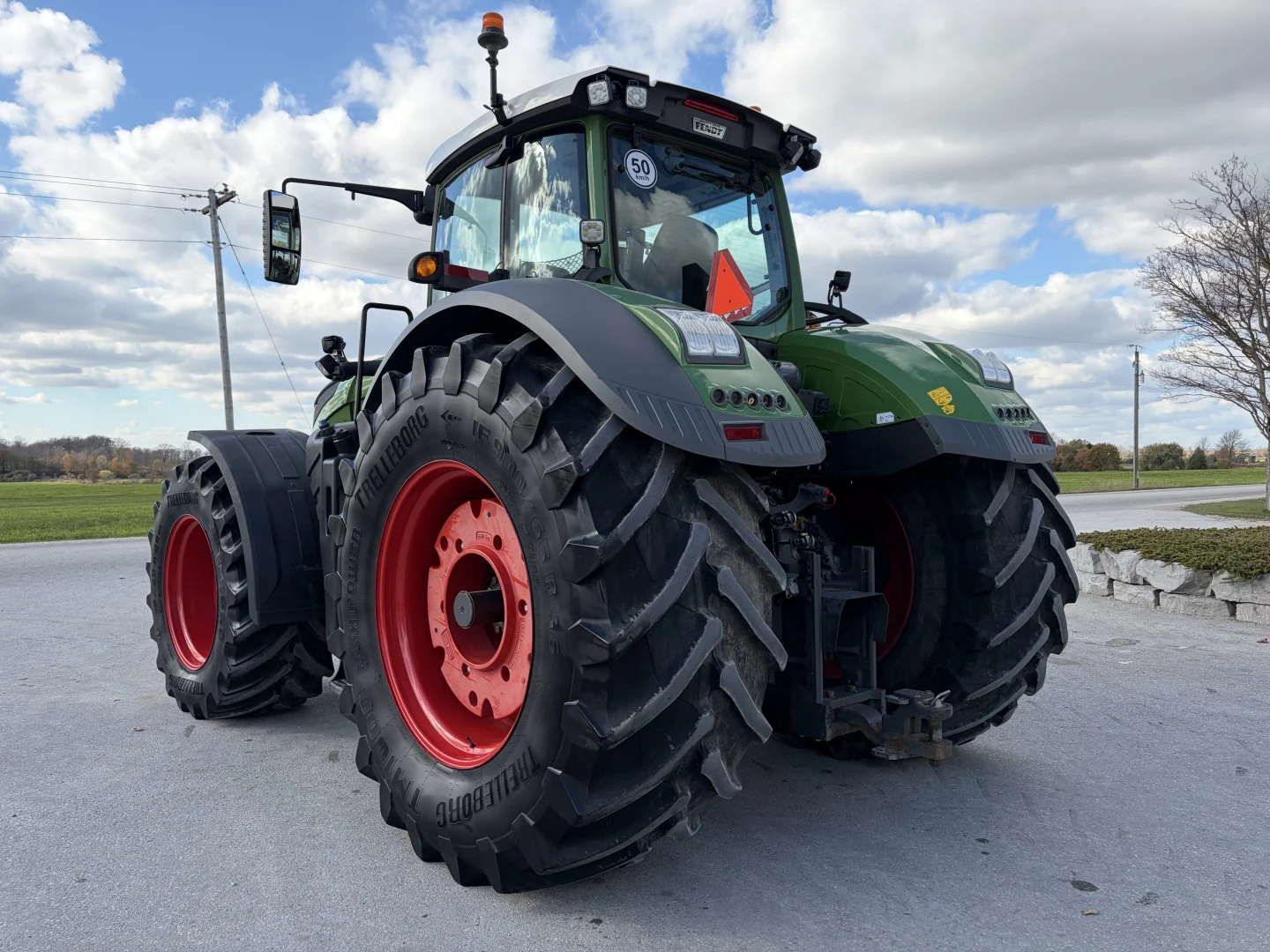

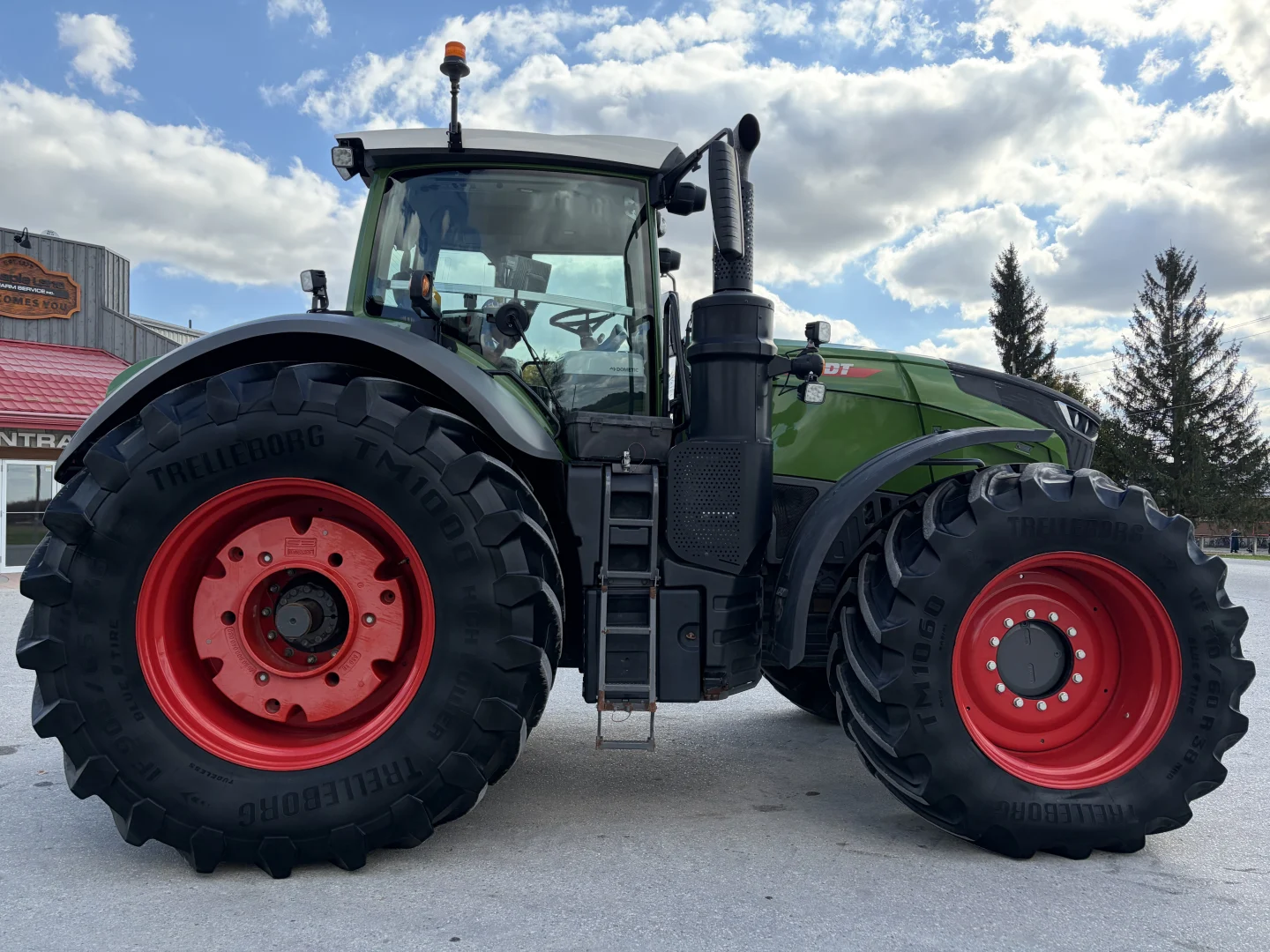

Used 2021 Fendt 1038 Gen2
| Description | |
|---|---|

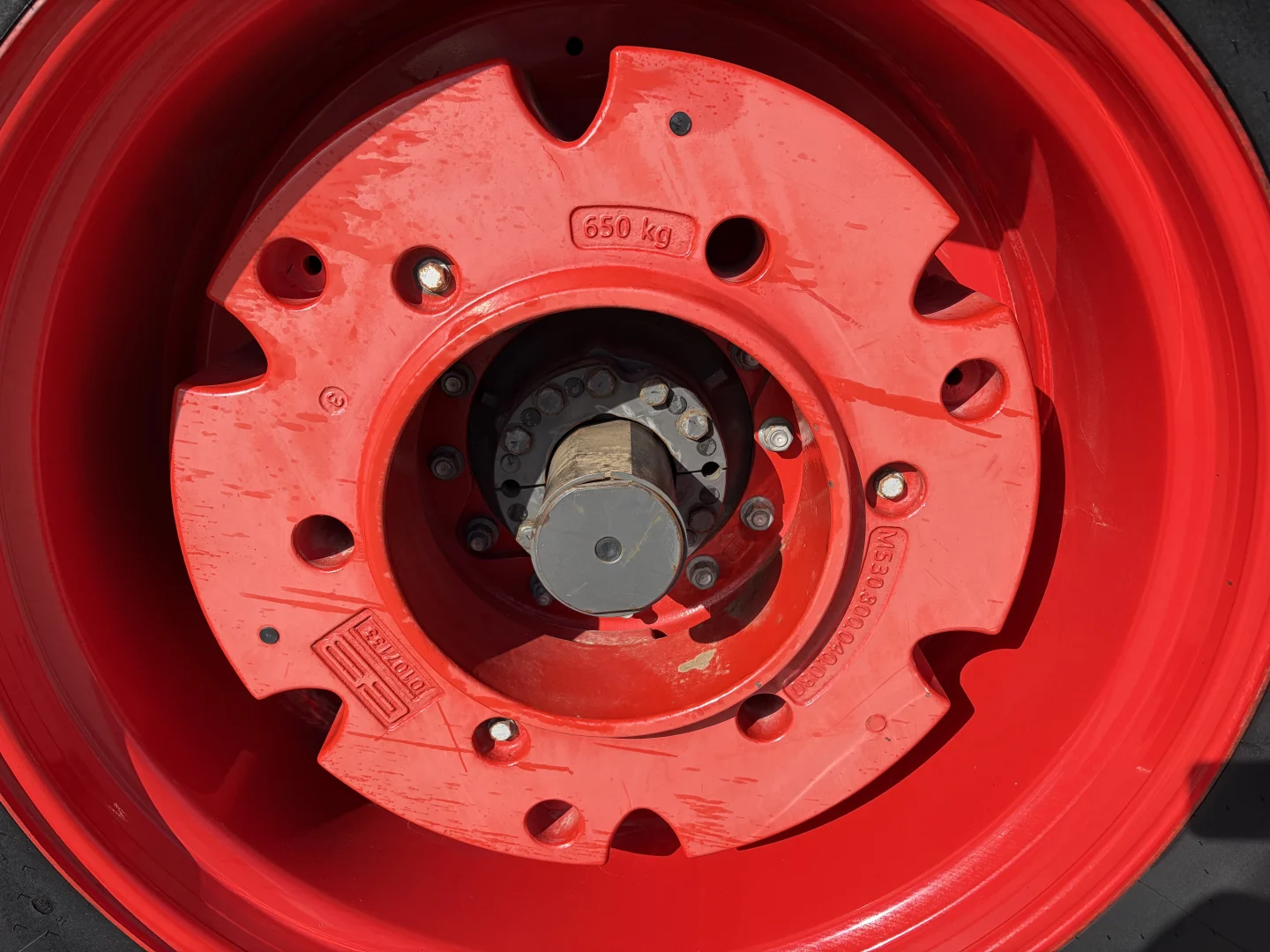

| 50 Km/h Vario transmission, front axle suspension, Fendt Guide- WAAS, 6 rear remotes, 113.5 GPM dual hydraulic pump, power beyond, hydraulic & air trailer brakes, exhaust brake, automatic park brake, Full LED lighting package, automatic climate control, Infotainment, heated & ventilated leather seat, heated & powered mirrors, 4 point air cab suspension, 650 kg rear wheel weights, Trelleborg tires- IF710/70R38 front, IF900/65R46 rear. | |
| Categories | High Horsepower |
| Unit Number | 24495R |
| Condition | Used |
| Usage | 3,400 Hours |
| Year | 2021 |
| Cost | $399,900.00 CAD |
| Horse Power | Rate Per Hour |
|---|---|
| 396HP | $154.44 CAD |
| *Minimum Hours Per Day: 5 Week: 30 Month: 100 | |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 295.30kW (396hp) | |
| PTO Power | 283.37kW (380hp) | |
| Rated Engine Speed | 1,700r/min | |
| Make | MAN D2676 LE121 | |
| Displacement | 3.28gal. (12.42L) | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 211.34gal. (800L) | |
| DEF Tank Capacity | 22.45gal. (85L) | |
| Warming | Block Heater | |
| Fan | Reversing | |
| Transmission | ||
|---|---|---|
| Maximum Road Speed | 31.07mph (50km/h) | |
| Name | CVT TA 400 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Service Brake | Exhaust, Wet Disc | |
| Trailer Brakes | Hydraulic | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Rear Axle Length | 8' 2-7/16" (2,500mm) | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 1000 Dual Pump 113.5 GPM | |
| Pump Type | Dual Variable Displacement Piston (Axial) | |
| Maximum Flow | 429.64L/min (113.50GPM) | |
| Total System Oil Volume | 36.72gal. (139L) | |
| Maximum Operating Pressure | 2,900.76psi (20,000kPa) | |
| Available Remote Flow Capacity | 24.57gal. (93L) | |
| Rear Remote Valves | 6 | |
| Steering | Hydraulic Power | |
| Wheels | ||
|---|---|---|
| Front | TRELL IF 650/65R38 TM1000 | |
| Size | IF 650/65R38 | |
| Tread Pattern | TM1000 HP, R1 (Ag) | |
| Section Width | 2' 2" (660mm) | |
| Overall Diameter | 6' 7/16" (1,840mm) | |
| Static Loaded Radius | 2' 8-11/16" (830mm) | |
| Rolling Circumference | 18' 15/16" (5,510mm) | |
| Base Weight | 571.00lb. (259kg) | |
| Tread Thickness | 2-3/8" (60mm) | |
| Construction | Radial | |
| Flexion Class | IF | |
| Rear | TRELL IF 750/75R46 TM1000 | |
| Size | 750/75R46 | |
| Tread Pattern | TM1000 HP, R1 (Ag) | |
| Section Width | 2' 5-1/2" (750mm) | |
| Overall Diameter | 7' 6-3/4" (2,305mm) | |
| Static Loaded Radius | 3' 4-9/16" (1,030mm) | |
| Rolling Circumference | 22' 8-1/4" (6,915mm) | |
| Base Weight | 996.49lb. (452kg) | |
| Tread Thickness | 2-5/8" (67mm) | |
| Construction | Radial | |
| Flexion Class | Standard | |

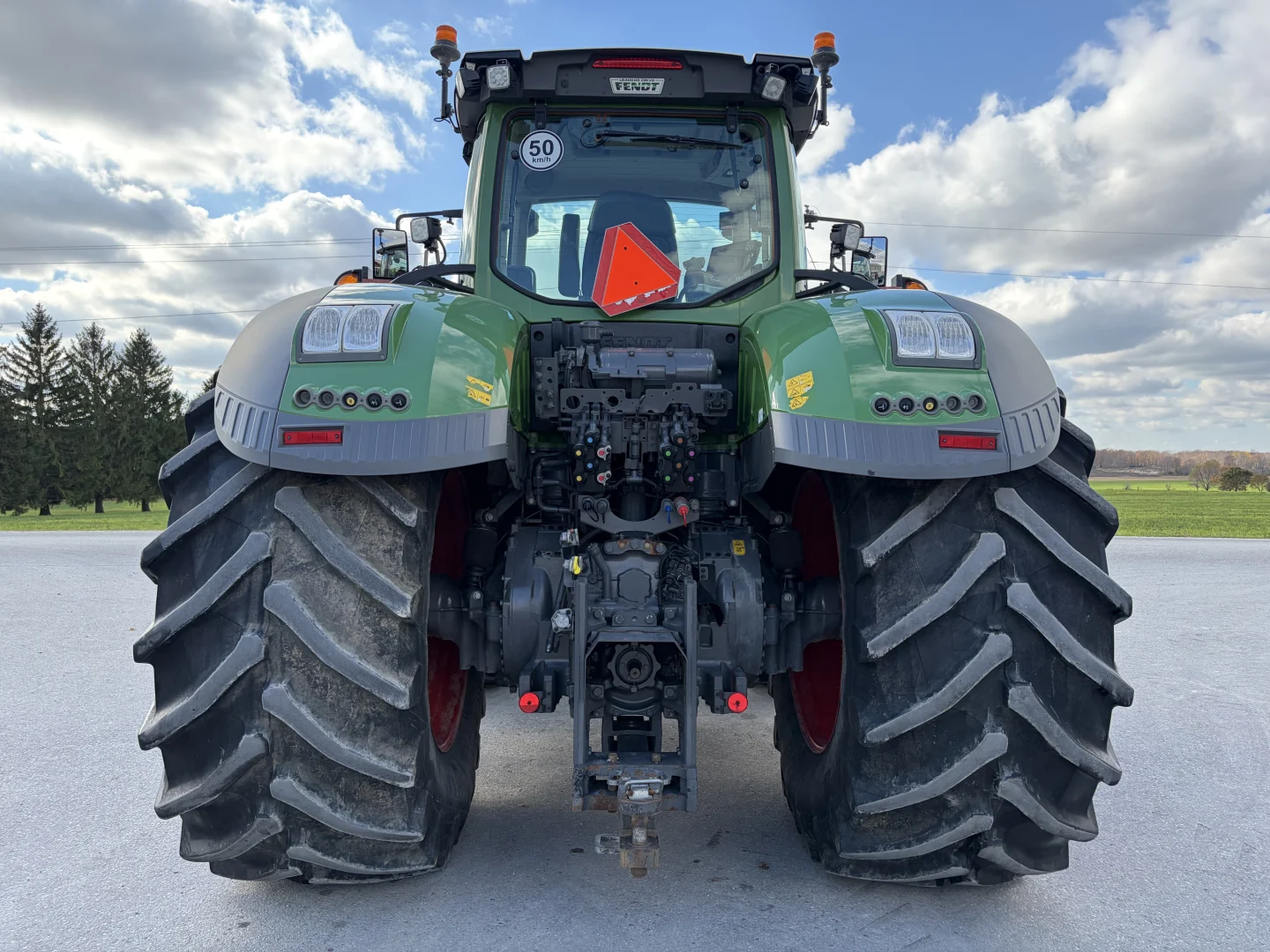

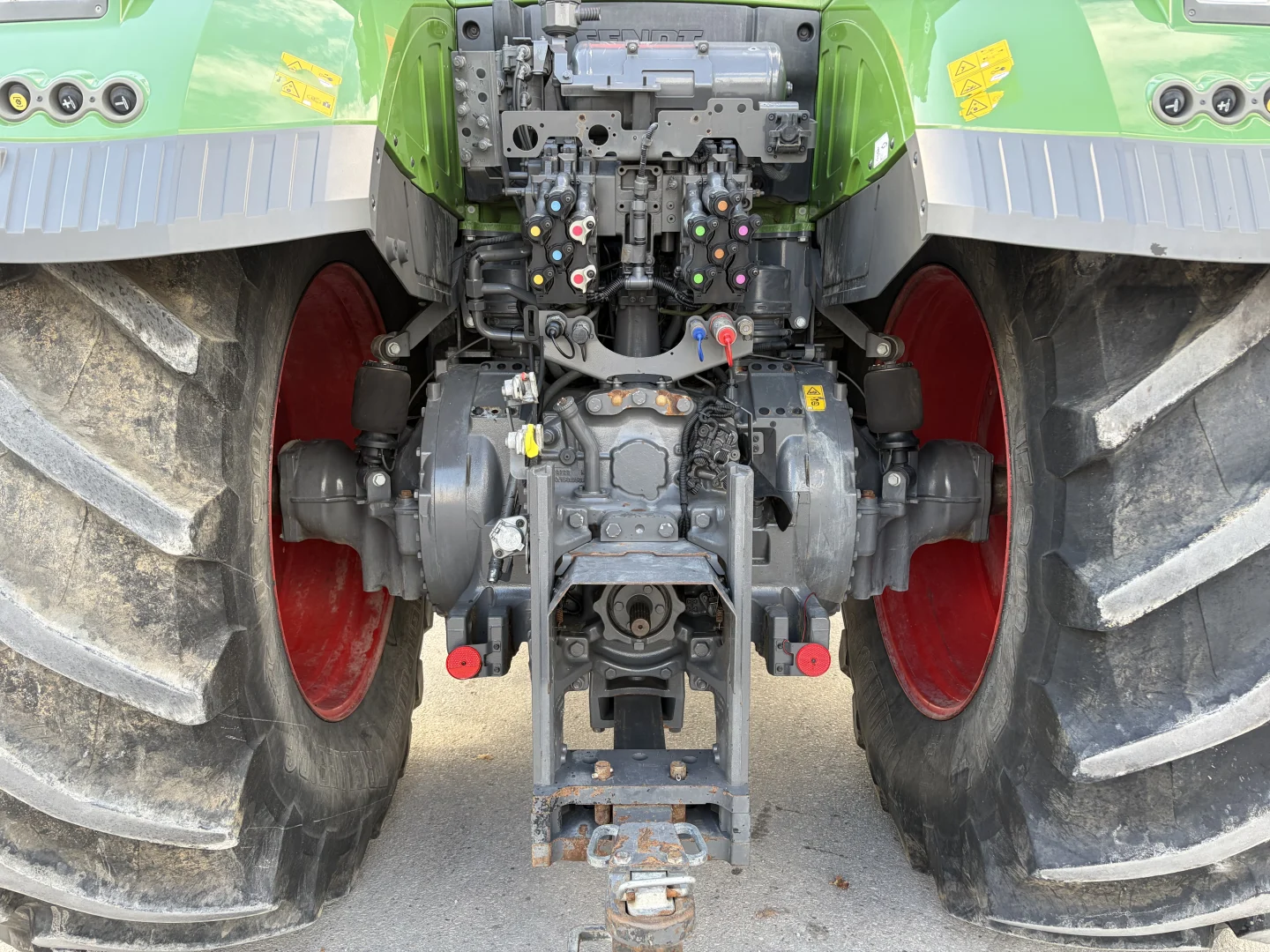

| Hitching | ||
|---|---|---|
| Rear Drawbar | Category 4 | |
| PTO | ||
|---|---|---|
| Rear Speed | 1000, 1000E | |
| Type | Independent | |
| Electrical | ||
|---|---|---|
| Worklight Type | LED | |
| Front Lights | 20 | |
| Rear Lights | 6 | |
| Rotating Beacon | Left, Right | |
| Alternator | 160A | |
| Alternator Count | 2 | |
| Battery Cold Start | 1,475CCA | |

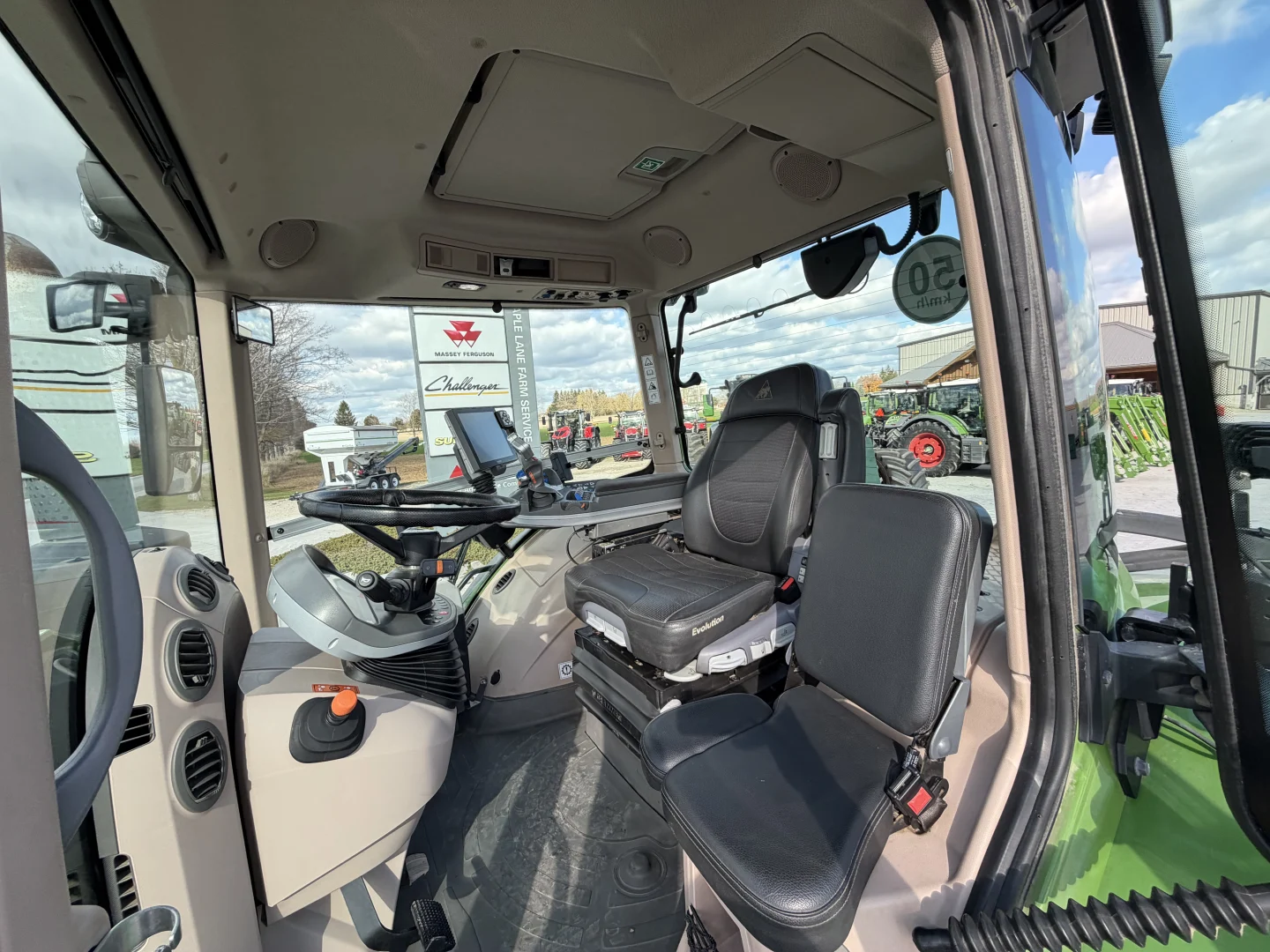

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Access | Left Hand Door | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 2 Point Passive Mechanical | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |
| Operator Seat | FD Super Comfort EVO Leather | |
| Material | Leather | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | 300° Front, Rear, Side | |
| Mirrors | Powered, Telescoping, Heated | |
| Trim Package | ProfiPlus | |
| Windows | Heated Rear | |
| Technology | ||
|---|---|---|

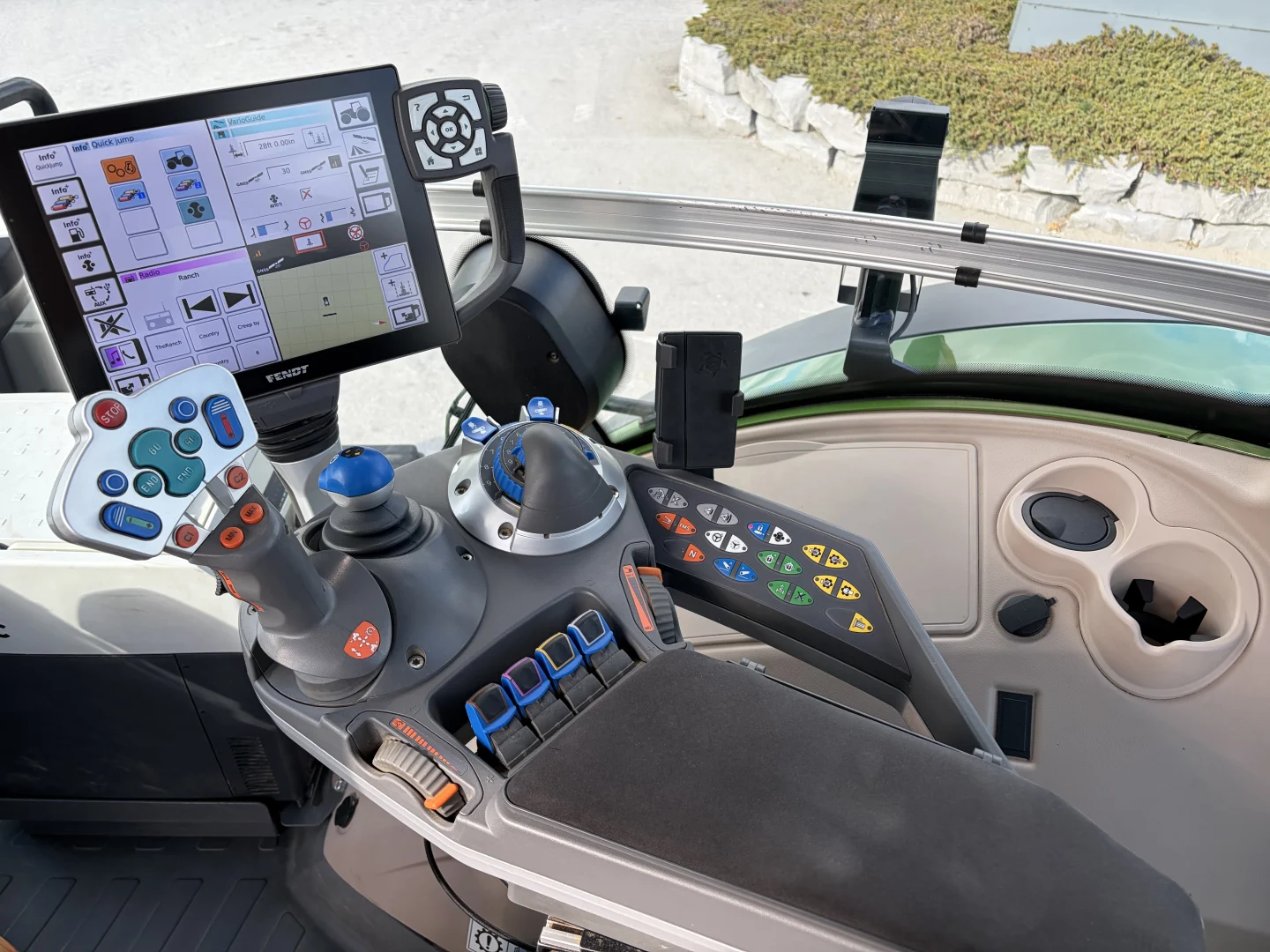

| Display | 10.4" Varioterminal | |

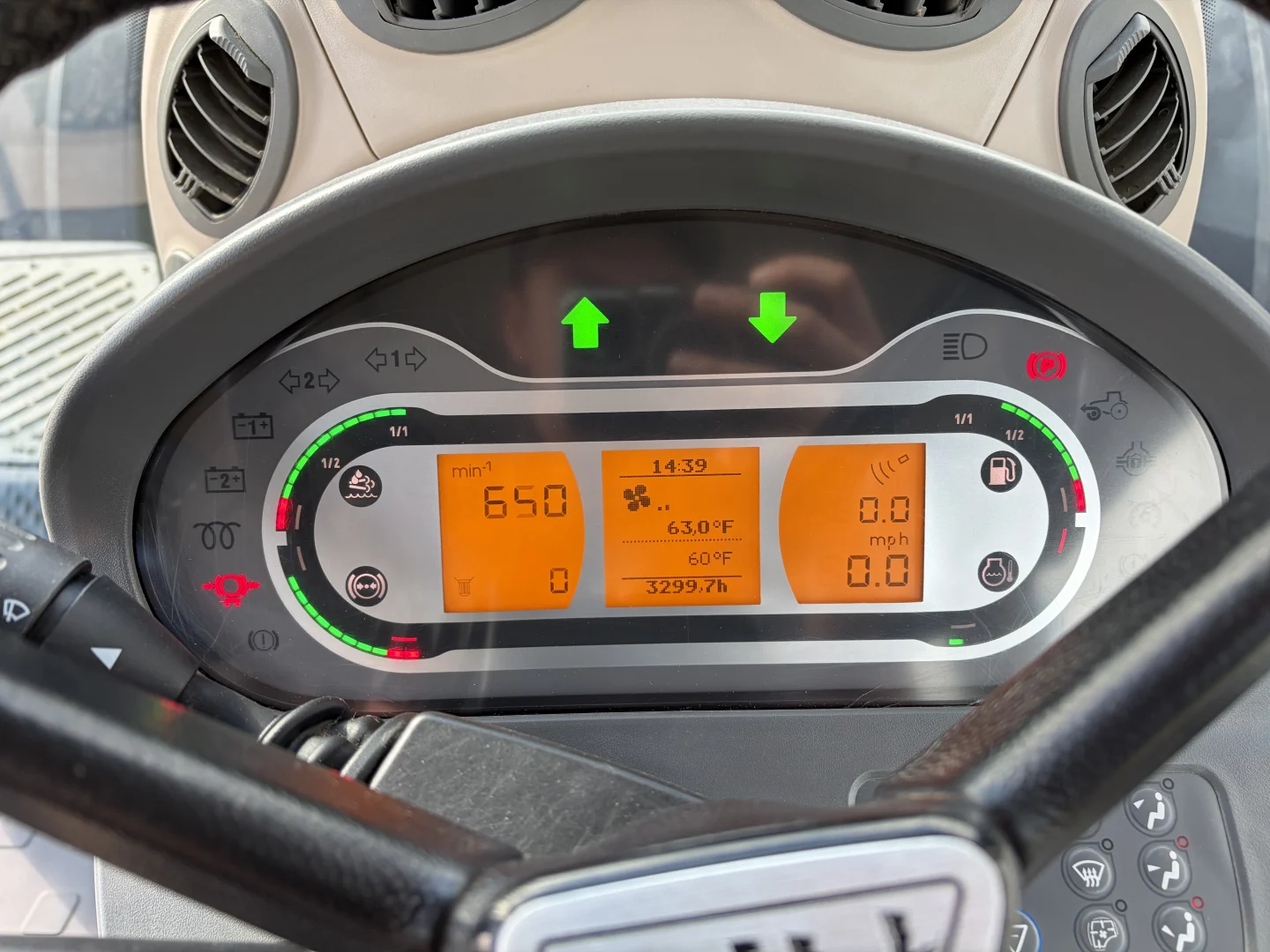

| Instrument Display | Digital Dash Display | |
| Integration | ISO BUS Implement Control | |
| Guidance | Guidance Ready | |
| Headland Management | Variotronic TI | |
| Auto Headland Turn | Variotronic TI Auto | |
| Data Transfer | TaskDoc Pro | |
| Section Control | SectionControl | |
| Variable Rate Control | Variable Rate Control | |
| Telemetry | 5 Year Fendt Connect Subscription | |
| Weights | ||
|---|---|---|
| Wheel Weights | FD 1000 kg Wheel Weight Pair | |
| Mount | Bolt | |
| Type | Wheel Disc | |
| Base Weight | 2,204.62lb. (1,000kg) | |
| Front Weights | FD 1250 kg Ballast | |
| Mount | Hitch | |
| Type | Block | |
| Base Weight | 2,755.78lb. (1,250kg) | |
| Dimensions | ||
|---|---|---|
| Length | 20' 10" (6,350mm) | |
| Wheelbase | 10' 9-15/16" (3,300mm) | |
| Width | 9' 1/4" (2,750mm) | |
| Height | 11' 9-15/16" (3,606mm) | |
| Minimum Ground Clearance | 1' 11-5/8" (600mm) | |
| Turning Radius | 24' 9/16" (7,330mm) | |
| Base Weight | 30,864.72lb. (14,000kg) | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |
