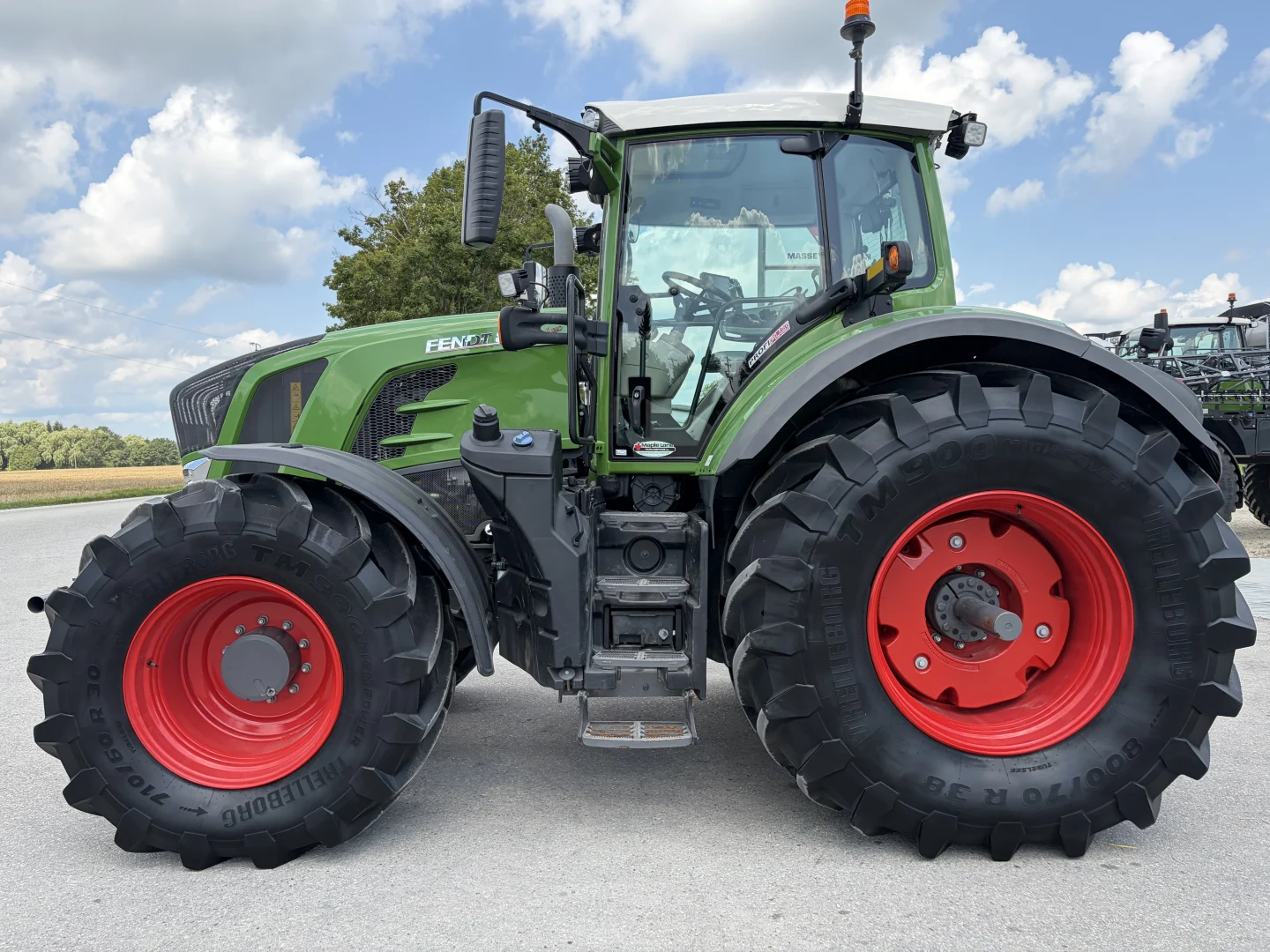

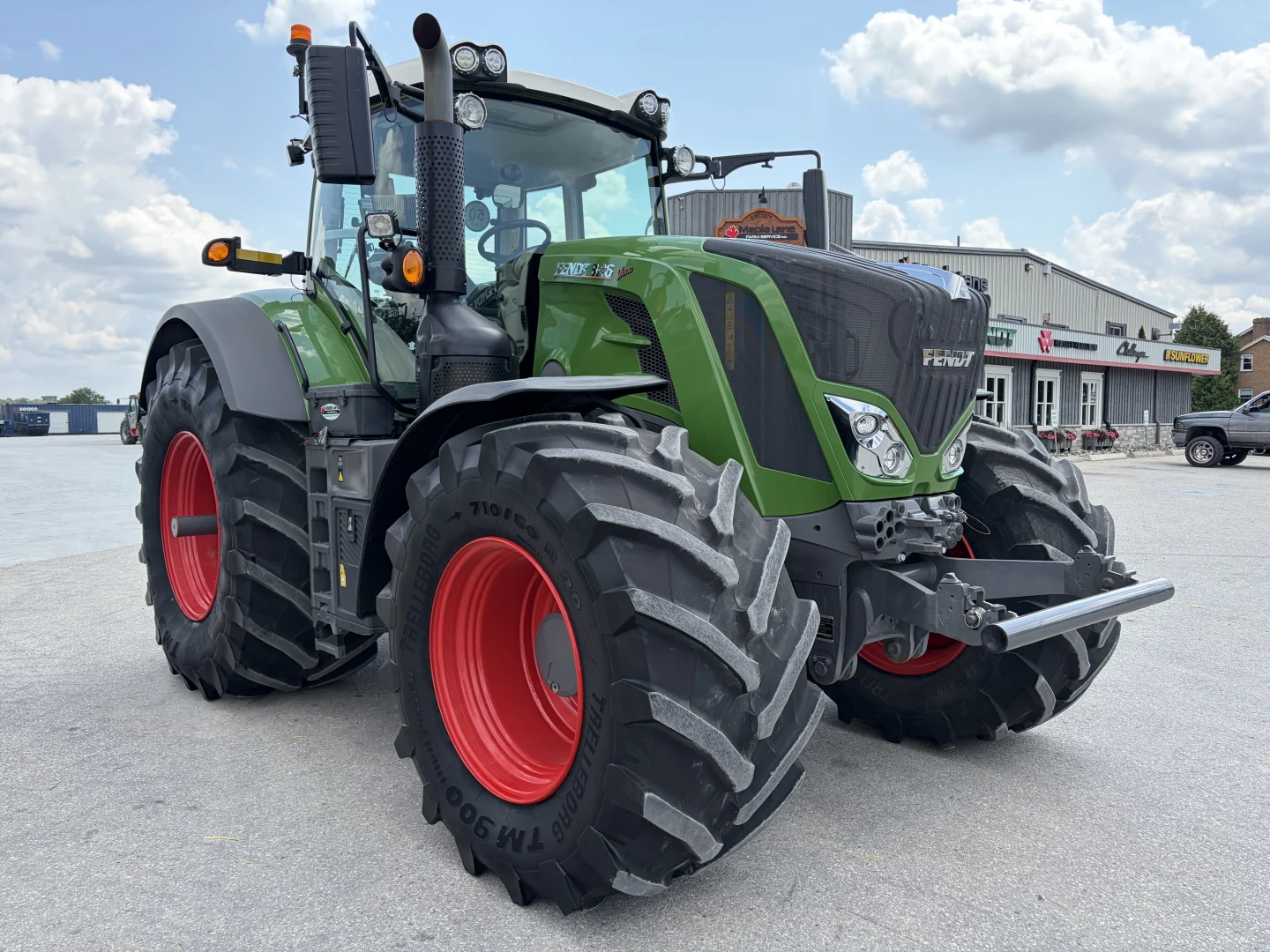

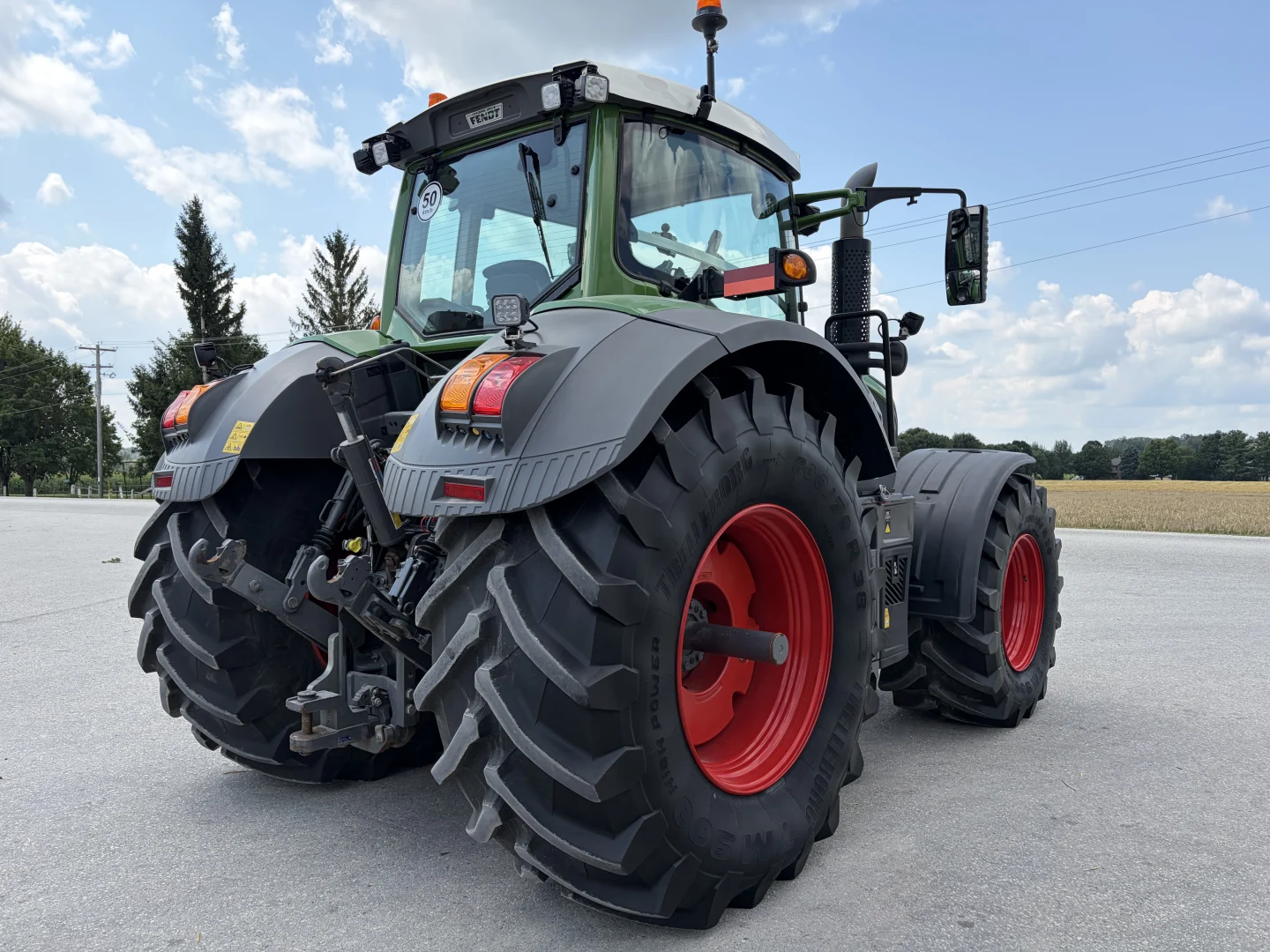

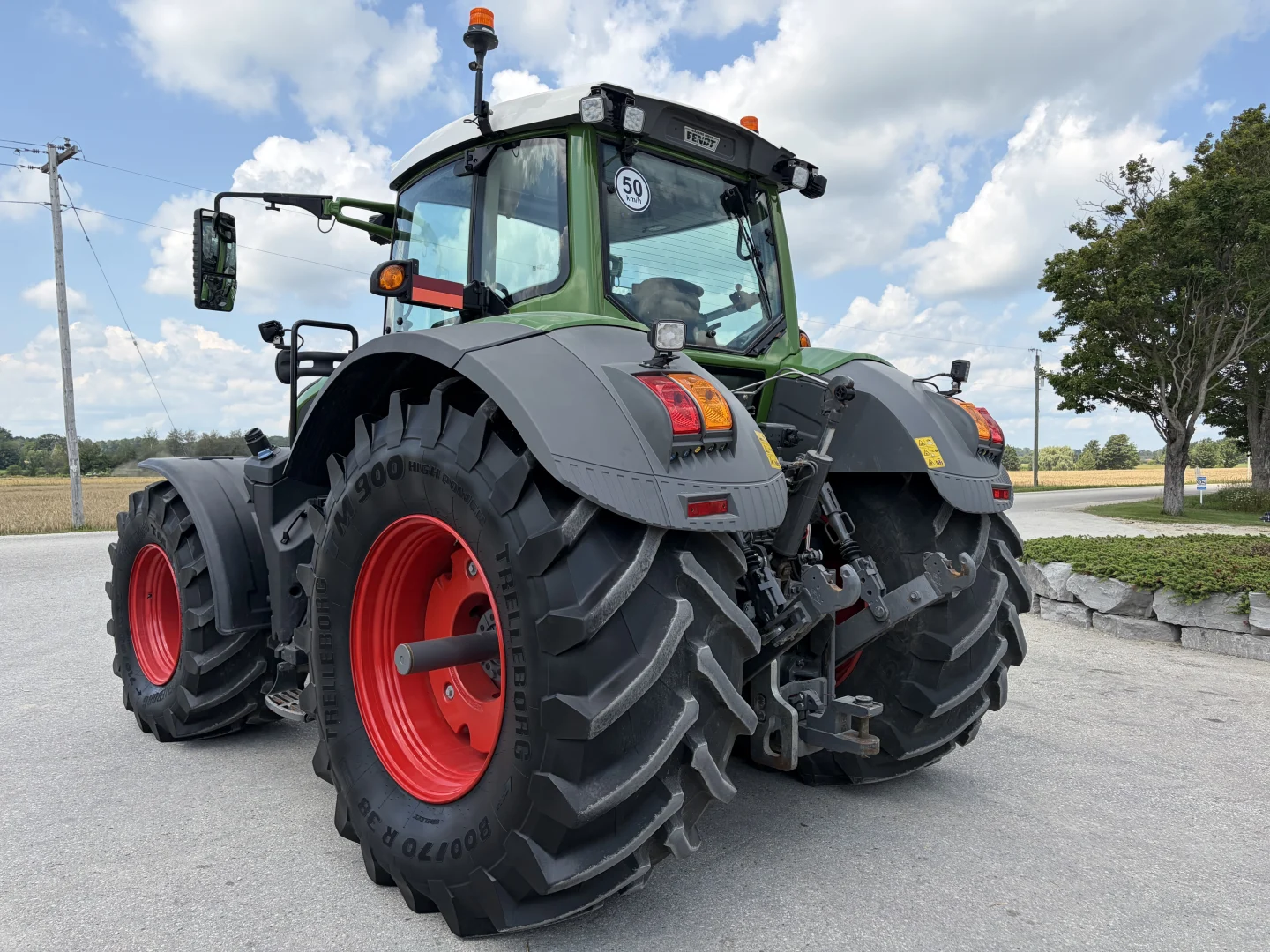

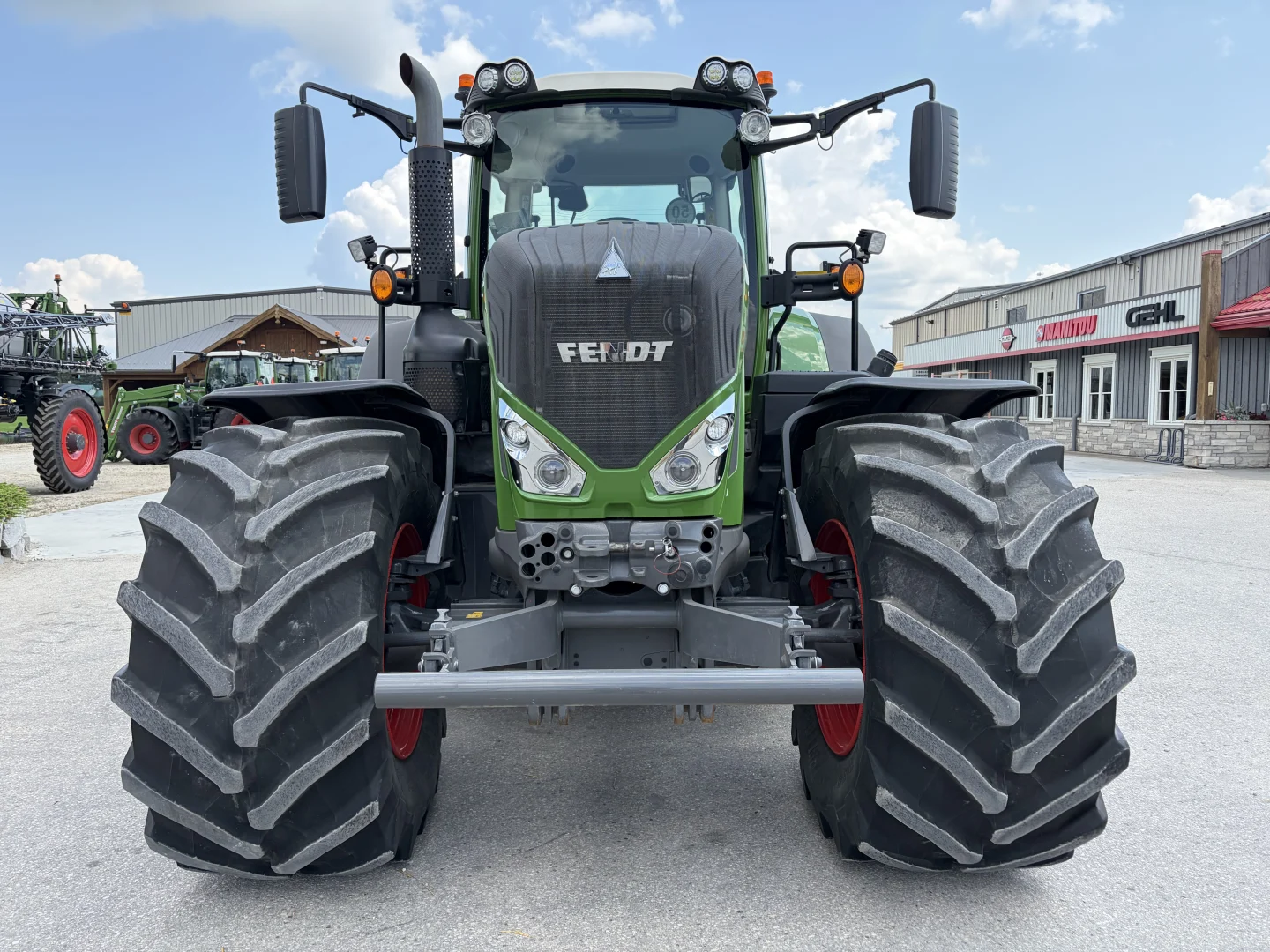

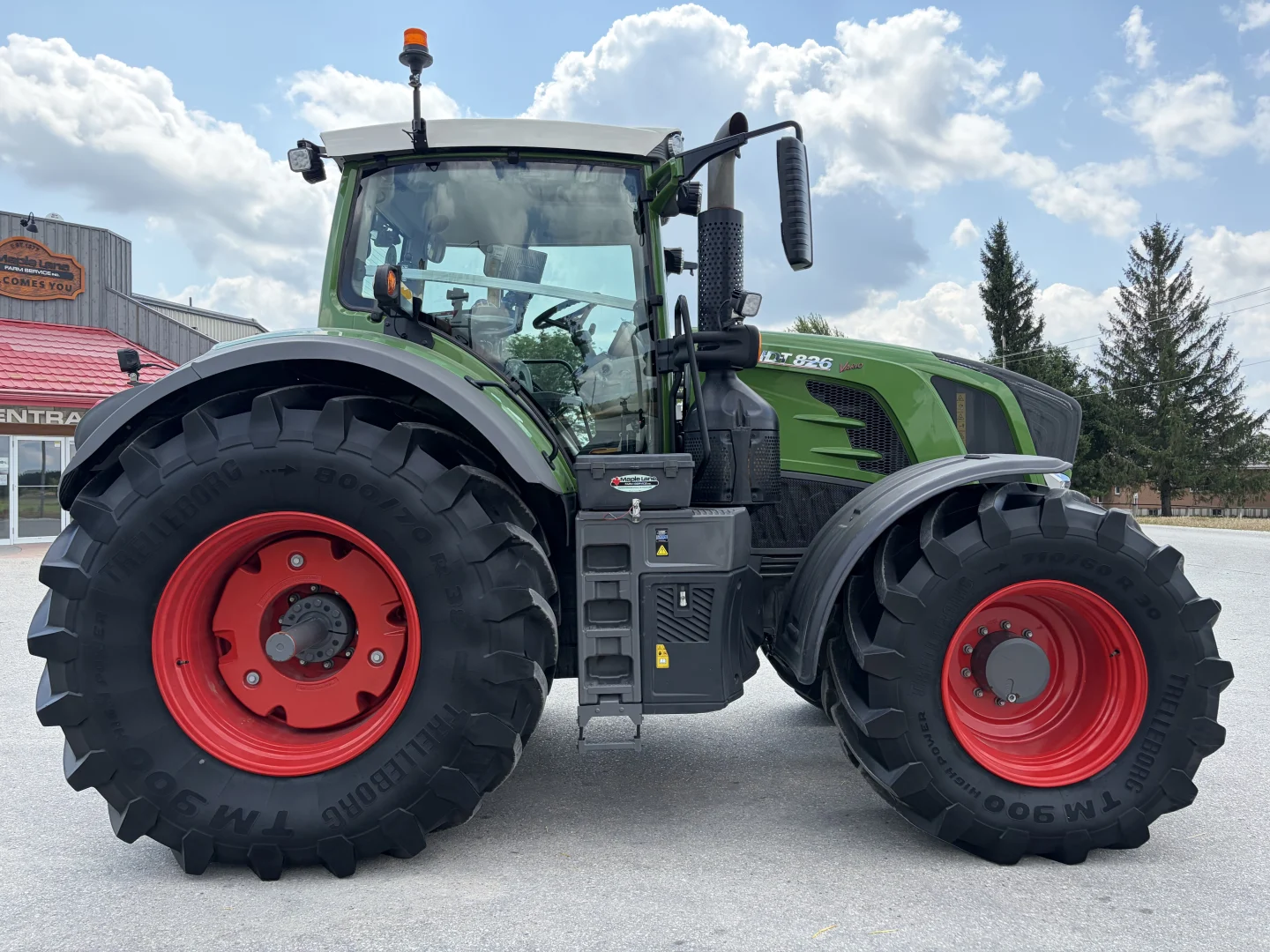

Used 2022 Fendt 826 S4
| Description | |
|---|---|
| Reverse Station, Profi Plus, Fendt Guide complete- WAAS, 50 km/h Vario transmission, suspended front axle, 54 GPM pump, 5 rear valves, 800/70R38 rear, 710/60R30 front, hydraulic and air trailer brakes, exhaust brake, Cloth Evolution seat, powered and heated mirrors, air cab suspension, 300 kg wheel weights, hydraulic top link, LED worklights | |
| Categories | High Horsepower |
| Unit Number | 24612R |
| Condition | Used |
| Usage | 2,500 Hours |
| Year | 2022 |
| Cost | $294,900.00 CAD |
| Horse Power | Rate Per Hour |
|---|---|
| 265HP | $103.35 CAD |
| *Minimum Hours Per Day: 5 Week: 30 Month: 100 | |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 197.61kW (265hp) | |
| PTO Power | 167.78kW (225hp) | |
| Rated Engine Speed | 2,100r/min | |
| Make | DZ 6.06L Tier 4F 6 Cylinder | |
| Displacement | 1.60gal. (6.06L) | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 132.09gal. (500L) | |
| DEF Tank Capacity | 13.21gal. (50L) | |
| Warming | Block Heater | |
| Fan | Reversing | |
| Transmission | ||
|---|---|---|
| Maximum Road Speed | 31.07mph (50km/h) | |
| Name | CVT ML 220 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Exhaust, Wet Disc | |
| Trailer Brakes | Hydraulic | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 800 S4 54 GPM | |
| Maximum Flow | 204.41L/min (54GPM) | |
| Rear Remote Valves | 5 | |
| Steering | Hydraulic Power | |

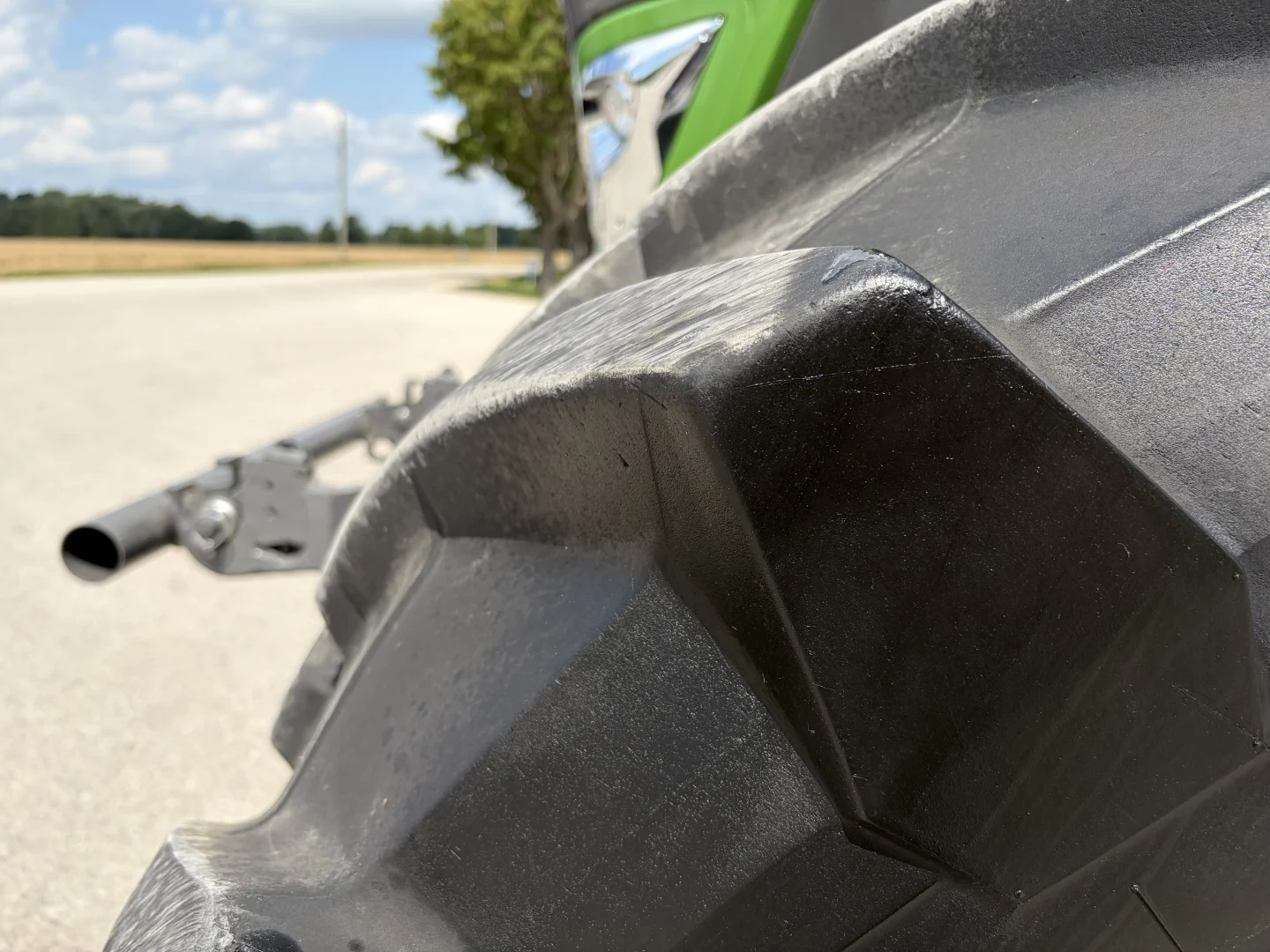

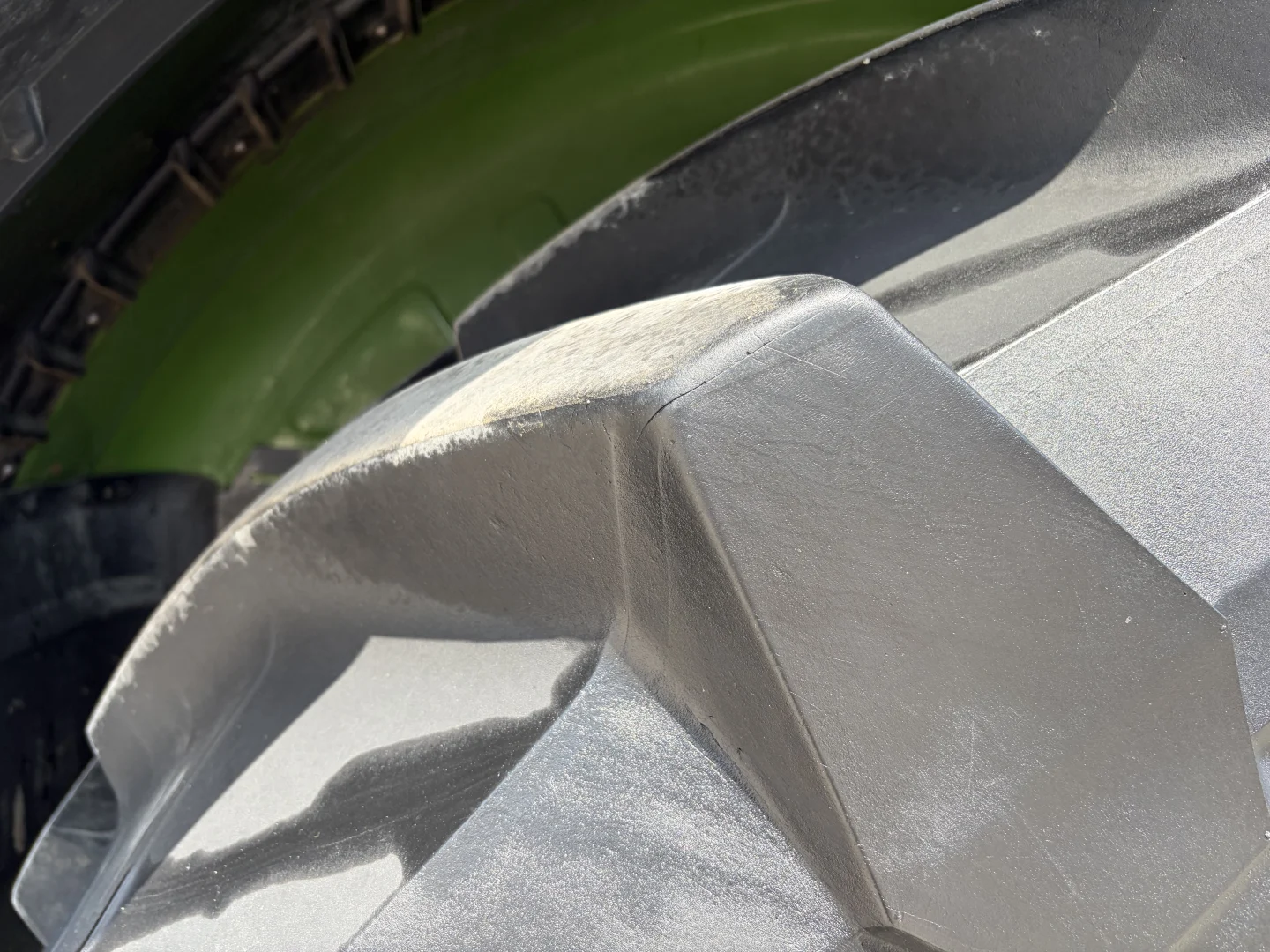

| Wheels | ||
|---|---|---|
| Front | TRELL 540/65R30 | |
| Size | 540/65R30 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 8-7/8" (530mm) | |
| Overall Diameter | 4' 9-5/8" (1,464mm) | |
| Static Loaded Radius | 2' 2-3/16" (665mm) | |
| Rolling Circumference | 14' 3-3/8" (4,353mm) | |
| Rear | TRELL 580/70R42 | |
| Size | 580/70R42 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 11" (584mm) | |
| Overall Diameter | 6' 3-1/8" (1,908mm) | |
| Static Loaded Radius | 2' 10" (864mm) | |
| Rolling Circumference | 18' 8" (5,690mm) | |

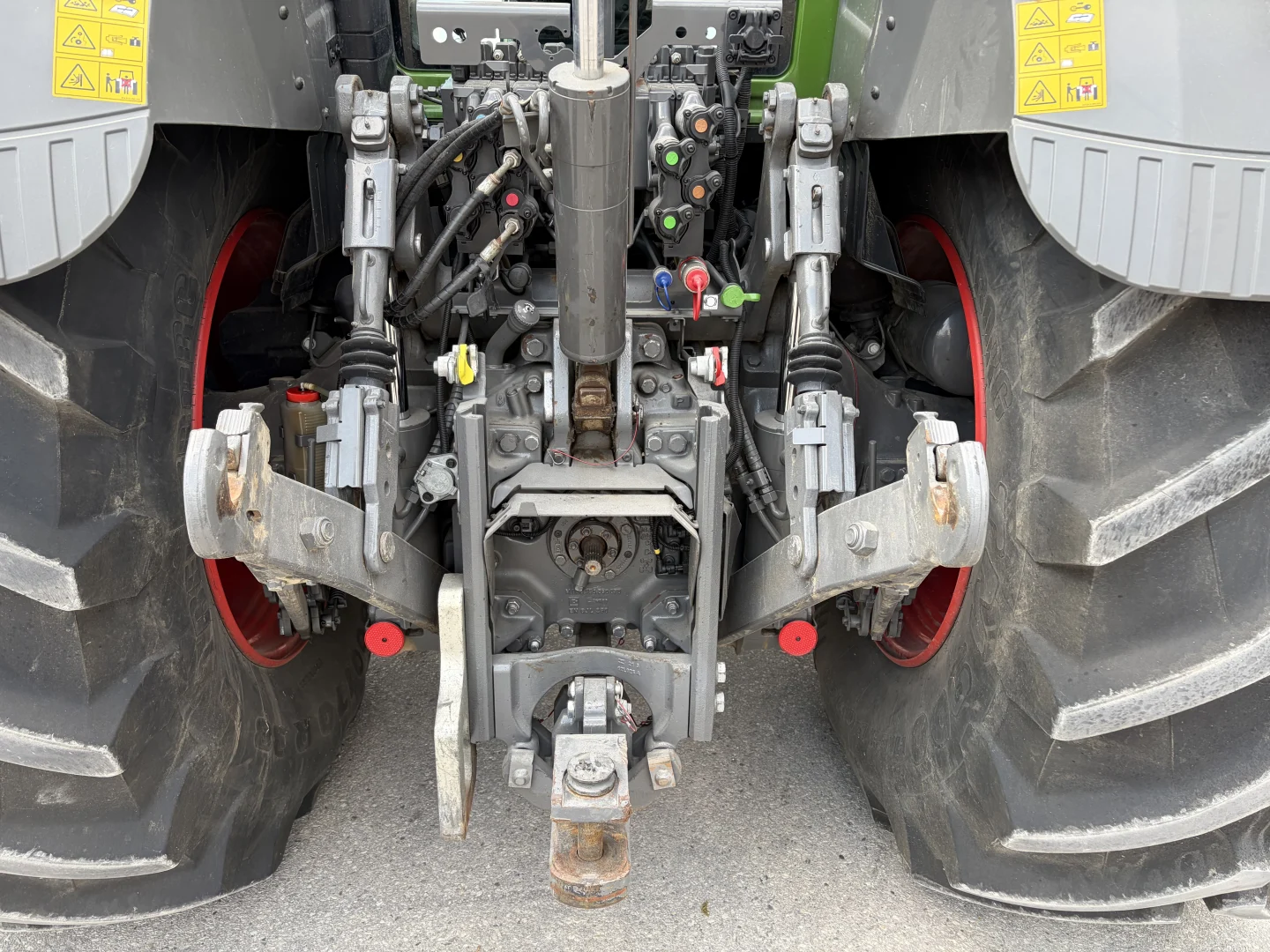

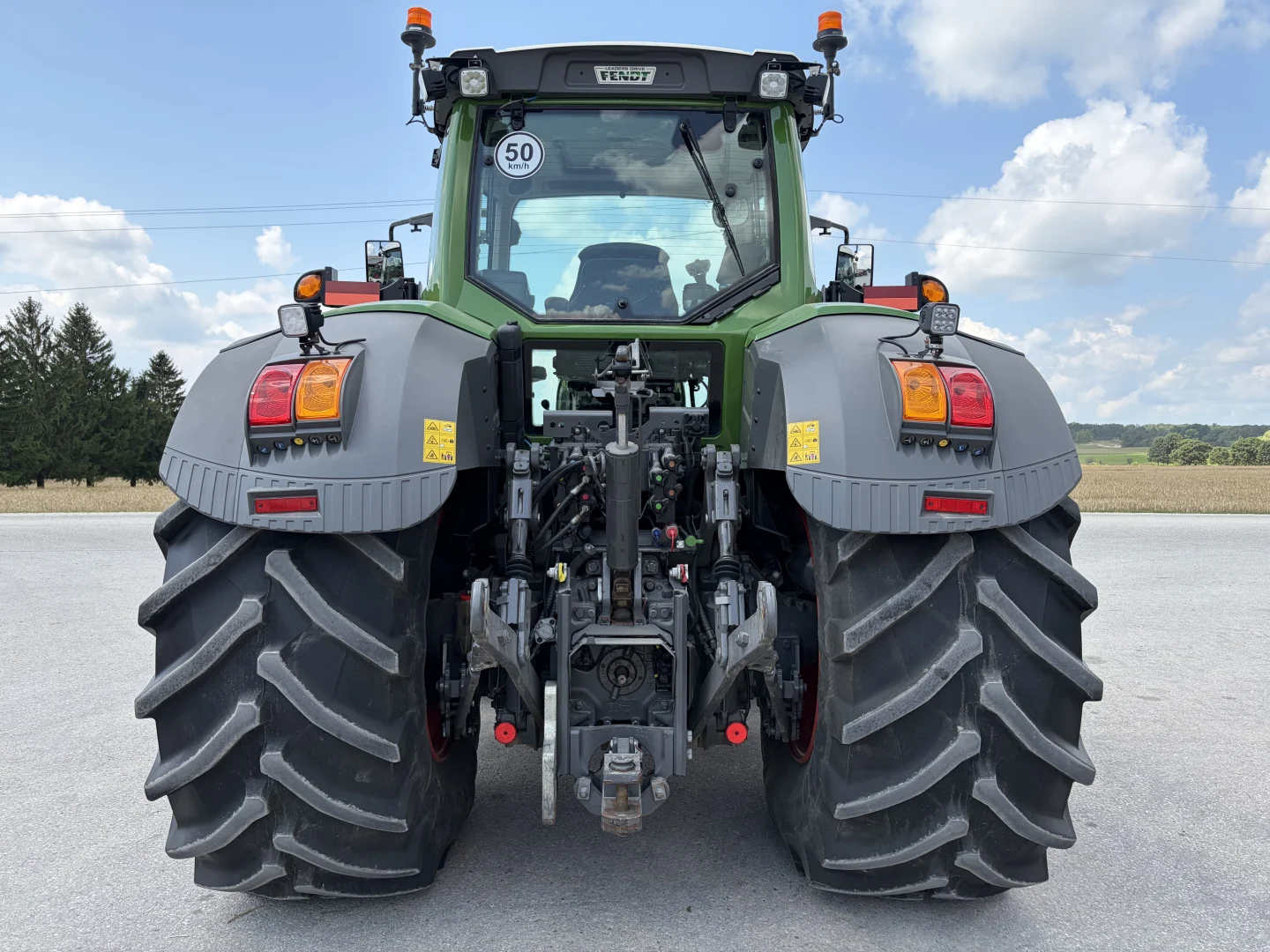

| Hitching | ||
|---|---|---|

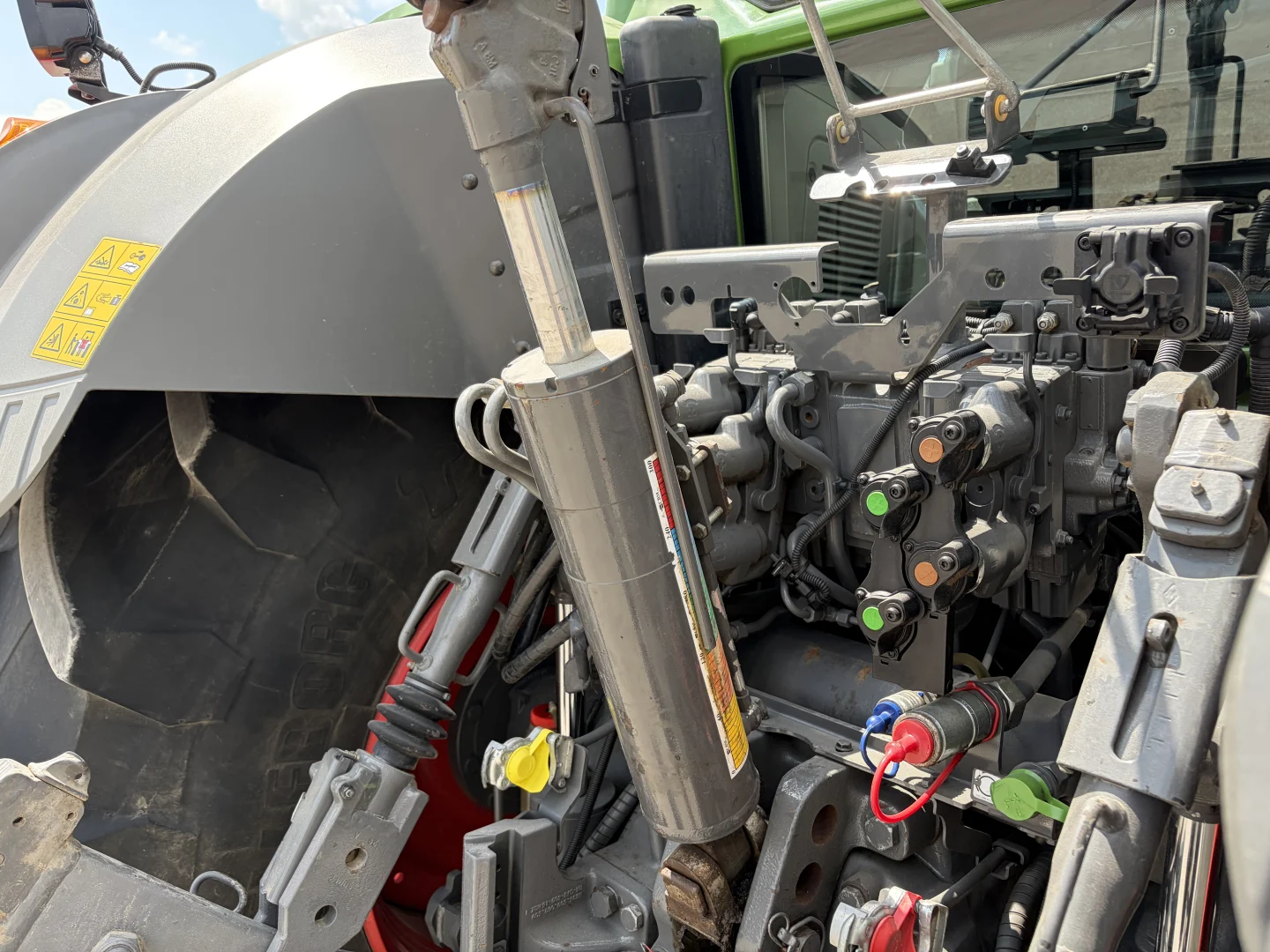

| Rear Hitch | FD 800 S4 | |
| Hitch Category | Category 3, Category 2 | |
| Lift Capacity at Pins | 20,569.13lb. (9,330kg) | |
| Comfort | Draft Control | |
| Rear Drawbar | Category 4 | |
| PTO | ||
|---|---|---|
| Rear Speed | 1000, 1000E | |
| Type | Independent | |
| Electrical | ||
|---|---|---|
| Front Lights | 12 | |
| Rear Lights | 6 | |
| Worklight Type | LED | |
| Rotating Beacon | Left, Right | |
| Alternator | 150A | |
| Battery | 1,475CCA | |
| Operator Station | ||
|---|---|---|

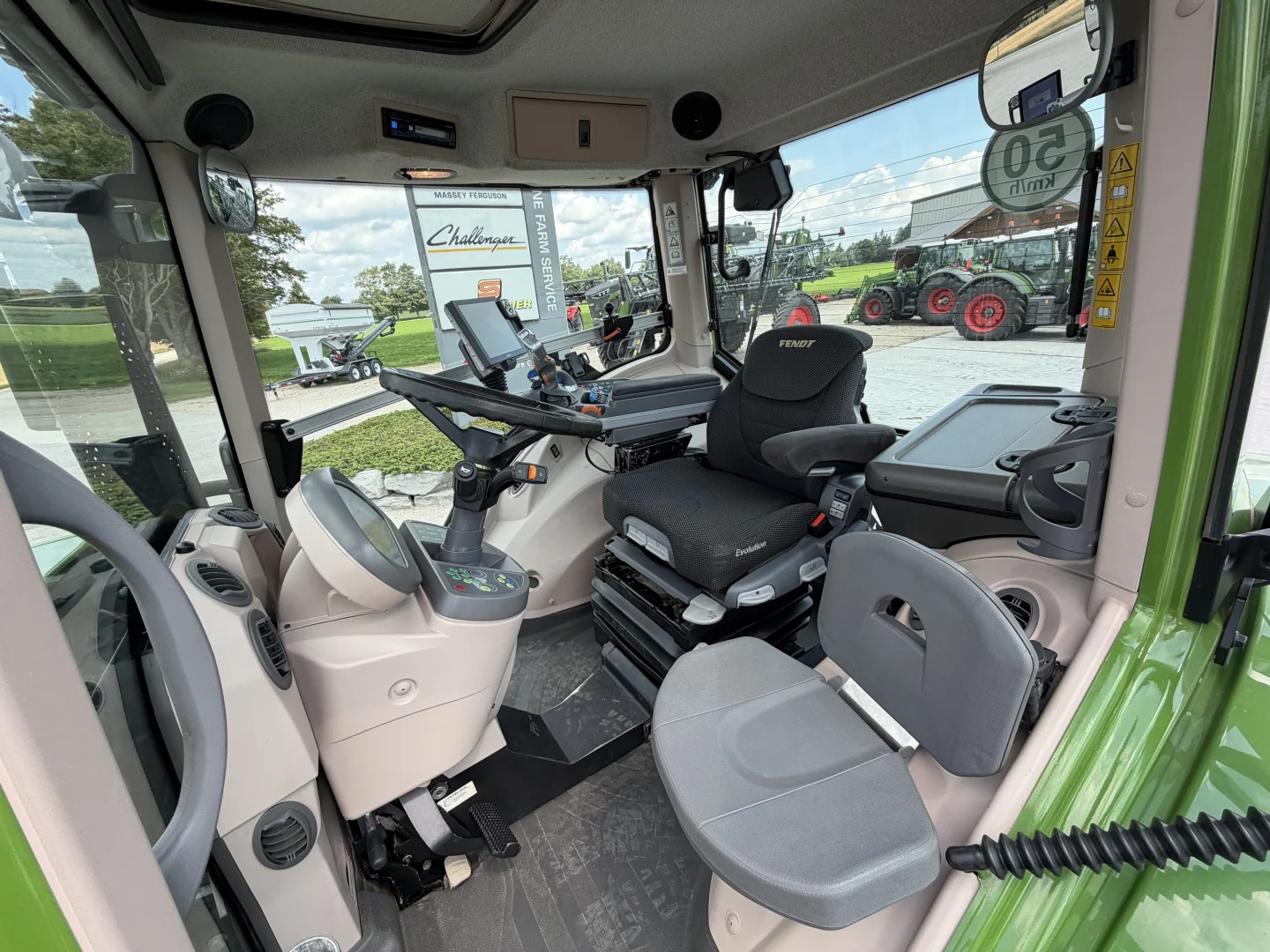

| Configuration | Reverse Station | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 2 Point Air | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Joystick | |
| Operator Seat | FD Super Comfort EVO Adaptive | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | 300° Front | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |
| Technology | ||
|---|---|---|

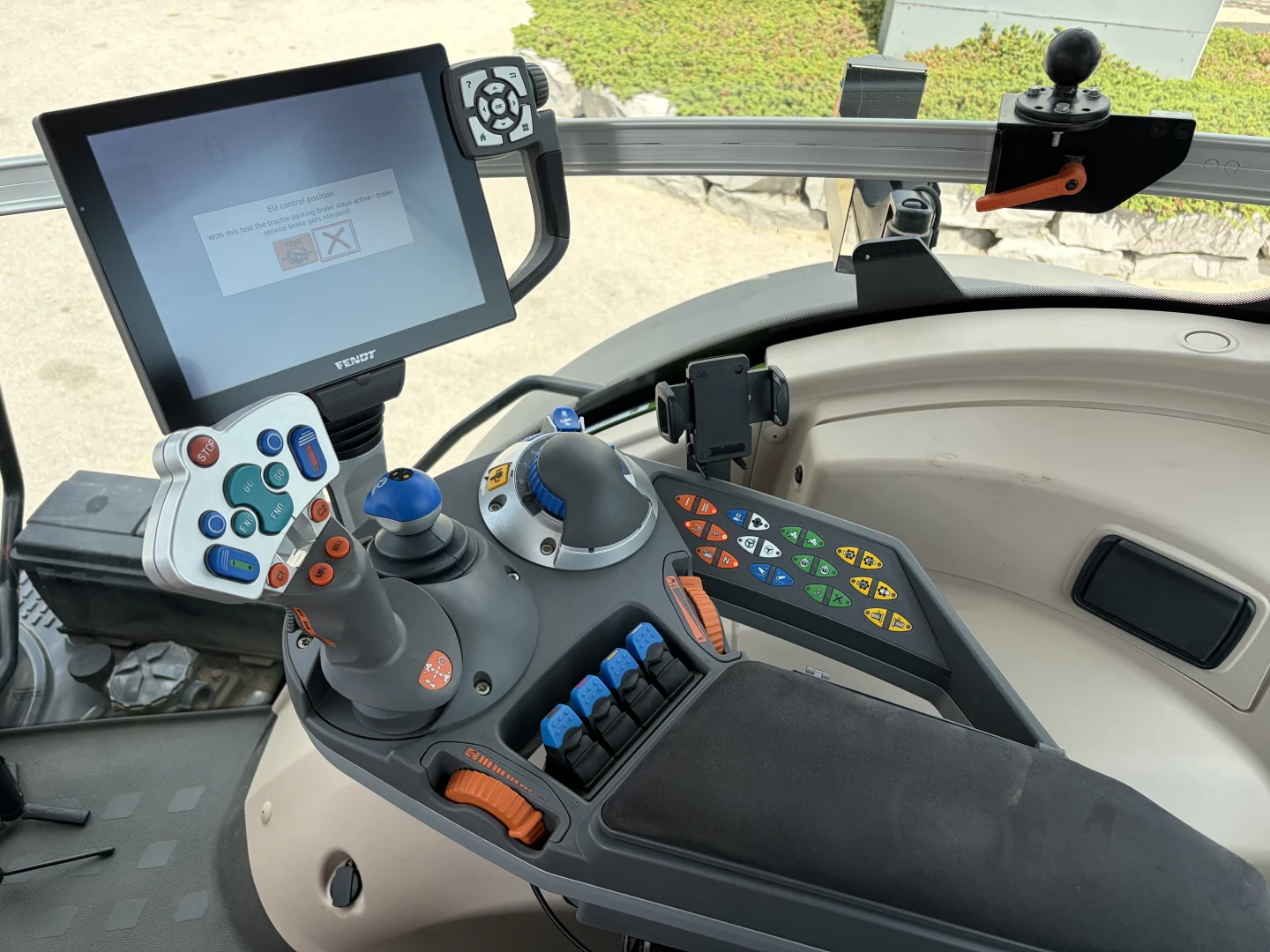

| Display | 10.4" Varioterminal | |

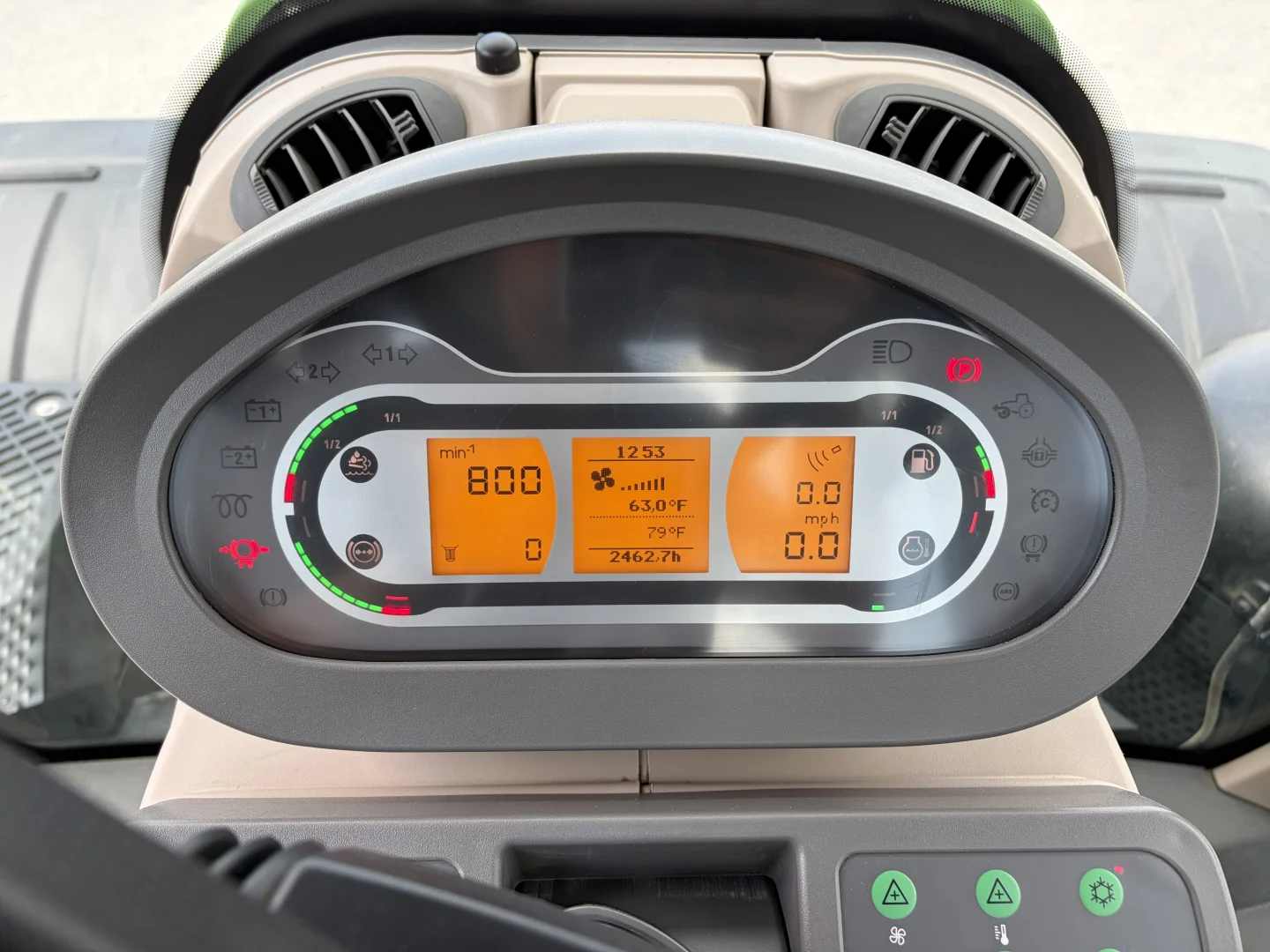

| Instrument Display | Digital Dash Display | |
| Entertainment | USB, Bluetooth, Mic | |
| Integration | ISO BUS Implement Control | |
| Guidance | Guidance Ready | |
| Headland Management | Variotronic TI | |
| Data Transfer | TaskDoc Pro | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Weights | ||
|---|---|---|

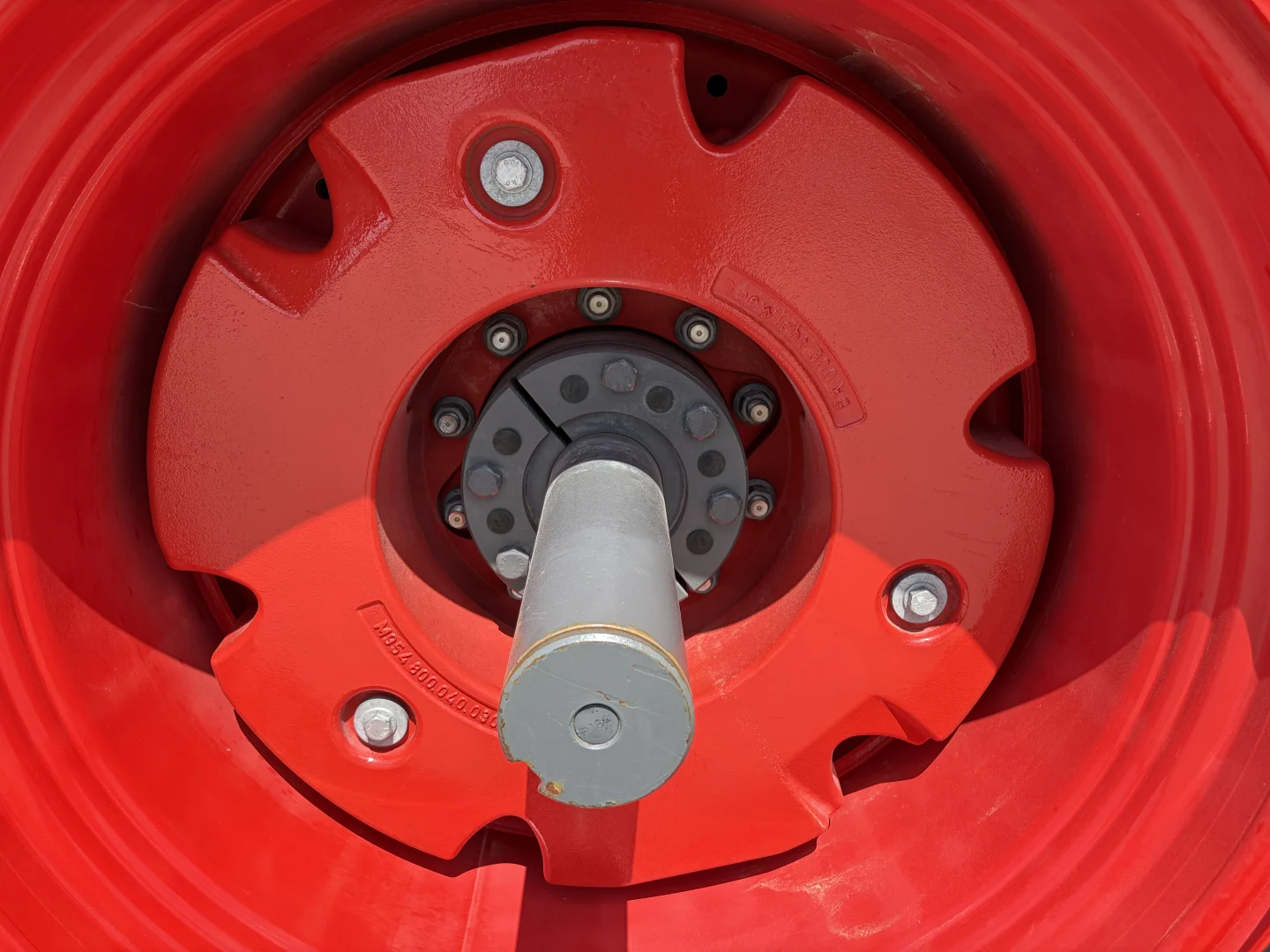

| Wheel Weights | FD 300 kg Wheel Weight Pair | |
| Mount | Bolt | |
| Type | Wheel Disc | |
| Base Weight | 661.39lb. (300kg) | |
| Front Weights | FD 1250 kg Ballast | |
| Mount | Hitch | |
| Type | Block | |
| Base Weight | 2,755.78lb. (1,250kg) | |
| Dimensions | ||
|---|---|---|
| Length | 17' 3-11/16" (5,275mm) | |
| Wheelbase | 9' 8-1/8" (2,950mm) | |
| Width | 8' 4-3/8" (2,550mm) | |
| Height | 10' 9-1/8" (3,280mm) | |
| Minimum Ground Clearance | 1' 7-15/16" (506mm) | |
| Turning Radius | 16' 5" (5m) | |
| Base Weight | 20,657.32lb. (9,370kg) | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |
