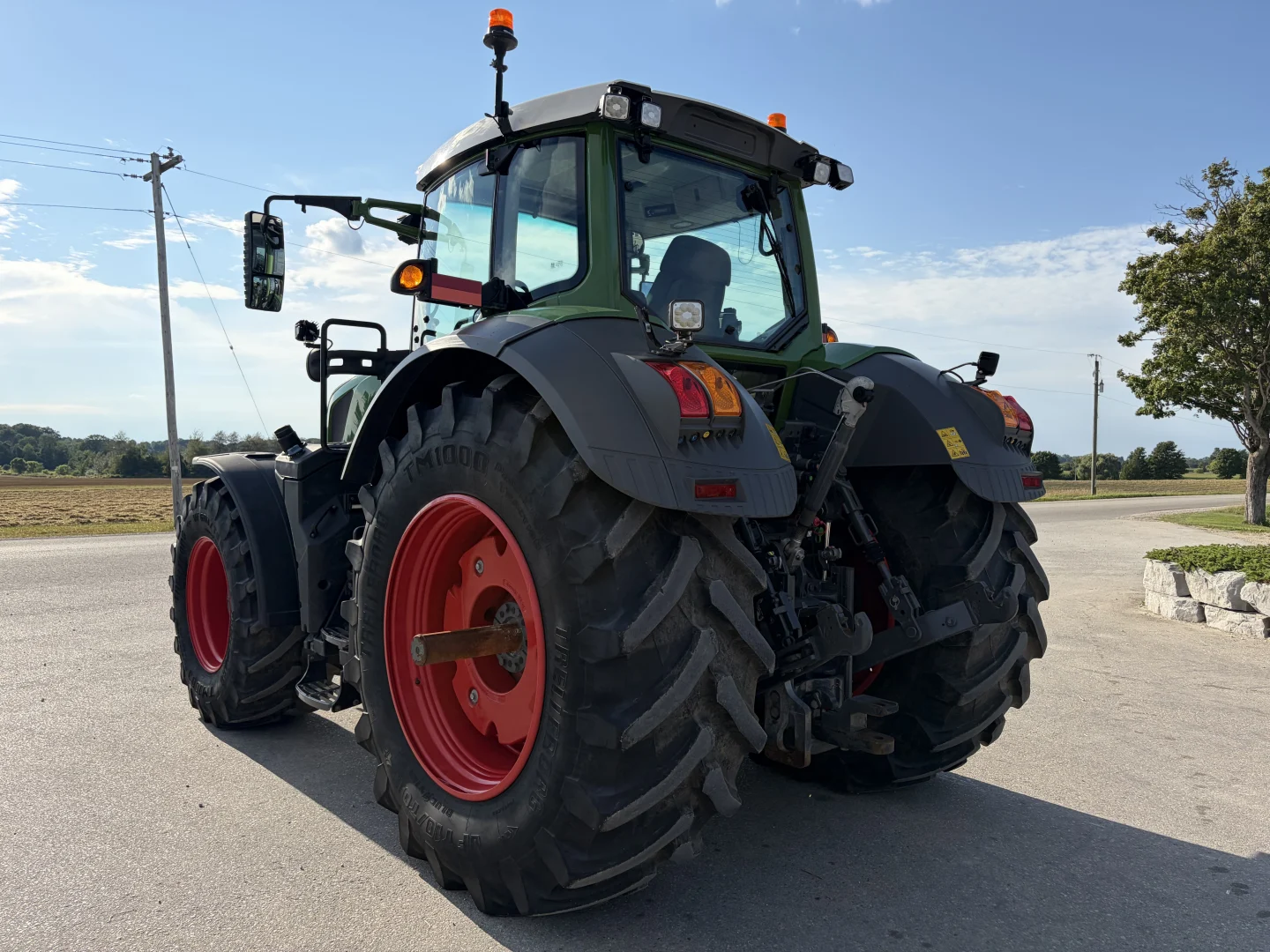

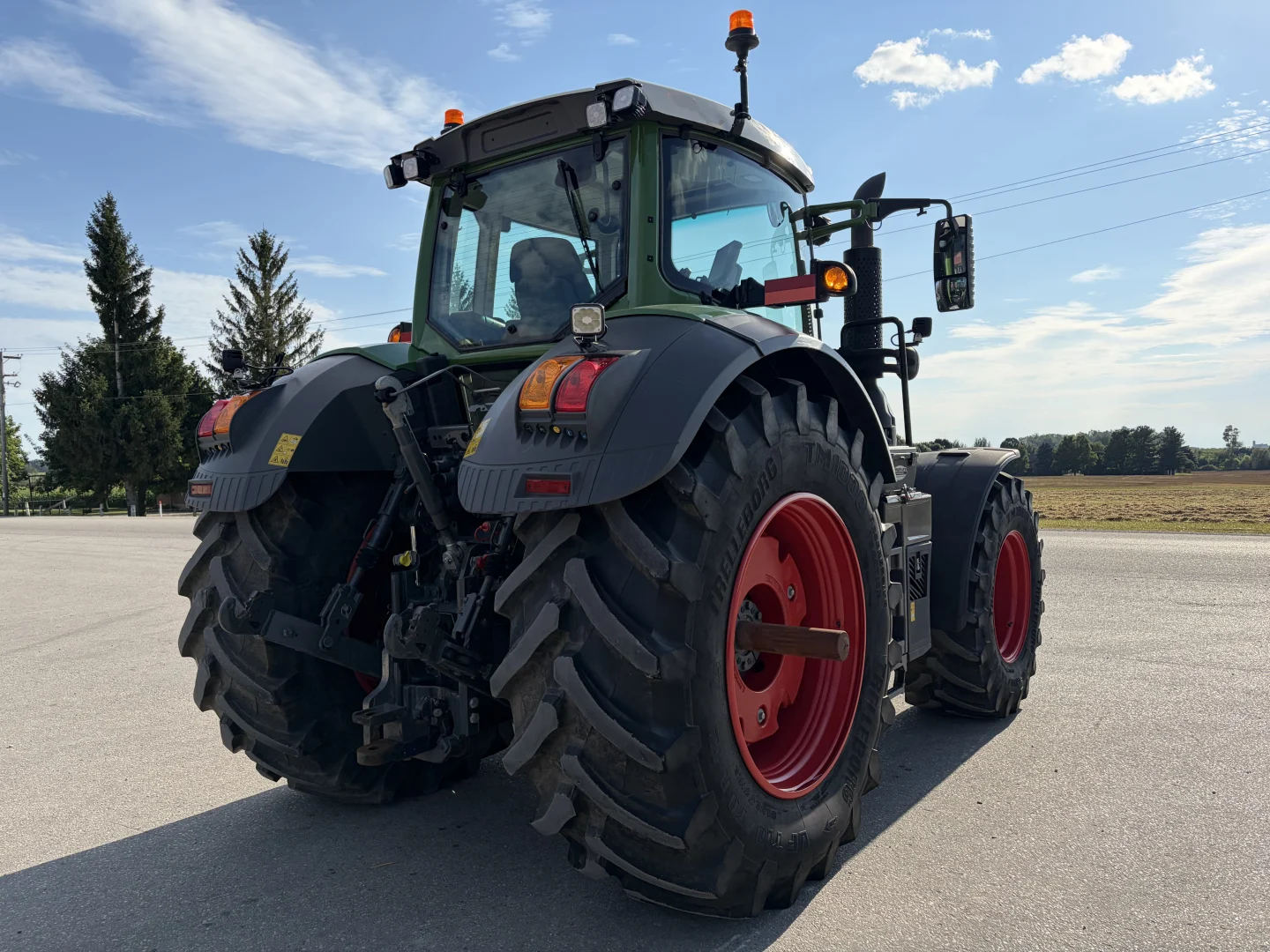

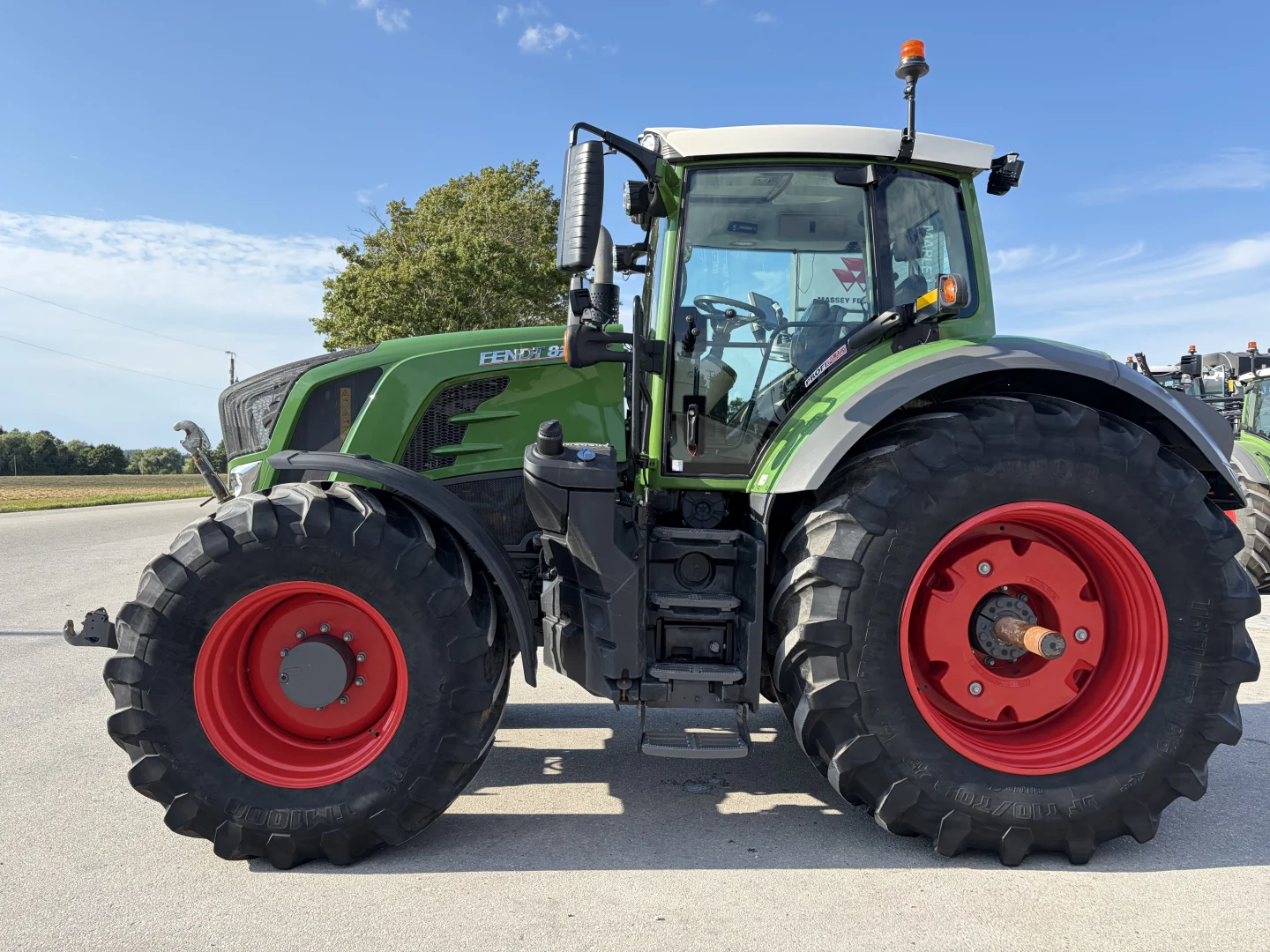

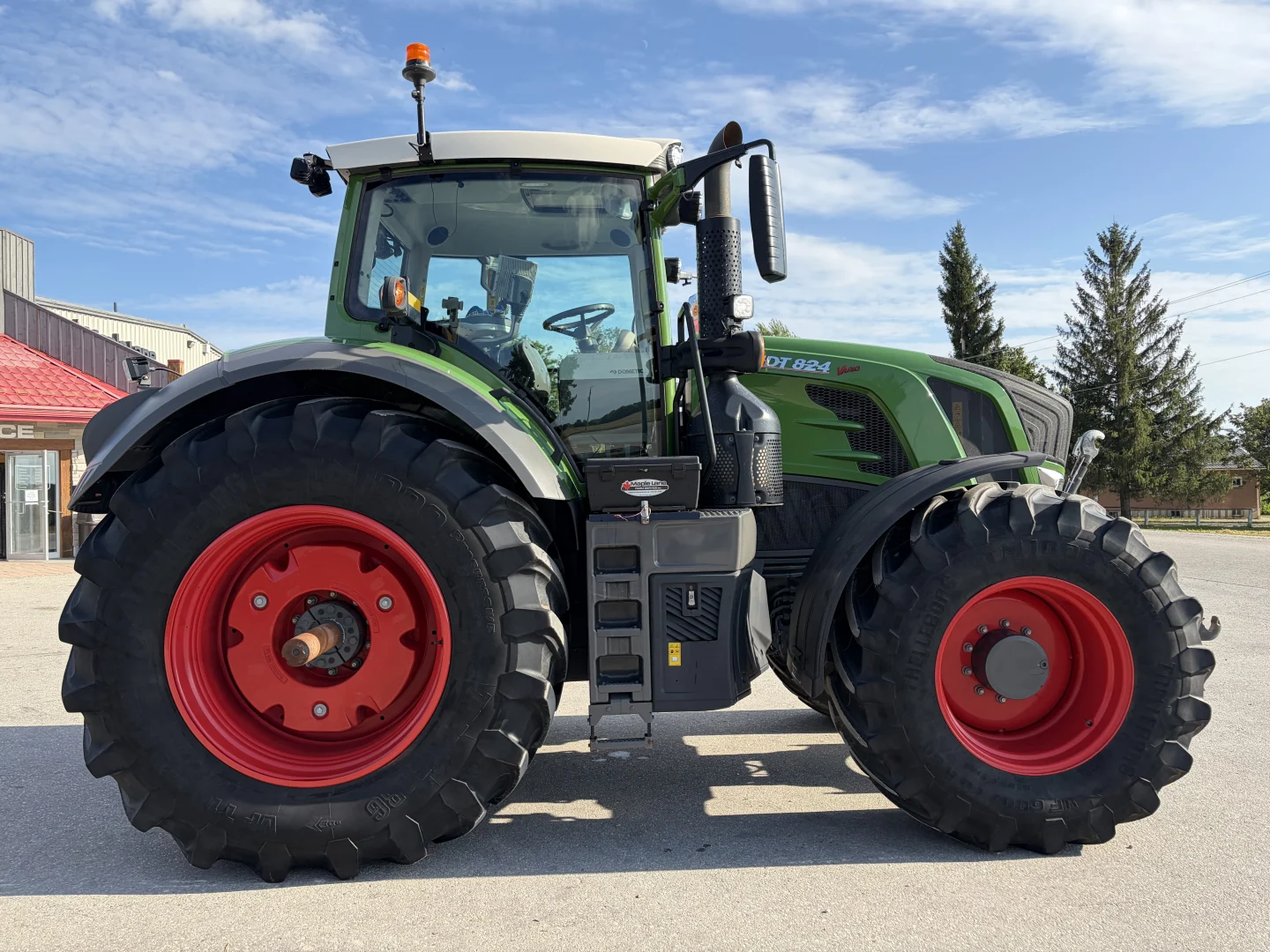

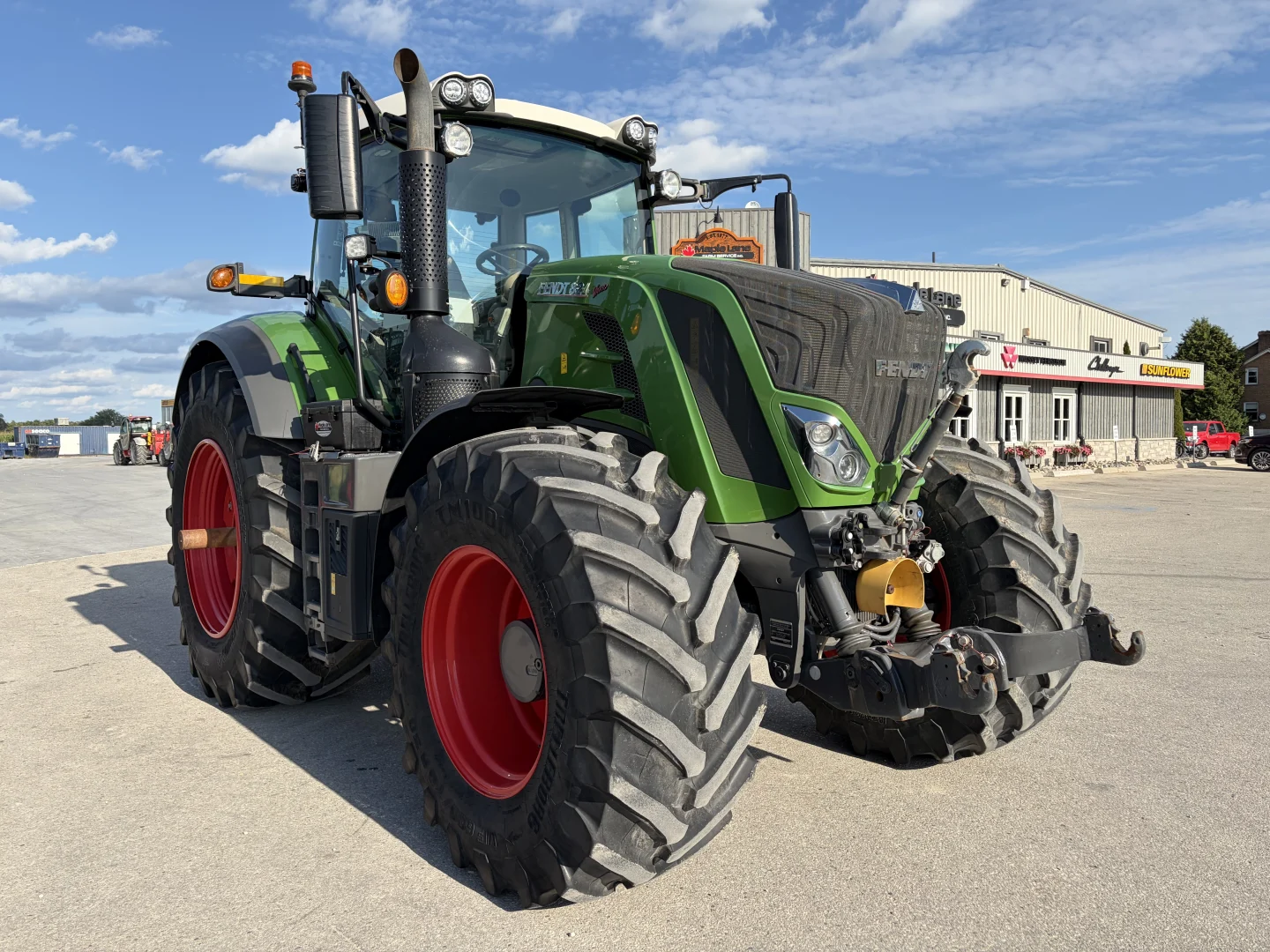

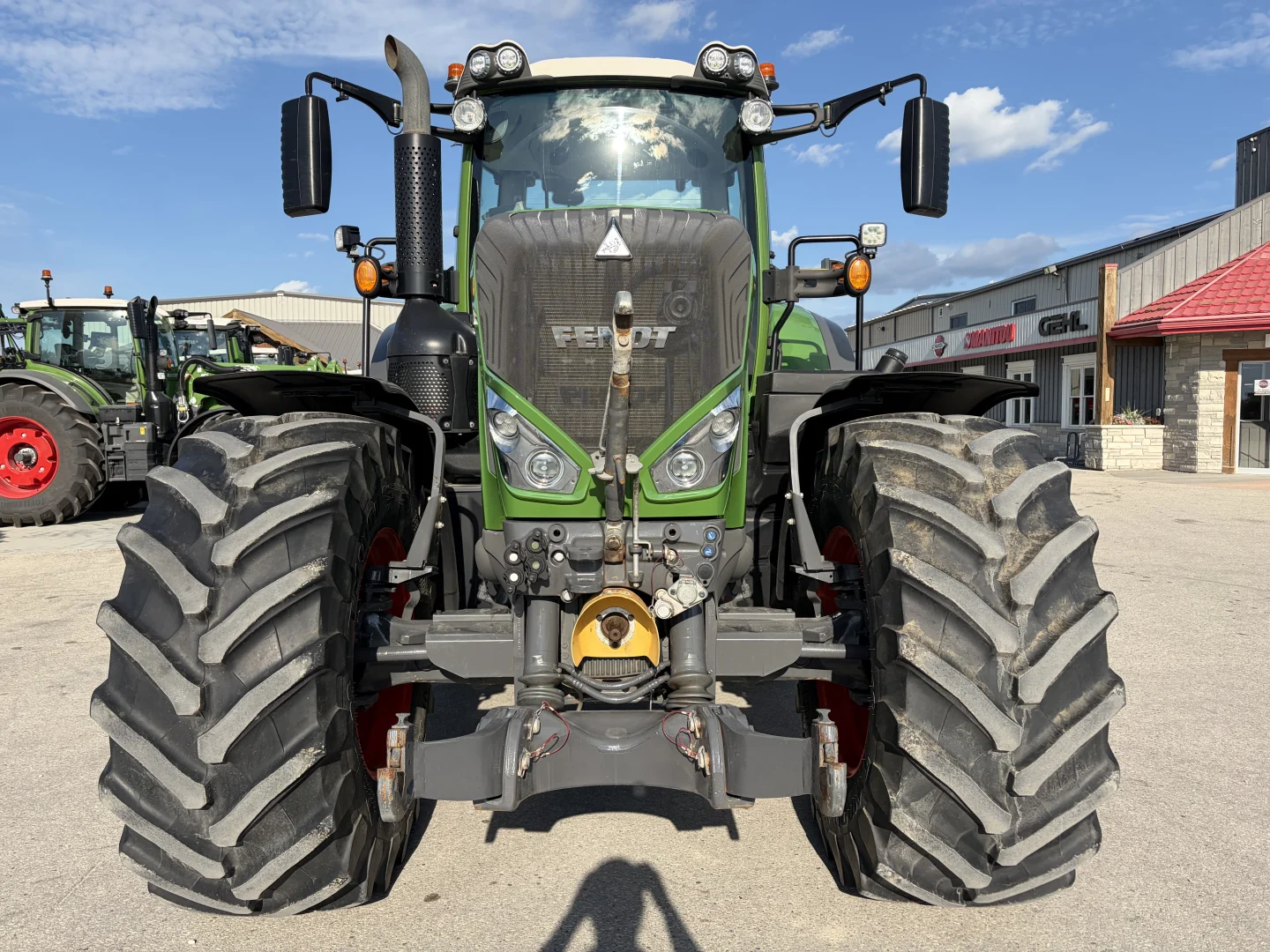

Used 2023 Fendt 824 S4
| Description | |
|---|---|
| Profi Plus, 50 KPH Vario transmission, front axle suspension, 205 L/min hydraulic pump, 5 rear remotes, power beyond, hydraulic & air trailer brakes, exhaust brake, 2 front remotes, front hitch & PTO, air cab suspension, contour assist, cloth Evolution seat, heated front & rear window, full LED lighting, 300 KG wheel weights, VF 600/70R30 fronts, VF 710/70R42 rears. Consignment unit. | |
| Categories | High Horsepower |
| Unit Number | 27906L |
| Condition | Used |
| Usage | 3,500 Hours |
| Year | 2023 |
| Cost | $254,900.00 CAD |
Financing calculator not available for this equipment. Contact us for details.
| Horse Power | Rate Per Hour |
|---|---|
| 246HP | $95.94 CAD |
| *Minimum Hours Per Day: 5 Week: 30 Month: 100 | |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 183.44kW (246hp) | |
| PTO Power | 152.87kW (205hp) | |
| Rated Engine Speed | 2,100r/min | |
| Make | DZ 6.06L Tier 4F 6 Cylinder | |
| Displacement | 1.60gal. (6.06L) | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 132.09gal. (500L) | |
| DEF Tank Capacity | 13.21gal. (50L) | |
| Warming | Block Heater | |
| Fan | Reversing | |
| Transmission | ||
|---|---|---|
| Maximum Road Speed | 31.07mph (50km/h) | |
| Name | CVT ML 220 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Exhaust, Wet Disc | |
| Trailer Brakes | Hydraulic | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 800 S4 54 GPM | |
| Maximum Flow | 204.41L/min (54GPM) | |
| Rear Remote Valves | 5 | |
| Front Remote Valves | 2 | |
| Steering | Hydraulic Power | |
| Wheels | ||
|---|---|---|
| Front | TRELL VF600/70R30 TM1000 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 2' 3/16" (615mm) | |
| Overall Diameter | 5' 3" (1,600mm) | |
| Static Loaded Radius | 2' 3-3/8" (695mm) | |
| Rolling Circumference | 15' 8-3/8" (4,785mm) | |
| Tread Thickness | 2-3/16" (56mm) | |
| Base Weight | 462.97lb. (210kg) | |

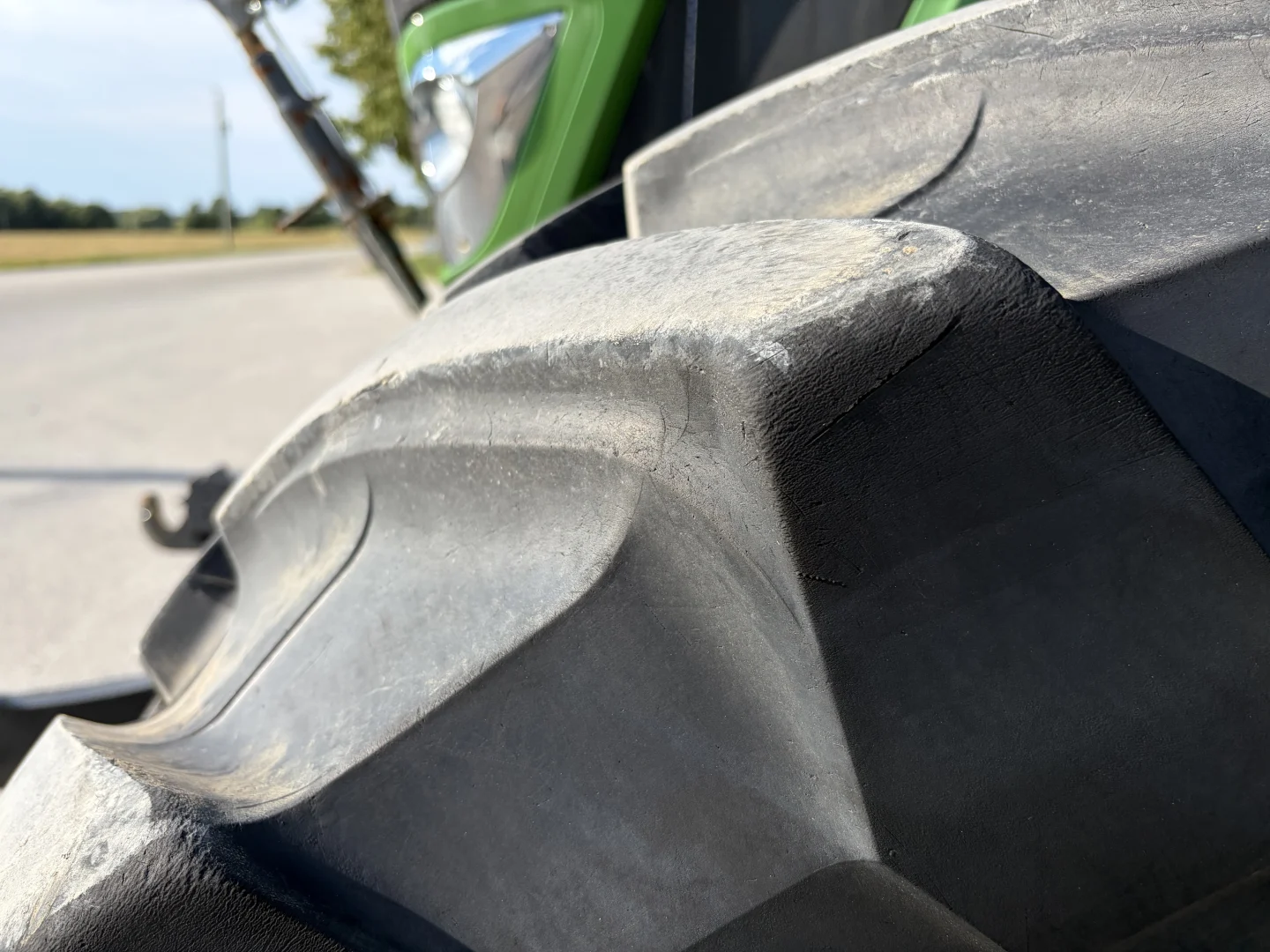

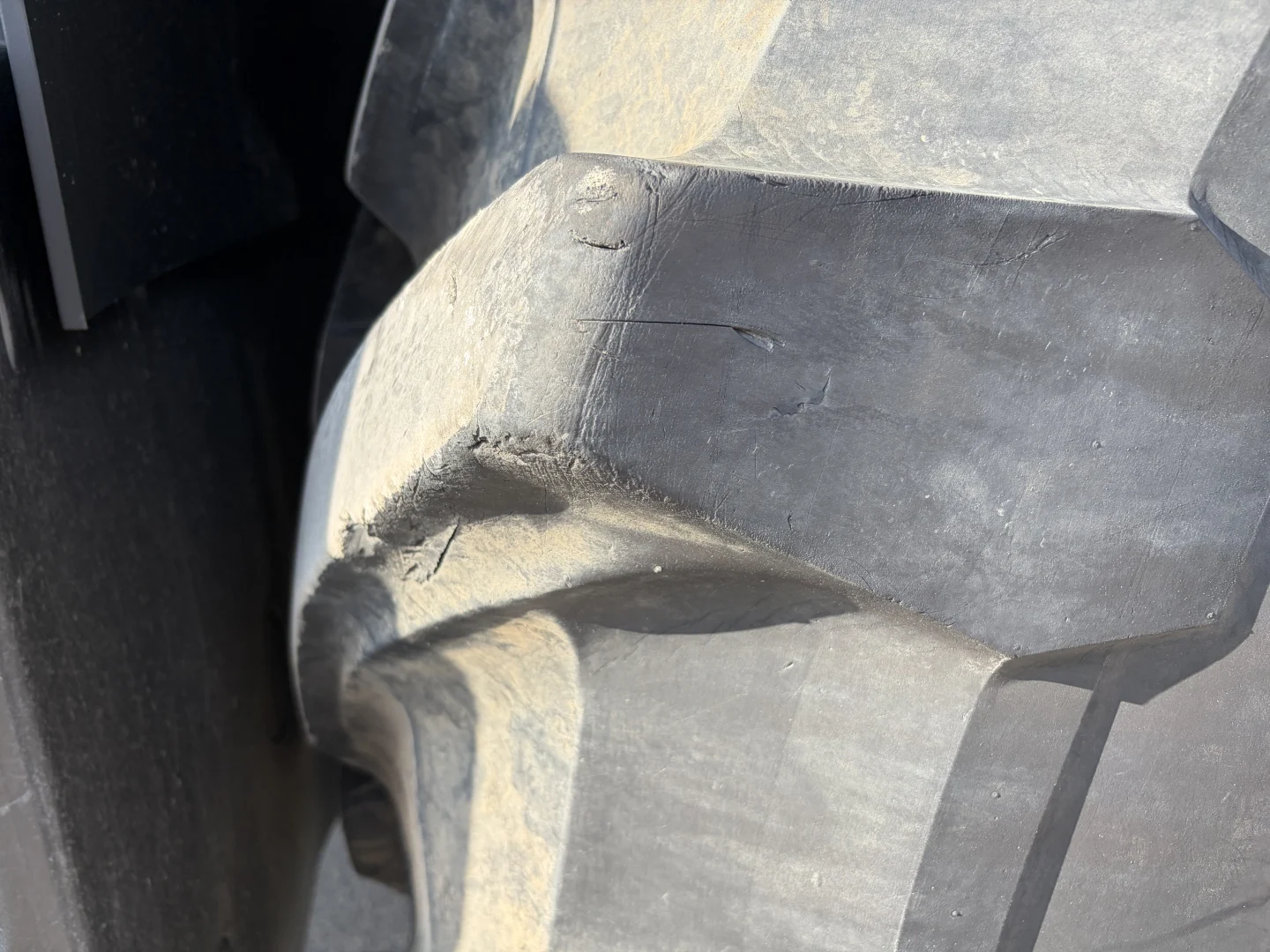

| Rear | TRELL VF710/70R42 TM1000 | |
| Size | 710/70R42 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 2' 3-15/16" (710mm) | |
| Overall Diameter | 6' 9-1/2" (2,070mm) | |
| Static Loaded Radius | 2' 11-7/16" (900mm) | |
| Rolling Circumference | 20' 3-11/16" (6,190mm) | |

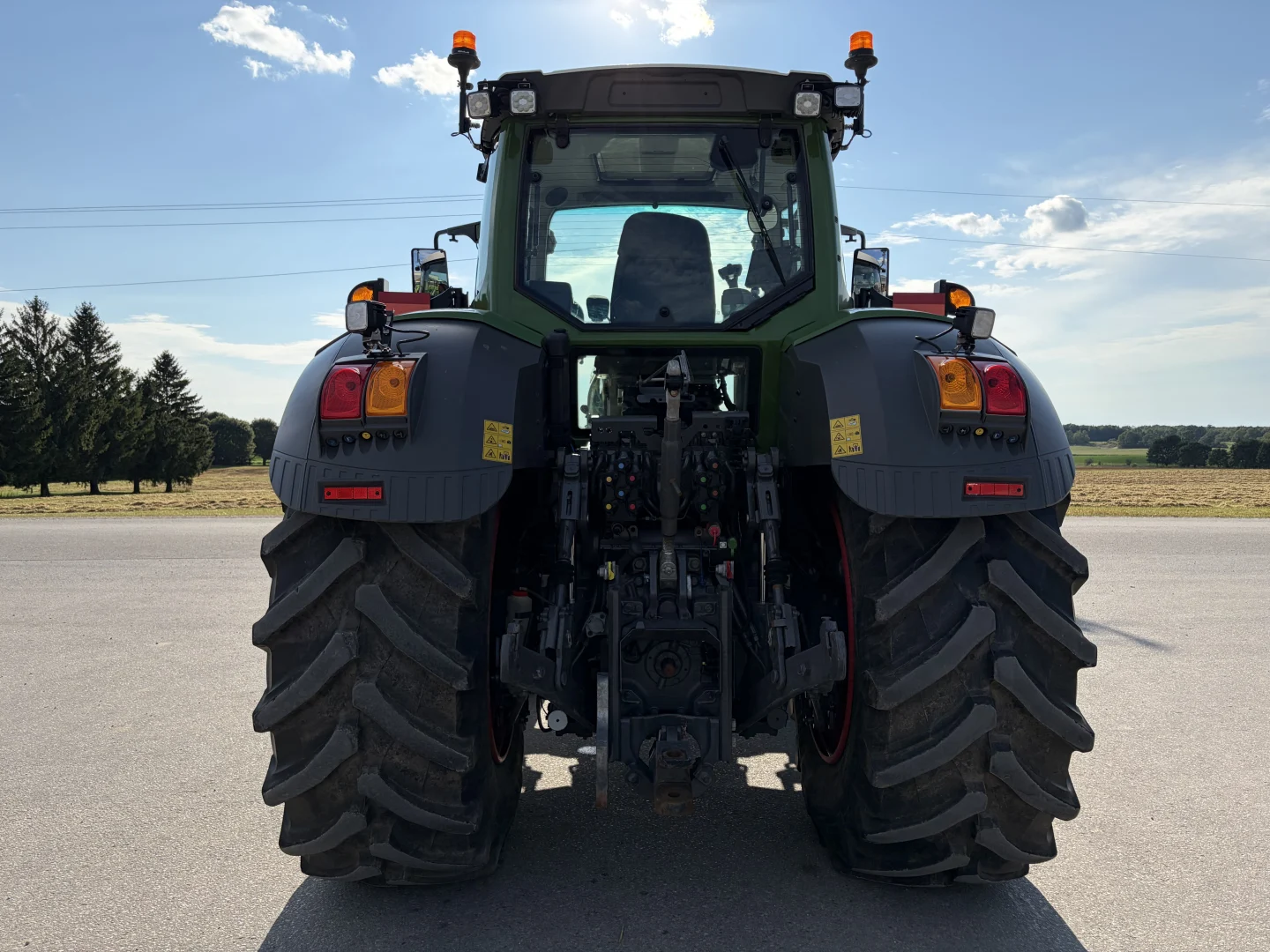

| Hitching | ||
|---|---|---|

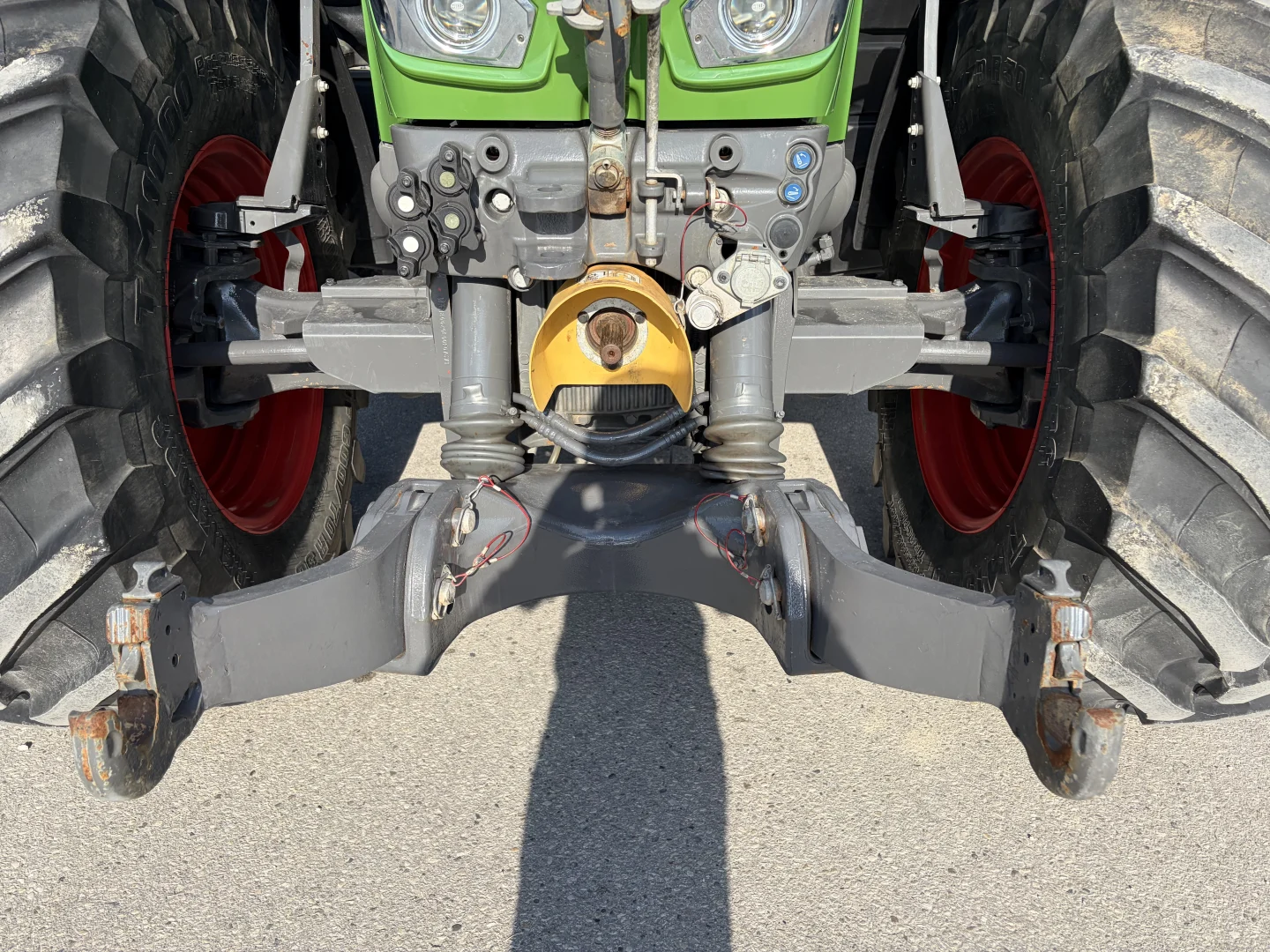

| Front Hitch | FD 800 S4 | |
| Category | Category 2, Category 3 | |
| Capacity at Pins | 2,449.34lb. (1,111kg) | |

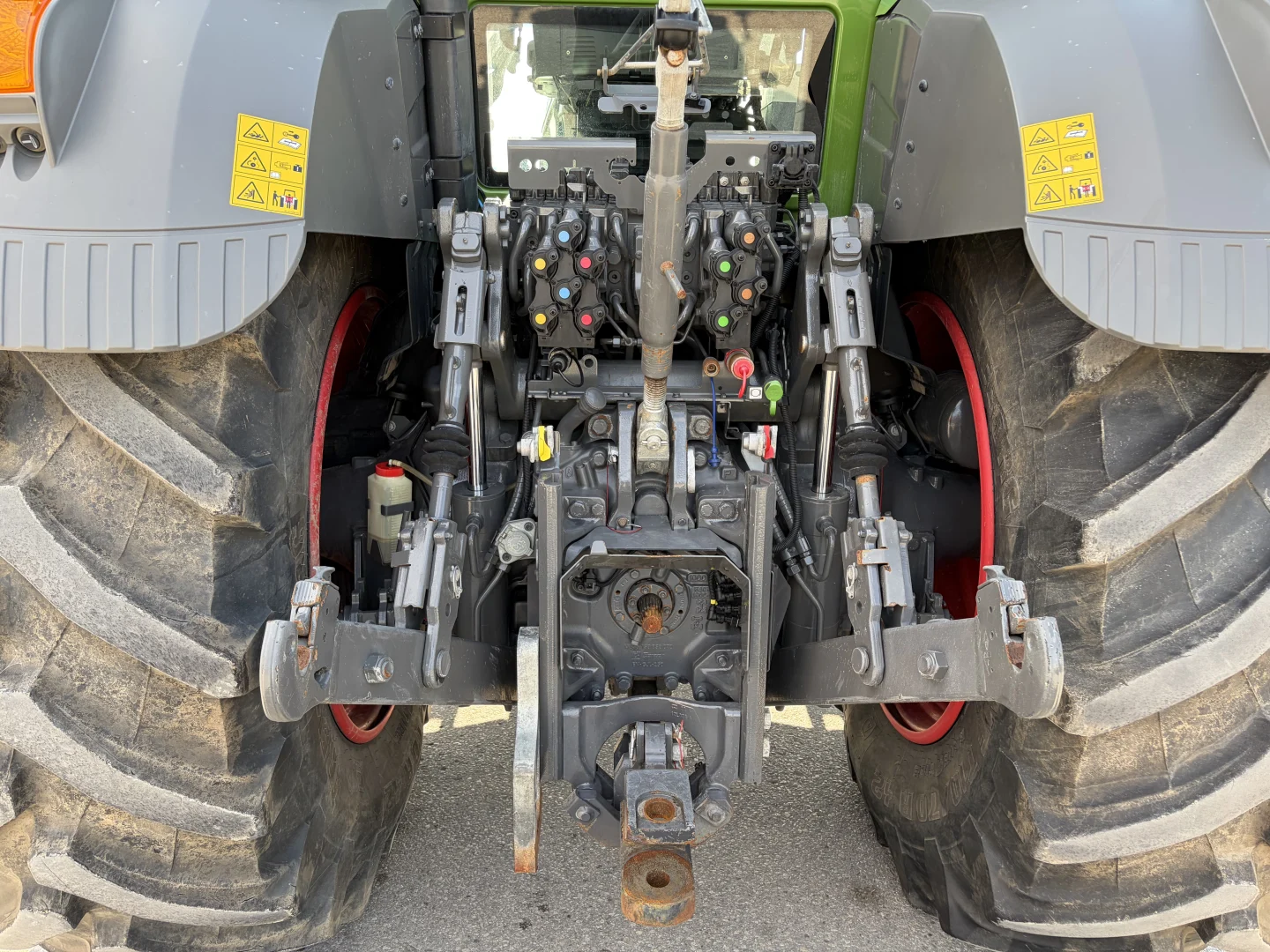

| Rear Hitch | FD 800 S4 | |
| Hitch Category | Category 3, Category 2 | |
| Lift Capacity at Pins | 20,569.13lb. (9,330kg) | |
| Comfort | Draft Control | |
| Rear Drawbar | Category 4 | |
| PTO | ||
|---|---|---|
| Front Speed | 1000 | |
| Rear Speed | 1000, 1000E | |
| Type | Independent | |
| Electrical | ||
|---|---|---|
| Front Lights | 12 | |
| Rear Lights | 6 | |
| Worklight Type | LED | |
| Rotating Beacon | Left, Right | |
| Alternator | 150A | |
| Battery | 1,475CCA | |

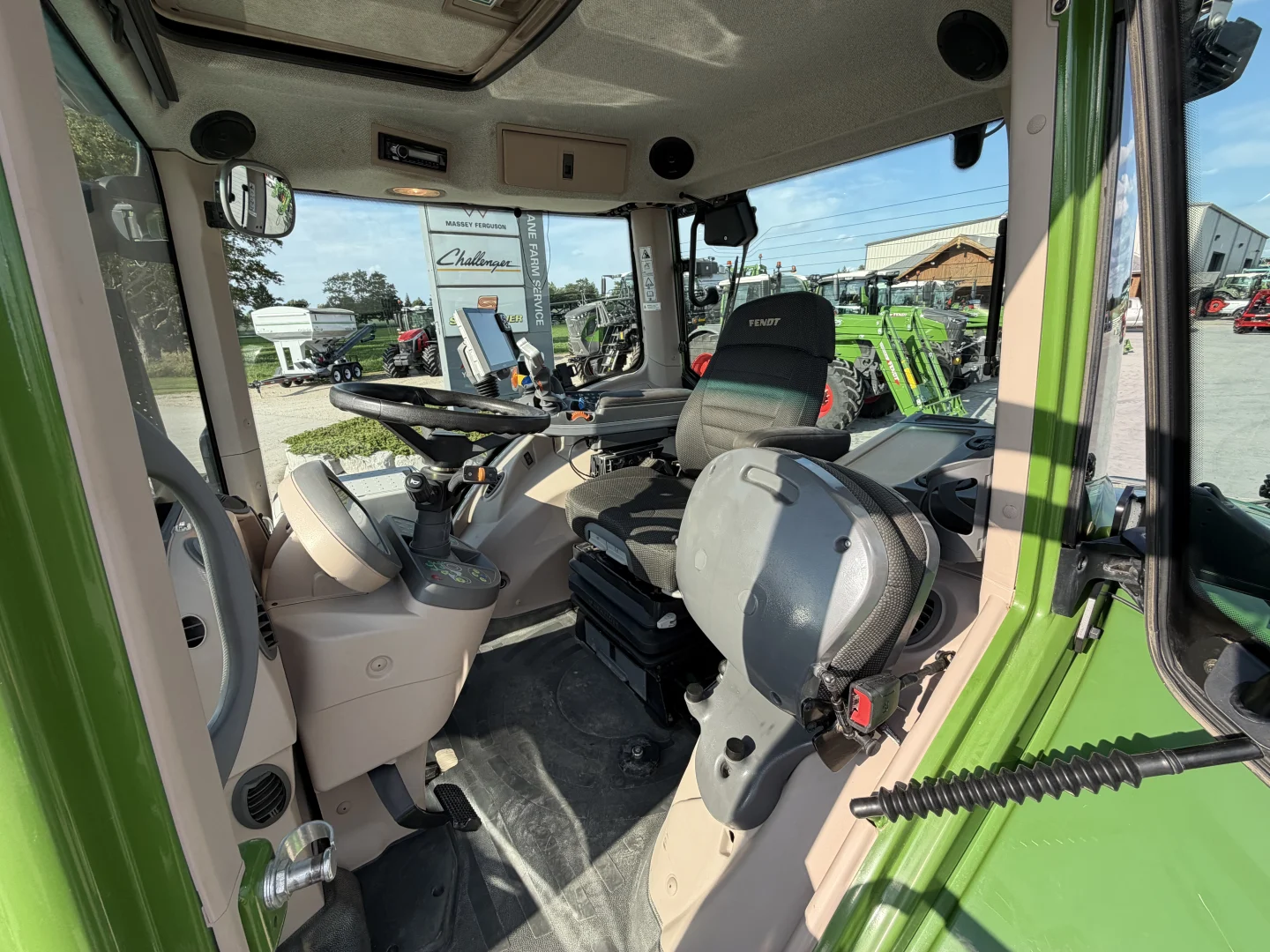

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 3 Point Mechanical | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Joystick | |
| Operator Seat | FD Super Comfort EVO Adaptive | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | 300° Front | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |

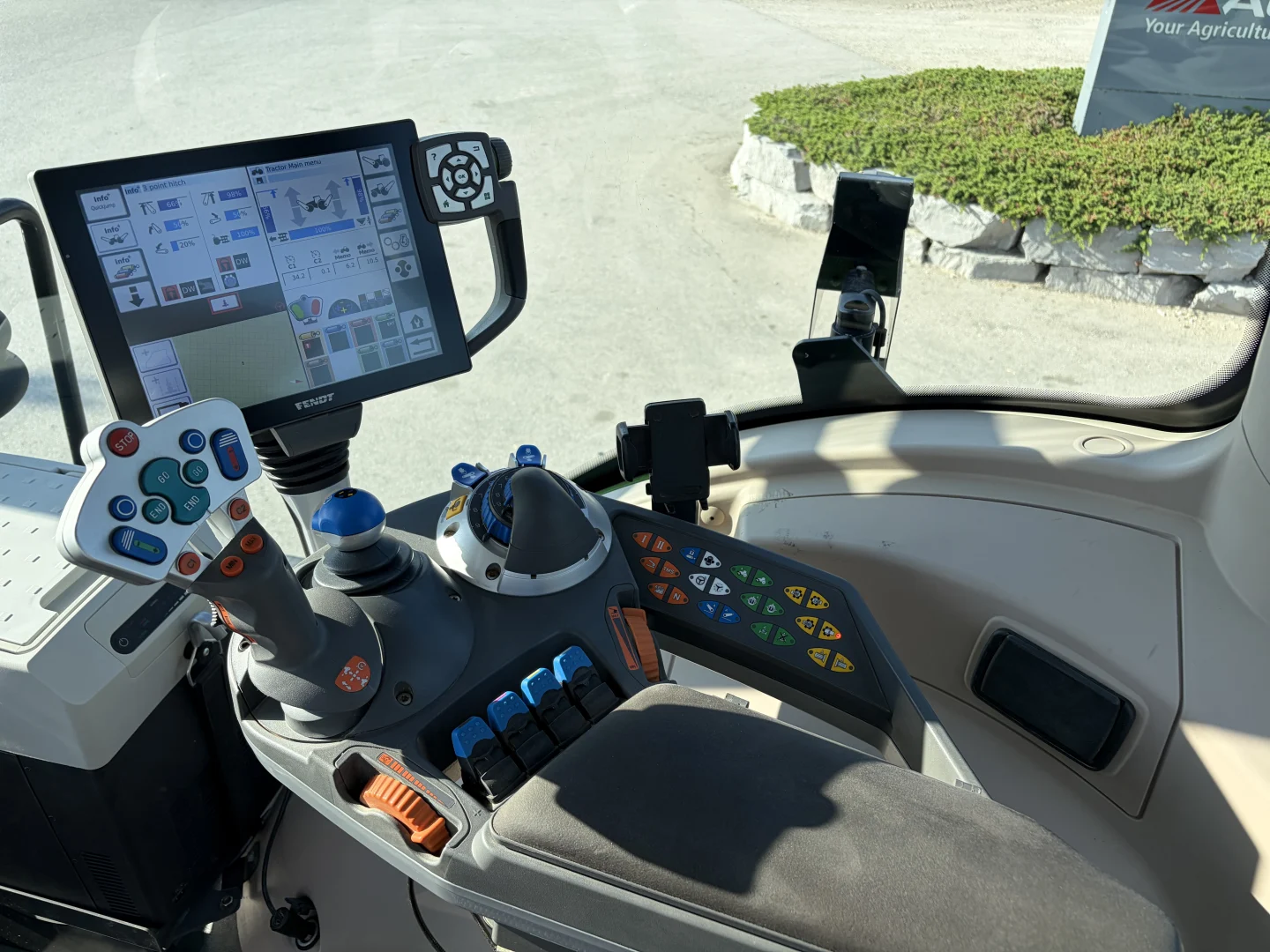

| Technology | ||
|---|---|---|
| Display | 10.4" Varioterminal | |

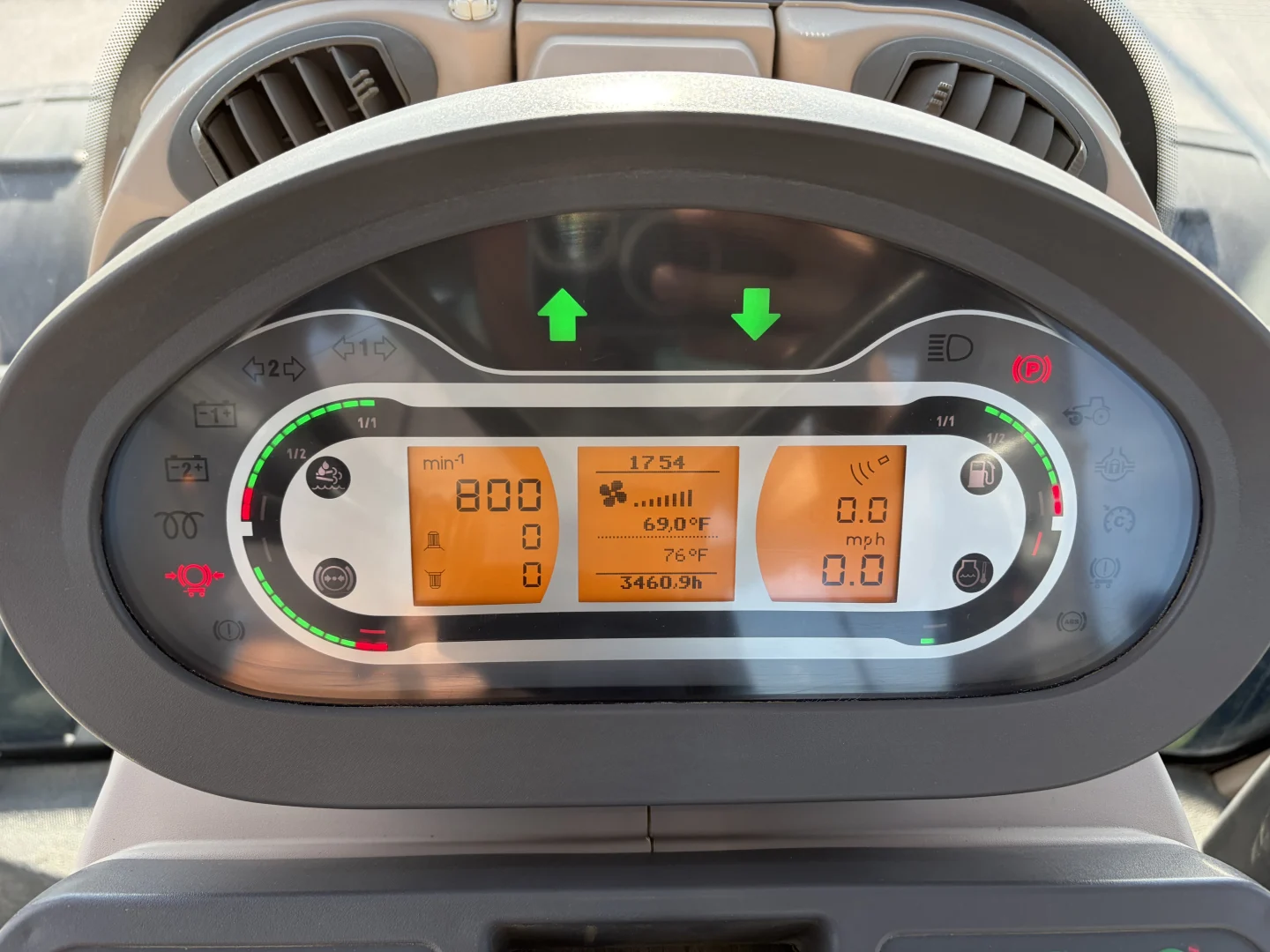

| Instrument Display | Digital Dash Display | |
| Entertainment | USB, Bluetooth, Mic | |
| Integration | ISO BUS Implement Control | |
| Guidance | Guidance Ready | |
| Headland Management | Variotronic TI | |
| Data Transfer | TaskDoc Pro | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Weights | ||
|---|---|---|

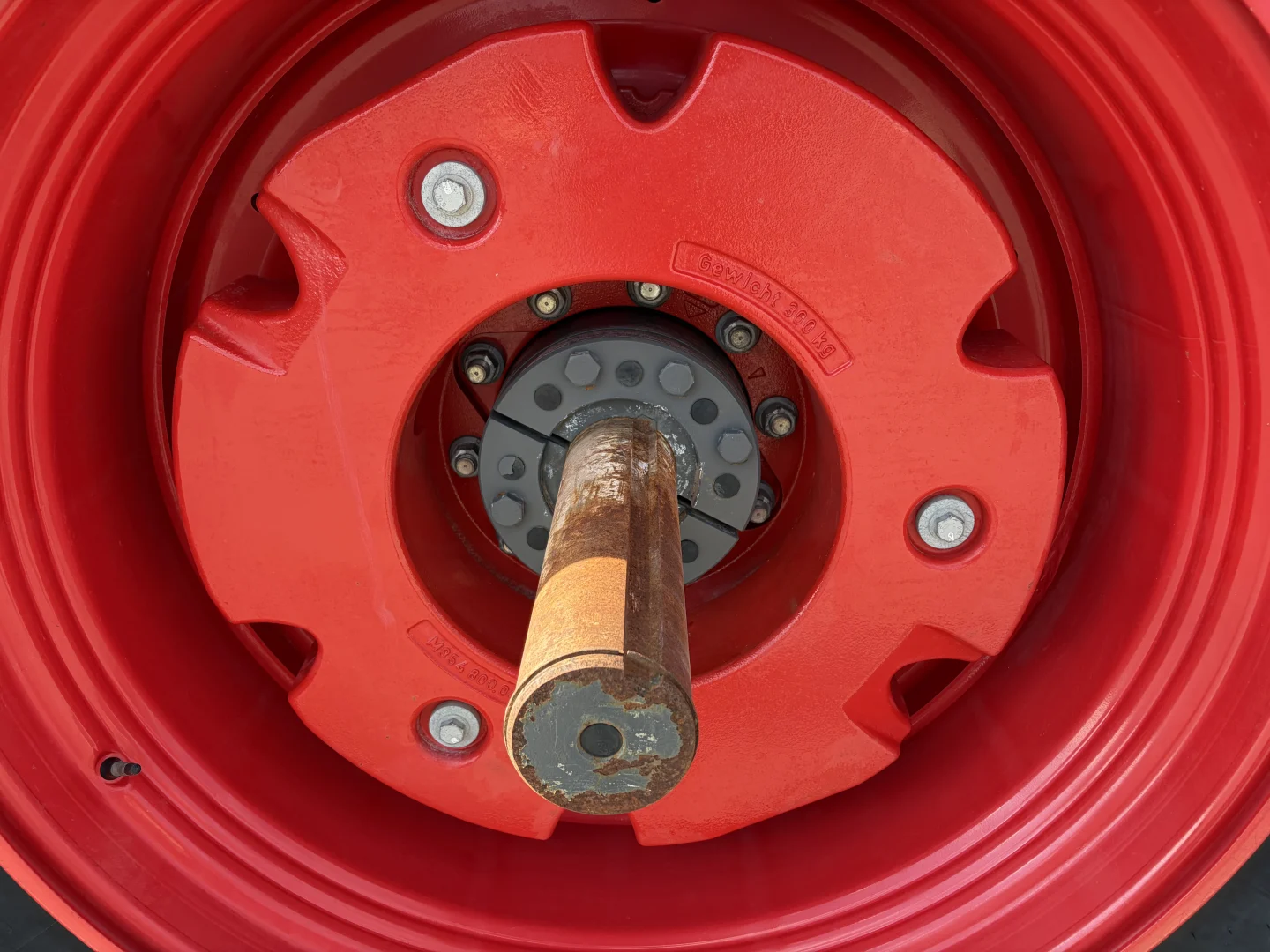

| Wheel Weights | FD 300 kg Wheel Weight Pair | |
| Mount | Bolt | |
| Type | Wheel Disc | |
| Base Weight | 661.39lb. (300kg) | |
| Front Weights | FD 870 kg Ballast | |
| Mount | Hitch | |
| Type | Block | |
| Base Weight | 1,918.02lb. (870kg) | |
| Dimensions | ||
|---|---|---|
| Length | 17' 3-11/16" (5,275mm) | |
| Wheelbase | 9' 8-1/8" (2,950mm) | |
| Width | 8' 4-3/8" (2,550mm) | |
| Height | 10' 9-1/8" (3,280mm) | |
| Minimum Ground Clearance | 1' 7-15/16" (506mm) | |
| Turning Radius | 16' 5" (5m) | |
| Base Weight | 20,657.32lb. (9,370kg) | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |
