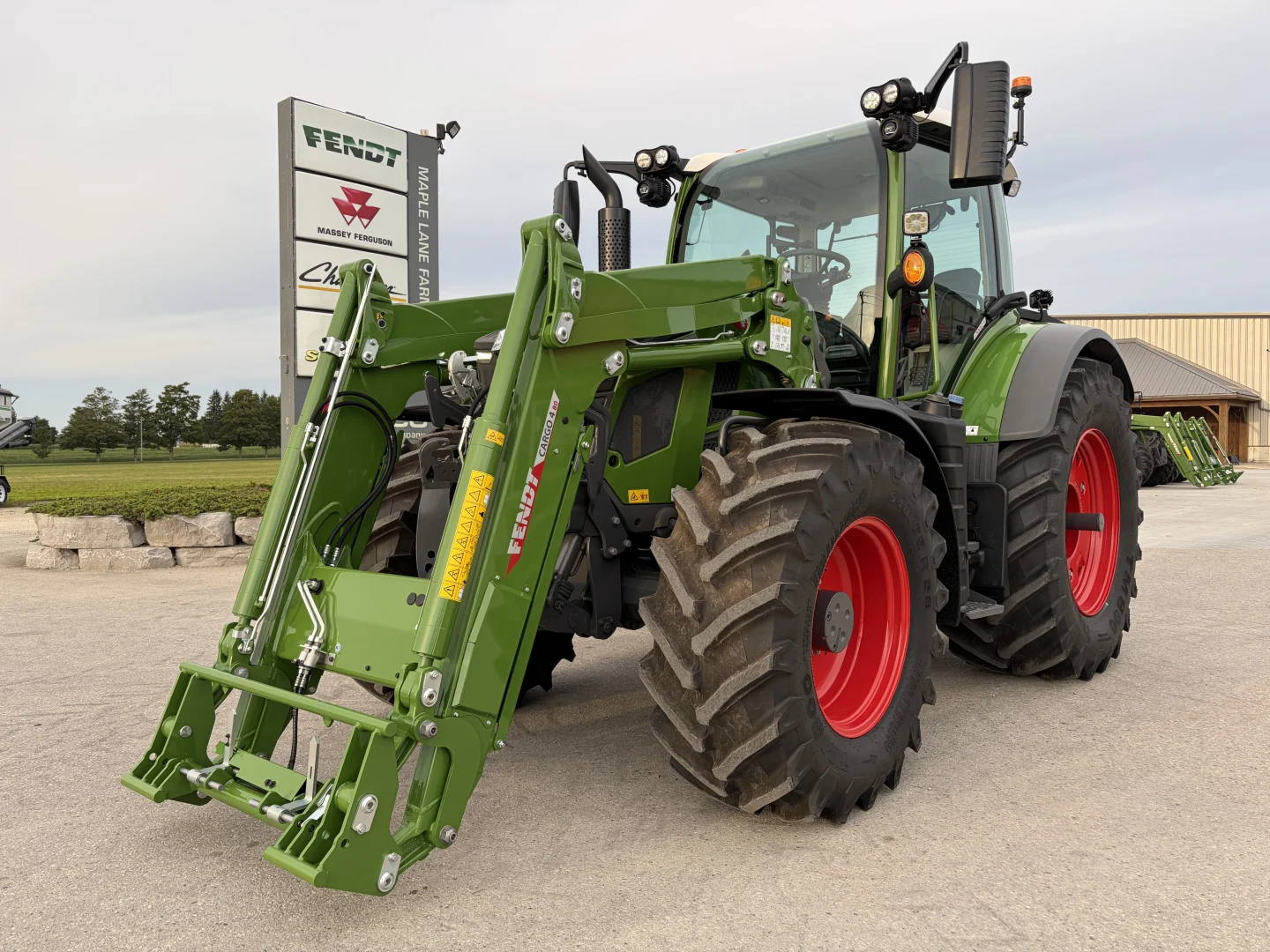

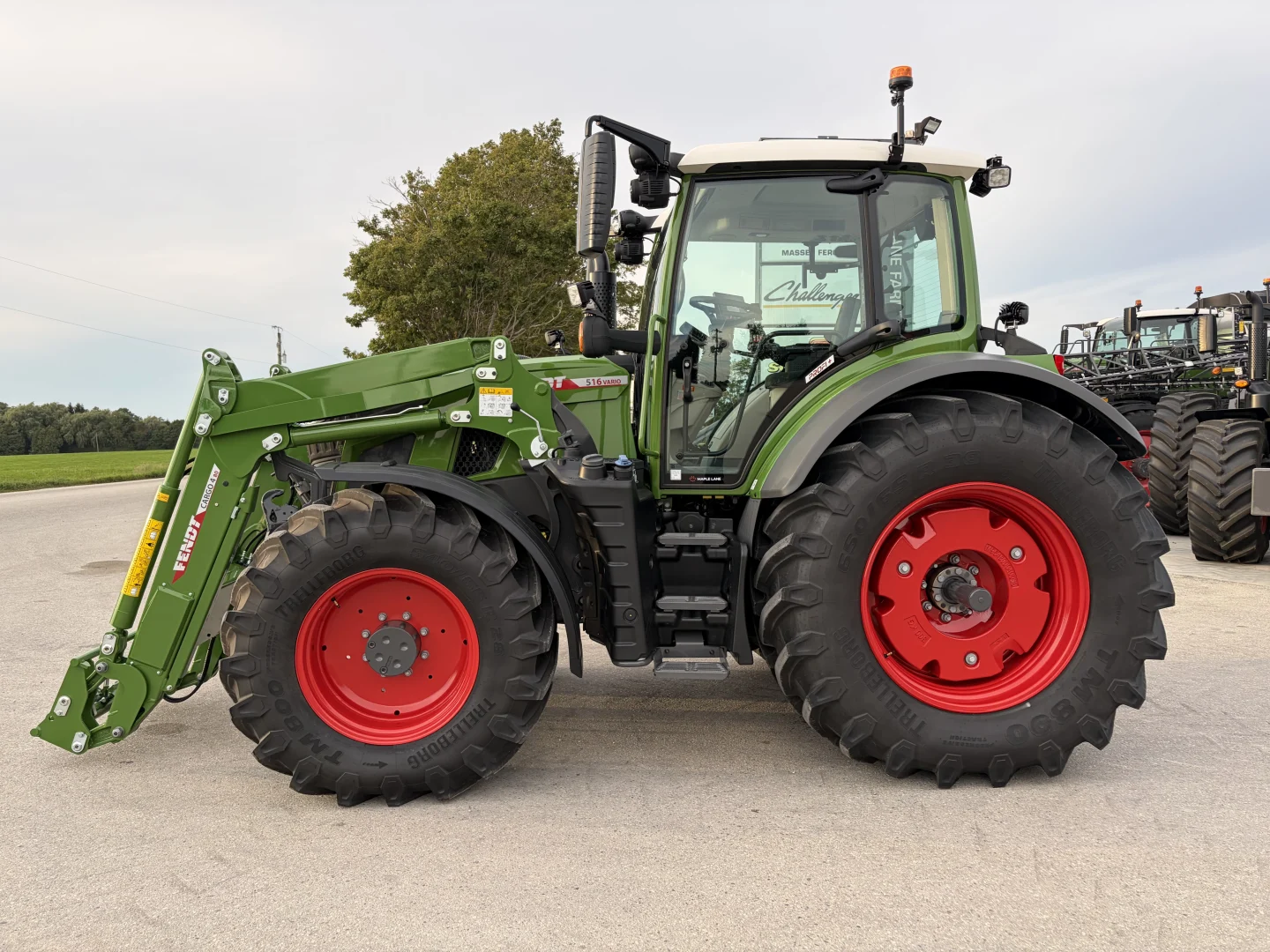

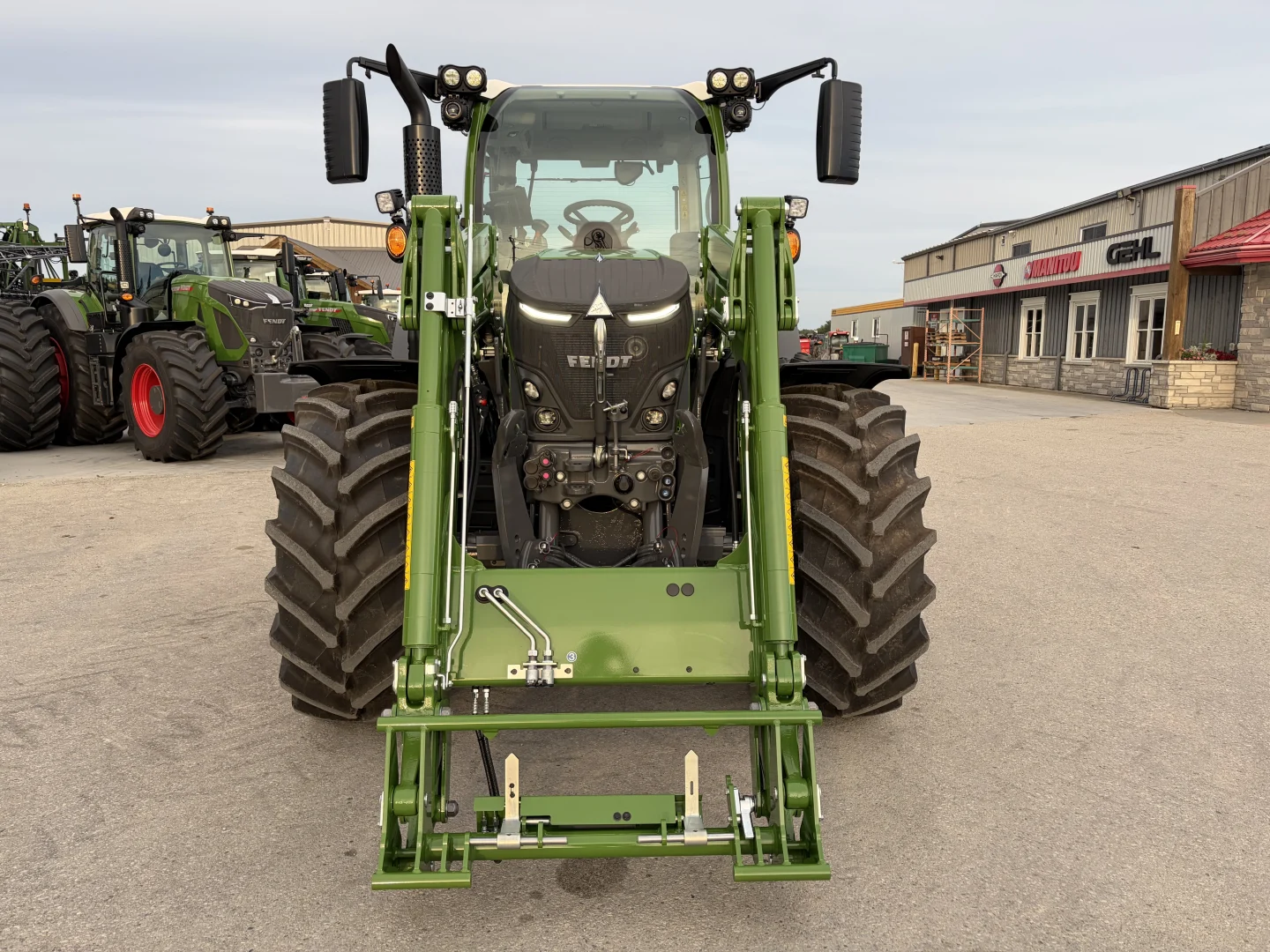

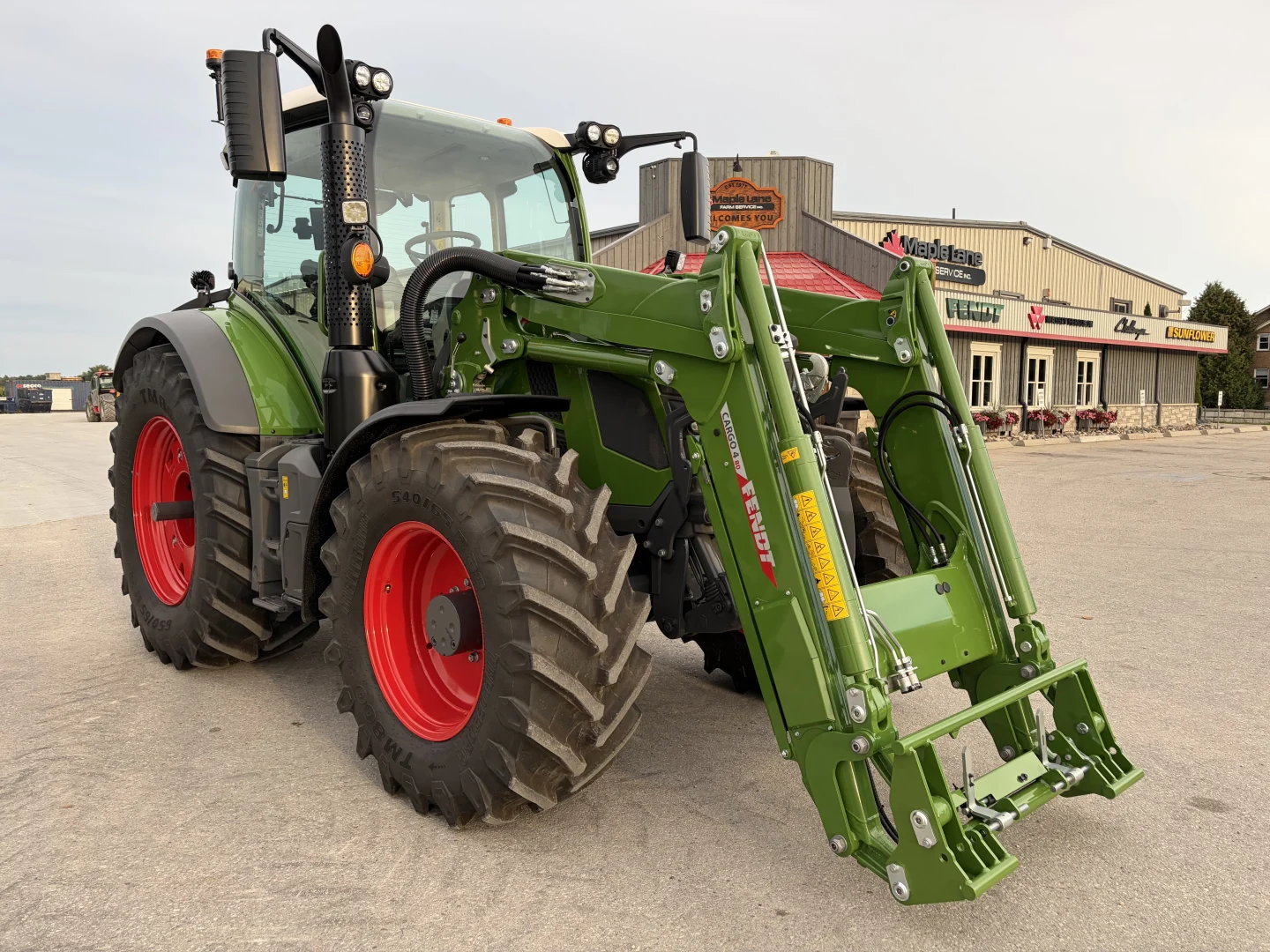

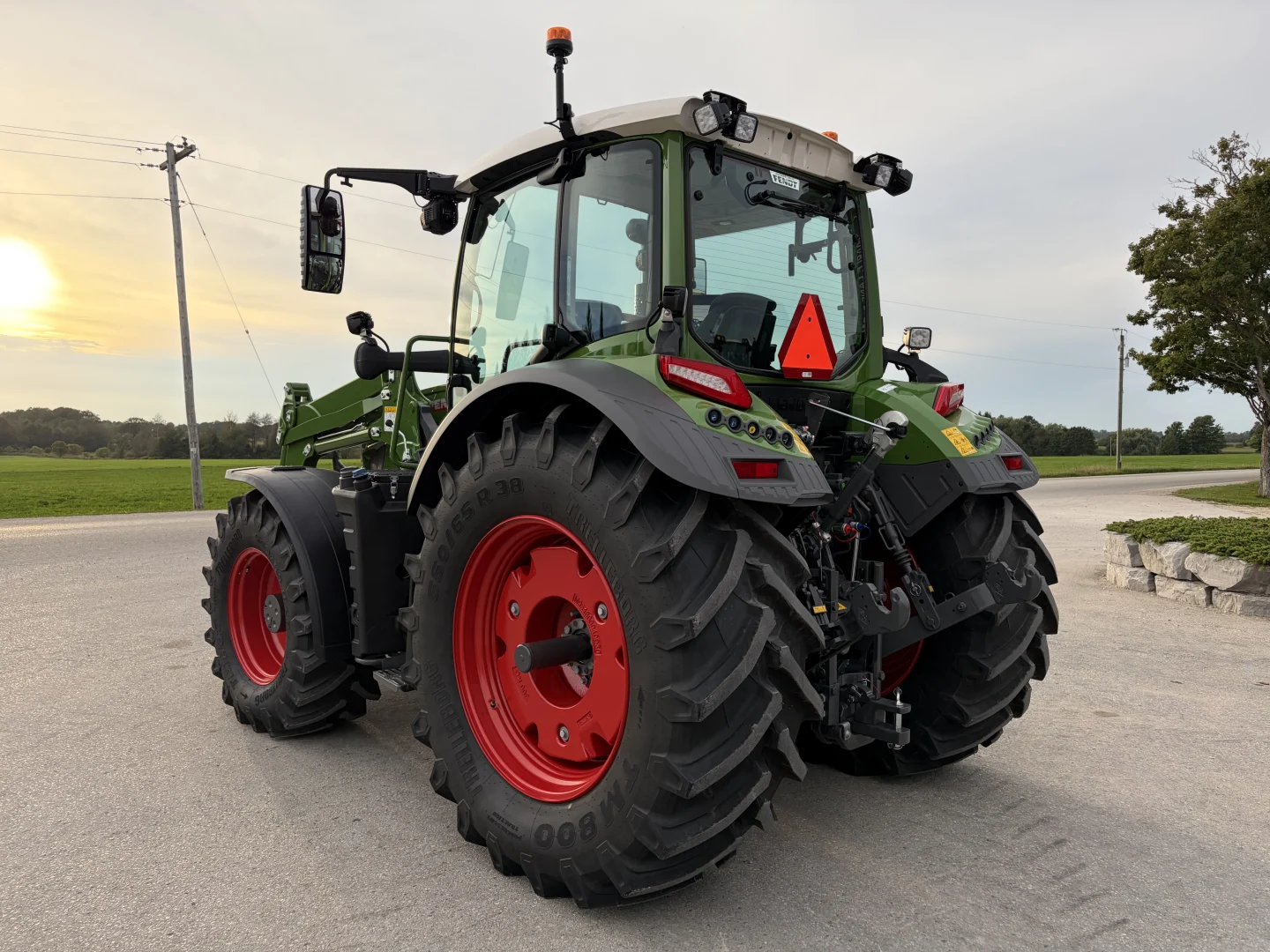

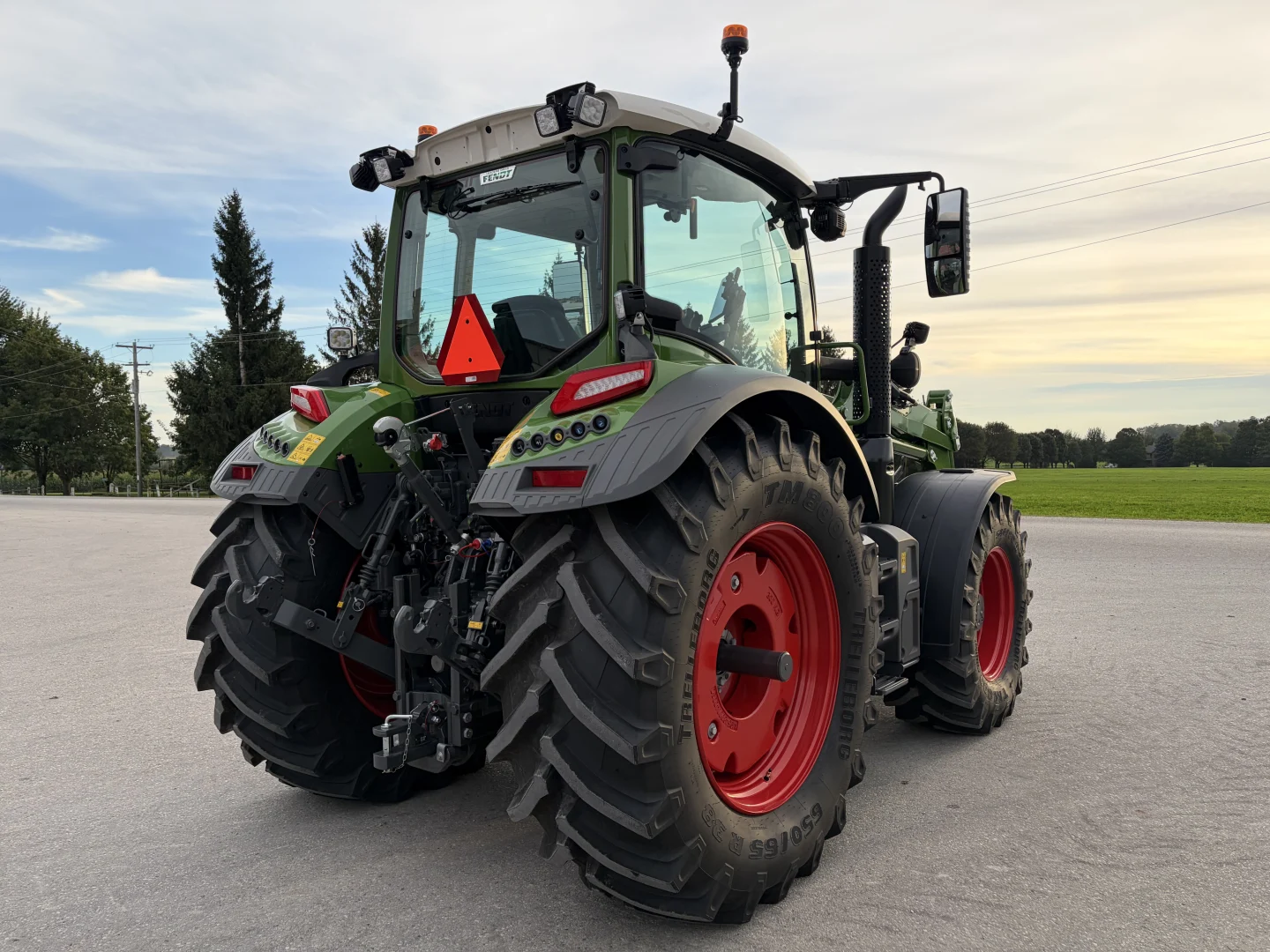

New 2026 Fendt 516 Gen4
| Description | |
|---|---|

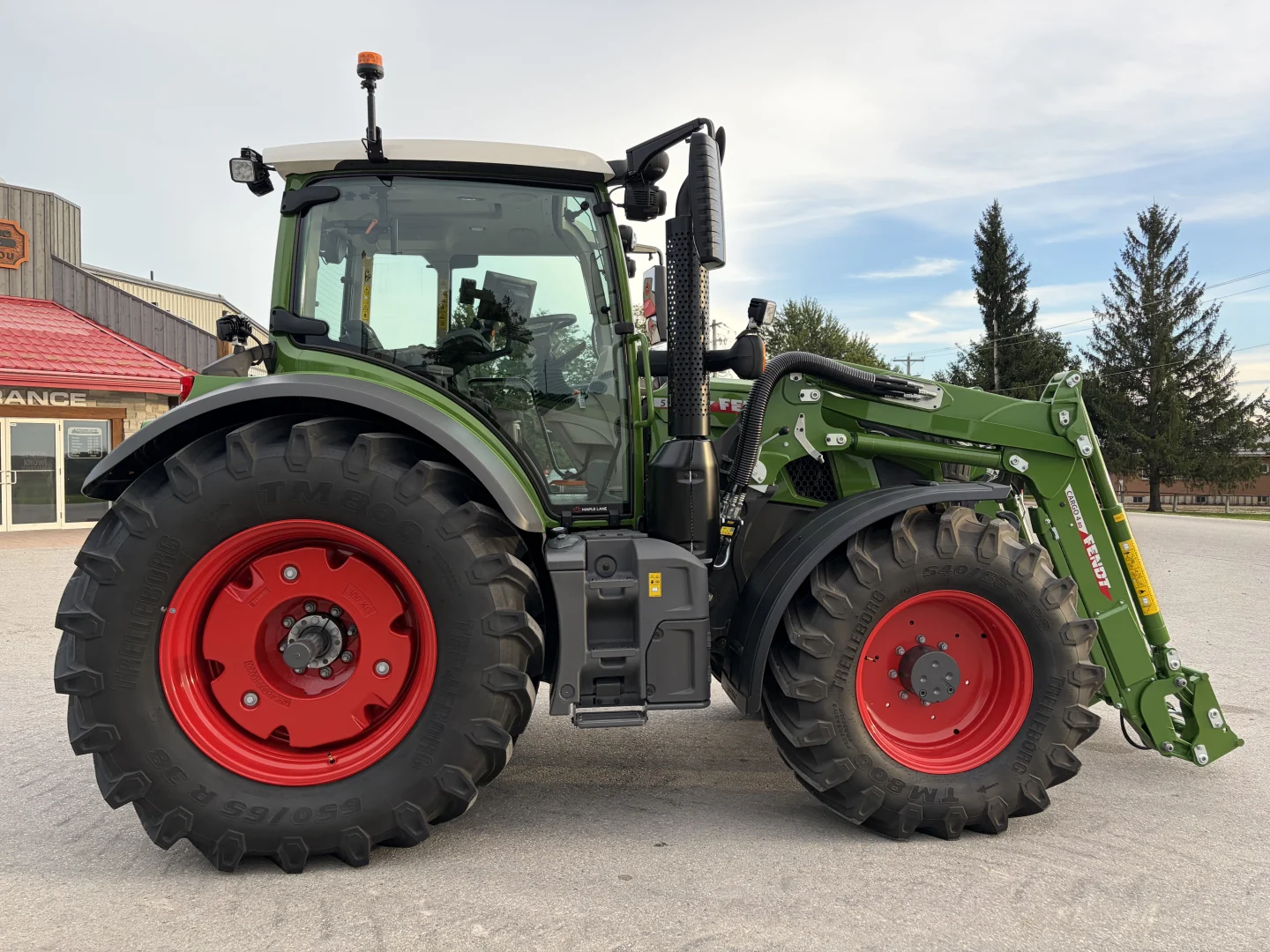

| The all new 500 series! 2026 MY, Profi+, 50 KPH VarioDrive transmission, suspended front axle, 152 LPM hydraulic pump, 4 rear remotes, power beyond, hydraulic & air trailer brakes, exhaust brake, automatic park brake, front hitch & 1 front remote, mechanical cab suspension, full LED lighting, Infotainment, cloth Super Comfort seat, heated rear window, auto climate control, 12″ terminal, powered mirrors, 300KG wheel weights, 4X80 Fendt loader with suspension, hydraulic bucket lock, 540/65R28 fronts, 650/65R38 rears. Includes 3 year/3000 hour Fendt Goldstar Warranty. We gladly serve customers in southern Ontario. If you’re located outside southern Ontario, we would be grateful if you contacted your local Fendt dealer about a new 516 instead of us. | |
| Categories | High Horsepower |
| Unit Number | 27938W |
| Condition | New |
| Usage | 10 Hours |
| Year | 2026 |
Financing calculator not available for this equipment. Contact us for details.
Rentals not available for this equipment
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 122.29kW (164hp) | |
| Max Engine Power | 129.75kW (174hp) | |
| Rated Engine Speed | 1,900r/min | |
| Make | AGPWR 5.0L | |
| Displacement | 1.32gal. (5L) | |
| Number of Cylinders | 4 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 76.61gal. (290L) | |
| DEF Tank Capacity | 9.25gal. (35L) | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Road Speed | 31.07mph (50km/h) | |
| Name | CVT TA 120 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Trailer Brakes | Air | |
| Suspension | Front Axle | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 500 Gen3 42 GPM | |
| Pump Type | Variable Displacement Piston | |
| Maximum Flow | 158.99L/min (42GPM) | |
| Total System Oil Volume | 18.23gal. (69L) | |
| Maximum Operating Pressure | 2,900.75psi (200bar) | |
| Available Remote Flow Capacity | 14.53gal. (55L) | |
| Rear Remote Valves | 4 | |
| Front Remote Valves | 1 | |
| Steering | Hydraulic Power | |
| Wheels | ||
|---|---|---|
| Front | TRELL 540/65R28 TM800 | |
| Size | 540/65R28 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 53.09cm (1' 8-7/8") | |
| Overall Diameter | 141.22cm (4' 7-5/8") | |
| Static Loaded Radius | 63.75cm (2' 1-1/8") | |
| Rolling Circumference | 421.89cm (13' 10-1/8") | |
| Construction | Radial | |
| Flexion Class | Standard | |
| Rear | TRELL 650/65R38 TM800 | |
| Size | 650/65R38 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 64.52cm (2' 1-3/8") | |
| Overall Diameter | 181.10cm (5' 11-5/16") | |
| Rolling Circumference | 539.50cm (17' 8-3/8") | |
| Base Weight | 222.71kg (491lb.) | |
| Construction | Radial | |
| Flexion Class | Standard | |
| Hitching | ||
|---|---|---|

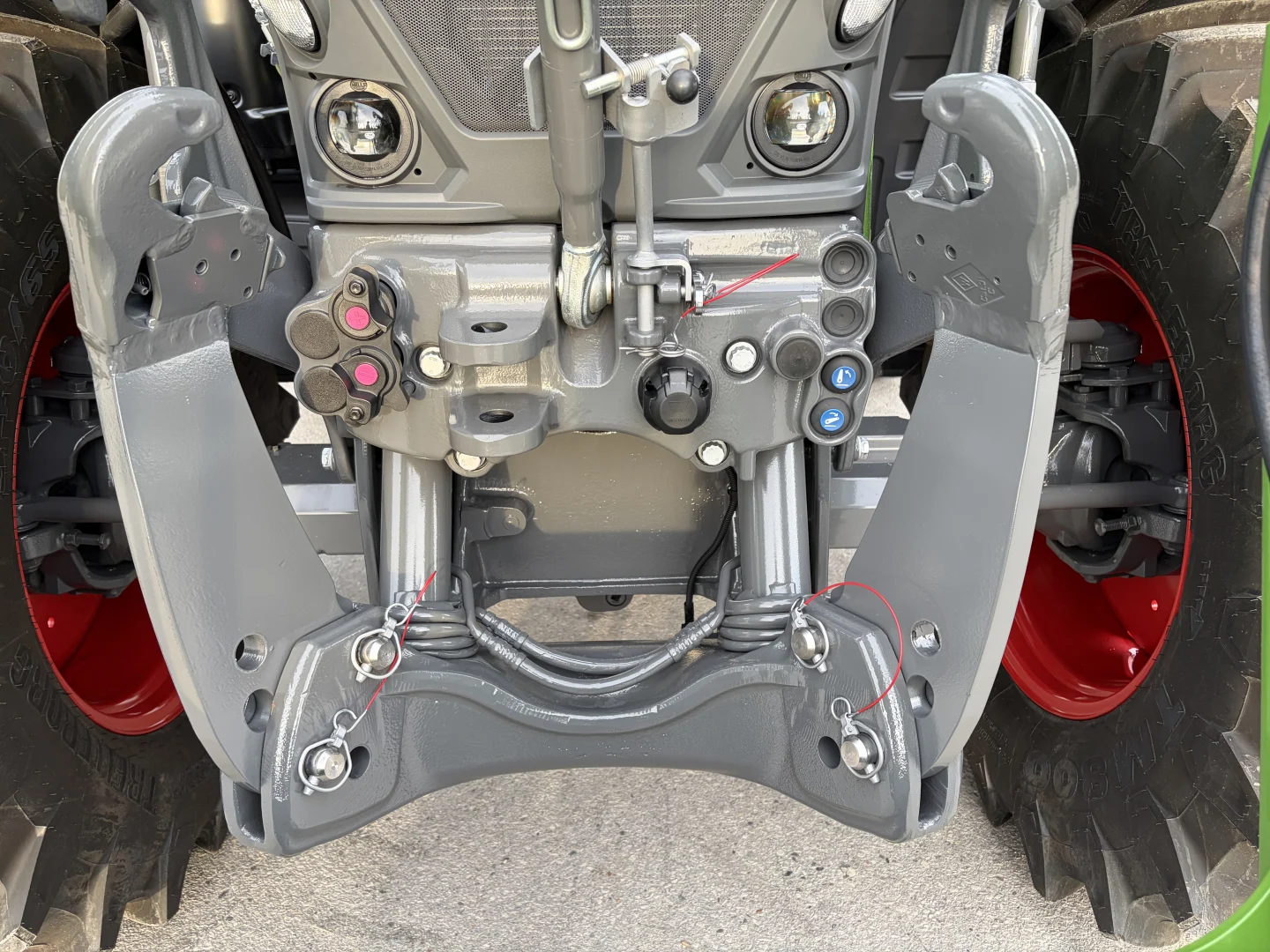

| Front Hitch | FD 500 Front | |
| Category | Category 2(Optional), Category 3(Optional) | |
| Capacity at Pins | 3.40T. | |

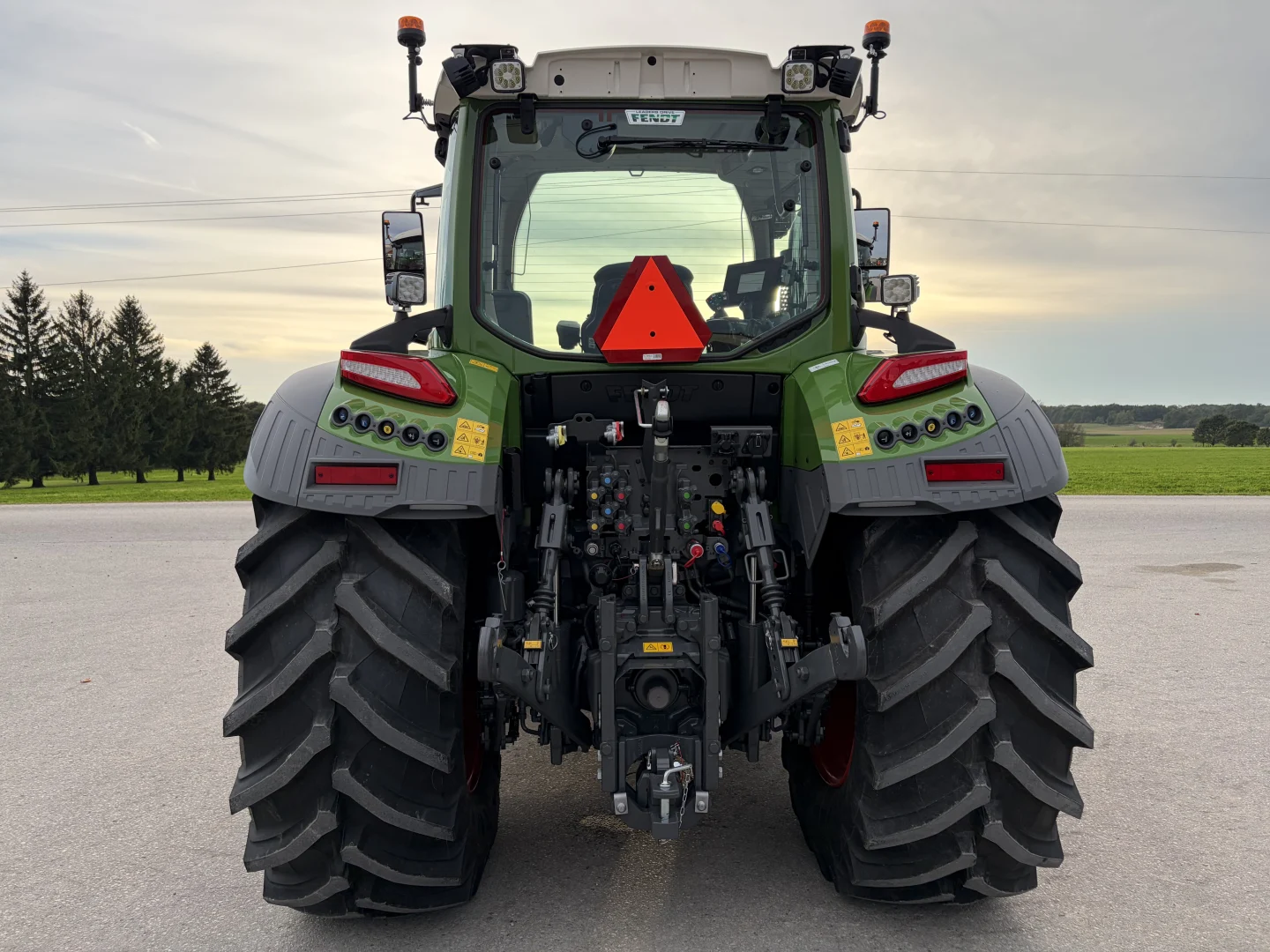

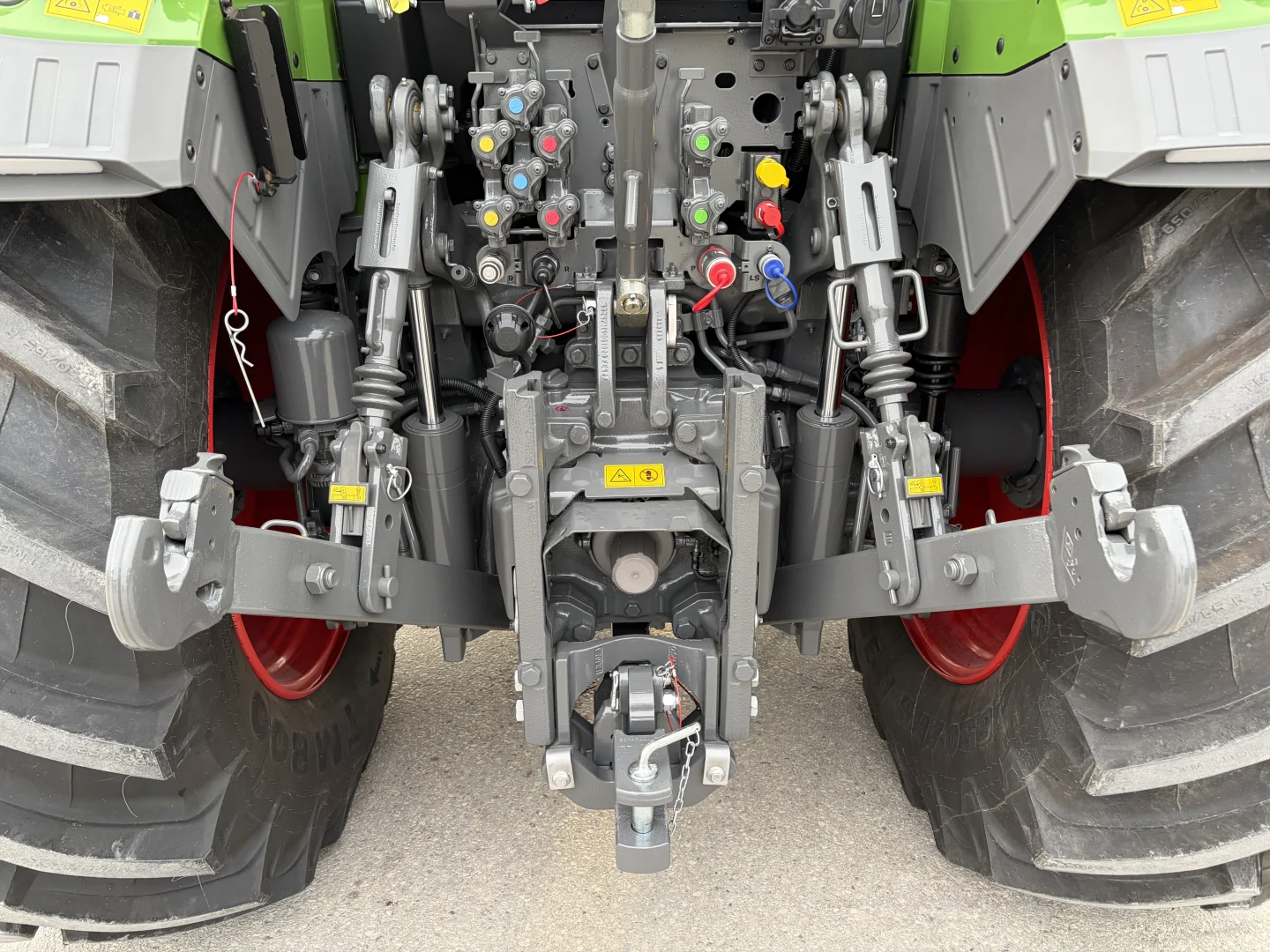

| Rear Hitch | FD 500 Gen4 | |
| Hitch Category | Category 3, Category 2 | |
| Lift Capacity at Pins | 8,044.91kg (17,736lb.) | |
| Comfort | Draft Control | |
| PTO | ||
|---|---|---|
| Rear Speed | 540E, 1000E, 540, 1000 | |
| Type | Independent | |
| Electrical | ||
|---|---|---|
| Front Lights | 6 | |
| Rear Lights | 6 | |
| Worklight Type | LED | |
| Rotating Beacon | Left, Right | |
| Alternator | 200A | |
| Battery | 850CCA | |
| Battery Count | 1 | |

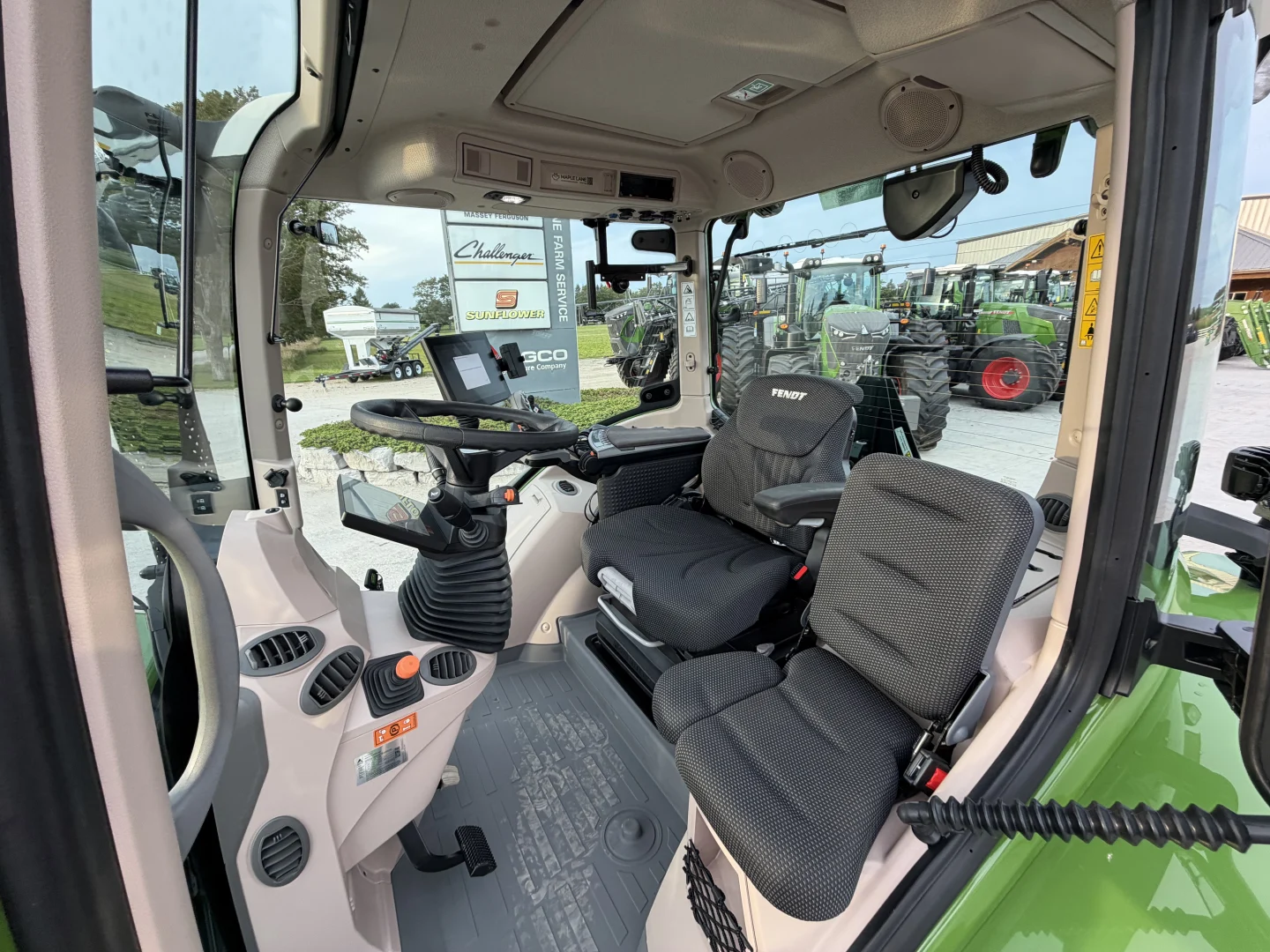

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Access | Left Hand Door, Rear Window | |
| Climate | Heater, Air Conditioning, Automatic | |
| Cab Suspension | 2 Point Passive Mechanical | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |
| Operator Seat | FD Super Comfort | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline | |
| Headrest | Extend | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Air (built in compressor), Forward/Reverse Horizontal, Low Frequency | |
| Rotation | Segments | |
| Comfort | Heat, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | 300° Front, Front, Rear | |
| Sunshade | Windshield | |
| Mirrors | Powered, Interior | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |
| Technology | ||
|---|---|---|

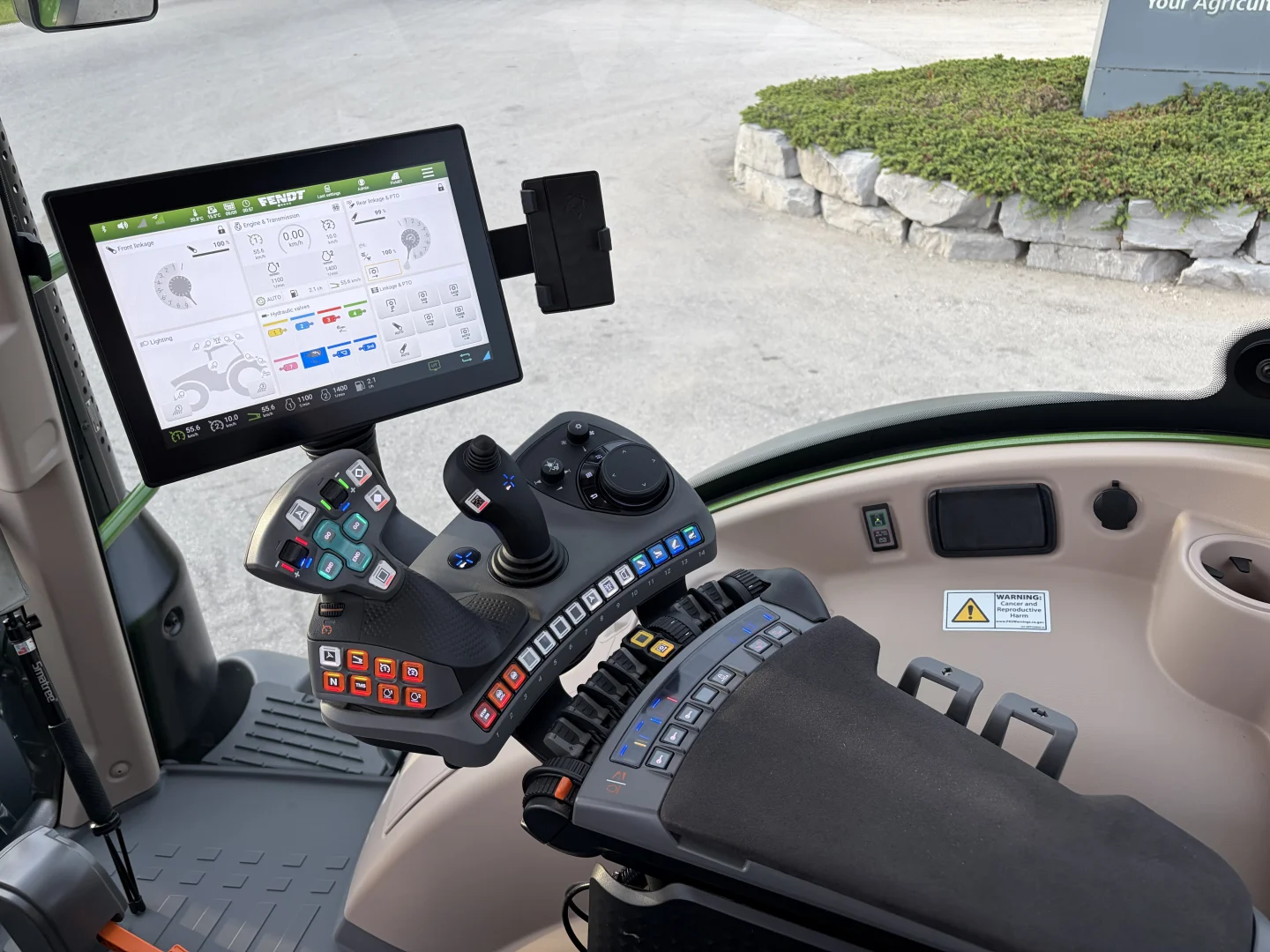

| Display | 12" Armrest Mounted Terminal | |

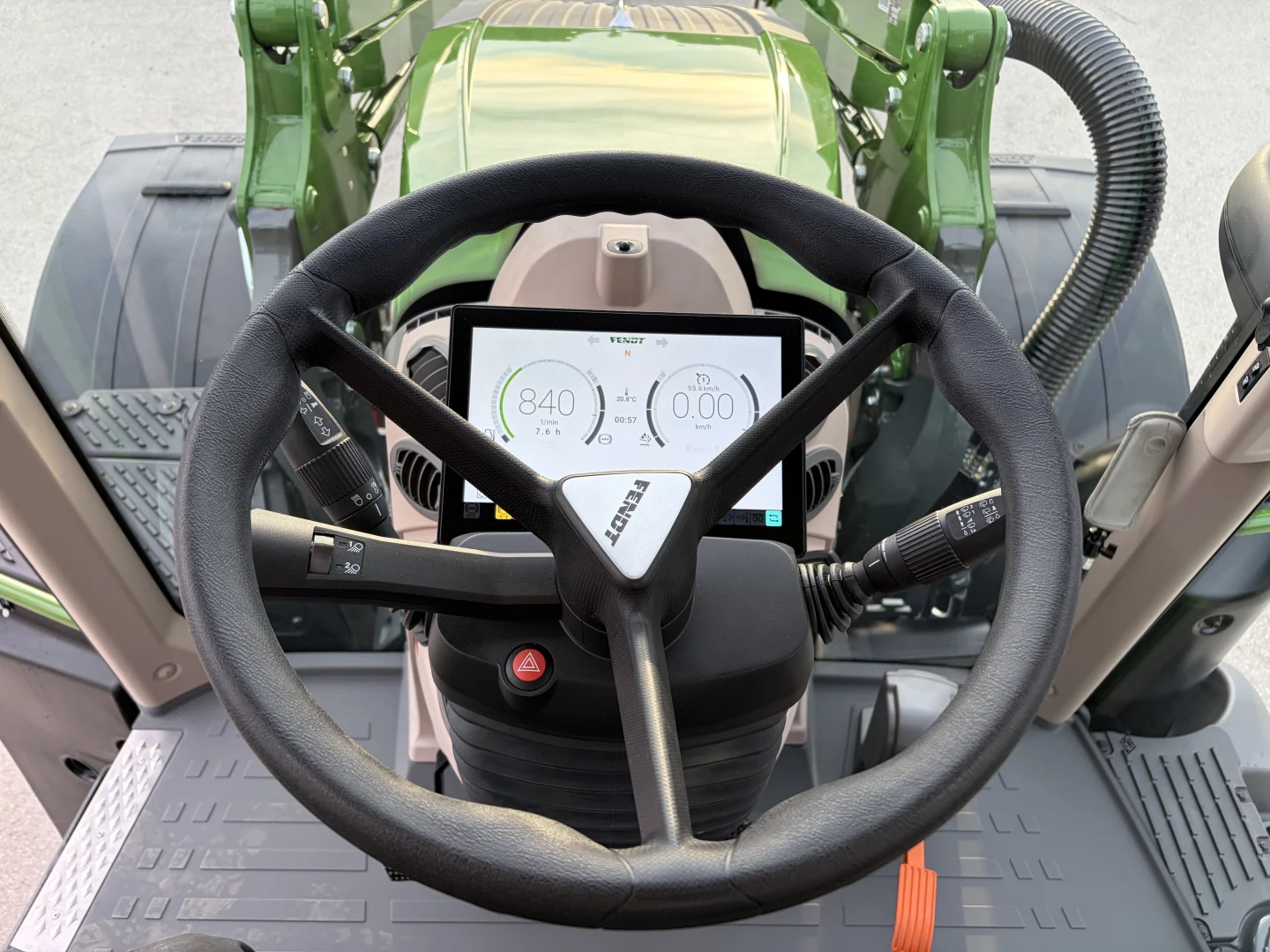

| Instrument Display | 10" Dash Screen | |
| Entertainment | Infotainment | |
| Integration | ISO BUS Implement Control | |
| Antenna | Trimble | |
| Telemetry | 5 Year Fendt Connect Subscription | |
| Agronomy | 3 Year PTx FarmENGAGE Operations Subscription | |
| Weights | ||
|---|---|---|

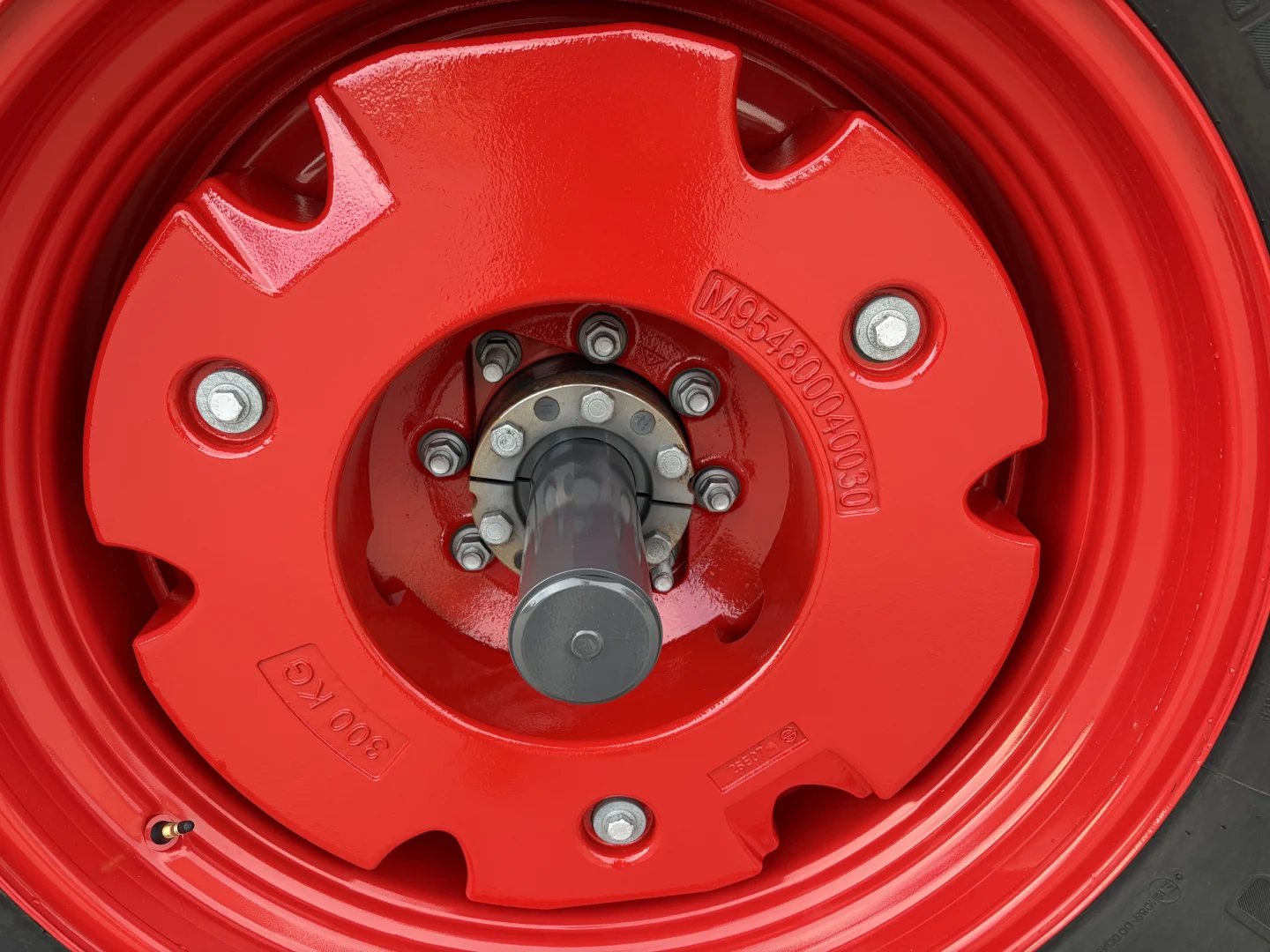

| Wheel Weights | FD 300 kg Wheel Weight Pair | |
| Mount | Bolt | |
| Type | Wheel Disc | |
| Base Weight | 661.39lb. (300kg) | |
| Dimensions | ||
|---|---|---|
| Length | 14' 11-7/8" (4,569mm) | |
| Wheelbase | 8' 4-13/16" (2,560mm) | |
| Width | 8' 2-7/16" (2,501mm) | |
| Height | 9' 10-11/16" (3,015mm) | |
| Minimum Ground Clearance | 1' 9-7/16" (545mm) | |
| Turning Radius | 16' 7" (5.05m) | |
| Base Weight | 14,109.59lb. (6,400kg) | |

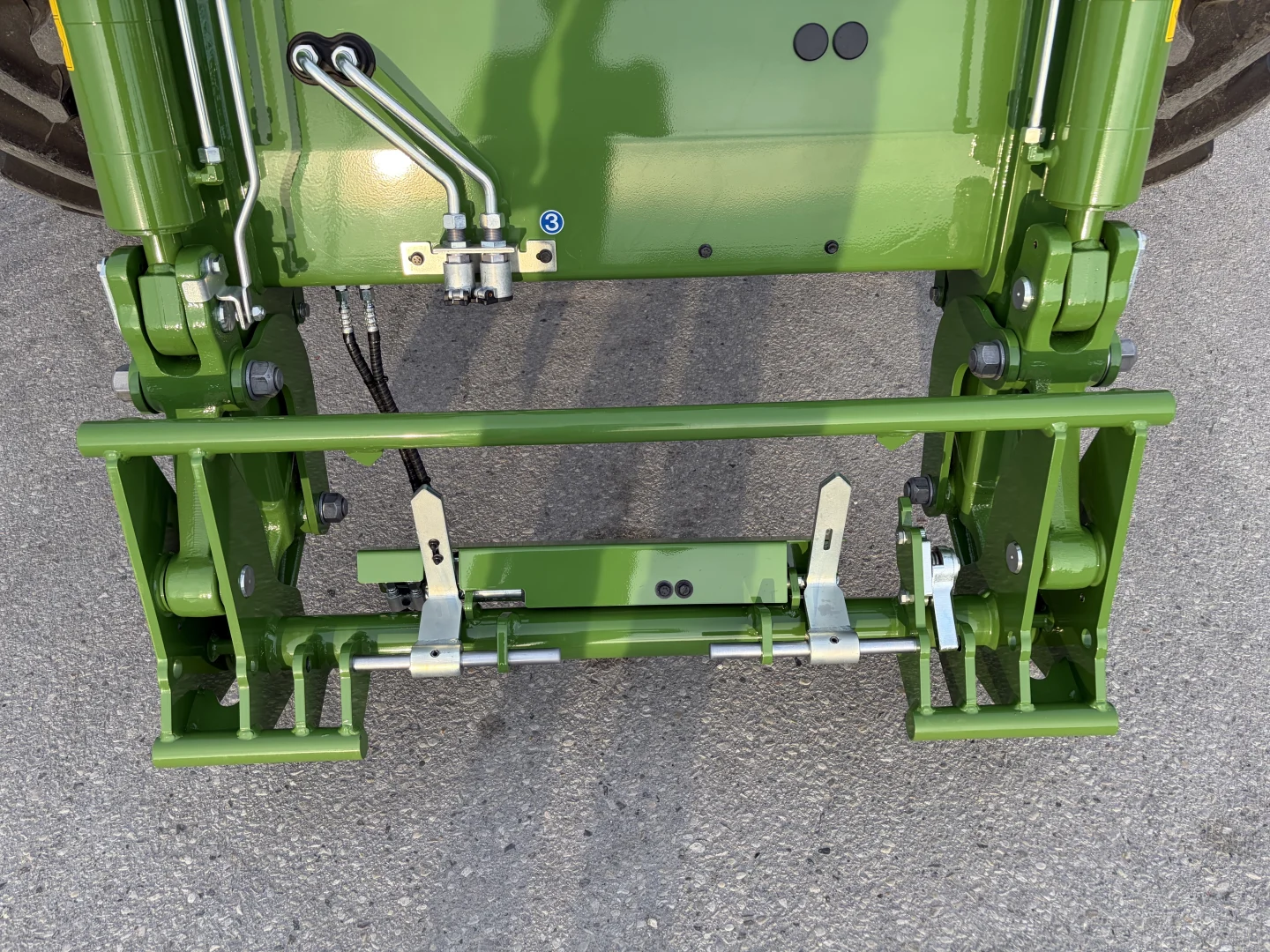

| Loader | ||
|---|---|---|
| Loader | FD Cargo 4.80 | |
