Fendt 500 Series
124-163 Horsepower
When you spend thousands on a tractor, the last thing you want to do is spend thousands more keeping it running. The Fendt 500 comes with a 3-year/3,000-hour full machine warranty that includes all services to keep your ownership costs low.
Start a conversation with us to try the profit-increasing Fendt 500 in your field this season.
Fendt 500 Series Tractor Package
Fendt 500 Tractor
3-Year/3,000-Hour Full Machine Warranty
5-Year Fendt Connect Subscription
3 Annual Inspections
All Services Within Warranty Period (Includes Parts & Oil)
In-Store Credit for Merchandise
Fendt 500 Size & Build
The Fendt 500 Series is small, but powerful, with a max permissible weight of 10,500 kg and 163 horsepower. This makes it the ideal choice for hay, road work, and small implements.
Start a conversation with us if you want to know how the Fendt 500 compares to your current tractor.
Fendt 500 Series Size
Sizes are with standard tires
| Horsepower | 124-163 |
| Width | 8′ |
| Length | 14.5′ |
Fendt 500 Series Weight
Unladen weight of the standard tractor is between 6,050 and 6,400 kg, with a max permissible weight of 10,500 kg.
The Fendt 500 Series is small, but powerful, with a max permissible weight of 10,500 kg and 163 horsepower.
This makes it the ideal choice for hay, road work, and small implements.
If you’re want to know how the Fendt 500 compares to your current tractor, start a conversation with us.
Fendt 500 Series Powertrain
When the engine and transmission of a tractor don’t work together, it causes wear and wasted fuel. The Fendt 500 has an intelligent powertrain that reduces slips, increases efficiency, and prolongs the life of the tractor.
Start a conversation with us to drive the Fendt 500 Series tractor in your fields.
Fendt 500 Series Engine Specs
| Horsepower | 124-163 |
| Size | 4L 4-Cylinder |
| Rated Speed | 2100 RPM |
| Peak Torque | 415-515 (lb-ft @ 1500 RPM) |
Fendt 500 Efficiency
The Fendt 500 uses TMS (Tractor Management System) to keep all aspects of the powertrain working in harmony.
This can be manually adjusted, but will otherwise always be running the tractor at the ideal engine speed for the work it is doing.
Fendt 500 Reliability
It only takes the Fendt 500 Series 1,500 rpm to reach max torque and 1,700 rpm to reach max speed, which will increase the lifespan of the engine vs. higher rpm tractors.
Keep your total ownership costs low with an efficient and reliable powertrain.
More people than ever are experiencing the efficiency and reliability of Fendt tractors.
Start a conversation with us to experience it for yourself.
Fendt 500 Series Hydraulics
Customize a Fendt to work perfectly for your implements.
Start a conversation with us to test your implements with the Fendt 500.
Fendt 500 Series Hydraulic Specs
| Flow Rate | 29-41.7 GPM |
| Loader Capacity | 4,960 lbs |
| Rear Power Lift | 17,394 lb |
| Front Power Lift | 7,539 lb |
| Max Valves (Front/Rear) | 2/5 |
Fendt 500 Series Rear & Front Hitch
Heavy implements make for rough driving. The Fendt 500 uses vibration dampening on the rear hitch to make driving with heavy implements more comfortable.
Hitch options include double acting cylinders, relief control, and position control.
Loader Capacity
The Loader on the Fendt 500 Series is the Cargo 4X75, which has a lifting capacity of 4,960 pounds and a max height of 13.5 feet.

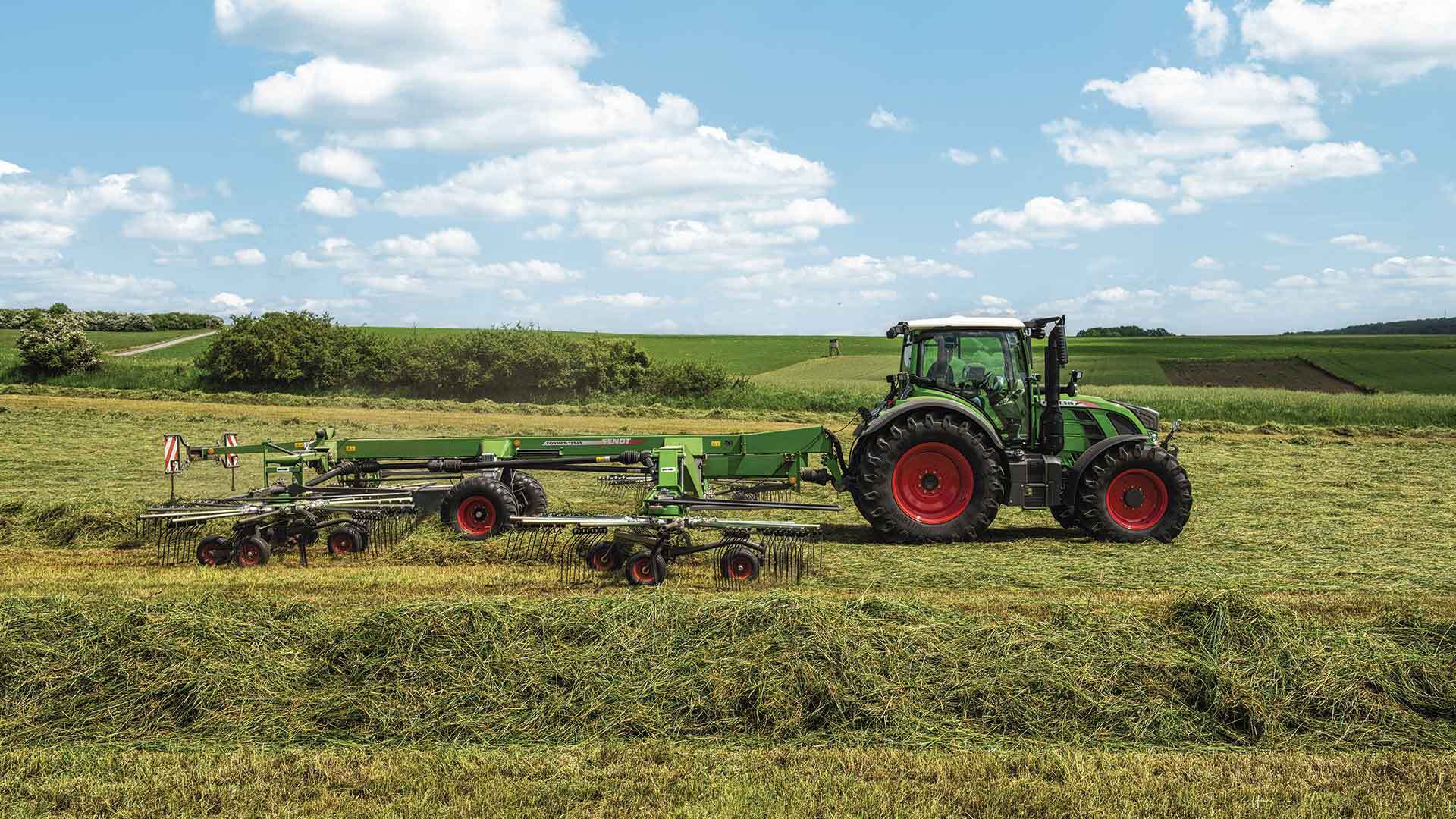

Fendt 500 Series Implements
The transmission and hydraulic oil tanks are separate so there is no chance of transmission oil contamination from implements.
Implements are managed via ISOBUS directly in the FendtONE Terminal.
The Fendt 500 also has Power Beyond couplings.
You have hydraulic options for every application with the Fendt 500.
Customize a Fendt to work perfectly for your implements.
Start a conversation with us to test a Fendt 500 with your implements.
Fendt 500 Series Cab
Nobody wants to spend hours in an uncomfortable tractor cab. The cab of the Fendt 500 is spacious, comfortable, and gives you excellent ride quality.
Nothing can beat sitting in the cab for yourself. Start a conversation with us so you can experience the Fendt 500 Series Cab.
Operator Comfort
Operator comfort plays a role in employee retention and your own work enjoyment. When you spend 16+ hours a day in the cab, investing in comfort means keeping you, and your employees happy.
Cab suspension, infotainment, a massaging chair, and cab air filtration help keep you comfortable all day long.
Ride Comfort
The Fendt 500 has 2-point cab suspension and front axle suspension standard. You can get optional 3-point suspension as well.
The Fendt 500 has several air-ride seat options that improve ride quality, especially over long periods of time.
Infotainment
The Fendt 700 can be equipped with an infotainment package, which gives you surround-sound audio. There are 8 mics in the roof liner so you remain clear on Bluetooth calls.

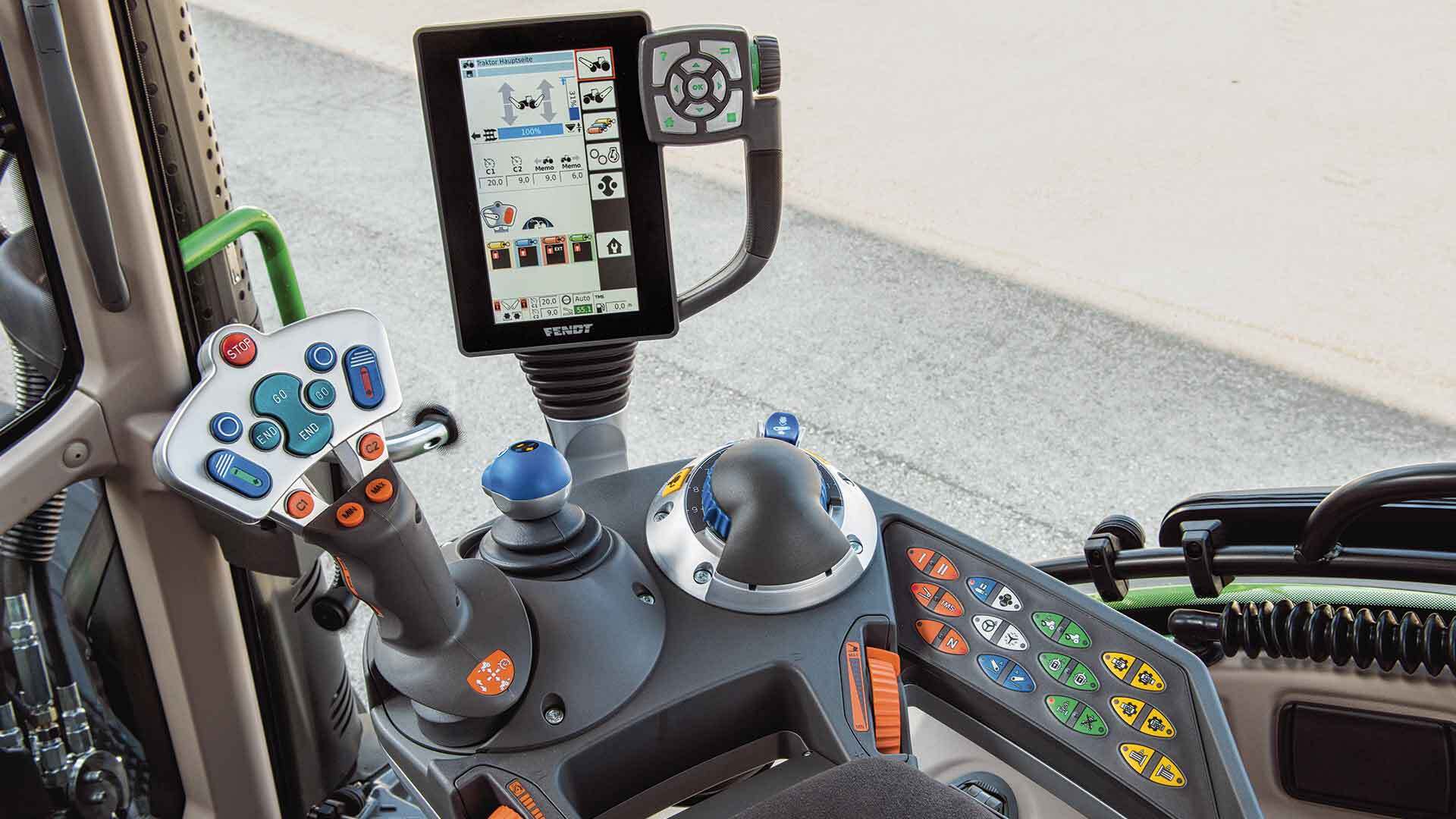

The FendtOne Platform
The FendtOne Platform is the operating system in Fendt tractors. All tractor and implement functions are monitored, viewed, and controlled in this system. You get a complete view of your equipment all at once.
Operator View
The FendtOne Platform is customizable for you and your operators, and your implements. Each operator and implement has a profile that can be saved within the platform.

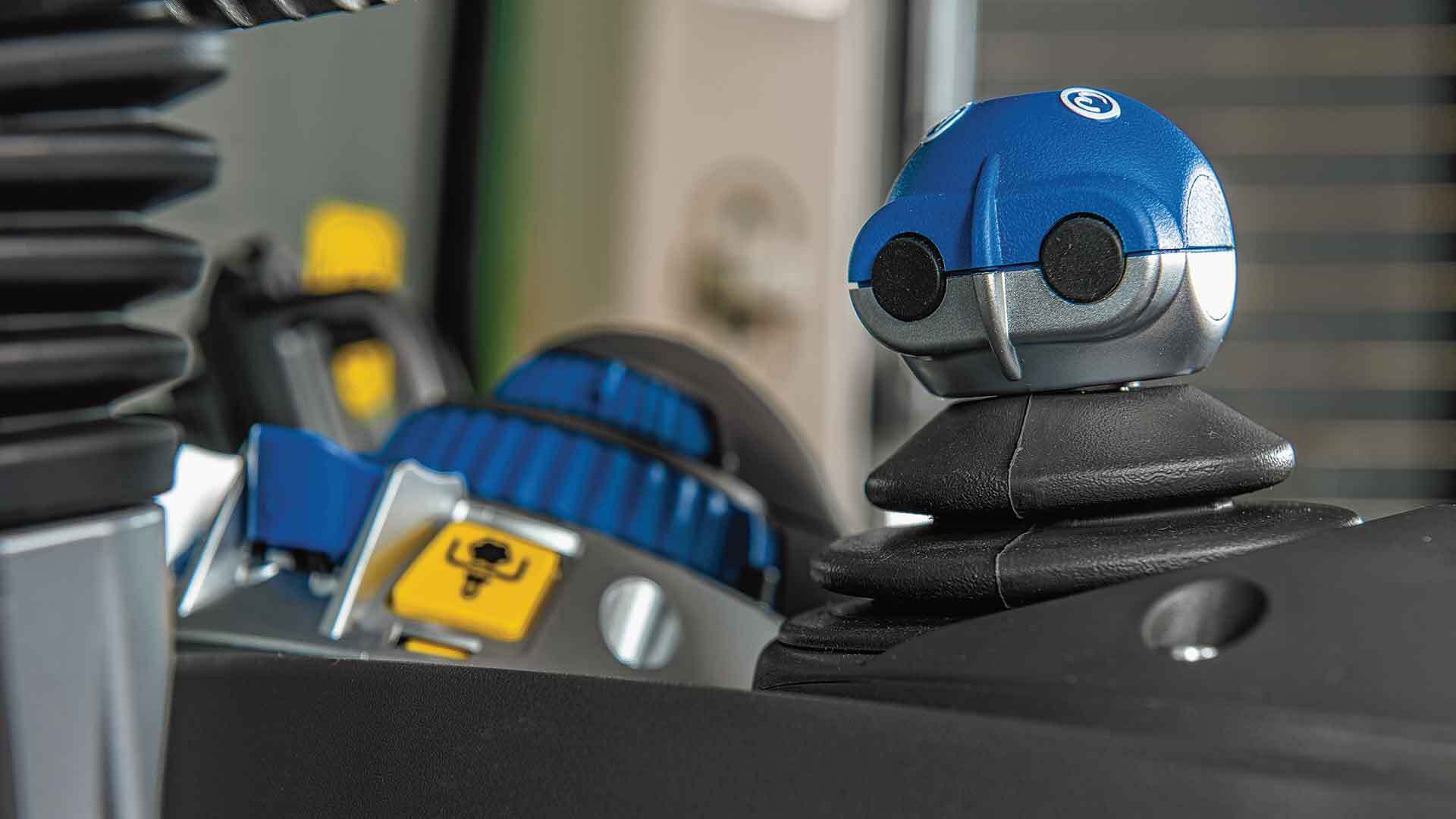

Joysticks
There are two joysticks in the FendtOne Platform. The Multifunction Joystick (Left) controls driving functions. The 3L Joystick (Right) controls hydraulic functions, and has multiple levels of controls.
Color Coding
The buttons in the FendtOne Platform are color coded for easy understanding:
Software
The FendtOne Platform is customizable for you and your operators, and your implements so you can control and record all functions in on place.
A comfortable cab can make the difference between never wanting to go to work and never wanting to leave.
The cab gives you options to customize your tractor to your desires, but never sacrifices comfort.
Start a conversation with us so you can experience the Fendt 500 Cab.
Fendt 500 Smart Farming
Inefficiency costs farmers time and money. Smart Farming from Fendt gives you the tools you need to save both and increase your margin.
Invest in technology to make the most of your equipment. Start a conversation with us and experience Smart Farming with the Fendt 500 Series.
Smart Farming is a low cost solution that can increase your farms productivity.
Guidance
Conditions limit how well you can navigate a field. Fendt Guide gives you accuracy to less than an inch so that your fieldwork is always precise.
Agronomy
Managing fields and paperwork can get messy. Fendt Task Doc manages your fields and jobs so your office work can be simple.
Telemetry
Keeping track of machine data takes time. This is simplified with Fendt Connect, which keeps your machine info in one place.
Machine Control
Implements and tractors need to communicate well to succeed. Fendt Machine Control shares data between them for the best results possible.
Automation
Repetitive tasks wear you down. With Fendt TI Headland, you can automate tasks at the headland so they are done automatically.
FendtOne
FendtOne shows you all of your machine functions in one place, including ISOBUS, so you have a clear view of your work.
Section Control
Section overlaps waste products and lower yield. It eliminates overlap to save you input costs and give you more margin.
Variable Rate Control
When some parts of your field need more inputs, Variable Rate Control lets you plant or apply more when and where you need it.
Driving Assistance
With features like Contour Assistant, Turn Assistant, and the Ergosteer Joystick, driving becomes a joy when doing fieldwork.
Smart Farming solutions for every problem.
Smart Farming is a good investment for any farm, and Fendt gives you practical solutions that increase margins and make work simpler.
Invest in technology to make the most of your equipment. Start a conversation with us and experience Smart Farming with the Fendt 500.
Fendt 500 Aftersales Service
Any tractor is only as good as the service behind it. The Fendt 500 includes a 3-year/3,000 hour warranty, service on your farm, and local parts deliveries so you can get the parts you need.
Start a conversation with us to learn about aftersales service at Maple Lane Farm Service.
Fendt Gold Star Customer Care
Fendt Gold Star includes 3-Years/3,000 Hours full machine warranty, including all services, oil, filters, and an annual inspection.
If your tractor needs repairs that will take more than 48 hours, we provide you with a loaner with similar specs.
Parts Deliveries
Maple Lane delivers parts daily throughout Southwestern Ontario. If you need parts quickly, then you can have them on the same day, or next day.
Service On Your Farm
Nobody wants to bring in equipment for a service. Maple Lane has a fleet of service vans that can do every service on your farm or in your field.
This includes the 2,000 hour transmission oil change on the Fendt 500 Series.
Dealer support is always the most important part of an equipment purchase.
Maple Lane brings service to you so you save time and money.
Start a conversation with us to learn about aftersales service at Maple Lane Farm Service.
Fendt 500 Series Models
The Fendt 500 has models that range from 124-163 horsepower, all within the same frame size.
Try it in your field this season to experience the benefits of the Fendt 500.
