Fendt 900 Vario Series
The Fendt 900 Gen 6 Vario is a tractor designed for North America. It is an agile row crop machine. This series follows the successful 1000 Series with more than a similar hood. The 900 Gen 6 Vario incorporates much of the same technology and innovation of its big brother. It has a light base weight and is able to take on a considerable amount of ballast. The MAN 9.0L engine keeps engine rpms low for efficient torque delivery. The VarioGrip tire inflation solution is available to reduce compaction. Of course the quality and warranty of the Fendt 900 Gen 6 is what you have come to expect from Fendt.
Models
Fendt 930
| Max Engine HP | 296 HP (220.7 kW) |
| PTO HP | 237 HP (176.7 kW) |
| Optional Hydraulic Flow | 113.6 Gal/min (430 L/min) |
| Wheelbase | 10' 4" (3,150 mm) |
Engine
| Engine HP | 220.7 kW (296 HP) |
| Max Engine HP | 220.7 kW (296 HP) |
| PTO HP | 176.7 kW (237 HP) |
| Rated Engine Speed | 1700 |
| Engine Make and Model | MAN D1556 |
| Engine Displacement | 9.037 L (551.47 in³) |
| Number of Cylinders | 6 |
| Fuel type | Diesel |
| Fuel Tank Capacity | 625 L (165 US Gal) |
| Aspiration | Variable Turbine Geometry (VTG) Turbocharger |
| Fuel Injection | Direct Injection |
| Cooling | Liquid Cooled |
Transmission
| Max Speed | 50 km/h (31 mph) |
| Transmission Type | Vario CVT ML 400 |
| Cruise | Yes |
| 4 Wheel Drive | Yes |
| Differential Lock | Yes |
| Brakes | Wet Disc |
Additional Drivetrain
| Air Trailer Brakes | Standard |
| Hydraulic Trailer Brakes | Optional |
| Exhaust Brake | Optional |
| Front Axle Suspension | Standard |
Hydraulics
| Optional Pump Type | Variable Displacement Piston |
| Optional Hydraulic Flow | 165 L/min (43.6 Gal/min) |
| Standard Pump Type | Variable Displacement Piston |
| Standard Hydraulic Flow | 220 L/min (58.1 Gal/min) |
| Optional Pump Type | Dual Variable Displacement Piston |
| Optional Hydraulic Flow | 430 L/min (113.6 Gal/min) |
| Max Operating Pressure | 20,000 kPa (2,901 PSI) |
| System Capacity | 122 L (32 US Gal) |
| Max Available Hydraulic Oil | 90 L (24 US Gal) |
| Rear Remote Valves Standard | 4 |
| Rear Remote Valves Available | up to 6 |
| Front Remote Valves Standard | 0 |
| Front Remote Valves Available | up to 2 |
| Steering | Hydraulic Power Steering |
3 Point Hitch
| Rear Hitch | Standard |
| Rear Hitch Category | Category 3 |
| Rear Lift Capacity at Pins | 12,654 kg (27,902 lbs) |
| Front Hitch | Optional |
| Front Hitch Category | Category 2 |
| Front Lift Capacity at Pins | 5,694 kg (12,555 lbs) |
| Draft Control | Yes |
PTO
| Rear PTO | Standard |
| Rear PTO Speed | 540E / 1000 / 1000E |
| Front PTO | Optional |
| Front PTO Speed | 1000 |
| Type | Independent |
Technology
| Display | 10.4" Varioterminal |
| Dash Display | Digital Display |
| ISO BUS Implement Control | Standard |
| Guidance Ready | Standard |
| Antenna Options | Novatel / Trimble |
| Headland Management | Variotronic TI Standard |
| Auto Headland Turn | Variotronic TI Auto Optional |
| Data Transfer | Fendt TaskDoc Pro Standard |
| Section Control | Optional |
| Variable Rate Control | Optional |
| Telemetry | 3 Year Fendt Connect Subscription Standard |
Electrical
| Standard Front Lights | 20 |
| Standard Rear Lights | 6 |
| Standard Worklight Type | Halogen |
| Optional Worklight Type | LED |
| Alternator | 275 amp |
| Battery size | 1475 CCA |

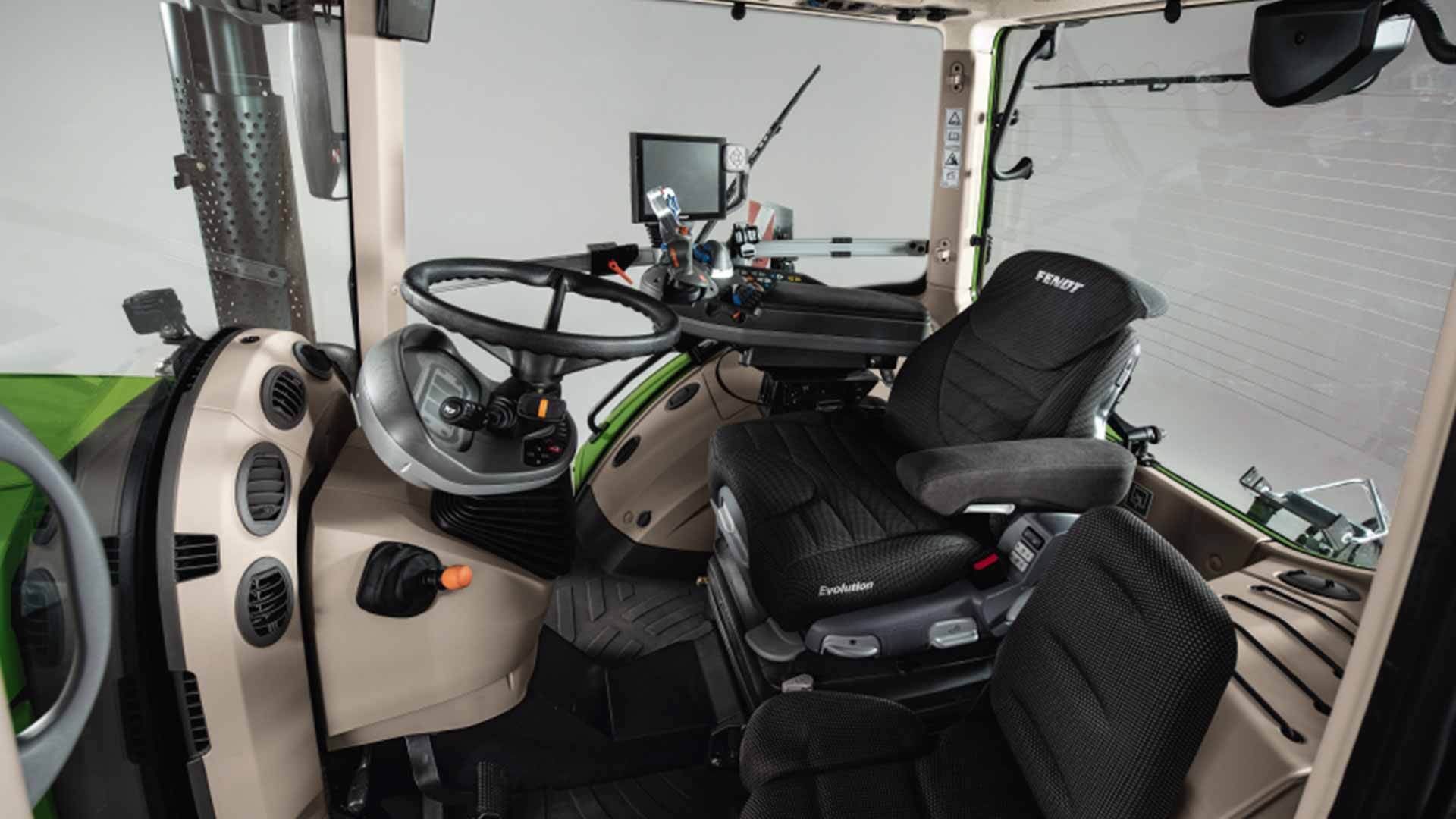

Operator Station
| Configuration Options | Reverse Station |
| Heater | Standard |
| Air Conditioning | Standard |
| Front Wiper | 300° |
| Rear Wiper | Standard |
| Heated Rear Window | Optional |
| Cab suspension | 2 Point Mechanical Standard / 2 Point Air Optional / 3 Point Air Optional |
Tires
| Standard Rear Size | 710/75R42 |
| Standard Front Size | 600/65R34 |
| Tire Types | Ag |
Dimensions*
| Length | 5,575 mm (18' 3-1/2") |
| Wheelbase | 3,150 mm (10' 4") |
| Minimum Overall Width (tires) | 2,740 mm (8' 11-7/8") |
| Overall Height (cab) | 3,375 mm (11' 7/8") |
| Minimum Ground Clearance | 553 mm (1' 9-3/4") |
| Base Weight (cab) | 11,300 kg (24,917 lbs) |
| Turning Radius | 6,100 mm (20' 3/16") |
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.
Fendt 933
| Max Engine HP | 326 HP (243.1 kW) |
| PTO HP | 264 HP (196.9 kW) |
| Optional Hydraulic Flow | 113.6 Gal/min (430 L/min) |
| Wheelbase | 10' 4" (3,150 mm) |
Engine
| Engine HP | 243.1 kW (326 HP) |
| Max Engine HP | 243.1 kW (326 HP) |
| PTO HP | 196.9 kW (264 HP) |
| Rated Engine Speed | 1700 |
| Engine Make and Model | MAN D1556 |
| Engine Displacement | 9.037 L (551.47 in³) |
| Number of Cylinders | 6 |
| Fuel type | Diesel |
| Fuel Tank Capacity | 625 L (165 US Gal) |
| Aspiration | Variable Turbine Geometry (VTG) Turbocharger |
| Fuel Injection | Direct Injection |
| Cooling | Liquid Cooled |
Transmission
| Max Speed | 50 km/h (31 mph) |
| Transmission Type | Vario CVT ML 400 |
| Cruise | Yes |
| 4 Wheel Drive | Yes |
| Differential Lock | Yes |
| Brakes | Wet Disc |
Additional Drivetrain
| Air Trailer Brakes | Standard |
| Hydraulic Trailer Brakes | Optional |
| Exhaust Brake | Optional |
| Front Axle Suspension | Standard |
Hydraulics
| Optional Pump Type | Variable Displacement Piston |
| Optional Hydraulic Flow | 165 L/min (43.6 Gal/min) |
| Standard Pump Type | Variable Displacement Piston |
| Standard Hydraulic Flow | 220 L/min (58.1 Gal/min) |
| Optional Pump Type | Dual Variable Displacement Piston |
| Optional Hydraulic Flow | 430 L/min (113.6 Gal/min) |
| Max Operating Pressure | 20,000 kPa (2,901 PSI) |
| System Capacity | 122 L (32 US Gal) |
| Max Available Hydraulic Oil | 90 L (24 US Gal) |
| Rear Remote Valves Standard | 4 |
| Rear Remote Valves Available | up to 6 |
| Front Remote Valves Standard | 0 |
| Front Remote Valves Available | up to 2 |
| Steering | Hydraulic Power Steering |
3 Point Hitch
| Rear Hitch | Standard |
| Rear Hitch Category | Category 3 |
| Rear Lift Capacity at Pins | 12,654 kg (27,902 lbs) |
| Front Hitch | Optional |
| Front Hitch Category | Category 2 |
| Front Lift Capacity at Pins | 5,694 kg (12,555 lbs) |
| Draft Control | Yes |
PTO
| Rear PTO | Standard |
| Rear PTO Speed | 540E / 1000 / 1000E |
| Front PTO | Optional |
| Front PTO Speed | 1000 |
| Type | Independent |
Technology
| Display | 10.4" Varioterminal |
| Dash Display | Digital Display |
| ISO BUS Implement Control | Standard |
| Guidance Ready | Standard |
| Antenna Options | Novatel / Trimble |
| Headland Management | Variotronic TI Standard |
| Auto Headland Turn | Variotronic TI Auto Optional |
| Data Transfer | Fendt TaskDoc Pro Standard |
| Section Control | Optional |
| Variable Rate Control | Optional |
| Telemetry | 3 Year Fendt Connect Subscription Standard |
Electrical
| Standard Front Lights | 20 |
| Standard Rear Lights | 6 |
| Standard Worklight Type | Halogen |
| Optional Worklight Type | LED |
| Alternator | 275 amp |
| Battery size | 1475 CCA |
Operator Station
| Configuration Options | Reverse Station |
| Heater | Standard |
| Air Conditioning | Standard |
| Front Wiper | 300° |
| Rear Wiper | Standard |
| Heated Rear Window | Optional |
| Cab suspension | 2 Point Mechanical Standard / 2 Point Air Optional / 3 Point Air Optional |
Tires
| Standard Rear Size | 710/75R42 |
| Standard Front Size | 600/65R34 |
| Tire Types | Ag |
Dimensions*
| Length | 5,575 mm (18' 3-1/2") |
| Wheelbase | 3,150 mm (10' 4") |
| Minimum Overall Width (tires) | 2,740 mm (8' 11-7/8") |
| Overall Height (cab) | 3,375 mm (11' 7/8") |
| Minimum Ground Clearance | 553 mm (1' 9-3/4") |
| Base Weight (cab) | 11,300 kg (24,917 lbs) |
| Turning Radius | 6,100 mm (20' 3/16") |
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.
Fendt 936
| Max Engine HP | 355 HP (264.7 kW) |
| PTO HP | 290 HP (216.3 kW) |
| Optional Hydraulic Flow | 113.6 Gal/min (430 L/min) |
| Wheelbase | 10' 4" (3,150 mm) |
Engine
| Engine HP | 264.7 kW (355 HP) |
| Max Engine HP | 264.7 kW (355 HP) |
| PTO HP | 216.3 kW (290 HP) |
| Rated Engine Speed | 1700 |
| Engine Make and Model | MAN D1556 |
| Engine Displacement | 9.037 L (551.47 in³) |
| Number of Cylinders | 6 |
| Fuel type | Diesel |
| Fuel Tank Capacity | 625 L (165 US Gal) |
| Aspiration | Variable Turbine Geometry (VTG) Turbocharger |
| Fuel Injection | Direct Injection |
| Cooling | Liquid Cooled |
Transmission
| Max Speed | 50 km/h (31 mph) |
| Transmission Type | Vario CVT ML 400 |
| Cruise | Yes |
| 4 Wheel Drive | Yes |
| Differential Lock | Yes |
| Brakes | Wet Disc |
Additional Drivetrain
| Air Trailer Brakes | Standard |
| Hydraulic Trailer Brakes | Optional |
| Exhaust Brake | Optional |
| Front Axle Suspension | Standard |
Hydraulics
| Optional Pump Type | Variable Displacement Piston |
| Optional Hydraulic Flow | 165 L/min (43.6 Gal/min) |
| Standard Pump Type | Variable Displacement Piston |
| Standard Hydraulic Flow | 220 L/min (58.1 Gal/min) |
| Optional Pump Type | Dual Variable Displacement Piston |
| Optional Hydraulic Flow | 430 L/min (113.6 Gal/min) |
| Max Operating Pressure | 20,000 kPa (2,901 PSI) |
| System Capacity | 122 L (32 US Gal) |
| Max Available Hydraulic Oil | 90 L (24 US Gal) |
| Rear Remote Valves Standard | 4 |
| Rear Remote Valves Available | up to 6 |
| Front Remote Valves Standard | 0 |
| Front Remote Valves Available | up to 2 |
| Steering | Hydraulic Power Steering |
3 Point Hitch
| Rear Hitch | Standard |
| Rear Hitch Category | Category 3 |
| Rear Lift Capacity at Pins | 12,654 kg (27,902 lbs) |
| Front Hitch | Optional |
| Front Hitch Category | Category 2 |
| Front Lift Capacity at Pins | 5,694 kg (12,555 lbs) |
| Draft Control | Yes |
PTO
| Rear PTO | Standard |
| Rear PTO Speed | 540E / 1000 / 1000E |
| Front PTO | Optional |
| Front PTO Speed | 1000 |
| Type | Independent |
Technology
| Display | 10.4" Varioterminal |
| Dash Display | Digital Display |
| ISO BUS Implement Control | Standard |
| Guidance Ready | Standard |
| Antenna Options | Novatel / Trimble |
| Headland Management | Variotronic TI Standard |
| Auto Headland Turn | Variotronic TI Auto Optional |
| Data Transfer | Fendt TaskDoc Pro Standard |
| Section Control | Optional |
| Variable Rate Control | Optional |
| Telemetry | 3 Year Fendt Connect Subscription Standard |
Electrical
| Standard Front Lights | 20 |
| Standard Rear Lights | 6 |
| Standard Worklight Type | Halogen |
| Optional Worklight Type | LED |
| Alternator | 275 amp |
| Battery size | 1475 CCA |
Operator Station
| Configuration Options | Reverse Station |
| Heater | Standard |
| Air Conditioning | Standard |
| Front Wiper | 300° |
| Rear Wiper | Standard |
| Heated Rear Window | Optional |
| Cab suspension | 2 Point Mechanical Standard / 2 Point Air Optional / 3 Point Air Optional |
Tires
| Standard Rear Size | 710/75R42 |
| Standard Front Size | 600/65R34 |
| Tire Types | Ag |
Dimensions*
| Length | 5,575 mm (18' 3-1/2") |
| Wheelbase | 3,150 mm (10' 4") |
| Minimum Overall Width (tires) | 2,740 mm (8' 11-7/8") |
| Overall Height (cab) | 3,375 mm (11' 7/8") |
| Minimum Ground Clearance | 553 mm (1' 9-3/4") |
| Base Weight (cab) | 11,300 kg (24,917 lbs) |
| Turning Radius | 6,100 mm (20' 3/16") |
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.
Fendt 939
| Max Engine HP | 385 HP (287.1 kW) |
| PTO HP | 317 HP (236.4 kW) |
| Optional Hydraulic Flow | 113.6 Gal/min (430 L/min) |
| Wheelbase | 10' 4" (3,150 mm) |
Engine
| Engine HP | 287.1 kW (385 HP) |
| Max Engine HP | 287.1 kW (385 HP) |
| PTO HP | 236.4 kW (317 HP) |
| Rated Engine Speed | 1700 |
| Engine Make and Model | MAN D1556 |
| Engine Displacement | 9.037 L (551.47 in³) |
| Number of Cylinders | 6 |
| Fuel type | Diesel |
| Fuel Tank Capacity | 625 L (165 US Gal) |
| Aspiration | Variable Turbine Geometry (VTG) Turbocharger |
| Fuel Injection | Direct Injection |
| Cooling | Liquid Cooled |
Transmission
| Max Speed | 50 km/h (31 mph) |
| Transmission Type | Vario CVT ML 400 |
| Cruise | Yes |
| 4 Wheel Drive | Yes |
| Differential Lock | Yes |
| Brakes | Wet Disc |
Additional Drivetrain
| Air Trailer Brakes | Standard |
| Hydraulic Trailer Brakes | Optional |
| Exhaust Brake | Optional |
| Front Axle Suspension | Standard |
Hydraulics
| Optional Pump Type | Variable Displacement Piston |
| Optional Hydraulic Flow | 165 L/min (43.6 Gal/min) |
| Standard Pump Type | Variable Displacement Piston |
| Standard Hydraulic Flow | 220 L/min (58.1 Gal/min) |
| Optional Pump Type | Dual Variable Displacement Piston |
| Optional Hydraulic Flow | 430 L/min (113.6 Gal/min) |
| Max Operating Pressure | 20,000 kPa (2,901 PSI) |
| System Capacity | 122 L (32 US Gal) |
| Max Available Hydraulic Oil | 90 L (24 US Gal) |
| Rear Remote Valves Standard | 4 |
| Rear Remote Valves Available | up to 6 |
| Front Remote Valves Standard | 0 |
| Front Remote Valves Available | up to 2 |
| Steering | Hydraulic Power Steering |
3 Point Hitch
| Rear Hitch | Standard |
| Rear Hitch Category | Category 3 |
| Rear Lift Capacity at Pins | 12,654 kg (27,902 lbs) |
| Front Hitch | Optional |
| Front Hitch Category | Category 2 |
| Front Lift Capacity at Pins | 5,694 kg (12,555 lbs) |
| Draft Control | Yes |
PTO
| Rear PTO | Standard |
| Rear PTO Speed | 540E / 1000 / 1000E |
| Front PTO | Optional |
| Front PTO Speed | 1000 |
| Type | Independent |
Technology
| Display | 10.4" Varioterminal |
| Dash Display | Digital Display |
| ISO BUS Implement Control | Standard |
| Guidance Ready | Standard |
| Antenna Options | Novatel / Trimble |
| Headland Management | Variotronic TI Standard |
| Auto Headland Turn | Variotronic TI Auto Optional |
| Data Transfer | Fendt TaskDoc Pro Standard |
| Section Control | Optional |
| Variable Rate Control | Optional |
| Telemetry | 3 Year Fendt Connect Subscription Standard |
Electrical
| Standard Front Lights | 20 |
| Standard Rear Lights | 6 |
| Standard Worklight Type | Halogen |
| Optional Worklight Type | LED |
| Alternator | 275 amp |
| Battery size | 1475 CCA |
Operator Station
| Configuration Options | Reverse Station |
| Heater | Standard |
| Air Conditioning | Standard |
| Front Wiper | 300° |
| Rear Wiper | Standard |
| Heated Rear Window | Optional |
| Cab suspension | 2 Point Mechanical Standard / 2 Point Air Optional / 3 Point Air Optional |
Tires
| Standard Rear Size | 710/75R42 |
| Standard Front Size | 600/65R34 |
| Tire Types | Ag |
Dimensions*
| Length | 5,575 mm (18' 3-1/2") |
| Wheelbase | 3,150 mm (10' 4") |
| Minimum Overall Width (tires) | 2,740 mm (8' 11-7/8") |
| Overall Height (cab) | 3,375 mm (11' 7/8") |
| Minimum Ground Clearance | 553 mm (1' 9-3/4") |
| Base Weight (cab) | 11,300 kg (24,917 lbs) |
| Turning Radius | 6,100 mm (20' 3/16") |
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.
Fendt 942
| Max Engine HP | 415 HP (309.5 kW) |
| PTO HP | 341 HP (254.3 kW) |
| Optional Hydraulic Flow | 113.6 Gal/min (430 L/min) |
| Wheelbase | 10' 4" (3,150 mm) |
Engine
| Engine HP | 309.5 kW (415 HP) |
| Max Engine HP | 309.5 kW (415 HP) |
| PTO HP | 254.3 kW (341 HP) |
| Rated Engine Speed | 1700 |
| Engine Make and Model | MAN D1556 |
| Engine Displacement | 9.037 L (551.47 in³) |
| Number of Cylinders | 6 |
| Fuel type | Diesel |
| Fuel Tank Capacity | 625 L (165 US Gal) |
| Aspiration | Variable Turbine Geometry (VTG) Turbocharger |
| Fuel Injection | Direct Injection |
| Cooling | Liquid Cooled |
Transmission
| Max Speed | 50 km/h (31 mph) |
| Transmission Type | Vario CVT ML 400 |
| Cruise | Yes |
| 4 Wheel Drive | Yes |
| Differential Lock | Yes |
| Brakes | Wet Disc |
Additional Drivetrain
| Air Trailer Brakes | Standard |
| Hydraulic Trailer Brakes | Optional |
| Exhaust Brake | Optional |
| Front Axle Suspension | Standard |
Hydraulics
| Optional Pump Type | Variable Displacement Piston |
| Optional Hydraulic Flow | 165 L/min (43.6 Gal/min) |
| Standard Pump Type | Variable Displacement Piston |
| Standard Hydraulic Flow | 220 L/min (58.1 Gal/min) |
| Optional Pump Type | Dual Variable Displacement Piston |
| Optional Hydraulic Flow | 430 L/min (113.6 Gal/min) |
| Max Operating Pressure | 20,000 kPa (2,901 PSI) |
| System Capacity | 122 L (32 US Gal) |
| Max Available Hydraulic Oil | 90 L (24 US Gal) |
| Rear Remote Valves Standard | 4 |
| Rear Remote Valves Available | up to 6 |
| Front Remote Valves Standard | 0 |
| Front Remote Valves Available | up to 2 |
| Steering | Hydraulic Power Steering |
3 Point Hitch
| Rear Hitch | Standard |
| Rear Hitch Category | Category 3 |
| Rear Lift Capacity at Pins | 12,654 kg (27,902 lbs) |
| Front Hitch | Optional |
| Front Hitch Category | Category 2 |
| Front Lift Capacity at Pins | 5,694 kg (12,555 lbs) |
| Draft Control | Yes |
PTO
| Rear PTO | Standard |
| Rear PTO Speed | 540E / 1000 / 1000E |
| Front PTO | Optional |
| Front PTO Speed | 1000 |
| Type | Independent |
Technology
| Display | 10.4" Varioterminal |
| Dash Display | Digital Display |
| ISO BUS Implement Control | Standard |
| Guidance Ready | Standard |
| Antenna Options | Novatel / Trimble |
| Headland Management | Variotronic TI Standard |
| Auto Headland Turn | Variotronic TI Auto Optional |
| Data Transfer | Fendt TaskDoc Pro Standard |
| Section Control | Optional |
| Variable Rate Control | Optional |
| Telemetry | 3 Year Fendt Connect Subscription Standard |
Electrical
| Standard Front Lights | 20 |
| Standard Rear Lights | 6 |
| Standard Worklight Type | Halogen |
| Optional Worklight Type | LED |
| Alternator | 275 amp |
| Battery size | 1475 CCA |
Operator Station
| Configuration Options | Reverse Station |
| Heater | Standard |
| Air Conditioning | Standard |
| Front Wiper | 300° |
| Rear Wiper | Standard |
| Heated Rear Window | Optional |
| Cab suspension | 2 Point Mechanical Standard / 2 Point Air Optional / 3 Point Air Optional |
Tires
| Standard Rear Size | 710/75R42 |
| Standard Front Size | 600/65R34 |
| Tire Types | Ag |
Dimensions*
| Length | 5,575 mm (18' 3-1/2") |
| Wheelbase | 3,150 mm (10' 4") |
| Minimum Overall Width (tires) | 2,740 mm (8' 11-7/8") |
| Overall Height (cab) | 3,375 mm (11' 7/8") |
| Minimum Ground Clearance | 553 mm (1' 9-3/4") |
| Base Weight (cab) | 11,300 kg (24,917 lbs) |
| Turning Radius | 6,100 mm (20' 3/16") |
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.
Model Comparison
Features
VarioDrive
Ready For More
Intelligence
Grip
Versatility
Safety & Comfort
Efficiency
Naming
This series of Fendt 900 is called a ‘Gen 6’. This generational naming structure highlights the number of generations since the 900 series tractor started using the Vario transmission. This is in contrast to the prior naming structure that was in reference to engine emissions compliance. This new naming begins counting with the 900 series tractor which received the Vario transmission in 1996. Since these current 900s are the 6th generation of tractor to have a Vario Transmission, they are Gen 6.
Resources
Gallery
