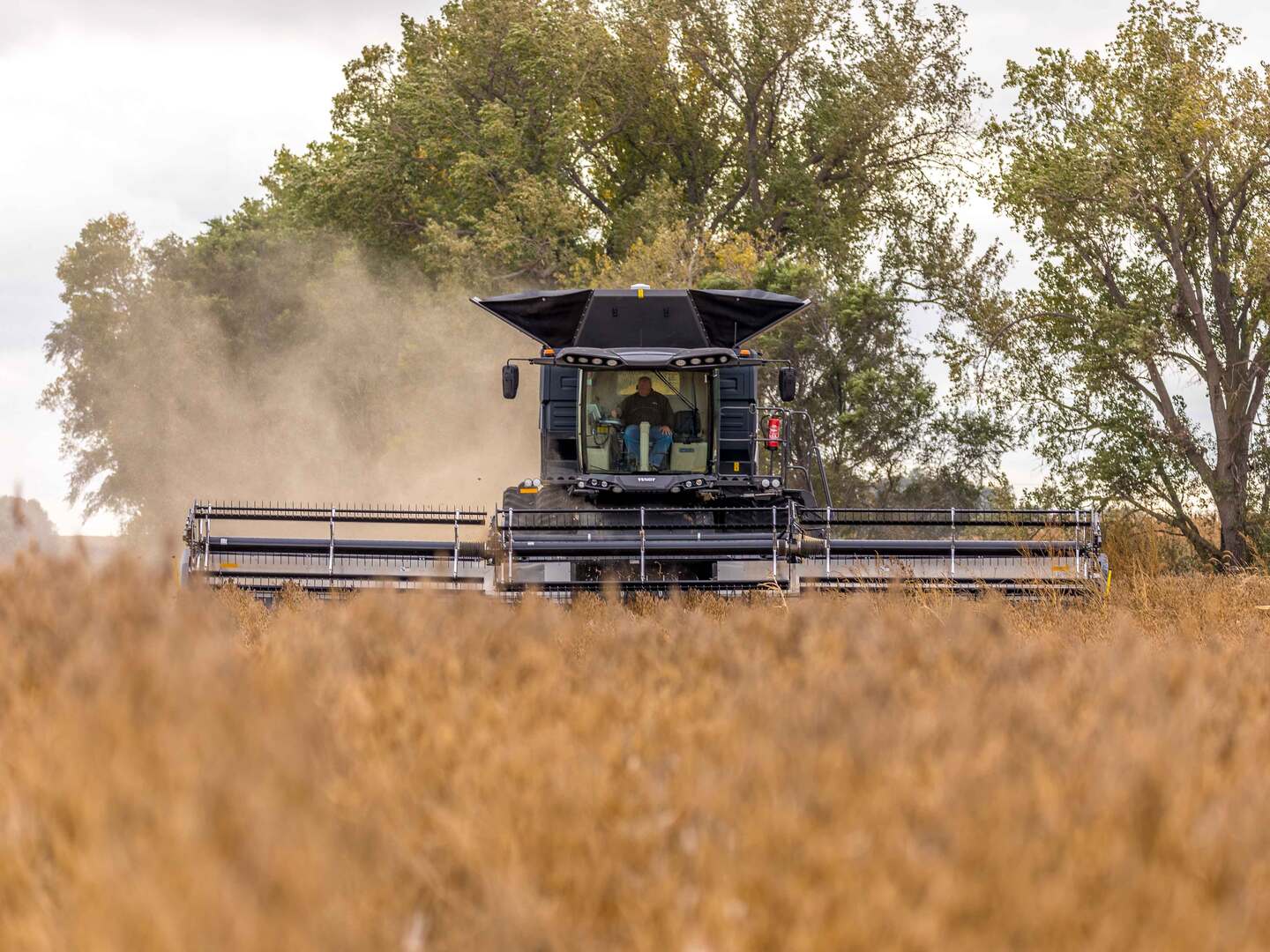

Fendt IDEAL Combine

Fendt IDEAL Combine

The design of the Fendt IDEAL combine is a result of the needs of the modern farmer. The design started fresh from the ground up to meet those needs. The IDEAL experience centers on the success of the Fendt brand. The technology, the customer support built around the brand, and the engineering of the combine carry the trademarks of Fendt. The IDEAL brings the support and quality of the Fendt brand to the combine market. The Fendt IDEAL combine is leading the way in power, efficiency, and grain quality.

Fendt

Models

Fendt IDEAL 7 Combine

IDEAL 7

Class 7

Max Engine HP451 HP (336.3 kW)
Separator TypeSingle Rotor
Total Separation Area24 ft² (2.27 m²)
Grain Tank Size350 bu (12,334 L)
Unloading Rate4.0 bu/sec (141 L/sec)
Engine
Engine HP292.3 kW (392 HP)
Max Engine HP336.3 kW (451 HP)
Rated Engine Speed1900
Engine Make and ModelAGCO Power HD 98
Engine Displacement9.82 L (599.26 in³)
Number of Cylinders7
Fuel typeDiesel
Fuel Tank Capacity1000 L (264 US Gal)
AspirationTurbocharged
Transmission
Max Speed40 km/h (25 mph)
Transmission Type2-Speed MotionShift
CruiseYes
4 Wheel DriveOptional
Differential LockYes
Electrical
Alternator320 amp
Battery size1000 CCA
Tires
Standard Rear Size620/70R26
Standard Front Size800/70R38
Tire TypesAg
Dimensions*
Length11,720 mm (38' 5-7/16")
Wheelbase4,075 mm (13' 4-7/16")
Minimum Overall Width (tires)5,110 mm (16' 9-3/16")
Overall Height (cab)4,000 mm (13' 1-1/2")
Turning Radius4,800 mm (15' 9")
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Feeder
Feeder House Lifting Capacity4,535 kg (10,000 lbs)
Lift Cylinder Diameter85 mm (3-3/8")
Feeder Housing Chains3
ReverseStandard
Feeder Width1,270 mm (4' 2")
Rock TrapStandard
Threshing
Separator TypeSingle Rotor
Rotor Length4,837 mm (15' 10-7/16")
Rotor Diameter600 mm (1' 11-5/8")
Rotor Speed400 - 920 RPM
Threshing Area.83 m² (9 ft²)
Separation Area1.44 m² (16 ft²)
Total Separation Area2.27 m² (24 ft²)
Cleaning
Chaffer Area2.71 m² (29 ft²)
Sieve Area4.9 m² (53 ft²)
Total Cleaning Area7.45 m² (80 ft²)
Electric Sieve AdjustmentStandard
Cleaning Fan Speed250 - 1400 RPM
Return SystemSeparate Re-Thresher
Grain Handling
Grain Tank Size12,334 L (350 bu)
Unloading Rate141 L/sec (4.0 bu/sec)
Unloading Auger Length9,150 mm (30' 1/4")
Residue Management
Straw Chopper Knives56 / 112
Straw Chopper Speed850 - 3600 RPM
Chaff SpreaderStandard
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.
Fendt IDEAL 8 Combine

IDEAL 8

Class 8

Max Engine HP540 HP (402.7 kW)
Separator TypeDual Rotor
Total Separation Area39 ft² (3.58 m²)
Grain Tank Size350 bu (12,334 L)
Unloading Rate4.0 bu/sec (141 L/sec)
Engine
Engine HP350.5 kW (470 HP)
Max Engine HP402.7 kW (540 HP)
Rated Engine Speed1900
Engine Make and ModelMAN D2676
Engine Displacement12.42 L (757.92 in³)
Number of Cylinders6
Fuel typeDiesel
Fuel Tank Capacity1250 L (330 US Gal)
AspirationTurbocharged
Transmission
Max Speed40 km/h (25 mph)
Transmission Type2-Speed MotionShift
CruiseYes
4 Wheel DriveOptional
Differential LockYes
Electrical
Alternator320 amp
Battery size1000 CCA
Tires
Standard Rear Size620/70R26
Standard Front Size800/70R38
Tire TypesAg
Dimensions*
Length11,720 mm (38' 5-7/16")
Wheelbase4,075 mm (13' 4-7/16")
Minimum Overall Width (tires)5,110 mm (16' 9-3/16")
Overall Height (cab)4,000 mm (13' 1-1/2")
Turning Radius4,800 mm (15' 9")
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Feeder
Feeder House Lifting Capacity4,535 kg (10,000 lbs)
Lift Cylinder Diameter85 mm (3-3/8")
Feeder Housing Chains3
ReverseStandard
Feeder Width1,270 mm (4' 2")
Rock TrapStandard
Threshing
Separator TypeDual Rotor
Rotor Length4,837 mm (15' 10-7/16")
Rotor Diameter600 mm (1' 11-5/8")
Rotor Speed400 - 920 RPM
Threshing Area1.66 m² (18 ft²)
Separation Area1.92 m² (21 ft²)
Total Separation Area3.58 m² (39 ft²)
Cleaning
Chaffer Area2.71 m² (29 ft²)
Sieve Area4.9 m² (53 ft²)
Total Cleaning Area7.45 m² (80 ft²)
Electric Sieve AdjustmentStandard
Cleaning Fan Speed250 - 1400 RPM
Return SystemSeparate Re-Thresher
Grain Handling
Grain Tank Size12,334 L (350 bu)
Unloading Rate141 L/sec (4.0 bu/sec)
Unloading Auger Length9,150 mm (30' 1/4")
Residue Management
Straw Chopper Knives56 / 112
Straw Chopper Speed850 - 3600 RPM
Chaff SpreaderStandard
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.
Fendt IDEAL 9 Combine

IDEAL 9

Class 9

Max Engine HP650 HP (484.7 kW)
Separator TypeDual Rotor
Total Separation Area44 ft² (4.06 m²)
Grain Tank Size485 bu (17,091 L)
Unloading Rate6.0 bu/sec (211 L/sec)
Engine
Engine HP420.6 kW (564 HP)
Max Engine HP484.7 kW (650 HP)
Rated Engine Speed1900
Engine Make and ModelMAN D3876
Engine Displacement15.26 L (931.23 in³)
Number of Cylinders6
Fuel typeDiesel
Fuel Tank Capacity1250 L (330 US Gal)
AspirationTurbocharged
Transmission
Max Speed40 km/h (25 mph)
Transmission Type2-Speed MotionShift
CruiseYes
4 Wheel DriveOptional
Differential LockYes
Electrical
Alternator320 amp
Battery size1000 CCA
Tires
Standard Rear Size620/70R26
Standard Front Size800/70R38
Tire TypesAg
Dimensions*
Length11,720 mm (38' 5-7/16")
Wheelbase4,075 mm (13' 4-7/16")
Minimum Overall Width (tires)5,110 mm (16' 9-3/16")
Overall Height (cab)4,000 mm (13' 1-1/2")
Turning Radius4,800 mm (15' 9")
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Feeder
Feeder House Lifting Capacity5,896 kg (13,001 lbs)
Lift Cylinder Diameter92 mm (3-5/8")
Feeder Housing Chains4
ReverseStandard
Feeder Width1,270 mm (4' 2")
Rock TrapStandard
Threshing
Separator TypeDual Rotor
Rotor Length4,837 mm (15' 10-7/16")
Rotor Diameter600 mm (1' 11-5/8")
Rotor Speed280-1160 RPM
Threshing Area1.66 m² (18 ft²)
Separation Area2.4 m² (26 ft²)
Total Separation Area4.06 m² (44 ft²)
Cleaning
Chaffer Area2.98 m² (32 ft²)
Sieve Area5.4 m² (58 ft²)
Total Cleaning Area7.95 m² (86 ft²)
Electric Sieve AdjustmentStandard
Cleaning Fan Speed250 - 1400 RPM
Return SystemSeparate Re-Thresher
Grain Handling
Grain Tank Size17,091 L (485 bu)
Unloading Rate211 L/sec (6.0 bu/sec)
Unloading Auger Length9,150 mm (30' 1/4")
Residue Management
Straw Chopper Knives56 / 112
Straw Chopper Speed850 - 3600 RPM
Chaff SpreaderStandard
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.
Fendt IDEAL 10 Combine

IDEAL 10

Class 10

Max Engine HP790 HP (589.1 kW)
Separator TypeDual Rotor
Total Separation Area48 ft² (4.5 m²)
Grain Tank Size485 bu (17,091 L)
Unloading Rate6.0 bu/sec (211 L/sec)
Engine
Engine HP512.3 kW (687 HP)
Max Engine HP589.1 kW (790 HP)
Rated Engine Speed1900
Engine Make and ModelMAN D4276
Engine Displacement16.2 L (988.59 in³)
Number of Cylinders6
Fuel typeDiesel
Fuel Tank Capacity1250 L (330 US Gal)
AspirationTurbocharged
Transmission
Max Speed40 km/h (25 mph)
Transmission Type2-Speed MotionShift
CruiseYes
4 Wheel DriveOptional
Differential LockYes
Electrical
Alternator320 amp
Battery size1000 CCA
Tires
Standard Rear Size900/60R38
Standard Front Size620/70R26
Tire TypesAg
Dimensions*
Length11,720 mm (38' 5-7/16")
Wheelbase4,075 mm (13' 4-7/16")
Minimum Overall Width (tires)5,110 mm (16' 9-3/16")
Overall Height (cab)4,000 mm (13' 1-1/2")
Turning Radius4,800 mm (15' 9")
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Feeder
Feeder House Lifting Capacity5,896 kg (13,001 lbs)
Lift Cylinder Diameter92 mm (3-5/8")
Feeder Housing Chains4
ReverseStandard
Feeder Width1,270 mm (4' 2")
Rock TrapStandard
Threshing
Separator TypeDual Rotor
Rotor Length4,837 mm (15' 10-7/16")
Rotor Diameter600 mm (1' 11-5/8")
Rotor Speed280-1160 RPM
Threshing Area1.66 m² (18 ft²)
Separation Area2.88 m² (31 ft²)
Total Separation Area4.5 m² (48 ft²)
Cleaning
Chaffer Area2.98 m² (32 ft²)
Sieve Area5.4 m² (58 ft²)
Total Cleaning Area7.95 m² (86 ft²)
Electric Sieve AdjustmentStandard
Cleaning Fan Speed250 - 1400 RPM
Return SystemSeparate Re-Thresher
Grain Handling
Grain Tank Size17,091 L (485 bu)
Unloading Rate211 L/sec (6.0 bu/sec)
Unloading Auger Length9,150 mm (30' 1/4")
Residue Management
Straw Chopper Knives56 / 112
Straw Chopper Speed850 - 3600 RPM
Chaff SpreaderStandard
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.
Model Comparison
Fendt

Features

Streamer 4.0 / 6.0

Fendt IDEAL Combine Grain Unloading

Each Fendt IDEAL model can be equipped with either the Streamer 4.0 or Streamer 6.0 package.  The Streamer 4.0 package includes a 350 bushek grain tank and unloading of 4.0 bu/sec (1 min 28 sec cycle).  The Streamer 6.0 is a 485 bushel grain tank and unloading of 6.0 bu/sec (1 min 21 sec cycle).

IDEALDrive Joystick

Fendt IDEAL Combine IDEALDrive Joystick

On the IDEAL equipped with TrakRide there is the option to remove the steering wheel completely.  This is replaced with a left hand joystick. It allows for better visibility and increases operator comfort.  The left joystick controls direction and the right still controls speed.  This complies with vehicle and traffic regulations.

TrakRide

Fendt IDEAL Combine TrakRide

The IDEAL has the option of front tracks.  The new TrakRide system is newly designed for the IDEAL.  There are three track widths of 660 mm, 760 mm and 910 mm.  The track is hydraulically tensioned and allows travel of 15° up and 10° down.  The trailing ‘T’ of the Fendt IDEAL models indicates a model with front tracks instead of tires.  With this naming convention the IDEAL 7T, IDEAL 8T, IDEAL 9T, and IDEAL 10T are the track versions of the same combine.  The innovative IDEALDrive Joystick is an option only on these track models.

Options

On the IDEAL 7 the standard fuel tank is 1000L (264gal) and can be optionally upgraded to 1250L (330gal).  On the IDEAL 8, IDEAL 9 and IDEAL 10 the standard fuel tank is 1250L (330gal) which can be upgraded to 1500L (396gal).  An on-board 16gal (60L) air compressor is another option.  The IDEAL comes standard with a 9.15m (30′) unloading auger.  This includes a section that when removed reduces the length to 7.6m (25′).  The standard auger is best for headers up to 40′ wide.  Another extension can be ordered that extends the auger to 10.6m (34’8″) and is best for 40’+ headers.  The long length auger also comes with a manual fold for shortening the length in transport.  The IDEAL combines all come with a straw chopper.  The standard BaseCut Chopper has 4 rows and 56 knives total.  The ShortCut Chopper option has 8 rows and 112 knives.  4WD is also an optional addition on all IDEAL machines.
