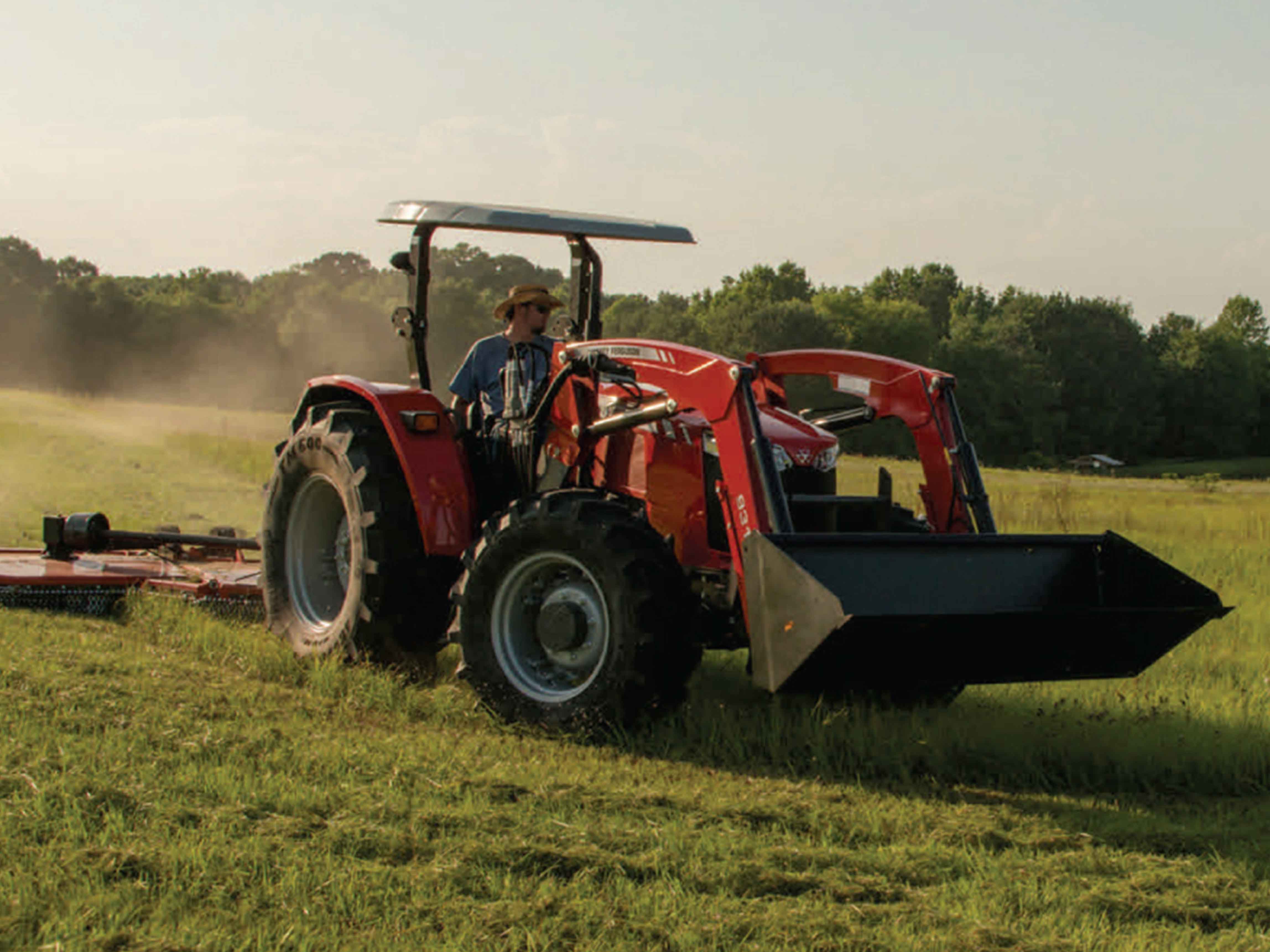

The Massey Ferguson 4700 Utility Tractor.

The Massey Ferguson 4700 Series is new to the high end utility tractor segment. These tractors are built from the ground up to pull and lift more. They fill the requirements of small farms across the nation. The Massey Ferguson 4700 is ready for hay fields, barnyards, and ditch banks when there is work to do. The frame and bulk of the machine lends great stability and maneuverability. Radial tires are standard, again improving stability and giving a smooth ride. This tractor fills a need in the Massey Ferguson lineup. It is a size well-suited to the farming practices of southern Ontario. Maple Lane is happy to have this tractor as a solution for your farm.

Models

4707

57 PTO HP

Engine HP75 HP
Transmission Type12x12 2 Range Power Shuttle
Wheelbase7' 4-9/16"
Base Weight (platform)6,836 lbs
Engine
Engine HP75 HP (55.9 kW)
PTO HP57 HP (42.5 kW)
Rated engine speed2200 RPM
Engine make and modelAGCO Power 33AWIC
Engine Displacement201.38 cu in (3.3 L)
Number of Cylinders3
Fuel typeDiesel
Fuel Tank Capacity27.7 US Gal (105 L)
AspirationTurbocharged
Fuel InjectionDirect Injection
CoolingLiquid Cooled
Transmission
Transmission Type12x12 2 Range Power Shuttle
4 Wheel Drive2WD / 4WD
Differential LockYes
BrakesWet Disc
Hydraulics
Hydraulic Flow17.2 Gal/min (65 L/min)
Max Operating Pressure2,901 PSI (20,000 kPa)
System Capacity10.6 US Gal (40 L)
Remote Valves Standard2
Remote Valves Available3
SteeringHydraulic Power Steering
3 Point Hitch
CategoryCat. 2
Lift Capacity 24" Behind Pins5,292 lbs (2,400 kg)
PTO
Rear PTOStandard
Rear PTO Speed540 / 1000
TypeIndependent
Electrical
Front lights standard4
Rear lights standard1 / 2
Alternator80 amp
Battery size720 CCA
Operator Station
Configuration OptionsPlatform / Cab
HeaterStandard with Cab
Air ConditioningStandard with Cab
Front WiperStandard with Cab
Rear WiperStandard with Cab
Tires
Standard Rear Size420/85R30 Ag (Platform)
Standard Front Size320/85R24 Ag
Tire TypesR4 Industrial / Ag
Dimensions*
Length13' 4-1/8" (4,067 mm)
Wheelbase7' 4-9/16" (2,250 mm)
Minimum Overall Width (tires)5' 10-11/16" (1,795 mm)
Overall Height (platform)8' 3-3/16" (2,520 mm)
Overall Height (cab)99" (2,515 mm)
Minimum Ground Clearance1' 6-1/8" (460 mm)
Base Weight (platform)6,836 lbs (3,100 kg)
Base Weight (cab)8,533 lbs (3,870 kg)
Turning Radius25' 3-1/8" (7,700 mm)
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Loader
ModelFL.3615
Bucket Size Options72" or 84"
Maximum Lift Height Pivot Pin11' 7-3/4" (3,550 mm)
Lift Capacity to Max Height Pivot Pin3,420 lbs (1,551 kg)
Breakout Force Pivot Pin3,991 lbs (1,810 kg)
Digging Depth5/16" (160 mm)
Max Dump Angle58°
Max Rollback Angle58°
Lift Cylinder Diameter3/4" (70 mm)
Bucket Cylinder Diameter15/16" (75 mm)
Tool CarrierSS Quick Attach
Self-LevelingYes
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.

4708

67 PTO HP

Engine HP85 HP
Transmission Type12x12 2 Range Power Shuttle
Wheelbase7' 4-9/16"
Base Weight (platform)6,836 lbs
Engine
Engine HP85 HP (63.4 kW)
PTO HP67 HP (50 kW)
Rated engine speed2200 RPM
Engine make and modelAGCO Power 33AWFC
Engine Displacement201.38 cu in (3.3 L)
Number of Cylinders3
Fuel typeDiesel
Fuel Tank Capacity27.7 US Gal (105 L)
AspirationTurbocharged
Fuel InjectionDirect Injection
CoolingLiquid Cooled
Transmission
Transmission Type12x12 2 Range Power Shuttle
4 Wheel Drive2WD / 4WD
Differential LockYes
BrakesWet Disc
Hydraulics
Hydraulic Flow17.2 Gal/min (65 L/min)
Max Operating Pressure2,901 PSI (20,000 kPa)
System Capacity10.6 US Gal (40 L)
Remote Valves Standard2
Remote Valves Available3
SteeringHydraulic Power Steering
3 Point Hitch
CategoryCat. 2
Lift Capacity 24" Behind Pins5,292 lbs (2,400 kg)
PTO
Rear PTOStandard
Rear PTO Speed540 / 1000
TypeIndependent
Electrical
Front lights standard4
Rear lights standard1 / 2
Alternator80 amp
Battery size720 CCA
Operator Station
Configuration OptionsPlatform / Cab
HeaterStandard with Cab
Air ConditioningStandard with Cab
Front WiperStandard with Cab
Rear WiperStandard with Cab
Tires
Standard Rear Size420/85R30 Ag (Platform)
Standard Front Size320/85R24 Ag
Tire TypesR4 Industrial / Ag
Dimensions*
Length13' 4-1/8" (4,067 mm)
Wheelbase7' 4-9/16" (2,250 mm)
Minimum Overall Width (tires)5' 10-11/16" (1,795 mm)
Overall Height (platform)8' 3-3/16" (2,520 mm)
Overall Height (cab)99" (2,515 mm)
Minimum Ground Clearance1' 6-1/8" (460 mm)
Base Weight (platform)6,836 lbs (3,100 kg)
Base Weight (cab)8,600 lbs (3,900 kg)
Turning Radius25' 3-1/8" (7,700 mm)
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Loader
ModelFL.3615
Bucket Size Options72" or 84"
Maximum Lift Height Pivot Pin11' 7-3/4" (3,550 mm)
Lift Capacity to Max Height Pivot Pin3,420 lbs (1,551 kg)
Breakout Force Pivot Pin3,991 lbs (1,810 kg)
Digging Depth5/16" (160 mm)
Max Dump Angle58°
Max Rollback Angle58°
Lift Cylinder Diameter3/4" (70 mm)
Bucket Cylinder Diameter15/16" (75 mm)
Tool CarrierSS Quick Attach
Self-LevelingYes
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.

4709

77 PTO HP

Engine HP95 HP
Transmission Type12x12 2 Range Power Shuttle
Wheelbase7' 4-9/16"
Base Weight (platform)6,836 lbs
Engine
Engine HP95 HP (70.8 kW)
PTO HP77 HP (57.4 kW)
Rated engine speed2200 RPM
Engine make and modelAGCO Power 33AWFC
Engine Displacement201.38 cu in (3.3 L)
Number of Cylinders3
Fuel typeDiesel
Fuel Tank Capacity27.7 US Gal (105 L)
AspirationTurbocharged
Fuel InjectionDirect Injection
CoolingLiquid Cooled
Transmission
Transmission Type12x12 2 Range Power Shuttle
4 Wheel Drive2WD / 4WD
Differential LockYes
BrakesWet Disc
Hydraulics
Hydraulic Flow17.2 Gal/min (65 L/min)
Max Operating Pressure2,901 PSI (20,000 kPa)
System Capacity10.6 US Gal (40 L)
Remote Valves Standard2
Remote Valves Available3
SteeringHydraulic Power Steering
3 Point Hitch
CategoryCat. 2
Lift Capacity 24" Behind Pins5,292 lbs (2,400 kg)
PTO
Rear PTOStandard
Rear PTO Speed540 / 1000
TypeIndependent
Electrical
Front lights standard4
Rear lights standard1 / 2
Alternator80 amp
Battery size720 CCA
Operator Station
Configuration OptionsPlatform / Cab
HeaterStandard with Cab
Air ConditioningStandard with Cab
Front WiperStandard with Cab
Rear WiperStandard with Cab
Tires
Standard Rear Size420/85R30 Ag (Platform)
Standard Front Size320/85R24 Ag
Tire TypesR4 Industrial / Ag
Dimensions*
Length13' 4-1/8" (4,067 mm)
Wheelbase7' 4-9/16" (2,250 mm)
Minimum Overall Width (tires)5' 10-11/16" (1,795 mm)
Overall Height (platform)8' 3-3/16" (2,520 mm)
Overall Height (cab)99" (2,515 mm)
Minimum Ground Clearance1' 6-1/8" (460 mm)
Base Weight (platform)6,836 lbs (3,100 kg)
Base Weight (cab)8,600 lbs (3,900 kg)
Turning Radius25' 3-1/8" (7,700 mm)
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Loader
ModelFL.3615
Bucket Size Options72" or 84"
Maximum Lift Height Pivot Pin11' 7-3/4" (3,550 mm)
Lift Capacity to Max Height Pivot Pin3,420 lbs (1,551 kg)
Breakout Force Pivot Pin3,991 lbs (1,810 kg)
Digging Depth5/16" (160 mm)
Max Dump Angle58°
Max Rollback Angle58°
Lift Cylinder Diameter3/4" (70 mm)
Bucket Cylinder Diameter15/16" (75 mm)
Tool CarrierSS Quick Attach
Self-LevelingYes
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.

4710

87 PTO HP

Engine HP100 HP
Transmission Type12x12 2 Range Power Shuttle
Wheelbase7' 4-9/16"
Base Weight (platform)6,836 lbs
Engine
Engine HP100 HP (74.6 kW)
PTO HP87 HP (64.9 kW)
Rated engine speed2200 RPM
Engine make and modelAGCO Power 33AWFC
Engine Displacement201.38 cu in (3.3 L)
Number of Cylinders3
Fuel typeDiesel
Fuel Tank Capacity27.7 US Gal (105 L)
AspirationTurbocharged
Fuel InjectionDirect Injection
CoolingLiquid Cooled
Transmission
Transmission Type12x12 2 Range Power Shuttle
4 Wheel Drive2WD / 4WD
Differential LockYes
BrakesWet Disc
Hydraulics
Hydraulic Flow17.2 Gal/min (65 L/min)
Max Operating Pressure2,901 PSI (20,000 kPa)
System Capacity10.6 US Gal (40 L)
Remote Valves Standard2
Remote Valves Available3
SteeringHydraulic Power Steering
3 Point Hitch
CategoryCat. 2
Lift Capacity 24" Behind Pins5,292 lbs (2,400 kg)
PTO
Rear PTOStandard
Rear PTO Speed540 / 1000
TypeIndependent
Electrical
Front lights standard4
Rear lights standard1 / 2
Alternator80 amp
Battery size720 CCA
Operator Station
Configuration OptionsPlatform / Cab
HeaterStandard with Cab
Air ConditioningStandard with Cab
Front WiperStandard with Cab
Rear WiperStandard with Cab
Tires
Standard Rear Size420/85R30 Ag (Platform)
Standard Front Size320/85R24 Ag
Tire TypesR4 Industrial / Ag
Dimensions*
Length13' 4-1/8" (4,067 mm)
Wheelbase7' 4-9/16" (2,250 mm)
Minimum Overall Width (tires)5' 10-11/16" (1,795 mm)
Overall Height (platform)8' 3-3/16" (2,520 mm)
Overall Height (cab)99" (2,515 mm)
Minimum Ground Clearance1' 6-1/8" (460 mm)
Base Weight (platform)6,836 lbs (3,100 kg)
Base Weight (cab)8,600 lbs (3,900 kg)
Turning Radius25' 3-1/8" (7,700 mm)
*specifications are a base model with the tires listed in this Tire Section. Different configurations and tires may result in different values.
Loader
ModelFL.3615
Bucket Size Options72" or 84"
Maximum Lift Height Pivot Pin11' 7-3/4" (3,550 mm)
Lift Capacity to Max Height Pivot Pin3,420 lbs (1,551 kg)
Breakout Force Pivot Pin3,991 lbs (1,810 kg)
Digging Depth5/16" (160 mm)
Max Dump Angle58°
Max Rollback Angle58°
Lift Cylinder Diameter3/4" (70 mm)
Bucket Cylinder Diameter15/16" (75 mm)
Tool CarrierSS Quick Attach
Self-LevelingYes
Maple Lane may at any time, and from time to time, for technical or other necessary reasons, modify any of the data or specifications of the products described here.
Model Comparison

Features

A Global Tractor

The Massey Ferguson 4700 Series utility tractor is a global series tractor.  It has been designed and engineered starting from a blank sheet and built from the ground up by AGCO.  The module design is what makes it a global tractor.  Built in different factories around the world, the machines are assembled to regional requirements.  Most of the parts have been manufactured in house, ensuring both quality and supply.  This series represents an enormous commitment from AGCO.  The Massey Ferguson 4700 Series has been in development for six years.  With its production, AGCO is taking advantage of many brand-new production processes.  The Massey Ferguson 4700 is built to survive global extremes.

This tractor introduces a new range of 80-100 horsepower machines.  This is a unique addition to the utility market segment.  It is capable of handling heavy implements and draft work.  It has been a long wait for a tractor of this size to be up to heavy tasks with this kind of performance. The 4700 Series has been labelled a heavy-duty utility tractor.  This classification reflects the trend of using larger and larger horsepower seen in agriculture.  Now a 100 horsepower machine is considered ‘small’ or utility. The design allows for performance in settings where weight, stability and versatility are critical.

Engine

Massey Ferguson 4700 is powered by a 3.3 liter, 3-cylinder, AGCO Power, Tier 4 final engine.  This engine is designed for North American applications.  To meet the emissions standards, these tractors take diesel exhaust fluid (DEF).  This is called selective catalytic reduction (SCR).  The diesel exhaust fluid (DEF) is injected into the exhaust to reduce harmful NOx.  The DEF missions solution eliminates the need for a diesel particulate filter (DPF).  Not needing to regenerate the DPF filter saves time and wear on the engine.

Options

There are two levels of options on these tractors.  The Classic version offers an 8 x 8 (4708 & 4709) or 12 x 12 (4710) Synchro-shuttle transmission.  The Deluxe Edition features a 12 x 12 Power-shuttle transmission. Power-shuttle, comfort control, and fender mounted 3-point hitch control are among the Deluxe features.  This is a ROPS or open station tractor, likely used with a loader.  It is an open station tractor, purpose built as a new size for Massey.

Although built for dirty jobs, the operator can still ride in comfort. The controls are simple, and the machine is not trying to be anything too fancy. It comes as an open station tractor ready for loader work. There are 2WD or 4WD variants. Wheel width is adjustable to suit different applications.
