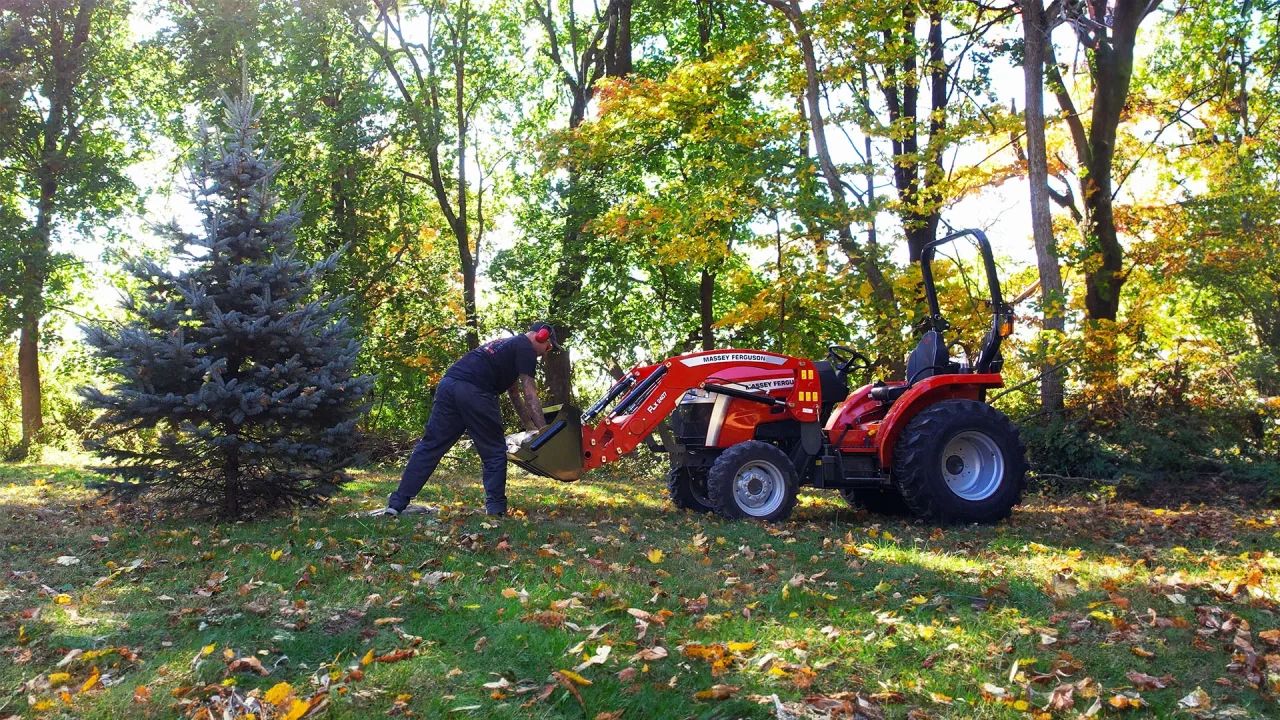

Massey Ferguson 1E.25
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 17.9kW (24hp) 24hp 17.9kW | |
| PTO Power | 15.21kW (20.4hp) 20.4hp 15.21kW, 14.32kW (19.2hp) 19.2hp 14.32kW | |
| Rated Engine Speed | 2600r/min | |
| Make | ISEKI E3CD | |
| Displacement | 0.4gal. (1.5L) 1.5L 0.4gal. | |
| Number of Cylinders | 3 | |
| Fuel Type | Diesel | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 37.85L (10gal.) 10gal. 37.85L | |
| Transmission | ||
|---|---|---|
| Type | Hydrostatic, Manual Shift | |
| Ranges | 3 | |
| Forward Speeds | 8 | |
| Reverse Speeds | 8 | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Hydraulics | ||
|---|---|---|
| Pump | MF 1E A | |
| System | Open Center | |
| Pump Type | Gear | |
| Hydraulic Flow | 7.29GPM (27.6L/min) 27.6L/min 7.29GPM | |
| Rear Remote Valves | 1, 2 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|
| Rear Hitch | MF 1E | |
| Hitch Category | Category 1 | |
| Lift Capacity at Pins | 2204.62lb. (1000kg) 1000kg 2204.62lb. | |
| Lift Capacity 24" Behind Pins | 1598.35lb. (725kg) 725kg 1598.35lb. | |
| PTO | ||
|---|---|---|
| Rear | 540 | |
| Type | Independent, Transmission | |
| Electrical | ||
|---|---|---|
| Front Lights | 2 | |
| Worklight Type | Halogen | |
| Operator Station | ||
|---|---|---|
| Configuration | Open ROPS | |
| Steering Controls | Steering Wheel | |
| Operator Seat | MF Standard ROPS Seat | |
| Material | Vinyl | |
| Safety Arrest | 2pt Belt | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Mechanical | |
| Wheels | ||
|---|---|---|
| Front | GALXY Ag Star 7-16 | |
| Size | 7-16 | |
| Ply | 6PR | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 18.54cm (7-5/16") 7-5/16" 18.54cm | |
| Overall Diameter | 74.42cm (2' 5-5/16") 2' 5-5/16" 74.42cm | |
| Static Loaded Radius | 33.53cm (1' 1-3/16") 1' 1-3/16" 33.53cm | GALXY Marathoner 27×8.50-15 |
| Size | 27×8.50-15 | |
| Ply | 6PR | |
| Tread Pattern | R4 (Ind) | |
| Section Width | 21.34cm (8-3/8") 8-3/8" 21.34cm | |
| Overall Diameter | 68.33cm (2' 2-7/8") 2' 2-7/8" 68.33cm | |
| Static Loaded Radius | 31.75cm (1' 1/2") 1' 1/2" 31.75cm | |
| Weight | 16.78kg (37lb.) 37lb. 16.78kg | |
| Rear | GALXY Agmaster 11.2-24 | |
| Size | 11.2-24 | |
| Ply | 8PR | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 28.45cm (11-3/16") 11-3/16" 28.45cm | |
| Overall Diameter | 110.24cm (3' 7-3/8") 3' 7-3/8" 110.24cm | |
| Static Loaded Radius | 49.53cm (1' 7-1/2") 1' 7-1/2" 49.53cm | GALXY Marathoner 15-19.5 |
| Size | 15-19.5 | |
| Ply | 6PR | |
| Tread Pattern | R4 (Ind) | |
| Section Width | 38.1cm (1' 3") 1' 3" 38.1cm | |
| Overall Diameter | 101.6cm (3' 4") 3' 4" 101.6cm | |
| Static Loaded Radius | 46.23cm (1' 6-3/16") 1' 6-3/16" 46.23cm | |
| Weight | 46.72kg (103lb.) 103lb. 46.72kg | |
| Dimensions | ||
|---|---|---|
| Wheelbase | 167.39cm (5' 5-7/8") 5' 5-7/8" 167.39cm | |
| Height | 247.9cm (8' 1-5/8") 8' 1-5/8" 247.9cm | |
| Weight | 1210.18kg (2668lb.) 2668lb. 1210.18kg | |
| Loader | ||
|---|---|---|
| Loader | MF FL.2407X | |
| Lifting | 3.9s | |
| Lift Capacity | 474.91kg (1047lb.) 1047lb. 474.91kg | |
| Lowering | 2.5s | |
| Maximum Lift Height – Pivot Pin | 239.52cm (7' 10-5/16") 7' 10-5/16" 239.52cm | |
| Lift Capacity to Max Height – Pivot Pin | 657.71kg (1450lb.) 1450lb. 657.71kg | |
| Tipping (crowd) | 1.9s | |
| Breakout Force – Pivot Pin | 1037.82kg (2288lb.) 2288lb. 1037.82kg | |
| Dumping | 3s | |
| Digging Depth | 8.89cm (3-1/2") 3-1/2" 8.89cm | |
| Max Rollback Angle | 26deg | |
| Max Dump Angle | 54deg | |
| Lift Cylinder Diameter | 5.08cm (2") 2" 5.08cm | |
| Bucket Cylinder Diameter | 5.08cm (2") 2" 5.08cm | |
| Tool Carrier | Skid Steer Quick Attach | |
| Lift Path | Radial | |
