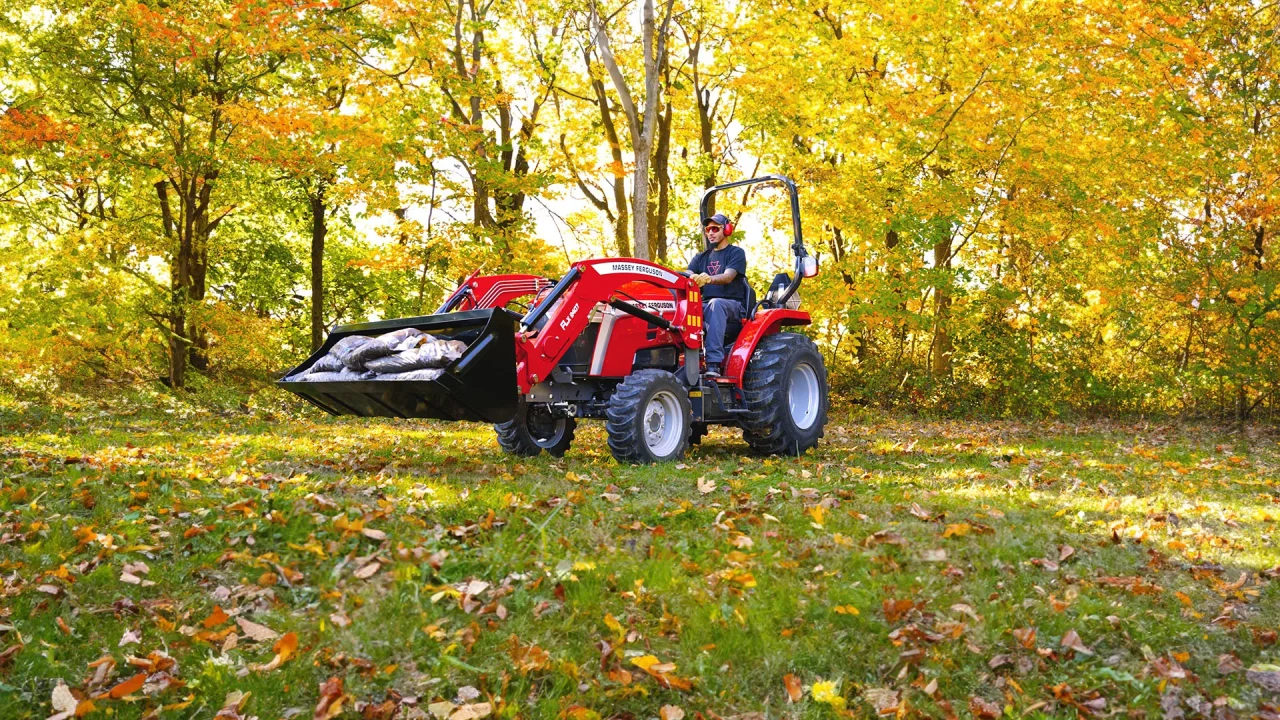

Massey Ferguson 1E.40
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 29.38kW (39.4hp) 39.4hp 29.38kW | |
| PTO Power | 24.98kW (33.5hp) 33.5hp 24.98kW, 23.49kW (31.5hp) 31.5hp 23.49kW | |
| Rated Engine Speed | 2600r/min | |
| Make | ISEKI E3FH | |
| Displacement | 111.67cu. in. (1.83L) 1.83L 111.67cu. in. | |
| Number of Cylinders | 3 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 37.85L (10gal.) 10gal. 37.85L | |
| Transmission | ||
|---|---|---|
| Type | Hydrostatic, Manual Shift | |
| Ranges | 3 | |
| Forward Speeds | 8 | |
| Reverse Speeds | 8 | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Hydraulics | ||
|---|---|---|
| Pump | MF 1E B | |
| Pump Type | Gear | |
| System | Open Center | |
| Hydraulic Flow | 7.64GPM (28.9L/min) 28.9L/min 7.64GPM | |
| Rear Remote Valves | 1, 2 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|
| Rear Hitch | MF 1E | |
| Hitch Category | Category 1 | |
| Lift Capacity at Pins | 2204.62lb. (1000kg) 1000kg 2204.62lb. | |
| Lift Capacity 24" Behind Pins | 1598.35lb. (725kg) 725kg 1598.35lb. | |
| PTO | ||
|---|---|---|
| Rear | 540 | |
| Type | Independent, Transmission | |
| Electrical | ||
|---|---|---|
| Front Lights | 2 | |
| Worklight Type | Halogen | |
| Operator Station | ||
|---|---|---|
| Configuration | Open ROPS | |
| Steering Controls | Steering Wheel | |
| Operator Seat | MF Standard ROPS Seat | |
| Material | Vinyl | |
| Safety Arrest | 2pt Belt | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Mechanical | |
| Wheels | ||
|---|---|---|
| Front | GALXY Ag Star 7-16 | |
| Size | 7-16 | |
| Ply | 6PR | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 185.42mm (7-5/16") 7-5/16" 185.42mm | |
| Overall Diameter | 744.22mm (2' 5-5/16") 2' 5-5/16" 744.22mm | |
| Static Loaded Radius | 335.28mm (1' 1-3/16") 1' 1-3/16" 335.28mm | GALXY Marathoner 27×8.50-15 |
| Size | 27×8.50-15 | |
| Ply | 6PR | |
| Tread Pattern | R4 (Ind) | |
| Section Width | 213.36mm (8-3/8") 8-3/8" 213.36mm | |
| Overall Diameter | 683.26mm (2' 2-7/8") 2' 2-7/8" 683.26mm | |
| Static Loaded Radius | 317.5mm (1' 1/2") 1' 1/2" 317.5mm | |
| Weight | 16.78kg (37lb.) 37lb. 16.78kg | |
| Rear | GALXY Agmaster 11.2-24 | |
| Size | 11.2-24 | |
| Tread Pattern | R1 (Ag) | |
| Ply | 8PR | |
| Section Width | 284.48mm (11-3/16") 11-3/16" 284.48mm | |
| Overall Diameter | 1102.36mm (3' 7-3/8") 3' 7-3/8" 1102.36mm | |
| Static Loaded Radius | 495.3mm (1' 7-1/2") 1' 7-1/2" 495.3mm | GALXY Marathoner 15-19.5 |
| Size | 15-19.5 | |
| Ply | 6PR | |
| Tread Pattern | R4 (Ind) | |
| Section Width | 381mm (1' 3") 1' 3" 381mm | |
| Overall Diameter | 1016mm (3' 4") 3' 4" 1016mm | |
| Static Loaded Radius | 462.28mm (1' 6-3/16") 1' 6-3/16" 462.28mm | |
| Weight | 46.72kg (103lb.) 103lb. 46.72kg | |
| Dimensions | ||
|---|---|---|
| Wheelbase | 1673.86mm (5' 5-7/8") 5' 5-7/8" 1673.86mm | |
| Height | 2479.04mm (8' 1-5/8") 8' 1-5/8" 2479.04mm | |
| Weight | 1304.98kg (2877lb.) 2877lb. 1304.98kg, 1334.92kg (2943lb.) 2943lb. 1334.92kg | |
| Loader | ||
|---|---|---|
| Loader | MF FL.2407X | |
| Lifting | 3.9s | |
| Lowering | 2.5s | |
| Lift Capacity | 474.91kg (1047lb.) 1047lb. 474.91kg | |
| Tipping (crowd) | 1.9s | |
| Dumping | 3s | |
| Maximum Lift Height – Pivot Pin | 2395.22mm (7' 10-5/16") 7' 10-5/16" 2395.22mm | |
| Lift Capacity to Max Height – Pivot Pin | 657.71kg (1450lb.) 1450lb. 657.71kg | |
| Breakout Force – Pivot Pin | 1037.82kg (2288lb.) 2288lb. 1037.82kg | |
| Digging Depth | 88.9mm (3-1/2") 3-1/2" 88.9mm | |
| Max Rollback Angle | 26deg | |
| Max Dump Angle | 54deg | |
| Lift Cylinder Diameter | 50.8mm (2") 2" 50.8mm | |
| Bucket Cylinder Diameter | 50.8mm (2") 2" 50.8mm | |
| Tool Carrier | Skid Steer Quick Attach | |
| Lift Path | Radial | |
