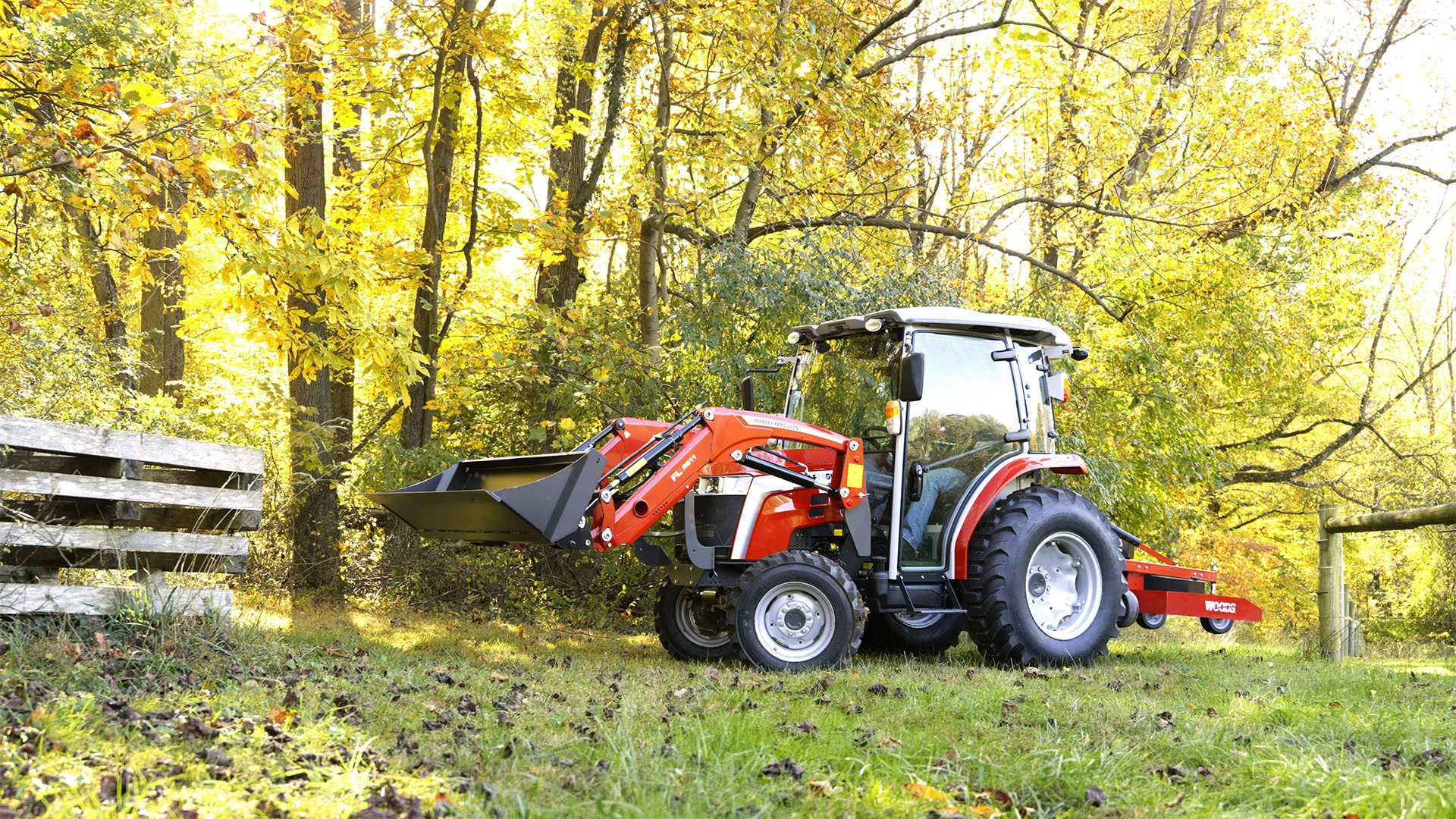

Massey Ferguson 1M.25
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 18.49kW (24.8hp) 24.8hp 18.49kW | |
| PTO Power | 14.99kW (20.1hp) 20.1hp 14.99kW | |
| Rated Engine Speed | 2600r/min | |
| Make | ISEKI E3CD | |
| Displacement | 91.54cu. in. (1.5L) 1.5L 91.54cu. in. | |
| Number of Cylinders | 3 | |
| Fuel Type | Diesel | |
| Cooling | Liquid Cooled | |
| Transmission | ||
|---|---|---|
| Type | Hydrostatic | |
| Ranges | 3 | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc, Manual Park | |
| Steering Mode | front wheel steer | |
| Hydraulics | ||
|---|---|---|
| Pump | MF 1M A | |
| Pump Type | Gear | |
| Hydraulic Flow | 5.5GPM (20.8L/min) 20.8L/min 5.5GPM | |
| Rear Remote Valves | 1, 2 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|
| Rear Hitch | MF 1M A | |
| Hitch Category | Category 1 | |
| Lift Capacity 24" Behind Pins | 479.9kg (1058lb.) 1058lb. 479.9kg | |
| PTO | ||
|---|---|---|
| Middle | 2000 | |
| Rear | 540 | |
| Type | Independent | |
| Electrical | ||
|---|---|---|
| Front Lights | 2 | |
| Rear Lights | 2 | |
| Worklight Type | LED | |
| Operator Station | ||
|---|---|---|
| Configuration | Open ROPS, Cab | |
| Climate | Heater, Air Conditioning | |
| Throttle | Hand, Foot Pedal | |
| Steering Controls | Steering Wheel | |
| Windows | Heated Rear | |
| Wiper | Front | |
| Wheels | ||
|---|---|---|
| Front | CARLI Trac Chief 25×8.50-14 | |
| Size | 25×8.50-14 | |
| Tread Pattern | R4 (Ind) | |
| Section Width | 8-1/2" (216mm) 216mm 8-1/2" | |
| Overall Diameter | 2' 1-13/16" (655mm) 655mm 2' 1-13/16" | |
| Rolling Circumference | 6' 5-1/16" (1958mm) 1958mm 6' 5-1/16" | CARLI Multi-Trac C/S 25×8.50-14 |
| Size | 25×8.50-14 | |
| Tread Pattern | R3 (Turf) | |
| Section Width | 8-9/16" (218mm) 218mm 8-9/16" | |
| Overall Diameter | 2' 1" (635mm) 635mm 2' 1" | |
| Rear | CARLI Multi-Trac C/S 36×13.50-15 | |
| Size | 36×13.50-15 | |
| Tread Pattern | R3 (Turf) | |
| Section Width | 1' 3-1/16" (383mm) 383mm 1' 3-1/16" | |
| Overall Diameter | 3' 7/8" (937mm) 937mm 3' 7/8" | |
| Static Loaded Radius | 1' 4-3/8" (416mm) 416mm 1' 4-3/8" | |
| Rolling Circumference | 8' 11-13/16" (2739mm) 2739mm 8' 11-13/16" | CARLI Trac Chief 14-17.5 |
| Size | 14-17.5 | |
| Tread Pattern | R4 (Ind) | |
| Section Width | 1' 2-1/4" (362mm) 362mm 1' 2-1/4" | |
| Overall Diameter | 2' 11-11/16" (907mm) 907mm 2' 11-11/16" | |
| Rolling Circumference | 9' 1-1/2" (2781mm) 2781mm 9' 1-1/2" | |
| Dimensions | ||
|---|---|---|
| Height | 2463.8mm (8' 1") 8' 1" 2463.8mm, 2080.26mm (6' 9-7/8") 6' 9-7/8" 2080.26mm | |
| Weight | 984.75kg (2171lb.) 2171lb. 984.75kg, 1134.89kg (2502lb.) 2502lb. 1134.89kg | |
| Loader | ||
|---|---|---|
| Loader | MF FL.2106 | |
| Attachments | MF 54" Material | |
| Width | 1371.6mm (4' 6") 4' 6" 1371.6mm | |
| Lift Capacity | 386.46kg (852lb.) 852lb. 386.46kg | |
| Maximum Lift Height – Pivot Pin | 2108.2mm (6' 11") 6' 11" 2108.2mm | |
| Lift Capacity to Max Height – Pivot Pin | 554.29kg (1222lb.) 1222lb. 554.29kg | |
| Breakout Force – Pivot Pin | 848.22kg (1870lb.) 1870lb. 848.22kg | |
| Max Rollback Angle | 31deg | |
| Max Dump Angle | 42deg | |
| Lift Cylinder Diameter | 44.96mm (1-3/4") 1-3/4" 44.96mm | |
| Bucket Cylinder Diameter | 44.96mm (1-3/4") 1-3/4" 44.96mm | |
| Tool Carrier | Skid Steer Quick Attach | |
| Lift Path | Radial | |
| Attachments | ||
|---|---|---|
| Mowers | MF 1506 | |
| Mount | Mid-Mount | |
| Type | Side Discharge | |
| Minimum Cutting Height | 50.8mm (2") 2" 50.8mm | |
| Drive | Mid PTO | |
| Blades | 3 | |
| Maximum Working Width | 152.4cm (5') 5' 152.4cm | |
| Gauge Wheels | 6 | |
| Blowers | MF SBx1270 | |
| Maximum Working Width | 127cm (4' 2") 4' 2" 127cm | |
| Full Height | 533.4mm (1' 9") 1' 9" 533.4mm | |
| Impeller Blades | 4 | |
| Impeller Diameter | 381mm (1' 3") 1' 3" 381mm | |
| Impeller Drum | Static | |
| Chute Rotation | Manual, Hydraulic, Motor | |
| Hood Deflector | Electric | |
| Cutting Width | 1270mm (4' 2") 4' 2" 1270mm | |
| Cutting Height | 533.4mm (1' 9") 1' 9" 533.4mm | |
| Main Auger Diameter | 317.5mm (1' 1/2") 1' 1/2" 317.5mm | |
| Augers | Single | |
| Blades | MF FBx1574 | |
| Maximum Working Width | 157.48cm (5' 2") 5' 2" 157.48cm | |
| Brooms | MF RBx1524 | |
| Drive System | PTO | |
| Maximum Working Width | 152.4cm (5') 5' 152.4cm | |
| Gauge Wheels | 2 | |
| Weight | 181.44kg (400lb.) 400lb. 181.44kg | |
