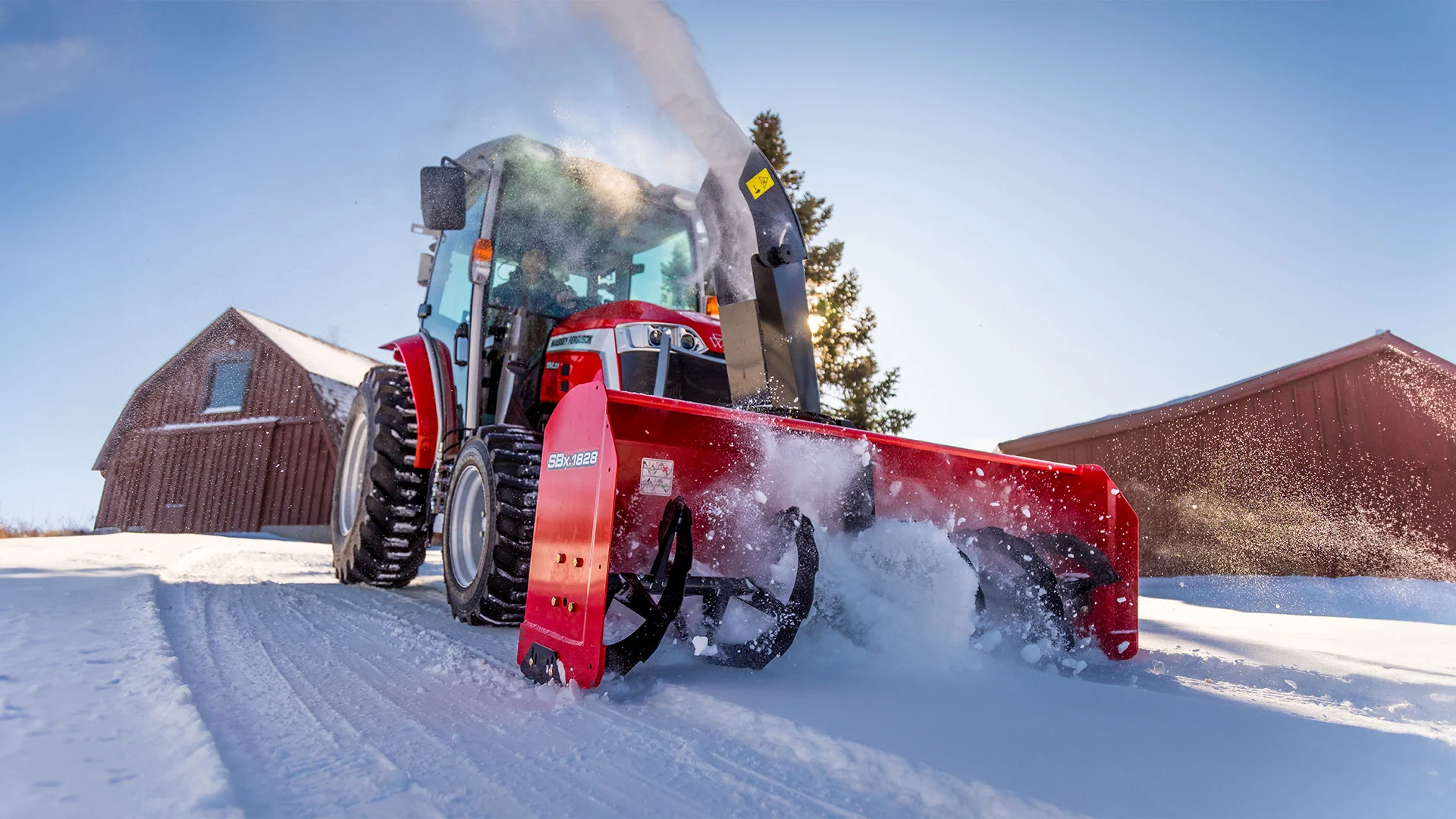

Massey Ferguson 1M.40
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 29.38kW (39.4hp) 39.4hp 29.38kW | |
| PTO Power | 22.37kW (30hp) 30hp 22.37kW, 20.81kW (27.9hp) 27.9hp 20.81kW | |
| Rated Engine Speed | 2600r/min | |
| Make | ISEKI E3FH | |
| Displacement | 111.67cu. in. (1.83L) 1.83L 111.67cu. in. | |
| Number of Cylinders | 3 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Transmission | ||
|---|---|---|
| Type | Syncro Shift, Hydrostatic | |
| Reverser | Power Shuttle | |
| Ranges | 3 | |
| Gears Per Range | 4 | |
| Forward Speeds | 12 | |
| Reverse Speeds | 12 | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Steering Mode | front wheel steer | |
| Hydraulics | ||
|---|---|---|
| Pump | MF 1M B | |
| Pump Type | Gear | |
| Hydraulic Flow | 12.63GPM (47.8L/min) 47.8L/min 12.63GPM | |
| Rear Remote Valves | 1, 2, 3 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|
| Rear Hitch | MF 1M B | |
| Hitch Category | Category 1 | |
| Lift Capacity 24" Behind Pins | 2535.32lb. (1150kg) 1150kg 2535.32lb. | |
| Comfort | Draft Control | |
| PTO | ||
|---|---|---|
| Middle | 2000 | |
| Rear | 540 | |
| Technology | ||
|---|---|---|
| Entertainment | Radio | |
| Electrical | ||
|---|---|---|
| Front Lights | 6, 4 | |
| Rear Lights | 2 | |
| Worklight Type | LED | |
| Voltage | 12V | |
| Battery Count | 1 | |
| Operator Station | ||
|---|---|---|
| Configuration | Cab, Open ROPS, Side Windows | |
| Access | Left Hand Door, Right Hand Door, Rear Window | |
| Climate | Heater, Air Conditioning | |
| Steering Column | Tilting | |
| Steering Controls | Steering Wheel | |
| Throttle | Foot Pedal | |
| Operator Seat | MF Deluxe ROPS Seat | |
| Safety Arrest | 2pt Belt | |
| Armrest | Height Adjustable, Pivot | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Mechanical | MF Air (AE026) |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Pivot | |
| Backrest | Recline | |
| Suspension | Air (built in compressor) | |
| Rotation | Swivel | |
| Windows | Heated Rear | |
| Wiper | Front, Rear | |
| Sunshade | Windshield | |
| Spec Level | Deluxe | |
| Wheels | ||
|---|---|---|
| Front | GALXY Agri Trac 8-16 | |
| Size | 8-16 | |
| Ply | 6PR | |
| Tread Pattern | R1 (Ag) | |
| Tread Thickness | 1-1/4" (31mm) 31mm 1-1/4" | |
| Weight | 15.88kg (35lb.) 35lb. 15.88kg | |
| Rear | GALXY Agri Trac 13.6-28 | |
| Size | 13.6-28 | |
| Ply | 6PR | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 355.6mm (1' 2") 1' 2" 355.6mm | |
| Overall Diameter | 1295.4mm (4' 3") 4' 3" 1295.4mm | |
| Static Loaded Radius | 596.9mm (1' 11-1/2") 1' 11-1/2" 596.9mm | |
| Weight | 54.43kg (120lb.) 120lb. 54.43kg | |
| Dimensions | ||
|---|---|---|
| Height | 2519.68mm (8' 3-3/16") 8' 3-3/16" 2519.68mm, 2319.02mm (7' 7-5/16") 7' 7-5/16" 2319.02mm | |
| Weight | 1574.87kg (3472lb.) 3472lb. 1574.87kg, 1749.96kg (3858lb.) 3858lb. 1749.96kg | |
| Loader | ||
|---|---|---|
| Loader | MF FL.2611 | |
| Lift Capacity | 625.96kg (1380lb.) 1380lb. 625.96kg | |
| Maximum Lift Height – Pivot Pin | 2540mm (8' 4") 8' 4" 2540mm | |
| Lift Capacity to Max Height – Pivot Pin | 848.22kg (1870lb.) 1870lb. 848.22kg | |
| Breakout Force – Pivot Pin | 1338.1kg (2950lb.) 2950lb. 1338.1kg | |
| Max Rollback Angle | 42deg | |
| Max Dump Angle | 55deg | |
| Lift Cylinder Diameter | 59.94mm (2-3/8") 2-3/8" 59.94mm | |
| Bucket Cylinder Diameter | 59.94mm (2-3/8") 2-3/8" 59.94mm | |
| 3rd Function | Diverter Valve | |
| Comfort | Suspension | |
| Tool Carrier | Skid Steer Quick Attach | |
| Lift Path | Radial | |
