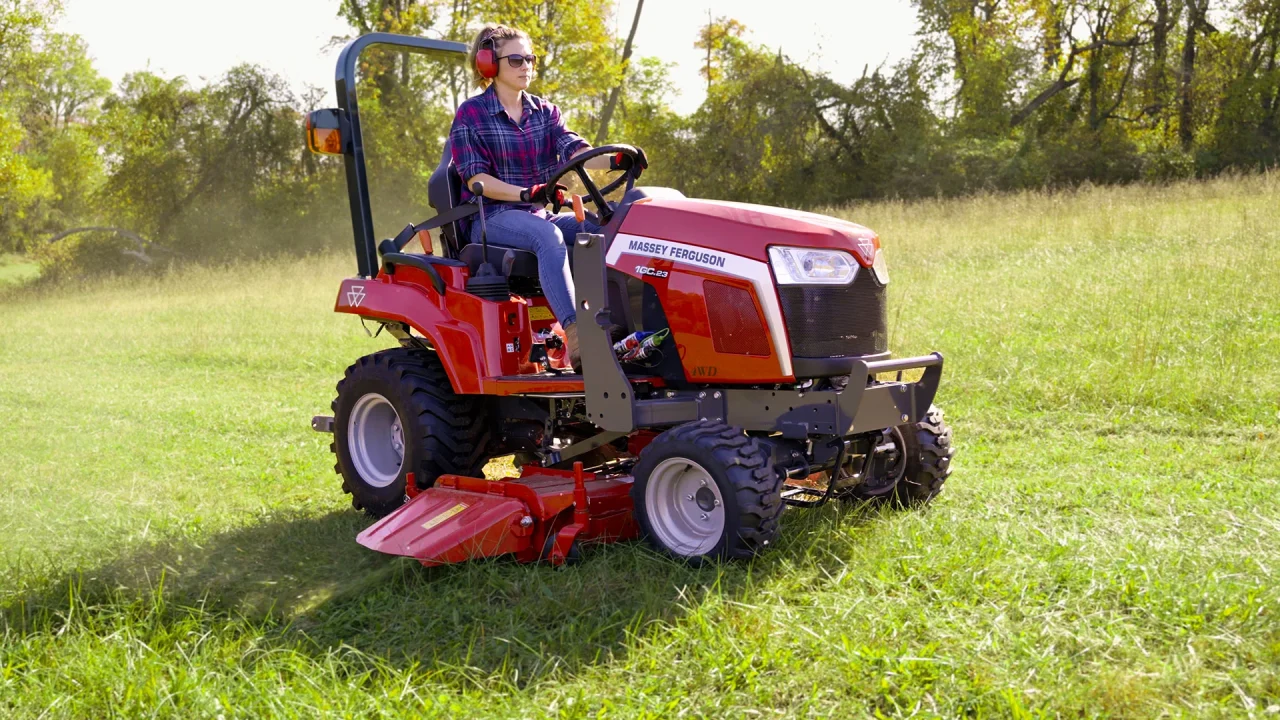

Massey Ferguson 1GC.23
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 16.78kW (22.5hp) 22.5hp 16.78kW | |
| PTO Power | 13.65kW (18.3hp) 18.3hp 13.65kW | |
| Rated Engine Speed | 2600r/min | |
| Make | ISEKI E3112-XB03 | |
| Displacement | 68.35cu. in. (1.12L) 1.12L 68.35cu. in. | |
| Number of Cylinders | 3 | |
| Fuel Type | Diesel | |
| Fuel Tank Capacity | 6.6gal. (25L) 25L 6.6gal. | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Type | Hydrostatic | |
| Ranges | 2 | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Limited | |
| Hydraulics | ||
|---|---|---|
| Maximum Operating Pressure | 1920.88psi (13244kPa) 13244kPa 1920.88psi | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|
| Rear Hitch | MF 1GC | |
| Lift Capacity at Pins | 282.13kg (622lb.) 622lb. 282.13kg | |
| Lift Capacity 24" Behind Pins | 299.82kg (661lb.) 661lb. 299.82kg | |
| PTO | ||
|---|---|---|
| Middle | 2000 | |
| Rear | 540 | |
| Type | Independent | |
| Electrical | ||
|---|---|---|
| Alternator | 40A | |
| Battery | 390CCA | |
| Alternator Count | 1 | |
| Operator Station | ||
|---|---|---|
| Configuration | Open ROPS | |
| Steering Column | Tilting | |
| Operator Seat | MF Standard ROPS Seat | |
| Material | Vinyl | |
| Safety Arrest | 2pt Belt | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Mechanical | |
| Wheels | ||
|---|---|---|
| Front | CARLI Trac Chief 18×8.50-10 | |
| Size | 18×8.50-10 | |
| Tread Pattern | R4 (Ind) | |
| Section Width | 8-5/16" (211mm) 211mm 8-5/16" | |
| Overall Diameter | 1' 6-3/16" (462mm) 462mm 1' 6-3/16" | |
| Rolling Circumference | 4' 6-15/16" (1395mm) 1395mm 4' 6-15/16" | CARLI Multi-Trac C/S 18×8.50-10 |
| Size | 18×8.50-10 | |
| Tread Pattern | R3 (Turf) | |
| Section Width | 8-1/8" (206mm) 206mm 8-1/8" | |
| Overall Diameter | 1' 6" (457mm) 457mm 1' 6" | CARLI Tru Power 18×8.50-10 |
| Size | 18×8.50-10 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 7-13/16" (198mm) 198mm 7-13/16" | |
| Overall Diameter | 1' 6-1/8" (460mm) 460mm 1' 6-1/8" | |
| Rear | CARLI Multi-Trac C/S 26×12.00-12 | |
| Size | 26×12.00-12 | |
| Tread Pattern | R3 (Turf) | |
| Section Width | 11-7/16" (290mm) 290mm 11-7/16" | |
| Overall Diameter | 2' 1-3/8" (645mm) 645mm 2' 1-3/8" | CARLI Trac Chief 26×12.00-12 |
| Size | 26×12.00-12 | |
| Tread Pattern | R4 (Ind) | |
| Section Width | 1' 5/8" (320mm) 320mm 1' 5/8" | |
| Overall Diameter | 2' 1-1/2" (648mm) 648mm 2' 1-1/2" | |
| Rolling Circumference | 6' 4-7/16" (1941mm) 1941mm 6' 4-7/16" | CARLI Tru Power 26×12.00-12 |
| Size | 26×12.00-12 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 5/16" (312mm) 312mm 1' 5/16" | |
| Overall Diameter | 2' 1-9/16" (650mm) 650mm 2' 1-9/16" | |
| Dimensions | ||
|---|---|---|
| Length | 8' 1-5/8" (2480mm) 2480mm 8' 1-5/8" | |
| Wheelbase | 4' 9-1/16" (1450mm) 1450mm 4' 9-1/16" | |
| Width | 3' 10-5/8" (1185mm) 1185mm 3' 10-5/8" | |
| Height | 6' 13/16" (1850mm) 1850mm 6' 13/16" | |
| Minimum Ground Clearance | 6-11/16" (170mm) 170mm 6-11/16" | |
| Turning Radius | 8' 4-3/8" (2550mm) 2550mm 8' 4-3/8" | |
| Weight | 1466.07lb. (665kg) 665kg 1466.07lb. | |
| Loader | ||
|---|---|---|
| Loader | MF FL1805 | |
| Attachments | MF 48" Material Bucket | |
| Width | 1219.2mm (4') 4' 1219.2mm | |
| Maximum Lift Height – Pivot Pin | 6' 2" (1880mm) 1880mm 6' 2" | |
| Lift Capacity to Max Height – Pivot Pin | 921.53lb. (418kg) 418kg 921.53lb. | |
| Breakout Force – Pivot Pin | 1391.12lb. (631kg) 631kg 1391.12lb. | |
| Digging Depth | 1-15/16" (50mm) 50mm 1-15/16" | |
| Max Rollback Angle | 30deg | |
| Max Dump Angle | 43deg | |
| Lift Cylinder Diameter | 1-9/16" (40mm) 40mm 1-9/16" | |
| Bucket Cylinder Diameter | 1-9/16" (40mm) 40mm 1-9/16" | |
| Tool Carrier | Skid Steer Quick Attach | |
| Attachments | ||
|---|---|---|
| Mowers | MF 2326 | |
| Maximum Working Width | 5' (1524mm) 1524mm 5' | |
| Mount | Mid-Mount | |
| Type | Side Discharge | |
| Drive | Mid PTO | MF 2315 |
| Maximum Working Width | 4' 6" (1372mm) 1372mm 4' 6" | |
| Mount | Mid-Mount | |
| Type | Mulching | |
| Drive | Mid PTO | MF 2320 |
| Maximum Working Width | 4' 6" (1372mm) 1372mm 4' 6" | |
| Mount | Mid-Mount | |
| Type | Side Discharge | |
| Drive | Mid PTO | |
| Blowers | MF SBx1270 | |
| Maximum Working Width | 127cm (4' 2") 4' 2" 127cm | |
| Full Height | 533.4mm (1' 9") 1' 9" 533.4mm | |
| Impeller Blades | 4 | |
| Impeller Diameter | 381mm (1' 3") 1' 3" 381mm | |
| Impeller Drum | Static | |
| Chute Rotation | Manual, Hydraulic, Motor | |
| Hood Deflector | Electric | |
| Cutting Width | 1270mm (4' 2") 4' 2" 1270mm | |
| Cutting Height | 533.4mm (1' 9") 1' 9" 533.4mm | |
| Main Auger Diameter | 317.5mm (1' 1/2") 1' 1/2" 317.5mm | |
| Augers | Single | |
| Blades | MF FBx1574 | |
| Maximum Working Width | 157.48cm (5' 2") 5' 2" 157.48cm | |
| Brooms | MF RBx1524 | |
| Drive System | PTO | |
| Maximum Working Width | 152.4cm (5') 5' 152.4cm | |
| Gauge Wheels | 2 | |
| Weight | 181.44kg (400lb.) 400lb. 181.44kg | |
