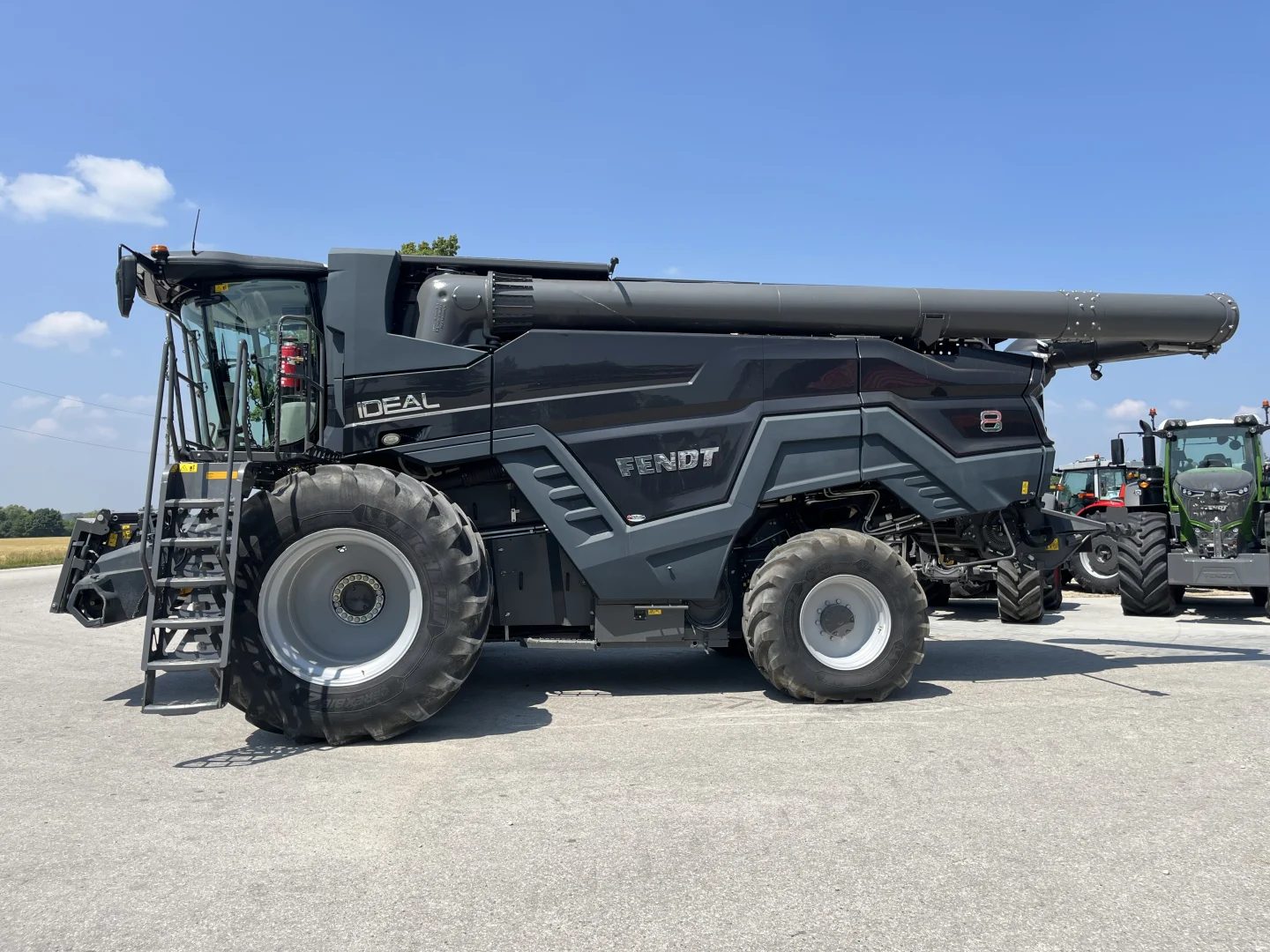

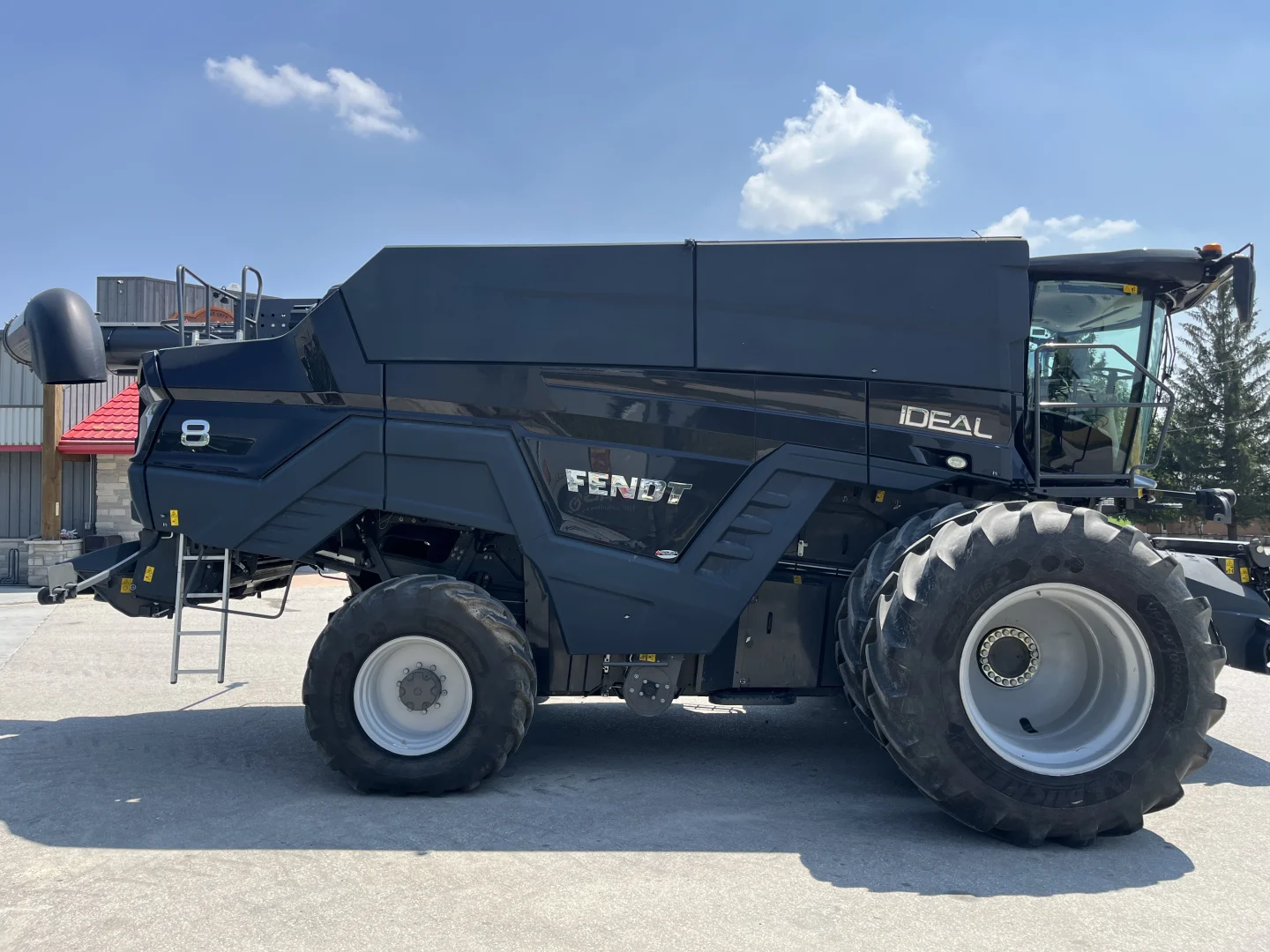

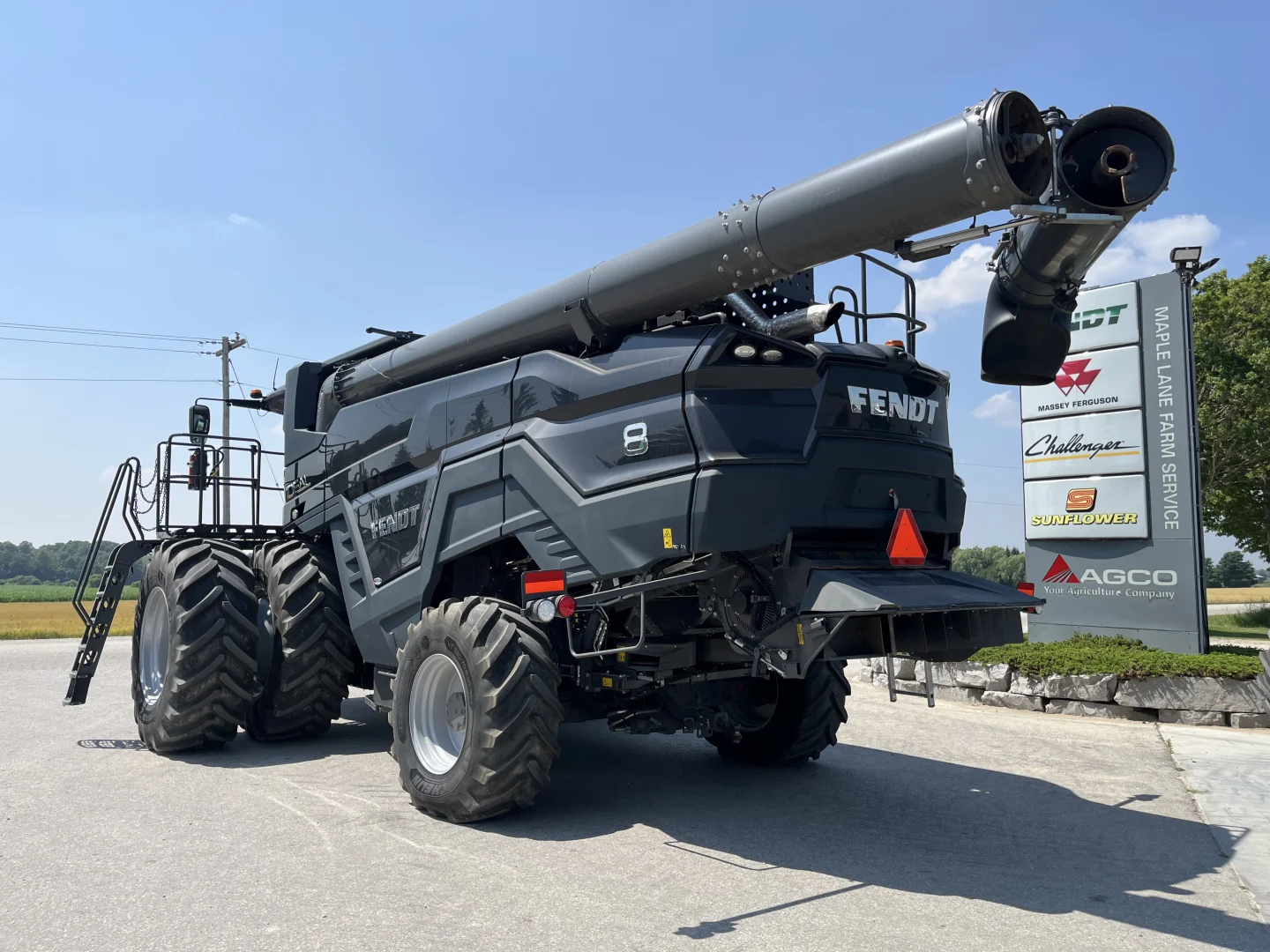

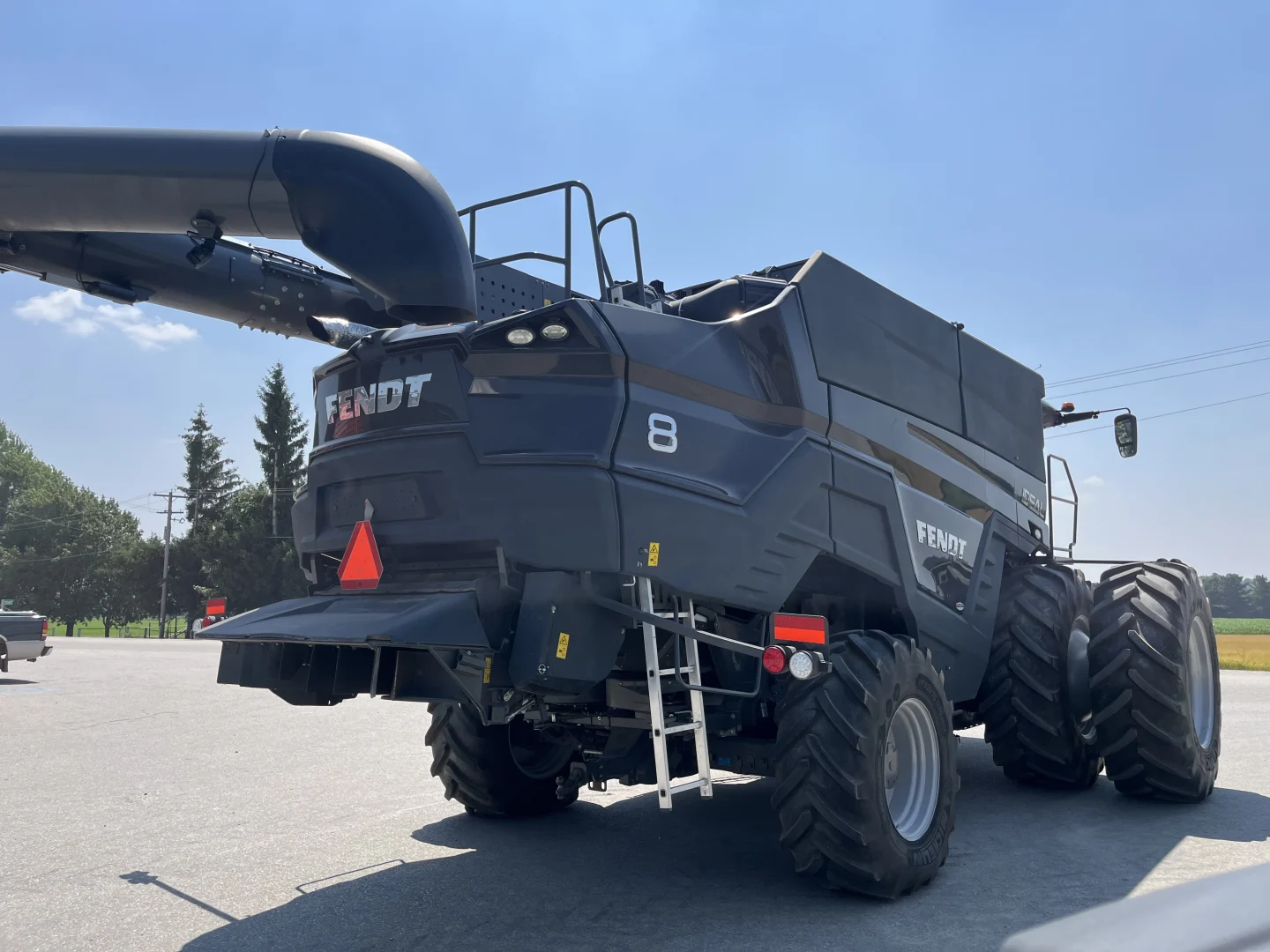

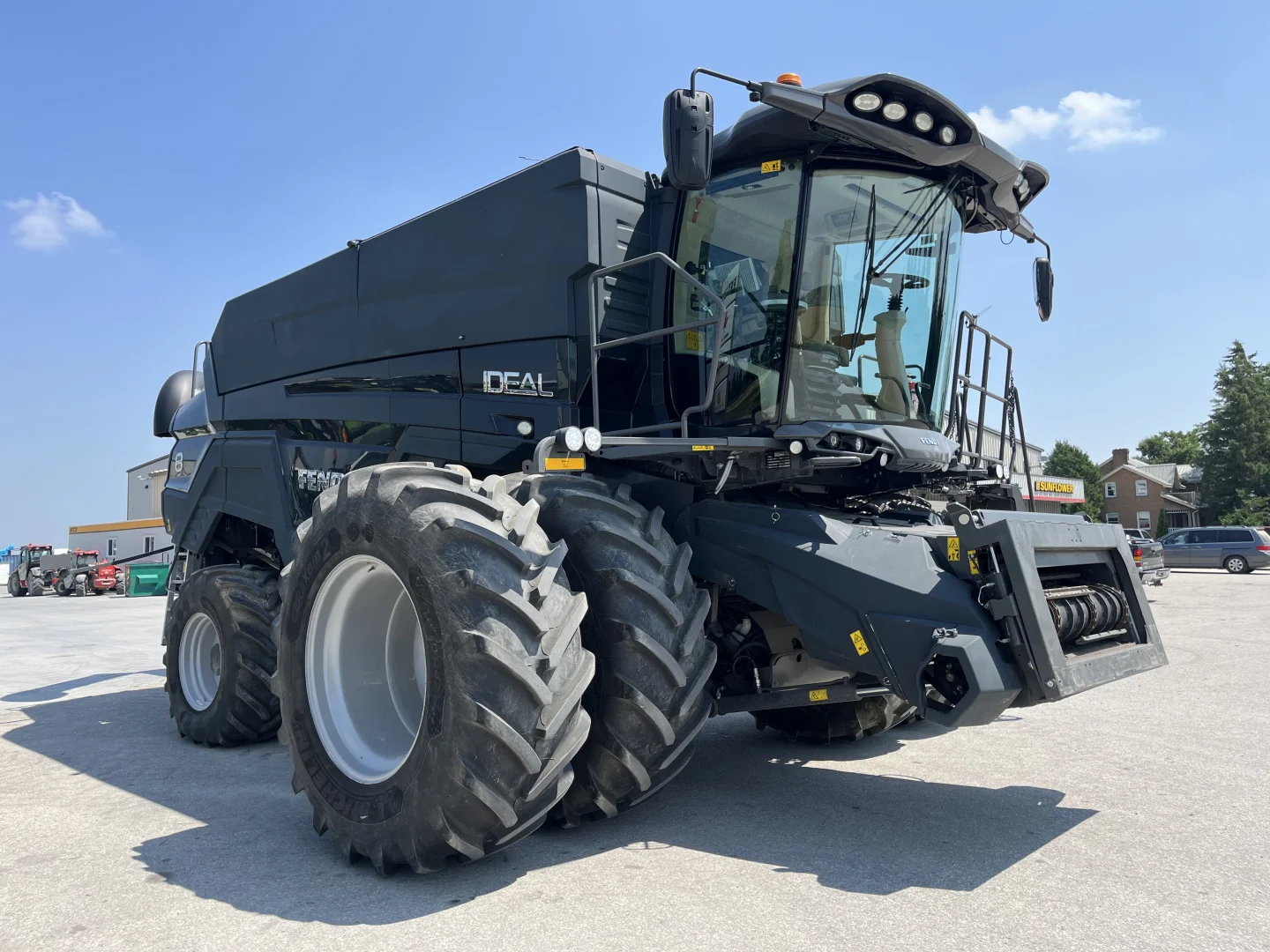

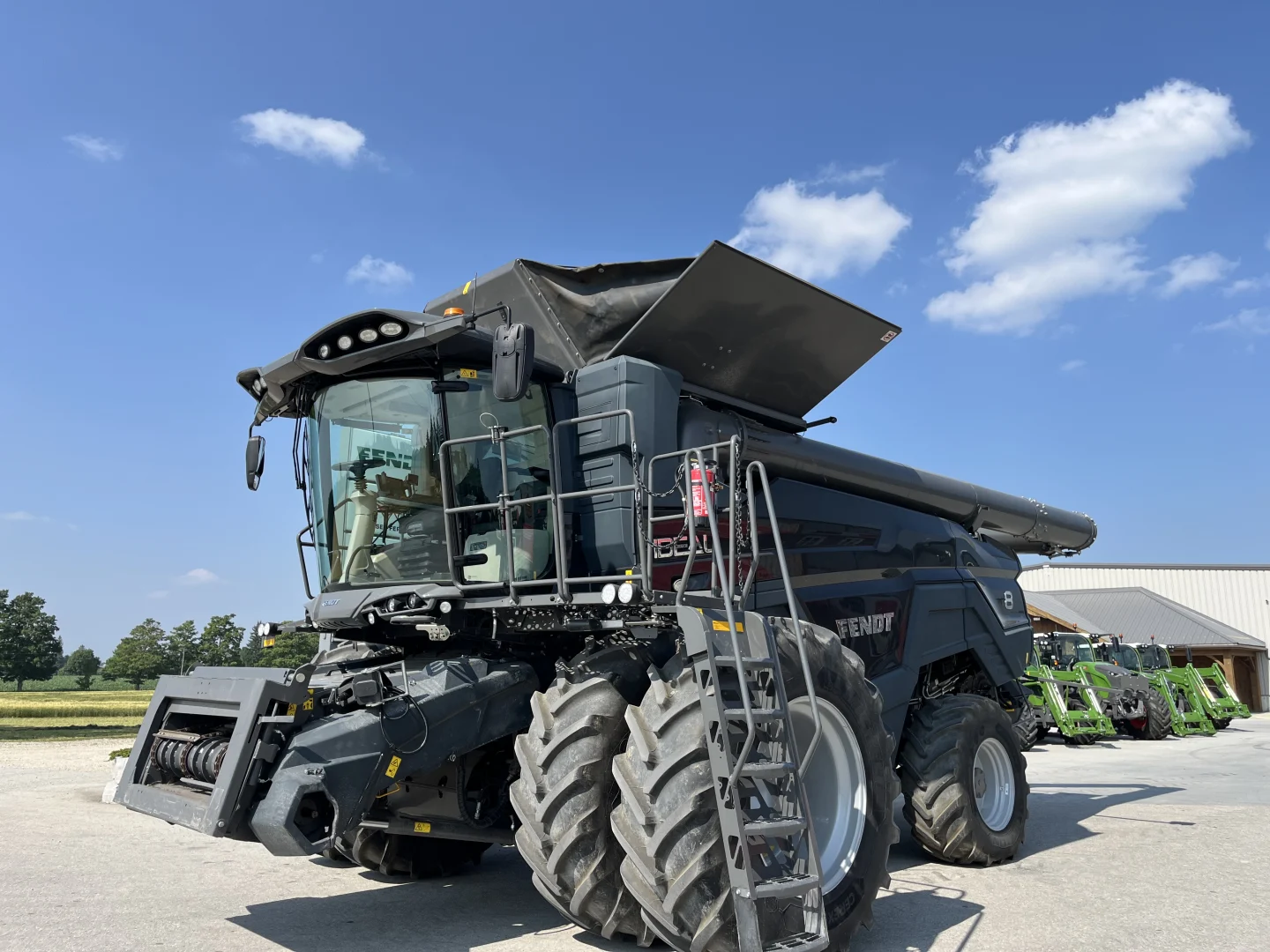

New 2022 Fendt IDEAL 8
| Description | |
|---|---|

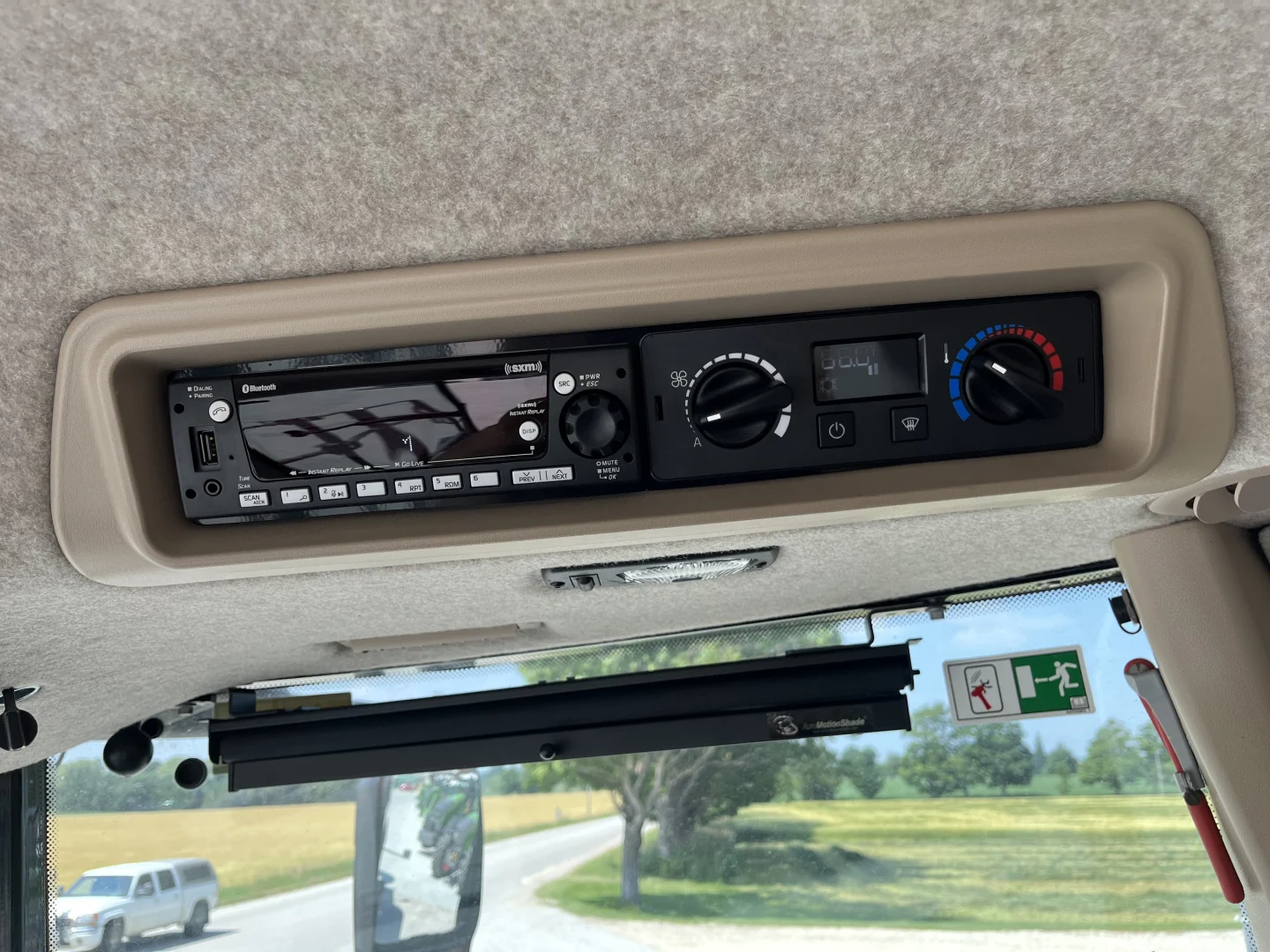

| Model year 2022 , demo stock unit, 195 Engine Hours, 75 sep hours MAN 12.4L , 6 cylinder engine, 470 rated hp, 538 Max HP, Air compressor, Reversing fan- manual or automatic Hydrostatic drive with 2 speed MotionShift transmission, Hydraulic parking brake Eyeshot hookup, 50″ wide Feederhouse 2 speed feeder conveyor drive, 3 strand feed conveyor chain Direct header drive from Drive Center gearbox 220 KW header drive – variable speed Dual Helix Rotor, 24″ x 16′, 4 row helical seperator tine design Variable speed, hydraulic rotor and rotor feeder reverser 280 – 1160 RPM, 2 speed rotor gearbox drive with own cooling curcuits Hydraulic concave adjustment and hydraulic suspension Large grain and small grain configurations Cyclone cleaning fan system High wear auger package-( Return, bubble up, unloading, return, grain tank bottom ) Streamer 6.0 capacity, 485 bushel grain tank, 6 bushel/sec unload 10.6 M ( 34′ ) unloading auger, hydraulic folding Residue management Active powered tailboard, 112 high spec chopper knives, adjustable chaff spreader Pro cab package: leather seat, LED lights, Heated mirrors,Radio with subwoofer, back up cam Sun visors, Fridge, Foot rests, Ideal Harvest ( Automation of settings ) Fendt Guide complete with Novatel antennea | |
| Categories | Combines |
| Unit Number | 22915J |
| Condition | New |
| Usage | 195 Hours |
| Year | 2022 |
Specifications

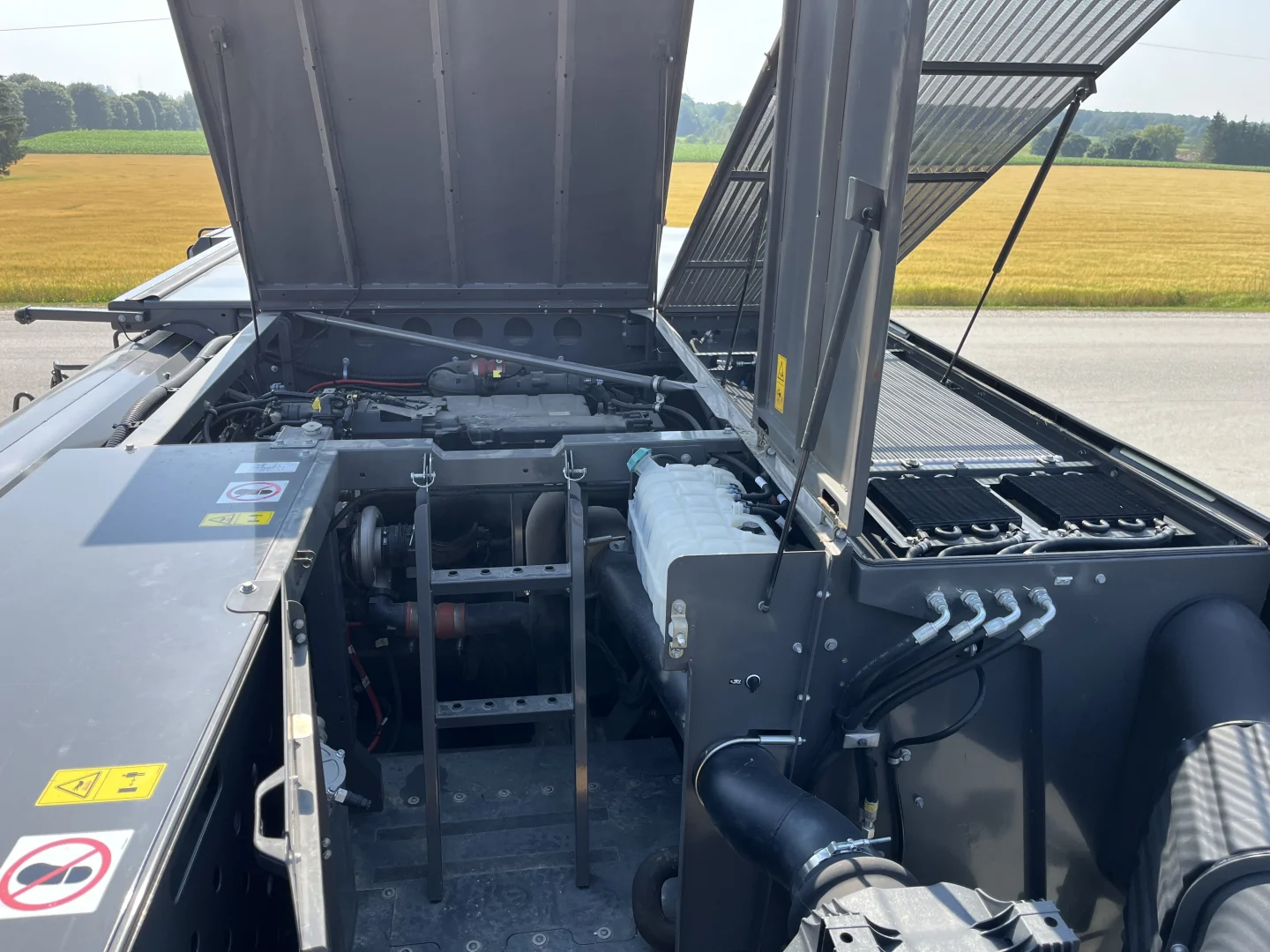

| Engine | ||
|---|---|---|
| Engine Power | 350.48kW (470hp) 470hp 350.48kW | |
| Rated Engine Speed | 1900r/min | |

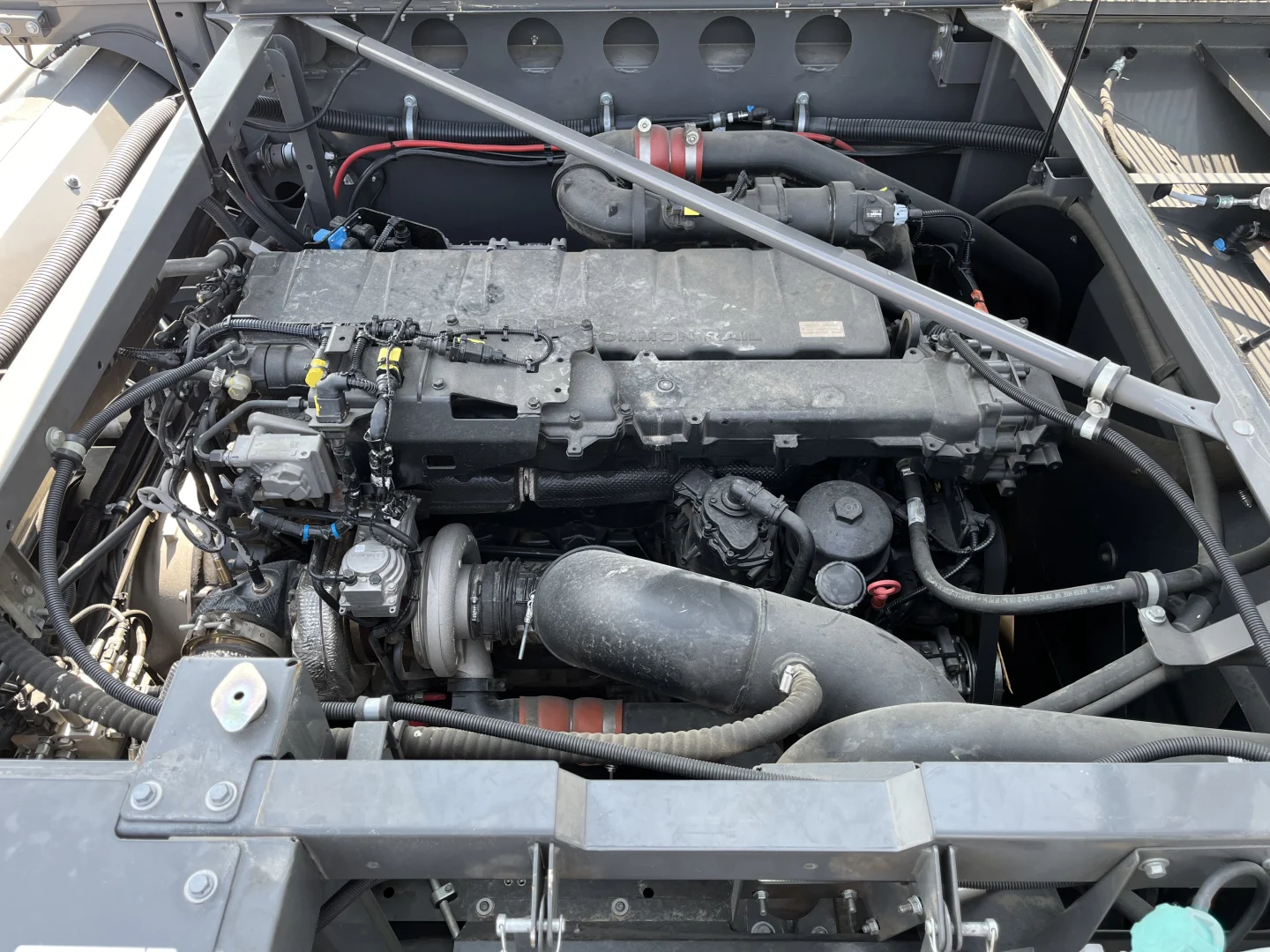

| Make | MAN D2676 LE121 | |
| Displacement | 3.28gal. (12.42L) 12.42L 3.28gal. | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 330.22gal. (1250L) 1250L 330.22gal. | |
| DEF Tank Capacity | 47.55gal. (180L) 180L 47.55gal. | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 24.85mph (40km/h) 40km/h 24.85mph | |
| Type | Hydrostatic | |
| Ranges | 2 | |
| Speed Control | Cruise | |
| Drive | 4WD, 2WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Steering Mode | rear wheel steer | |
| Hydraulics | ||
|---|---|---|
| System Capacity | 29.06gal. (110L) 110L 29.06gal. | |
| Maximum Available Hydraulic Oil | 21.13gal. (80L) 80L 21.13gal. | |
| Steering | Hydraulic Power | |
| Technology | ||
|---|---|---|
| Telemetry | 5 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Alternator | 320A | |
| Battery | 1000CCA | |

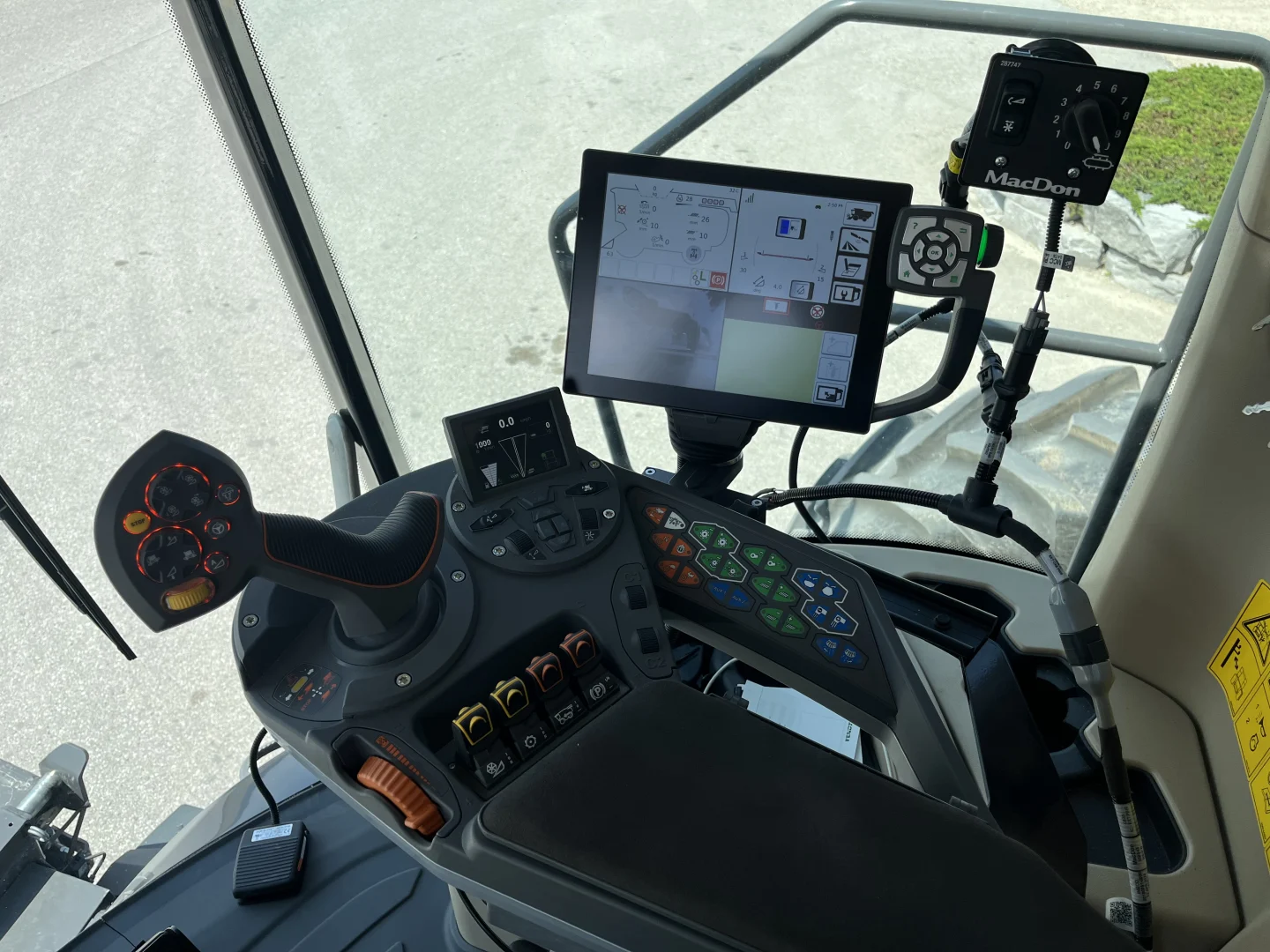

| Operator Station | ||
|---|---|---|

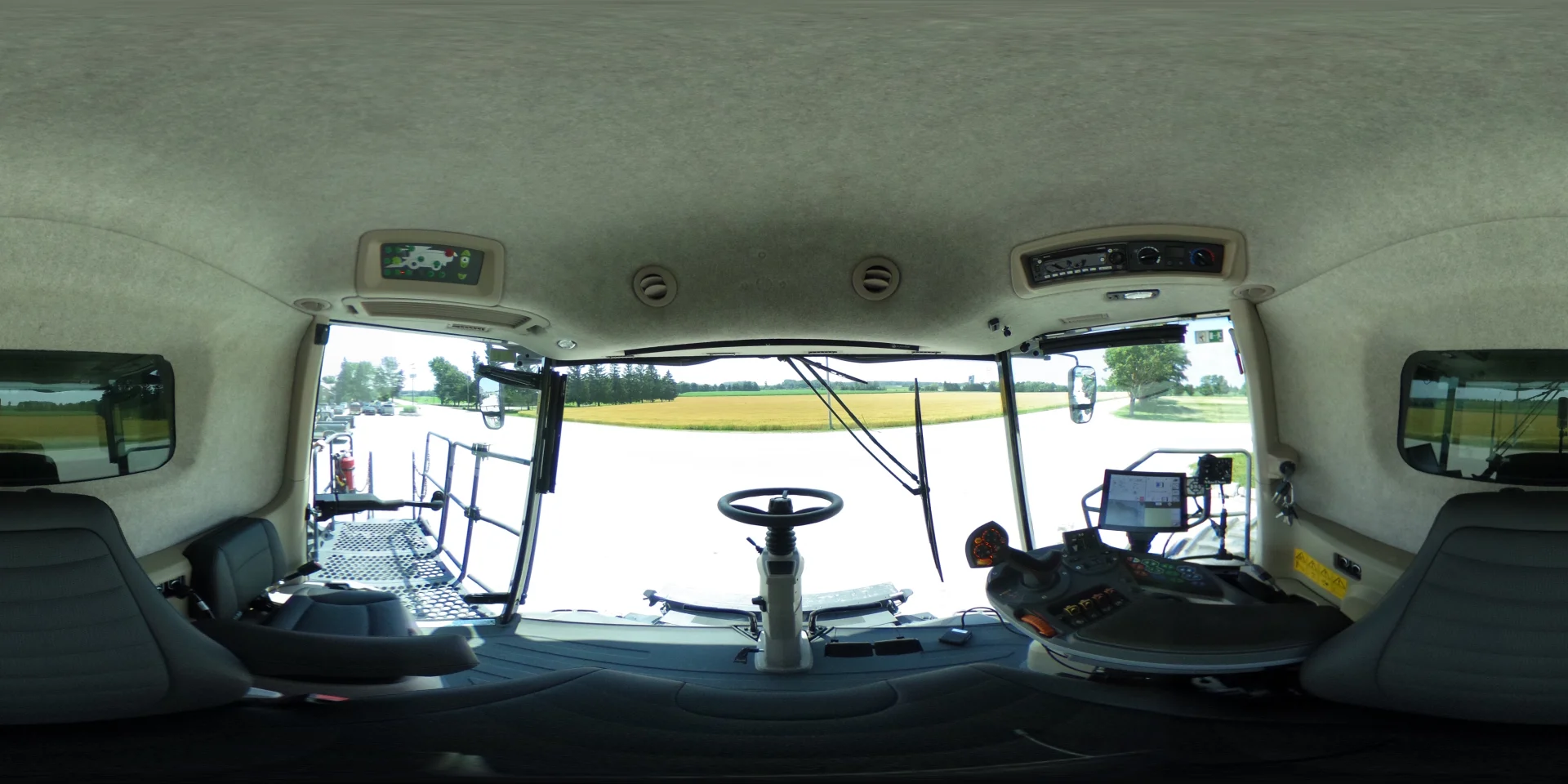

| Configuration | Cab | |
| Feeding System | ||
|---|---|---|
| Feeder House Lifting Capacity | 9997.97lb. (4535kg) 4535kg 9997.97lb. | |
| Lift Cylinder Diameter | 3-3/8" (85mm) 85mm 3-3/8" | |
| Feeder Housing Chains | 3 | |
| Feeder Width | 3225.8cm (105' 10") 105' 10" 3225.8cm | |
| Reverse | Electro Hydraulic | |
| Rock Trap | Right Hand | |
| Threshing | ||
|---|---|---|
| Class | 8 | |
| Rotor Length | 15' 10-7/16" (4837mm) 4837mm 15' 10-7/16" | |
| Rotor Diameter | 1' 11-5/8" (600mm) 600mm 1' 11-5/8" | |
| Maximum Rotor Speed | 920r/min | |
| Threshing Area | 17.87sq. ft. (1.66m^2) 1.66m^2 17.87sq. ft. | |
| Separation Area | 20.67sq. ft. (1.92m^2) 1.92m^2 20.67sq. ft. | |
| Total Separation Area | 38.53sq. ft. (3.58m^2) 3.58m^2 38.53sq. ft. | |
| Separator Type | Dual Rotor | |
| Cleaning | ||
|---|---|---|
| Chaffer Area | 29.17sq. ft. (2.71m^2) 2.71m^2 29.17sq. ft. | |
| Sieve Area | 52.74sq. ft. (4.9m^2) 4.9m^2 52.74sq. ft. | |
| Total Cleaning Area | 80.19sq. ft. (7.45m^2) 7.45m^2 80.19sq. ft. | |
| Sieve Adjustment | Electric | |
| Maximum Cleaning Fan Speed | 1400r/min | |
| Return System | Separate | |
| Grain Handling | ||
|---|---|---|
| Unloading Rate | 6bu. per second | |

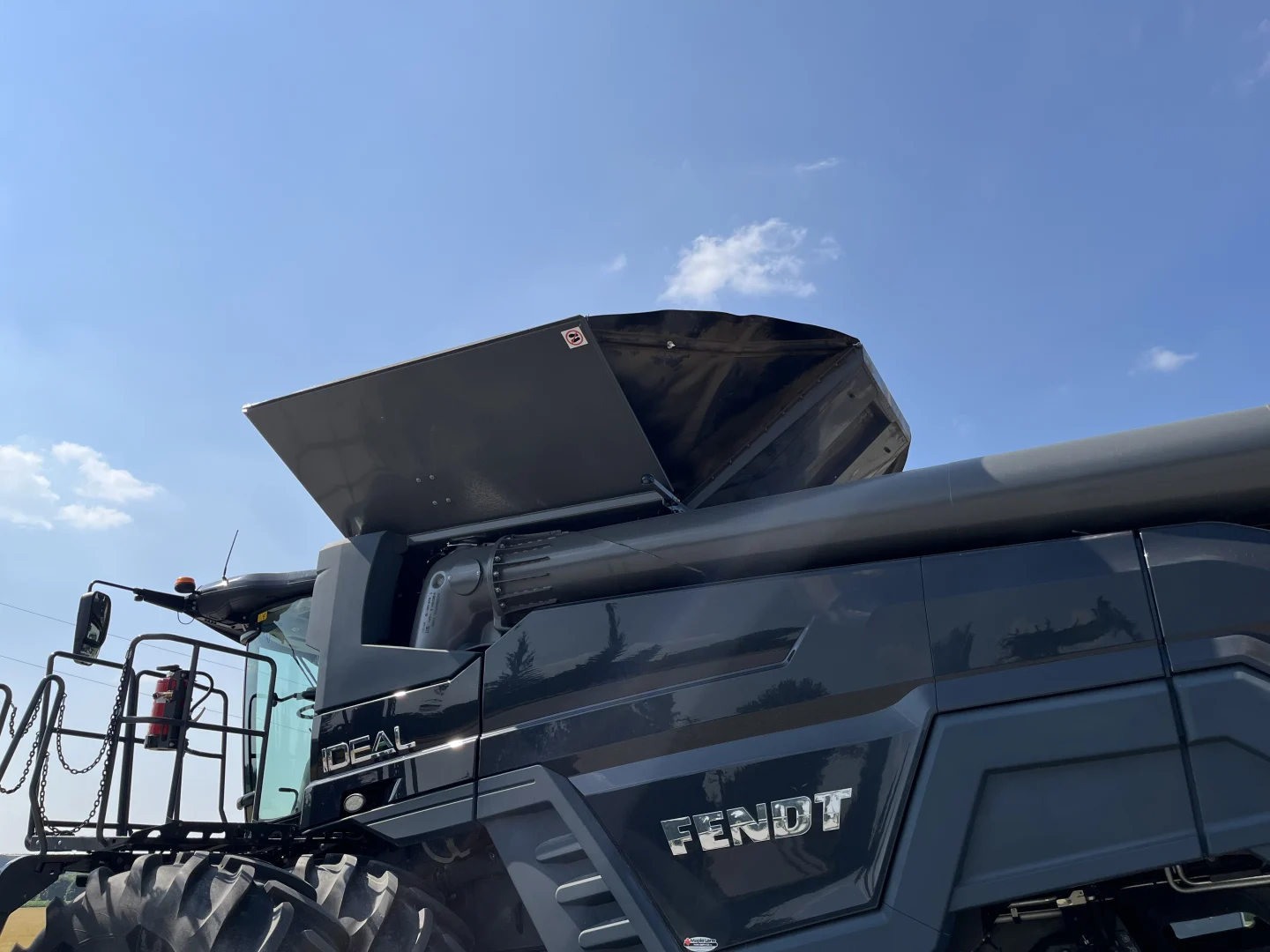

| Grain Tank | 485bu. | |
| Unloading Auger Length | 30' 1/4" (9150mm) 9150mm 30' 1/4" | |
| Residue Management | ||
|---|---|---|
| Straw Chopper Knives | 56 | |
| Maximum Chopper Speed | 3600r/min | |
| Chaff Spreader | Hydraulic | |
| Dimensions | ||
|---|---|---|
| Length | 38' 5-7/16" (11720mm) 11720mm 38' 5-7/16" | |
| Wheelbase | 13' 4-7/16" (4075mm) 4075mm 13' 4-7/16" | |
| Width | 16' 9-3/16" (5110mm) 5110mm 16' 9-3/16" | |
| Height | 13' 1-1/2" (4000mm) 4000mm 13' 1-1/2" | |
| Turning Radius | 15' 9" (4800mm) 4800mm 15' 9" | |
| Cab Width | 5' 3" (1600mm) 1600mm 5' 3" | |
