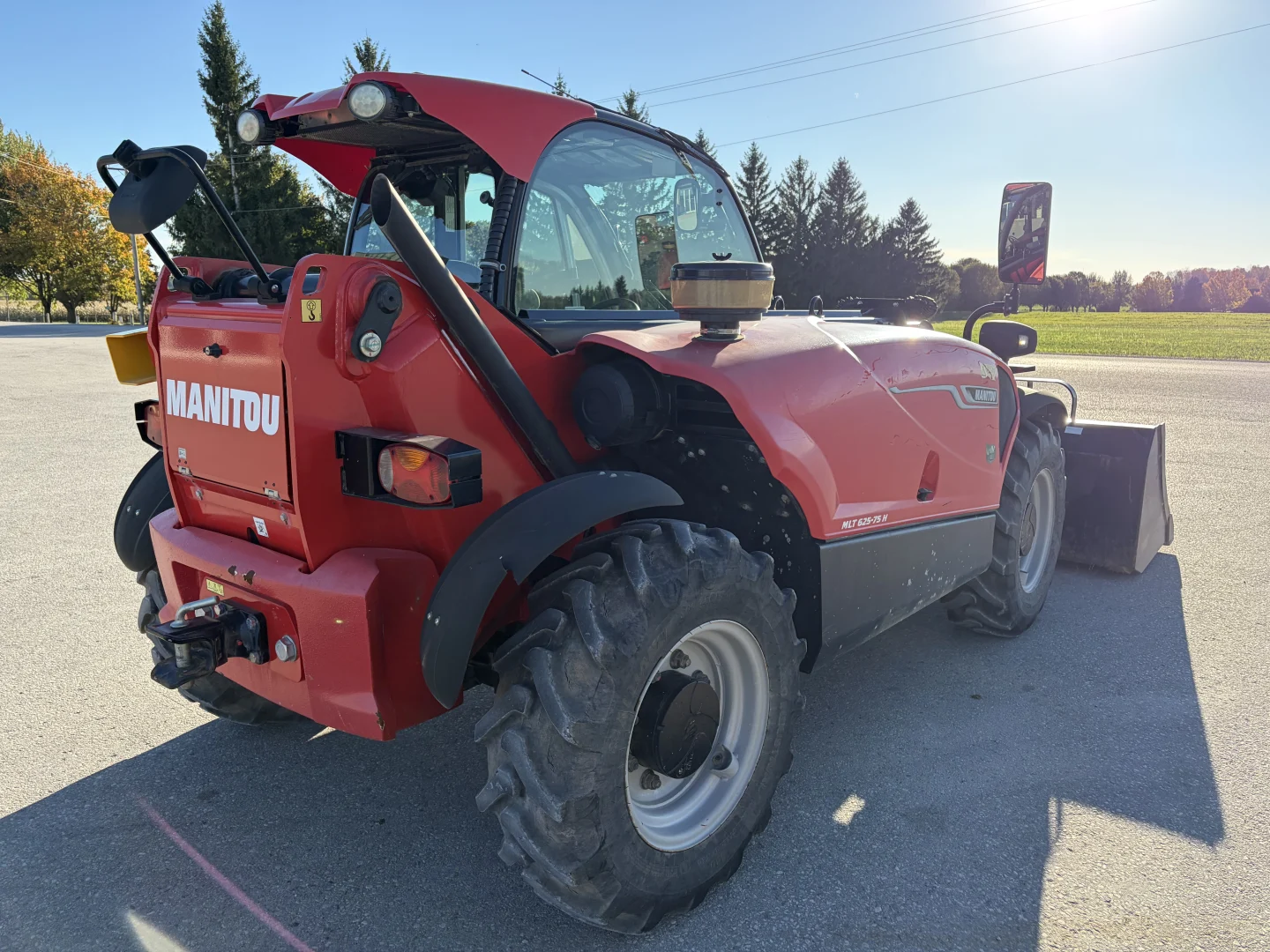

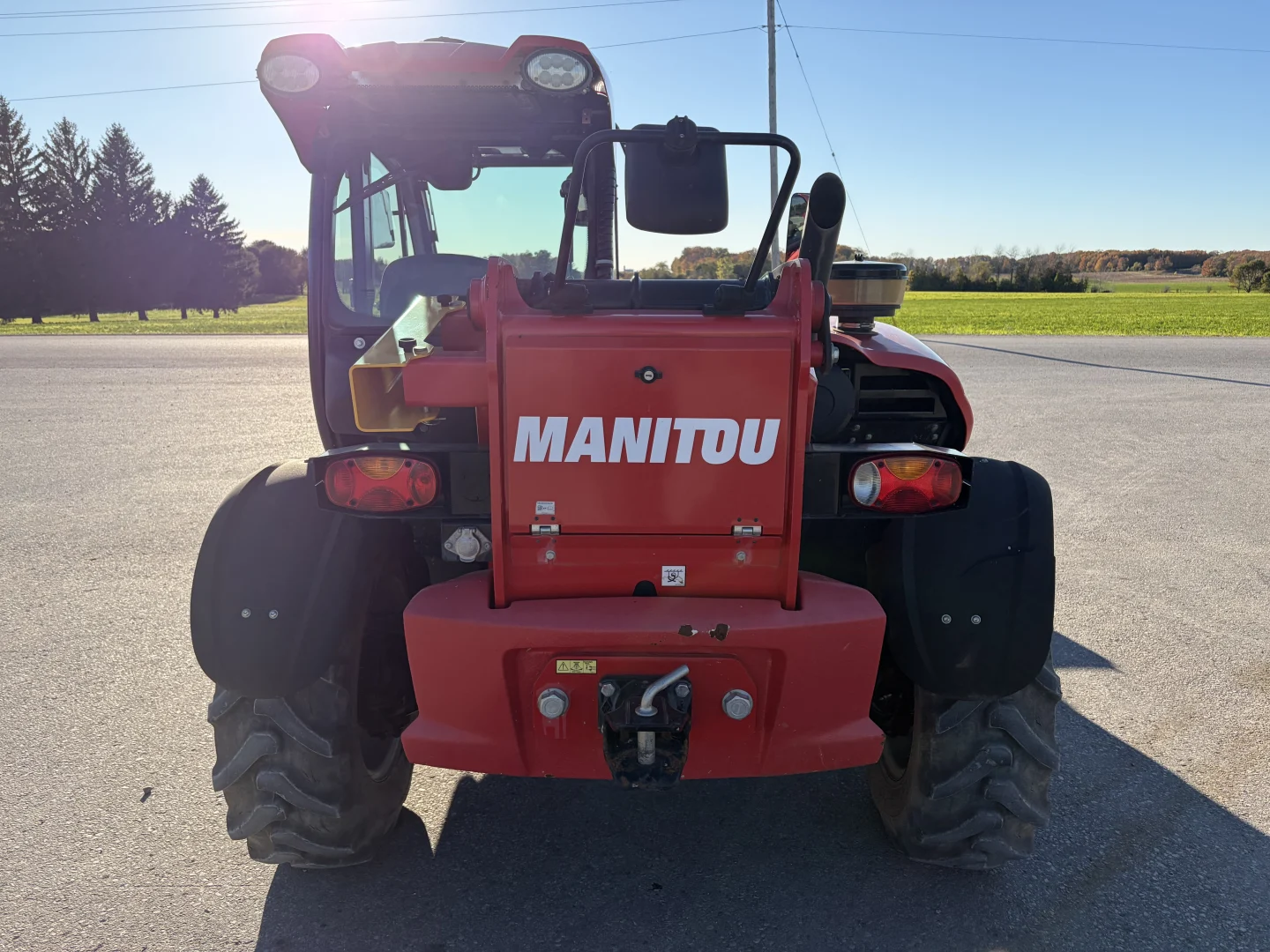

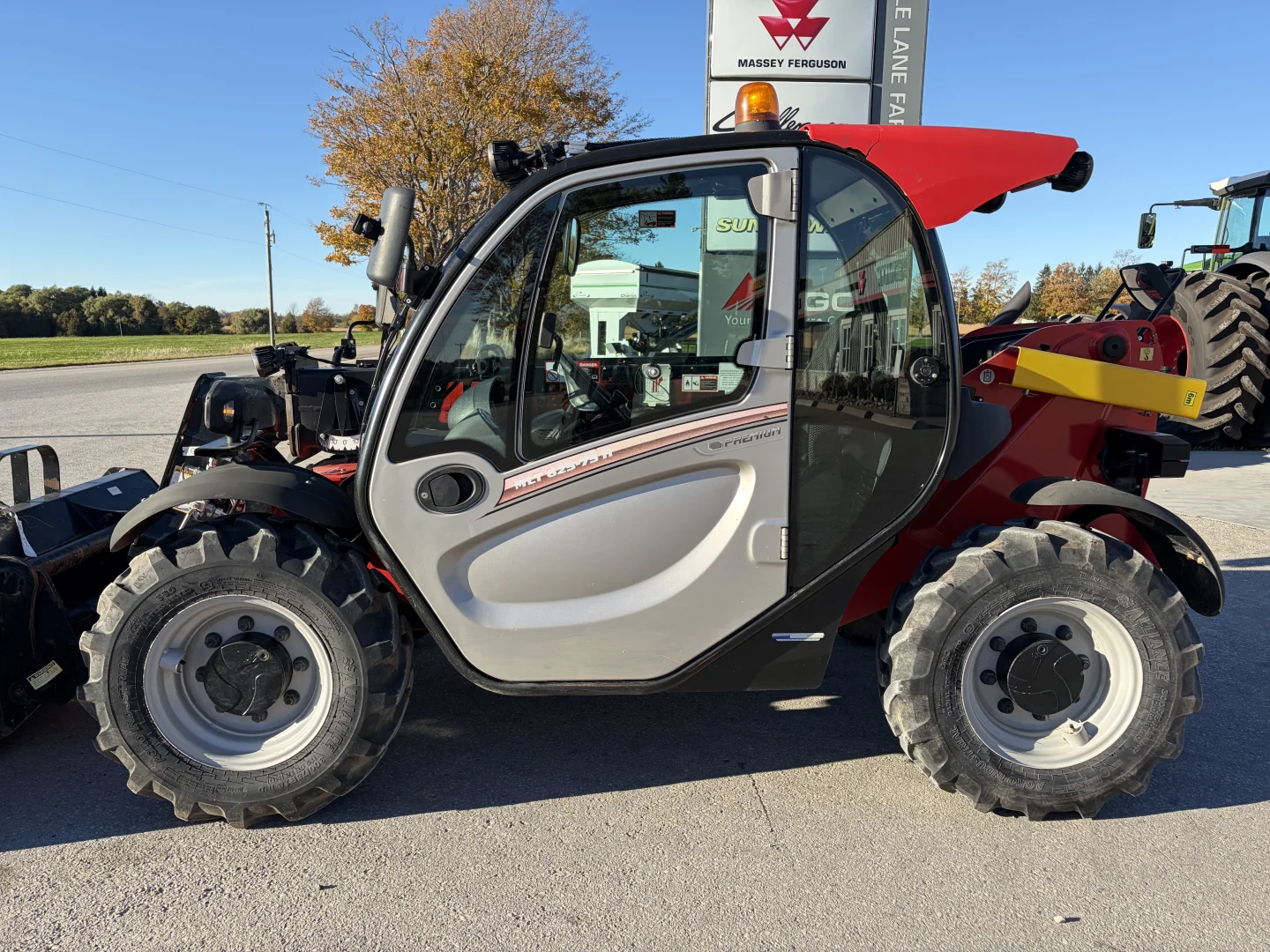

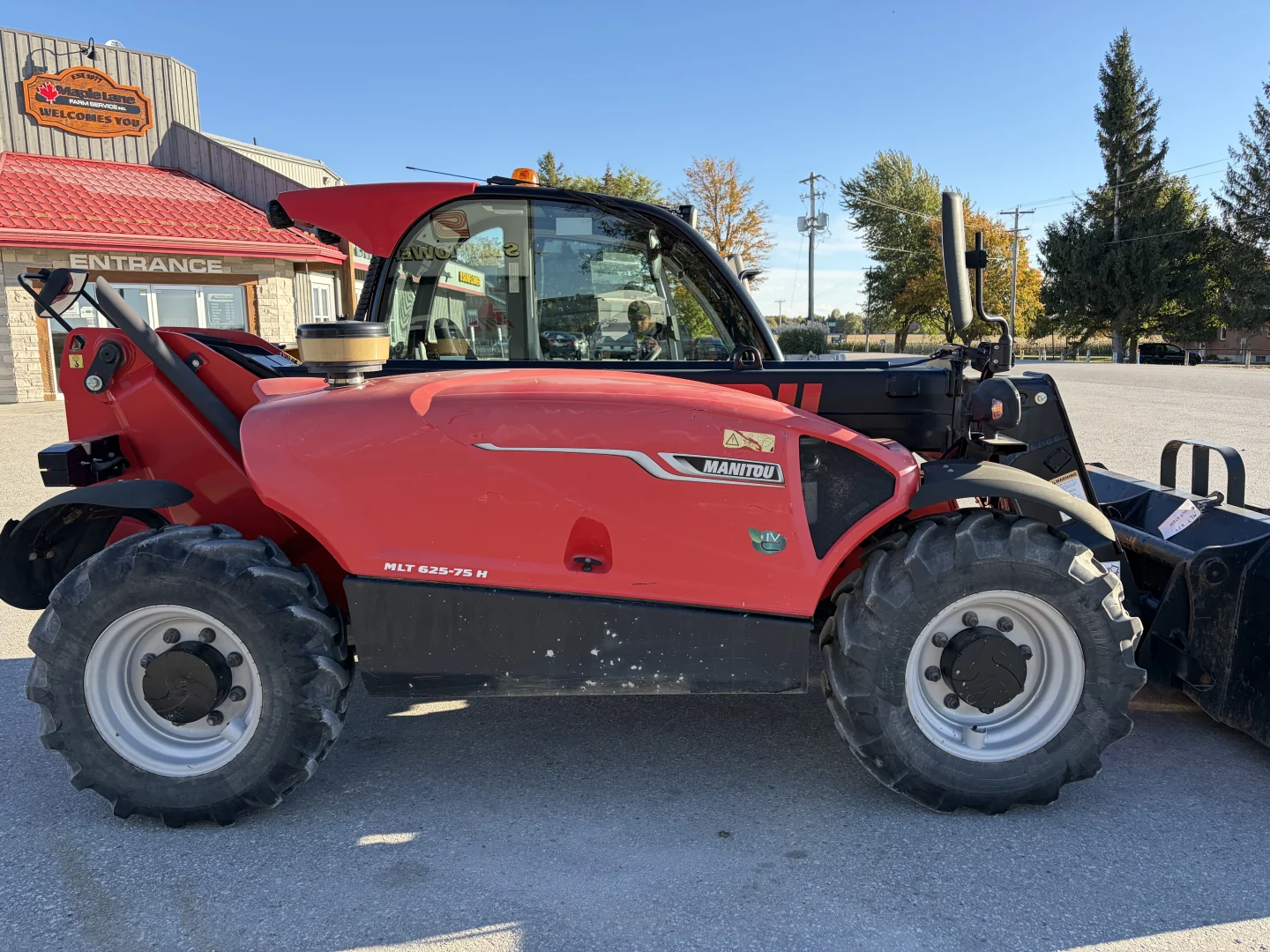

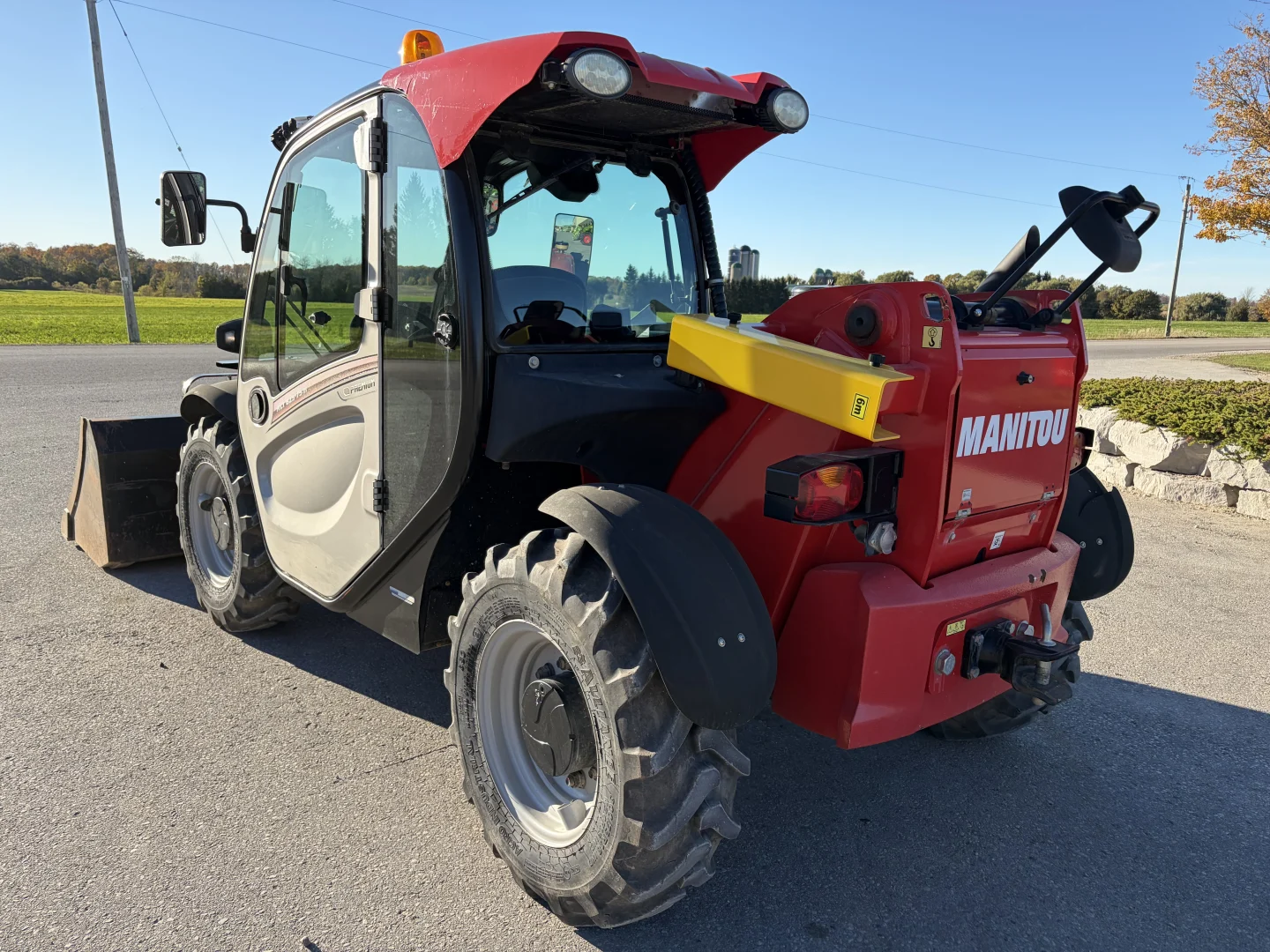

Used 2022 Manitou MLT625 75 H
| Description | |
|---|---|

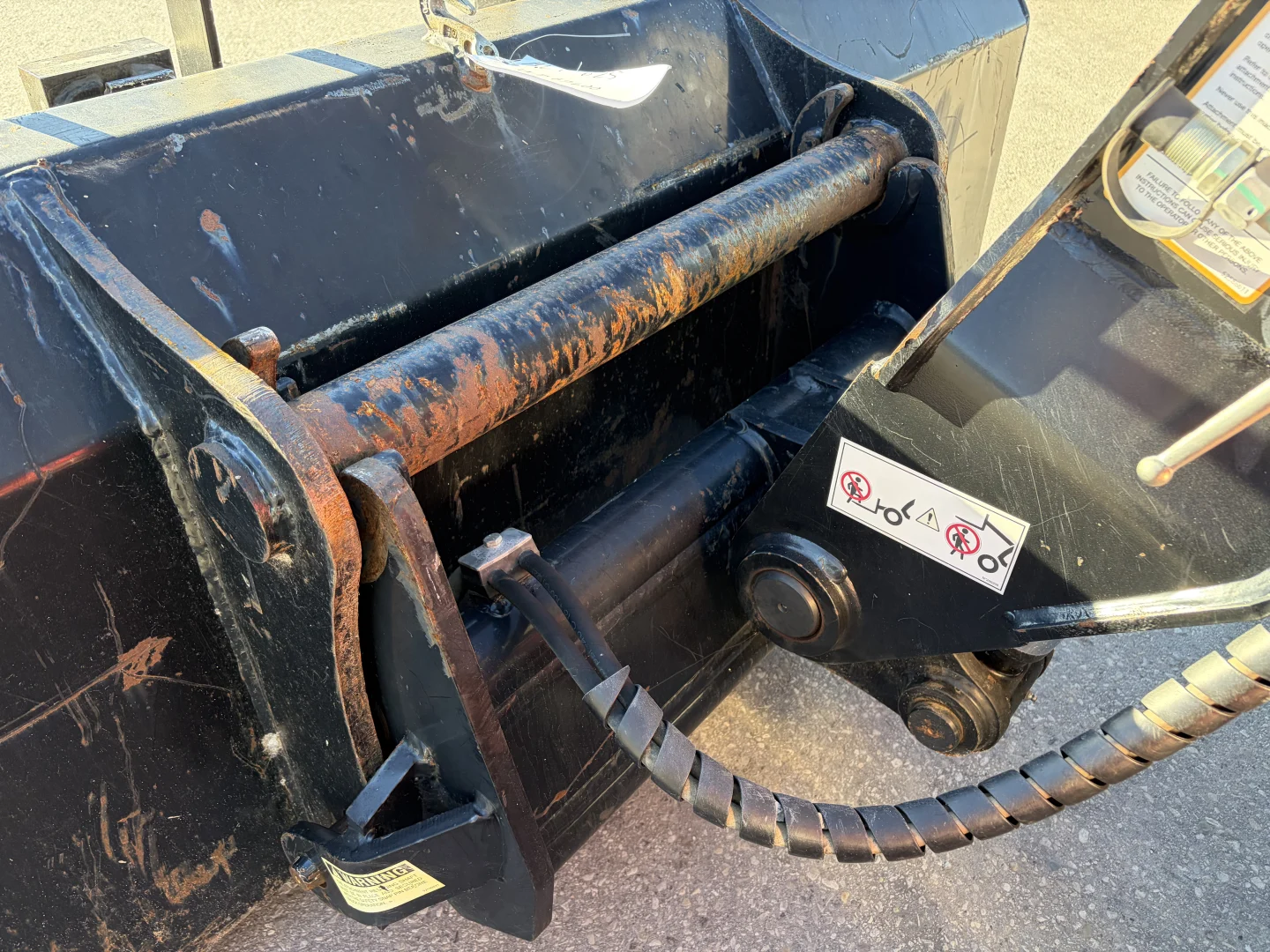

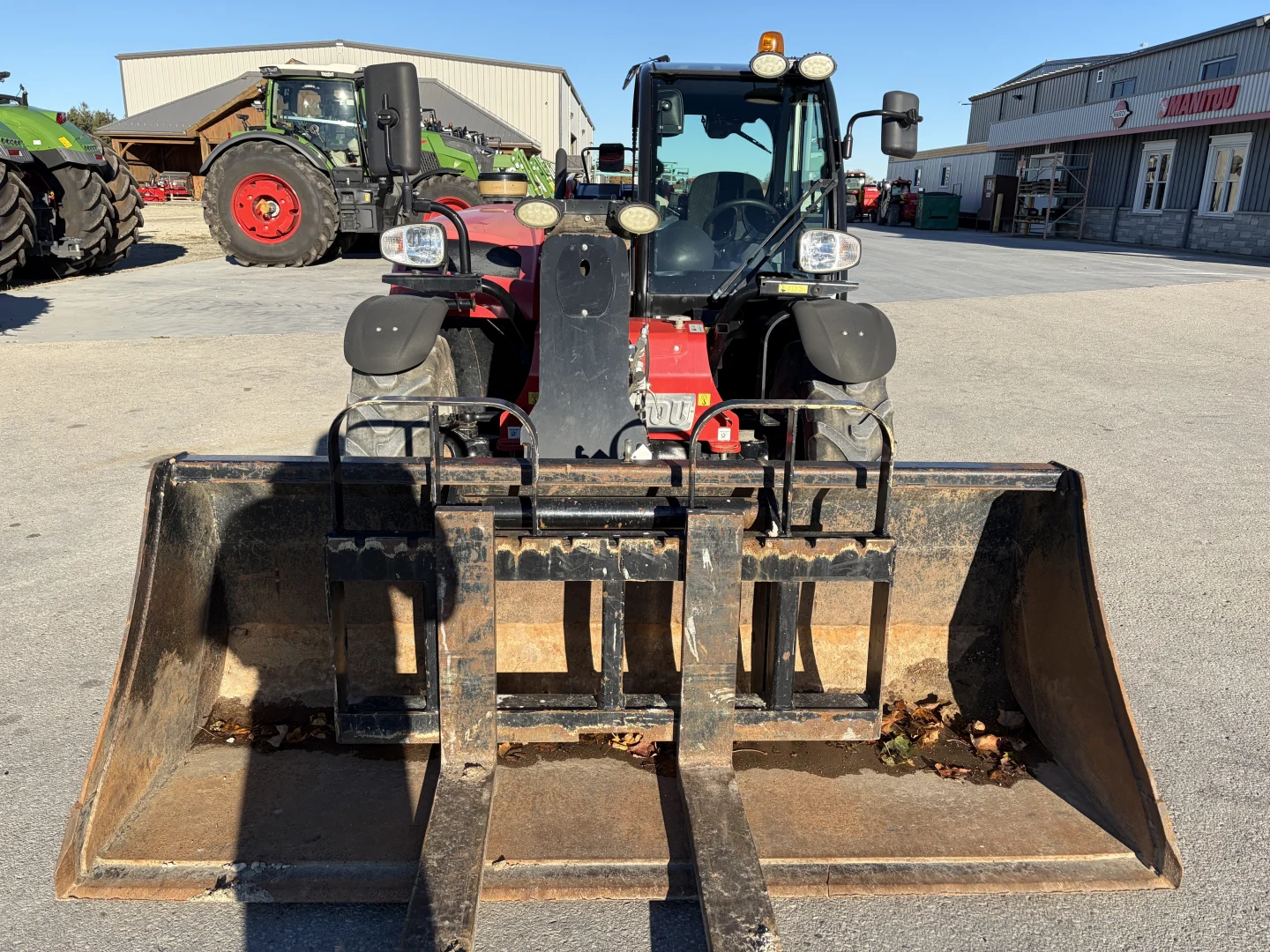

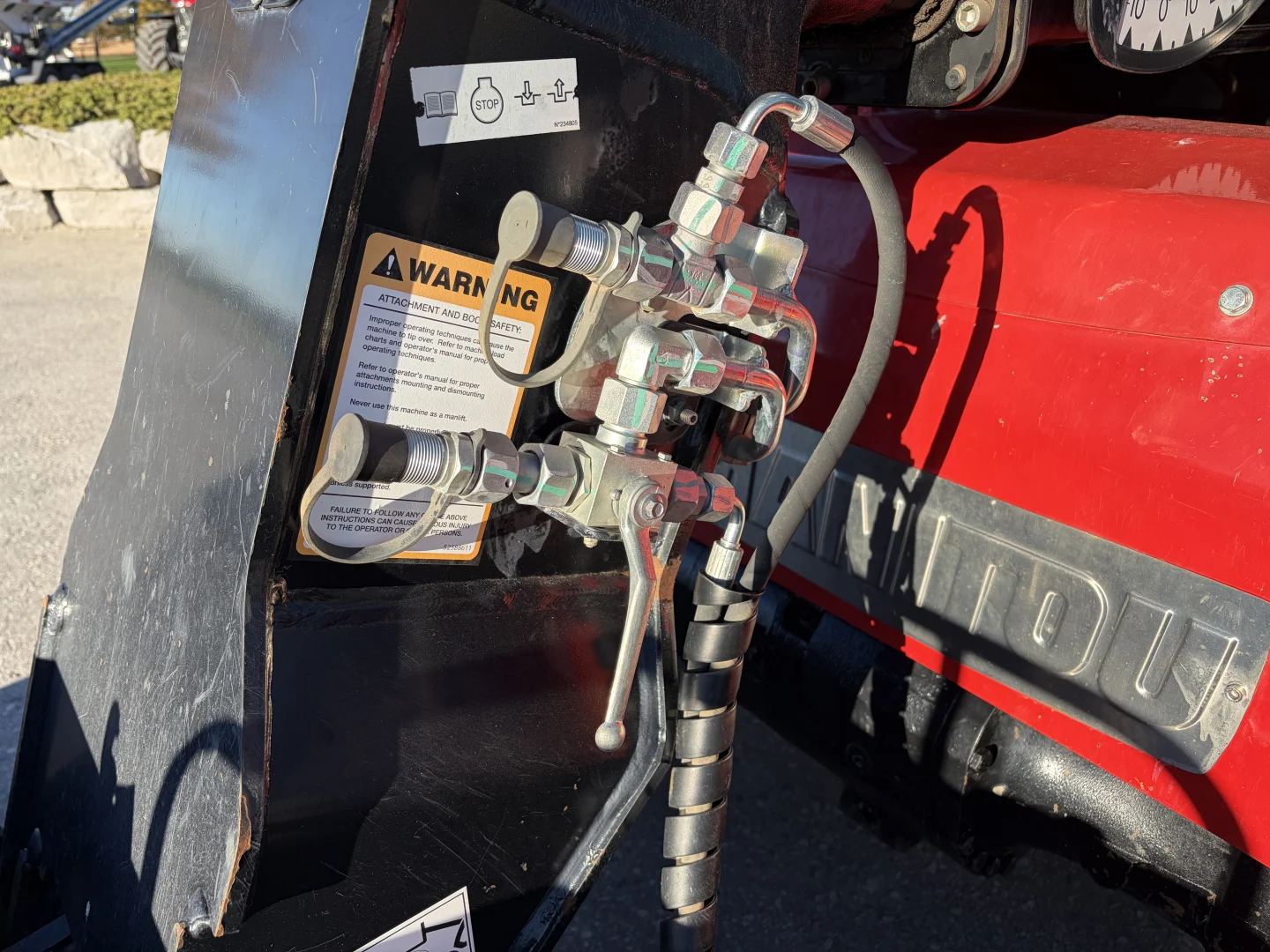

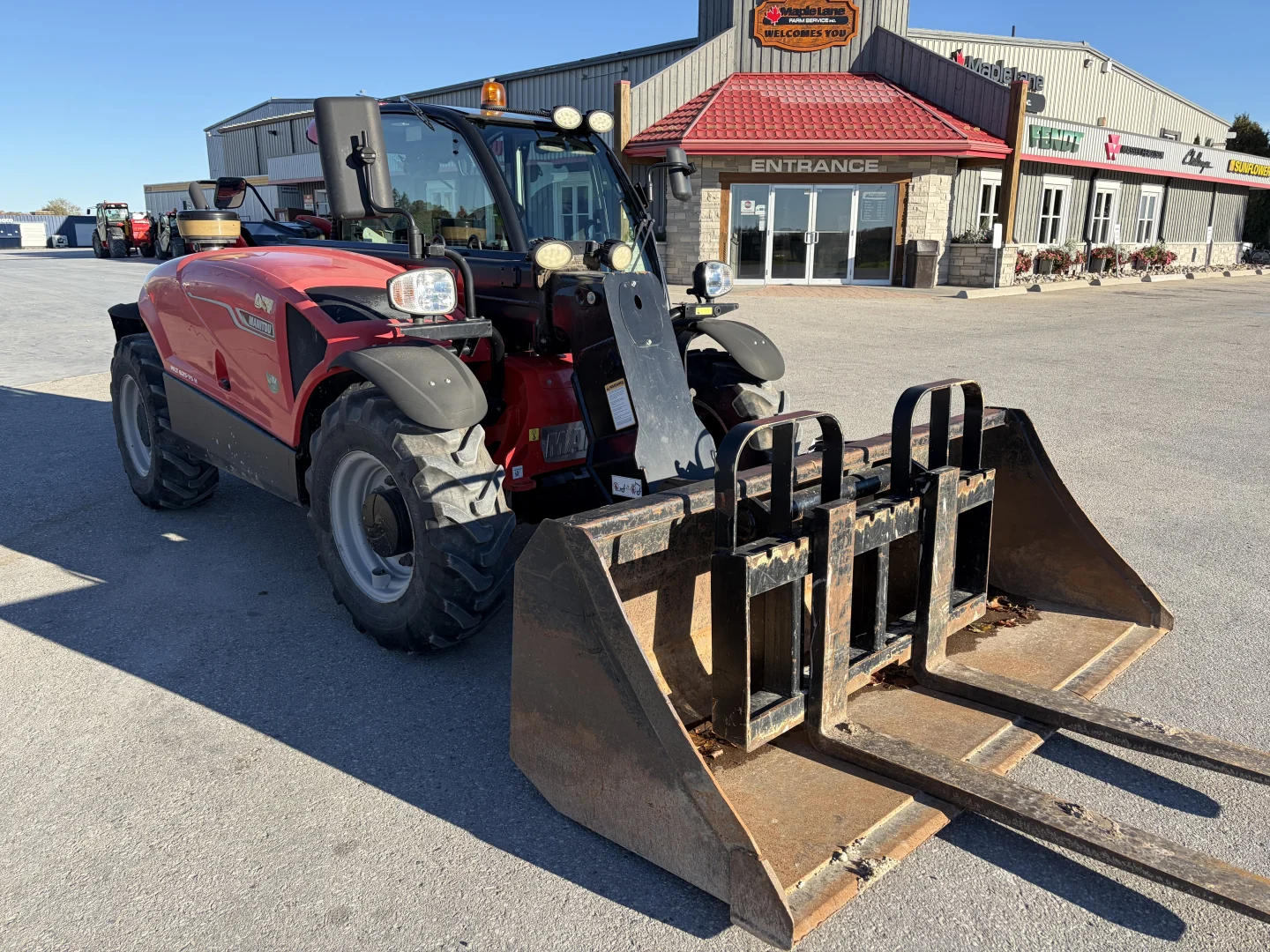

| Cab & AC, reversing fan, hydraulic quick-tach, 300/75R18 tires, 7′ bucket, 7500Ib pallet fork. | |
| Categories | Telehandlers |
| Unit Number | 28024H |
| Condition | Used |

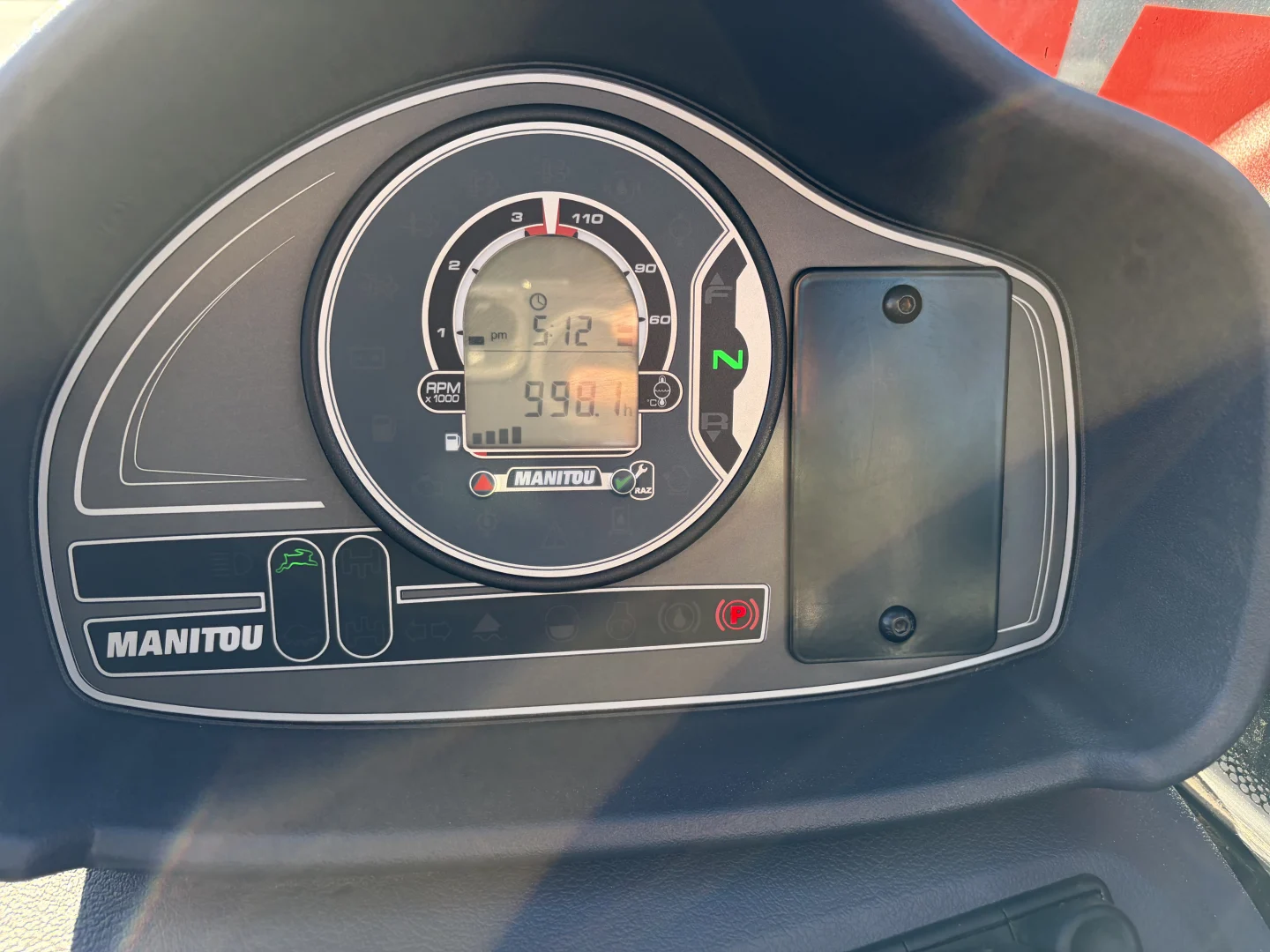

| Usage | 1,000 Hours |
| Year | 2022 |
| Cost | $102,900.00 CAD |
Financing calculator not available for this equipment. Contact us for details.
Rentals not available for this equipment
Specifications

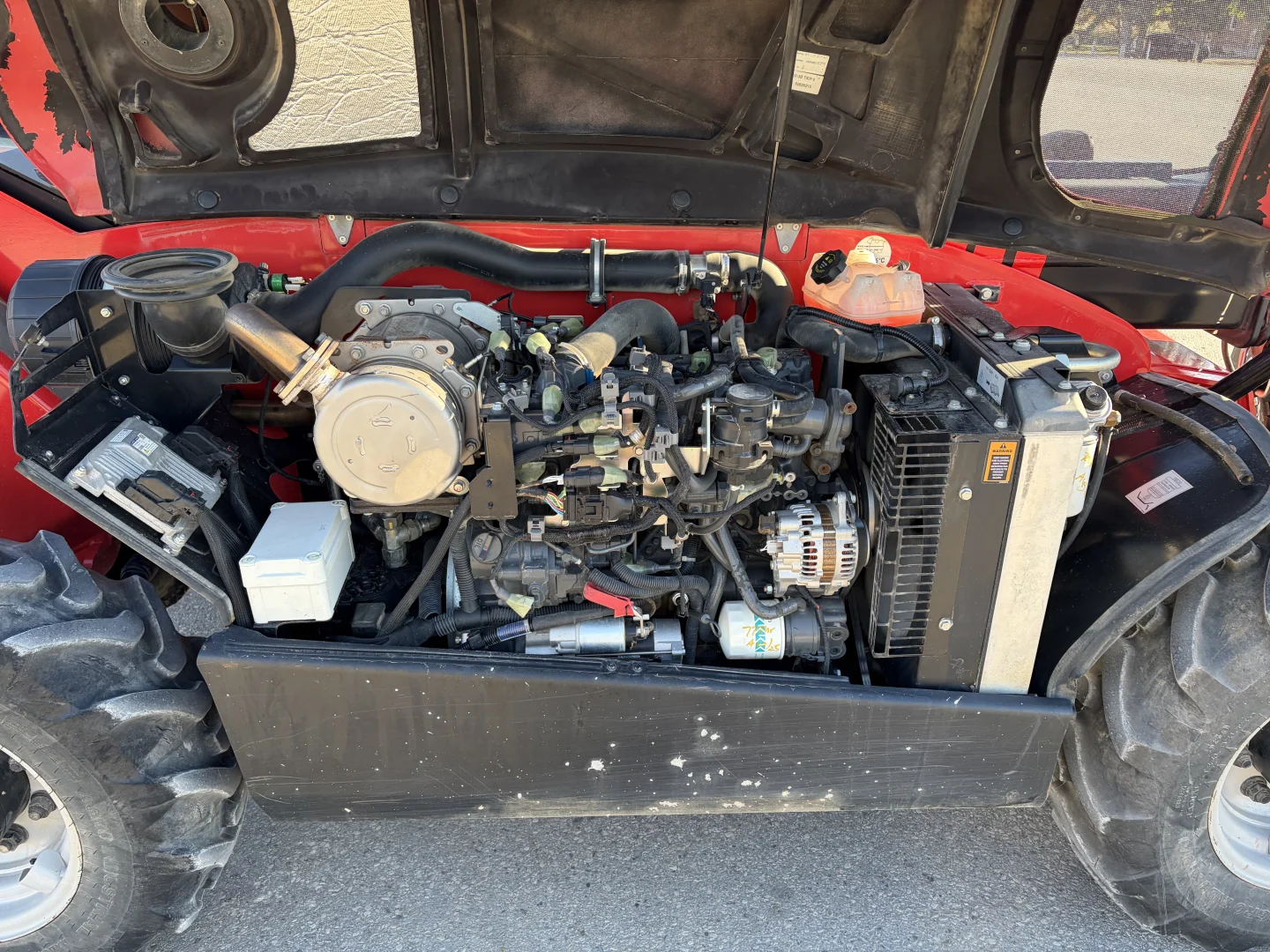

| Engine | ||
|---|---|---|
| Engine Power | 55.93kW (75hp) | |
| Rated Engine Speed | 1,500r/min | |
| Maximum Torque | 195.45lb-ft (265N m) | |
| Engine Speed at Maximum Torque | 1,400r/min | |
| Make | KU V3307-CR-T-E5B | |
| Displacement | 3,326.57cm^3 (203cu. in.) | |
| Number of Cylinders | 4 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Emission Compliance | Stage V, Tier 4F | |
| Fuel Tank Capacity | 16.64gal. (63L) | |
| Warming | Block Heater | |
| Fan | Reversing | |
| Transmission | ||
|---|---|---|
| Maximum Road Speed | 15.53mph (25km/h) | |
| Type | Hydrostatic | |
| Forward Speeds | 2 | |
| Reverse Speeds | 2 | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Limited | |
| Additional Drivetrain | ||
|---|---|---|
| Service Brake | Wet Disc | |
| Park Brake | Automatic | |
| Hydraulics | ||
|---|---|---|
| Pump | MNTOU MLT Series 22.7 GPM | |
| Pump Type | Gear | |
| Maximum Flow | 22.72GPM (86L/min) | |
| Total System Oil Volume | 30.38gal. (115L) | |
| Maximum Operating Pressure | 23,497.33kPa (3,408psi) | |
| Available Remote Flow Capacity | 22.72GPM (86L/min) | |
| Steering | Hydraulic Power | |
| Wheels | ||
|---|---|---|

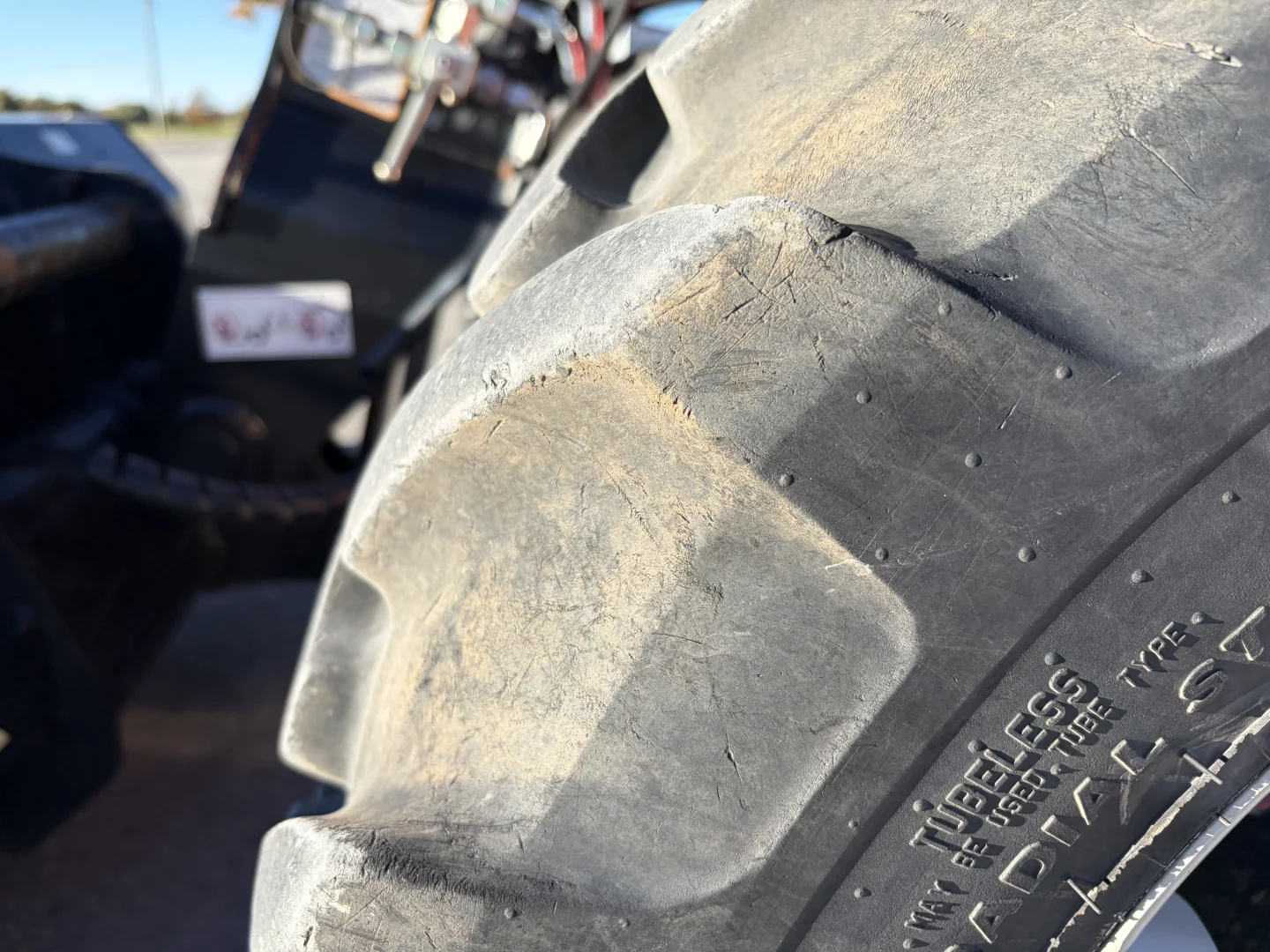

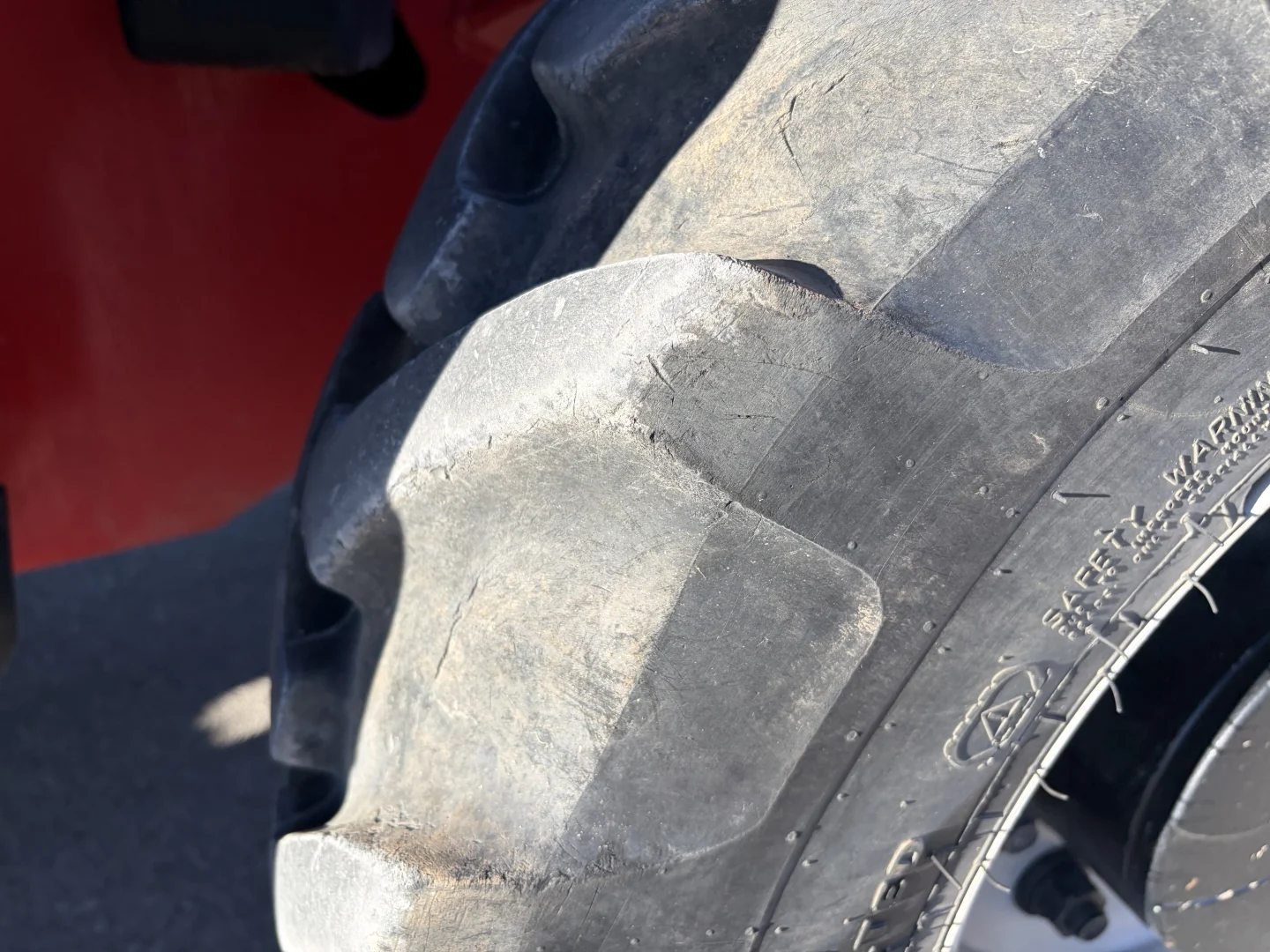

| Front | ATG 300/75R18 | |
| Size | 300/75R18 | |
| Section Width | 11-5/8" (295mm) | |
| Overall Diameter | 2' 11-3/4" (908mm) | |
| Static Loaded Radius | 1' 4-9/16" (420mm) | |
| Rolling Circumference | 8' 10-3/16" (2,697mm) | |
| Construction | Radial | |
| Flexion Class | Standard | |
| Rear | ATG 300/75R18 | |
| Size | 300/75R18 | |
| Section Width | 11-5/8" (295mm) | |
| Overall Diameter | 2' 11-3/4" (908mm) | |
| Static Loaded Radius | 1' 4-9/16" (420mm) | |
| Rolling Circumference | 8' 10-3/16" (2,697mm) | |
| Construction | Radial | |
| Flexion Class | Standard | |
| Hitching | ||
|---|---|---|
| Drawbar Pull | 7,283.81lbf (3,240daN) | |

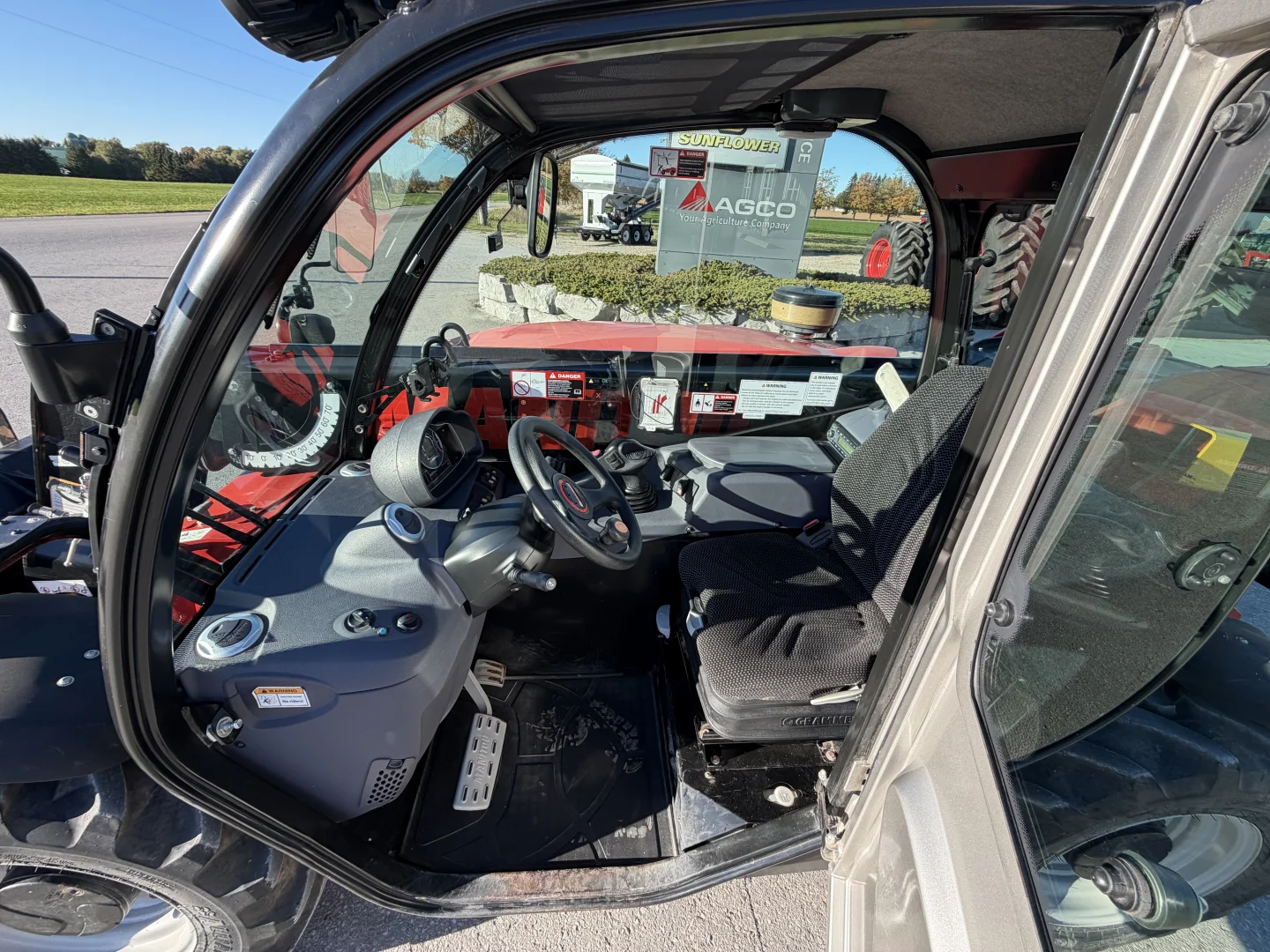

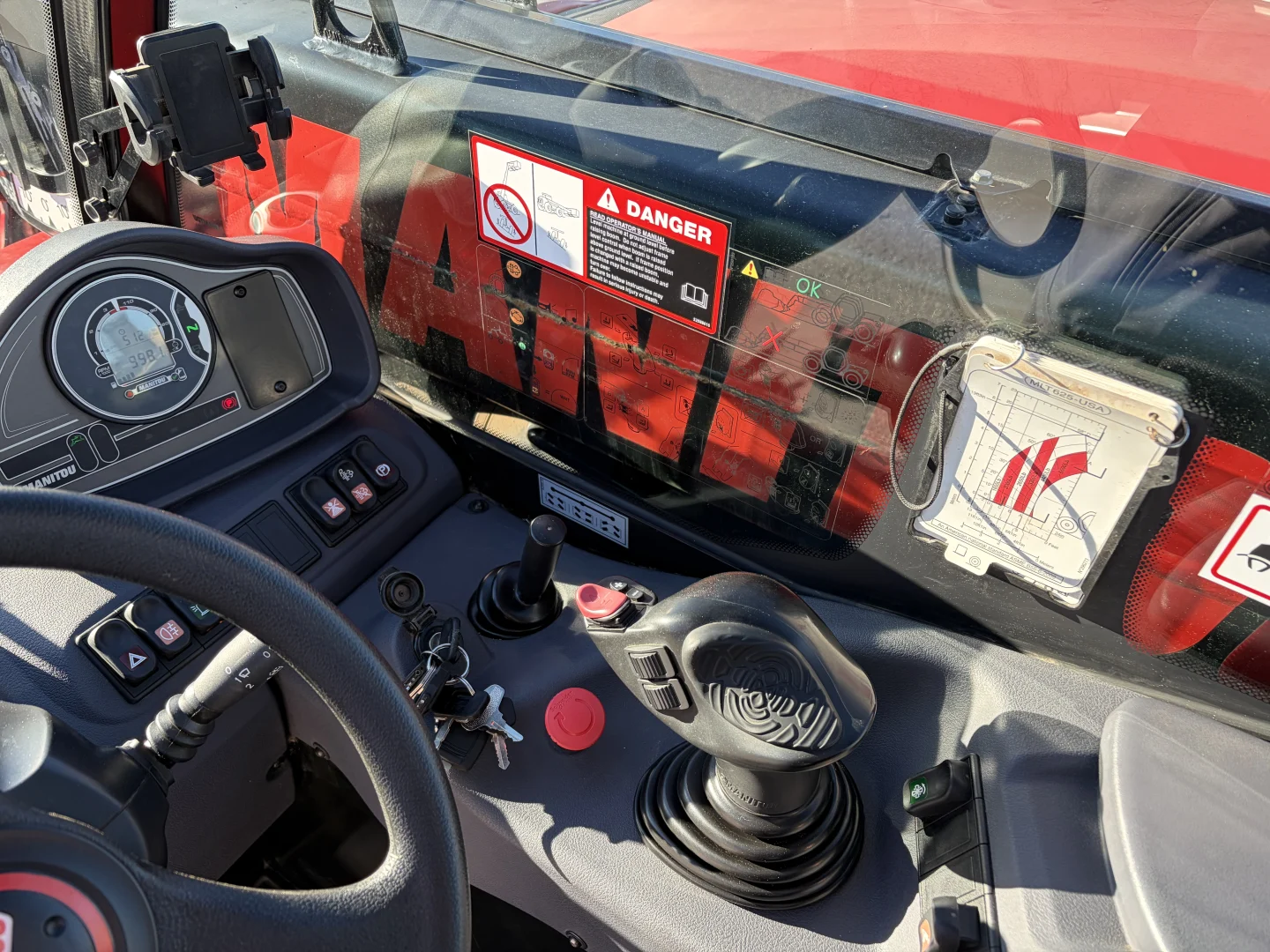

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Noise Level | 76dBA | |
| Falling Object Rating (FOPS) | Level 1 | |
| Climate | Heater, Air Conditioning | |
| Steering Column | Tilting, Telescoping | |
| Operator Seat | MNTOU Cloth Cab | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Suspension | Mechanical | |
| Wiper | Front, Rear, Roof | |
| Sunshade | Roof, Windshield | |
| Technology | ||
|---|---|---|
| Joystick | JSM | |
| Entertainment | USB, Bluetooth, Mic | |
| Dimensions | ||
|---|---|---|
| Length | 12' 10" (3.90m) | |
| Wheelbase | 7' 7" (2.30m) | |
| Width | 5' 11" (1.81m) | |
| Height | 6' 7" (2m) | |
| Minimum Ground Clearance | 1' 3" (0.38m) | |
| Turning Radius | 10' 10" (3.31m) | |
| Cab Width | 2' 7" (0.80m) | |
| Base Weight | 10,848.95lb. (4,921kg) | |
| Boom | ||
|---|---|---|
| Lifting | 7.30s | |
| Lowering | 4.95s | |
| Lift Capacity | 5,511.56lb. (2,500kg) | |
| Extending | 5.20s | |
| Maximum Lift Height – Pivot Pin | 19' 4" (5.90m) | |
| Retracting | 3.70s | |
| Tipping (crowd) | 3.20s | |
| Dumping | 3.20s | |
| Breakout Force | 9,441.97lbf (4,200daN) | |
| Maximum Reach | 10' 10" (3.30m) | |
| Max Rollback Angle | 12deg | |
| Max Dump Angle | 117deg | |
| Comfort | Hydraulic Bucket Lock, Suspension | |
| Tool Carrier | Manitou Attach | |
