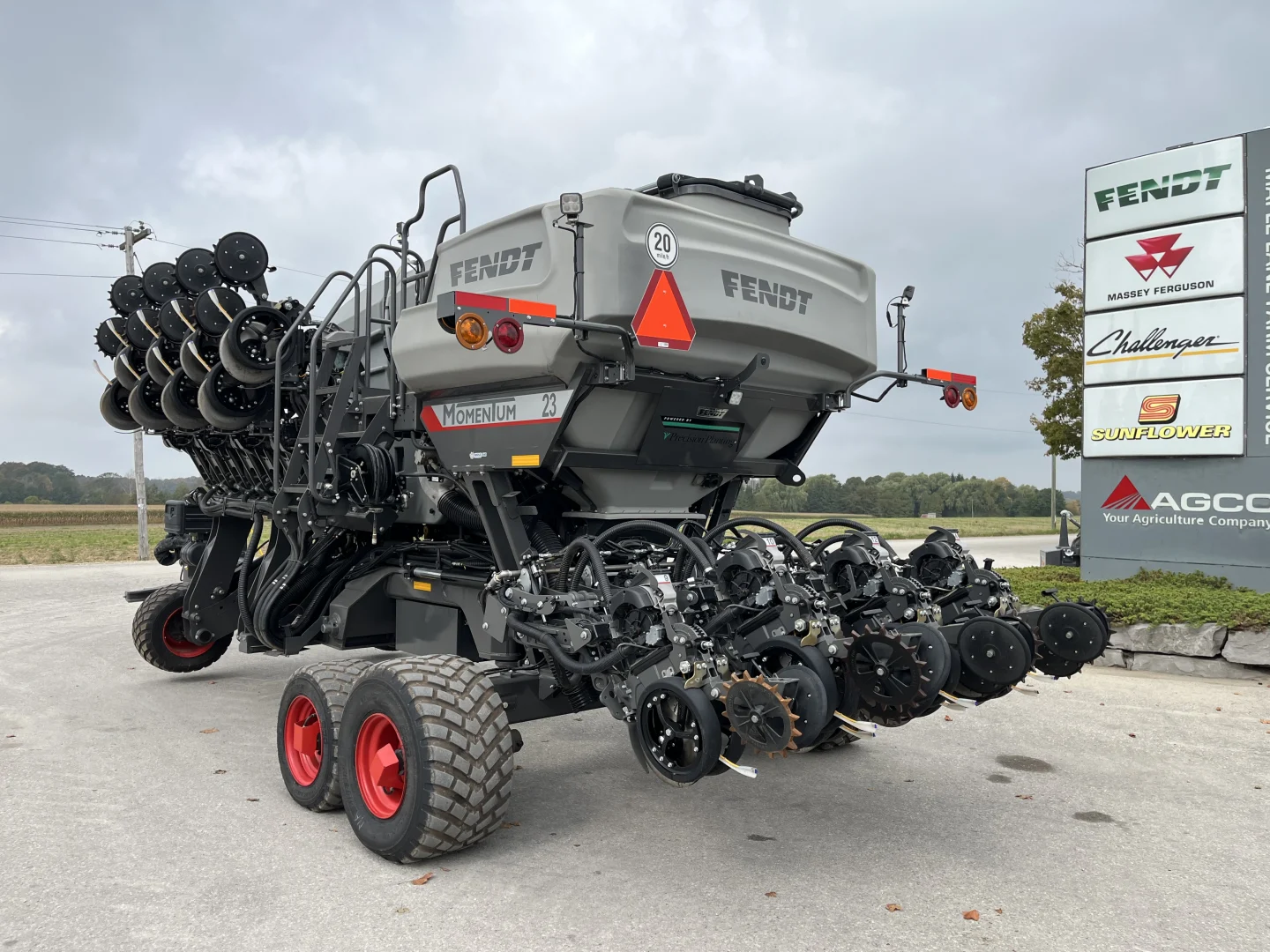

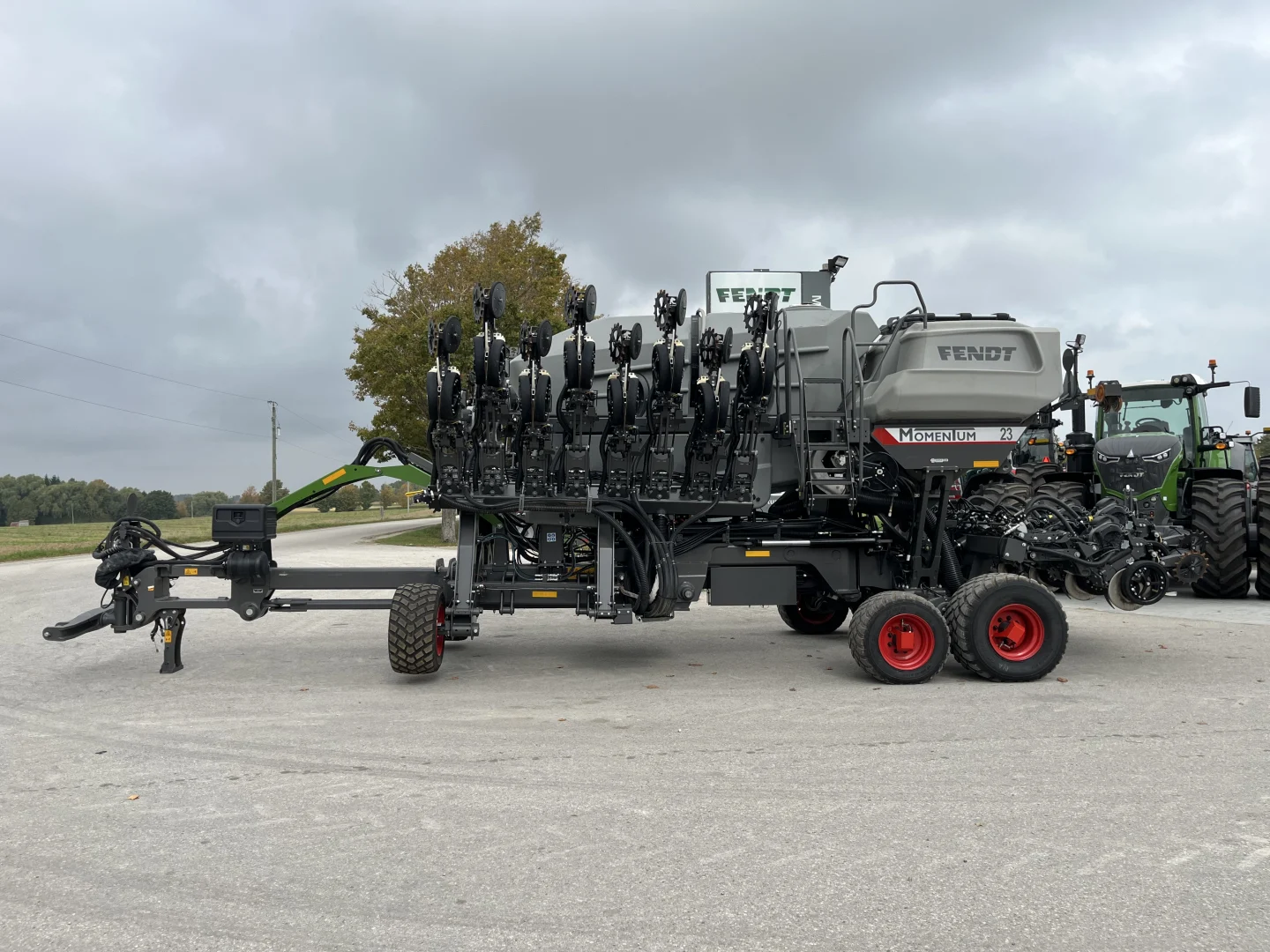

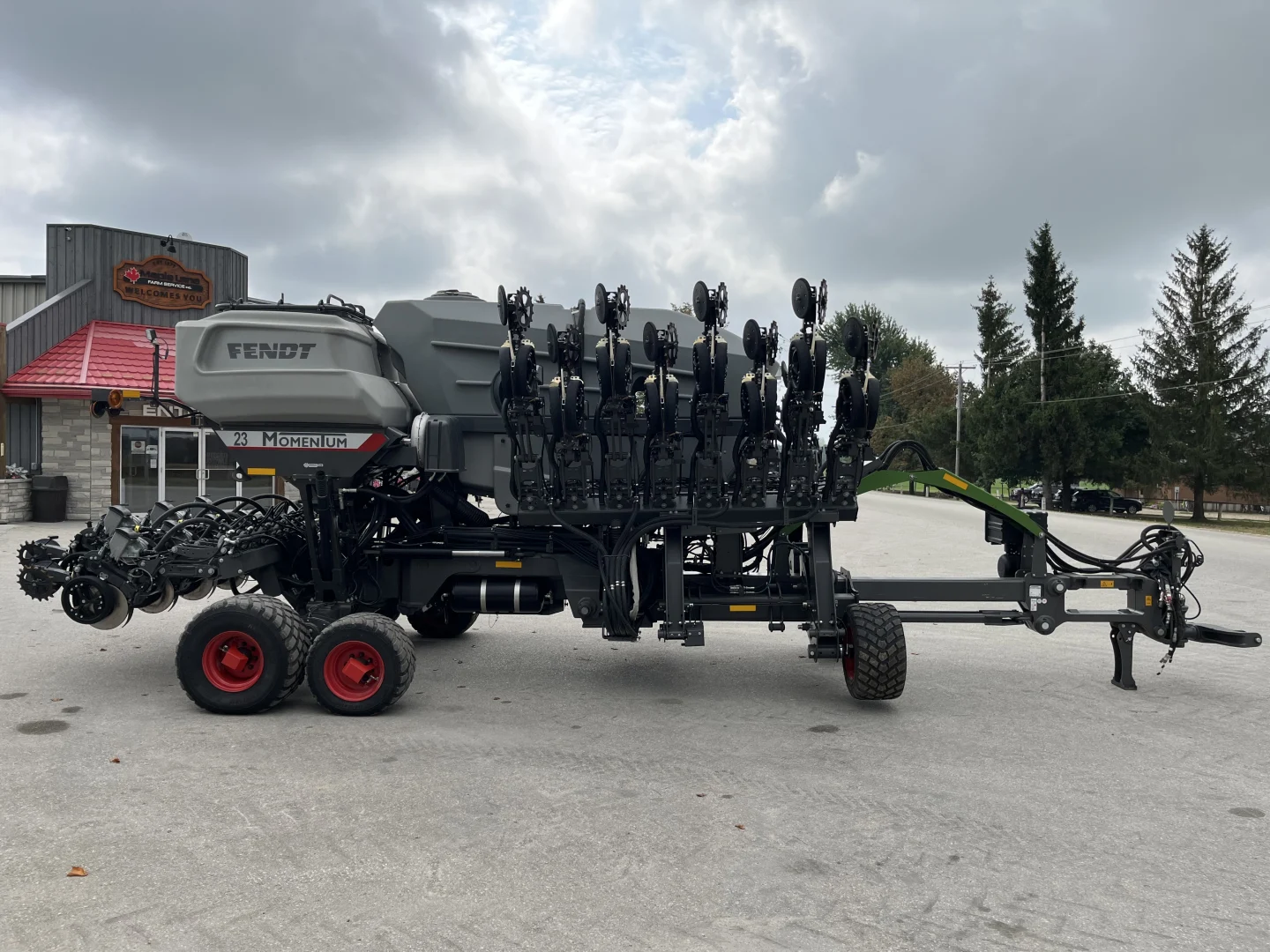

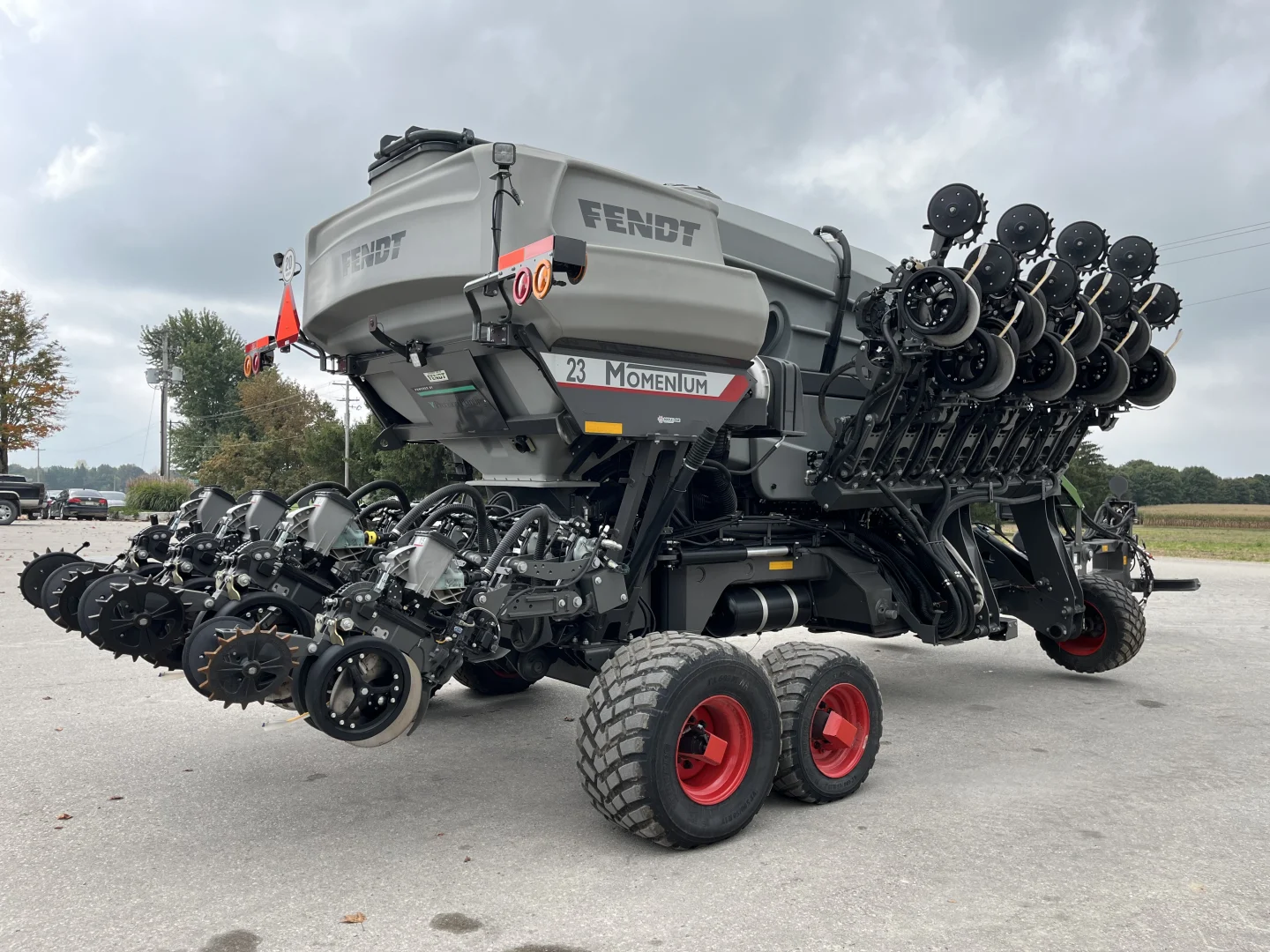

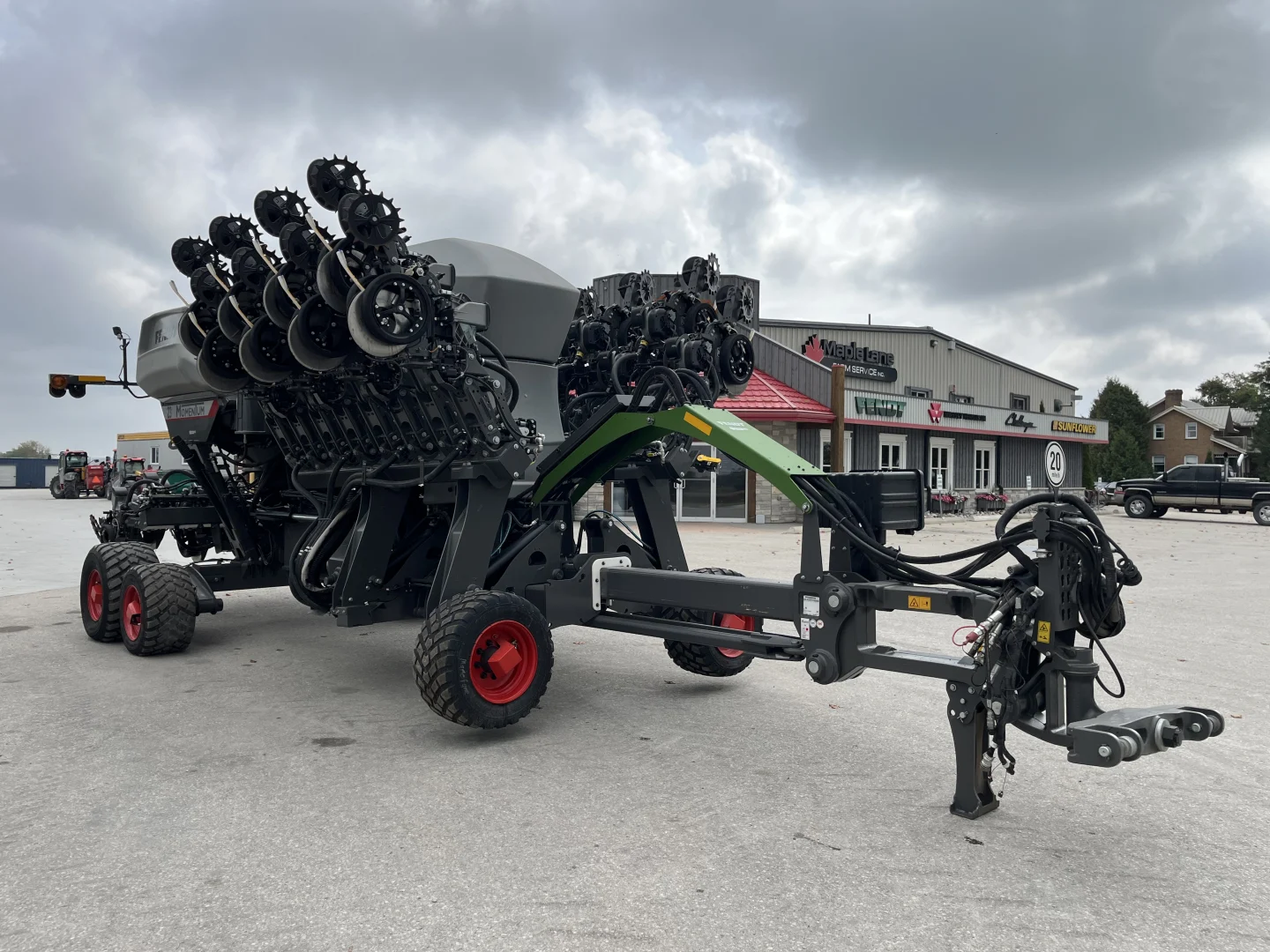

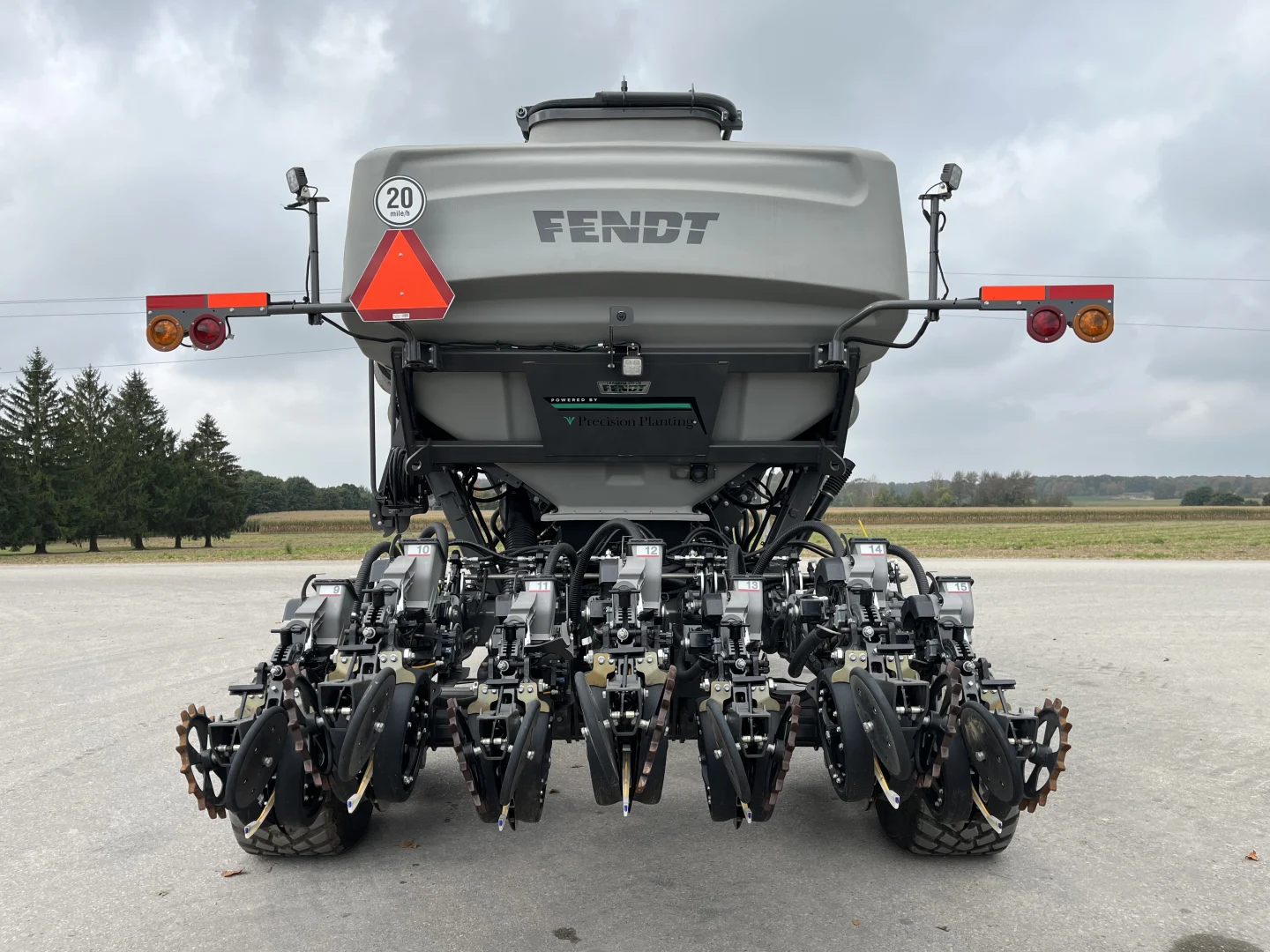

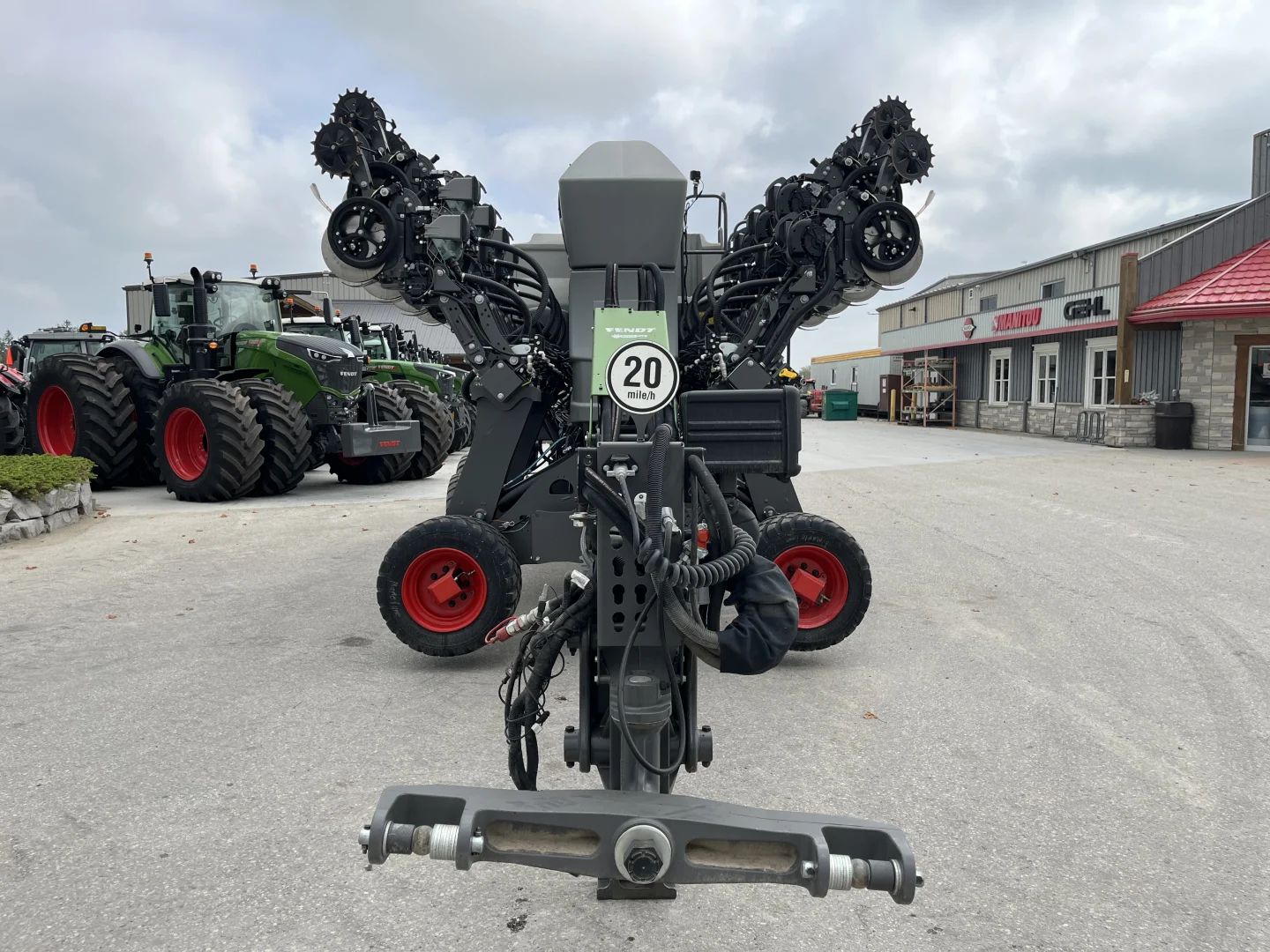

New 2025 Fendt Momentum 12/23

Used EquipmentUsed PlantingNew 2025 Fendt Momentum 12/23

Description

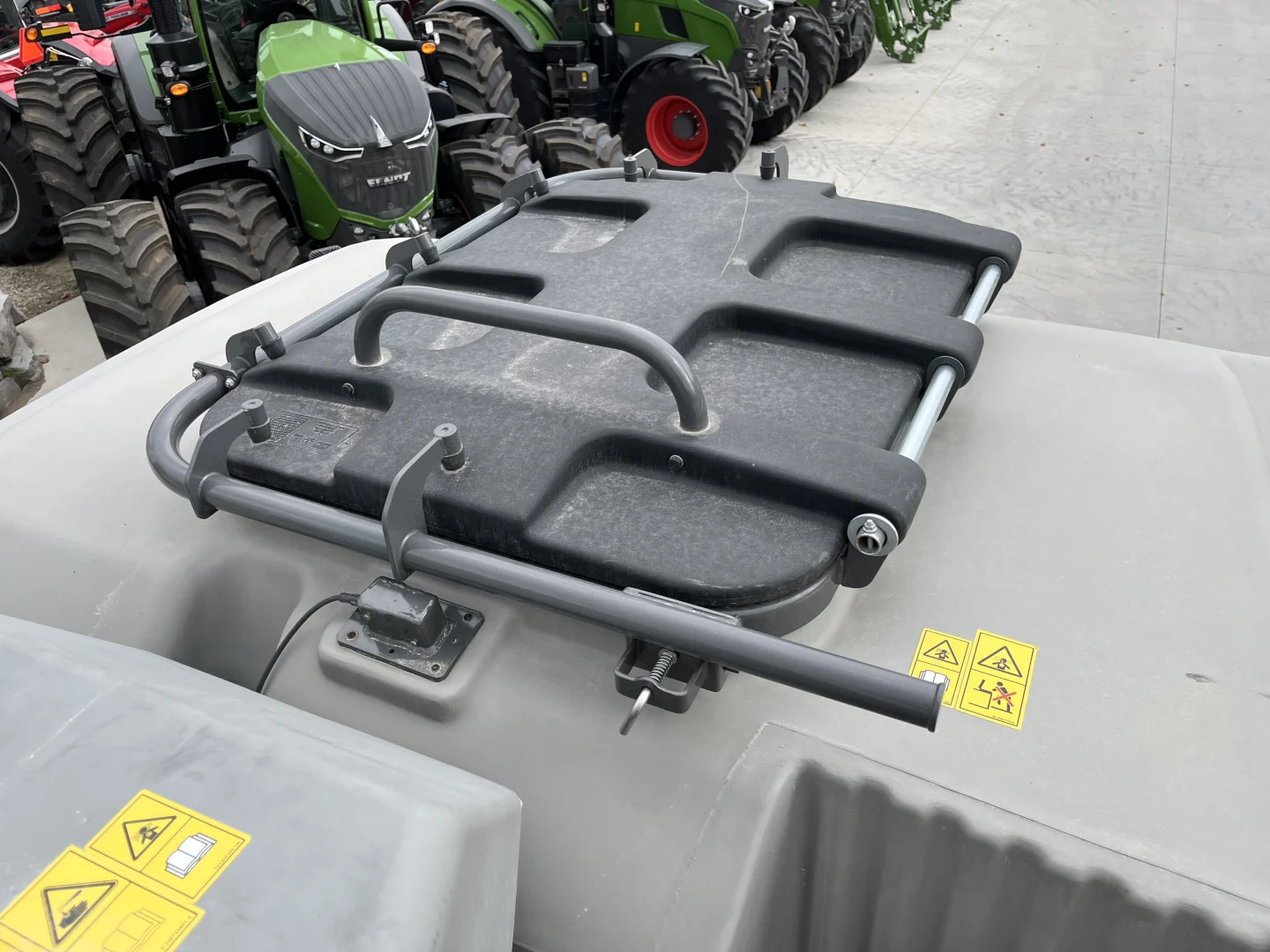

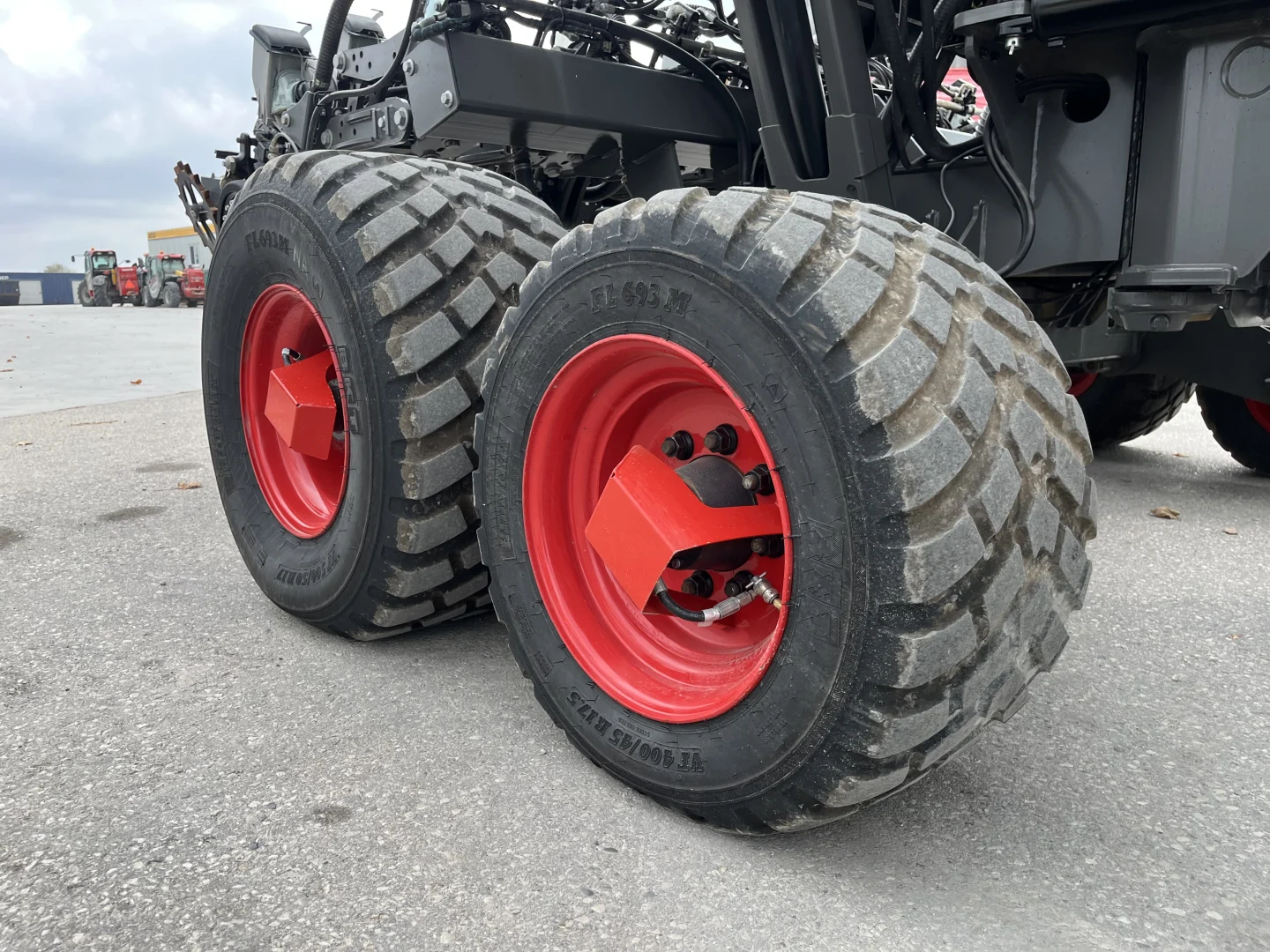

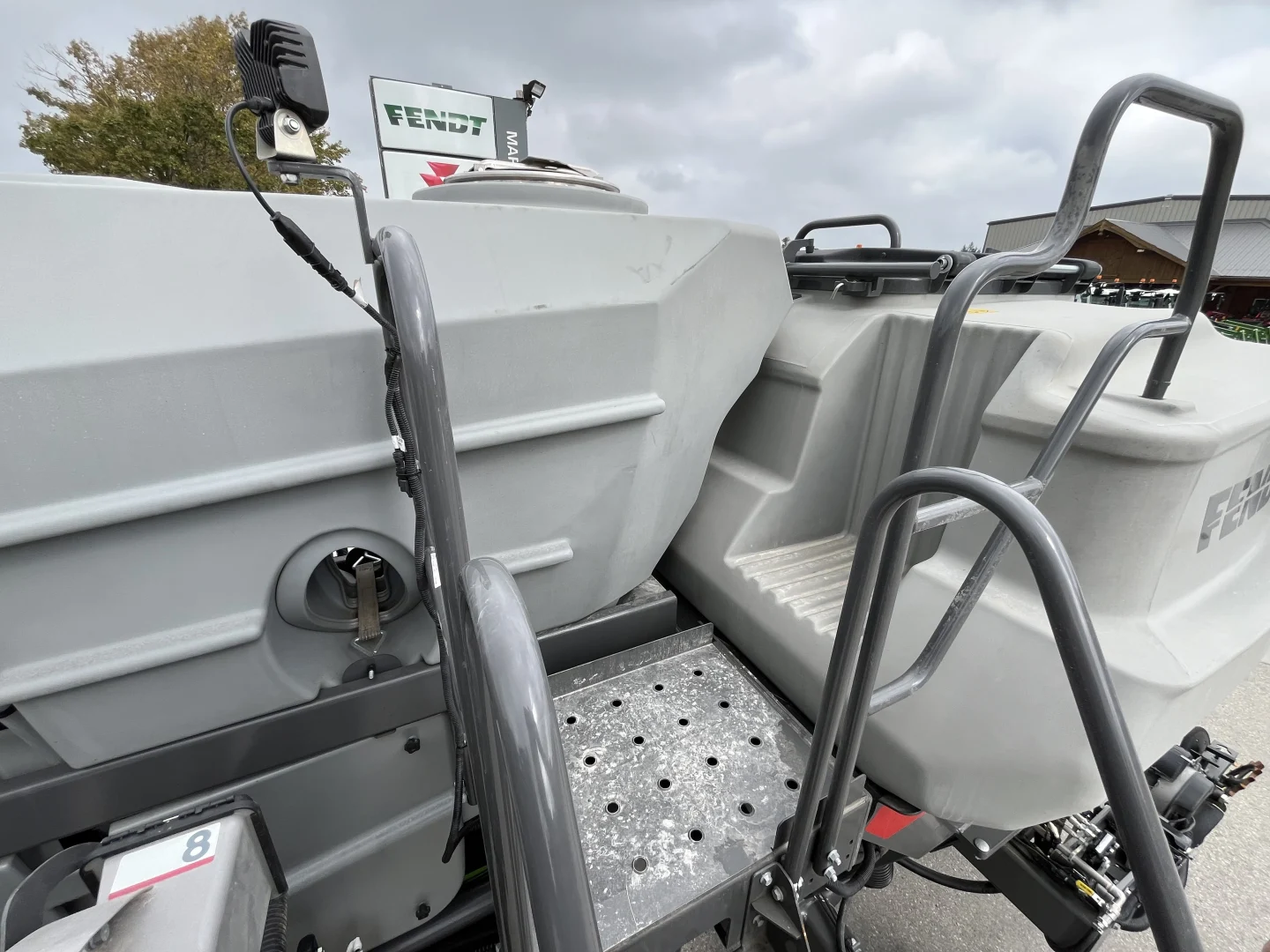

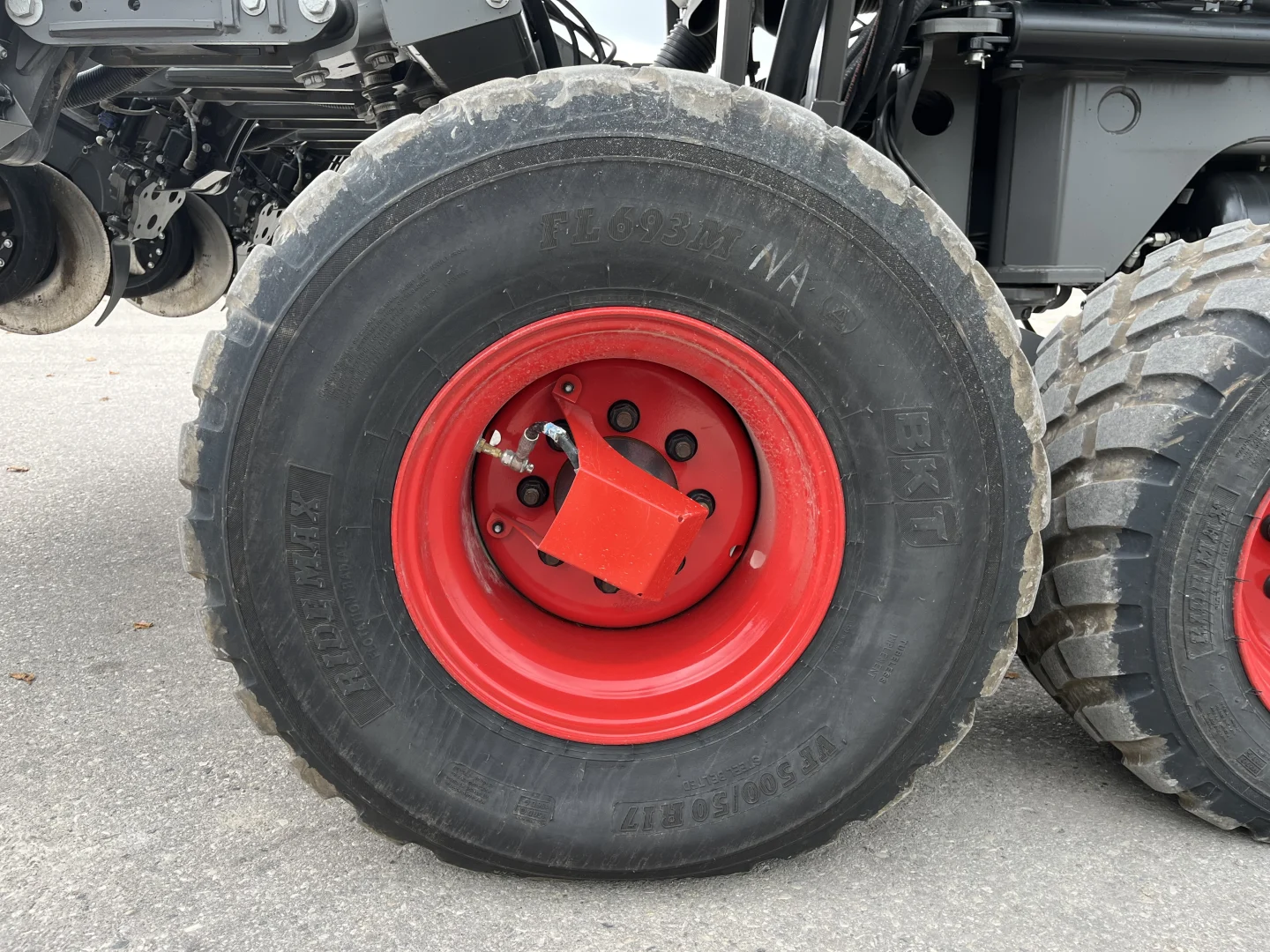

*New demo unit*, 2025 model year, 12/23 row, 15″/30″ spacing, 3 section vertical contouring toolbar, Load Logic- automatic weight distribution and automatic tire inflation, inline tandems- VF500/70R17, VF400/45R17.5 tires, 2 point hitch, 100 bushel seed tank, 3″ spoked gauge wheels, vSet 2 meters, DeltaForce hydraulic downforce, Wave Vision seed tubes, Gen3 20/20 monitor, 800 gallon liquid fertilizer tank, row by row fertilizer rate and section control with EMHD Gold Star Customer Care 3 year/6,000 acre warranty and maintenance program Ready to be fitted with a wide range of Precision Planting components!
Categories Planters
Unit Number 23565R
Condition New
Year 2025

Financing calculator not available for this equipment. Contact us for details.

Call SMS

Rentals not available for this equipment

Specifications


Frame
Linkage2 Point
Drawbar Weight6,838.74lb. (3,102kg)
ToolbarVertical Contouring
Maximum Working Width9.14m (30')
Sections3
Wing Travel172.72cm (5' 8")
Wing Flex21deg
Foldhydraulic
Fold TypeFront Fold
Jack StandManual

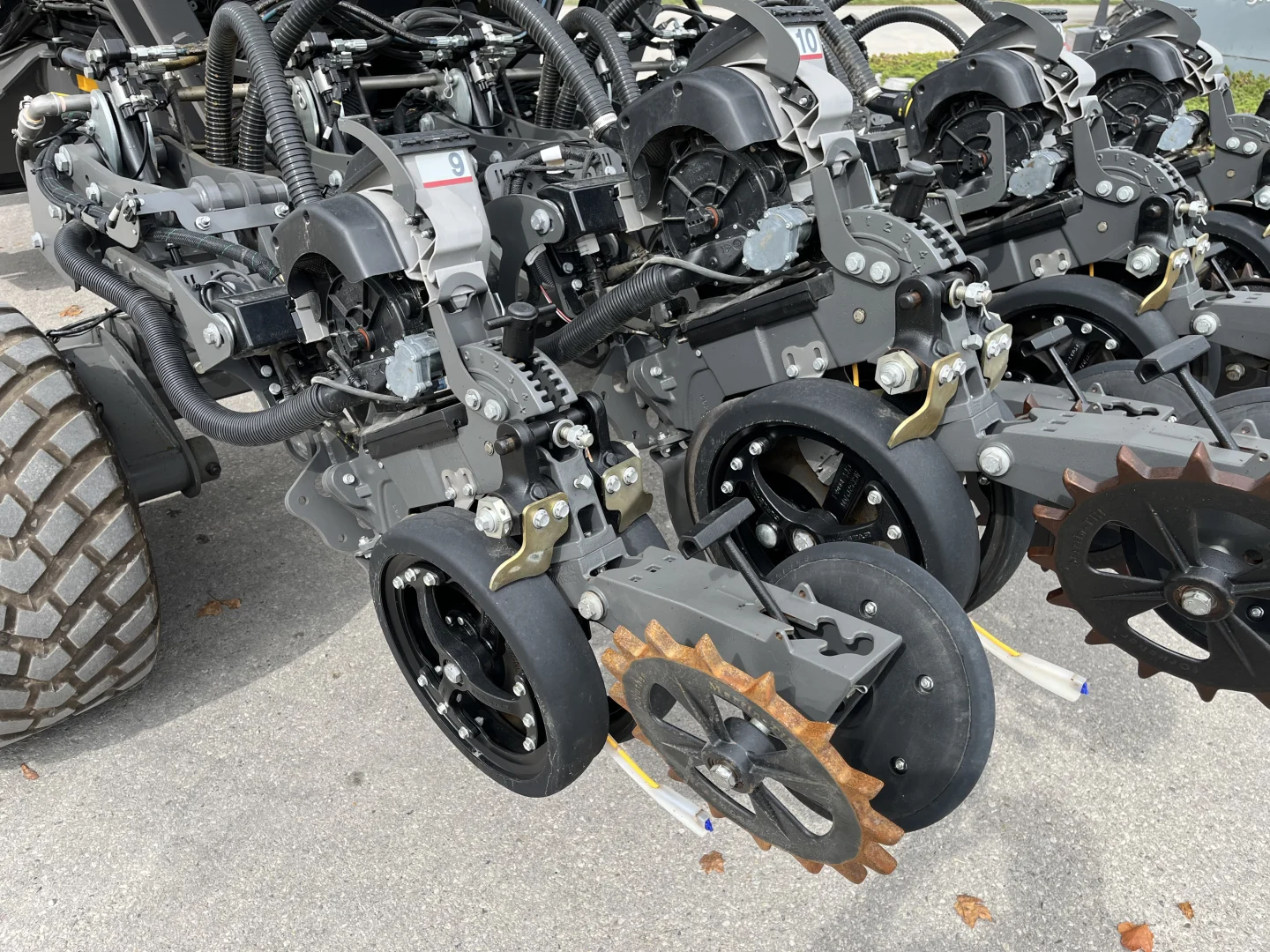

Row Units
Row Count12
Row Spacing76.20cm (2' 6")
Split Row Count23
Split Row Spacing38.10cm (1' 3")
Row Shut OffIndividual
Hopper0.33bu.
MetervSet 2
Meter DrivevDrive
Opener Diameter40.64cm (1' 4")
OpenersSmooth Double Disc
Minimum Seed Depth0.64cm (1/4")
Maximum Seed Depth11.43cm (4-1/2")
Seed PlacementGravity Tube
Gauge Wheels3" Solid
Gauge Wheel ScraperDependent on: Row Units/Gauge Wheels/3" Solid
Closing SystemRubber Wheel
Down ForceDeltaForce
Minimum Downforce-90.72kg (-200lb.)
Maximum Downforce294.83kg (650lb.)
Seed SensingDependent on: Row Units/Meter/vSet 2

Power Requirements
Minimum Engine Horsepower71.59kW (96hp)
Minimum Hydraulic Flow30.01GPM (113.60L/min)
Maximum Hydraulic Pressure20,684.27kPa (3,000psi)
Minimum Hydraulic Pressure16,547.42kPa (2,400psi)
Hydraulic InterfacePower Beyond
Double Acting Remote1
Electrical Power90A
Drive SystemHydraulic

Transport
Transport Width3.66m (12')
Transport Height3.66m (12')
Transport Wheels6
AxleWalking Tandem

Inputs
Seed DistributionCentral Fill

Electrical
Alternator160A

Technology
Display20/20 Gen3
Section ControlSectionControl
Variable Rate ControlVariable Rate Control

Capacity

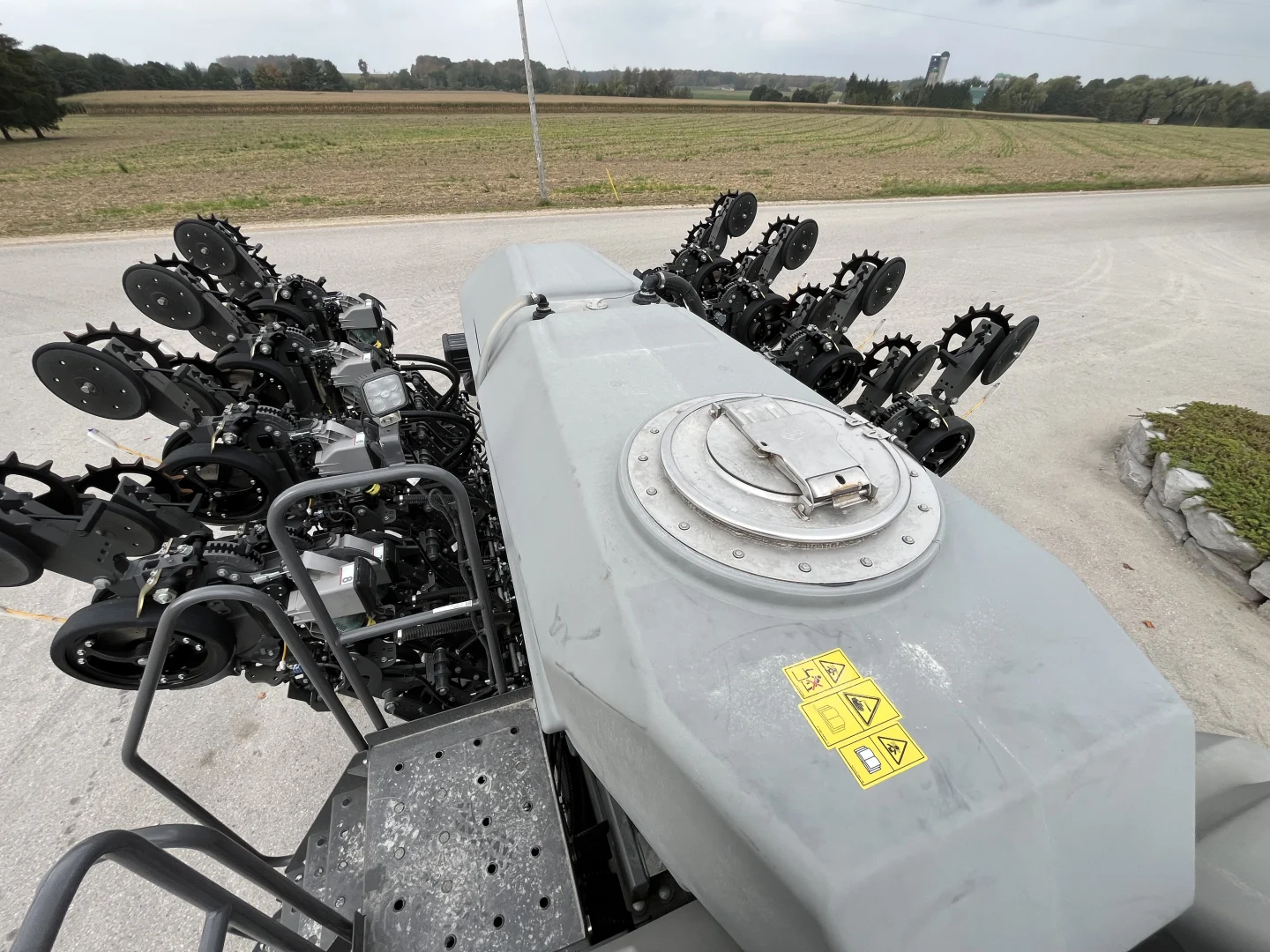

Grain Tank100bu.

Dimensions
Minimum Ground Clearance1' 3" (381mm)
Base Weight24,471.32lb. (11,100kg)
