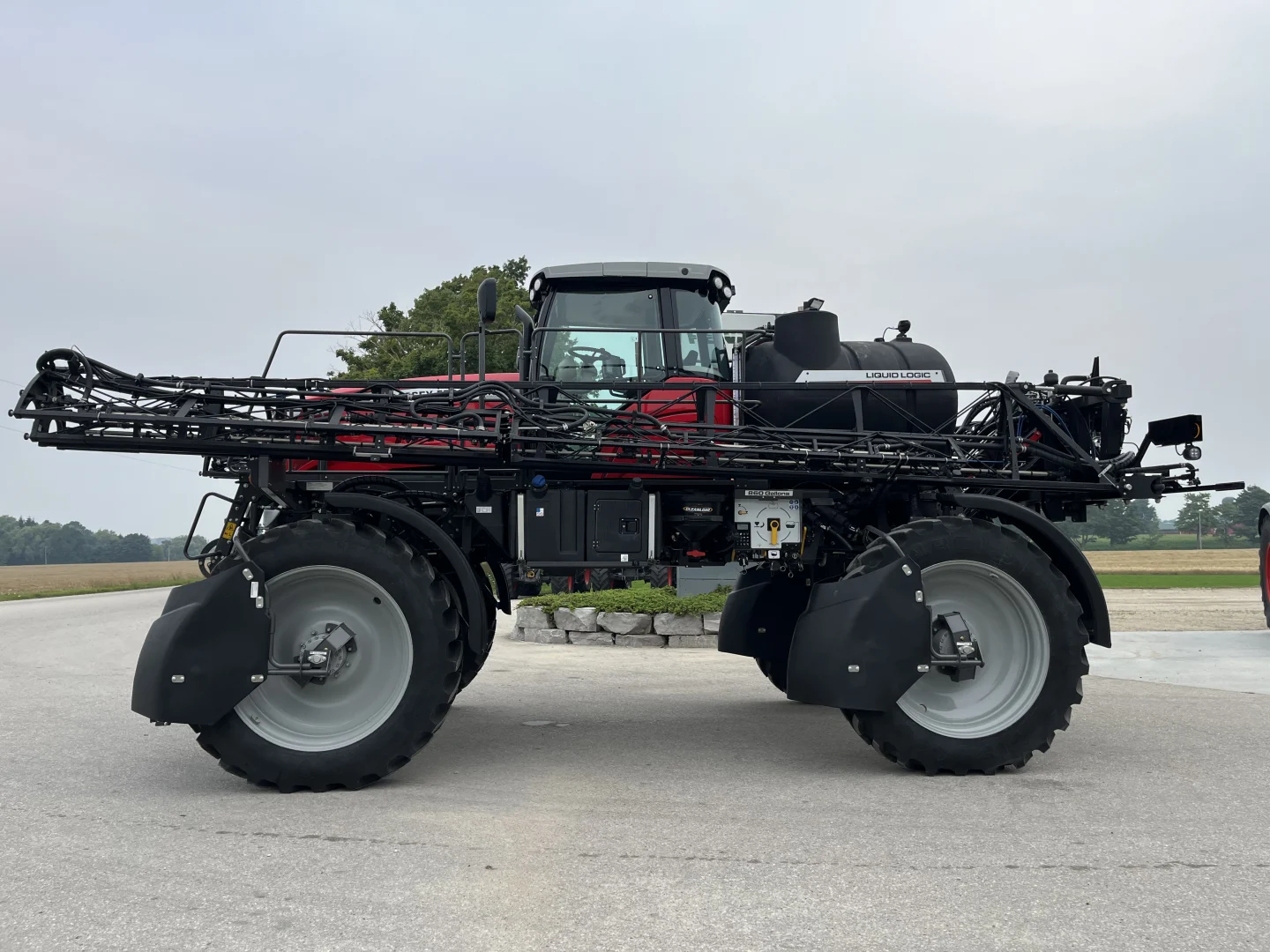

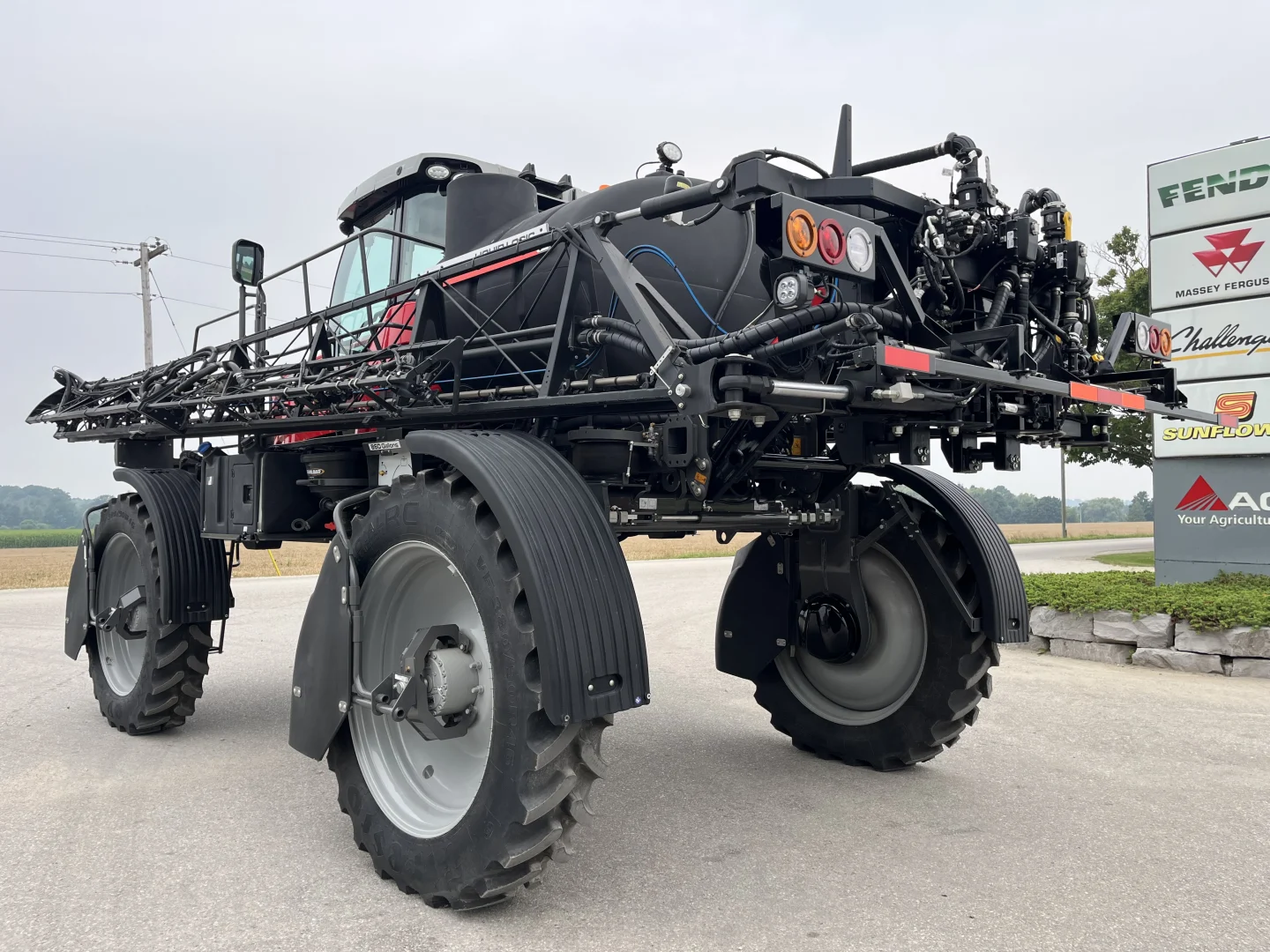

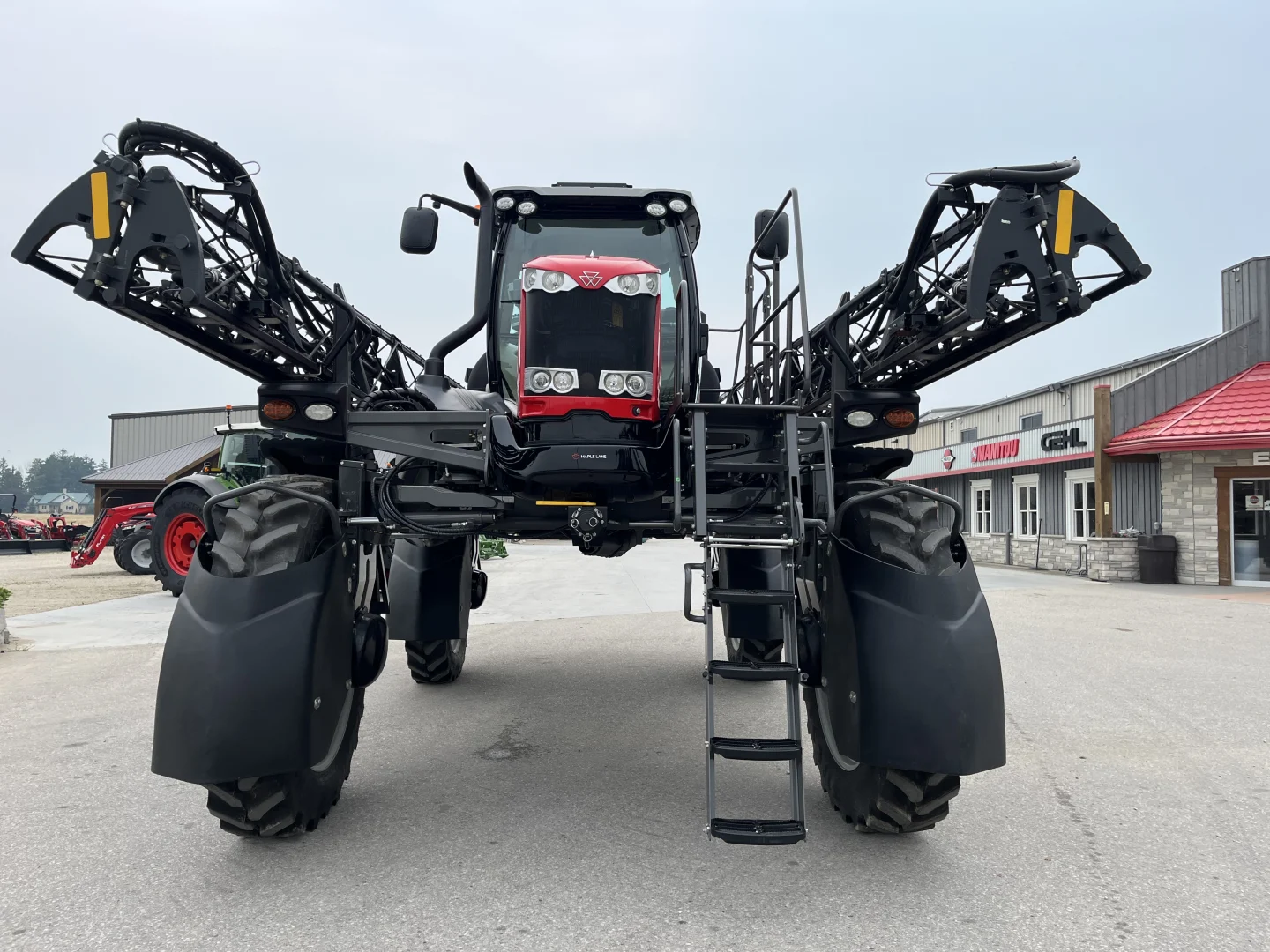

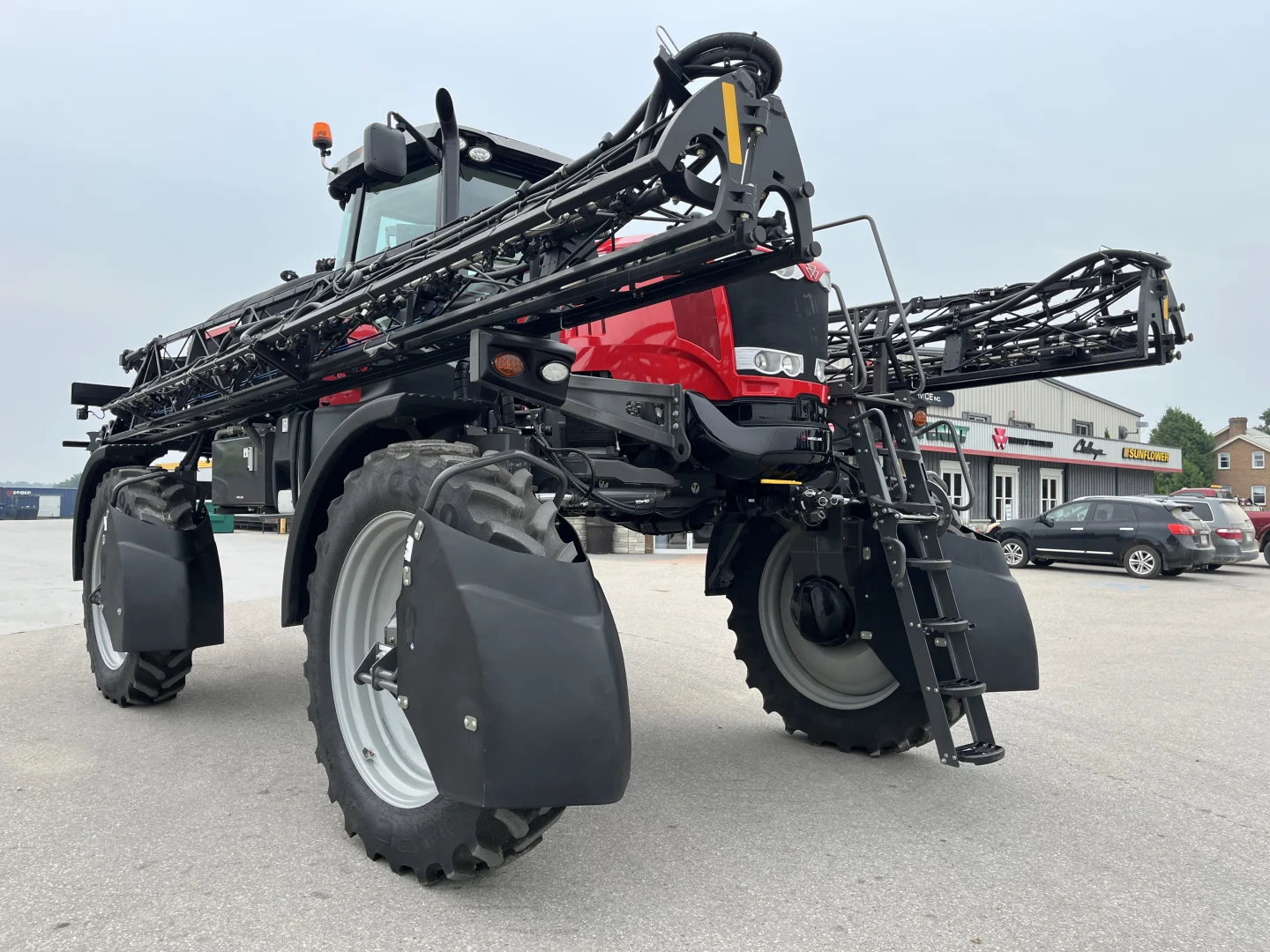

New 2025 Massey Ferguson 530R

Used Equipment › Used Sprayers › New 2025 Massey Ferguson 530R
Description

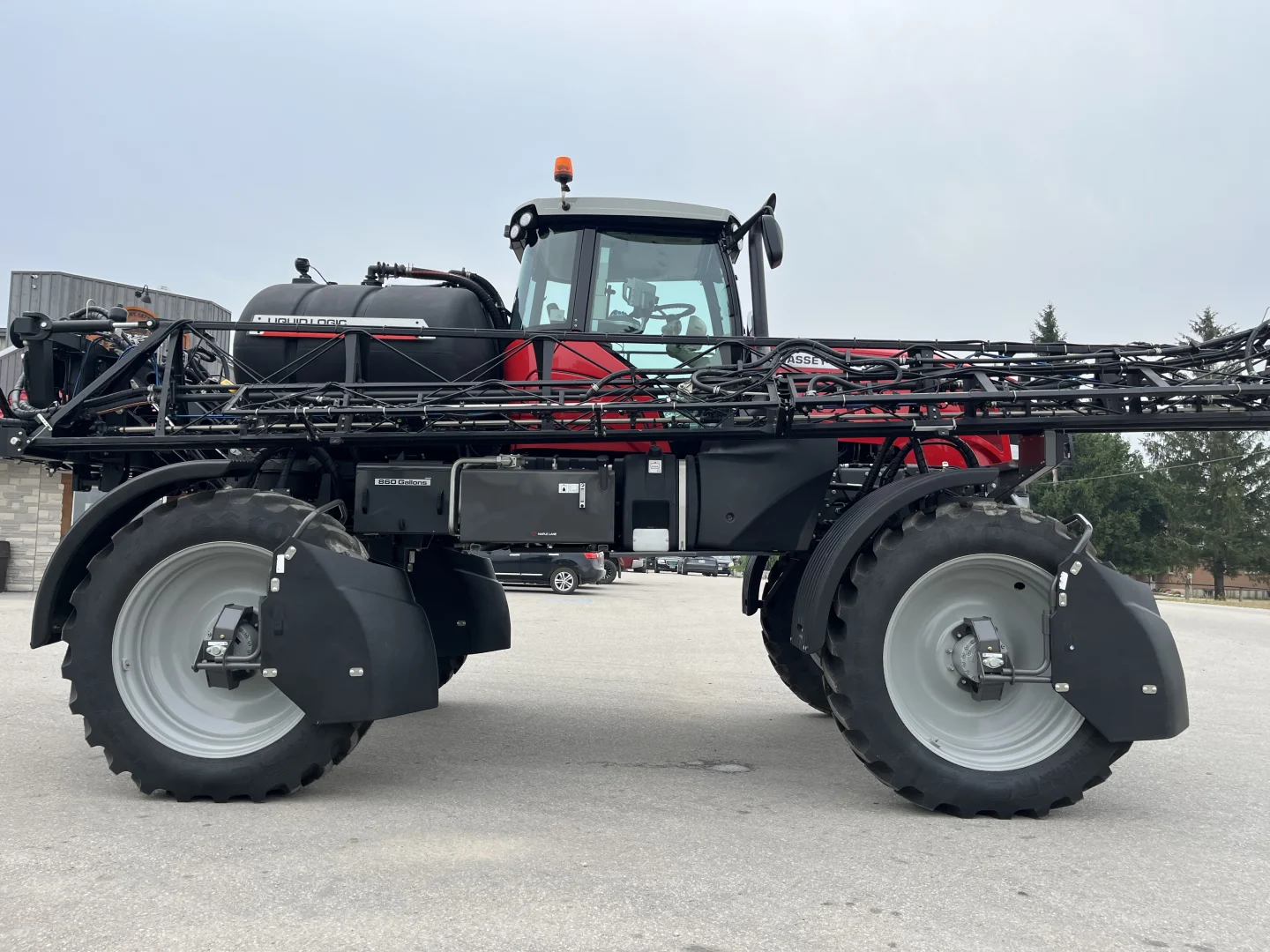

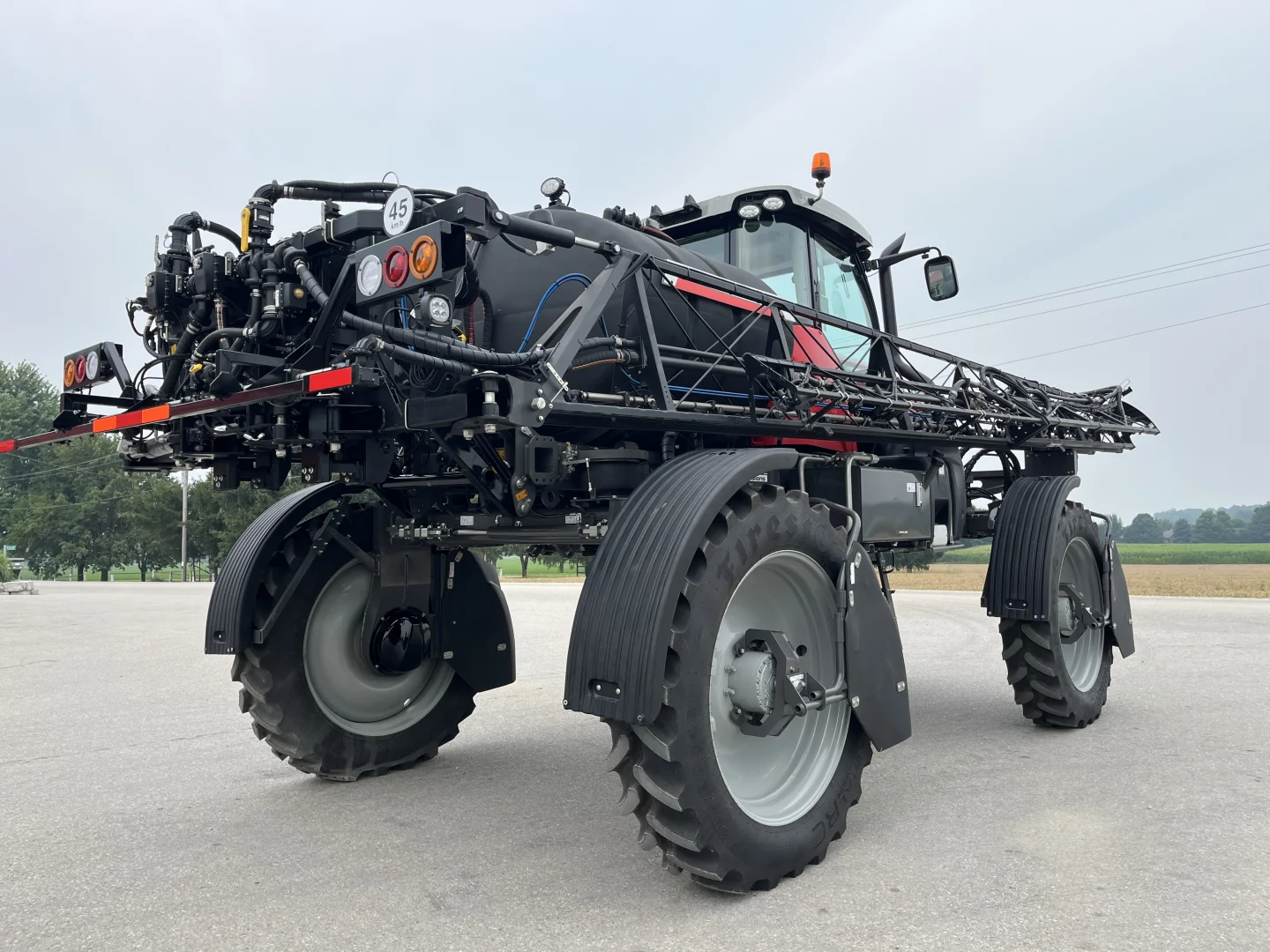

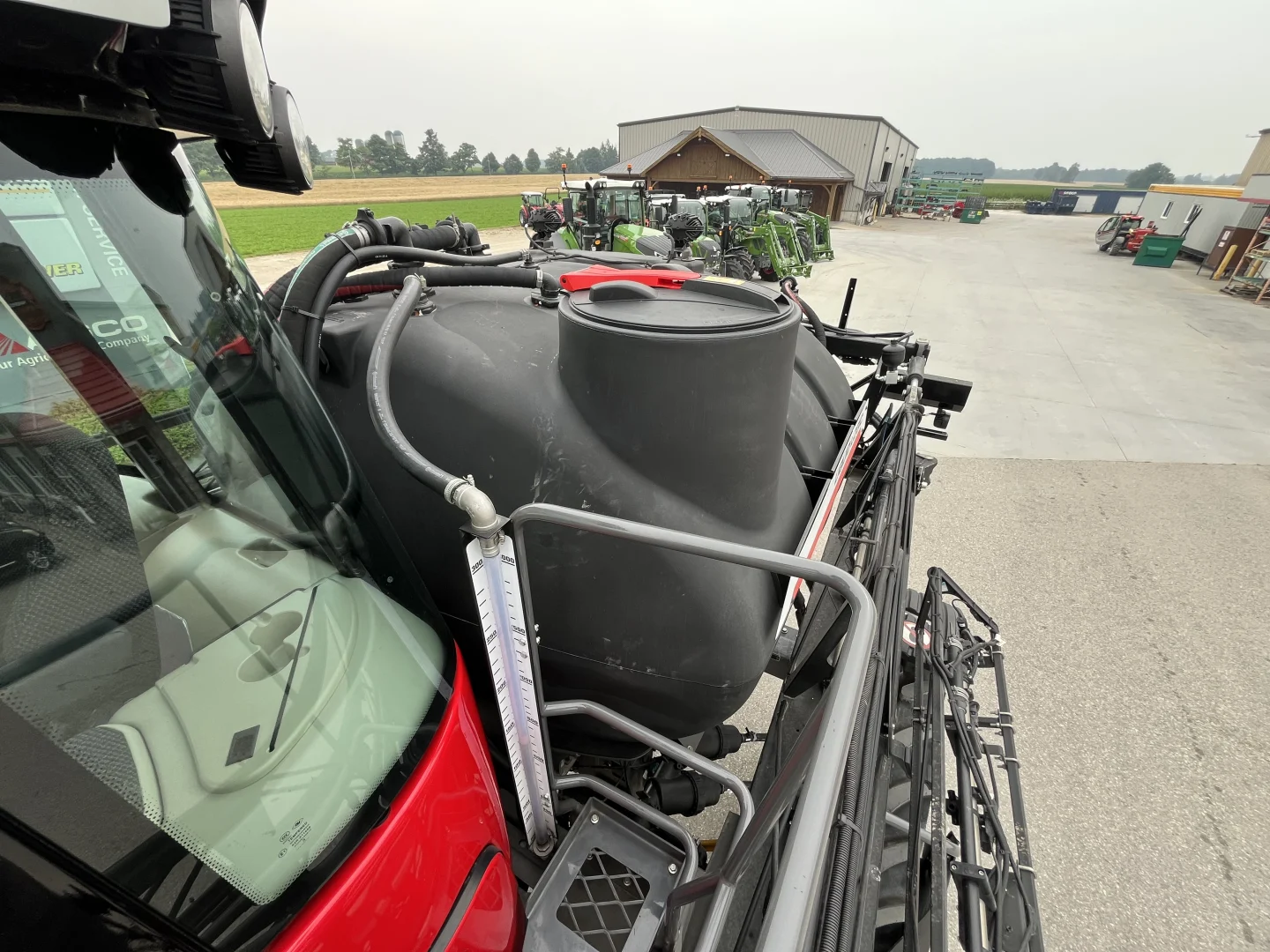

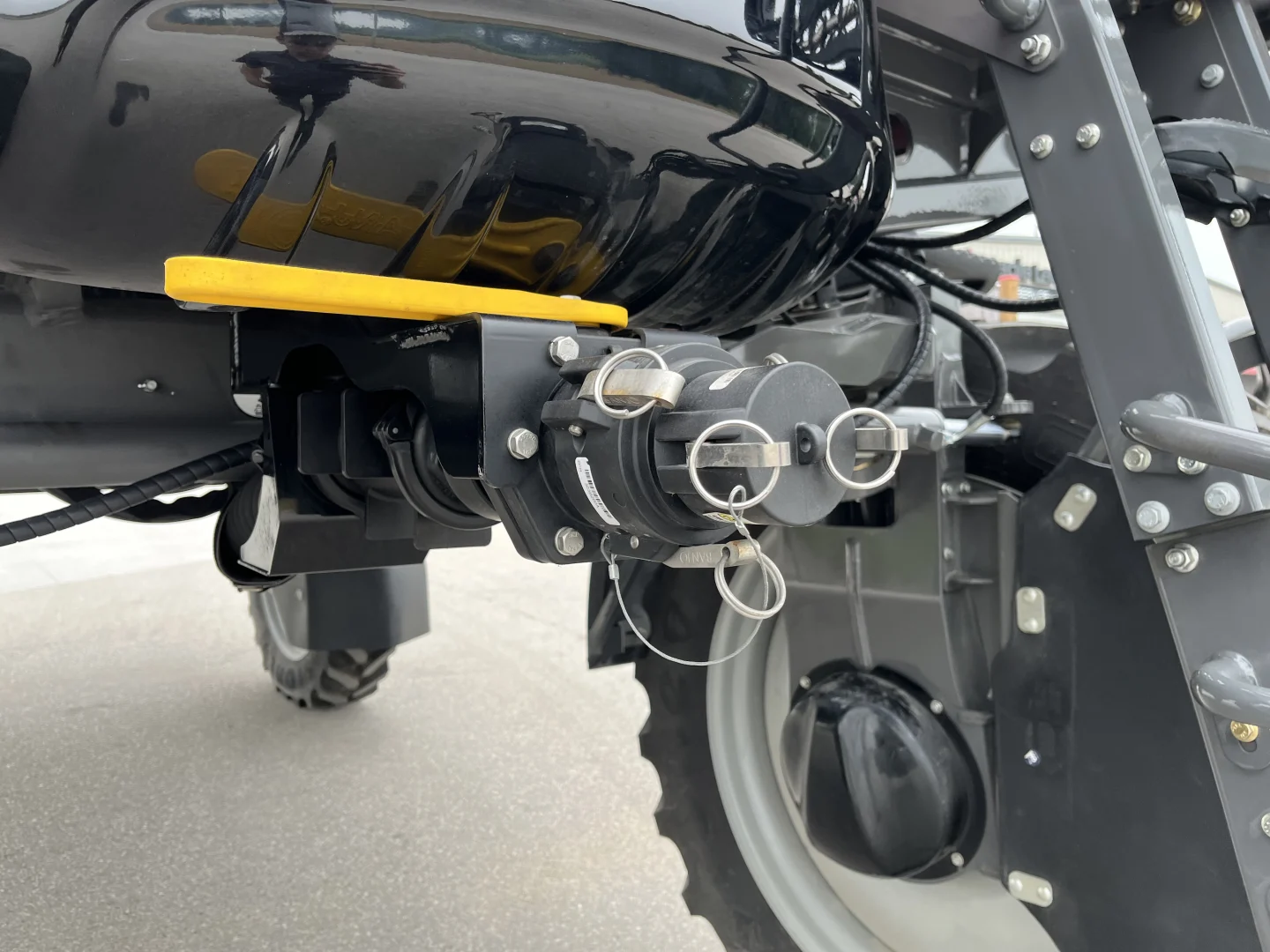

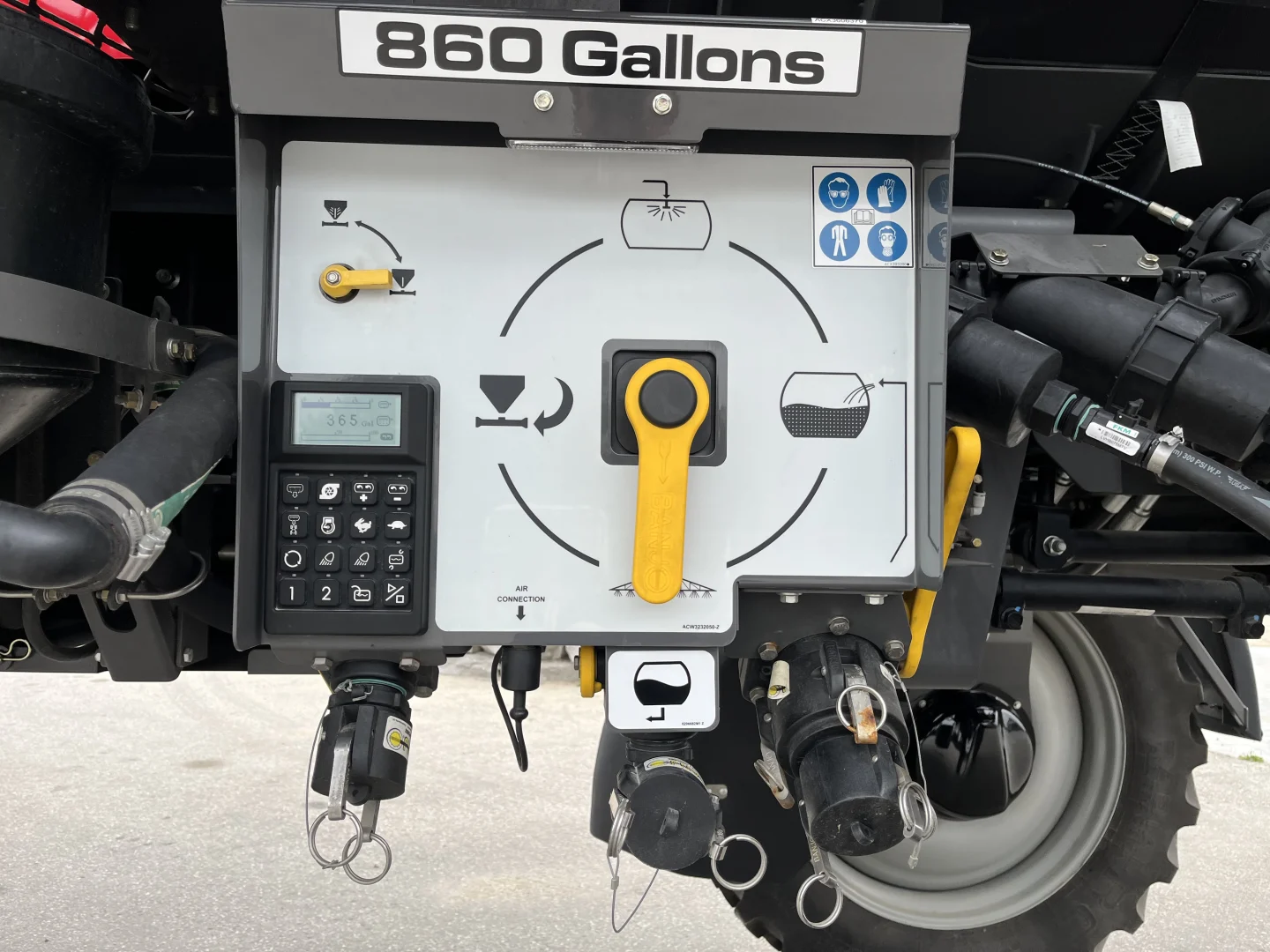

860 gallon poly tank, 100′ boom, Liquid Logic System with recirculation and recovery, OptiStop nozzle control, 20″ spacing, 5-way nozzle bodies, End Row Nozzles, OptiHeight boom control, chemical eductor, front reload, 380/90R46 tires.
Categories Self Propelled
Unit Number 23842W
Condition New
Year 2025

Specifications


Engine
Engine Power175.24kW (235hp)
Rated Engine Speed1,900r/min
MakeAGPWR 7.4L LFTN-D5
Displacement1.95gal. (7.40L)
Number of Cylinders6
Fuel TypeDiesel
Fuel InjectionDirect Injection
CoolingLiquid Cooled
Fuel Tank Capacity364.91L (96.40gal.)

Transmission
Maximum Road Speed43.45km/h (27mph)
TypeHydrostatic
Ranges2
DriveAWD

Additional Drivetrain

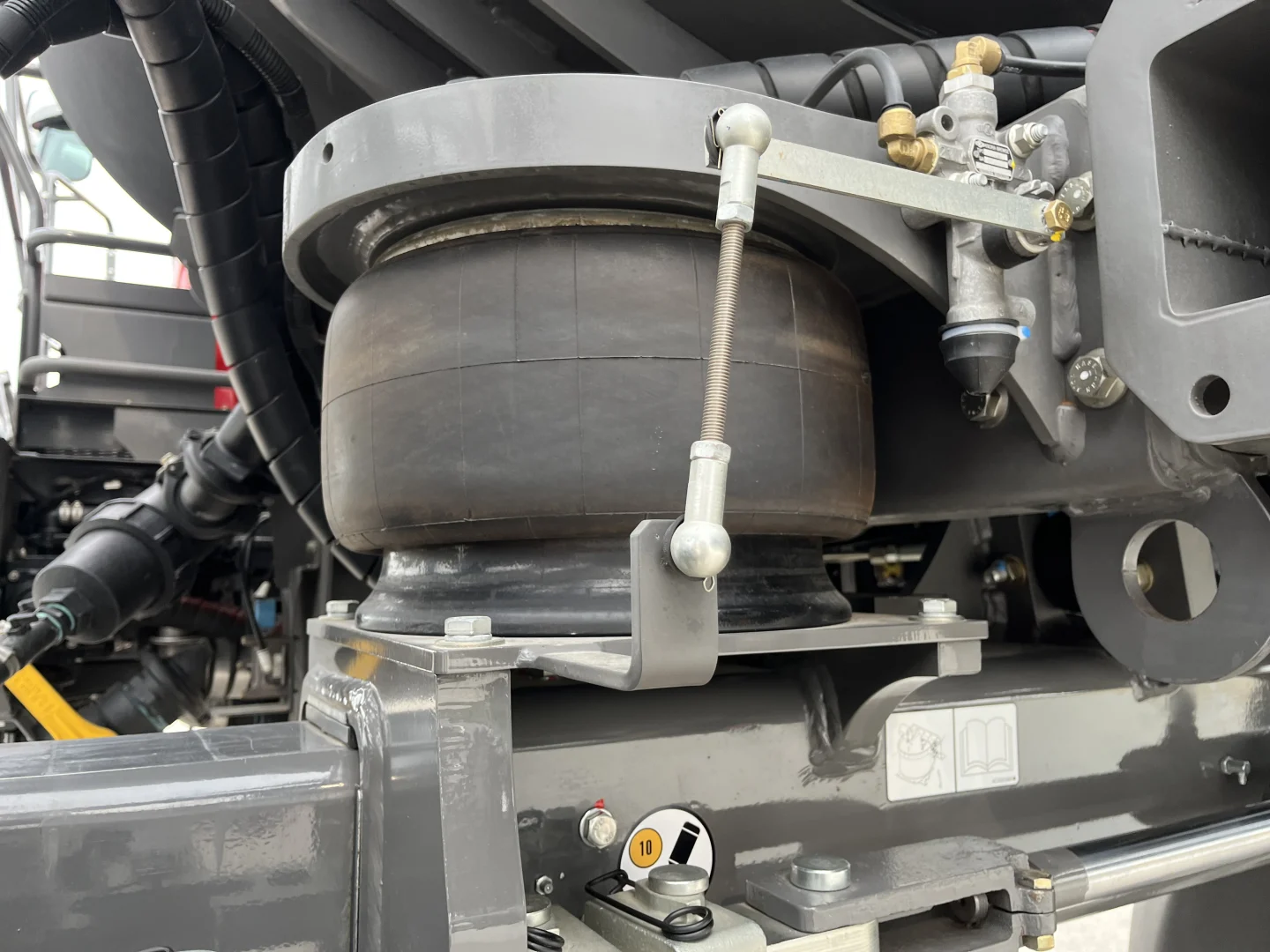

SuspensionFront Axle, Rear Axle
Steering Modefront wheel steer

Hydraulics
System Capacity199.87L (52.80gal.)

Capacity
Water Tank3,255.44L (860gal.)

Application Boom
Sections36
Nozzle Spacing50.80cm (1' 8")
Maximum Working Width30.48m (100')
Boom HeightAutomatic
Nozzle Bodies5-Way
PlumbingStainless

Technology

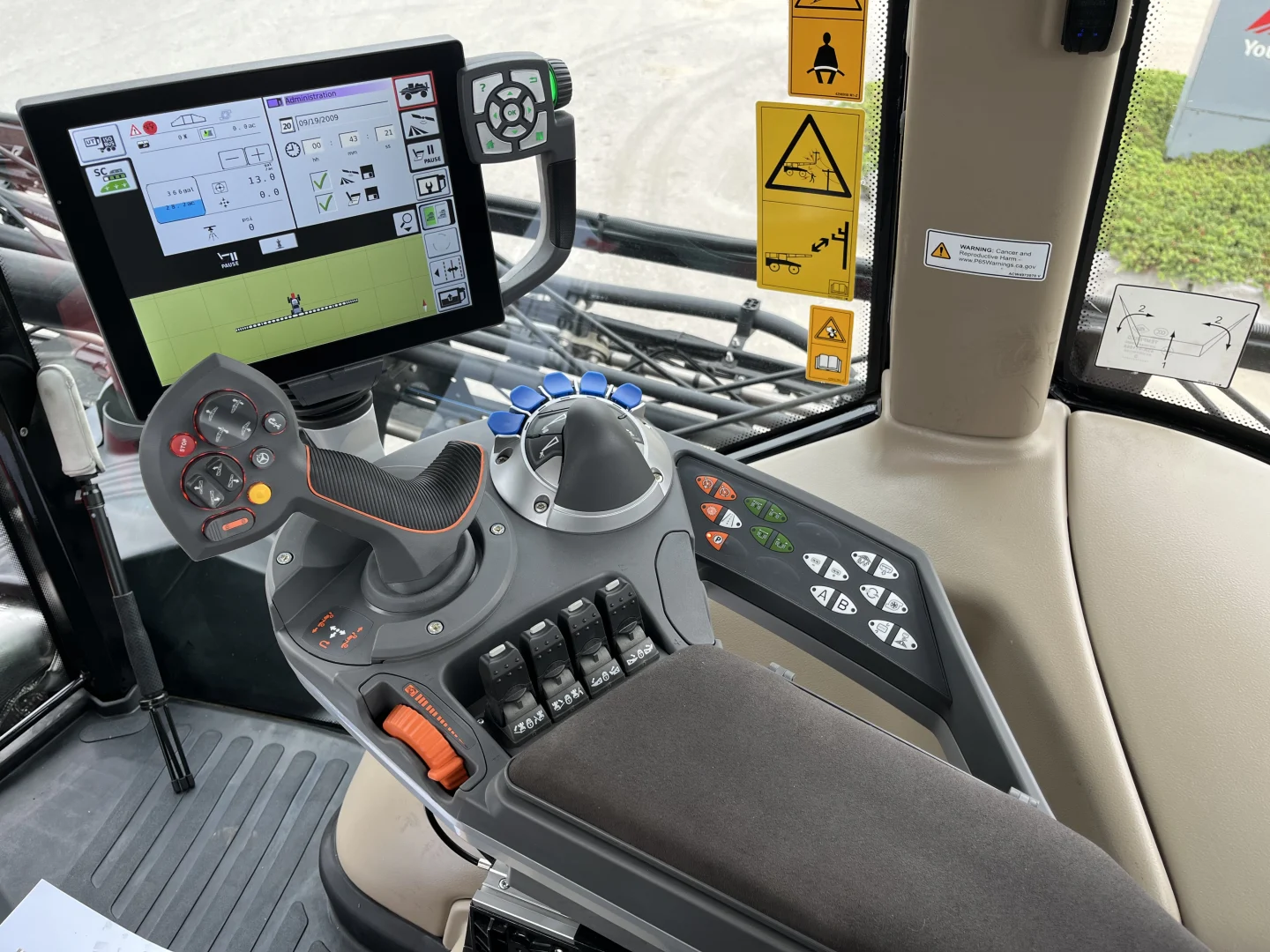

Display10.4" Varioterminal
Section ControlSectionControl

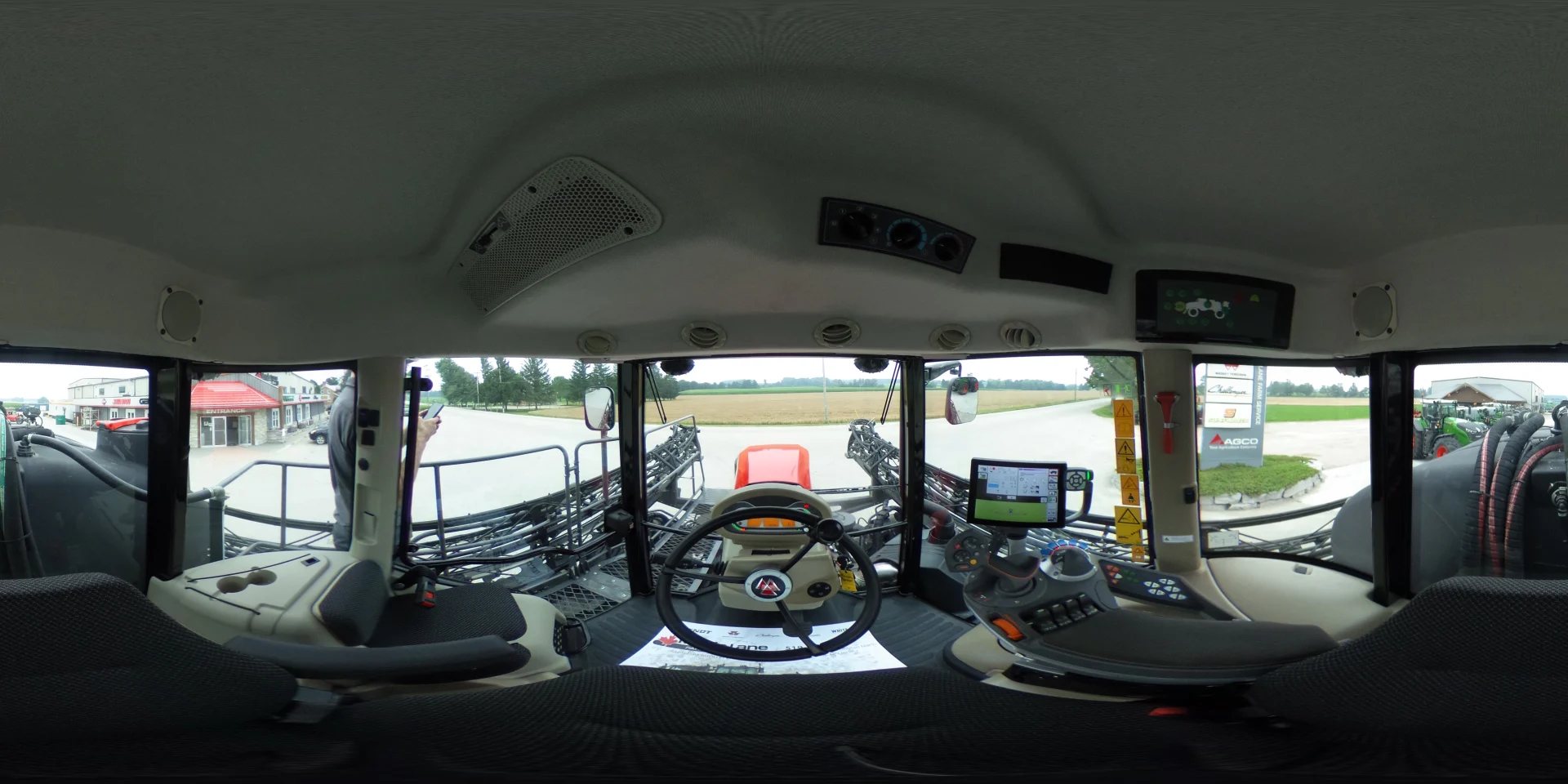

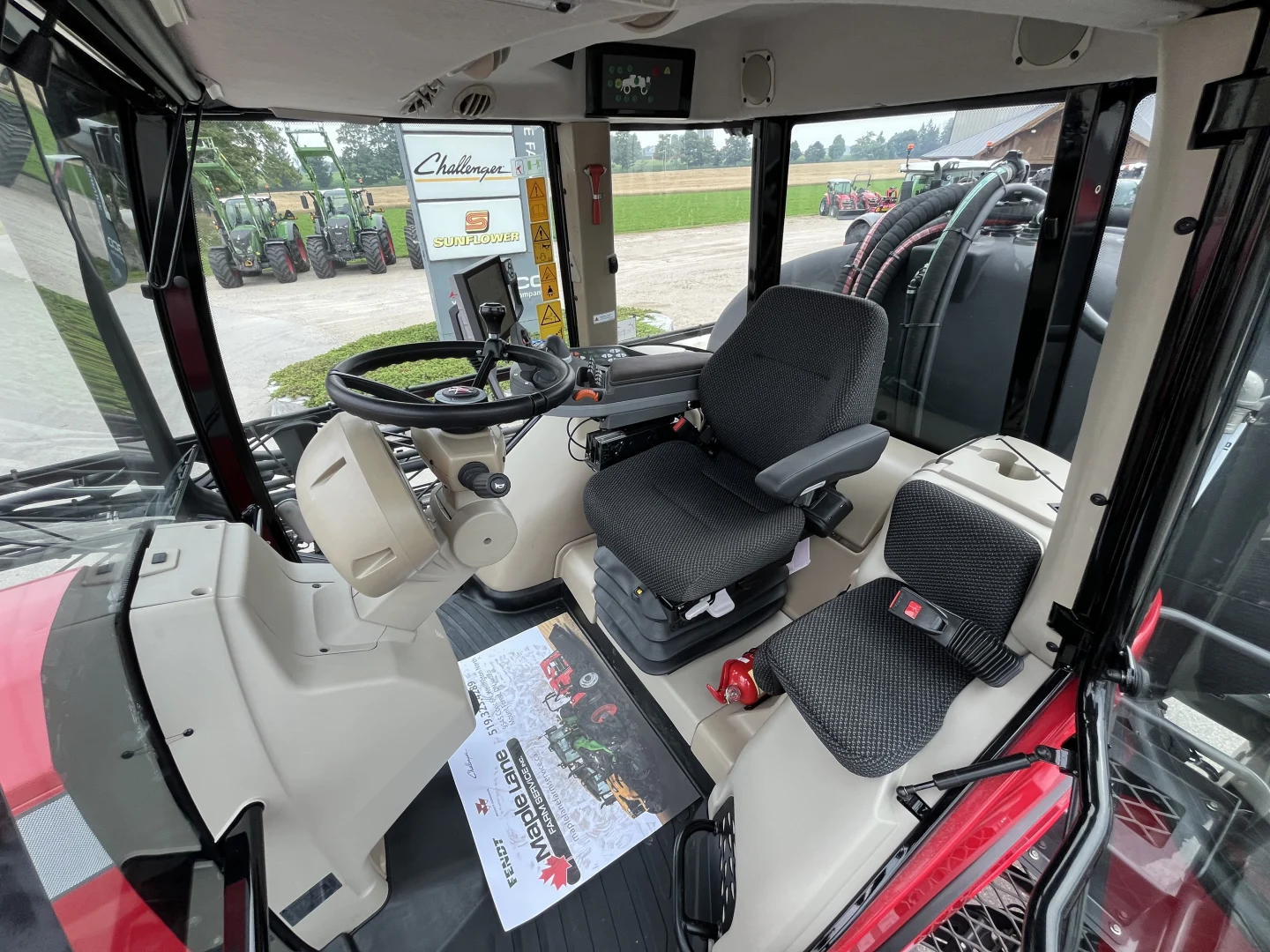

Operator Station
ConfigurationCab
Operator SeatMF Air Adjustable (AE027)
MaterialCloth
Safety Arrest2pt Belt
ArmrestPivot, Height Adjustable
BackrestRecline
HeadrestExtend
SuspensionAir (built in compressor)
RotationSegments

Wheels
FrontFRSTO 380/90R46
Size380/90R46
Tread PatternR1 (Ag)
Section Width39.88cm (1' 3-11/16")
Overall Diameter186.18cm (6' 1-5/16")
Static Loaded Radius85.60cm (2' 9-11/16")
Rolling Circumference558.80cm (18' 4")
Weight189.60kg (418lb.)
RearFRSTO 380/90R46
Size380/90R46
Tread PatternR1 (Ag)
Section Width39.88cm (1' 3-11/16")
Overall Diameter186.18cm (6' 1-5/16")
Static Loaded Radius85.60cm (2' 9-11/16")
Rolling Circumference558.80cm (18' 4")
Weight189.60kg (418lb.)
Track Width AdjustmentHydraulic
Minimum Front Track Width279.40cm (9' 2")
Maximum Front Track Width330.20cm (10' 10")

Dimensions
Length27' 10-5/8" (8,500mm)
Wheelbase14' 5-1/4" (4,400mm)
Width10' 6" (3,200mm)
Height13' 1-1/2" (4,000mm)
Minimum Ground Clearance149.86cm (4' 11")
Turning Radius9.78m (32' 1")
Weight22,751.71lb. (10,320kg)
Gauge Wheels5
