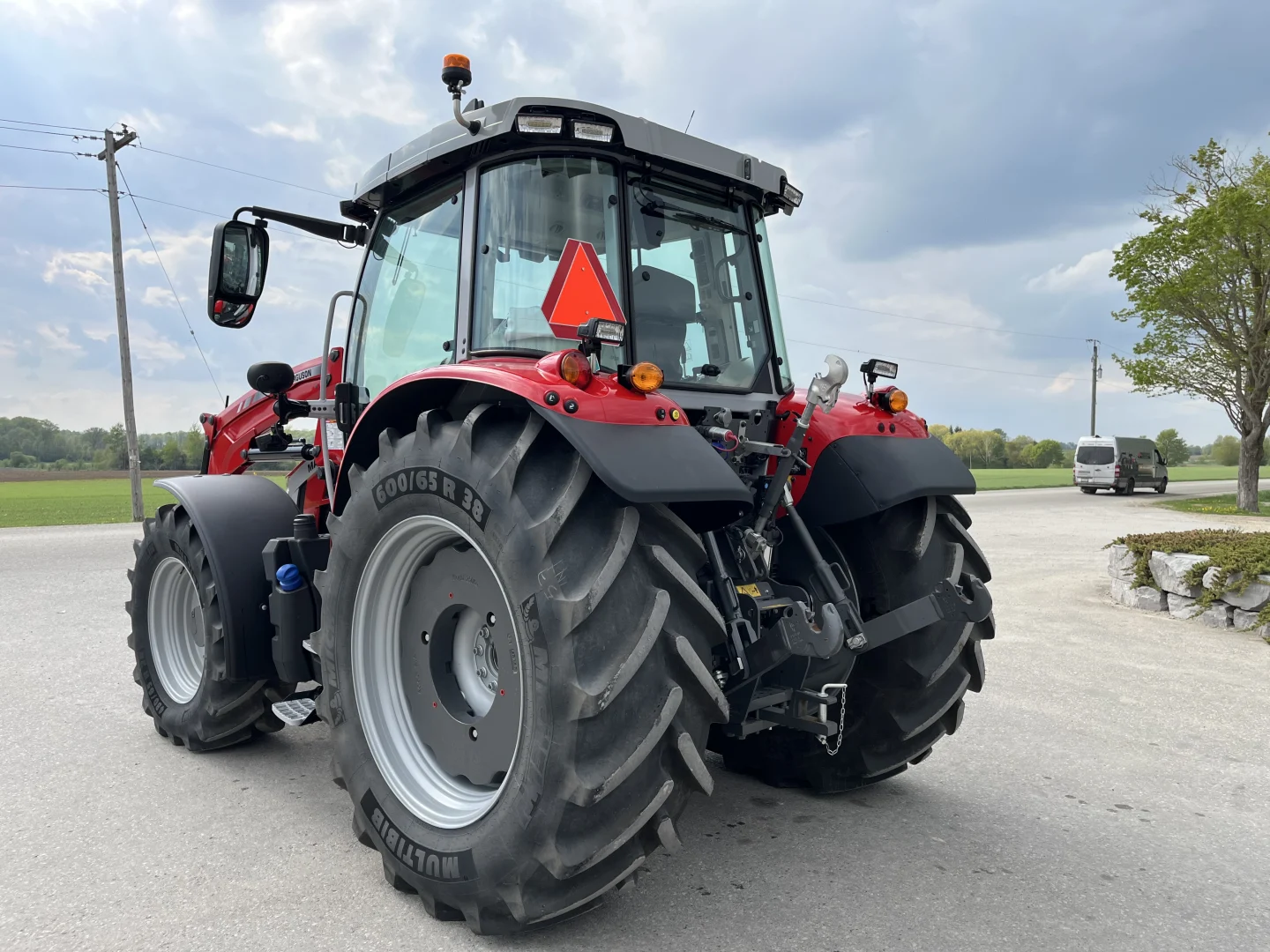

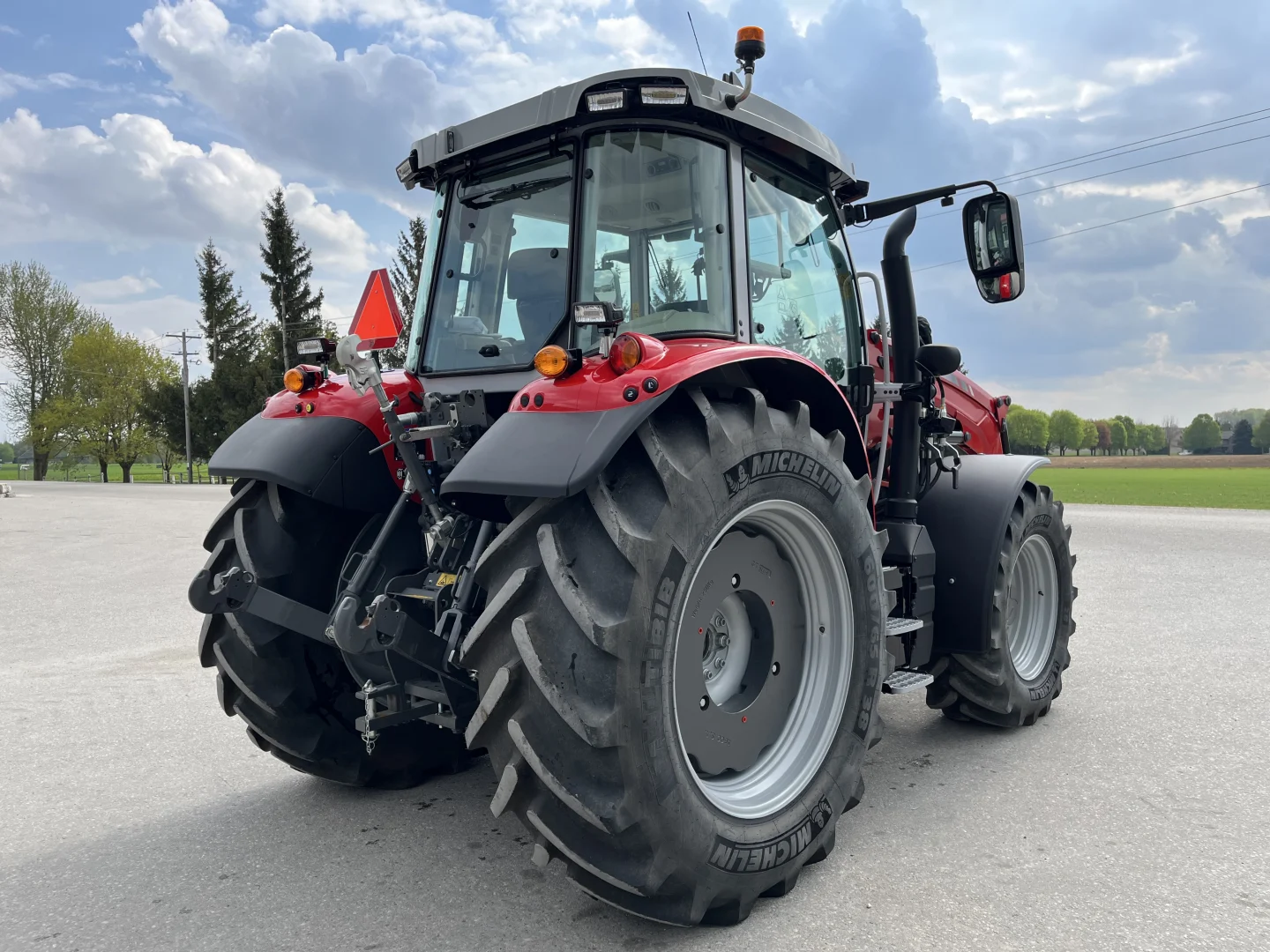

New 2024 Massey Ferguson 5S.145
| Description | |
|---|---|

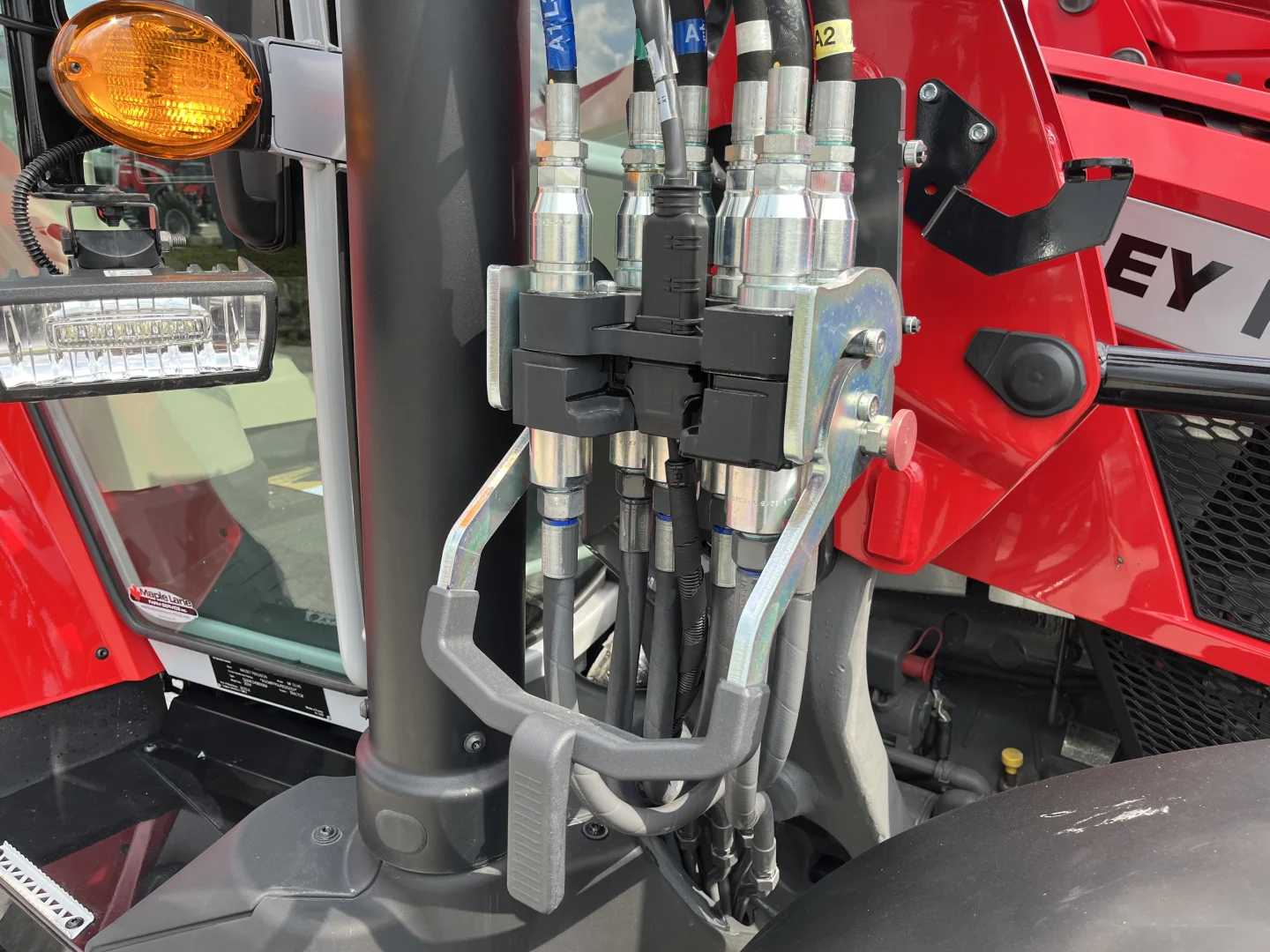

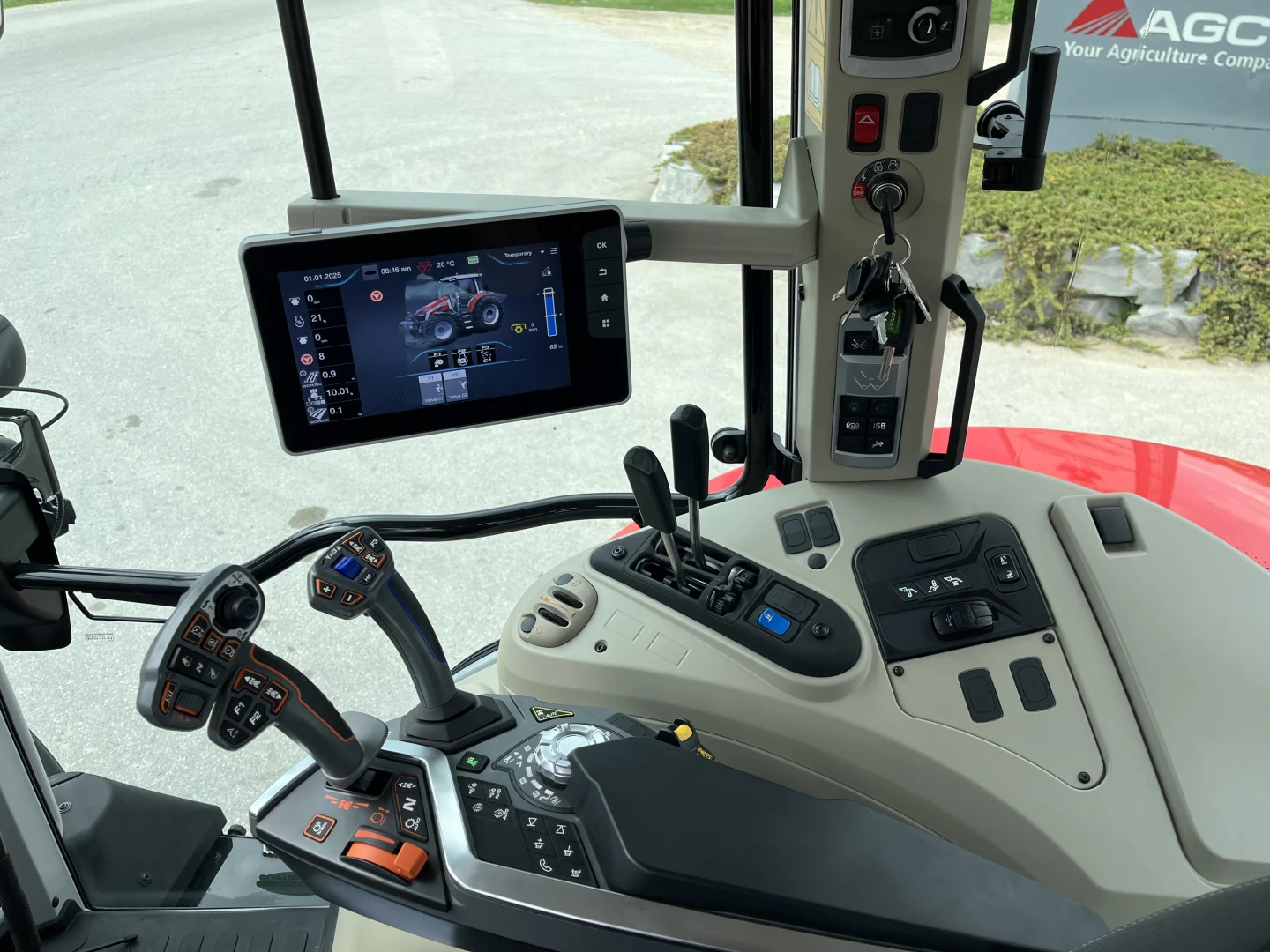

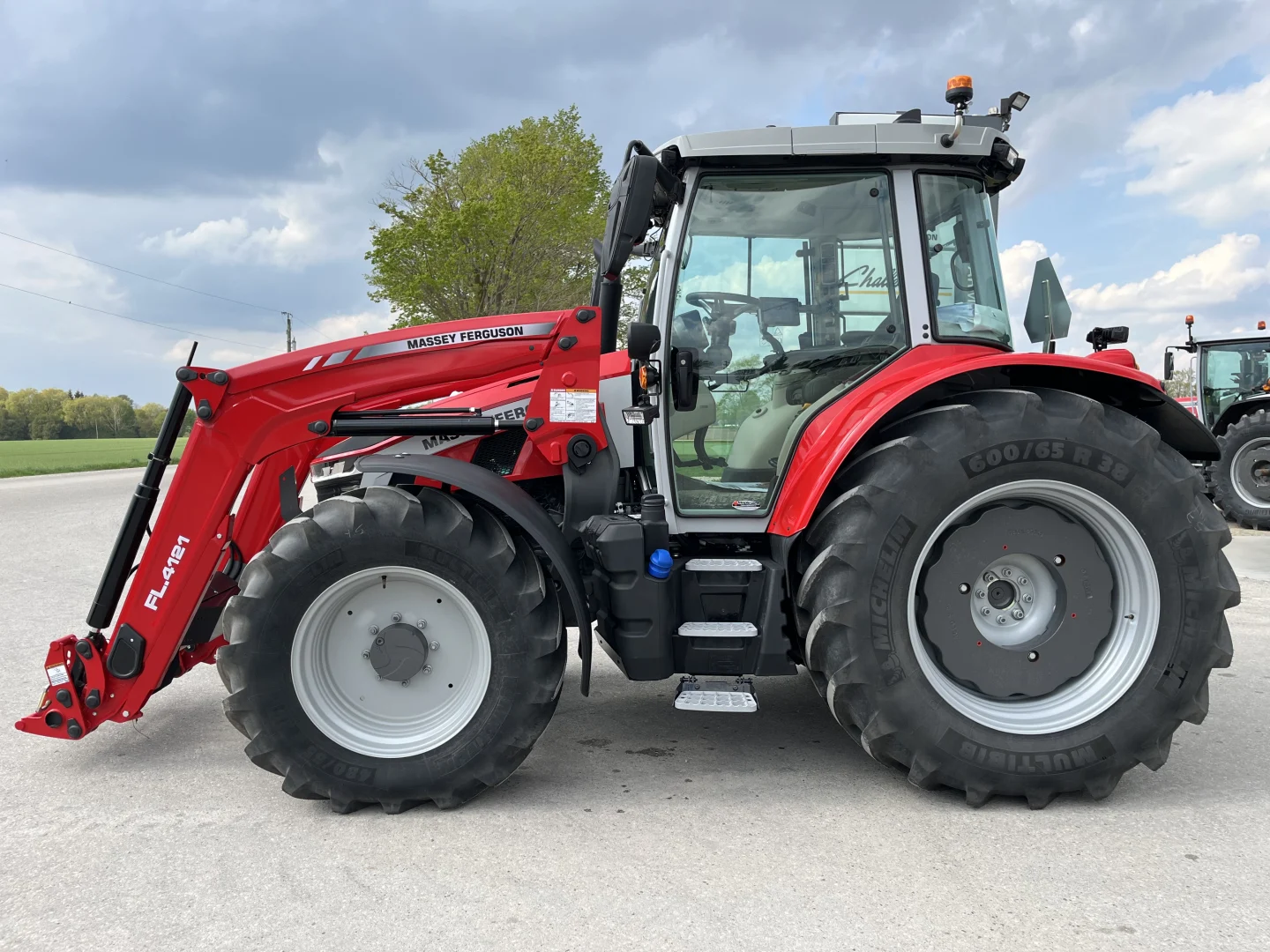

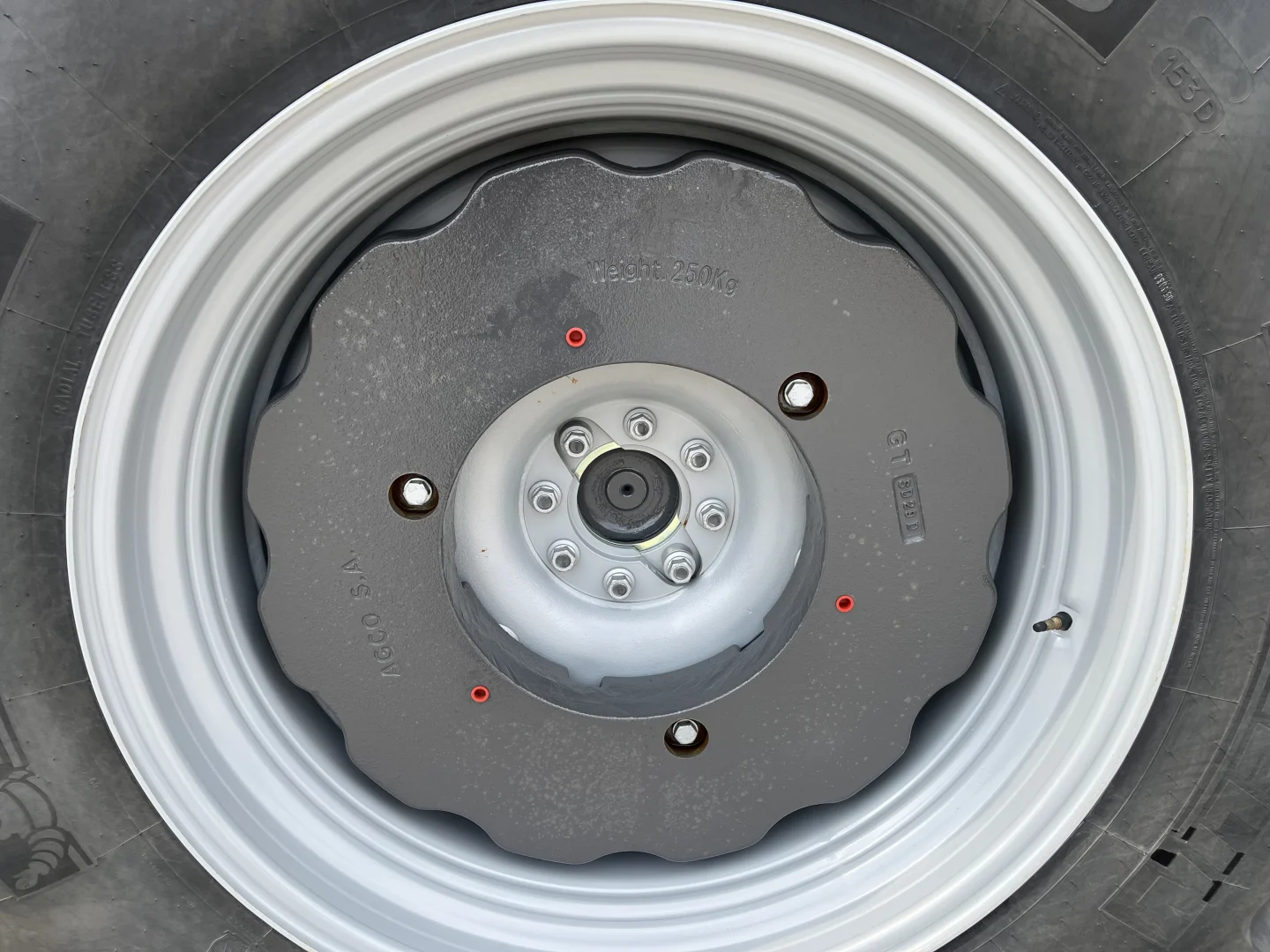

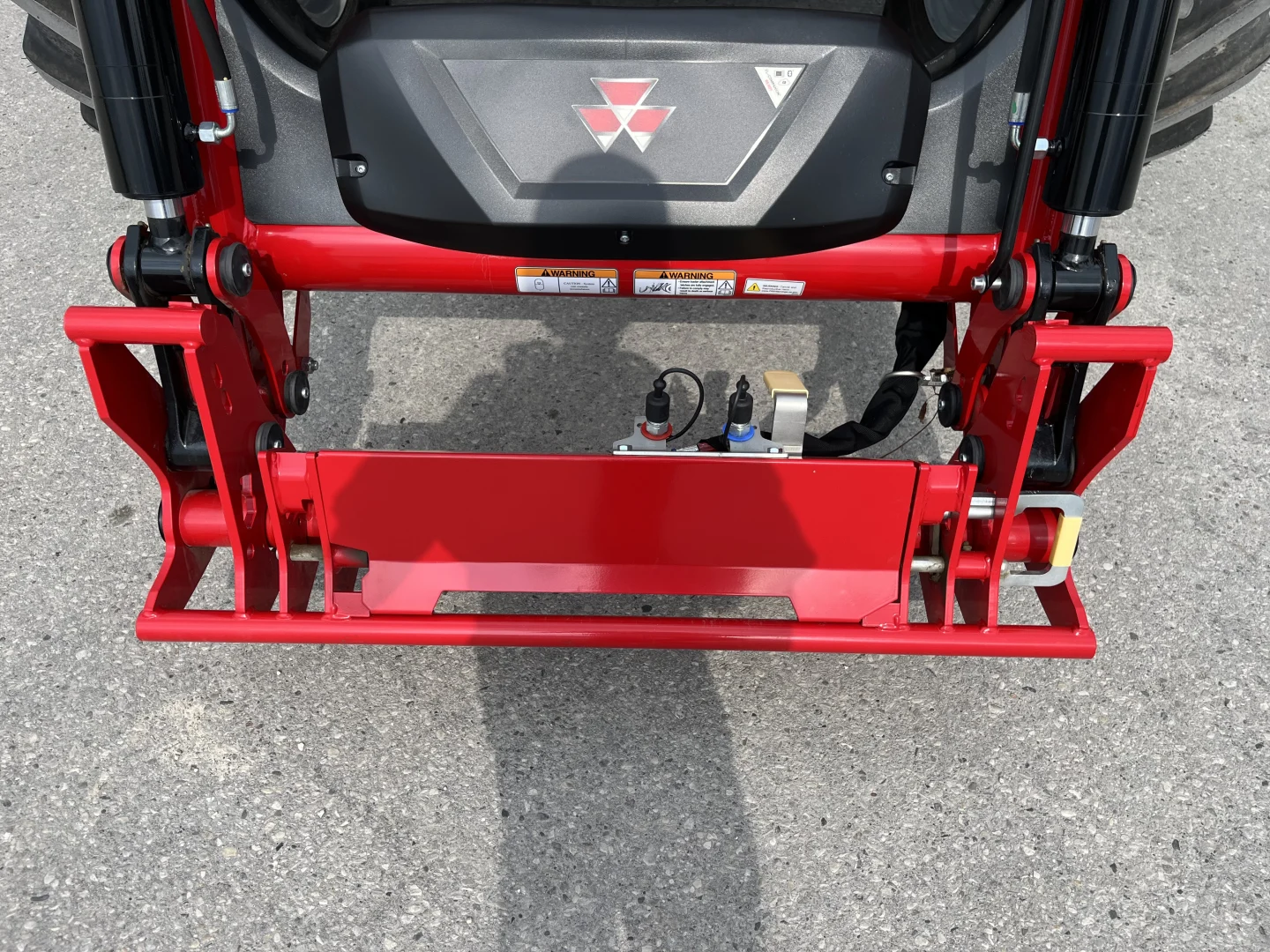

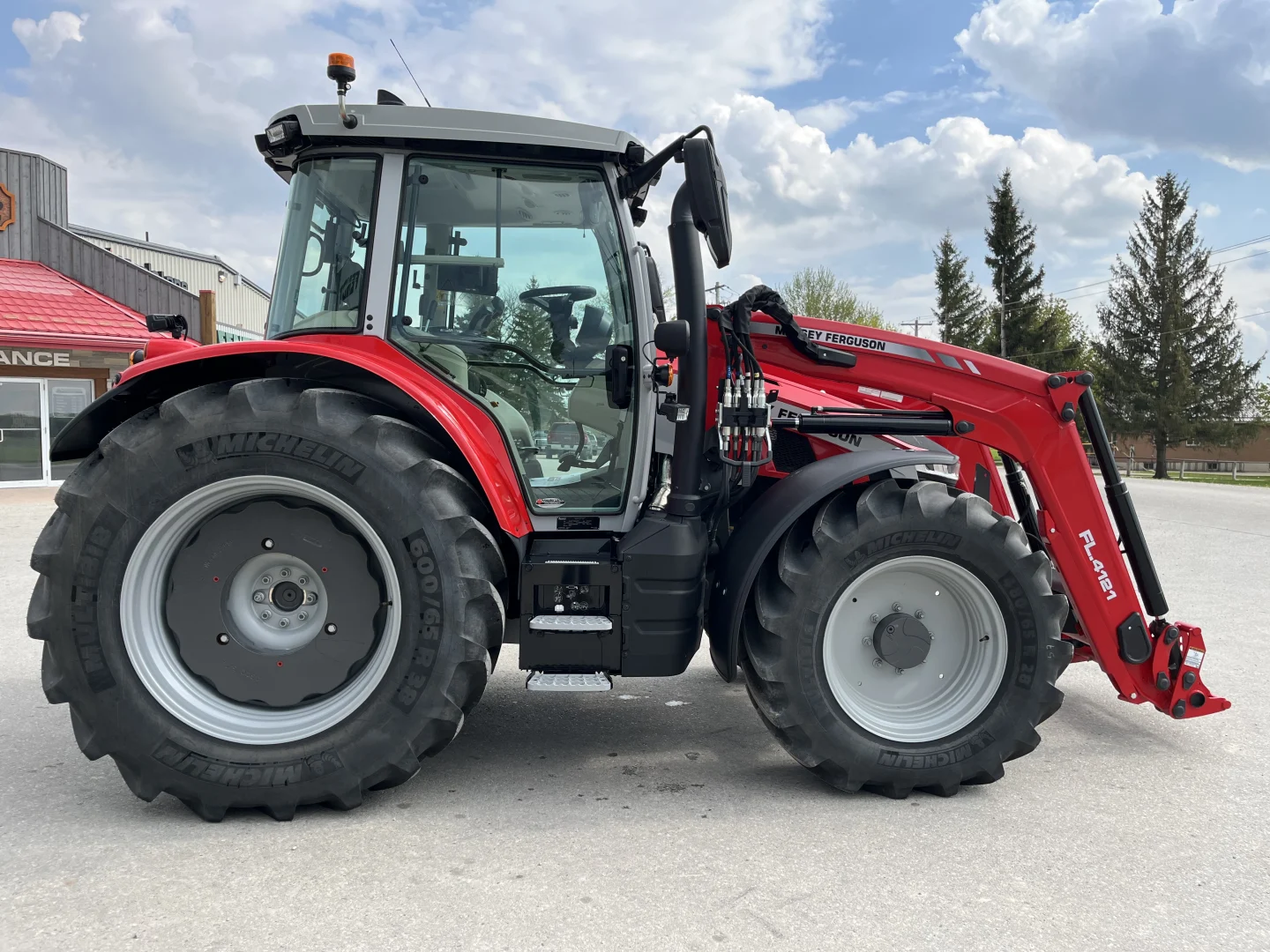

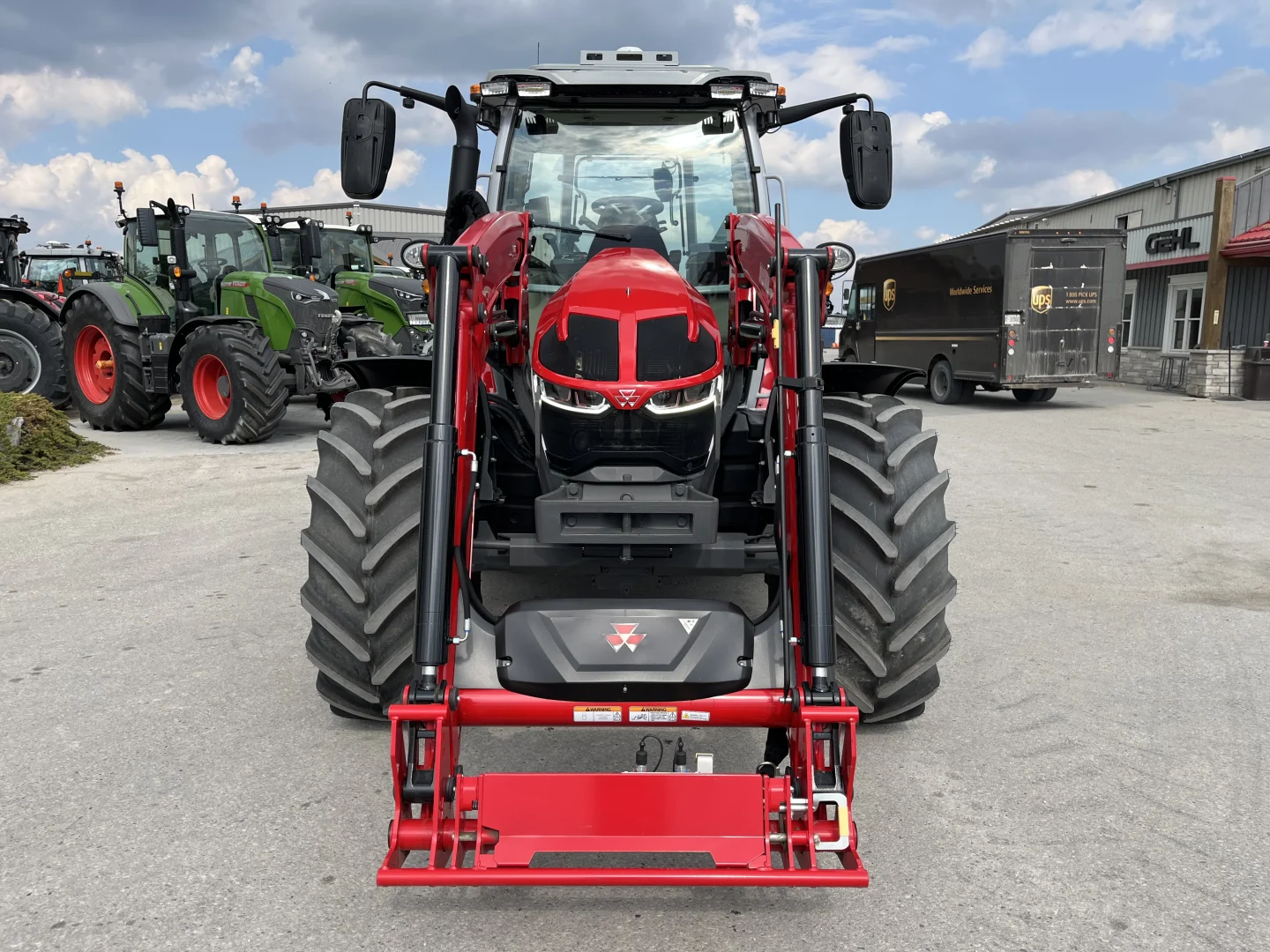

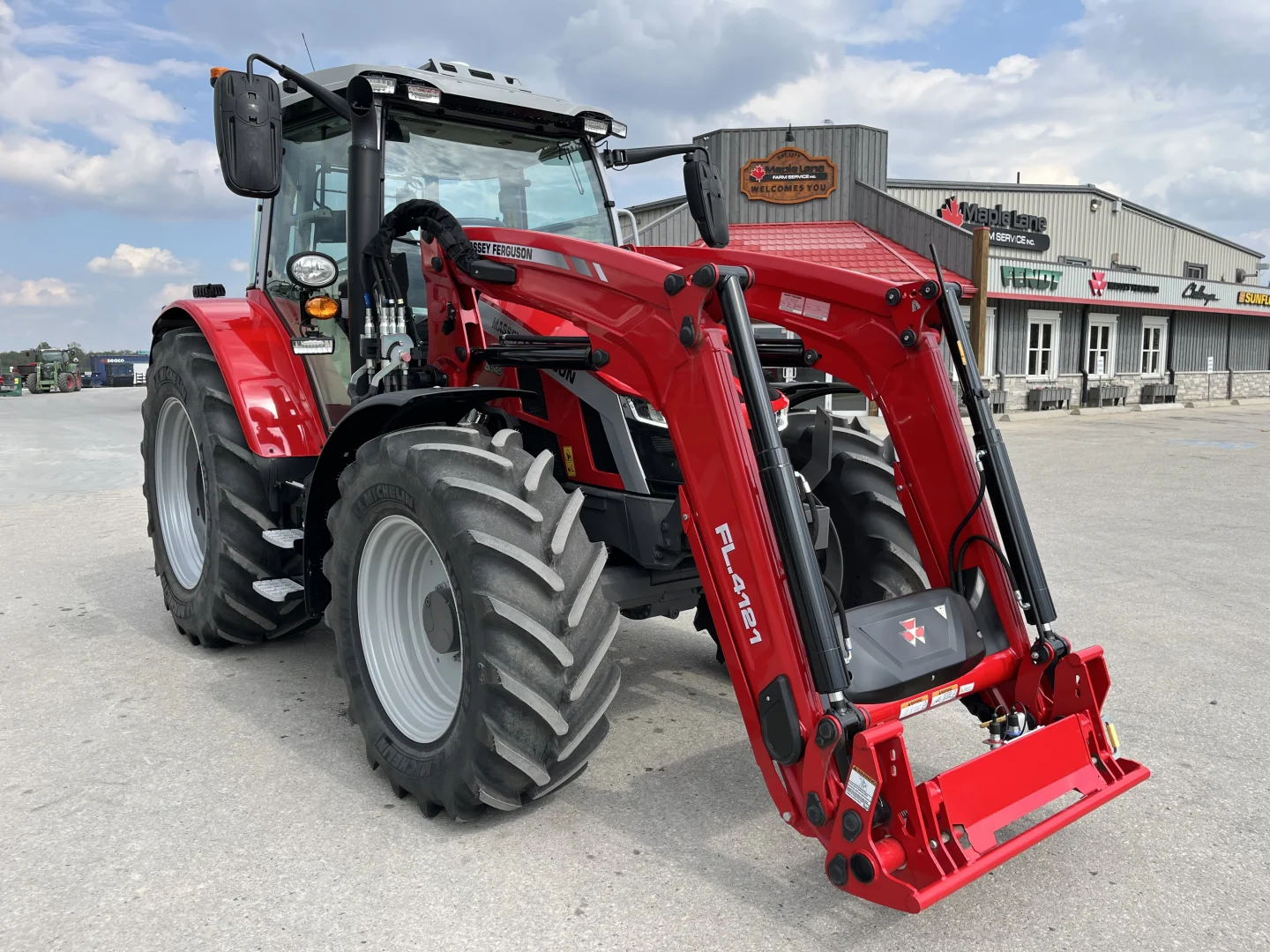

| New MY 2024, 40KPH Dyna-6 transmission, 4 rear remotes, power beyond, Superluxe Air Adaptive seat, multifunctional joystick, LED light package, mechanical cab suspension, 250KG wheel weights, FL4121 loader with 3rd function, 480/65R28 front, 600/65R38 rear. Only available in Southern Ontario. | |
| Categories | Mid Range |
| Unit Number | 18217B |
| Condition | New |
| Usage | 30 hours |
| Year | 2024 |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 85.76kW (115hp) 115hp 85.76kW | |
| PTO Power | 69.35kW (93hp) 93hp 69.35kW | |
| Rated Engine Speed | 2000r/min | |
| Make | AGPWR 44 MBTN-D5 | |
| Displacement | 268.5cu. in. (4.4L) 4.4L 268.5cu. in. | |
| Number of Cylinders | 4 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |

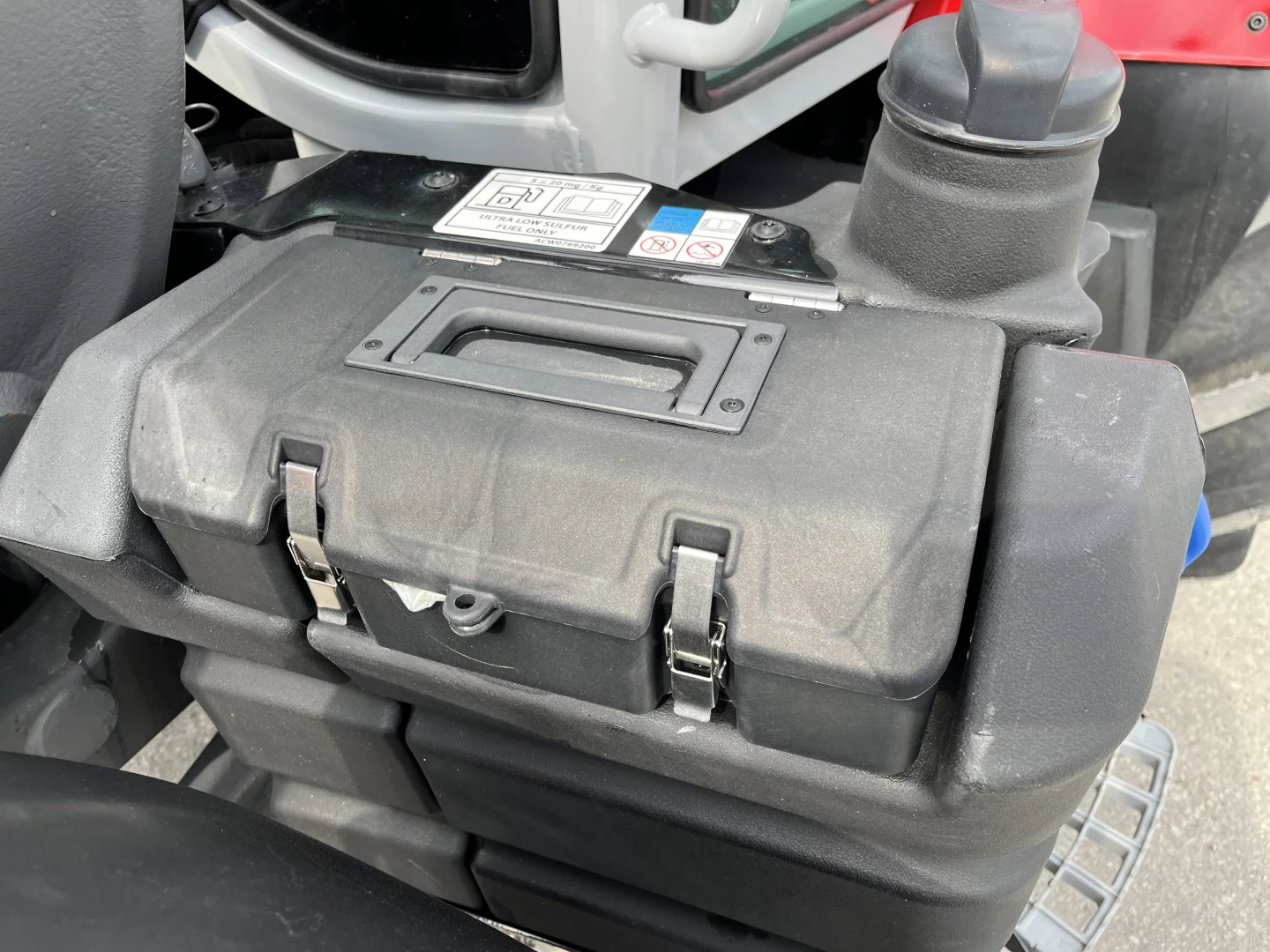

| Fuel Tank Capacity | 199.87L (52.8gal.) 52.8gal. 199.87L | |

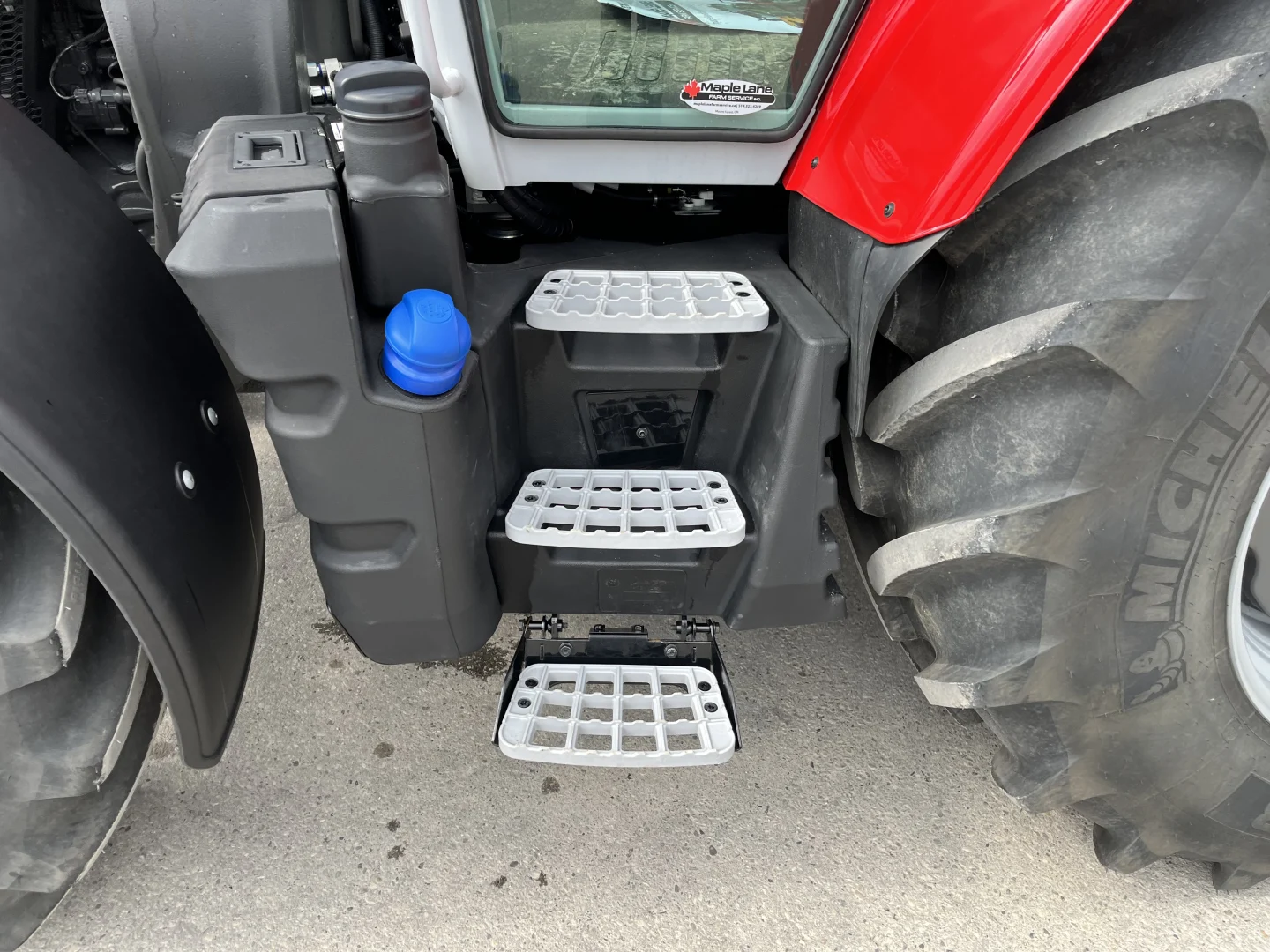

| DEF Tank Capacity | 20.06L (5.3gal.) 5.3gal. 20.06L | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 24.85mph (40km/h) 40km/h 24.85mph | |
| Name | Dyna-6 | |
| Type | Power Shift | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Hydraulics | ||
|---|---|---|
| Pump | MF 110 LPM | |
| Pump Type | Load Sensing | |
| Hydraulic Flow | 29.06GPM (110L/min) 110L/min 29.06GPM | |
| System | Closed Center | |
| System Capacity | 16.11gal. (61L) 61L 16.11gal. | |
| Maximum Available Hydraulic Oil | 5.55gal. (21L) 21L 5.55gal. | |
| Maximum Operating Pressure | 19994.8kPa (2900psi) 2900psi 19994.8kPa | |
| Rear Remote Valves | 4 | |
| Steering | Hydraulic Power | |

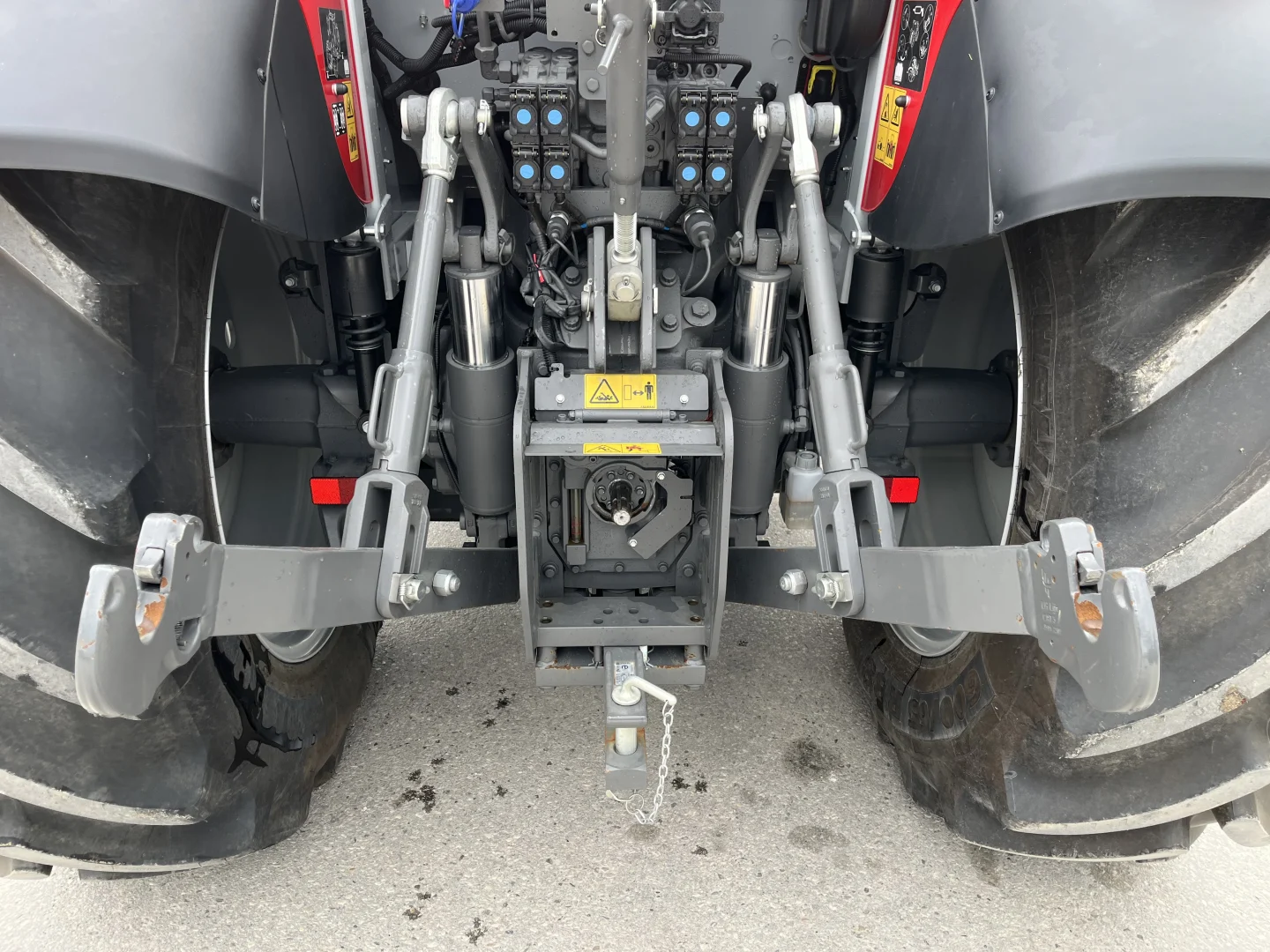

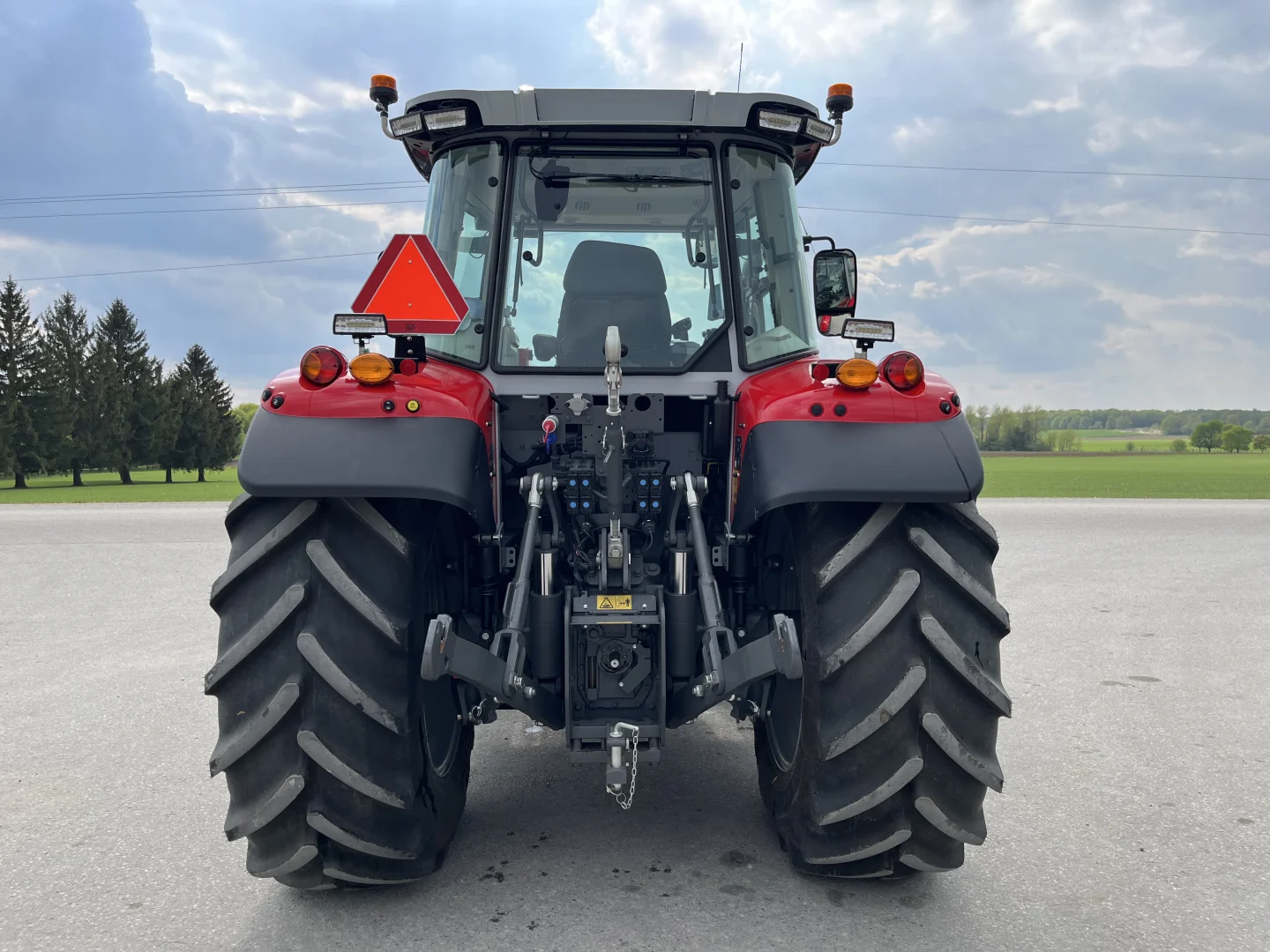

| Hitching | ||
|---|---|---|
| Rear Hitch | MF 5 Series | |
| Hitch Category | Category 3 | |
| Lift Capacity at Pins | 11023.12lb. (5000kg) 5000kg 11023.12lb. | |
| PTO | ||
|---|---|---|
| Rear | 540E, 540, 1000 | |
| Type | Independent | |
| Technology | ||
|---|---|---|

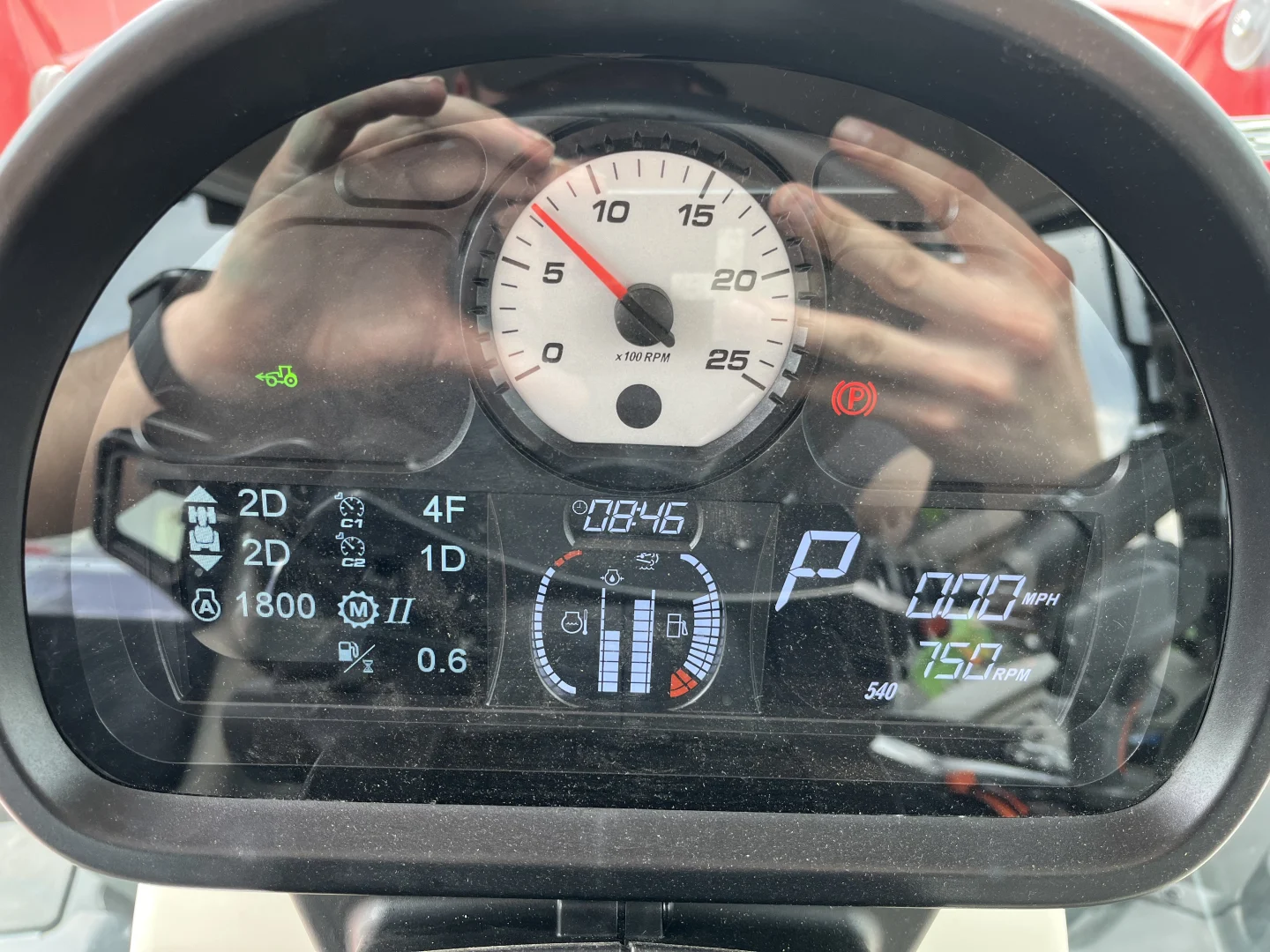

| Display | Datatronic 5 | |
| Entertainment | Bluetooth, Mic, USB | |

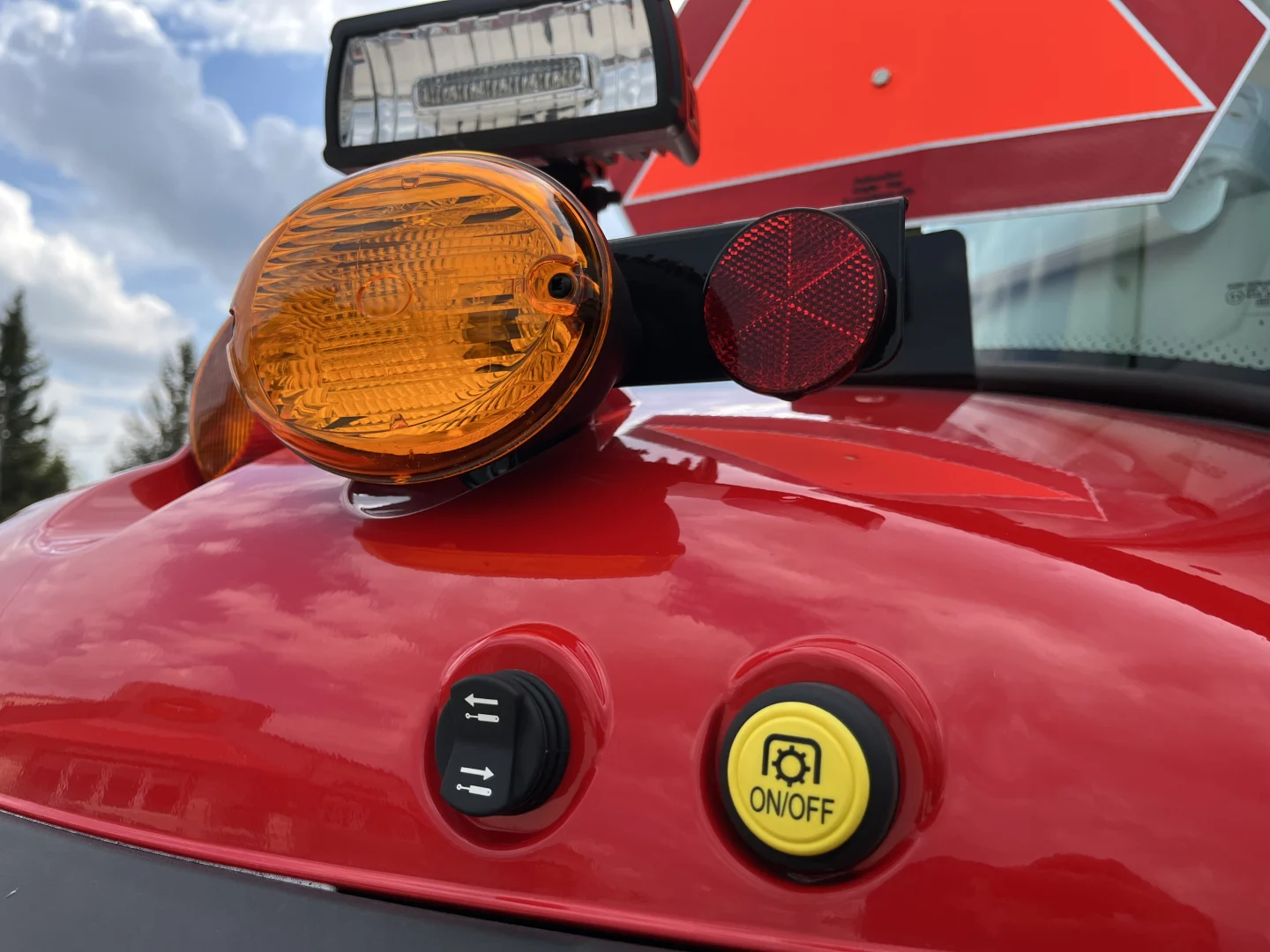

| Electrical | ||
|---|---|---|
| Front Lights | 6 | |
| Rear Lights | 6 | |
| Worklight Type | LED | |
| Alternator | 175A | |
| Battery | 775CCA | |

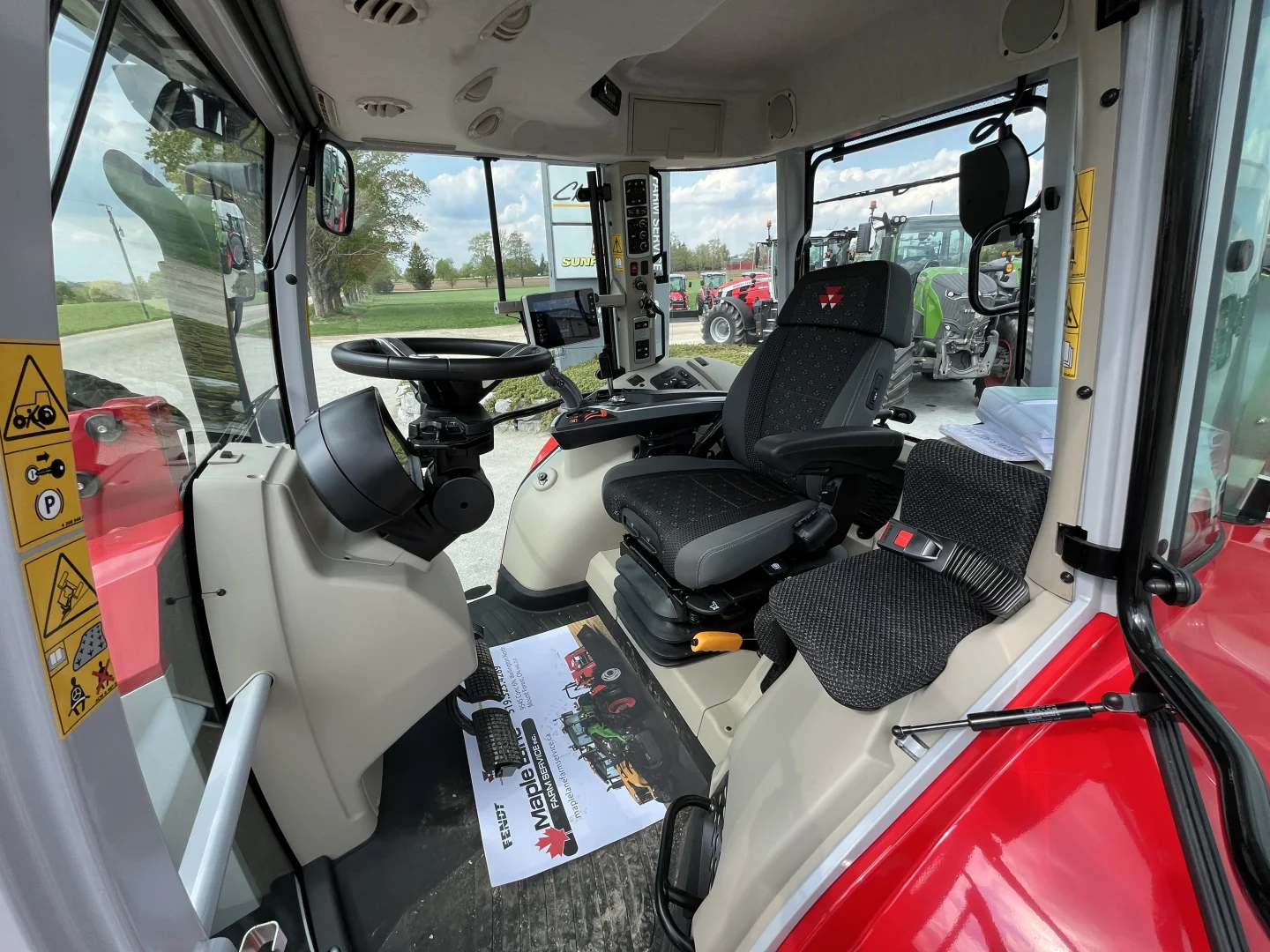

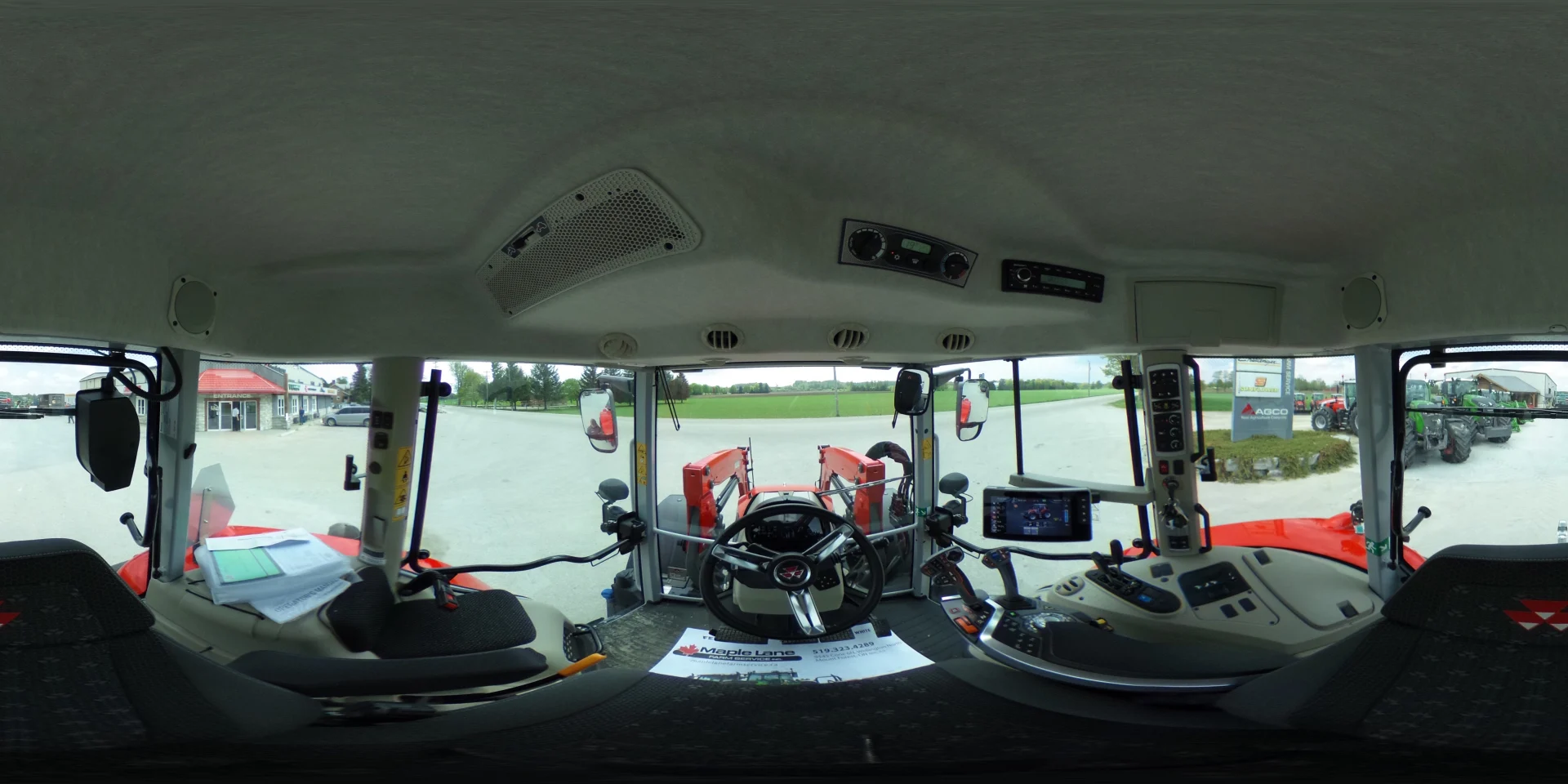

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |

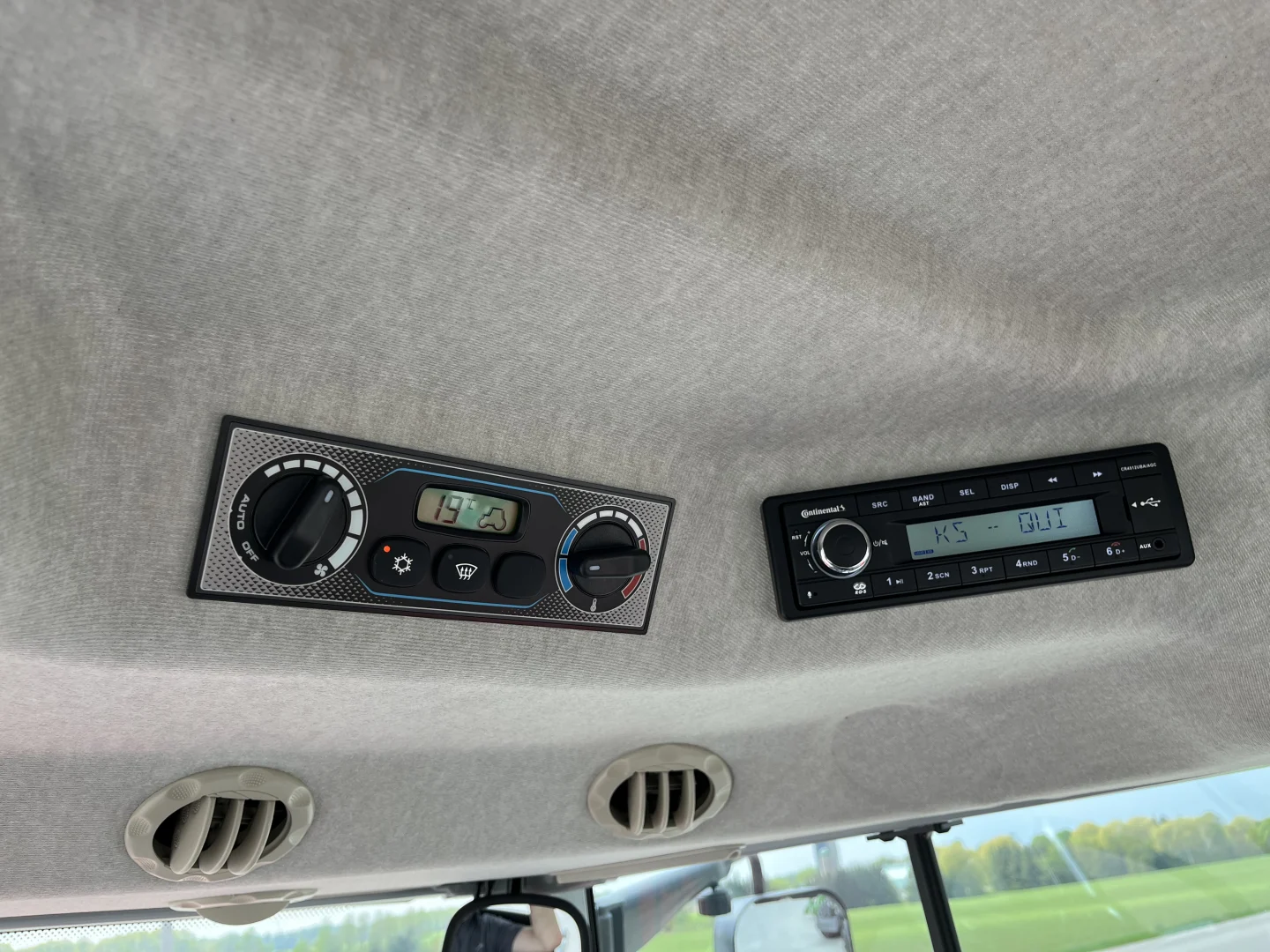

| Climate | Air Conditioning, Heater | |

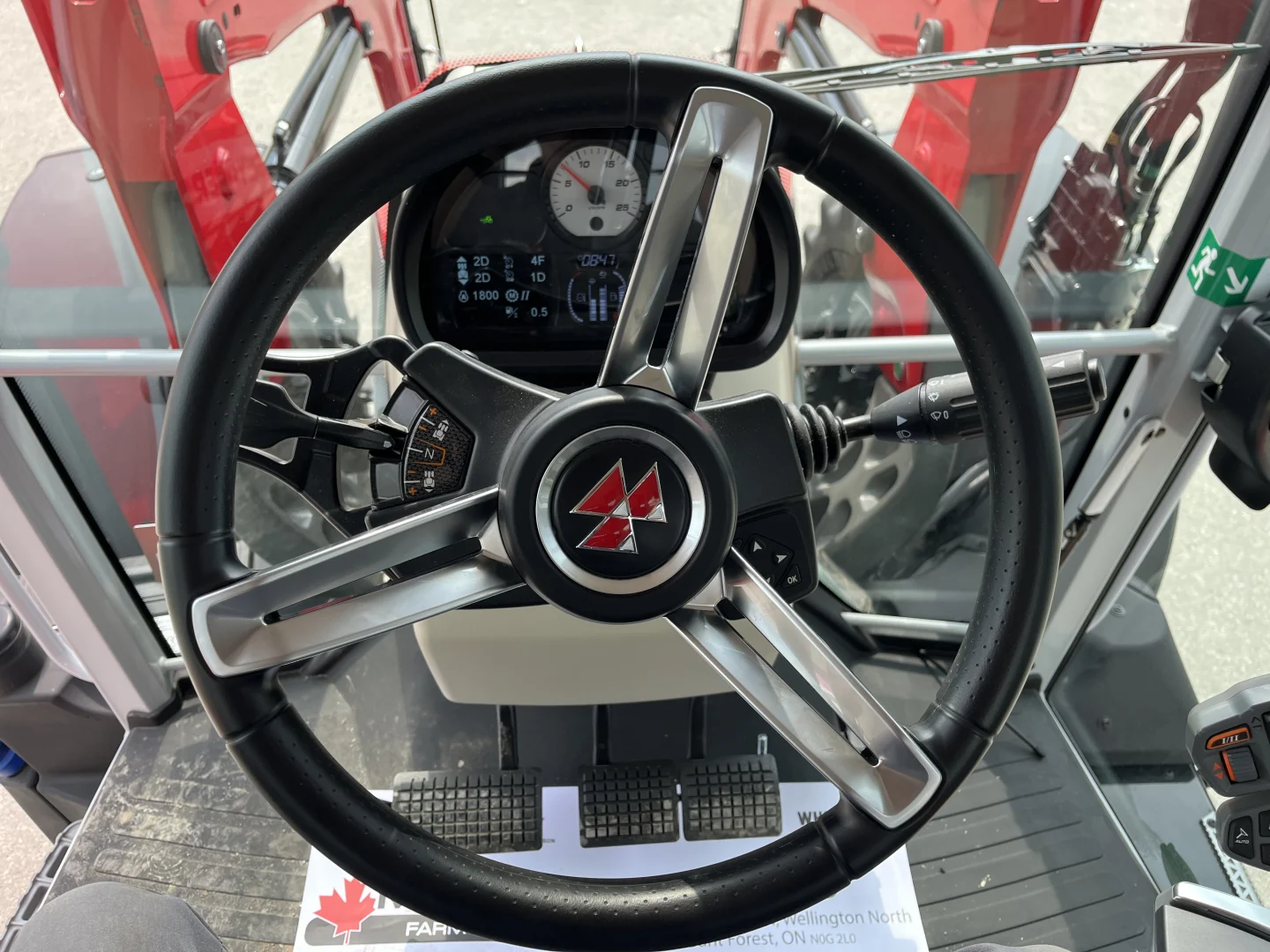

| Steering Column | Telescoping, Tilting | |
| Steering Controls | Steering Wheel | |
| Operator Seat | MF Superluxe Air Adaptive (AE043) | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Height Adjustable, Pivot | |
| Backrest | Adaptive (swivel), Recline | |
| Headrest | Extend | |
| Lumbar Support | Pneumatic | |
| Suspension | Dynamic Dampening, Air (built in compressor) | |
| Rotation | Segments | |
| Comfort | Automatic Height Adjustment, Heat, Automatic Weight Adjustment | |
| Wiper | Front, Rear | |
| Sunshade | Windshield | |
| Spec Level | Deluxe | |
| Wheels | ||
|---|---|---|
| Front | MICHE 480/65R28 Multibib | |
| Size | 480/65R28 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 6-3/4" (476mm) 476mm 1' 6-3/4" | |
| Overall Diameter | 4' 4-11/16" (1339mm) 1339mm 4' 4-11/16" | |
| Static Loaded Radius | 1' 11-7/16" (596mm) 596mm 1' 11-7/16" | |
| Rolling Circumference | 13' 5/16" (3970mm) 3970mm 13' 5/16" | |
| Tread Thickness | 1-3/4" (45mm) 45mm 1-3/4" | |
| Weight | 209.44lb. (95kg) 95kg 209.44lb. | |
| Rear | MICHE 600/65R38 Multibib | |
| Size | 600/65R38 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 11-7/16" (595mm) 595mm 1' 11-7/16" | |
| Overall Diameter | 5' 9-5/8" (1768mm) 1768mm 5' 9-5/8" | |
| Static Loaded Radius | 2' 6-11/16" (779mm) 779mm 2' 6-11/16" | |
| Rolling Circumference | 17' 1-7/8" (5229mm) 5229mm 17' 1-7/8" | |
| Tread Thickness | 2-1/16" (53mm) 53mm 2-1/16" | |
| Weight | 401.24lb. (182kg) 182kg 401.24lb. | |
| Dimensions | ||
|---|---|---|
| Length | 14' 8-5/8" (4486mm) 4486mm 14' 8-5/8" | |
| Wheelbase | 8' 4-3/8" (2550mm) 2550mm 8' 4-3/8" | |
| Width | 8' 7/8" (2460mm) 2460mm 8' 7/8" | |
| Height | 9' 3-7/16" (2830mm) 2830mm 9' 3-7/16" | |
| Minimum Ground Clearance | 1' 1/2" (317mm) 317mm 1' 1/2" | |
| Turning Radius | 3987.8mm (13' 1") 13' 1" 3987.8mm | |
| Weight | 11331.76lb. (5140kg) 5140kg 11331.76lb. | |
