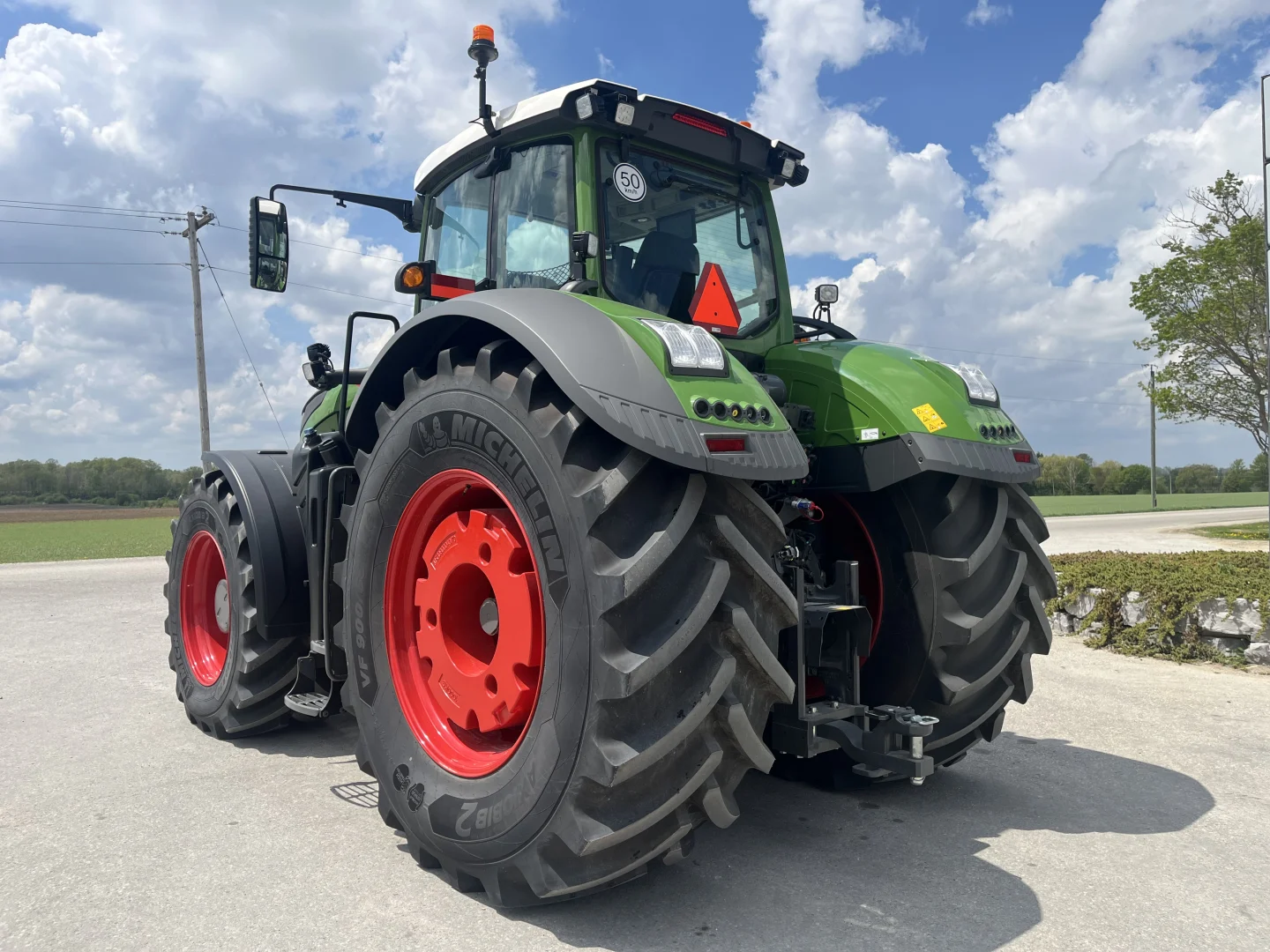

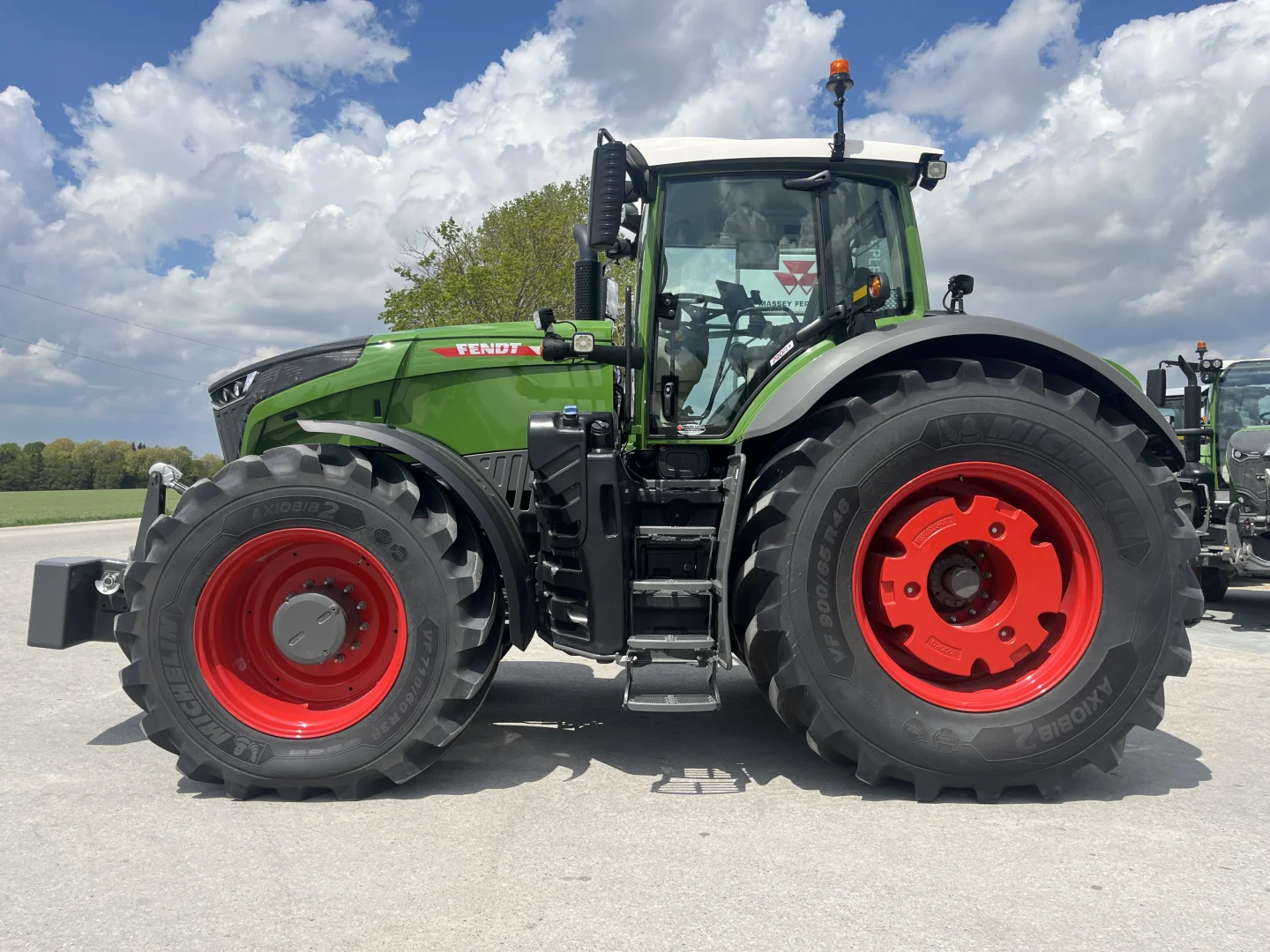

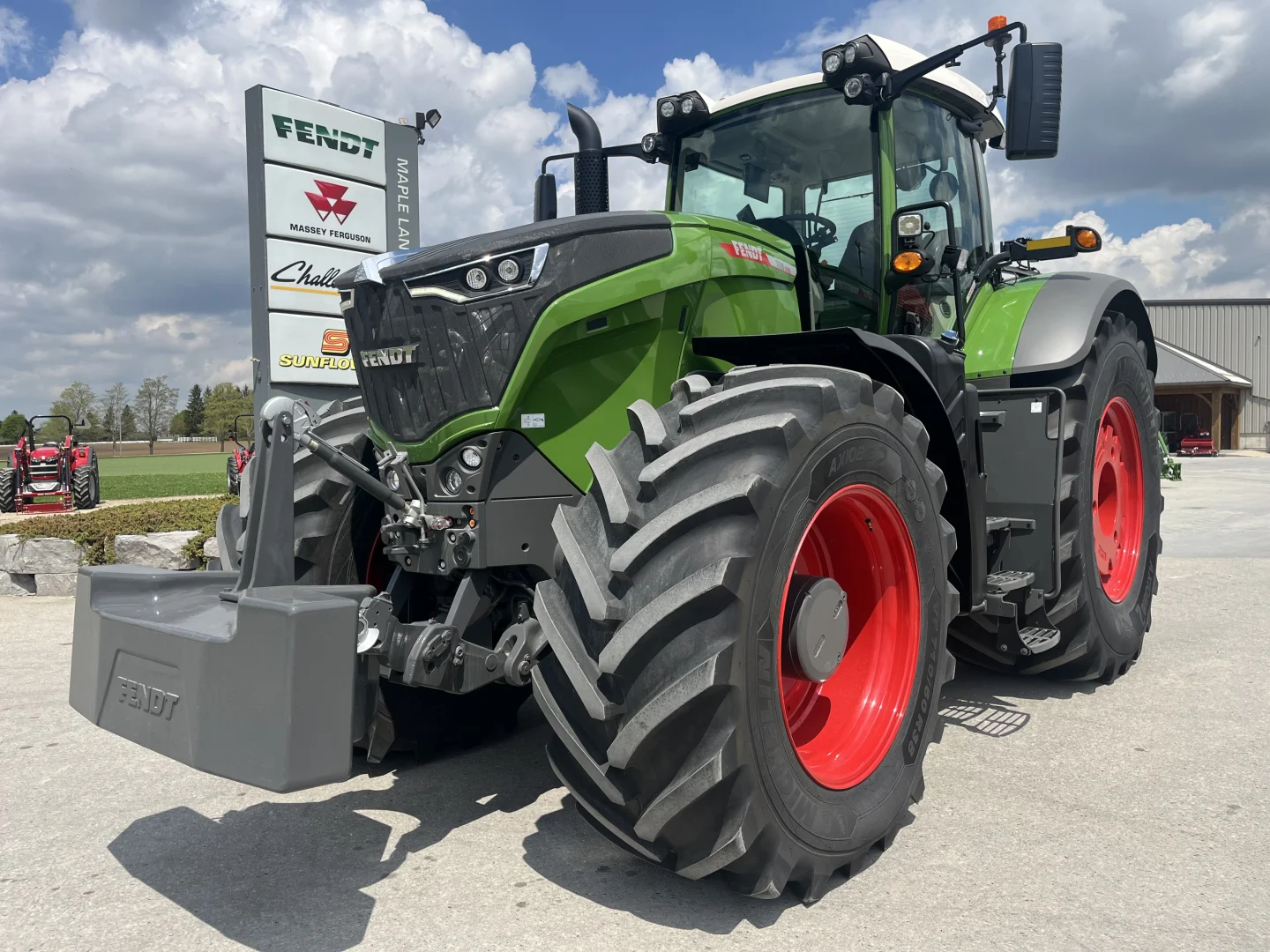

New 2024 Fendt 1038 Gen3
| Description | |
|---|---|

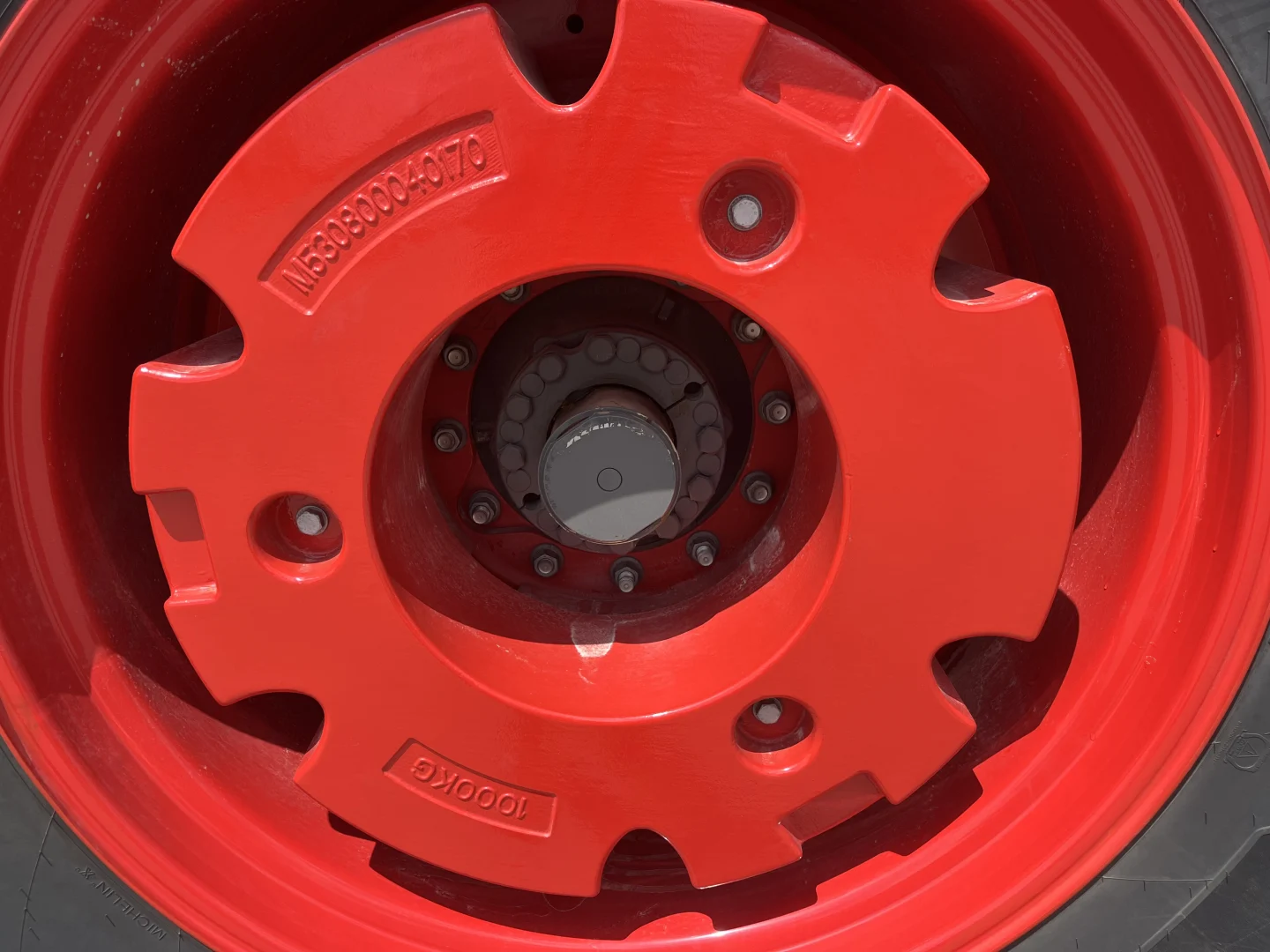

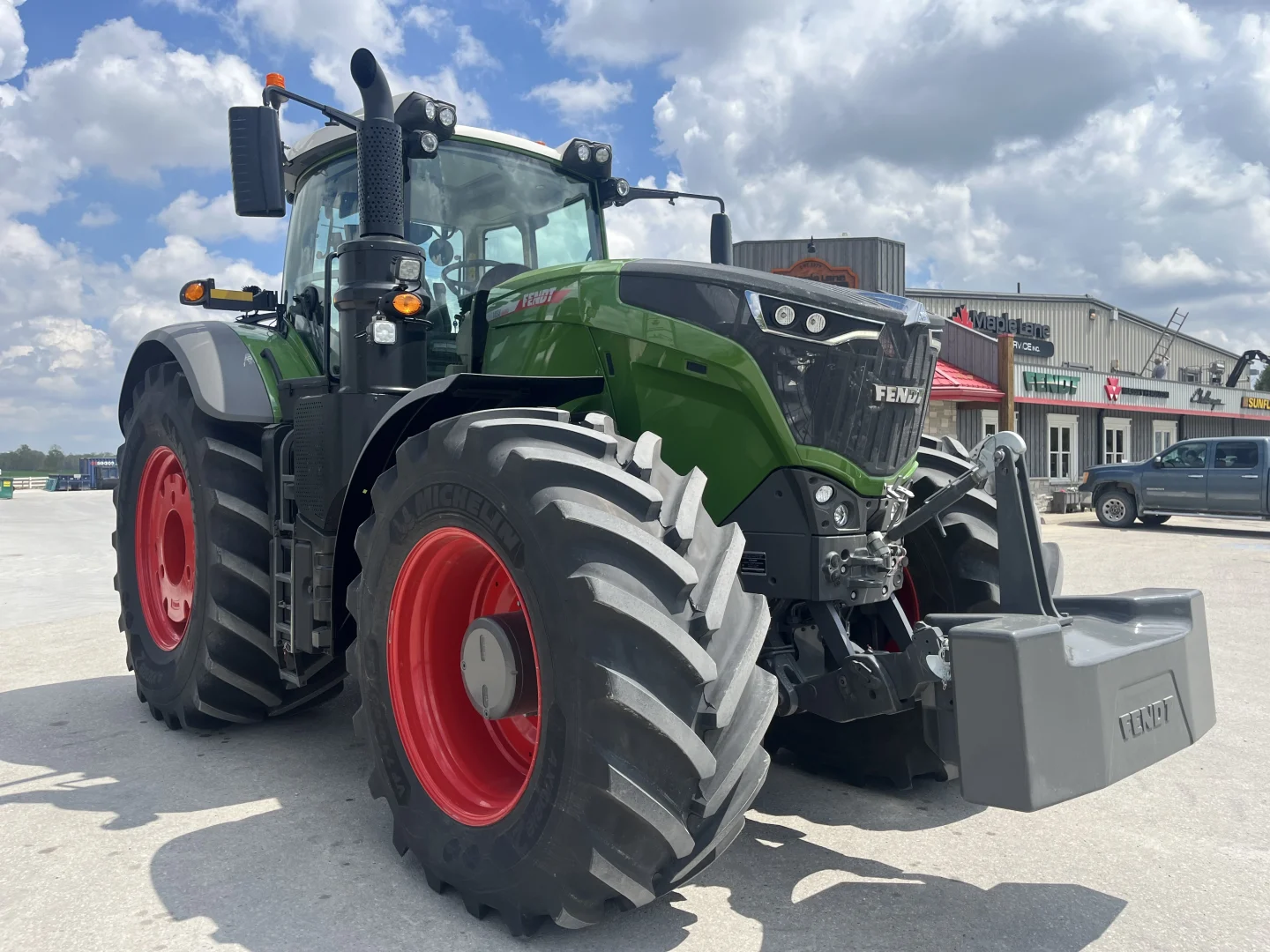

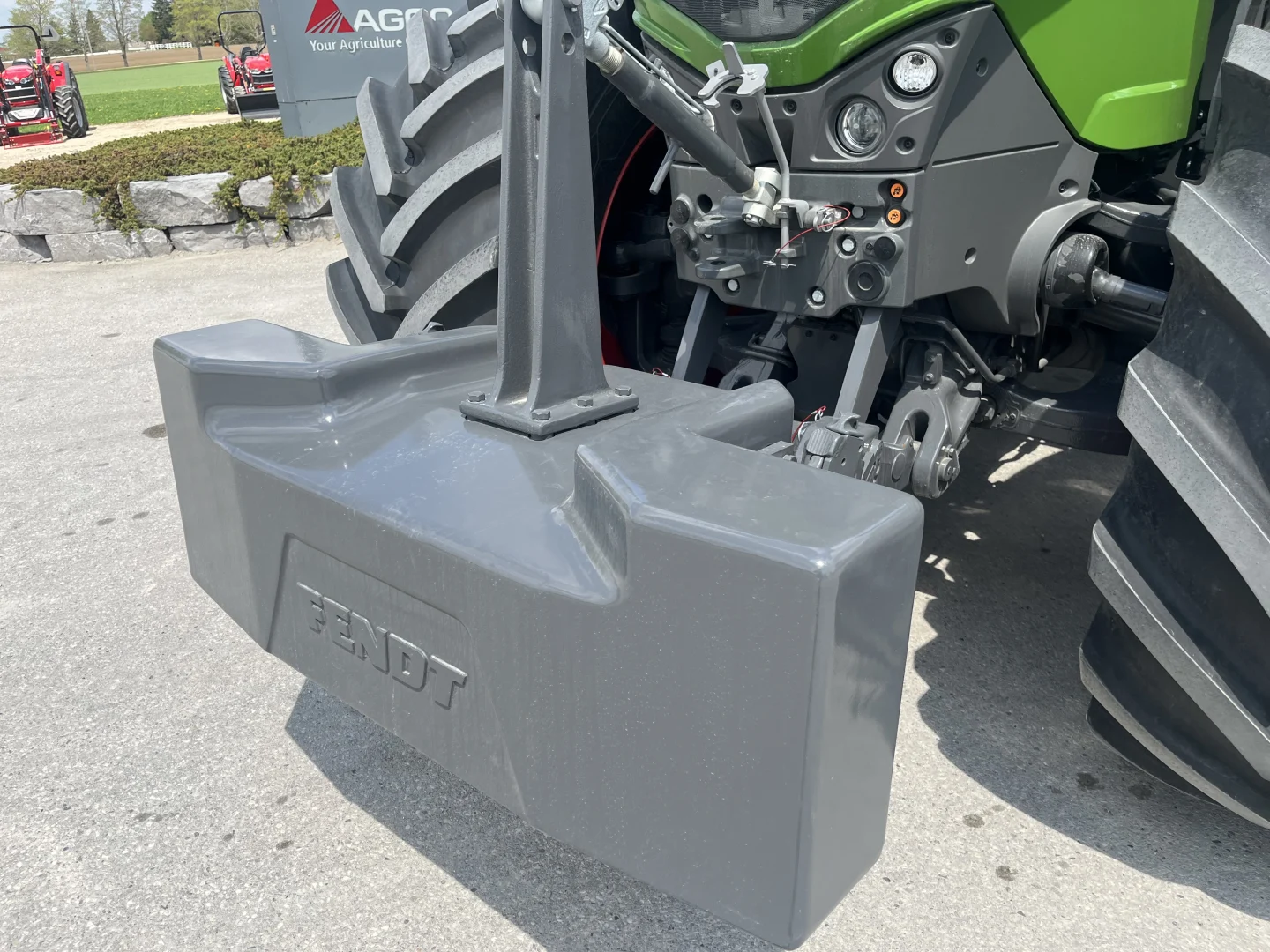

| New 2024 MY, Profi+, 113 GPM dual hydraulic pump, 6 rear remotes, power beyond, hydraulic & air trailer brakes, exhaust brake, 12″ terminal with additional roof mounted terminal, powered mirrors, front, side and rear sunblind’s, heated rear window, leather seat, LED light package, air cab suspension, automatic park brake, 1000KG rear wheel weights, front 1800KG weight, VF710/70R38 fronts, VF900/65R46 rears, 3 year/3000 hour Fendt Goldstar warranty. We gladly serve customers in southern Ontario. If you’re located outside southern Ontario, we would be grateful if you contacted your local Fendt dealer about a new 1038 instead of us. | |
| Categories | High Horsepower |
| Unit Number | 18271B |
| Condition | New |
| Usage | 5 Hours |
| Year | 2024 |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 295.3kW (396hp) 396hp 295.3kW | |
| PTO Power | 283.37kW (380hp) 380hp 283.37kW | |
| Rated Engine Speed | 1700r/min | |
| Make | MAN D2676 LE121 | |
| Displacement | 3.28gal. (12.42L) 12.42L 3.28gal. | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 211.34gal. (800L) 800L 211.34gal. | |
| DEF Tank Capacity | 22.45gal. (85L) 85L 22.45gal. | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31.07mph (50km/h) 50km/h 31.07mph | |
| Minimum Speed | 0.01mph (0.02km/h) 0.02km/h 0.01mph | |
| Name | CVT TA 400 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Trailer Brakes | Air | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Rear Axle Length | 8' 2-7/16" (2500mm) 2500mm 8' 2-7/16" | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 1000 Dual Pump 113.5 GPM | |
| Pump Type | Dual Variable Displacement Piston | |
| Hydraulic Flow | 429.64L/min (113.5GPM) 113.5GPM 429.64L/min | |
| System Capacity | 36.72gal. (139L) 139L 36.72gal. | |
| Maximum Operating Pressure | 2900.76psi (20000kPa) 20000kPa 2900.76psi | |
| Maximum Available Hydraulic Oil | 24.57gal. (93L) 93L 24.57gal. | |

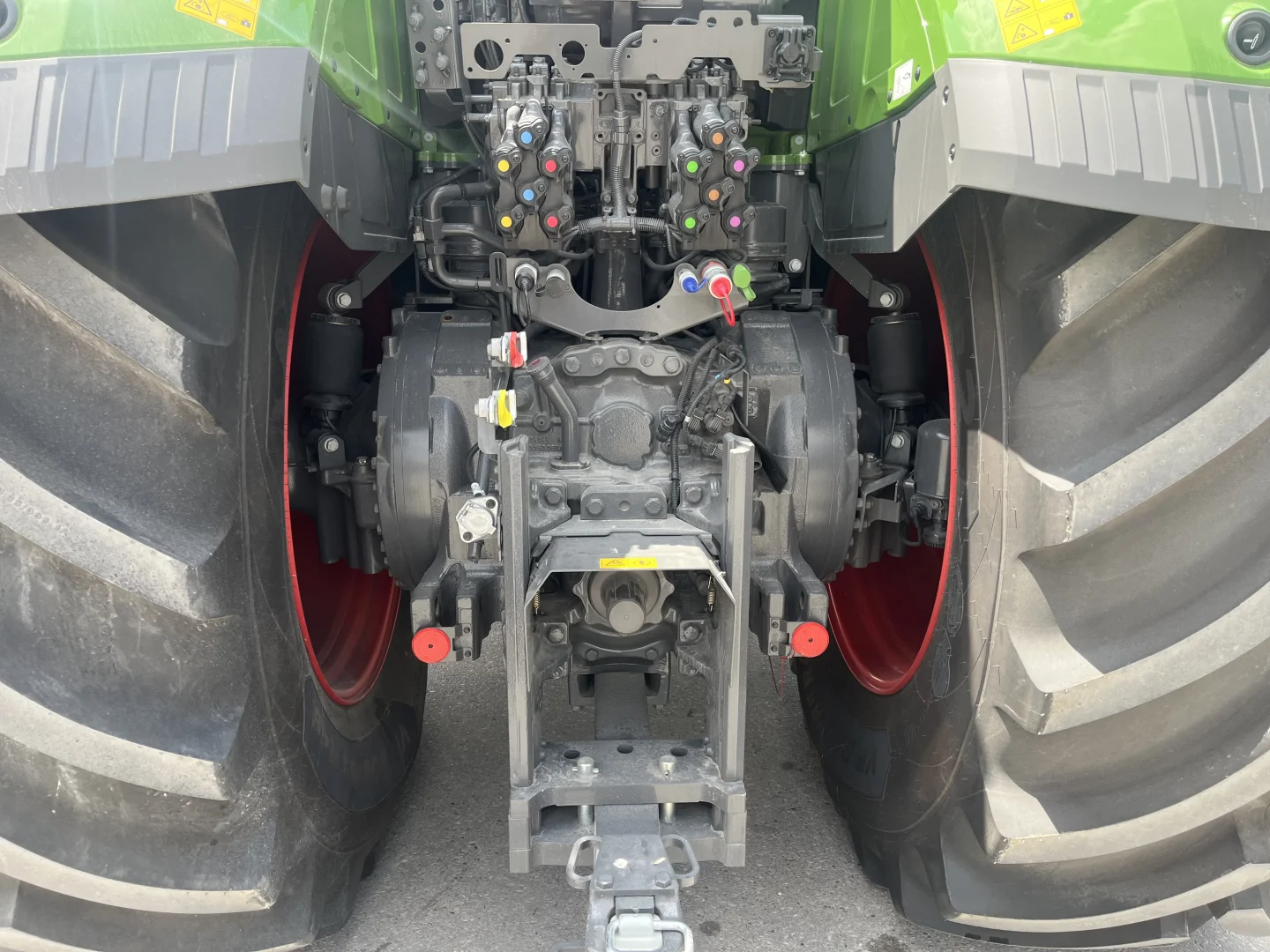

| Rear Remote Valves | 6 | |
| Steering | Hydraulic Power | |

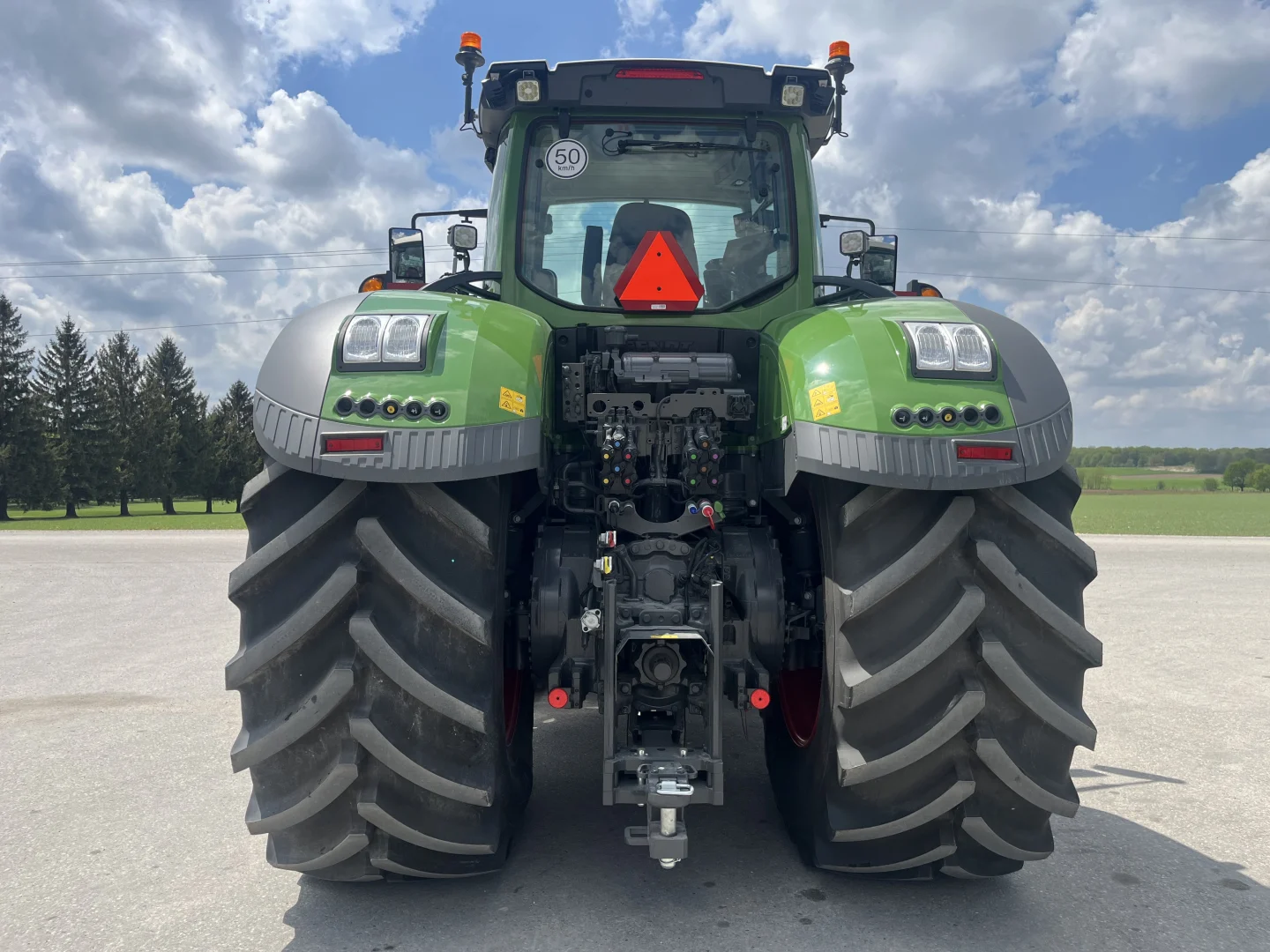

| Hitching | ||
|---|---|---|
| Front Hitch | FD 1000 Front | |
| Category | Category 2 | |
| Capacity at Pins | 12553.12lb. (5694kg) 5694kg 12553.12lb. | |
| Rear Drawbar | Category 4 | |
| PTO | ||
|---|---|---|
| Type | Independent | |
| Technology | ||
|---|---|---|

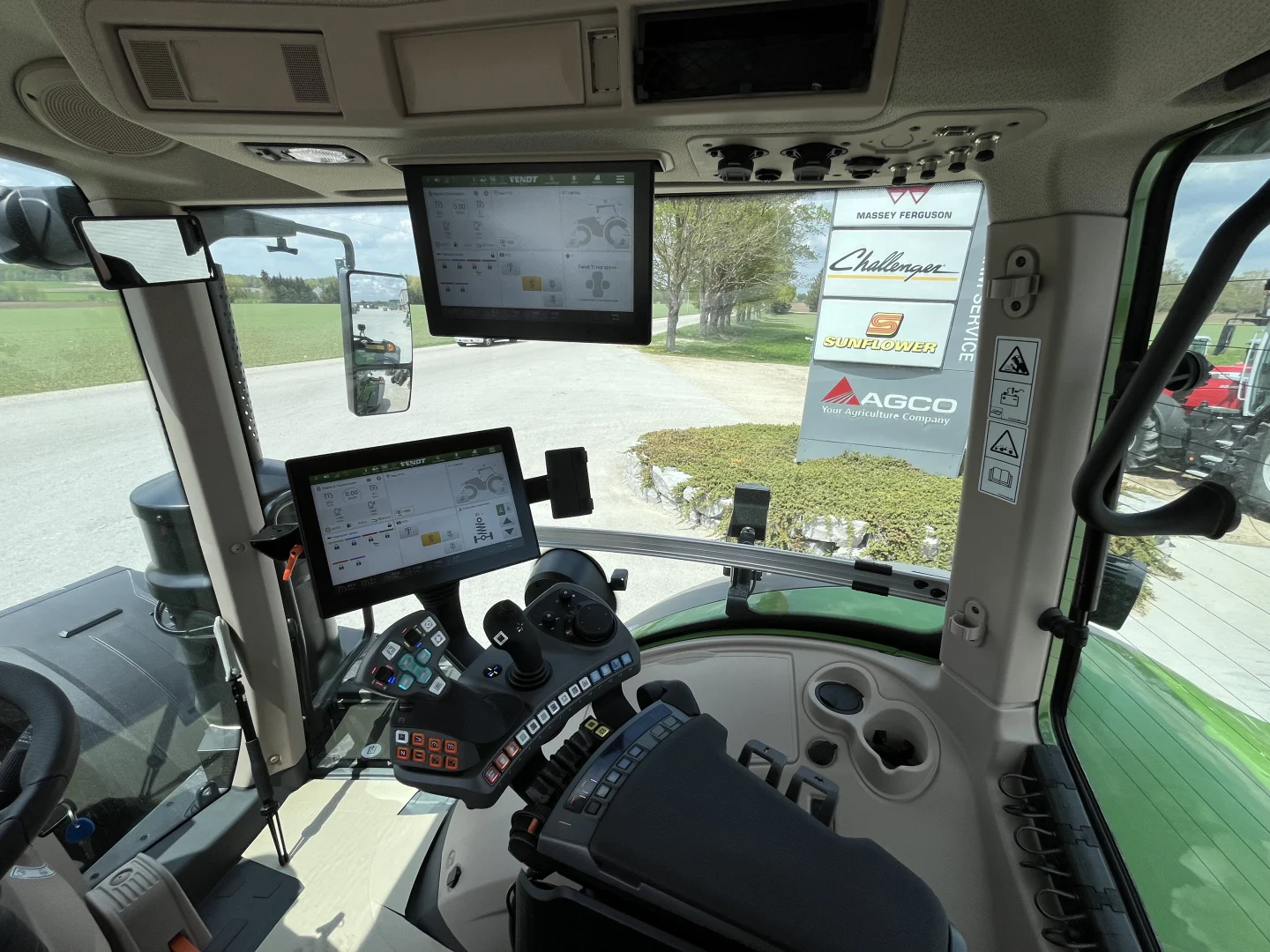

| Display | 12" Roof Mounted Terminal, 12" Armrest Mounted Terminal | |

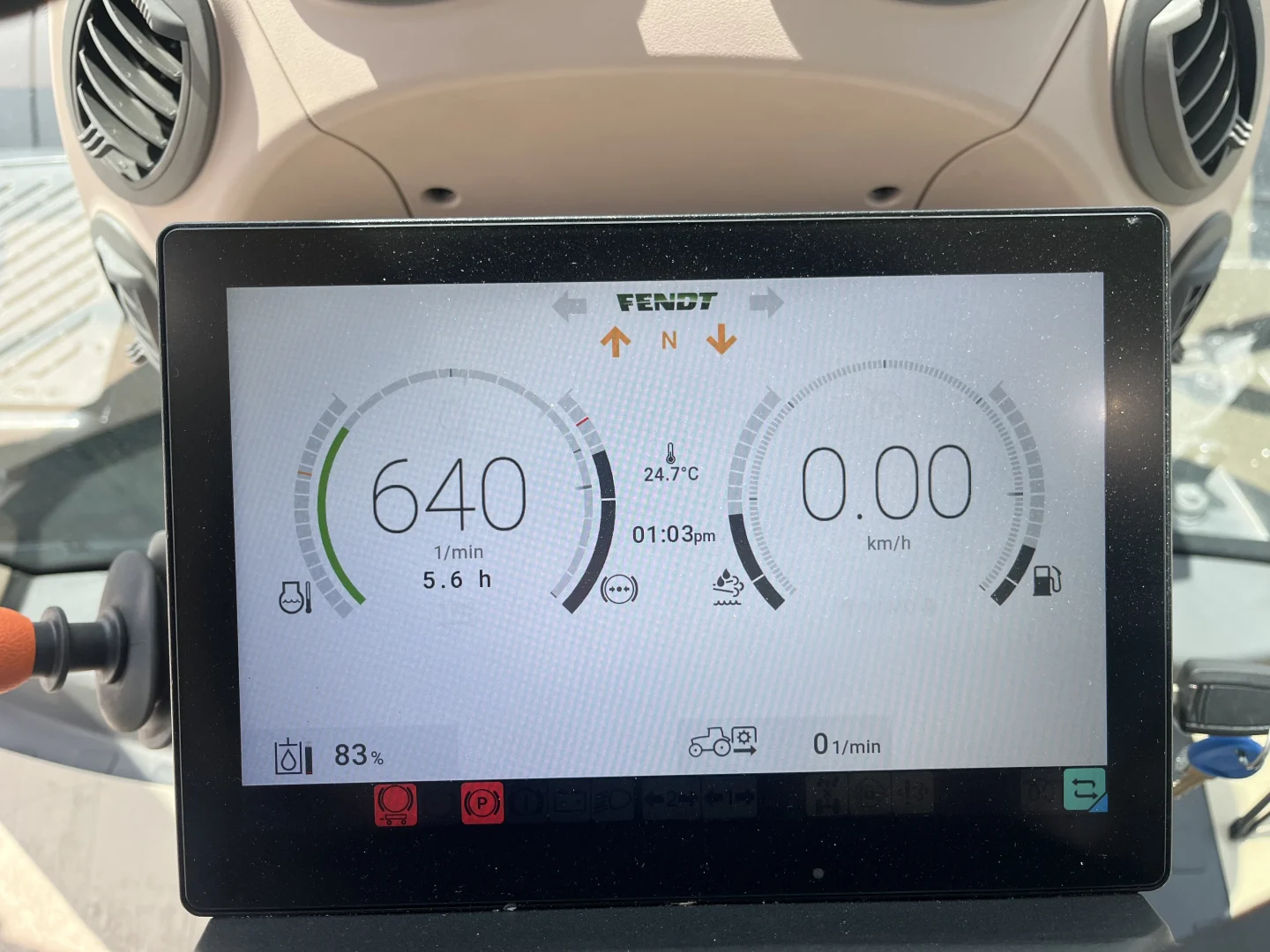

| Instrument Display | 10" Dash Screen | |
| Entertainment | Infotainment | |
| Integration | ISO BUS Implement Control | |
| Antenna | Trimble, Novatel | |
| Guidance | Guidance Ready | |
| Headland Management | Variotronic TI | |
| Auto Headland Turn | Variotronic TI Auto | |
| Data Transfer | TaskDoc Pro | |
| Section Control | SectionControl | |
| Variable Rate Control | Variable Rate Control | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 20 | |
| Rear Lights | 6 | |
| Worklight Type | Halogen | |
| Rotating Beacon | Left, Right | |
| Voltage | 12V | |
| Alternator | 160A | |
| Alternator Count | 2 | |
| Battery | 1475CCA | |
| Battery Count | 2 | |

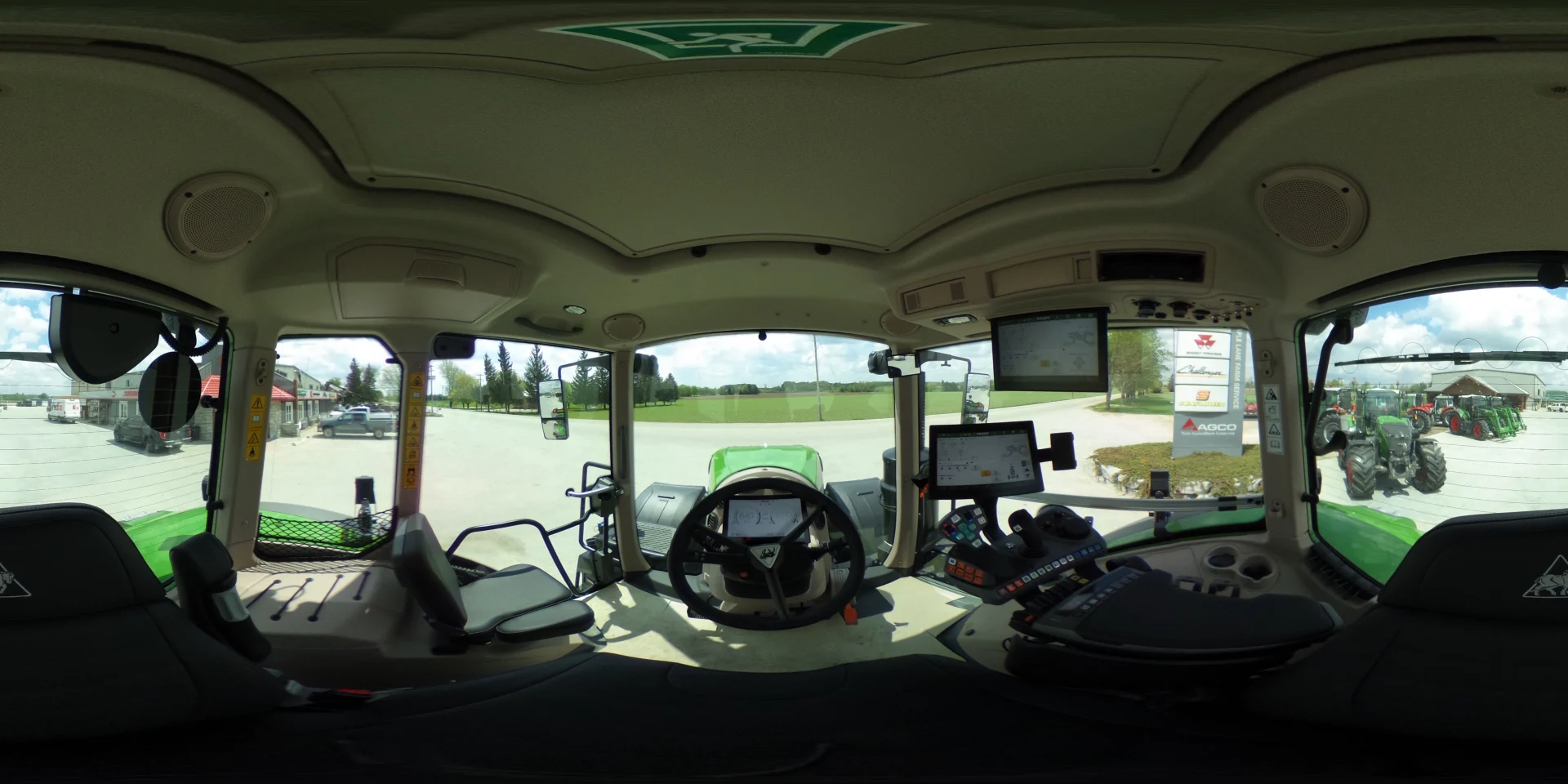

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |

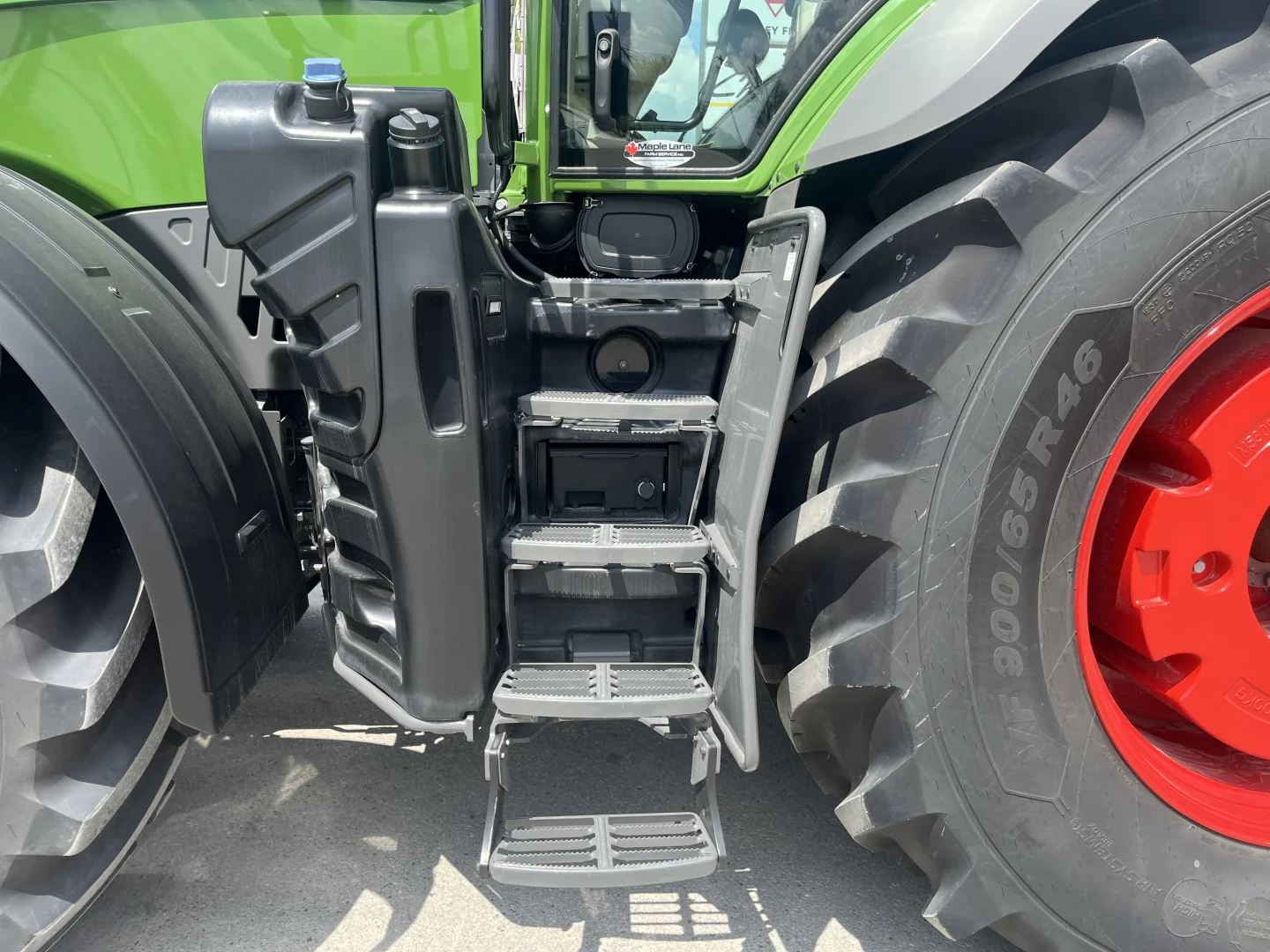

| Access | Left Hand Door, Rear Window | |
| Noise Level | 69dBA | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 2 Point Air | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |
| Throttle | Hand, Foot Pedal | |
| Operator Seat | FD Super Comfort EVO Leather | |
| Material | Leather | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Instructor Seat | Leather | |
| Wiper | 300° Front, Rear, Side | |
| Sunshade | Windshield | |
| Mirrors | Interior, Telescoping | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |

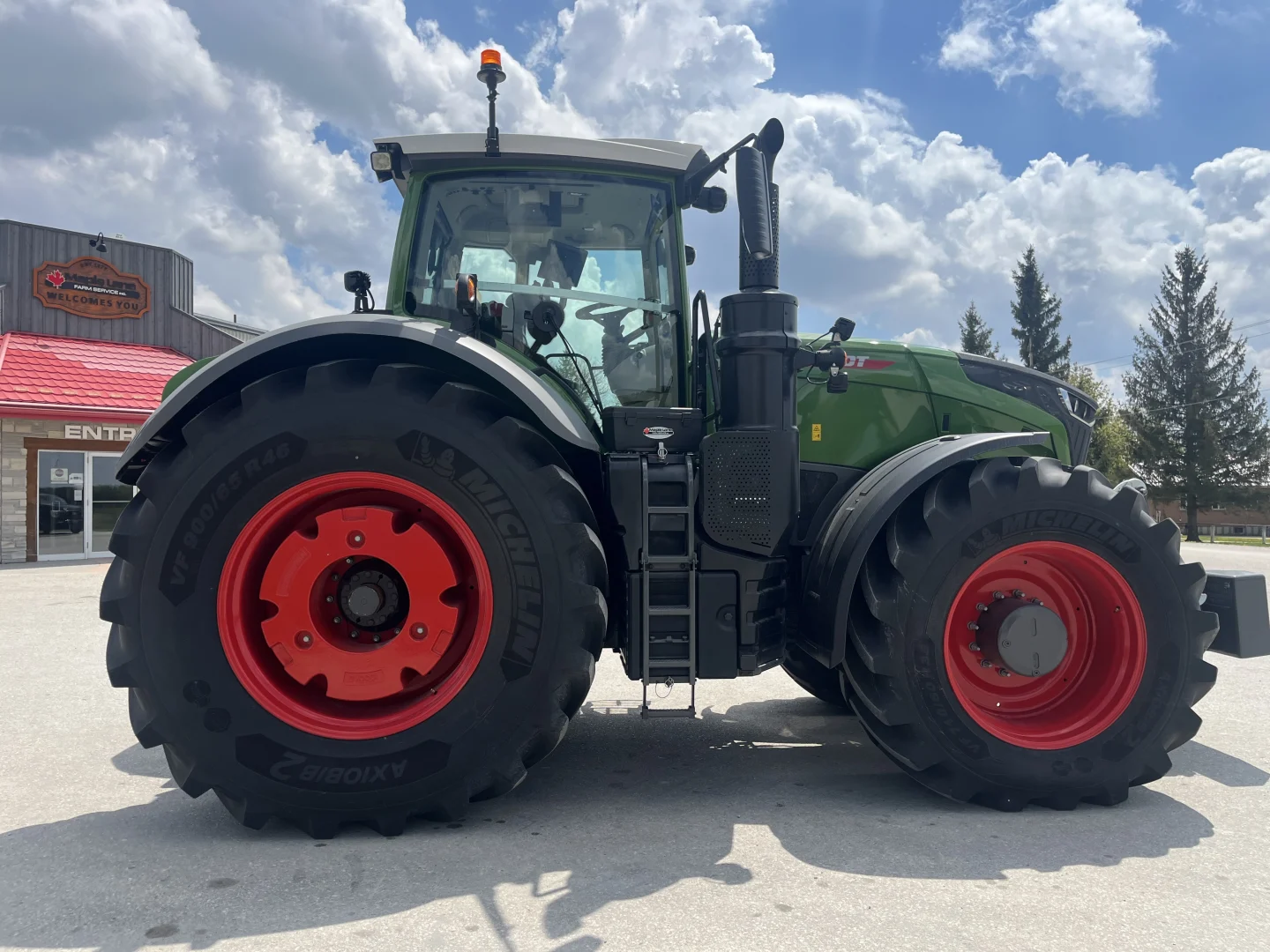

| Wheels | ||
|---|---|---|
| Front | MICHE 710/70R38 Machxbib | |
| Size | 710/70R38 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 2' 4-1/16" (713mm) 713mm 2' 4-1/16" | |
| Overall Diameter | 6' 5-11/16" (1973mm) 1973mm 6' 5-11/16" | |
| Static Loaded Radius | 2' 10-5/16" (871mm) 871mm 2' 10-5/16" | |
| Rolling Circumference | 19' 1/2" (5804mm) 5804mm 19' 1/2" | |
| Weight | 648.16lb. (294kg) 294kg 648.16lb. | TRELL IF 650/65R38 TM1000 |
| Size | IF 650/65R38 | |
| Tread Pattern | TM1000 HP, R1 (Ag) | |
| Section Width | 2' 2" (660mm) 660mm 2' 2" | |
| Overall Diameter | 6' 7/16" (1840mm) 1840mm 6' 7/16" | |
| Static Loaded Radius | 2' 8-11/16" (830mm) 830mm 2' 8-11/16" | |
| Rolling Circumference | 18' 15/16" (5510mm) 5510mm 18' 15/16" | |
| Weight | 571lb. (259kg) 259kg 571lb. | |
| Tread Thickness | 2-3/8" (60mm) 60mm 2-3/8" | |

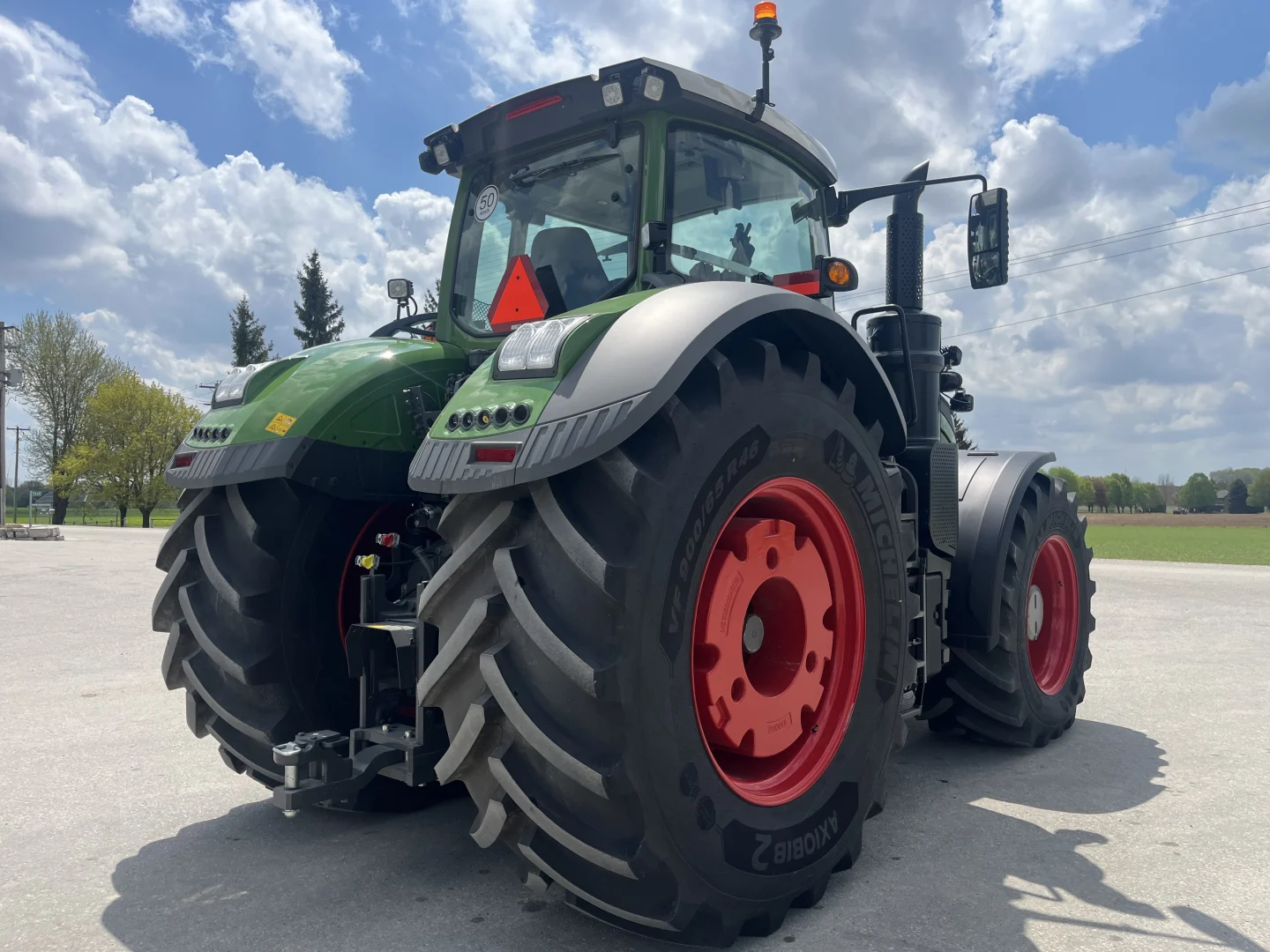

| Rear | MICHE VF 900/65R46 Axiobib 2 | |
| Size | 900/65R46 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 2' 11-7/8" (911mm) 911mm 2' 11-7/8" | |
| Overall Diameter | 7' 7-1/8" (2315mm) 2315mm 7' 7-1/8" | |
| Static Loaded Radius | 3' 2-15/16" (989mm) 989mm 3' 2-15/16" | |
| Rolling Circumference | 22' 3-3/4" (6801mm) 6801mm 22' 3-3/4" | |
| Weight | 1225.77lb. (556kg) 556kg 1225.77lb. | TRELL IF 750/75R46 TM1000 |
| Size | 750/75R46 | |
| Tread Pattern | TM1000 HP, R1 (Ag) | |
| Section Width | 2' 5-1/2" (750mm) 750mm 2' 5-1/2" | |
| Overall Diameter | 7' 6-3/4" (2305mm) 2305mm 7' 6-3/4" | |
| Static Loaded Radius | 3' 4-9/16" (1030mm) 1030mm 3' 4-9/16" | |
| Rolling Circumference | 22' 8-1/4" (6915mm) 6915mm 22' 8-1/4" | |
| Tread Thickness | 2-5/8" (67mm) 67mm 2-5/8" | |
| Weight | 996.49lb. (452kg) 452kg 996.49lb. | |
| Front Fender Mount | Swivel | |
| Dimensions | ||
|---|---|---|
| Length | 20' 10" (6350mm) 6350mm 20' 10" | |
| Wheelbase | 10' 9-15/16" (3300mm) 3300mm 10' 9-15/16" | |
| Width | 9' 1/4" (2750mm) 2750mm 9' 1/4" | |
| Height | 11' 9-15/16" (3606mm) 3606mm 11' 9-15/16" | |
| Minimum Ground Clearance | 1' 11-5/8" (600mm) 600mm 1' 11-5/8" | |
| Turning Radius | 24' 9/16" (7330mm) 7330mm 24' 9/16" | |
| Weight | 30864.72lb. (14000kg) 14000kg 30864.72lb. | |
