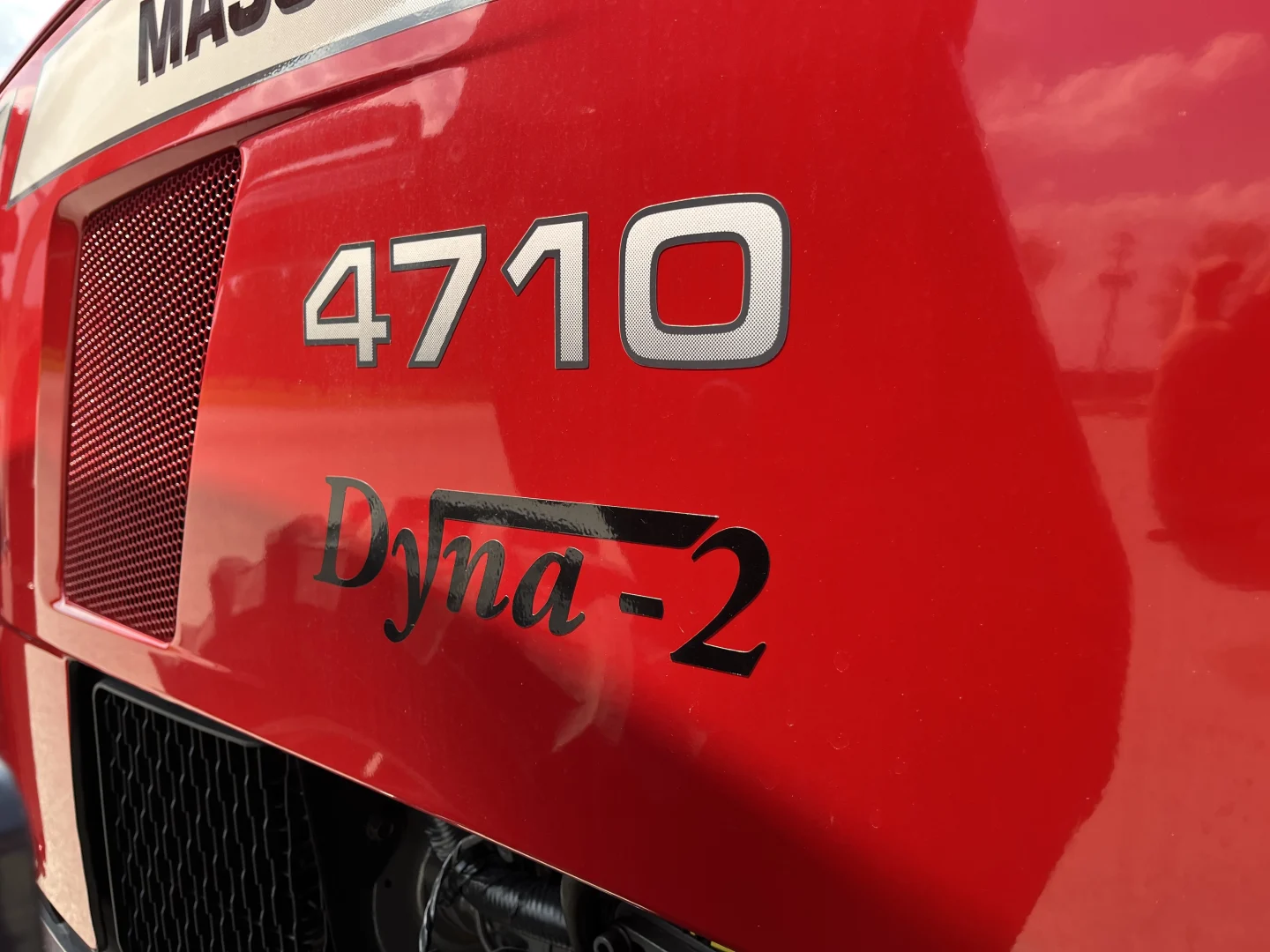

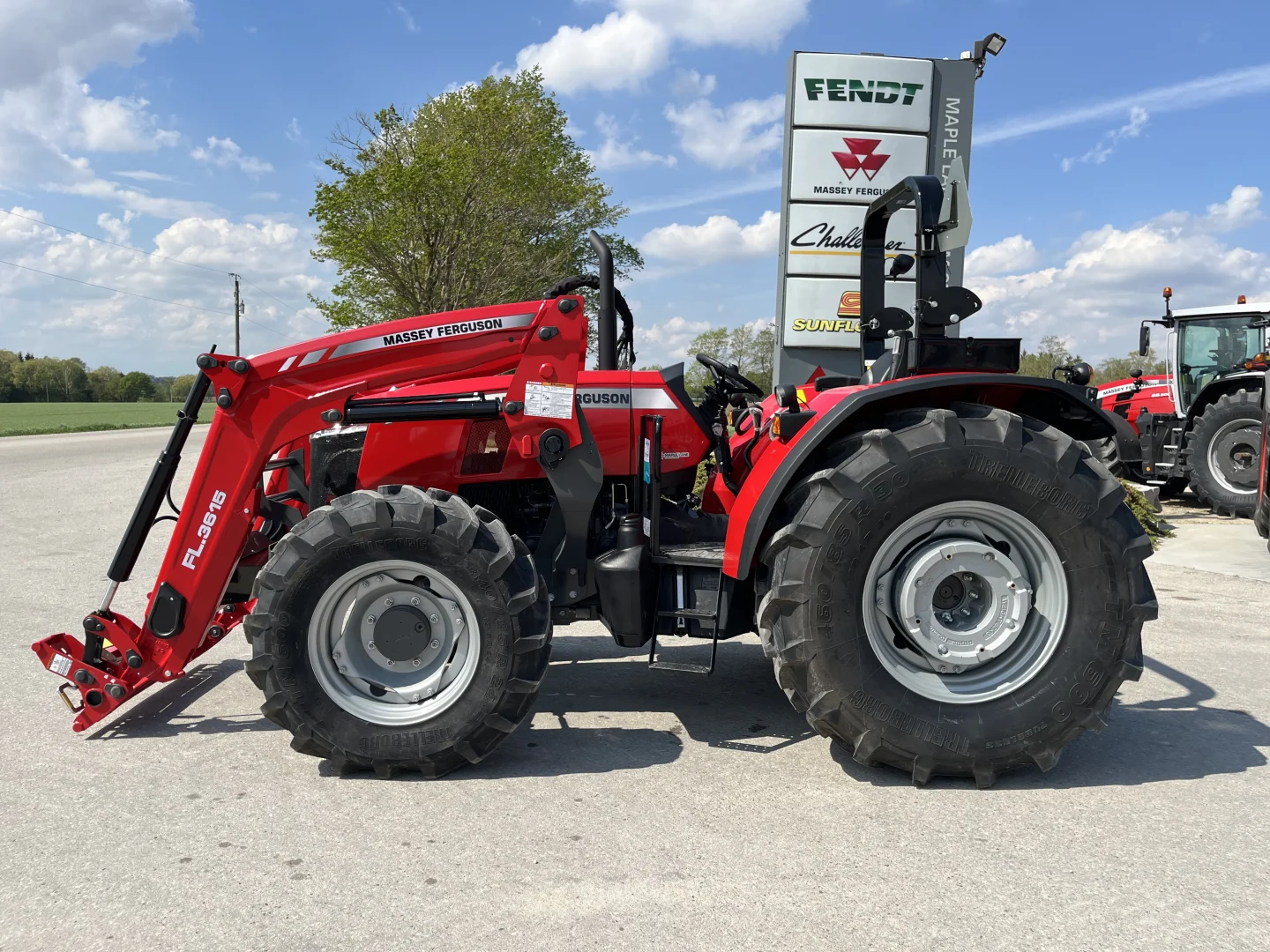

New 2024 Massey Ferguson 4710
| Description | |
|---|---|
| New 2024 MY, 24×24 Dyna-2 transmission, 2 rear remotes, 65l/min hydraulic flow, FL3615 front loader, 50KGx2 rear wheel weights, 340/85R24 fronts, 460/85R30 rears. Only available in Southern Ontario. | |
| Categories | Utility |
| Unit Number | 18294B |
| Condition | New |
| Year | 2024 |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 74.57kW (100hp) 100hp 74.57kW | |
| PTO Power | 65.62kW (88hp) 88hp 65.62kW | |
| Rated Engine Speed | 2200r/min | |
| Make | AGPWR 33AWIC | |
| Displacement | 201.38cu. in. (3.3L) 3.3L 201.38cu. in. | |
| Number of Cylinders | 3 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 27.74gal. (105L) 105L 27.74gal. | |
| DEF Tank Capacity | 2.64gal. (10L) 10L 2.64gal. | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 24.85mph (40km/h) 40km/h 24.85mph | |
| Name | Dyna-2 | |
| Type | Power Shift | |
| Reverser | Power Shuttle | |
| Ranges | 2 | |
| Gears Per Range | 12 | |
| Forward Speeds | 24 | |
| Reverse Speeds | 24 | |
| Drive | 4WD | |
| Differential | Locking | |
| Hydraulics | ||
|---|---|---|
| Pump | MF 4700 65 LPM | |
| Pump Type | Gear | |
| System | Open Center | |
| Hydraulic Flow | 17.17GPM (65L/min) 65L/min 17.17GPM | |
| System Capacity | 10.57gal. (40L) 40L 10.57gal. | |
| Rear Remote Valves | 2 | |
| Steering | Hydraulic Power | |

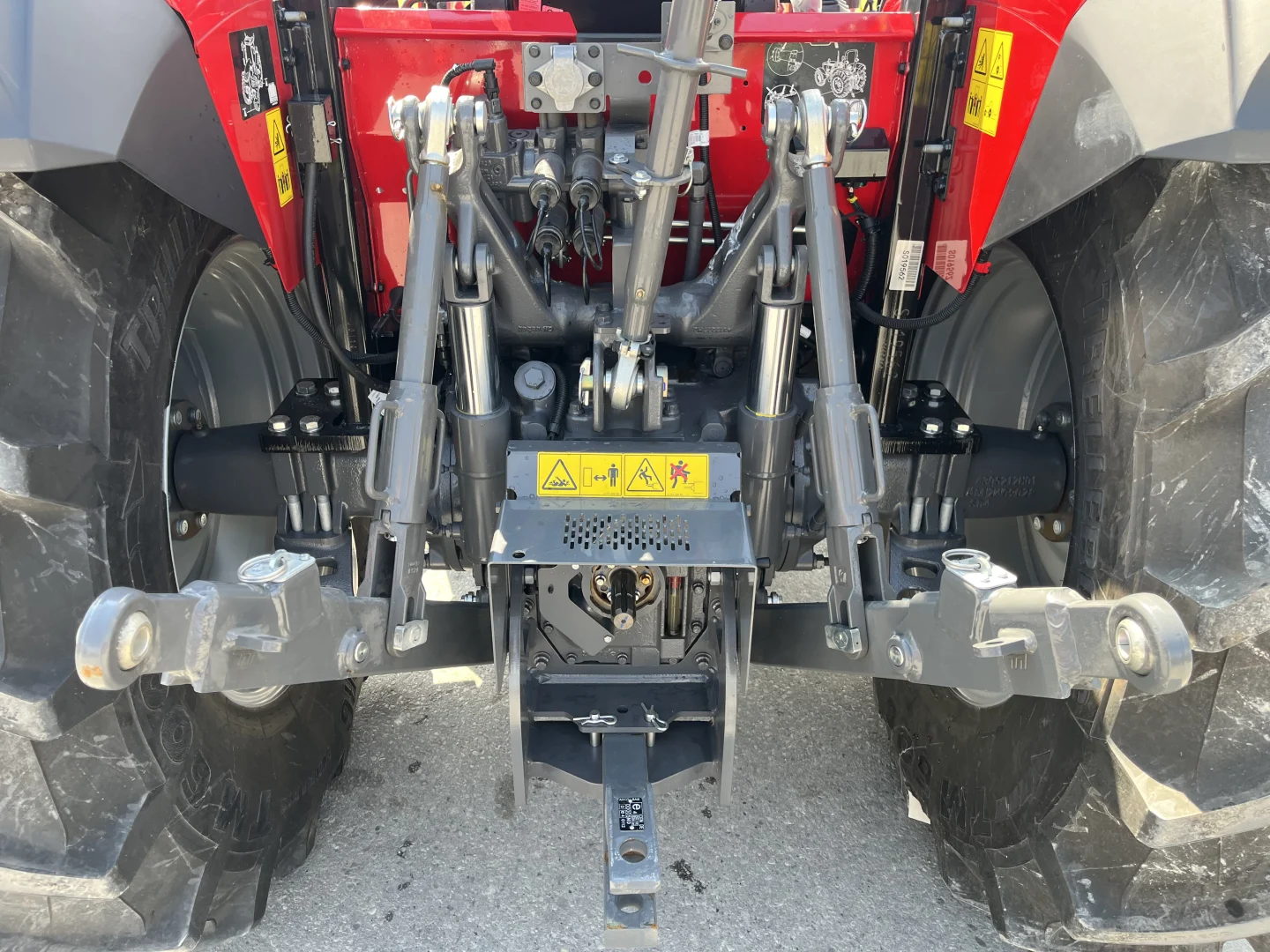

| Hitching | ||
|---|---|---|
| Rear Hitch | MF 4700 | |
| Hitch Category | Category 2 | |
| Lift Capacity 24" Behind Pins | 4850.17lb. (2200kg) 2200kg 4850.17lb. | |
| Rear Drawbar | Category 2 | |
| PTO | ||
|---|---|---|
| Rear | 540E, 540 | |
| Type | Independent | |
| Electrical | ||
|---|---|---|
| Alternator | 80A | |
| Battery | 720CCA | |
| Alternator Count | 1 | |

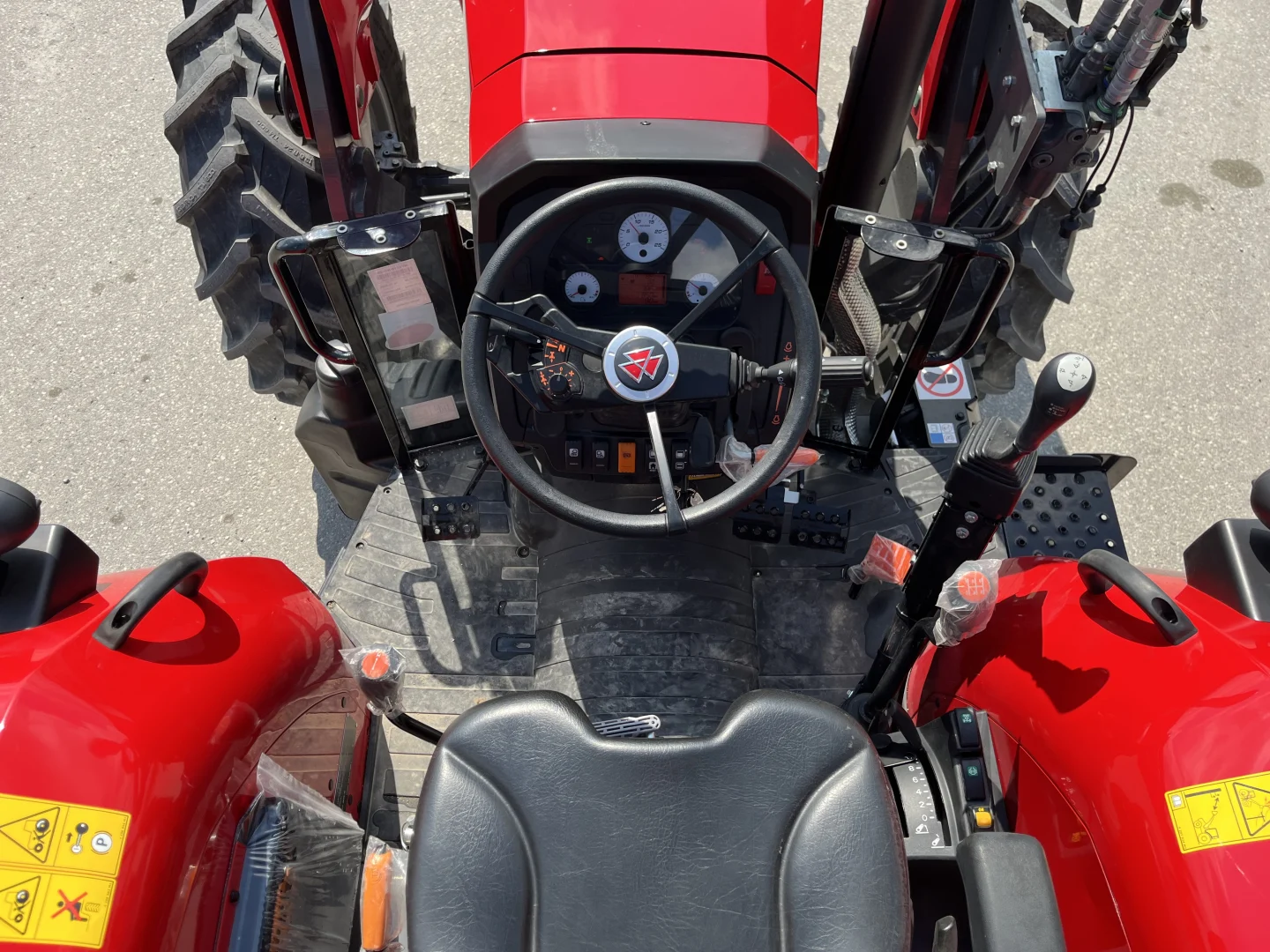

| Operator Station | ||
|---|---|---|
| Configuration | Open ROPS | |
| Steering Column | Tilting | |
| Steering Controls | Steering Wheel | |

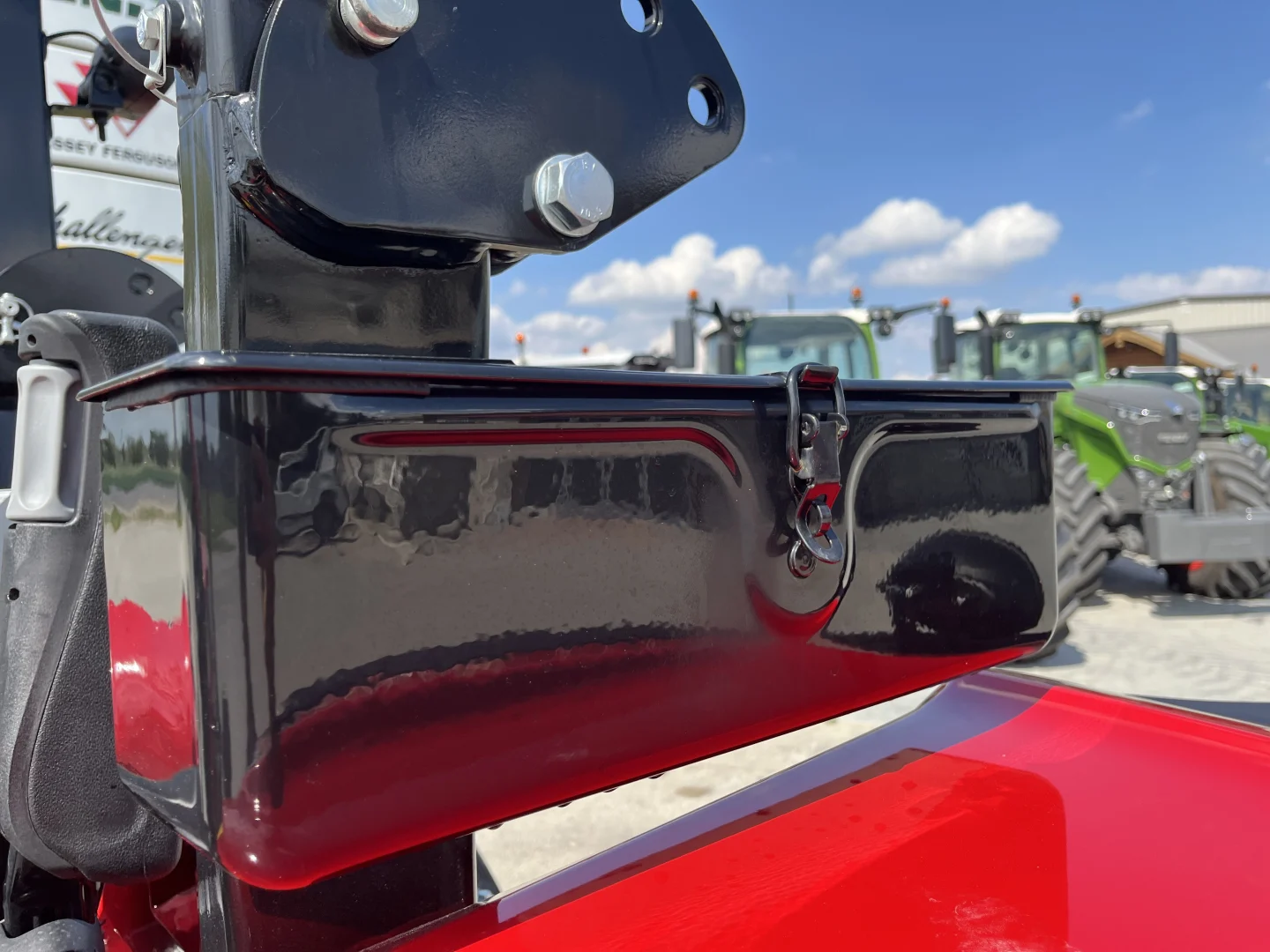

| Storage | Toolbox | |
| Operator Seat | MF Standard ROPS Seat | |
| Material | Vinyl | |
| Safety Arrest | 2pt Belt | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Mechanical | |
| Wheels | ||
|---|---|---|
| Rear | TRELL 420/85R30 TM600 | |
| Size | 420/85R30 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 5-1/4" (438mm) 438mm 1' 5-1/4" | |
| Overall Diameter | 4' 10-1/16" (1475mm) 1475mm 4' 10-1/16" | |
| Static Loaded Radius | 2' 2" (660mm) 660mm 2' 2" | |
| Rolling Circumference | 14' 7-3/8" (4455mm) 4455mm 14' 7-3/8" | |
| Weight | 227.08lb. (103kg) 103kg 227.08lb. | |
| Weights | ||
|---|---|---|

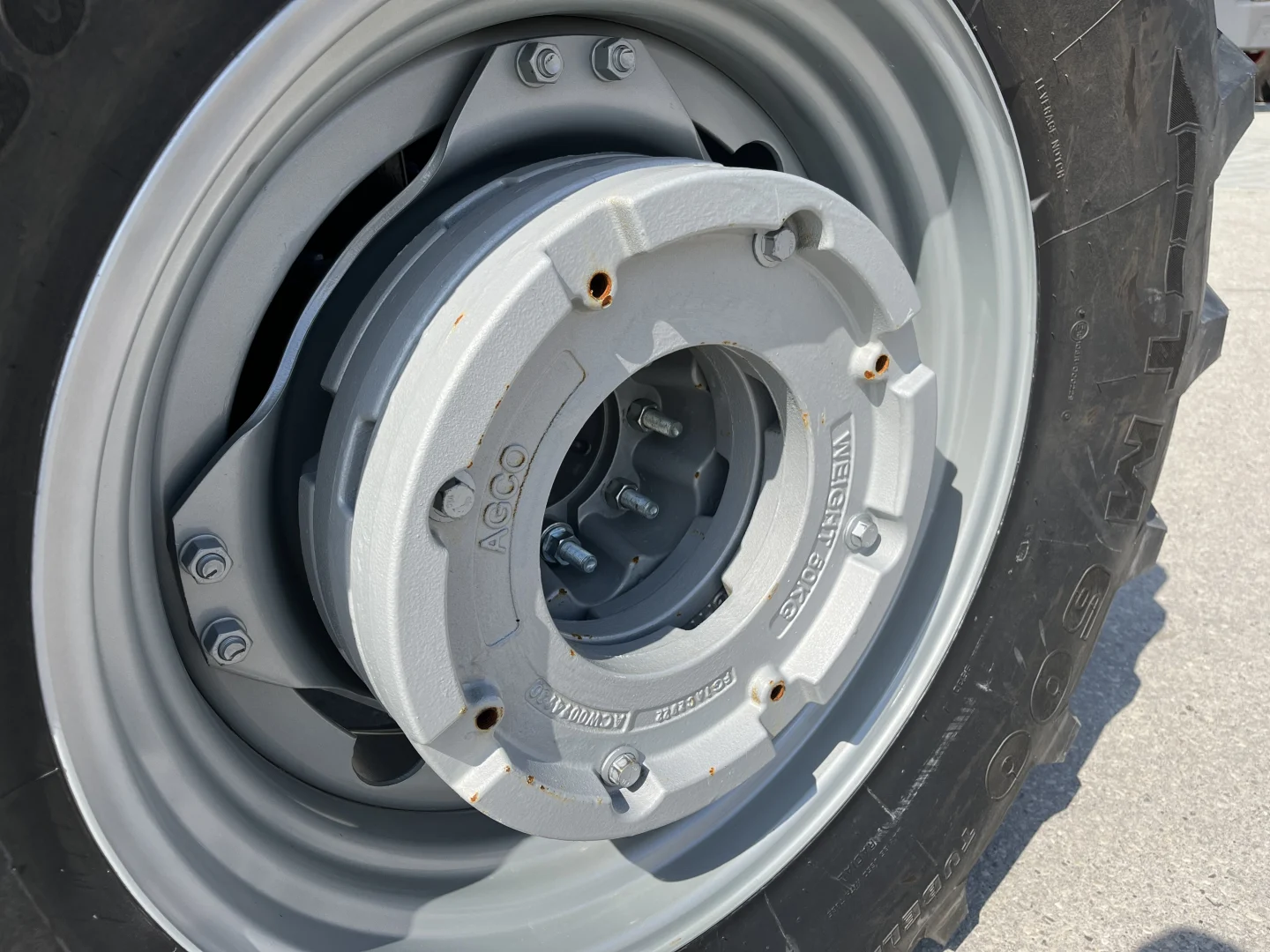

| Wheel Weights | MF 100 kg Wheel Weight Pair | |
| Body | Grey | |
| Mount | Bolt | |
| Type | Wheel Disc | |
| Weight | 220.46lb. (100kg) 100kg 220.46lb. | |
| Dimensions | ||
|---|---|---|
| Length | 13' 4-1/8" (4067mm) 4067mm 13' 4-1/8" | |
| Wheelbase | 7' 4-9/16" (2250mm) 2250mm 7' 4-9/16" | |
| Width | 5' 10-11/16" (1795mm) 1795mm 5' 10-11/16" | |
| Height | 8' 3-3/16" (2520mm) 2520mm 8' 3-3/16" | |
| Minimum Ground Clearance | 1' 6-1/8" (460mm) 460mm 1' 6-1/8" | |
| Turning Radius | 25' 3-1/8" (7700mm) 7700mm 25' 3-1/8" | |
| Weight | 6834.33lb. (3100kg) 3100kg 6834.33lb. | |

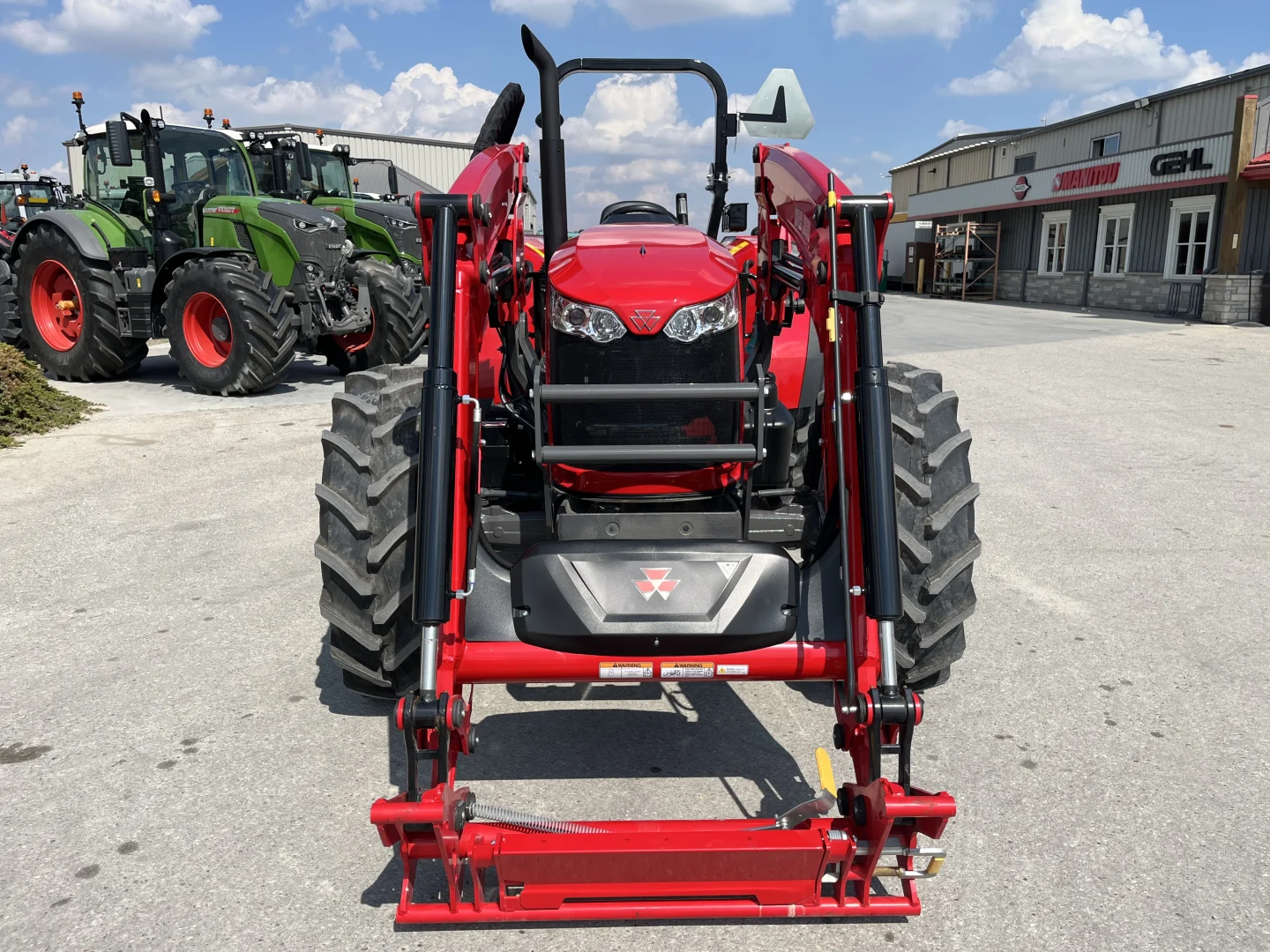

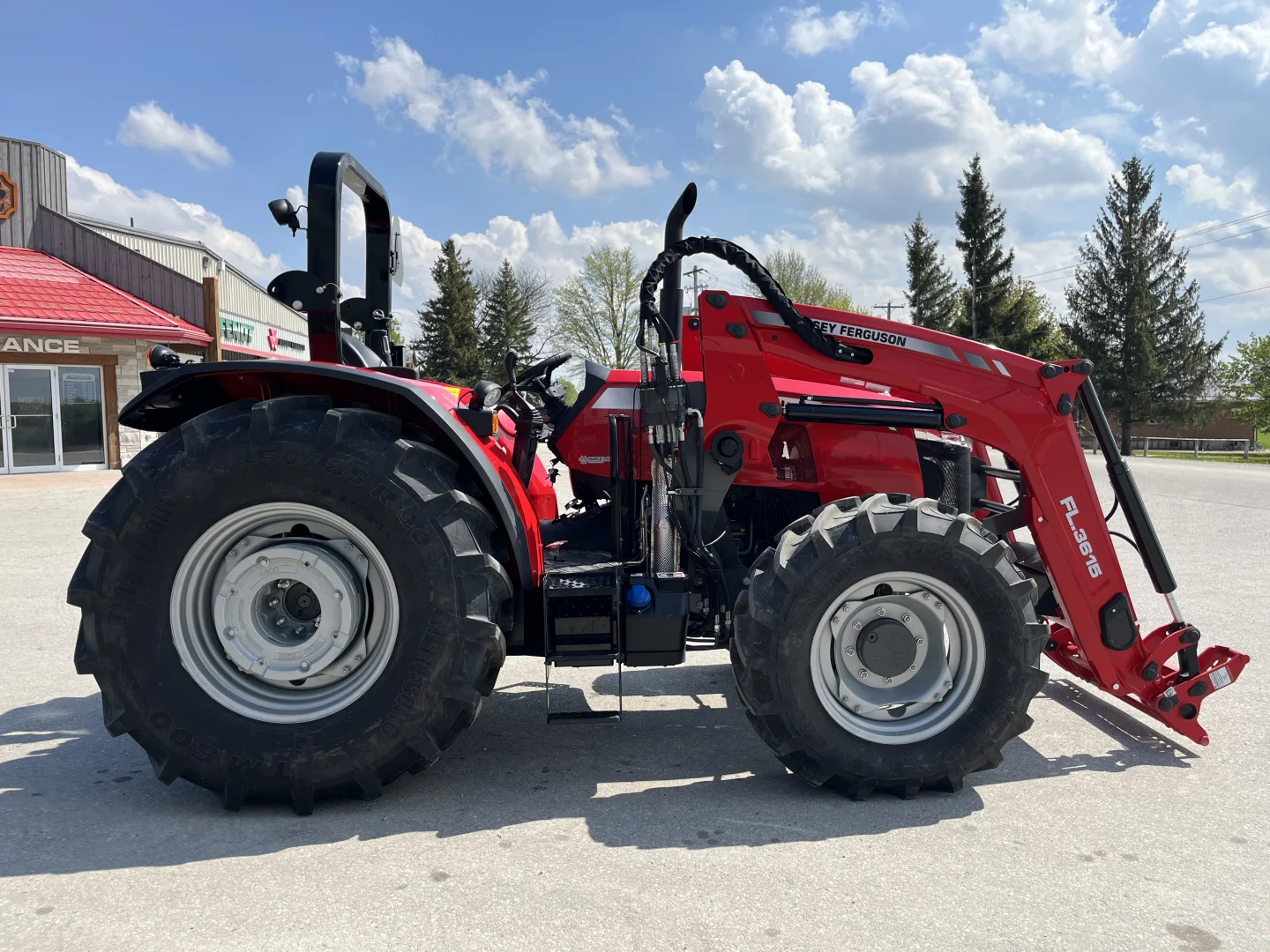

| Loader | ||
|---|---|---|

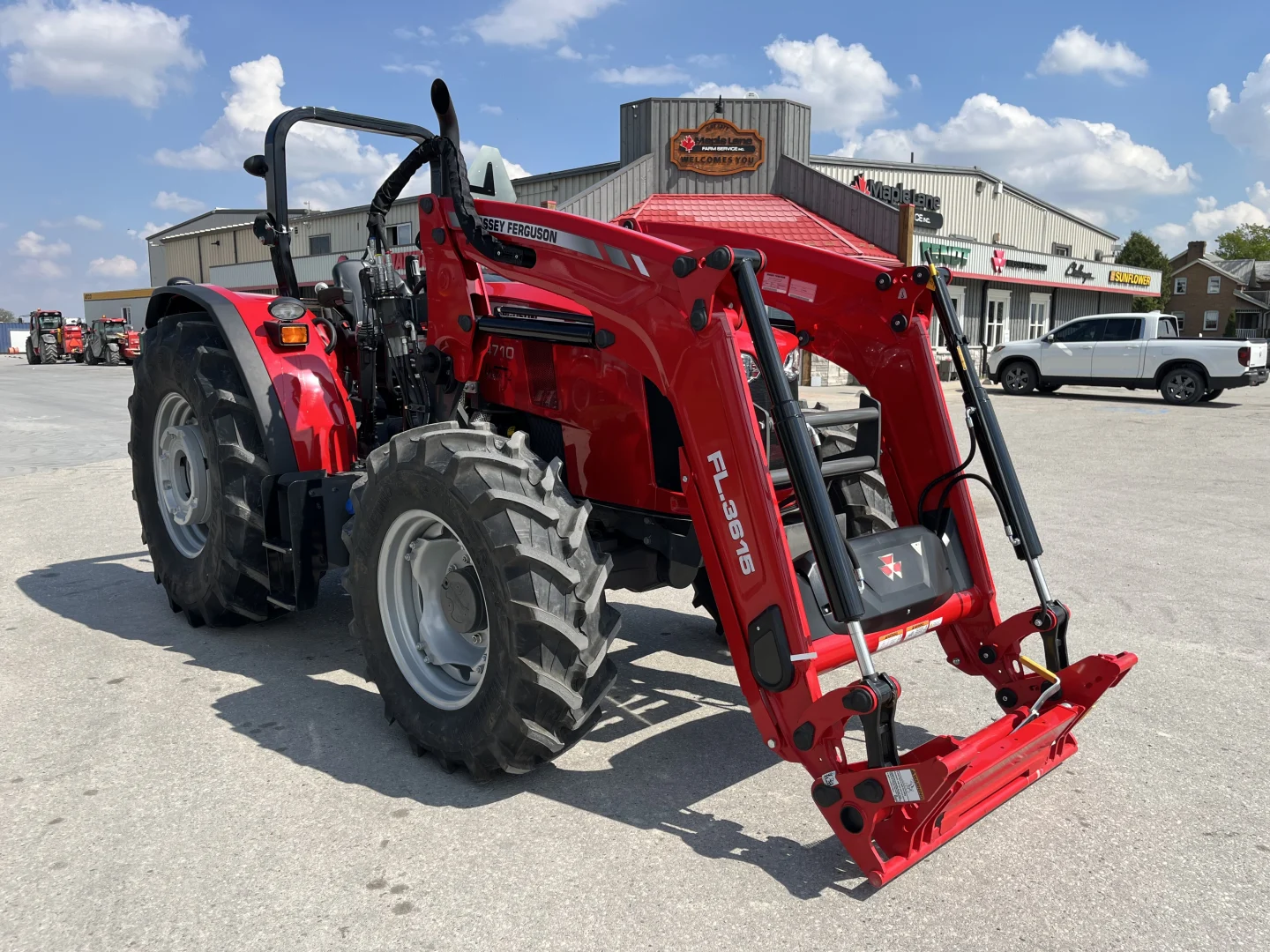

| Loader | MF FL.3615 | |
| Attachments | MF 84" Material | |
| Width | 2133.6mm (7') 7' 2133.6mm | MF 72" Material |
| Width | 1828.8mm (6') 6' 1828.8mm | |
| Maximum Lift Height – Pivot Pin | 11' 7-3/4" (3550mm) 3550mm 11' 7-3/4" | |
| Lift Capacity to Max Height – Pivot Pin | 3020.33lb. (1370kg) 1370kg 3020.33lb. | |
| Comfort | Suspension | |

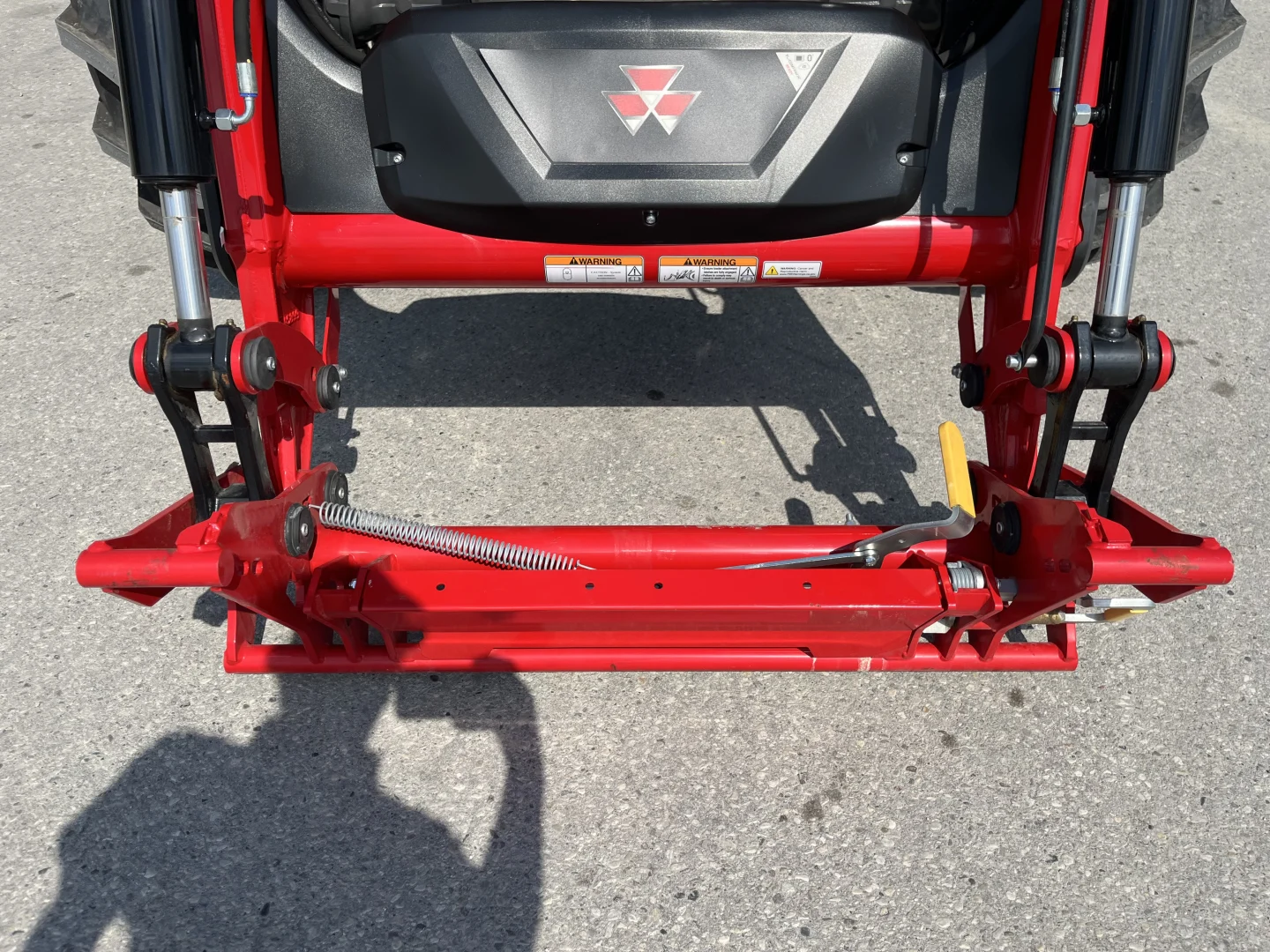

| Tool Carrier | Euro Quick Attach, Skid Steer Quick Attach | |
| Self-Leveling | Mechanical | |
| Lift Path | Radial | |
