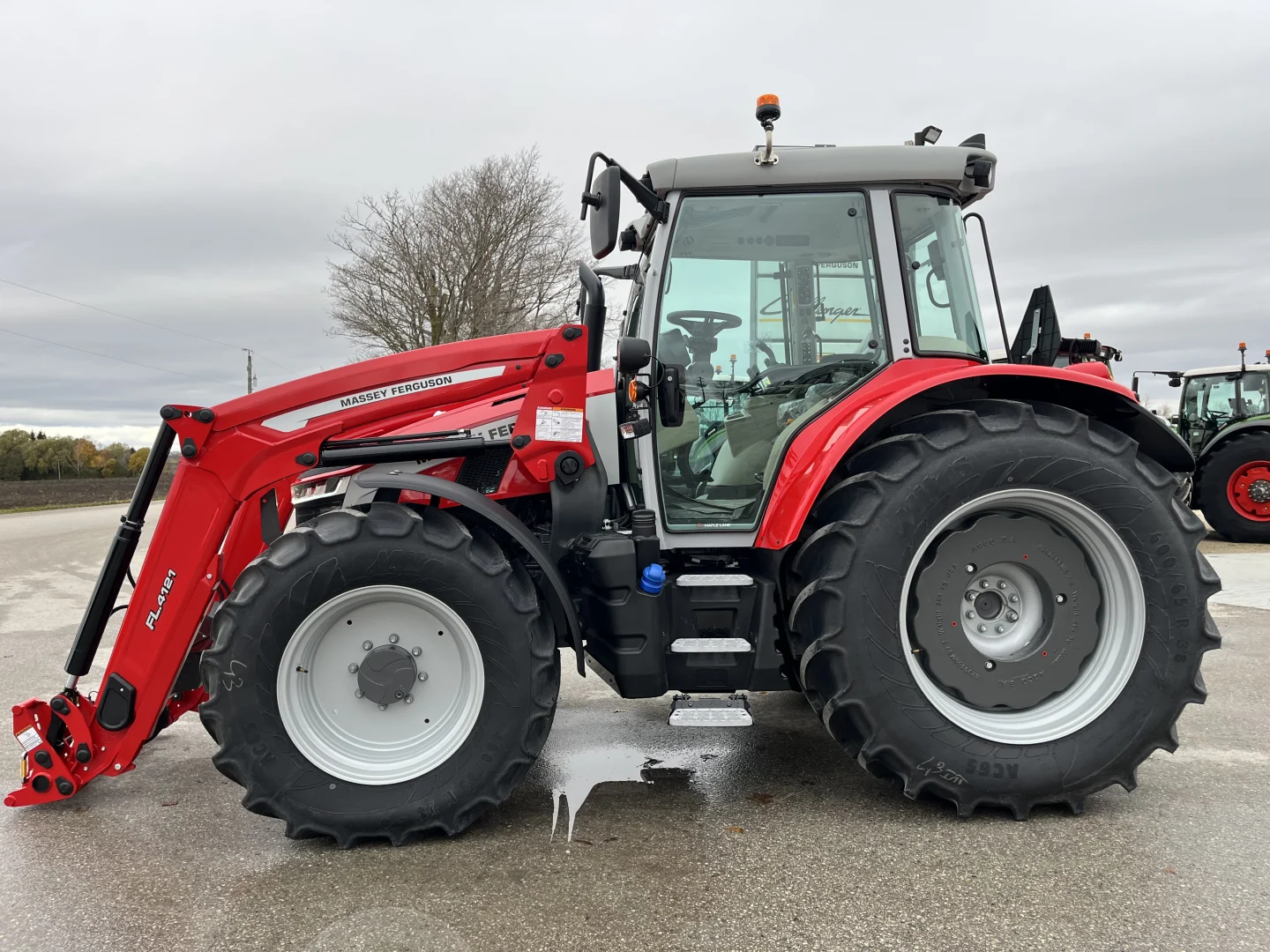

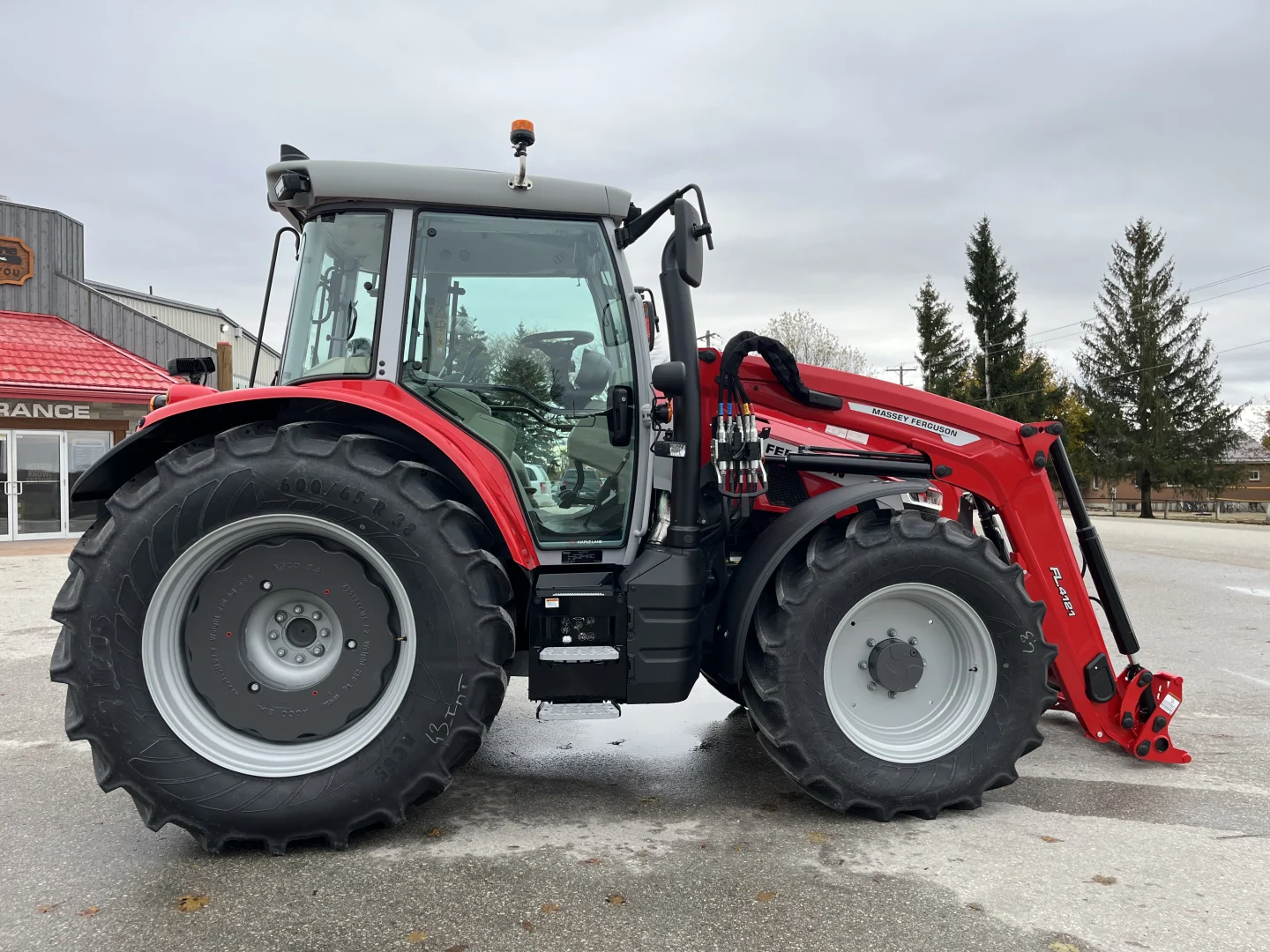

New 2025 Massey Ferguson 5S.135
| Description | |
|---|---|

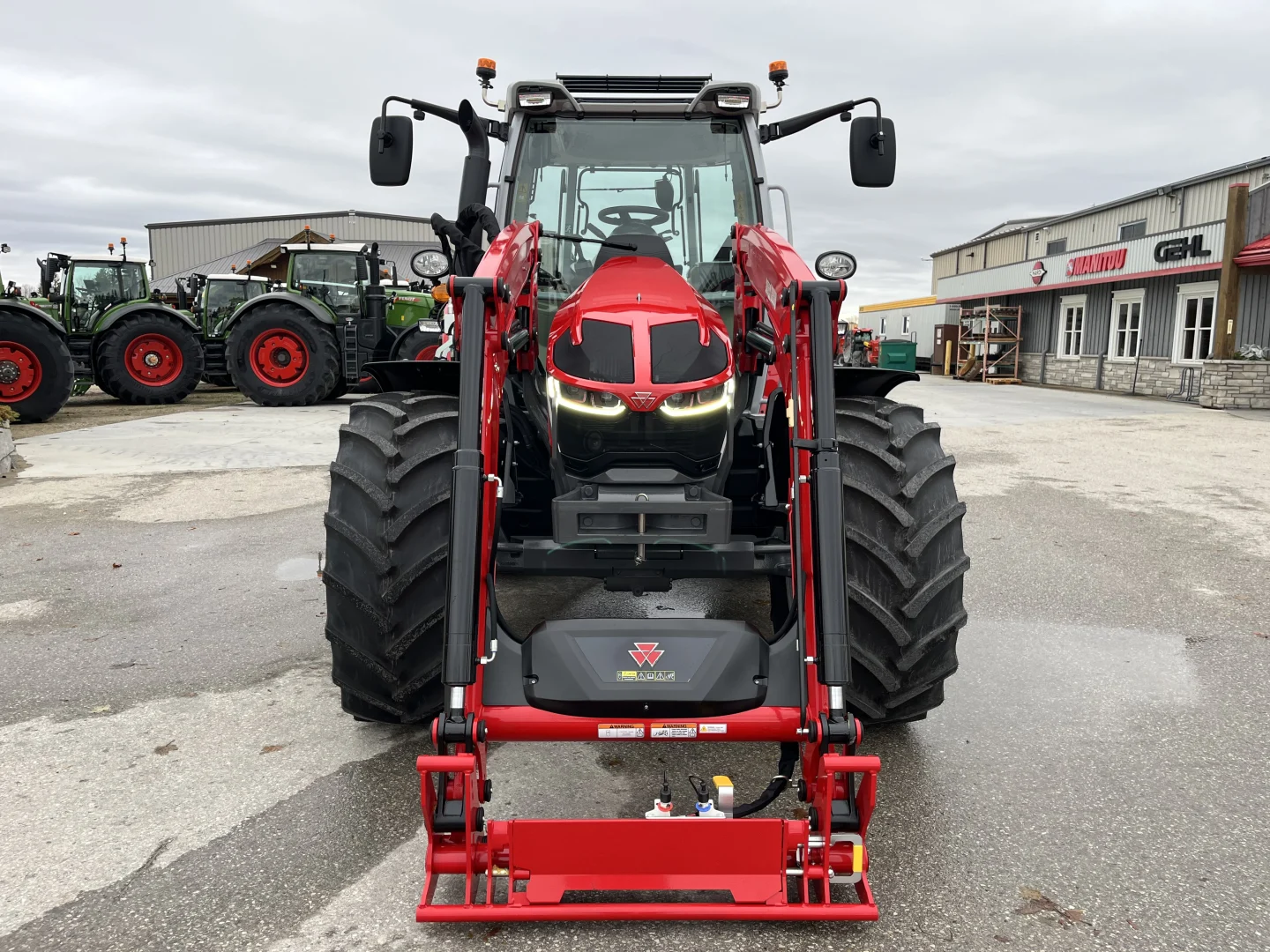

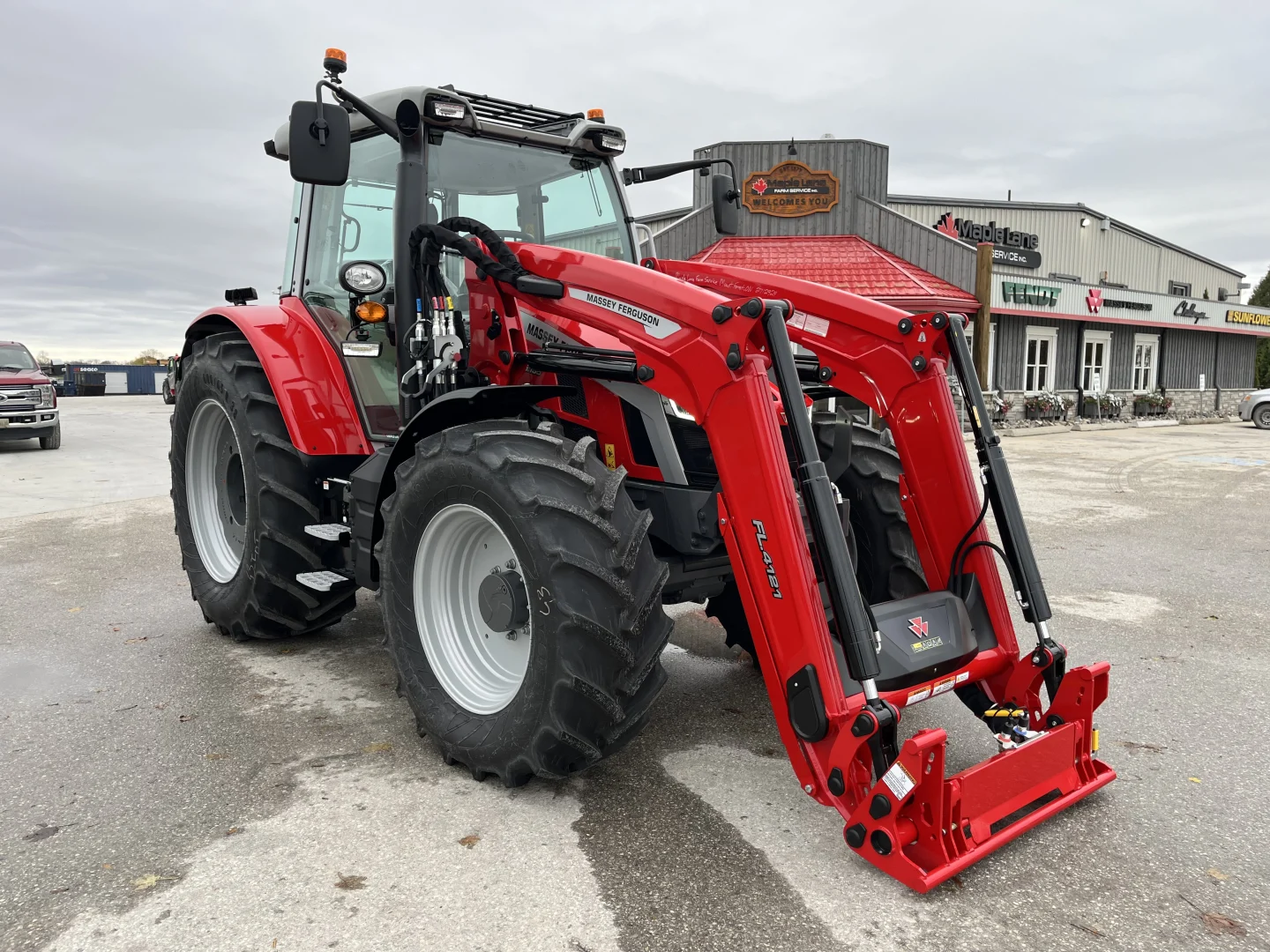

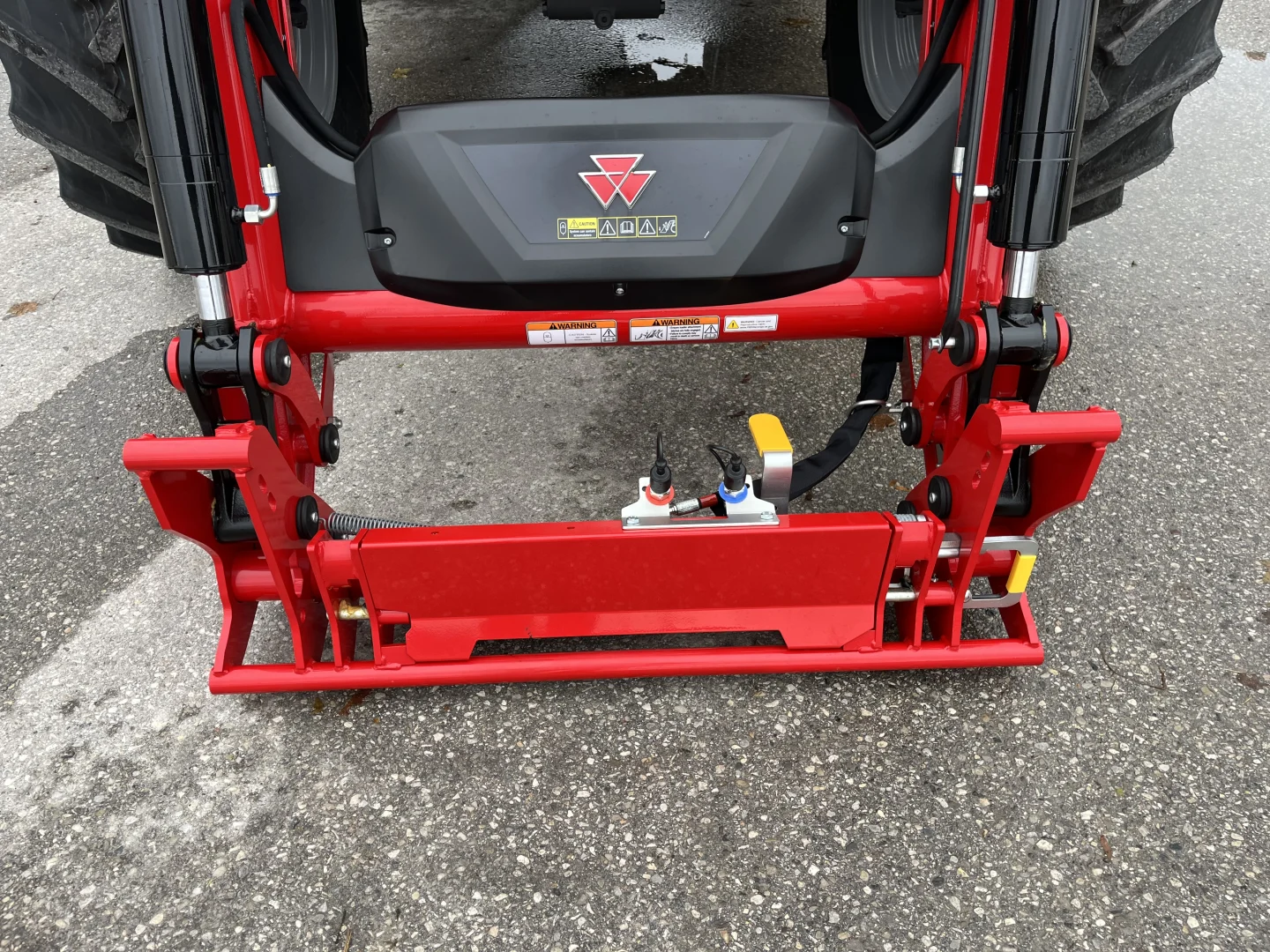

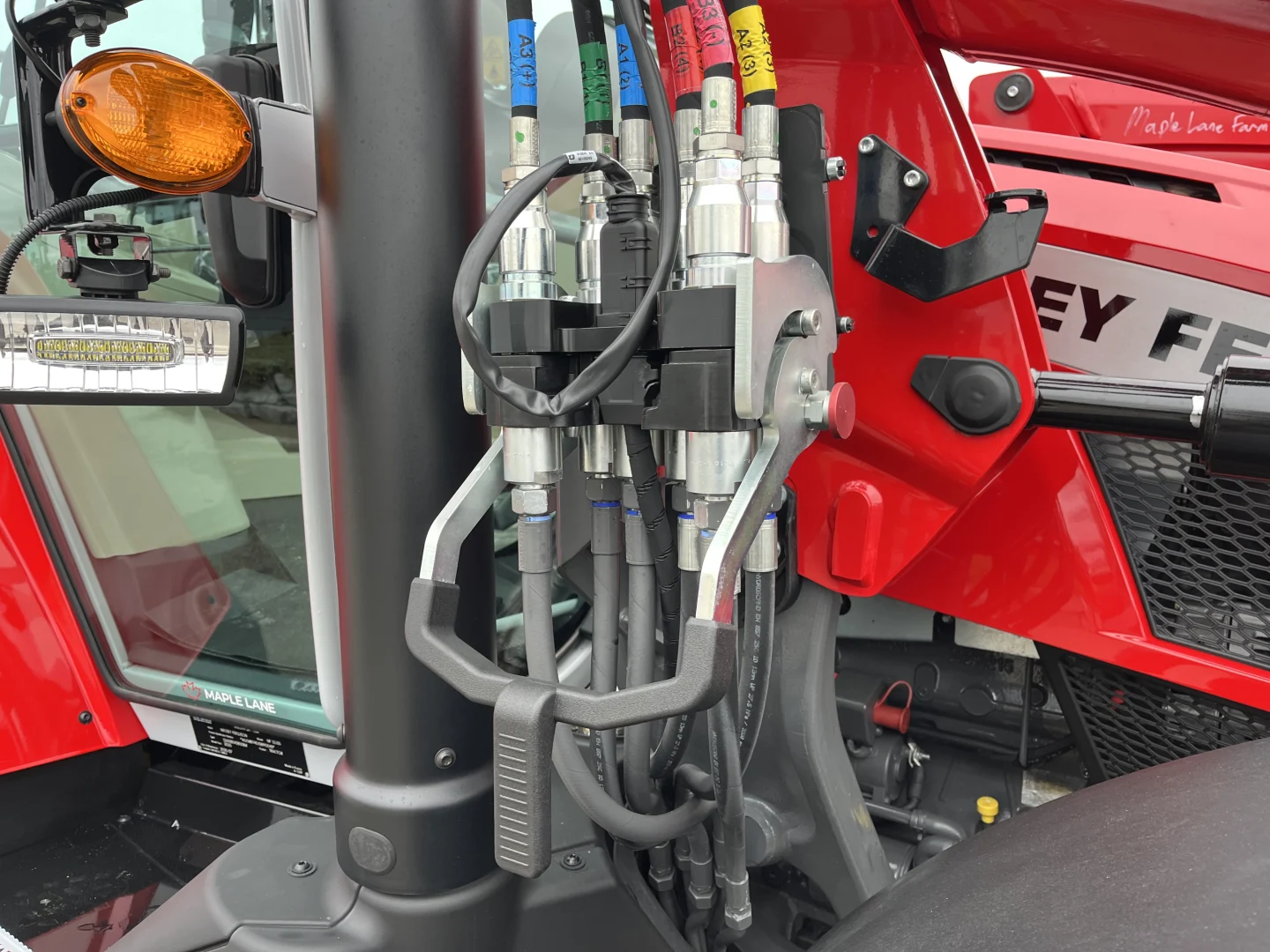

| New 2025 MY, 40KPH Dyna-4 transmission, 100LPM hydraulic pump, 3 rear mechanical remotes, mechanical cab suspension, visio roof, LED lighting, FL.4121 loader, 3rd function, 250KG rear wheel weights, 480/65R28 front, 600/65R38 rear. We gladly serve customers in southern Ontario. If you’re located outside southern Ontario, we would be grateful if you contacted your local MF dealer about a new 5S.135 instead of us. | |
| Categories | Mid Range |
| Unit Number | 18337B |
| Condition | New |
| Usage | 10 Hours |
| Year | 2025 |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 100.67kW (135hp) 135hp 100.67kW | |
| PTO Power | 79.79kW (107hp) 107hp 79.79kW | |
| Rated Engine Speed | 2000r/min | |
| Make | AGPWR 44 MBTN-D5 | |
| Displacement | 1.16gal. (4.4L) 4.4L 1.16gal. | |
| Number of Cylinders | 4 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 199.87L (52.8gal.) 52.8gal. 199.87L | |
| DEF Tank Capacity | 20.06L (5.3gal.) 5.3gal. 20.06L | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 24.85mph (40km/h) 40km/h 24.85mph | |
| Name | Dyna-4, Dyna-6 | |
| Type | Power Shift | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Hydraulics | ||
|---|---|---|
| Pump | MF 110 LPM | |
| System | Closed Center | |
| Pump Type | Load Sensing | |
| Hydraulic Flow | 29.06GPM (110L/min) 110L/min 29.06GPM | |
| System Capacity | 16.11gal. (61L) 61L 16.11gal. | |
| Maximum Operating Pressure | 19994.8kPa (2900psi) 2900psi 19994.8kPa | |
| Maximum Available Hydraulic Oil | 5.55gal. (21L) 21L 5.55gal. | |
| Rear Remote Valves | 3 | |
| Steering | Hydraulic Power | |

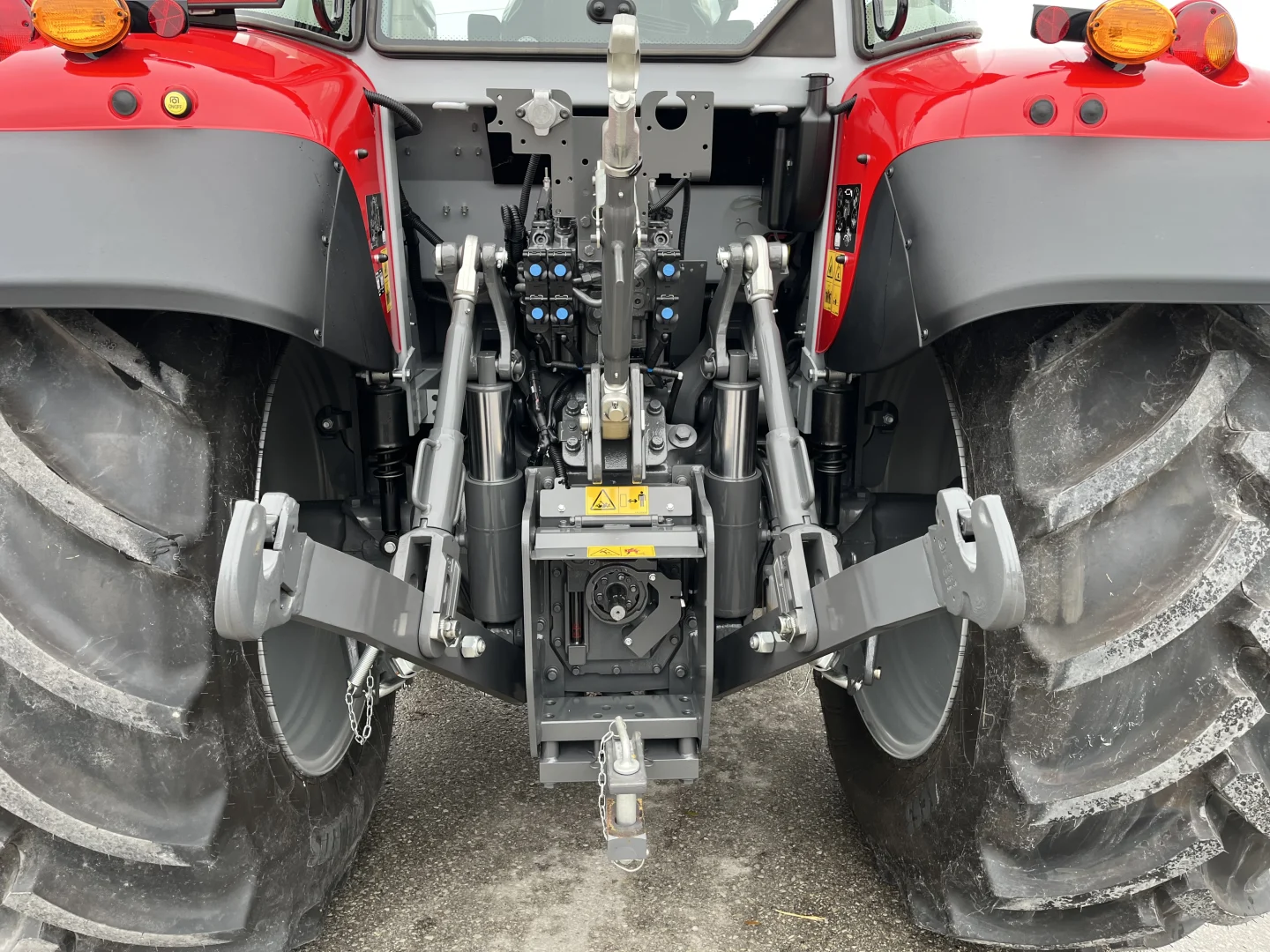

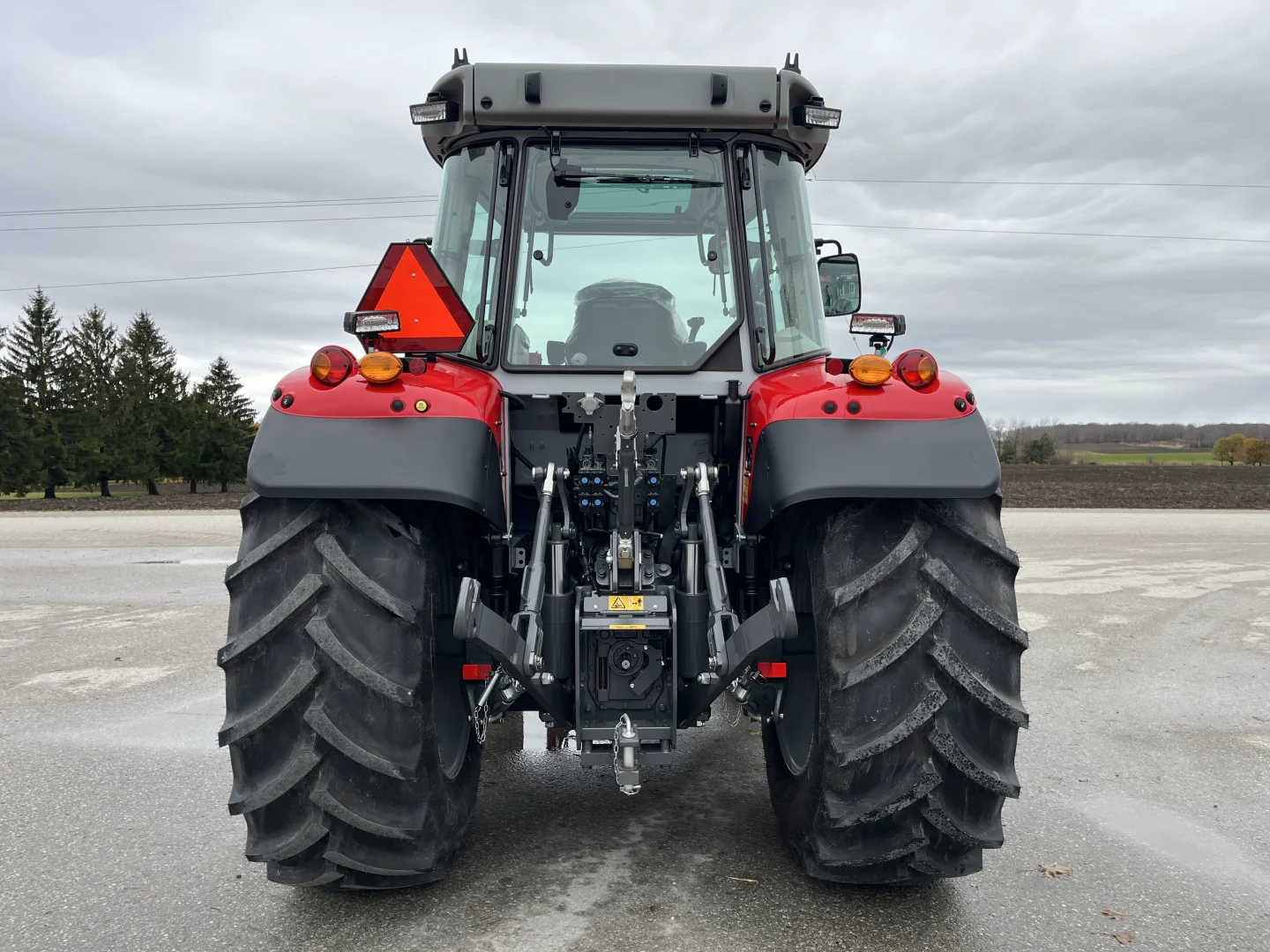

| Hitching | ||
|---|---|---|
| Rear Hitch | MF 5 Series | |
| Hitch Category | Category 3 | |
| Lift Capacity at Pins | 11023.12lb. (5000kg) 5000kg 11023.12lb. | |
| PTO | ||
|---|---|---|
| Rear Speed | 540, 540E, 1000 | |
| Type | Independent | |
| Technology | ||
|---|---|---|

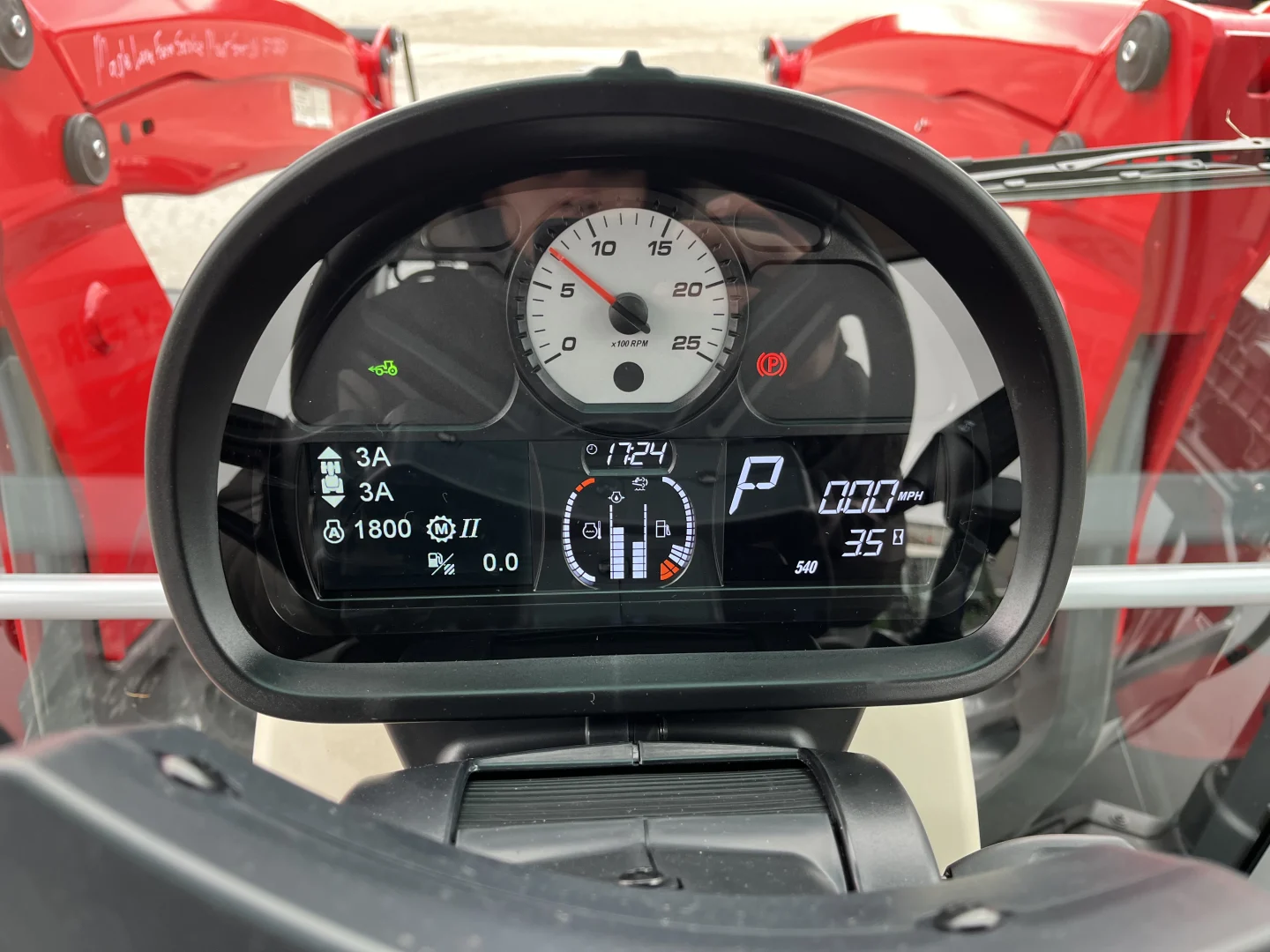

| Display | Datatronic 5 | |
| Entertainment | USB, Bluetooth, Mic | |
| Electrical | ||
|---|---|---|
| Front Lights | 6 | |
| Rear Lights | 6 | |
| Worklight Type | LED | |
| Alternator | 175A | |
| Battery | 775CCA | |

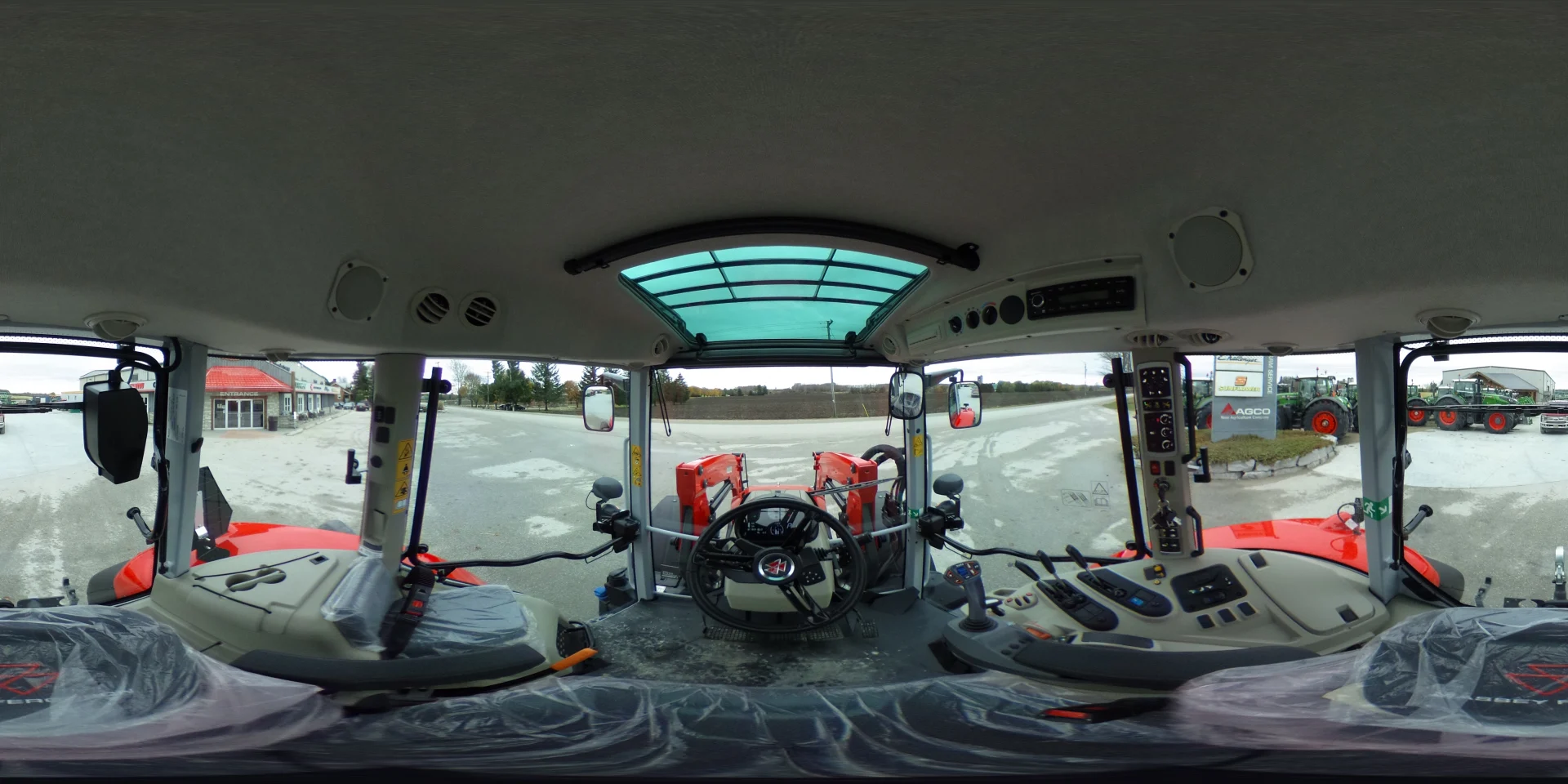

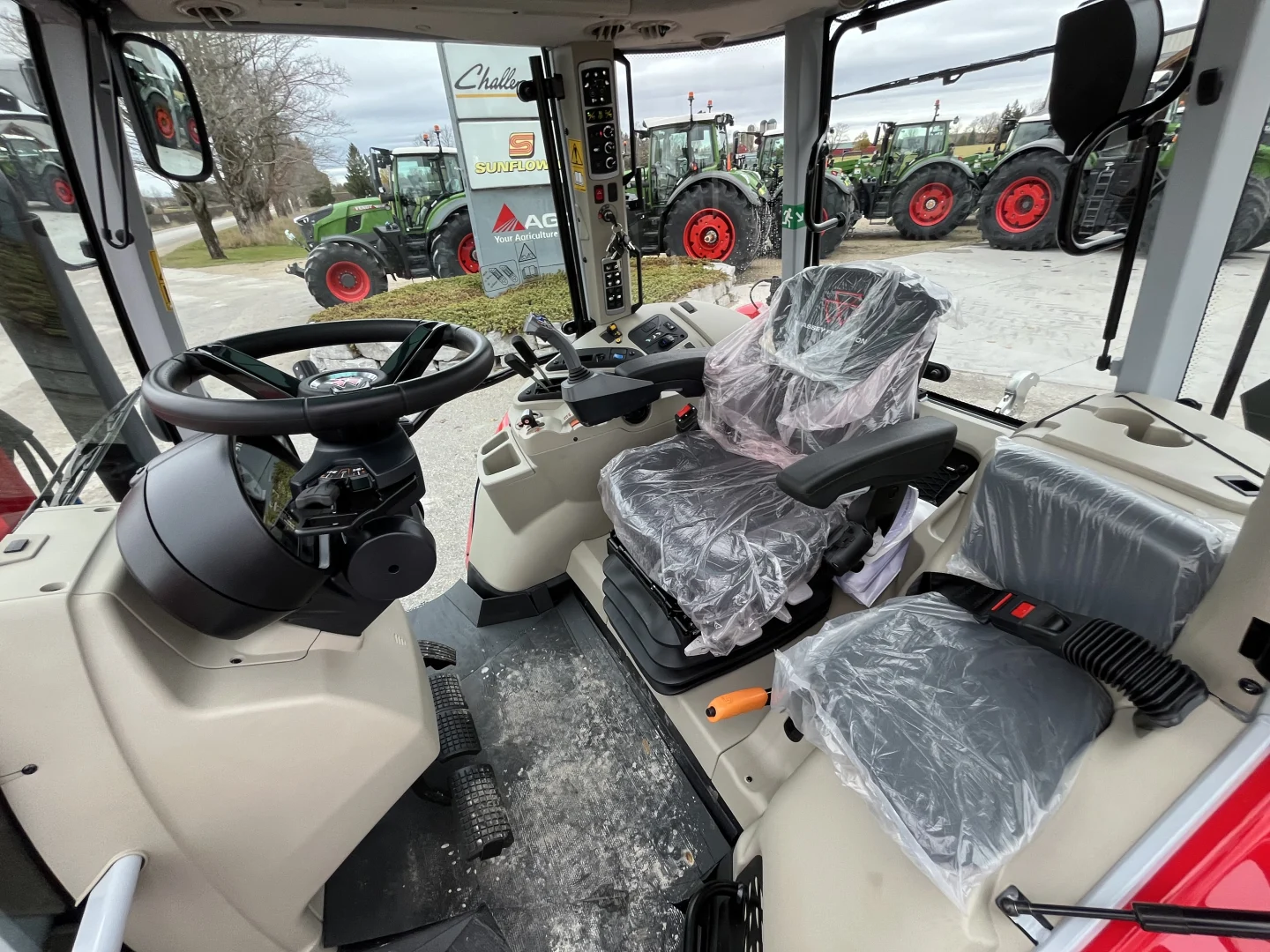

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |

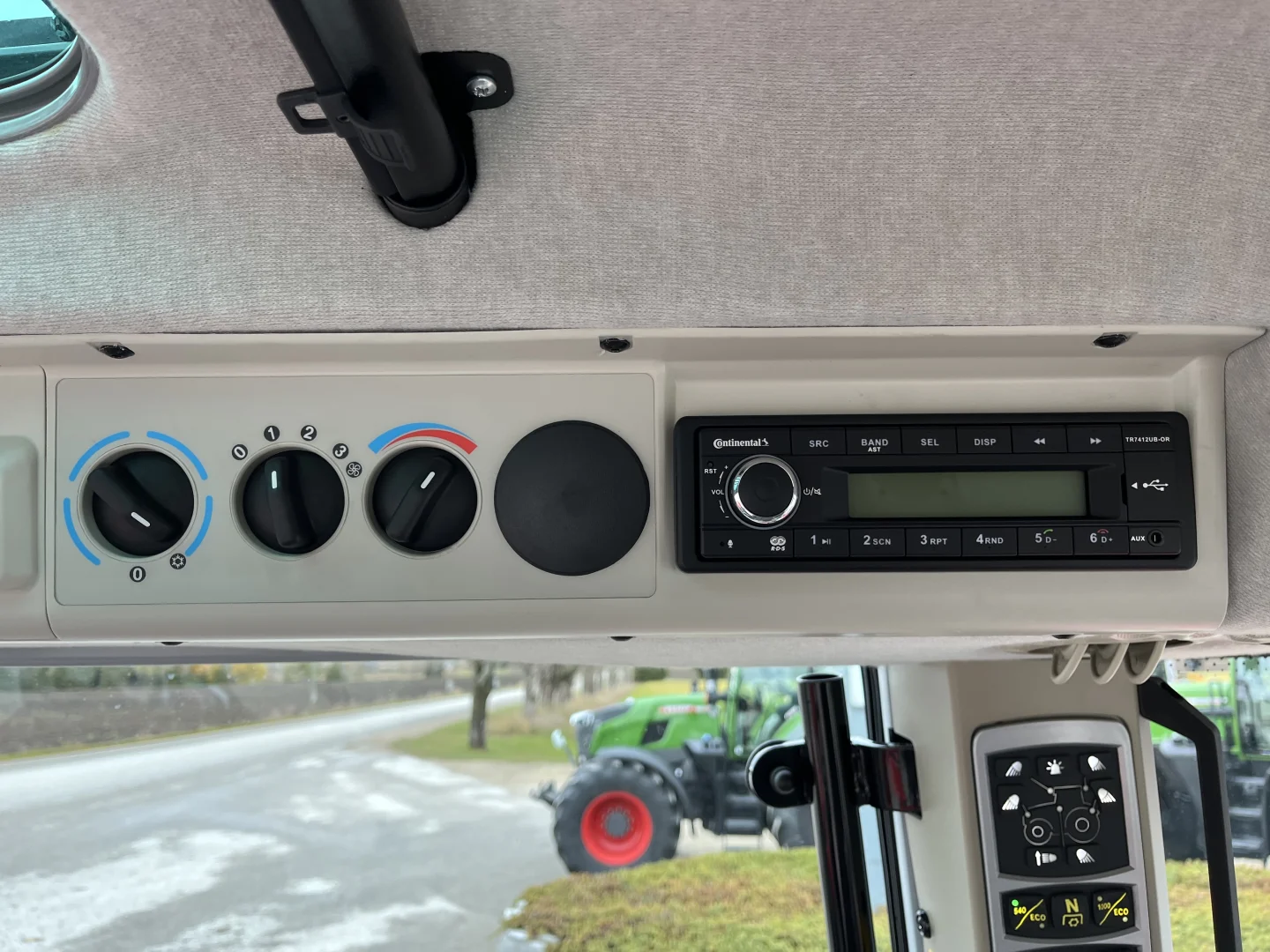

| Climate | Heater, Air Conditioning | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |
| Operator Seat | MF Air Adjustable (AE027) | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Pivot, Height Adjustable | |
| Backrest | Recline | |
| Headrest | Extend | |
| Suspension | Air (built in compressor) | |
| Rotation | Segments | |
| Wiper | Front, Rear | |
| Sunshade | Windshield | |
| Spec Level | Classic | |
| Wheels | ||
|---|---|---|
| Front | MITAS 480/65R28 | |
| Rear | MITAS 600/65R38 | |
| Dimensions | ||
|---|---|---|
| Length | 14' 8-5/8" (4486mm) 4486mm 14' 8-5/8" | |
| Wheelbase | 8' 4-3/8" (2550mm) 2550mm 8' 4-3/8" | |
| Width | 8' 7/8" (2460mm) 2460mm 8' 7/8" | |
| Height | 9' 3-7/16" (2830mm) 2830mm 9' 3-7/16" | |
| Minimum Ground Clearance | 1' 1/2" (317mm) 317mm 1' 1/2" | |
| Turning Radius | 398.78cm (13' 1") 13' 1" 398.78cm | |
| Weight | 11331.76lb. (5140kg) 5140kg 11331.76lb. | |
