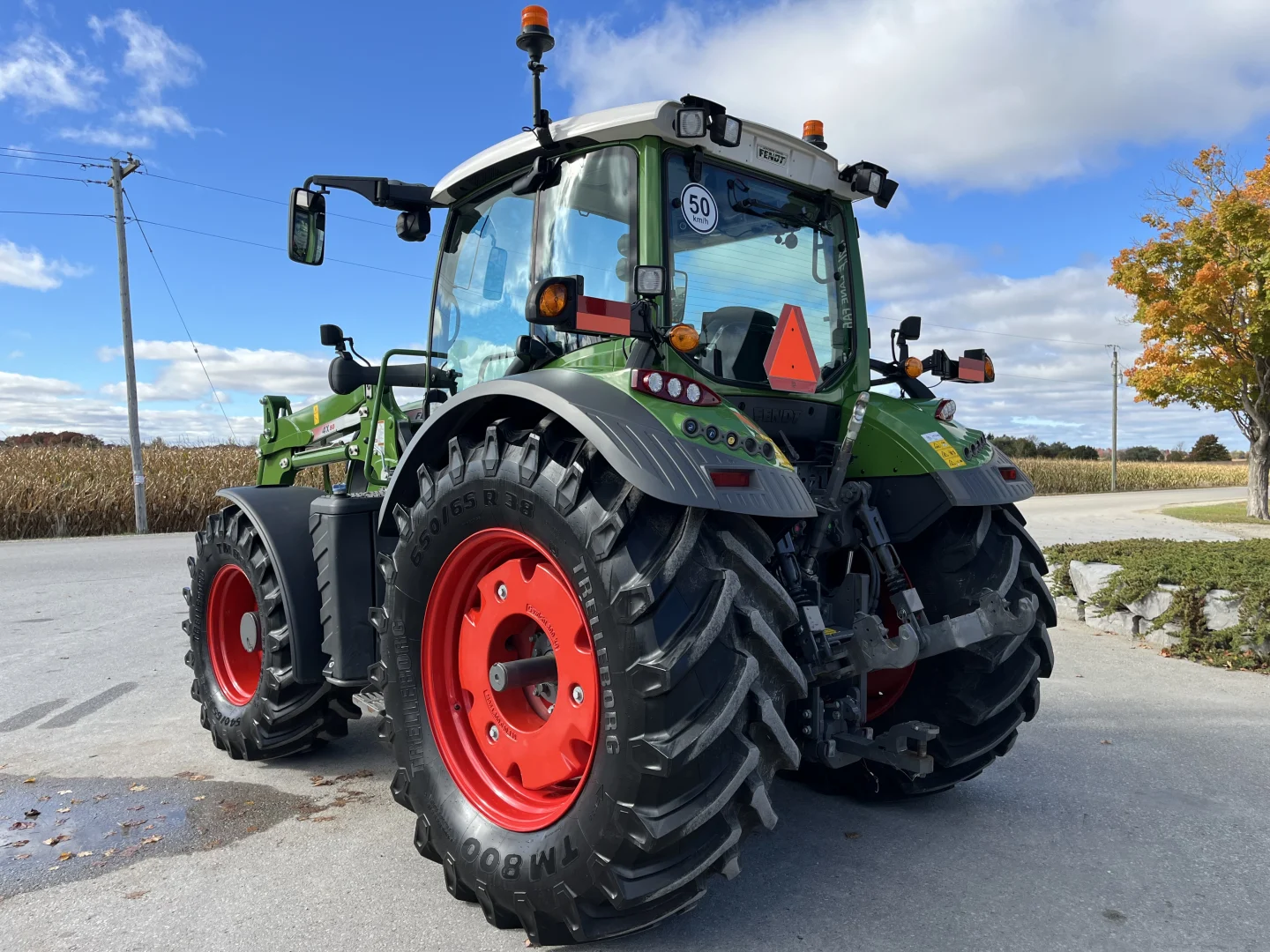

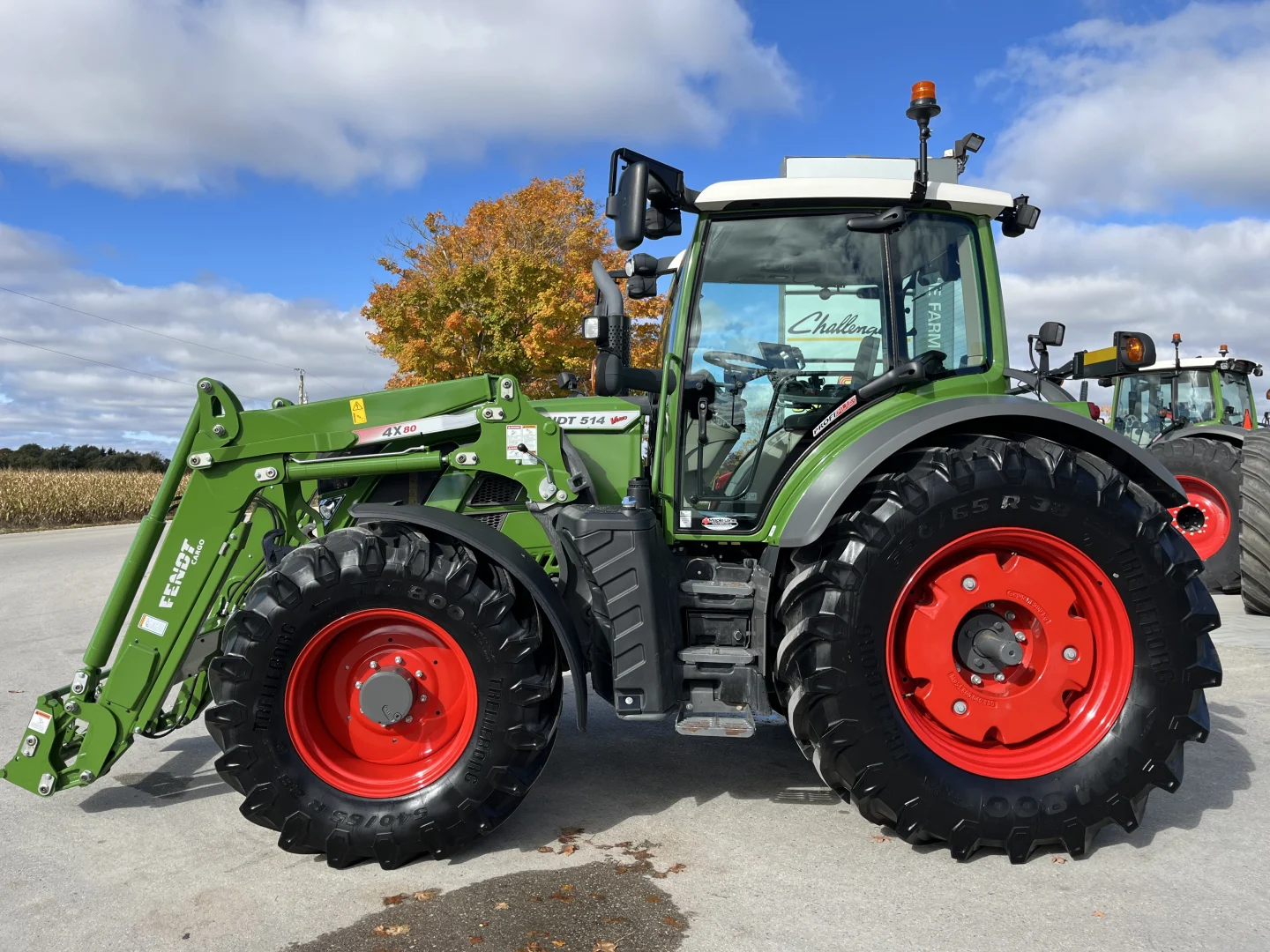

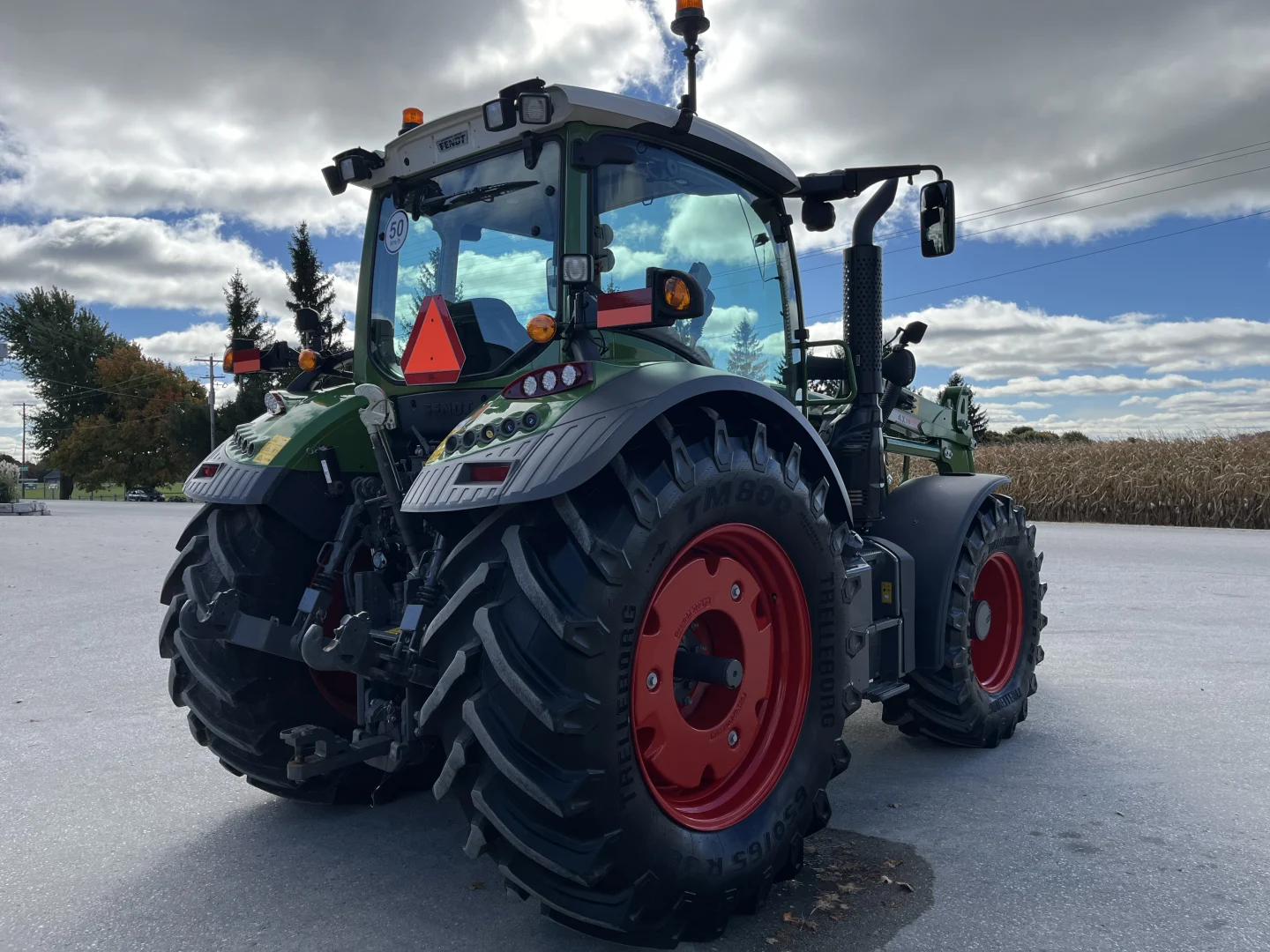

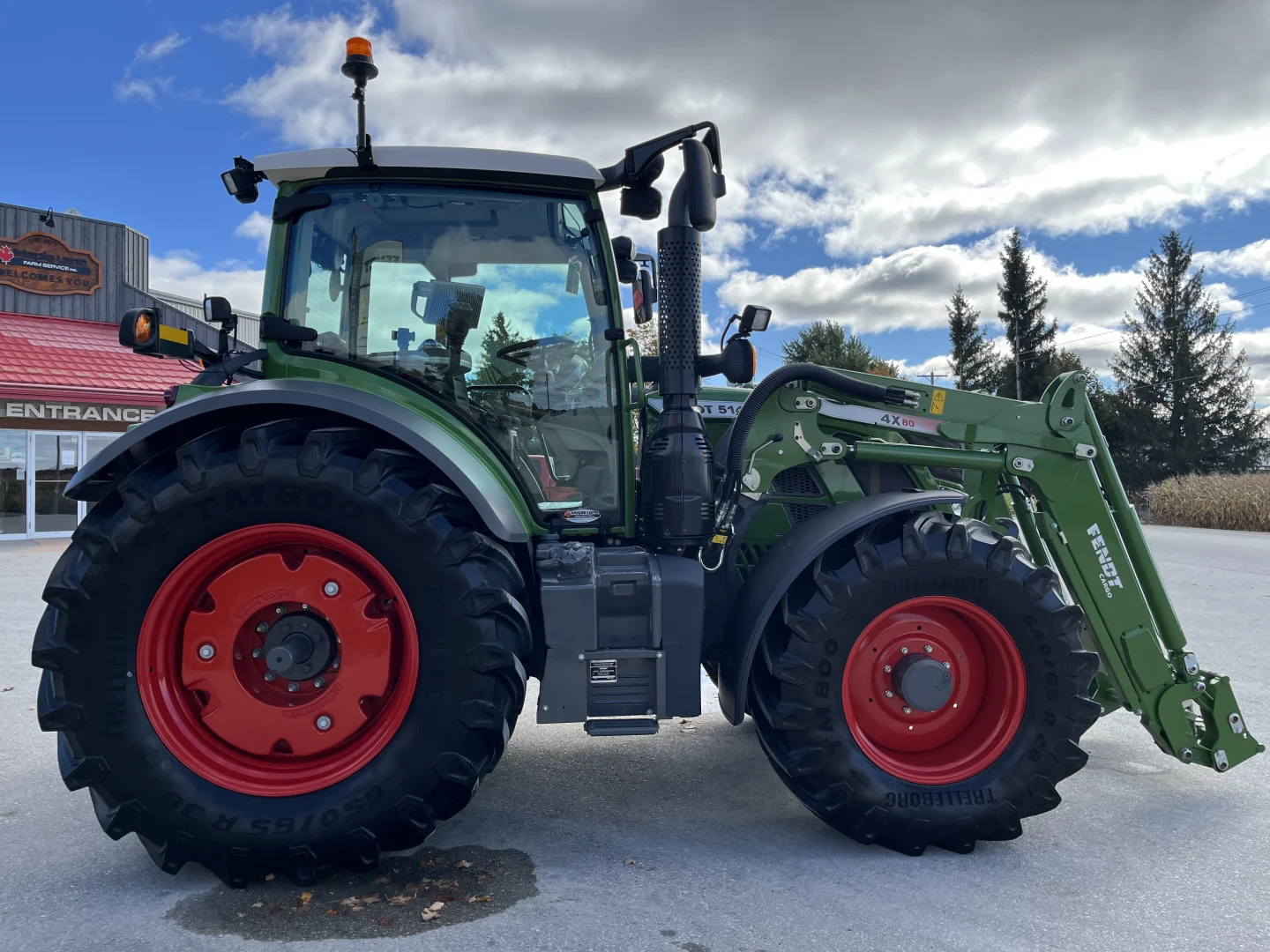

Used 2022 Fendt 514 S4
| Description | |
|---|---|

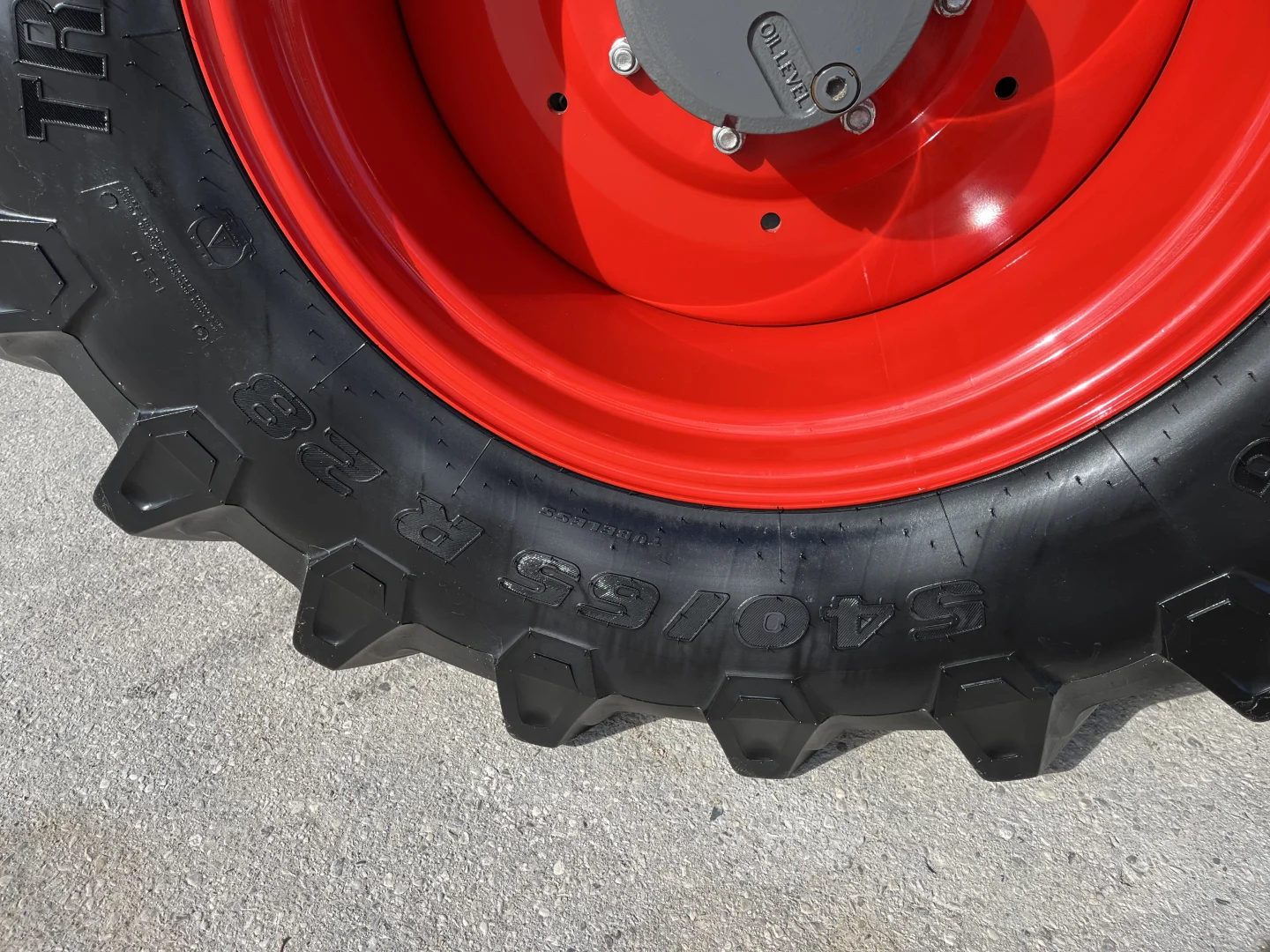

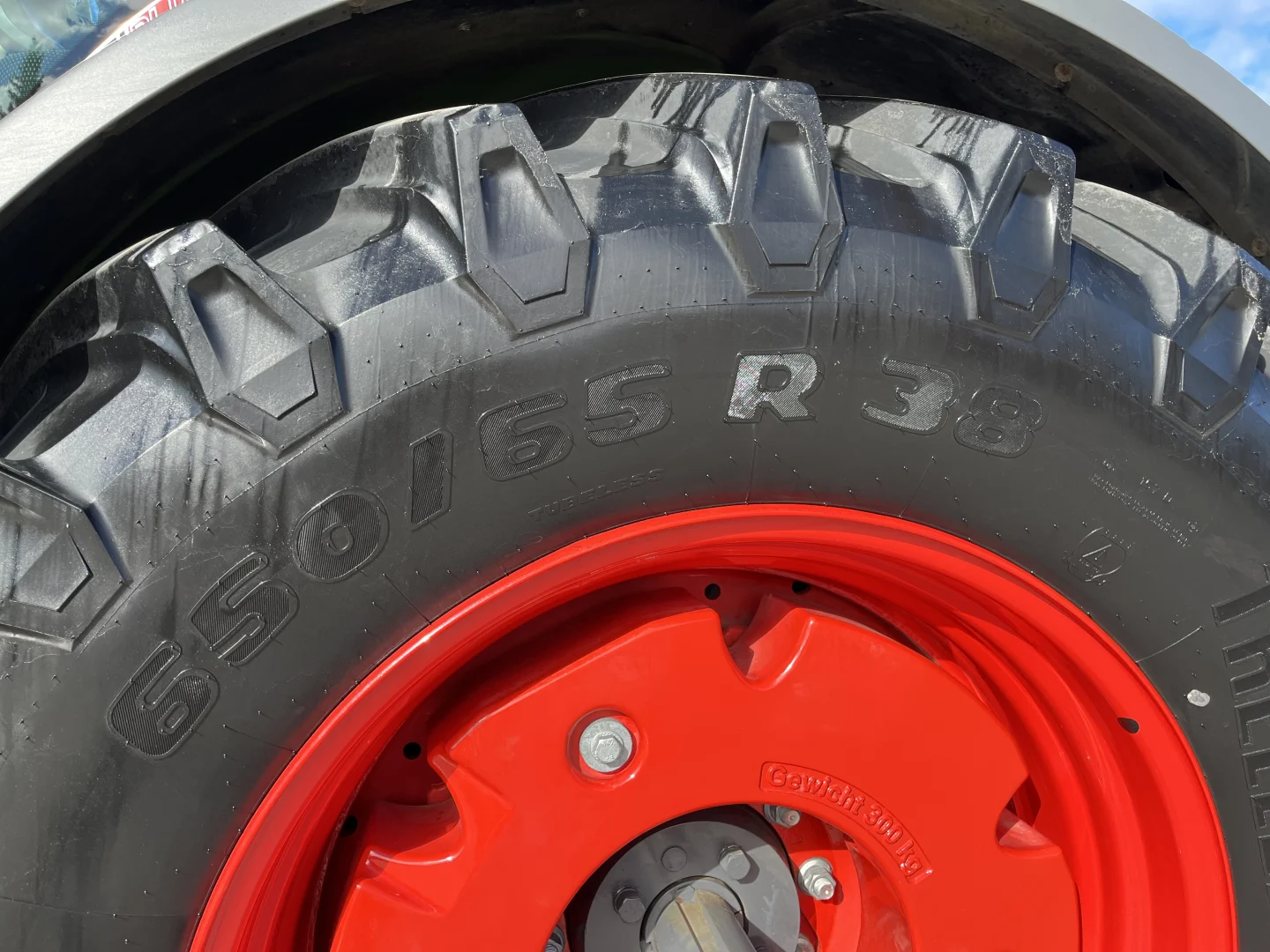

| Profi Plus, Fendt Guide standard, 50 km/h Vario transmission, suspended front axle, 42 GPM hydraulic pump, 4 rear valves, front 3 point hitch, 1 front valve 650/65R38 rear, 540/65R28 front, 300 kg wheel weights, hydraulic trailer brakes, cloth Super Comfort seat, mechanical cab suspension, Cargo 4X80 loader, Goldstar warranty until December 2024. | |
| Unit Number | 23433R |
| Condition | Used |
| Hours Used | 950 hours |
| Year | 2022 |
| Cost | $239,900.00 CAD |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 111kW (150hp) 150hp 111kW | |
| PTO Power | 92kW (124hp) 124hp 92kW | |
| Rated Engine Speed | 2100r/min | |
| Make | DZ 4.04L Tier 4F 4 Cylinder | |
| Displacement | 246.5cu. in. (4.0L) 4.0L 246.5cu. in. | |
| Number of Cylinders | 4 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |

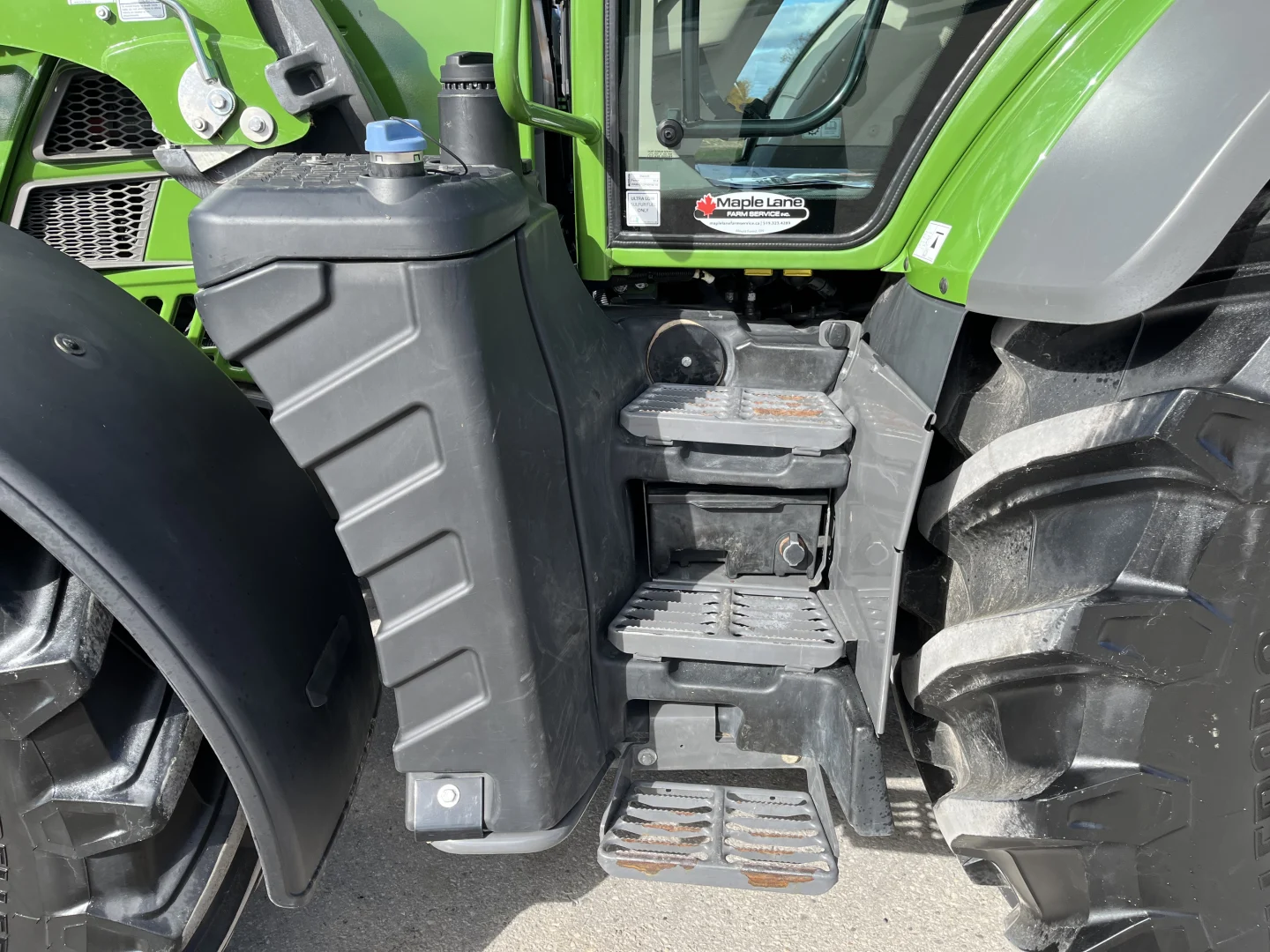

| Fuel Tank Capacity | 78gal. (298.0L) 298.0L 78gal. | |
| DEF Tank Capacity | 8gal. (31.0L) 31.0L 8gal. | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31mph (50km/h) 50km/h 31mph | |
| Name | CVT ML 90 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Suspension | Front Axle | |
| Rear Axle Length | 8' 2-7/16" (2500mm) 2500mm 8' 2-7/16" | |
| Steering Mode | front wheel steer | |

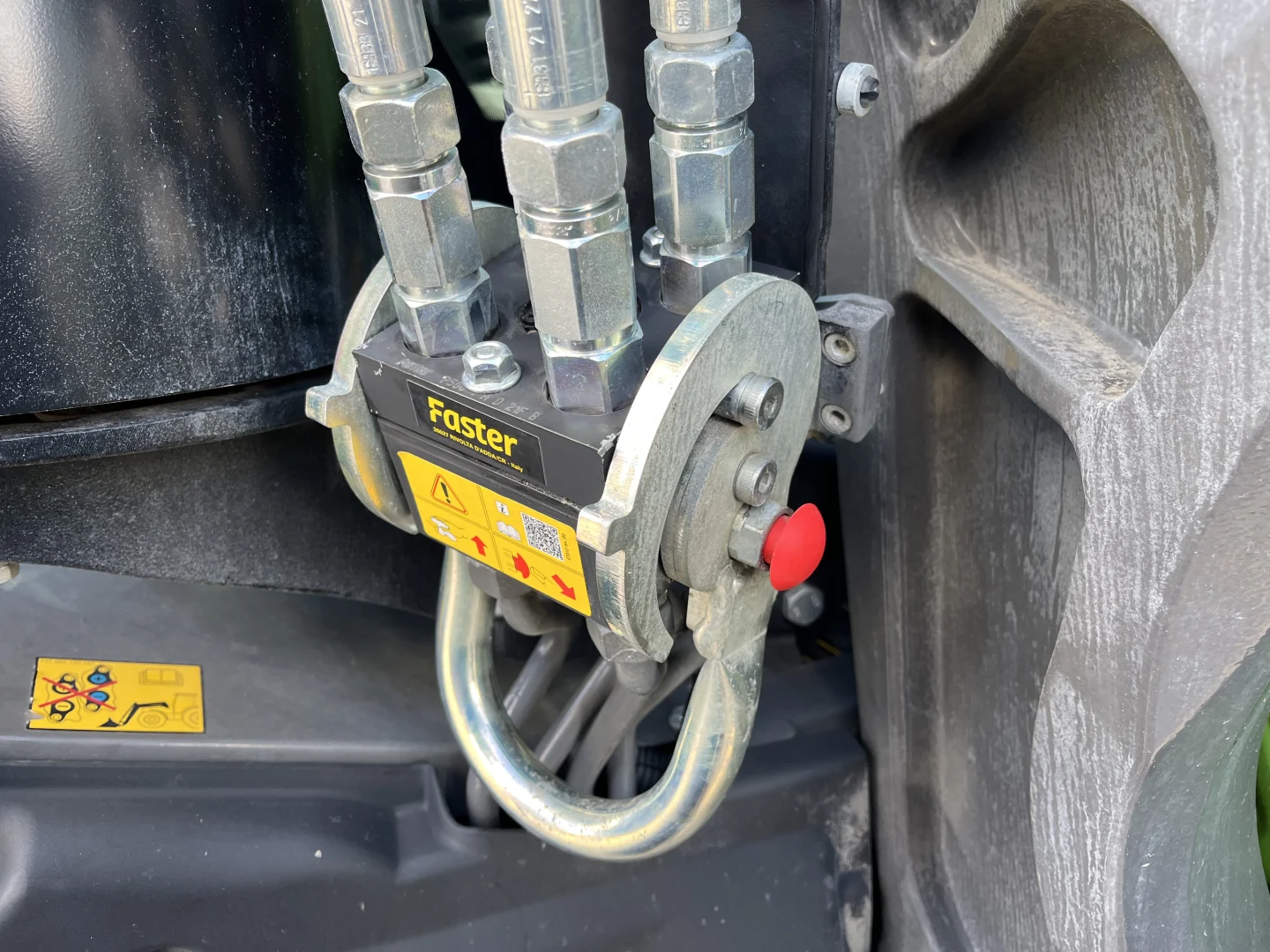

| Hydraulics | ||
|---|---|---|
| Pump | FD 500 S4 42 GPM | |
| Pump Type | Variable Displacement Piston | |
| Hydraulic Flow | 158L/min (42.0GPM) 42.0GPM 158L/min | |
| Rear Remote Valves | 4 | |
| Front Remote Valves | 1 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|

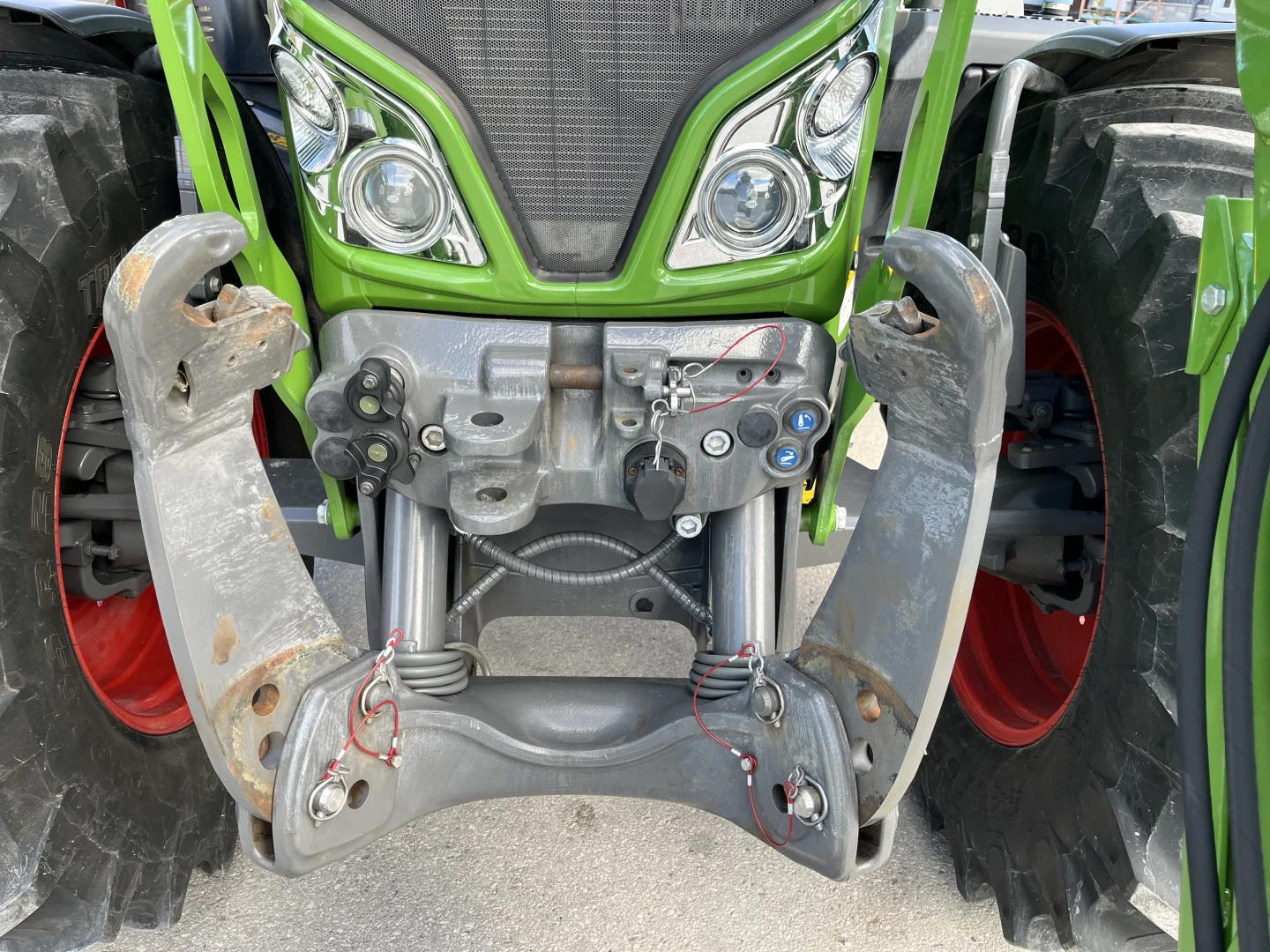

| Front Hitch | FD 500 S4 | |
| Category | Category 3, Category 2 | |
| Capacity at Pins | 3487kg (7688lb.) 7688lb. 3487kg | |

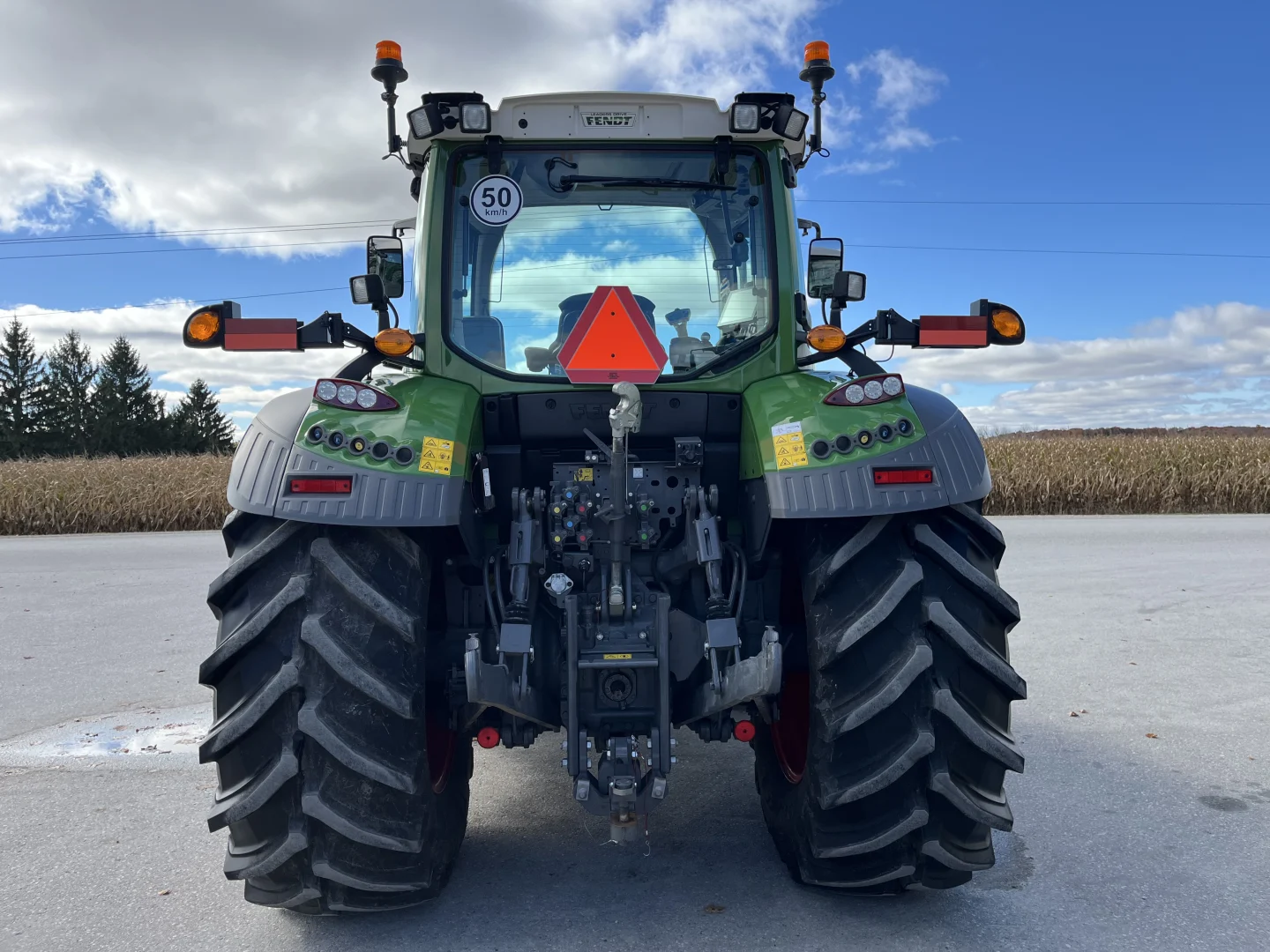

| Rear Hitch | FD 500 S4 | |
| Hitch Category | Category 3, Category 2 | |
| Lift Capacity at Pins | 6803kg (15000lb.) 15000lb. 6803kg | |
| Drawbar | Category 2 | |
| PTO | ||
|---|---|---|
| Rear | 540, 1000 | |
| Type | Independent | |
| Technology | ||
|---|---|---|

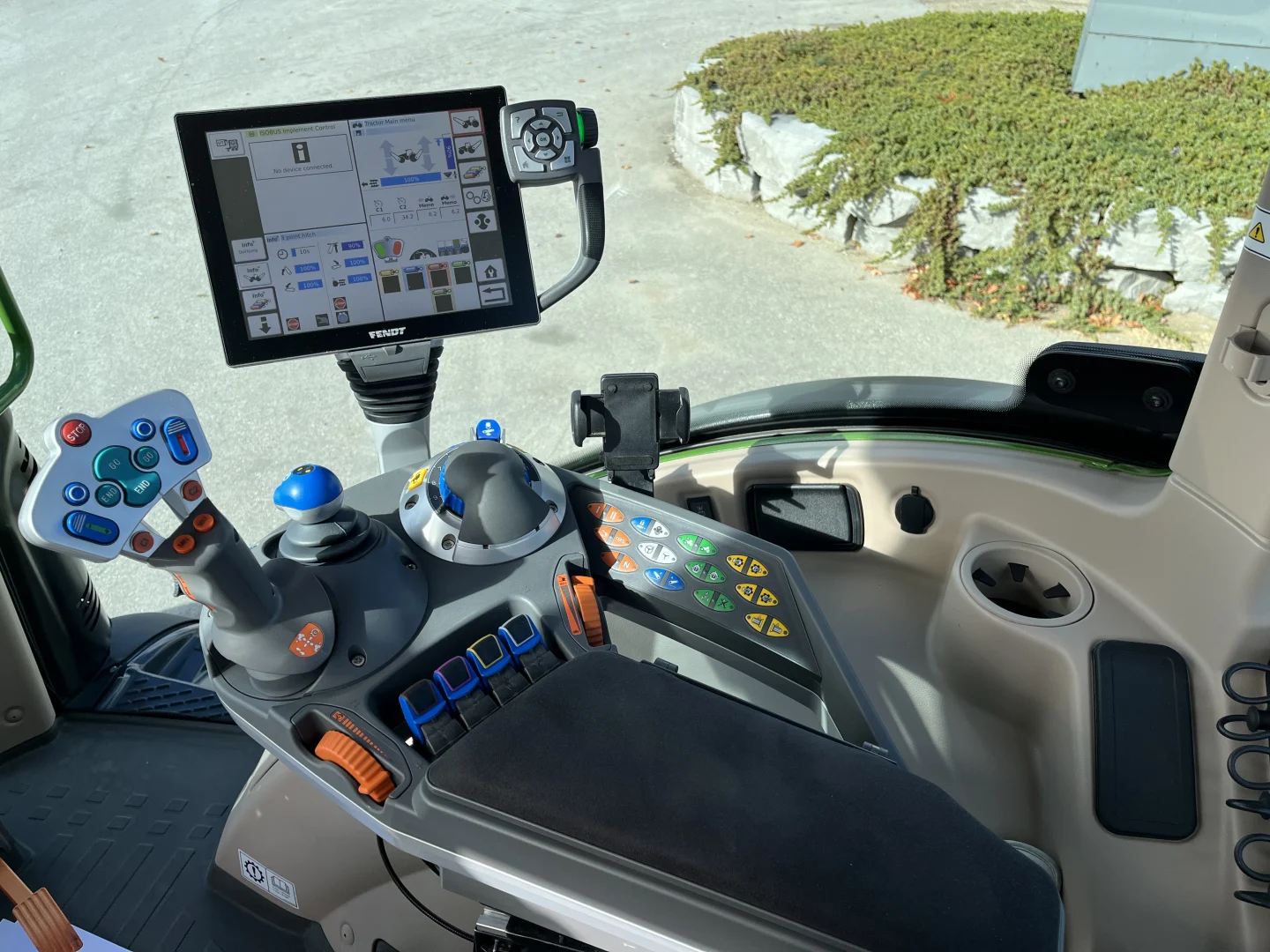

| Display | 10.4" Varioterminal | |

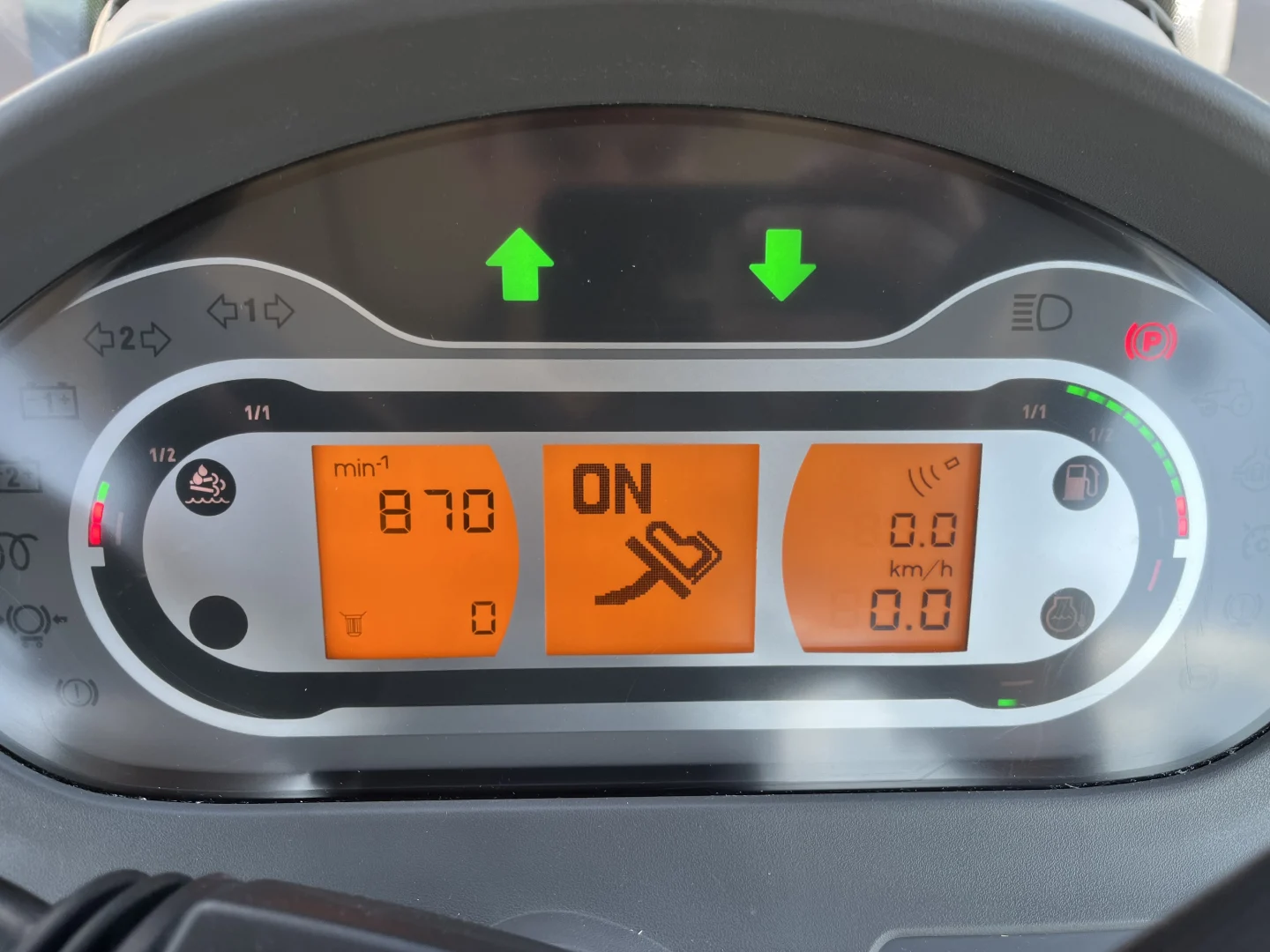

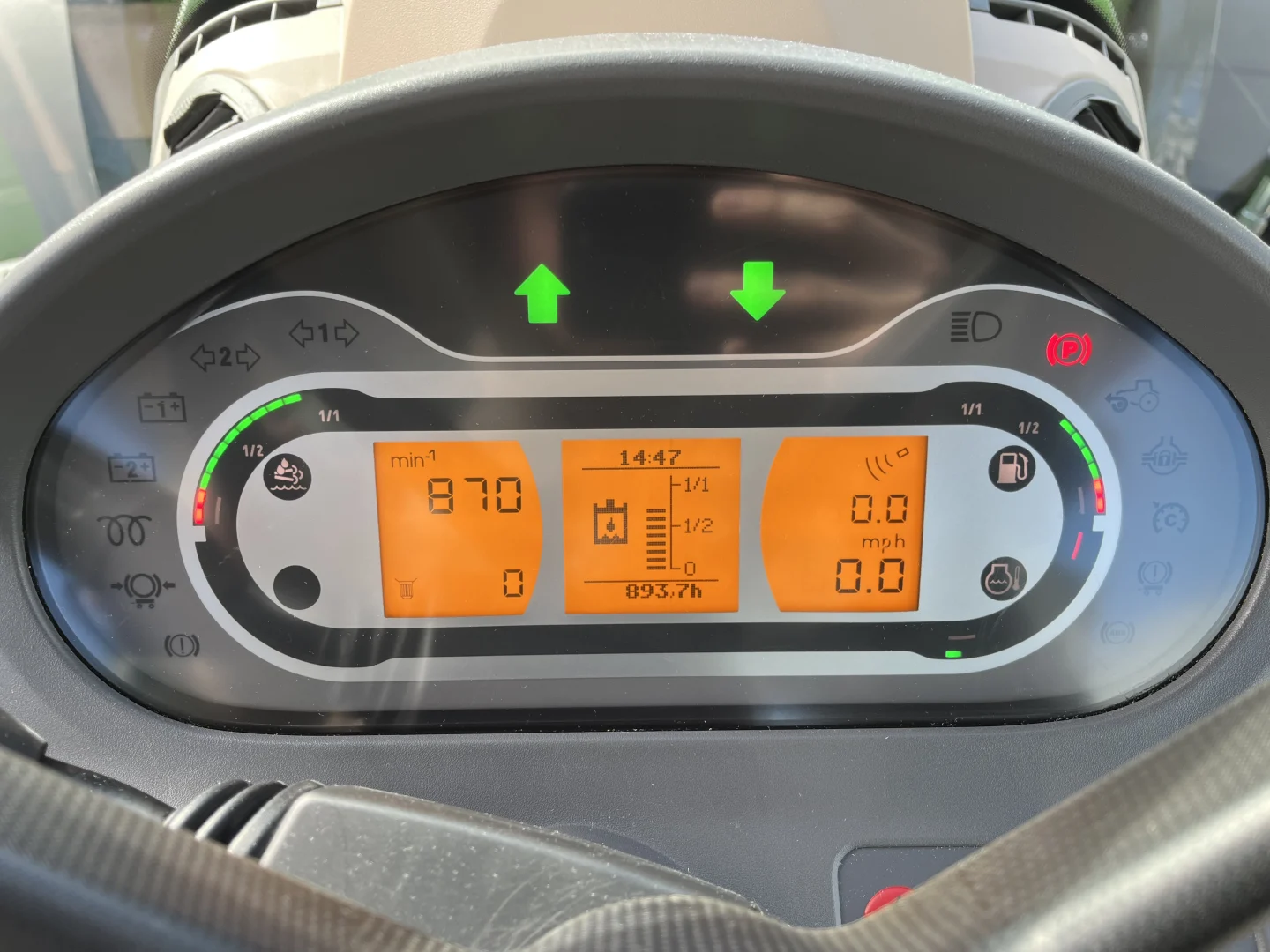

| Instrument Display | Digital Dash Display | |

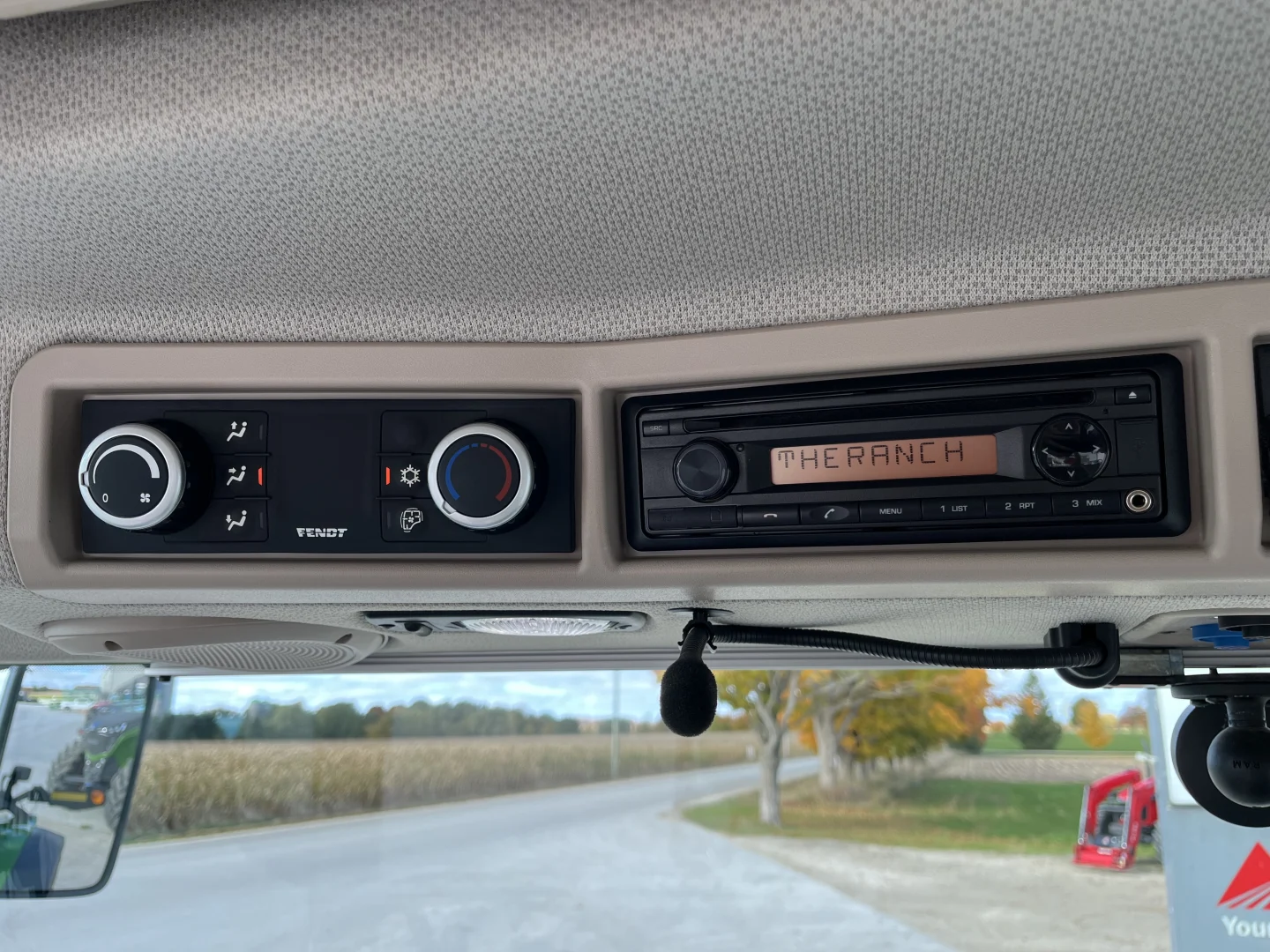

| Entertainment | Bluetooth, Mic, USB | |
| Integration | ISO BUS Implement Control | |
| Antenna | Novatel | |
| Guidance | Fendt Guide Standard | |
| Headland Management | Variotronic TI | |
| Data Transfer | Fendt TaskDoc Pro | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 10 | |

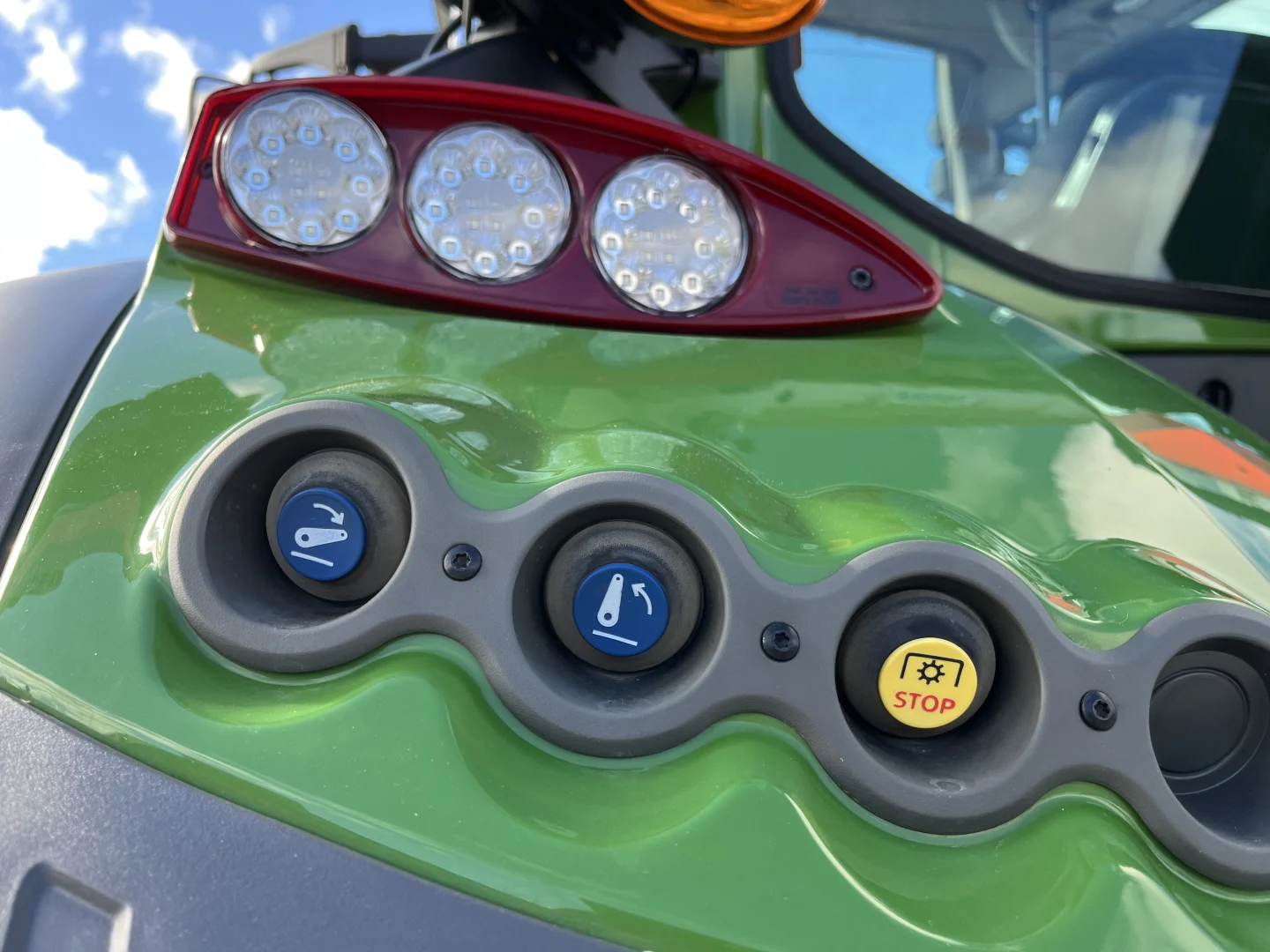

| Rear Lights | 4 | |
| Worklight Type | Halogen | |
| Alternator | 200A | |
| Battery | 1475CCA | |

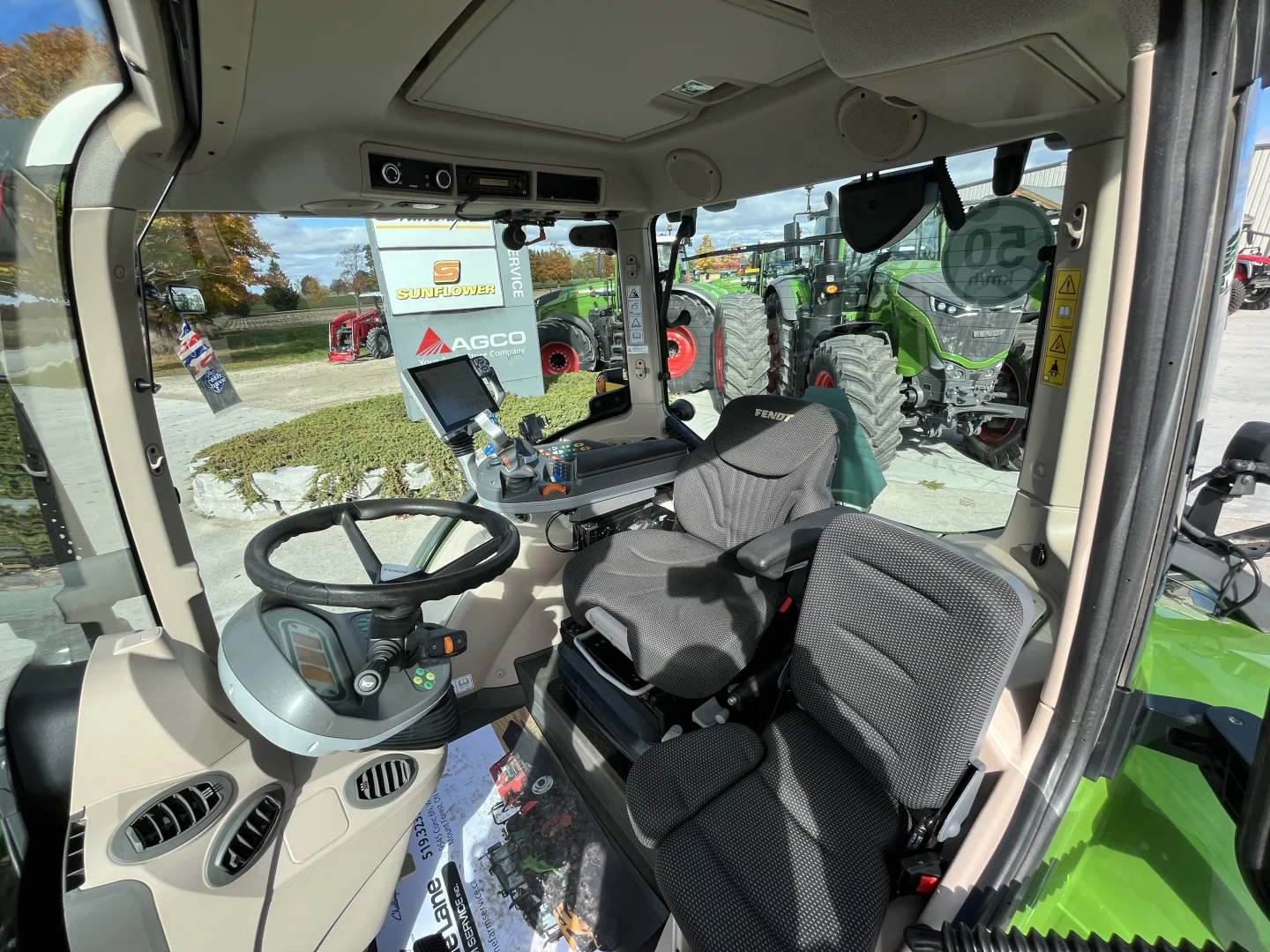

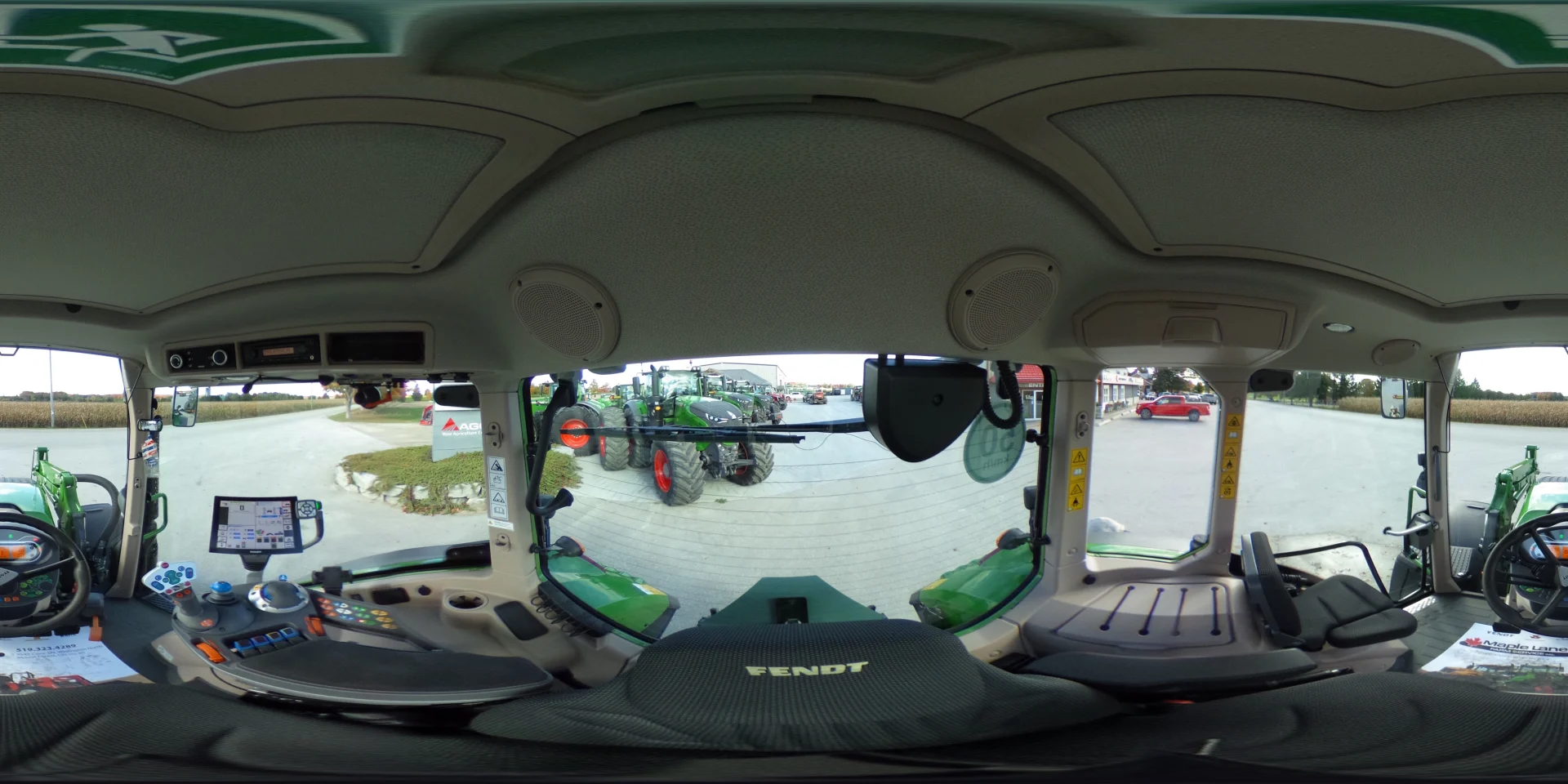

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Climate | Air Conditioning, Heater | |
| Cab Suspension | 2 Point Mechanical | |
| Steering Column | Telescoping, Tilting | |
| Steering Controls | Steering Wheel | |
| Seat | FD Super Comfort | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline | |
| Headrest | Extend | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Tilt Adjustment, Depth Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Air (built in compressor), Forward/Reverse Horizontal, Low Frequency | |
| Rotation | Segments | |
| Comfort | Automatic Weight Adjustment, Automatic Height Adjustment, Heat | |
| Wiper | 300° Front | |
| Spec Level | ProfiPlus | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |
| Wheels | ||
|---|---|---|

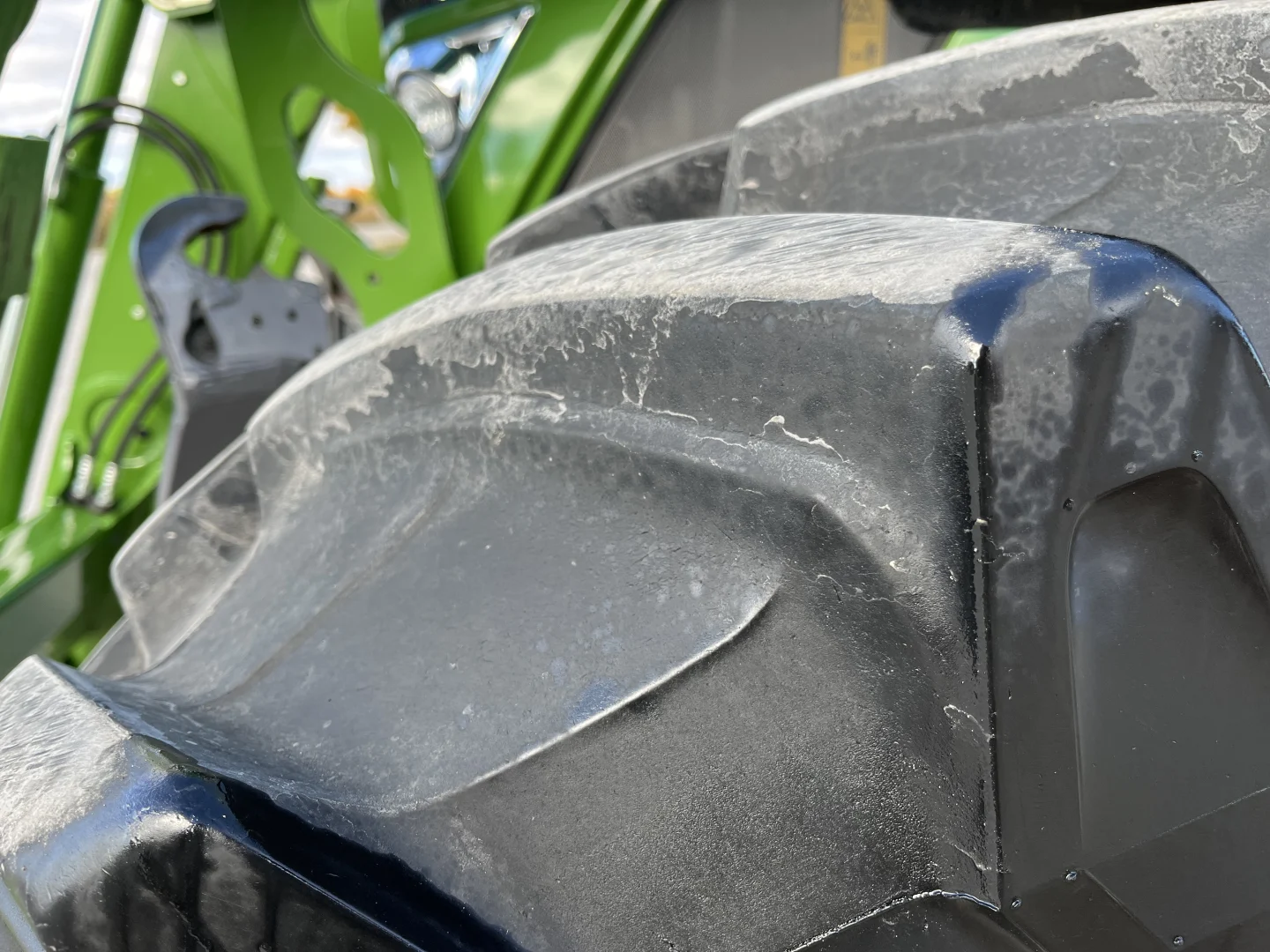

| Front | TRELL 420/85R28 | |
| Size | 420/85R28 | |
| Tread Pattern | R1 (Ag) | |
| Type | Ag | |
| Section Width | 436mm (1' 5-3/16") 1' 5-3/16" 436mm | |
| Overall Diameter | 1678mm (5' 6-1/8") 5' 6-1/8" 1678mm | |
| Static Loaded Radius | 759mm (2' 5-7/8") 2' 5-7/8" 759mm | |
| Rolling Circumference | 5059mm (16' 7-3/16") 16' 7-3/16" 5059mm | |

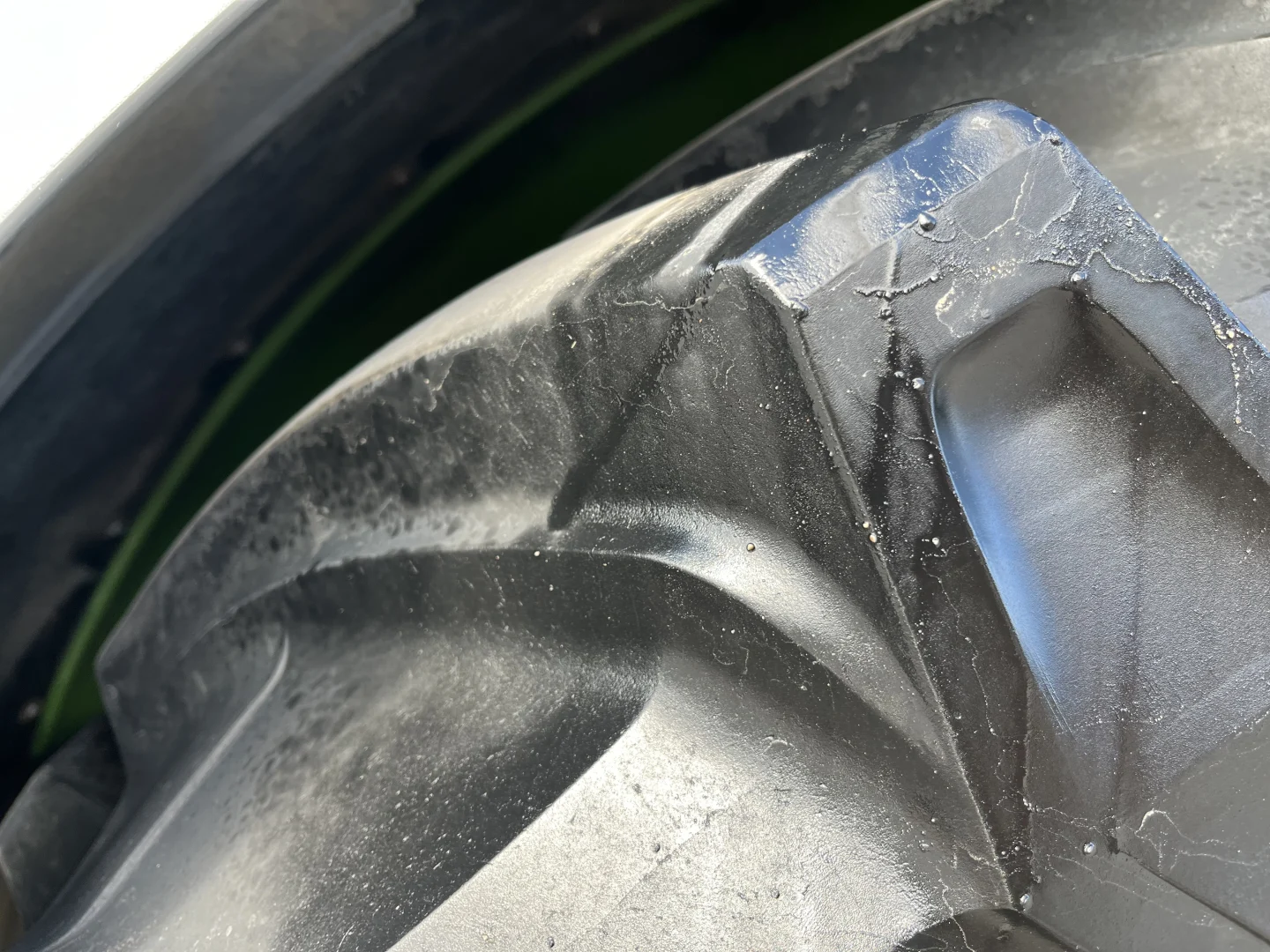

| Rear | TRELL 520/85R38 | |
| Size | 520/85R38 | |
| Tread Pattern | R1 (Ag) | |
| Type | Ag | |
| Section Width | 535mm (1' 9-1/8") 1' 9-1/8" 535mm | |
| Overall Diameter | 1849mm (6' 13/16") 6' 13/16" 1849mm | |
| Static Loaded Radius | 825mm (2' 8-1/2") 2' 8-1/2" 825mm | |
| Rolling Circumference | 5509mm (18' 7/8") 18' 7/8" 5509mm | |
| Weights | ||
|---|---|---|

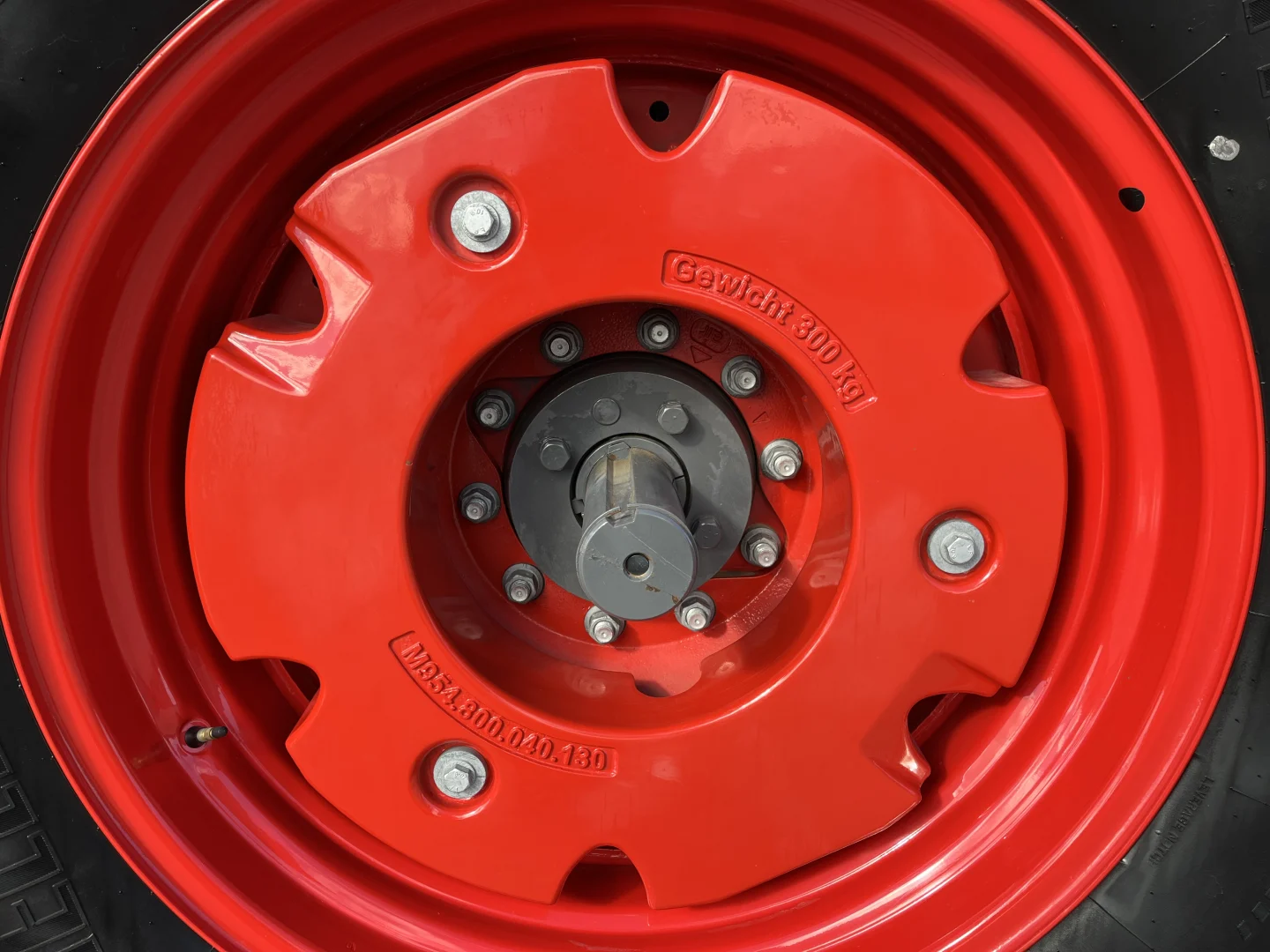

| Wheel Weights (per side) | 661lb. (300kg) 300kg 661lb. | |
| Dimensions | ||
|---|---|---|
| Length | 14' 7-5/16" (4453mm) 4453mm 14' 7-5/16" | |
| Wheelbase | 8' 4-13/16" (2560mm) 2560mm 8' 4-13/16" | |
| Width | 8' 2-7/16" (2501mm) 2501mm 8' 2-7/16" | |
| Height | 9' 8-3/4" (2965mm) 2965mm 9' 8-3/4" | |
| Weight | 13337lb. (6050kg) 6050kg 13337lb. | |
| Loader | ||
|---|---|---|

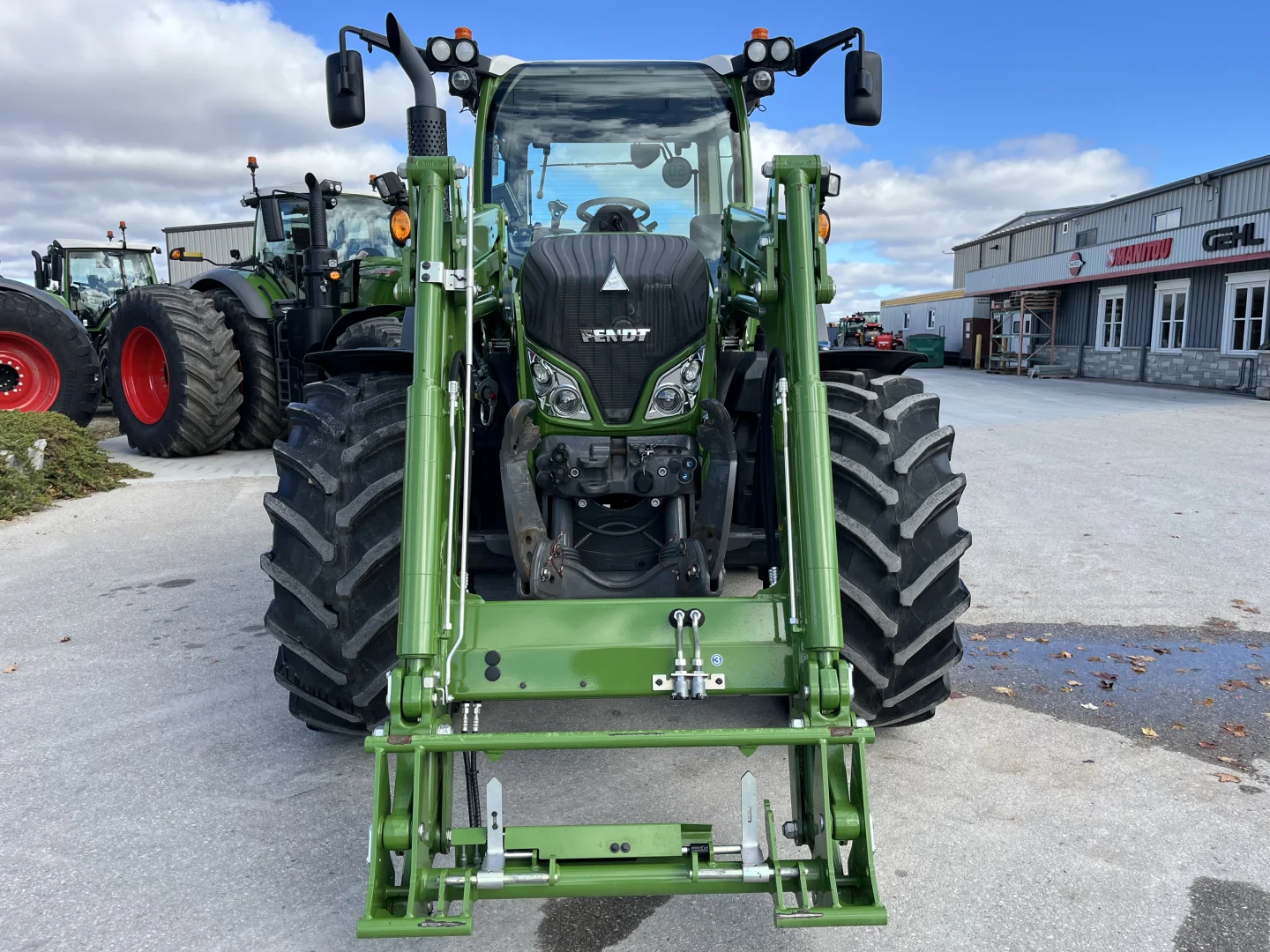

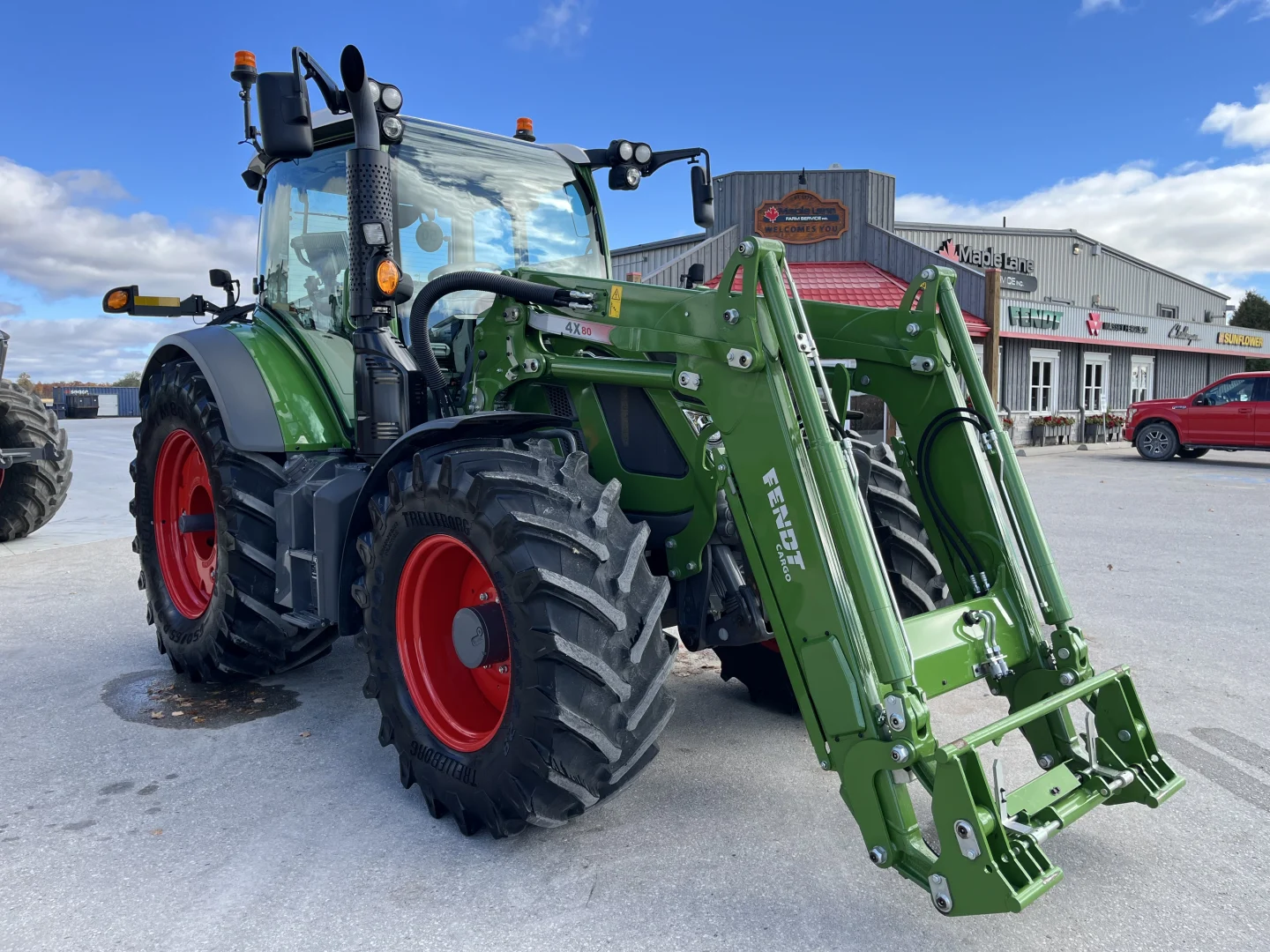

| Loader | FD Cargo 4X/80 | |
| Maximum Lift Height – Pivot Pin | 13' 7-9/16" (4155mm) 4155mm 13' 7-9/16" | |
| Digging Depth | 5-15/16" (150mm) 150mm 5-15/16" | |

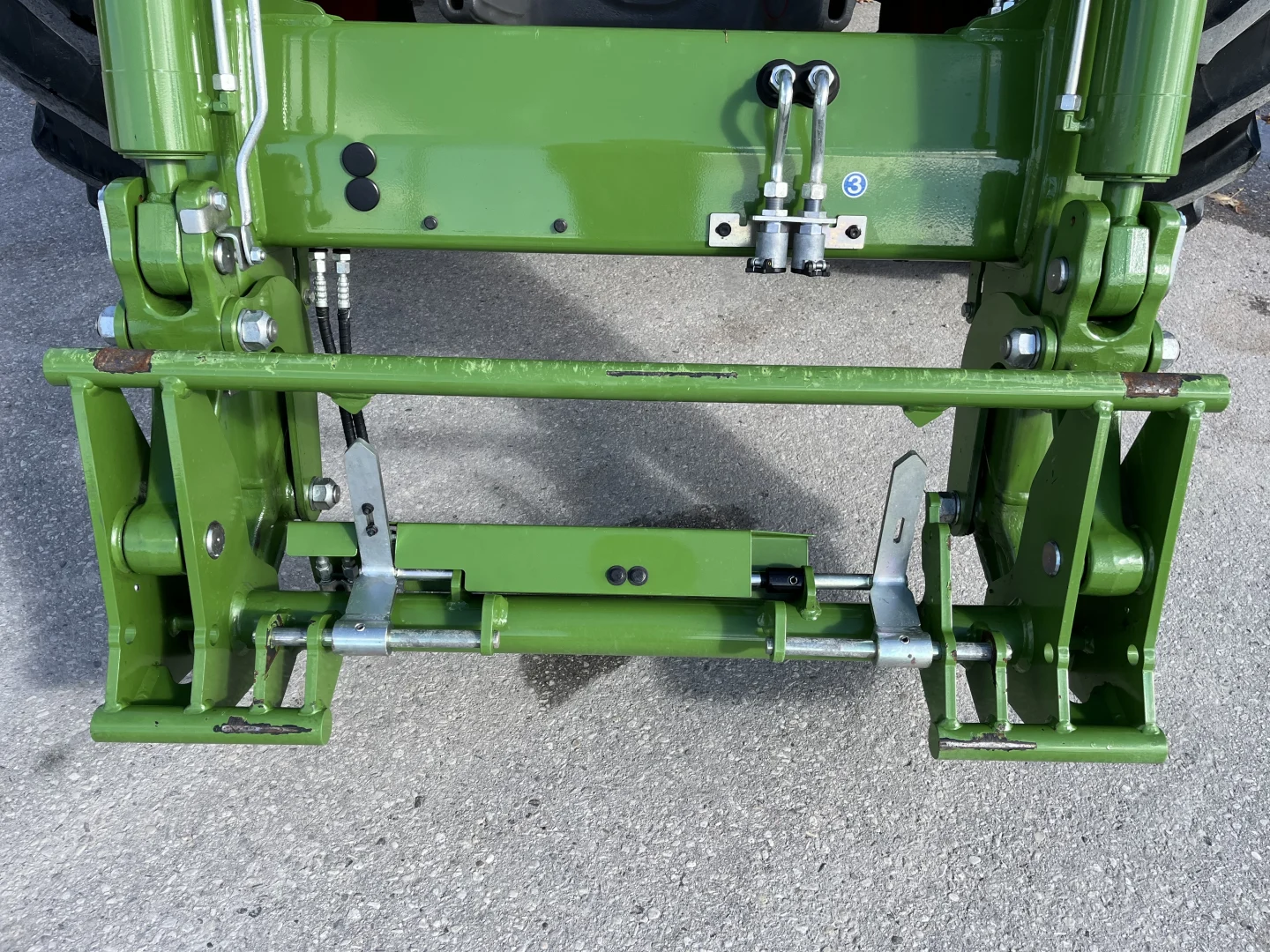

| Tool Carrier | Euro Quick Attach | |
