| Description | |
|---|---|

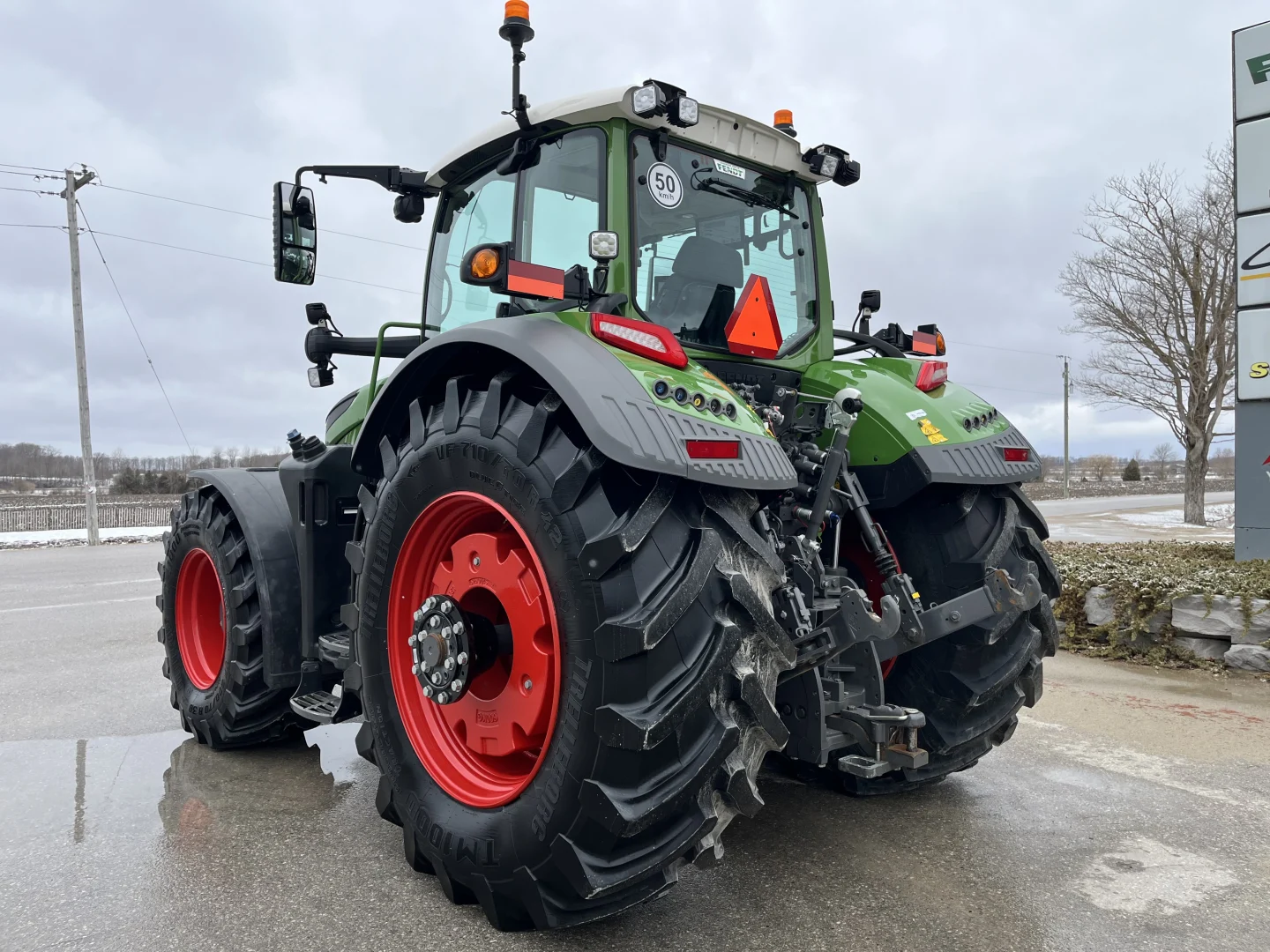

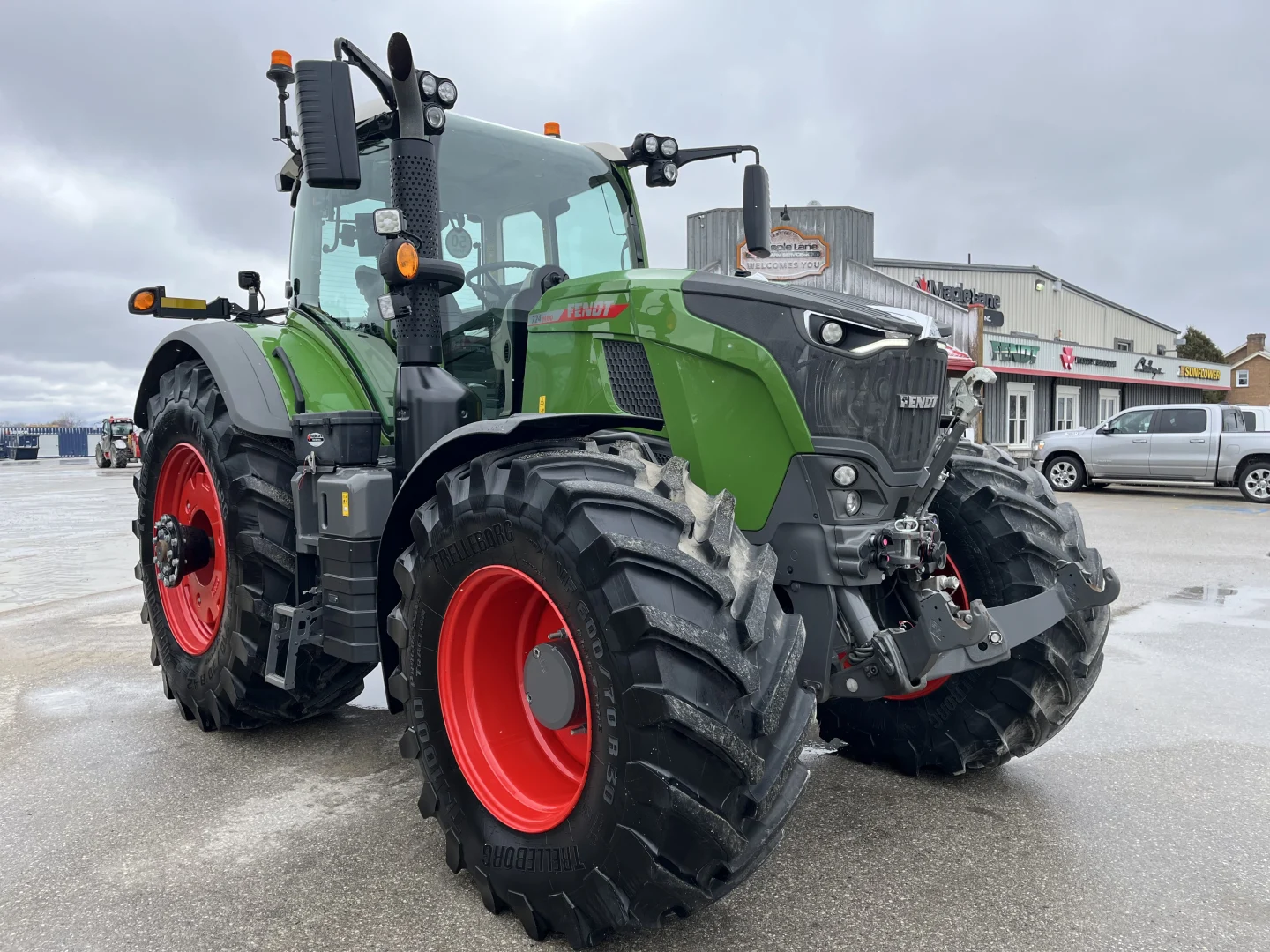

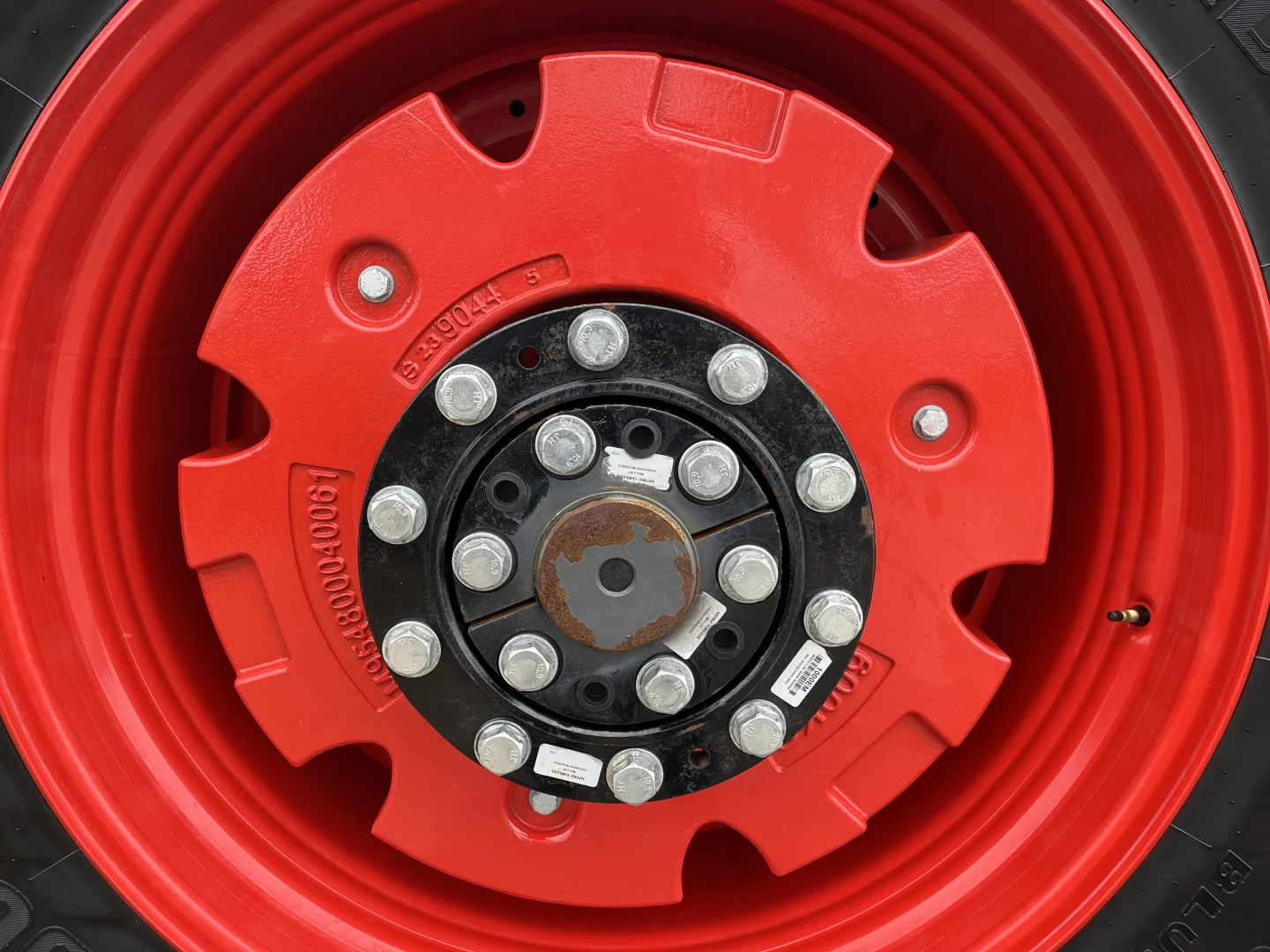

| VF710/70R42 rears, VF600/70R30 fronts, 600 kg/side rear wheel weights, Single range Vario Drive transmission, 50 km/h, 58 GPM pump, 5 rear remotes, Power beyond, Hydraulic and air trailer brakes, Front hitch and 1 front remote, Full LED light package, Dual LED beacon lights, Evolution cloth seat, air cab suspension, heated rear window, Camera connection ports, Comfort mirrors, additional 12″ roof terminal, Fendt Guide complete, Novatel receiver. Gold Star warranty till December 2026. | |
| Categories | High Horsepower |
| Unit Number | 23719M |
| Condition | Used |
| Usage | 1,600 Hours |
| Year | 2023 |
| Cost | $369,900.00 CAD |
| Rental Rate | ||
|---|---|---|
| Horse Power | Rate Per Hour | |
| 243HP | $94.77 CAD | |
| *Minimum Hours Per Day; 5 Week; 30 Month; 100 | ||
| Engine | ||
|---|---|---|
| Engine Power | 181.21kW (243hp) | |
| PTO Power | 149.89kW (201hp) | |
| Rated Engine Speed | 1,800r/min | |
| Make | AGPWR 7.5L | |
| Displacement | 1.98gal. (7.50L) | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 118.88gal. (450L) | |
| DEF Tank Capacity | 14.53gal. (55L) | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Road Speed | 31.07mph (50km/h) | |
| Name | CVT ML 190 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Pneumatic | |
| Trailer Brakes | Hydraulic, Air | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 700 Gen7 220 LPM | |
| Maximum Flow | 58.12GPM (220L/min) | FD 700 Gen7 165 LPM |
| Maximum Flow | 43.59GPM (165L/min) | |
| System Capacity | 25.10gal. (95L) | |
| Maximum Operating Pressure | 19,994.80kPa (2,900psi) | |
| Maximum Available Hydraulic Oil | 21.13gal. (80L) | |
| Rear Remote Valves | 5, 3 | |
| Front Remote Valves | 1 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|

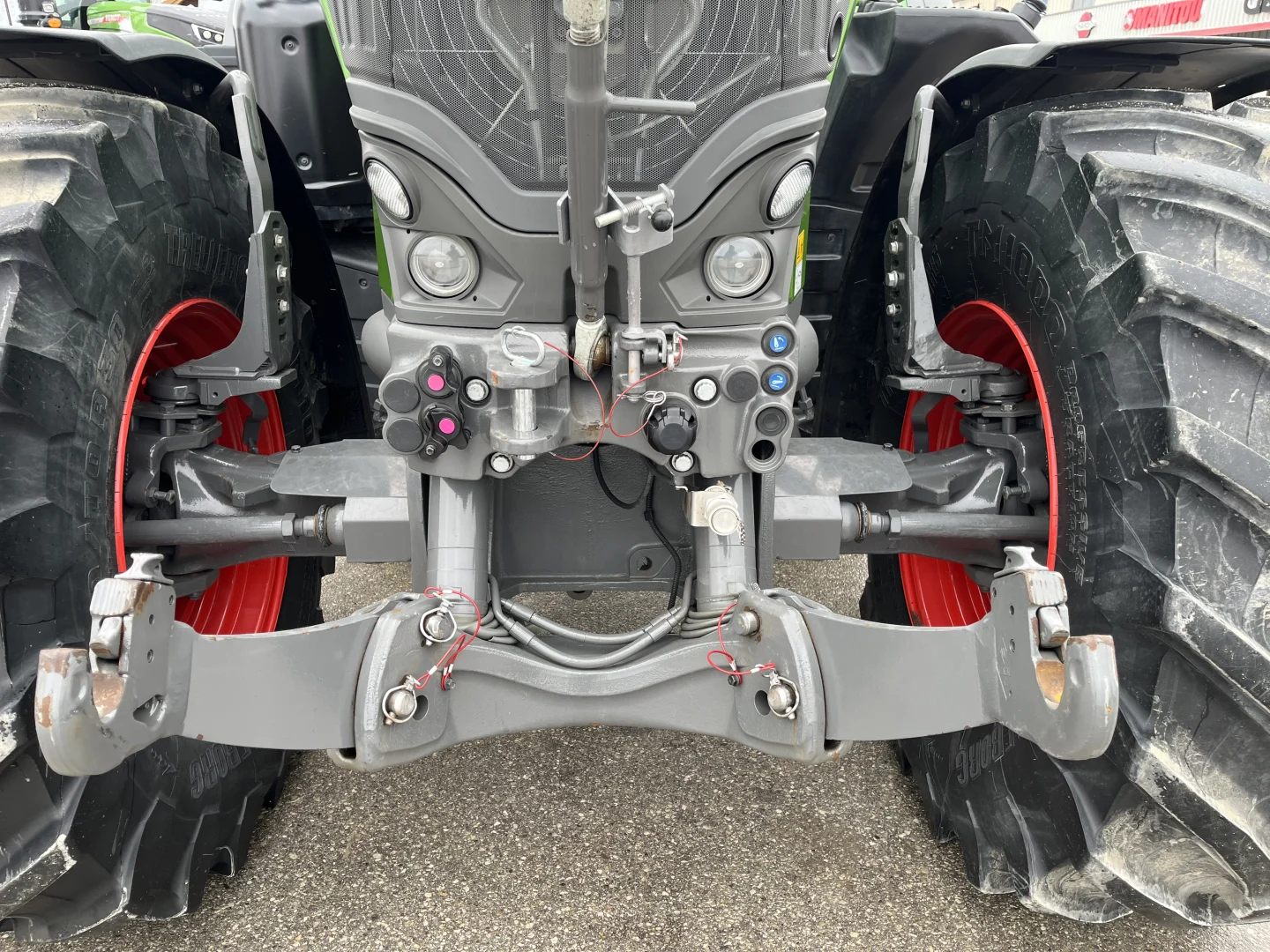

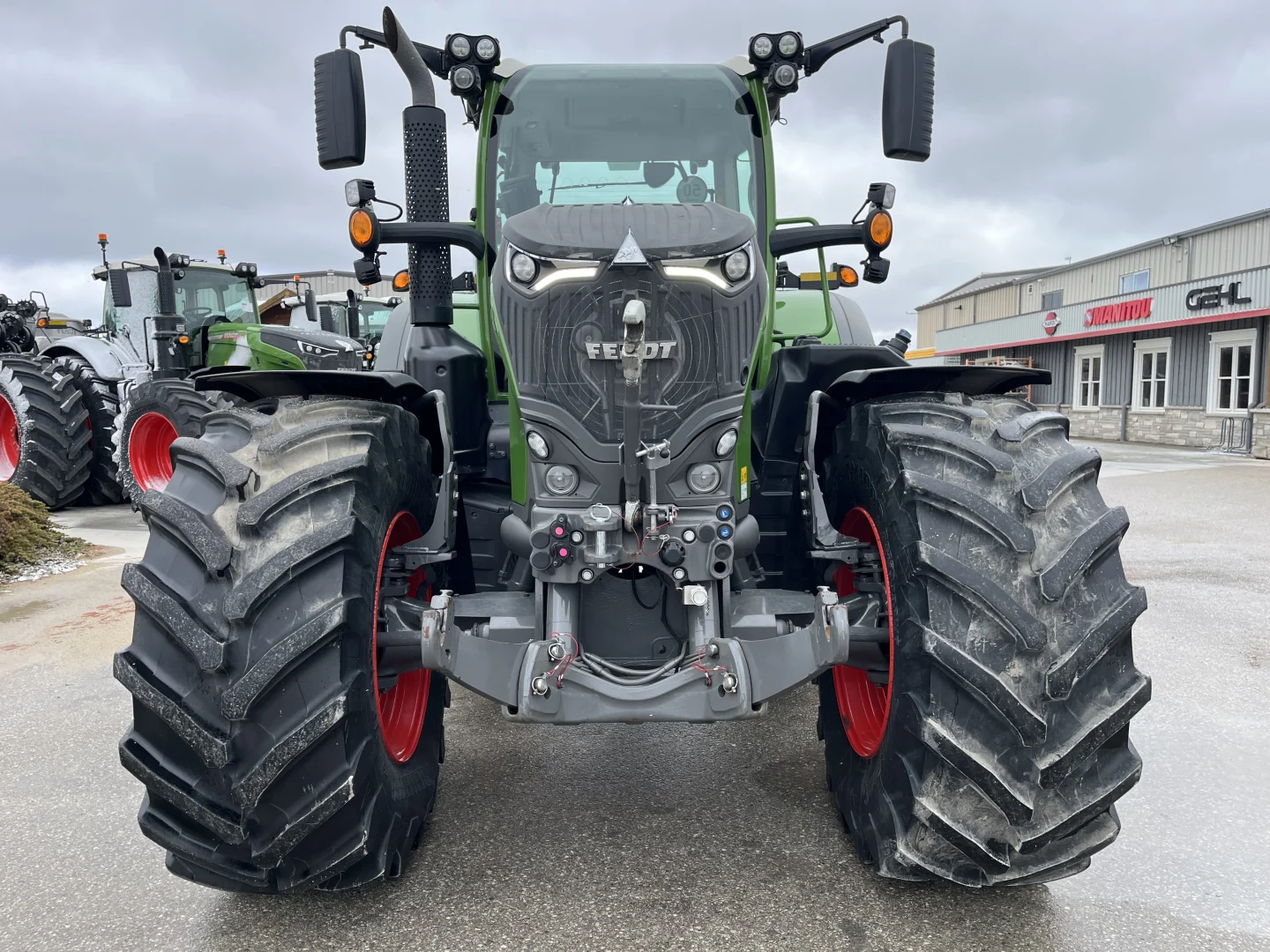

| Front Hitch | FD 700 Gen7 | |
| Capacity at Pins | 11,913.78lb. (5,404kg) | |

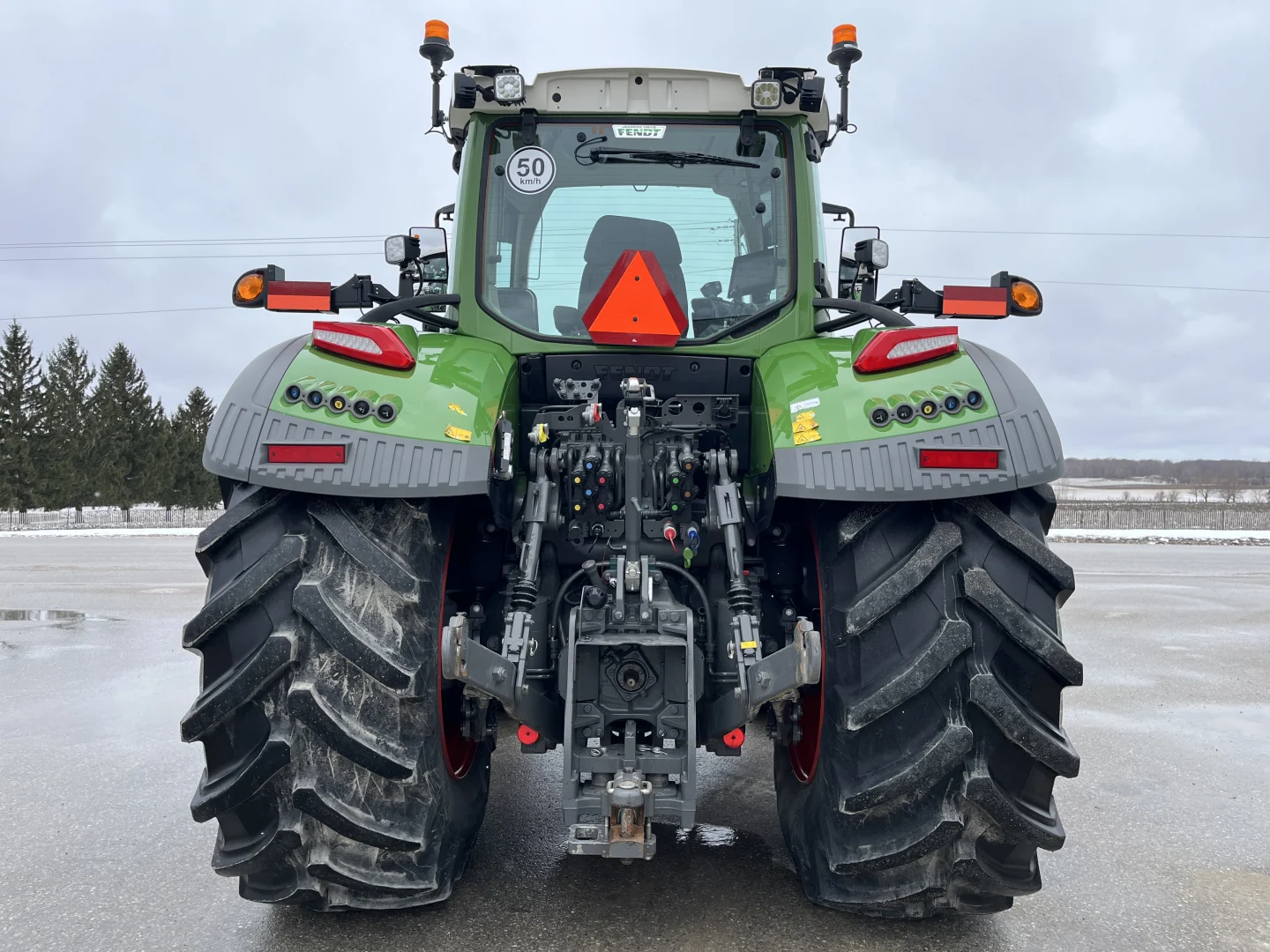

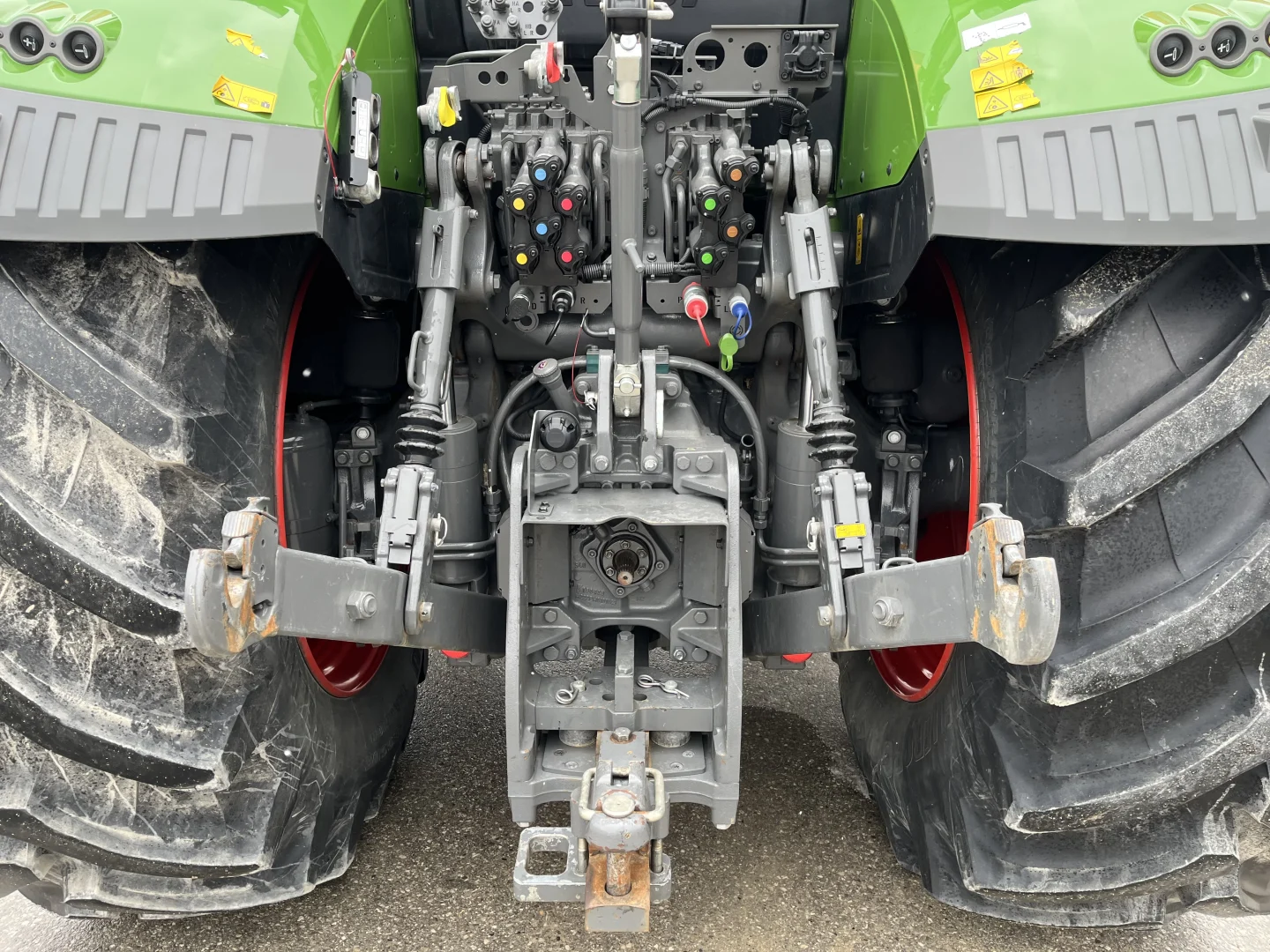

| Rear Hitch | FD 700 Gen7 | |
| Lift Capacity at Pins | 24,727.05lb. (11,216kg) | |
| PTO | ||
|---|---|---|
| Rear Speed | 540, 540E, 1000, 1000E | |
| Type | Independent | |
| Technology | ||
|---|---|---|

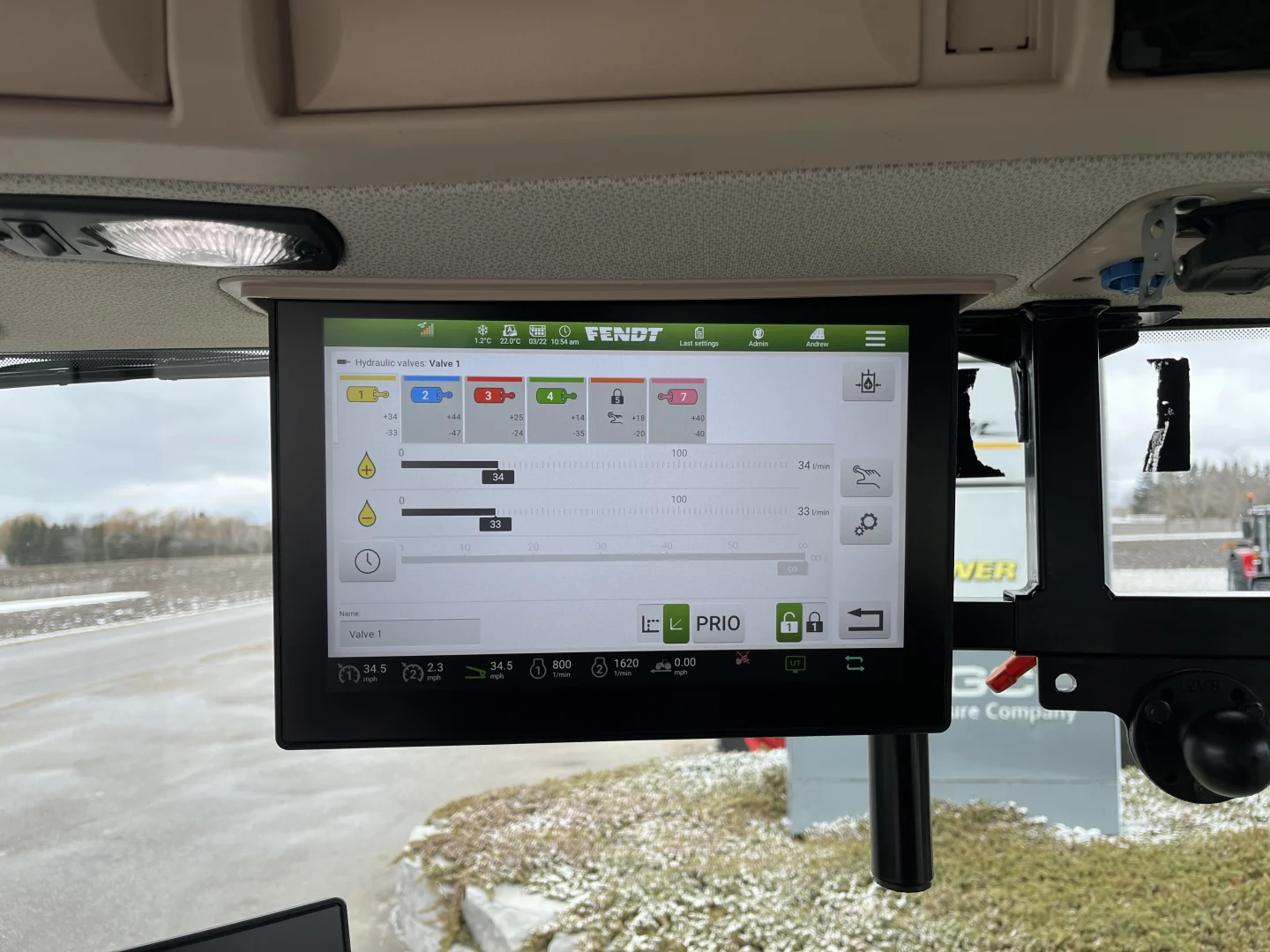

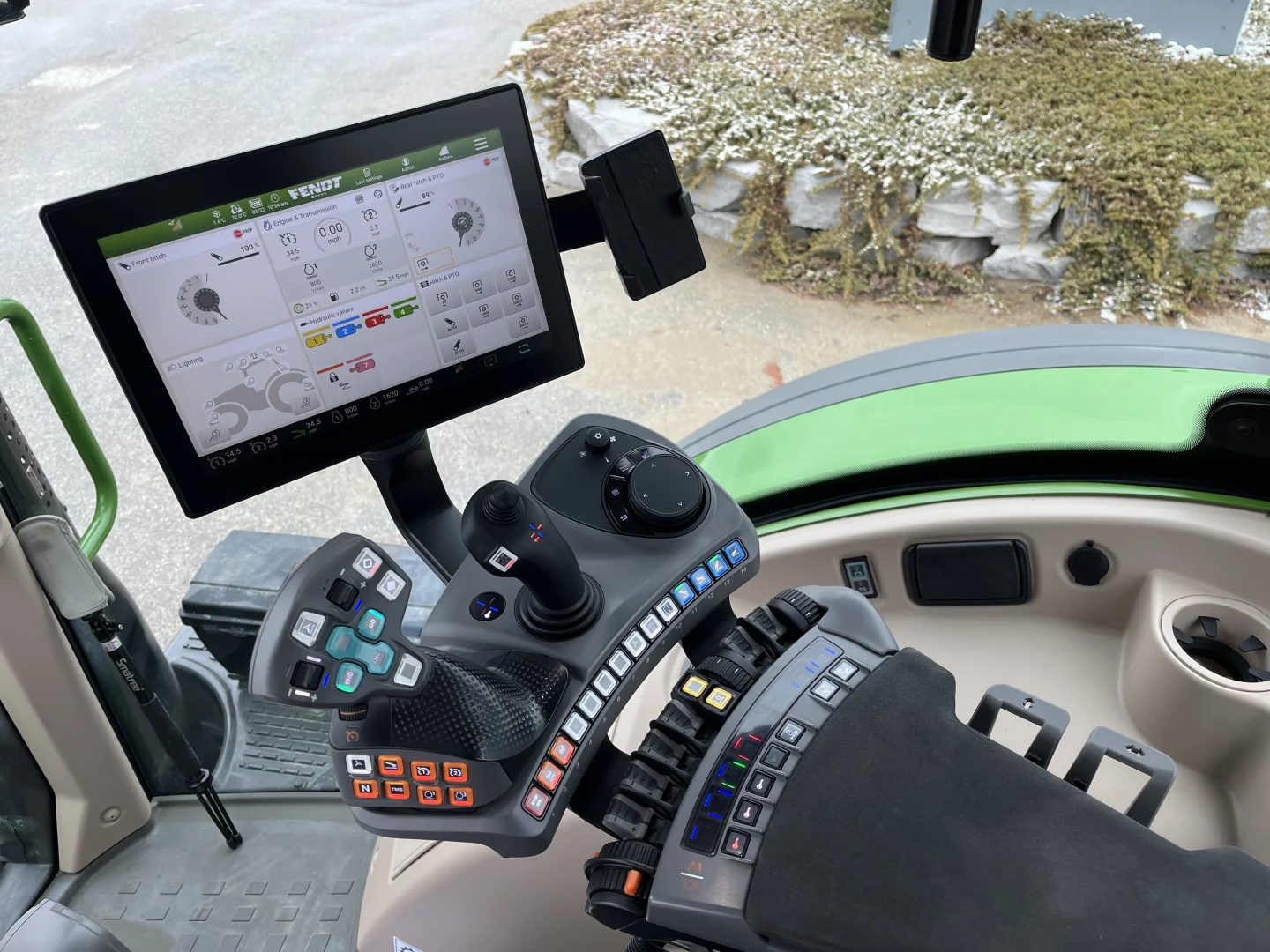

| Display | 12" Roof Mounted Terminal, 12" Armrest Mounted Terminal | |

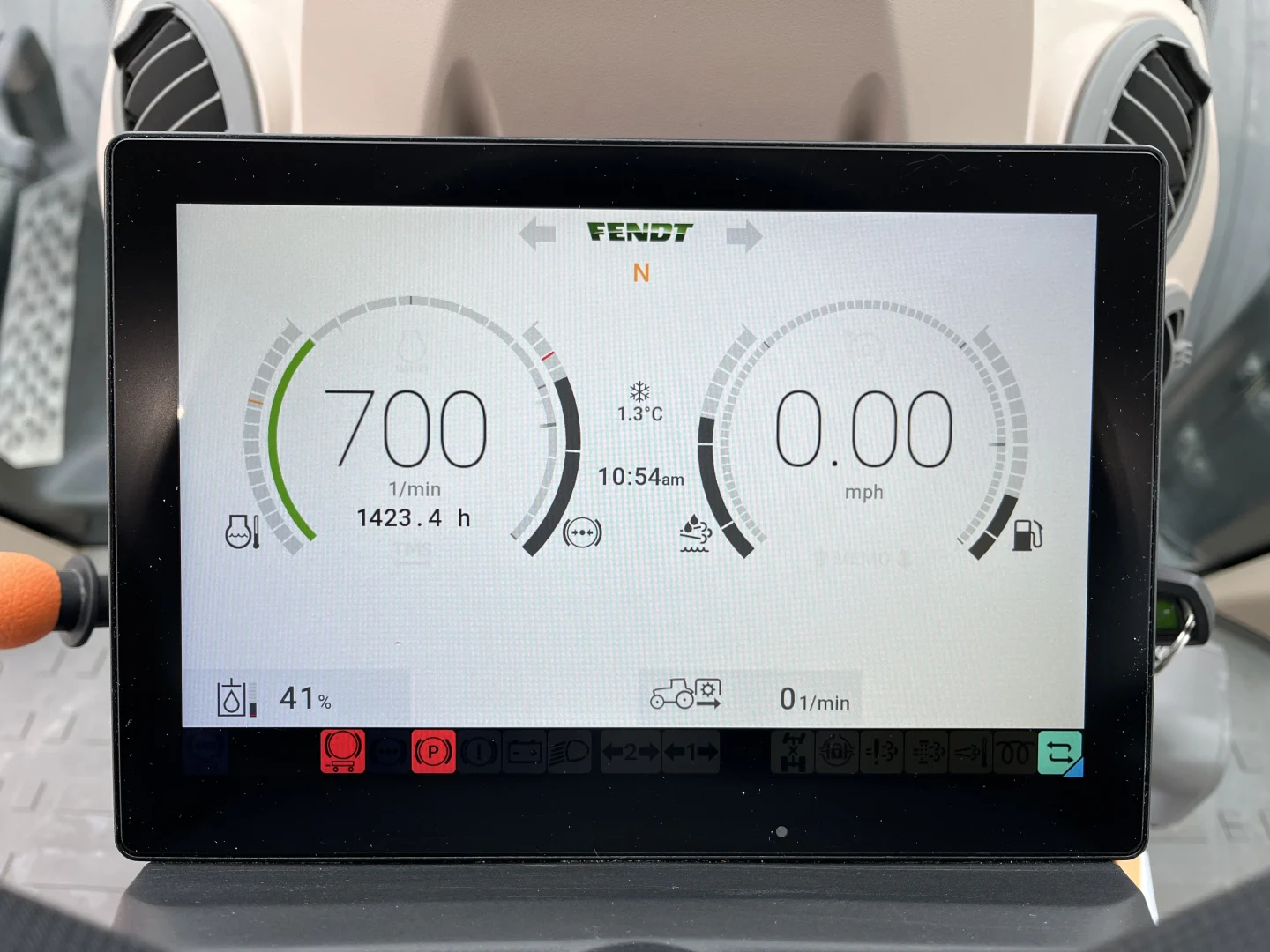

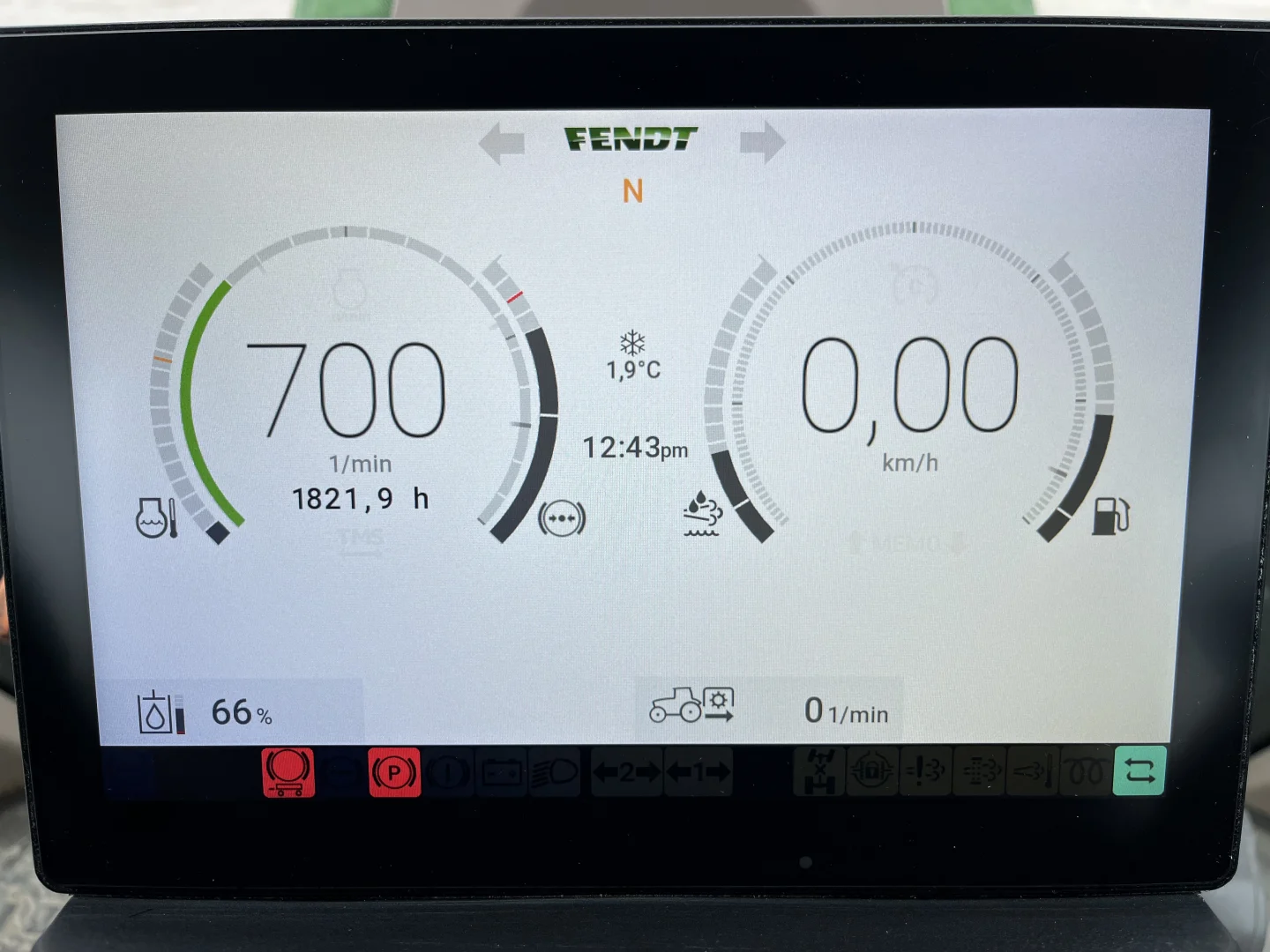

| Instrument Display | 10" Dash Screen | |
| Entertainment | Infotainment, USB, Bluetooth, Mic | |
| Integration | ISO BUS Implement Control | |
| Guidance | Fendt Guide Plus | |
| Telemetry | 5 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 18 | |
| Rear Lights | 6 | |
| Worklight Type | LED | |
| Rotating Beacon | Left, Right | |
| Alternator | 240A | |

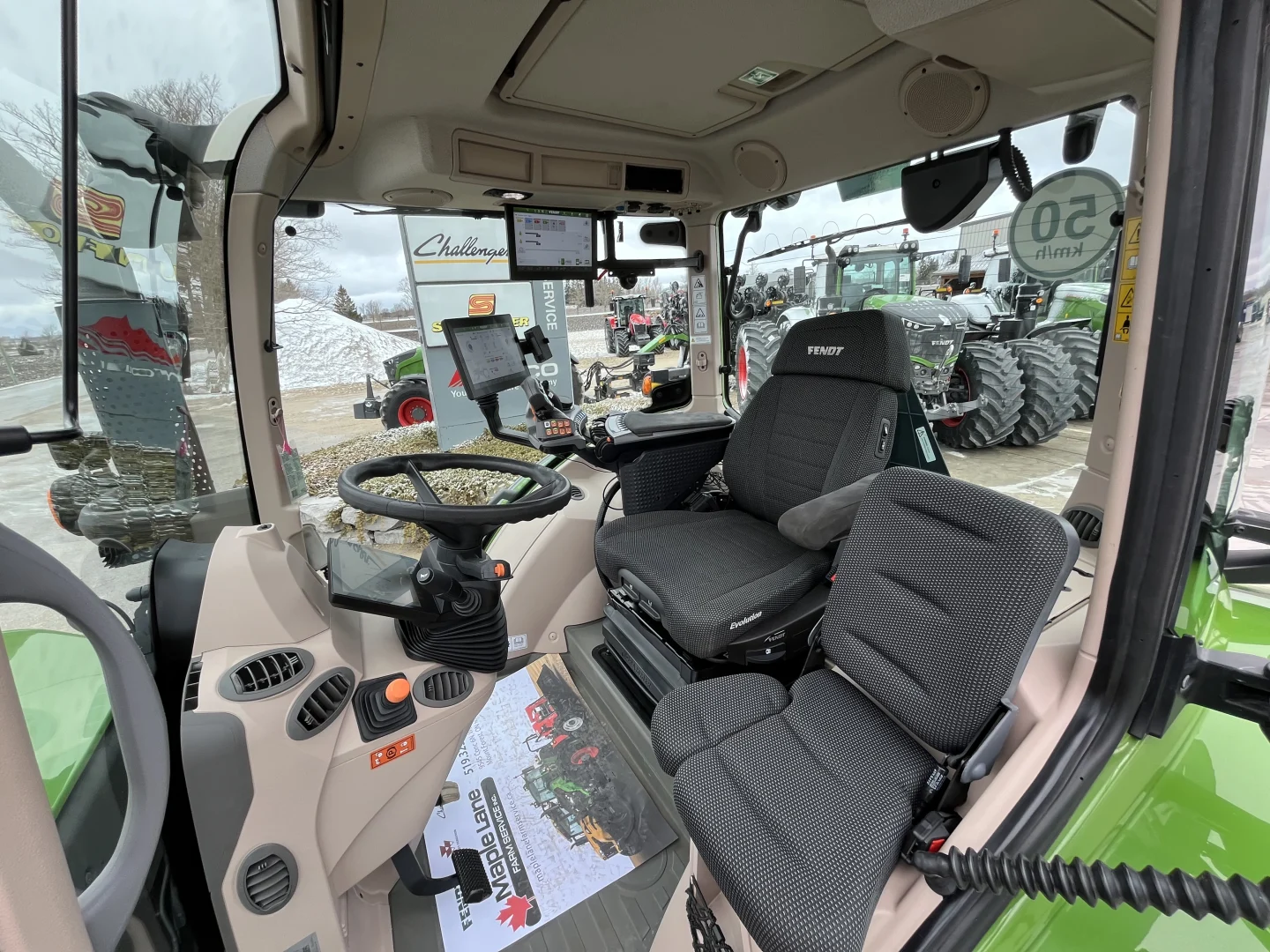

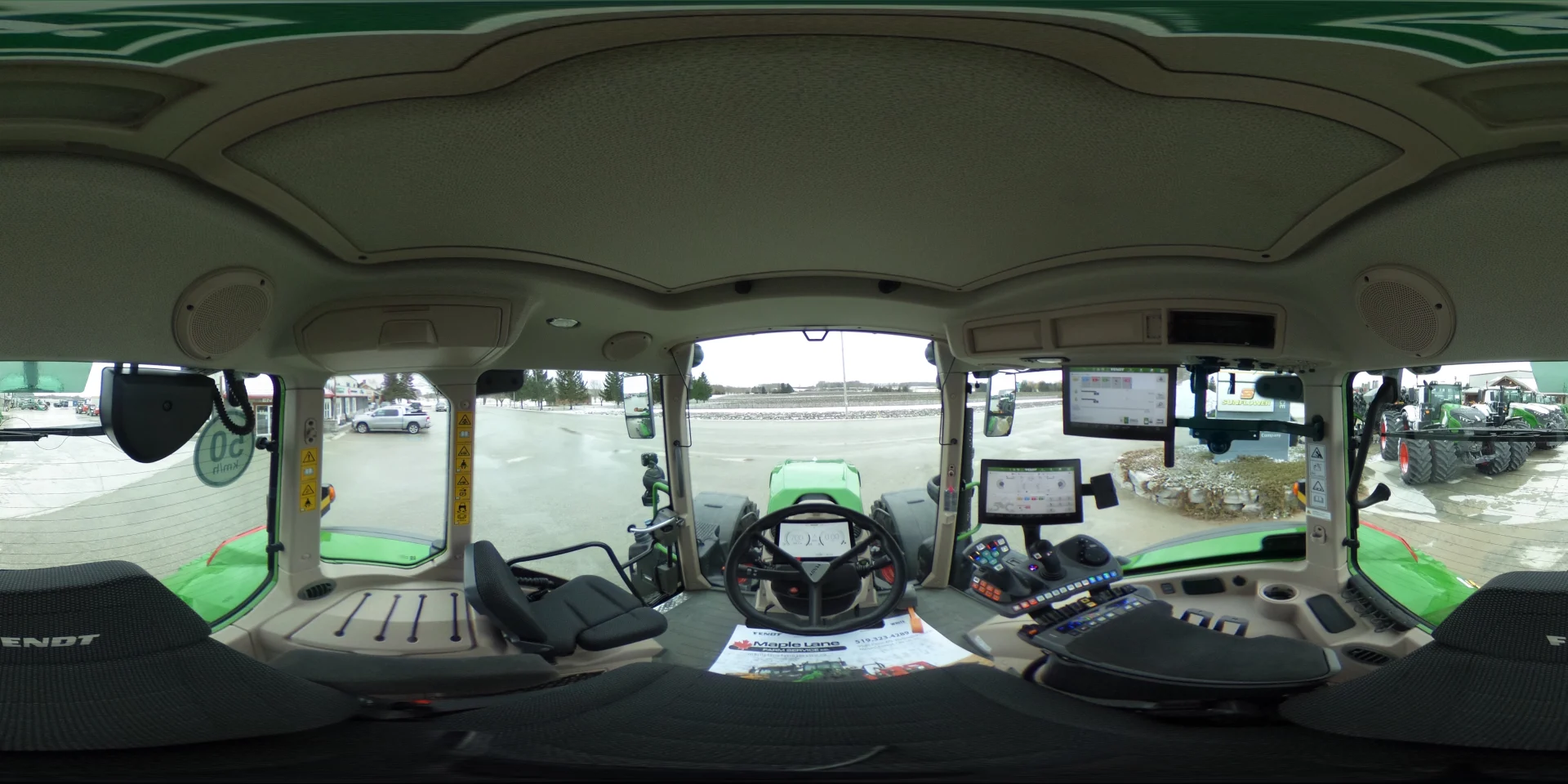

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Access | Left Hand Door, Rear Window | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 2 Point Air | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |
| Operator Seat | FD Super Comfort EVO Adaptive | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | FD Comfort |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Height Adjustable | |
| Backrest | Recline | |
| Headrest | Extend | |
| Lumbar Support | Mechanical | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Air (built in compressor), Forward/Reverse Horizontal | |
| Wiper | Side, 300° Front, Rear | |
| Sunshade | Windshield | |
| Mirrors | Interior | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |
| Wheels | ||
|---|---|---|

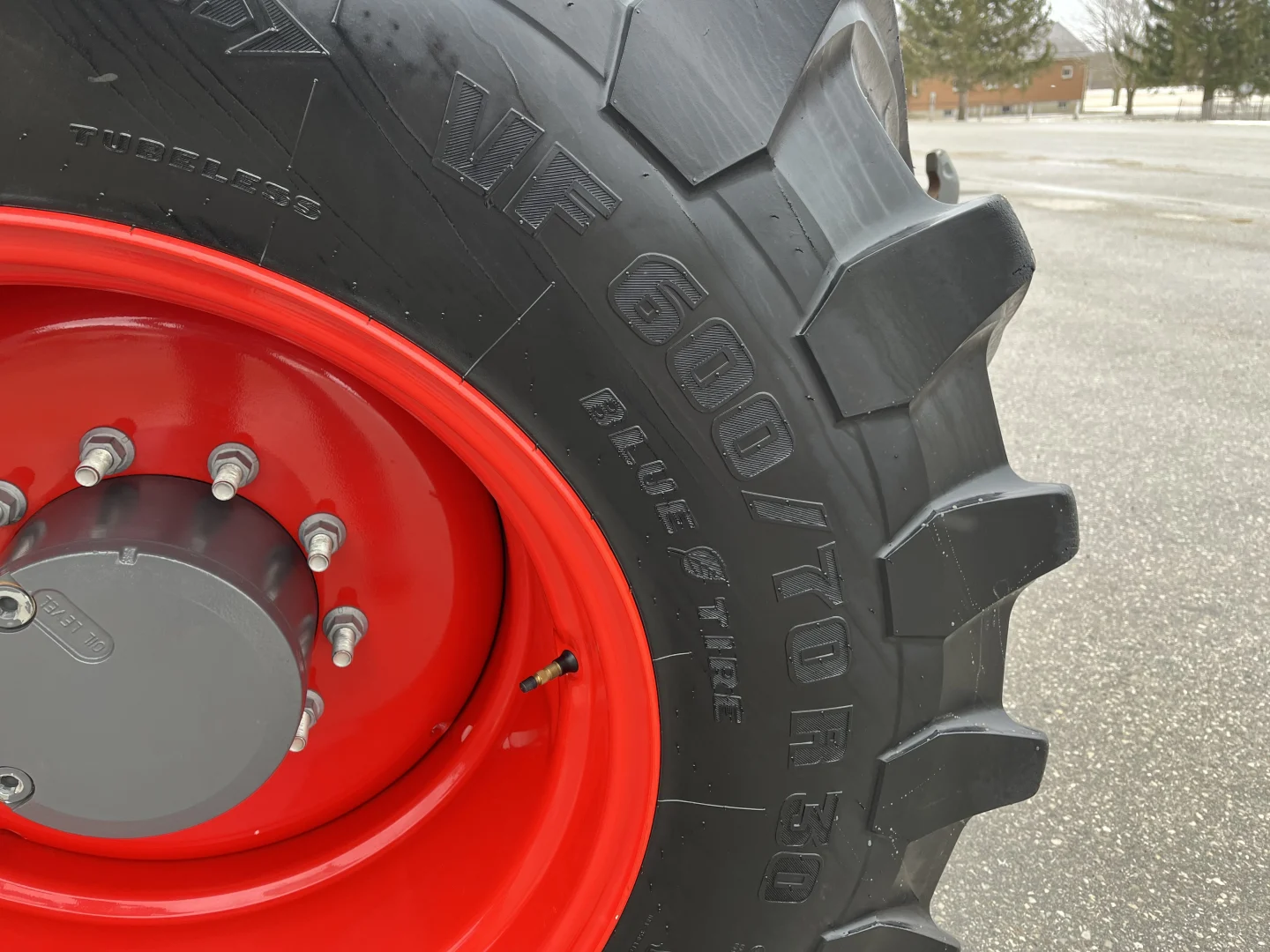

| Front | TRELL VF600/70R30 TM1000 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 2' 3/16" (615mm) | |
| Overall Diameter | 5' 3" (1,600mm) | |
| Static Loaded Radius | 2' 3-3/8" (695mm) | |
| Rolling Circumference | 15' 8-3/8" (4,785mm) | |
| Tread Thickness | 2-3/16" (56mm) | |
| Weight | 462.97lb. (210kg) | MICHE 380/85R34 Agribib 2 |
| Size | 380/85R34 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 3-1/2" (394mm) | |
| Overall Diameter | 4' 11-3/16" (1,503mm) | |
| Static Loaded Radius | 2' 2-1/2" (673mm) | |
| Rolling Circumference | 1' 6-1/8" (461mm) | |
| Weight | 198.42lb. (90kg) | |

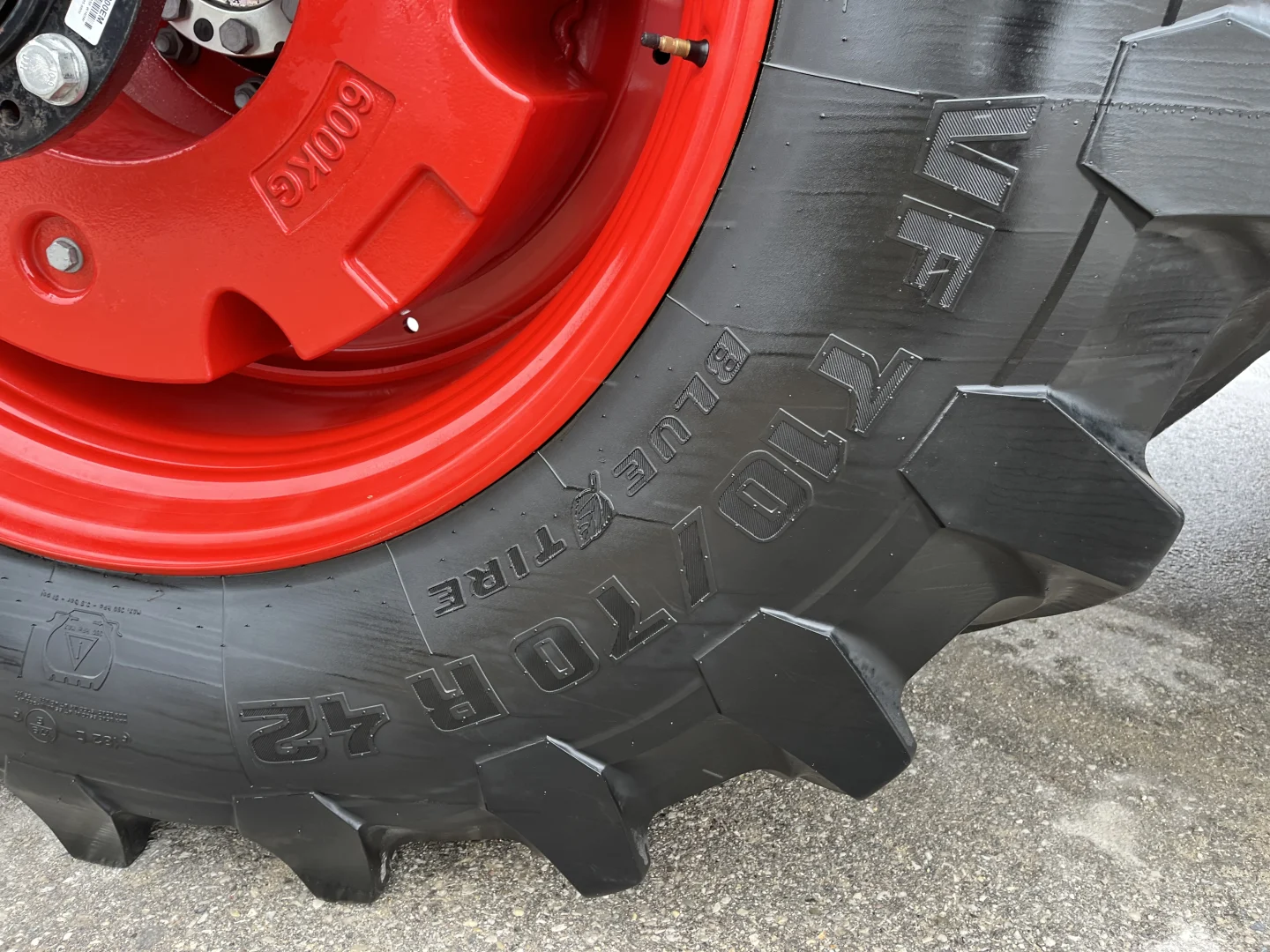

| Rear | TRELL VF710/70R42 TM1000 | |
| Size | 710/70R42 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 2' 3-15/16" (710mm) | |
| Overall Diameter | 6' 9-1/2" (2,070mm) | |
| Static Loaded Radius | 2' 11-7/16" (900mm) | |
| Rolling Circumference | 20' 3-11/16" (6,190mm) | MICHE 480/80R46 Agribib 2 |
| Size | 480/80R46 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 7-1/8" (486mm) | |
| Overall Diameter | 6' 4-9/16" (1,945mm) | |
| Static Loaded Radius | 2' 11-1/16" (891mm) | |
| Rolling Circumference | 19' 1/2" (5,804mm) | |
| Weight | 352.74lb. (160kg) | |
| Dimensions | ||
|---|---|---|
| Length | 18' 1-3/16" (5,516mm) | |
| Wheelbase | 9' 6-3/16" (2,900mm) | |
| Width | 8' 4-3/8" (2,550mm) | |
| Height | 10' 3-11/16" (3,142mm), 10' 5-11/16" (3,192mm) | |
| Minimum Ground Clearance | 1' 10-7/16" (570mm) | |
| Weight | 19,400.68lb. (8,800kg) | |
