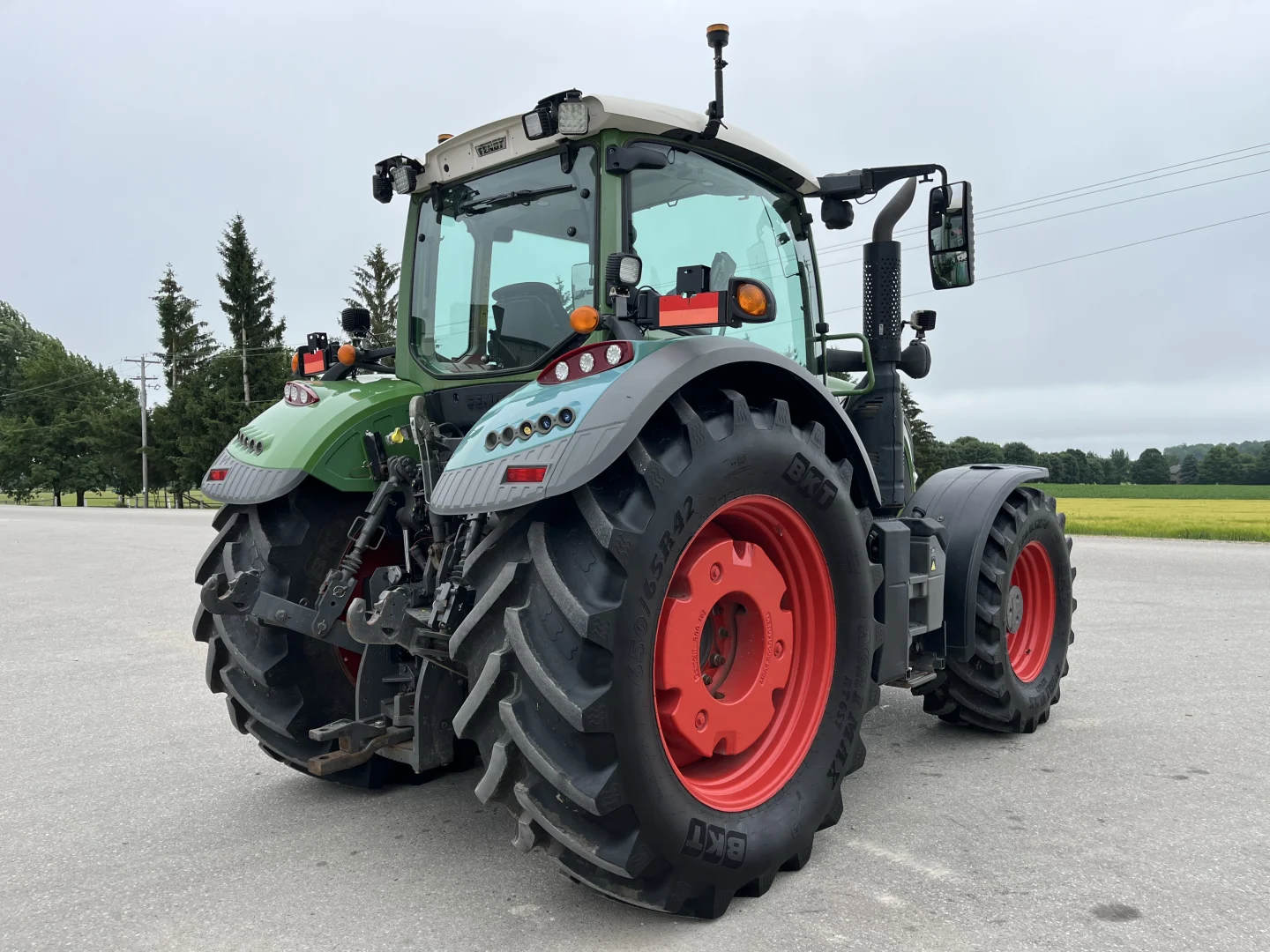

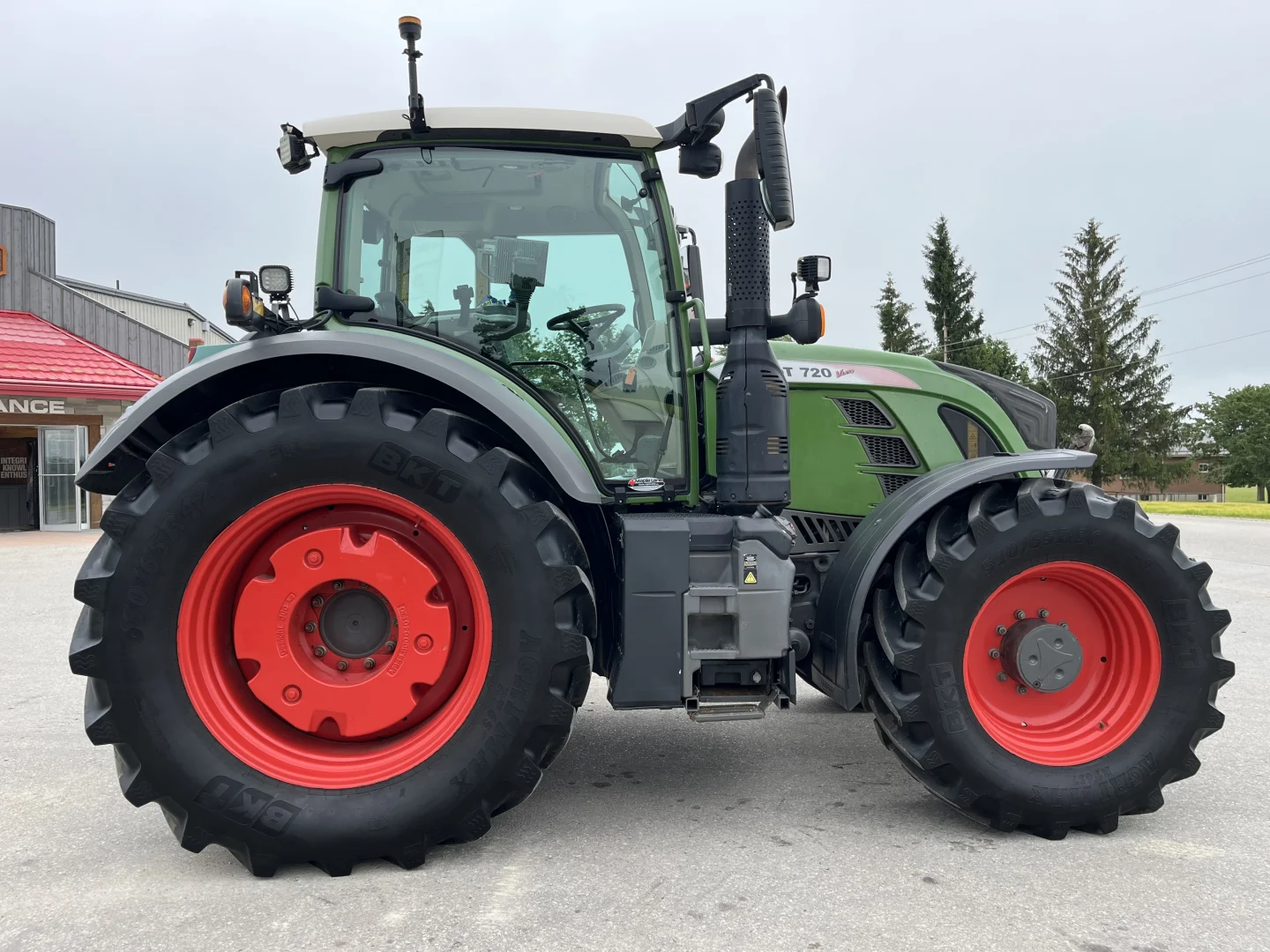

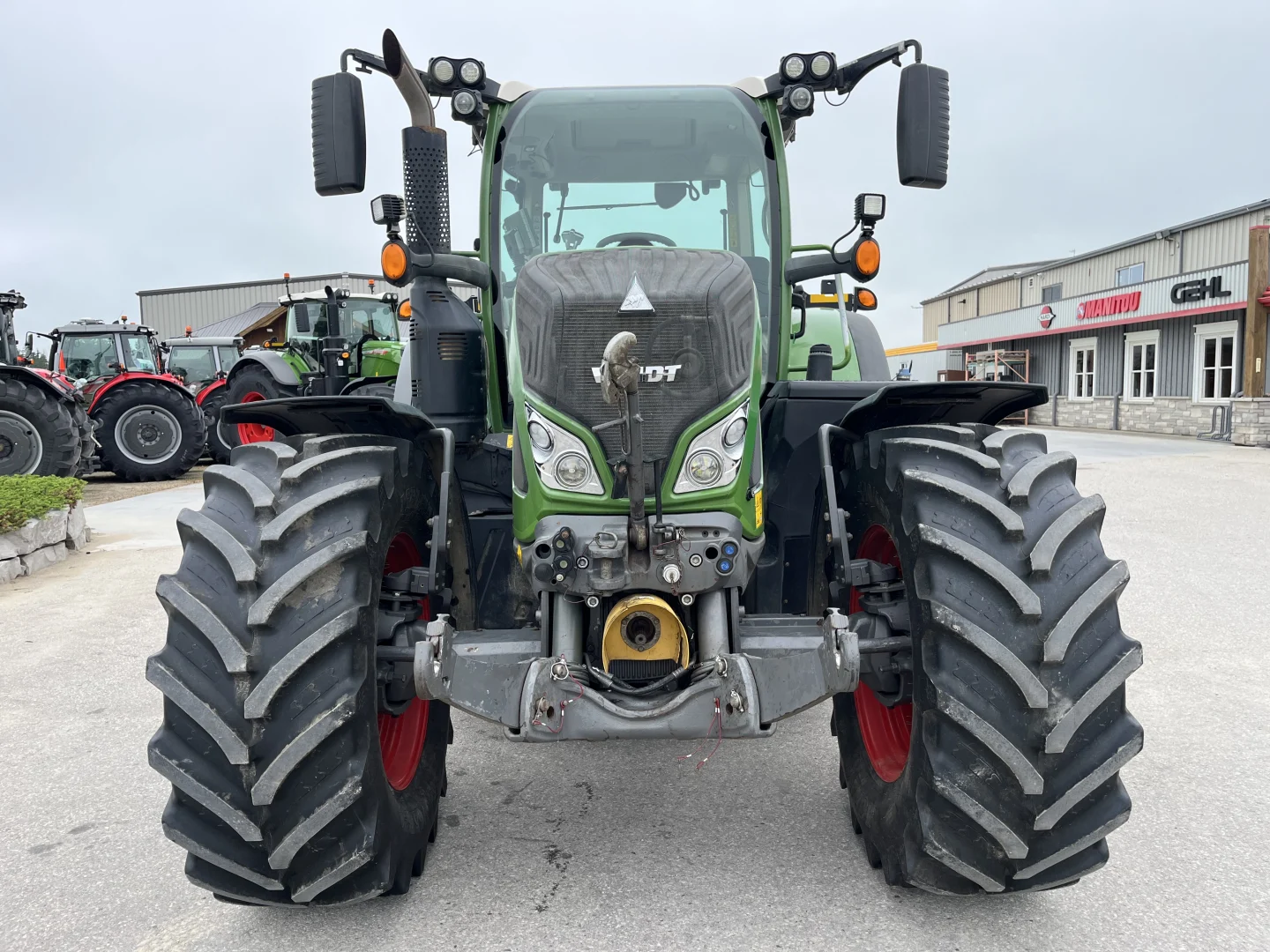

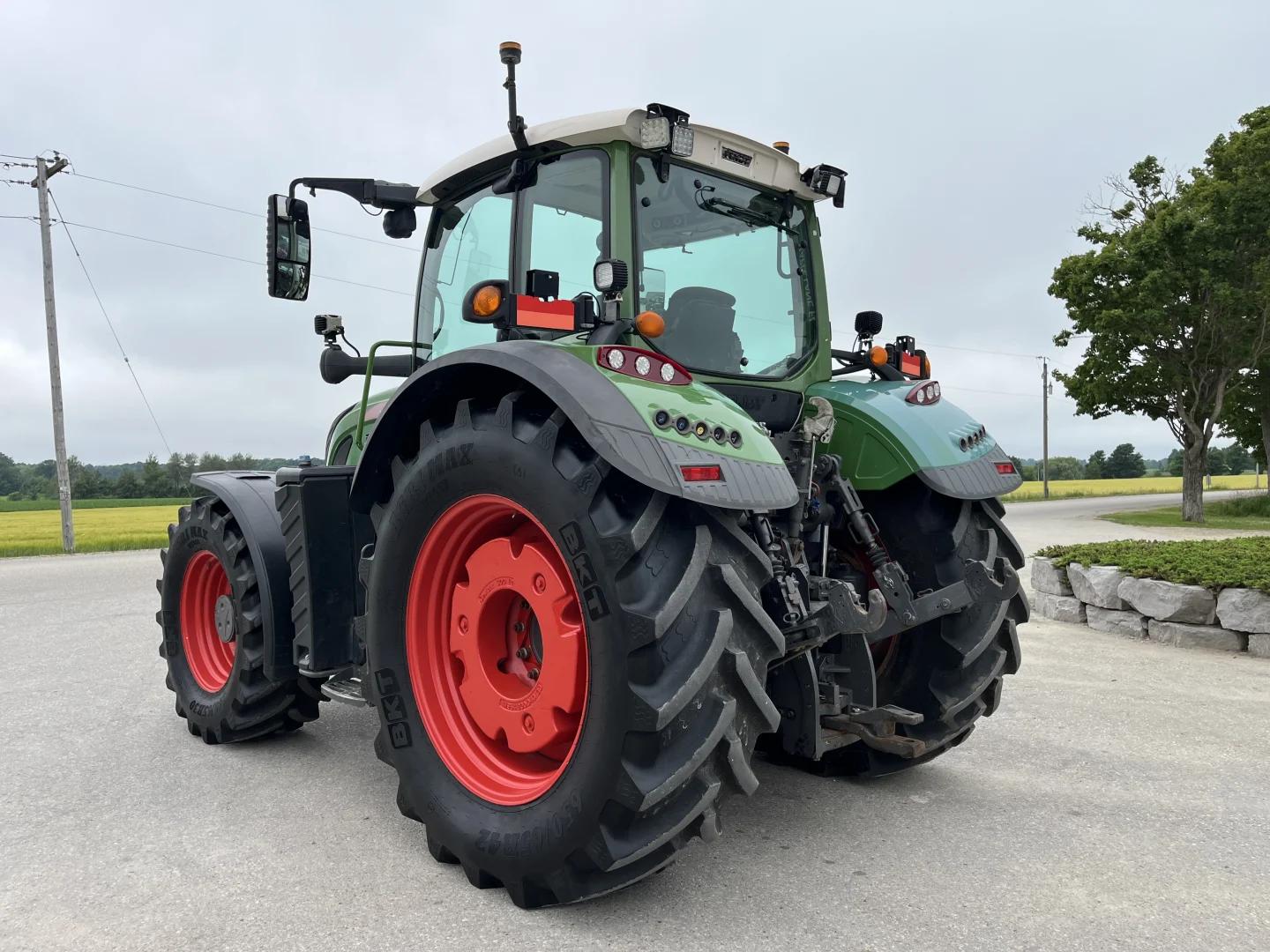

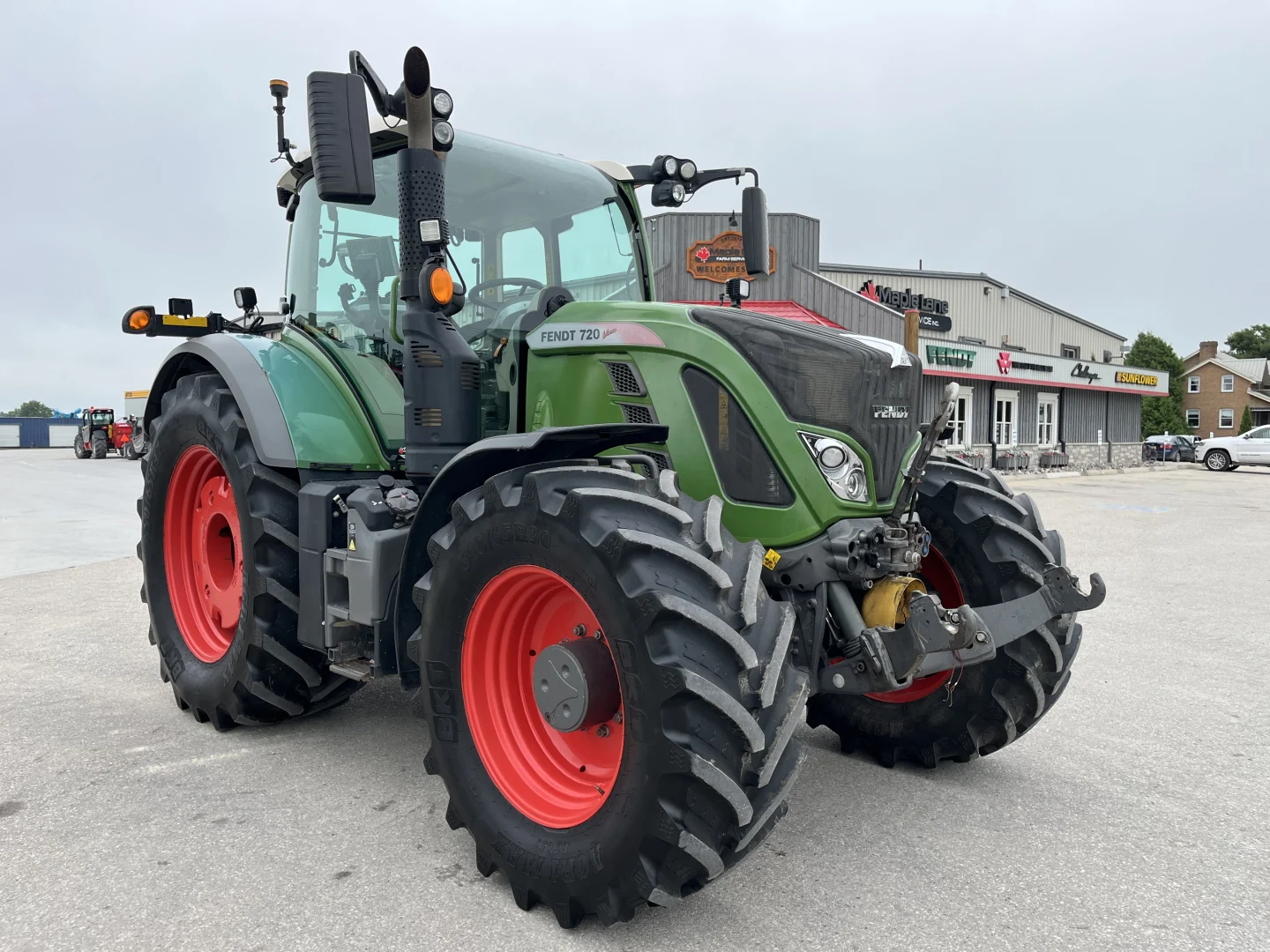

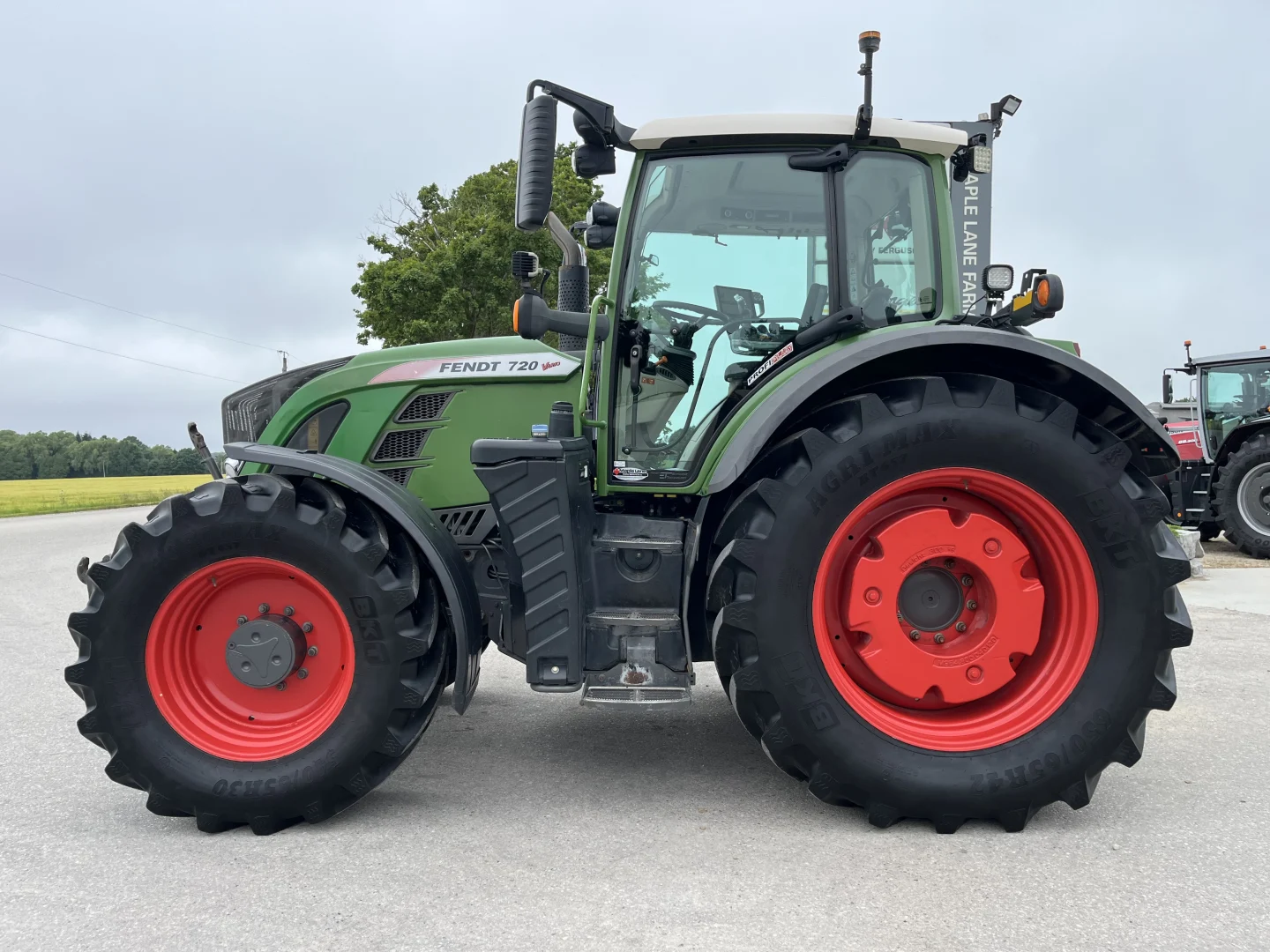

Used 2016 Fendt 720 S4
| Description | |
|---|---|
| Profi Plus, Fend Guide complete- WAAS, 50 km/h Vario transmission, suspended front axle, 40 GPM pump, 5 rear remotes, Power beyond couplers, air and hydraulic trailer brakes, BKT 650/65R42 rears, 540/65R30 fronts, 300 kg/side rear wheel weights, Dual acting rear hitch, Dual acting front hitch and 1 front remote, Front PTO, Cloth Evolution seat. | |
| Categories | High Horsepower |
| Unit Number | 23723M |
| Condition | Used |
| Usage | 6100 Hours |
| Year | 2016 |
| Cost | $168,900.00 CAD |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 149.89kW (201hp) 201hp 149.89kW | |
| PTO Power | 123.04kW (165hp) 165hp 123.04kW | |
| Rated Engine Speed | 2100r/min | |
| Make | DZ 6.06L Tier 4F 6 Cylinder | |
| Displacement | 1.6gal. (6.06L) 6.06L 1.6gal. | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 105.67gal. (400L) 400L 105.67gal. | |
| DEF Tank Capacity | 10.04gal. (38L) 38L 10.04gal. | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31.07mph (50km/h) 50km/h 31.07mph | |
| Name | CVT ML 180 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Exhaust, Dual-Circuit , Wet Disc | |
| Trailer Brakes | Hydraulic, Air | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Rear Axle Length | 8' 2-7/16" (2500mm) 2500mm 8' 2-7/16" | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 700 S4 40 GPM | |
| Hydraulic Flow | 151.42L/min (40GPM) 40GPM 151.42L/min | |
| Maximum Operating Pressure | 2900.75psi (200bar) 200bar 2900.75psi | |
| Rear Remote Valves | 5 | |
| Front Remote Valves | 2 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|

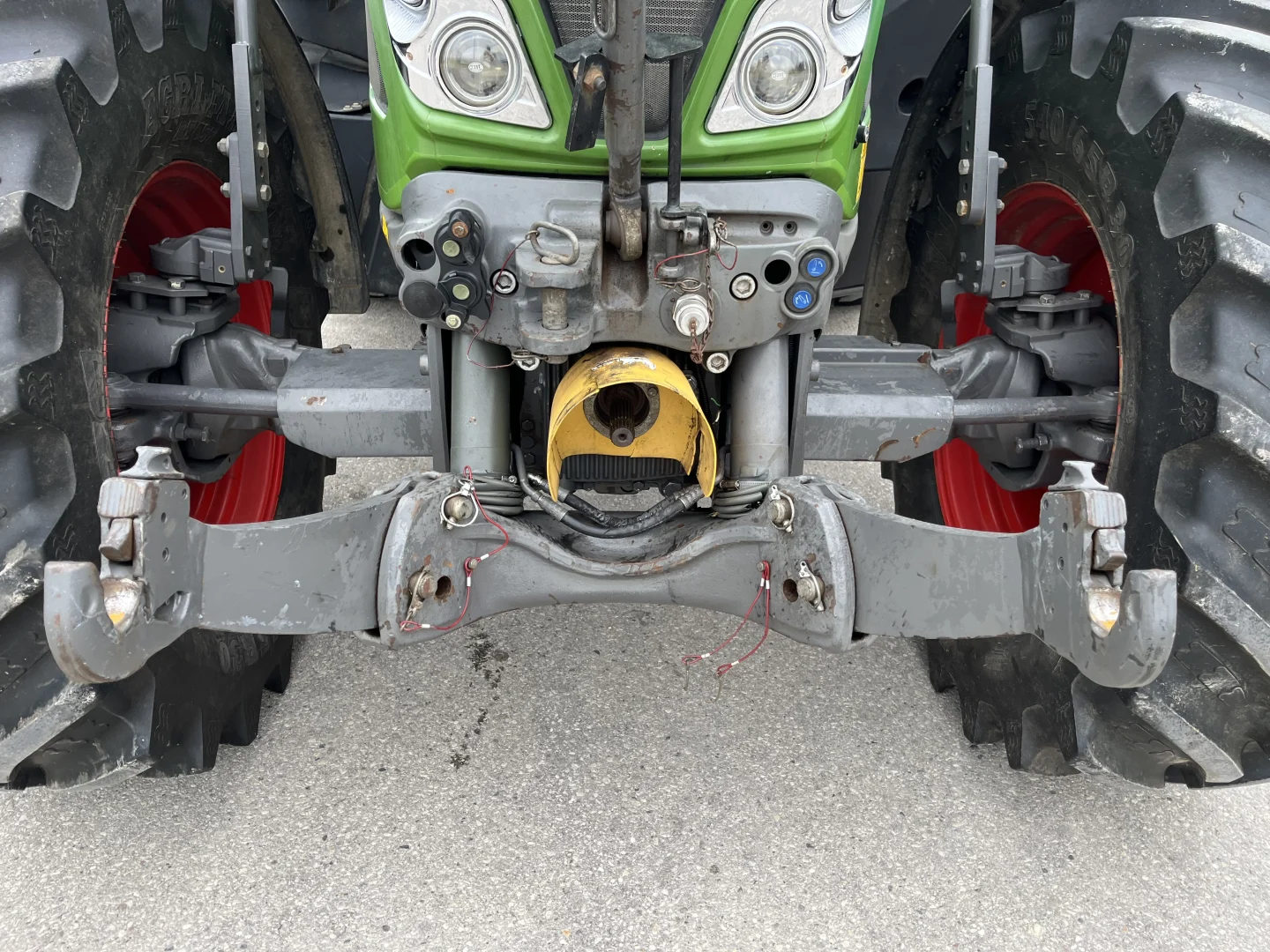

| Front Hitch | FD 700 S4 | |
| Category | Category 2, Category 3 | |
| Capacity at Pins | 9740.02lb. (4418kg) 4418kg 9740.02lb. | |

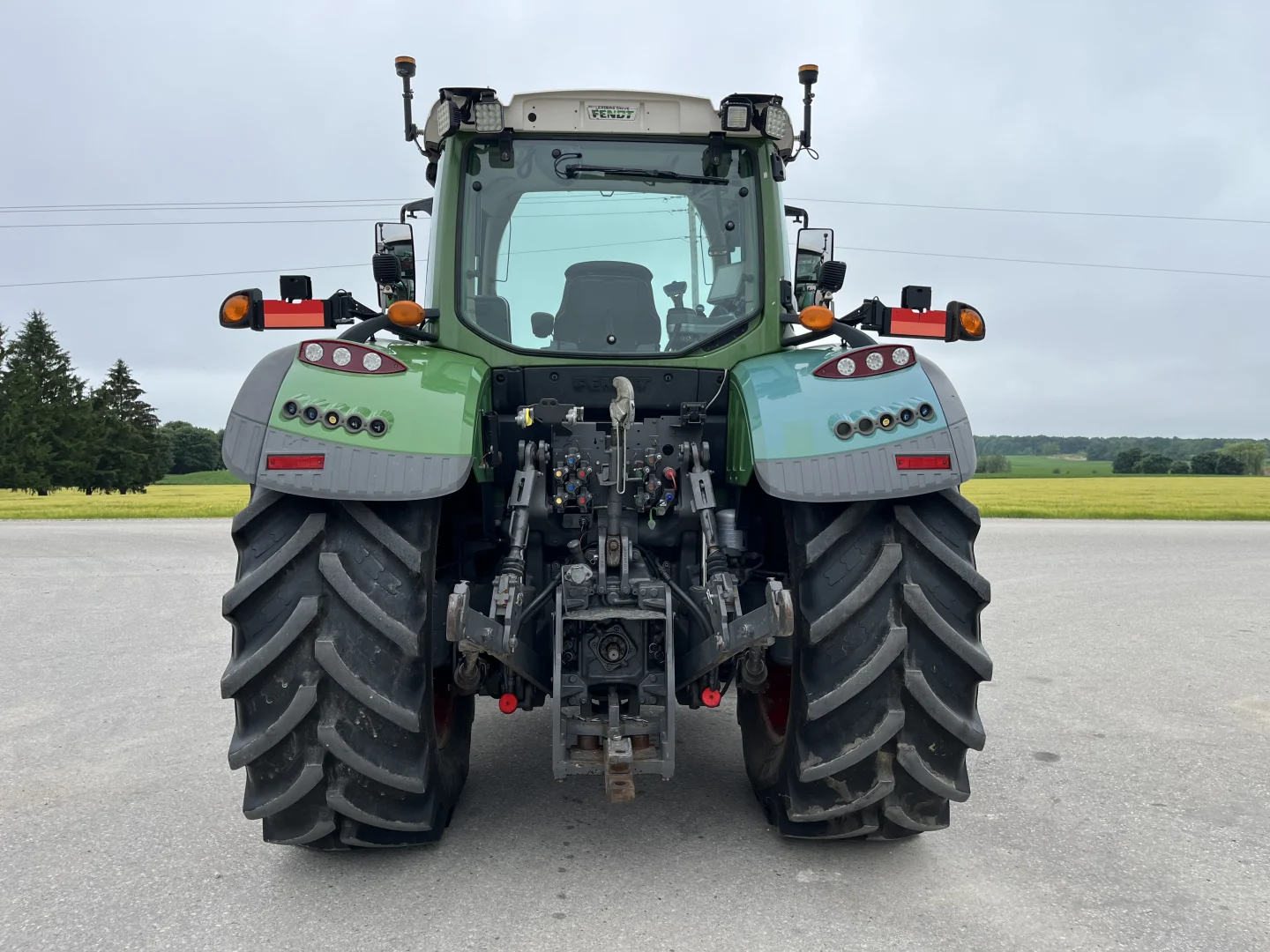

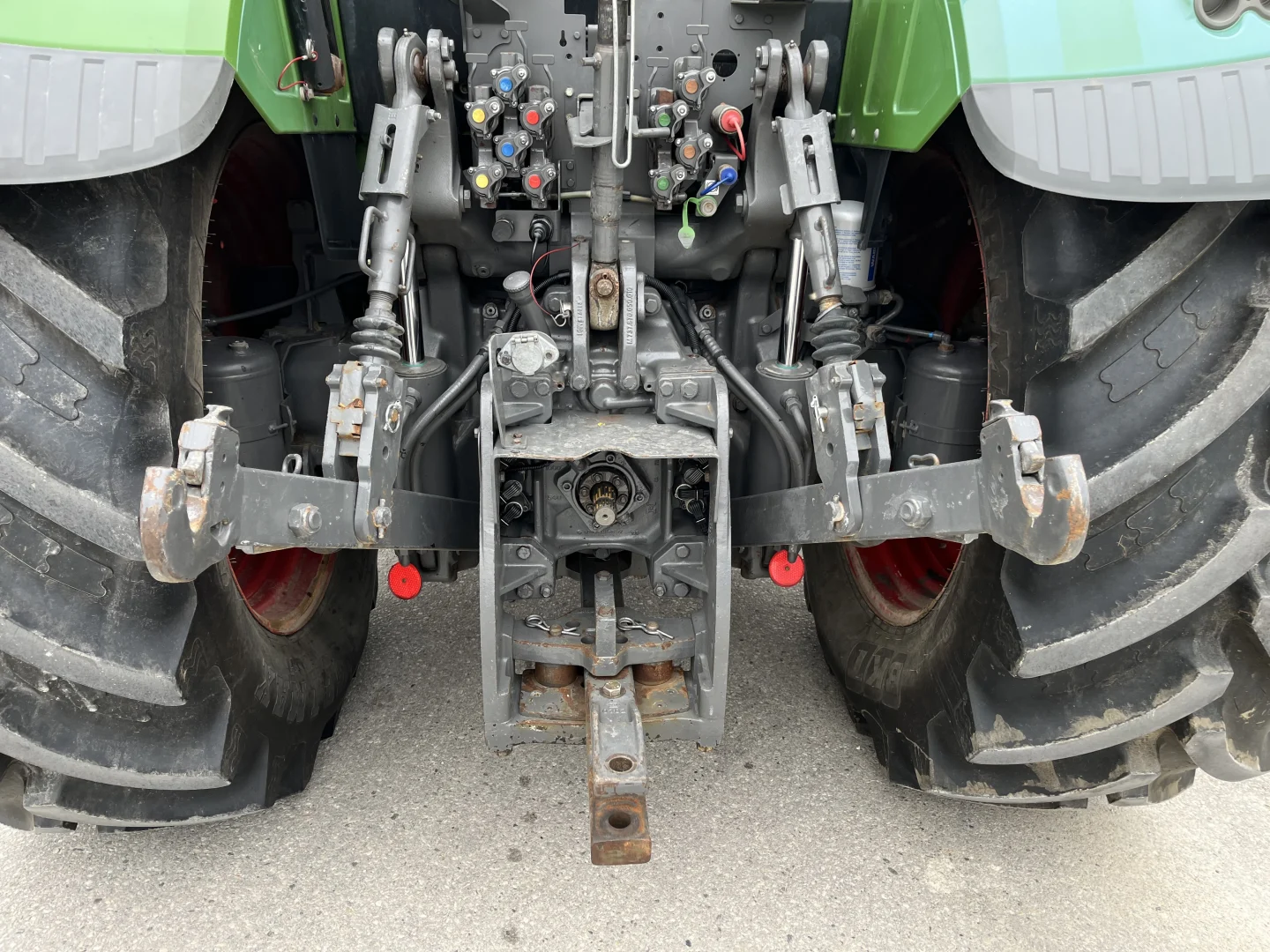

| Rear Hitch | FD 700 S4 | |
| Hitch Category | Category 3, Category 2 | |
| Lift Capacity at Pins | 19310.29lb. (8759kg) 8759kg 19310.29lb. | |
| Comfort | Draft Control | |
| Rear Drawbar | Category 3 | |
| PTO | ||
|---|---|---|
| Front | 1000 | |
| Rear | 540, 540E, 1000, 1000E | |
| Type | Independent | |
| Technology | ||
|---|---|---|

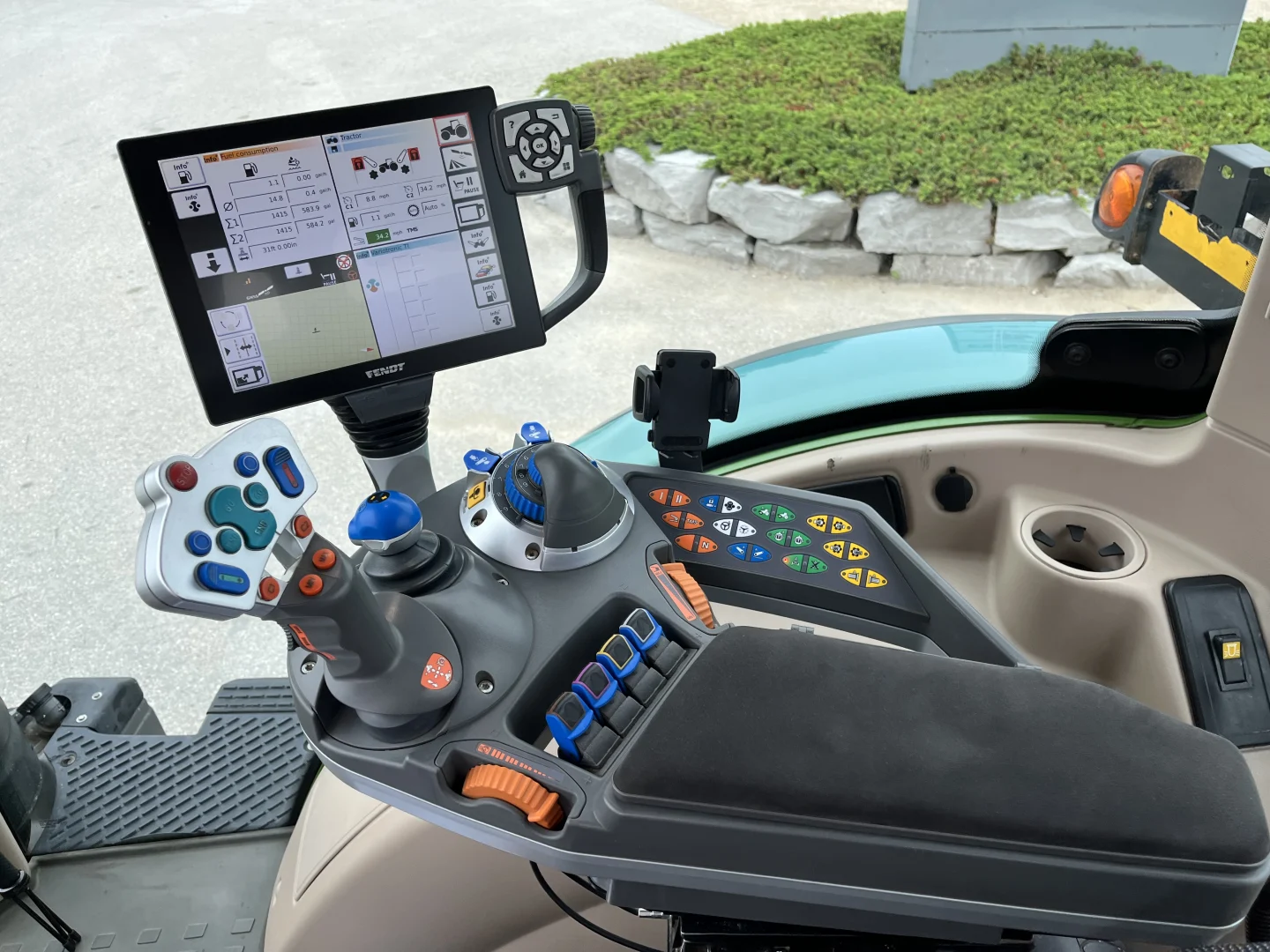

| Display | 10.4" Varioterminal | |

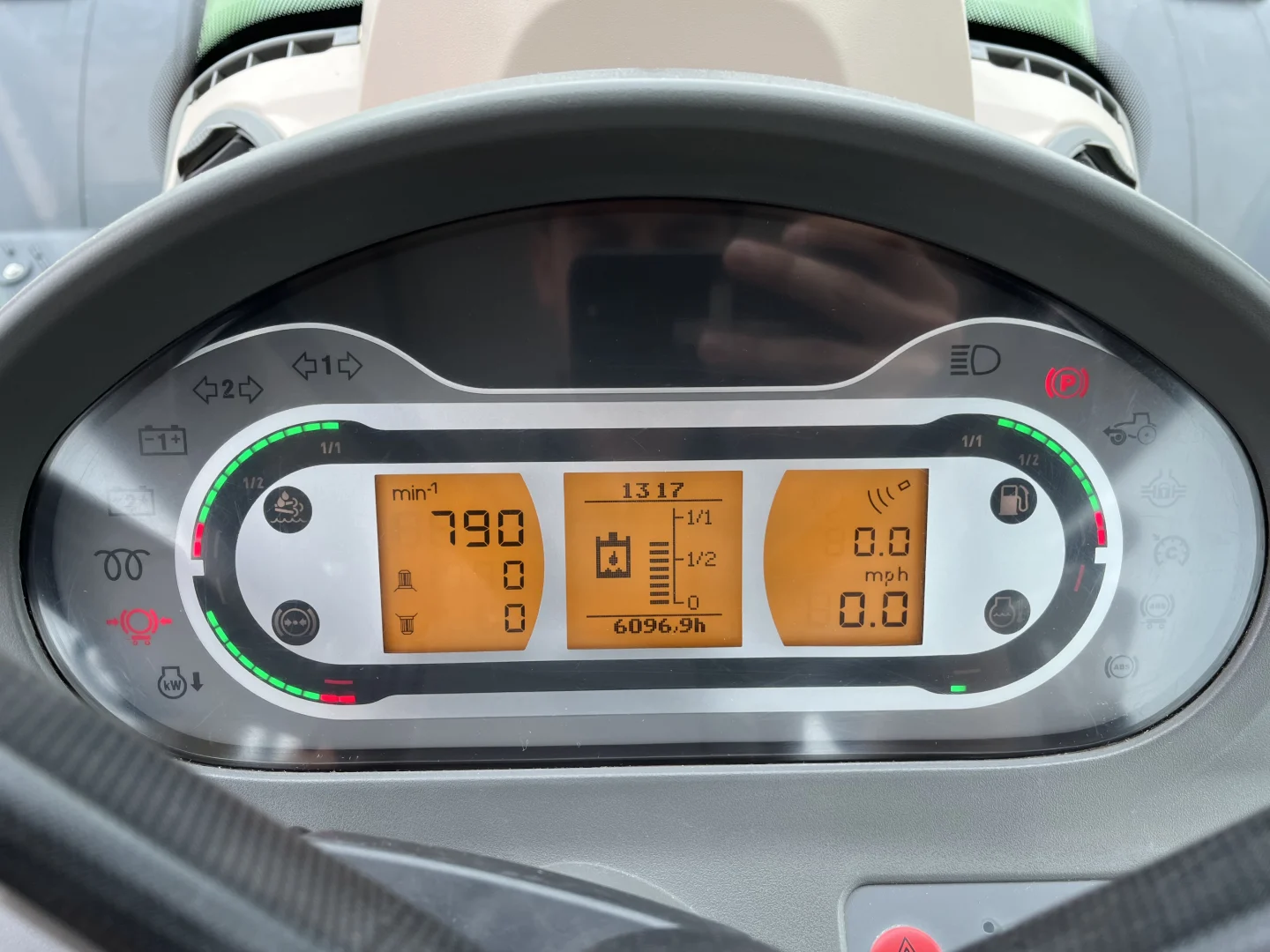

| Instrument Display | Digital Dash Display | |
| Entertainment | USB, Bluetooth, Mic | |
| Integration | ISO BUS Implement Control | |
| Guidance | Guide Standard, Guidance Ready | |
| Headland Management | Variotronic TI | |
| Data Transfer | TaskDoc Pro | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 10 | |
| Rear Lights | 4 | |
| Worklight Type | LED | |
| Rotating Beacon | Left, Right | |
| Alternator | 200A | |
| Alternator Count | 1 | |
| Battery | 1475CCA | |

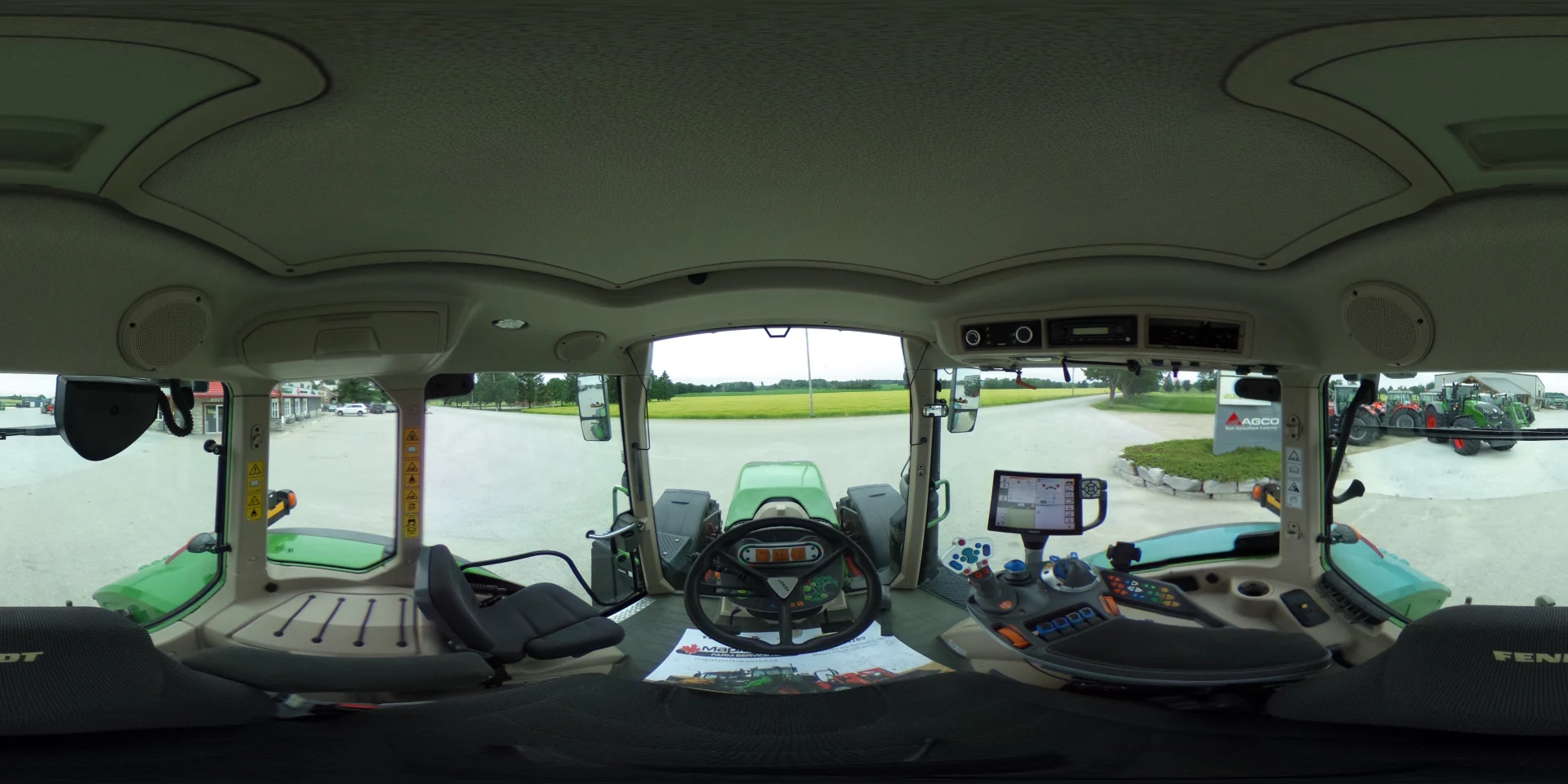

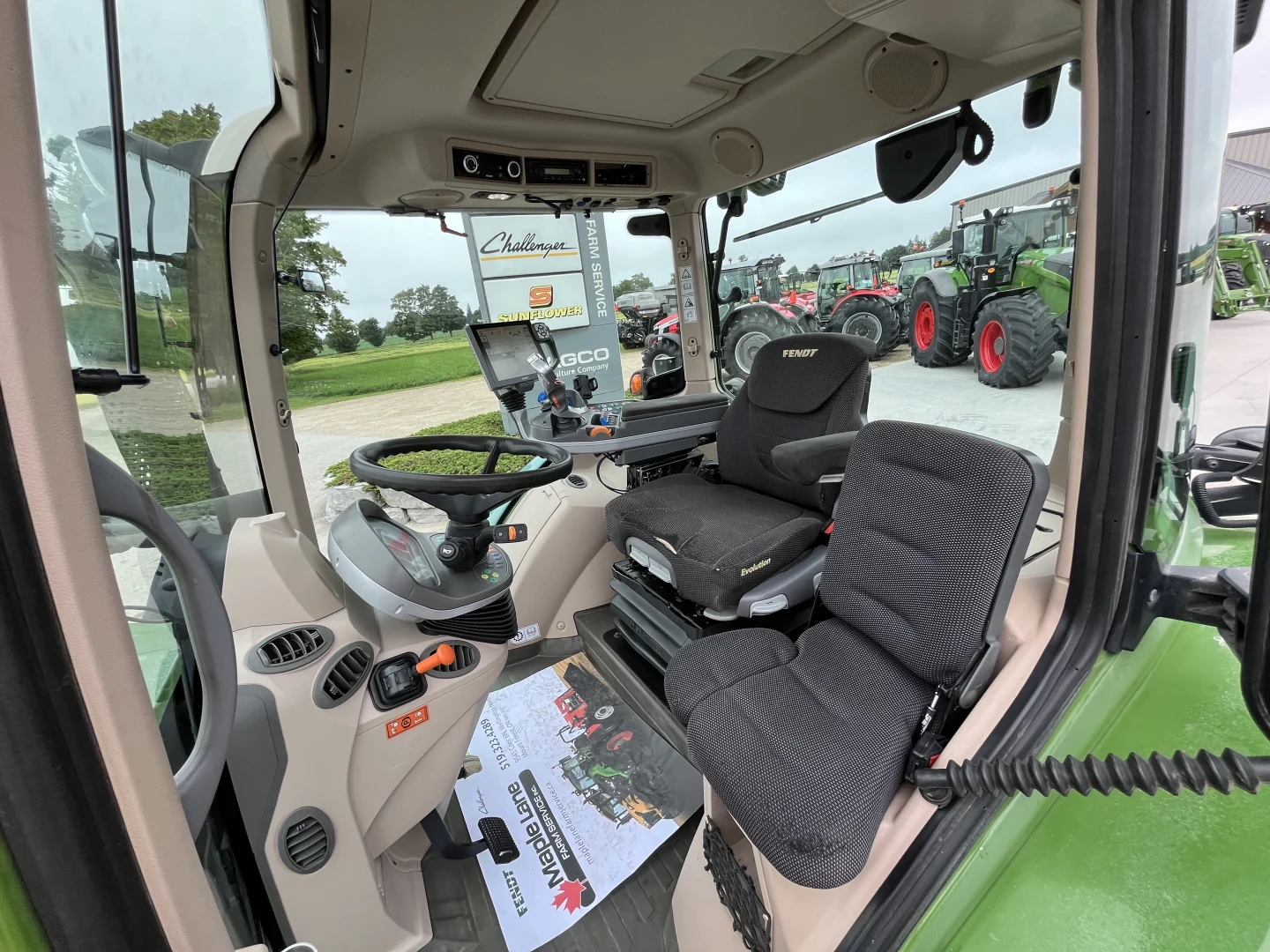

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |

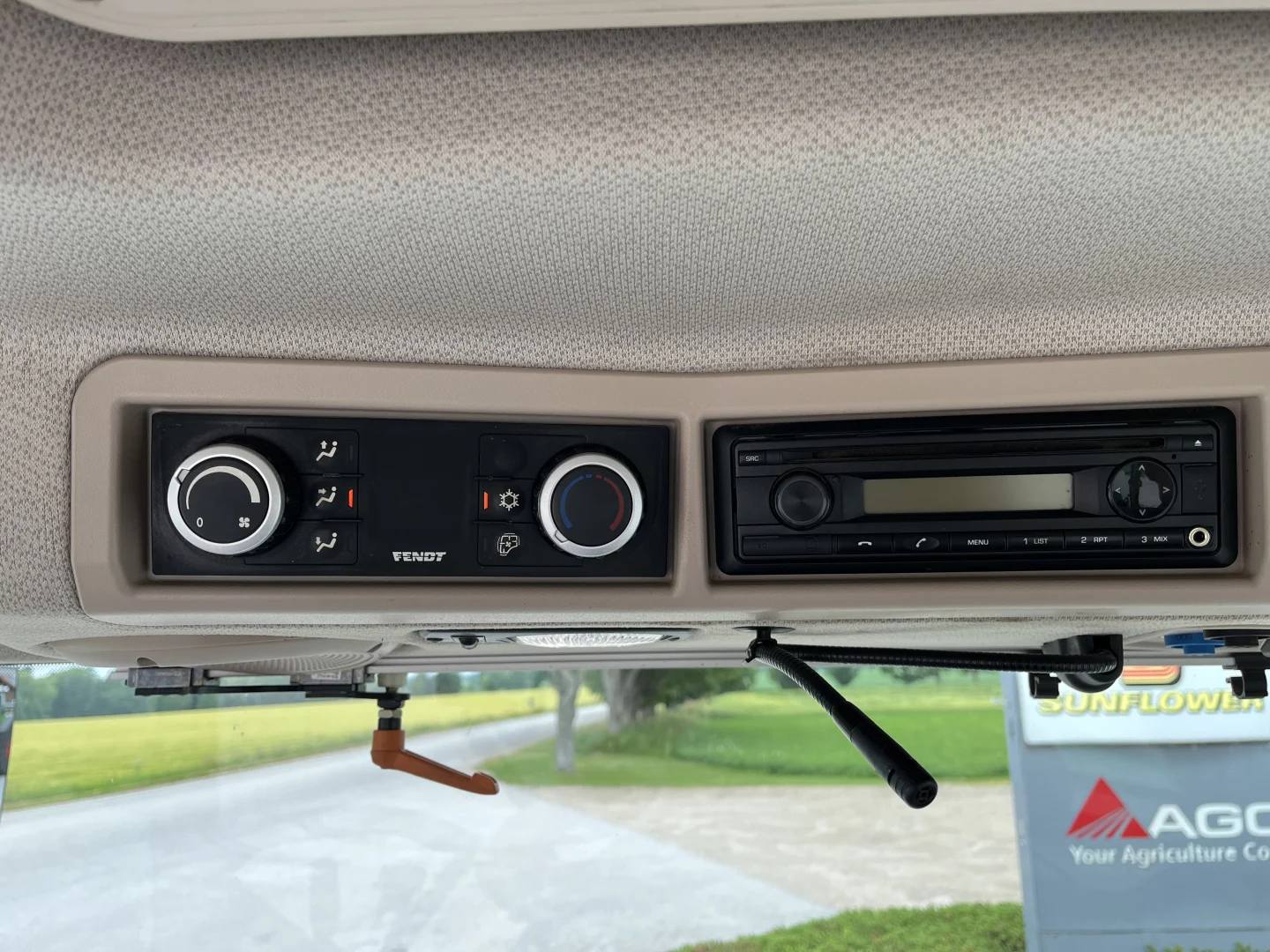

| Climate | Heater, Air Conditioning | |
| Cab Suspension | 2 Point Air | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |
| Operator Seat | FD Super Comfort EVO Adaptive | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | Rear, 300° Front | |
| Sunshade | Windshield | |
| Spec Level | ProfiPlus | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |
| Wheels | ||
|---|---|---|
| Front | BKT 540/65R30 | |
| Tread Pattern | R1 (Ag) | |
| Rear | BKT 650/65R42 | |
| Tread Pattern | R1 (Ag) | |
| Weights | ||
|---|---|---|

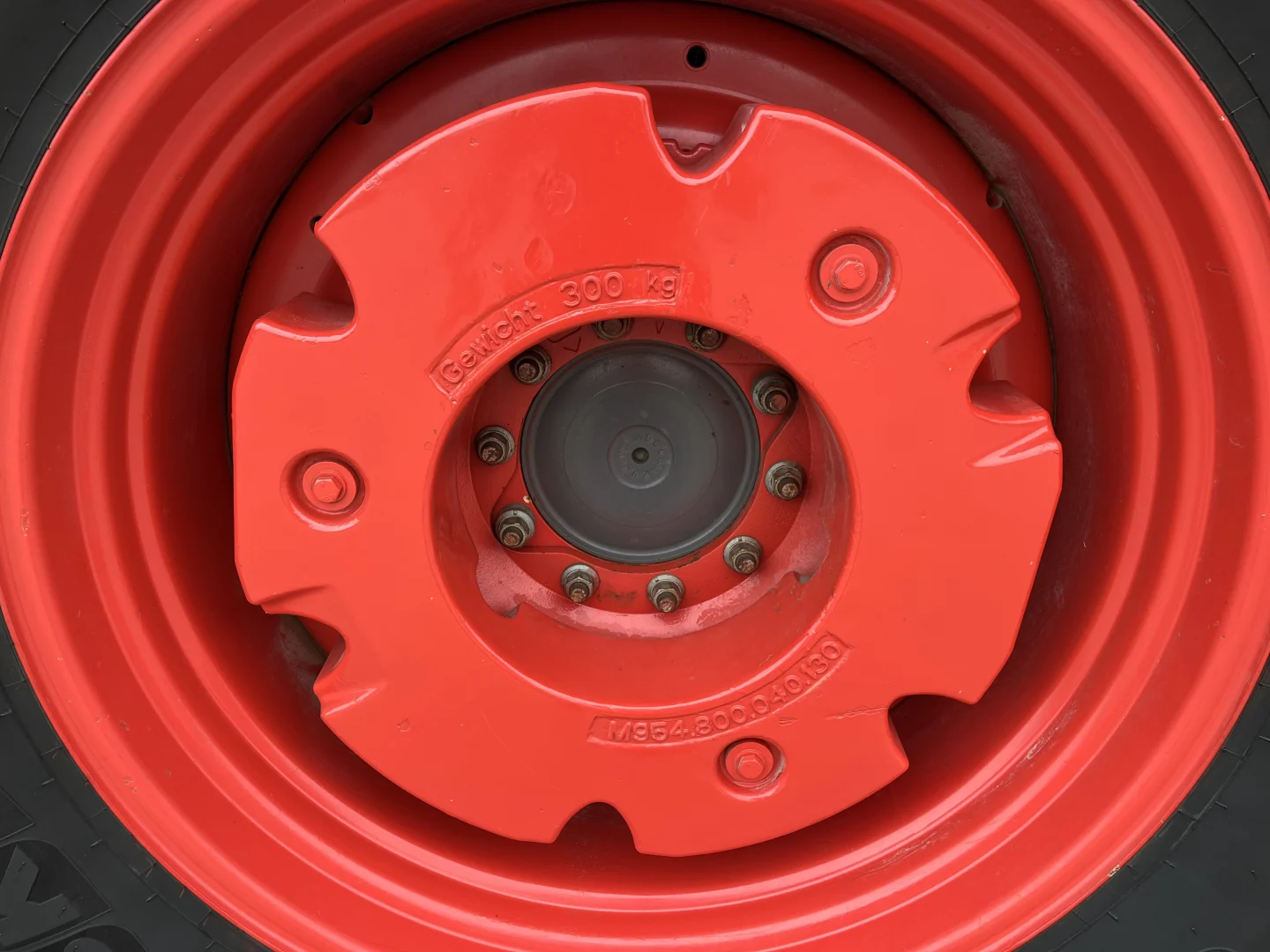

| Wheel Weights | FD 300 kg Wheel Weight Pair | |
| Mount | Bolt | |
| Type | Wheel Disc | |
| Weight | 661.39lb. (300kg) 300kg 661.39lb. | |
| Dimensions | ||
|---|---|---|
| Length | 17' 2-5/16" (5240mm) 5240mm 17' 2-5/16" | |
| Wheelbase | 9' 1-9/16" (2783mm) 2783mm 9' 1-9/16" | |
| Width | 8' 4-3/8" (2550mm) 2550mm 8' 4-3/8" | |
| Height | 10' 1/16" (3050mm) 3050mm 10' 1/16" | |
| Minimum Ground Clearance | 1' 9-5/8" (550mm) 550mm 1' 9-5/8" | |
| Weight | 7979.59kg (17592lb.) 17592lb. 7979.59kg | |
