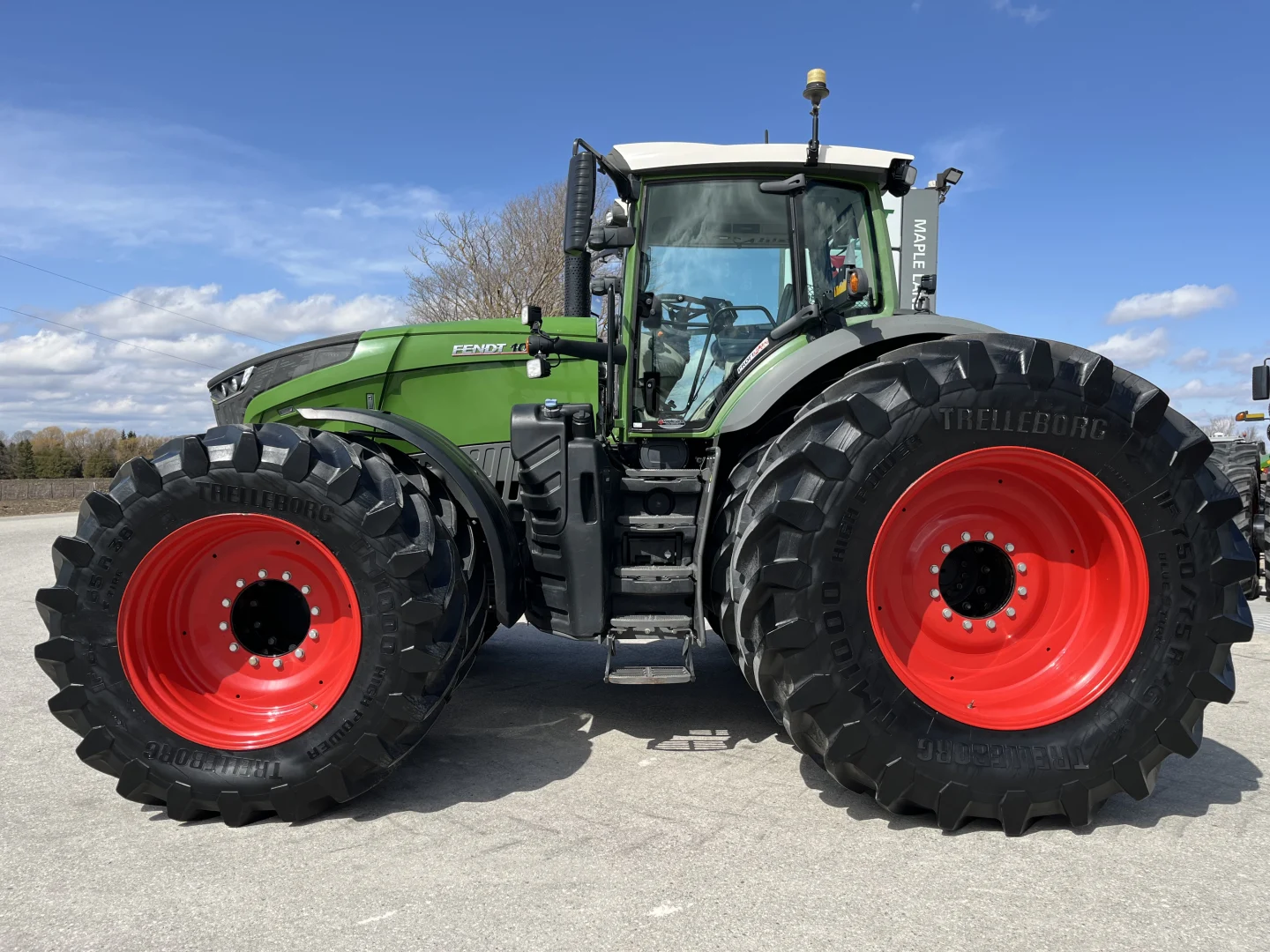

Used 2018 Fendt 1050 S4
| Description | |
|---|---|

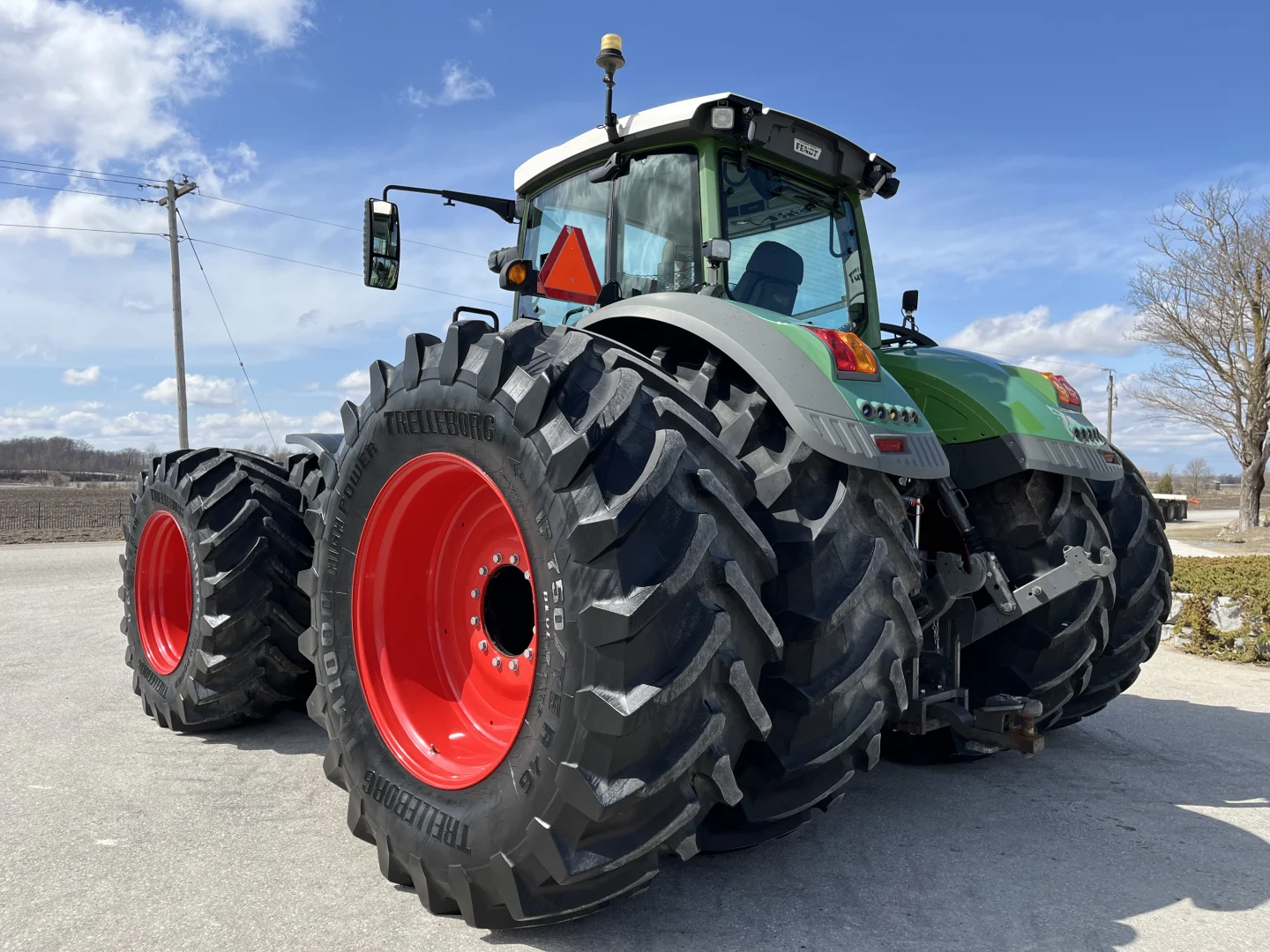

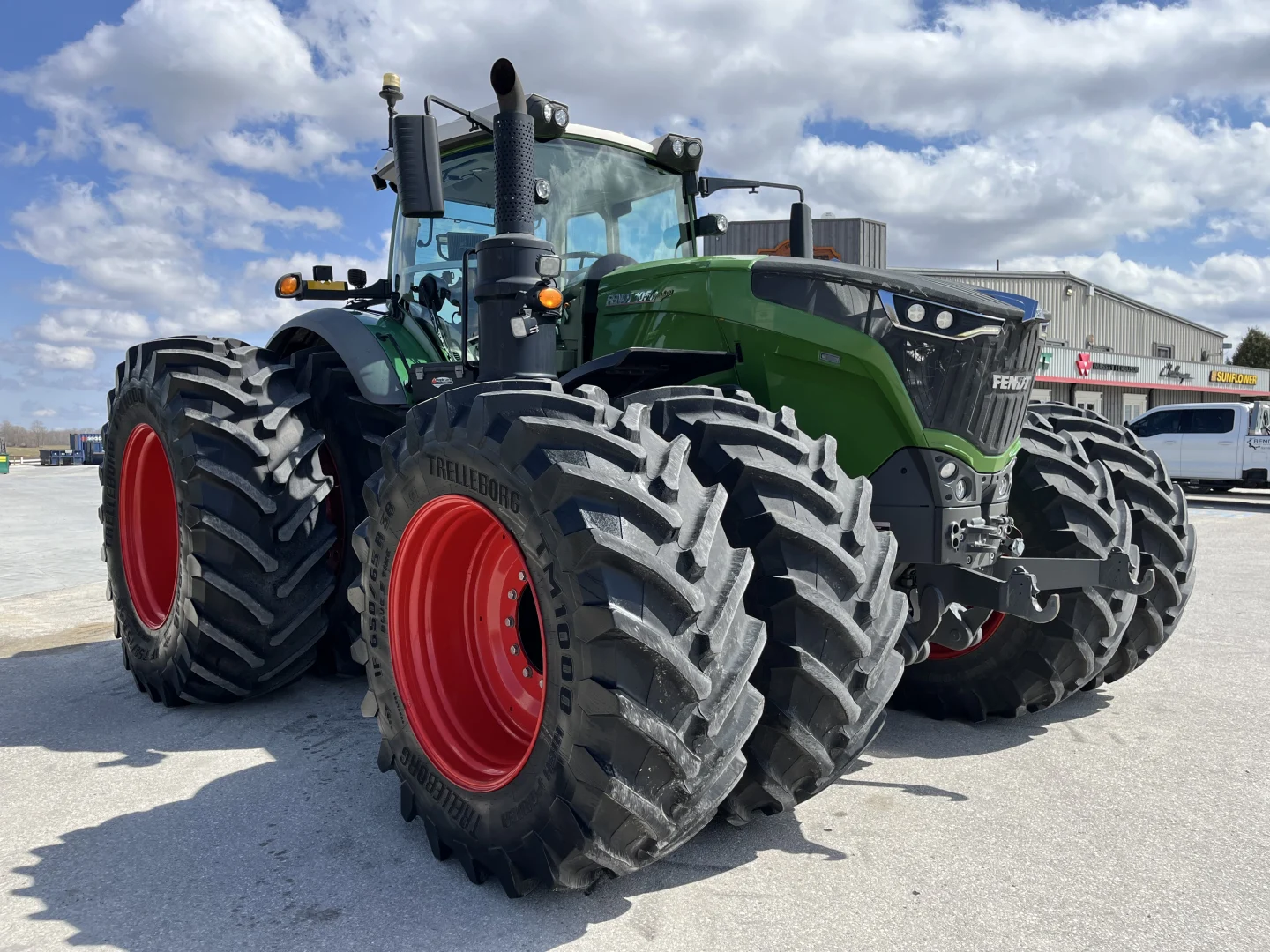

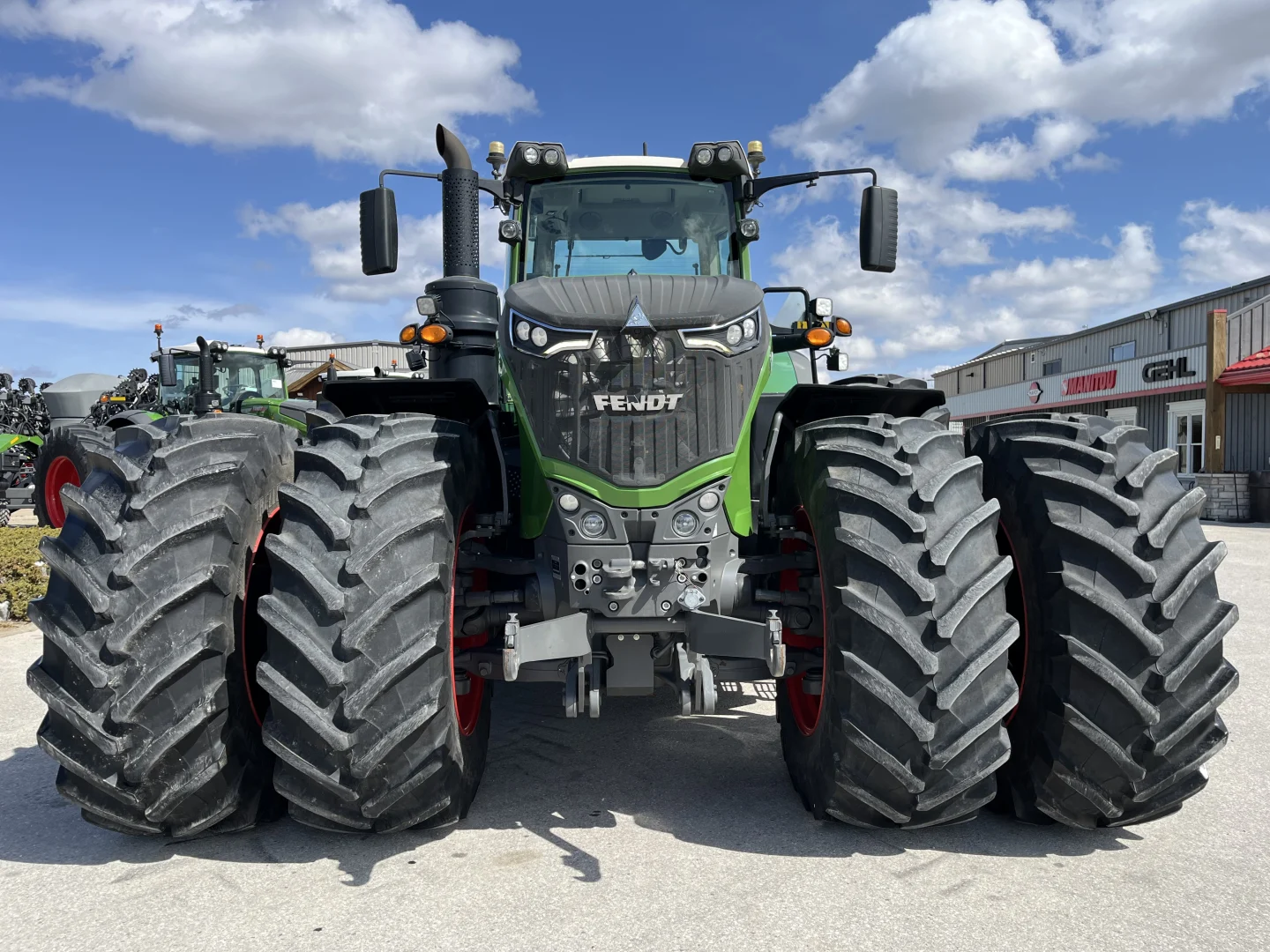

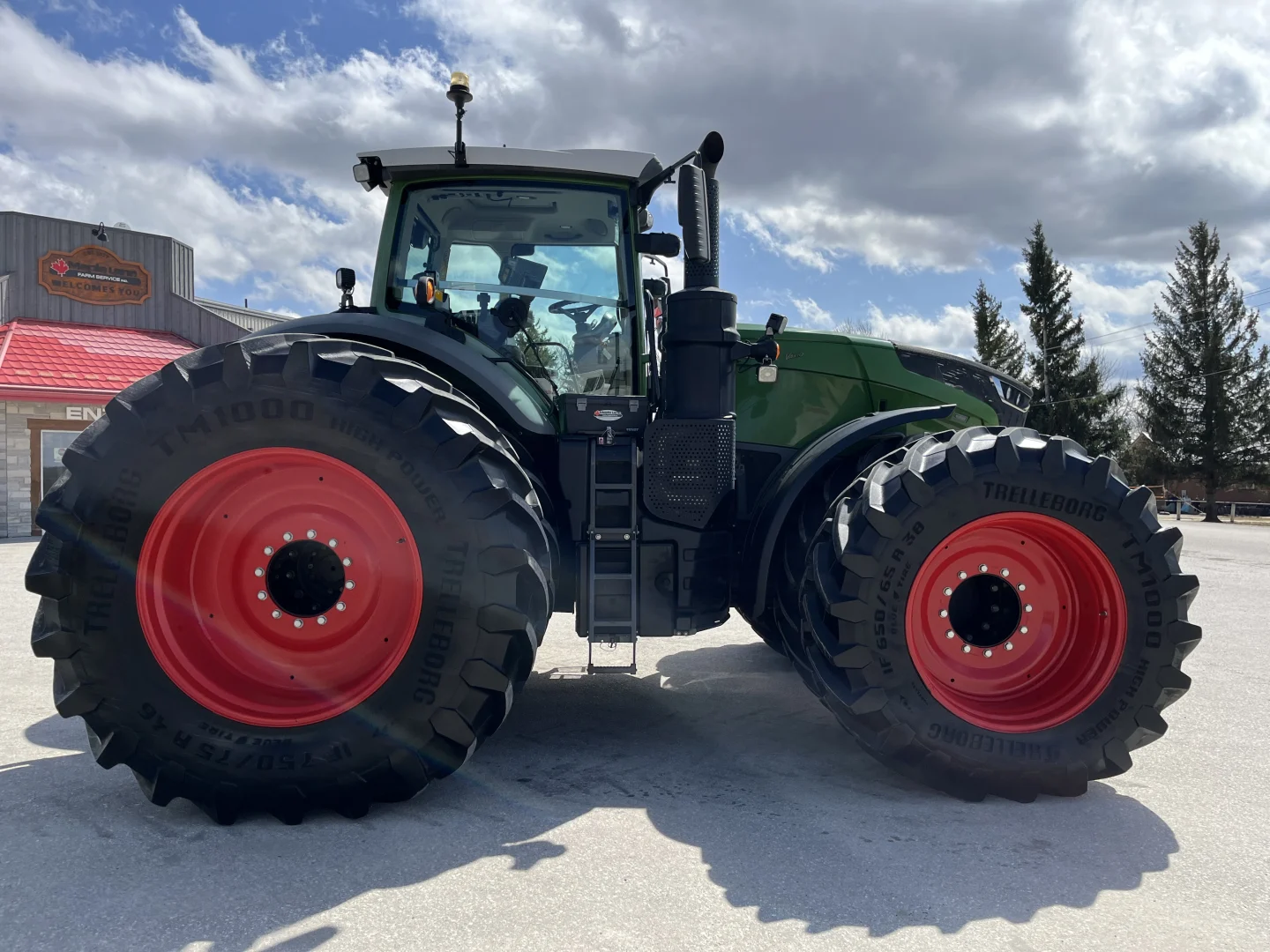

| Profi Plus, Fendt Guide complete- RTK unlocked, 50 km/h Vario transmission, suspended front axle, 113 GPM dual pump hydraulics, 6 rear valves, rear 3 point hitch, IF750/75R46 rear duals, IF650/65R38 front duals, hydraulic and air trailer brakes, exhaust brake, Leather Evolution seat, Full LED lighting package, powered and heated mirrors, air cab suspension, 650 kg wheel weights | |
| Categories | High Horsepower |
| Unit Number | 23804R |
| Condition | Used |
| Usage | 2800 Hours |
| Year | 2018 |
| Cost | $498,900.00 CAD |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 385.53kW (517hp) 517hp 385.53kW | |
| PTO Power | 372.85kW (500hp) 500hp 372.85kW | |
| Rated Engine Speed | 1700r/min | |
| Make | MAN D2676 LE121 | |
| Displacement | 3.28gal. (12.42L) 12.42L 3.28gal. | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 211.34gal. (800L) 800L 211.34gal. | |
| DEF Tank Capacity | 22.45gal. (85L) 85L 22.45gal. | |
| Warming | Block Heater | |
| Fan | Reversing | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31.07mph (50km/h) 50km/h 31.07mph | |
| Name | CVT TA 400 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Exhaust, Dual-Circuit , Wet Disc | |
| Trailer Brakes | Hydraulic, Air | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Rear Axle Length | 9' 10-1/8" (3000mm) 3000mm 9' 10-1/8", 8' 2-7/16" (2500mm) 2500mm 8' 2-7/16" | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 1000 Series Gen3 Dual Pump 113.5 GPM | |
| Pump Type | Dual Variable Displacement Piston | |
| Hydraulic Flow | 429.64L/min (113.5GPM) 113.5GPM 429.64L/min | |
| System Capacity | 36.72gal. (139L) 139L 36.72gal. | |
| Maximum Operating Pressure | 2900.76psi (20000kPa) 20000kPa 2900.76psi | |
| Maximum Available Hydraulic Oil | 24.57gal. (93L) 93L 24.57gal. | |
| Rear Remote Valves | 6 | |
| Steering | Hydraulic Power | |

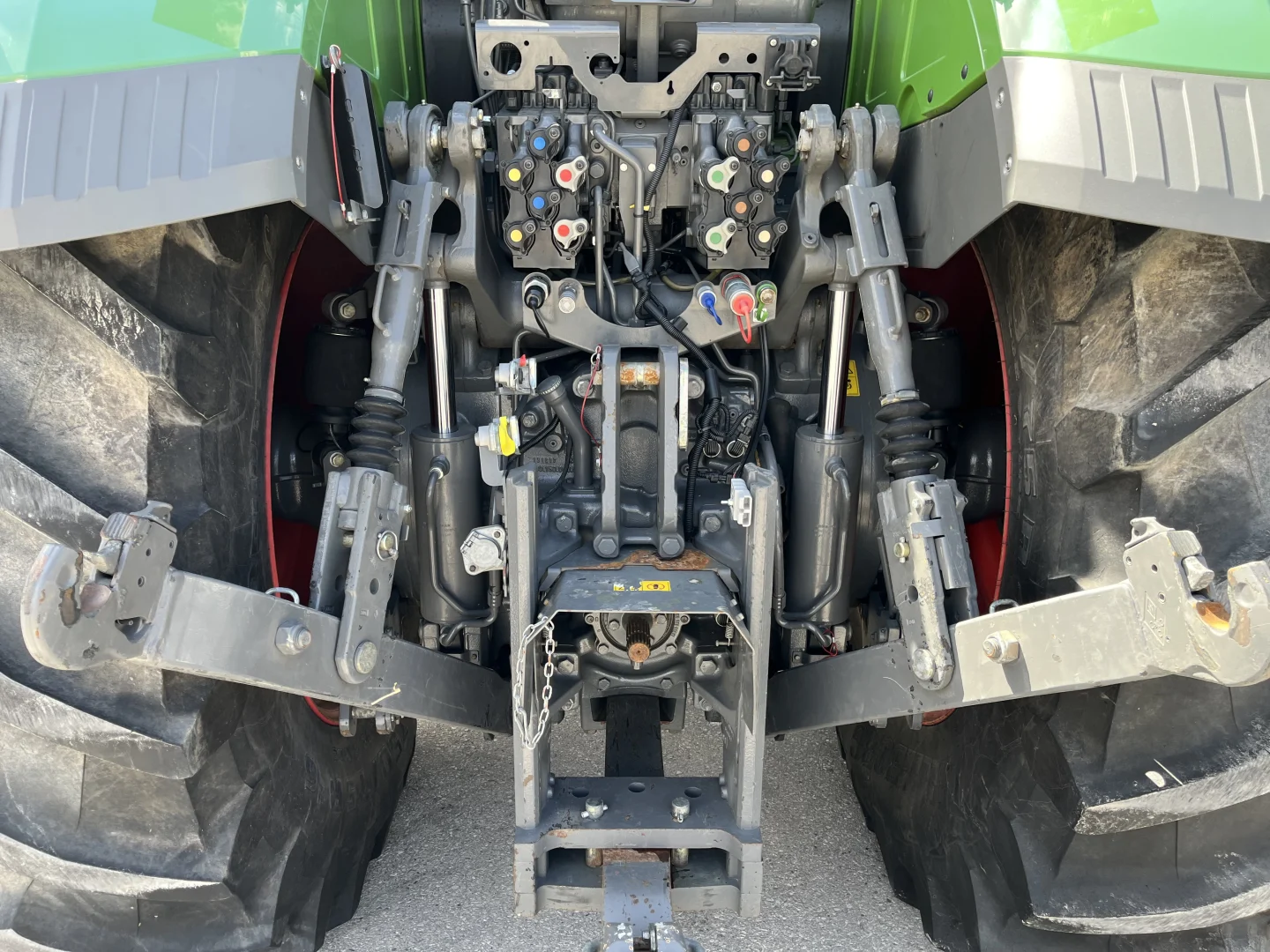

| Hitching | ||
|---|---|---|

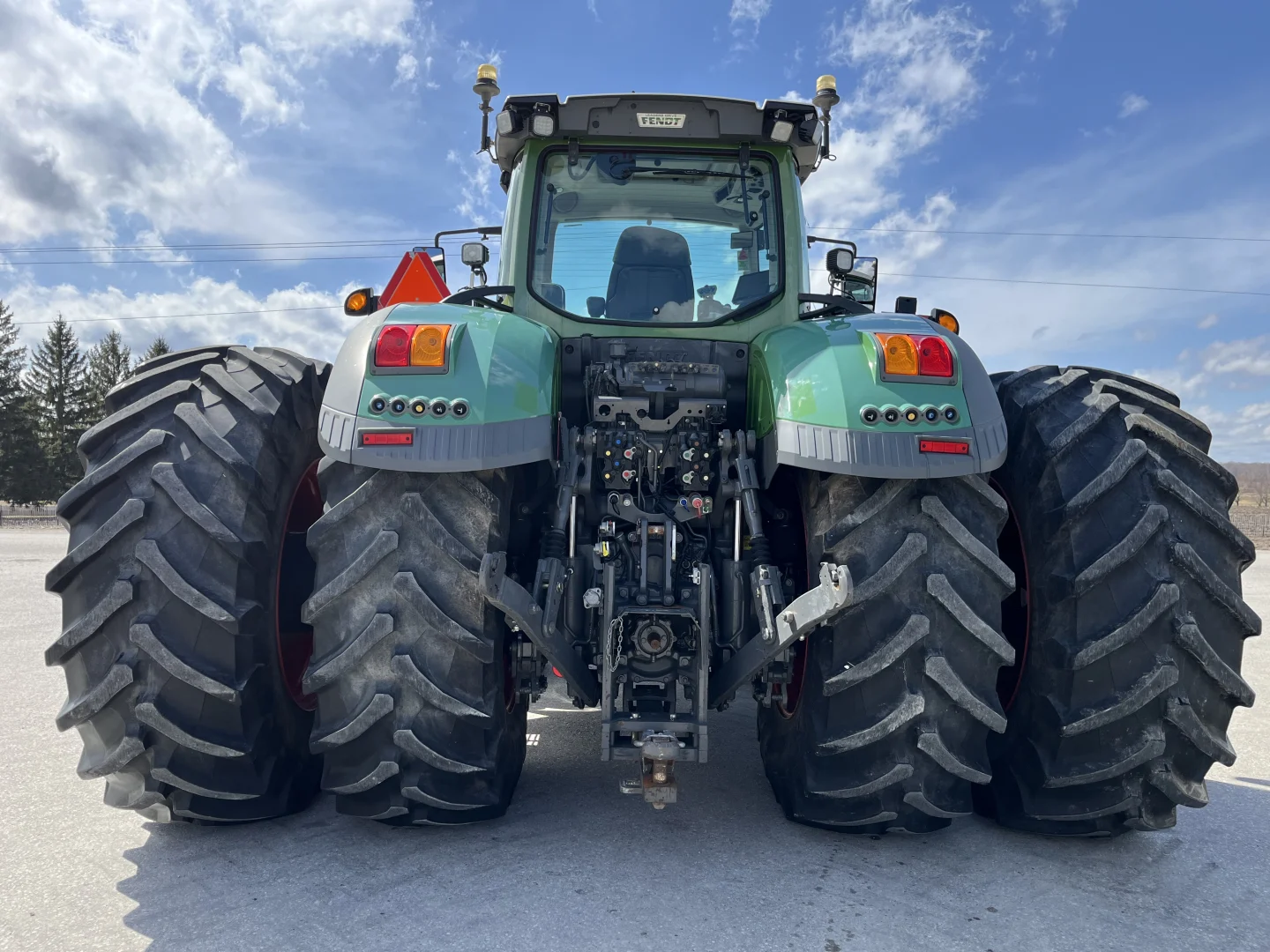

| Rear Hitch | FD 1000 Series Gen3 | |
| Hitch Category | Category 4 | |
| Lift Capacity at Pins | 29045.91lb. (13175kg) 13175kg 29045.91lb. | |
| Comfort | Draft Control | |
| Rear Drawbar | Category 4 | |
| PTO | ||
|---|---|---|
| Rear | 1000, 1000E | |
| Type | Independent | |
| Technology | ||
|---|---|---|
| Display | 10.4" Varioterminal | |

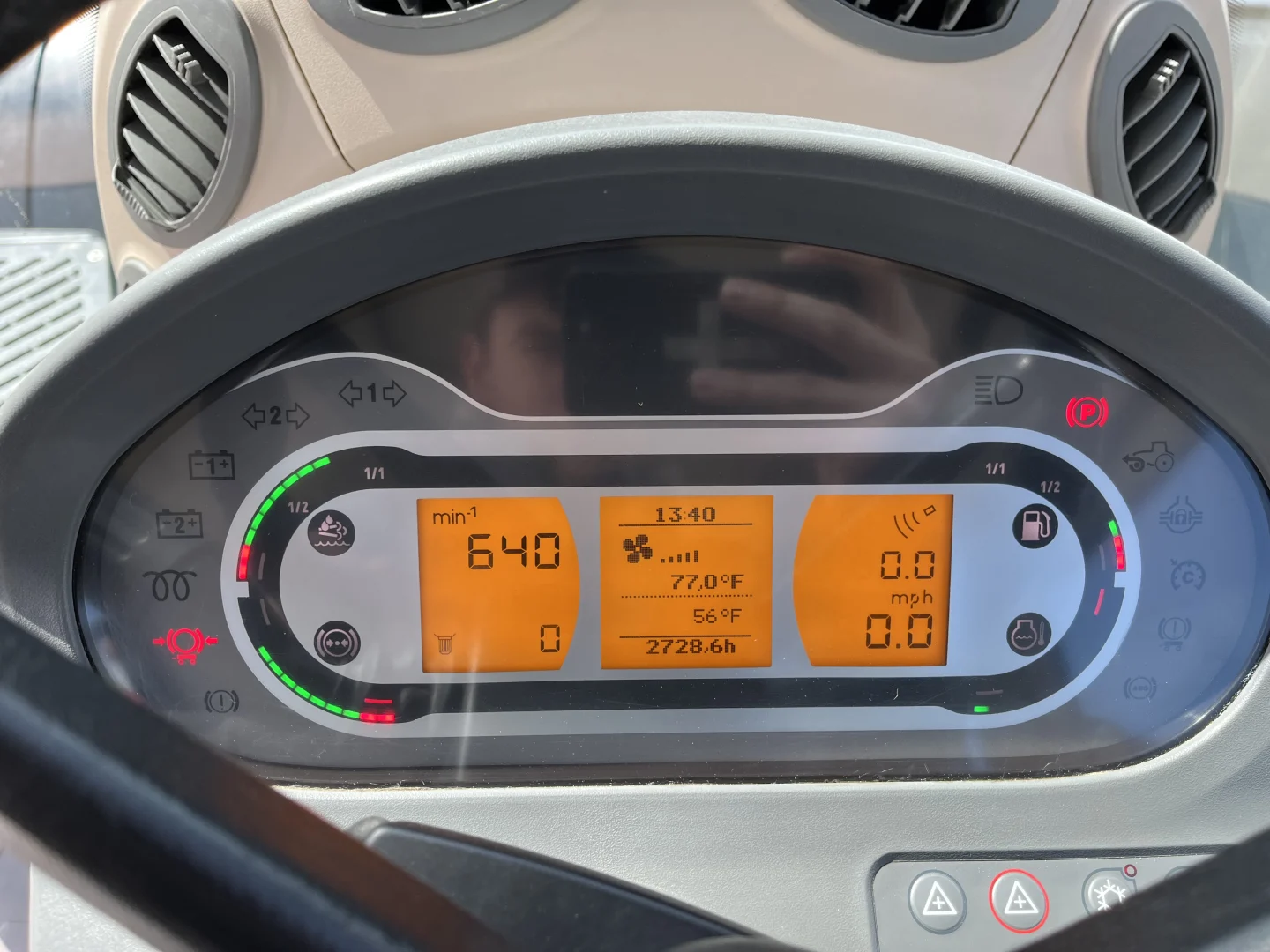

| Instrument Display | Digital Dash Display | |
| Integration | ISO BUS Implement Control | |
| Antenna | Trimble, Novatel | |
| Guidance | Guidance Ready | |
| Guidance Precision | RTK | |
| Headland Management | Variotronic TI | |
| Auto Headland Turn | Variotronic TI Auto | |
| Data Transfer | TaskDoc Pro | |
| Section Control | SectionControl | |
| Variable Rate Control | Variable Rate Control | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 20 | |

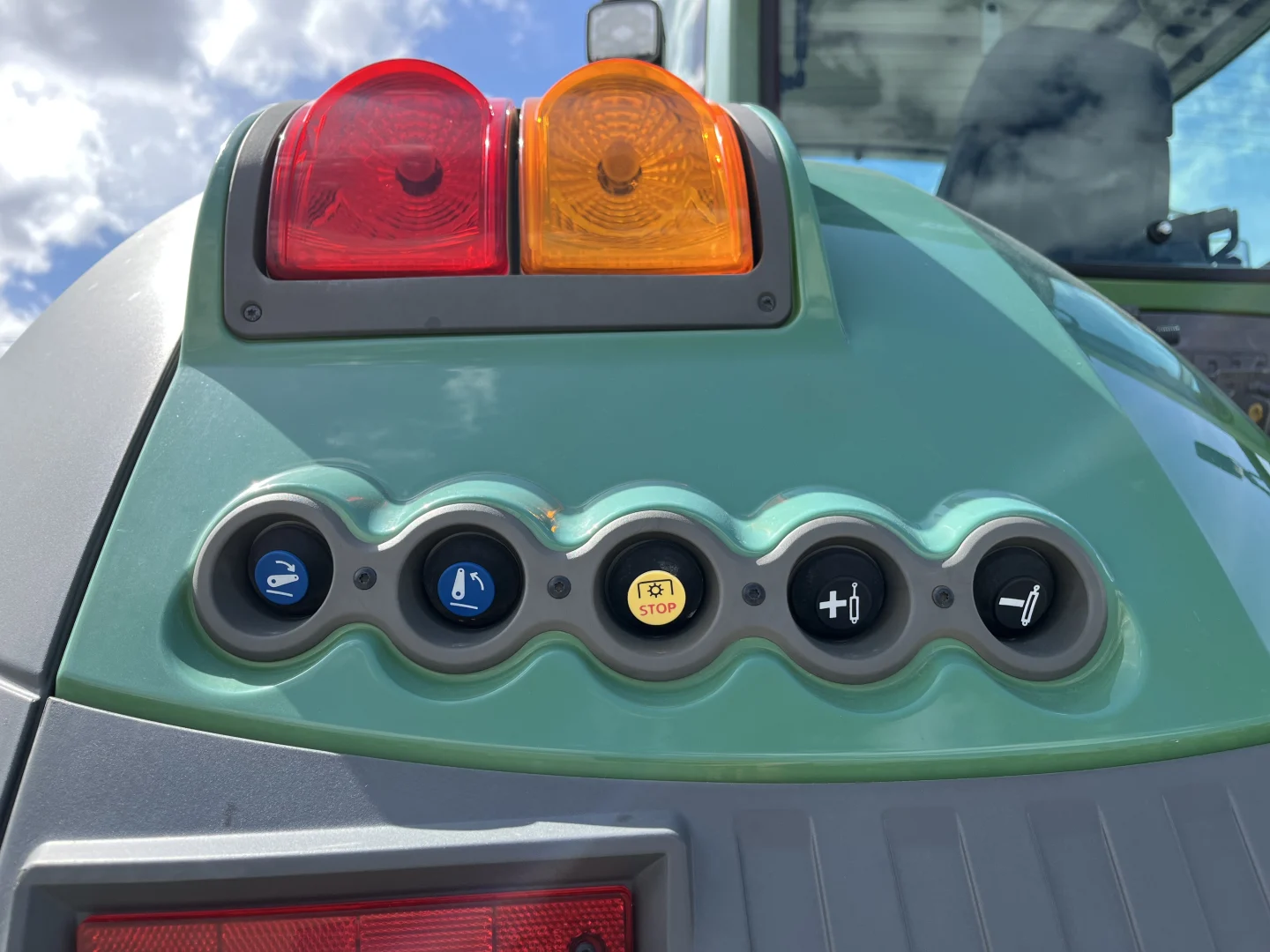

| Rear Lights | 6 | |
| Worklight Type | Halogen | |
| Rotating Beacon | Left, Right | |
| Alternator | 160A | |
| Alternator Count | 2 | |
| Battery | 1475CCA | |

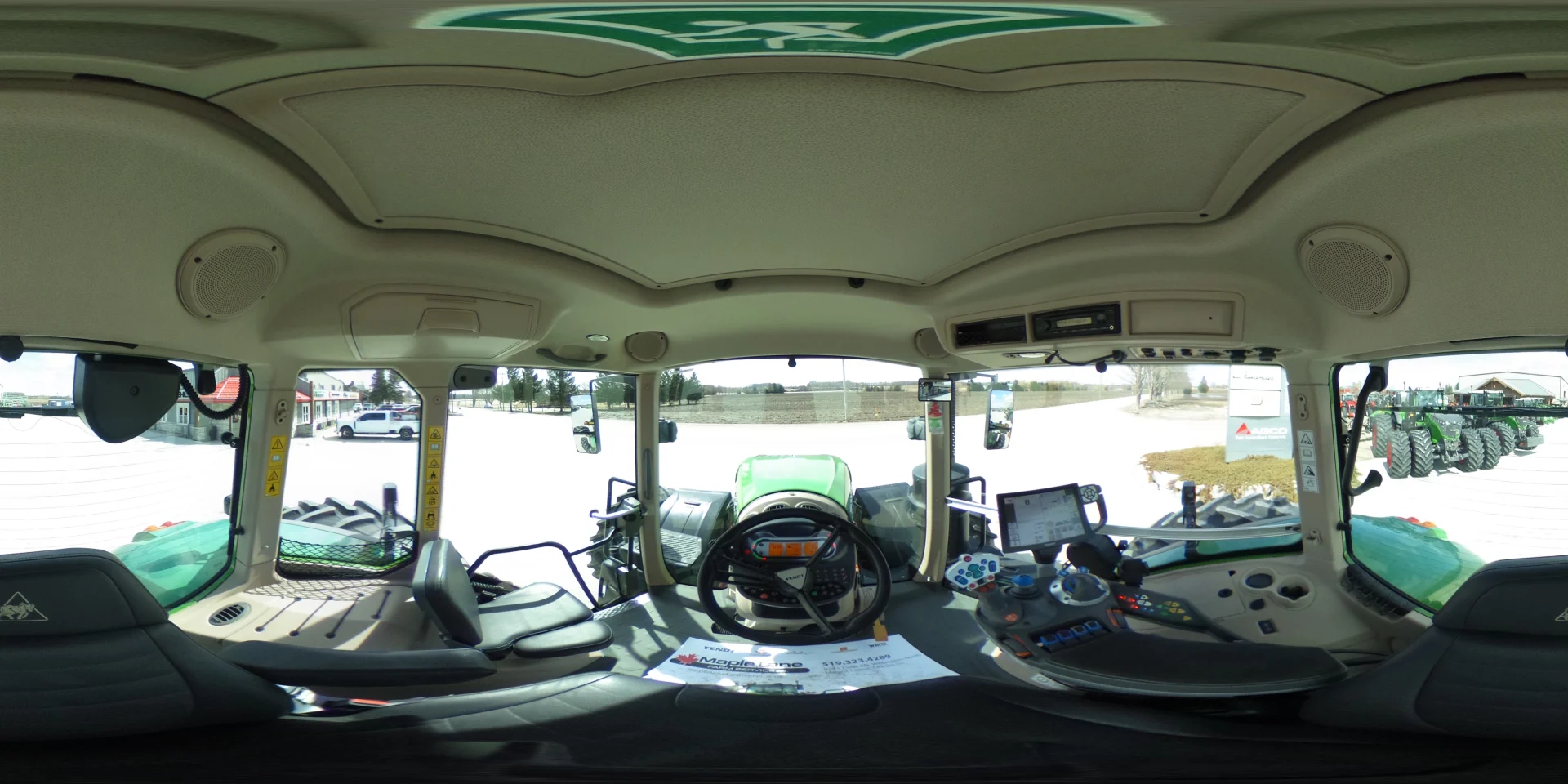

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |

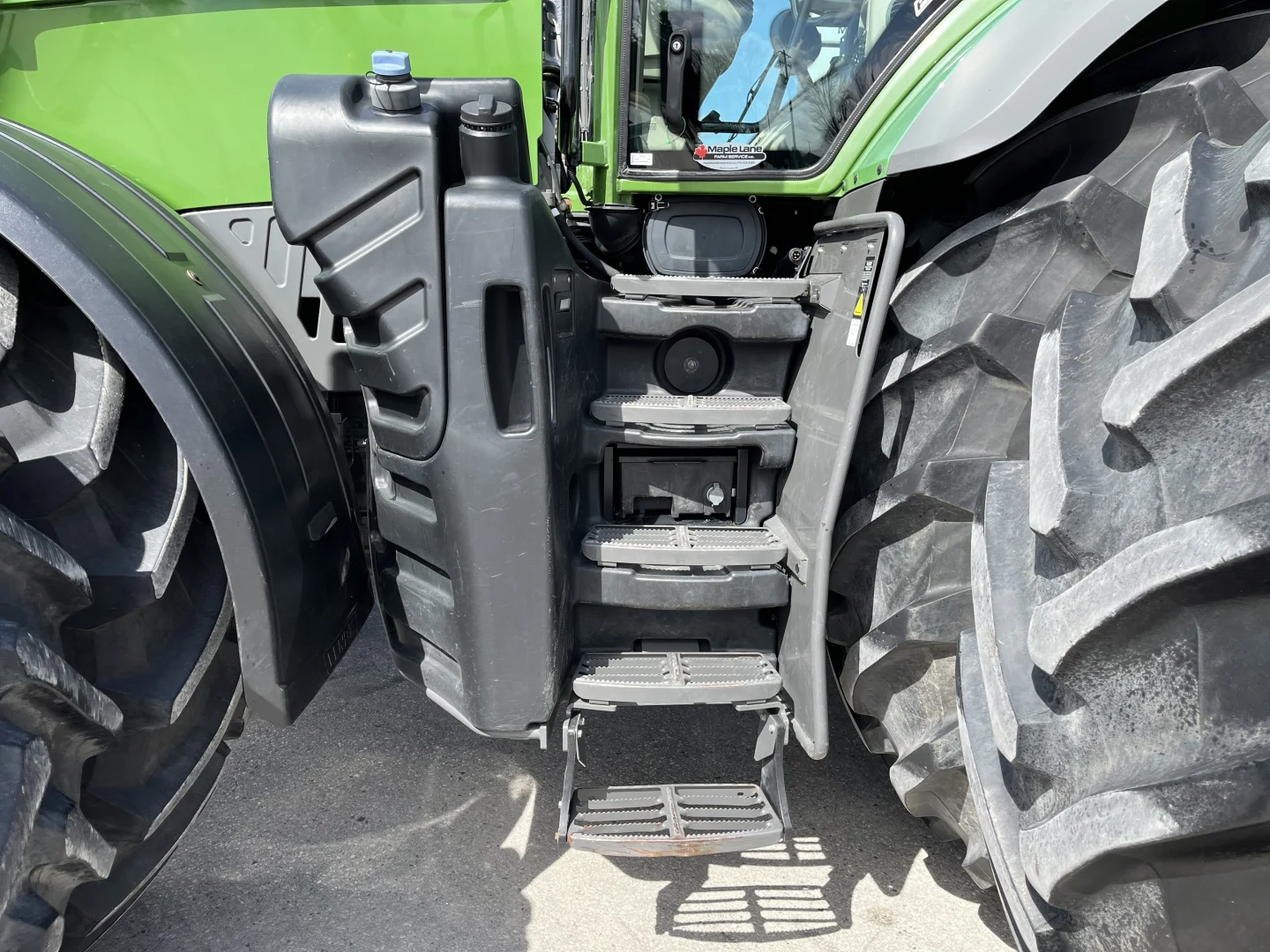

| Access | Left Hand Door | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 2 Point Mechanical | |
| Steering Controls | Steering Wheel | |
| Storage | Cool Box | |

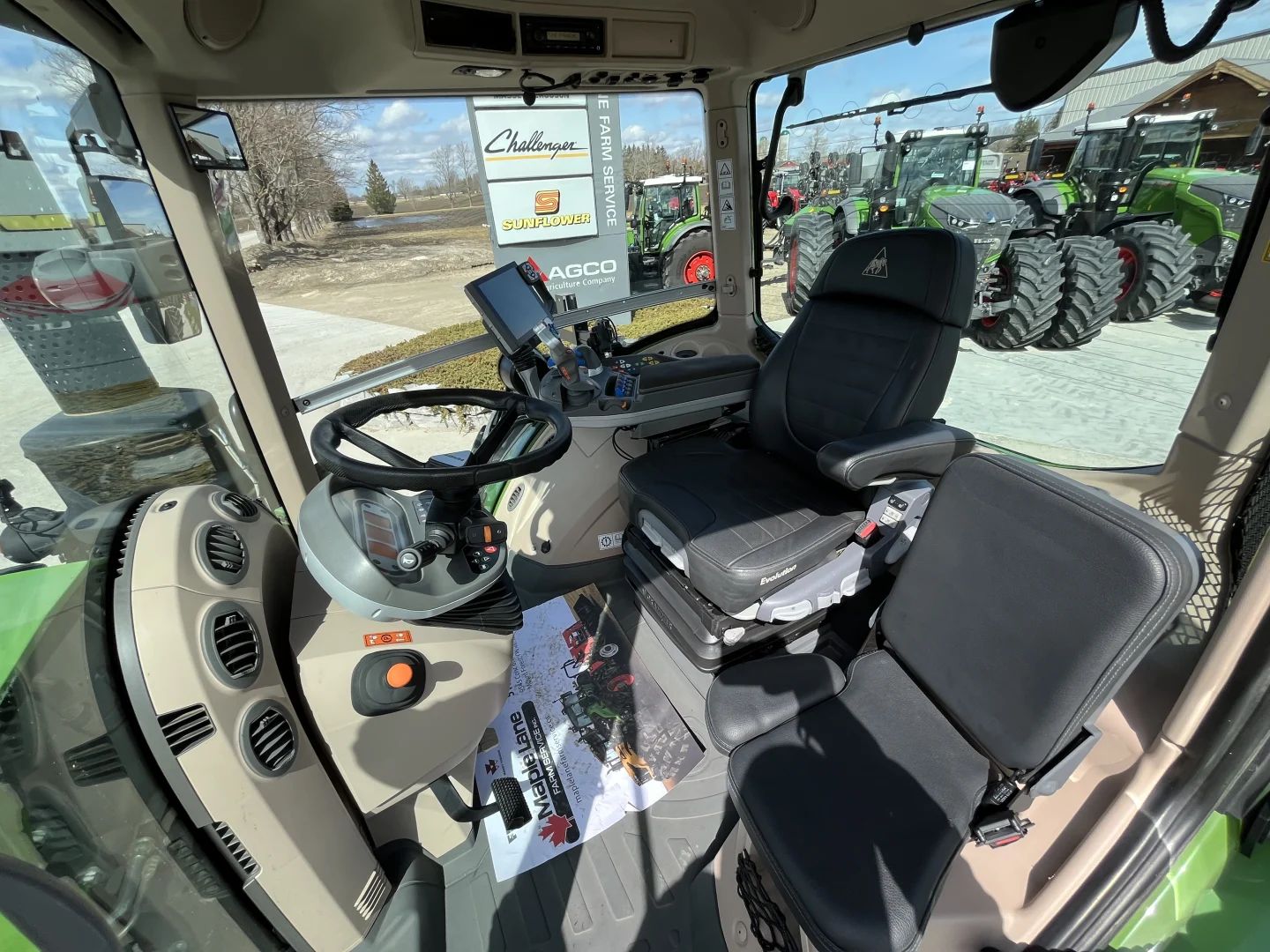

| Operator Seat | FD Super Comfort EVO Leather | |
| Material | Leather | |
| Safety Arrest | 2pt Belt | |

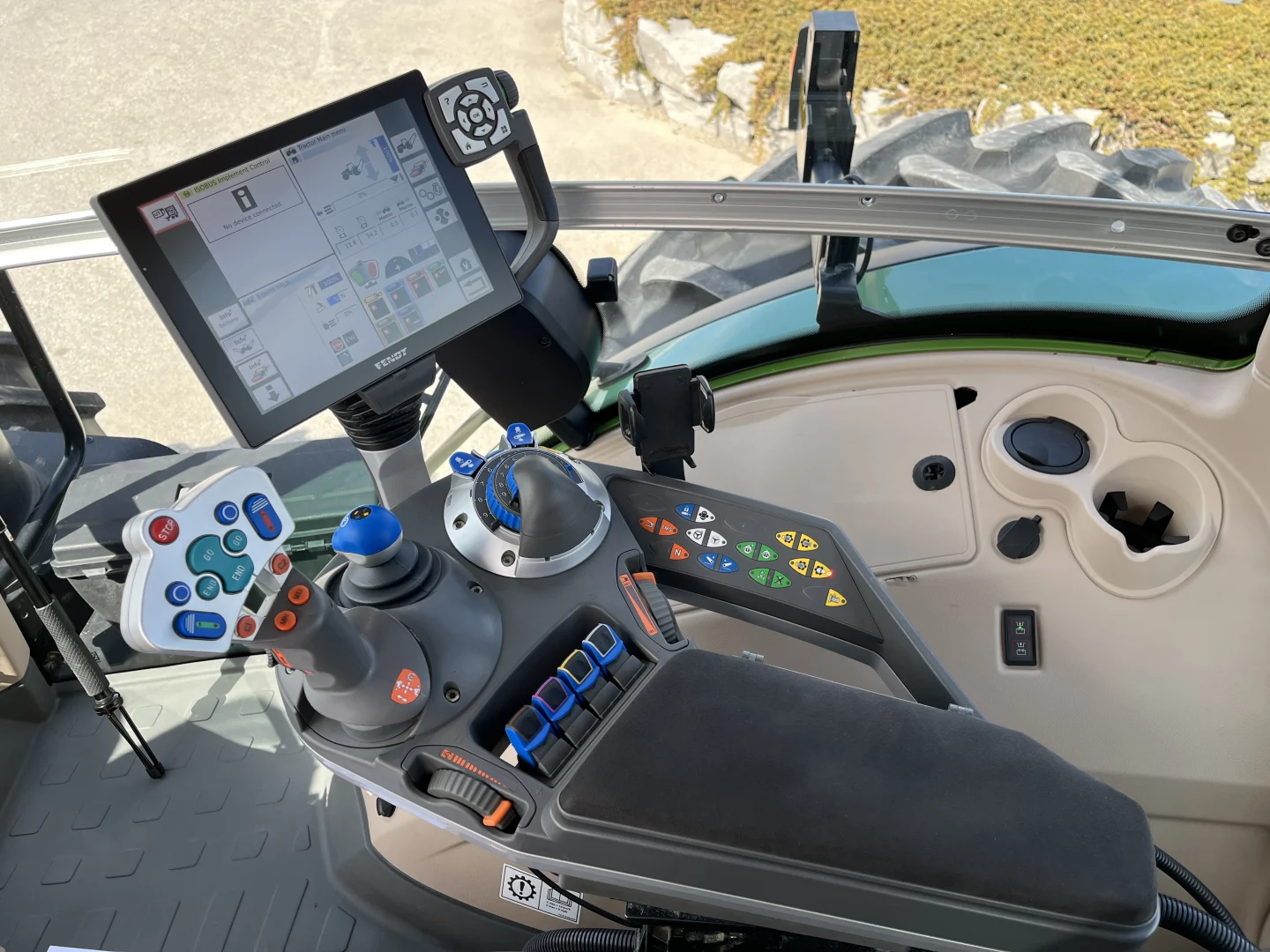

| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | 300° Front, Rear, Side | |
| Mirrors | Powered, Telescoping, Heated | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |
| Wheels | ||
|---|---|---|

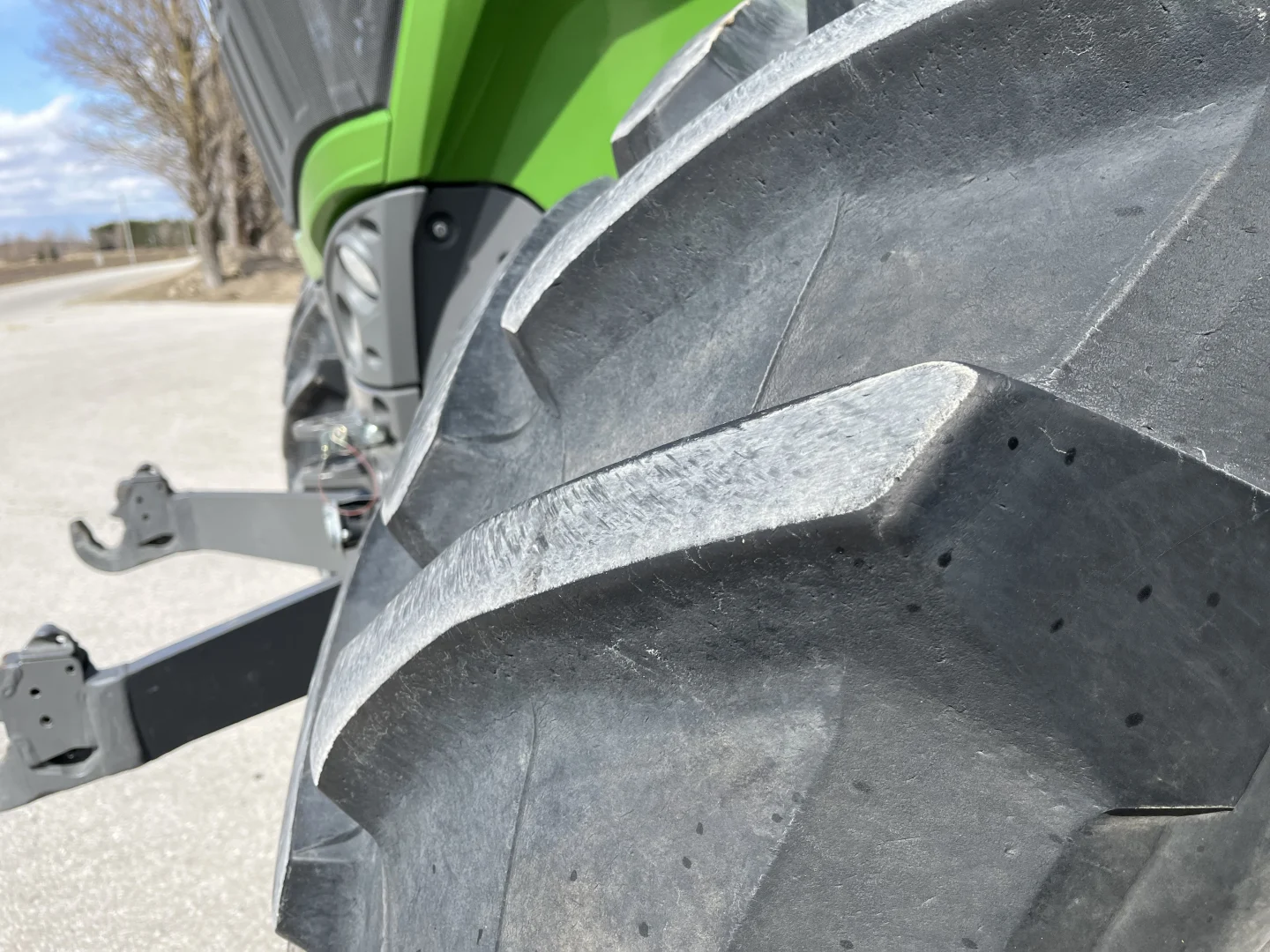

| Front | TRELL IF 650/65R38 TM1000 | |
| Size | IF 650/65R38 | |
| Tread Pattern | TM1000 HP, R1 (Ag) | |
| Section Width | 2' 2" (660mm) 660mm 2' 2" | |
| Overall Diameter | 6' 7/16" (1840mm) 1840mm 6' 7/16" | |
| Static Loaded Radius | 2' 8-11/16" (830mm) 830mm 2' 8-11/16" | |
| Rolling Circumference | 18' 15/16" (5510mm) 5510mm 18' 15/16" | |
| Weight | 571lb. (259kg) 259kg 571lb. | |
| Tread Thickness | 2-3/8" (60mm) 60mm 2-3/8" | |

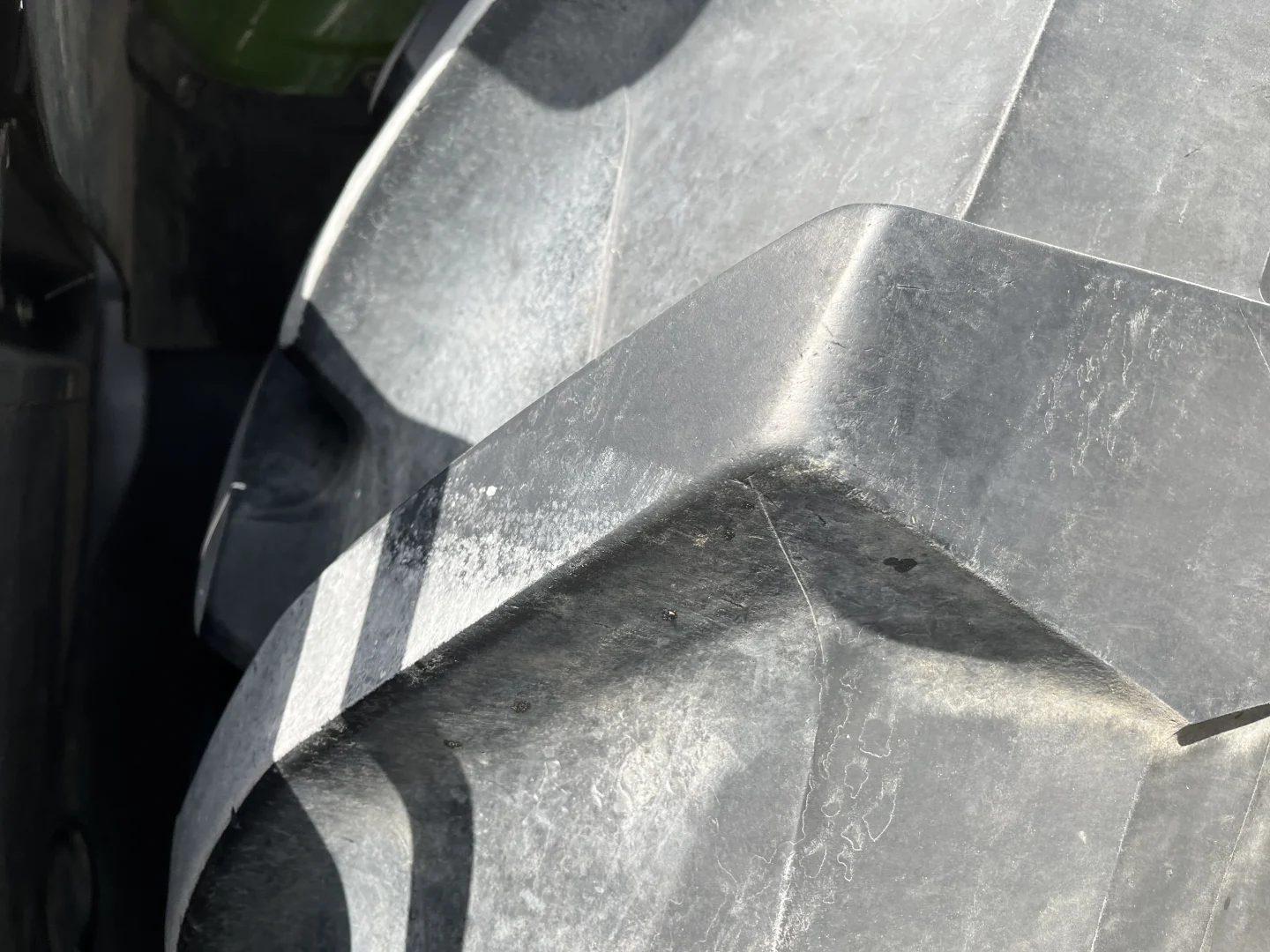

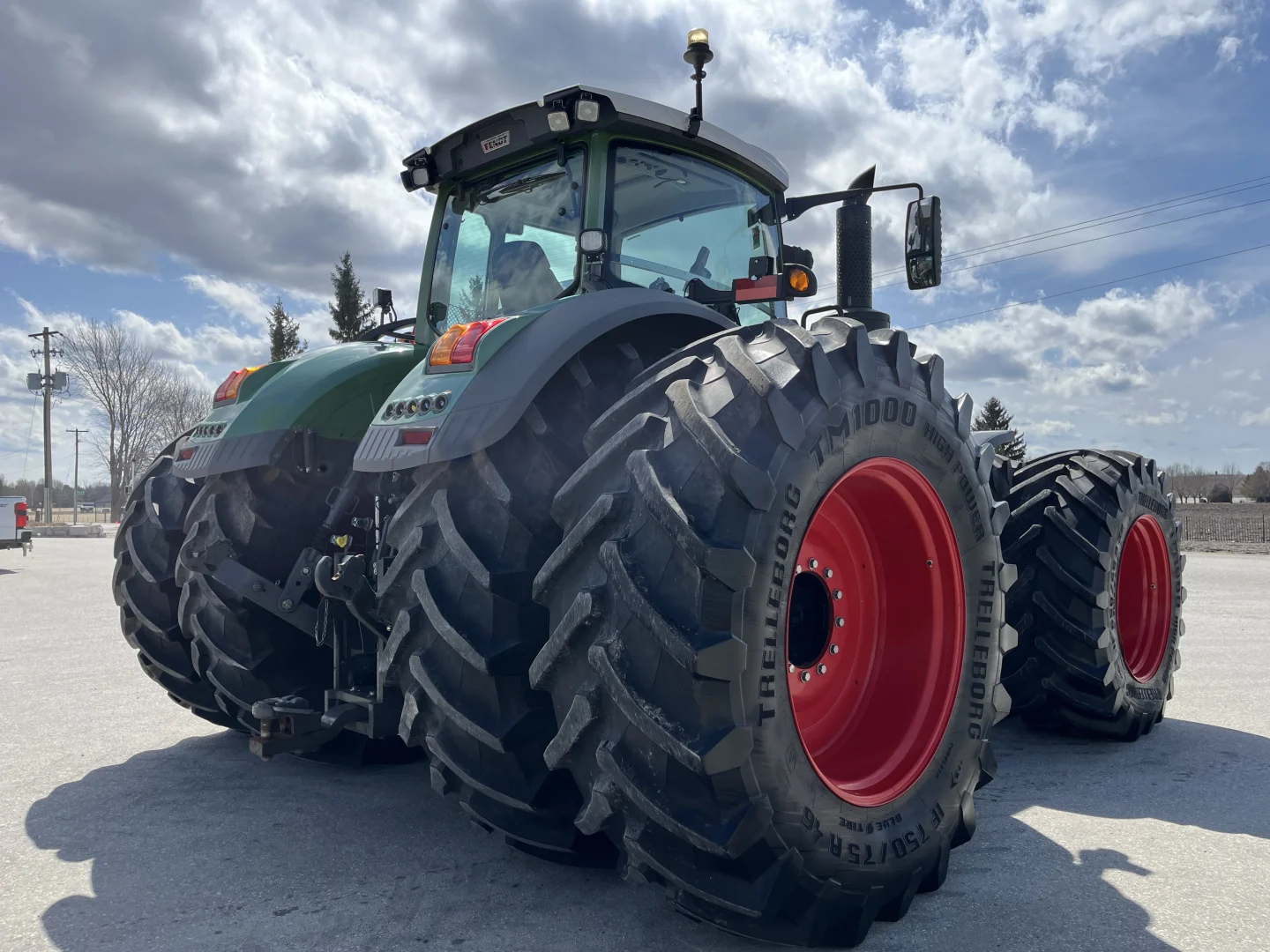

| Rear | TRELL IF 750/75R46 TM1000 | |
| Size | 750/75R46 | |
| Tread Pattern | TM1000 HP, R1 (Ag) | |
| Section Width | 2' 5-1/2" (750mm) 750mm 2' 5-1/2" | |
| Overall Diameter | 7' 6-3/4" (2305mm) 2305mm 7' 6-3/4" | |
| Static Loaded Radius | 3' 4-9/16" (1030mm) 1030mm 3' 4-9/16" | |
| Rolling Circumference | 22' 8-1/4" (6915mm) 6915mm 22' 8-1/4" | |
| Tread Thickness | 2-5/8" (67mm) 67mm 2-5/8" | |
| Weight | 996.49lb. (452kg) 452kg 996.49lb. | |
| Weights | ||
|---|---|---|

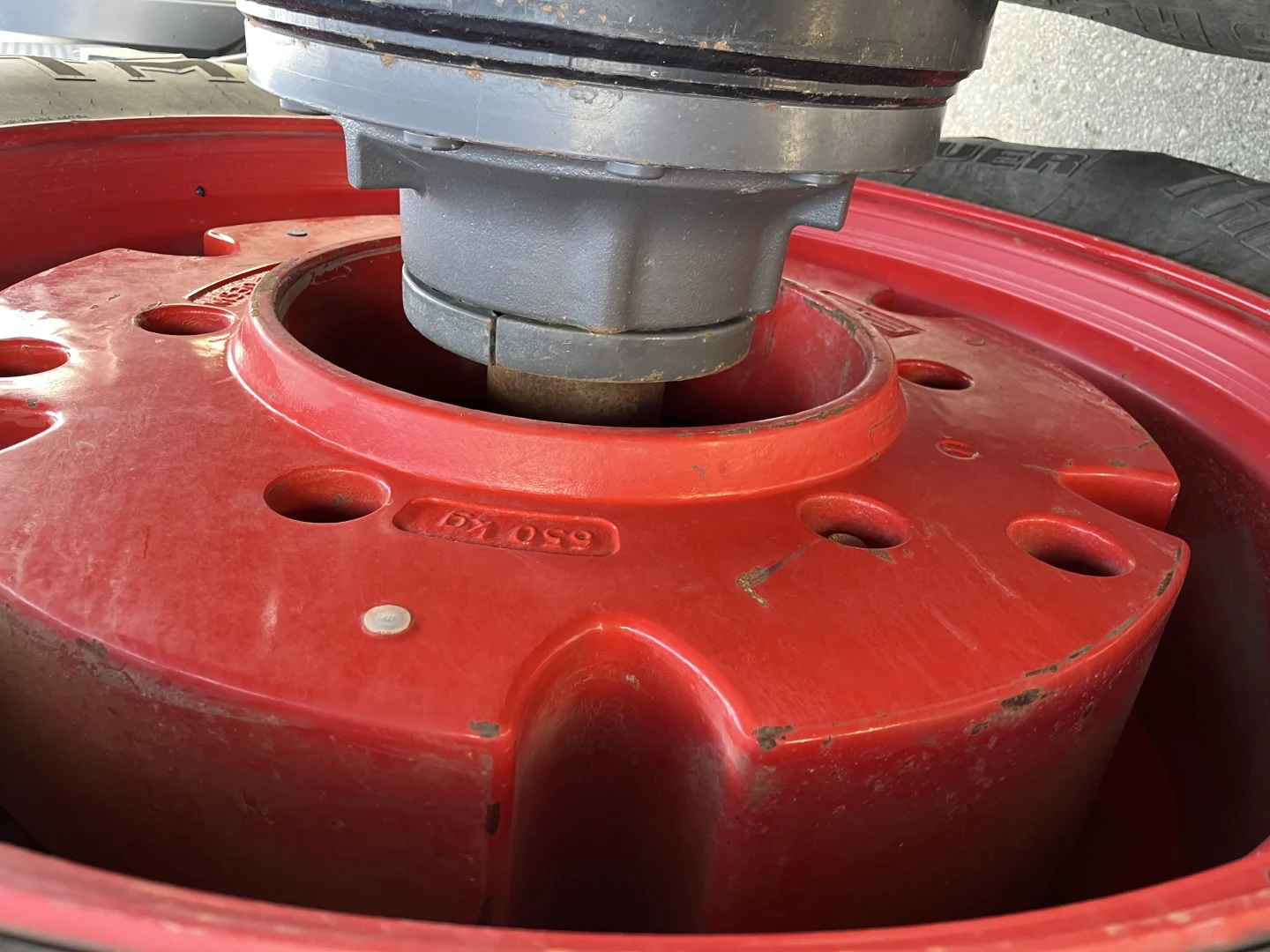

| Wheel Weights | FD 650 kg Wheel Weight Pair | |
| Mount | Bolt | |
| Type | Wheel Disc | |
| Weight | 1433lb. (650kg) 650kg 1433lb. | |
| Dimensions | ||
|---|---|---|
| Length | 20' 10" (6350mm) 6350mm 20' 10" | |
| Wheelbase | 10' 9-15/16" (3300mm) 3300mm 10' 9-15/16" | |
| Width | 9' 1/4" (2750mm) 2750mm 9' 1/4" | |
| Height | 11' 9-15/16" (3606mm) 3606mm 11' 9-15/16" | |
| Minimum Ground Clearance | 1' 11-5/8" (600mm) 600mm 1' 11-5/8" | |
| Turning Radius | 24' 9/16" (7330mm) 7330mm 24' 9/16" | |
| Weight | 30864.72lb. (14000kg) 14000kg 30864.72lb. | |
