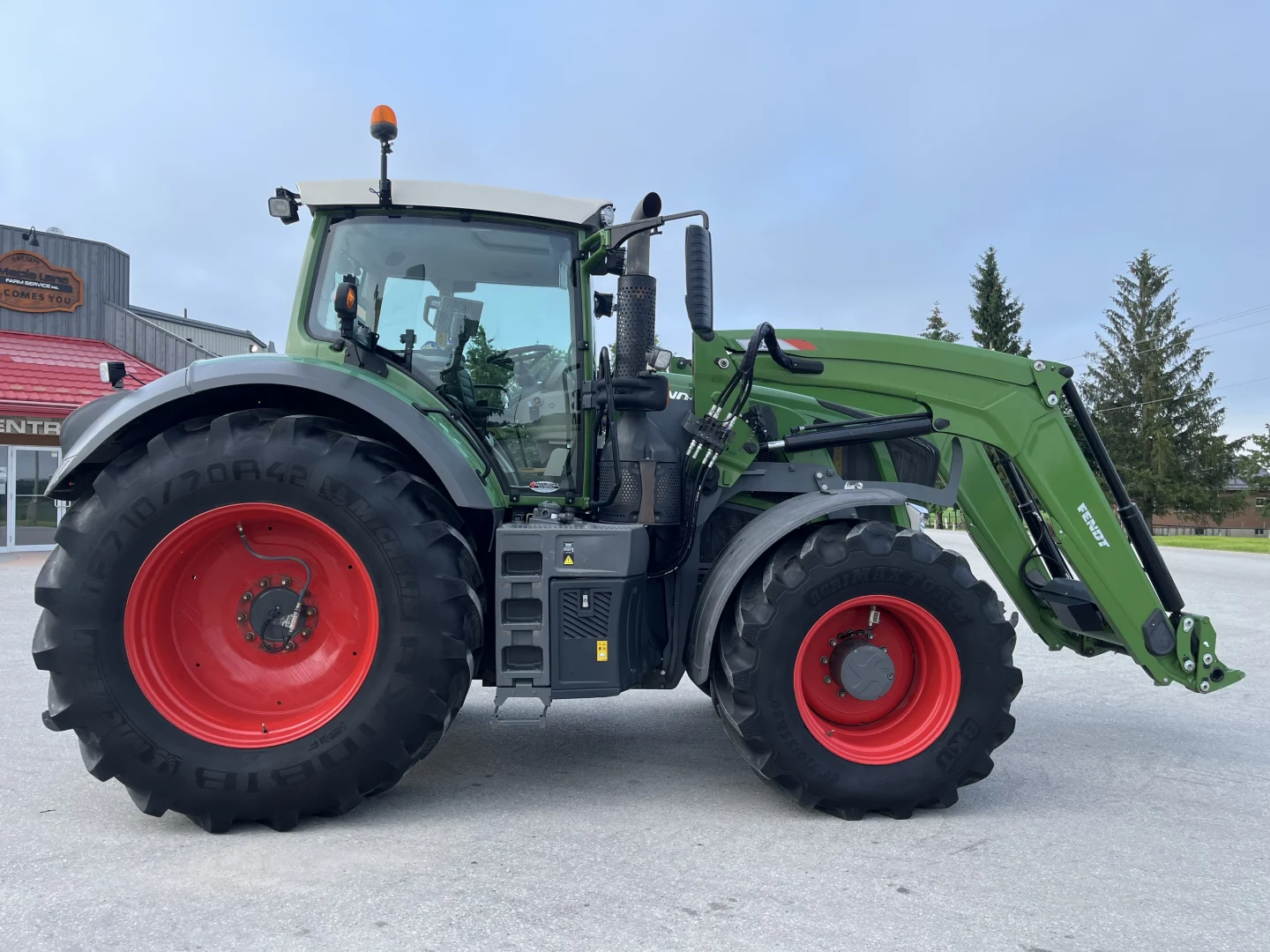

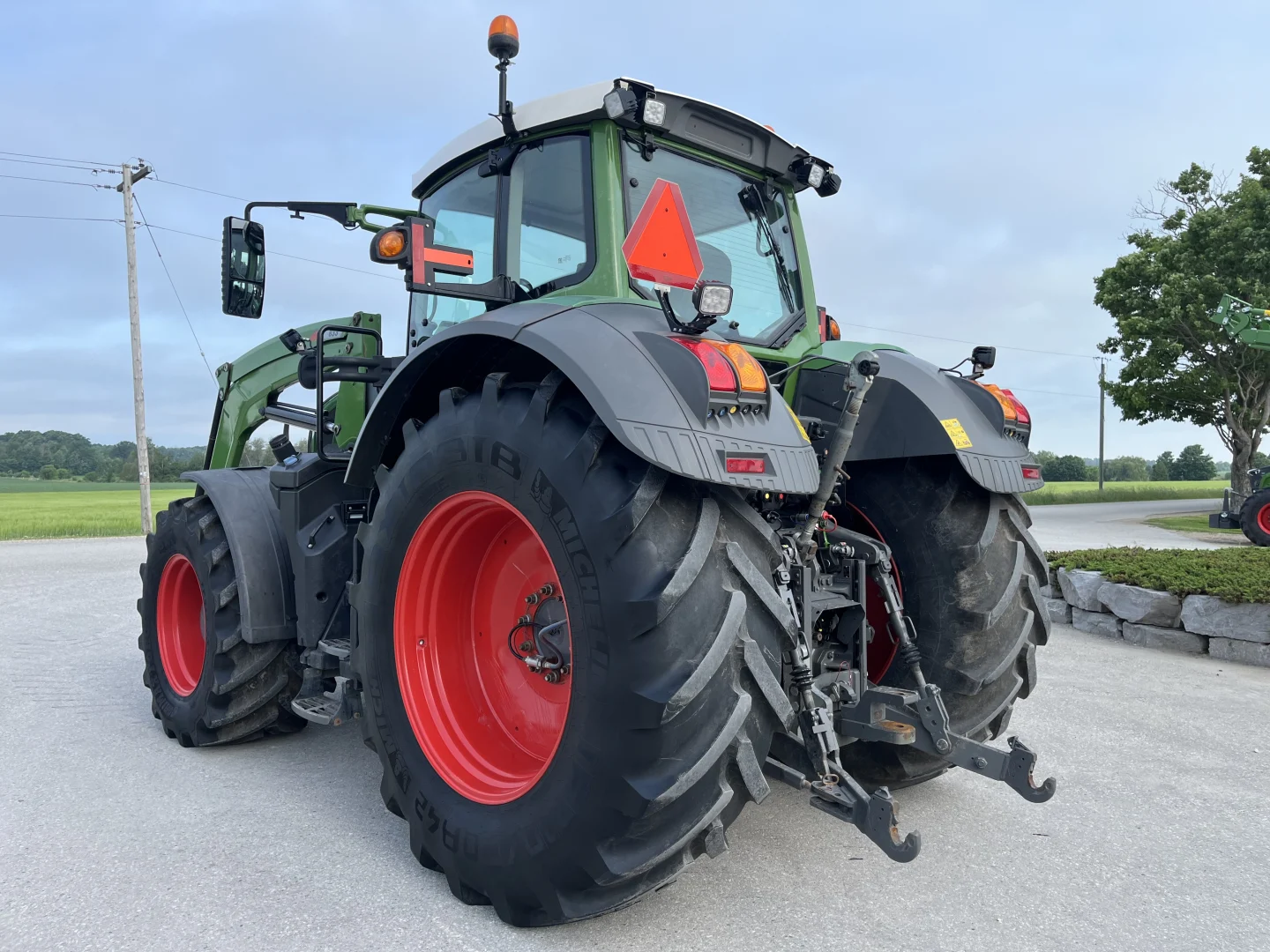

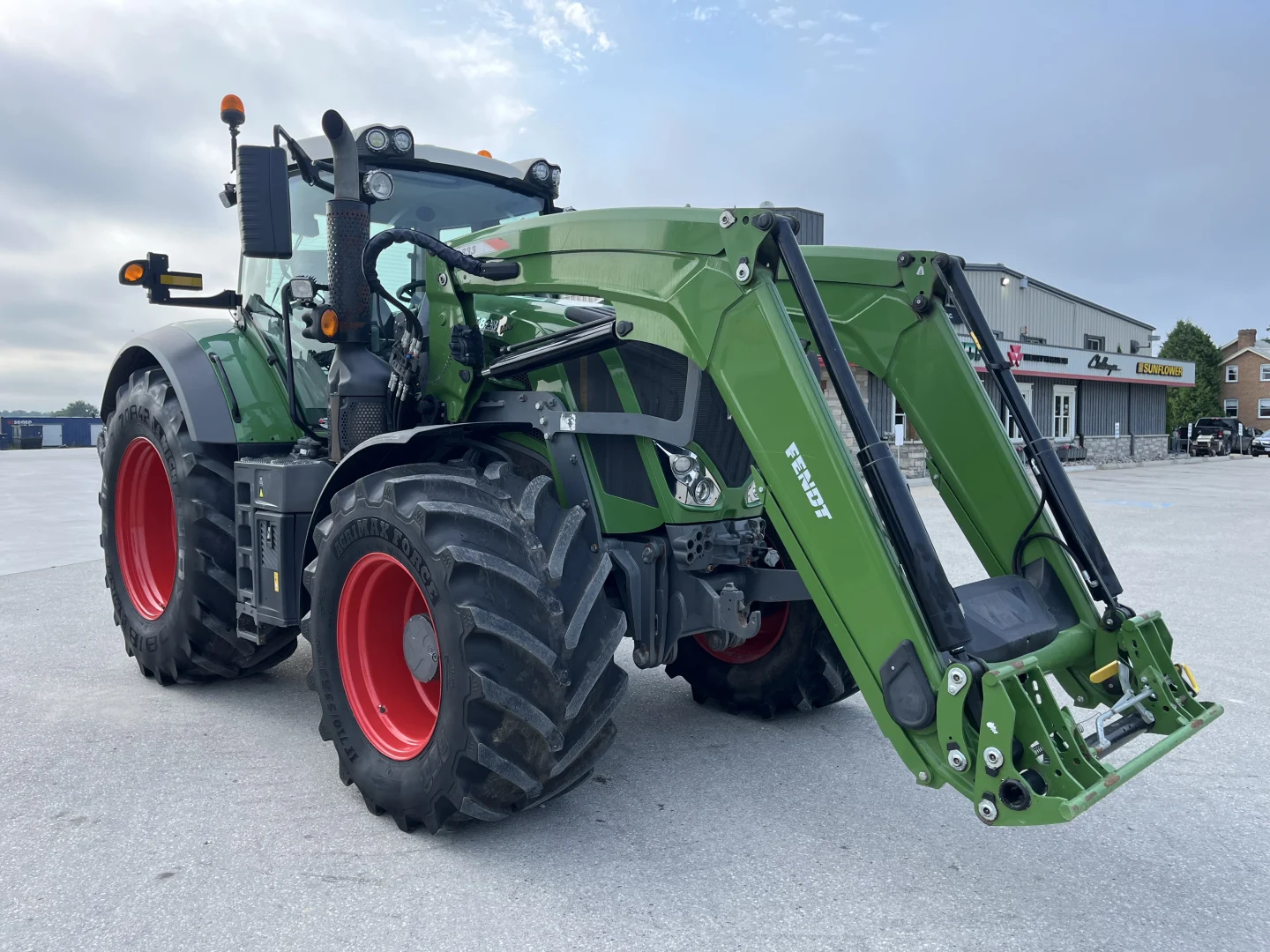

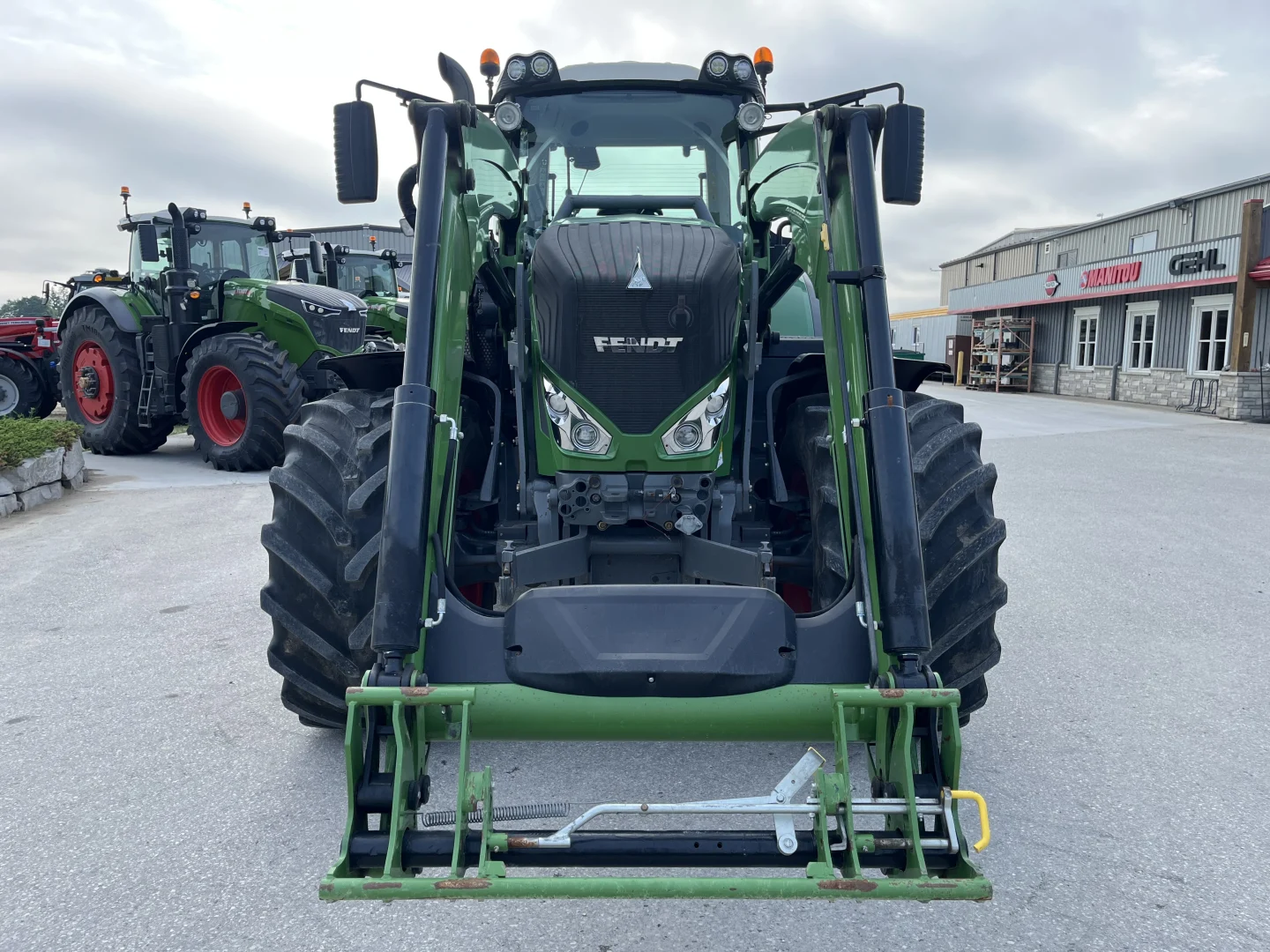

Used 2019 Fendt 828 S4
| Description | |
|---|---|

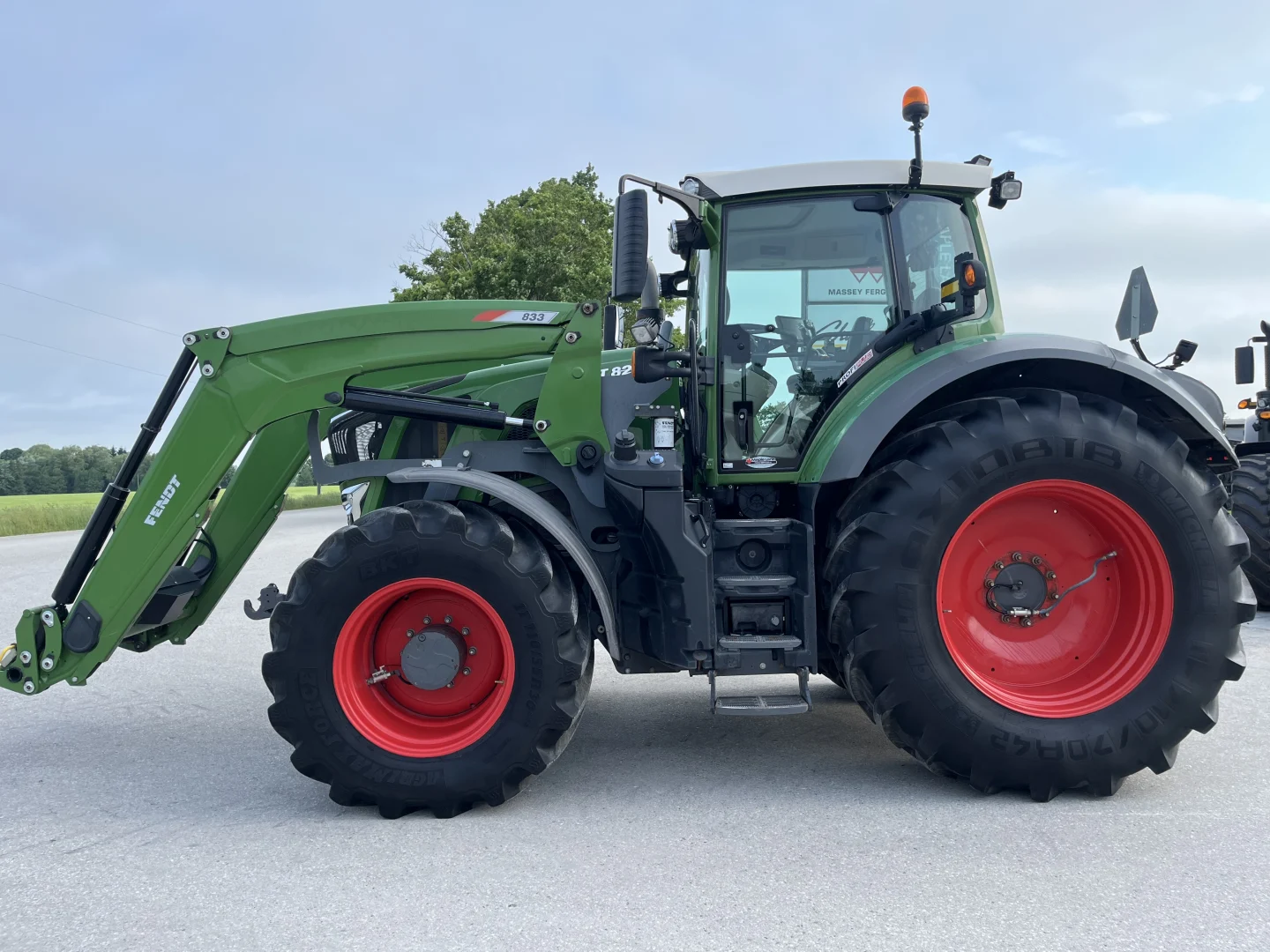

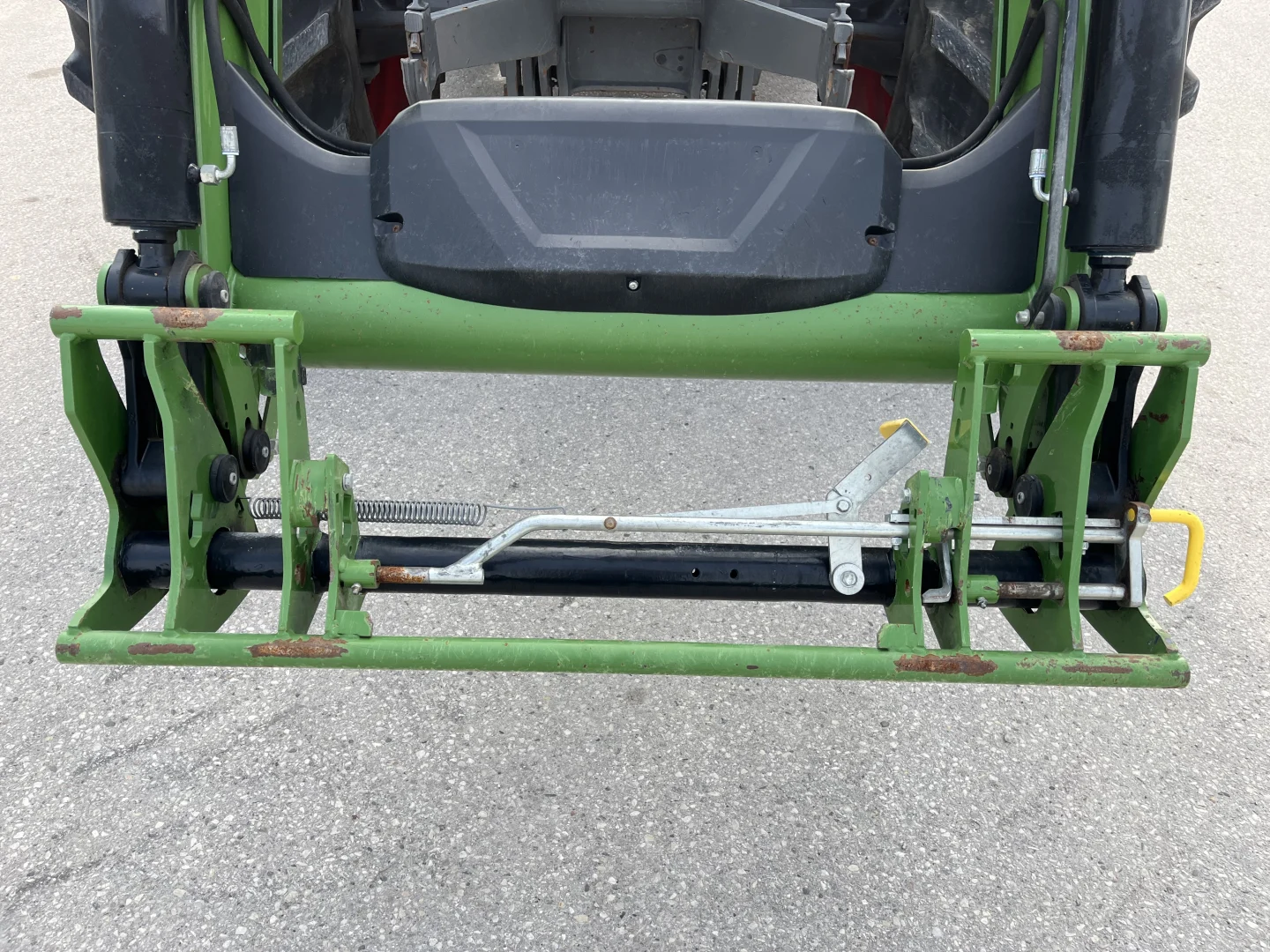

| Profi Plus, Fendt Guide complete- WAAS, 50 km/h Vario transmission, suspended front axle, 54 GPM pump, 6 rear valves, hydraulic and air trailer brakes, exhaust brake, VarioGrip auto air inflation system, Leather Evolution seat, Full LED lighting package, powered and heated mirrors, air cab suspension, 710/70R42 rear, 710/55R30 front, Fendt 833 self-leveling loader | |
| Categories | High Horsepower |
| Unit Number | 23881R |
| Condition | Used |
| Usage | 4900 Hours |
| Year | 2019 |
| Cost | $239,900.00 CAD |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 214.02kW (287hp) 287hp 214.02kW | |
| PTO Power | 182.7kW (245hp) 245hp 182.7kW | |
| Rated Engine Speed | 2100r/min | |
| Make | DZ 6.06L Tier 4F 6 Cylinder | |
| Displacement | 1.6gal. (6.06L) 6.06L 1.6gal. | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 132.09gal. (500L) 500L 132.09gal. | |
| DEF Tank Capacity | 13.21gal. (50L) 50L 13.21gal. | |
| Warming | Block Heater | |
| Fan | Reversing | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31.07mph (50km/h) 50km/h 31.07mph | |
| Name | CVT ML 220 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Exhaust, Wet Disc | |
| Trailer Brakes | Hydraulic, Air | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 800 S4 54 GPM | |
| Hydraulic Flow | 204.41L/min (54GPM) 54GPM 204.41L/min | |

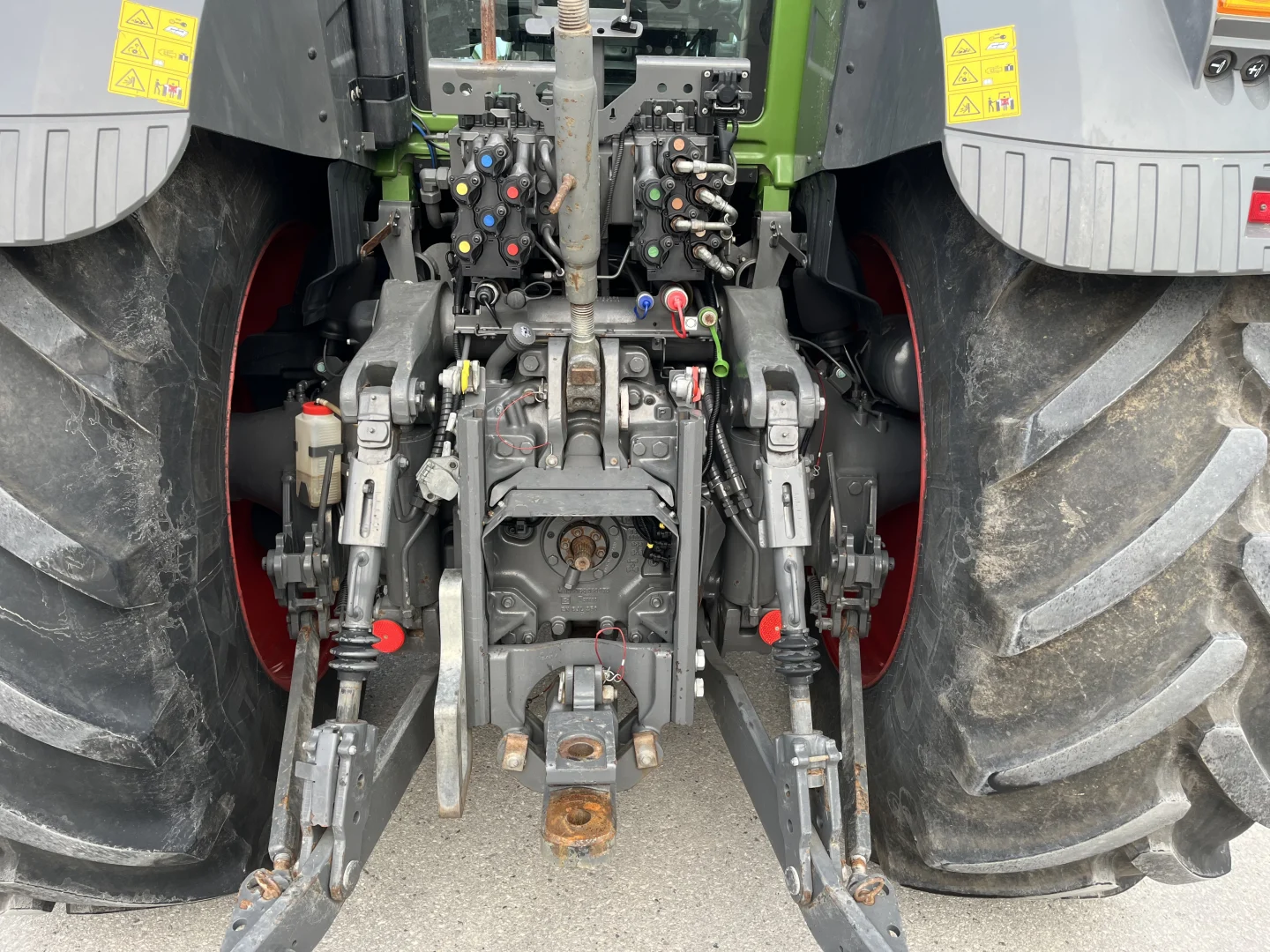

| Rear Remote Valves | 6 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|

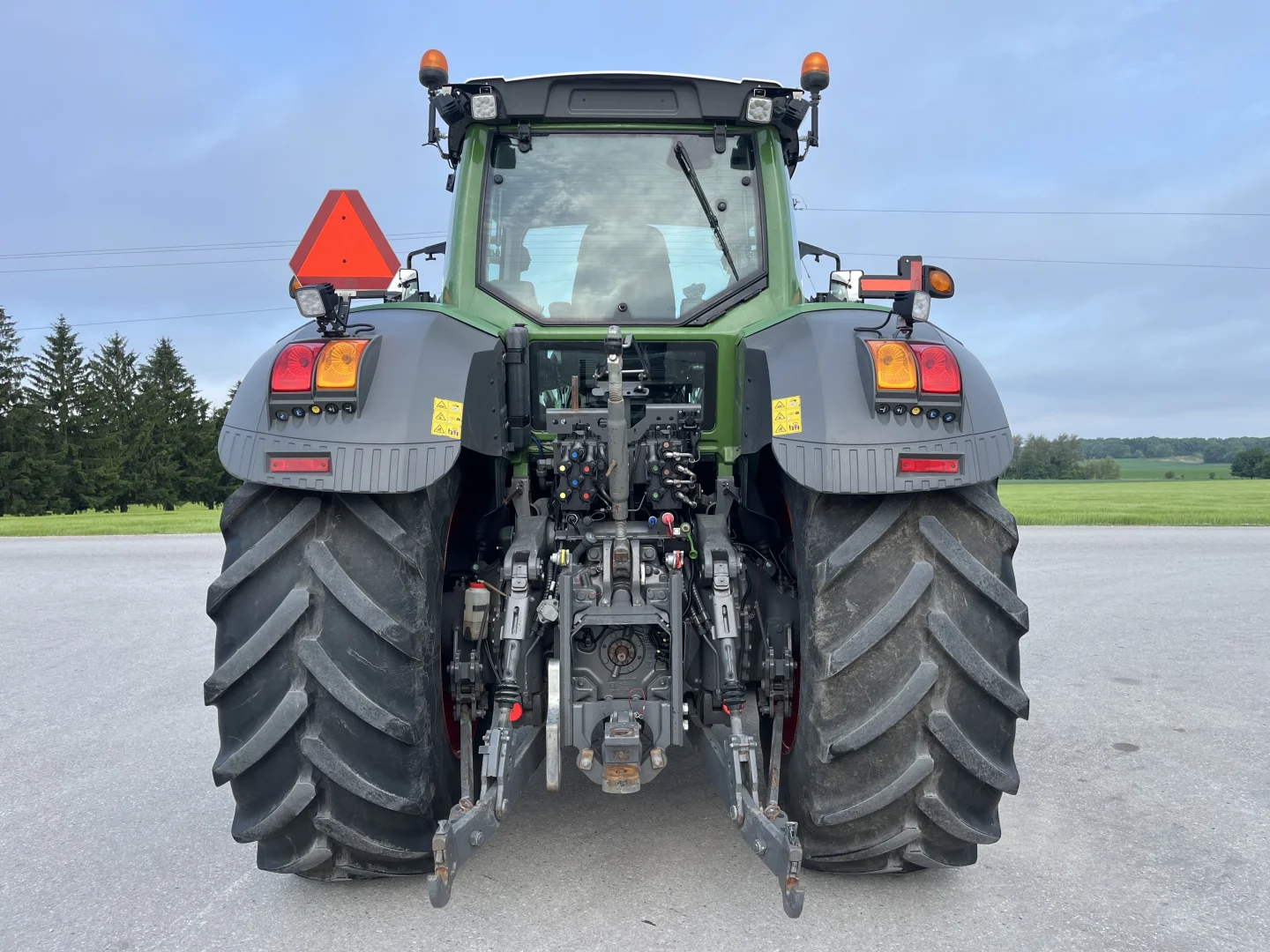

| Rear Hitch | FD 800 S4 | |
| Hitch Category | Category 3, Category 2 | |
| Lift Capacity at Pins | 20569.13lb. (9330kg) 9330kg 20569.13lb. | |
| Comfort | Draft Control | |
| Rear Drawbar | Category 4 | |
| Technology | ||
|---|---|---|

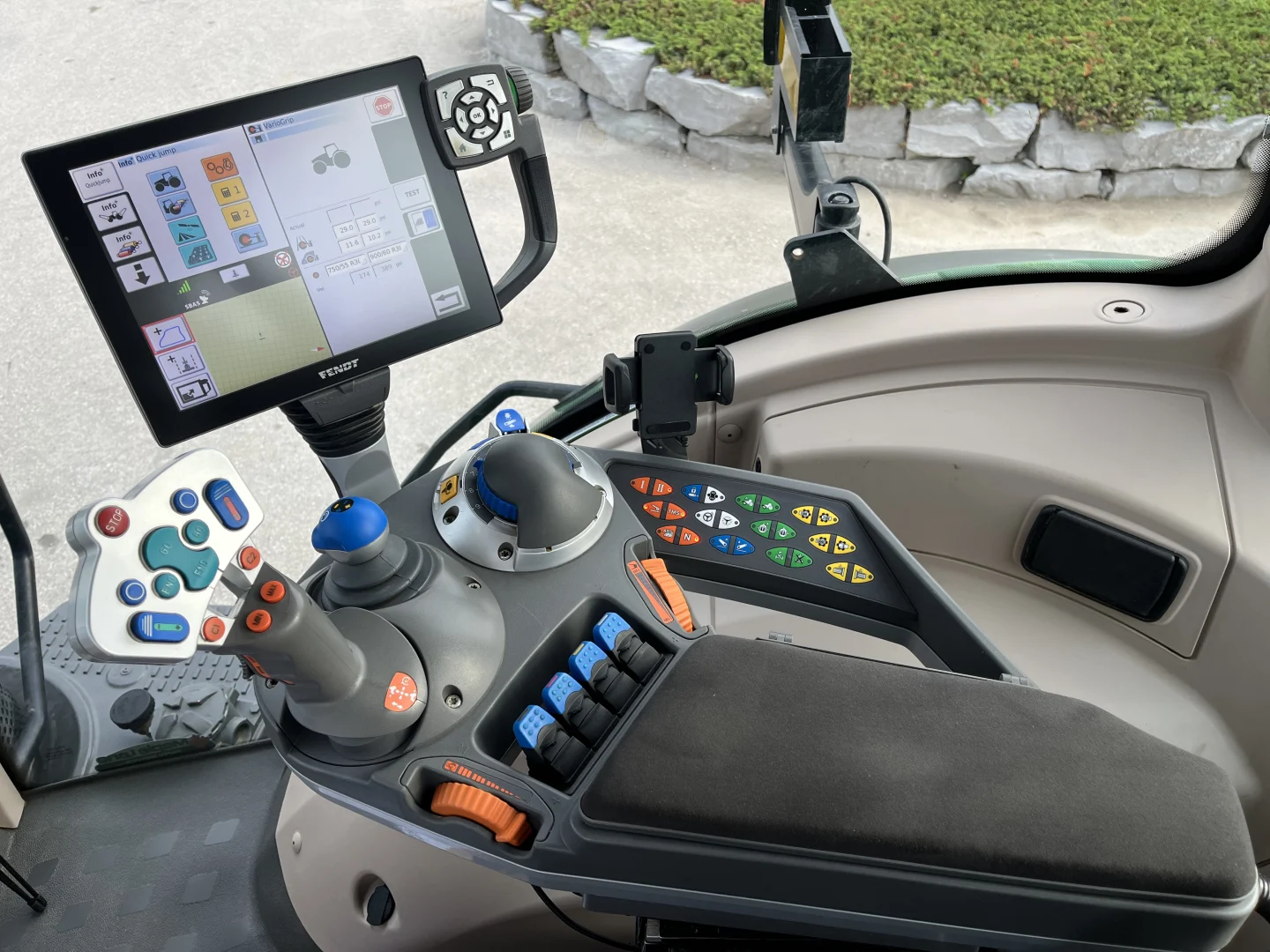

| Display | 10.4" Varioterminal | |

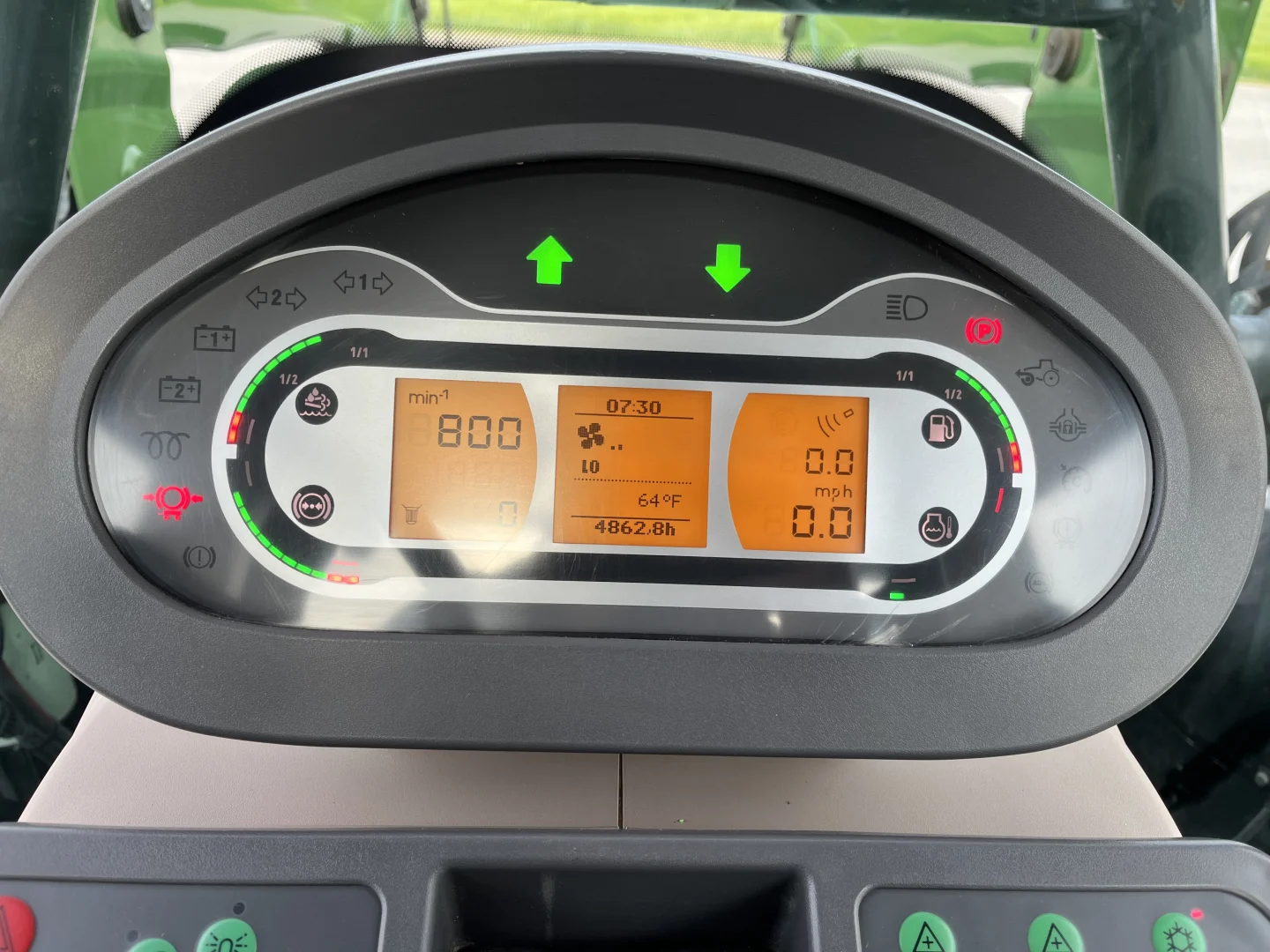

| Instrument Display | Digital Dash Display | |

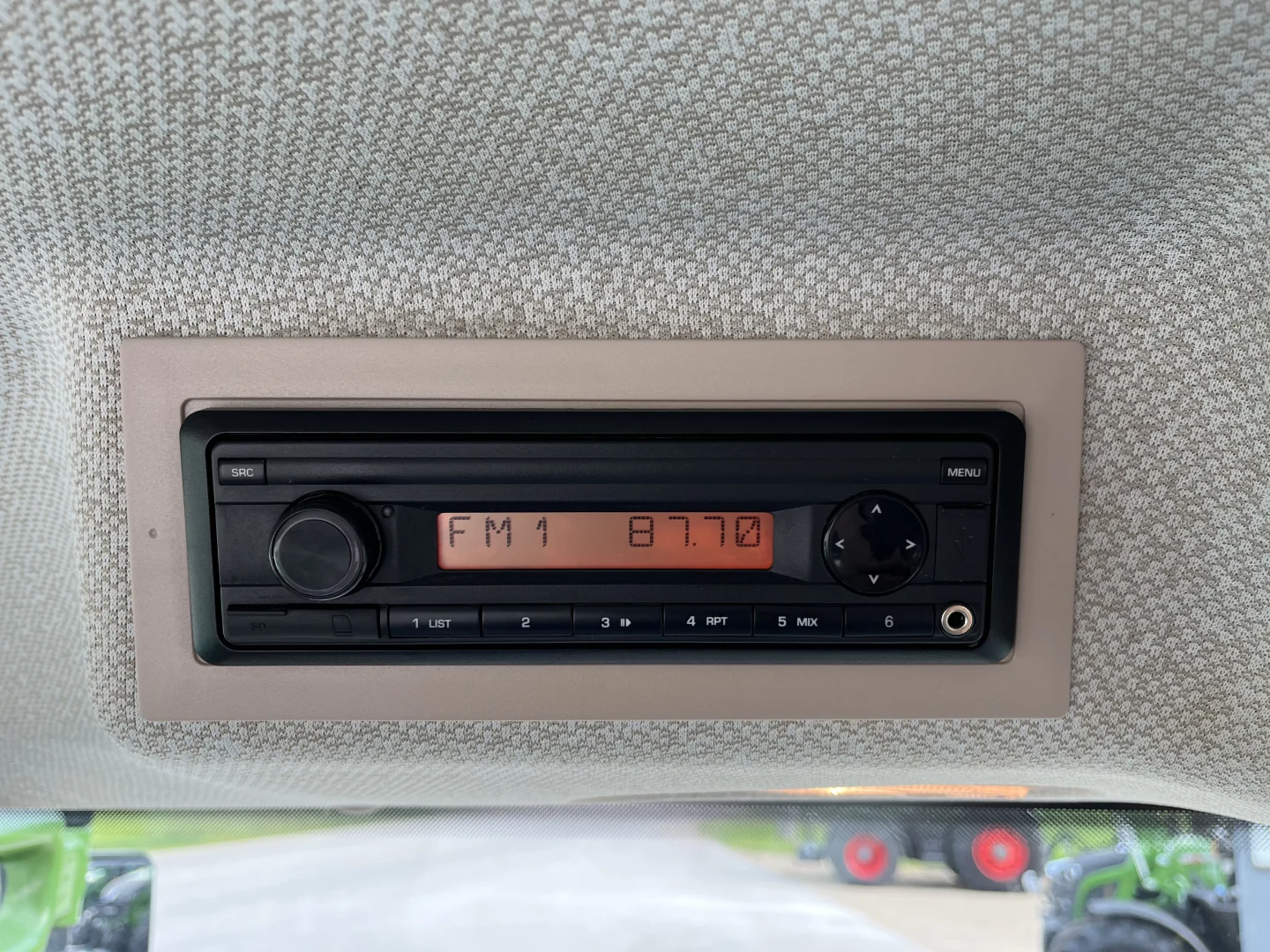

| Entertainment | USB, Bluetooth, Mic | |
| Integration | ISO BUS Implement Control | |
| Antenna | Trimble | |
| Guidance | VarioGuide Standard, Guidance Ready | |
| Guidance Precision | WAAS | |
| Headland Management | Variotronic TI | |
| Data Transfer | TaskDoc Pro | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 12 | |
| Rear Lights | 6 | |
| Worklight Type | LED | |
| Rotating Beacon | Left, Right | |
| Alternator | 150A | |

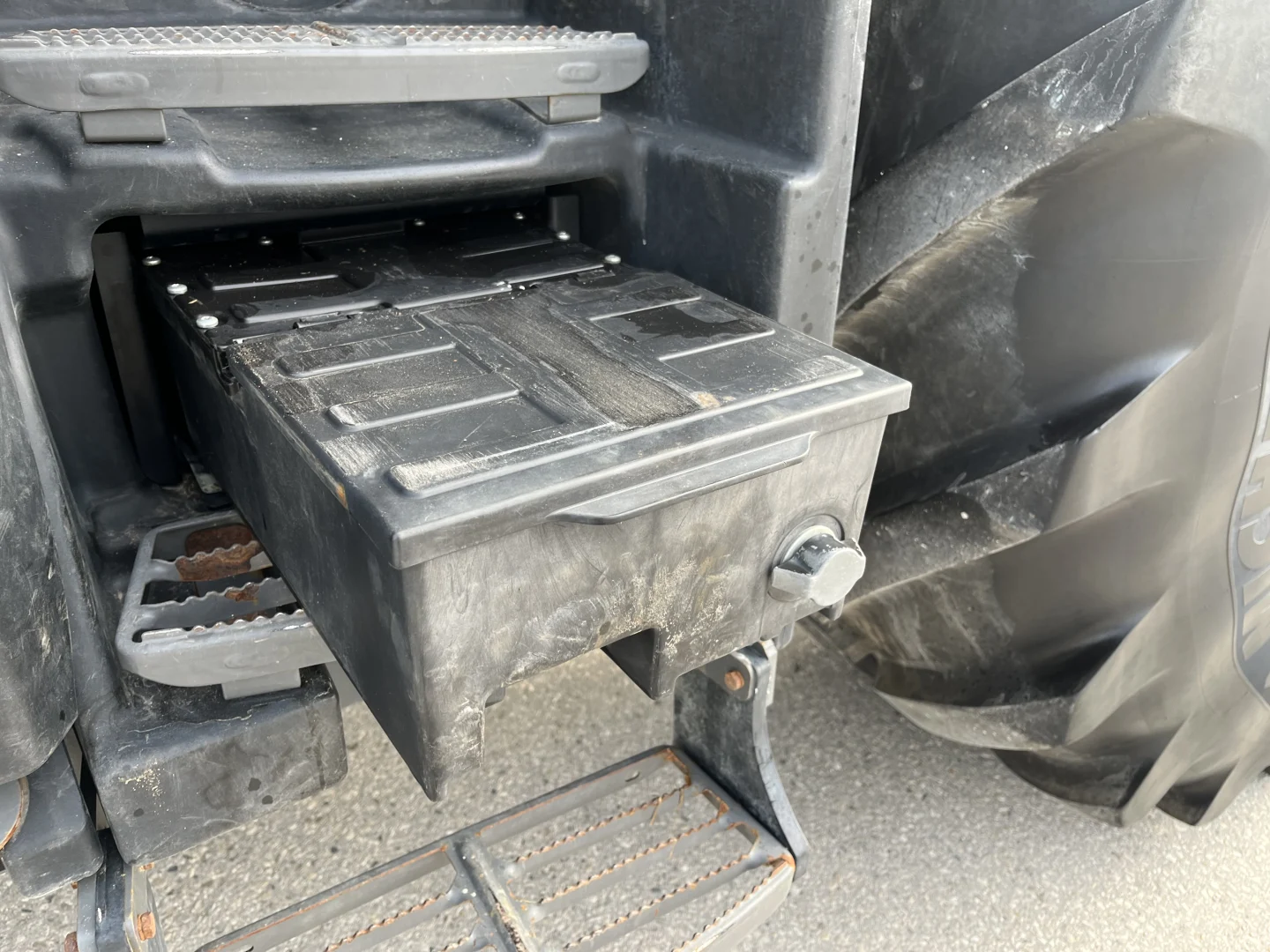

| Battery | 1475CCA | |

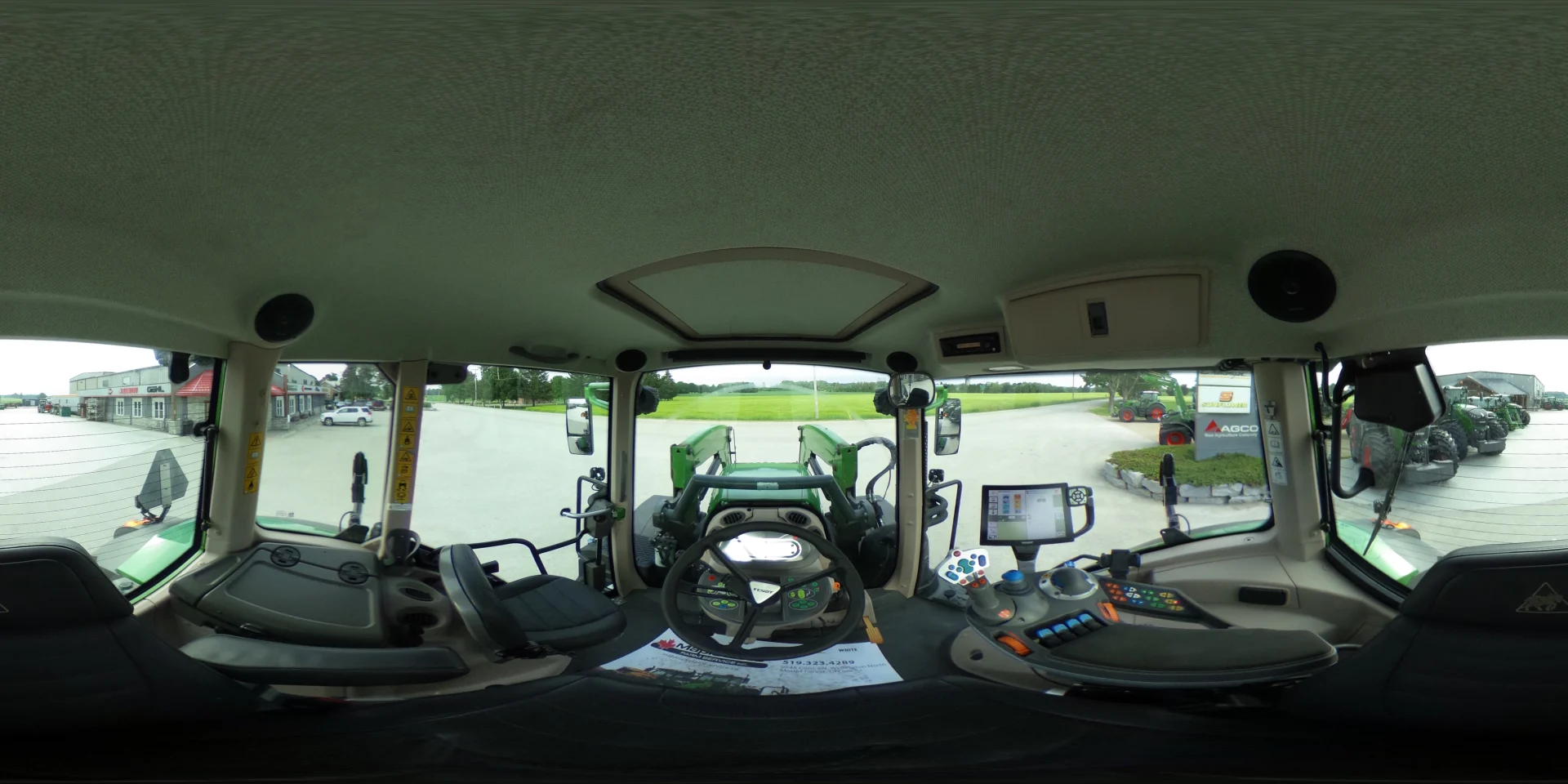

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 2 Point Air | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |

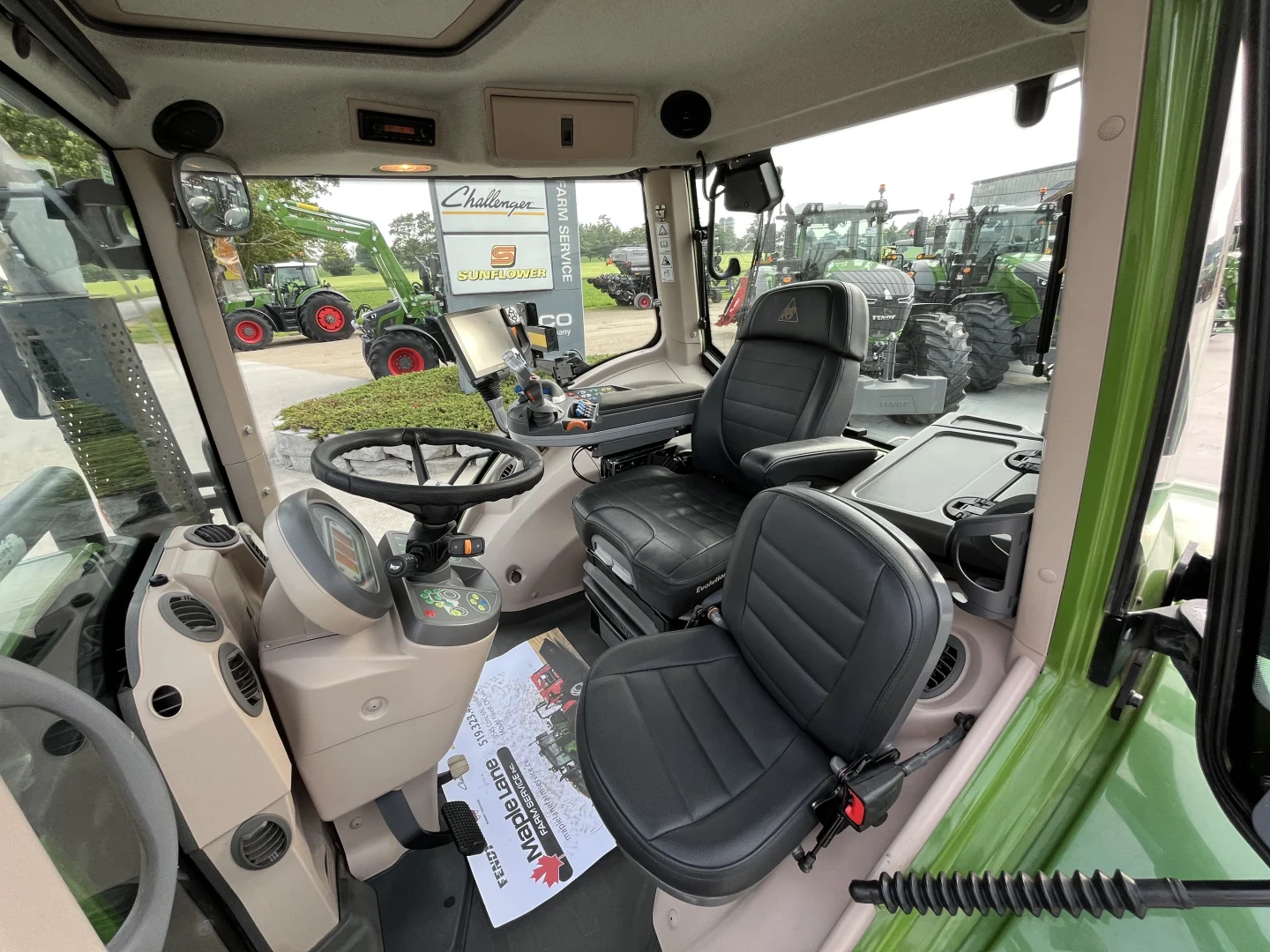

| Operator Seat | FD Super Comfort EVO Leather | |
| Material | Leather | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | 300° Front | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |
| Wheels | ||
|---|---|---|
| Front | BKT IF 710/55R30 Agrimax Force | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 2' 4-3/16" (716mm) 716mm 2' 4-3/16" | |
| Overall Diameter | 5' 13/16" (1544mm) 1544mm 5' 13/16" | |
| Static Loaded Radius | 2' 3" (686mm) 686mm 2' 3" | |
| Rolling Circumference | 15' 1-3/4" (4616mm) 4616mm 15' 1-3/4" | |

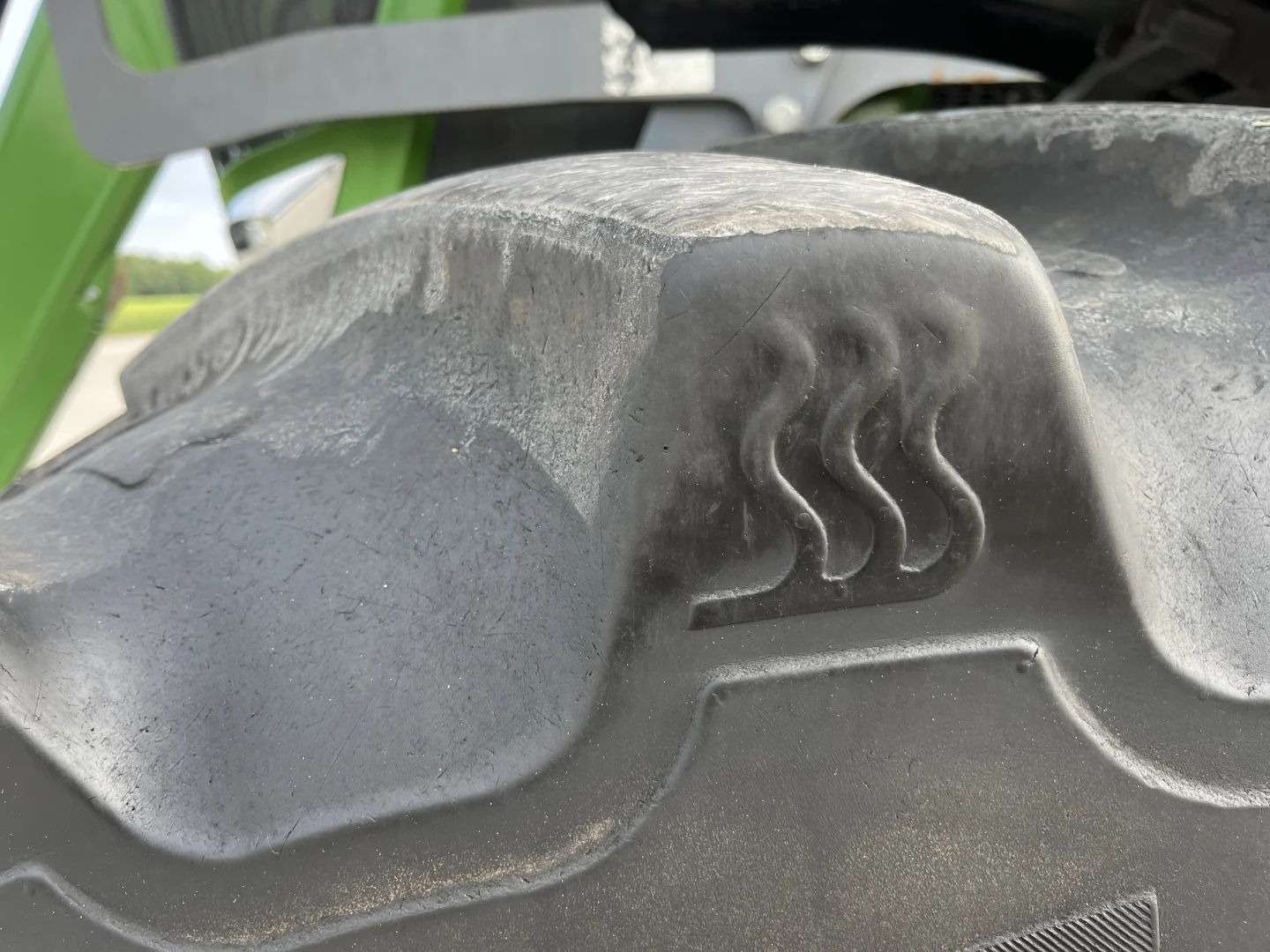

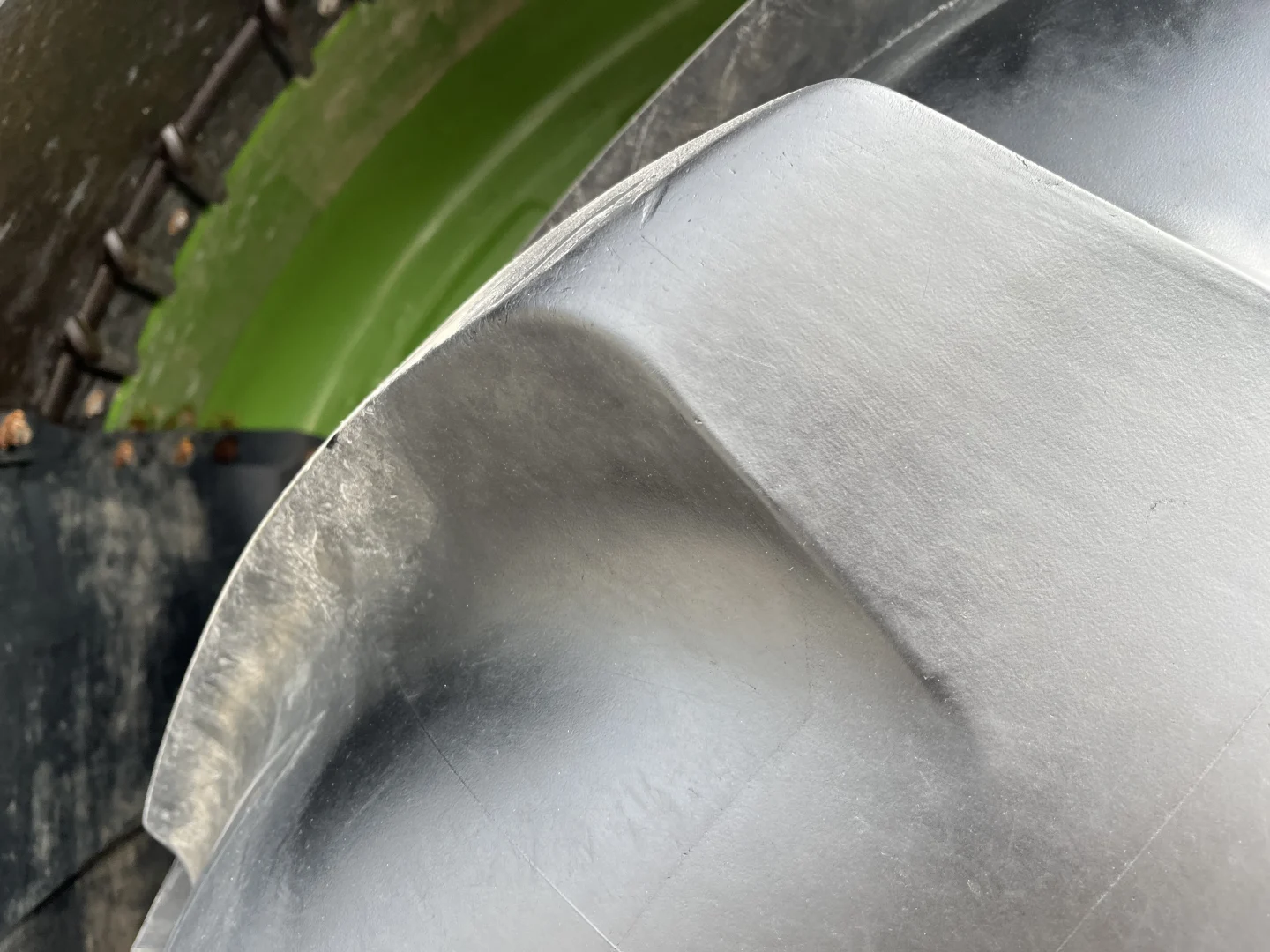

| Rear | MICHE 710/70R38 Machxbib | |
| Size | 710/70R38 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 2' 4-1/16" (713mm) 713mm 2' 4-1/16" | |
| Overall Diameter | 6' 5-11/16" (1973mm) 1973mm 6' 5-11/16" | |
| Static Loaded Radius | 2' 10-5/16" (871mm) 871mm 2' 10-5/16" | |
| Rolling Circumference | 19' 1/2" (5804mm) 5804mm 19' 1/2" | |
| Weight | 648.16lb. (294kg) 294kg 648.16lb. | |

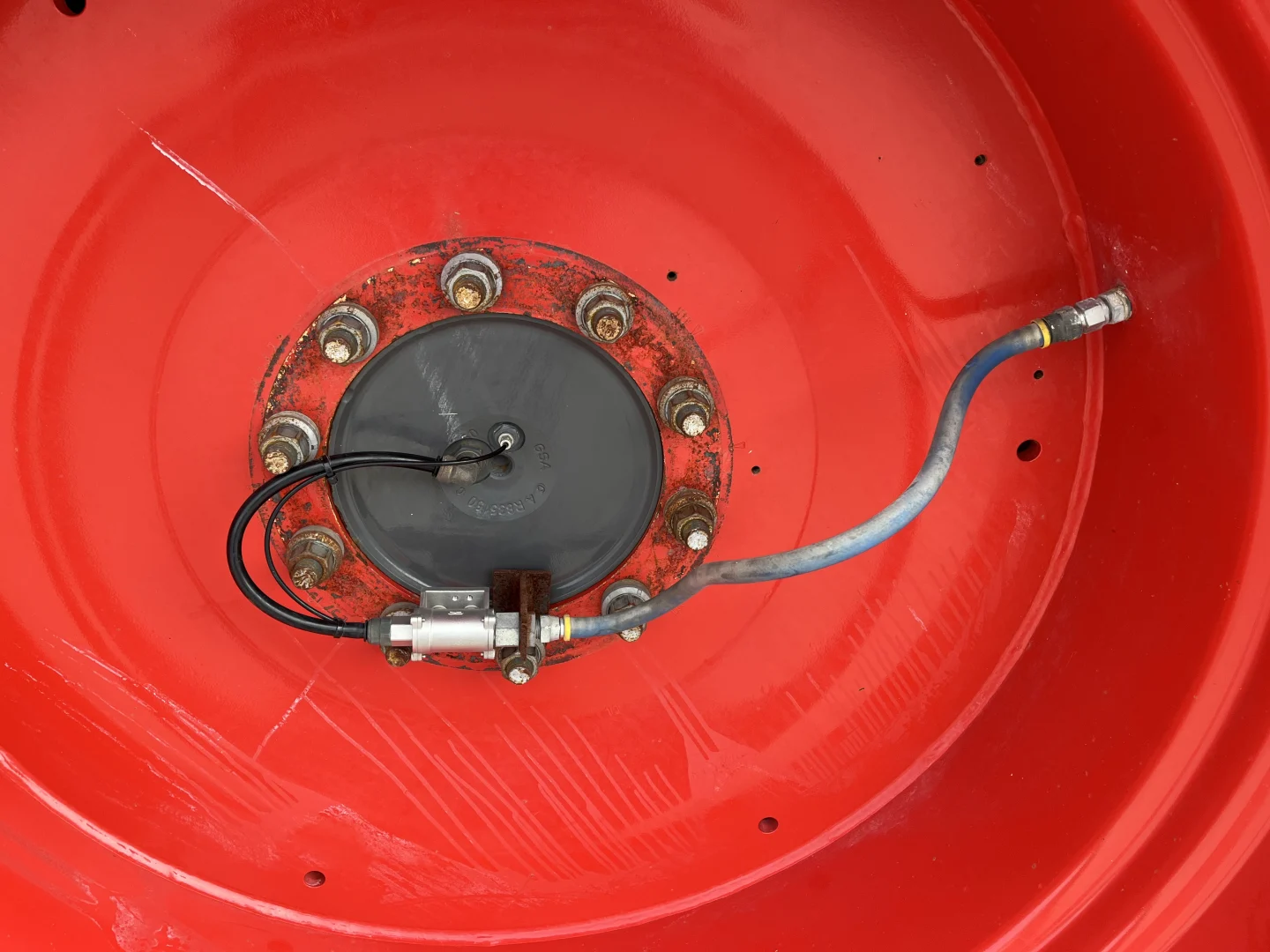

| Pressure Regulation | VarioGrip | |
| Weights | ||
|---|---|---|
| Front Weights | FD 1250 kg Ballast | |
| Mount | Hitch | |
| Type | Block | |
| Weight | 2755.78lb. (1250kg) 1250kg 2755.78lb. | |
| Dimensions | ||
|---|---|---|
| Length | 17' 3-11/16" (5275mm) 5275mm 17' 3-11/16" | |
| Wheelbase | 9' 8-1/8" (2950mm) 2950mm 9' 8-1/8" | |
| Width | 8' 4-3/8" (2550mm) 2550mm 8' 4-3/8" | |
| Height | 10' 9-1/8" (3280mm) 3280mm 10' 9-1/8" | |
| Minimum Ground Clearance | 1' 7-15/16" (506mm) 506mm 1' 7-15/16" | |
| Turning Radius | 16' 5" (5m) 5m 16' 5" | |
| Weight | 20657.32lb. (9370kg) 9370kg 20657.32lb. | |
