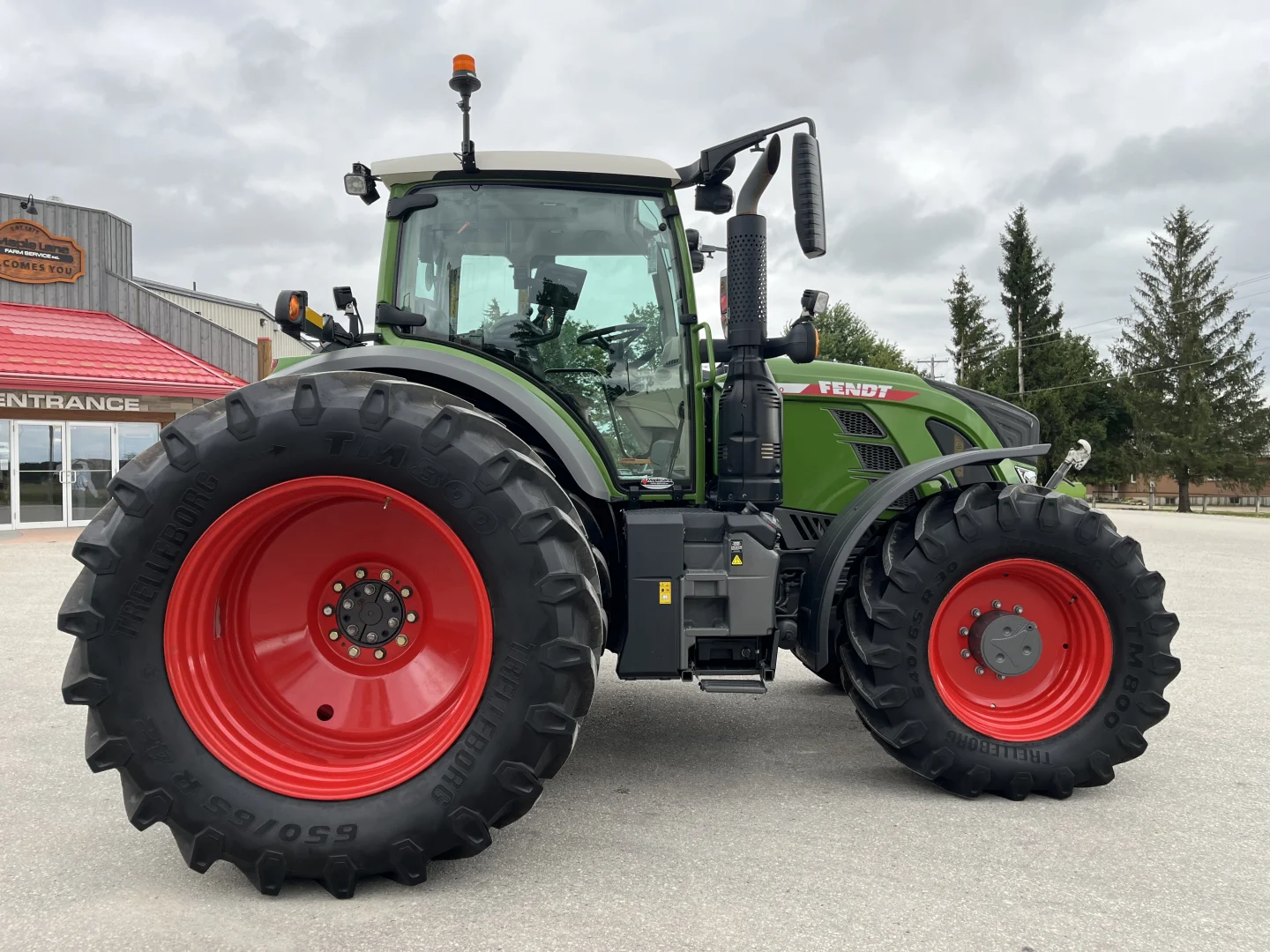

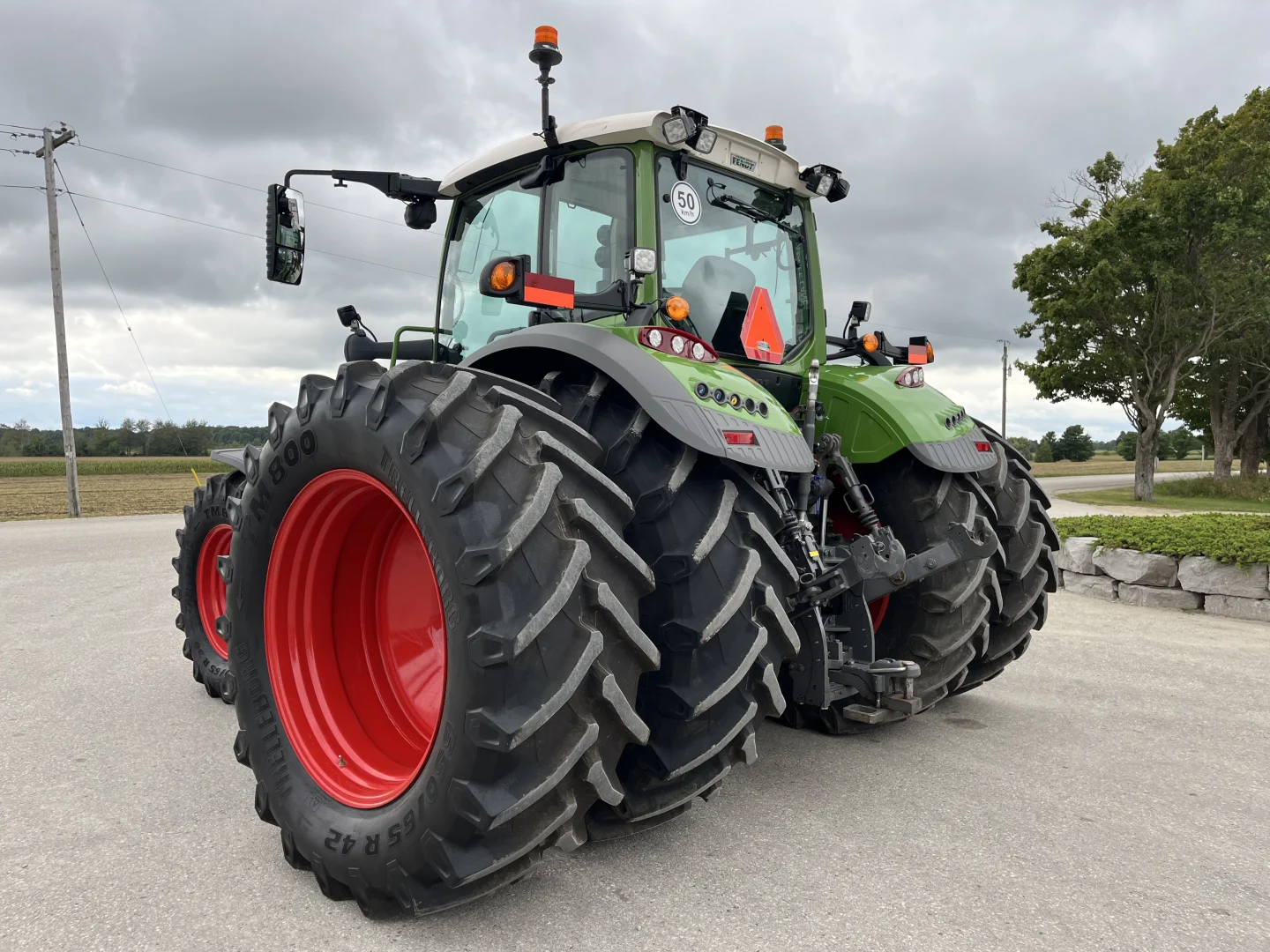

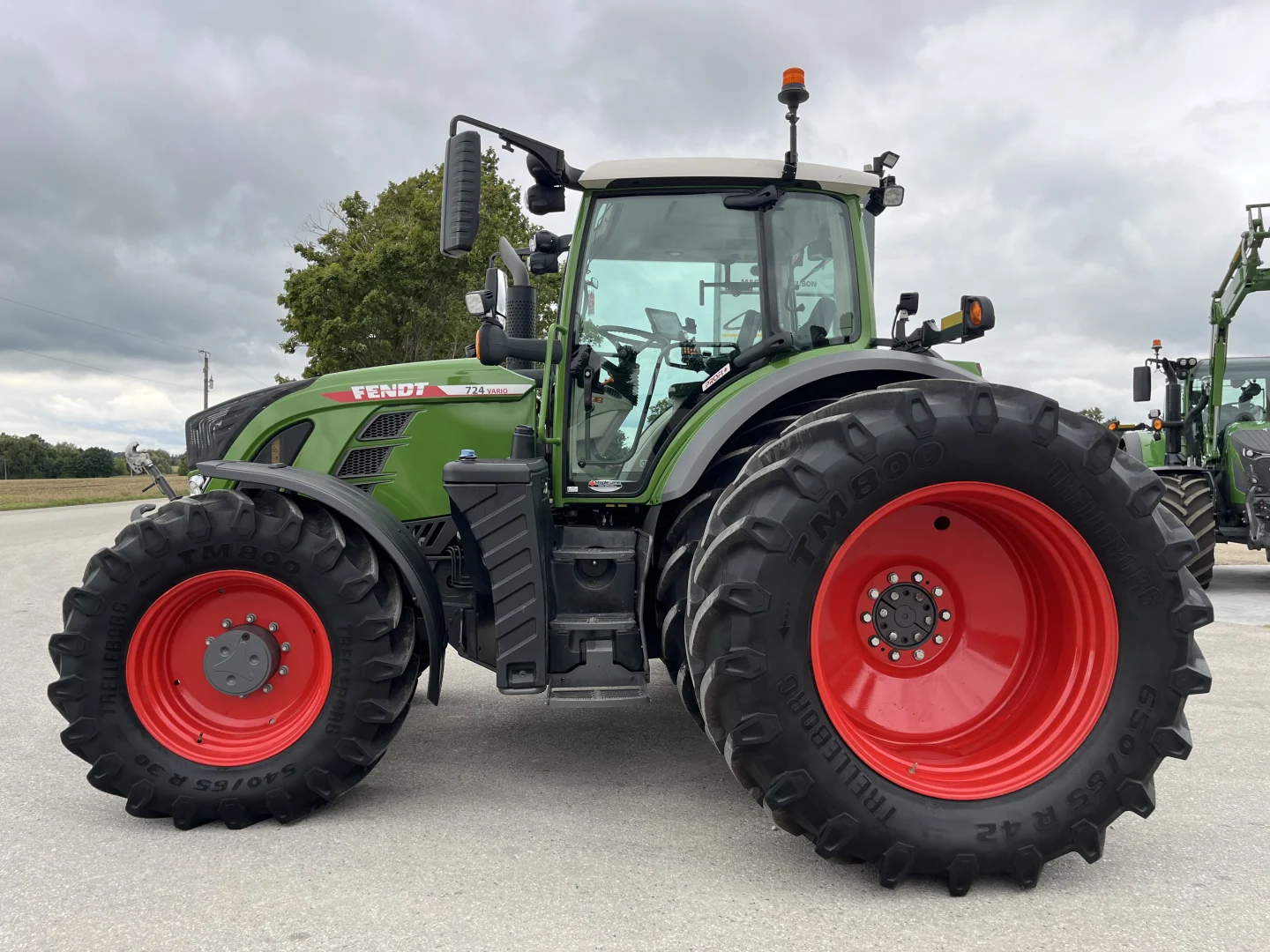

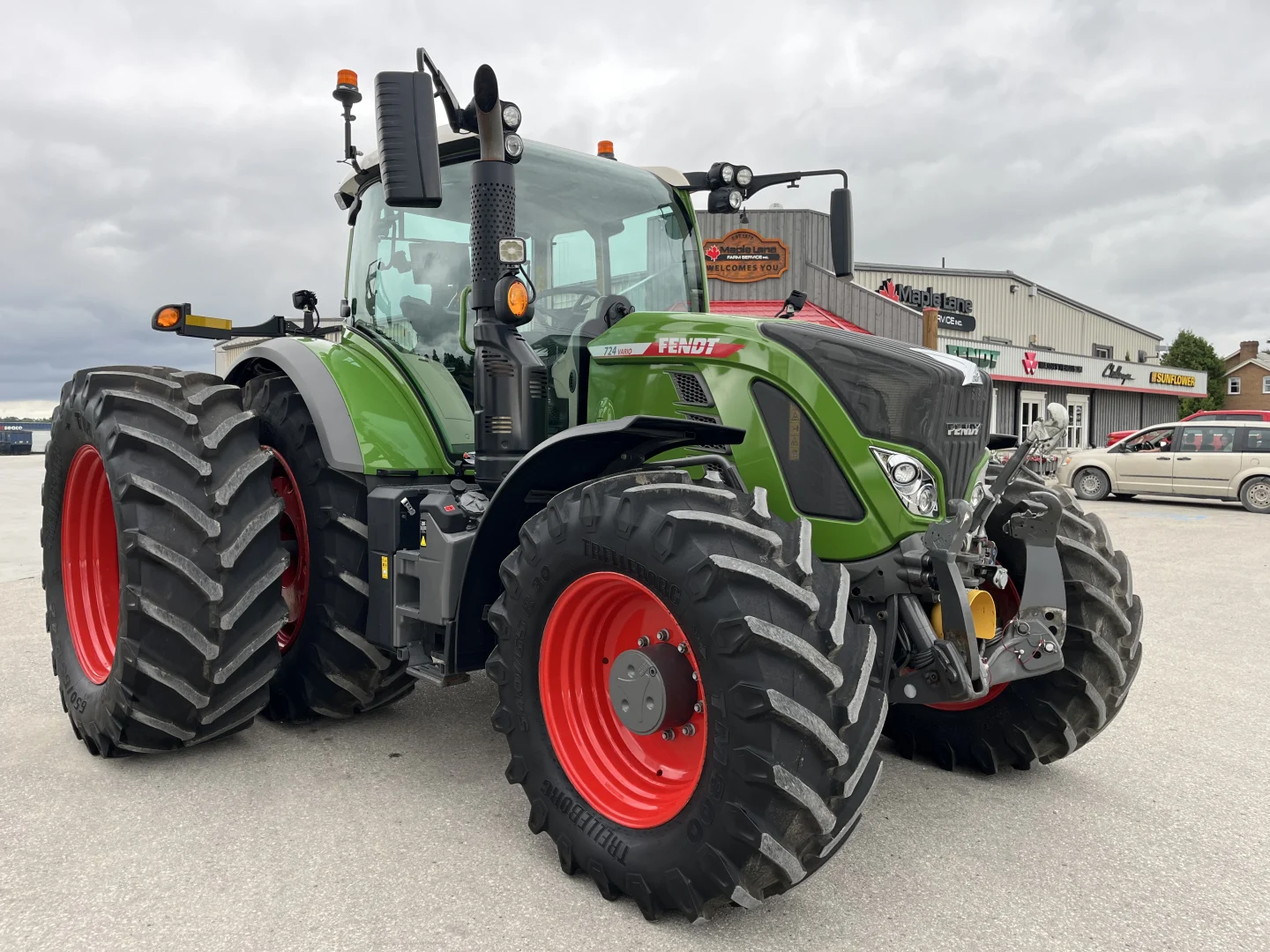

Used 2022 Fendt 724 Gen6
| Description | |
|---|---|

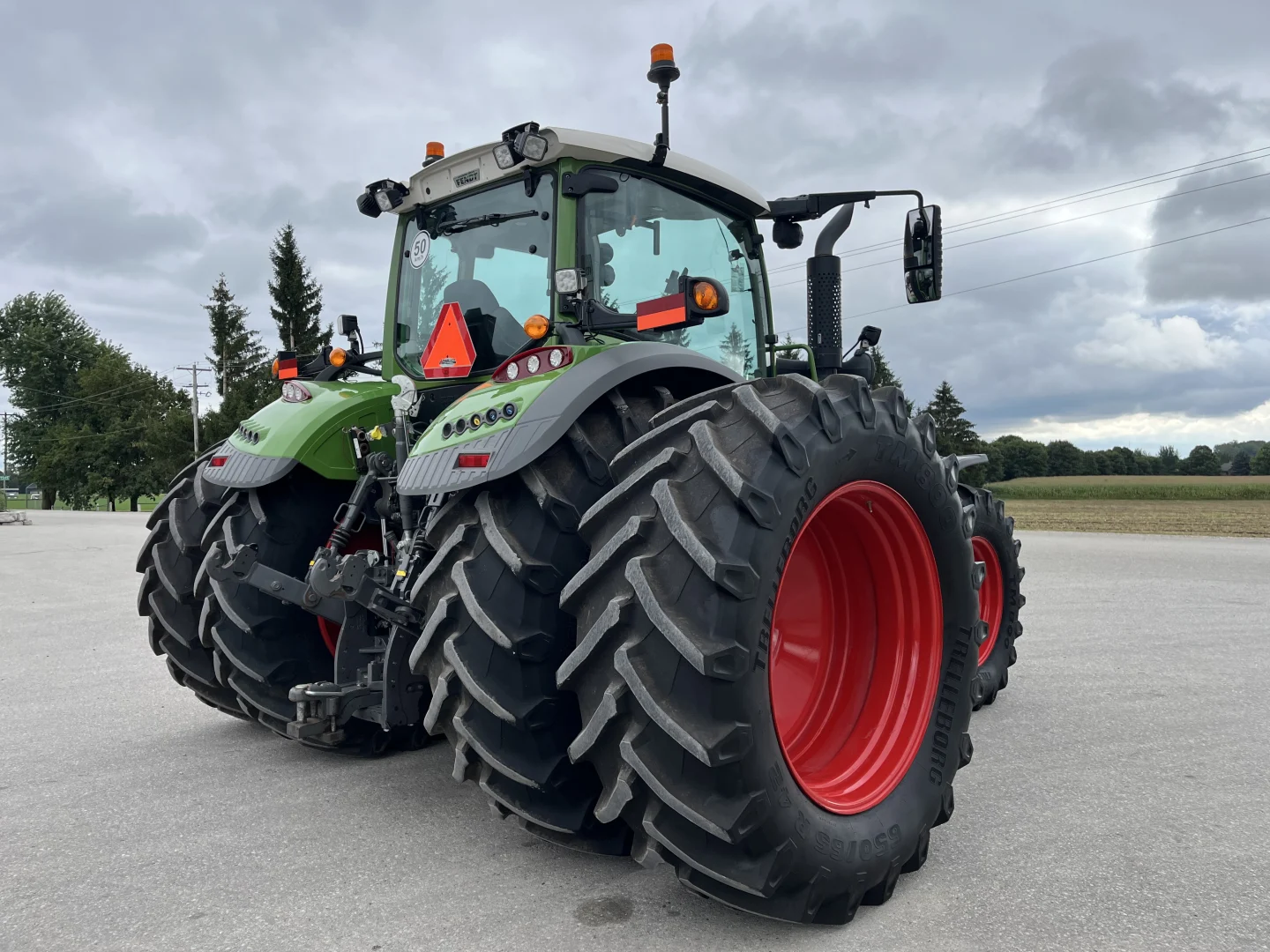

| Profi+, Fendt Guide complete, FendtONE cab, 50kph Vario transmission, 193 LPM hydraulic pump, power beyond, 5 rear remotes, hydraulic & air trailer brakes, exhaust brake, front hitch & PTO, 2 front remotes, 12” terminal, Section control unlocked, Variable Rate control unlocked, Cloth Evolution seat, powered mirrors, LED lighting, air cab suspension, 300 KG rear wheel weights, 540/65R30 fronts, 650/65R42 rear axle duals. Includes extended warranty and maintenance package | |
| Categories | High Horsepower |
| Unit Number | 23886R |
| Condition | Used |
| Usage | 2150 Hours |
| Year | 2022 |
| Cost | $306,900.00 CAD |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 176.73kW (237hp) 237hp 176.73kW | |
| PTO Power | 145.41kW (195hp) 195hp 145.41kW | |
| Rated Engine Speed | 2100r/min | |
| Make | DZ 6.06L Tier 4F 6 Cylinder | |
| Displacement | 1.6gal. (6.06L) 6.06L 1.6gal. | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 105.67gal. (400L) 400L 105.67gal. | |
| DEF Tank Capacity | 10.04gal. (38L) 38L 10.04gal. | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31.07mph (50km/h) 50km/h 31.07mph | |
| Name | CVT ML 180 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Exhaust, Pneumatic | |
| Trailer Brakes | Hydraulic, Air | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Rear Axle Length | 9' 10-1/8" (3000mm) 3000mm 9' 10-1/8", 8' 2-7/16" (2500mm) 2500mm 8' 2-7/16" | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 700 Gen6 51 GPM | |
| Pump Type | Variable Displacement Piston, Load Sensing | |
| Hydraulic Flow | 50.99GPM (193L/min) 193L/min 50.99GPM | |
| System Capacity | 20.87gal. (79L) 79L 20.87gal. | |
| Maximum Operating Pressure | 3190.83psi (220bar) 220bar 3190.83psi | |
| Maximum Available Hydraulic Oil | 16.91gal. (64L) 64L 16.91gal. | |

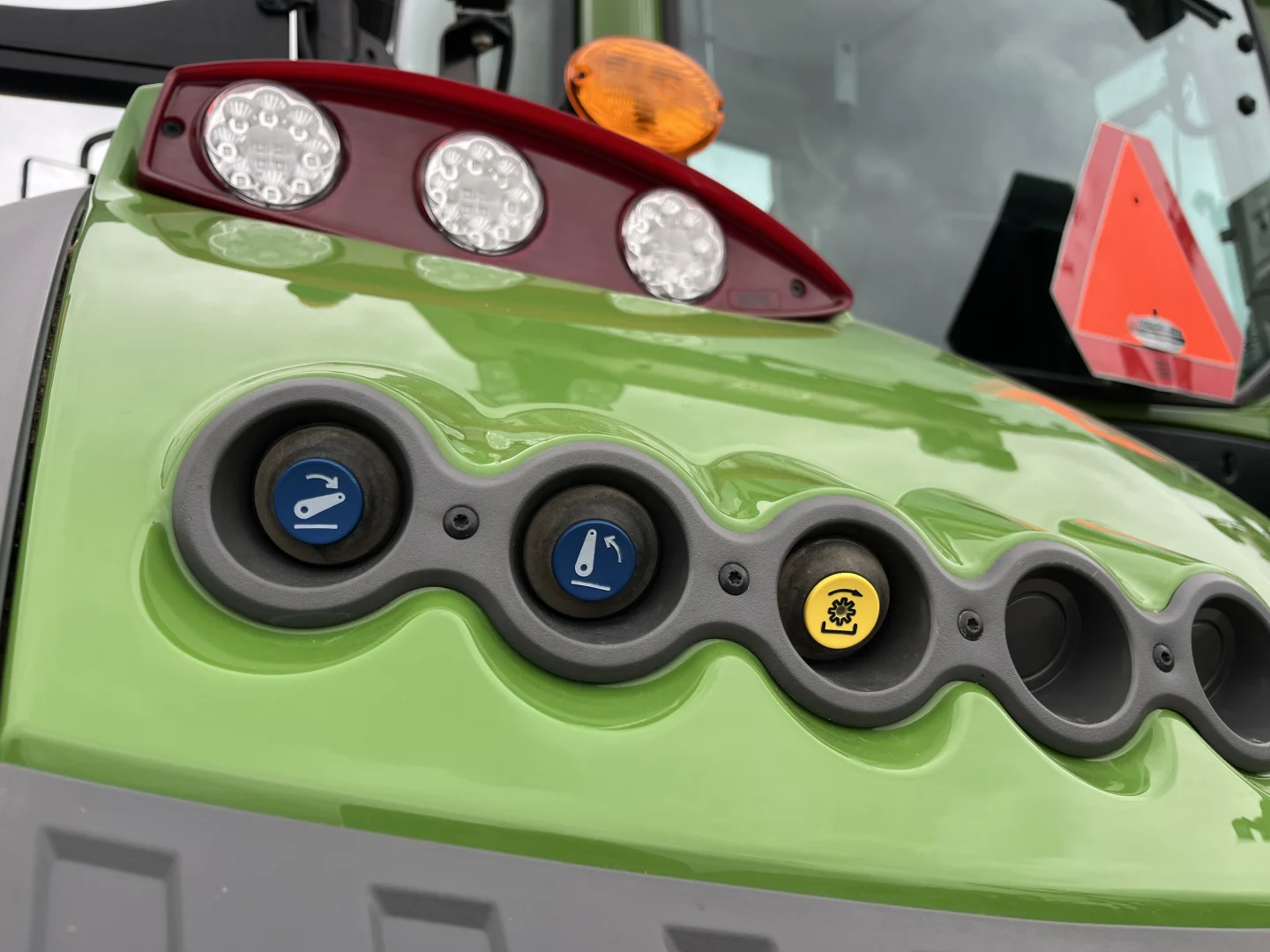

| Rear Remote Valves | 5 | |
| Front Remote Valves | 2 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|

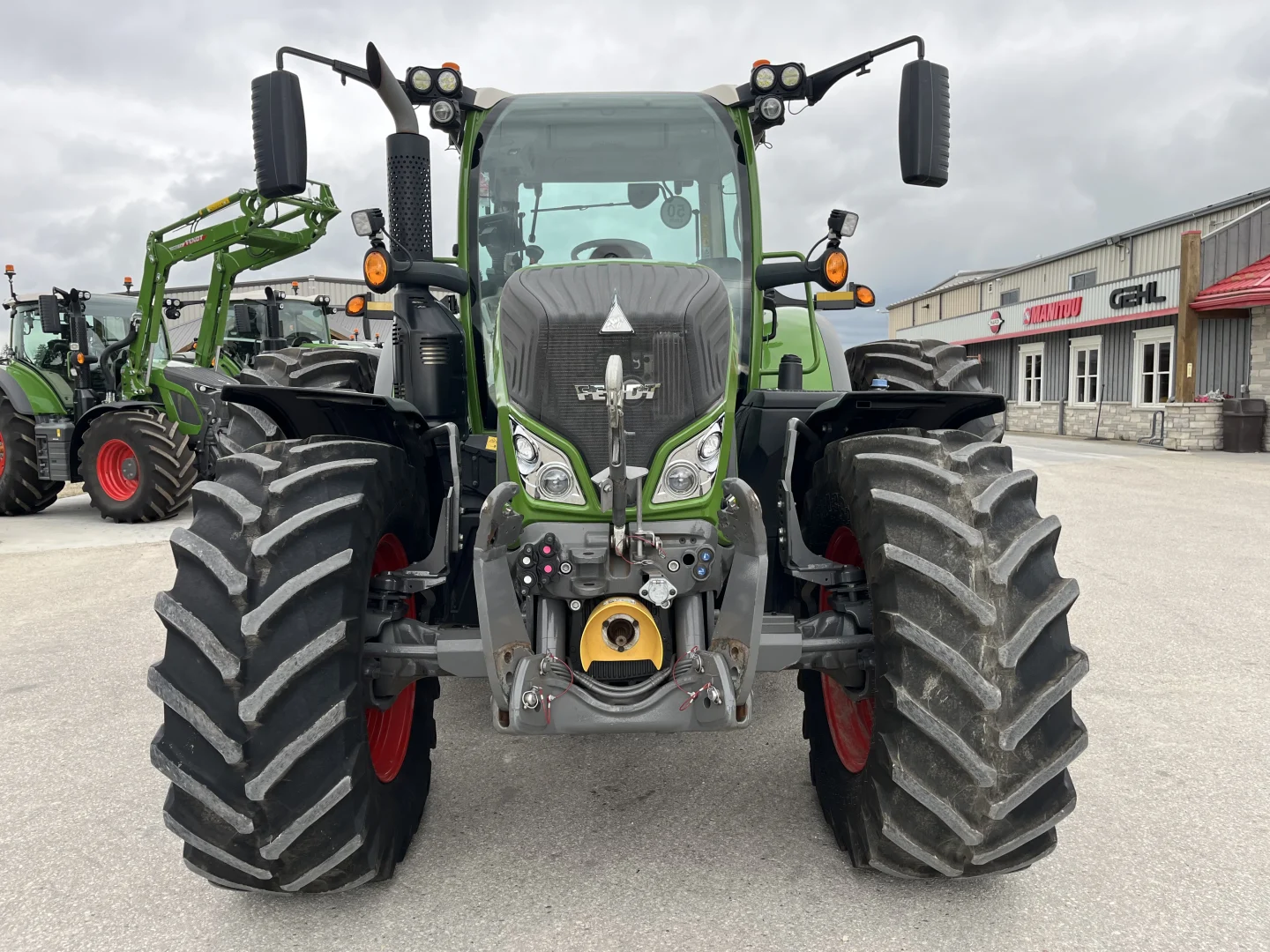

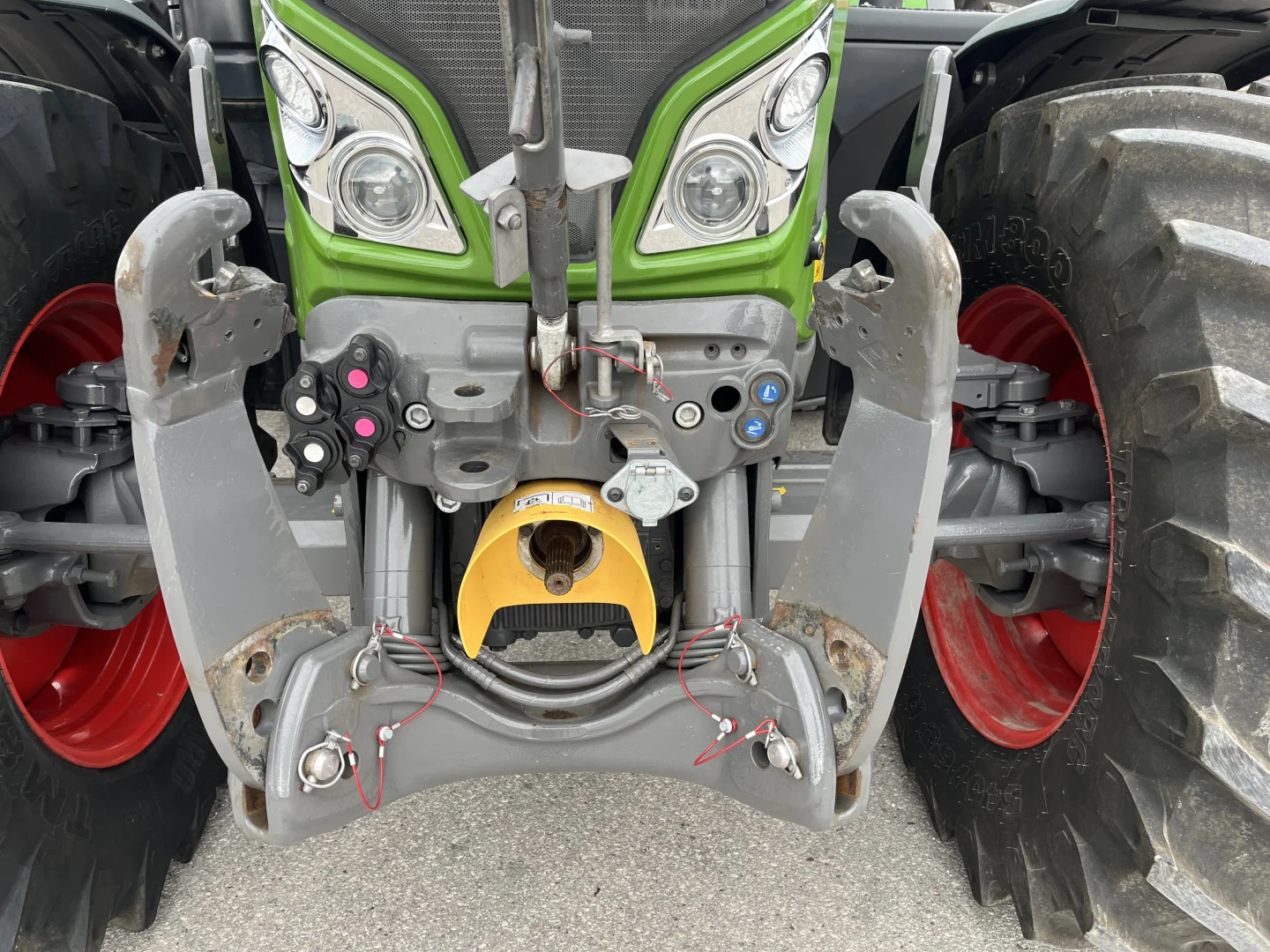

| Front Hitch | FD 700 Gen6 | |
| Category | Category 3 | |
| Capacity at Pins | 4505.08kg (9932lb.) 9932lb. 4505.08kg | |

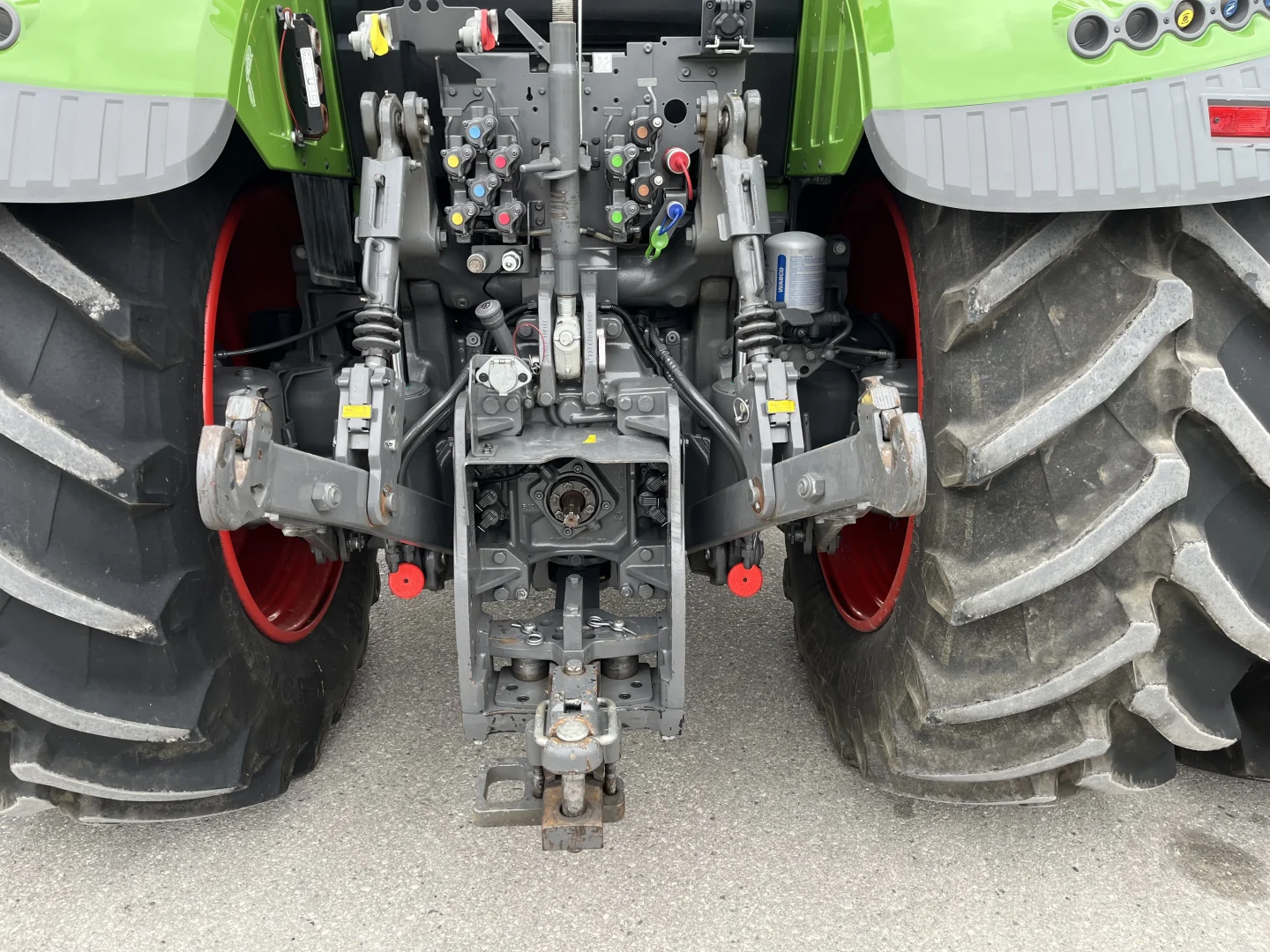

| Rear Hitch | FD 700 Gen6 | |
| Hitch Category | Category 3 | |
| Lift Capacity at Pins | 10570.05kg (23303lb.) 23303lb. 10570.05kg | |
| Comfort | Draft Control | |
| Rear Drawbar | Category 3 | |
| PTO | ||
|---|---|---|
| Front | 1000 | |
| Rear | 540, 540E, 1000, 1000E | |
| Type | Independent | |
| Technology | ||
|---|---|---|

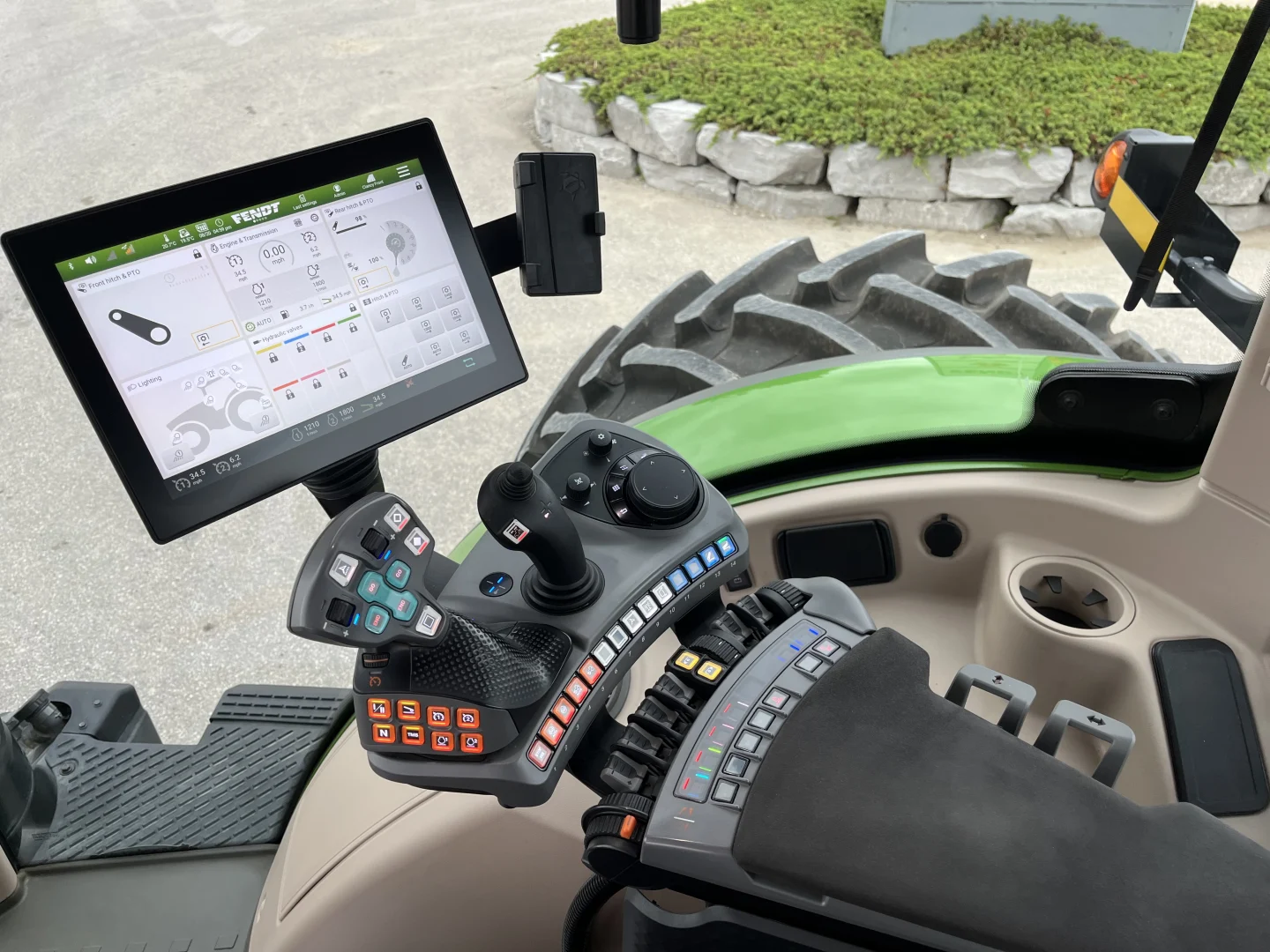

| Display | 12" Armrest Mounted Terminal | |

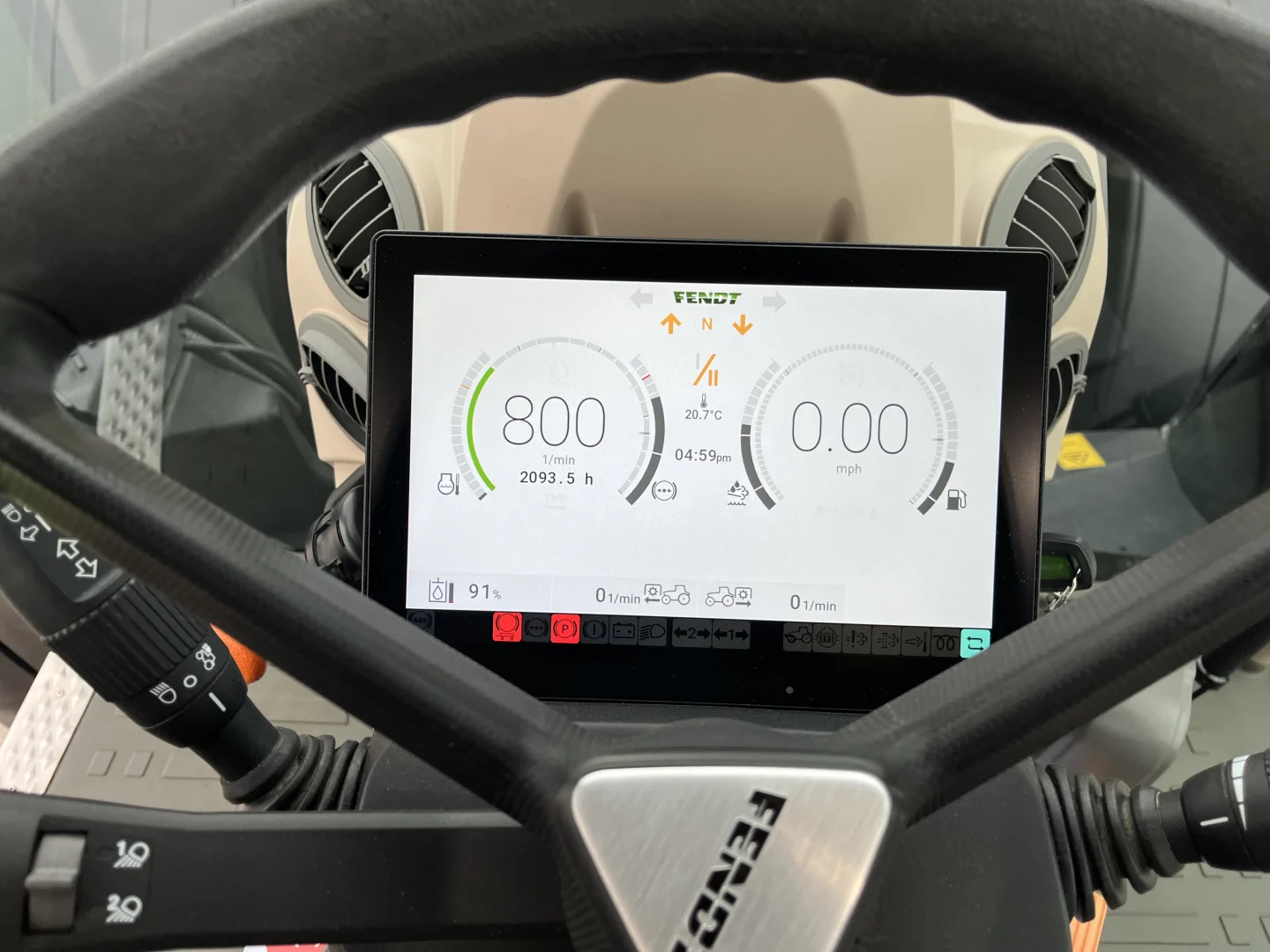

| Instrument Display | 10" Dash Screen | |
| Entertainment | Infotainment, USB, Bluetooth, Mic | |
| Integration | ISO BUS Implement Control | |
| Antenna | Novatel | |
| Guidance | Guidance Ready | |
| Headland Management | Variotronic TI | |
| Data Transfer | TaskDoc Pro | |
| Section Control | SectionControl | |
| Variable Rate Control | Variable Rate Control | |
| Telemetry | 5 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 10 | |
| Rear Lights | 6 | |
| Worklight Type | Halogen | |
| Rotating Beacon | Left, Right | |
| Alternator | 200A | |
| Alternator Count | 1 | |
| Battery | 1475CCA | |

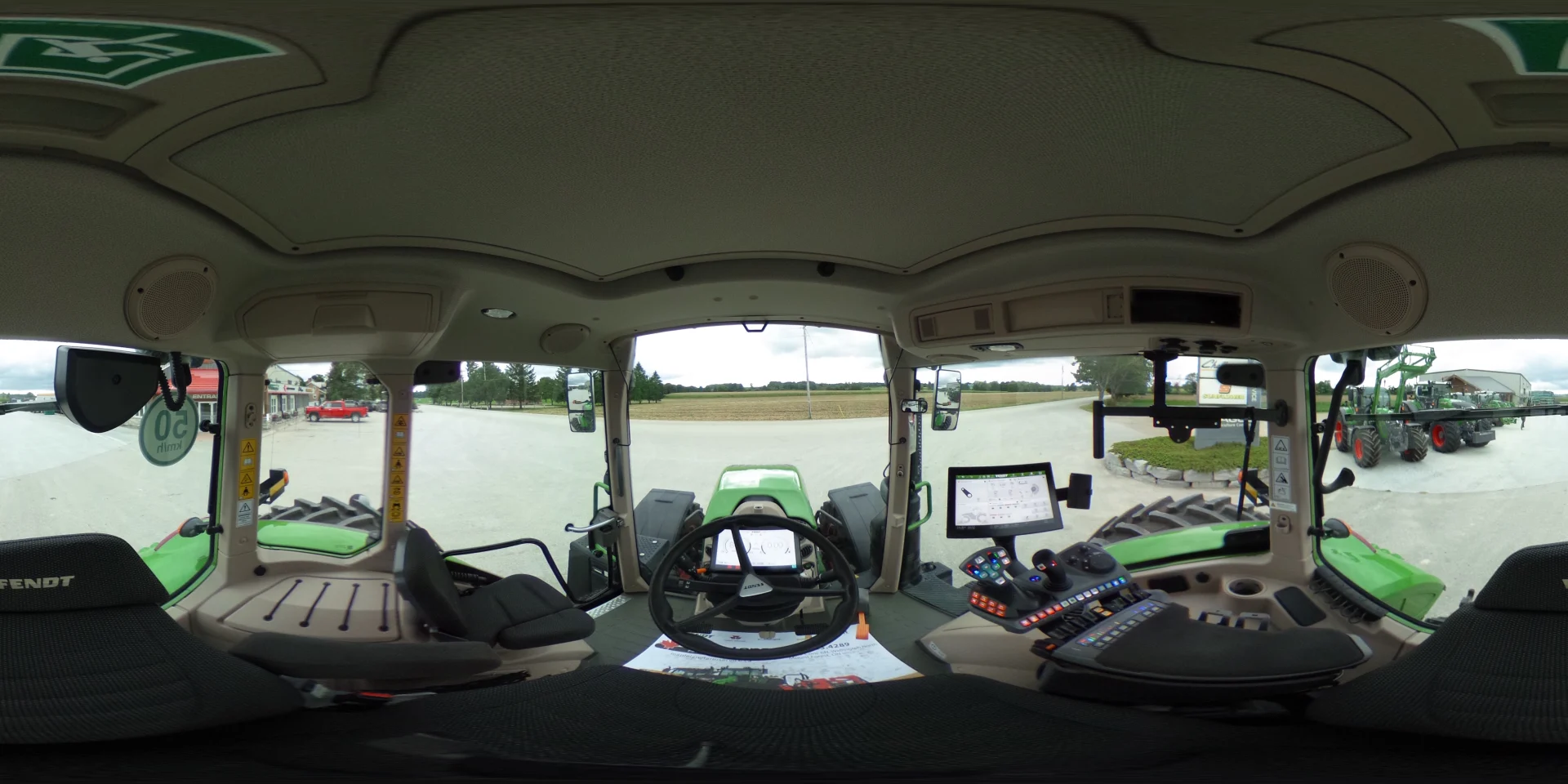

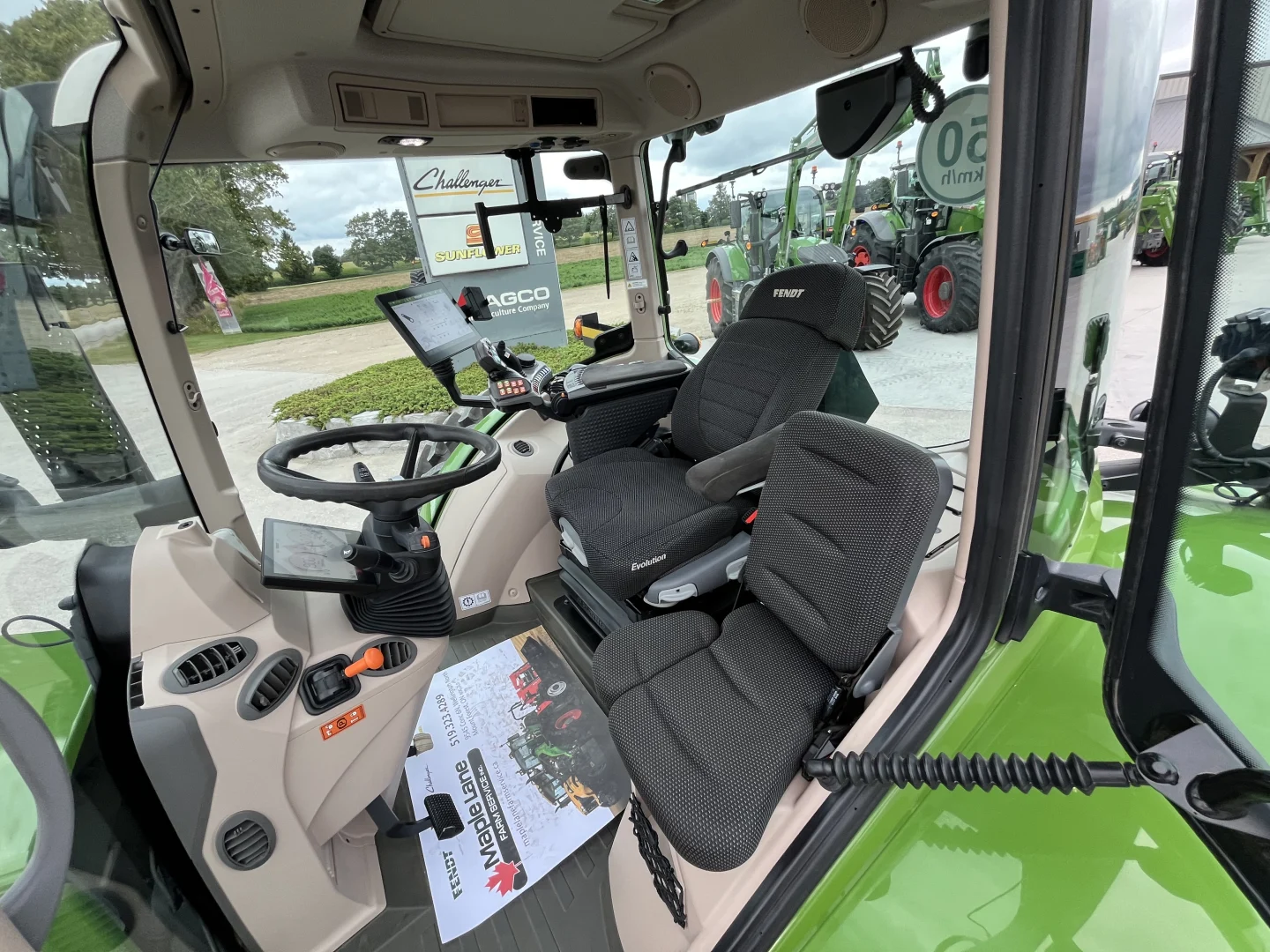

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Access | Left Hand Door, Rear Window | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 2 Point Air | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |
| Operator Seat | FD Super Comfort EVO Adaptive | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | 300° Front, Front, Rear | |
| Sunshade | Windshield | |
| Mirrors | Powered | |
| Spec Level | ProfiPlus | |

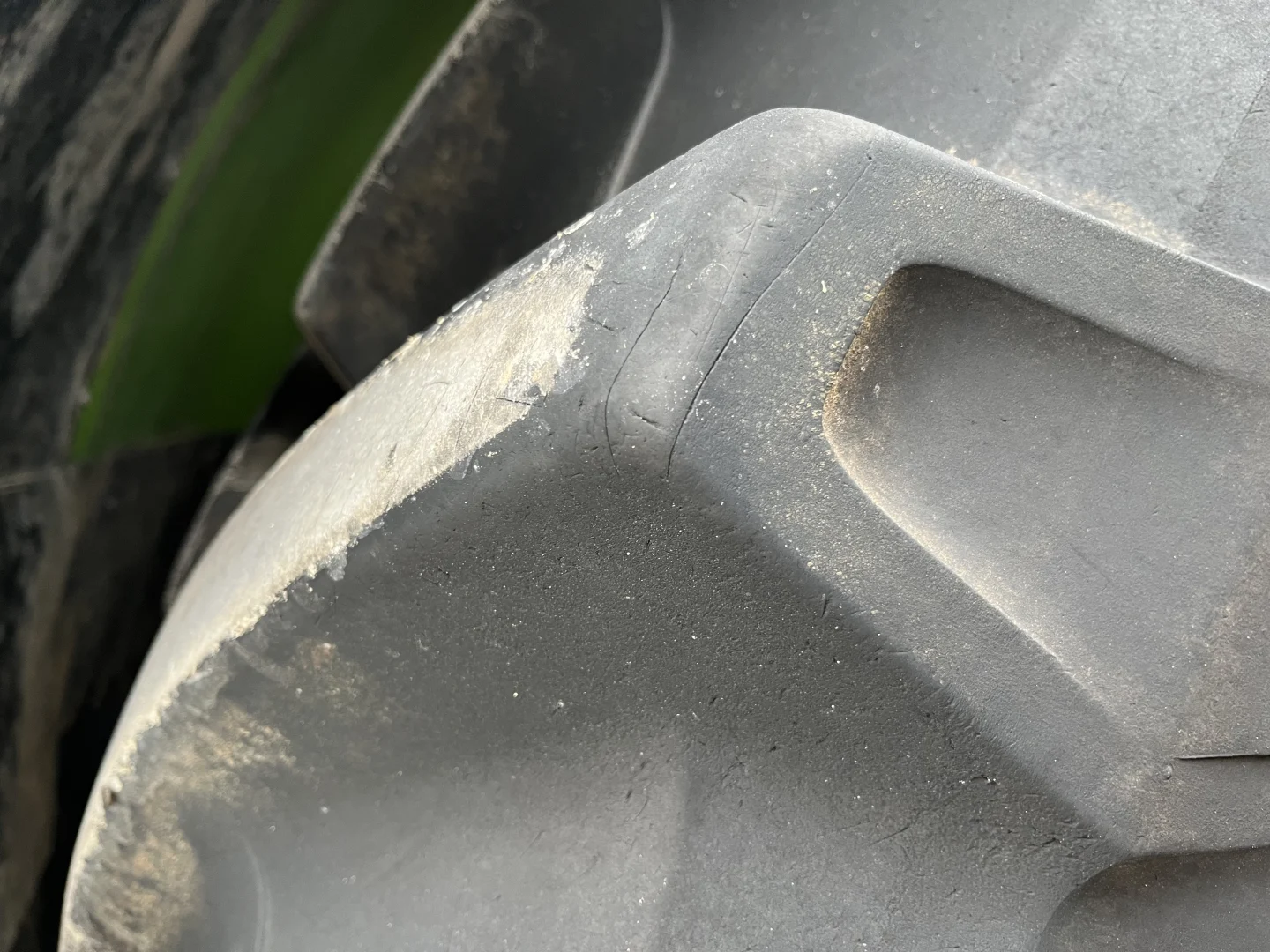

| Wheels | ||
|---|---|---|
| Front | TRELL 540/65R30 | |
| Size | 540/65R30 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 8-7/8" (530mm) 530mm 1' 8-7/8" | |
| Overall Diameter | 4' 9-5/8" (1464mm) 1464mm 4' 9-5/8" | |
| Static Loaded Radius | 2' 2-3/16" (665mm) 665mm 2' 2-3/16" | |
| Rolling Circumference | 14' 3-3/8" (4353mm) 4353mm 14' 3-3/8" | TRELL 380/85R30 TM600 |
| Size | 380/85R30 | |
| Ply | 8PR | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 3-3/8" (390mm) 390mm 1' 3-3/8" | |
| Overall Diameter | 4' 7-7/16" (1408mm) 1408mm 4' 7-7/16" | |
| Static Loaded Radius | 2' 1" (635mm) 635mm 2' 1" | |
| Rolling Circumference | 13' 10-7/8" (4238mm) 4238mm 13' 10-7/8" | |
| Weight | 173.72lb. (78.8kg) 78.8kg 173.72lb. | |

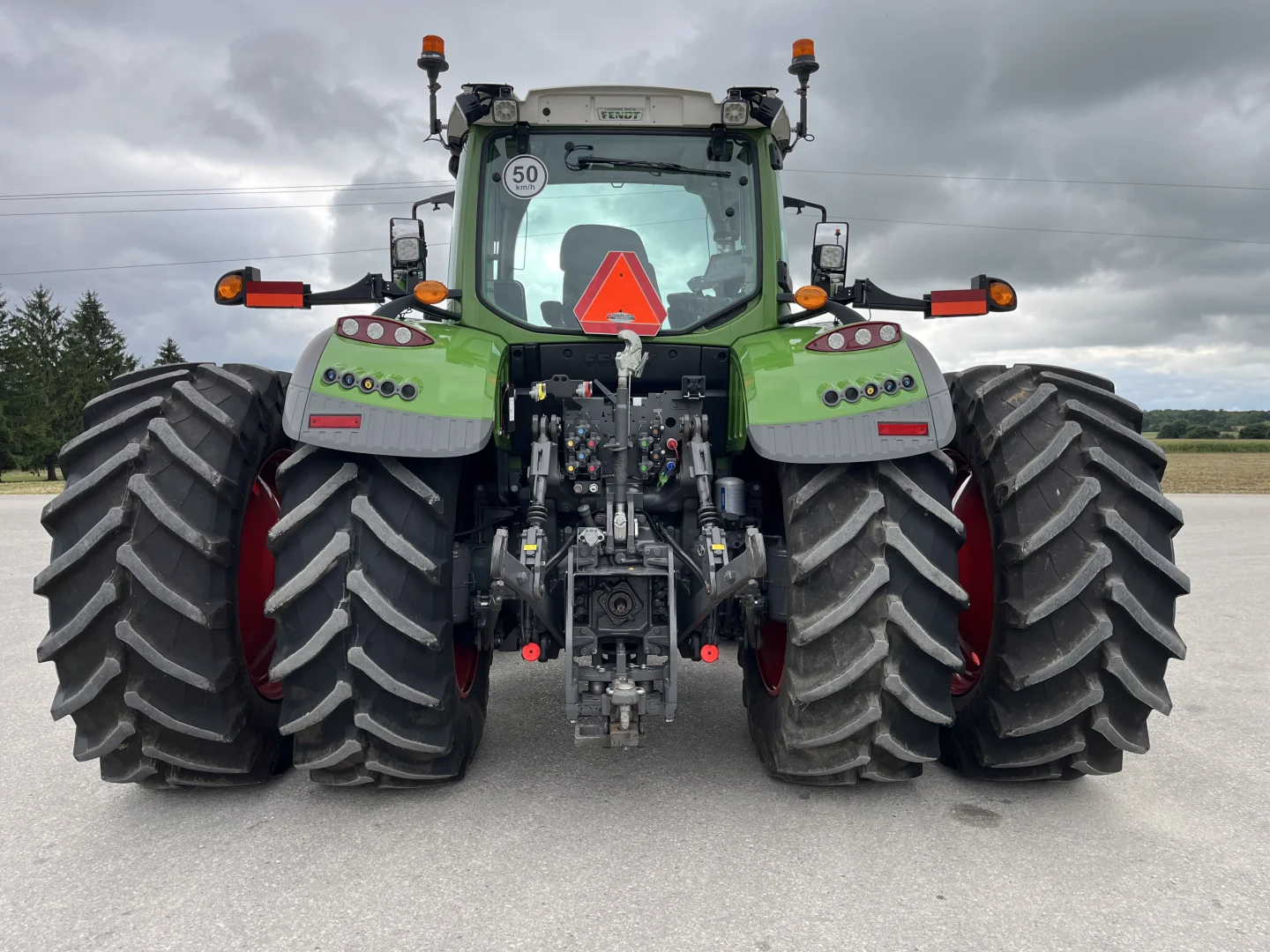

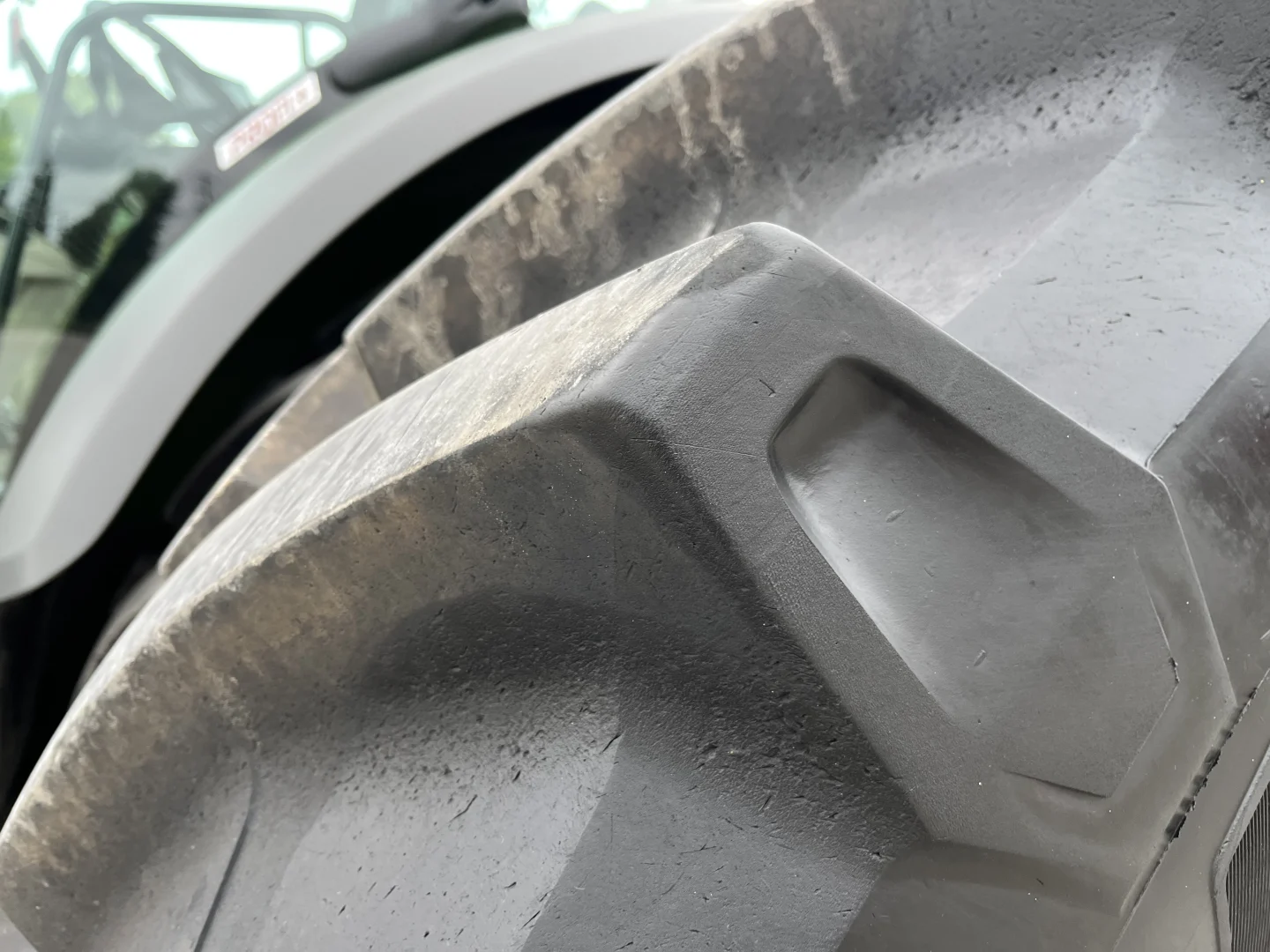

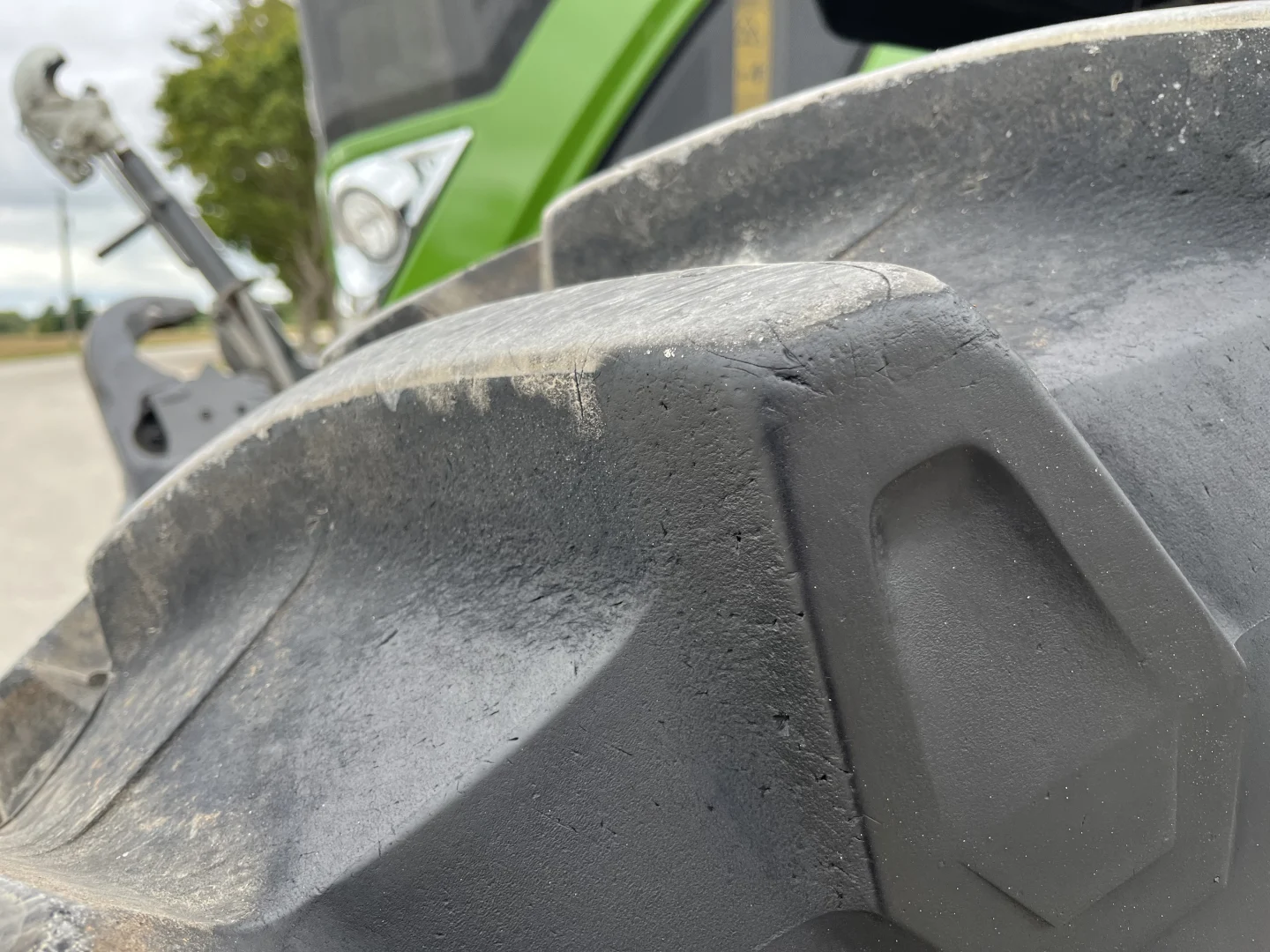

| Rear | TRELL 650/65R42 TM800 | |
| Size | 650/65R42 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 2' 1-3/8" (645mm) 645mm 2' 1-3/8" | |
| Overall Diameter | 6' 3-5/16" (1913mm) 1913mm 6' 3-5/16" | |
| Static Loaded Radius | 2' 9-7/8" (860mm) 860mm 2' 9-7/8" | |
| Rolling Circumference | 18' 11-9/16" (5780mm) 5780mm 18' 11-9/16" | |
| Weight | 533.52lb. (242kg) 242kg 533.52lb. | TRELL 480/80R42 TM600 |
| Size | 480/80r42 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 7-1/2" (495mm) 495mm 1' 7-1/2" | |
| Overall Diameter | 6' 13/16" (1850mm) 1850mm 6' 13/16" | |
| Static Loaded Radius | 2' 8-13/16" (833mm) 833mm 2' 8-13/16" | |
| Rolling Circumference | 18' 2-1/2" (5550mm) 5550mm 18' 2-1/2" | |
| Weight | 376.99lb. (171kg) 171kg 376.99lb. | |
| Weights | ||
|---|---|---|
| Wheel Weights | FD 300 kg Wheel Weight Pair | |
| Mount | Bolt | |
| Type | Wheel Disc | |
| Weight | 661.39lb. (300kg) 300kg 661.39lb. | |
| Dimensions | ||
|---|---|---|
| Length | 17' 2-5/16" (5240mm) 5240mm 17' 2-5/16" | |
| Wheelbase | 9' 1-9/16" (2783mm) 2783mm 9' 1-9/16" | |
| Width | 8' 4-3/8" (2550mm) 2550mm 8' 4-3/8" | |
| Height | 10' 11/16" (3065mm) 3065mm 10' 11/16" | |
| Minimum Ground Clearance | 1' 7-15/16" (506mm) 506mm 1' 7-15/16" | |
| Turning Radius | 40' 8" (12.4m) 12.4m 40' 8" | |
| Weight | 17592.89lb. (7980kg) 7980kg 17592.89lb. | |
