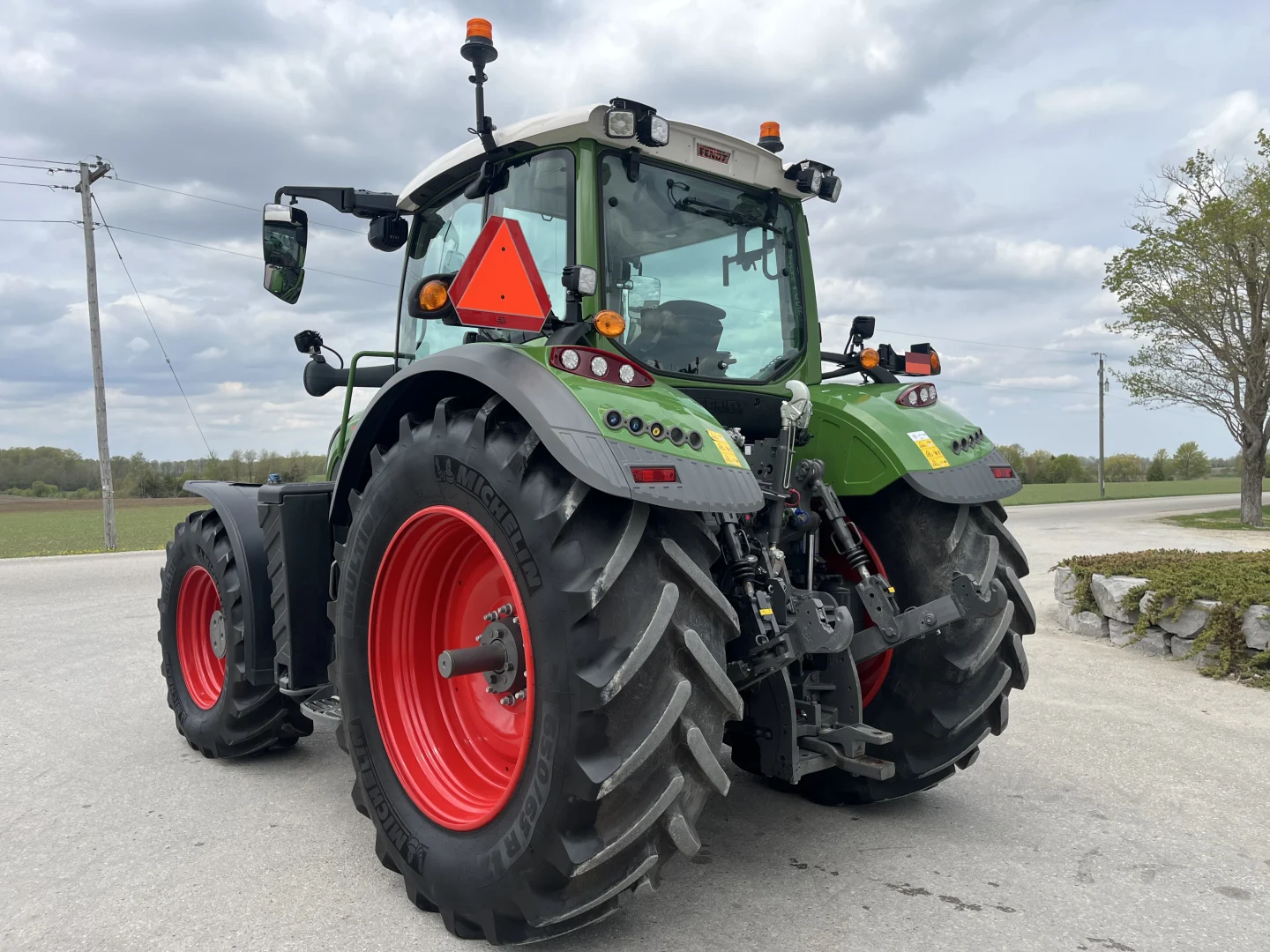

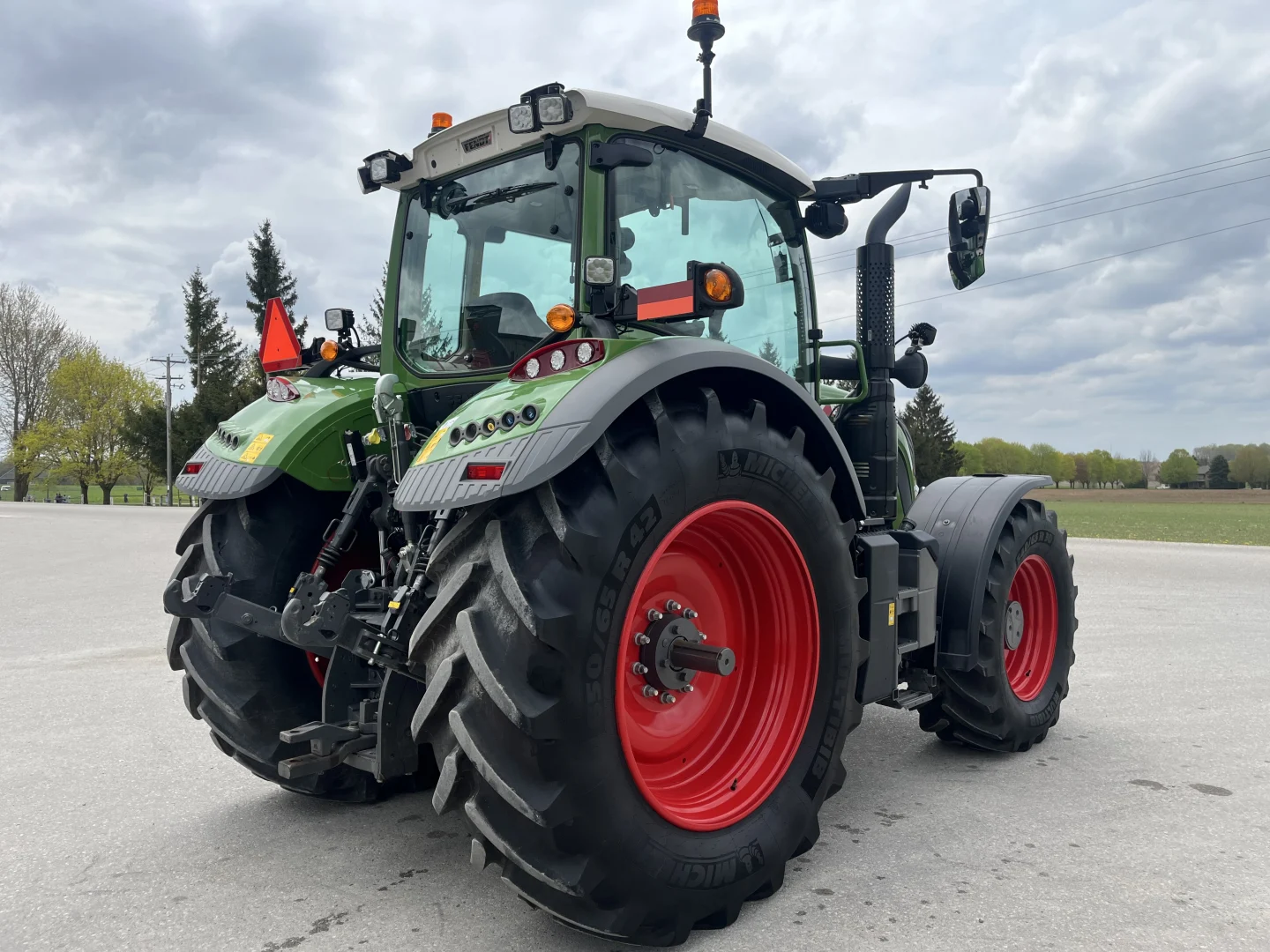

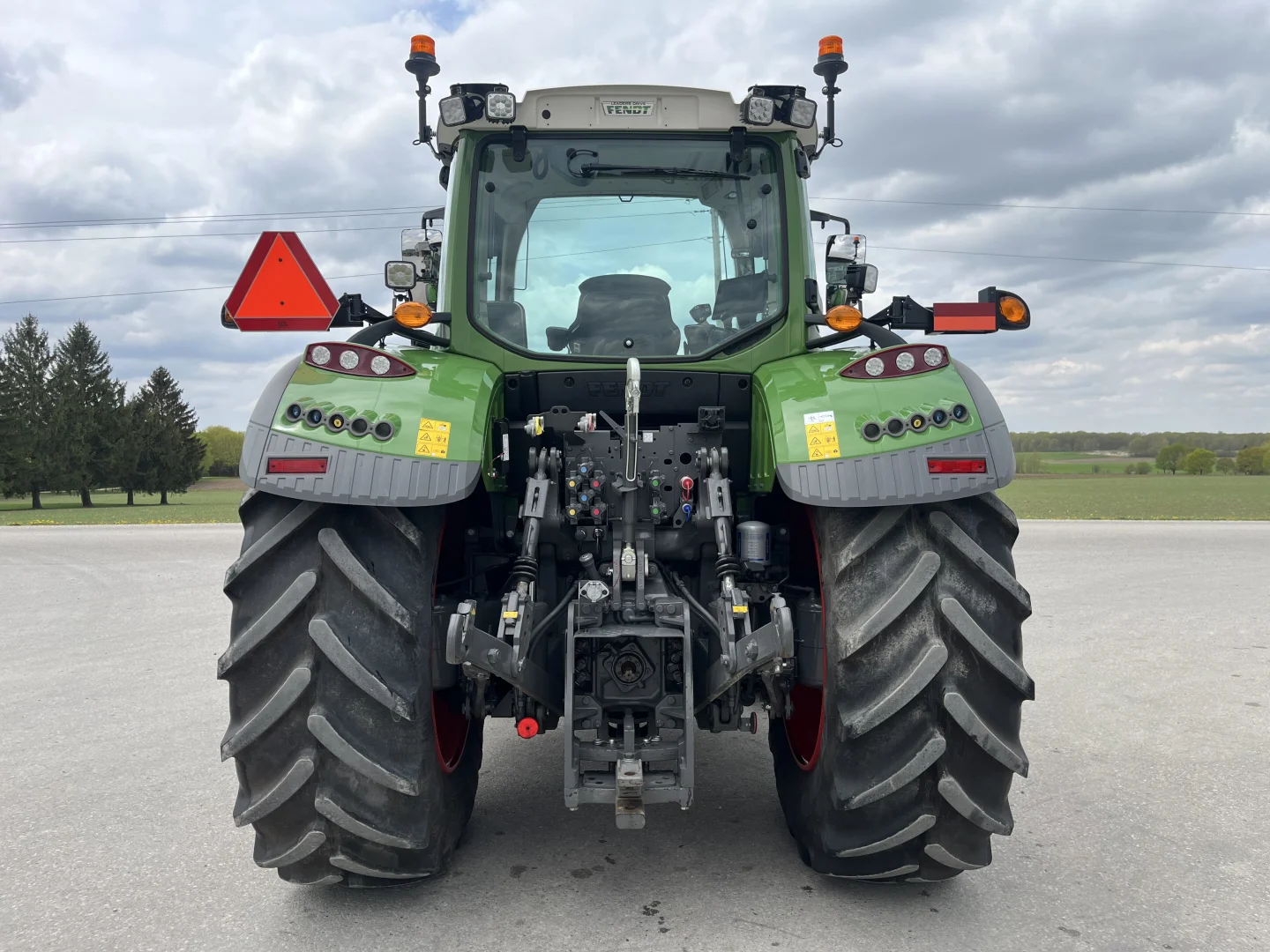

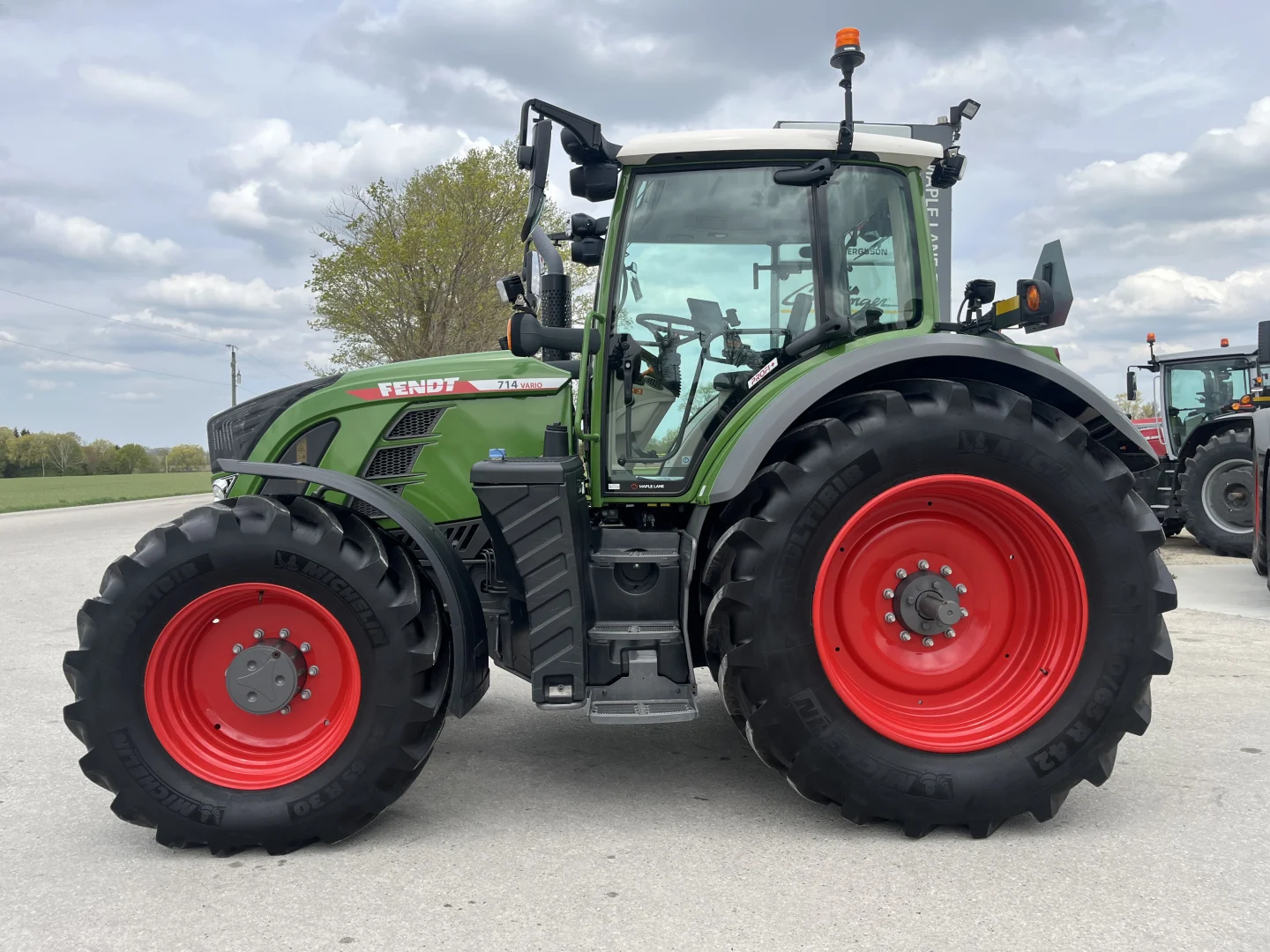

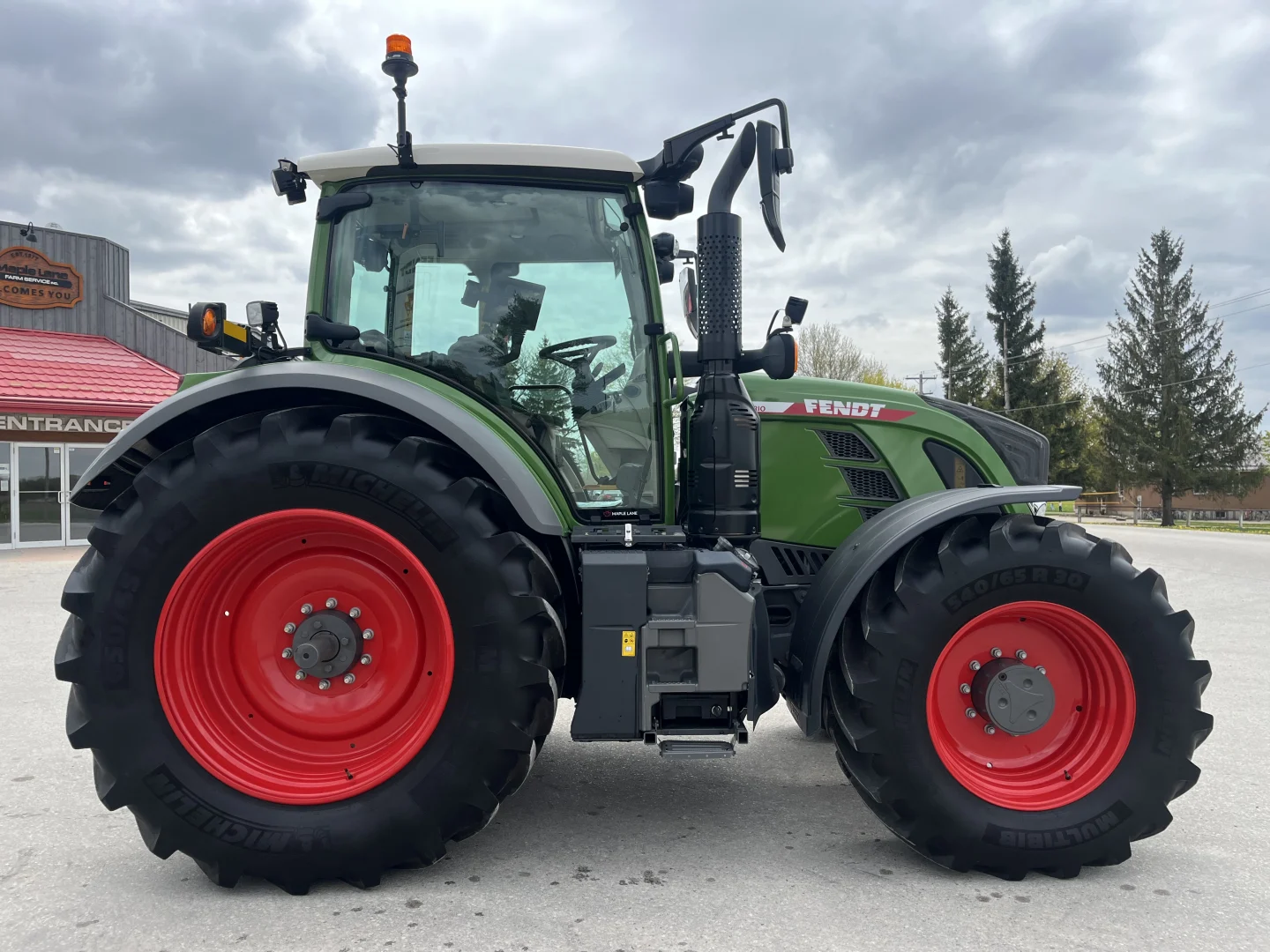

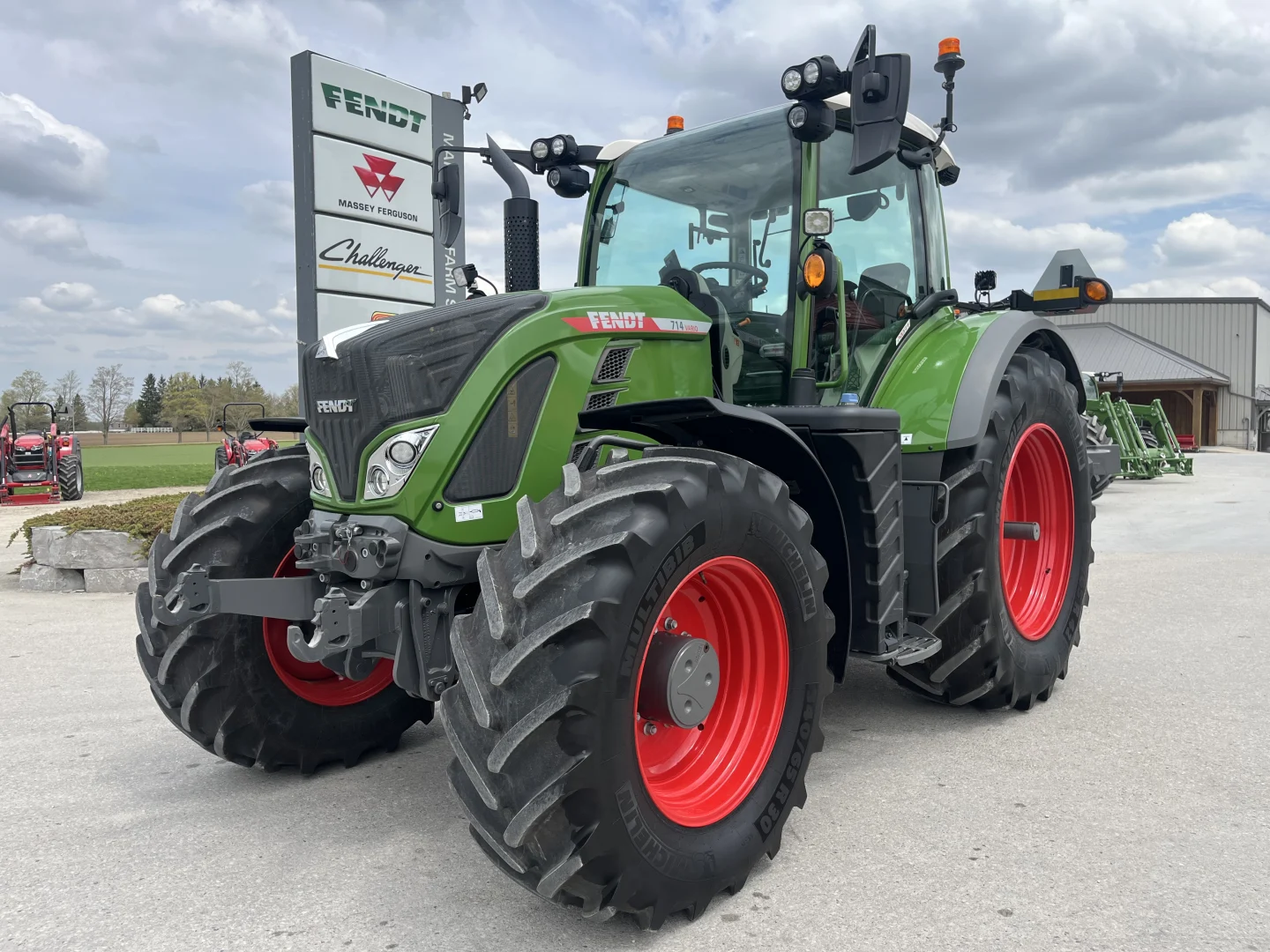

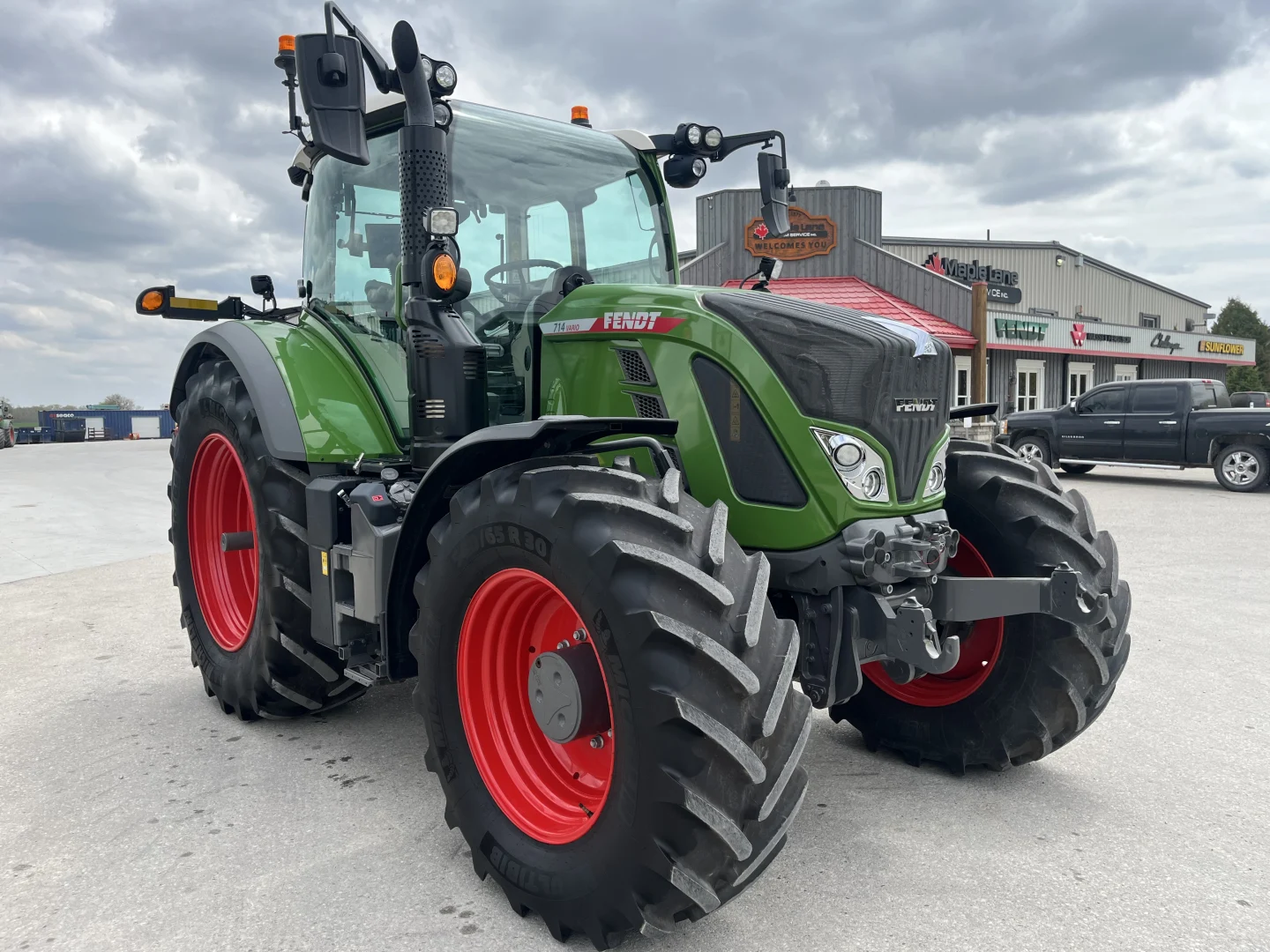

Used 2021 Fendt 714 Gen6
| Description | |
|---|---|
| Profi Plus, Fendt Guide complete-WAAS, 50 km/h Vario transmission, suspended front axle, Michelin 650/65R42 rear, 540/65R30 fronts, short bar rear axle, 51 GPM hydraulic pump, 4 rear remotes, Power beyond, Full LED light package, Dual LED beacon lights, exhaust brake, air and hydraulic trailer brakes, air cab suspension, Super comfort seat, INFOTAINMENT, Fendt Guide complete with Trimble Antenna, Section Control unlock, Includes extended warranty and maintenance package. | |
| Categories | High Horsepower |
| Unit Number | 23921M |
| Condition | Used |
| Usage | 400 hours |
| Year | 2021 |
| Cost | $248,900.00 CAD |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 107.38kW (144hp) 144hp 107.38kW | |
| PTO Power | 82.03kW (110hp) 110hp 82.03kW | |
| Rated Engine Speed | 2100r/min | |
| Make | DZ 6.06L Tier 4F 6 Cylinder | |
| Displacement | 369.8cu. in. (6.06L) 6.06L 369.8cu. in. | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 105.67gal. (400L) 400L 105.67gal. | |
| DEF Tank Capacity | 10.04gal. (38L) 38L 10.04gal. | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31.07mph (50km/h) 50km/h 31.07mph | |
| Name | CVT ML 140 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Dual-Circuit , Exhaust, Pneumatic | |
| Trailer Brakes | Hydraulic, Air | |
| Suspension | Front Axle | |
| Rear Axle Length | 8' 2-7/16" (2500mm) 2500mm 8' 2-7/16" | |
| Steering Mode | front wheel steer | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 700 Gen6 51 GPM | |
| Pump Type | Variable Displacement Piston, Load Sensing | |
| Hydraulic Flow | 50.99GPM (193L/min) 193L/min 50.99GPM | |
| System Capacity | 20.87gal. (79L) 79L 20.87gal. | |
| Maximum Operating Pressure | 9.28psi (64kPa) 64kPa 9.28psi | |
| Maximum Available Hydraulic Oil | 16.91gal. (64L) 64L 16.91gal. | |
| Rear Remote Valves | 4 | |
| Steering | Hydraulic Power | |

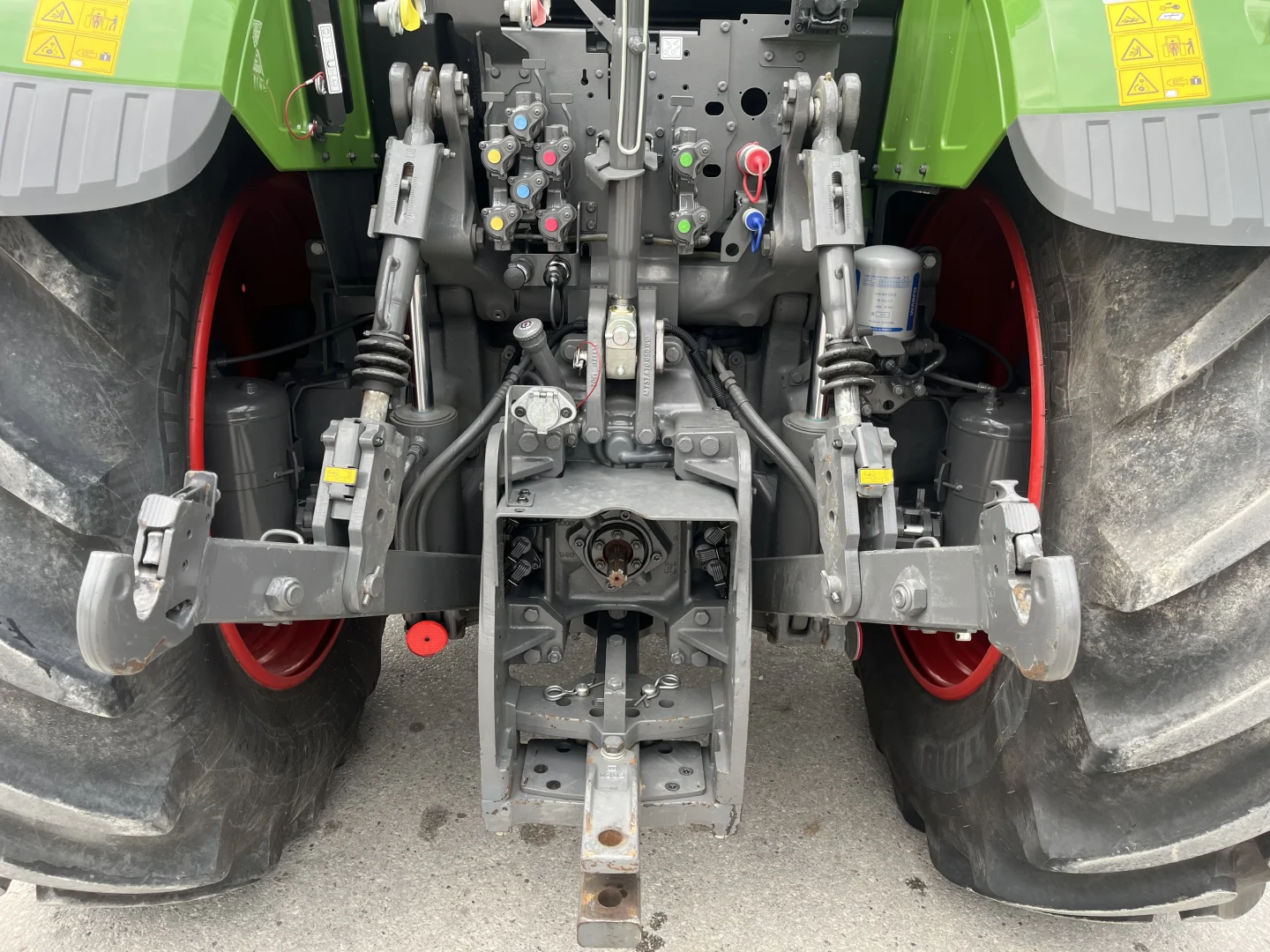

| Hitching | ||
|---|---|---|

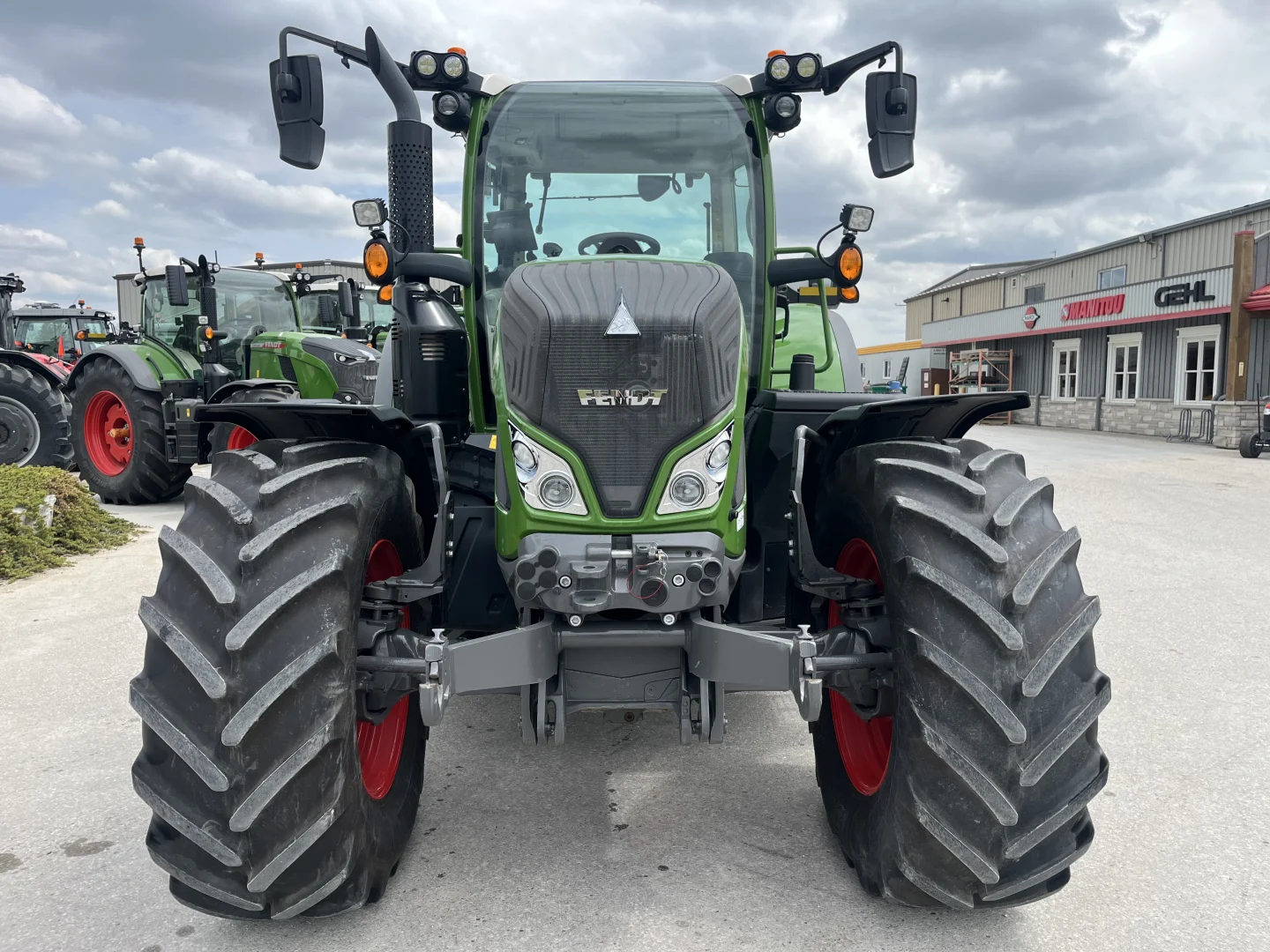

| Front Hitch | FD 700 Gen6 | |
| Category | Category 3 | |
| Capacity at Pins | 4505.08kg (9932lb.) 9932lb. 4505.08kg | |
| Rear Hitch | FD 700 Gen6 | |
| Hitch Category | Category 3 | |
| Lift Capacity at Pins | 10570.05kg (23303lb.) 23303lb. 10570.05kg | |
| Comfort | Draft Control | |
| Rear Drawbar | Category 3 | |
| PTO | ||
|---|---|---|
| Rear | 540E, 540, 1000E, 1000 | |
| Type | Independent | |
| Technology | ||
|---|---|---|

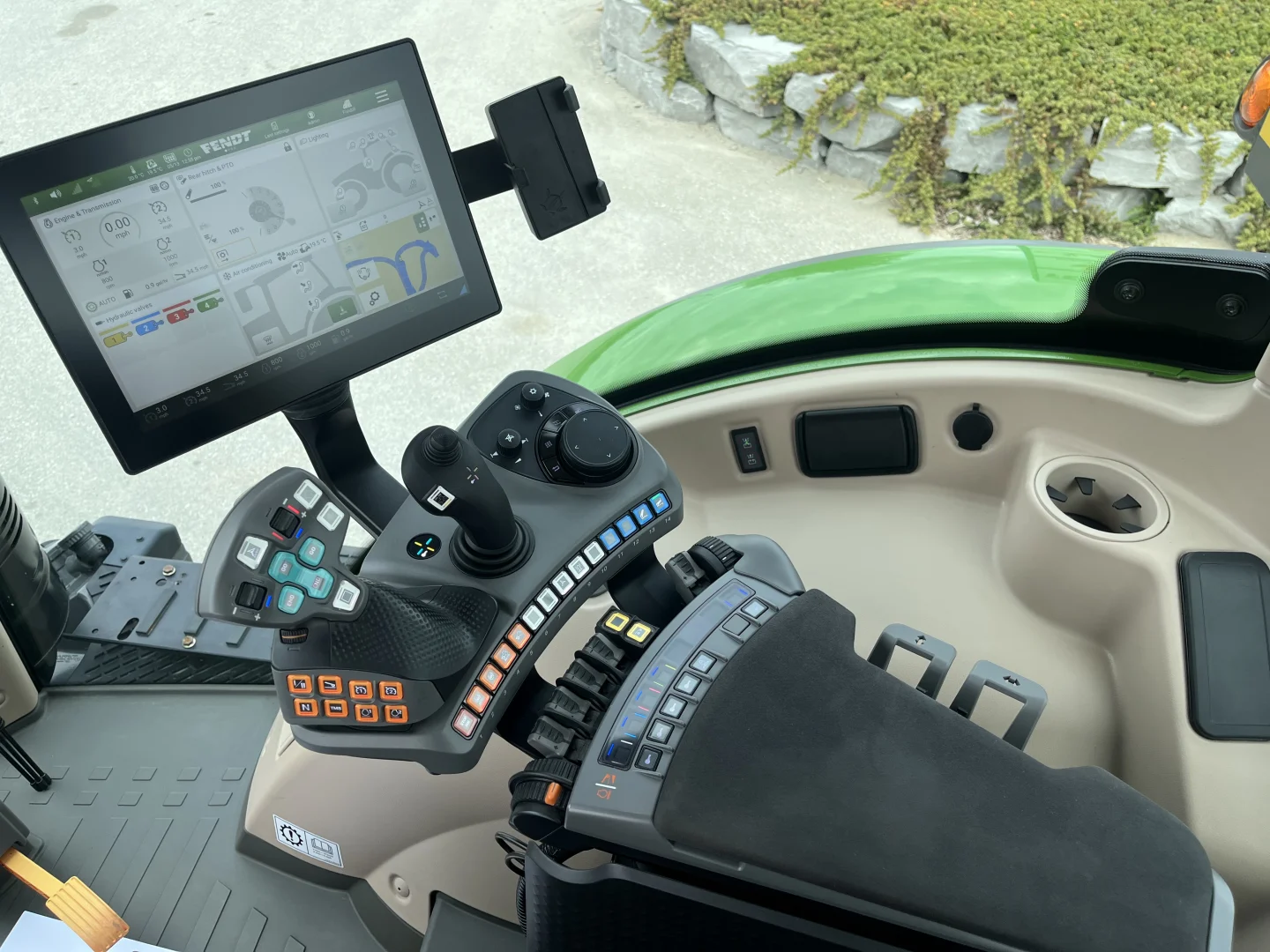

| Display | 12" Armrest Mounted Terminal | |

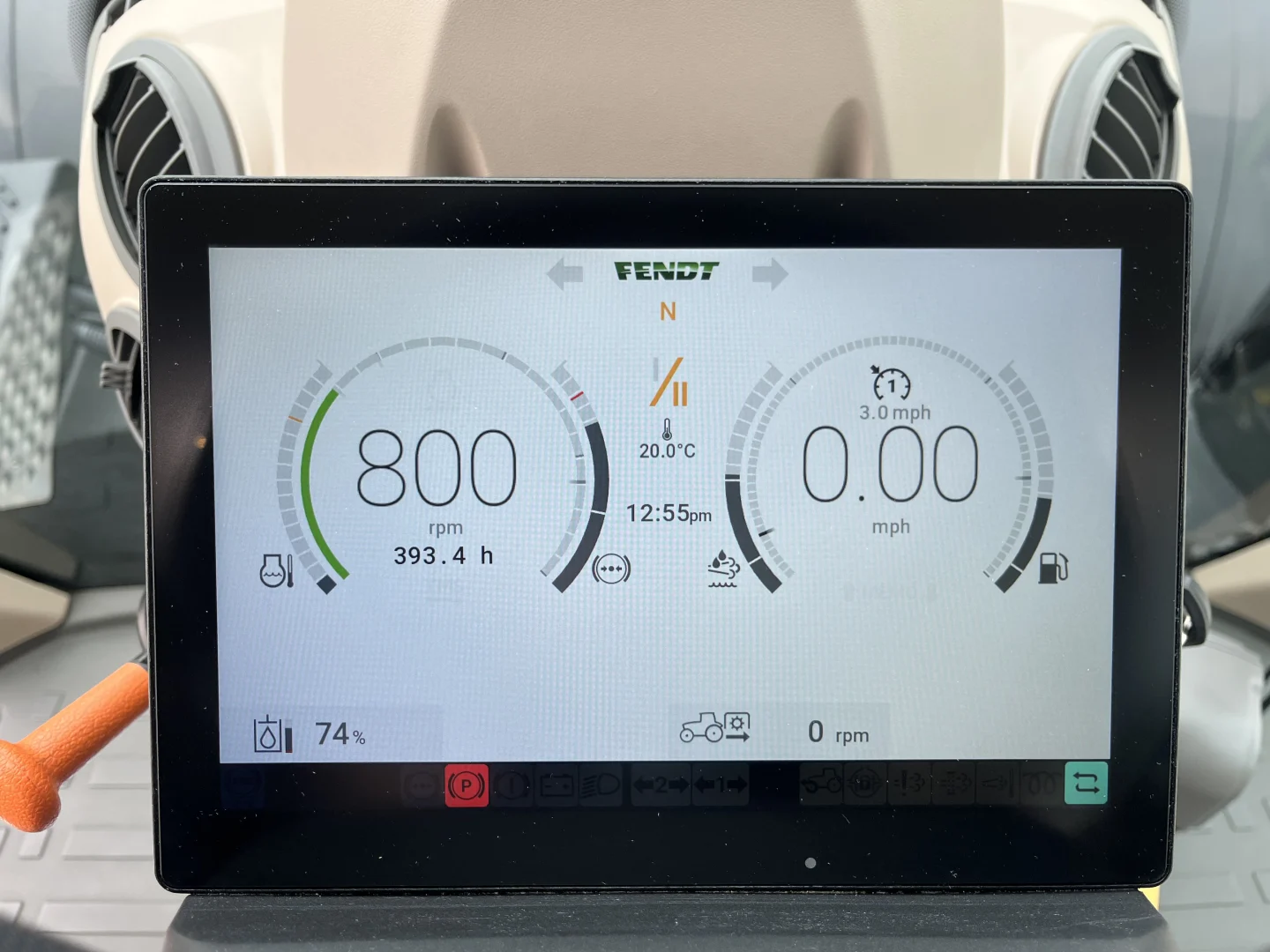

| Instrument Display | 10" Dash Screen | |
| Entertainment | Infotainment, Bluetooth, Mic, USB | |
| Integration | ISO BUS Implement Control | |
| Antenna | Trimble | |
| Telemetry | 5 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 10 | |
| Rear Lights | 6 | |
| Worklight Type | LED | |
| Rotating Beacon | Left, Right | |
| Alternator | 200A | |

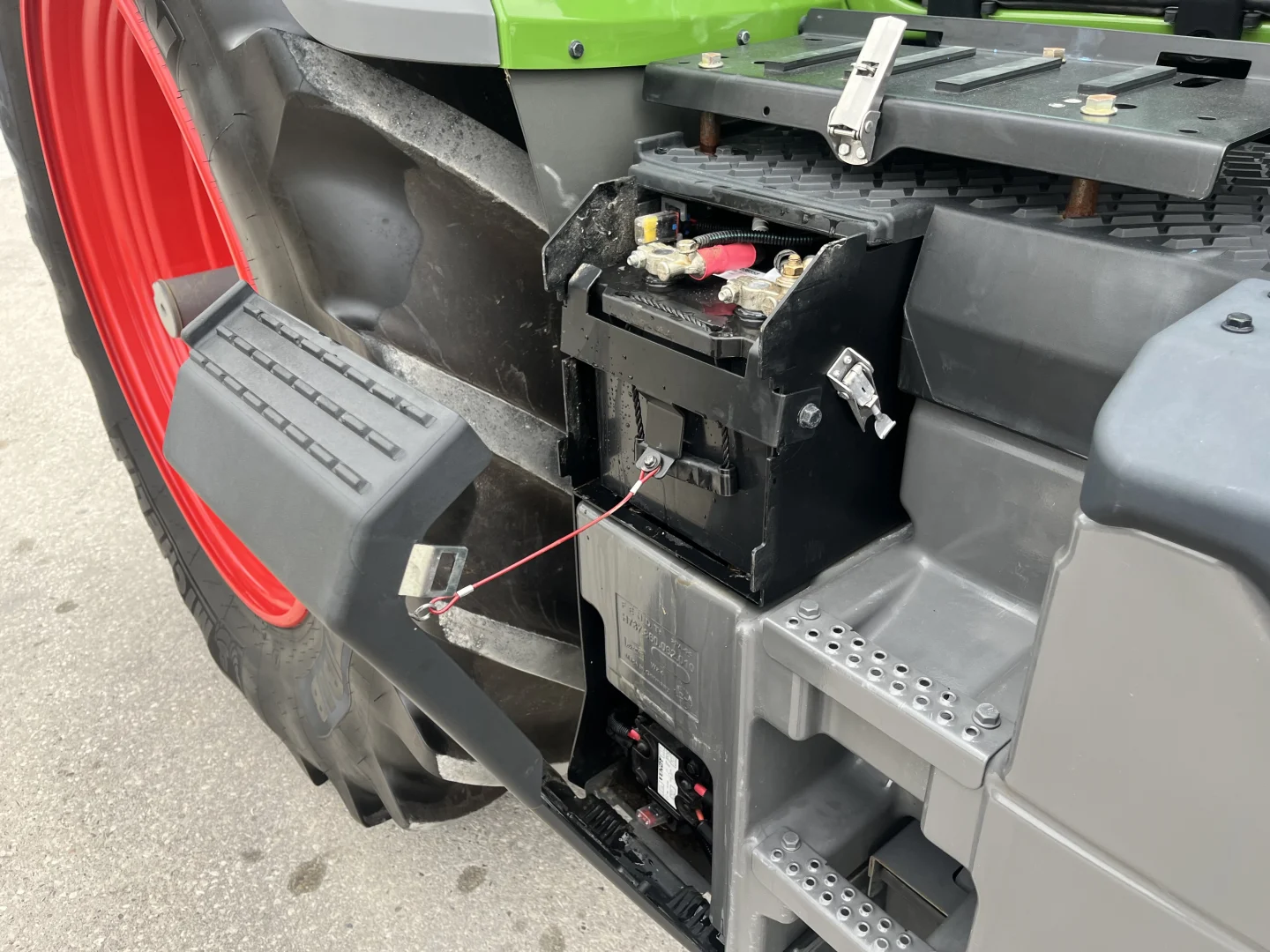

| Battery | 1475CCA | |
| Alternator Count | 1 | |

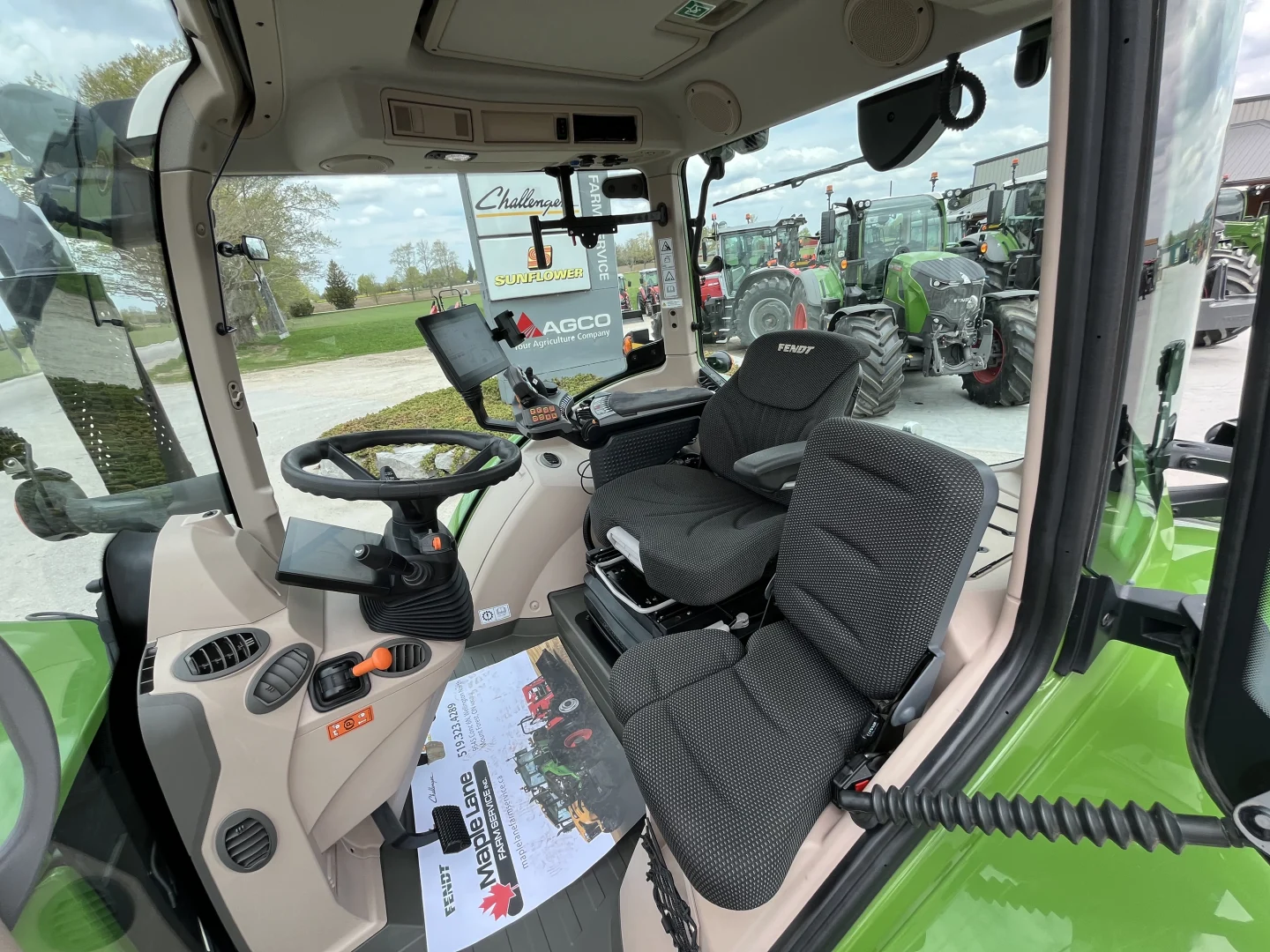

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Access | Left Hand Door, Rear Window | |
| Climate | Air Conditioning, Heater | |
| Cab Suspension | 2 Point Air | |
| Steering Column | Telescoping, Tilting | |
| Steering Controls | Steering Wheel | |
| Operator Seat | FD Super Comfort | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline | |
| Headrest | Extend | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Low Frequency, Air (built in compressor), Forward/Reverse Horizontal | |
| Rotation | Segments | |
| Comfort | Automatic Height Adjustment, Heat, Automatic Weight Adjustment | |
| Wiper | Front, Rear | |
| Sunshade | Windshield | |
| Mirrors | Interior | |
| Spec Level | ProfiPlus | |
| Wheels | ||
|---|---|---|
| Front | MICHE 540/65R30 Multibib | |
| Size | 540/65R30 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 8-3/4" (527mm) 527mm 1' 8-3/4" | |
| Overall Diameter | 4' 9-15/16" (1472mm) 1472mm 4' 9-15/16" | |
| Static Loaded Radius | 2' 1-1/2" (648mm) 648mm 2' 1-1/2" | |
| Rolling Circumference | 14' 3-3/8" (4353mm) 4353mm 14' 3-3/8" | |
| Weight | 268.96lb. (122kg) 122kg 268.96lb. | |

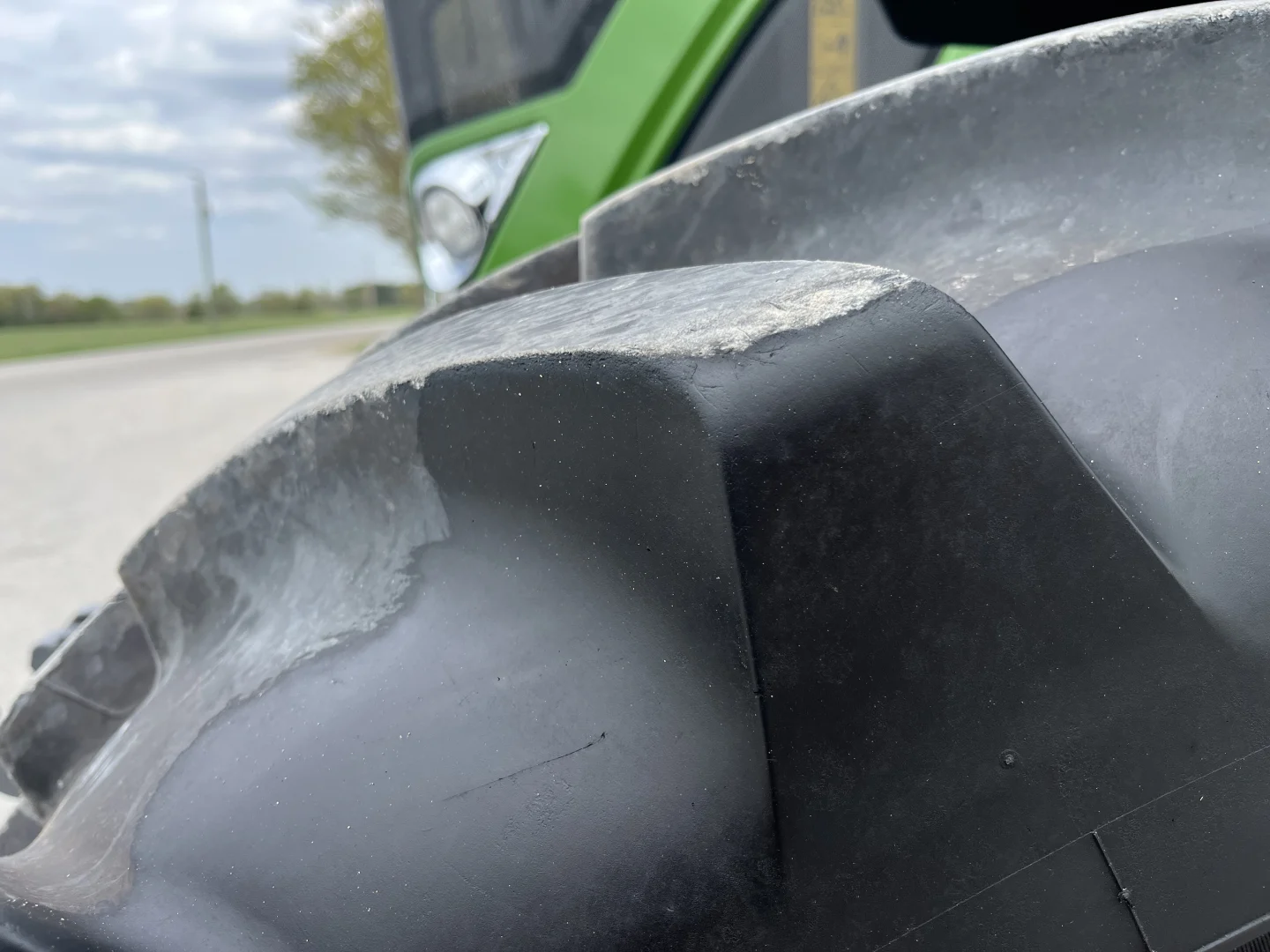

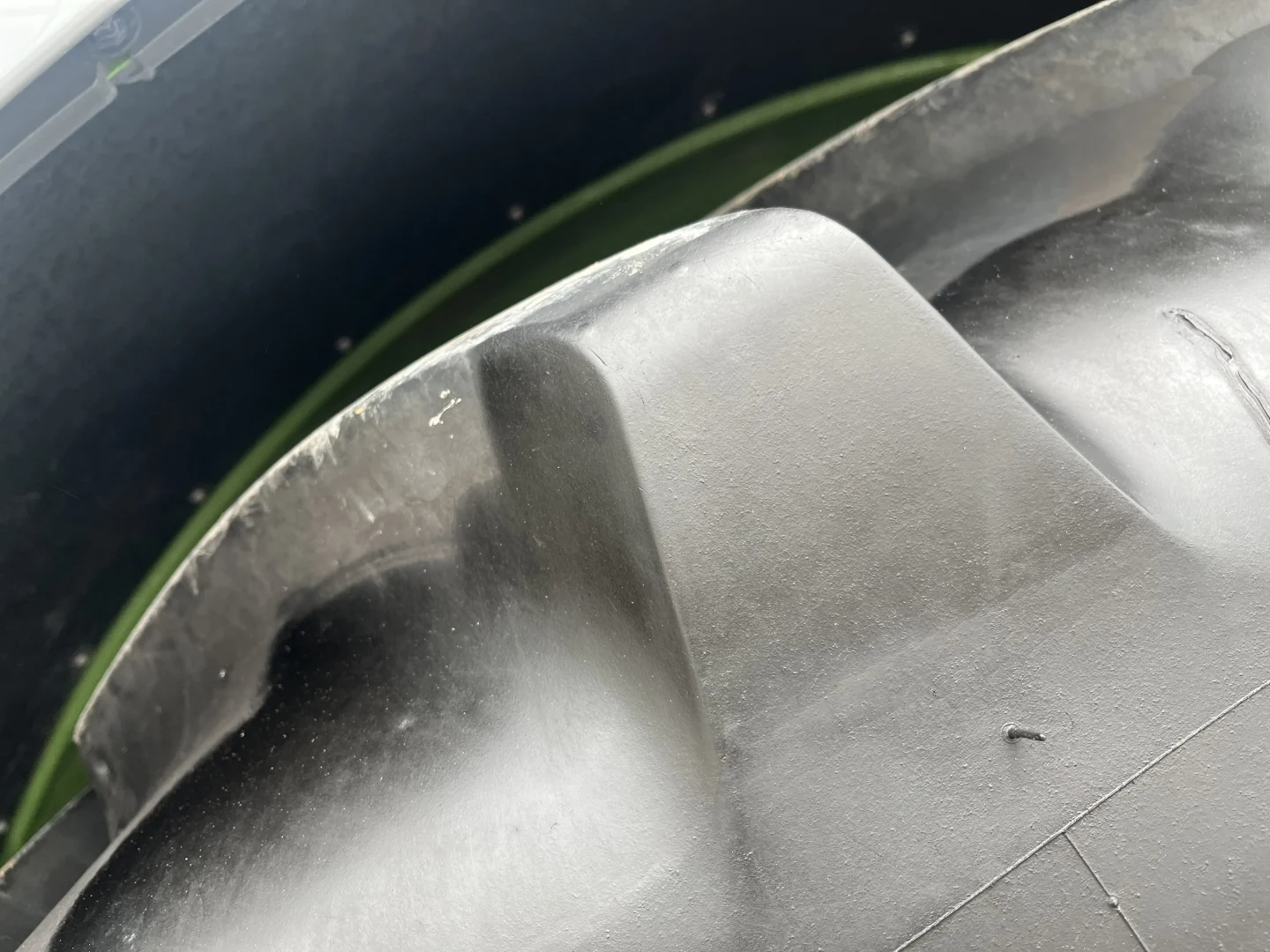

| Rear | MICHE 650/65R42 Multibib | |
| Size | 650/65R42 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 2' 1-1/8" (638mm) 638mm 2' 1-1/8" | |
| Overall Diameter | 6' 4" (1931mm) 1931mm 6' 4" | |
| Static Loaded Radius | 2' 9-3/4" (858mm) 858mm 2' 9-3/4" | |
| Rolling Circumference | 18' 9-1/4" (5722mm) 5722mm 18' 9-1/4" | |
| Tread Thickness | 2-1/4" (57mm) 57mm 2-1/4" | |
| Weight | 498.24lb. (226kg) 226kg 498.24lb. | |
| Dimensions | ||
|---|---|---|
| Length | 17' 2-5/16" (5240mm) 5240mm 17' 2-5/16" | |
| Wheelbase | 9' 1-9/16" (2783mm) 2783mm 9' 1-9/16" | |
| Width | 8' 4-3/8" (2550mm) 2550mm 8' 4-3/8" | |
| Height | 10' 11/16" (3065mm) 3065mm 10' 11/16" | |
| Minimum Ground Clearance | 1' 7-15/16" (506mm) 506mm 1' 7-15/16" | |
| Turning Radius | 40' 8" (12.4m) 12.4m 40' 8" | |
| Weight | 17052.76lb. (7735kg) 7735kg 17052.76lb. | |
