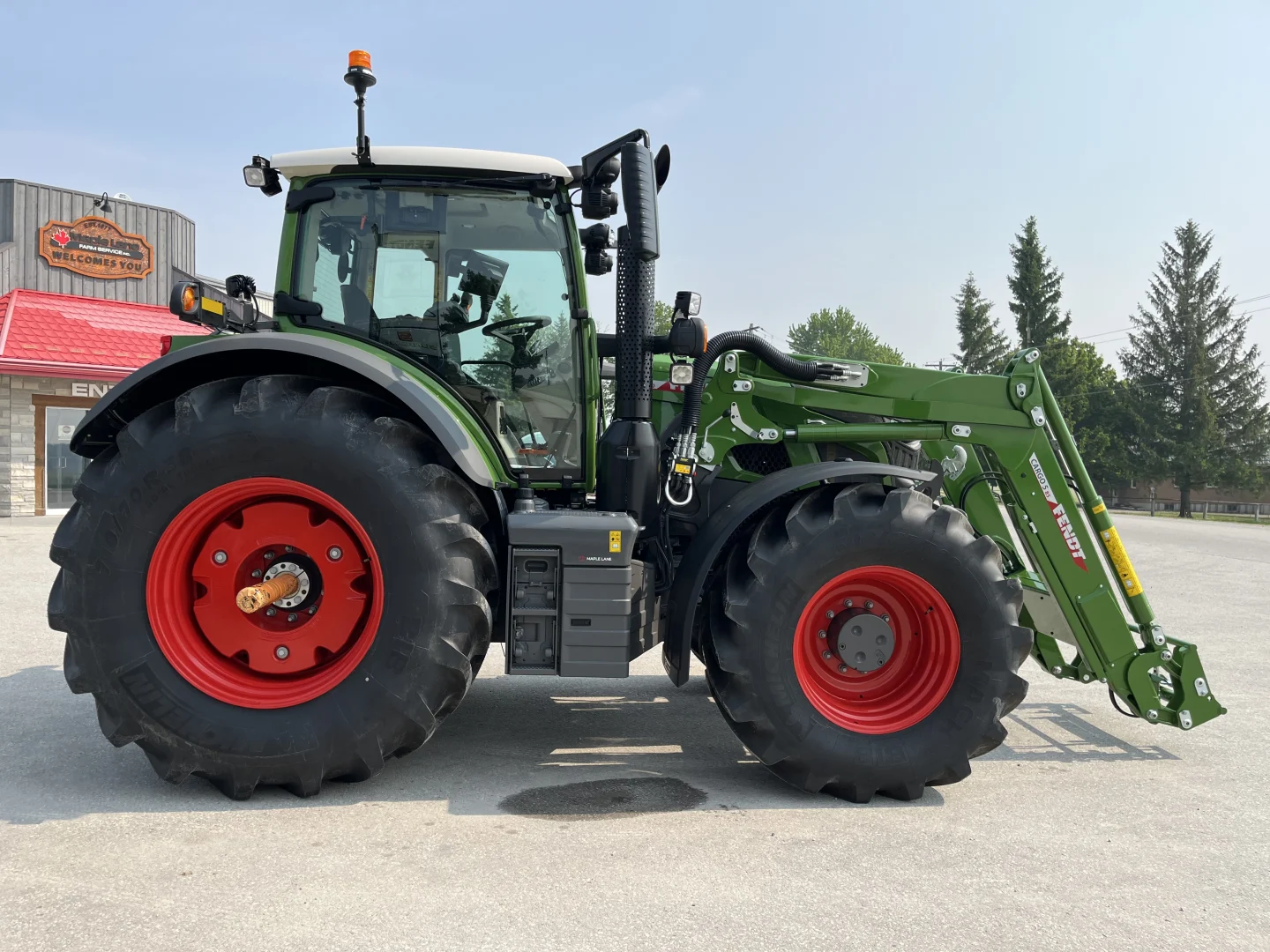

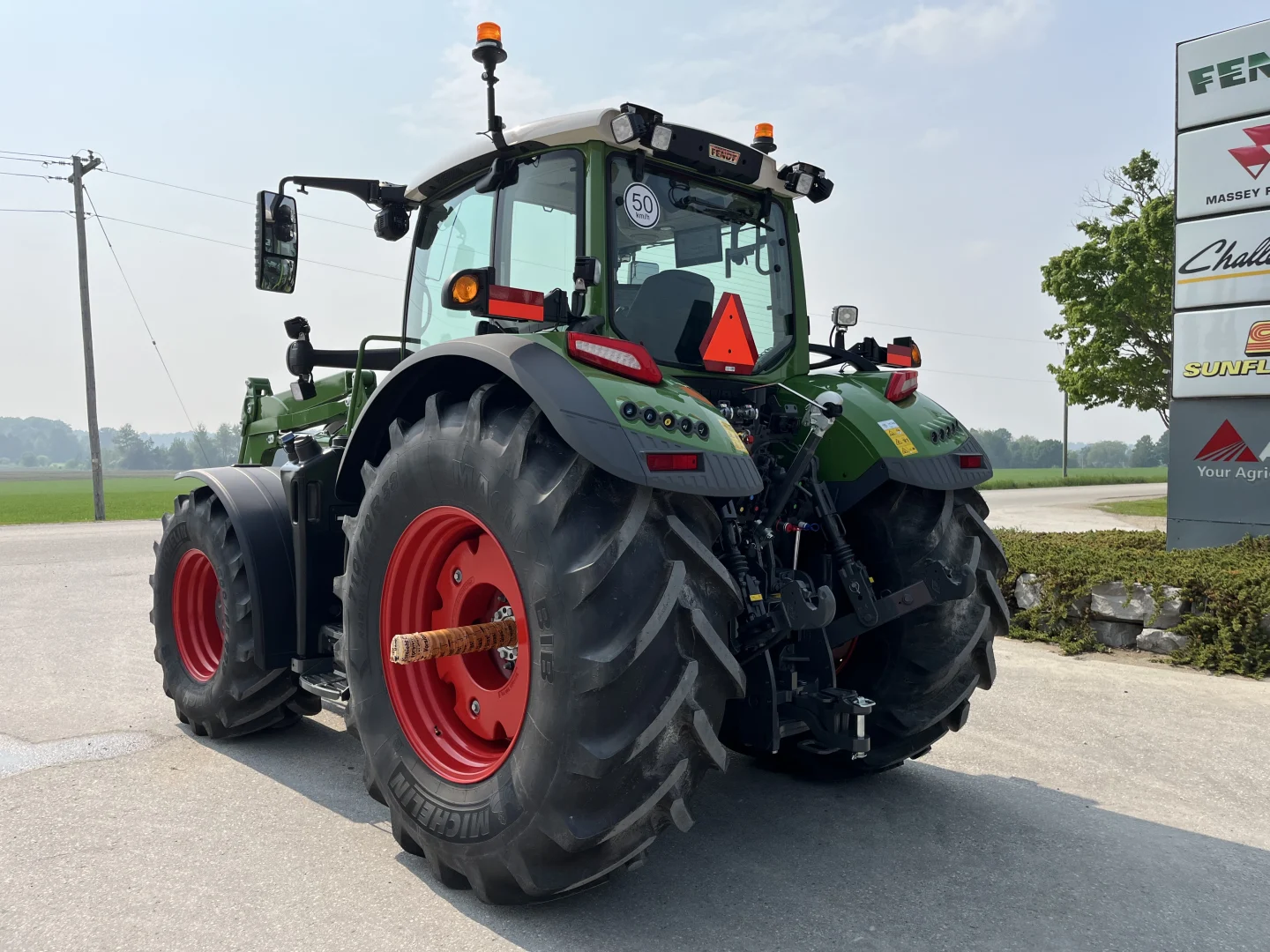

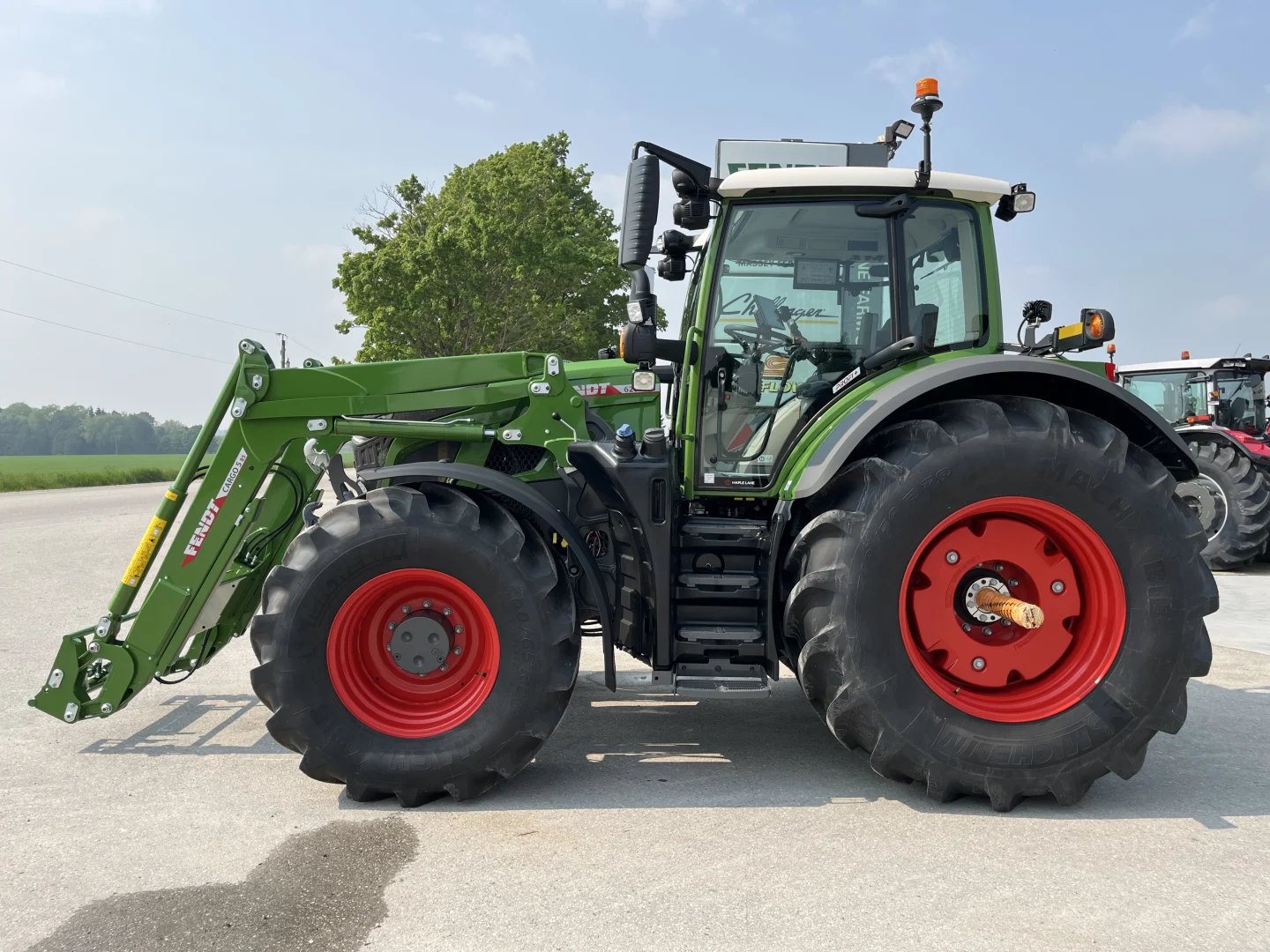

New 2025 Fendt 620
| Description | |
|---|---|

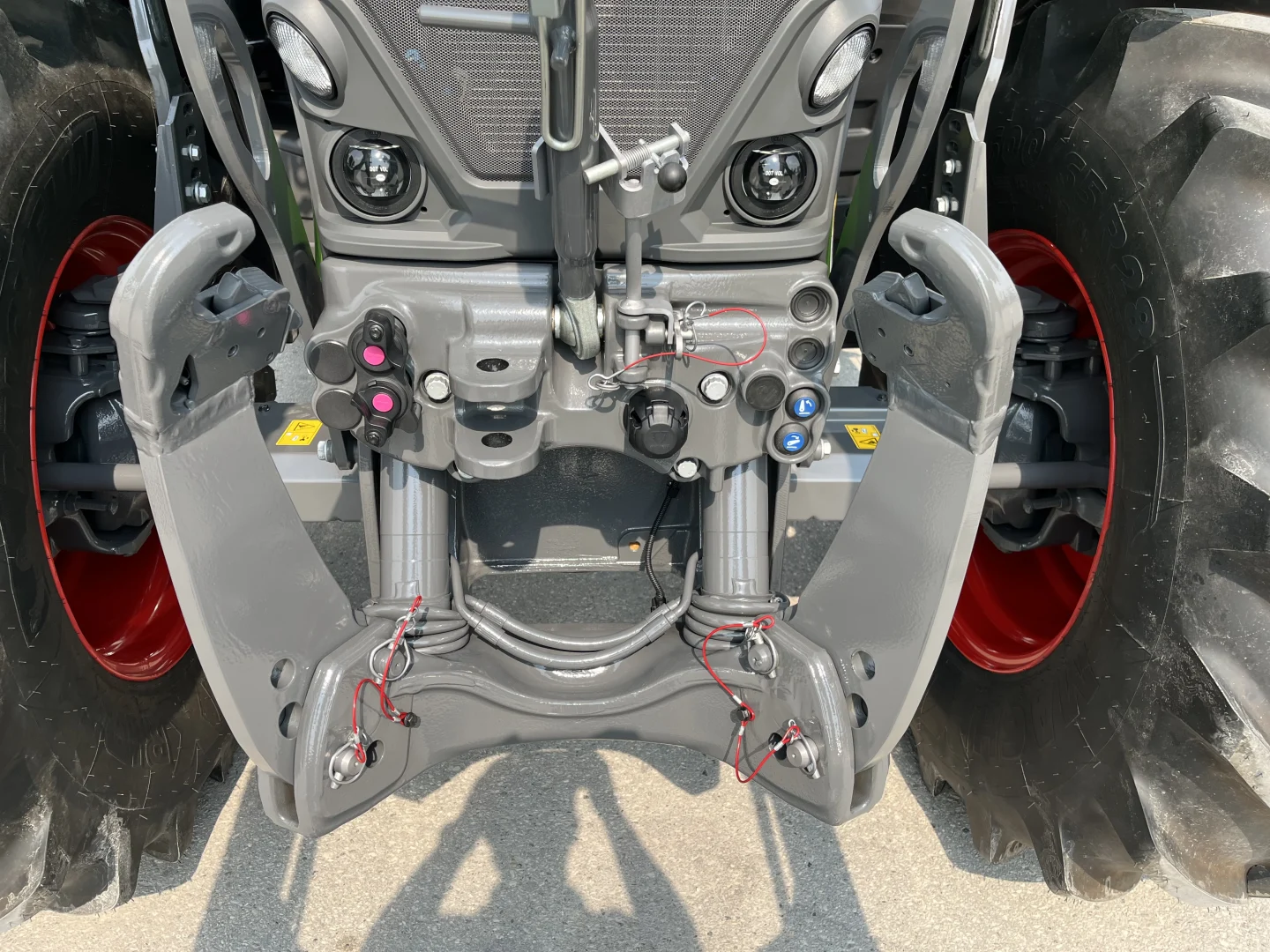

| New MY 2025, Profi+, 50KPH Vario transmission, 205 LPM hydraulic pump, power beyond, 4 rear remotes, hydraulic & air trailer brakes, front hitch, 1 front remote, air cab suspension, automatic park brake, Titanium leather seat with message functions, heated rear window, automatic climate control, infotainment, 12″ terminal + 12″ roof terminal, full LED lighting, powered mirrors, side wiper, rear & front hood camera, long bar axle, 300 KG wheel weights, 5.85 loader with suspension, 3rd function, hydraulic bucket lock, 710/70R38 rears, 600/65R28 fronts, 3 year / 3000 hour Fendt GoldStar Warranty. We gladly serve customers in southern Ontario. If you’re located outside southern Ontario, we would be grateful if you contacted your local Fendt dealer about a new 620 instead of us. | |
| Categories | High Horsepower |
| Unit Number | 24013W |
| Condition | New |
| Usage | 50 Hours |
| Year | 2025 |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 155.85kW (209hp) 209hp 155.85kW | |
| PTO Power | 135.72kW (182hp) 182hp 135.72kW | |
| Rated Engine Speed | 1900r/min | |
| Make | AGPWR 5.0L | |
| Displacement | 1.32gal. (5L) 5L 1.32gal. | |
| Number of Cylinders | 4 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 91.67gal. (347L) 347L 91.67gal. | |
| DEF Tank Capacity | 9.51gal. (36L) 36L 9.51gal. | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31.07mph (50km/h) 50km/h 31.07mph | |
| Minimum Speed | 0.01mph (0.02km/h) 0.02km/h 0.01mph | |
| Type | Variable | |
| Reverser | Power Shuttle | |
| Ranges | 1 | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|

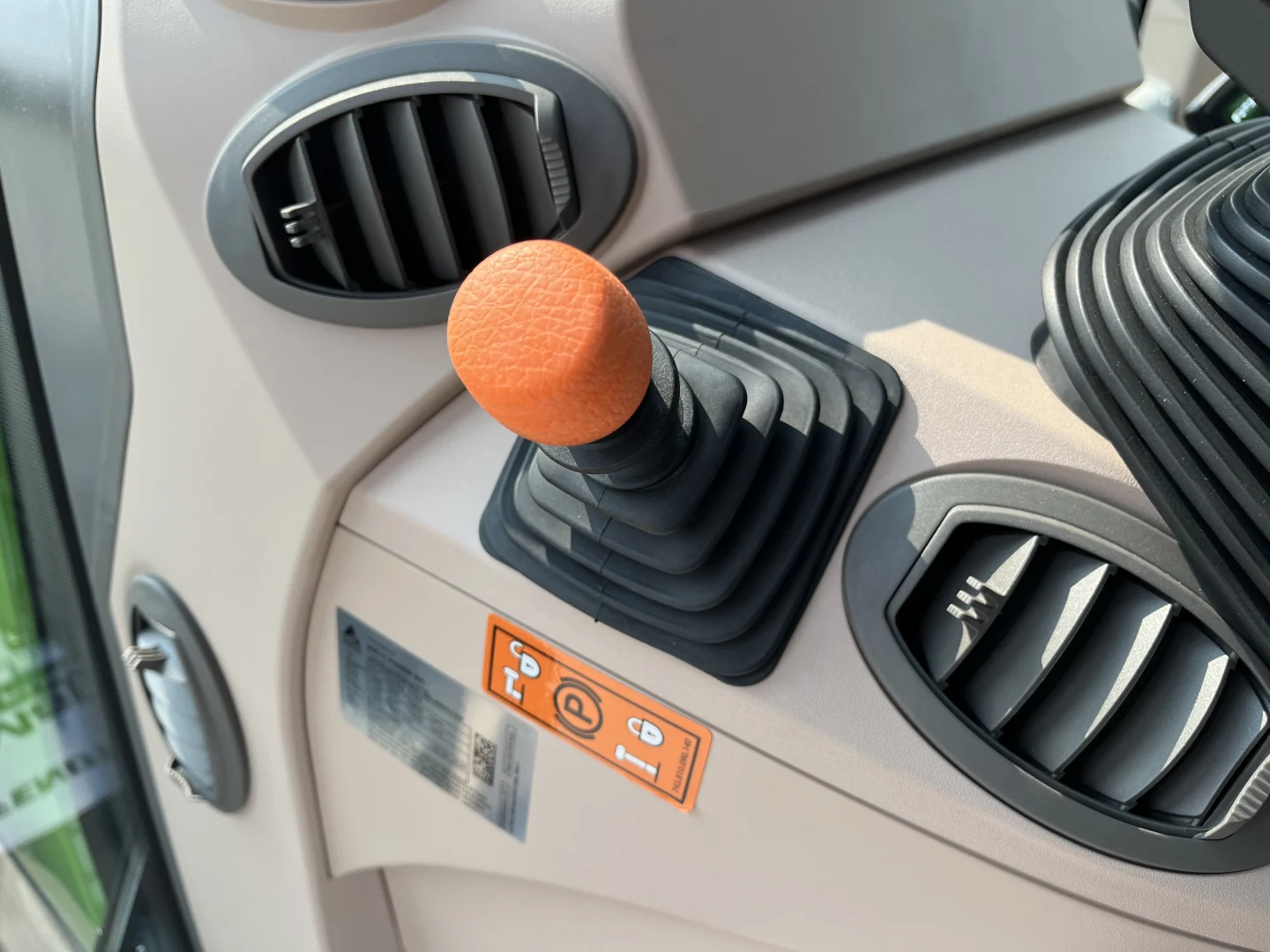

| Brakes | Pneumatic, Dual-Circuit | |
| Trailer Brakes | Hydraulic, Air | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Rear Axle Length | 8' 2-7/16" (2500mm) 2500mm 8' 2-7/16" | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 205 LPM | |
| Pump Type | Dual Variable Displacement Piston, Load Sensing | |
| Hydraulic Flow | 54.16GPM (205L/min) 205L/min 54.16GPM | |
| Maximum Operating Pressure | 2900.75psi (200bar) 200bar 2900.75psi | |
| Maximum Available Hydraulic Oil | 65.11L (17.2gal.) 17.2gal. 65.11L | |

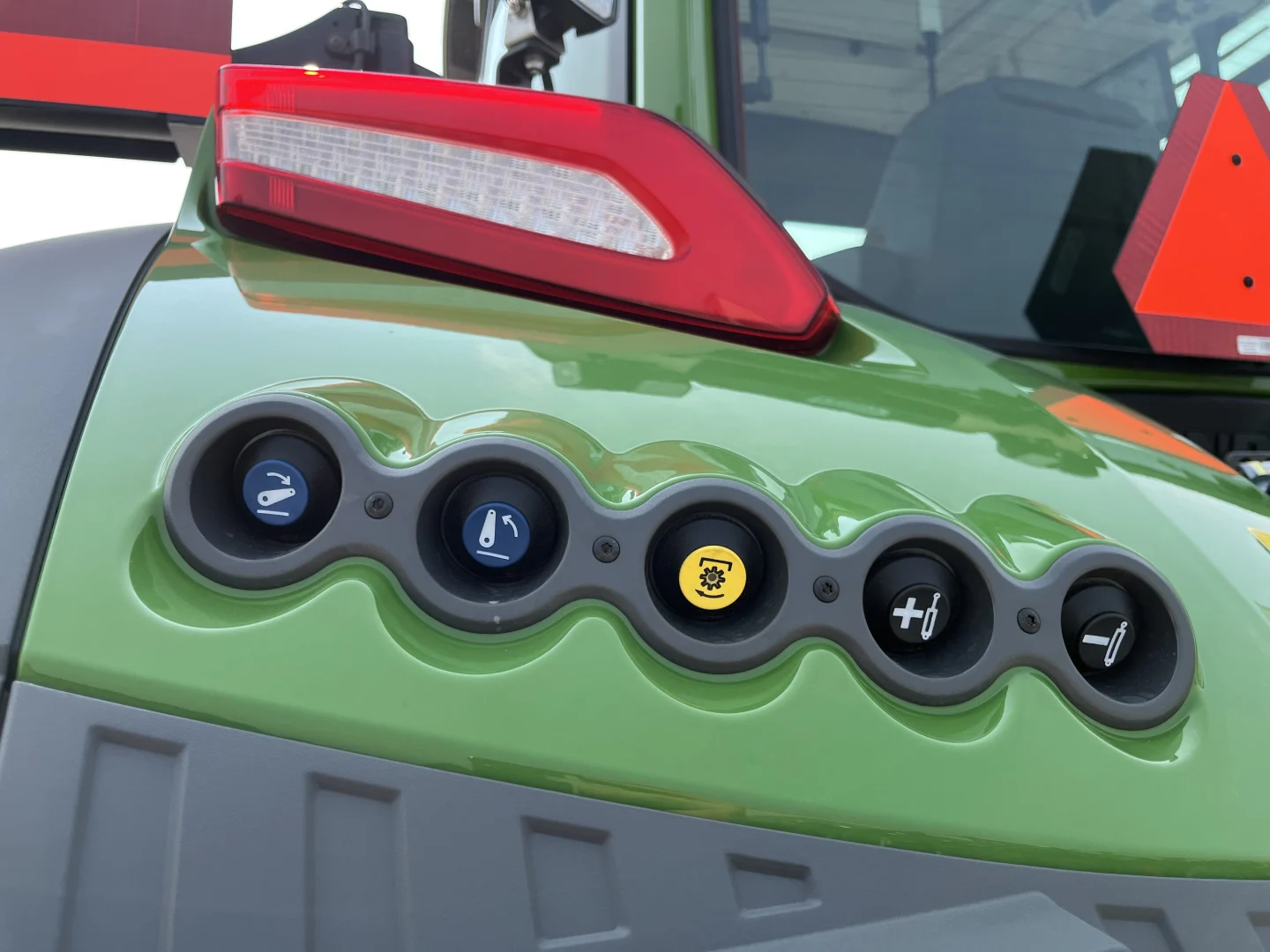

| Rear Remote Valves | 3 | |
| Front Remote Valves | 1 | |
| Steering | Hydraulic Power | |

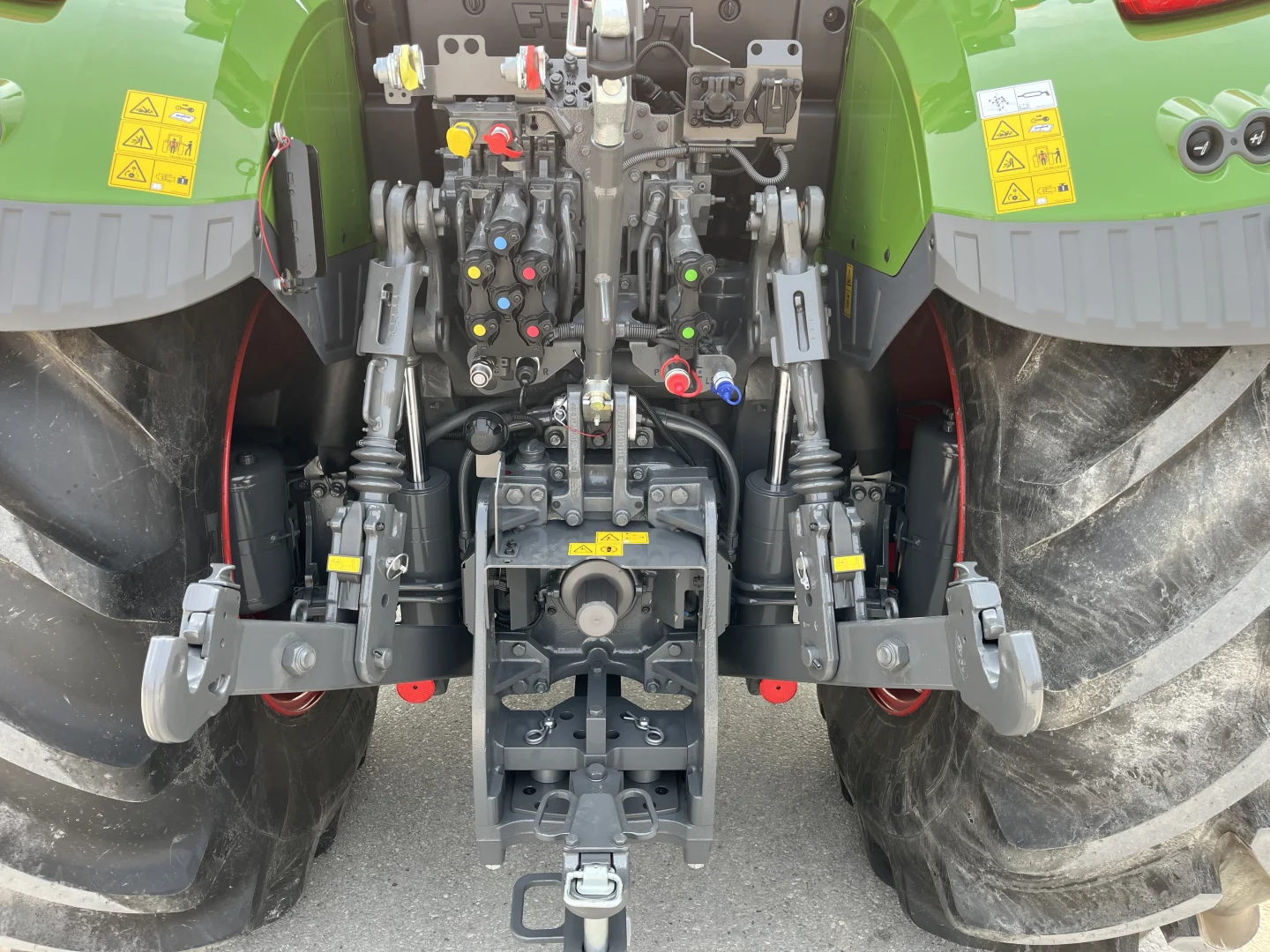

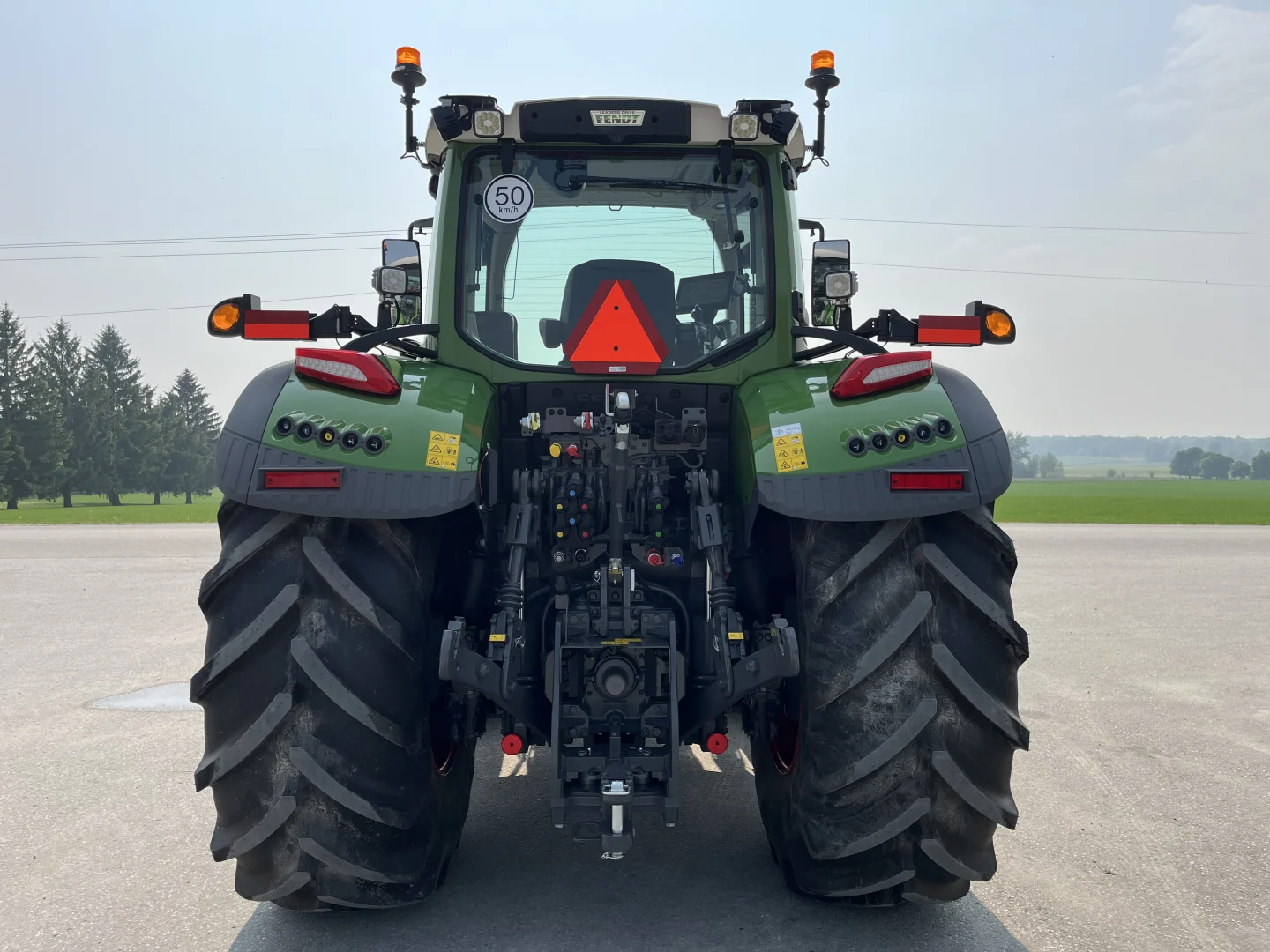

| Hitching | ||
|---|---|---|
| Rear Hitch | FD 600 | |
| Hitch Category | Category 3 | |
| Lift Capacity at Pins | 18884.8lb. (8566kg) 8566kg 18884.8lb. | |
| Comfort | Draft Control | |
| Rear Drawbar | Category 3 | |
| PTO | ||
|---|---|---|
| Rear | 540, 540E, 1000, 1000E | |
| Type | Independent | |
| Technology | ||
|---|---|---|

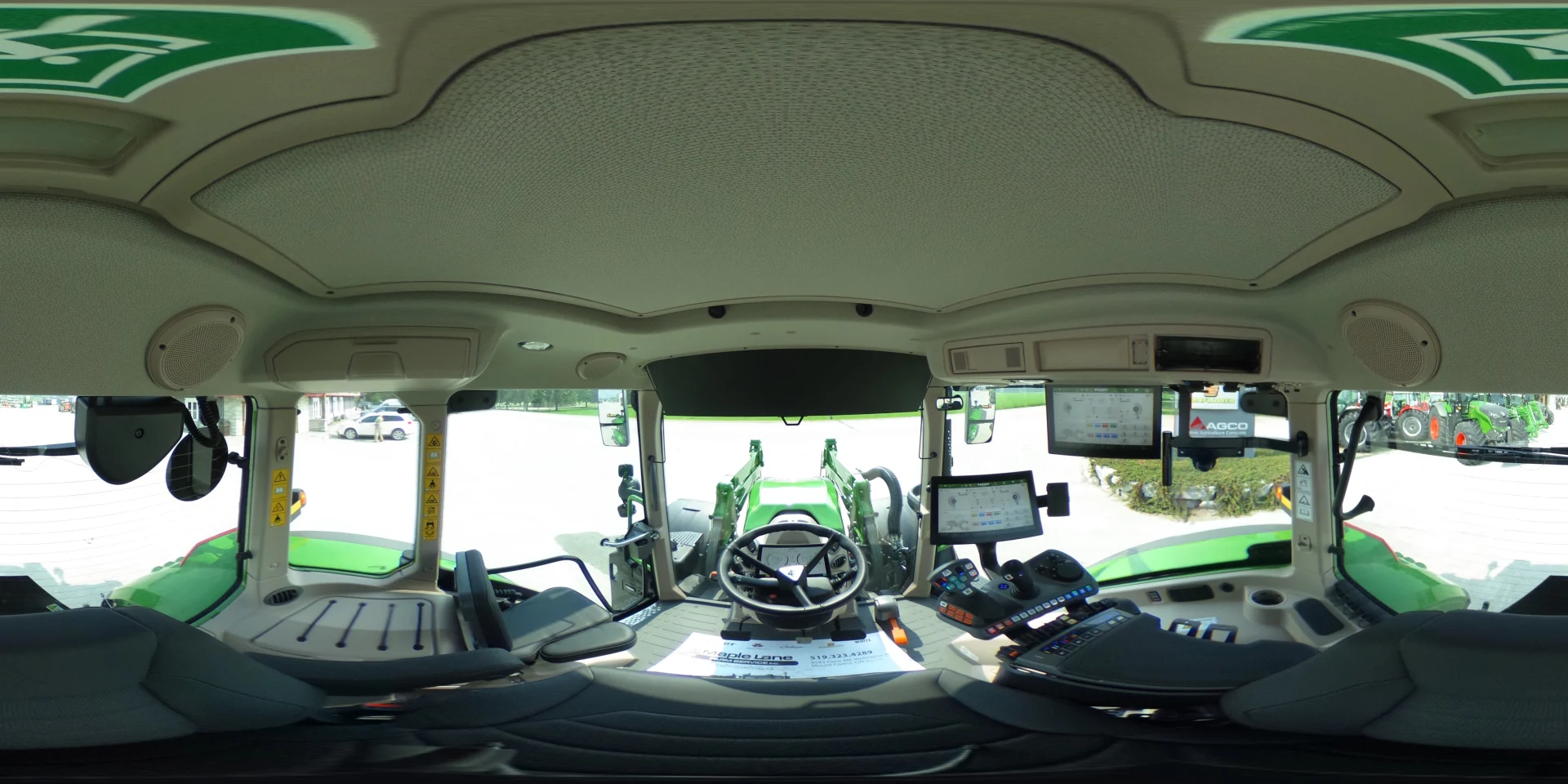

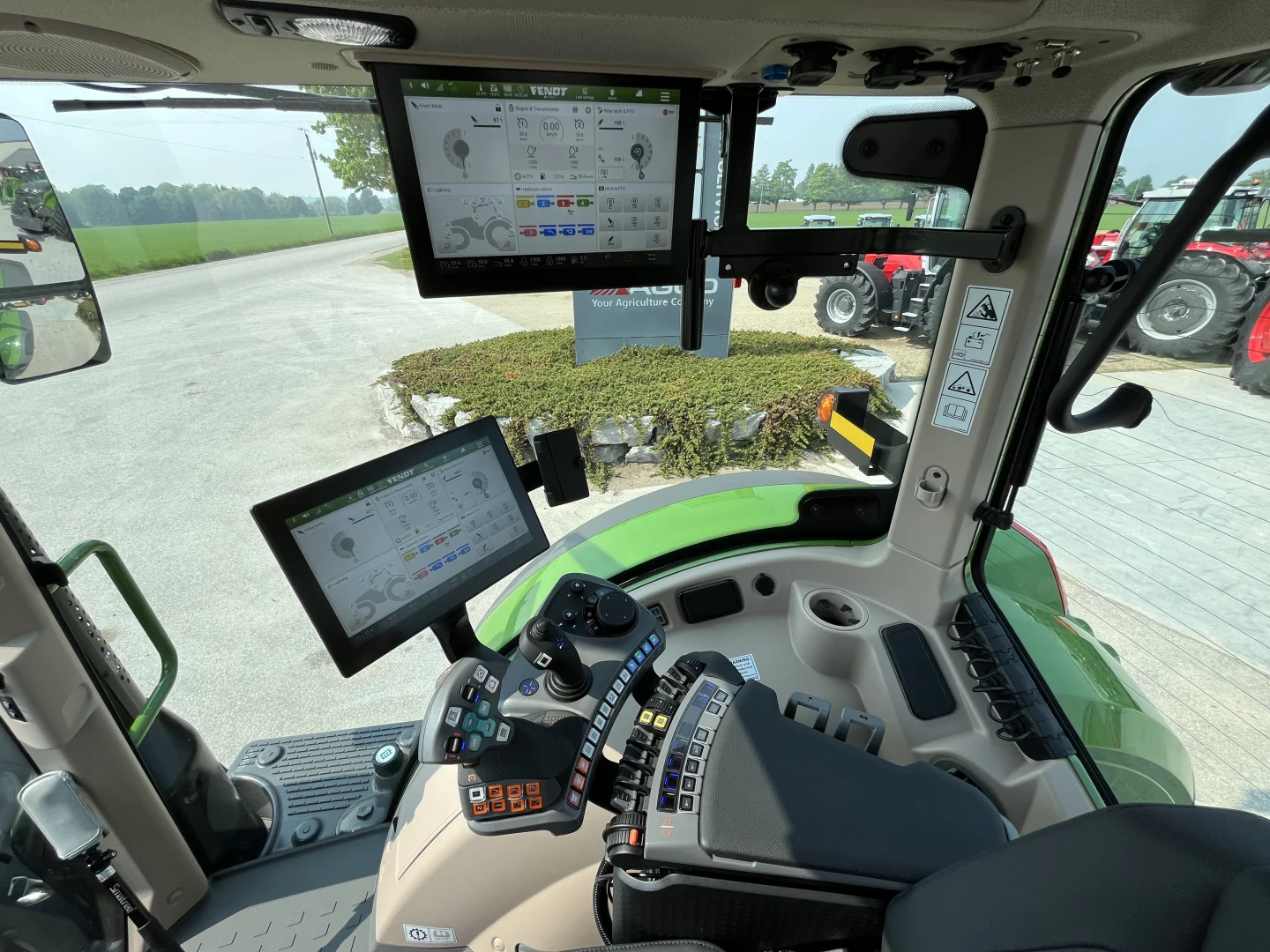

| Display | 12" Roof Mounted Terminal, 12" Armrest Mounted Terminal | |

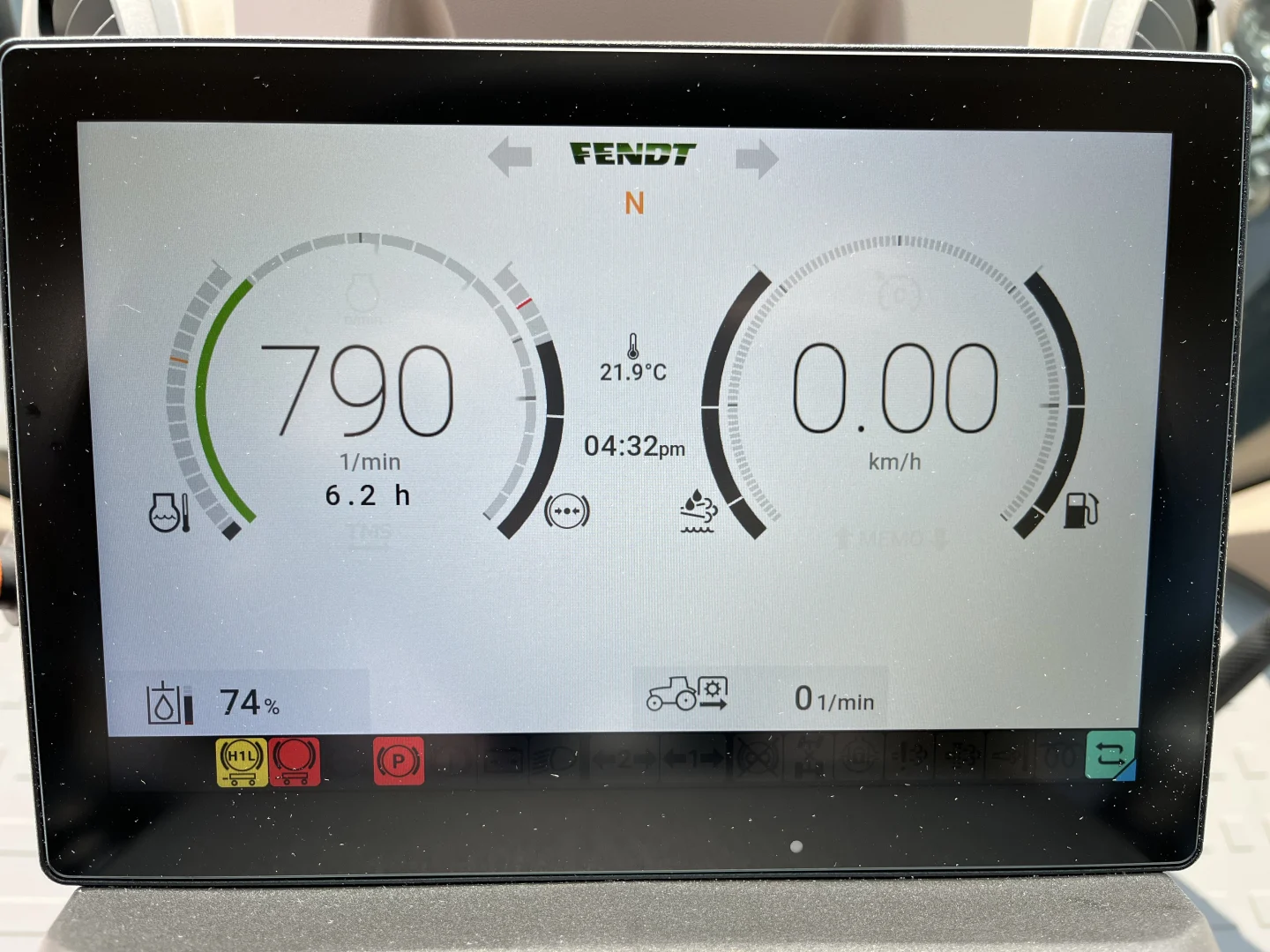

| Instrument Display | 10" Dash Screen | |
| Camera | Hood, Rear | |
| Data Transfer | TaskDoc Pro | |
| Telemetry | 5 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Worklight Type | LED | |
| Rotating Beacon | Left, Right | |
| Alternator | 220A | |

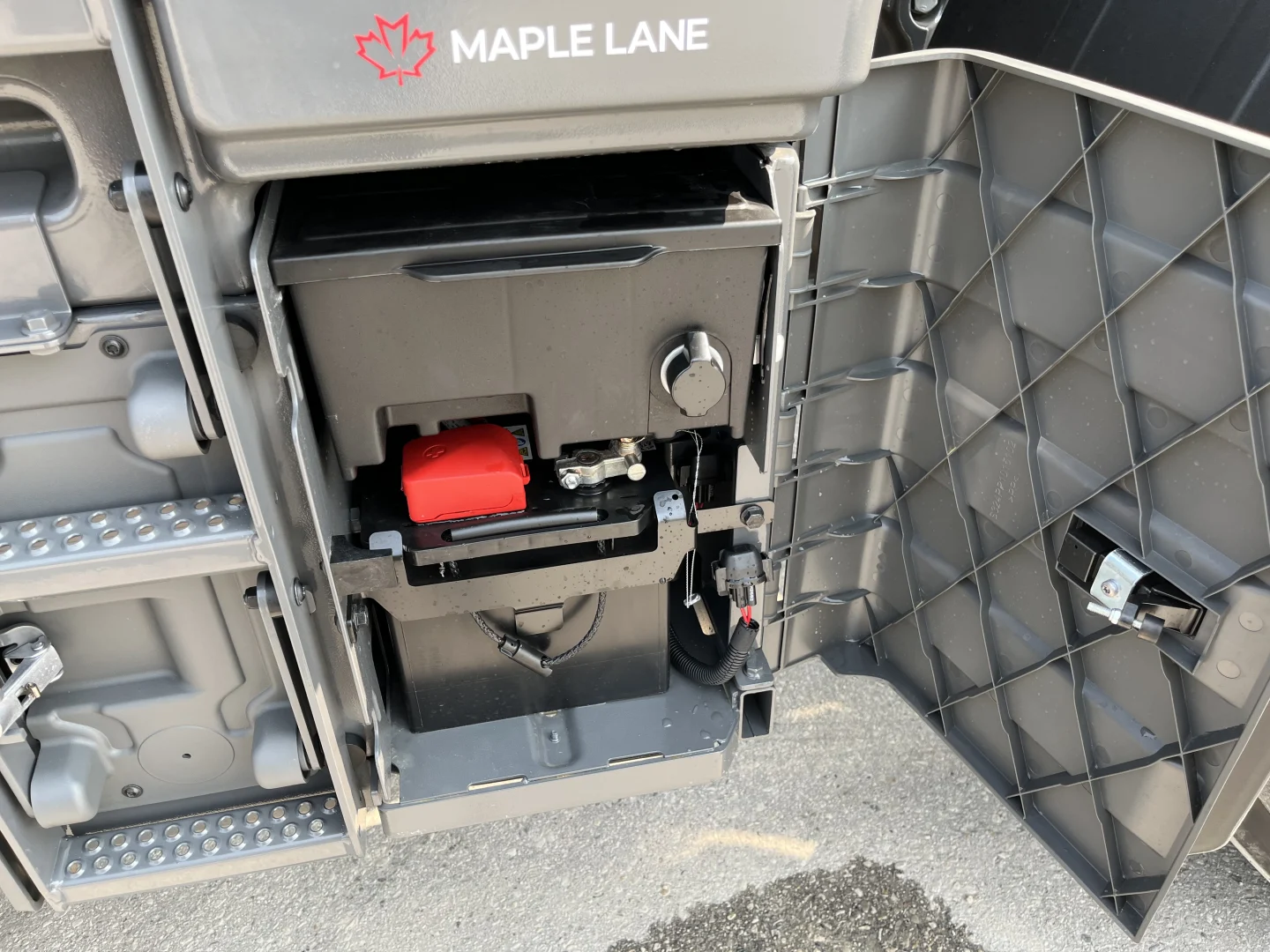

| Battery Count | 1 | |

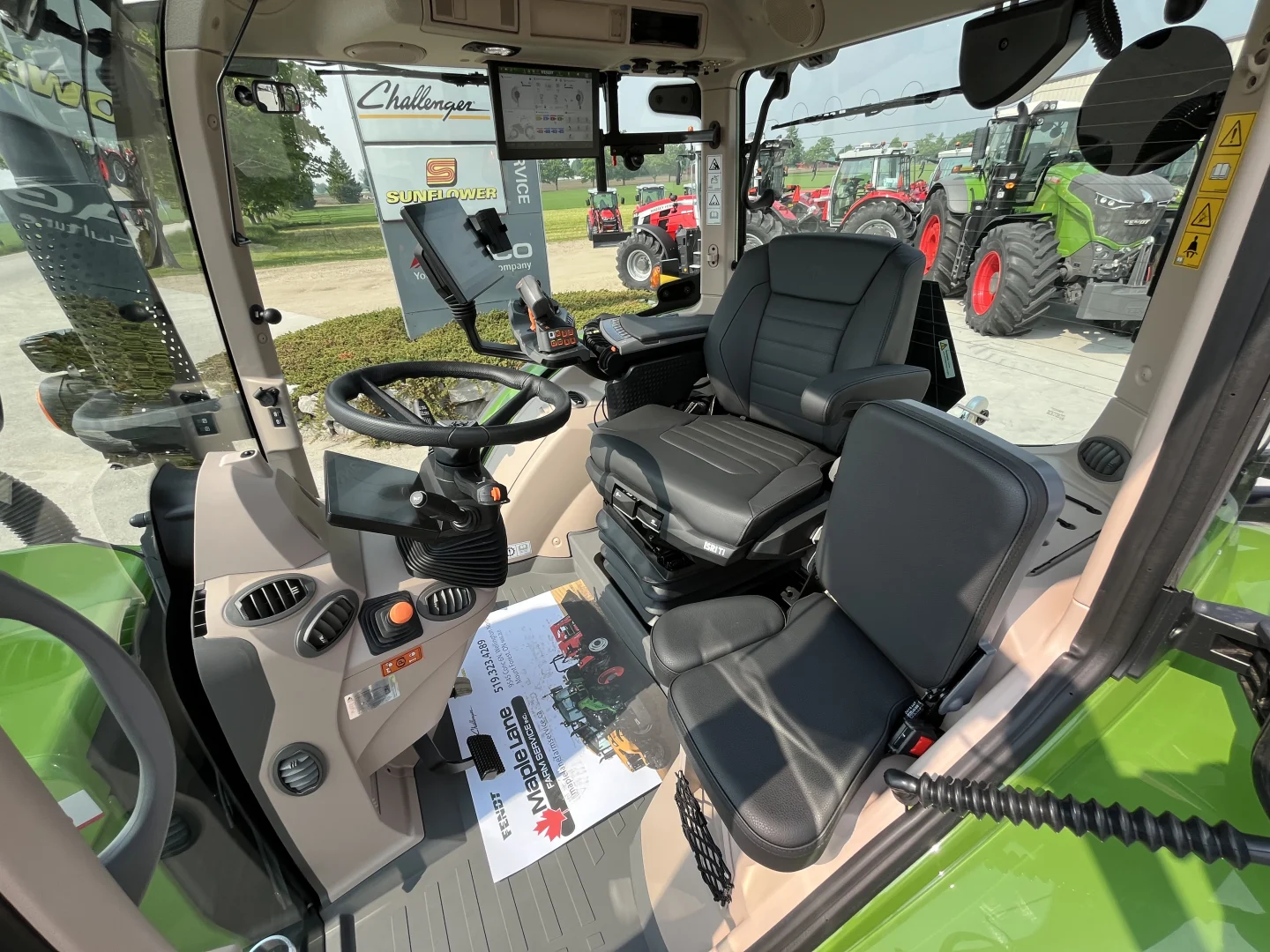

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Access | Left Hand Door | |
| Climate | Heater, Air Conditioning, Automatic | |
| Cab Suspension | 2 Point Air | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |
| Operator Seat | FD Super Comfort Titanium Leather | |
| Material | Leather | |
| Safety Arrest | 2pt Belt | |
| Armrest | Height Adjustable | |
| Backrest | Recline, Side Bolsters | |
| Headrest | Extend | |
| Lumbar Support | Pneumatic, Massaging | |
| Seat | Forward/Reverse Adjustment, Left/Right Adjustment | |
| Suspension | Compressed Air System (no compressor) | |
| Rotation | Swivel | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Memory Settings (terminal user profile), Automatic Height Adjustment | |
| Wiper | Side, 300° Front, Rear | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |
| Wheels | ||
|---|---|---|
| Front | TRELL 380/85R34 TM600 | |
| Size | 380/85R34 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 3-3/8" (390mm) 390mm 1' 3-3/8" | |
| Overall Diameter | 4' 11-9/16" (1513mm) 1513mm 4' 11-9/16" | |
| Static Loaded Radius | 2' 2-7/8" (683mm) 683mm 2' 2-7/8" | |
| Rolling Circumference | 15' 1/16" (4574mm) 4574mm 15' 1/16" | |
| Weight | 187.17lb. (84.9kg) 84.9kg 187.17lb. | |

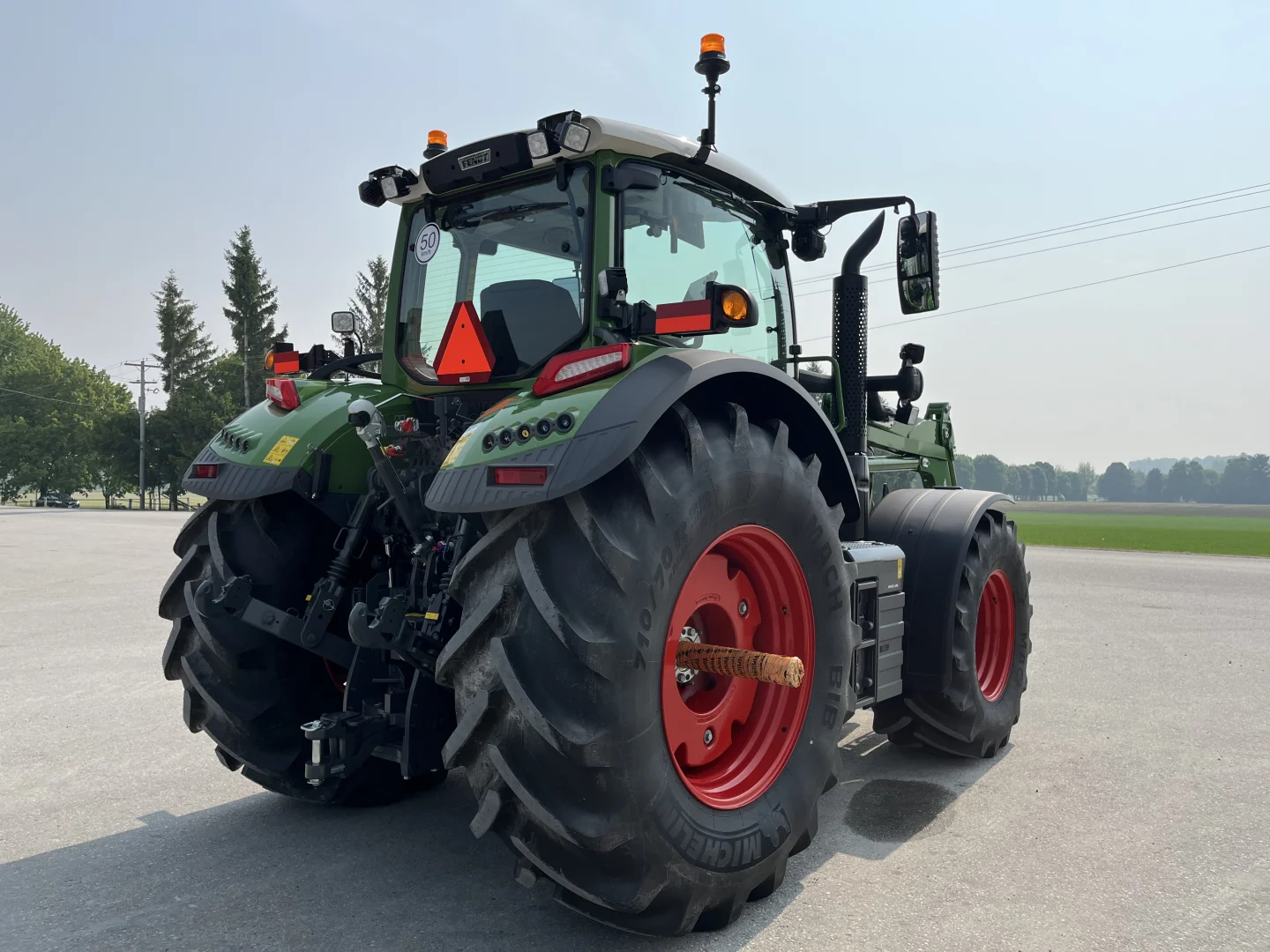

| Rear | MICHE 710/70R38 Machxbib | |
| Size | 710/70R38 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 2' 4-1/16" (713mm) 713mm 2' 4-1/16" | |
| Overall Diameter | 6' 5-11/16" (1973mm) 1973mm 6' 5-11/16" | |
| Static Loaded Radius | 2' 10-5/16" (871mm) 871mm 2' 10-5/16" | |
| Rolling Circumference | 19' 1/2" (5804mm) 5804mm 19' 1/2" | |
| Weight | 648.16lb. (294kg) 294kg 648.16lb. | |
| Maximum Track Width Front | 6' 4-3/4" (1950mm) 1950mm 6' 4-3/4" | |
| Minimum Track Width Rear | 6' 1-5/8" (1870mm) 1870mm 6' 1-5/8" | |
| Weights | ||
|---|---|---|

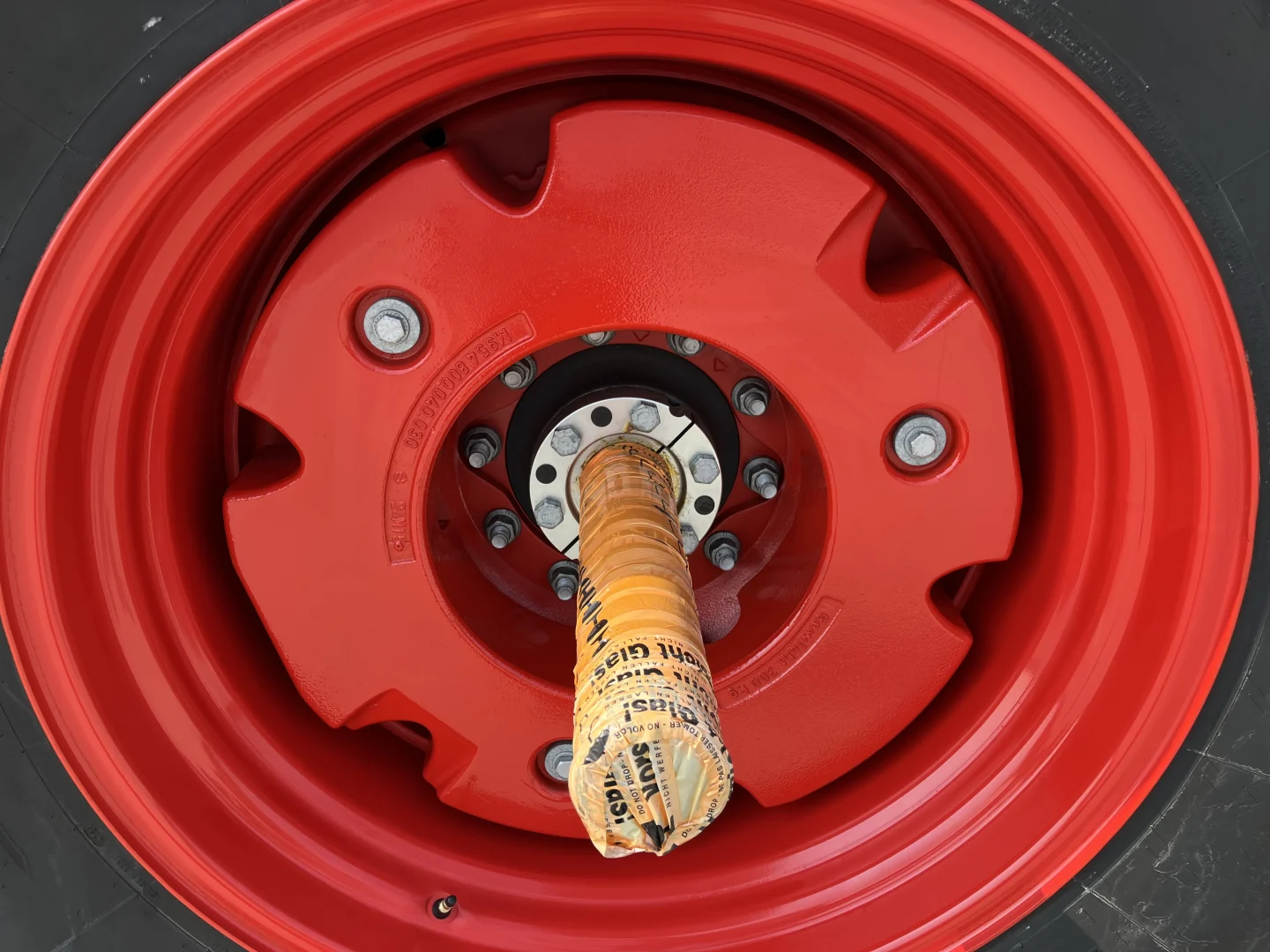

| Wheel Weights | FD 300 kg Wheel Weight Pair | |
| Mount | Bolt | |
| Type | Wheel Disc | |
| Weight | 661.39lb. (300kg) 300kg 661.39lb. | |
| Dimensions | ||
|---|---|---|
| Length | 17' 5/8" (5197mm) 5197mm 17' 5/8" | |
| Wheelbase | 8' 11-1/16" (2720mm) 2720mm 8' 11-1/16" | |
| Width | 8' 4-3/8" (2550mm) 2550mm 8' 4-3/8" | |
| Height | 9' 11-1/2" (3035mm) 3035mm 9' 11-1/2" | |
| Minimum Ground Clearance | 1' 7-5/8" (498mm) 498mm 1' 7-5/8" | |
| Weight | 16799.23lb. (7620kg) 7620kg 16799.23lb. | |

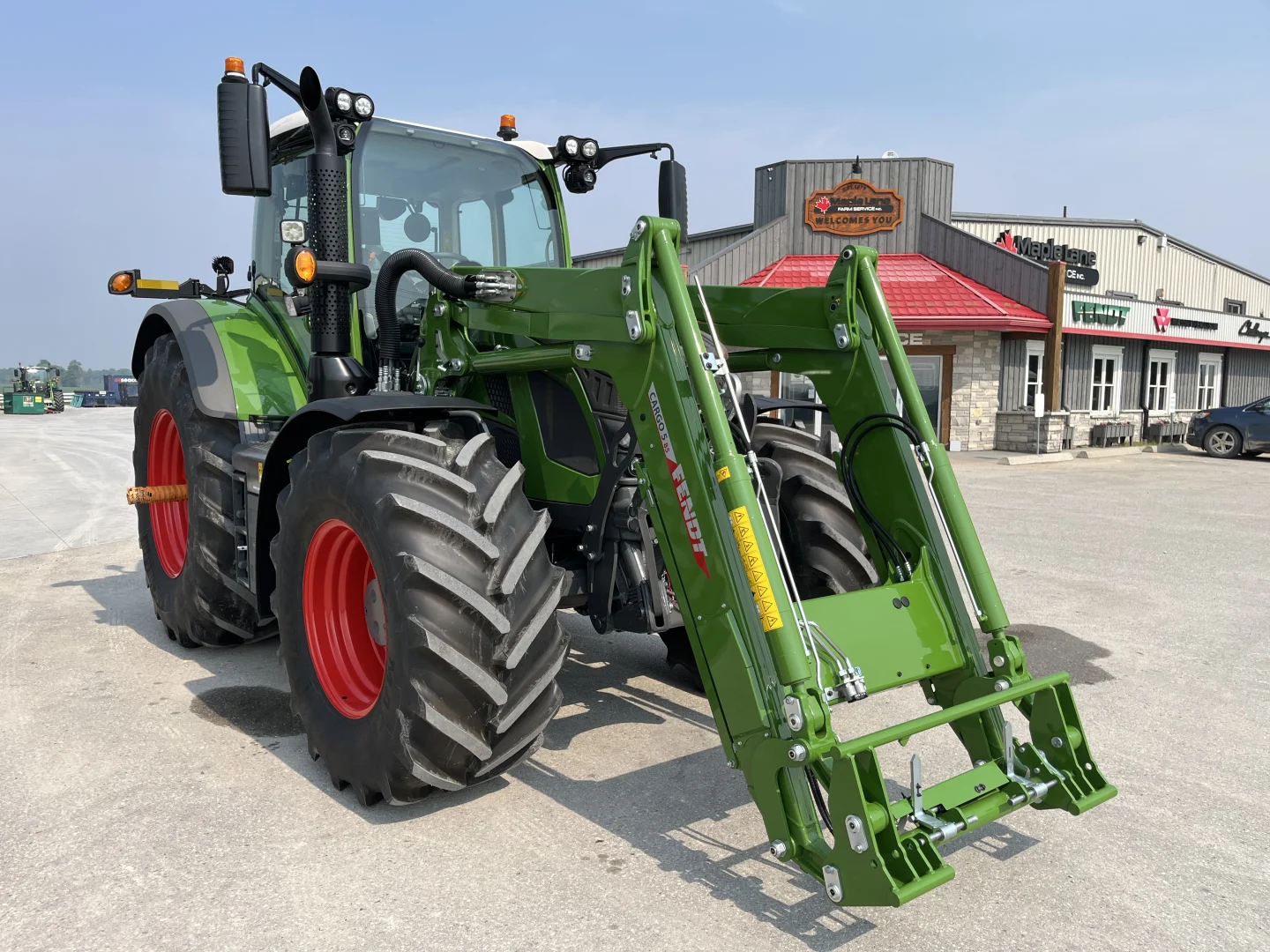

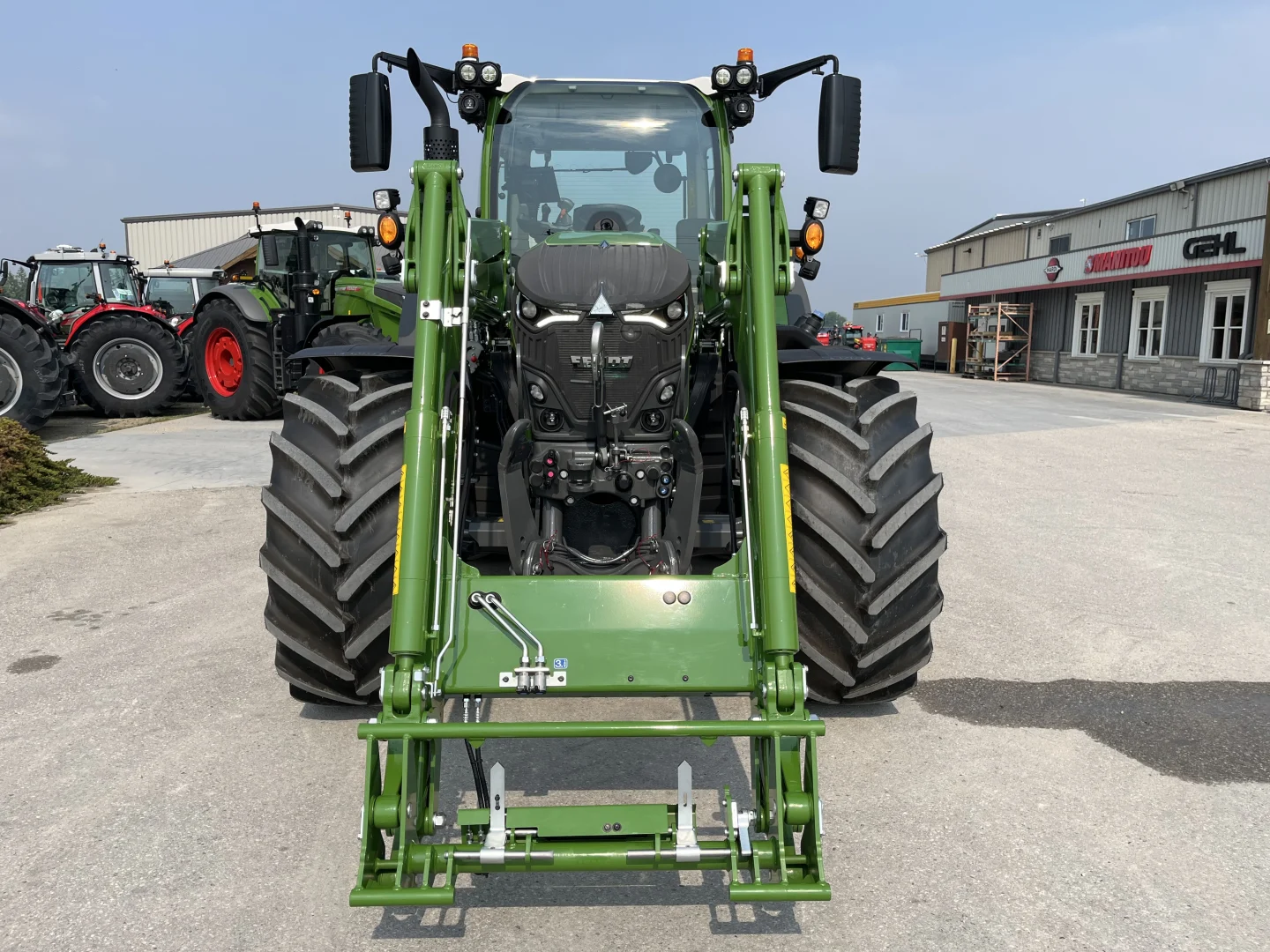

| Loader | ||
|---|---|---|
| Loader | FD Cargo 5.85 | |
| Lift Capacity | 5844.46lb. (2651kg) 2651kg 5844.46lb. | |
| Maximum Lift Height – Pivot Pin | 14' 3-5/16" (4351mm) 4351mm 14' 3-5/16" | |
| Lift Capacity to Max Height – Pivot Pin | 6743.94lb. (3059kg) 3059kg 6743.94lb. | |
| Max Rollback Angle | 48deg | |
| Max Dump Angle | 55deg | |

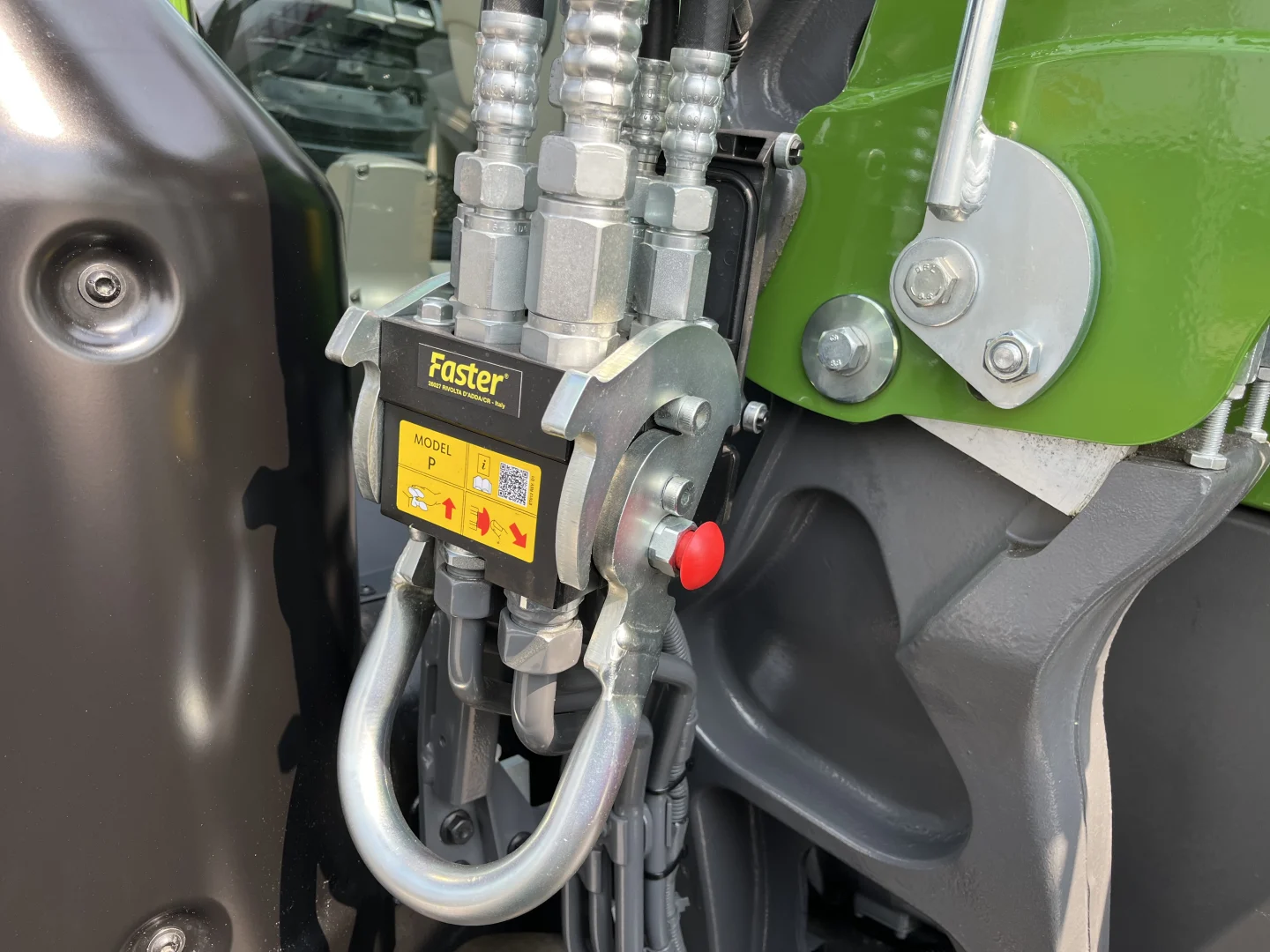

| 3rd Function | Live 3rd | |
| Comfort | Hydraulic Bucket Lock | |

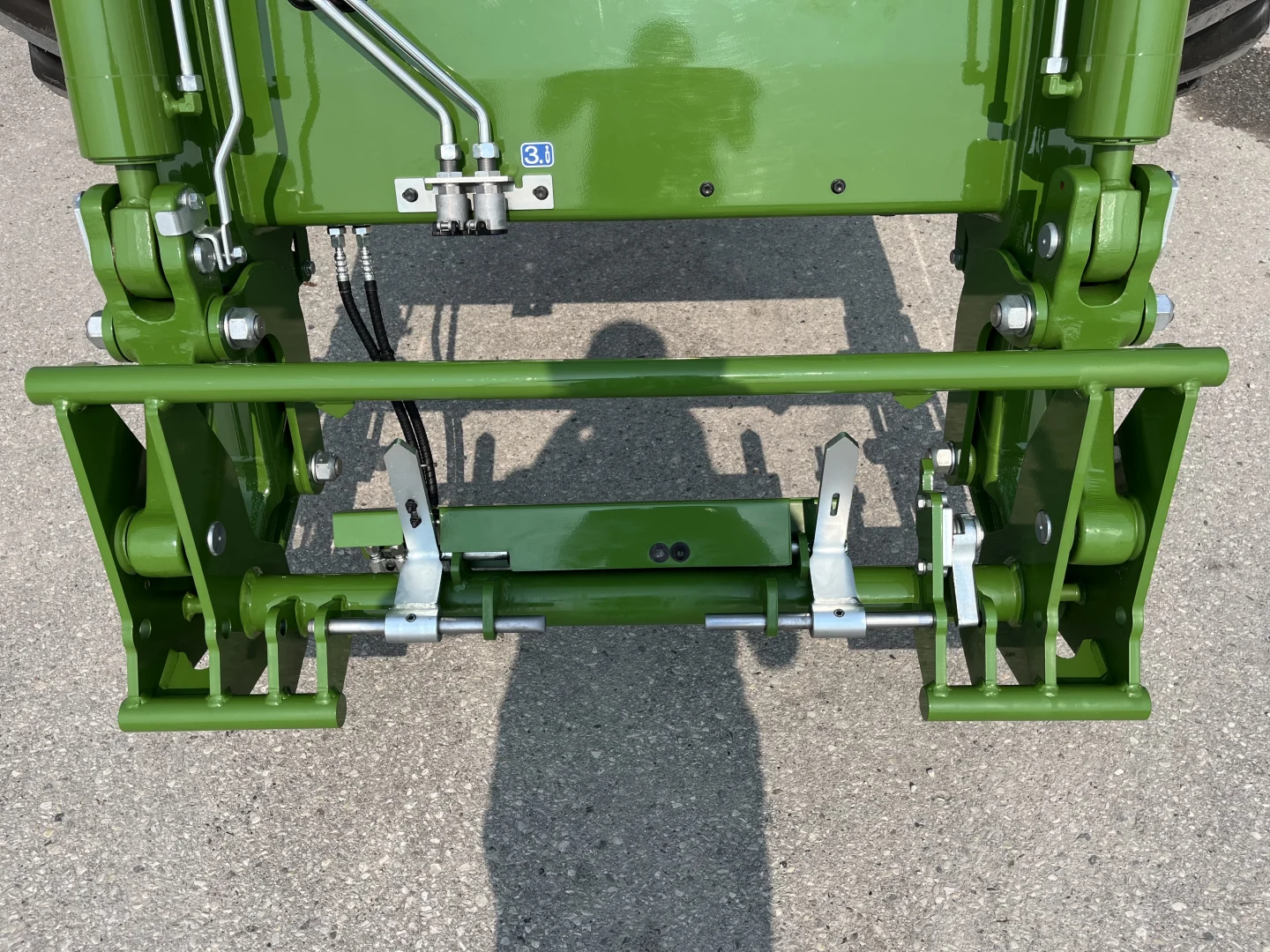

| Tool Carrier | Euro Quick Attach | |
| Self-Leveling | Hydraulic | |
| Lift Path | Radial | |
