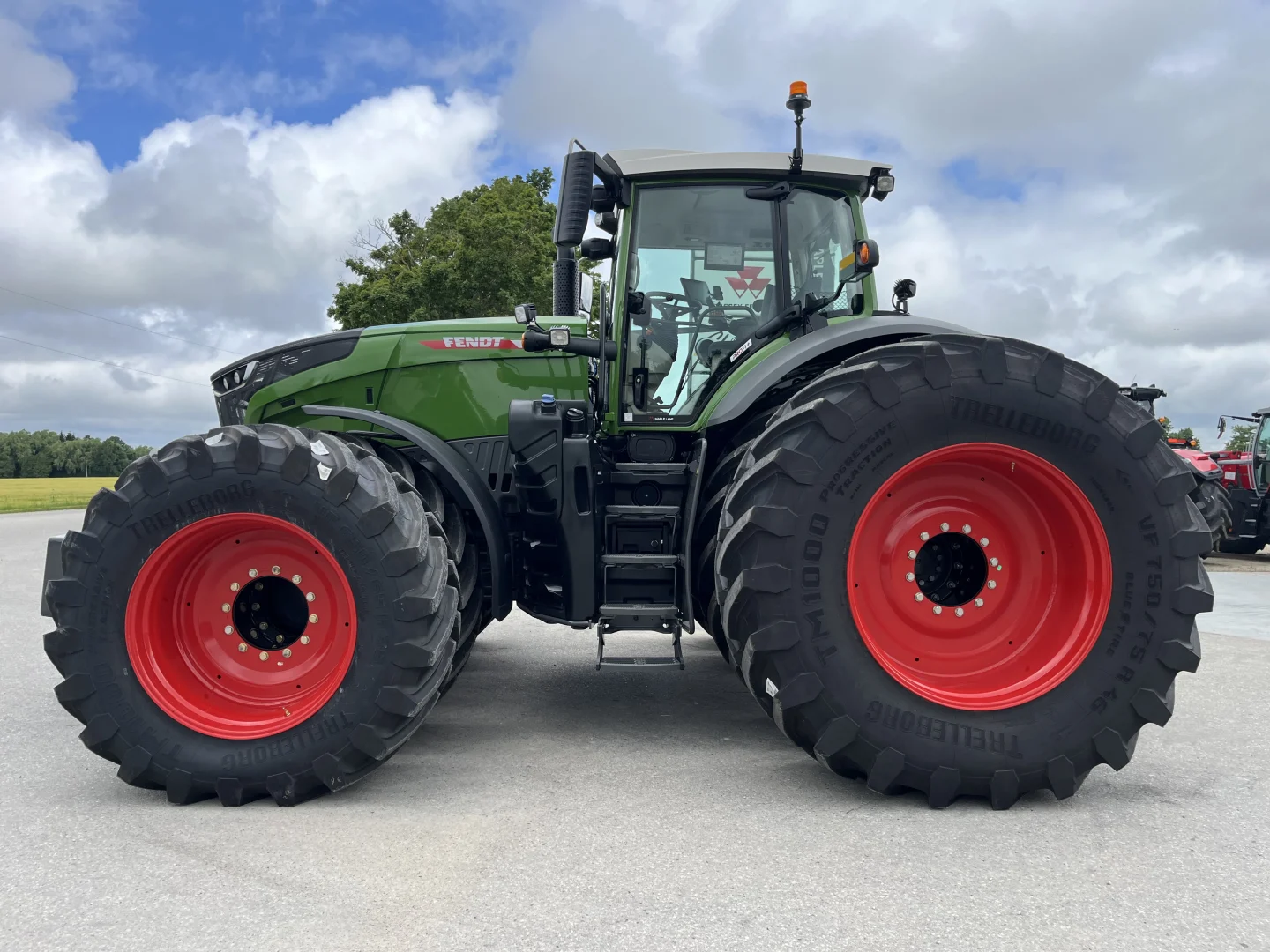

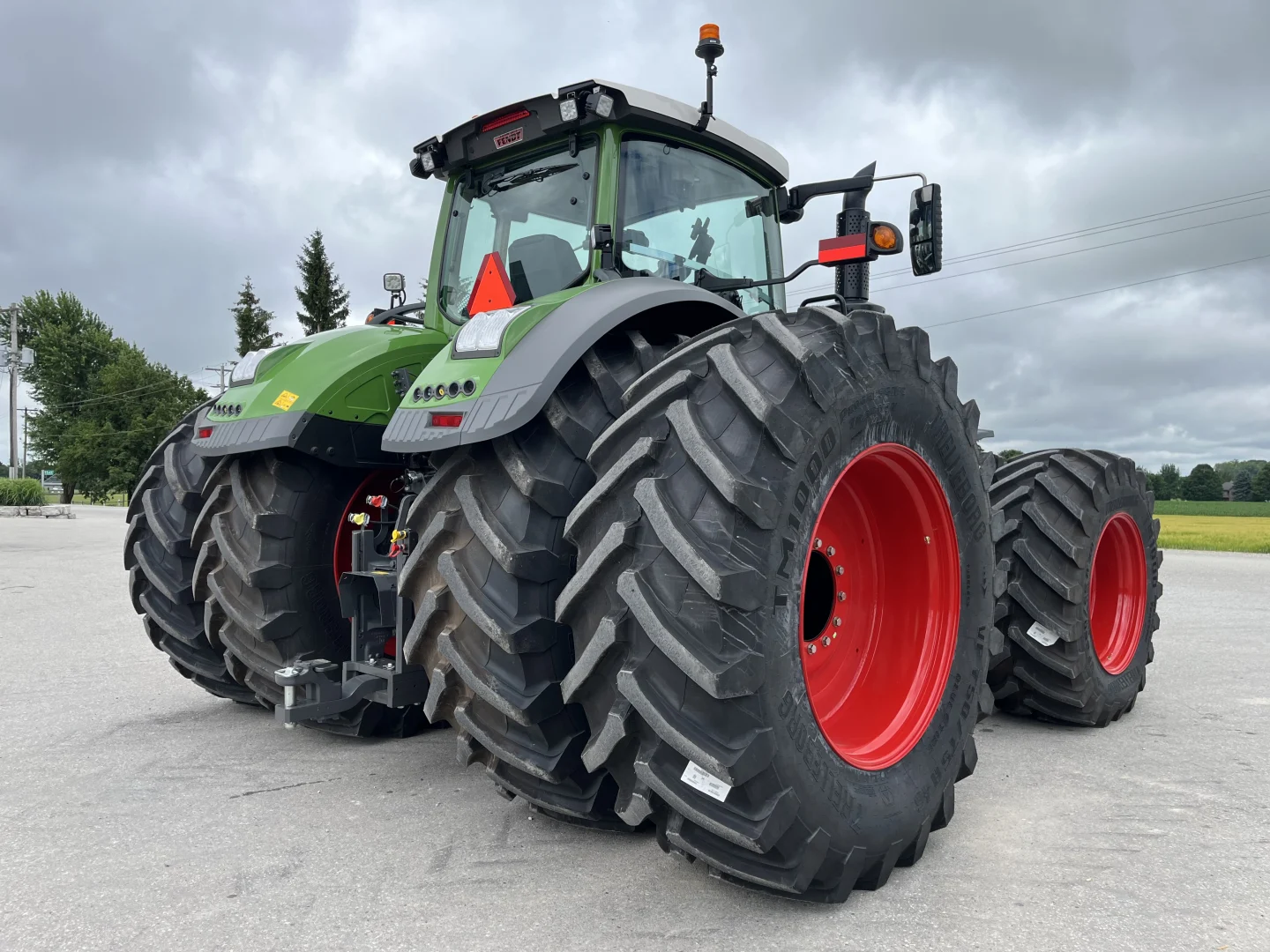

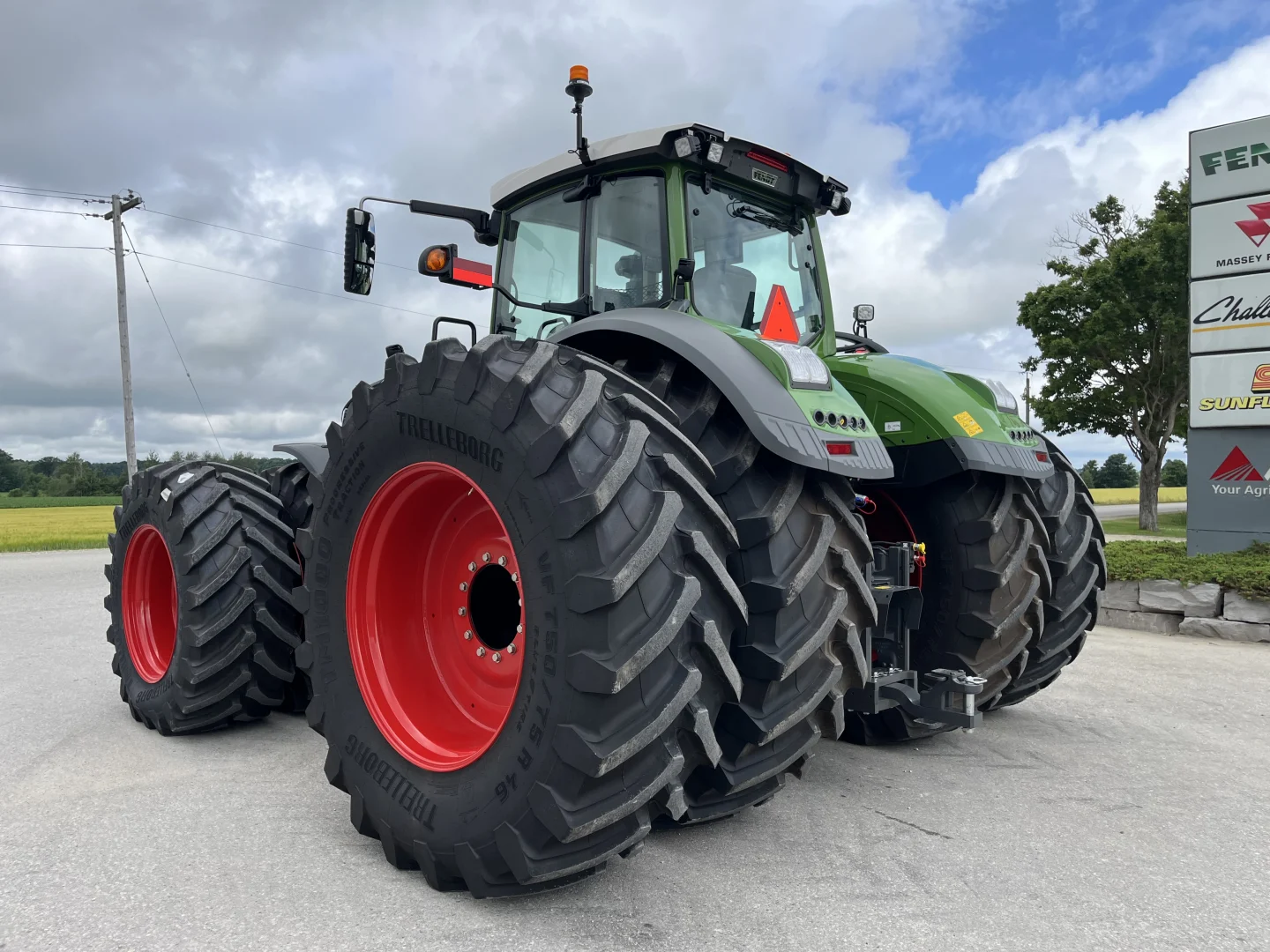

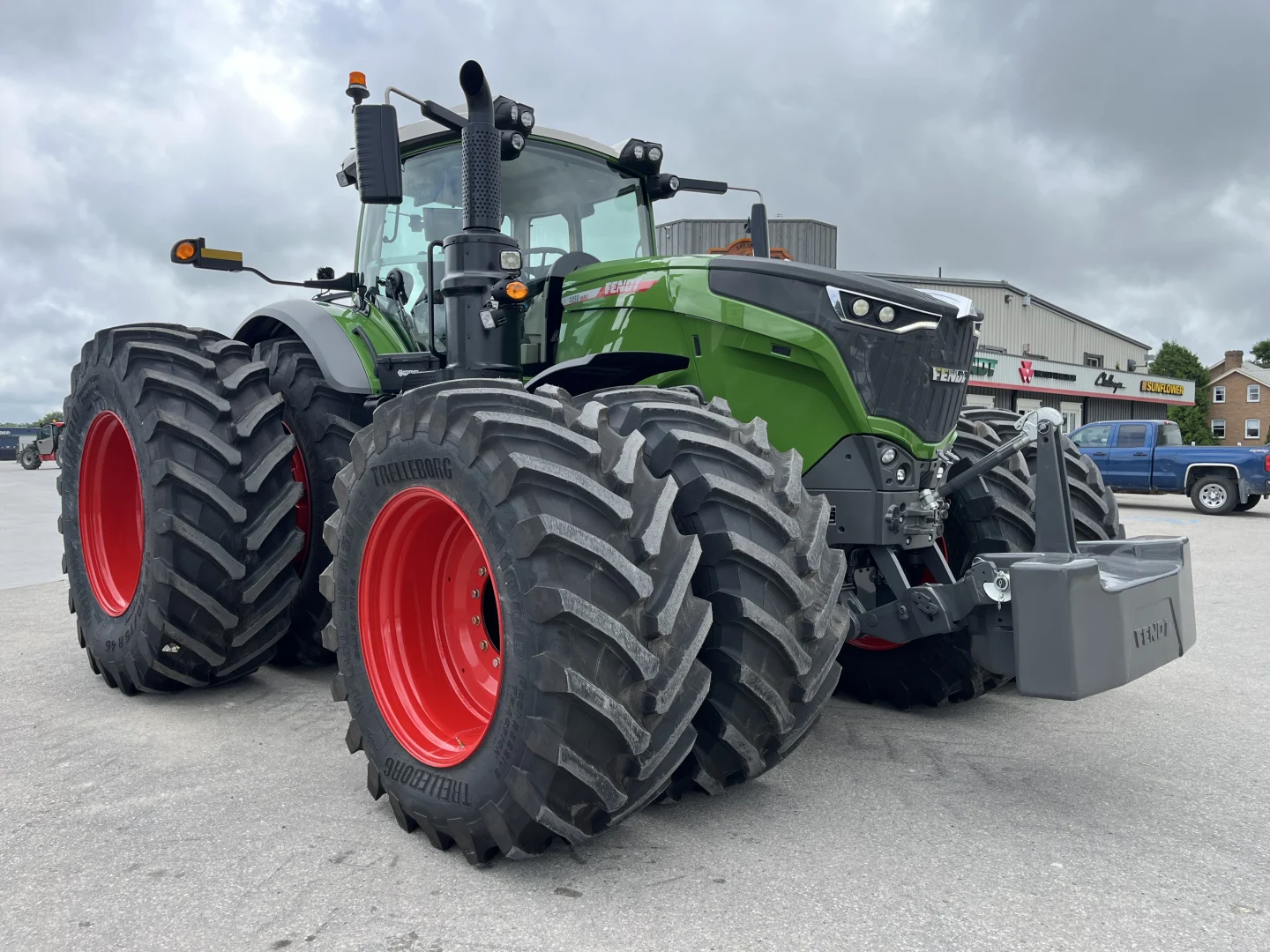

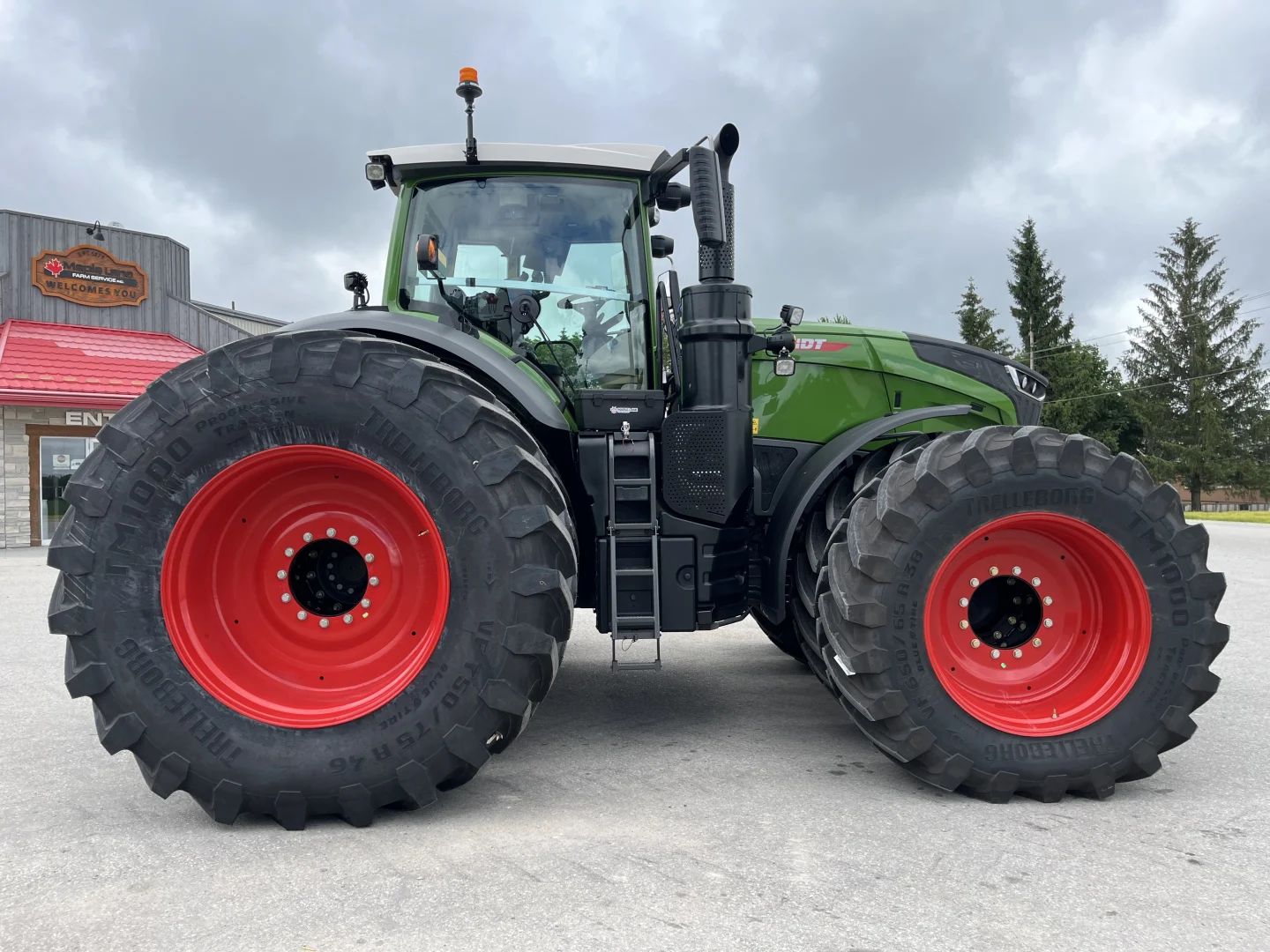

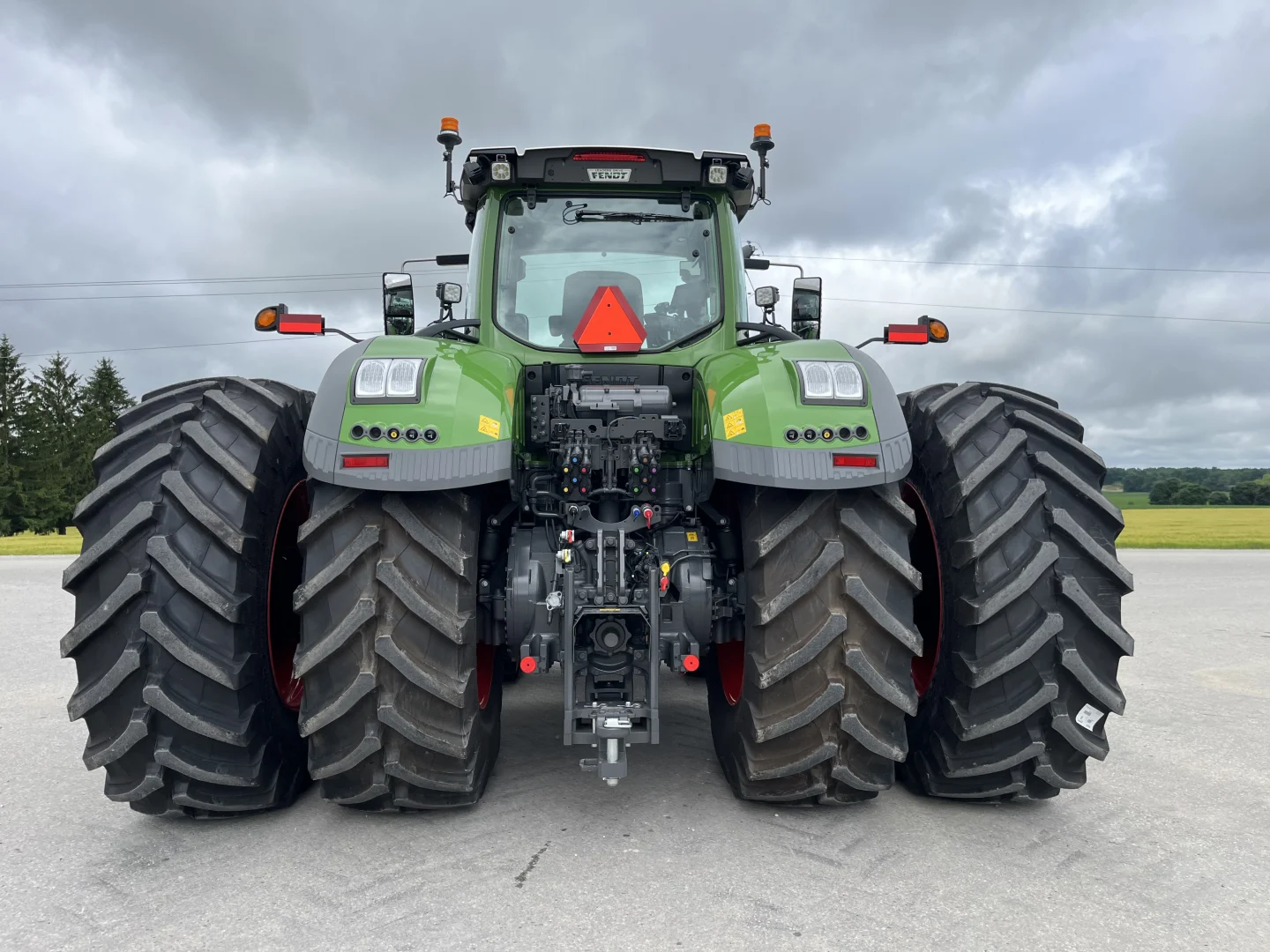

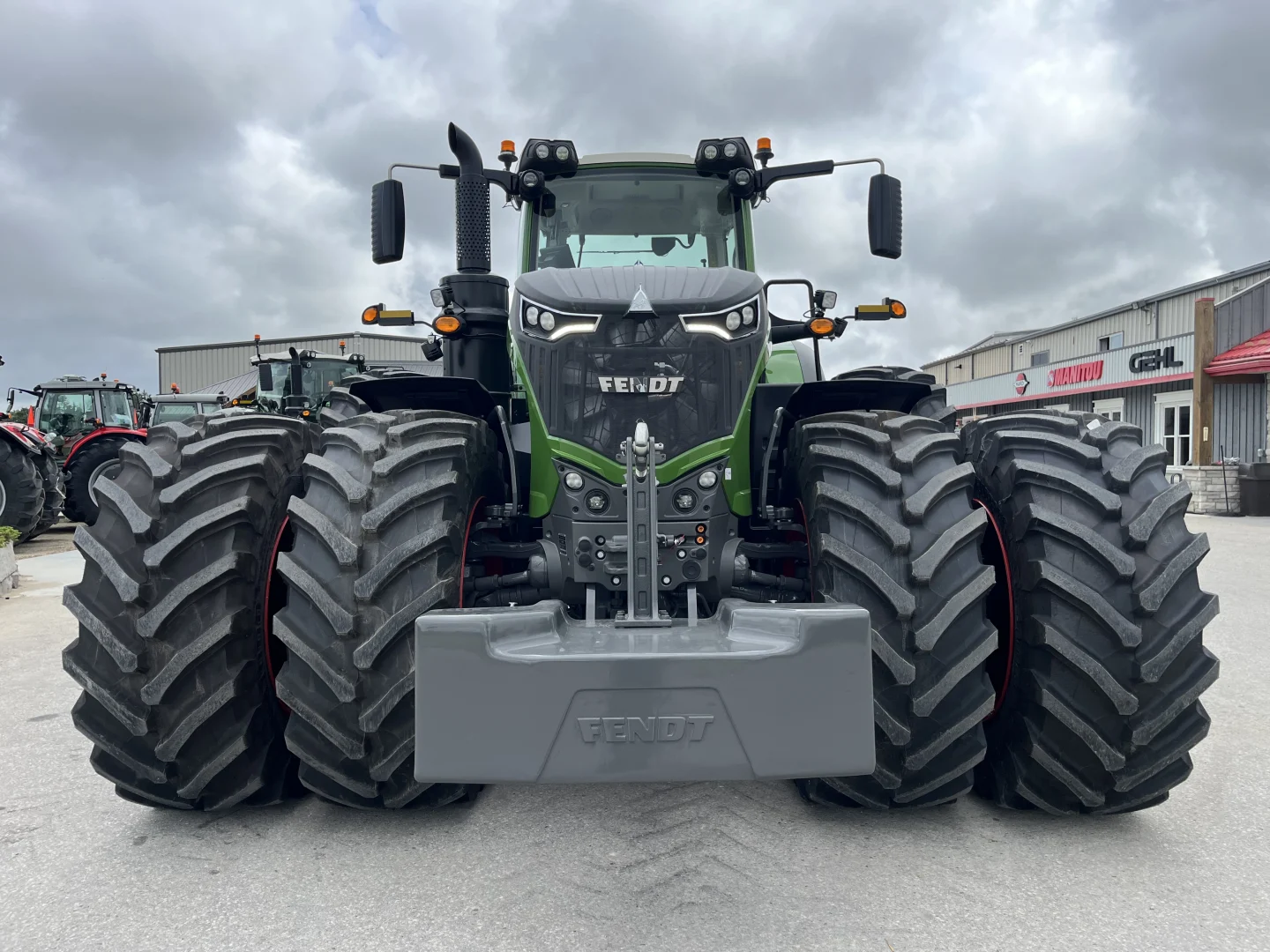

New 2025 Fendt 1050 Gen3
| Description | |
|---|---|

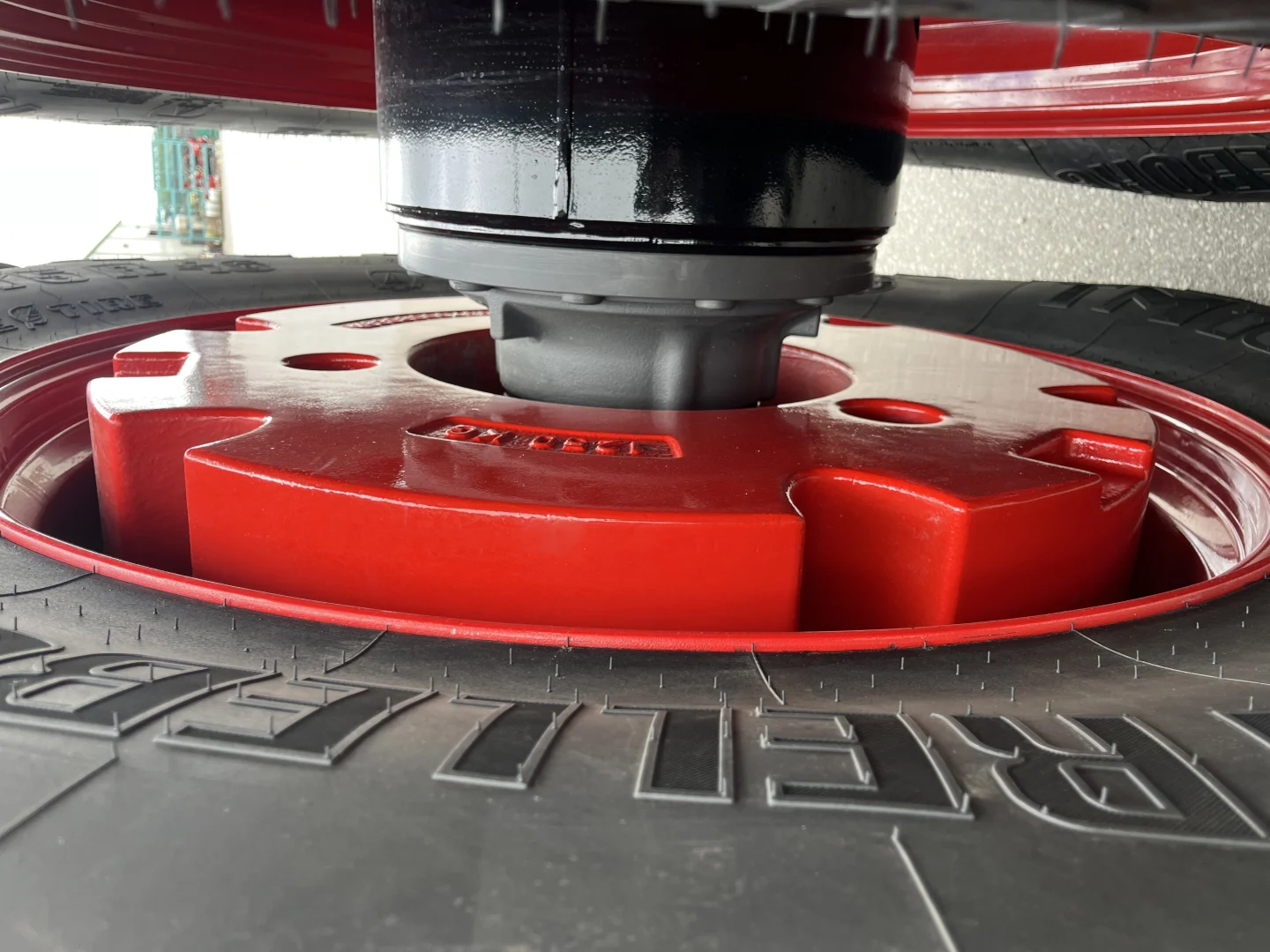

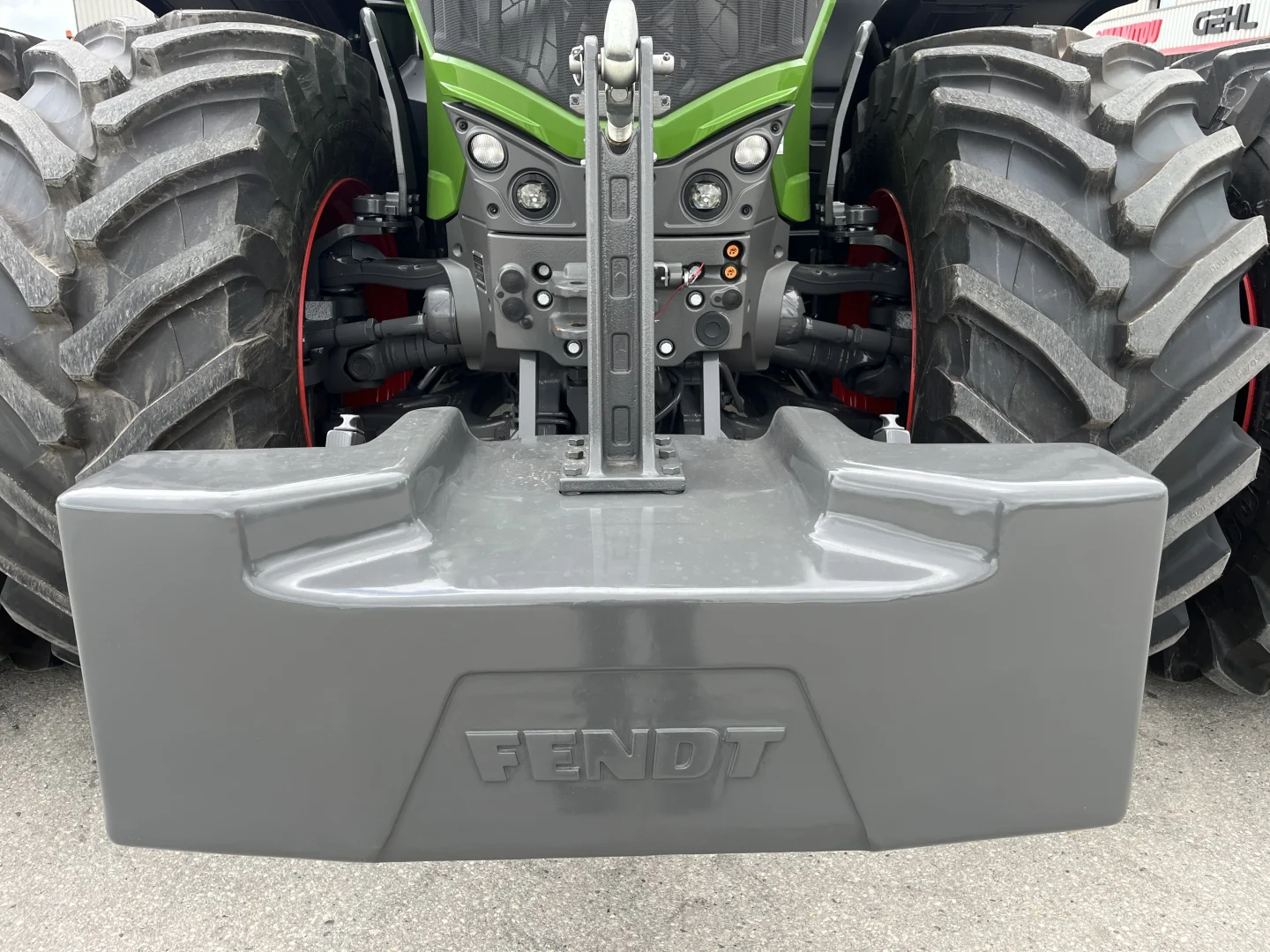

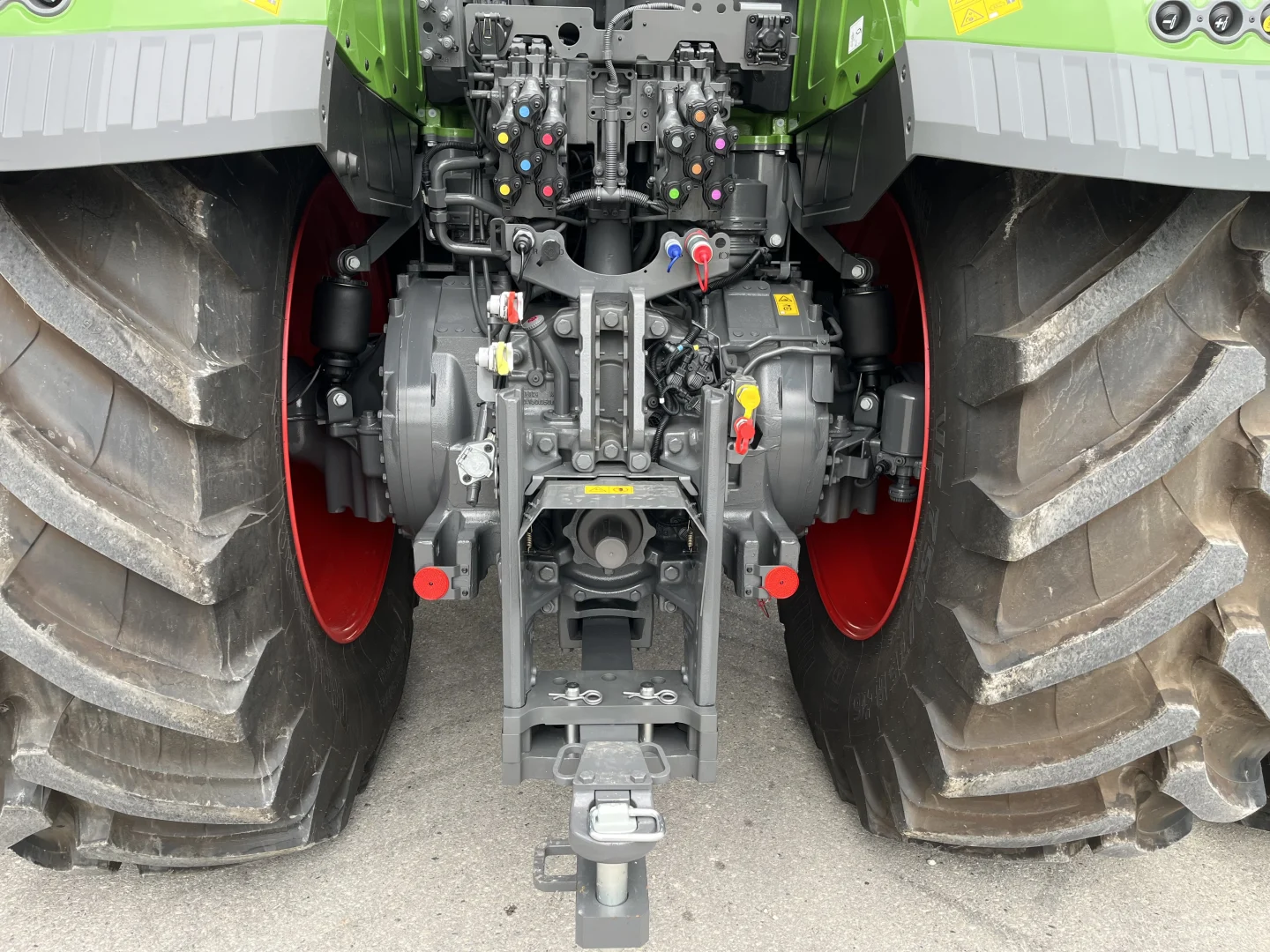

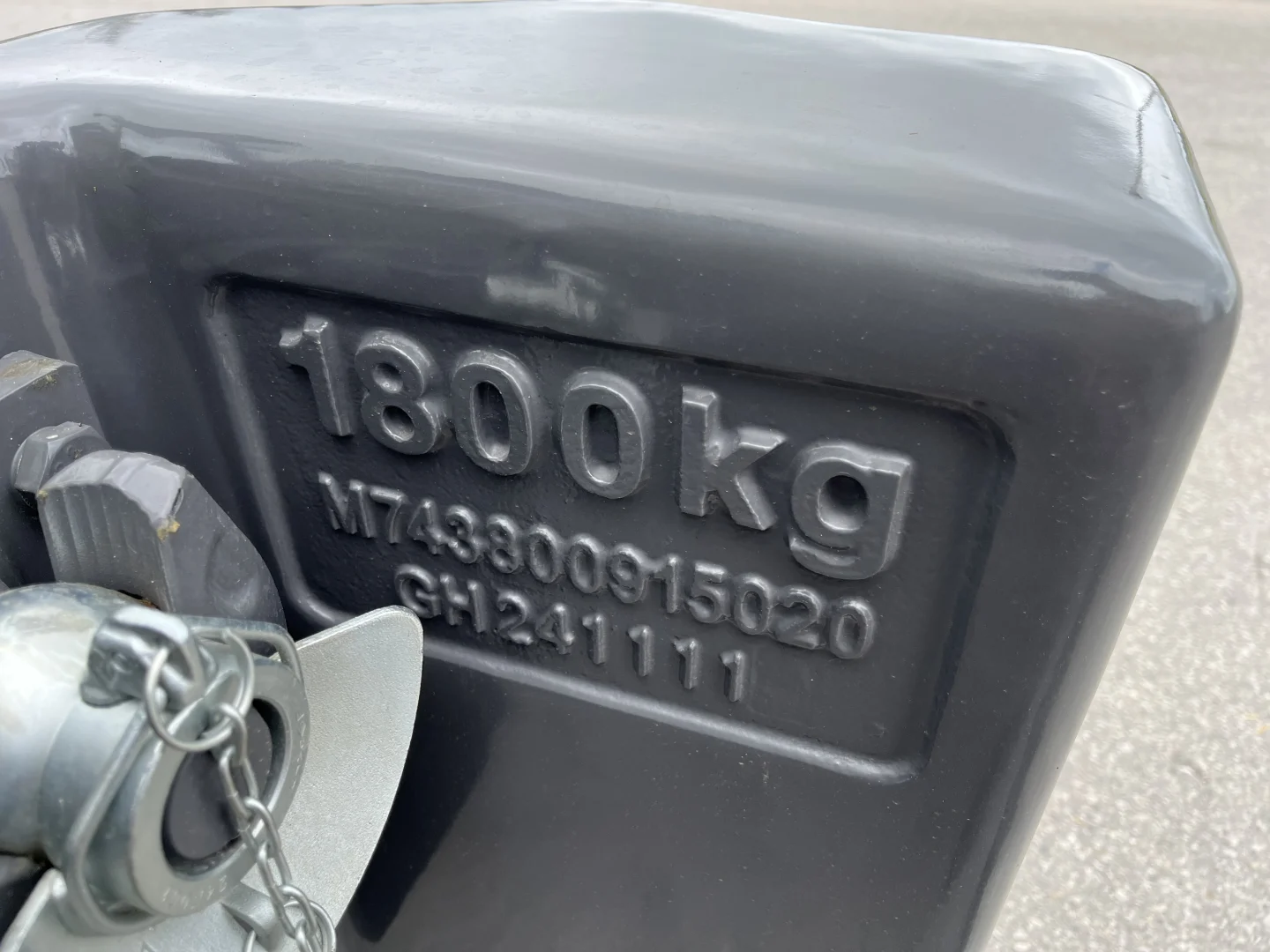

| New 2025 MY, 6 rear remotes, power beyond, hydraulic & air trailer brakes, exhaust brake, automatic park brake, Titanium leather messaging seat, front, right & rear sunblind’s, 4-point air cab suspension, 12″ terminal + 12″ roof terminal, infotainment, full LED lighting, powered telescoping mirrors, 1250KG rear wheel weights, 1800KG front weight, VF650/65R38 fronts, VF750/75R46 rears, 3 year / 3000 hour Fendt GoldStar warranty. We gladly serve customers in southern Ontario. If you’re located outside southern Ontario, we would be grateful if you contacted your local Fendt dealer about a new 1050 instead of us. | |
| Categories | High Horsepower |
| Unit Number | 24018W |
| Condition | New |
| Usage | 10 Hours |
| Year | 2025 |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 385.53kW (517hp) 517hp 385.53kW | |
| PTO Power | 372.85kW (500hp) 500hp 372.85kW | |
| Rated Engine Speed | 1700r/min | |
| Make | MAN D2676 LE121 | |
| Displacement | 3.28gal. (12.42L) 12.42L 3.28gal. | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 211.34gal. (800L) 800L 211.34gal. | |
| DEF Tank Capacity | 22.45gal. (85L) 85L 22.45gal. | |
| Warming | Block Heater | |
| Fan | Reversing | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31.07mph (50km/h) 50km/h 31.07mph | |
| Name | CVT TA 400 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Trailer Brakes | Air, Hydraulic | |
| Suspension | Front Axle | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 1000 Series Gen3 Dual Pump 113.5 GPM | |
| Pump Type | Dual Variable Displacement Piston | |
| Hydraulic Flow | 429.64L/min (113.5GPM) 113.5GPM 429.64L/min | |
| System Capacity | 36.72gal. (139L) 139L 36.72gal. | |
| Maximum Operating Pressure | 2900.76psi (20000kPa) 20000kPa 2900.76psi | |
| Maximum Available Hydraulic Oil | 24.57gal. (93L) 93L 24.57gal. | |
| Rear Remote Valves | 4 | |
| Front Remote Valves | 1 | |
| Steering | Hydraulic Power | |
| PTO | ||
|---|---|---|
| Type | Independent | |
| Technology | ||
|---|---|---|

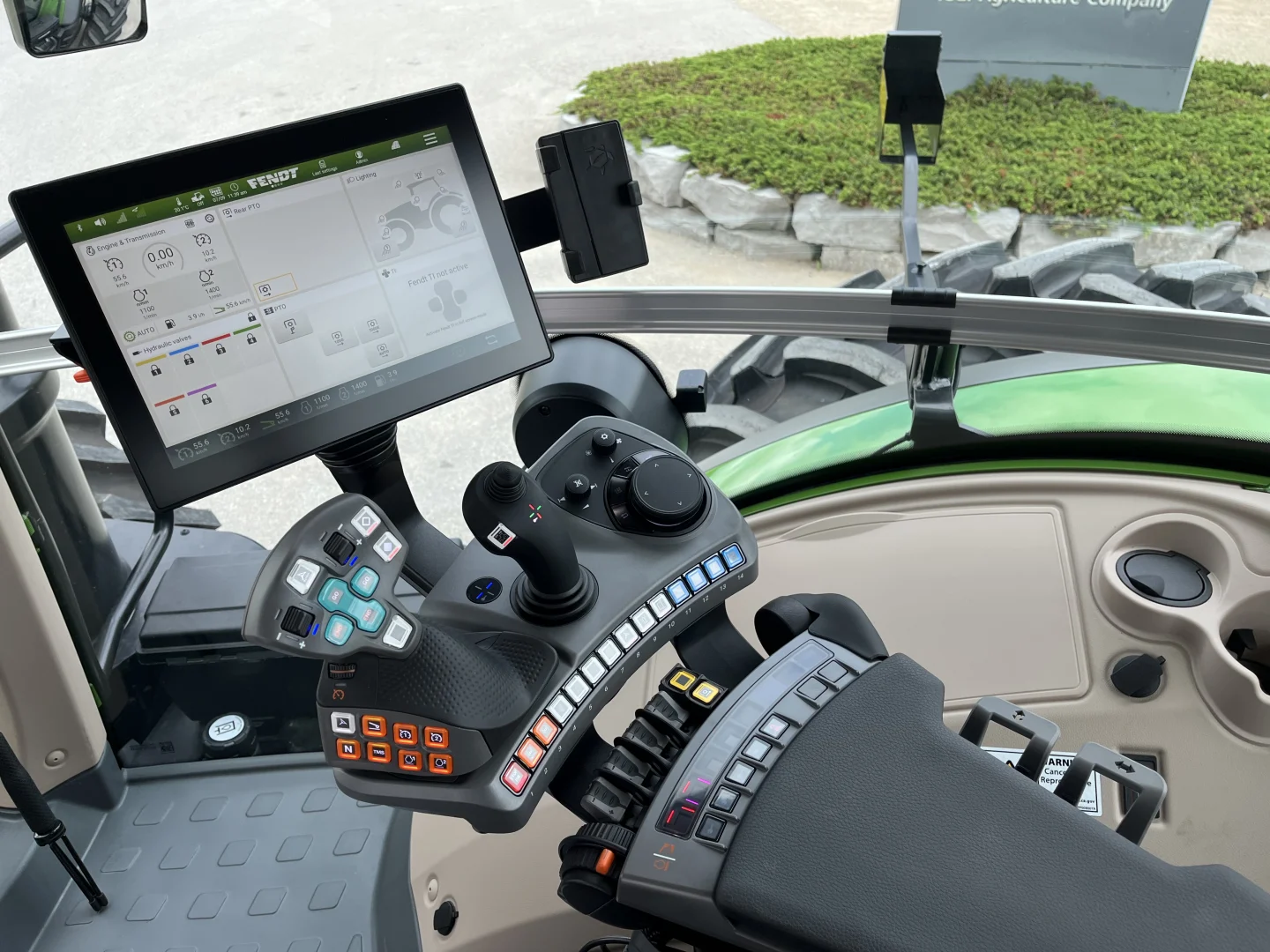

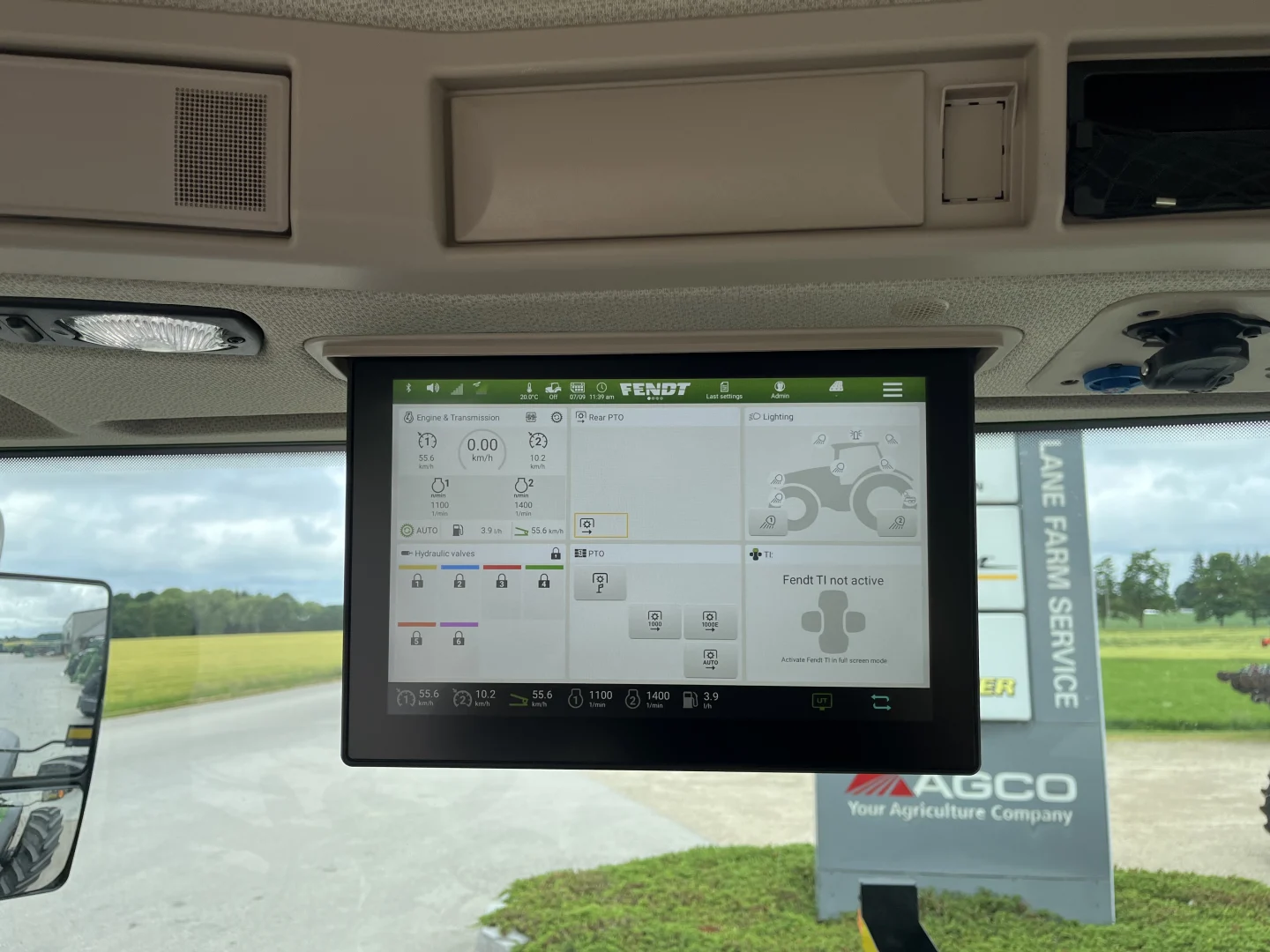

| Display | 12" Roof Mounted Terminal, 12" Armrest Mounted Terminal | |

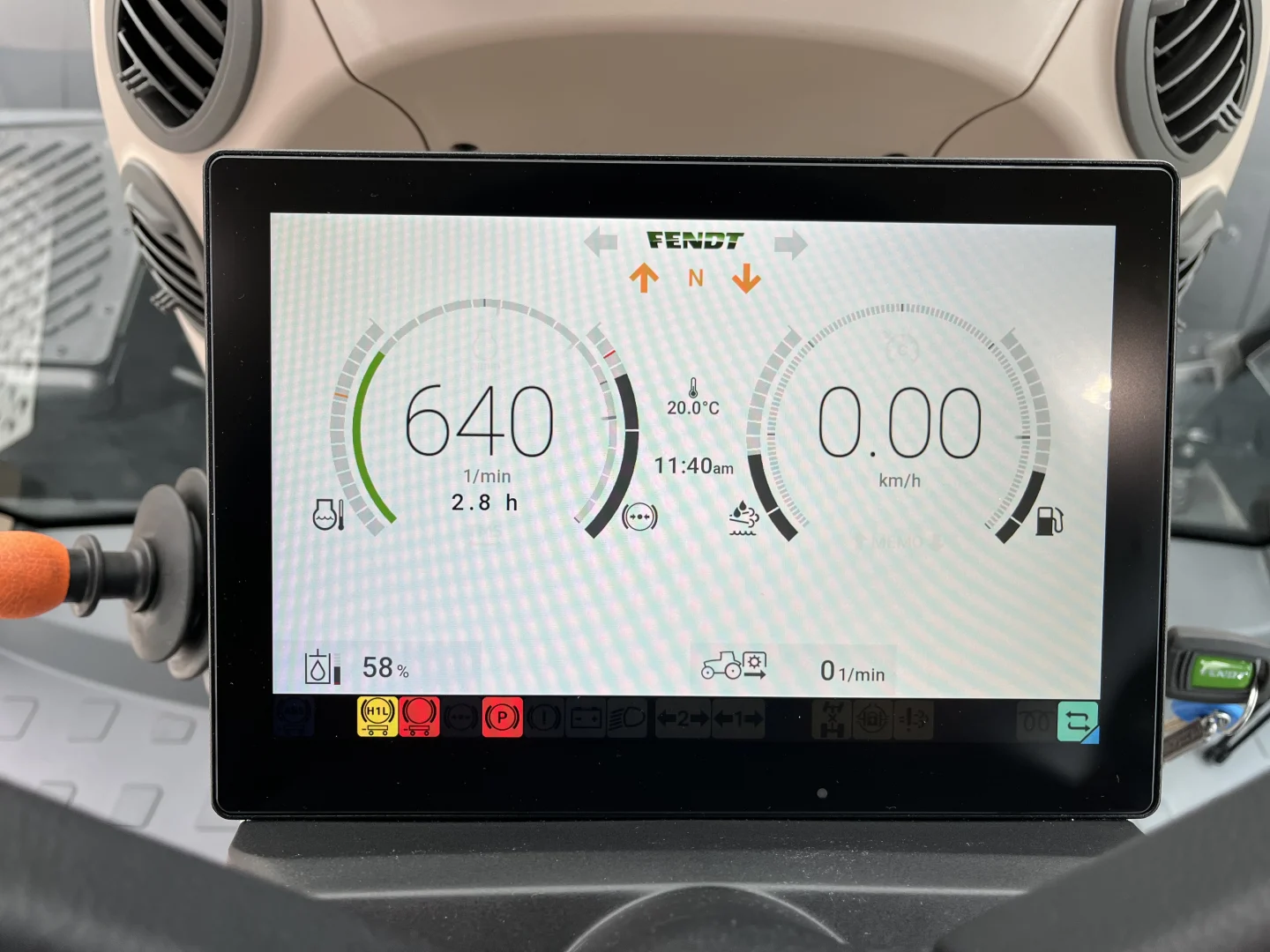

| Instrument Display | 10" Dash Screen | |
| Entertainment | Infotainment | |
| Integration | ISO BUS Implement Control | |
| Antenna | Trimble, Novatel | |
| Guidance | Guidance Ready | |
| Headland Management | Variotronic TI | |
| Auto Headland Turn | Variotronic TI Auto | |
| Data Transfer | TaskDoc Pro | |
| Section Control | SectionControl | |
| Variable Rate Control | Variable Rate Control | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 20 | |
| Rear Lights | 6 | |
| Worklight Type | Halogen | |
| Rotating Beacon | Left, Right | |
| Alternator | 320A | |
| Battery | 1475CCA | |

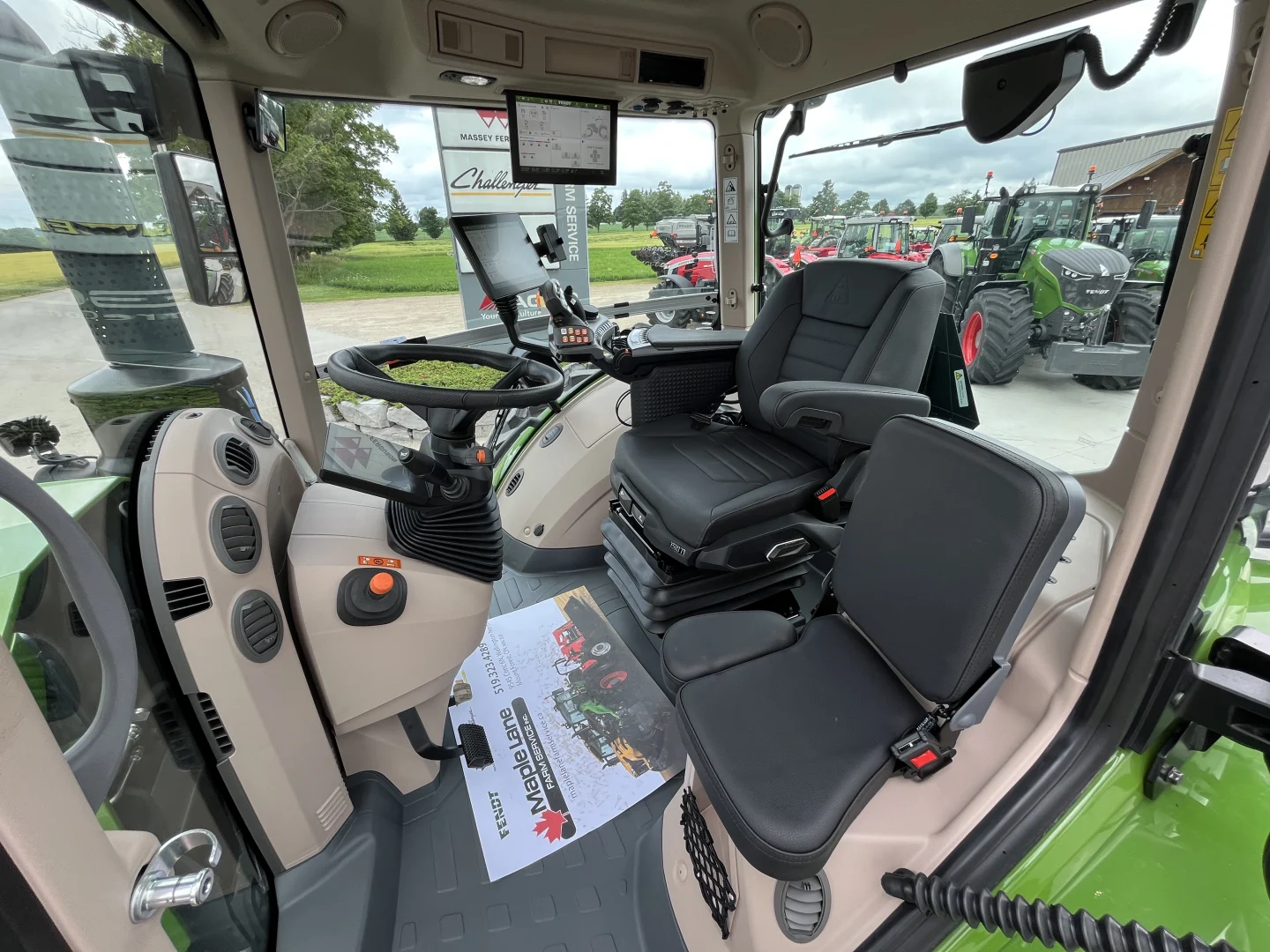

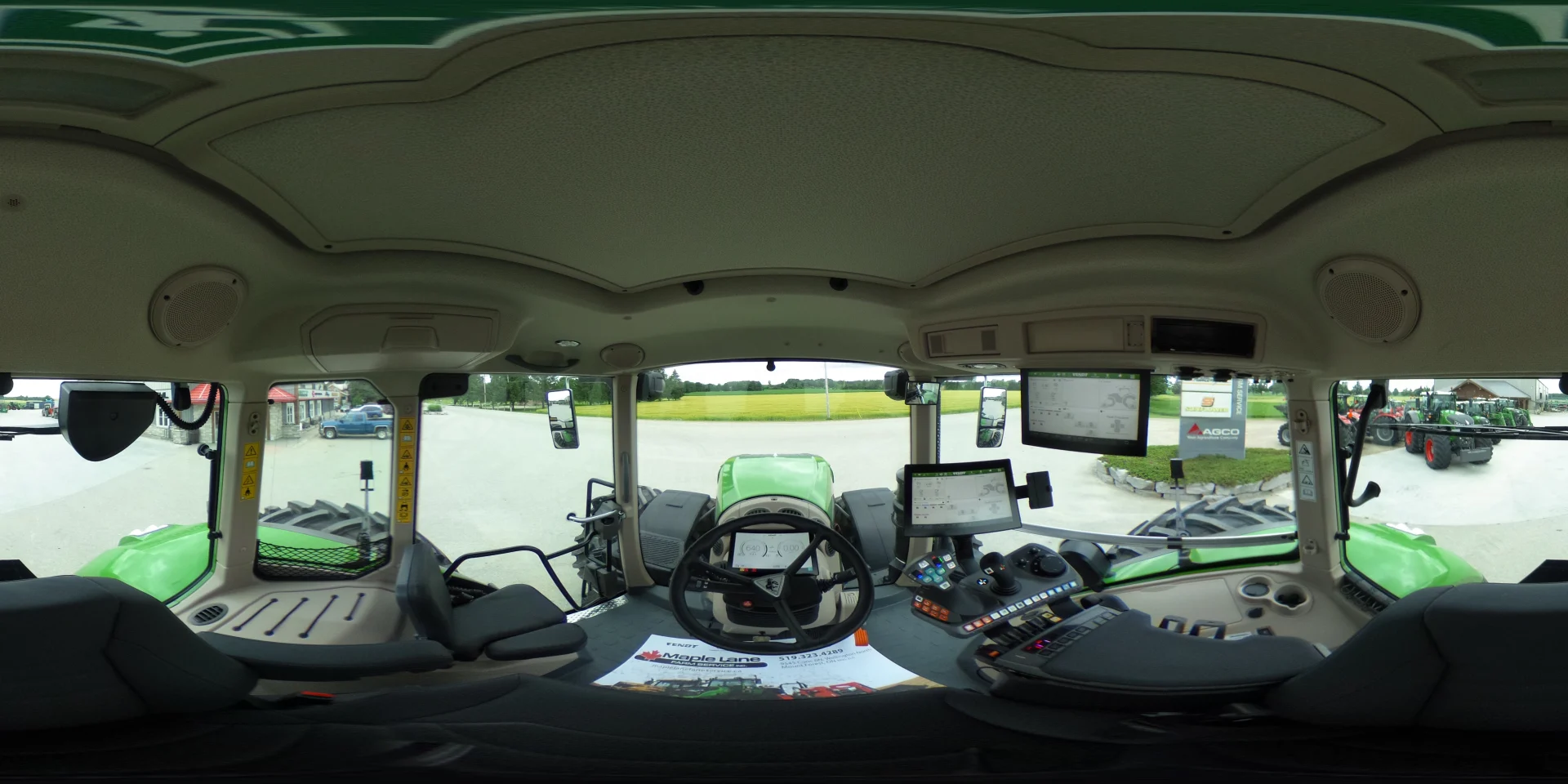

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |

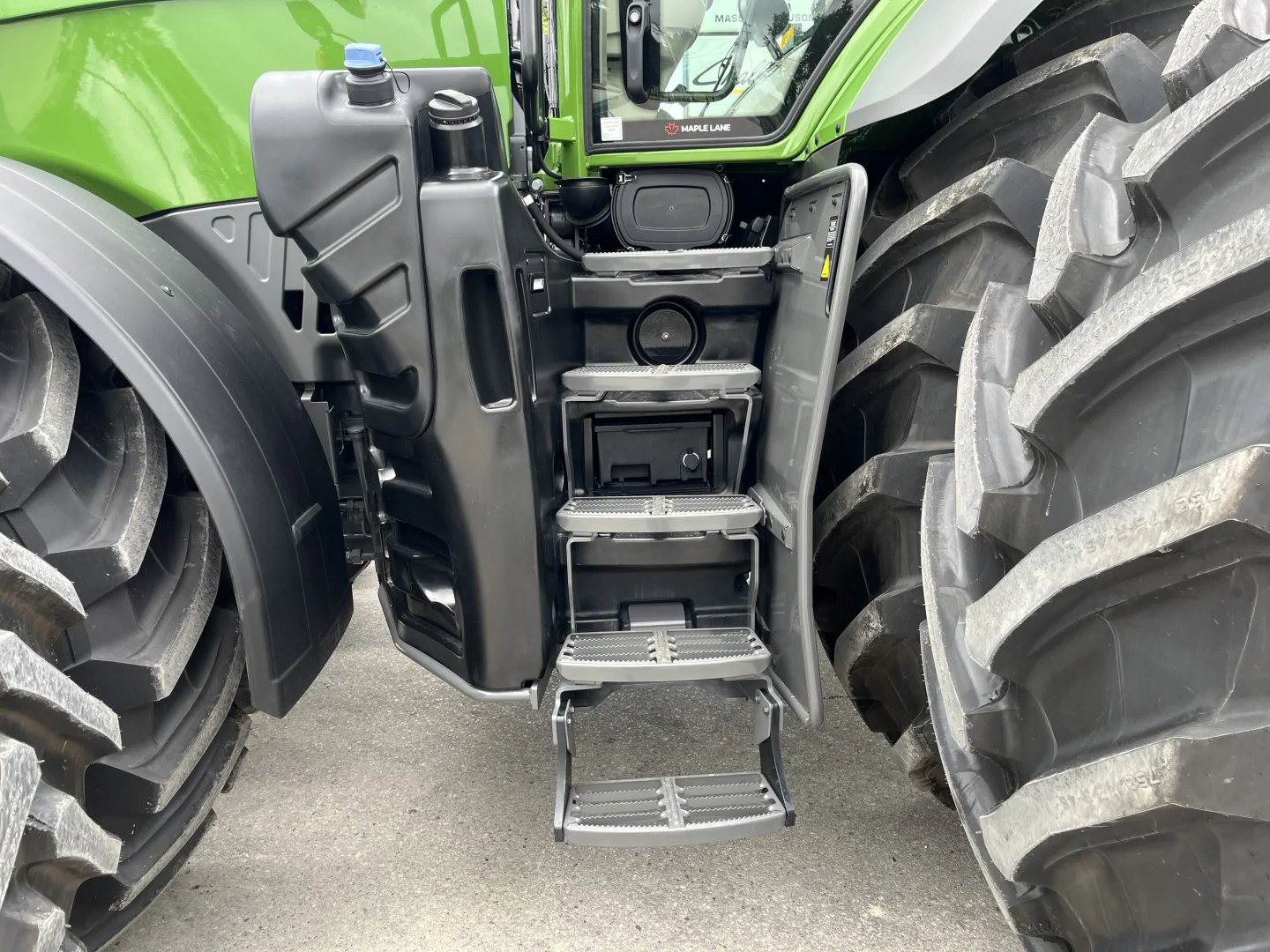

| Access | Left Hand Door | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 4 Point Air | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |
| Operator Seat | FD Super Comfort EVO Leather | |
| Material | Leather | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | 300° Front, Rear | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |
| Wheels | ||
|---|---|---|
| Front | TRELL VF650/65R38 TM1000 | |
| Size | 650/65R38 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 67.06cm (2' 2-3/8") 2' 2-3/8" 67.06cm | |
| Overall Diameter | 182.88cm (6') 6' 182.88cm | |
| Static Loaded Radius | 80.01cm (2' 7-1/2") 2' 7-1/2" 80.01cm | |
| Rolling Circumference | 547.88cm (17' 11-11/16") 17' 11-11/16" 547.88cm | |
| Weight | 339.74kg (749lb.) 749lb. 339.74kg | |
| Rear | TRELL IF 750/75R46 TM1000 | |
| Size | 750/75R46 | |
| Tread Pattern | TM1000 HP, R1 (Ag) | |
| Section Width | 2' 5-1/2" (750mm) 750mm 2' 5-1/2" | |
| Overall Diameter | 7' 6-3/4" (2305mm) 2305mm 7' 6-3/4" | |
| Static Loaded Radius | 3' 4-9/16" (1030mm) 1030mm 3' 4-9/16" | |
| Rolling Circumference | 22' 8-1/4" (6915mm) 6915mm 22' 8-1/4" | |
| Tread Thickness | 2-5/8" (67mm) 67mm 2-5/8" | |
| Weight | 996.49lb. (452kg) 452kg 996.49lb. | |
| Dimensions | ||
|---|---|---|
| Length | 20' 10" (6350mm) 6350mm 20' 10" | |
| Wheelbase | 10' 9-15/16" (3300mm) 3300mm 10' 9-15/16" | |
| Width | 9' 1/4" (2750mm) 2750mm 9' 1/4" | |
| Height | 11' 9-15/16" (3606mm) 3606mm 11' 9-15/16" | |
| Minimum Ground Clearance | 1' 11-5/8" (600mm) 600mm 1' 11-5/8" | |
| Turning Radius | 24' 9/16" (7330mm) 7330mm 24' 9/16" | |
| Weight | 30864.72lb. (14000kg) 14000kg 30864.72lb. | |
