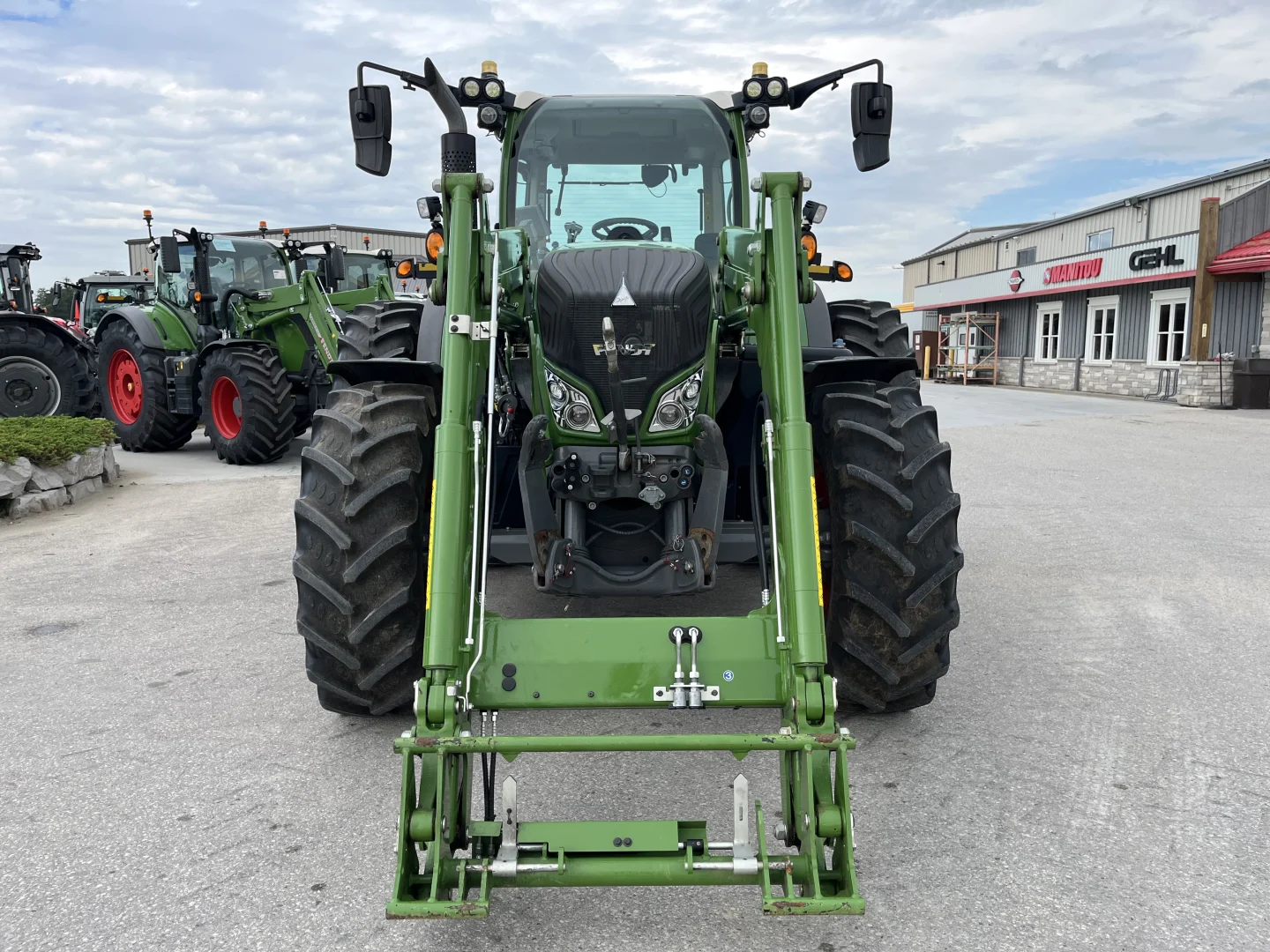

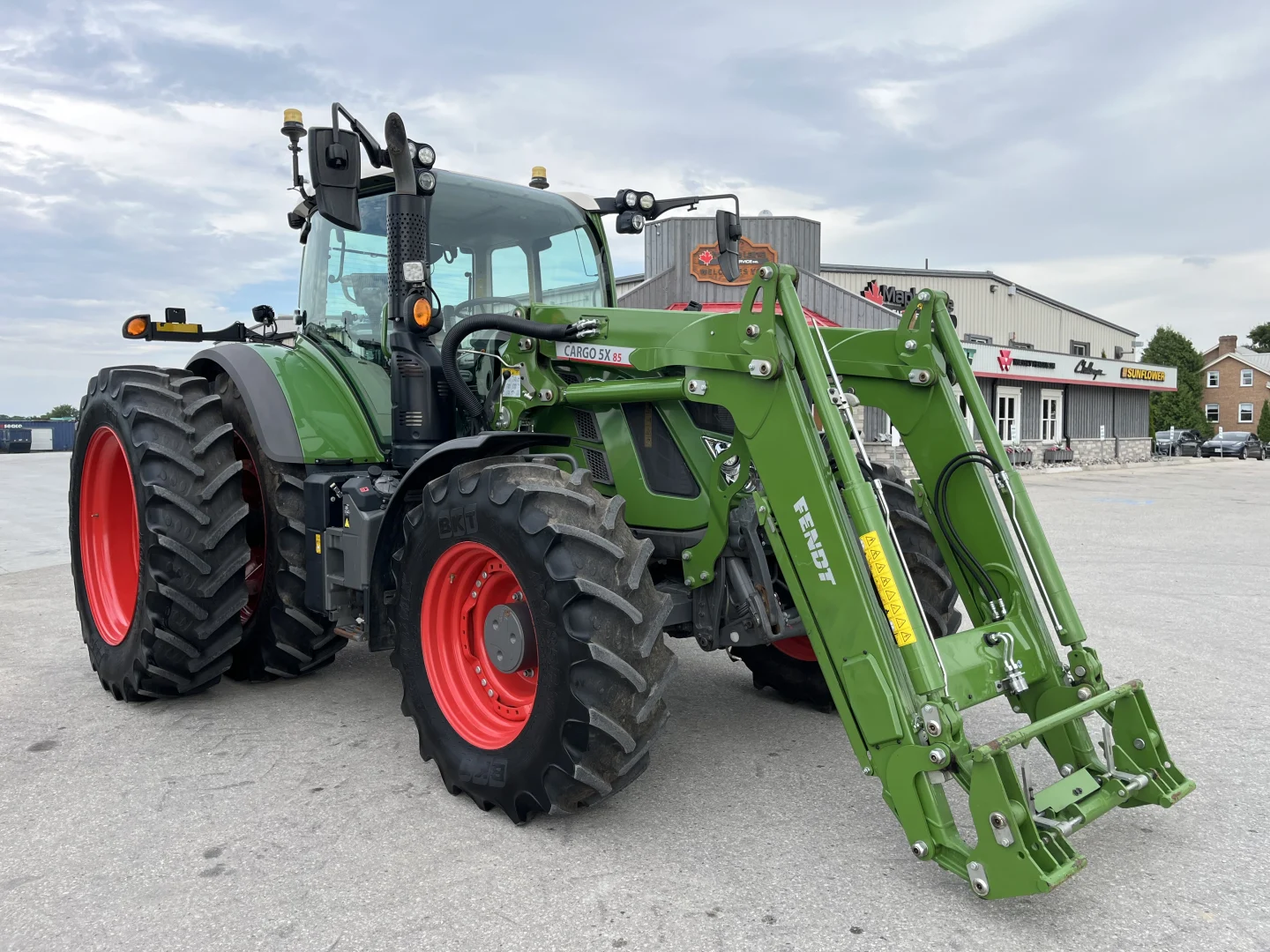

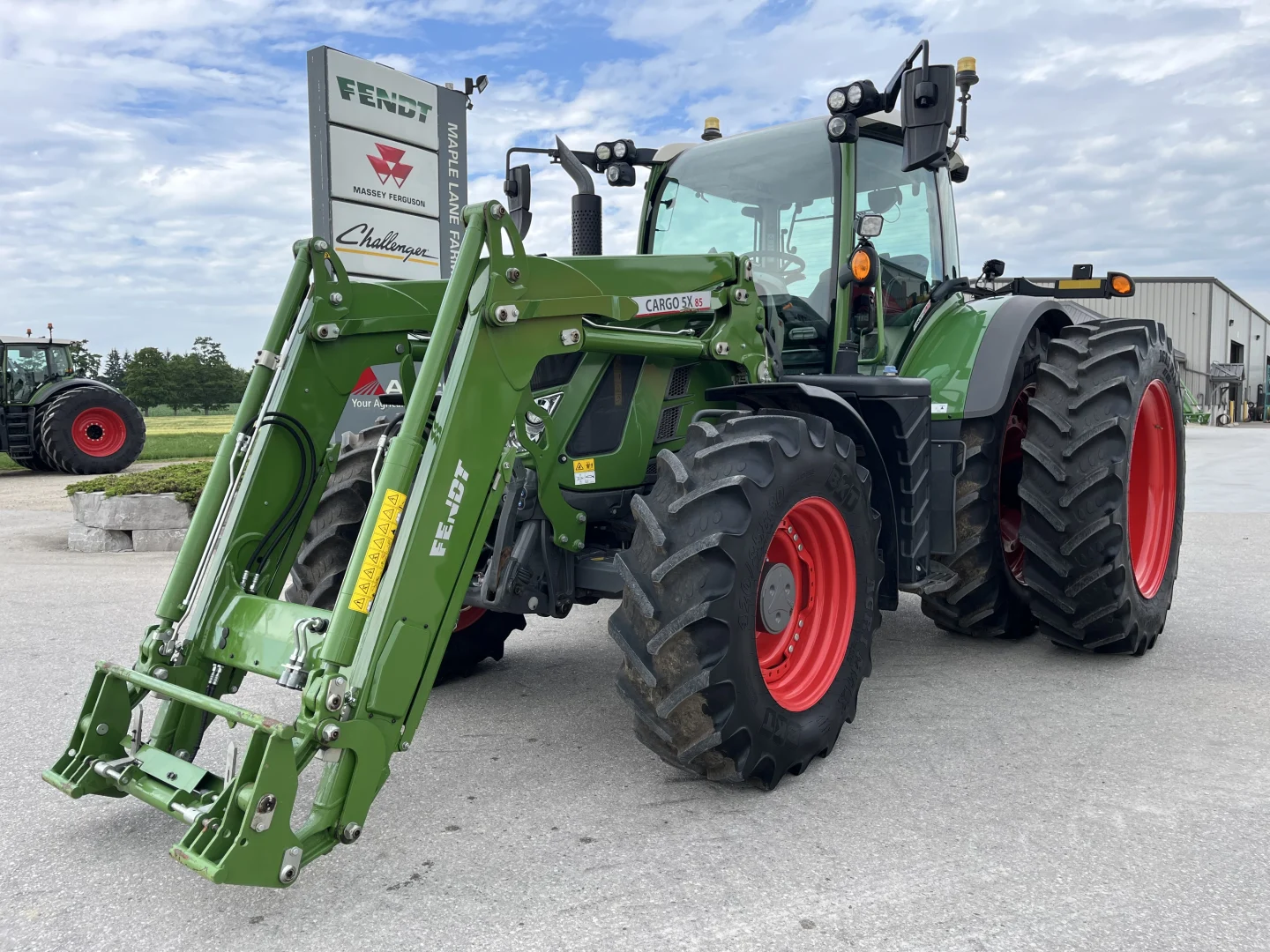

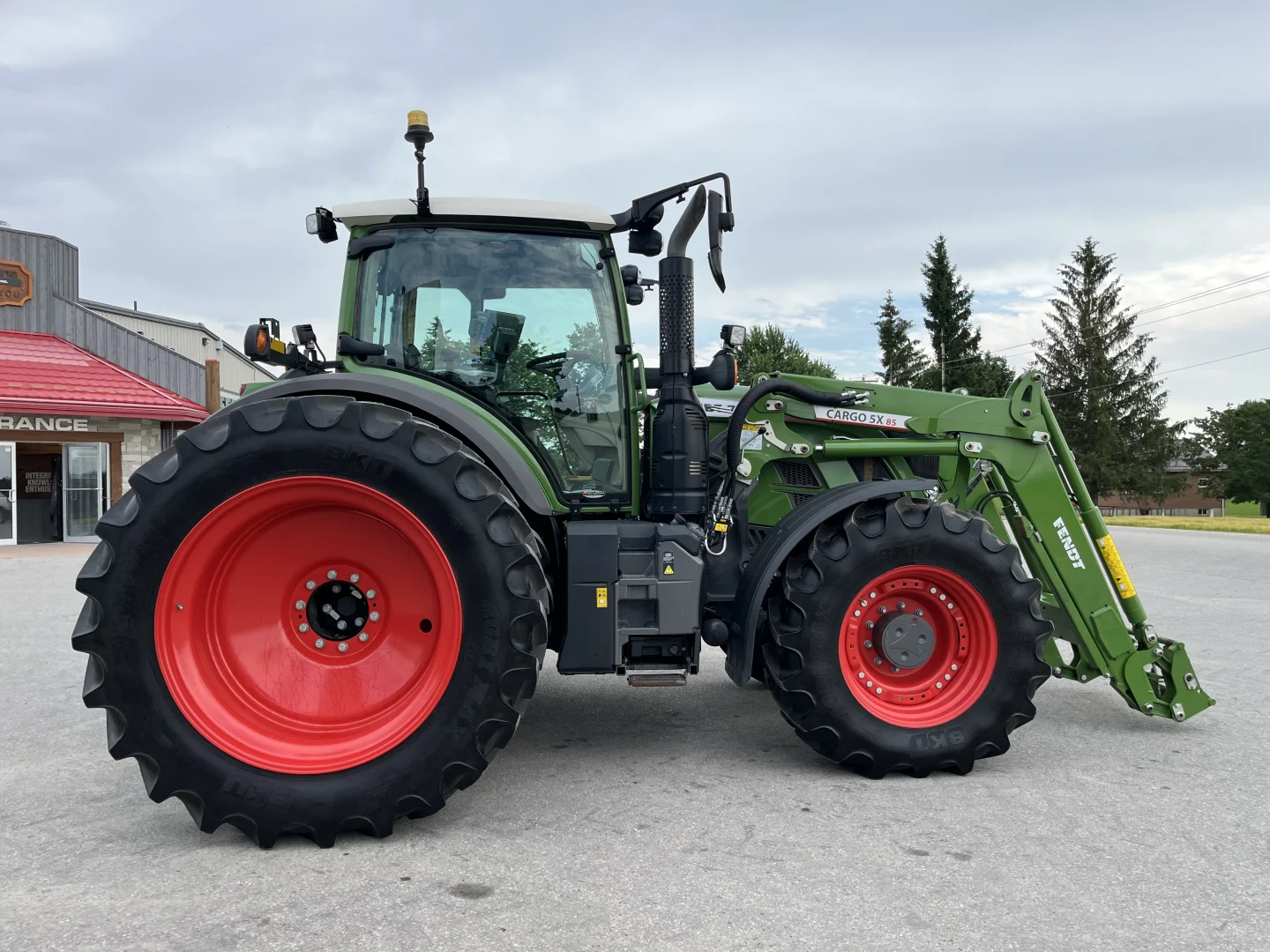

Used 2019 Fendt 722 S4
| Description | |
|---|---|
| 50kph Vario transmission, suspended front axle, ProfiPlus version, Fendt Guide (WAAS), 480/80R46 BKT rear duals, 420/85R30 BKT front singles, LED work lights, premium Bluetooth radio, manual climate control, LED work lights, SuperComfort cloth seat, pneumatic cab suspension, air and hydraulic trailer brakes, engine brake, 5 rear remote valves, Power Beyond and Case Drain connections, Cat 3 rear 3-pt hitch with hook ends and mechanical stabilizers, mechanical top link, Front hitch, one front remote valve, Cargo 5X85 loader with hyd bucket lock, low-rate finance offer. | |
| Categories | High Horsepower |
| Unit Number | 24032L |
| Condition | Used |
| Usage | 2850 Hours |
| Year | 2019 |
| Cost | $242,900.00 CAD |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 165.55kW (222hp) 222hp 165.55kW | |
| PTO Power | 137.95kW (185hp) 185hp 137.95kW | |
| Rated Engine Speed | 2100r/min | |
| Make | DZ 6.06L Tier 4F 6 Cylinder | |
| Displacement | 1.6gal. (6.06L) 6.06L 1.6gal. | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 105.67gal. (400L) 400L 105.67gal. | |
| DEF Tank Capacity | 10.04gal. (38L) 38L 10.04gal. | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31.07mph (50km/h) 50km/h 31.07mph | |
| Name | CVT ML 180 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Exhaust, Dual-Circuit , Wet Disc | |
| Trailer Brakes | Hydraulic, Air | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Rear Axle Length | 8' 2-7/16" (2500mm) 2500mm 8' 2-7/16" | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 700 S4 50 GPM | |
| Hydraulic Flow | 189.27L/min (50GPM) 50GPM 189.27L/min | |
| Maximum Operating Pressure | 2900.75psi (200bar) 200bar 2900.75psi | |
| Rear Remote Valves | 5 | |
| Front Remote Valves | 1 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|

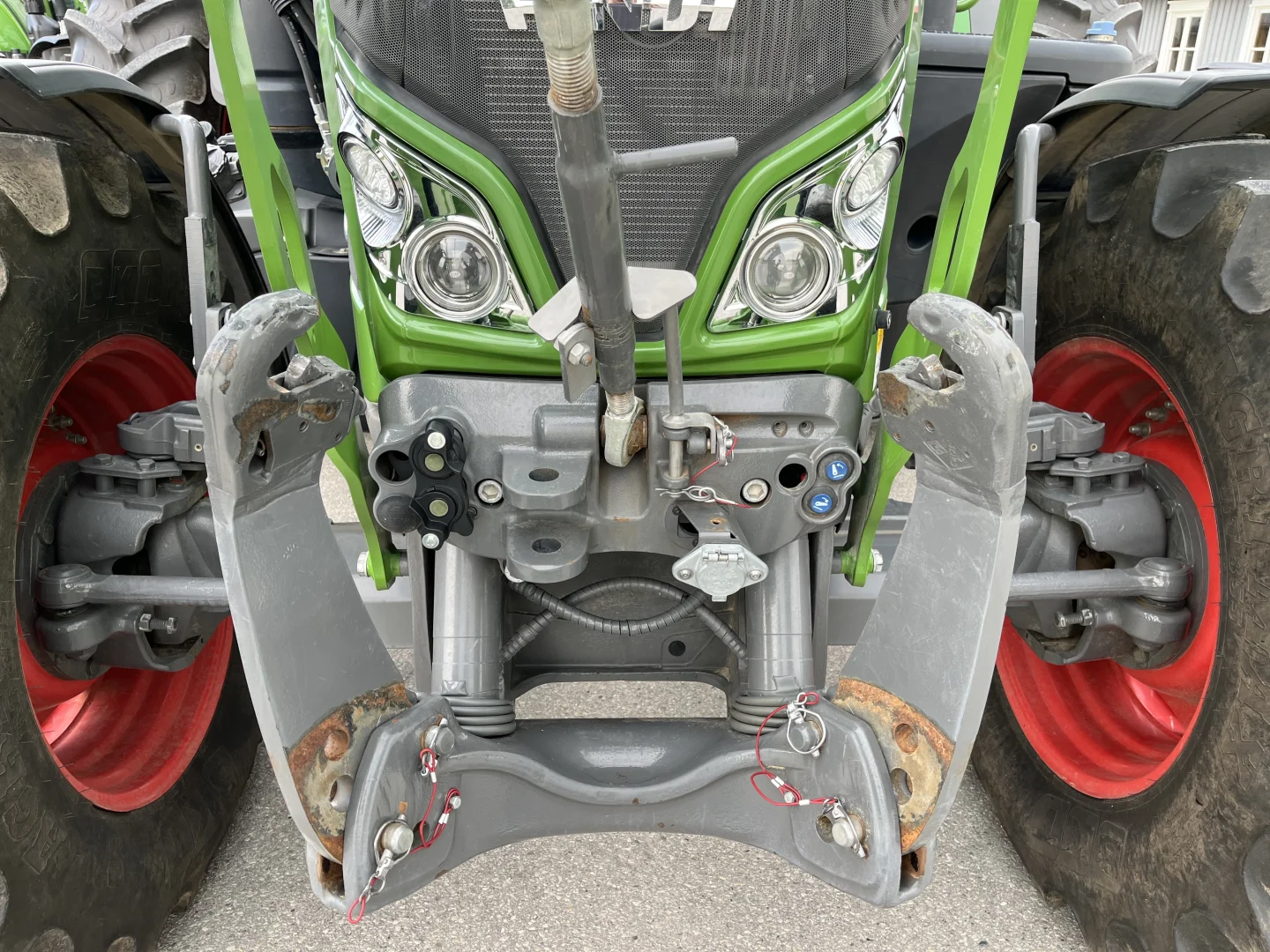

| Front Hitch | FD 700 S4 | |
| Category | Category 2, Category 3 | |
| Capacity at Pins | 9740.02lb. (4418kg) 4418kg 9740.02lb. | |

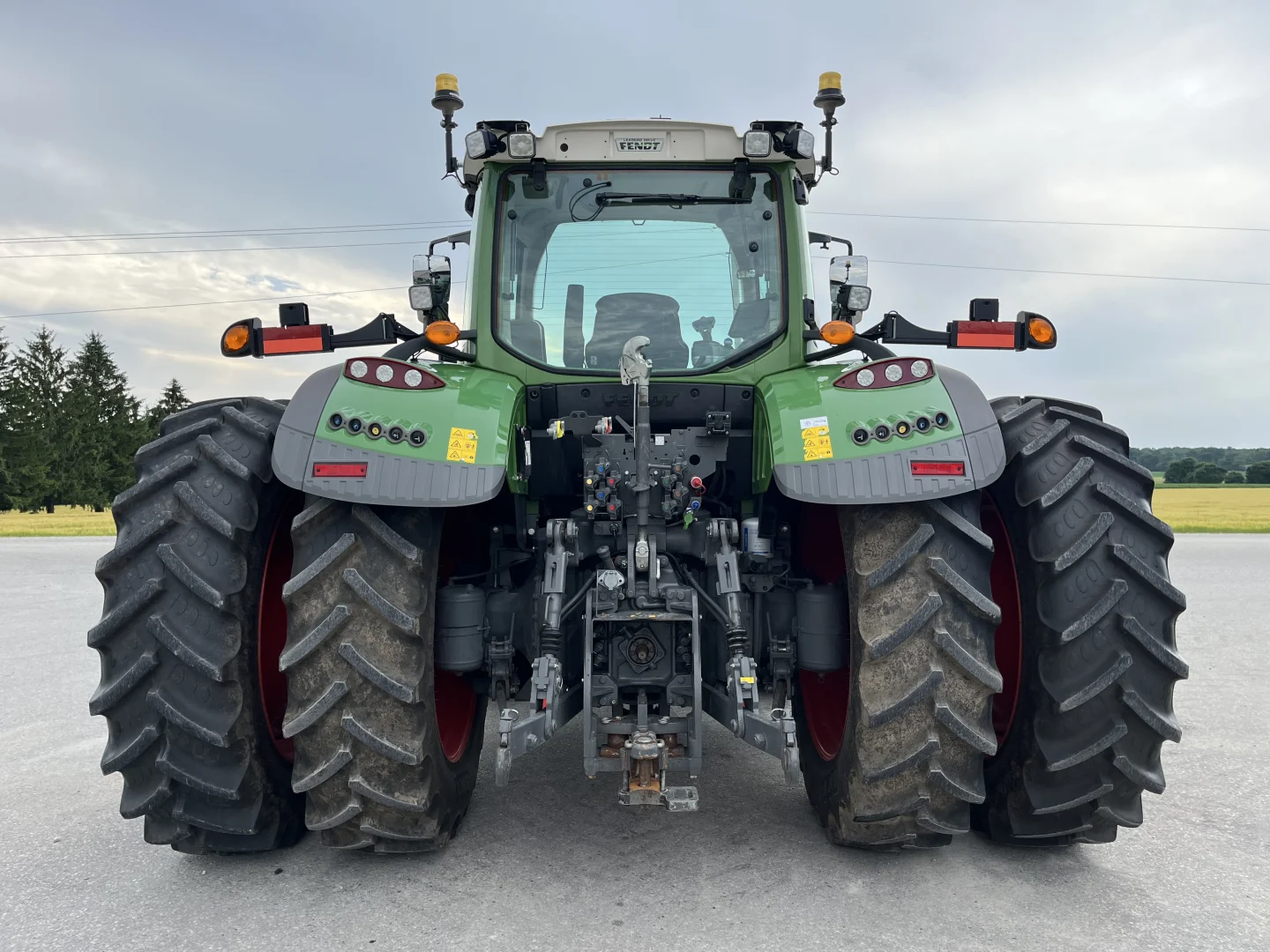

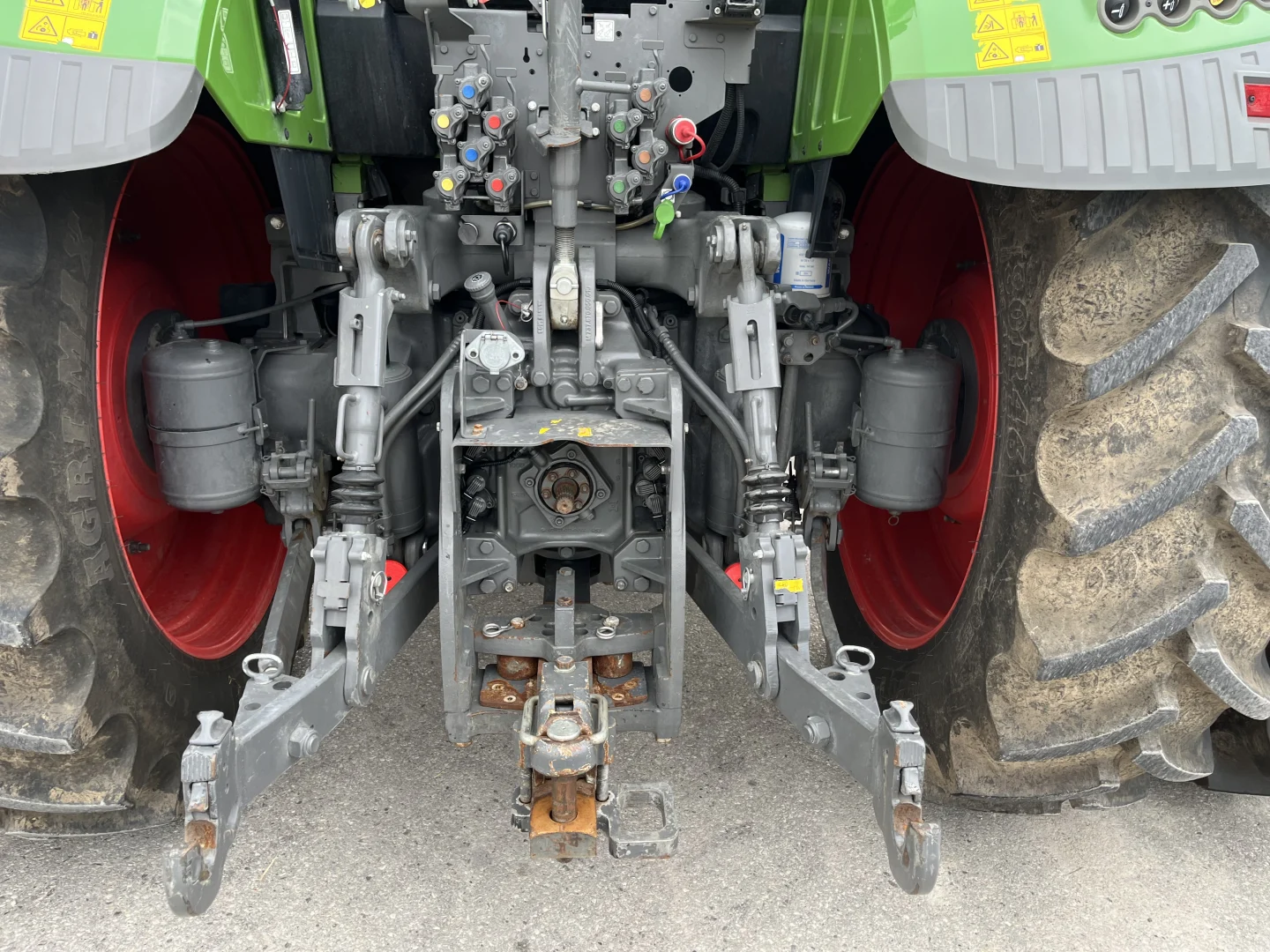

| Rear Hitch | FD 700 S4 | |
| Hitch Category | Category 3, Category 2 | |
| Lift Capacity at Pins | 19310.29lb. (8759kg) 8759kg 19310.29lb. | |
| Comfort | Draft Control | |
| Rear Drawbar | Category 3 | |
| PTO | ||
|---|---|---|
| Rear | 540, 540E, 1000, 1000E | |
| Type | Independent | |
| Technology | ||
|---|---|---|

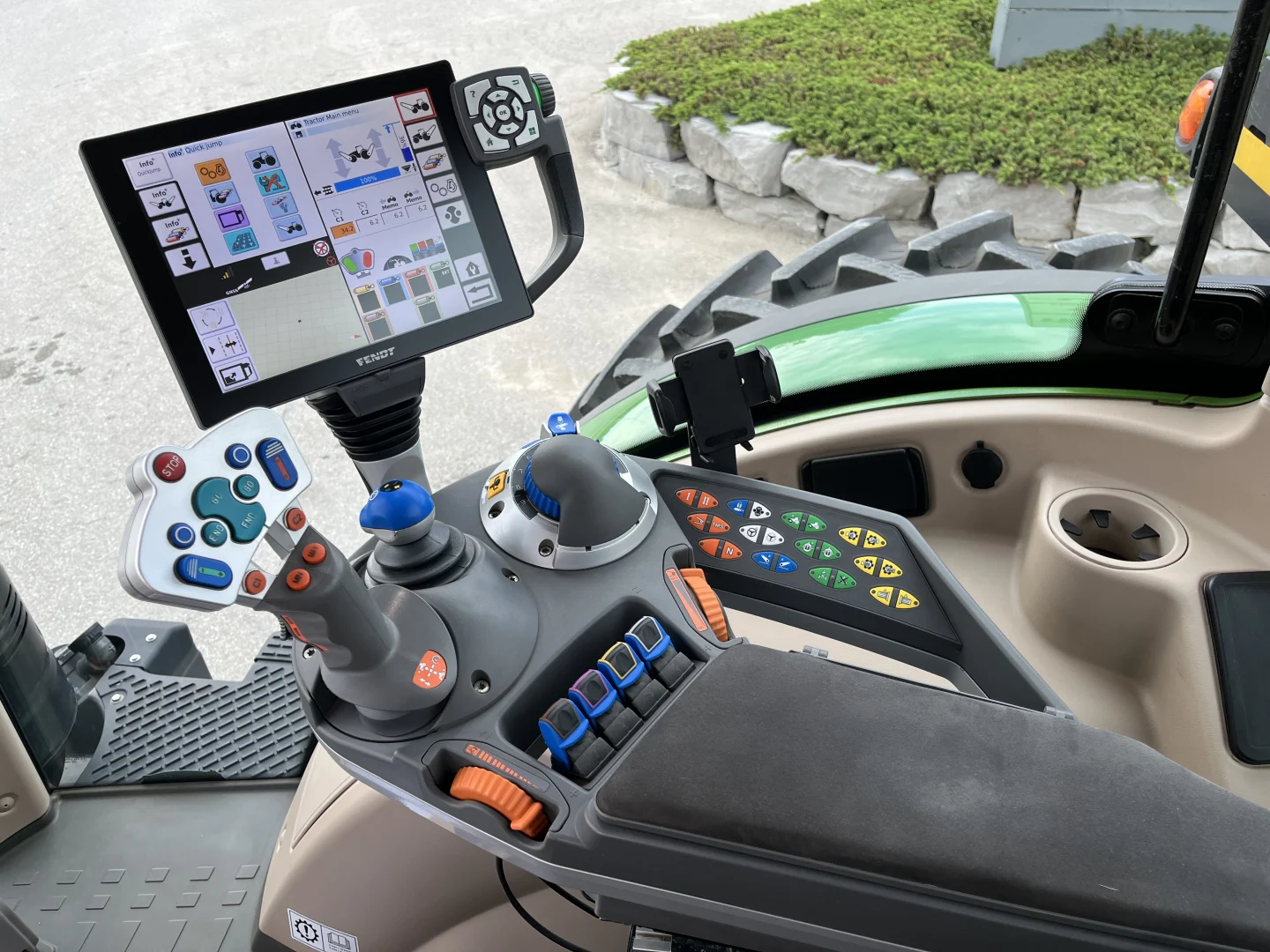

| Display | 10.4" Varioterminal | |

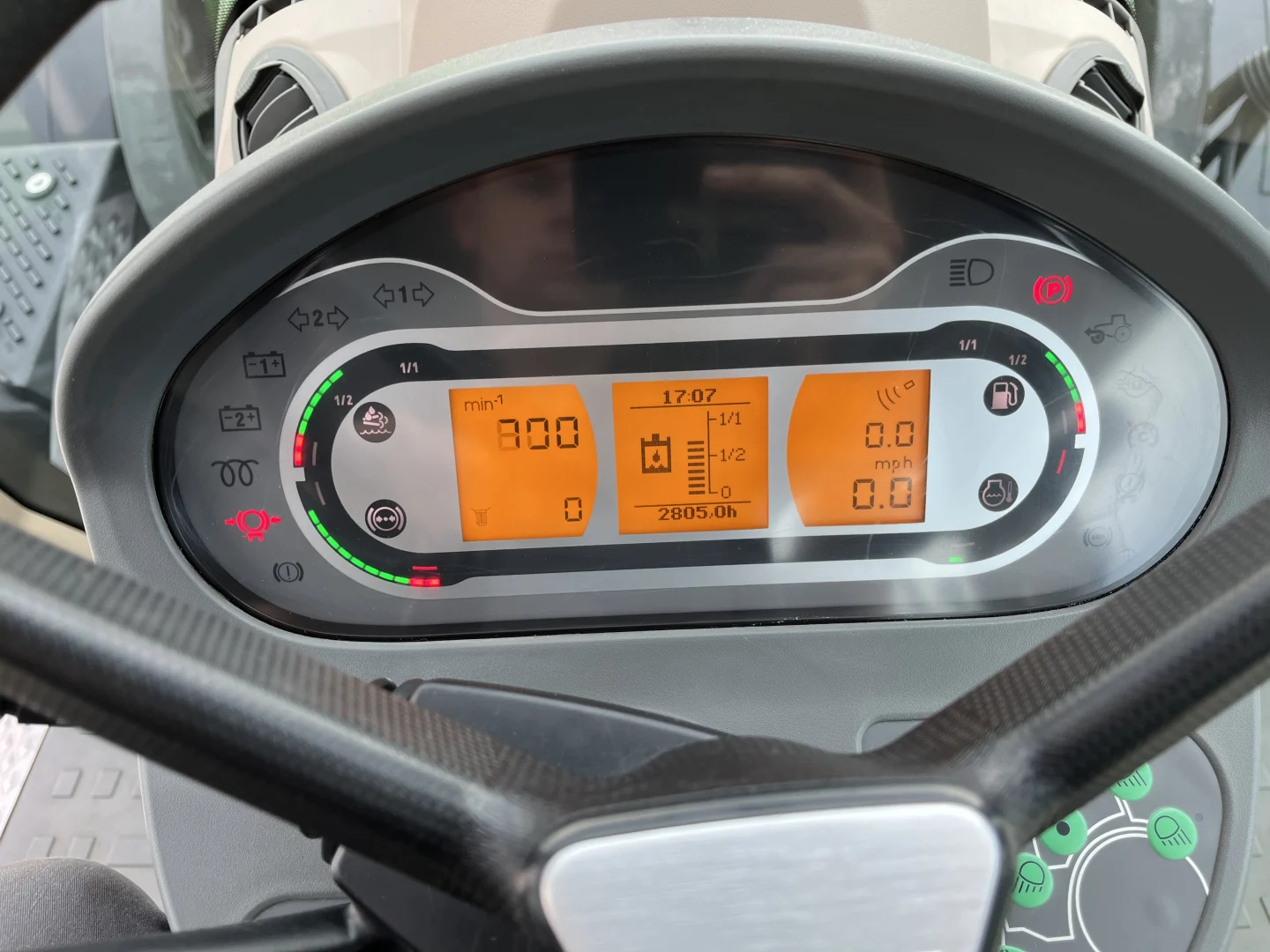

| Instrument Display | Digital Dash Display | |

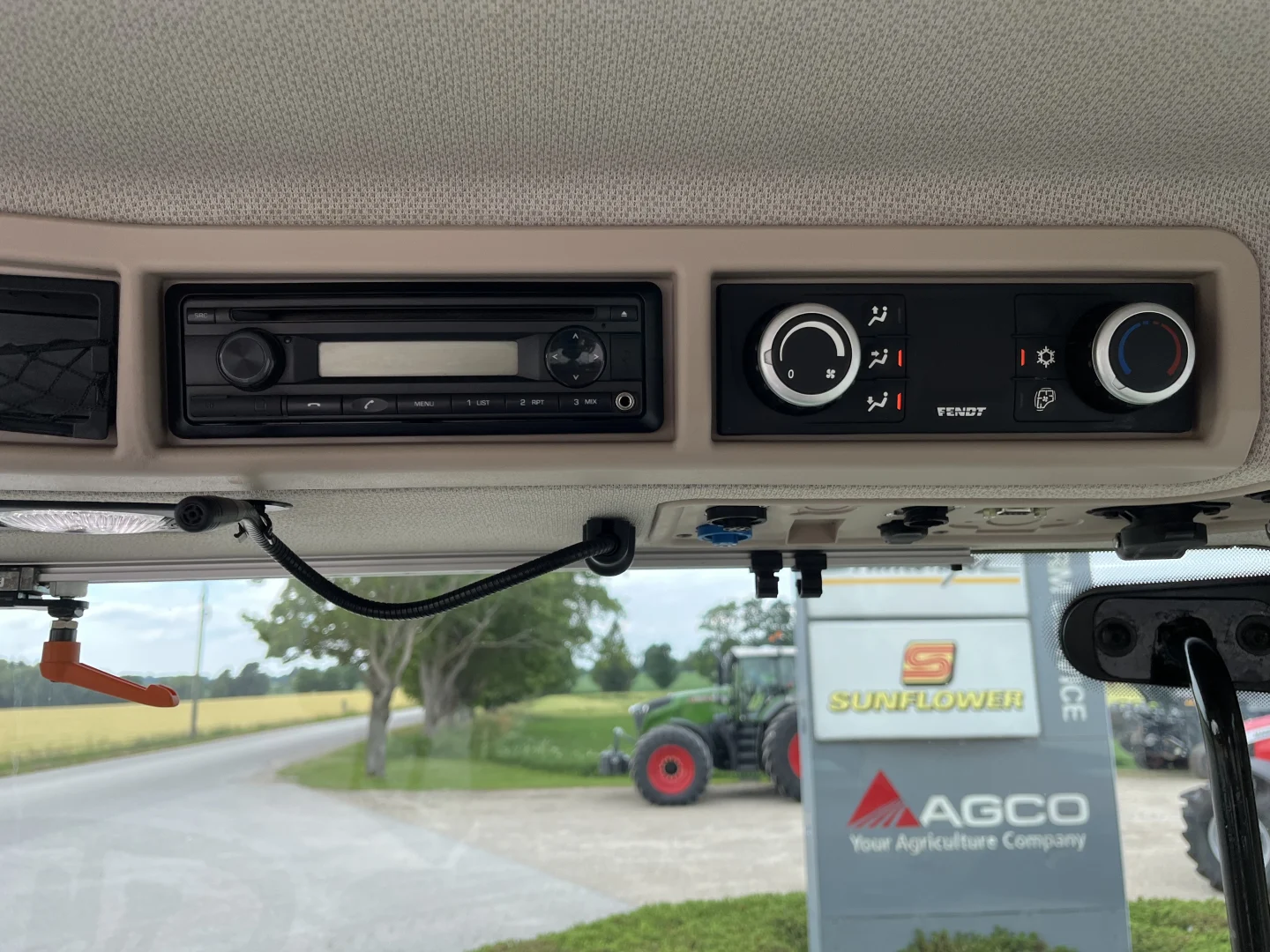

| Entertainment | USB, Bluetooth, Mic | |
| Integration | ISO BUS Implement Control | |
| Antenna | Novatel | |
| Guidance | Guide Standard, Guidance Ready | |
| Guidance Precision | WAAS | |
| Headland Management | Variotronic TI | |
| Data Transfer | TaskDoc Pro | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 10 | |
| Rear Lights | 4 | |
| Worklight Type | LED | |
| Rotating Beacon | Left, Right | |
| Alternator | 200A | |
| Alternator Count | 1 | |

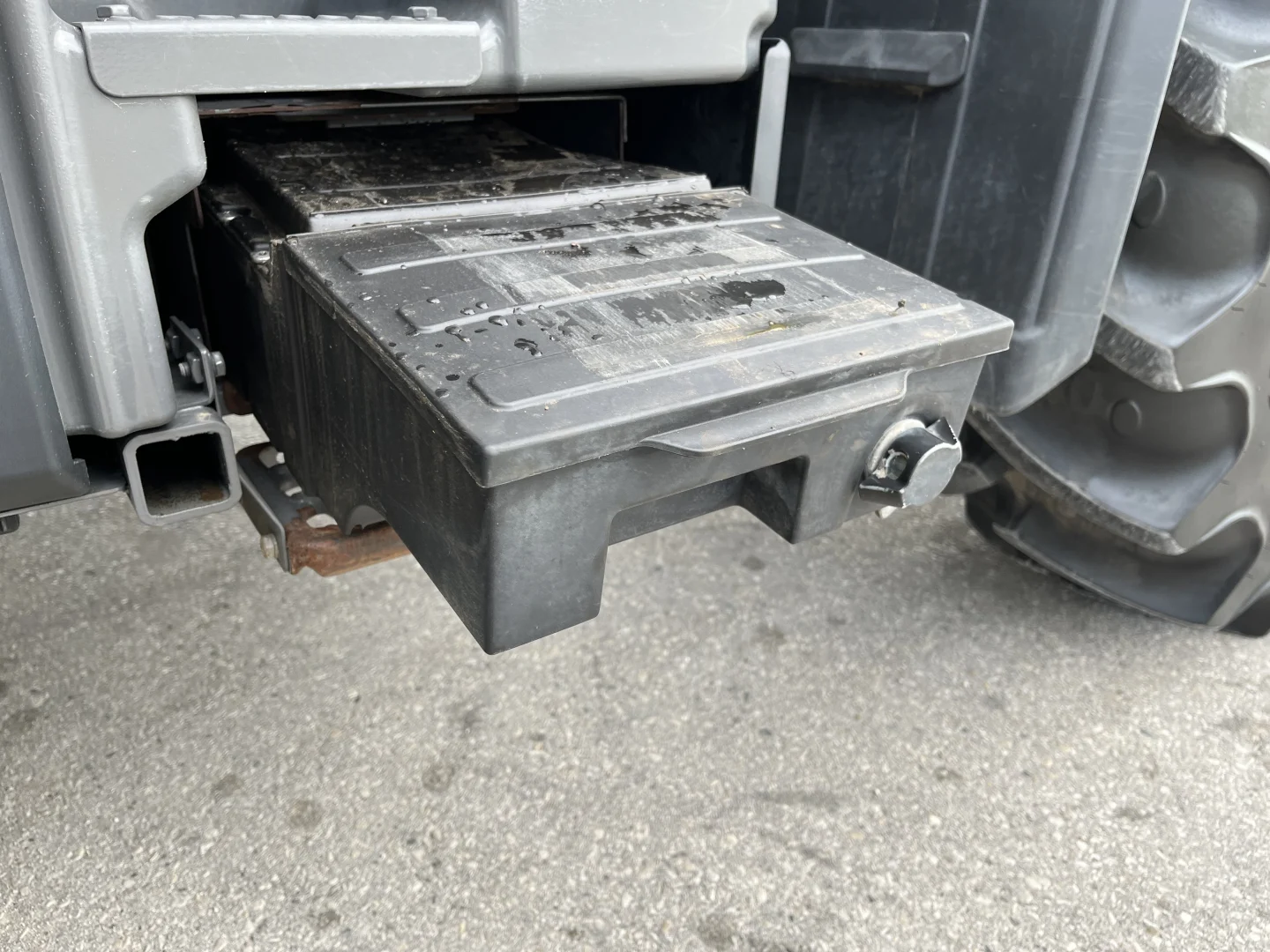

| Battery | 1475CCA | |

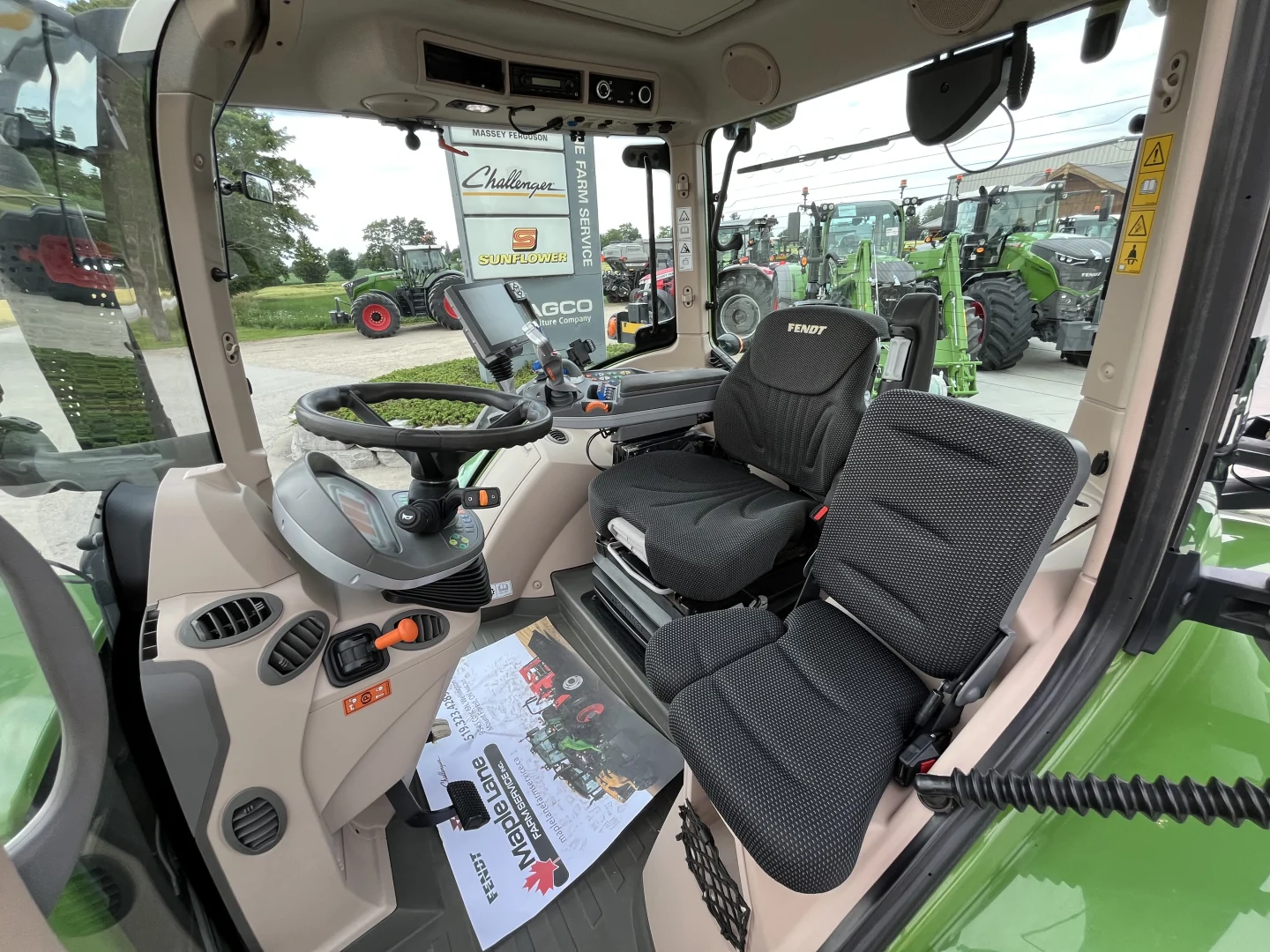

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 2 Point Air | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |
| Operator Seat | FD Super Comfort | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline | |
| Headrest | Extend | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Air (built in compressor), Forward/Reverse Horizontal, Low Frequency | |
| Rotation | Segments | |
| Comfort | Heat, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | Rear, 300° Front | |
| Sunshade | Windshield | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |
| Wheels | ||
|---|---|---|

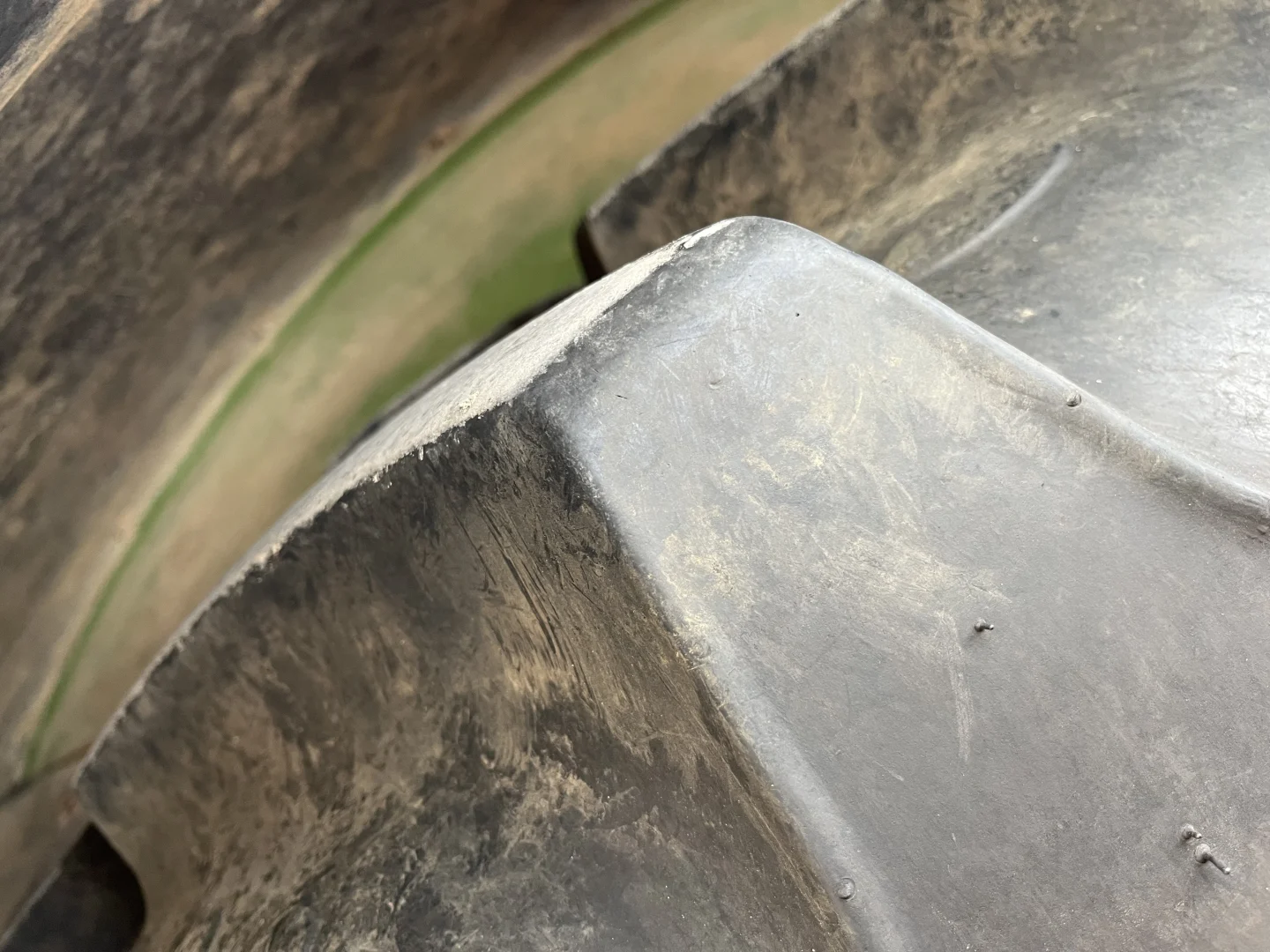

| Front | BKT 420/85R30 Agrimax RT 855 | |
| Size | 420/85R30 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 43.69cm (1' 5-3/16") 1' 5-3/16" 43.69cm | |
| Overall Diameter | 147.57cm (4' 10-1/8") 4' 10-1/8" 147.57cm | |
| Static Loaded Radius | 66.04cm (2' 2") 2' 2" 66.04cm | |
| Rolling Circumference | 442.21cm (14' 6-1/8") 14' 6-1/8" 442.21cm | TRELL 380/85R34 TM600 |
| Size | 380/85R34 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 3-3/8" (390mm) 390mm 1' 3-3/8" | |
| Overall Diameter | 4' 11-9/16" (1513mm) 1513mm 4' 11-9/16" | |
| Static Loaded Radius | 2' 2-7/8" (683mm) 683mm 2' 2-7/8" | |
| Rolling Circumference | 15' 1/16" (4574mm) 4574mm 15' 1/16" | |
| Weight | 187.17lb. (84.9kg) 84.9kg 187.17lb. | |

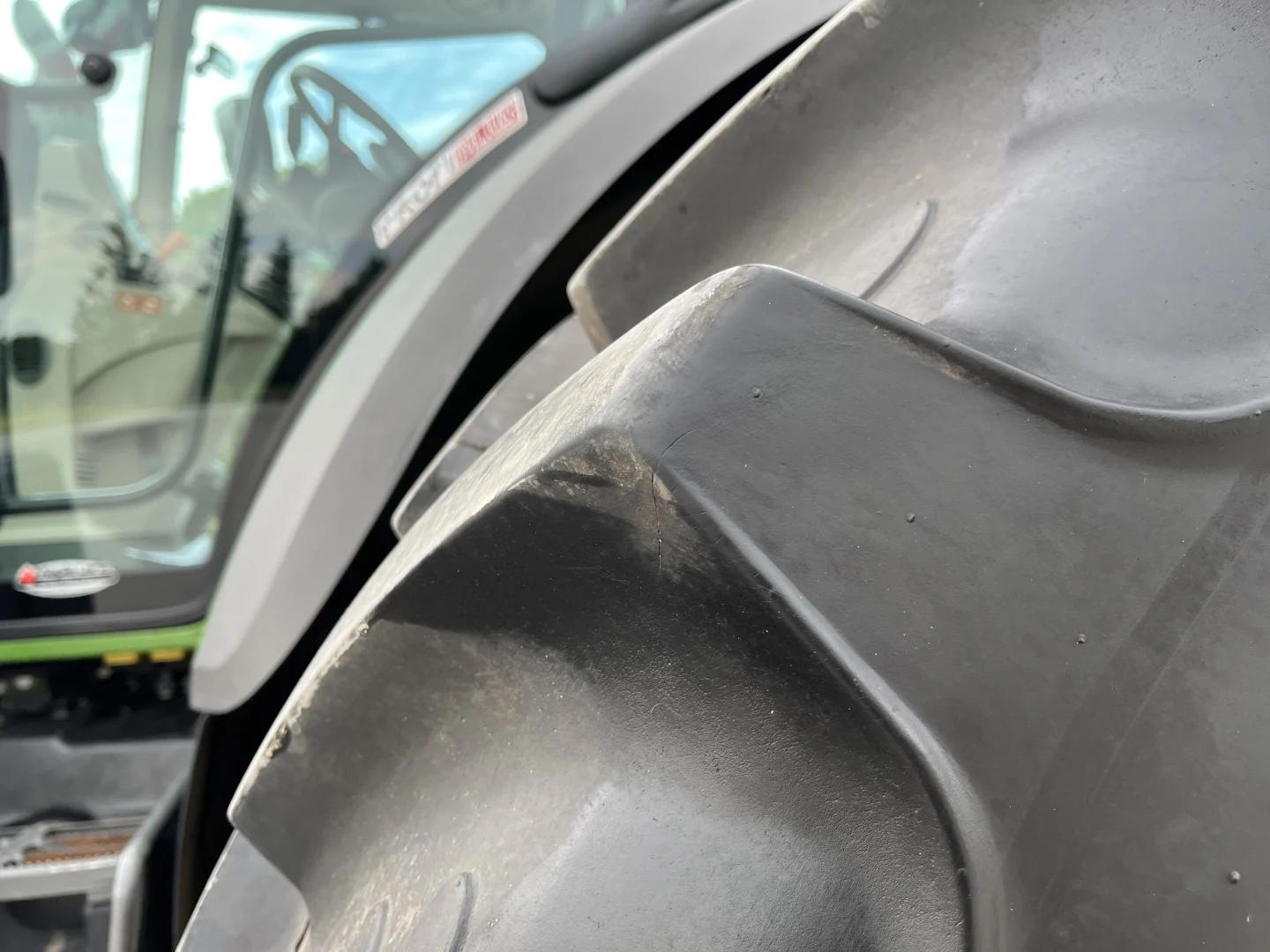

| Rear | BKT 480/80R46 Agrimax RT 855 | |
| Size | 480/80R46 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 6-7/8" (479mm) 479mm 1' 6-7/8" | |
| Overall Diameter | 6' 4-1/4" (1936mm) 1936mm 6' 4-1/4" | |
| Static Loaded Radius | 2' 11-1/4" (895mm) 895mm 2' 11-1/4" | |
| Rolling Circumference | 19' 3-1/8" (5871mm) 5871mm 19' 3-1/8" | TRELL 480/80R46 TM600 |
| Size | 480/80R46 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 7-1/2" (495mm) 495mm 1' 7-1/2" | |
| Overall Diameter | 6' 5-5/16" (1964mm) 1964mm 6' 5-5/16" | |
| Static Loaded Radius | 2' 10-15/16" (887mm) 887mm 2' 10-15/16" | |
| Rolling Circumference | 19' 6-1/4" (5950mm) 5950mm 19' 6-1/4" | |
| Weight | 420.64lb. (190.8kg) 190.8kg 420.64lb. | |
| Dimensions | ||
|---|---|---|
| Length | 17' 2-5/16" (5240mm) 5240mm 17' 2-5/16" | |
| Wheelbase | 9' 1-9/16" (2783mm) 2783mm 9' 1-9/16" | |
| Width | 8' 4-3/8" (2550mm) 2550mm 8' 4-3/8" | |
| Height | 10' 1/16" (3050mm) 3050mm 10' 1/16" | |
| Minimum Ground Clearance | 1' 9-5/8" (550mm) 550mm 1' 9-5/8" | |
| Weight | 7979.59kg (17592lb.) 17592lb. 7979.59kg | |

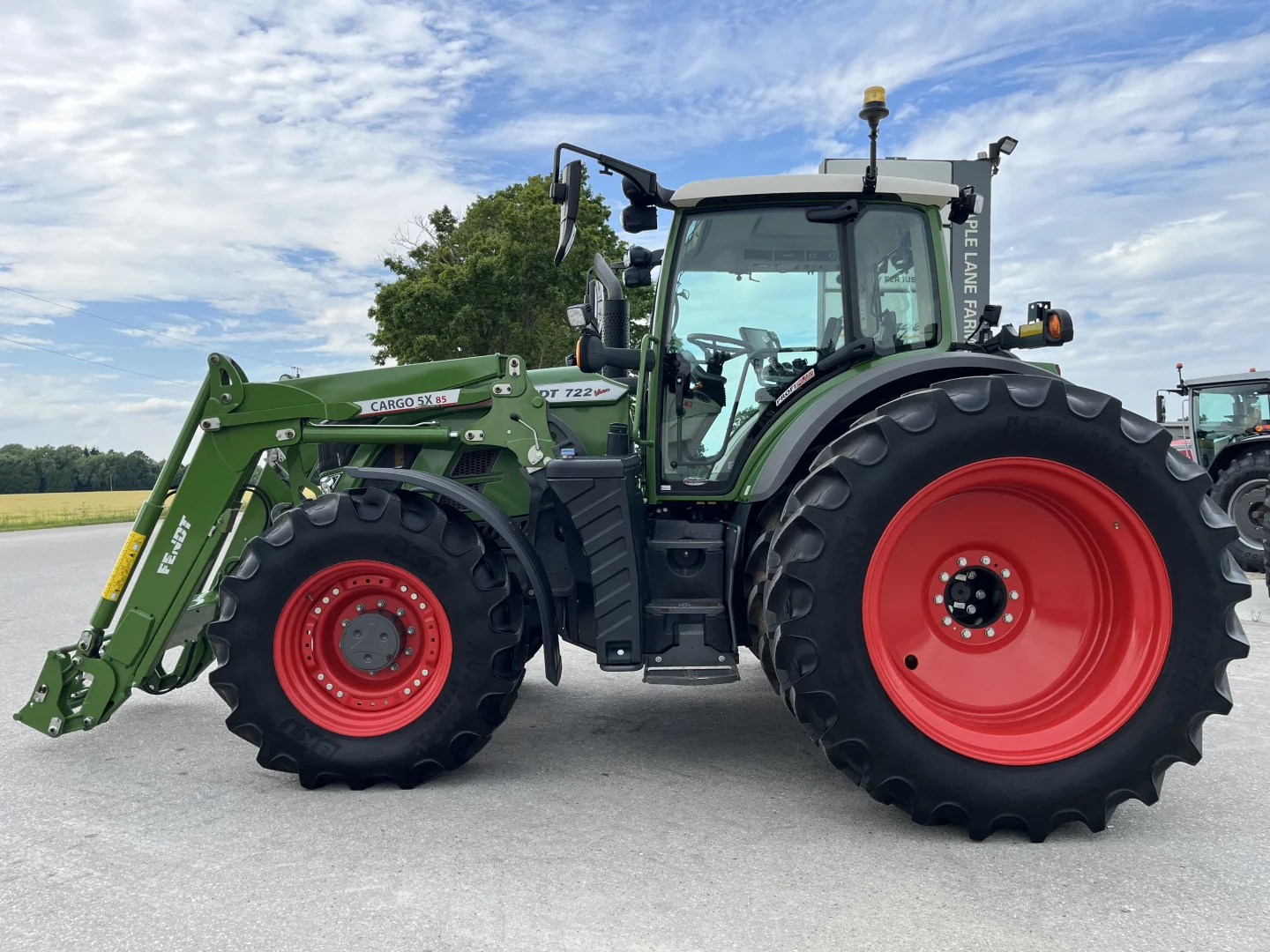

| Loader | ||
|---|---|---|

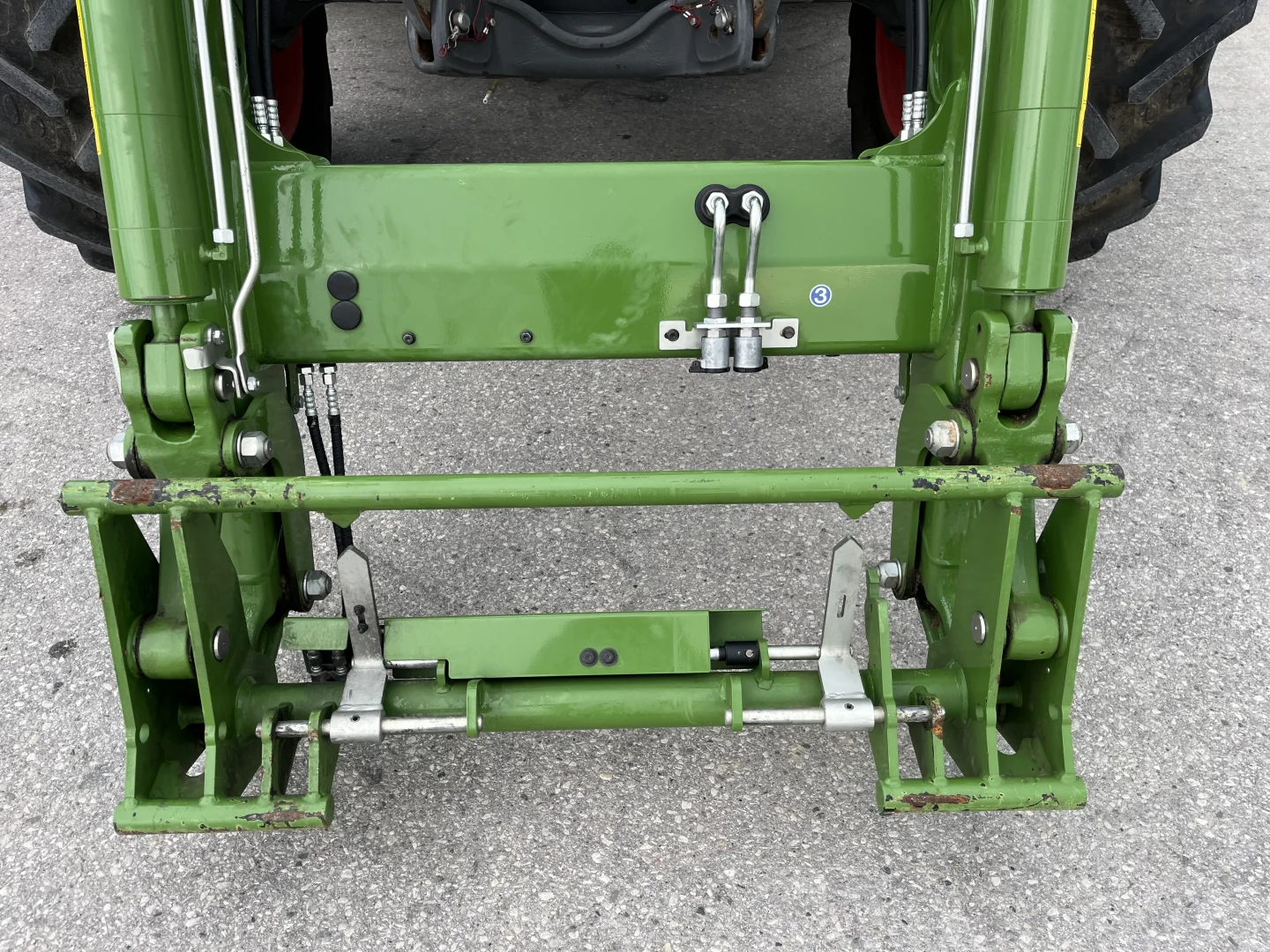

| Loader | FD Cargo 5X/85 | |
| Attachments | FD 86" Fendt HD Bucket | |
| Width | 218.44cm (7' 2") 7' 2" 218.44cm | FD 94" Fendt HD Bucket |
| Width | 238.76cm (7' 10") 7' 10" 238.76cm | FD 72" Fendt HD Bucket |
| Width | 182.88cm (6') 6' 182.88cm | FD 84" Fendt HD Bucket |
| Width | 213.36cm (7') 7' 213.36cm | |
| Maximum Lift Height – Pivot Pin | 14' 7-9/16" (4460mm) 4460mm 14' 7-9/16" | |
| Lift Capacity to Max Height – Pivot Pin | 5844.46lb. (2651kg) 2651kg 5844.46lb. | |
| Digging Depth | 9-13/16" (250mm) 250mm 9-13/16" | |
| Max Dump Angle | 55deg | |
| Height Control | Height Limit, Preset Height | |

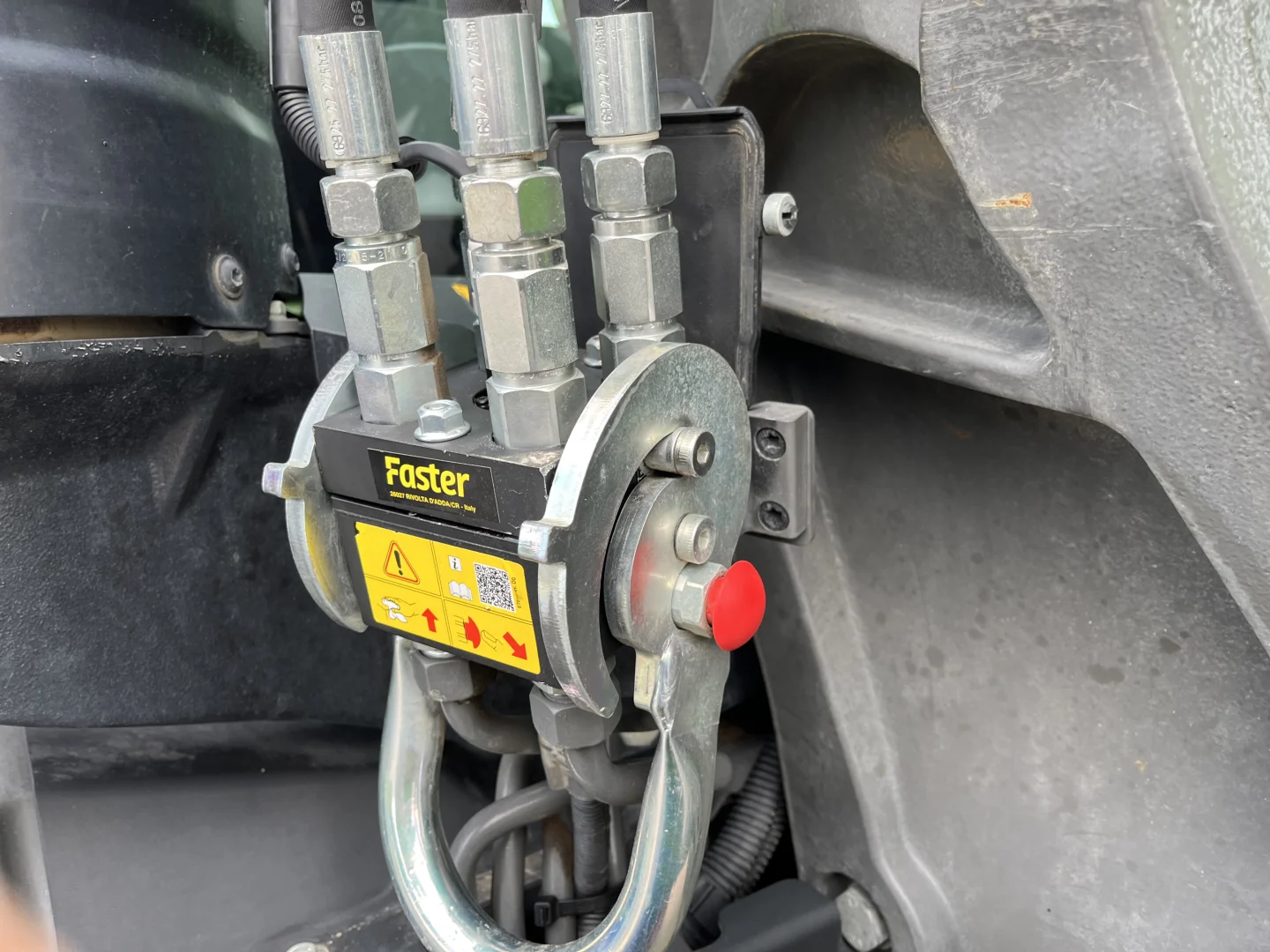

| 3rd Function | Diverter Valve | |
| Weigh Scale | Yes | |
| Comfort | Hydraulic Bucket Lock, Suspension | |
| Tool Carrier | Euro Quick Attach | |
| Self-Leveling | Hydraulic | |
| Lift Path | Radial | |
