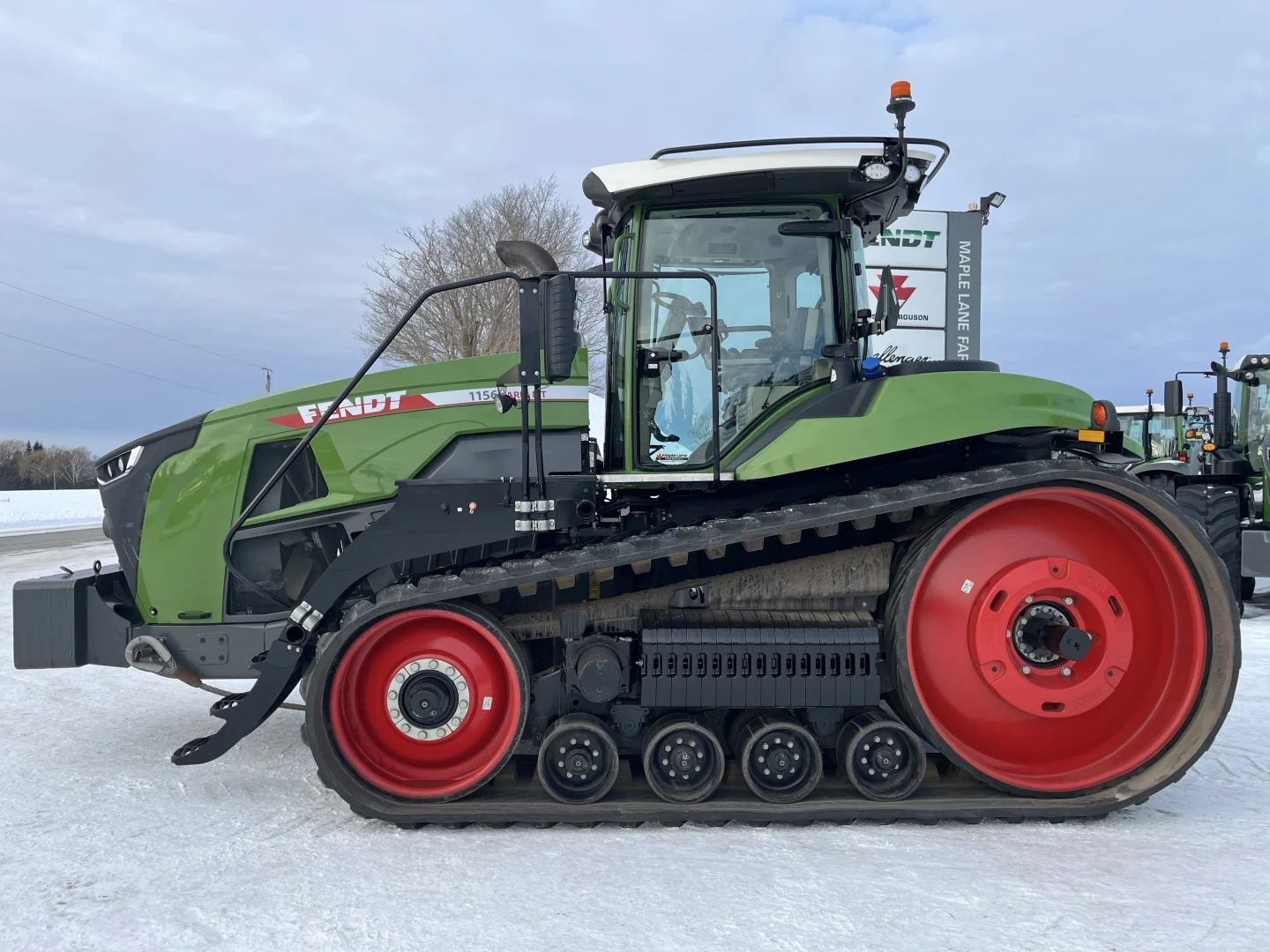

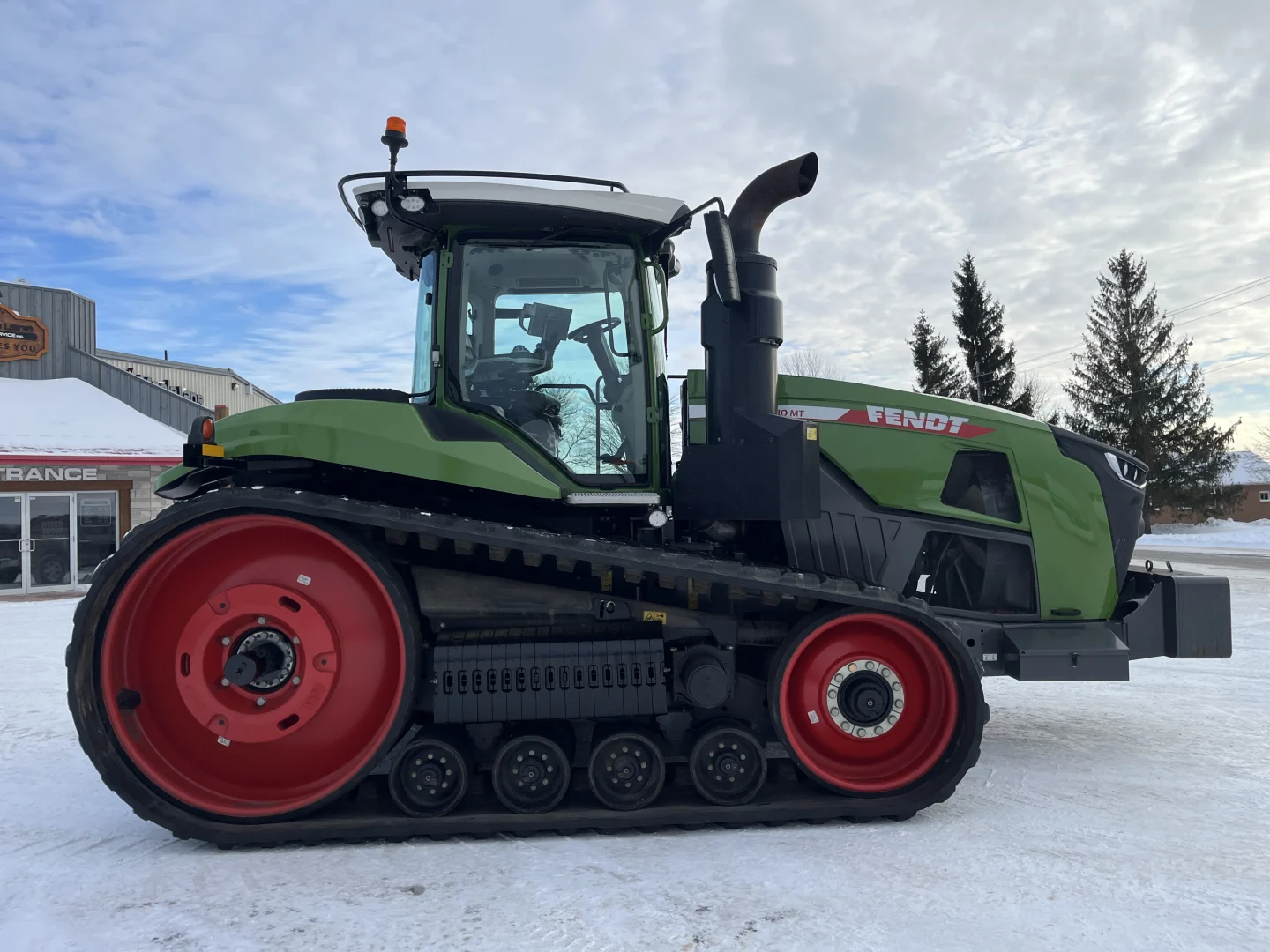

Used 2023 Fendt 1156 MT
| Description | |
|---|---|

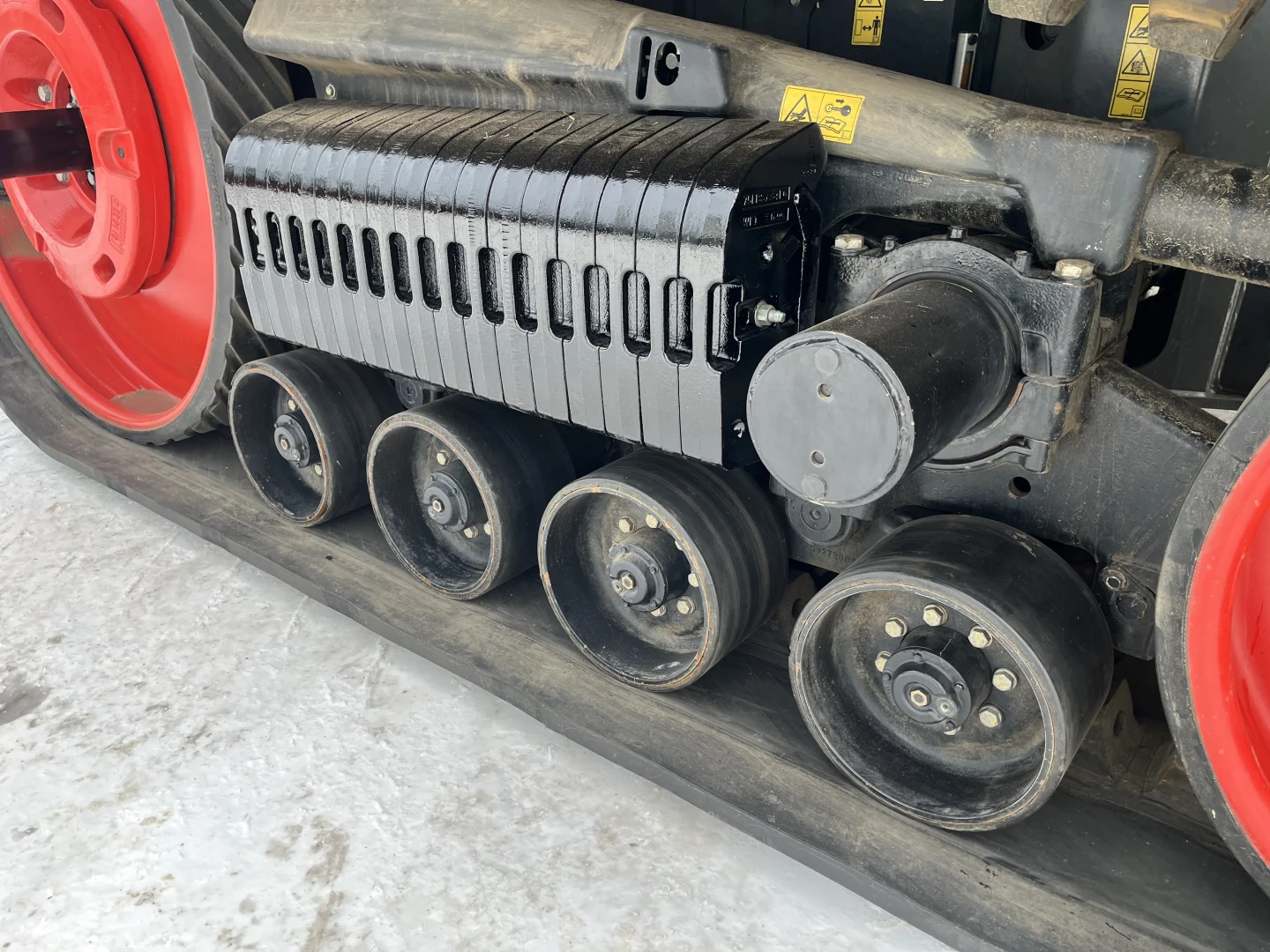

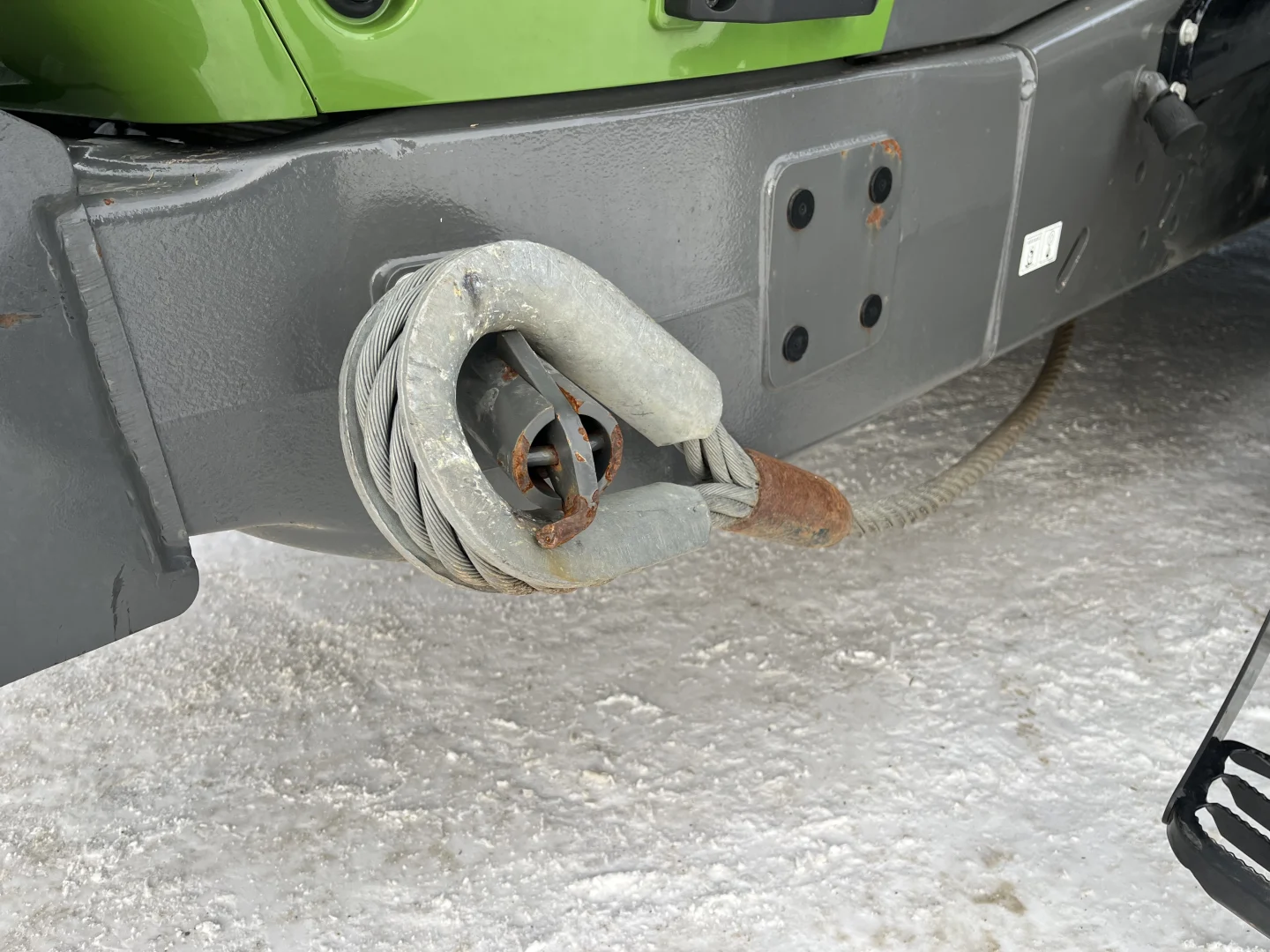

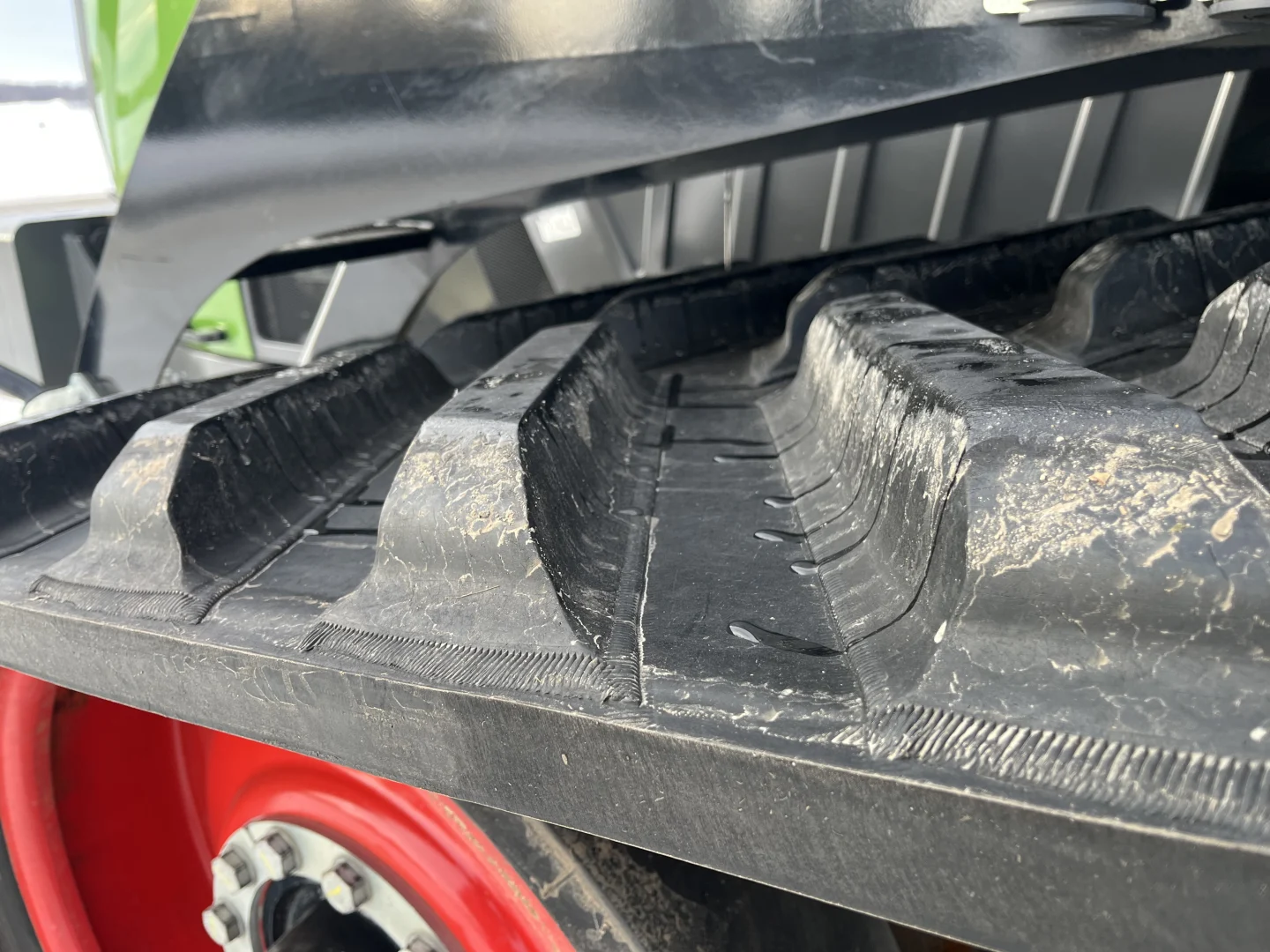

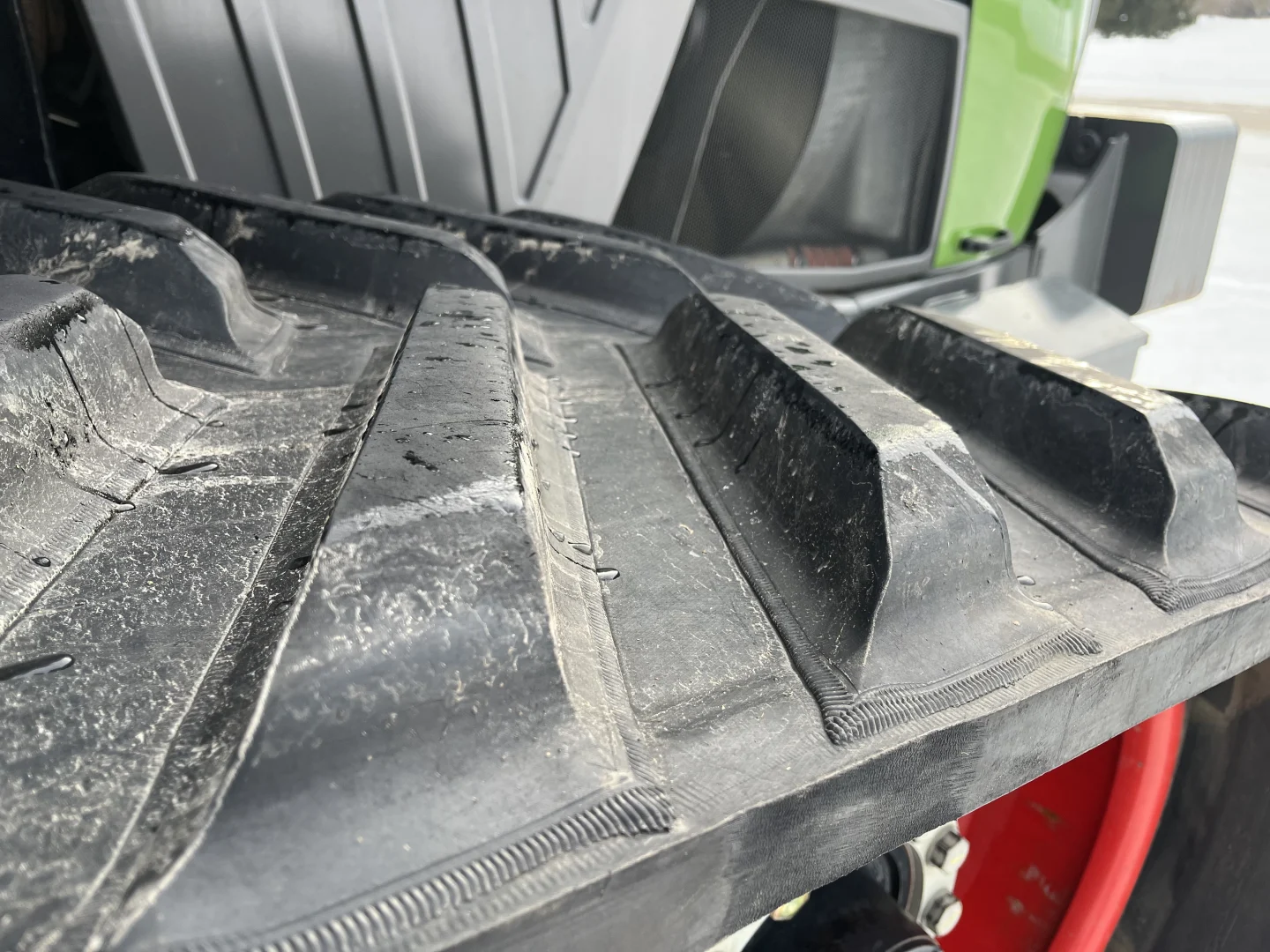

| *Coming*, 2023 MY, 3000 hrs, Will have new 36″ general ag tracks, Vario transmission, 116 GPM dual pump hydraulics, 8 valves, CAT 5 hydraulic swinging drawbar, 1000 RPM rear PTO, hydraulic and air trailer brakes, Full LED worklights, Premium Leather seat, Fendt Guide RTK Trimble, TI Headland, hydraulic hardbar with suspension, cab suspension, 32 undercarriage weights, 6 drive wheel weights, 4000 lb front weights, tow cable | |
| Categories | High Horsepower |
| Unit Number | 24376R |
| Condition | Used |
| Usage | 3000 Hours |
| Year | 2023 |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 420.57kW (564hp) 564hp 420.57kW | |
| PTO Power | 420.57kW (564hp) 564hp 420.57kW | |
| Rated Engine Speed | 1730r/min | |
| Make | MAN 15.2L Tier 6 Cylinder | |
| Displacement | 15190.8cm^3 (927cu. in.) 927cu. in. 15190.8cm^3 | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 348.71gal. (1320L) 1320L 348.71gal. | |
| DEF Tank Capacity | 35.66gal. (135L) 135L 35.66gal. | |
| Warming | Block Heater | |
| Fan | Reversing | |
| Transmission | ||
|---|---|---|
| Name | CVT TA 400 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Trailer Brakes | Air | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 1100 MT 58 GPM | |
| Rear Remote Valves | 8 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|

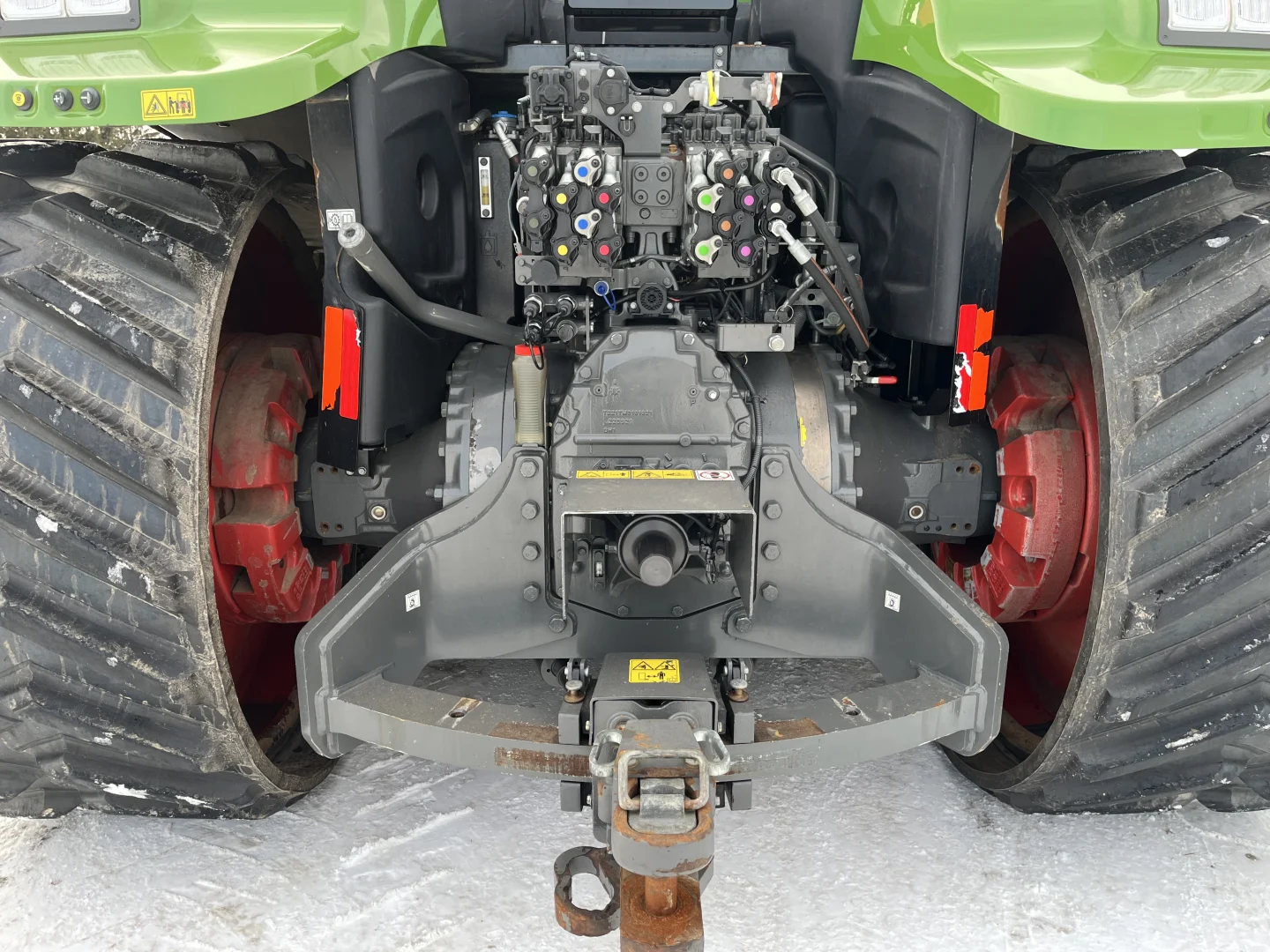

| Rear Hitch | FD 1100 MT | |
| Hitch Category | Category 4, Category 5 | |
| Lift Capacity at Pins | 6803.88kg (15000lb.) 15000lb. 6803.88kg | |
| PTO | ||
|---|---|---|
| Rear | 1000, 1000E | |
| Type | Independent | |
| Technology | ||
|---|---|---|

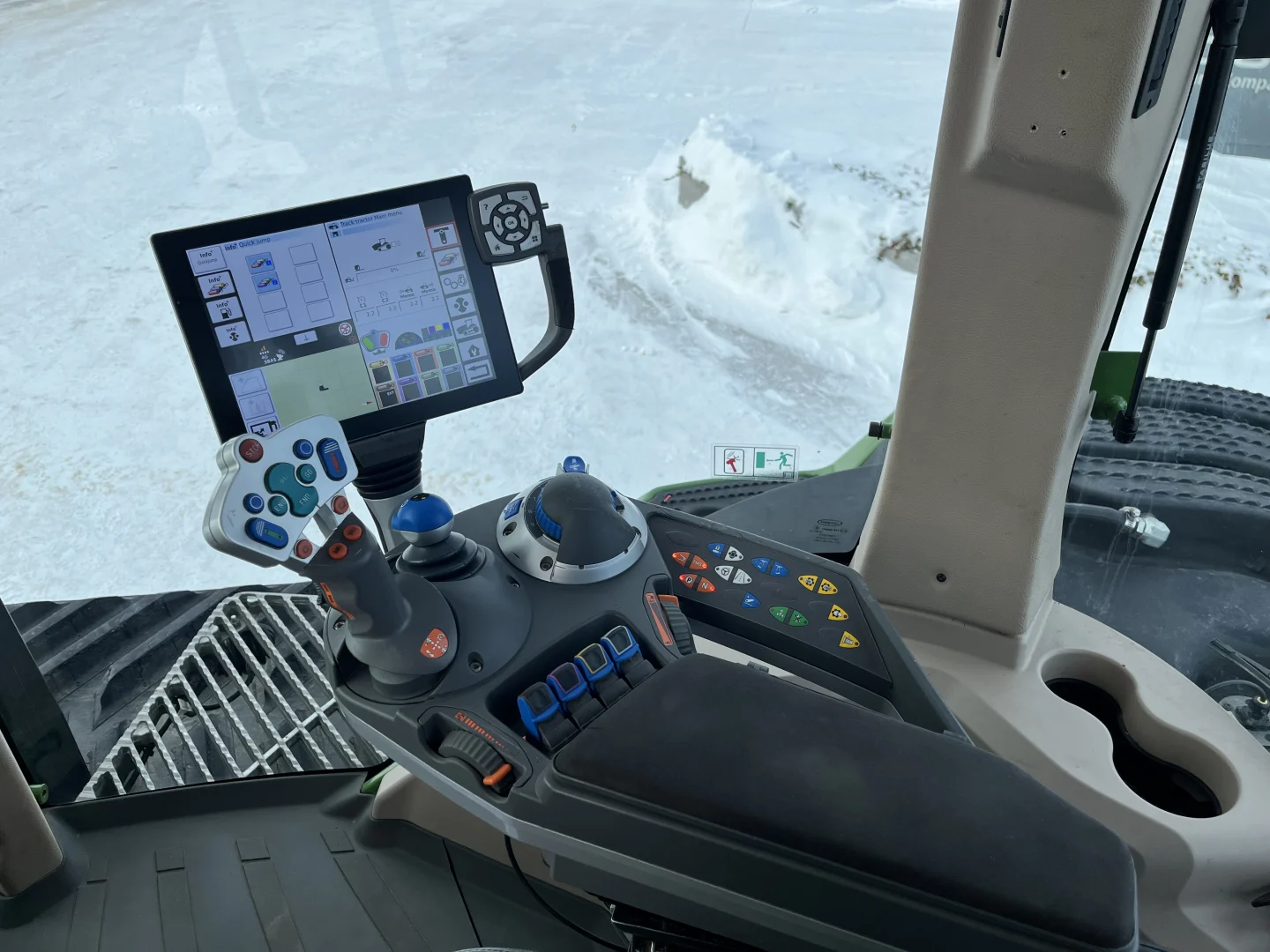

| Display | 10.4" Varioterminal | |

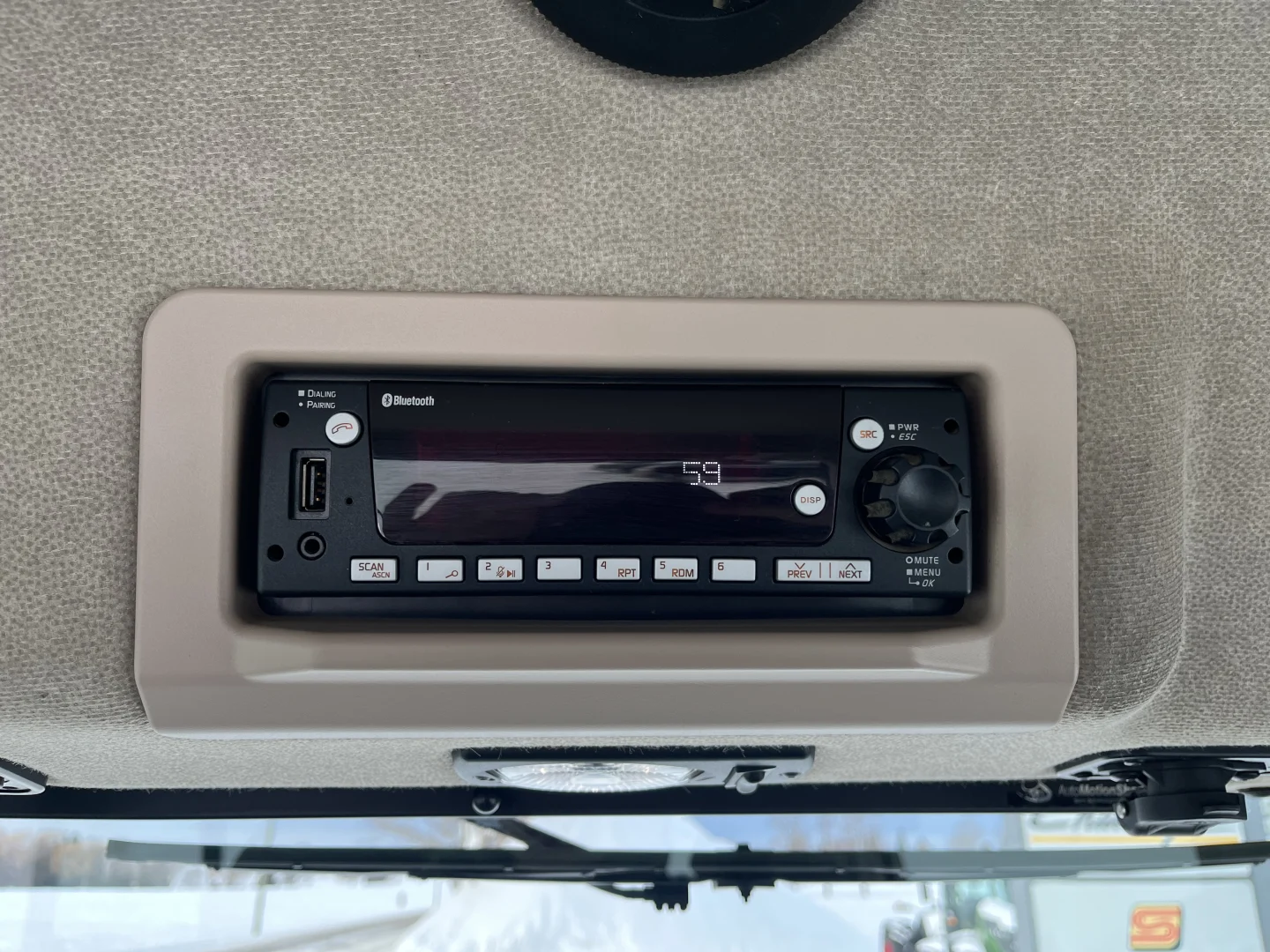

| Entertainment | USB, Bluetooth, Mic | |
| Integration | ISO BUS Implement Control | |
| Guidance | Guidance Ready | |
| Headland Management | Variotronic TI | |
| Auto Headland Turn | Variotronic TI Auto | |
| Data Transfer | TaskDoc Pro | |
| Electrical | ||
|---|---|---|
| Front Lights | 6 | |
| Rear Lights | 8 | |
| Worklight Type | Halogen | |
| Alternator | 325A | |
| Battery | 925CCA | |
| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Climate | Heater, Air Conditioning | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Joystick | |
| Operator Seat | FD Super Comfort EVO Leather | |
| Material | Leather | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | Front, Rear | |
| Sunshade | Windshield | |
| Dimensions | ||
|---|---|---|
| Length | 22' 2-1/16" (6758mm) 6758mm 22' 2-1/16" | |
| Wheelbase | 9' 10-1/8" (3000mm) 3000mm 9' 10-1/8" | |
| Width | 9' 8-1/8" (2950mm) 2950mm 9' 8-1/8" | |
| Height | 12' 3-13/16" (3754mm) 3754mm 12' 3-13/16" | |
| Minimum Ground Clearance | 1' 2-1/8" (359mm) 359mm 1' 2-1/8" | |
| Weight | 92594.17lb. (42000kg) 42000kg 92594.17lb. | |
