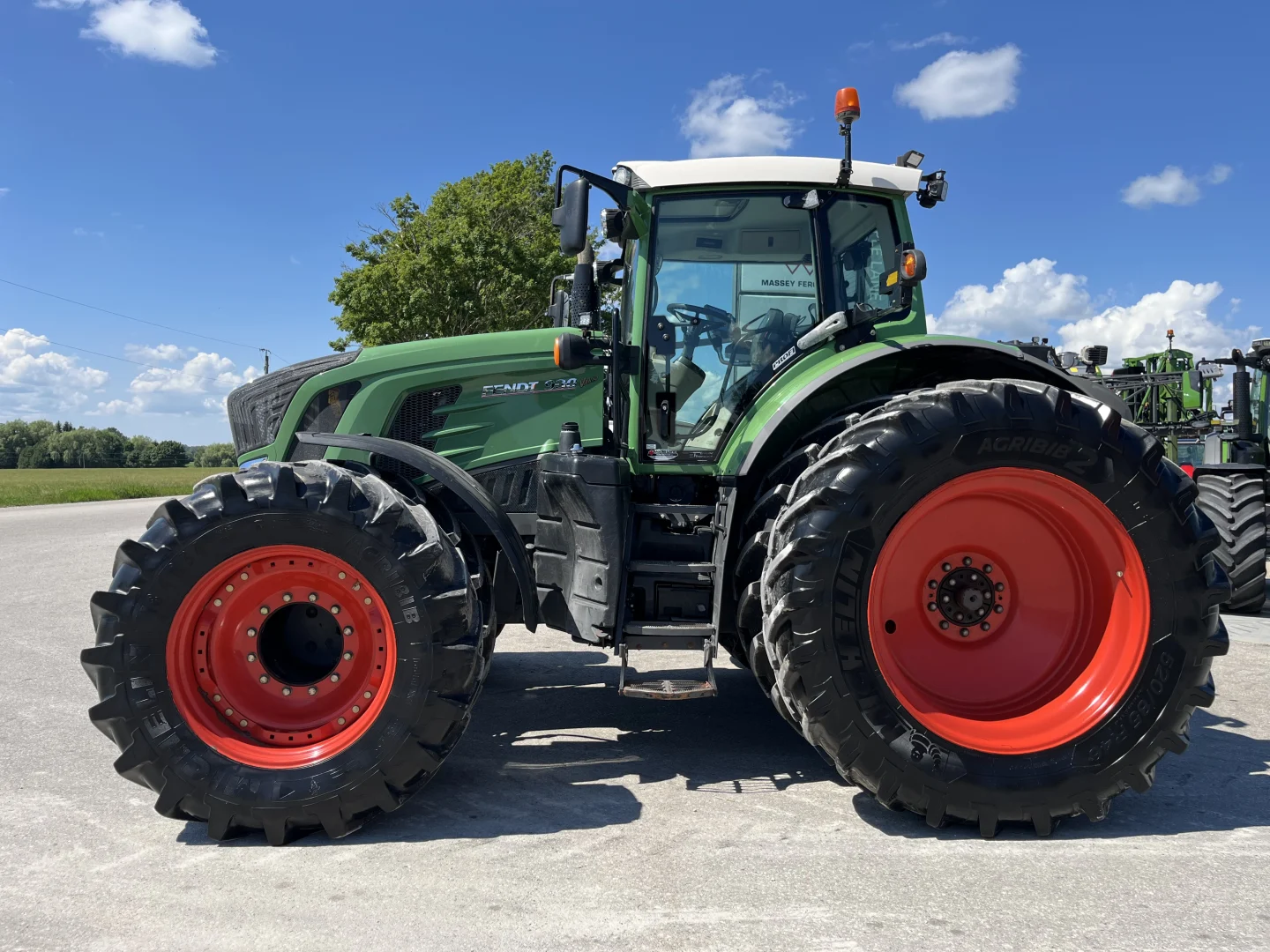

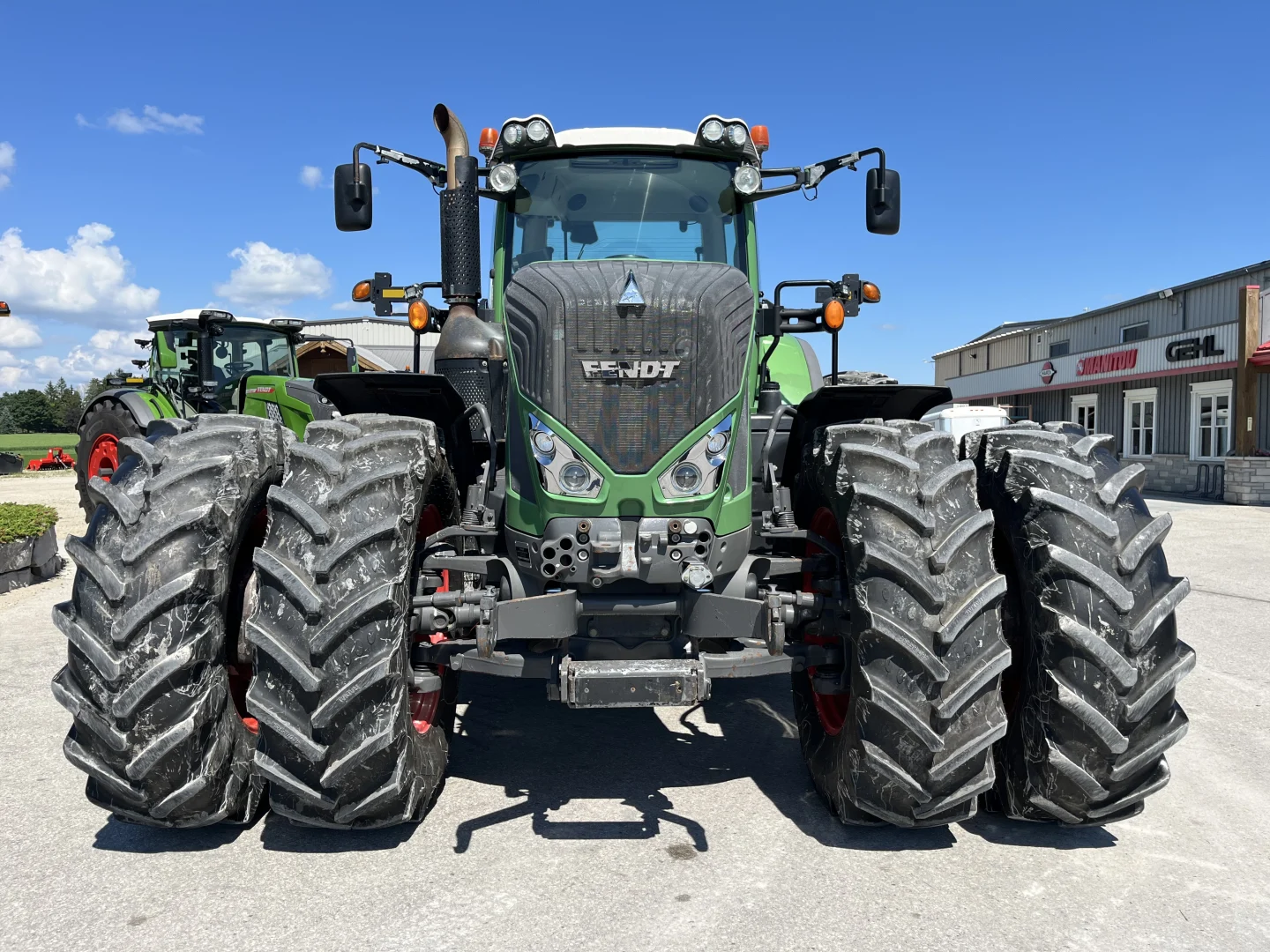

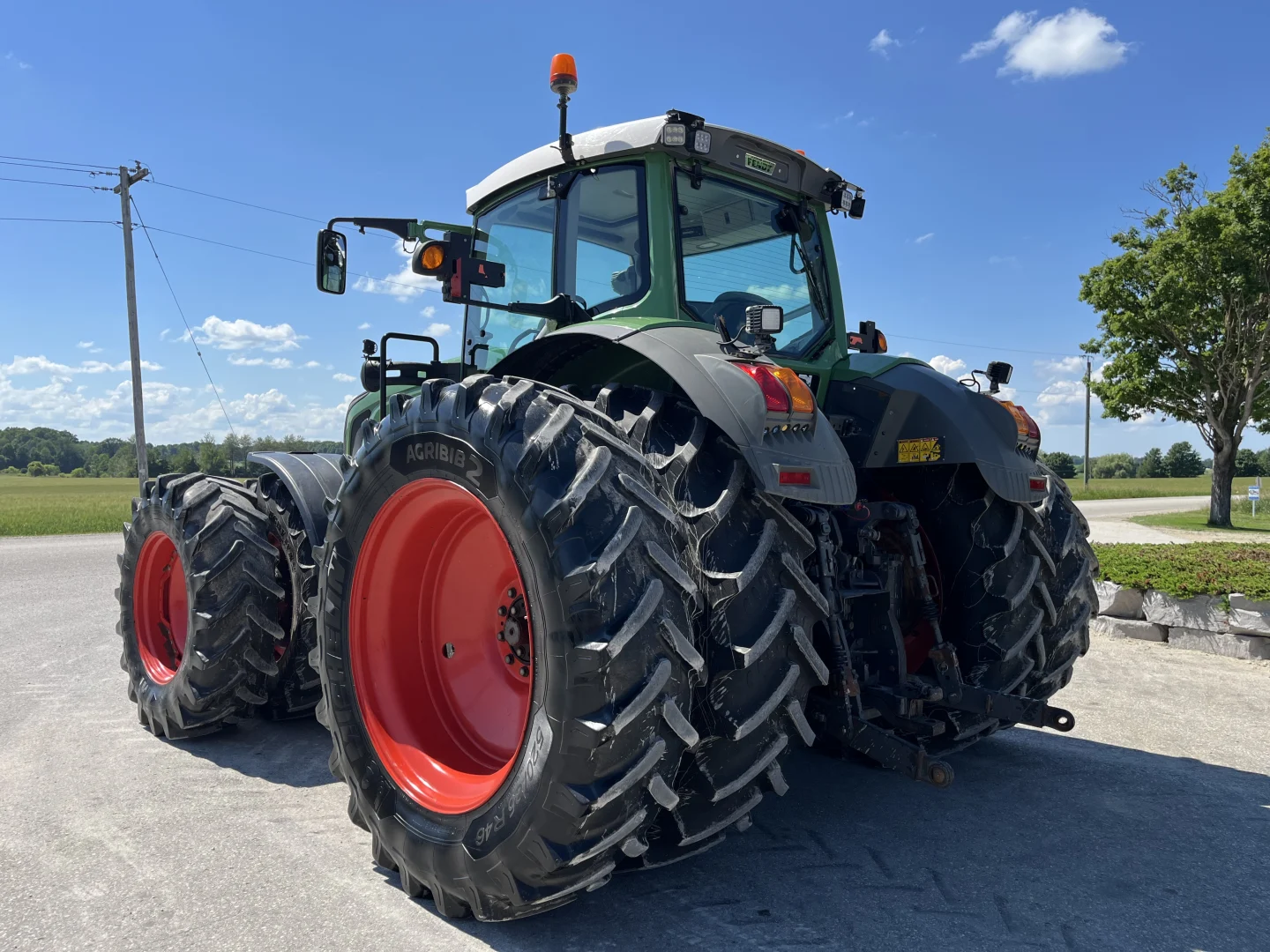

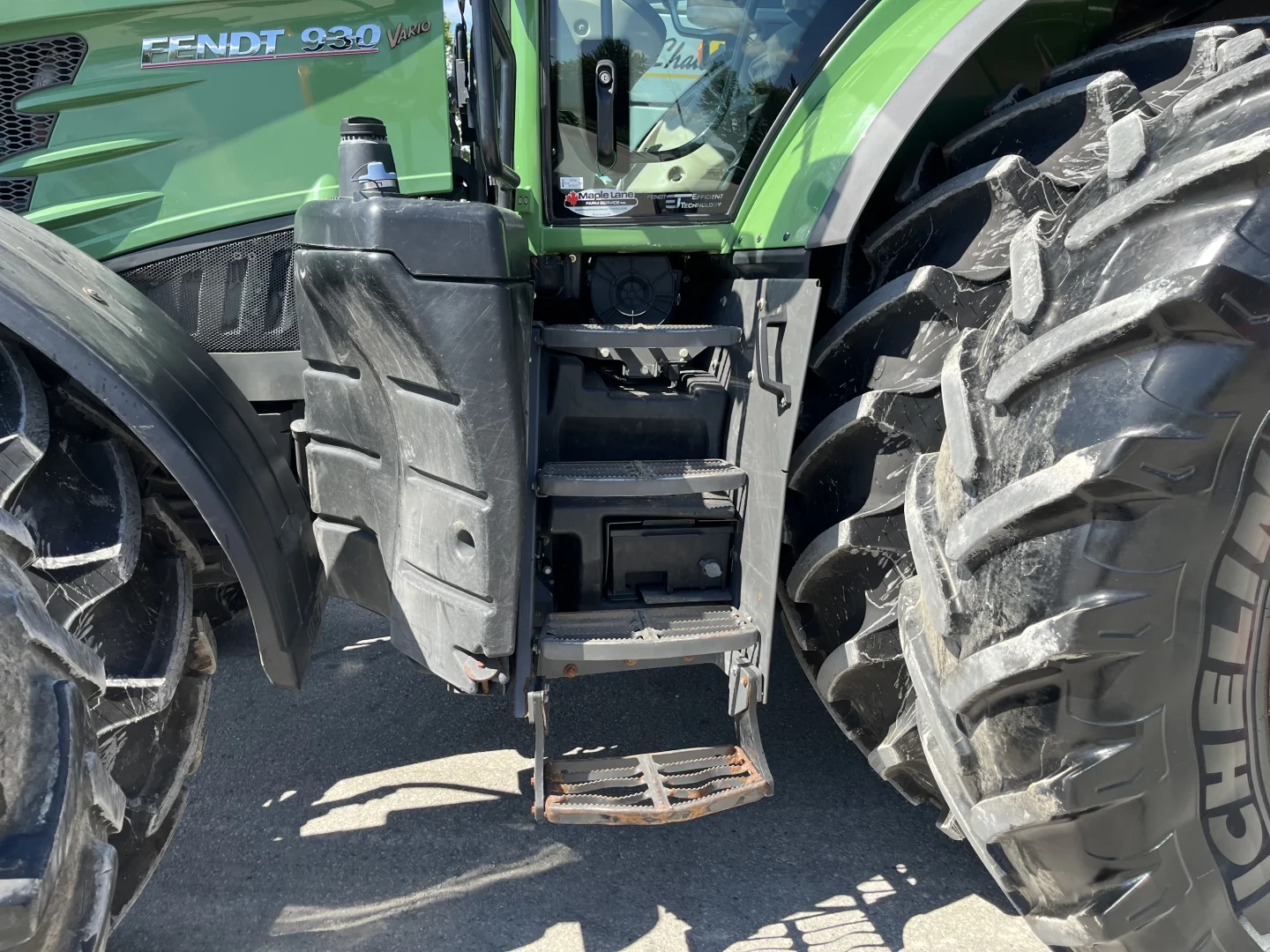

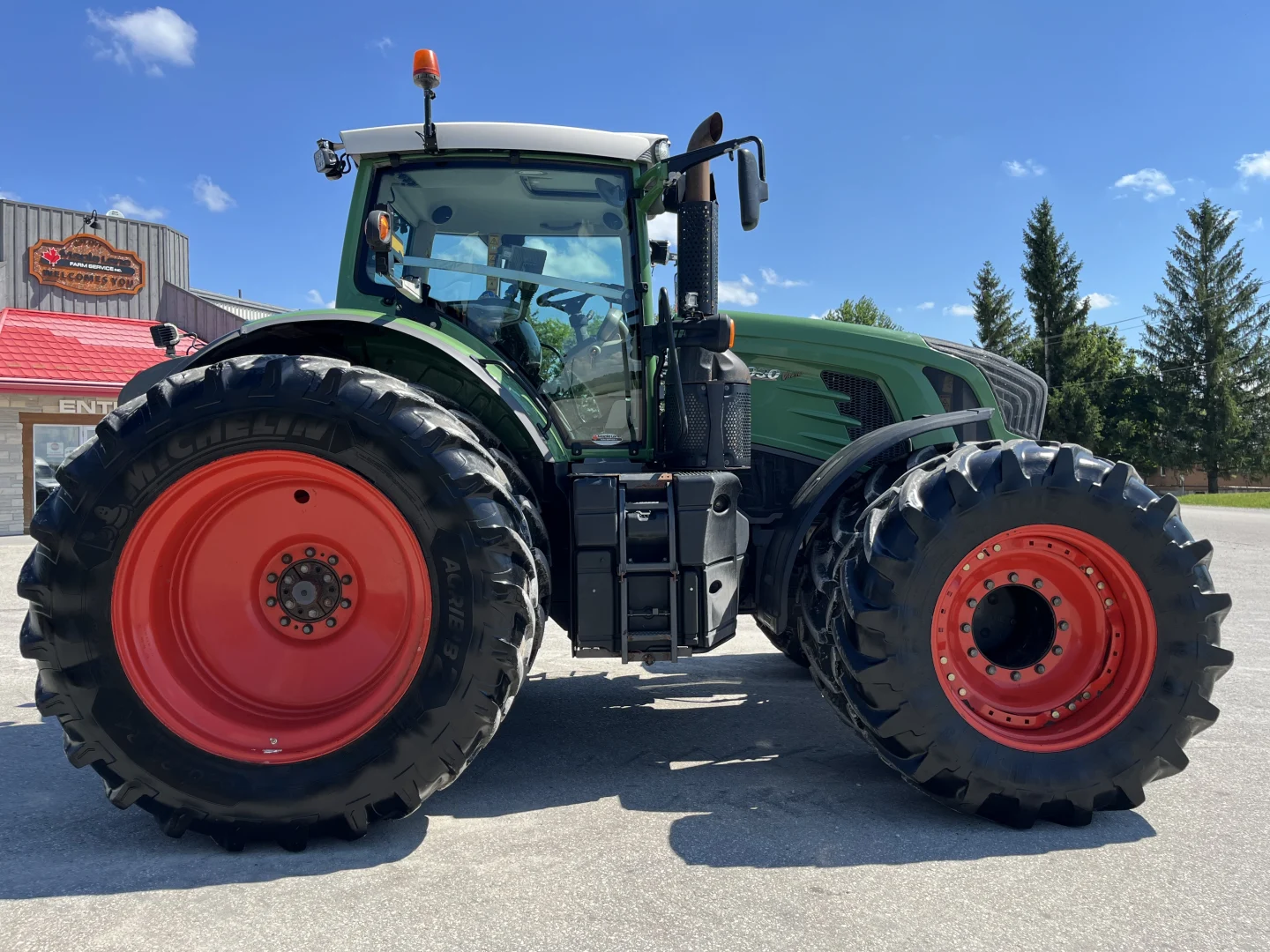

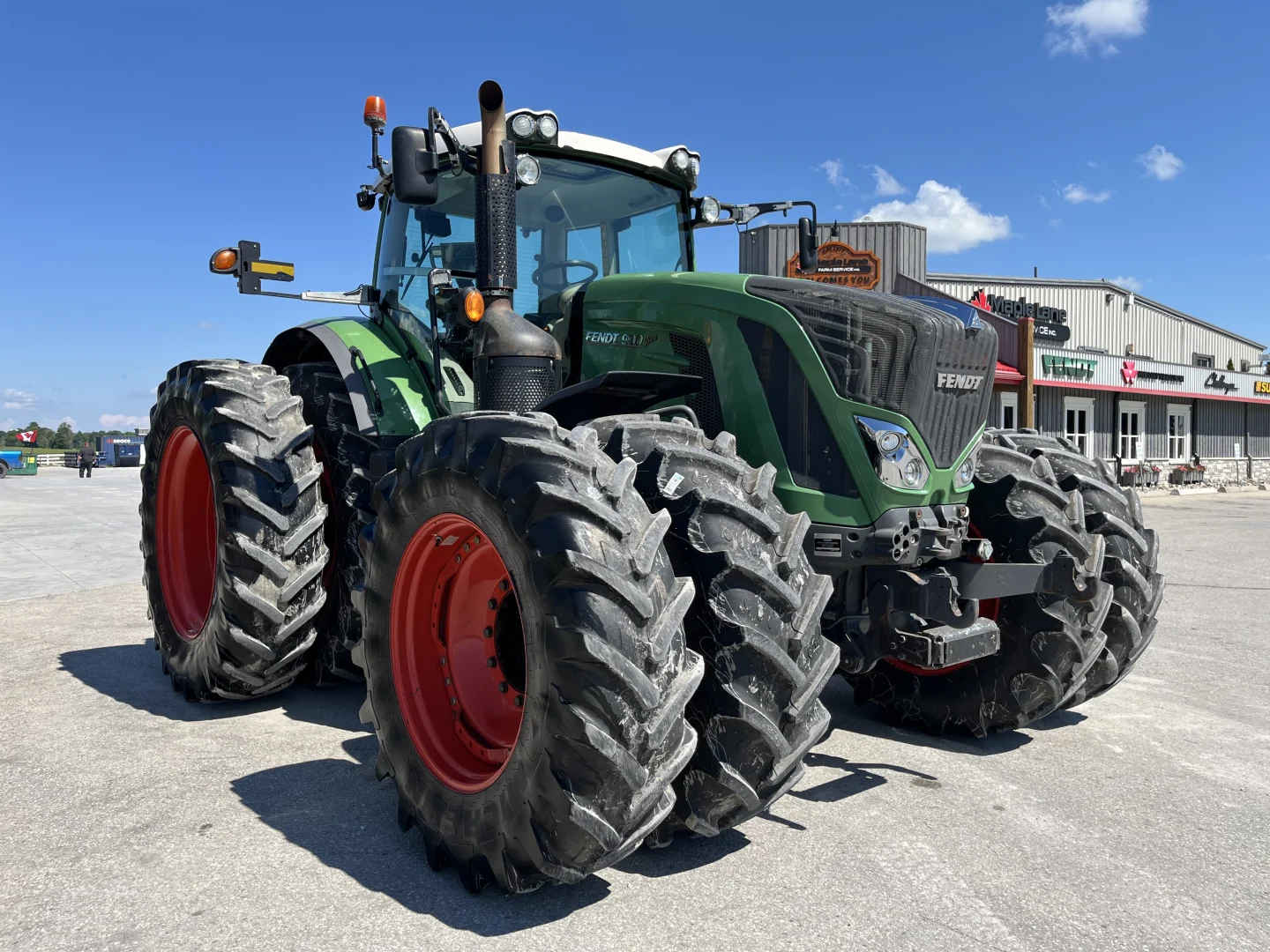

Used 2015 Fendt 930 S4
| Description | |
|---|---|

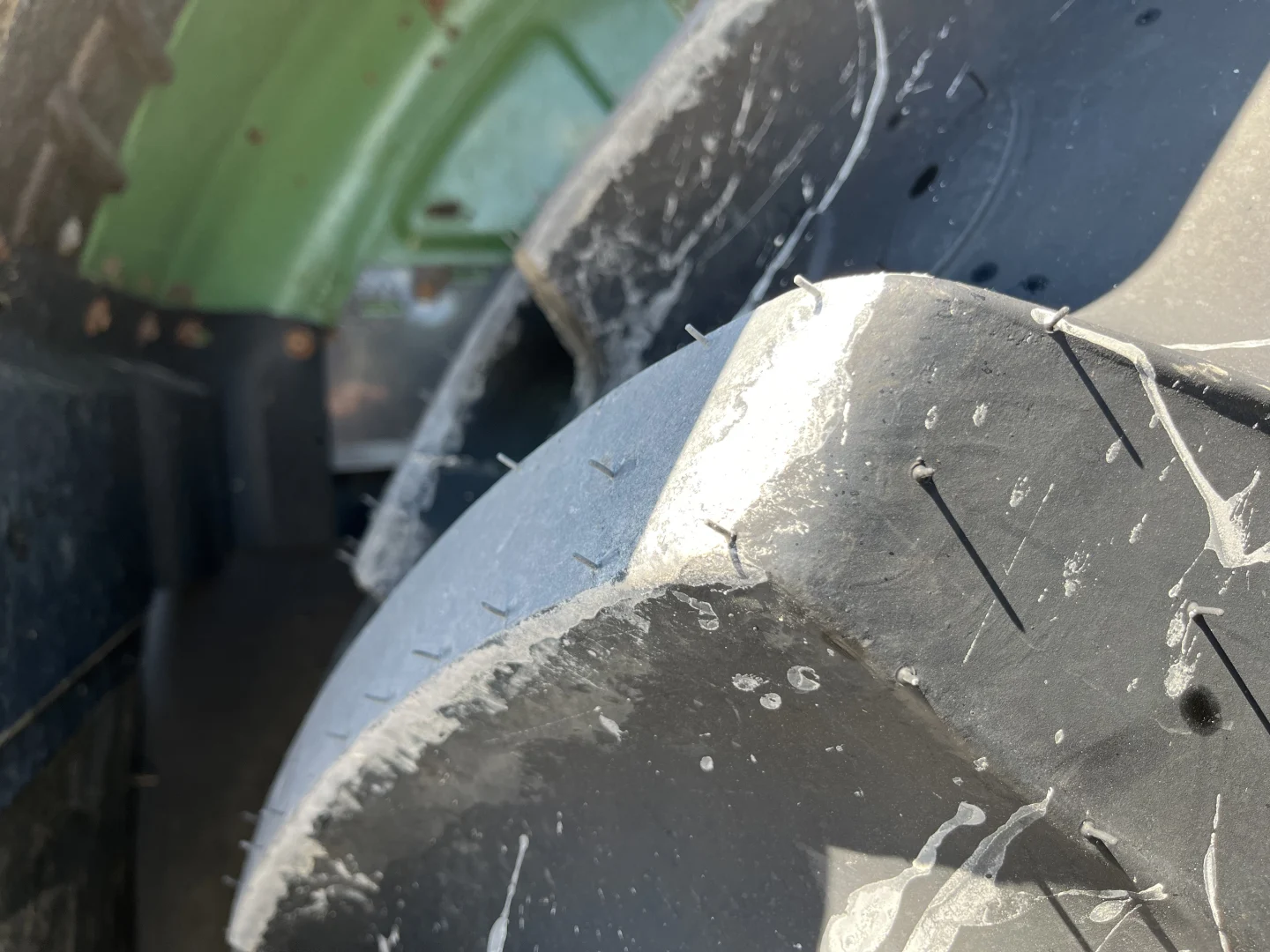

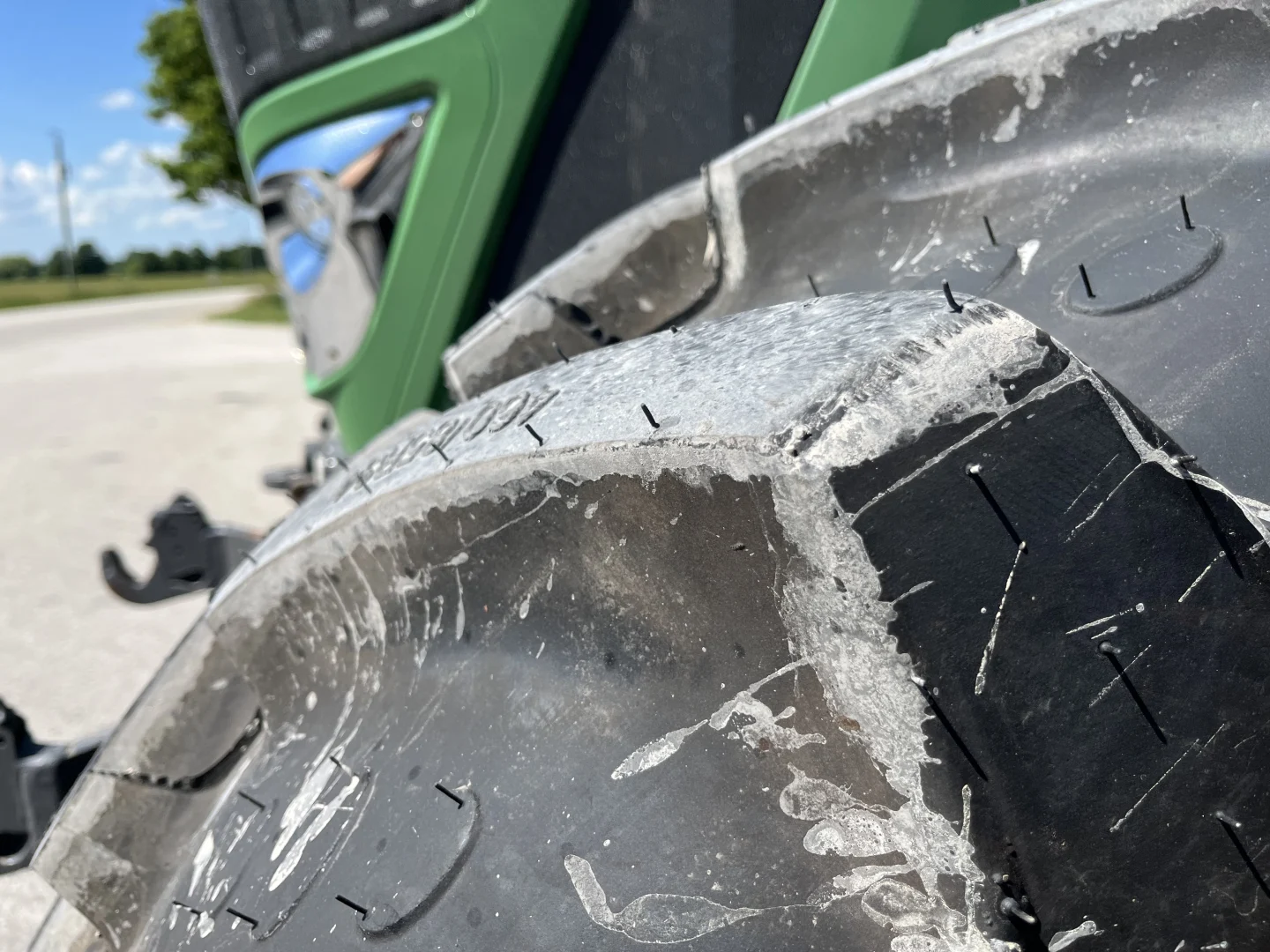

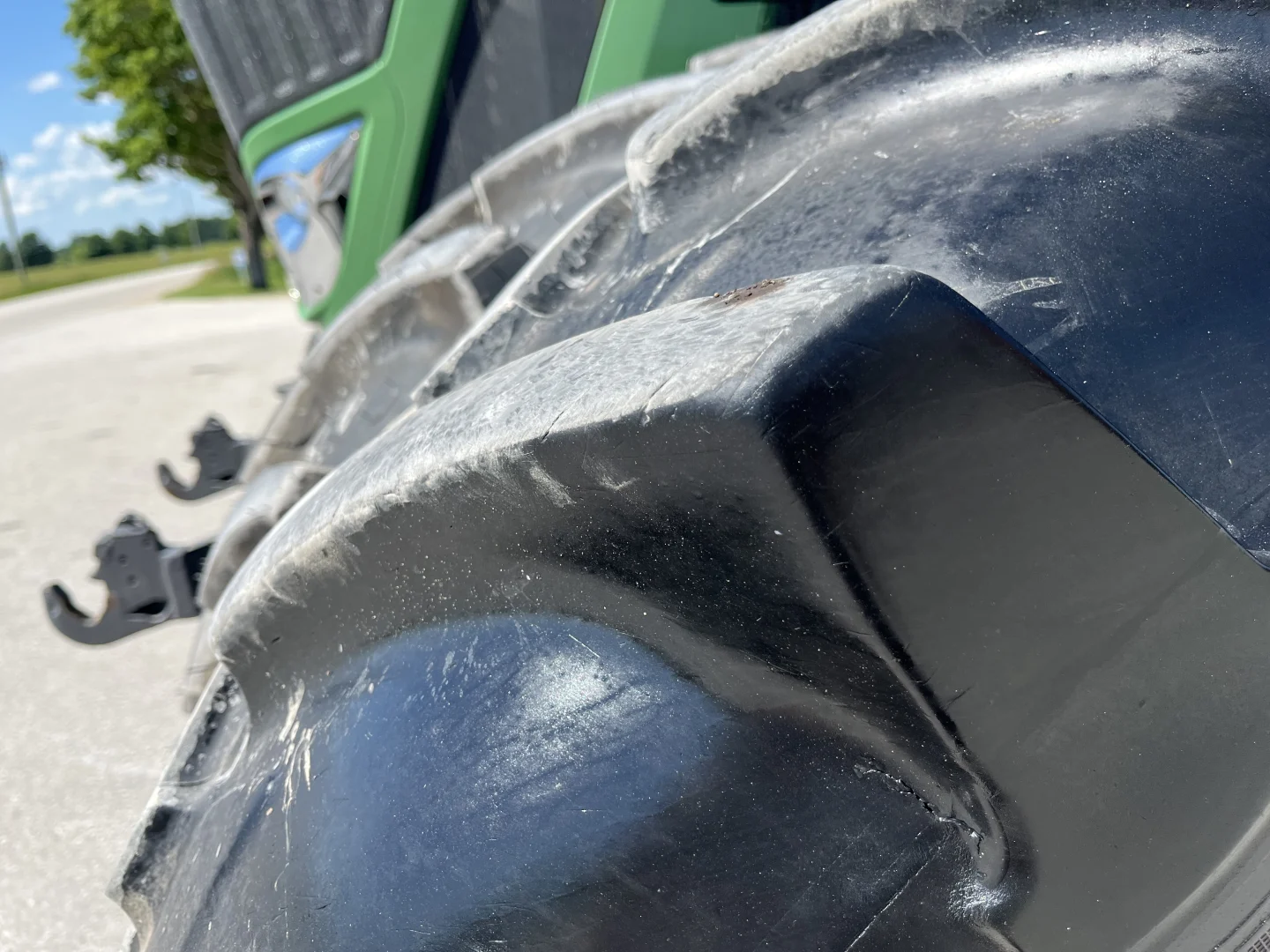

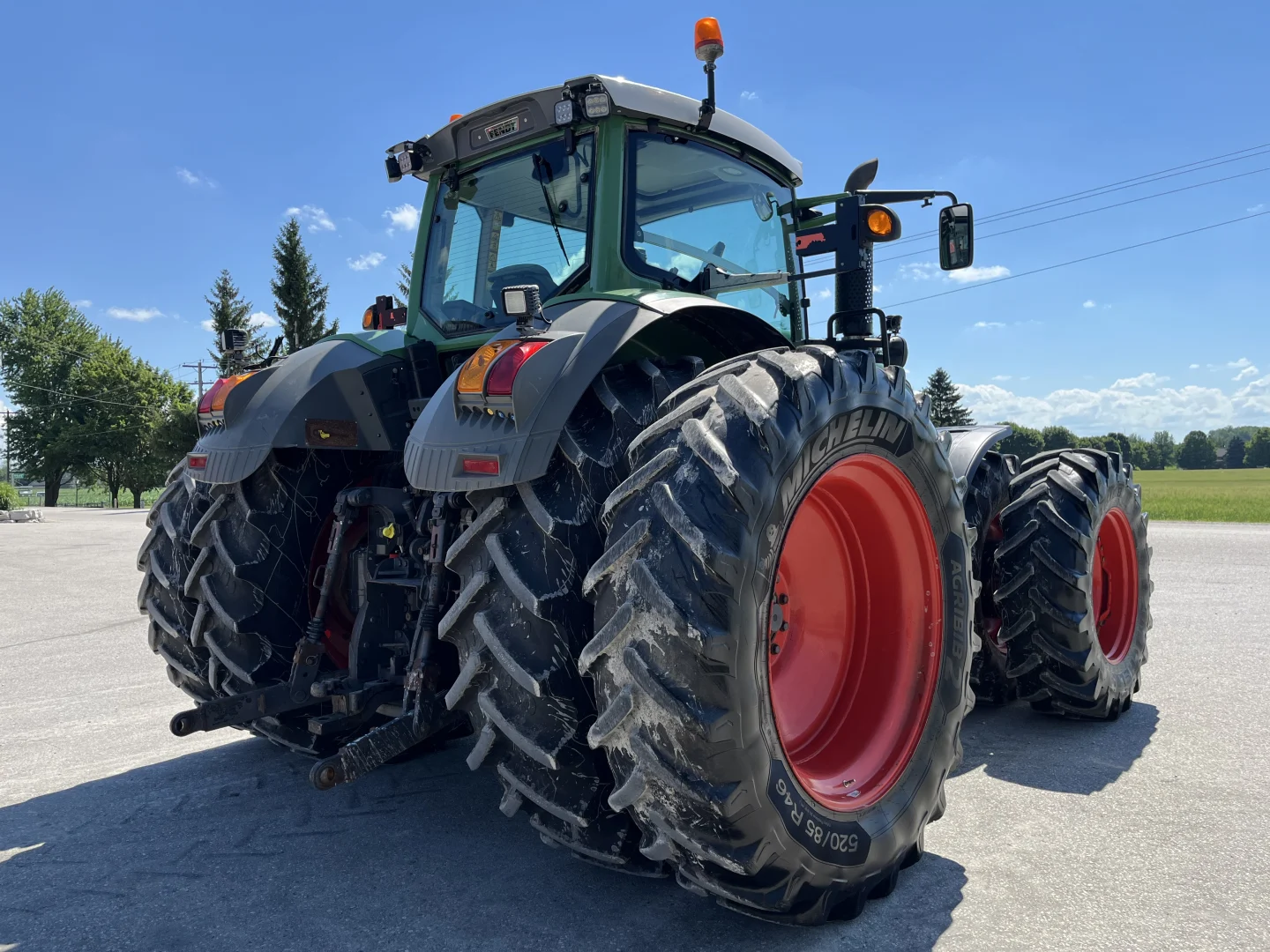

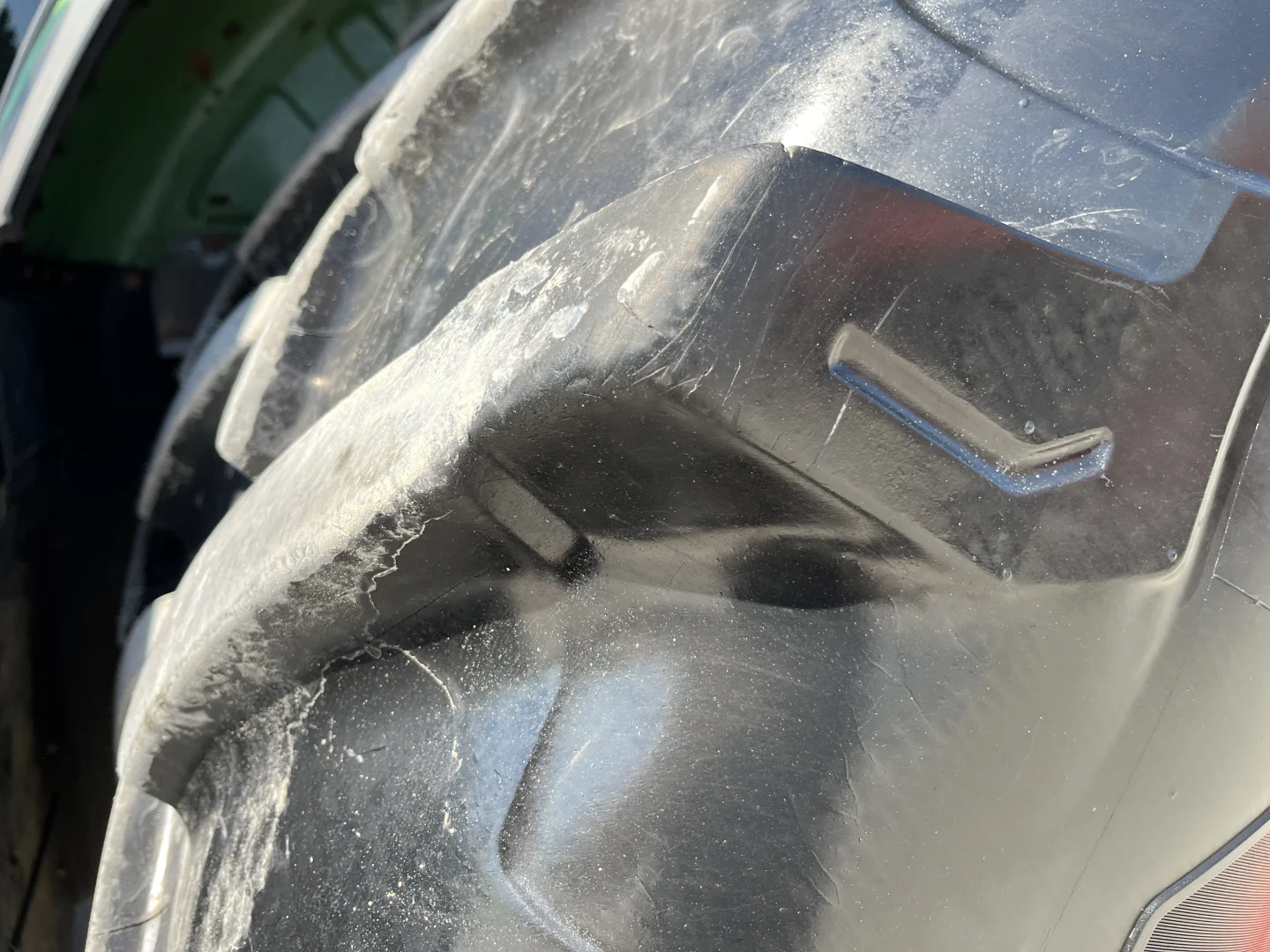

| Profi, 50km/h Vario transmission, independent front axle suspension, 520/85R46 rear duals, 460/85R34 front duals, new BKT main tires, 4 rear remotes, power beyond couplers, hydraulic and air trailer brakes, air cab suspension, front weight carrier arms. | |
| Categories | High Horsepower |
| Unit Number | 24673M |
| Condition | Used |
| Usage | 7,300 Hours |
| Year | 2015 |
| Cost | $179,900.00 CAD |
Financing calculator not available for this equipment. Contact us for details.
| Horse Power | Rate Per Hour |
|---|---|
| 300HP | $117.00 CAD |
| *Minimum Hours Per Day: 5 Week: 30 Month: 100 | |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 223.71kW (300hp) | |
| PTO Power | 186.43kW (250hp) | |
| Rated Engine Speed | 2,100r/min | |
| Make | DZ 7.8L Tier 4F 6 Cylinder | |
| Displacement | 2.06gal. (7.80L) | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 158.50gal. (600L) | |
| DEF Tank Capacity | 9.51gal. (36L) | |
| Warming | Block Heater | |
| Fan | Reversing | |
| Transmission | ||
|---|---|---|
| Maximum Road Speed | 31.07mph (50km/h) | |
| Name | CVT ML 260 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Exhaust, Wet Disc | |
| Trailer Brakes | Air, Hydraulic | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 205 LPM | |
| System | Load Sensing | |
| Pump Type | Dual Variable Displacement Piston | |
| Maximum Flow | 54.16GPM (205L/min) | |
| Maximum Operating Pressure | 2,900.75psi (200bar) | |
| Available Remote Flow Capacity | 22.98gal. (87L) | |
| Rear Remote Valves | 4 | |
| Steering | Hydraulic Power | |
| Wheels | ||
|---|---|---|
| Front | MICHE 18.4R34 | |
| Size | 18.4R34 | |
| Tread Pattern | R1 (Ag) | |
| Rear | MICHE 520/85R46 | |

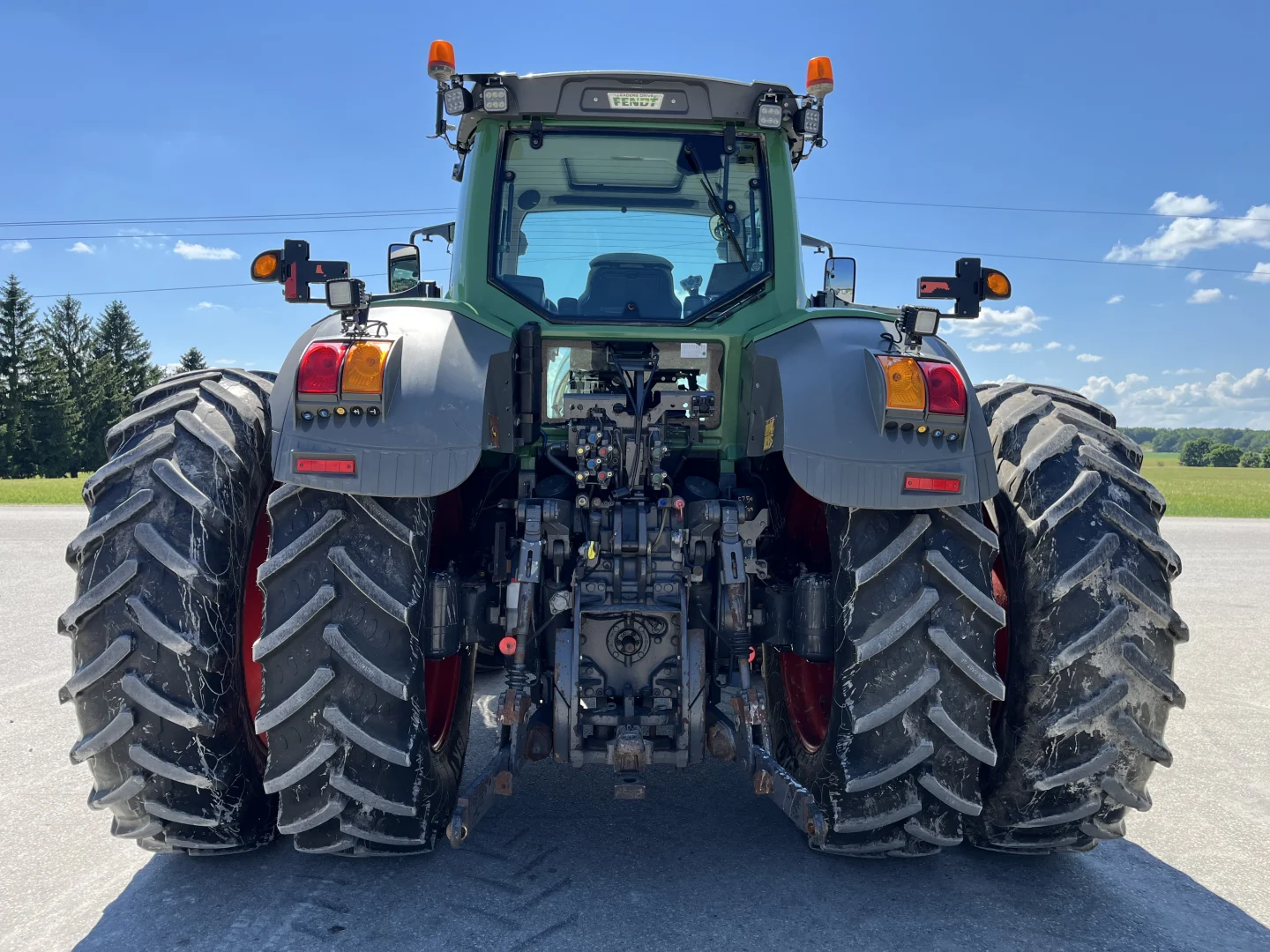

| Hitching | ||
|---|---|---|

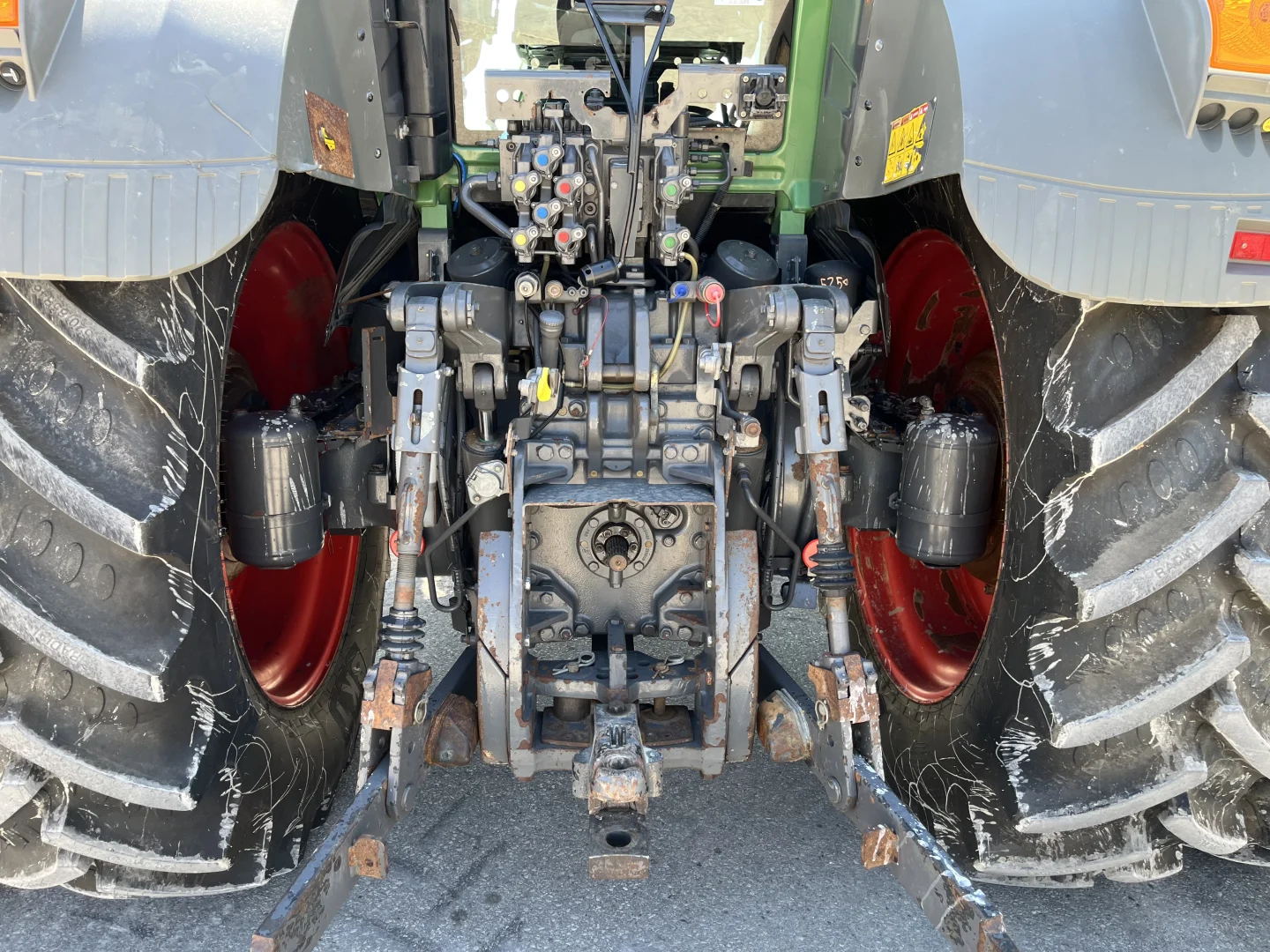

| Rear Hitch | FD 900 S4 | |
| Hitch Category | Category 3 | |
| Lift Capacity at Pins | 20,569.13lb. (9,330kg) | |
| PTO | ||
|---|---|---|
| Rear Speed | 540E, 1000, 1000E | |
| Type | Independent | |
| Electrical | ||
|---|---|---|
| Front Lights | 12 | |
| Rear Lights | 6 | |
| Worklight Type | LED | |
| Alternator | 150A | |
| Battery | 1,380CCA | |

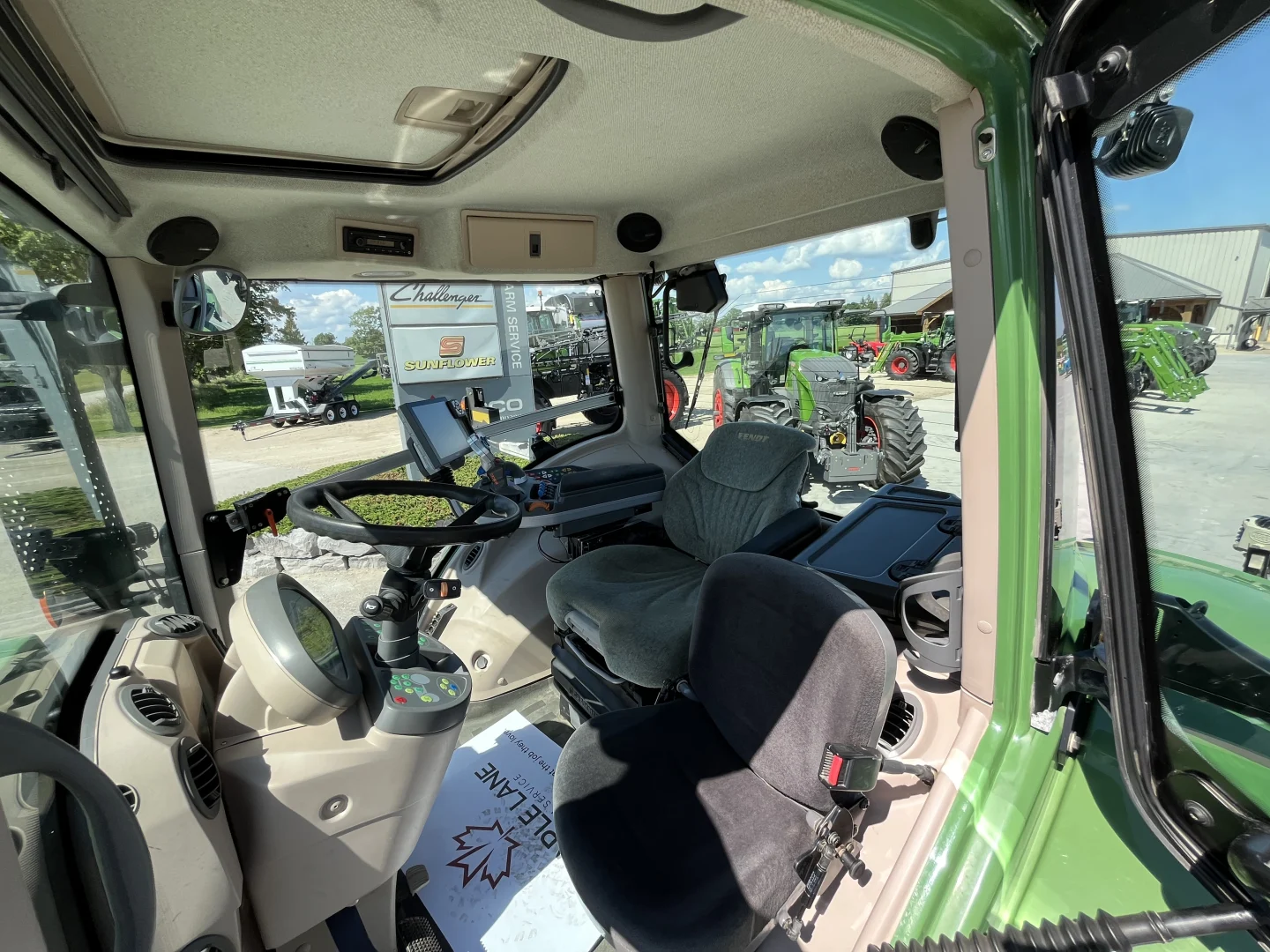

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 3 Point Air | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Joystick | |
| Operator Seat | FD Super Comfort | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline | |
| Headrest | Extend | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Air (built in compressor), Forward/Reverse Horizontal, Low Frequency | |
| Rotation | Segments | |
| Comfort | Heat, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | 300° Front, Rear, 180° Front | |
| Sunshade | Roof, Windshield | |
| Spec Level | Profi | |
| Windows | Heated Rear | |
| Technology | ||
|---|---|---|

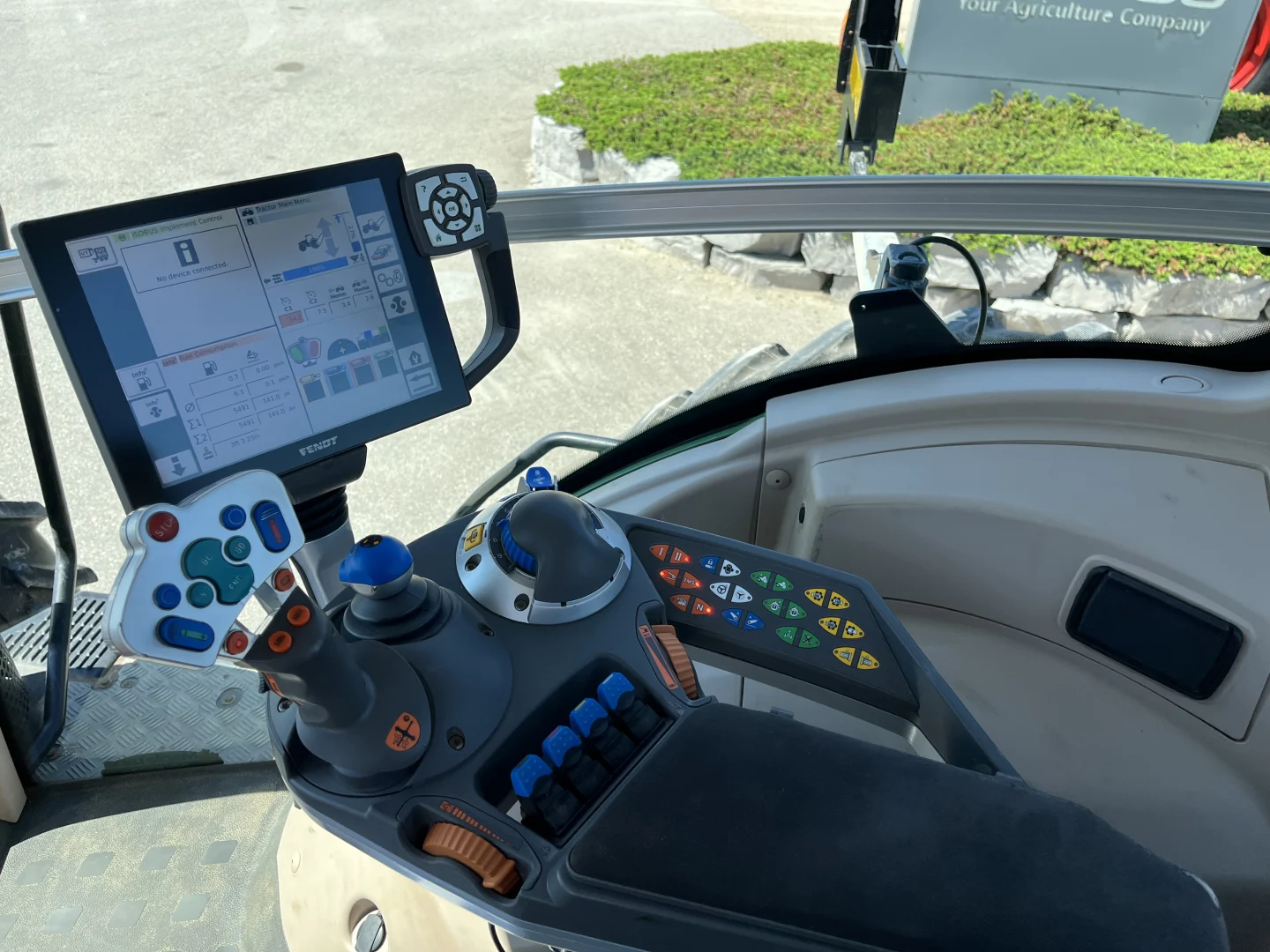

| Display | 10.4" Varioterminal | |

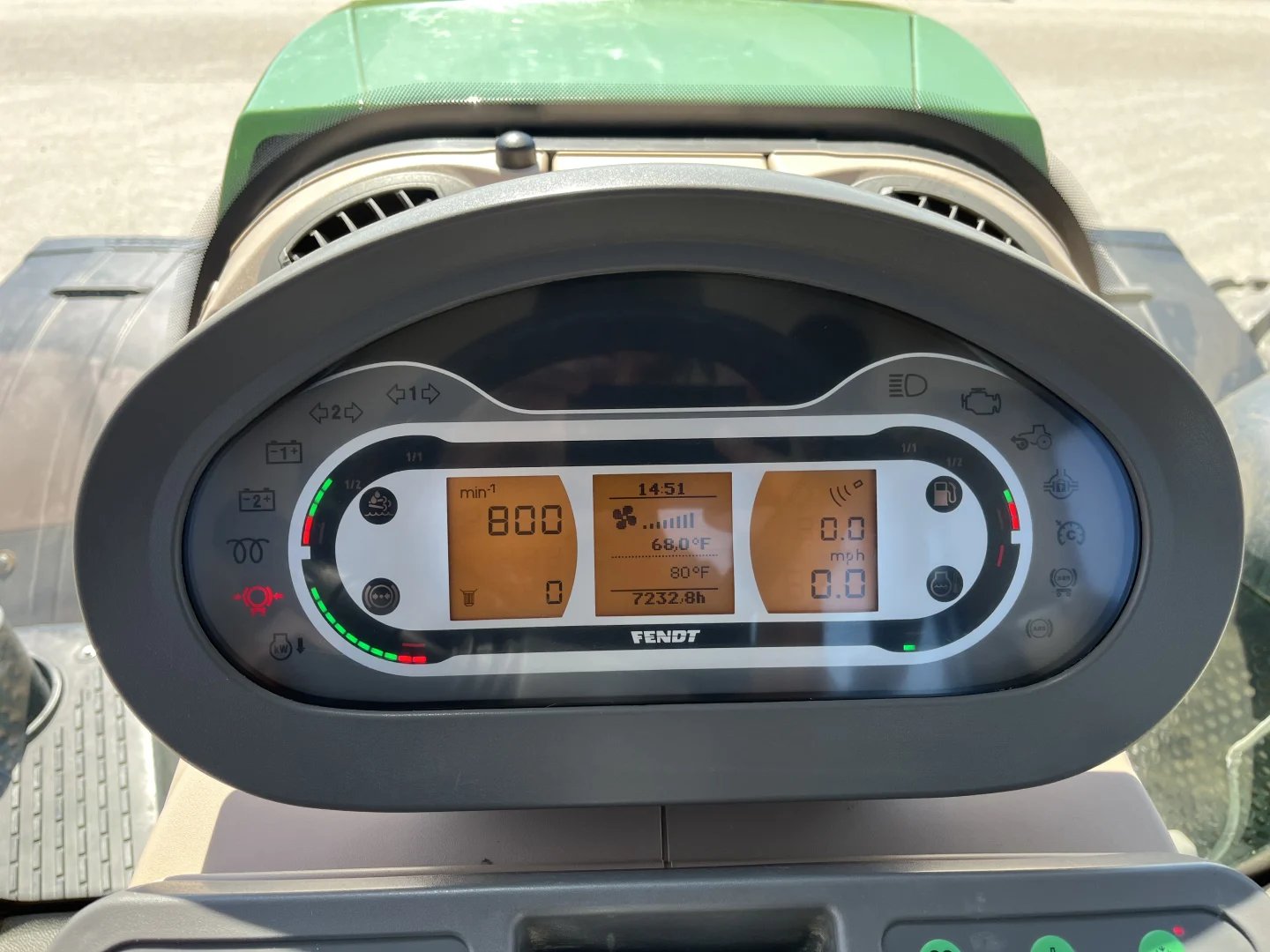

| Instrument Display | Digital Dash Display | |

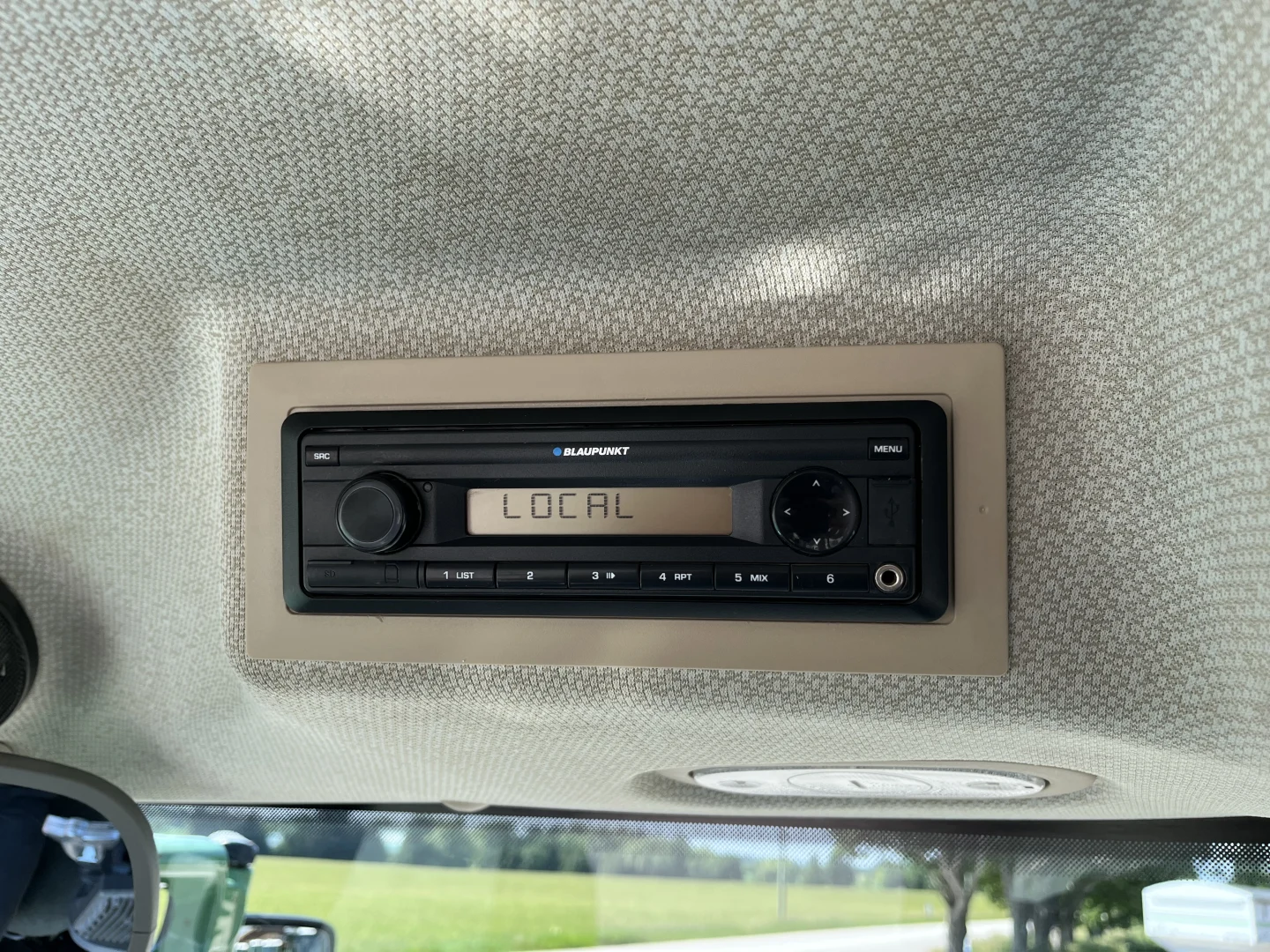

| Entertainment | USB, Bluetooth, Mic | |
| Integration | ISO BUS Implement Control | |
| Guidance | Guidance Ready | |
| Headland Management | Variotronic TI | |
| Data Transfer | TaskDoc Pro | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Dimensions | ||
|---|---|---|
| Length | 18' 6-5/8" (5,655mm) | |
| Wheelbase | 10' 1/16" (3,050mm) | |
| Width | 9' 1/4" (2,750mm) | |
| Height | 10' 10-13/16" (3,322mm) | |
| Minimum Ground Clearance | 1' 10-5/8" (575mm) | |
| Base Weight | 23,876.07lb. (10,830kg) | |
