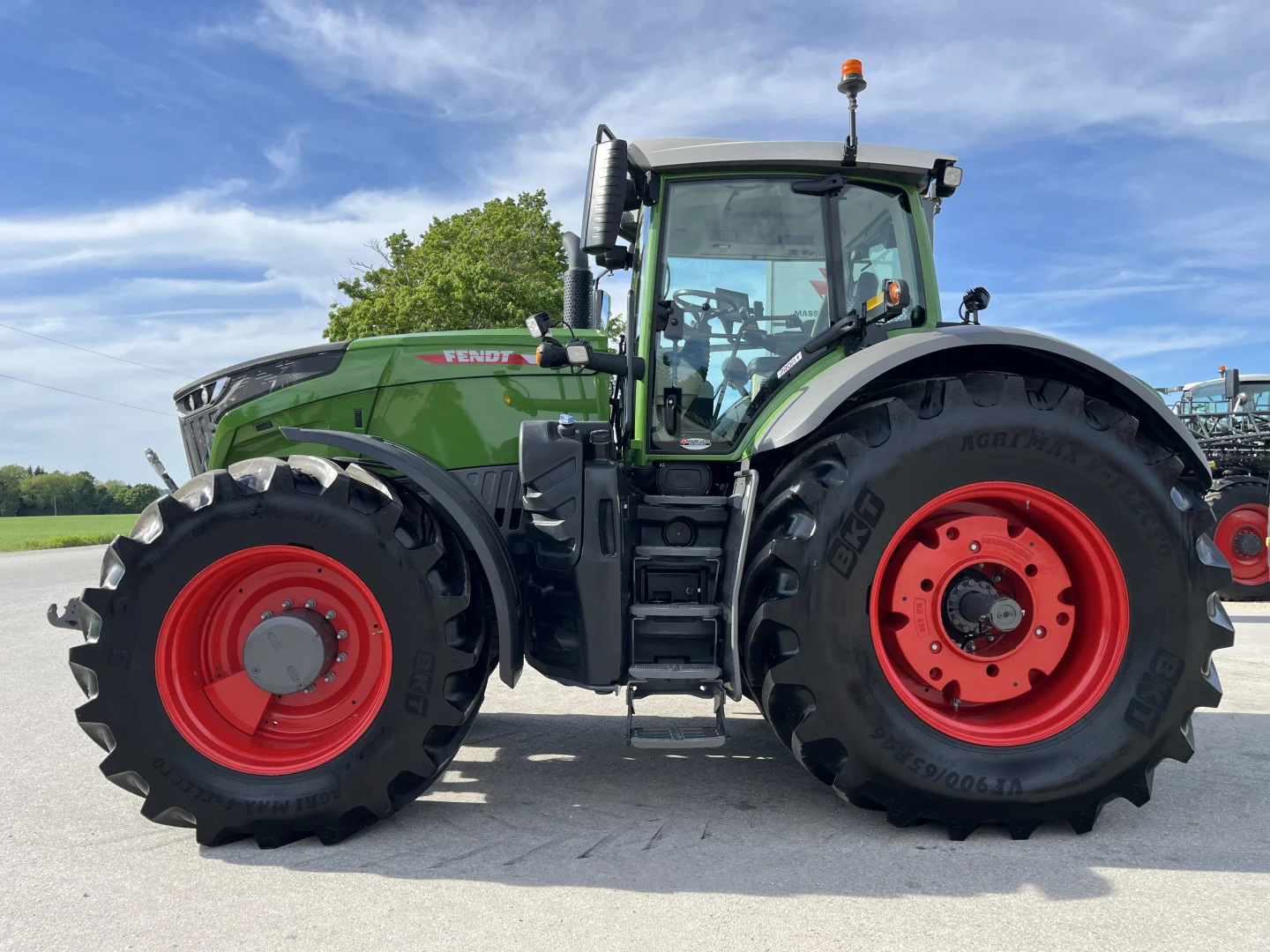

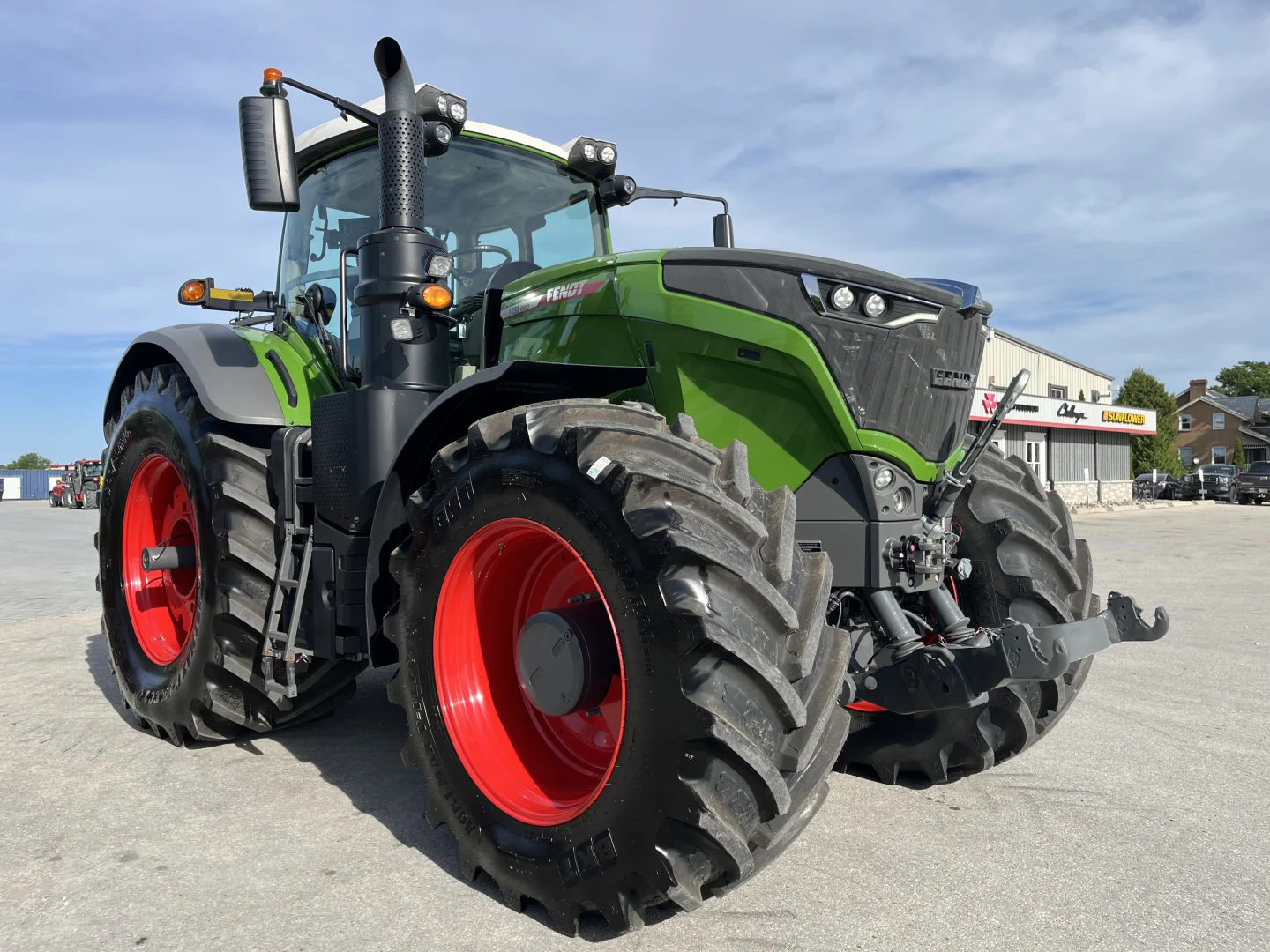

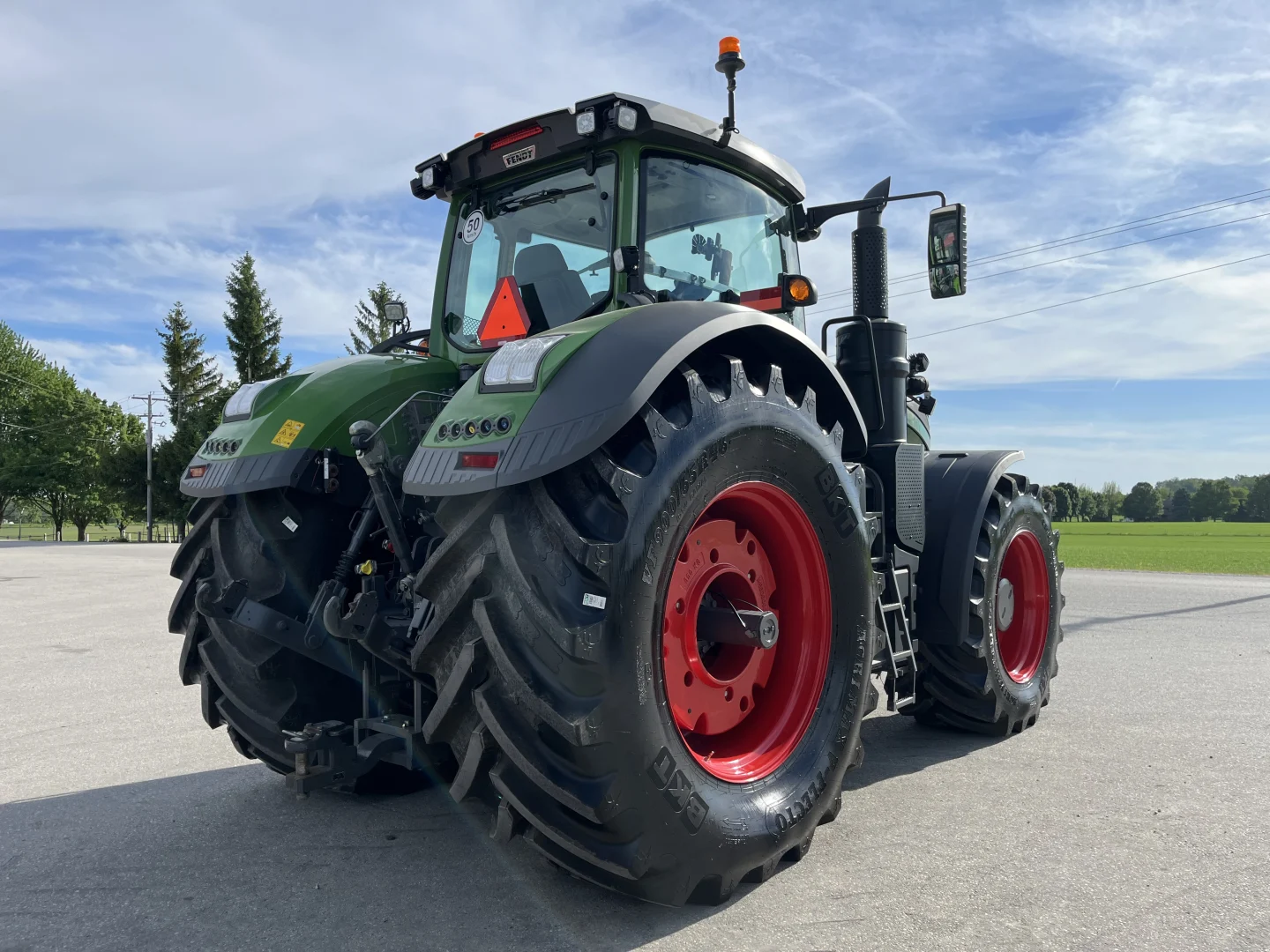

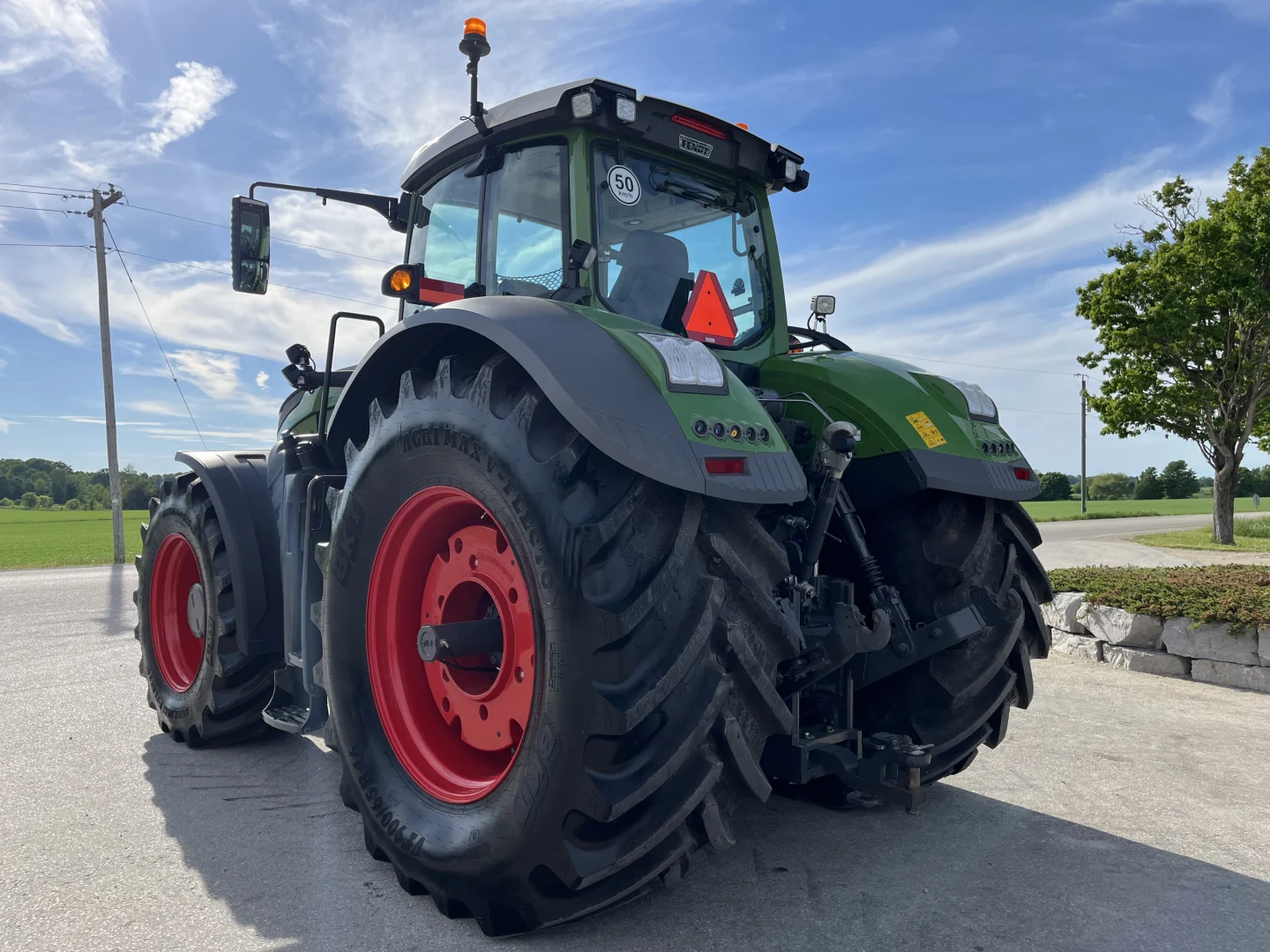

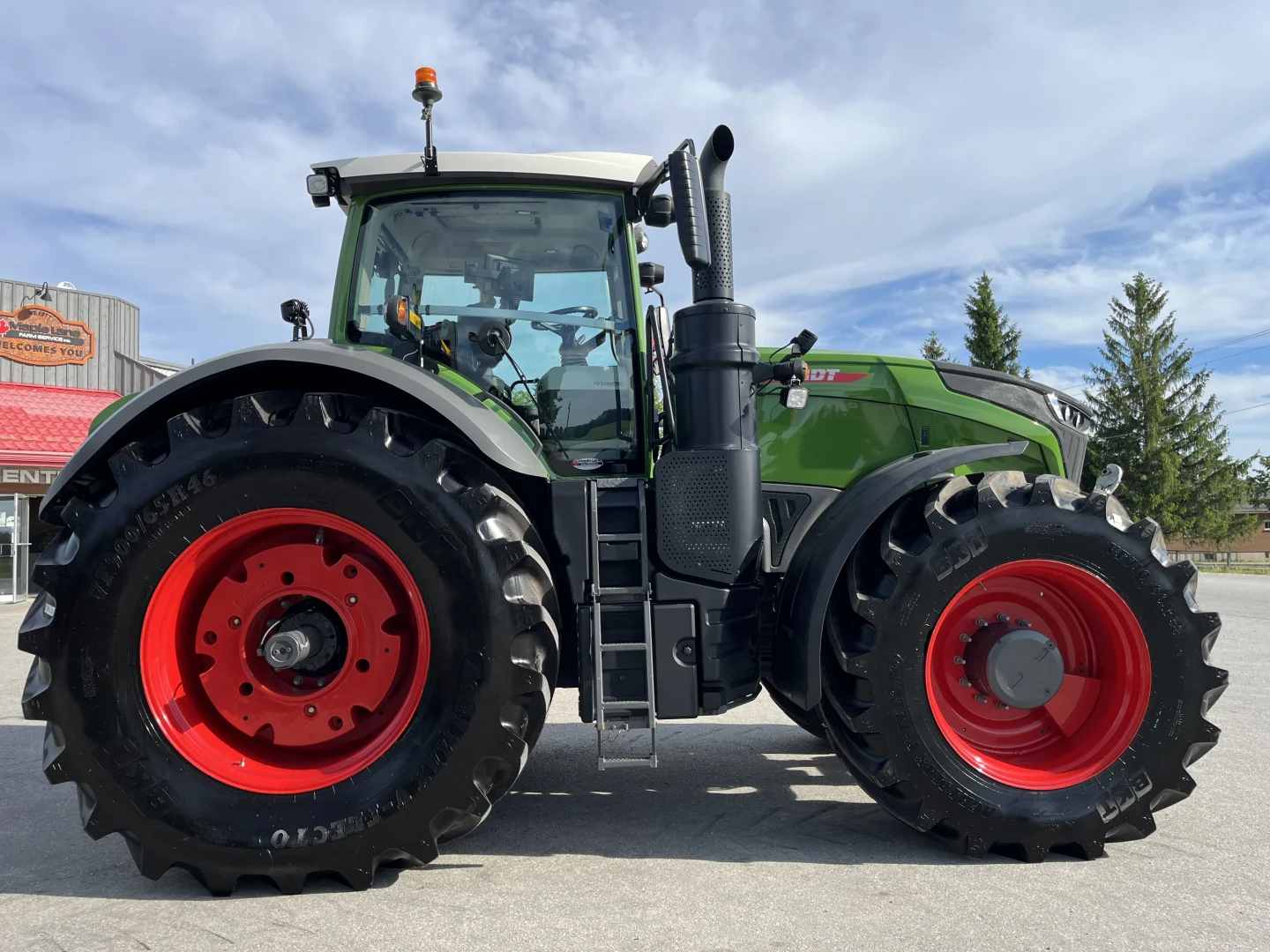

Used 2023 Fendt 1038 Gen3
| Description | |
|---|---|
| 50 KPH Vario transmission, front axle suspension, 6 rear remotes, 113.5 GPM dual hydraulic pump, power beyond, hydraulic & air trailer brakes, exhaust brake, automatic park brake, front hitch & 1 remote, Full LED lighting package, front hood camera, automatic climate control, 12″ terminal, Infotainment, heated & ventilated leather seat, heated & powered mirrors, 4 point air cab suspension, 650 kg rear wheel weights, New tires- VF710/70R38 front, VF900/65R46 rear, VarioGrip tire inflation system. Fendt Goldstar warranty until September 2026. | |
| Categories | High Horsepower |
| Unit Number | 24715R |
| Condition | Used |
| Usage | 2,050 Hours |
| Year | 2023 |
| Cost | $529,900.00 CAD |
| Horse Power | Rate Per Hour |
|---|---|
| 396HP | $154.44 CAD |
| *Minimum Hours Per Day: 5 Week: 30 Month: 100 | |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 295.30kW (396hp) | |
| PTO Power | 283.37kW (380hp) | |
| Rated Engine Speed | 1,700r/min | |
| Make | MAN D2676 LE121 | |
| Displacement | 3.28gal. (12.42L) | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 211.34gal. (800L) | |
| DEF Tank Capacity | 22.45gal. (85L) | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Road Speed | 31.07mph (50km/h) | |
| Minimum Speed | 0.01mph (0.02km/h) | |
| Name | CVT TA 400 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Exhaust, Dual-Circuit , Wet Disc | |
| Trailer Brakes | Hydraulic | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Rear Axle Length | 8' 2-7/16" (2,500mm) | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 1000 Dual Pump 113.5 GPM | |
| Pump Type | Dual Variable Displacement Piston | |
| Maximum Flow | 429.64L/min (113.50GPM) | |
| Total System Oil Volume | 36.72gal. (139L) | |
| Maximum Operating Pressure | 2,900.76psi (20,000kPa) | |
| Available Remote Flow Capacity | 24.57gal. (93L) | |
| Rear Remote Valves | 6 | |
| Front Remote Valves | 1 | |
| Steering | Hydraulic Power | |
| Wheels | ||
|---|---|---|

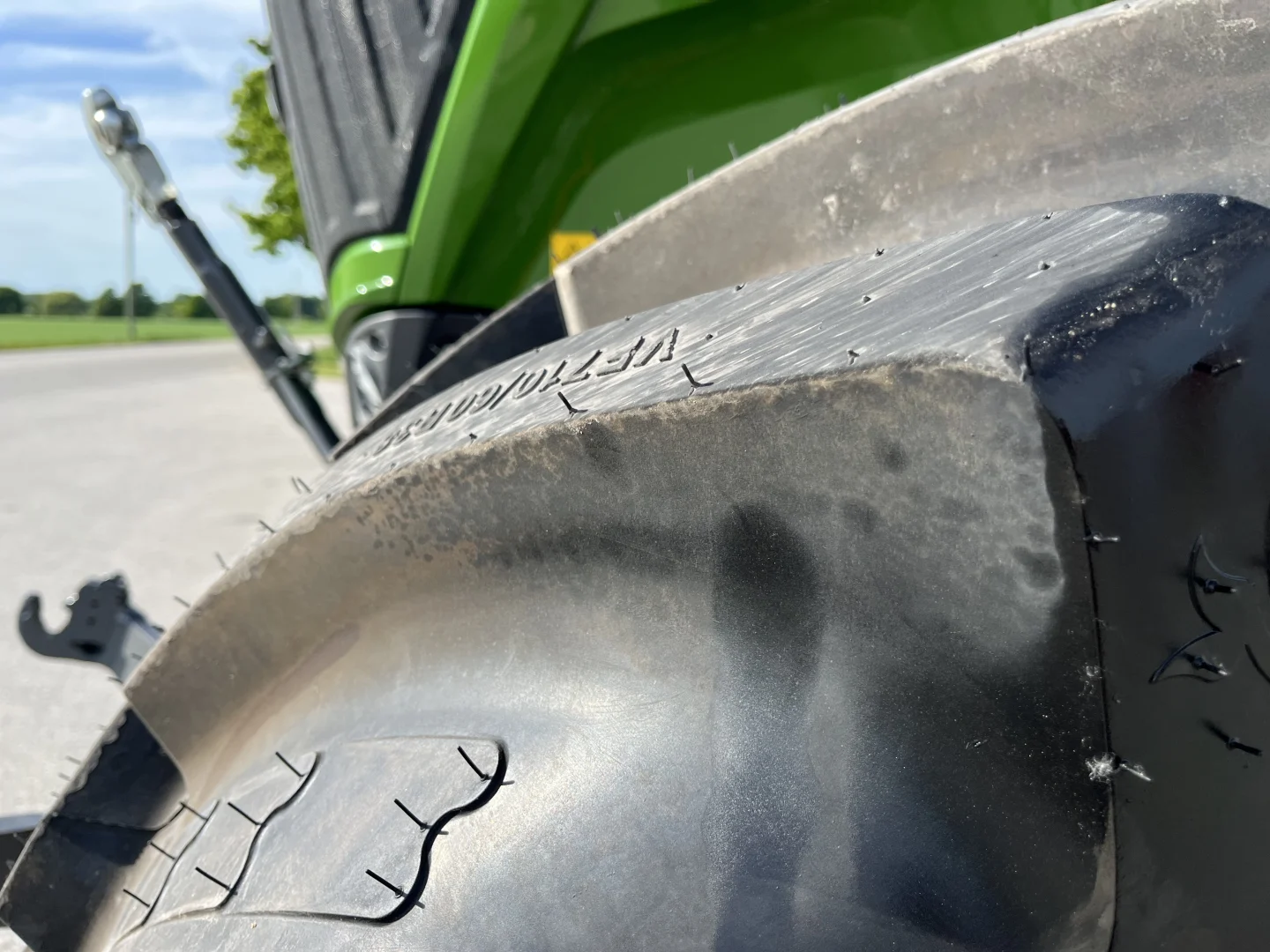

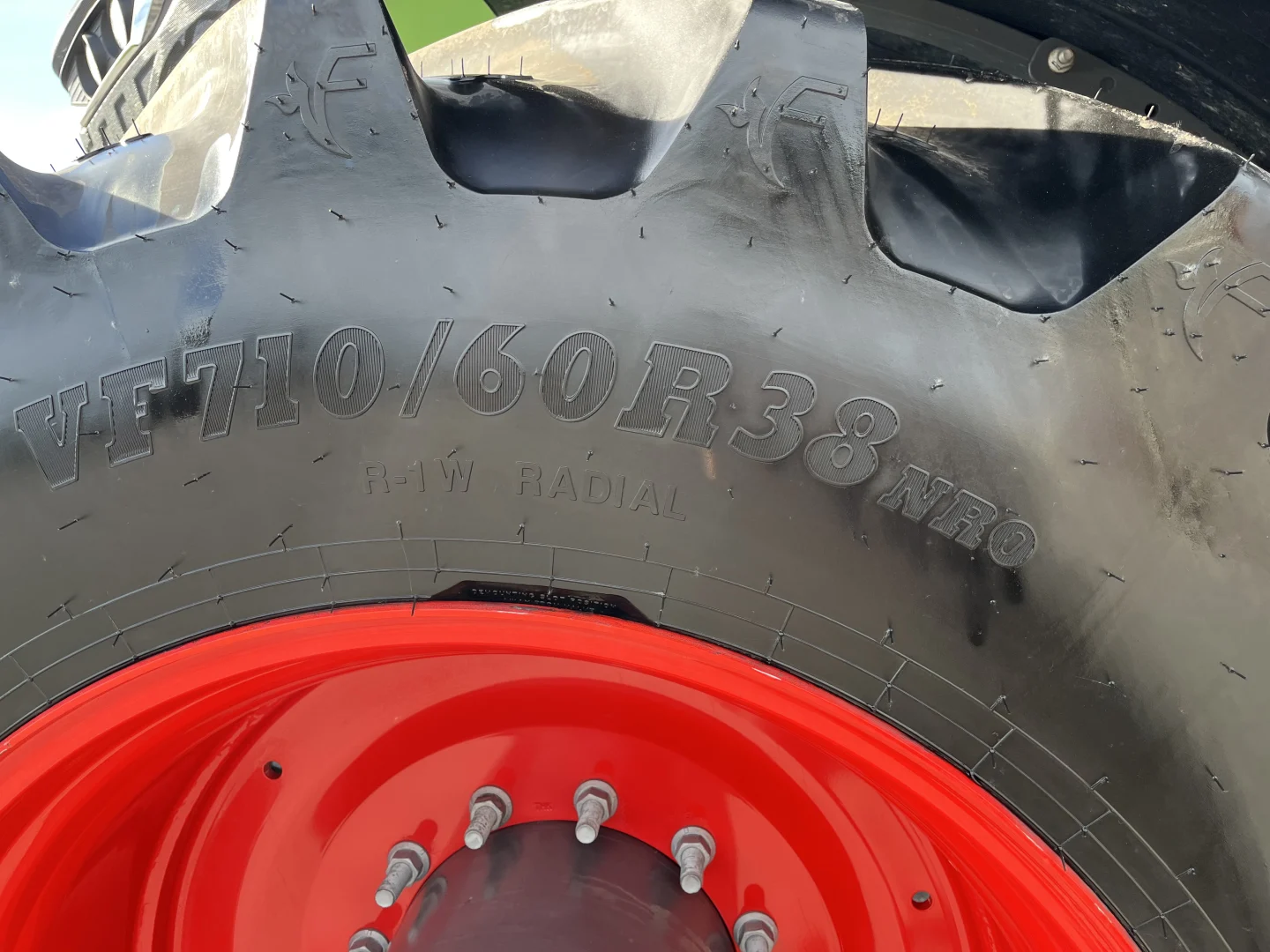

| Front | BKT VF710/60R38 | |
| Rear | BKT VF900/65R46 | |
| Pressure Regulation | VarioGrip | |
| Front Fender Mount | Swivel | |
| Hitching | ||
|---|---|---|

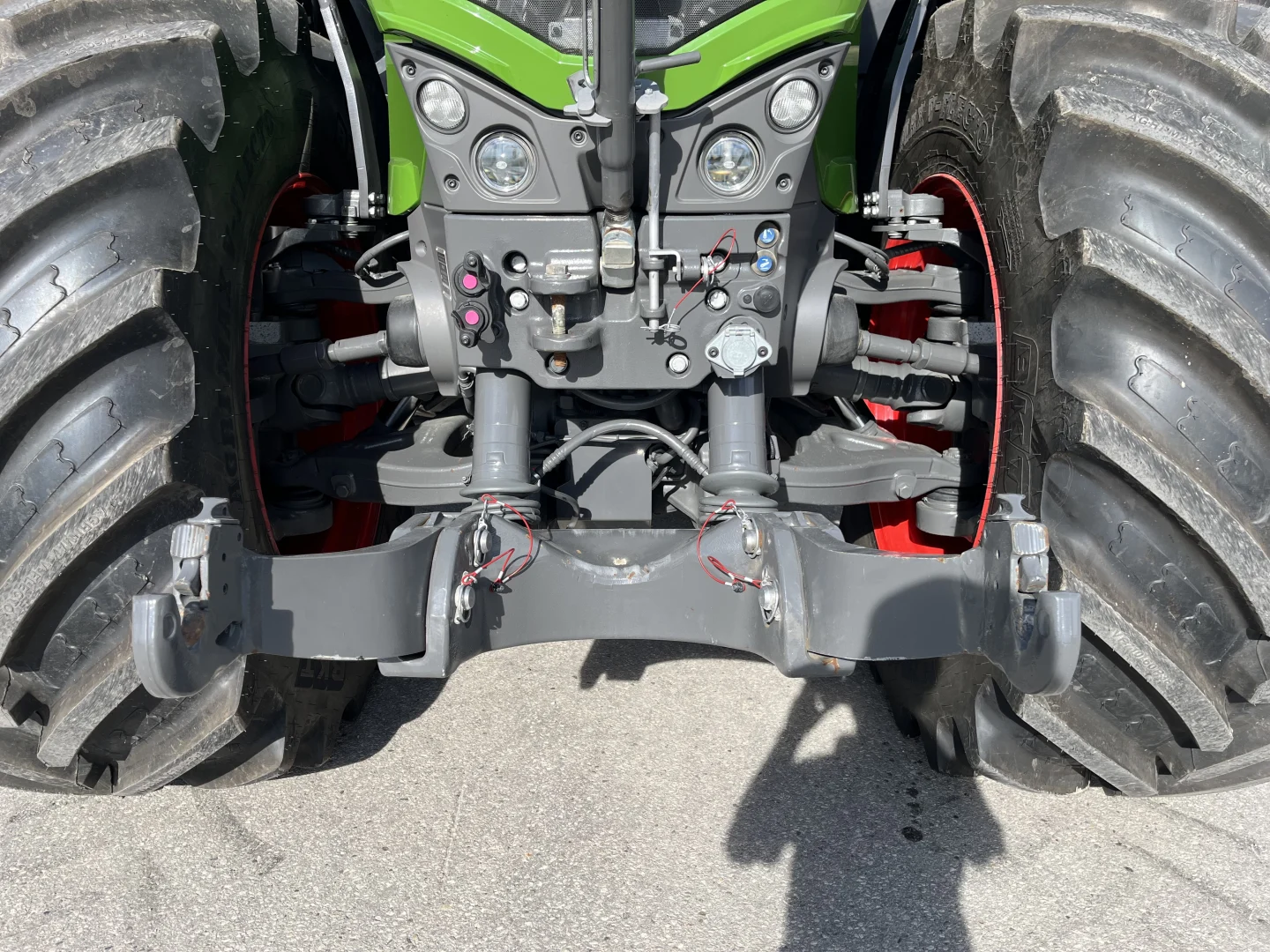

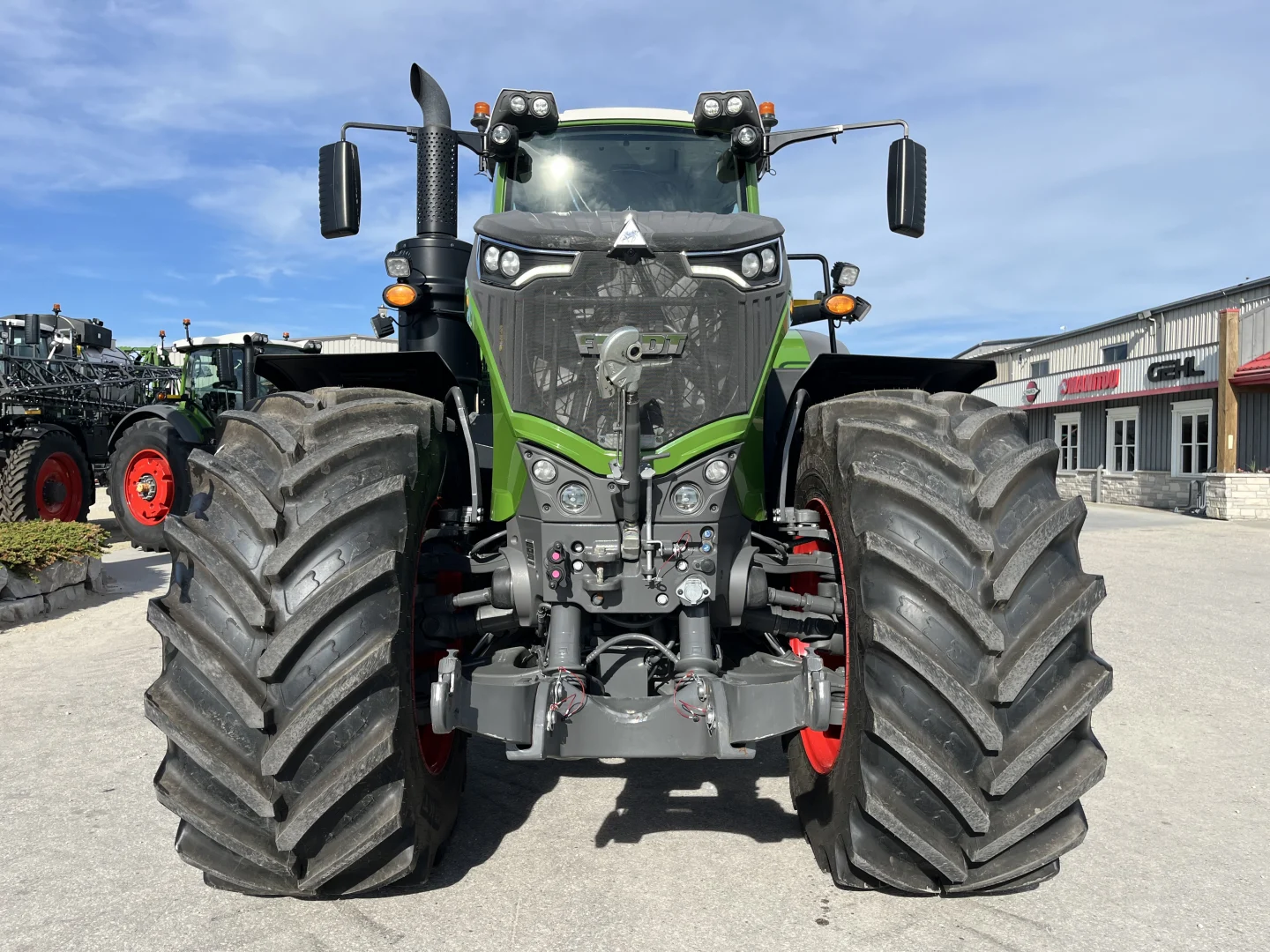

| Front Hitch | FD 1000 Front | |
| Category | Category 2 | |
| Capacity at Pins | 12,553.12lb. (5,694kg) | |

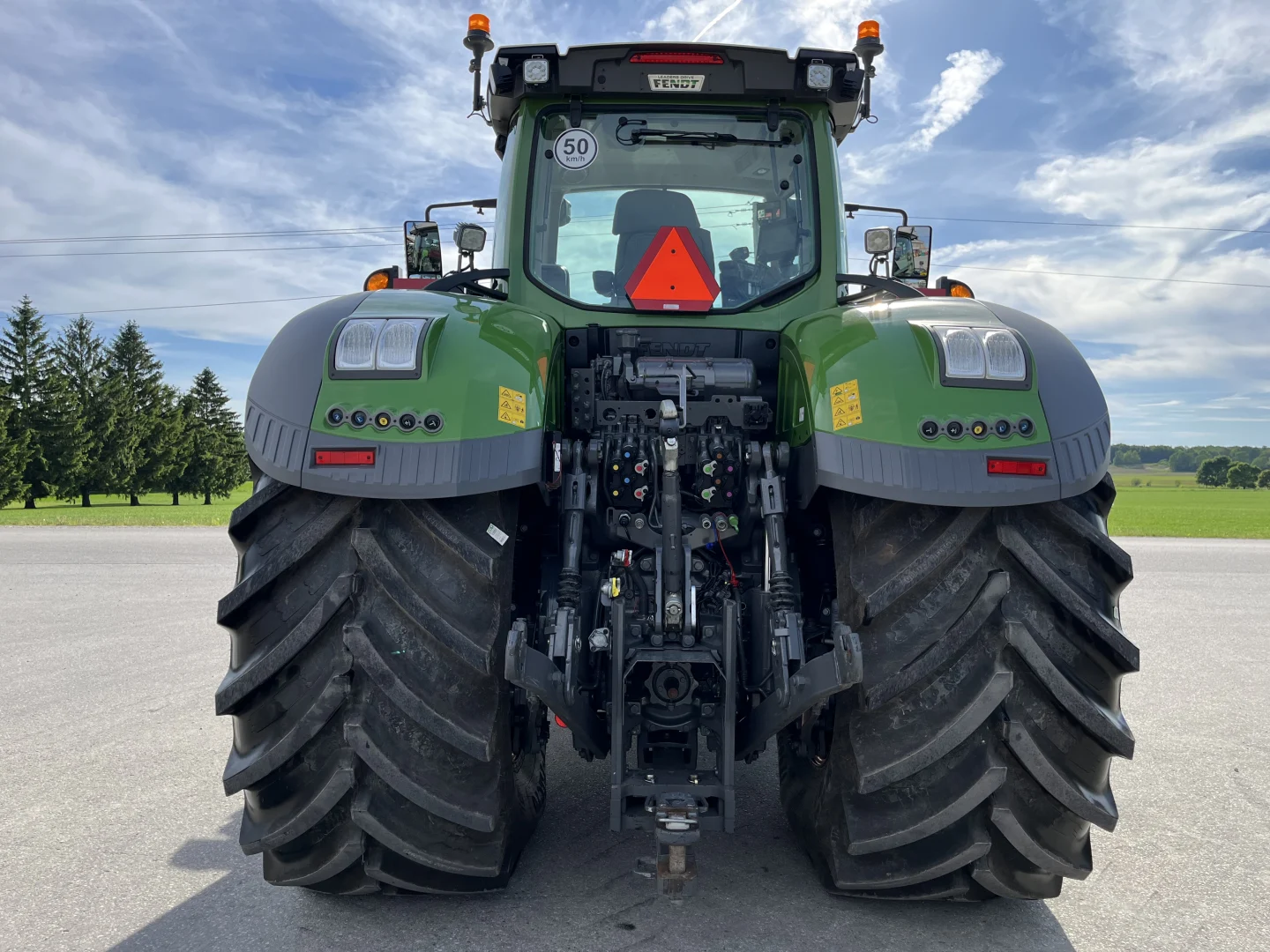

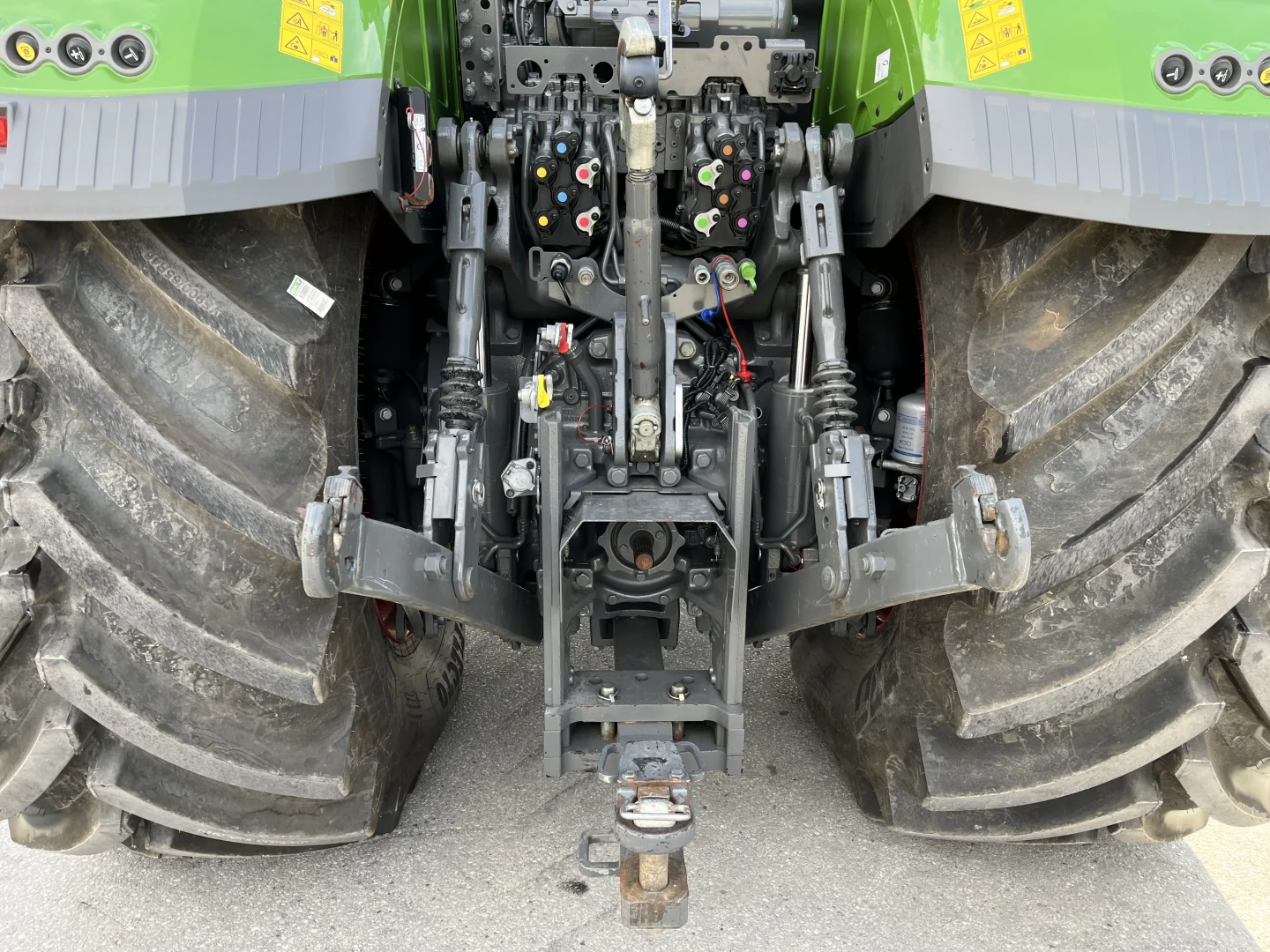

| Rear Hitch | FD 1000 Rear | |
| Hitch Category | Category 4 | |
| Lift Capacity at Pins | 29,056.93lb. (13,180kg) | |
| Lift Capacity 24" Behind Pins | 21,999.93lb. (9,979kg) | |
| Comfort | Draft Control | |
| Rear Drawbar | Category 4 | |
| PTO | ||
|---|---|---|
| Type | Independent | |
| Electrical | ||
|---|---|---|
| Front Lights | 20 | |
| Rear Lights | 6 | |
| Worklight Type | LED | |
| Rotating Beacon | Left, Right | |
| Voltage | 12V | |
| Alternator | 160A | |
| Alternator Count | 2 | |
| Battery | 1,475CCA | |
| Battery Count | 2 | |

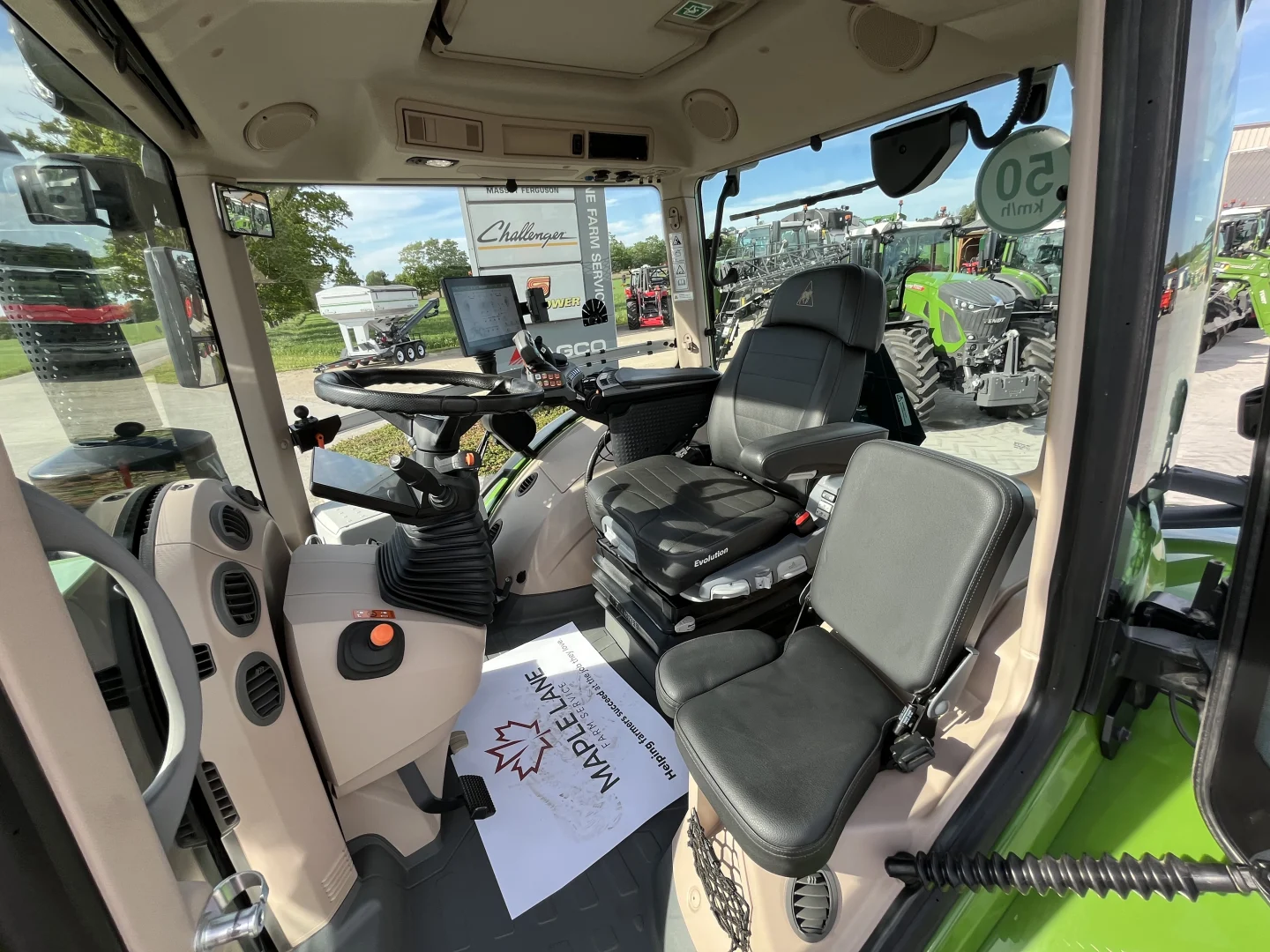

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Access | Left Hand Door, Rear Window | |
| Noise Level | 69dBA | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 3 Point Air | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |
| Throttle | Hand, Foot Pedal | |

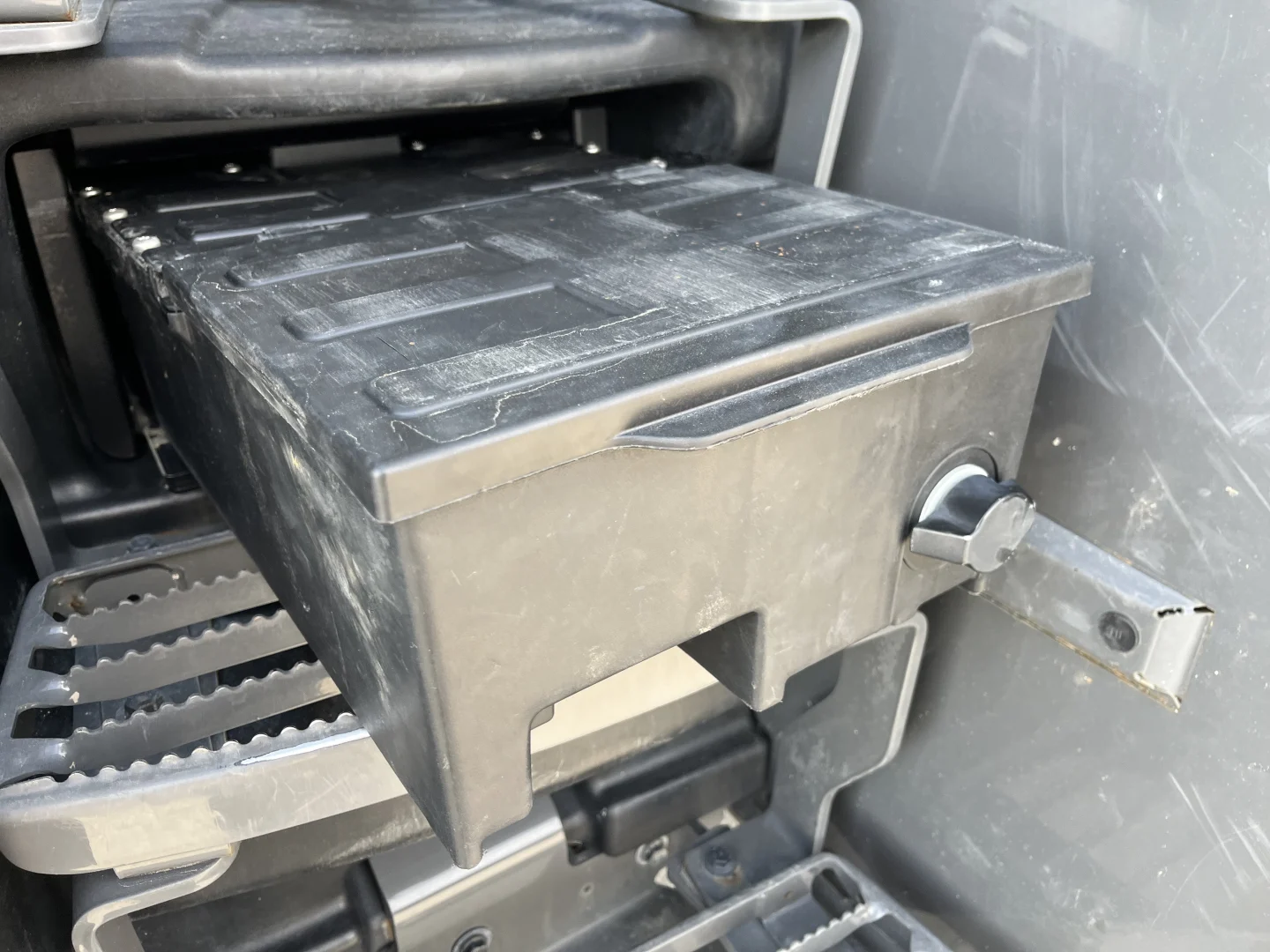

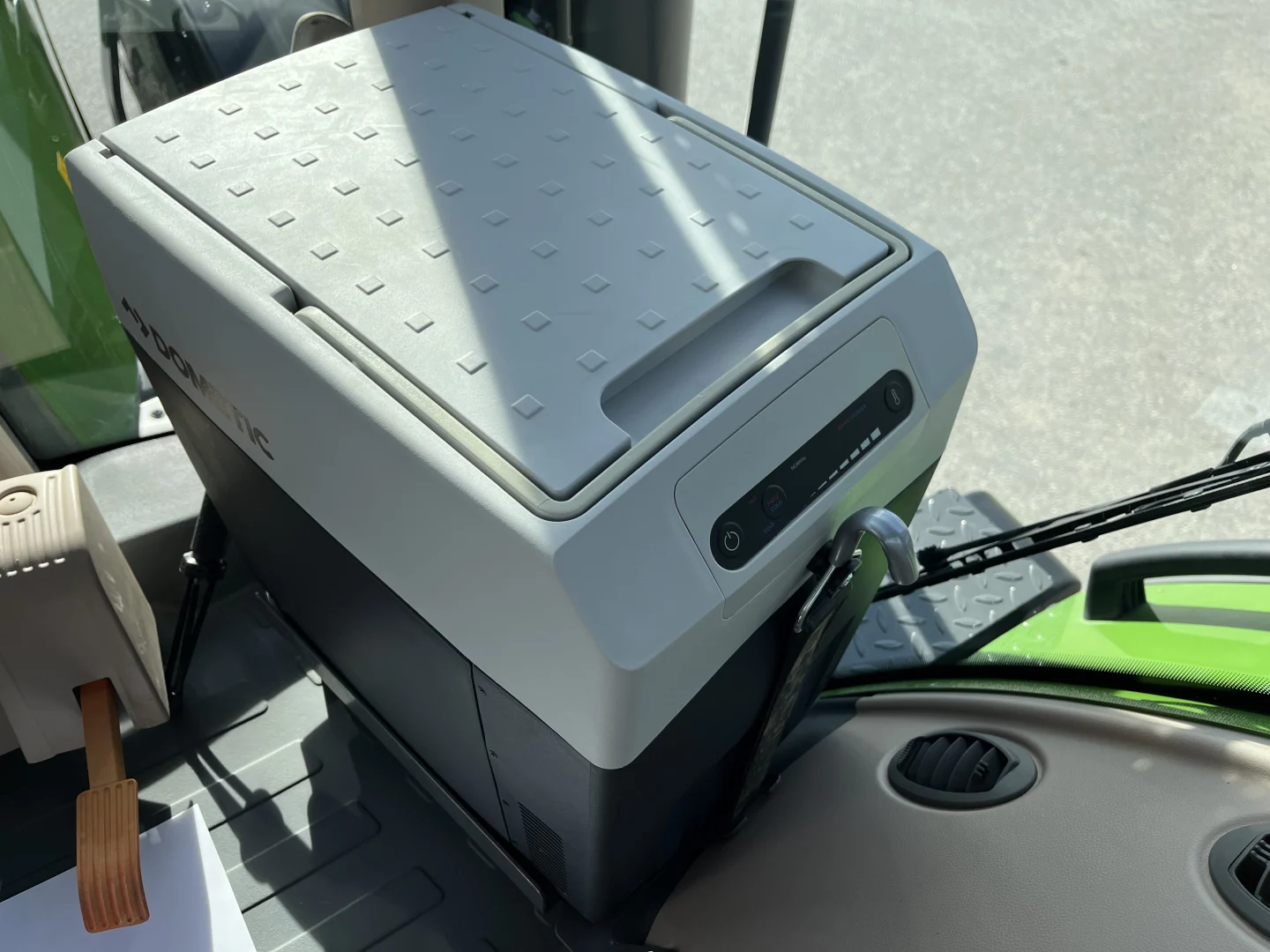

| Storage | Cool Box | |
| Operator Seat | FD Super Comfort EVO Leather | |
| Material | Leather | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Instructor Seat | Dependent on: Operator Station/Operator Seat/FD Super Comfort EVO Leather | |
| Wiper | 300° Front, Rear, Side | |
| Sunshade | Windshield | |
| Mirrors | Interior, Telescoping | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |
| Technology | ||
|---|---|---|

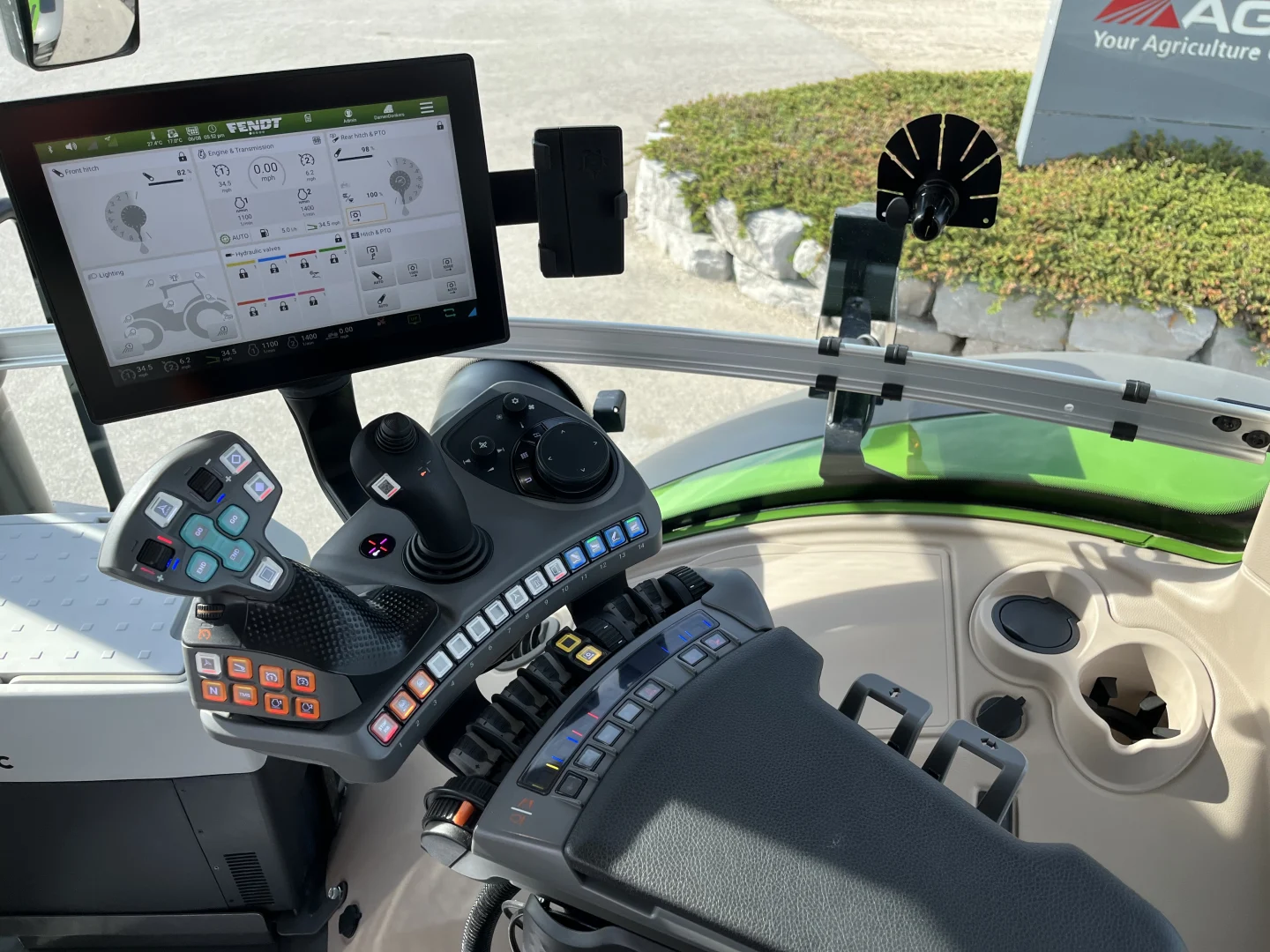

| Display | 12" Armrest Mounted Terminal | |

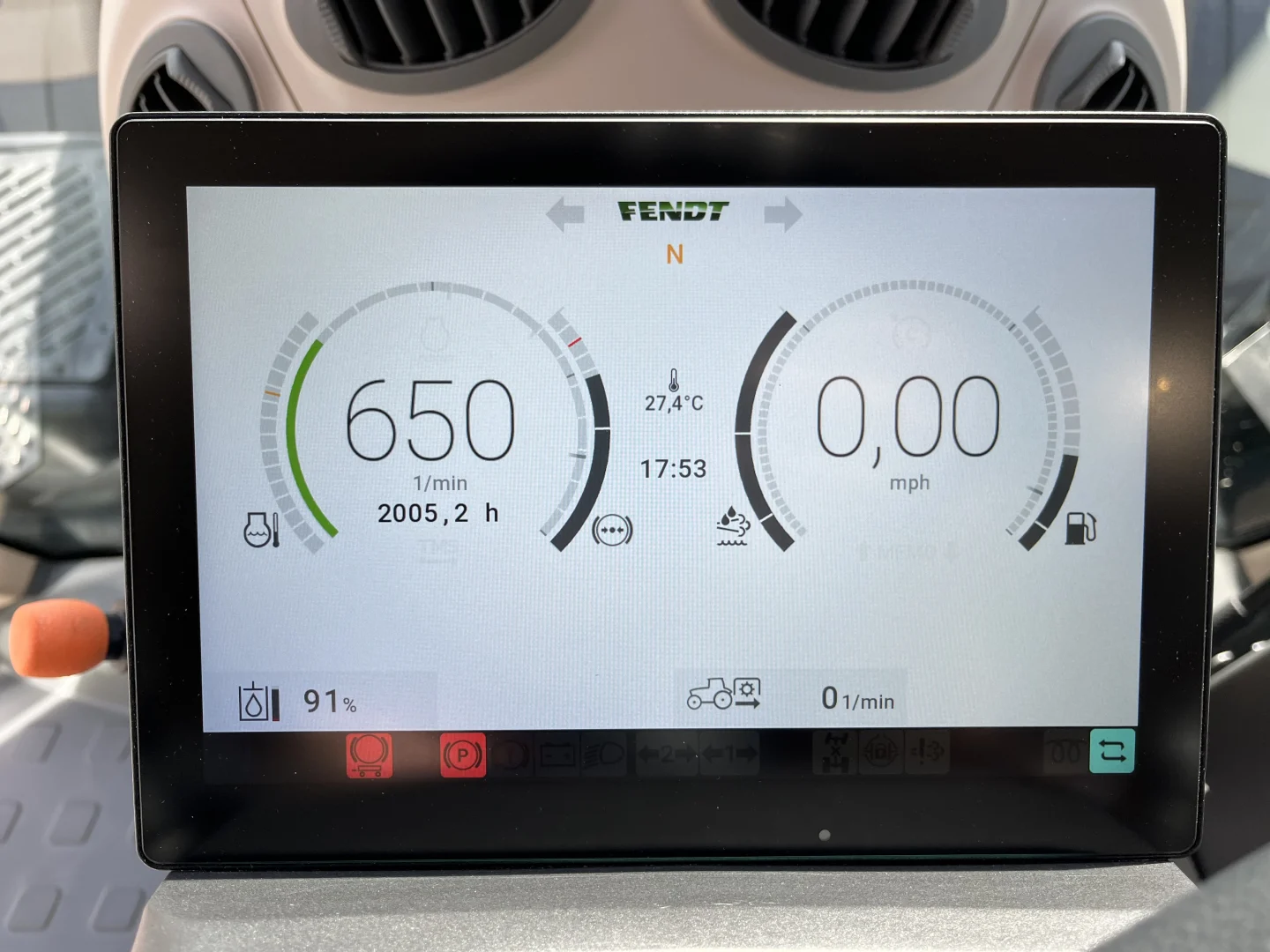

| Instrument Display | 10" Dash Screen | |
| Entertainment | Infotainment | |
| Camera | Hood | |
| Integration | ISO BUS Implement Control | |
| Antenna | Trimble | |
| Guidance | Guidance Ready | |
| Headland Management | Variotronic TI | |
| Auto Headland Turn | Variotronic TI Auto | |
| Data Transfer | TaskDoc Pro | |
| Section Control | SectionControl | |
| Variable Rate Control | Variable Rate Control | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Weights | ||
|---|---|---|

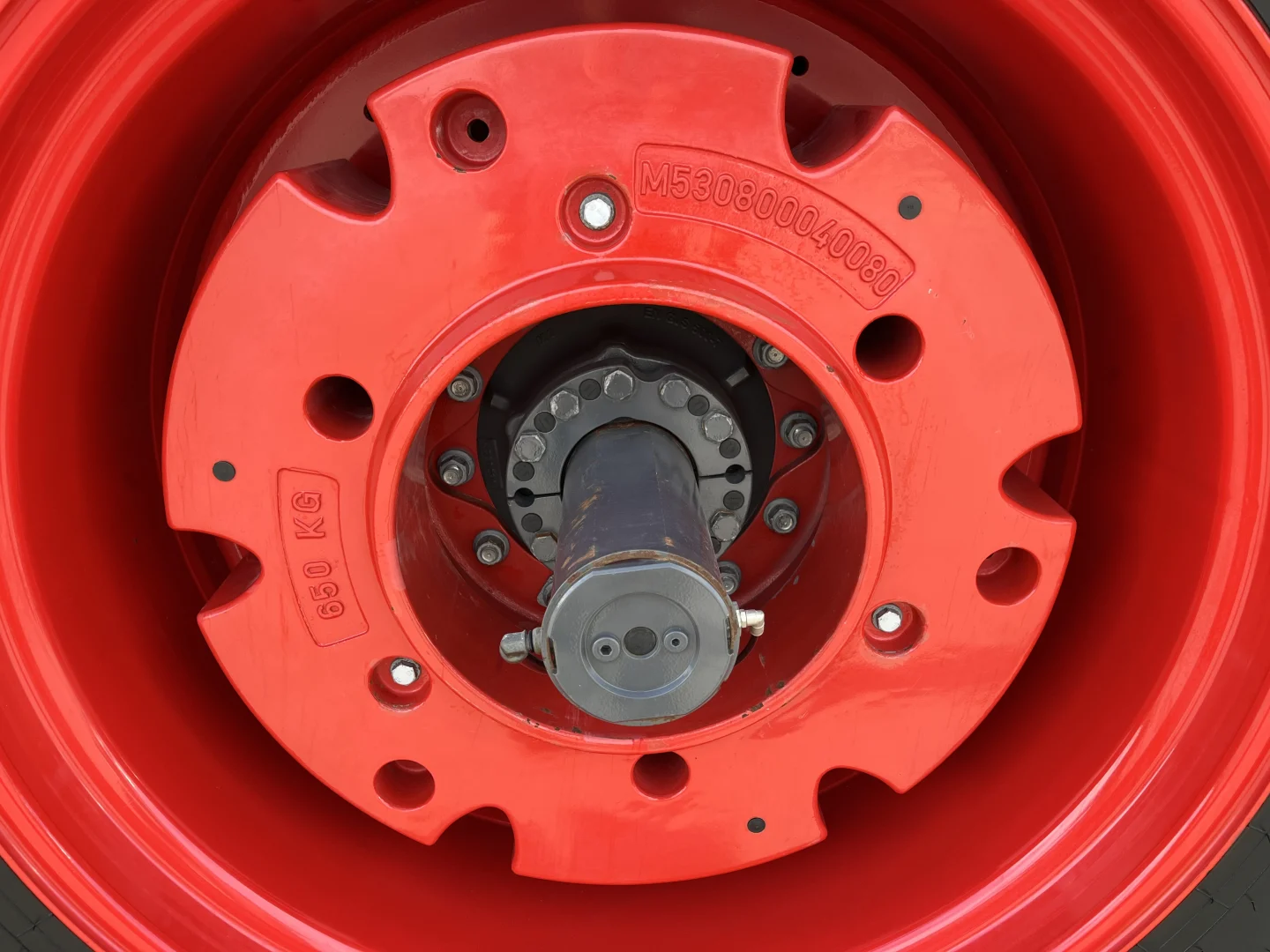

| Wheel Weights | FD 650 kg Wheel Weight Pair | |
| Mount | Bolt | |
| Type | Wheel Disc | |
| Base Weight | 1,433.00lb. (650kg) | |
| Dimensions | ||
|---|---|---|
| Length | 20' 10" (6,350mm) | |
| Wheelbase | 10' 9-15/16" (3,300mm) | |
| Width | 9' 1/4" (2,750mm) | |
| Height | 11' 9-15/16" (3,606mm) | |
| Minimum Ground Clearance | 1' 11-5/8" (600mm) | |
| Turning Radius | 24' 9/16" (7,330mm) | |
| Base Weight | 30,864.72lb. (14,000kg) | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |
