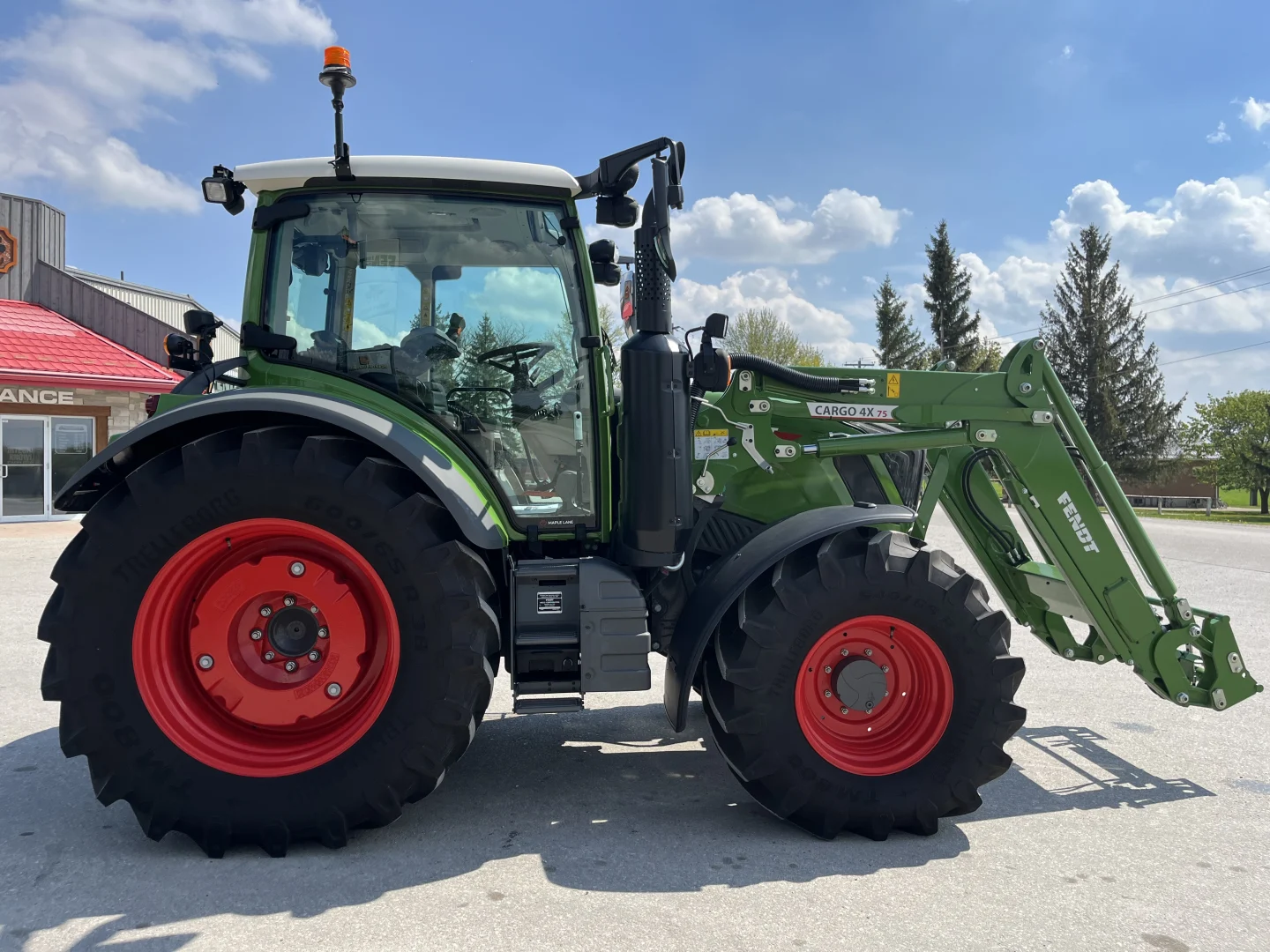

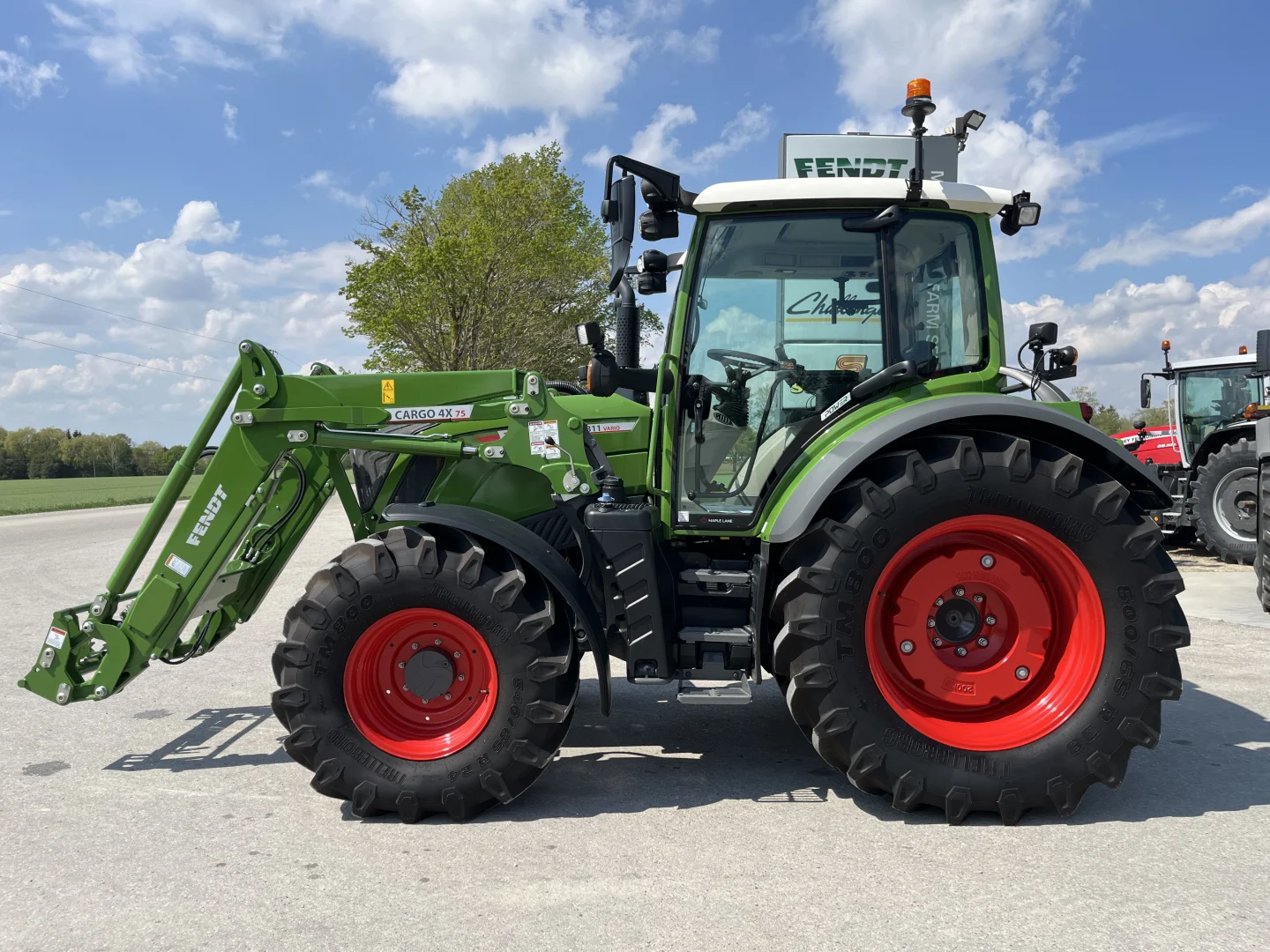

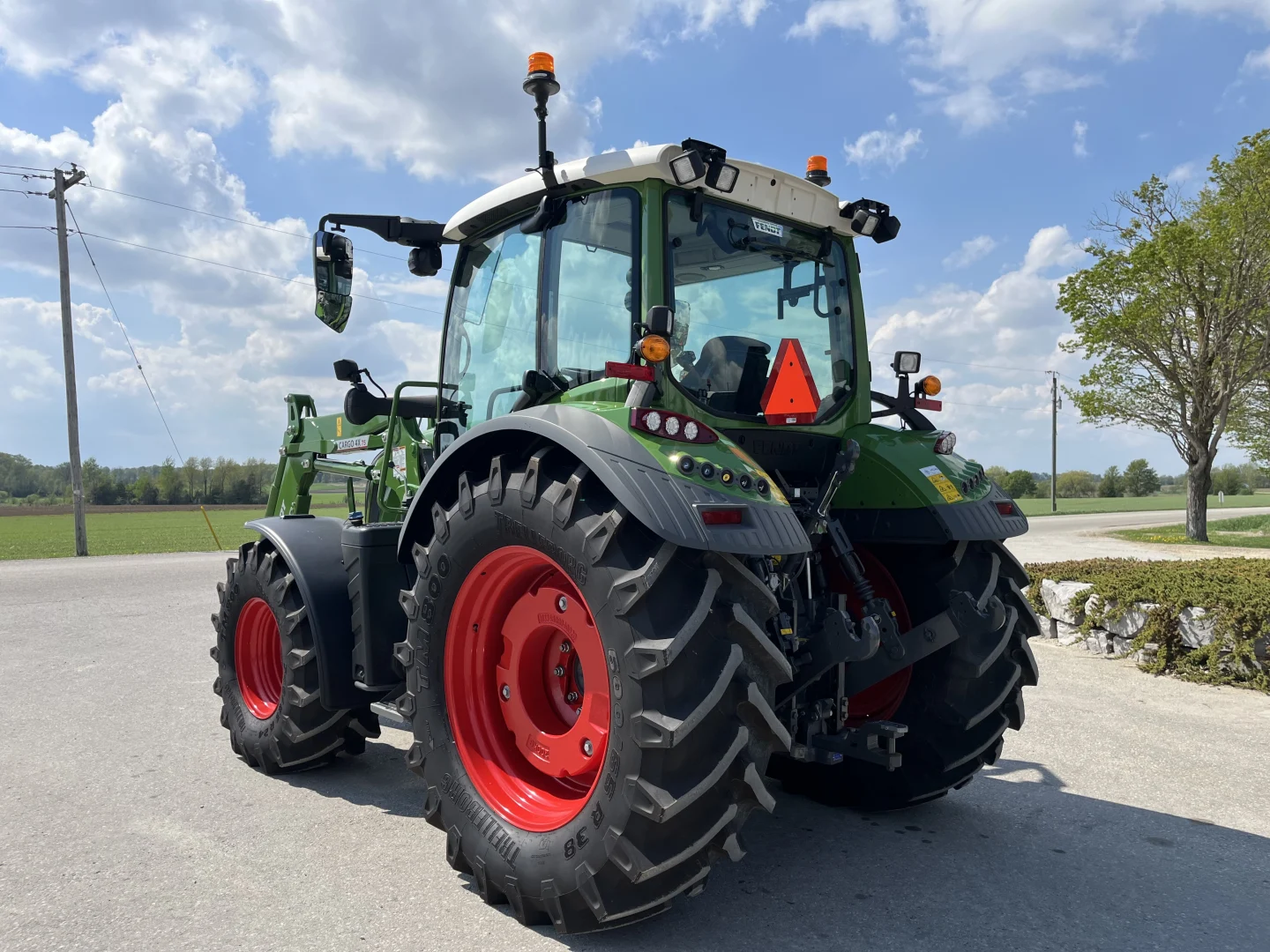

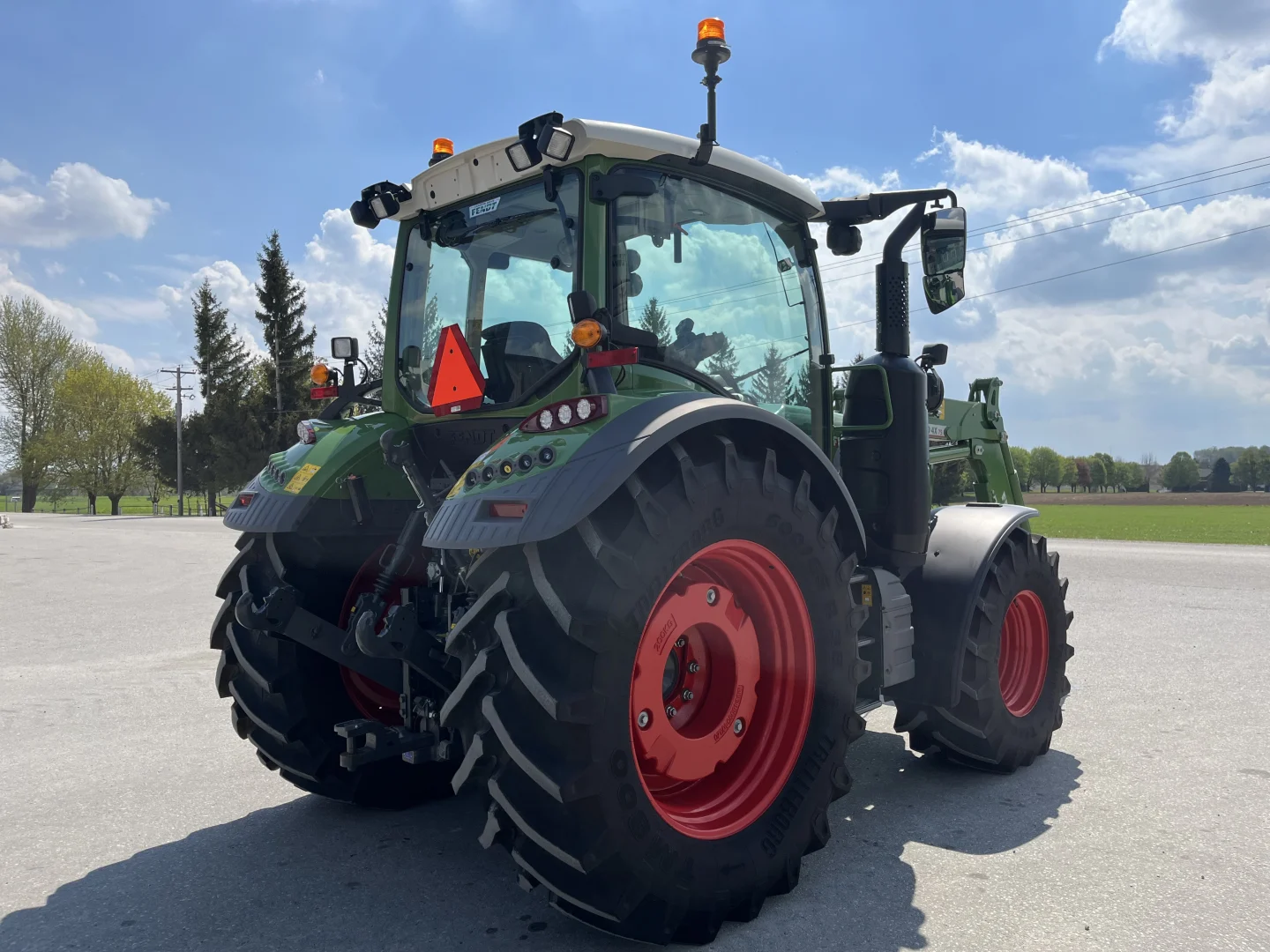

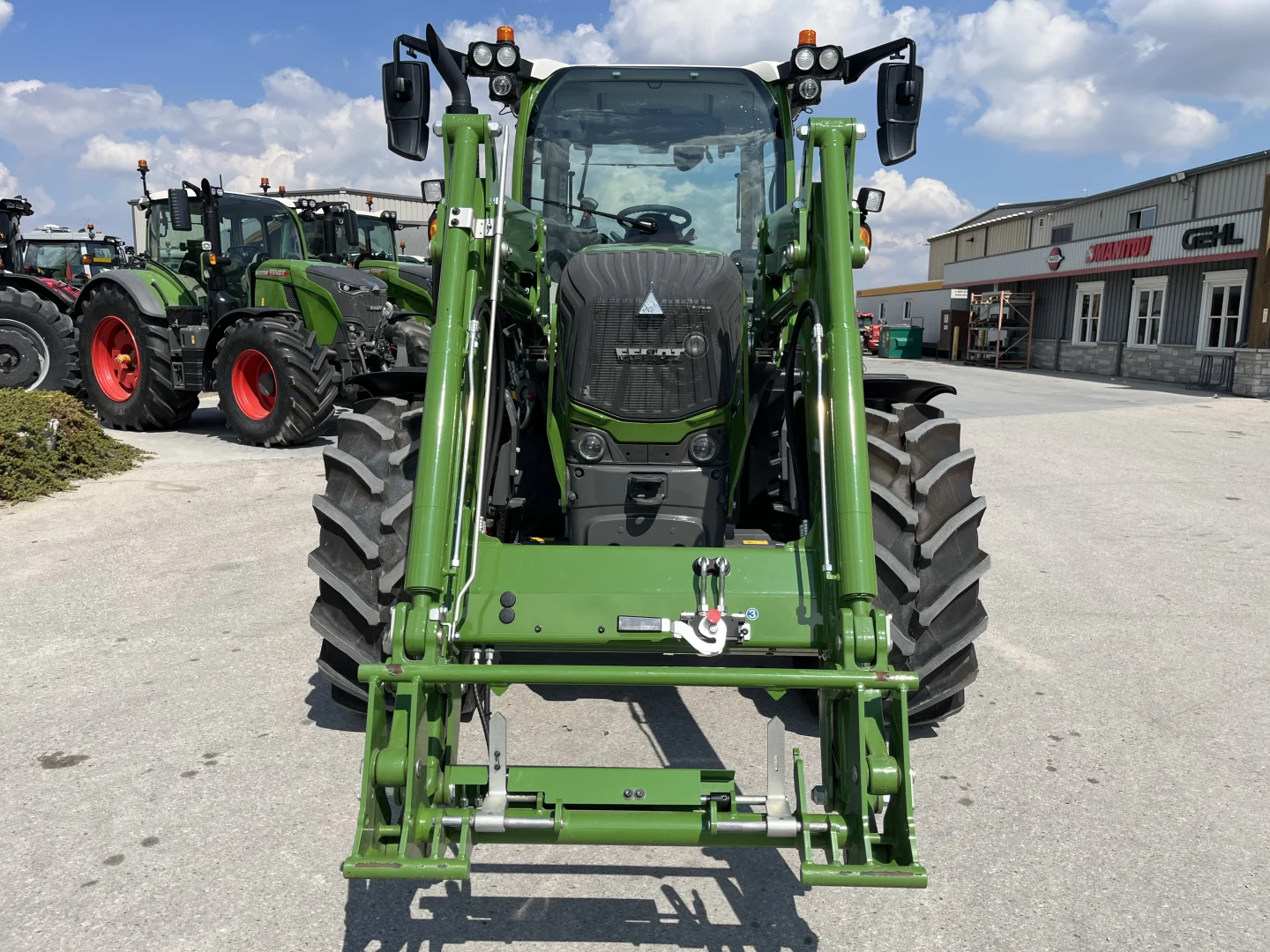

New 2024 Fendt 311 Gen4
| Description | |
|---|---|

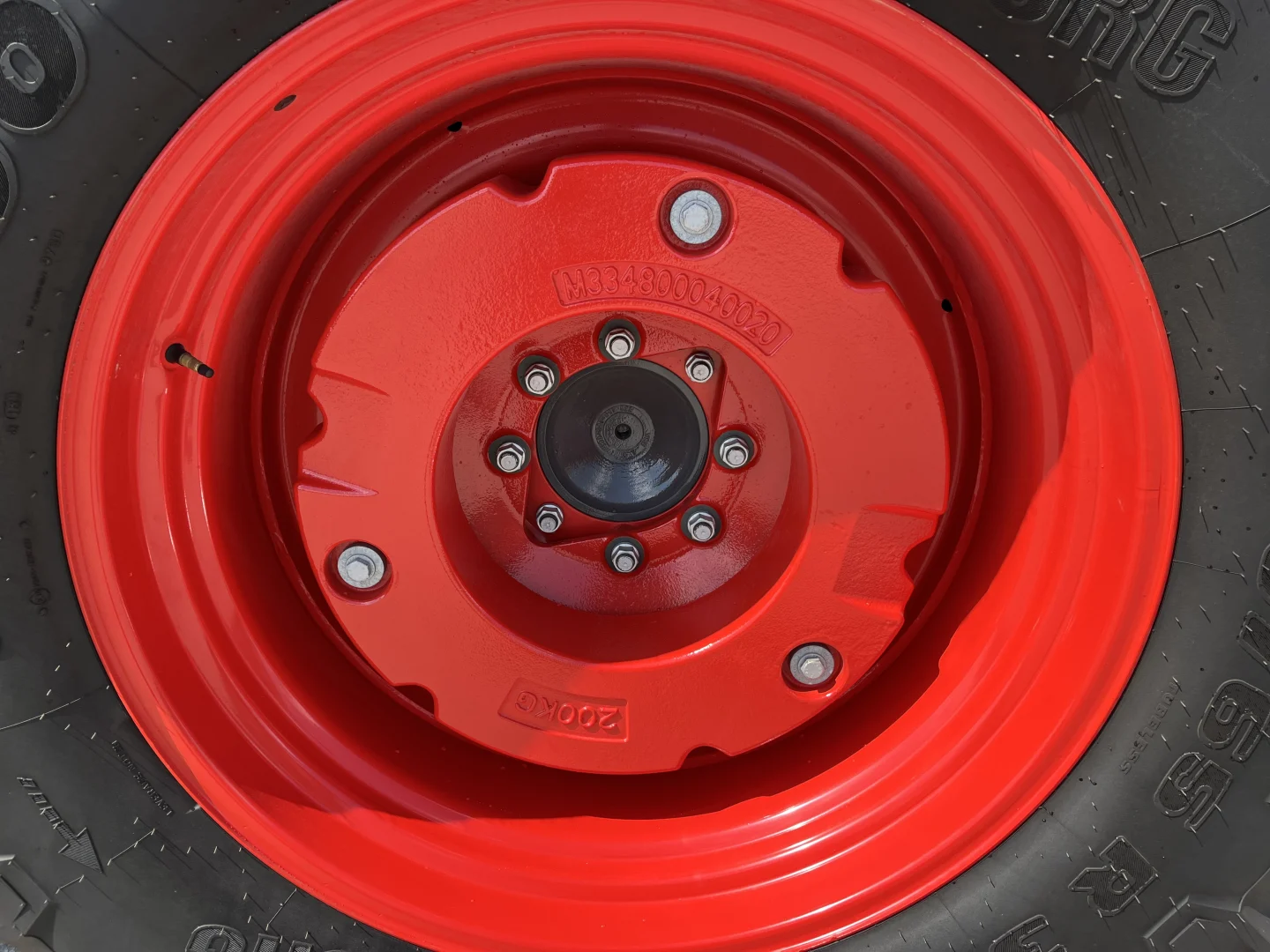

| New 2024 MY, Power version, 40KPH vario transmission, suspended front axle, 29GPM hydraulic pump, 4 rear remotes, mechanical cab suspension, halogen light package, 200KG rear wheel weights, 4X75 loader with suspension, hydraulic bucket lock, 3rd function, 540/65R24 fronts, 600/65R38 rears, 3 year/3000 hour Fendt Goldstar warranty. Only available in Southern Ontario. | |
| Categories | Mid Range |
| Unit Number | 18260B |
| Condition | New |
| Usage | 30 hours |
| Year | 2024 |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 74.57kW (100hp) 100hp 74.57kW | |
| PTO Power | 59.95kW (80.4hp) 80.4hp 59.95kW | |
| Rated Engine Speed | 2100r/min | |
| Make | AGPWR 44 MBTN-D5 | |
| Displacement | 268.5cu. in. (4.4L) 4.4L 268.5cu. in. | |
| Number of Cylinders | 4 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 55.48gal. (210L) 210L 55.48gal. | |
| DEF Tank Capacity | 6.08gal. (23L) 23L 6.08gal. | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 24.85mph (40km/h) 40km/h 24.85mph | |
| Name | CVT ML 75 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Trailer Brakes | Air | |
| Suspension | Front Axle | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 300 Gen 4 29 GPM | |
| System Capacity | 13.21gal. (50L) 50L 13.21gal. | |
| Maximum Available Hydraulic Oil | 11.36gal. (43L) 43L 11.36gal. | |
| Maximum Operating Pressure | 3335.87psi (230bar) 230bar 3335.87psi | |

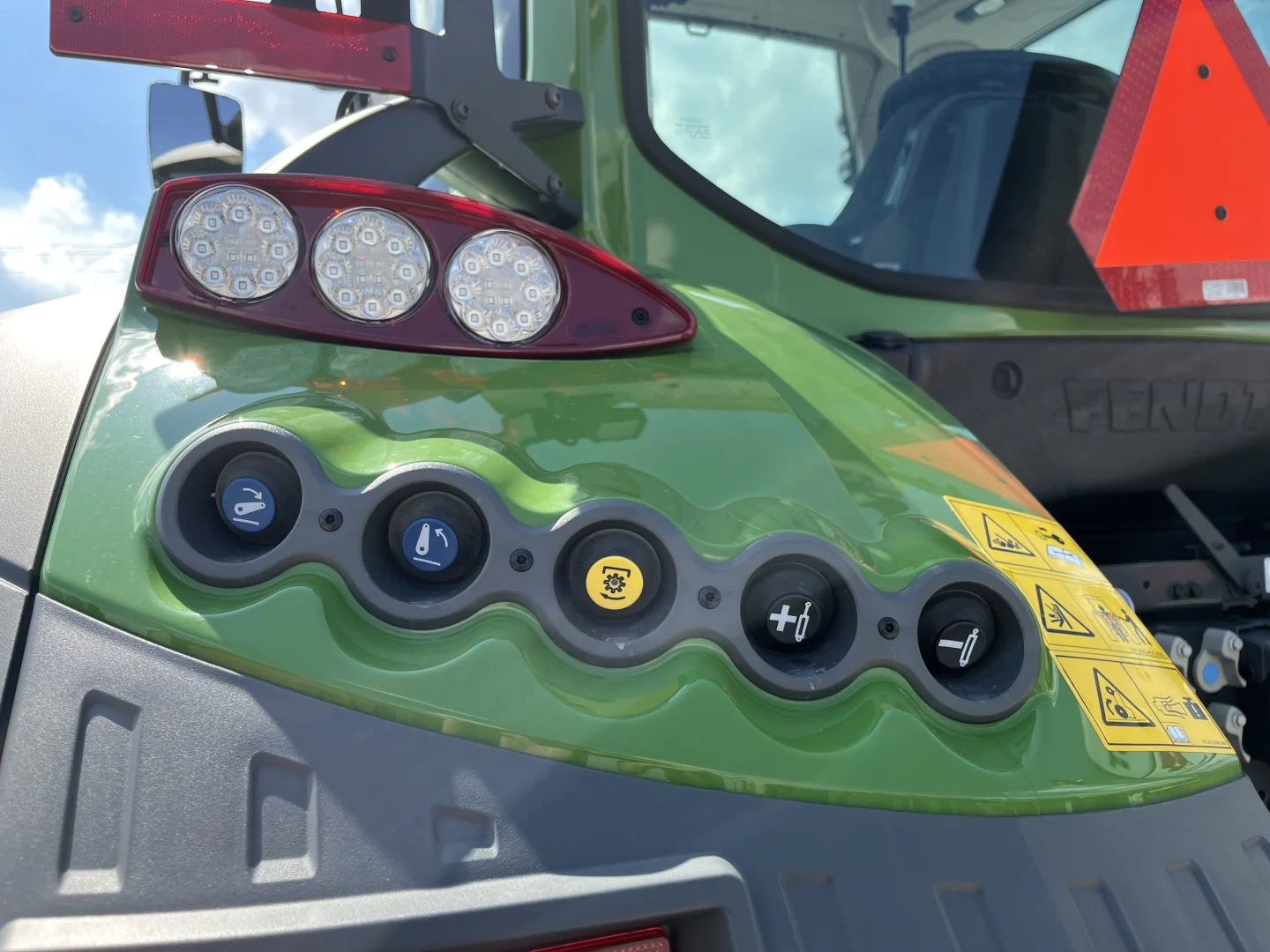

| Rear Remote Valves | 4 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|

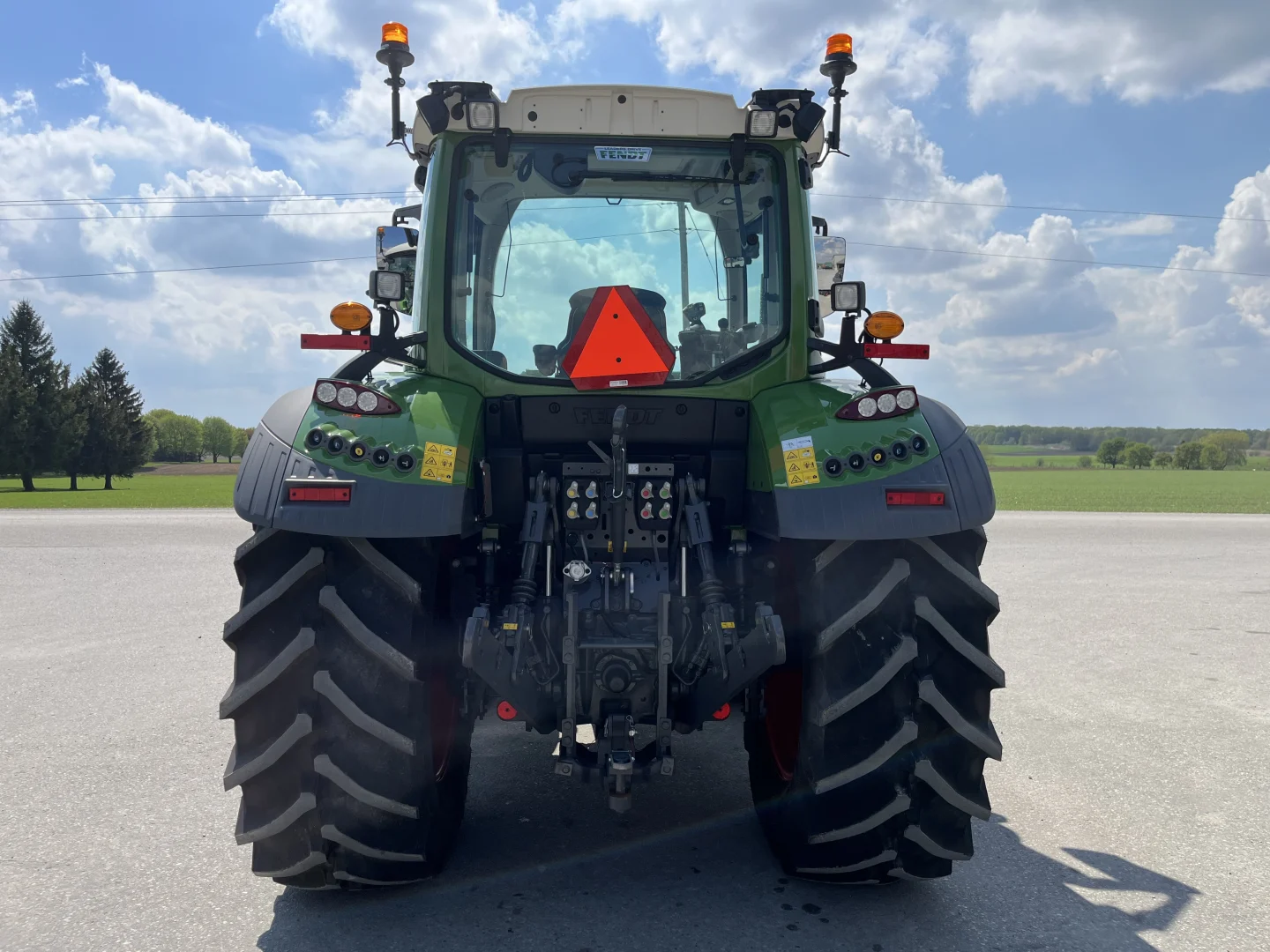

| Rear Hitch | FD 300 Gen4 | |
| Lift Capacity at Pins | 13399.7lb. (6078kg) 6078kg 13399.7lb. | |
| Front Hitch | FD 300 Gen4 | |
| Category | Category 2 | |
| Capacity at Pins | 7037.16lb. (3192kg) 3192kg 7037.16lb. | |
| PTO | ||
|---|---|---|
| Rear | 540E, 540, 1000 | |
| Type | Independent | |
| Technology | ||
|---|---|---|

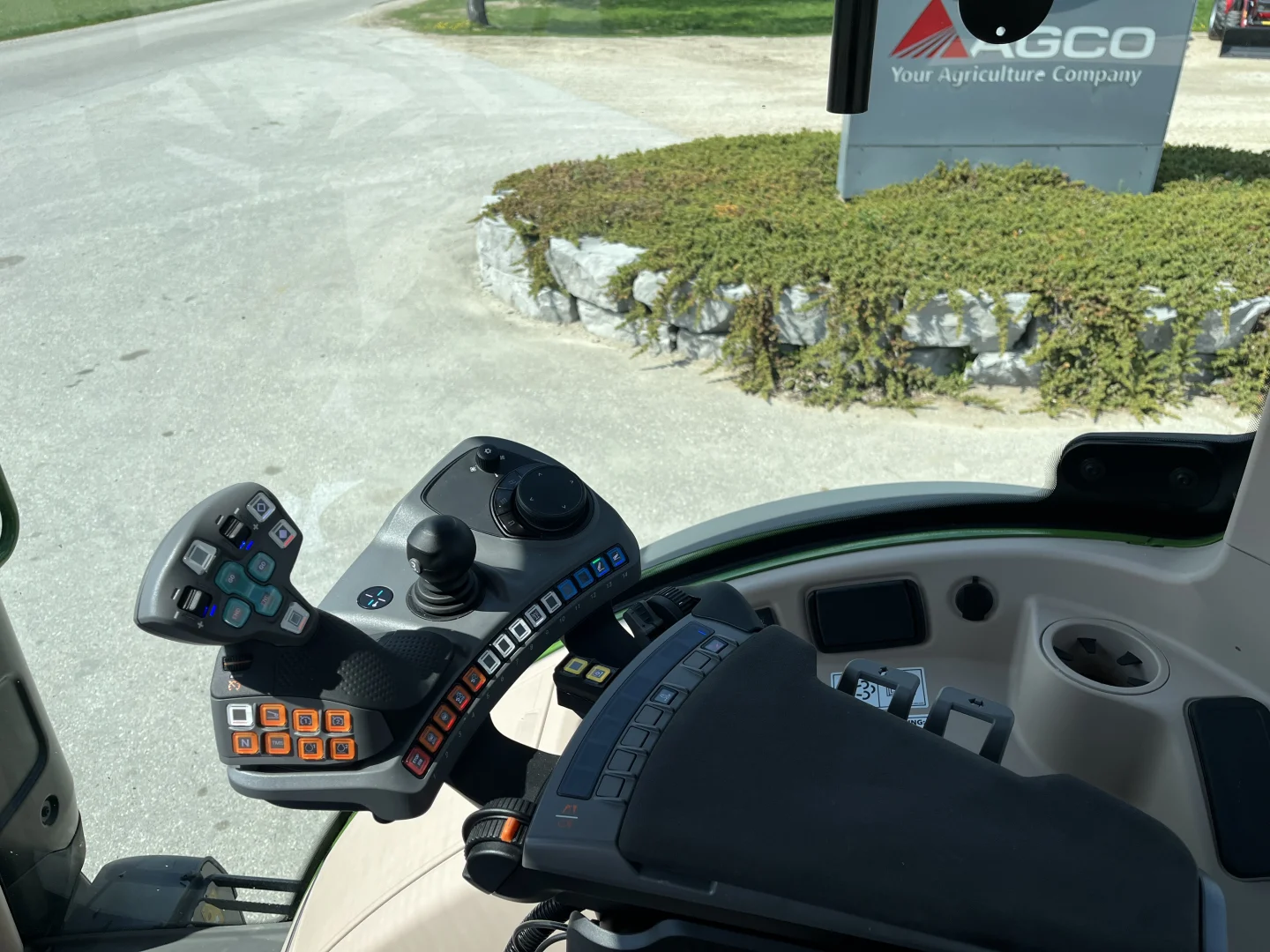

| Display | 12" Armrest Mounted Terminal | |

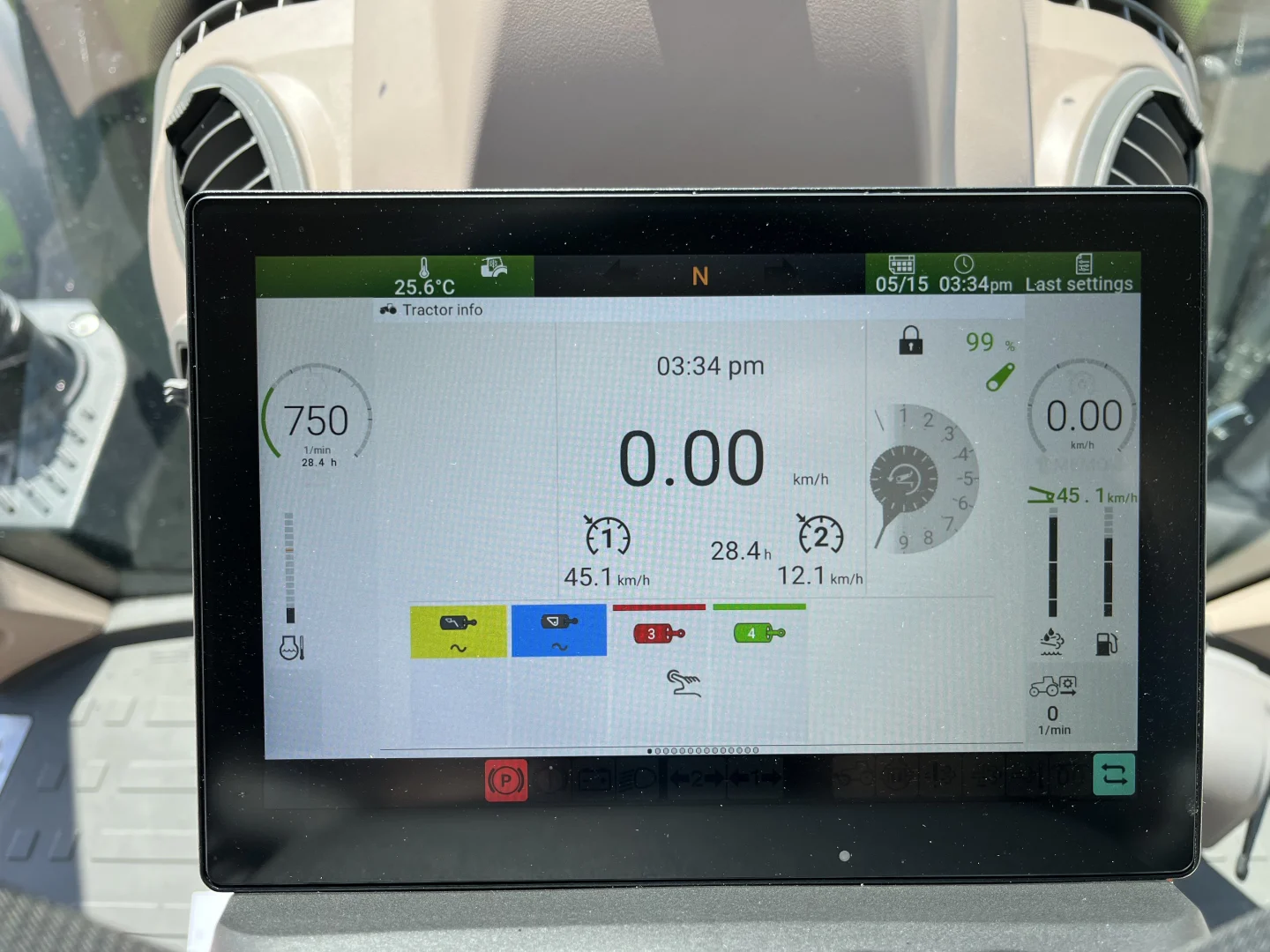

| Instrument Display | 10" Dash Screen | |
| Entertainment | Bluetooth, Mic, USB | |
| Integration | ISO BUS Implement Control | |
| Headland Management | Variotronic TI | |
| Data Transfer | Fendt TaskDoc Pro | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 10 | |
| Rear Lights | 6 | |
| Worklight Type | Halogen | |
| Alternator | 150A | |
| Battery | 850CCA | |

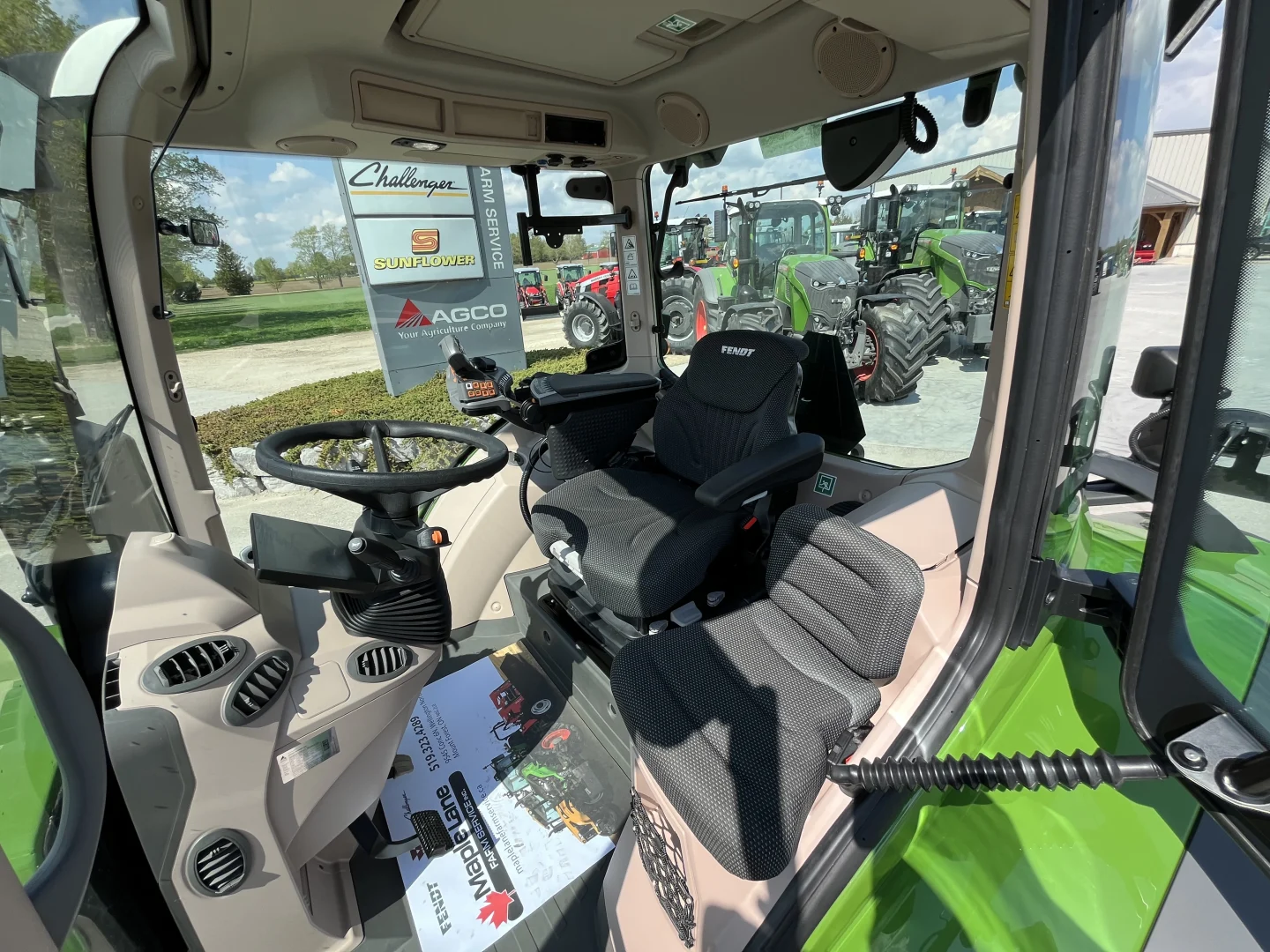

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Climate | Air Conditioning | |
| Cab Suspension | 2 Point Mechanical | |
| Steering Column | Telescoping, Tilting | |
| Steering Controls | Steering Wheel | |
| Operator Seat | FD Comfort | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Height Adjustable | |
| Backrest | Recline | |
| Headrest | Extend | |
| Lumbar Support | Mechanical | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Air (built in compressor), Forward/Reverse Horizontal | |
| Wiper | Rear, Front | |
| Spec Level | Power | |
| Wheels | ||
|---|---|---|
| Front | TRELL 540/65R24 TM800 | |
| Size | 540/65R24 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 9-1/16" (535mm) 535mm 1' 9-1/16" | |
| Overall Diameter | 4' 3-5/8" (1312mm) 1312mm 4' 3-5/8" | |
| Static Loaded Radius | 1' 11-7/16" (595mm) 595mm 1' 11-7/16" | |
| Rolling Circumference | 12' 11-1/8" (3940mm) 3940mm 12' 11-1/8" | |
| Tread Thickness | 1-15/16" (50mm) 50mm 1-15/16" | |
| Weight | 251.99lb. (114.3kg) 114.3kg 251.99lb. | |
| Rear | TRELL 600/65R38 TM800 | |
| Size | 600/65R38 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 11-1/4" (590mm) 590mm 1' 11-1/4" | |
| Overall Diameter | 5' 8-11/16" (1745mm) 1745mm 5' 8-11/16" | |
| Static Loaded Radius | 2' 6-7/8" (785mm) 785mm 2' 6-7/8" | |
| Rolling Circumference | 17' 1-1/8" (5210mm) 5210mm 17' 1-1/8" | |
| Tread Thickness | 2-3/16" (55mm) 55mm 2-3/16" | |
| Weight | 440.26lb. (199.7kg) 199.7kg 440.26lb. | |
| Dimensions | ||
|---|---|---|
| Length | 14' 2-11/16" (4336mm) 4336mm 14' 2-11/16" | |
| Wheelbase | 7' 11-1/4" (2420mm) 2420mm 7' 11-1/4" | |
| Width | 7' 3-3/8" (2220mm) 2220mm 7' 3-3/8" | |
| Height | 9' 5" (2870mm) 2870mm 9' 5" | |
| Minimum Ground Clearance | 1' 8-1/16" (510mm) 510mm 1' 8-1/16" | |
| Turning Radius | 13' 1-3/16" (3993mm) 3993mm 13' 1-3/16" | |
| Weight | 10692.42lb. (4850kg) 4850kg 10692.42lb. | |
| Loader | ||
|---|---|---|

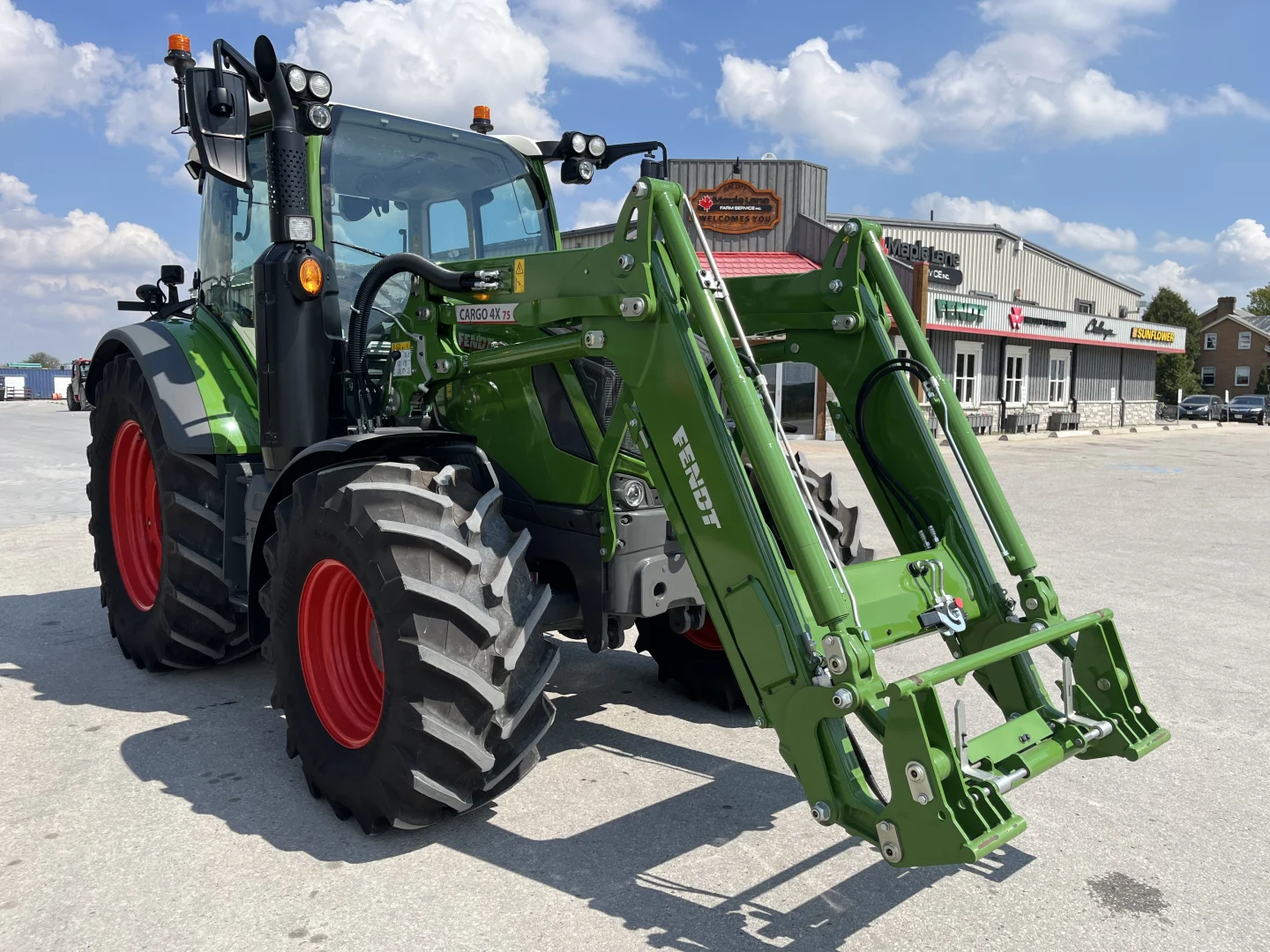

| Loader | FD Cargo 4X/75 | |
| Maximum Lift Height – Pivot Pin | 13' 7-9/16" (4155mm) 4155mm 13' 7-9/16" | |
| Digging Depth | 5-7/8" (150mm) 150mm 5-7/8" | |

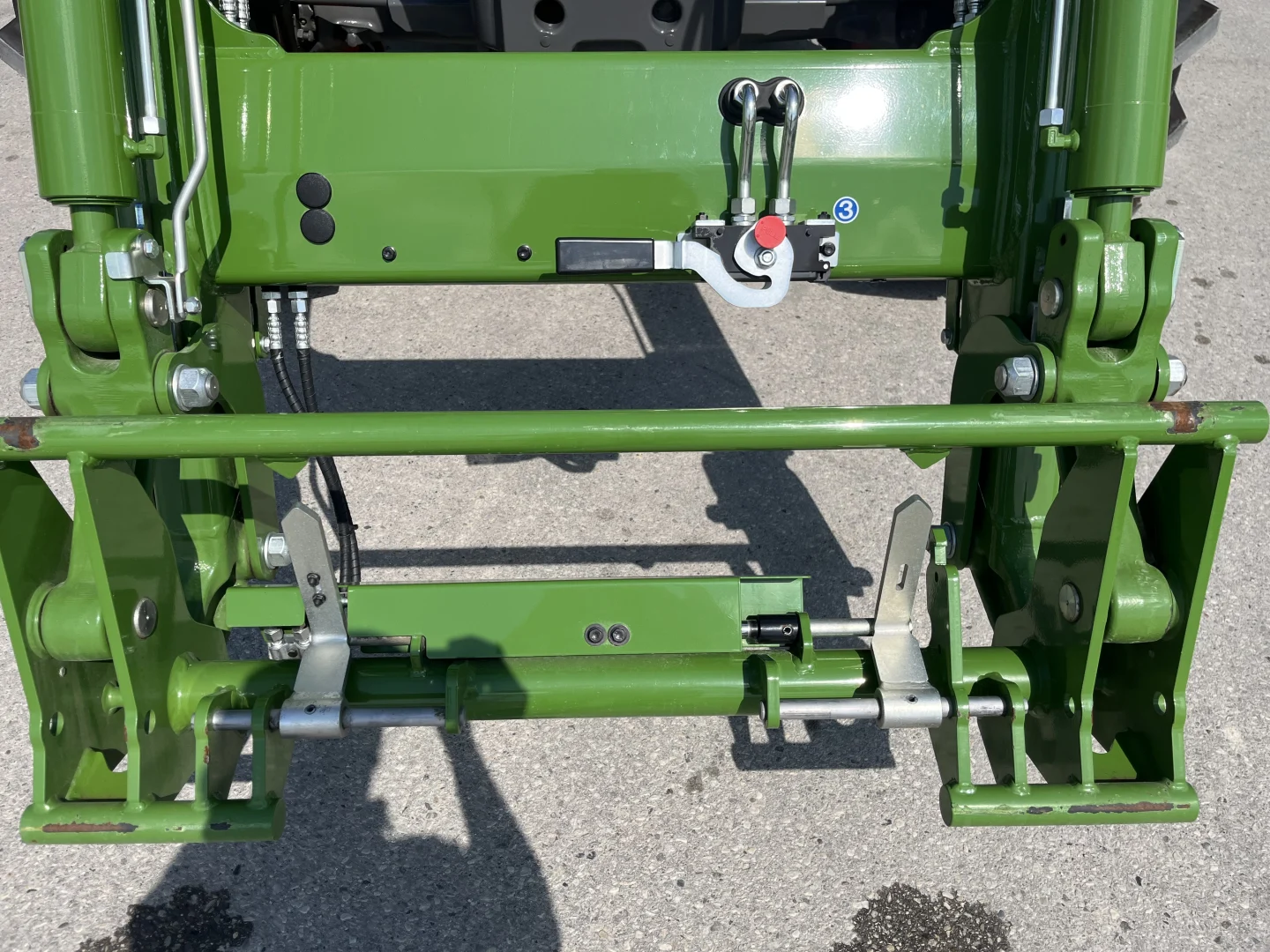

| Tool Carrier | Euro Quick Attach | |
| Self-Leveling | Hydraulic | |
| Lift Path | Radial | |
