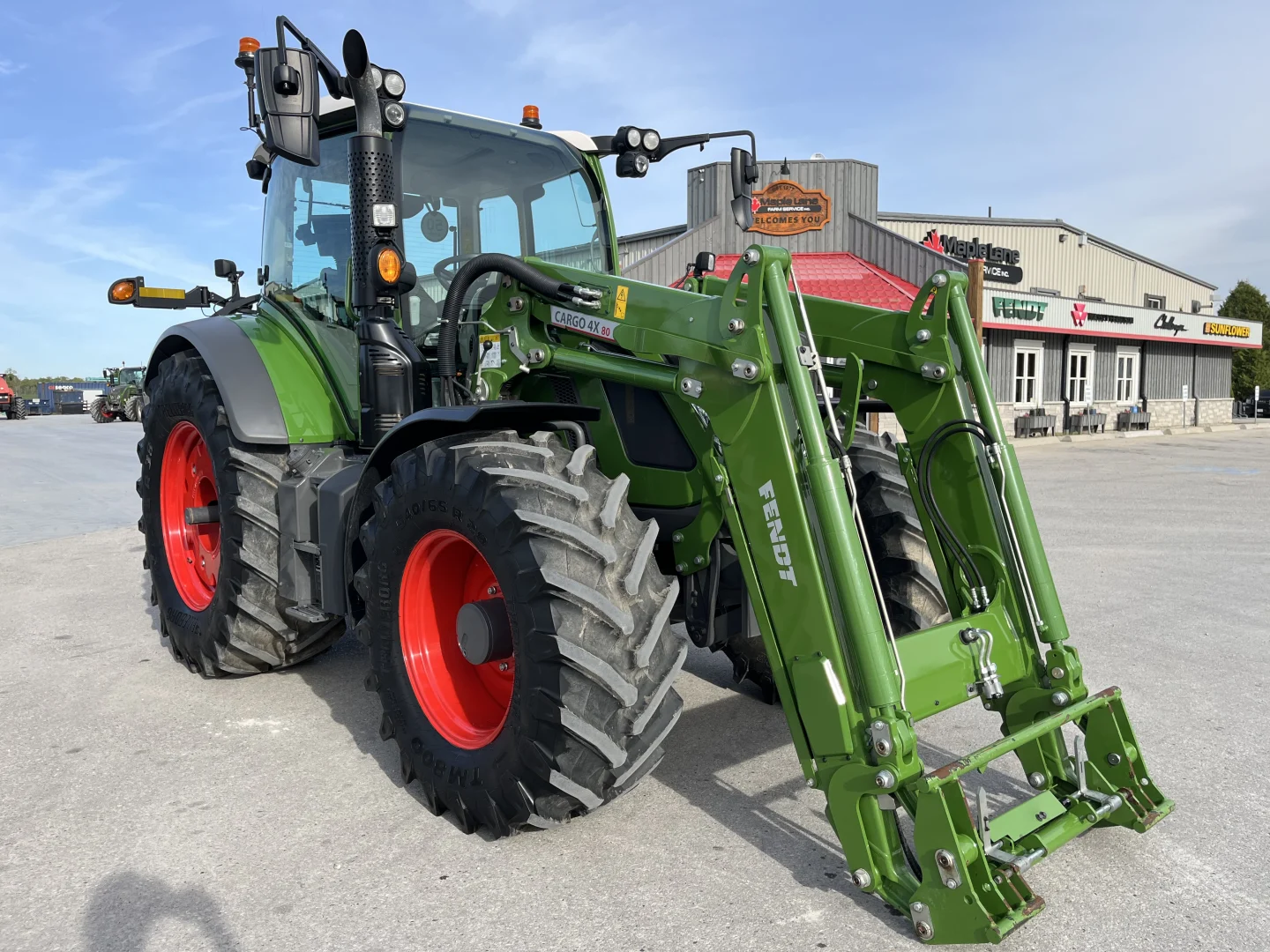

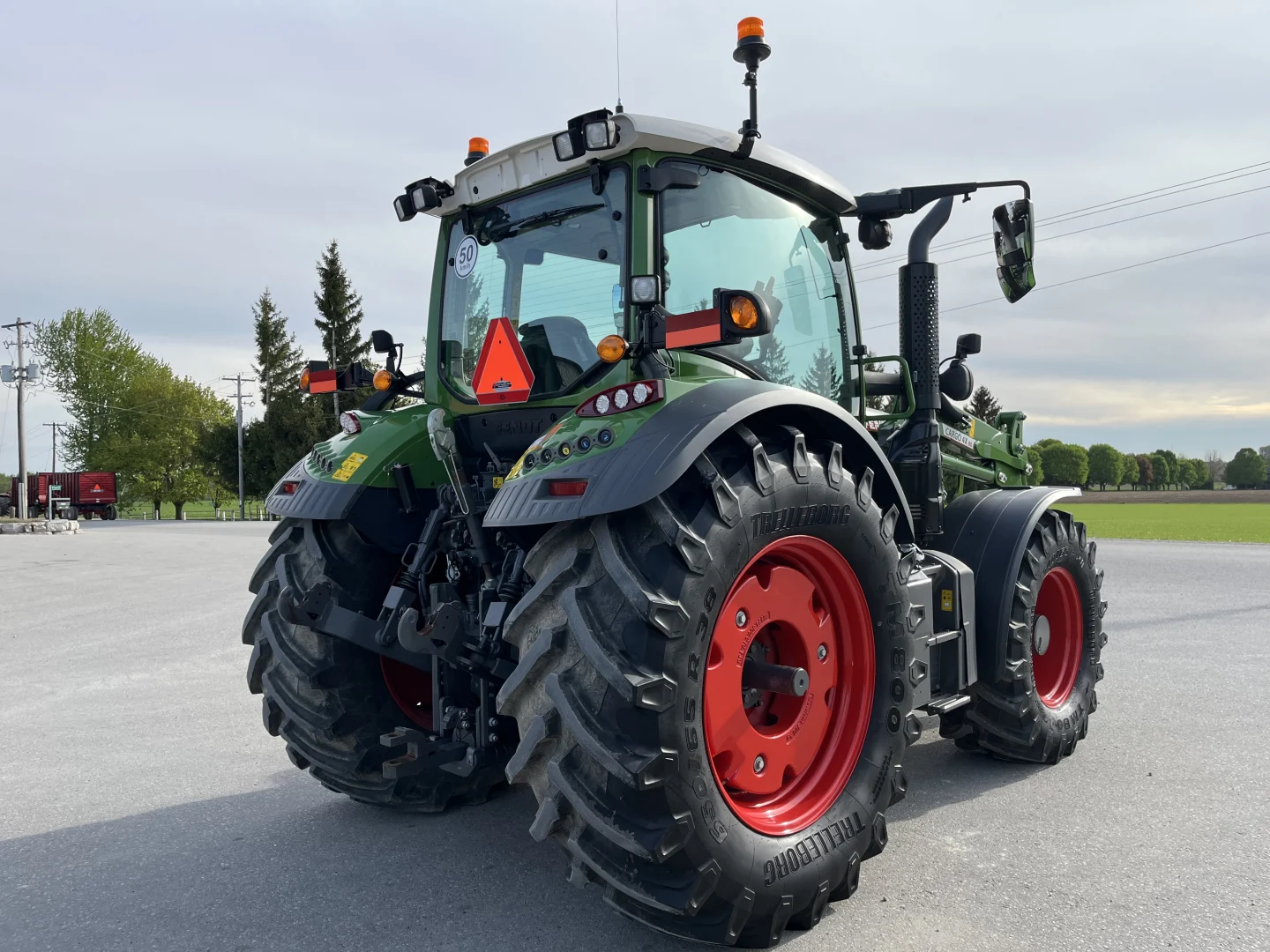

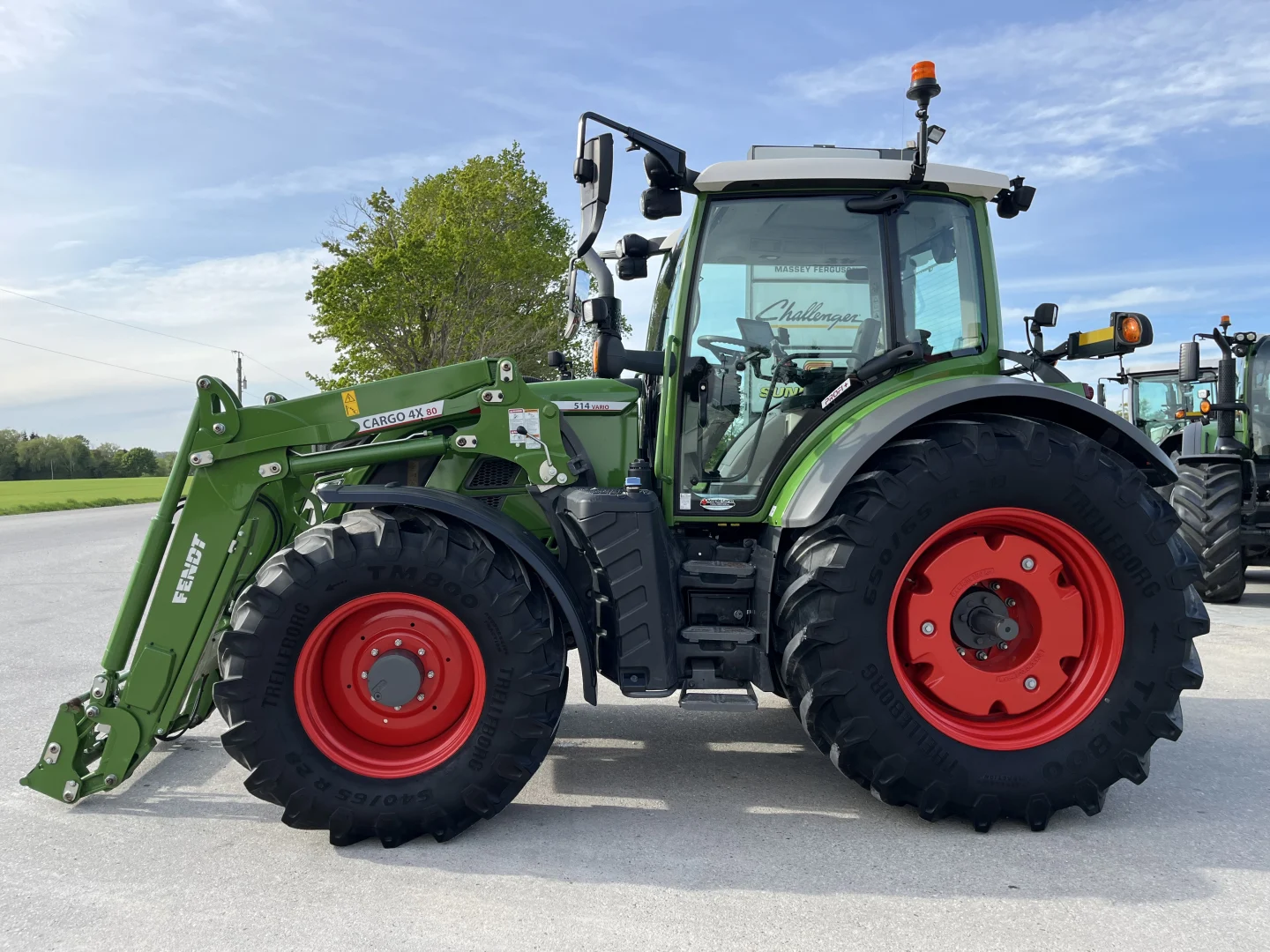

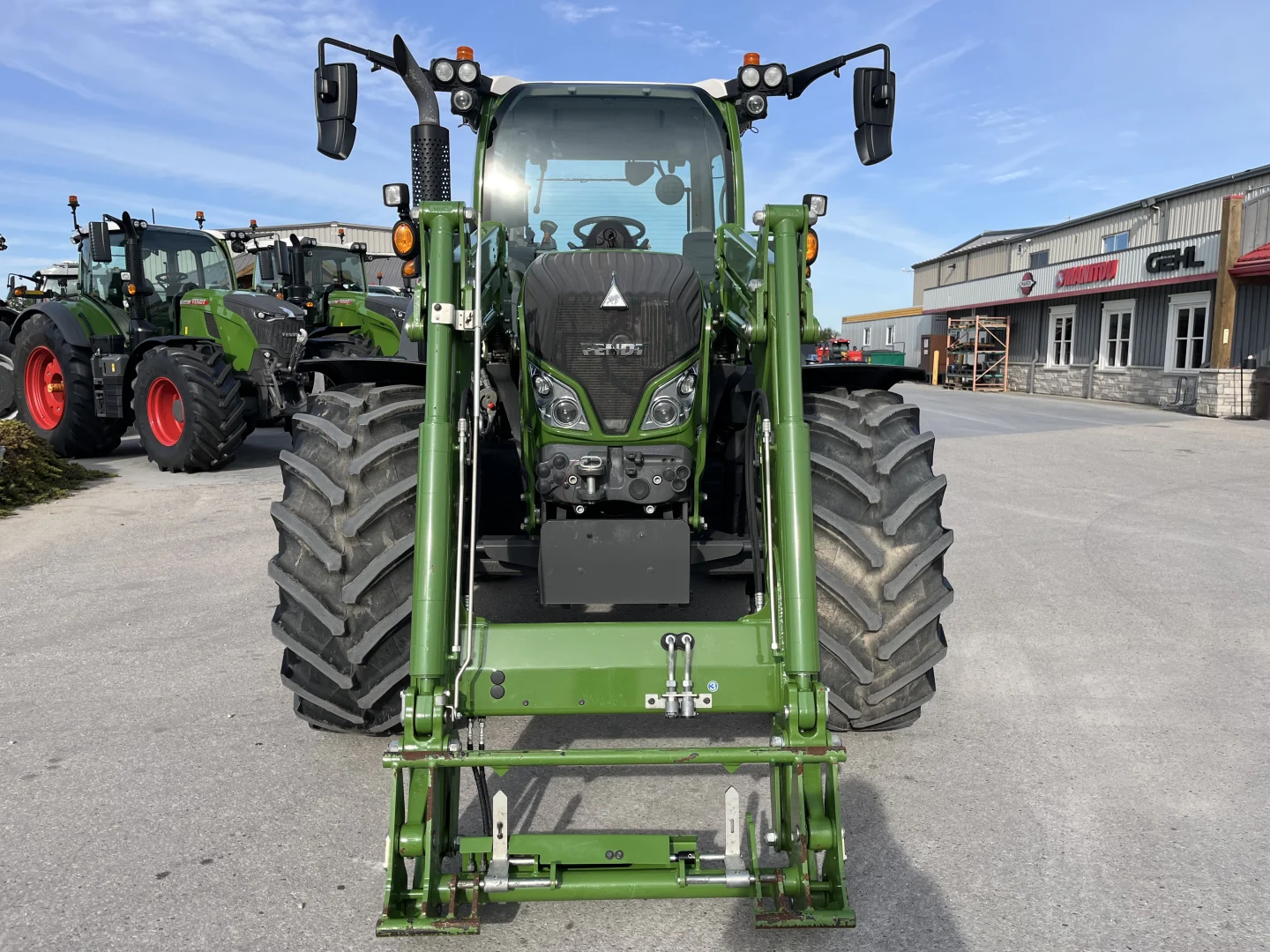

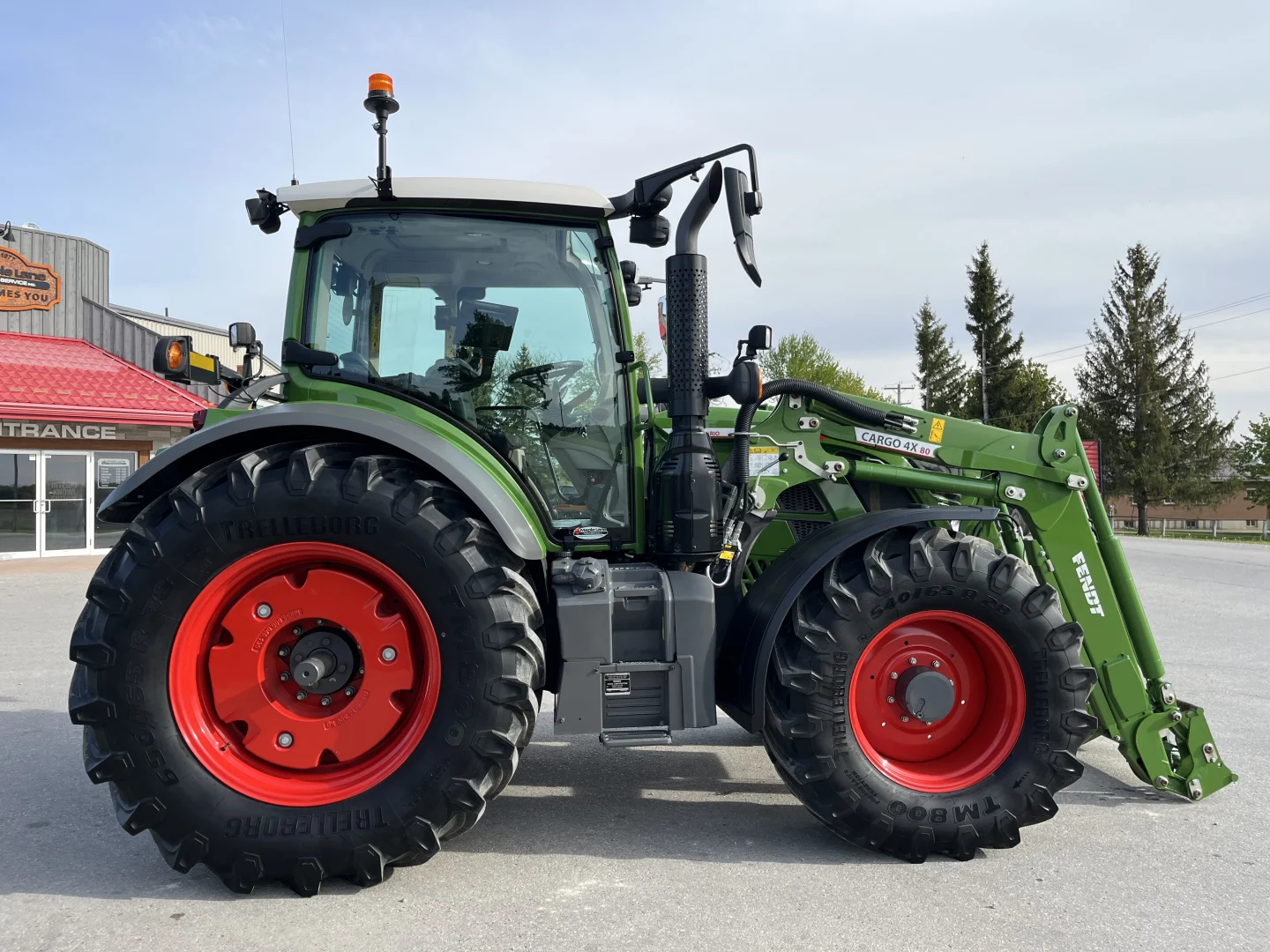

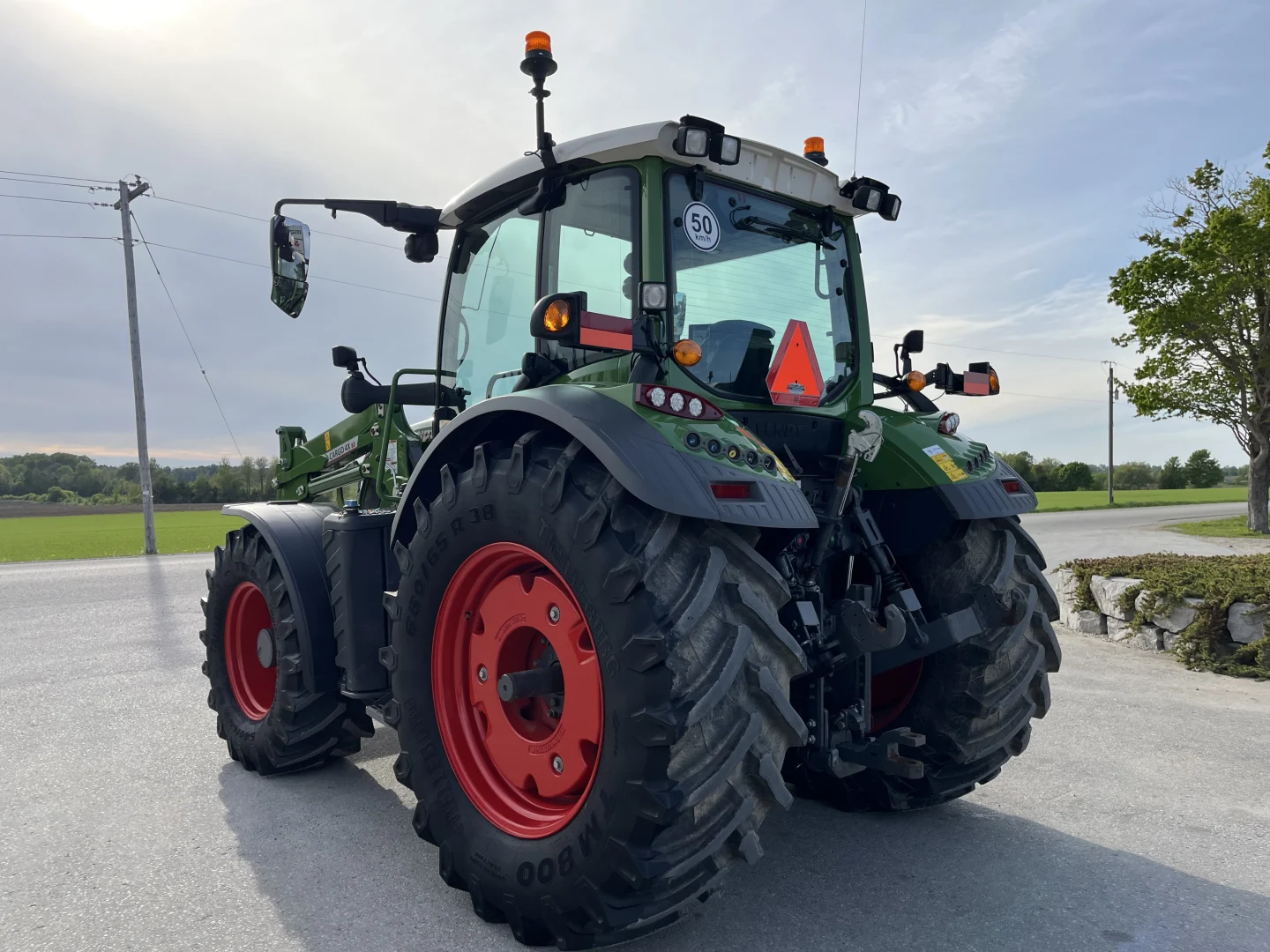

Used 2022 Fendt 514 Gen3
| Description | |
|---|---|

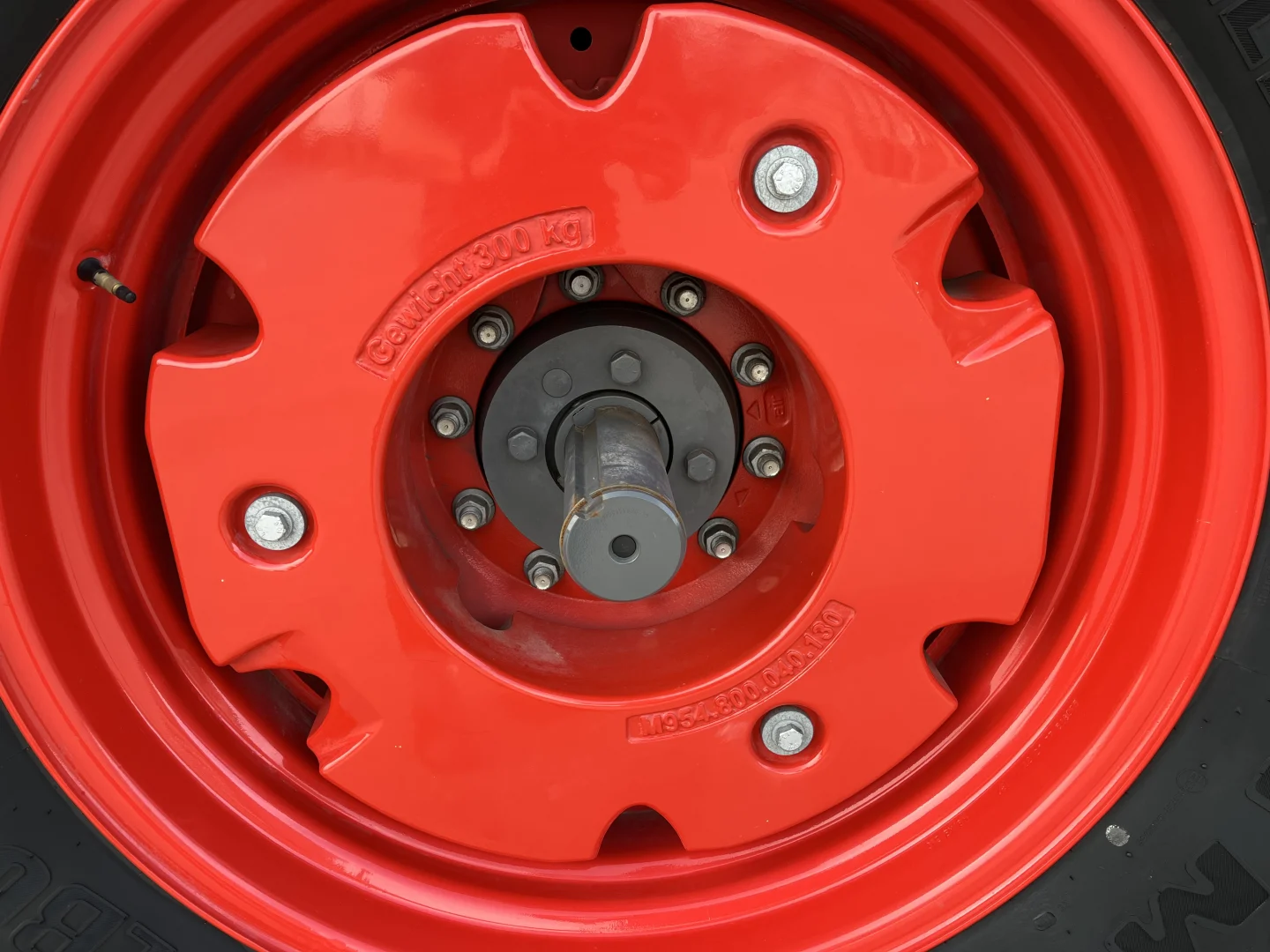

| Profi+, FendtOne cab, Fendt Guide standard, 50 km/h Vario transmission, suspended front axle, 42 GPM hydraulic pump, 4 rear valves, 540/65R28 front, 300 kg wheel weights, cloth Super Comfort seat, mechanical cab suspension, Cargo 4X80 loader, Warranty and maintenance package included | |
| Categories | High Horsepower |
| Unit Number | 23912R |
| Condition | Used |
| Usage | 1100 hours |
| Year | 2022 |
| Cost | $239,900.00 CAD |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 111.11kW (149hp) 149hp 111.11kW | |
| PTO Power | 92.47kW (124hp) 124hp 92.47kW | |
| Rated Engine Speed | 2100r/min | |
| Make | DZ TCD 4.1 L4F 4 V | |
| Displacement | 246.54cu. in. (4.04L) 4.04L 246.54cu. in. | |
| Number of Cylinders | 4 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 78.72gal. (298L) 298L 78.72gal. | |
| DEF Tank Capacity | 8.19gal. (31L) 31L 8.19gal. | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31.07mph (50km/h) 50km/h 31.07mph | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Trailer Brakes | Hydraulic, Air | |
| Suspension | Front Axle | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 500 Gen3 42 GPM | |
| Pump Type | Variable Displacement Piston | |
| Hydraulic Flow | 158.99L/min (42GPM) 42GPM 158.99L/min | |
| System Capacity | 18.23gal. (69L) 69L 18.23gal. | |
| Maximum Available Hydraulic Oil | 14.53gal. (55L) 55L 14.53gal. | |
| Maximum Operating Pressure | 2900.75psi (200bar) 200bar 2900.75psi | |
| Rear Remote Valves | 4 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|
| Front Hitch | FD 500 Gen3 | |
| Category | Category 3, Category 2 | |
| Capacity at Pins | 3.4T. | |

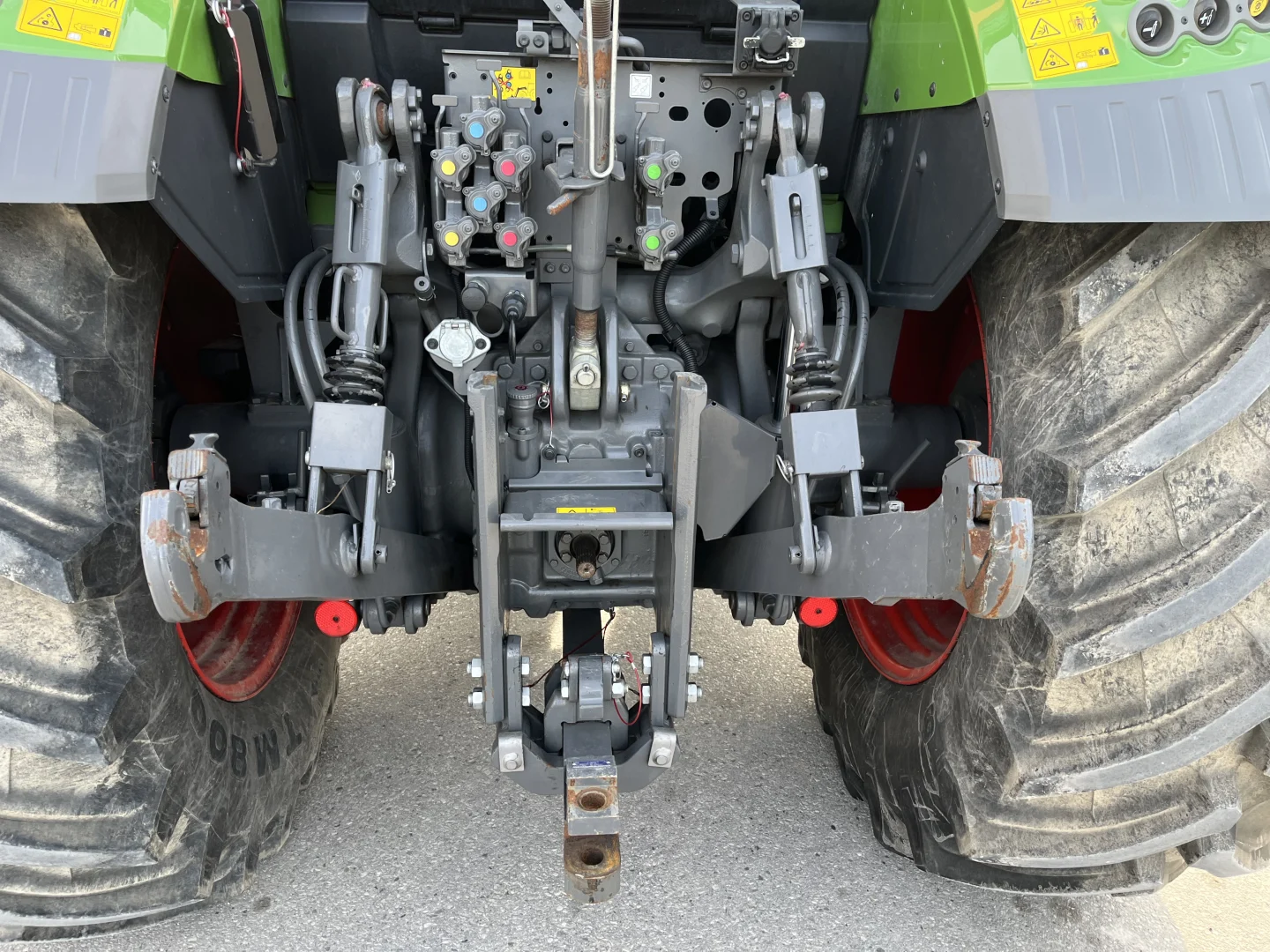

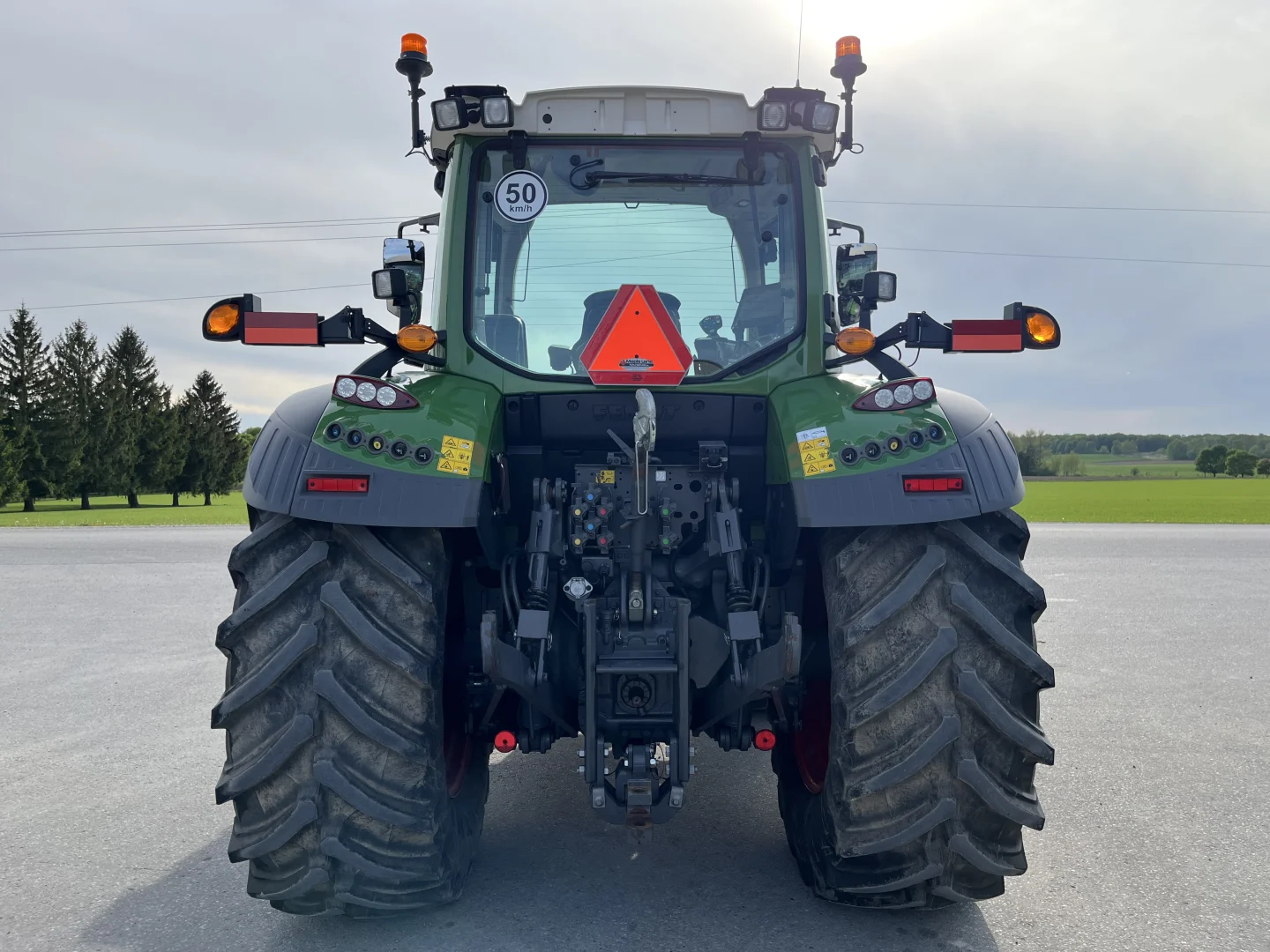

| Rear Hitch | FD 500 Gen3 | |
| Hitch Category | Category 3, Category 2 | |
| Lift Capacity at Pins | 7198.96kg (15871lb.) 15871lb. 7198.96kg | |
| Comfort | Draft Control | |
| PTO | ||
|---|---|---|
| Front | 1000 | |
| Rear | 540, 1000 | |
| Type | Independent | |
| Technology | ||
|---|---|---|

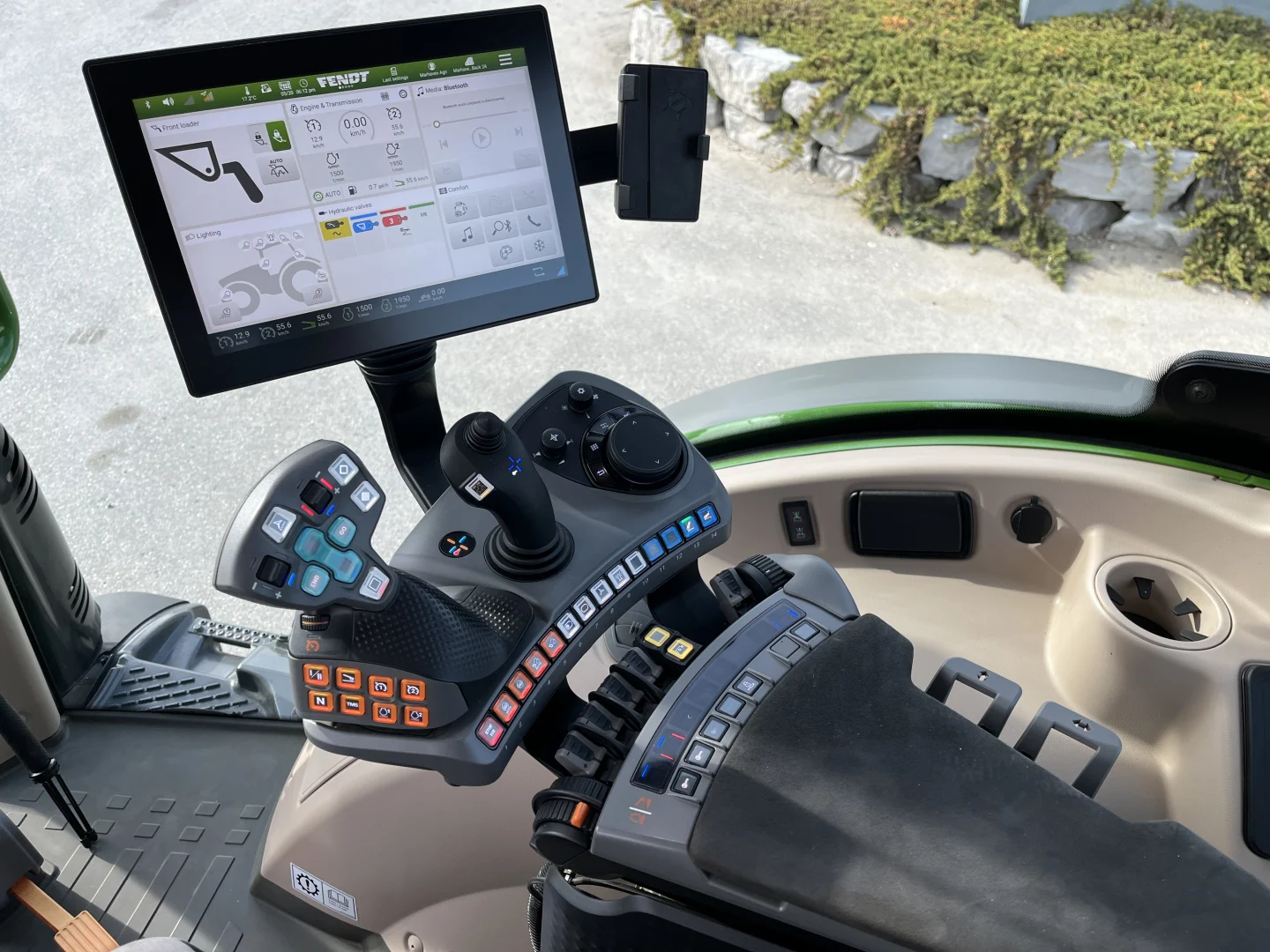

| Display | 12" Roof Mounted Terminal | |

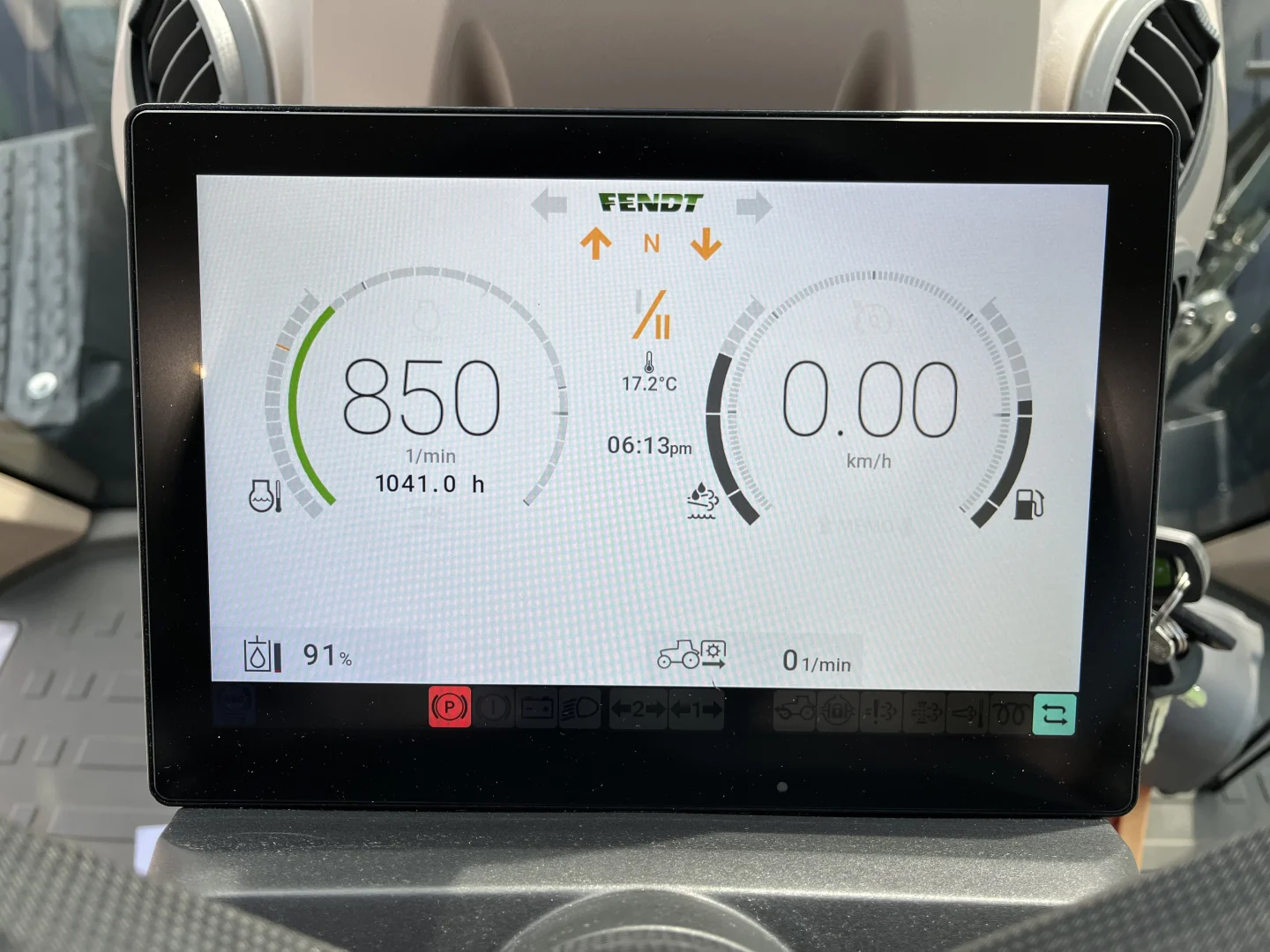

| Instrument Display | 10" Dash Screen | |
| Entertainment | Bluetooth, Mic, USB | |
| Integration | ISO BUS Implement Control | |
| Antenna | Trimble | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 6 | |

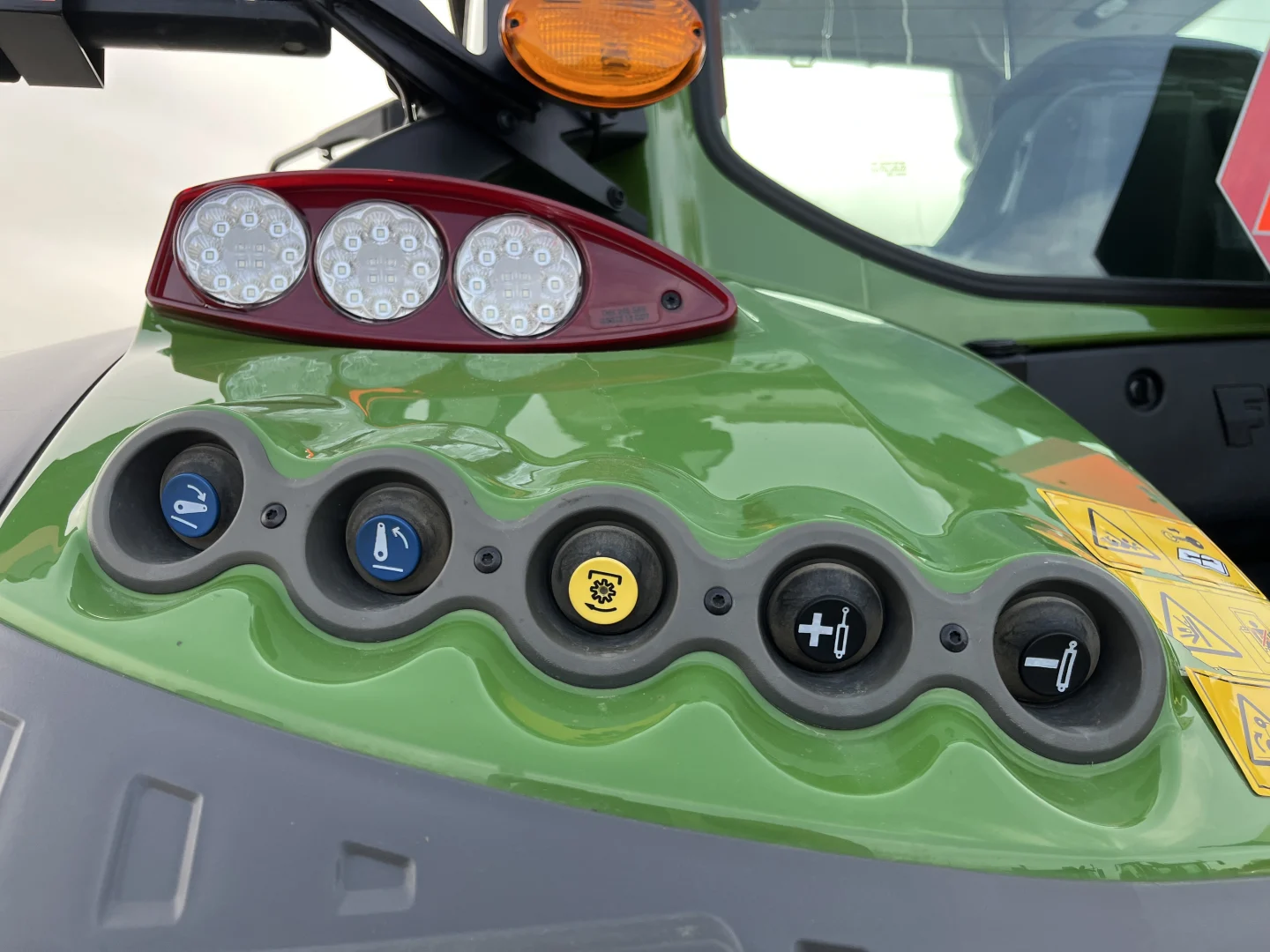

| Rear Lights | 4 | |
| Worklight Type | Halogen | |
| Rotating Beacon | Left, Right | |
| Alternator | 200A | |
| Battery | 850CCA | |

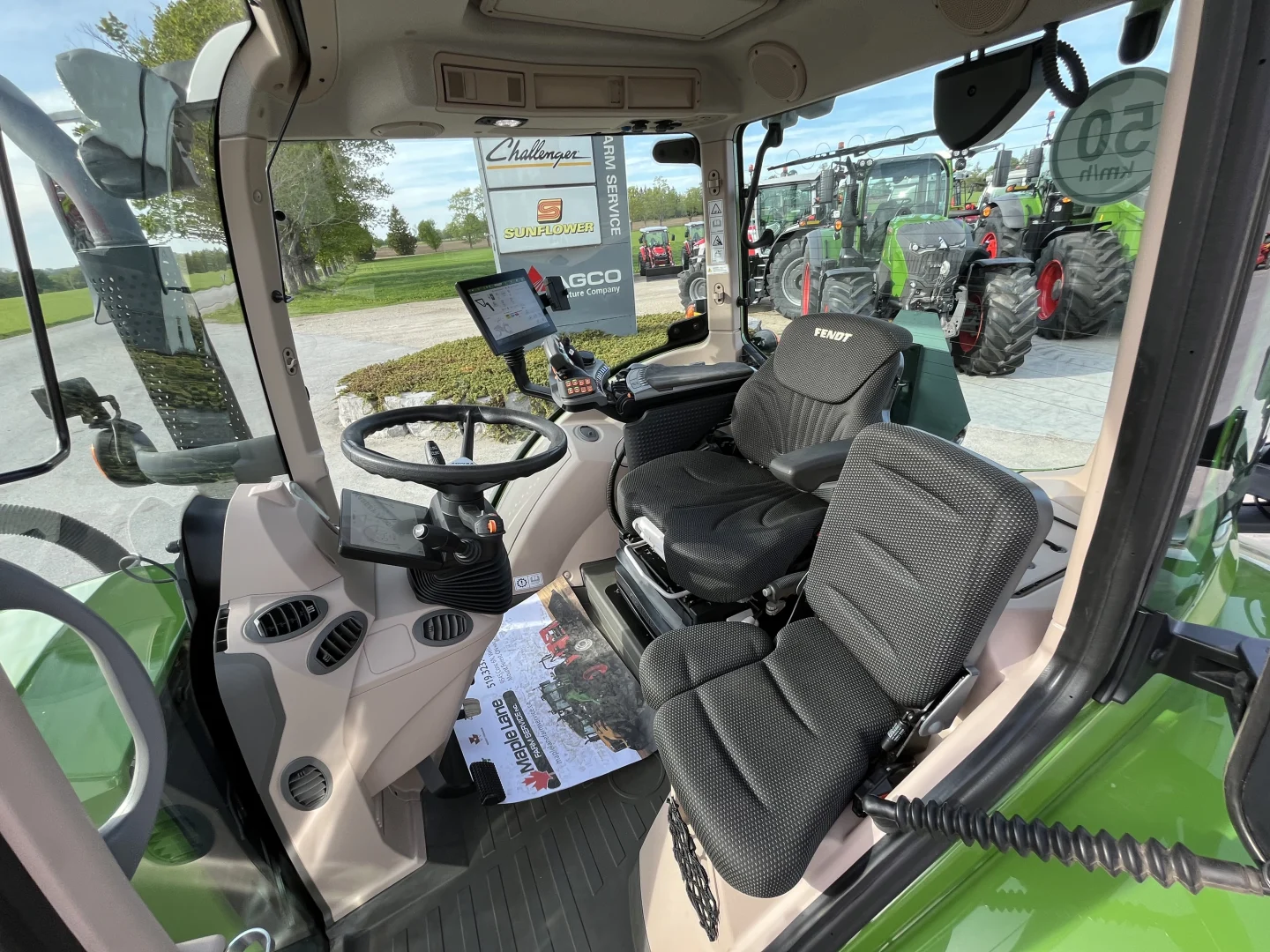

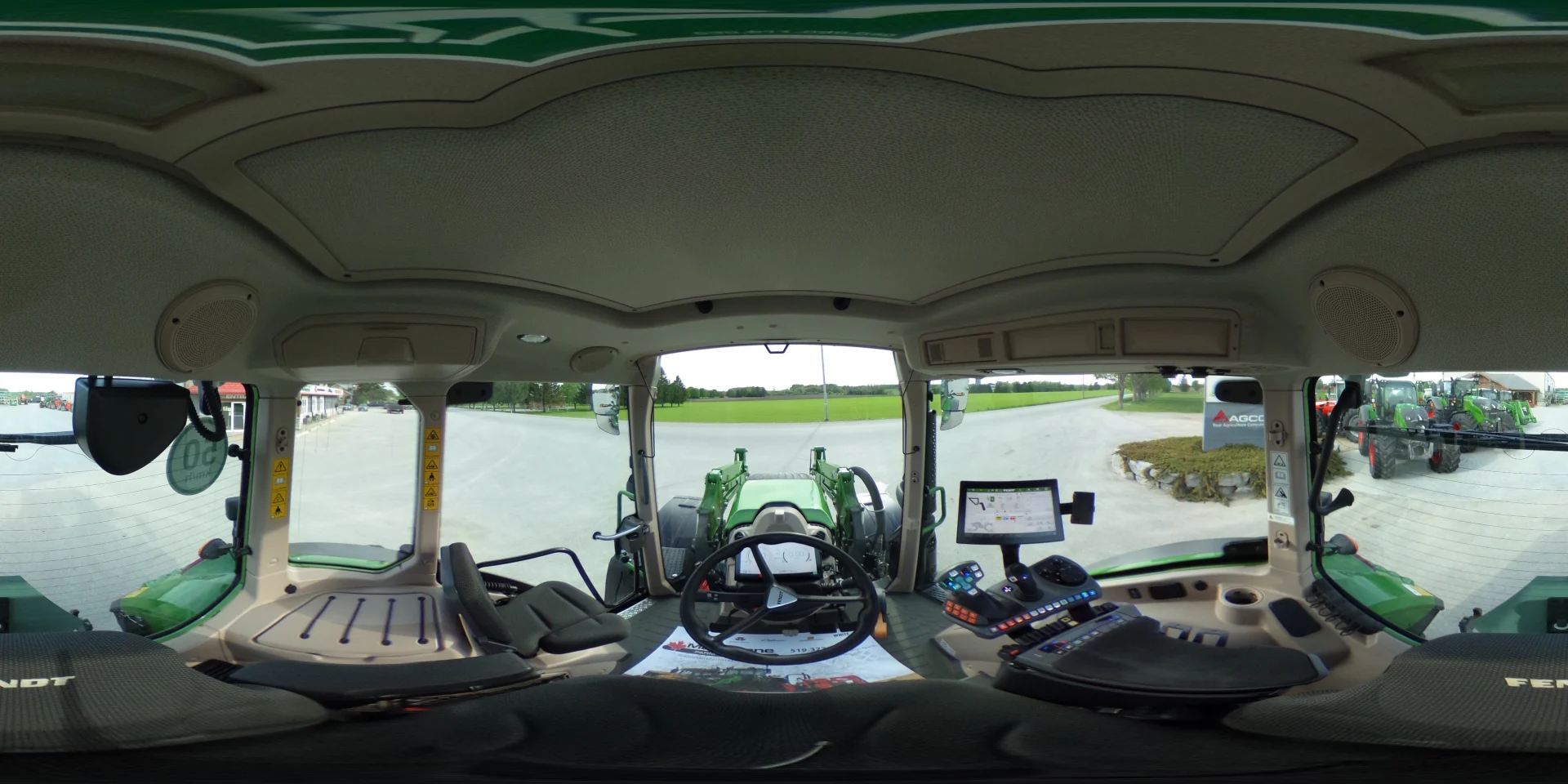

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Access | Left Hand Door, Rear Window | |
| Climate | Air Conditioning, Heater | |
| Cab Suspension | 2 Point Mechanical | |
| Steering Column | Telescoping, Tilting | |
| Steering Controls | Steering Wheel | |
| Operator Seat | FD Super Comfort | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline | |
| Headrest | Extend | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Low Frequency, Air (built in compressor), Forward/Reverse Horizontal | |
| Rotation | Segments | |
| Comfort | Automatic Height Adjustment, Heat, Automatic Weight Adjustment | |
| Windows | Heated Rear | |
| Wiper | Rear, Front, 300° Front | |
| Sunshade | Windshield | |
| Spec Level | ProfiPlus | |

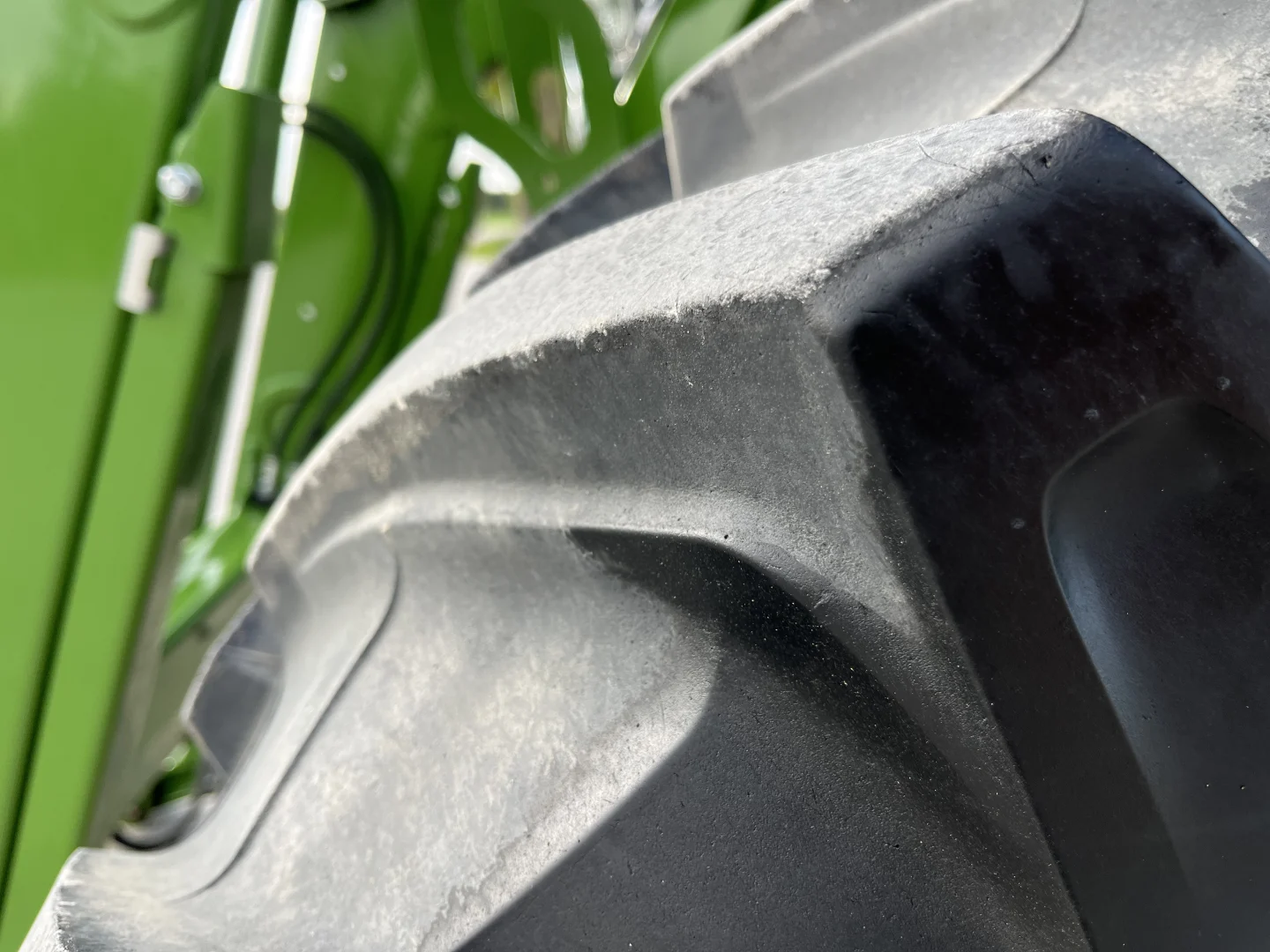

| Wheels | ||
|---|---|---|
| Front | TRELL 540/65R28 TM800 | |
| Size | 540/65R28 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 530.86mm (1' 8-7/8") 1' 8-7/8" 530.86mm | |
| Overall Diameter | 1412.24mm (4' 7-5/8") 4' 7-5/8" 1412.24mm | |
| Static Loaded Radius | 637.54mm (2' 1-1/8") 2' 1-1/8" 637.54mm | |
| Rolling Circumference | 4218.94mm (13' 10-1/8") 13' 10-1/8" 4218.94mm | |

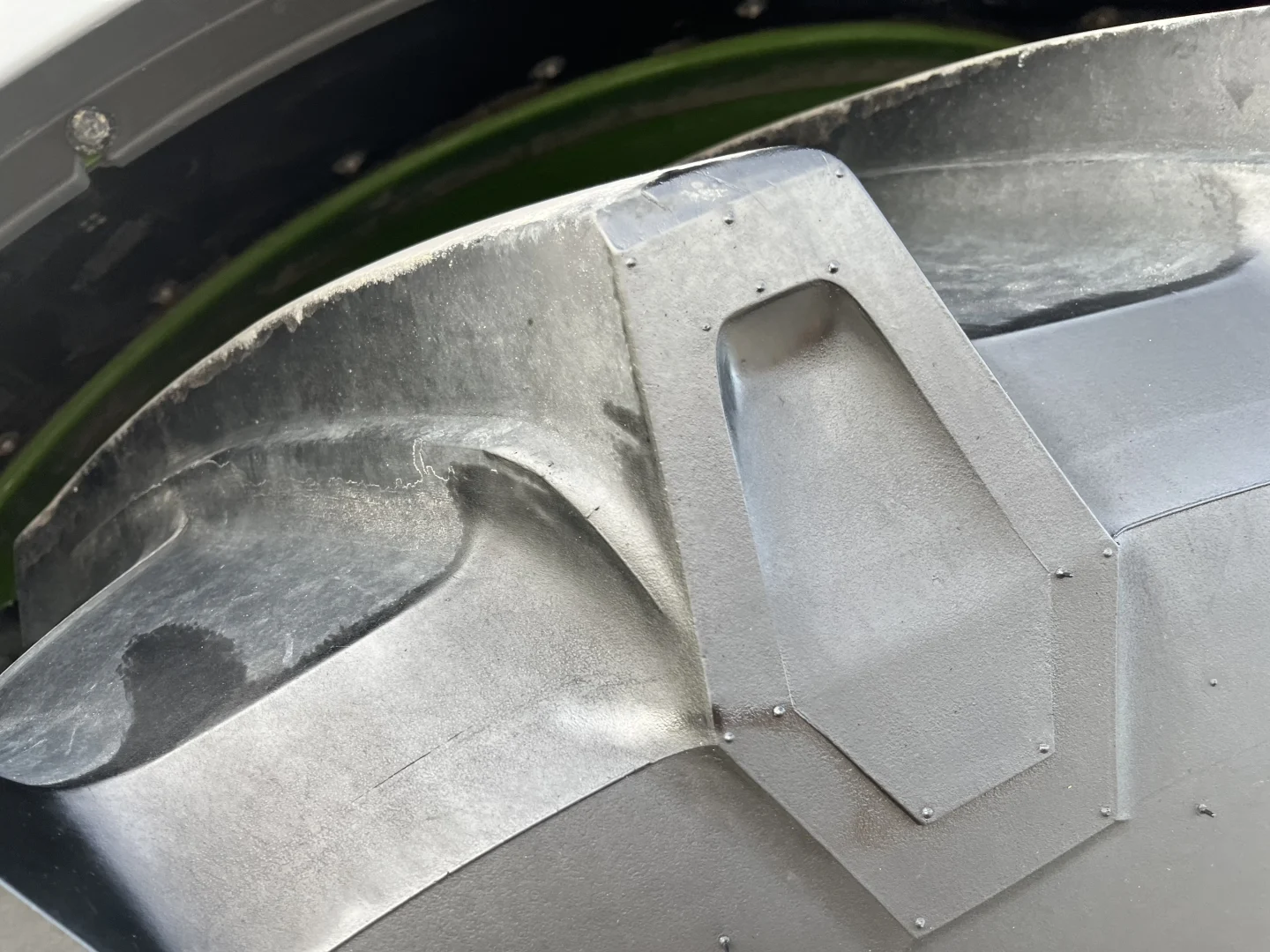

| Rear | TRELL 650/65R38 TM800 | |
| Size | 650/65R38 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 645.16mm (2' 1-3/8") 2' 1-3/8" 645.16mm | |
| Overall Diameter | 1811.02mm (5' 11-5/16") 5' 11-5/16" 1811.02mm | |
| Rolling Circumference | 5394.96mm (17' 8-3/8") 17' 8-3/8" 5394.96mm | |
| Weight | 222.71kg (491lb.) 491lb. 222.71kg | |
| Dimensions | ||
|---|---|---|
| Length | 14' 11-7/8" (4569mm) 4569mm 14' 11-7/8" | |
| Wheelbase | 8' 4-13/16" (2560mm) 2560mm 8' 4-13/16" | |
| Width | 8' 2-7/16" (2501mm) 2501mm 8' 2-7/16" | |
| Height | 9' 10-11/16" (3015mm) 3015mm 9' 10-11/16" | |
| Minimum Ground Clearance | 1' 9-7/16" (545mm) 545mm 1' 9-7/16" | |
| Turning Radius | 1' 9-5/8" (550mm) 550mm 1' 9-5/8" | |
| Weight | 14109.59lb. (6400kg) 6400kg 14109.59lb. | |
| Loader | ||
|---|---|---|
| Loader | FD Cargo 4X/80 | |
| Maximum Lift Height – Pivot Pin | 13' 7-9/16" (4155mm) 4155mm 13' 7-9/16" | |
| Digging Depth | 5-7/8" (150mm) 150mm 5-7/8" | |

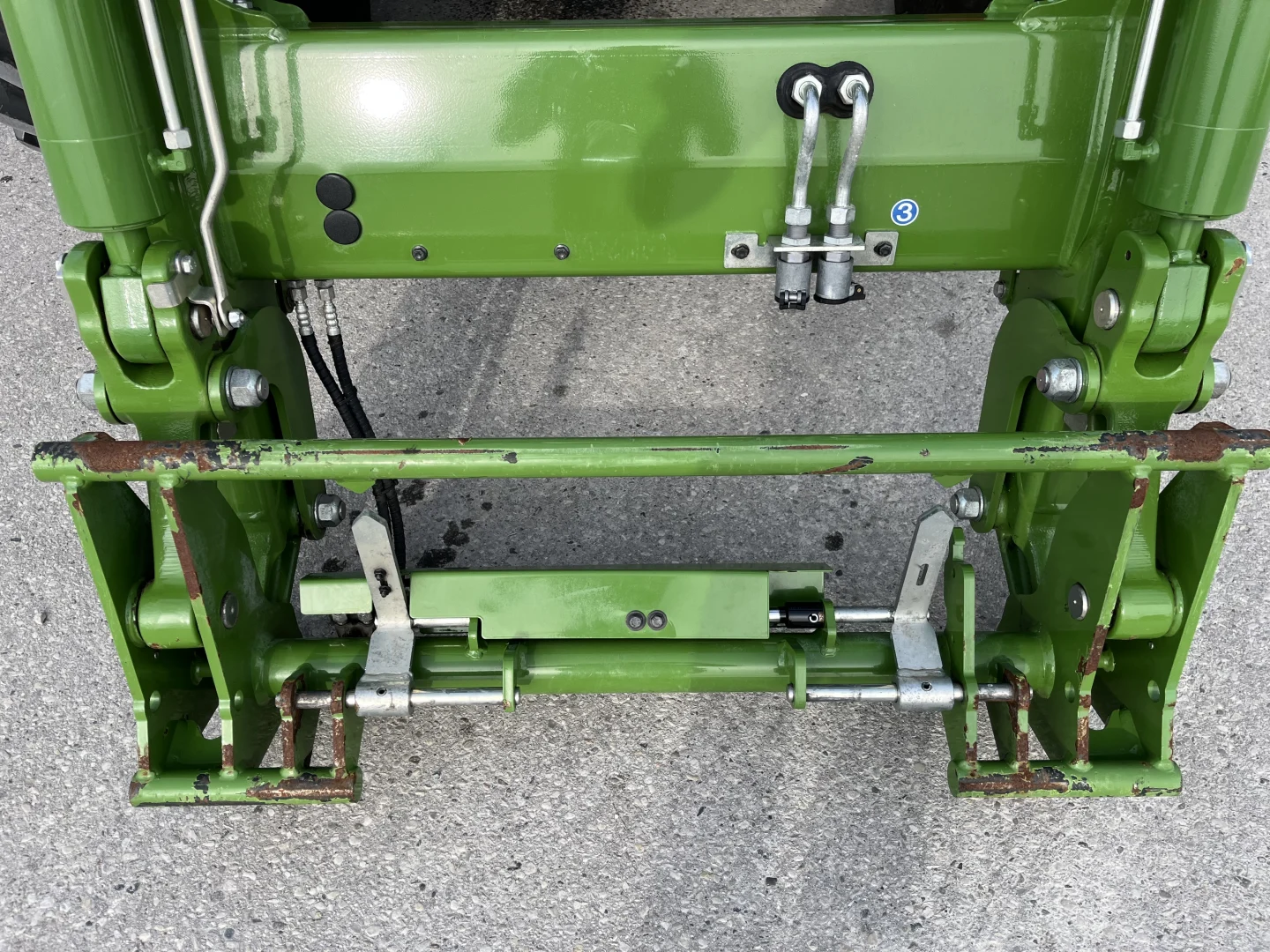

| Tool Carrier | Euro Quick Attach | |
