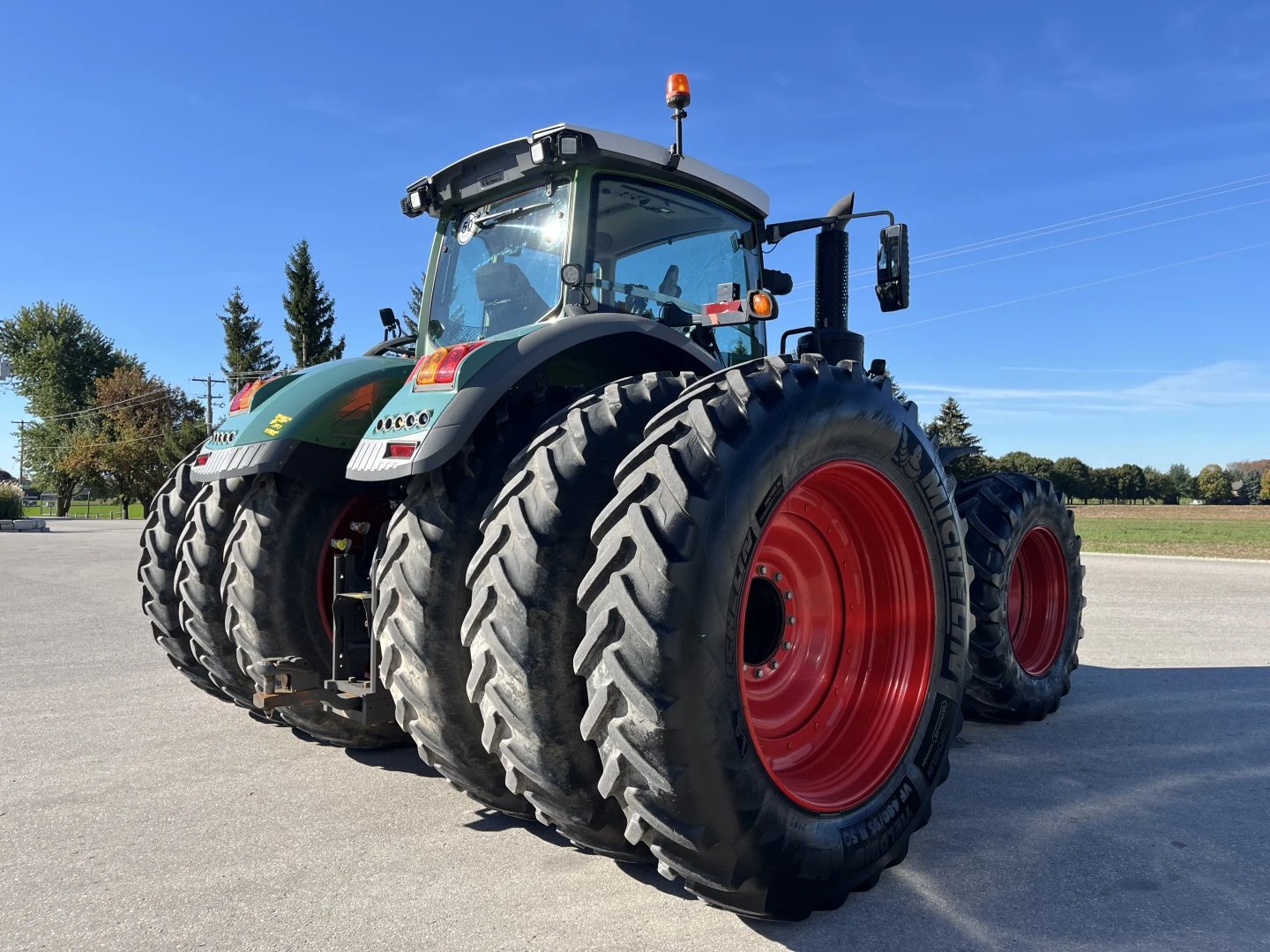

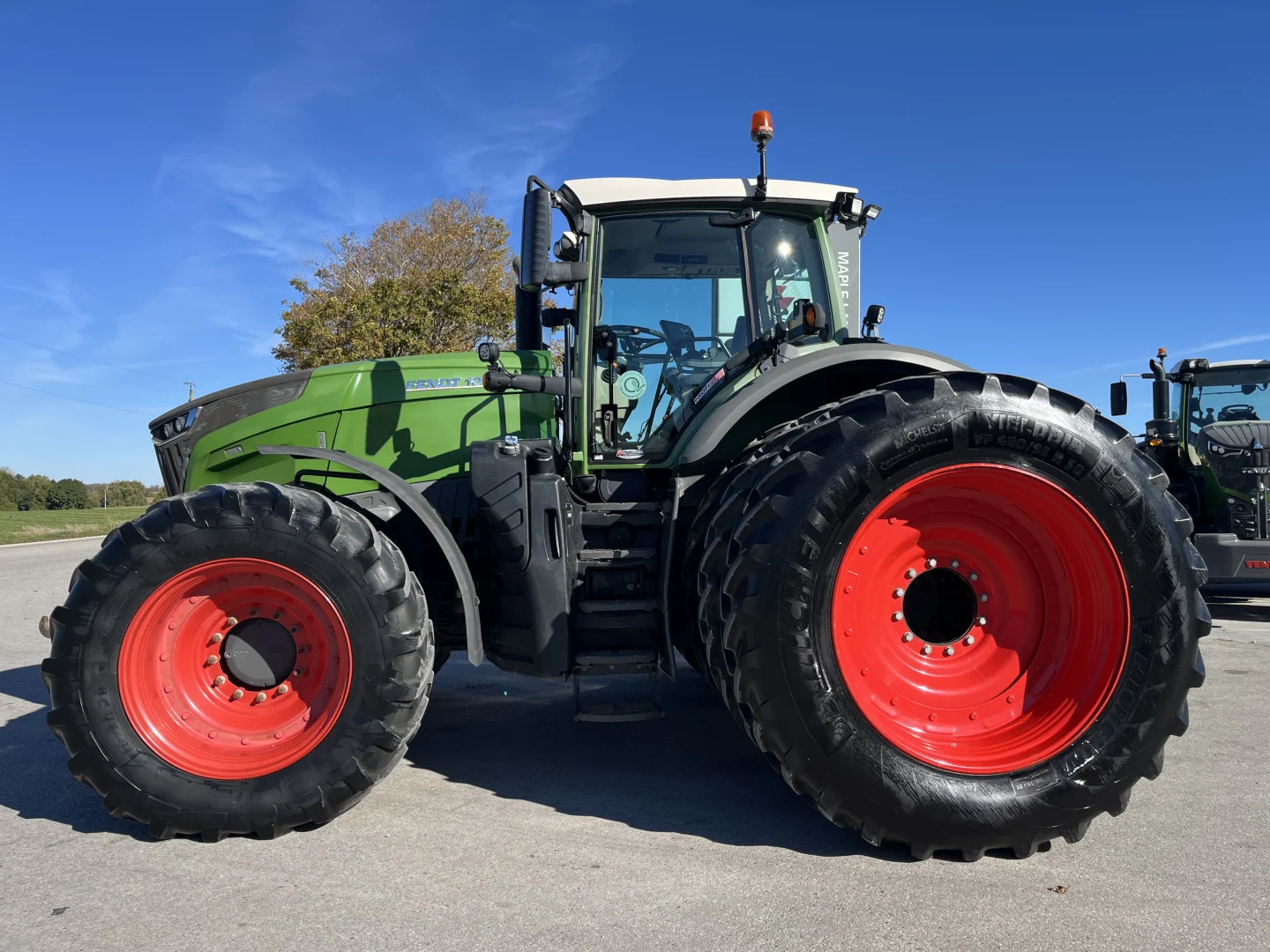

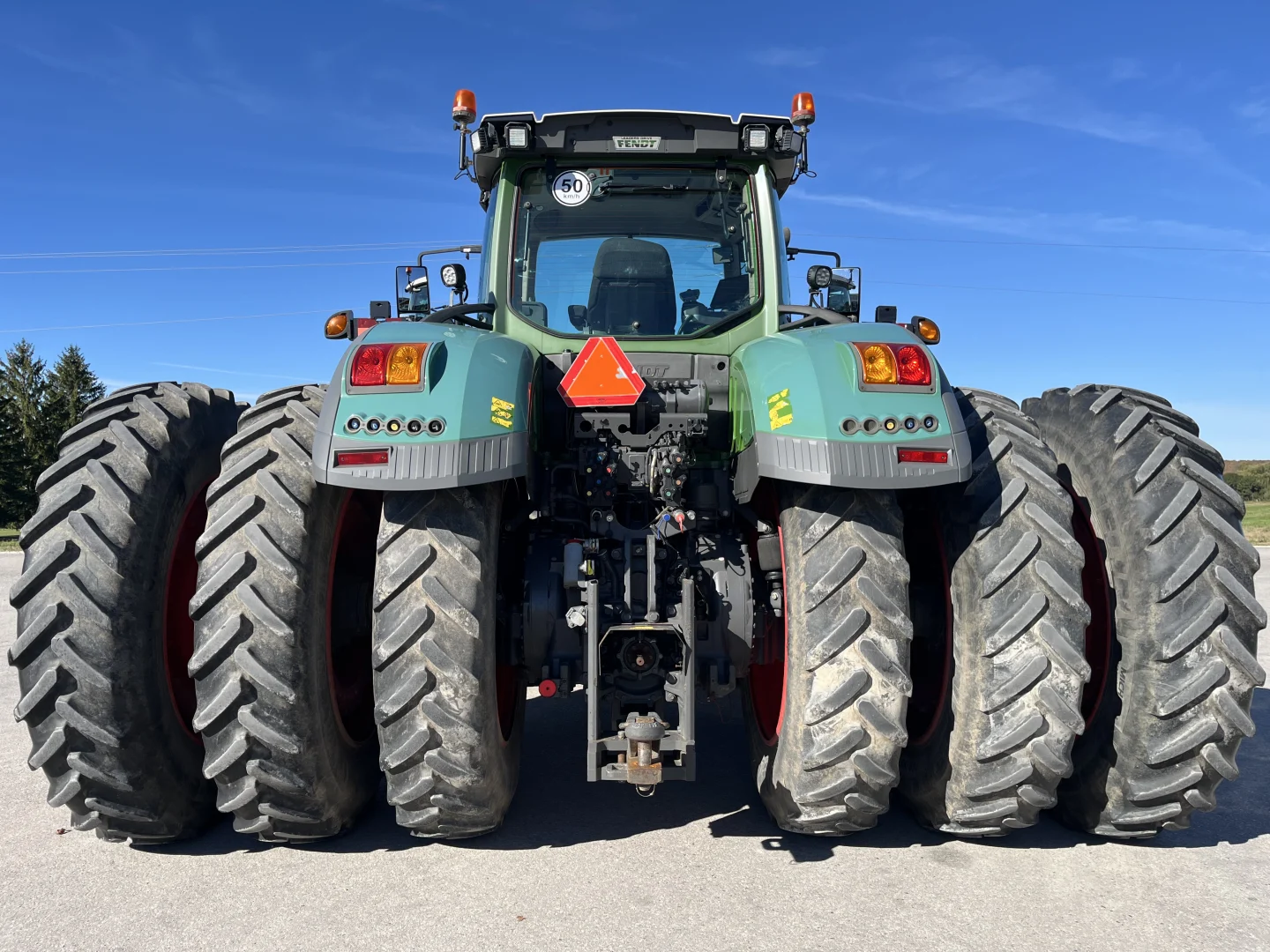

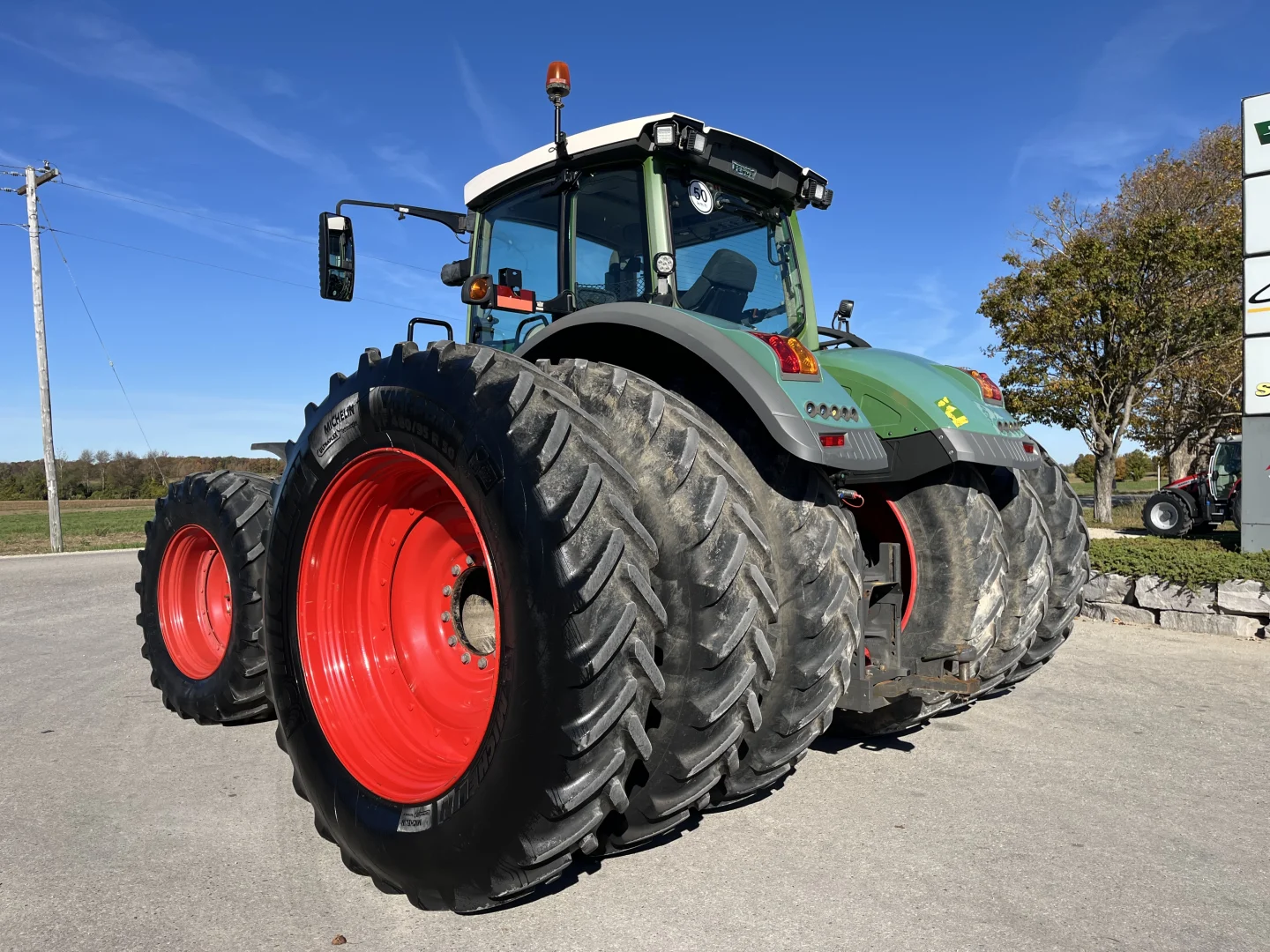

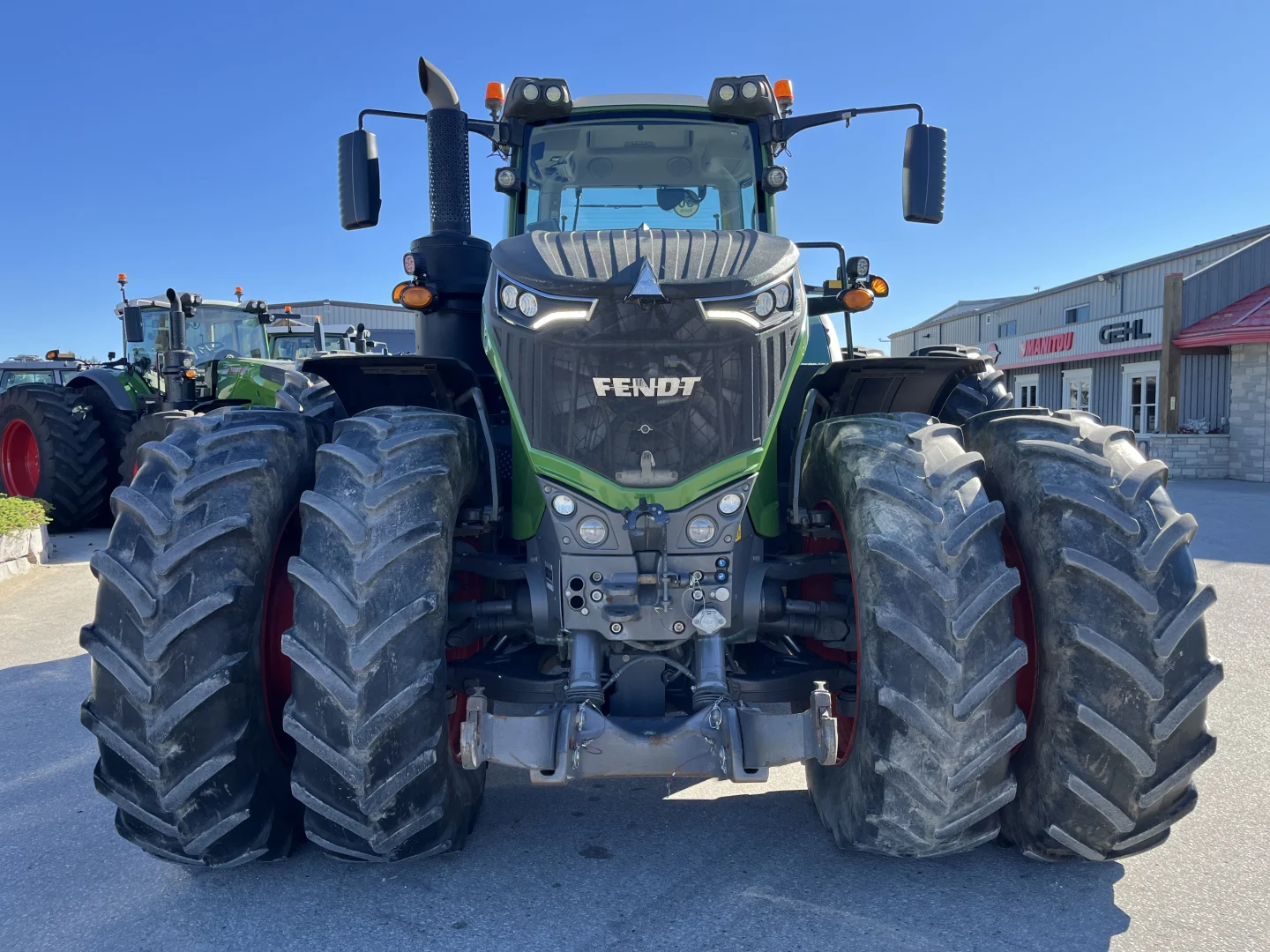

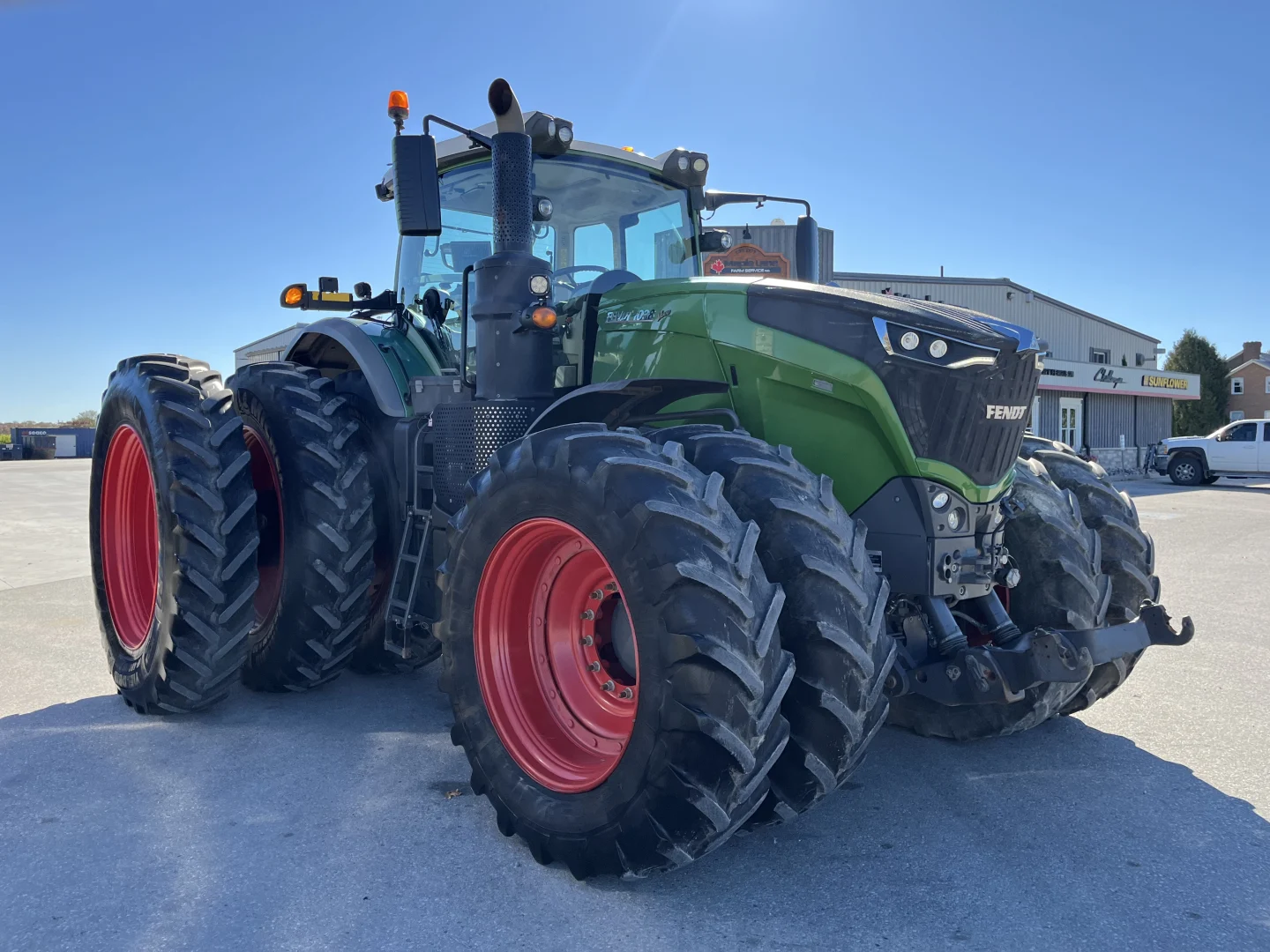

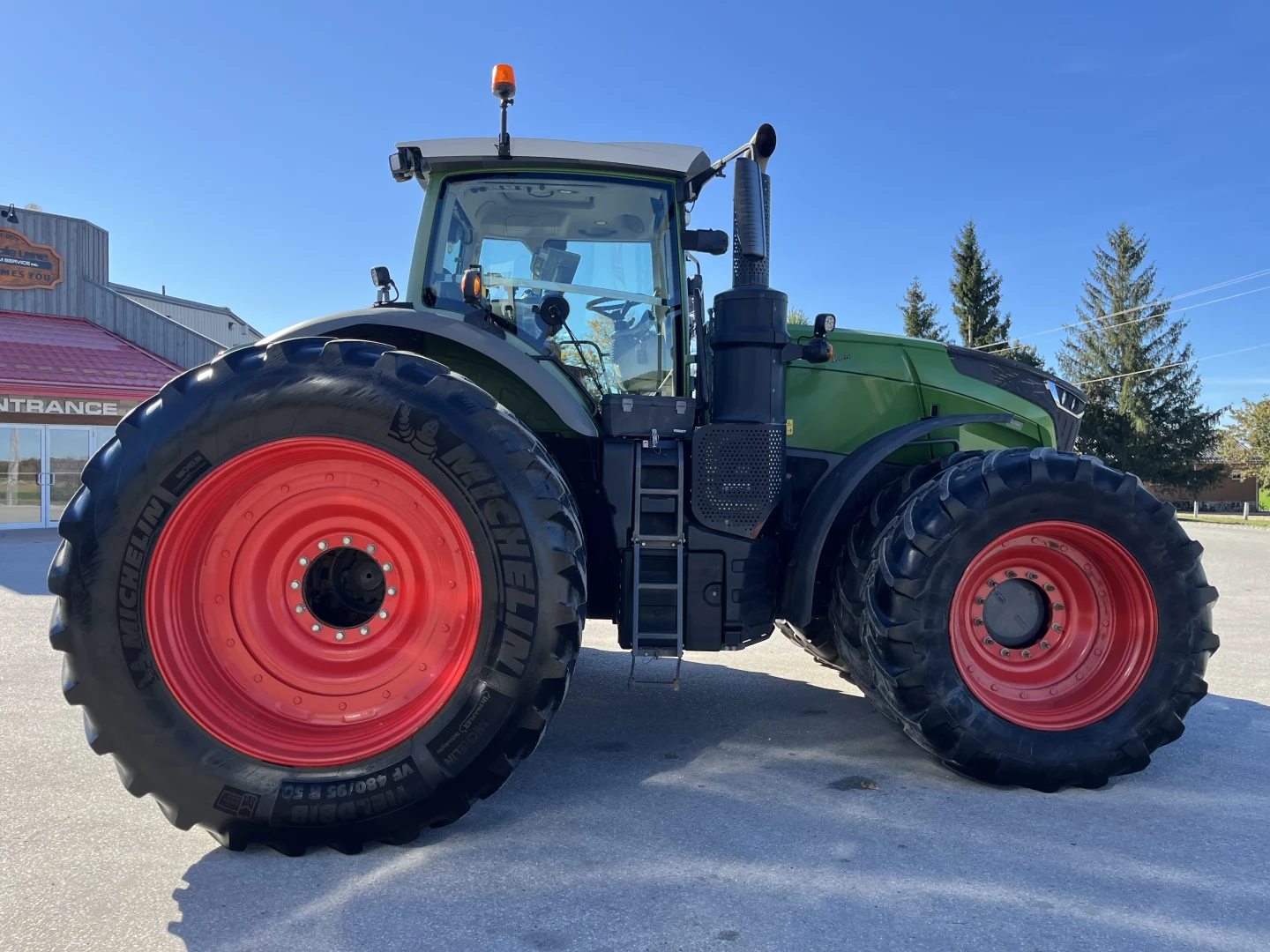

Used 2016 Fendt 1038 S4
| Description | |
|---|---|
| Profi Plus, Fendt Guide complete- WAAS, 50 km/h Vario drive transmission, suspended front axle, 58 GPM pump, 5 rear valves, front hitch, 480/95R50 rear triples, 18.4R38 front duals, hydraulic and air trailer brakes, air cab suspension, LED lights, Evolution cloth seat. | |
| Categories | High Horsepower |
| Unit Number | 23954M |
| Condition | Used |
| Usage | 4500 Hours |
| Year | 2016 |
| Cost | $294,900.00 CAD |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 295.3kW (396hp) 396hp 295.3kW | |
| PTO Power | 283.37kW (380hp) 380hp 283.37kW | |
| Rated Engine Speed | 1700r/min | |
| Make | MAN D2676 LE121 | |
| Displacement | 3.28gal. (12.42L) 12.42L 3.28gal. | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 211.34gal. (800L) 800L 211.34gal. | |
| DEF Tank Capacity | 22.45gal. (85L) 85L 22.45gal. | |
| Fan | Reversing | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31.07mph (50km/h) 50km/h 31.07mph | |
| Name | CVT TA 400 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Dual-Circuit , Wet Disc | |
| Trailer Brakes | Hydraulic, Air | |
| Suspension | Front Axle | |
| Steering Mode | front wheel steer | |
| Rear Axle Length | 8' 2-7/16" (2500mm) 2500mm 8' 2-7/16" | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 1000 58.1 GPM | |
| Pump Type | Variable Displacement Piston | |
| Hydraulic Flow | 58.12GPM (220L/min) 220L/min 58.12GPM | |
| System Capacity | 36.72gal. (139L) 139L 36.72gal. | |
| Maximum Operating Pressure | 2900.76psi (20000kPa) 20000kPa 2900.76psi | |
| Maximum Available Hydraulic Oil | 24.57gal. (93L) 93L 24.57gal. | |
| Rear Remote Valves | 5 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|

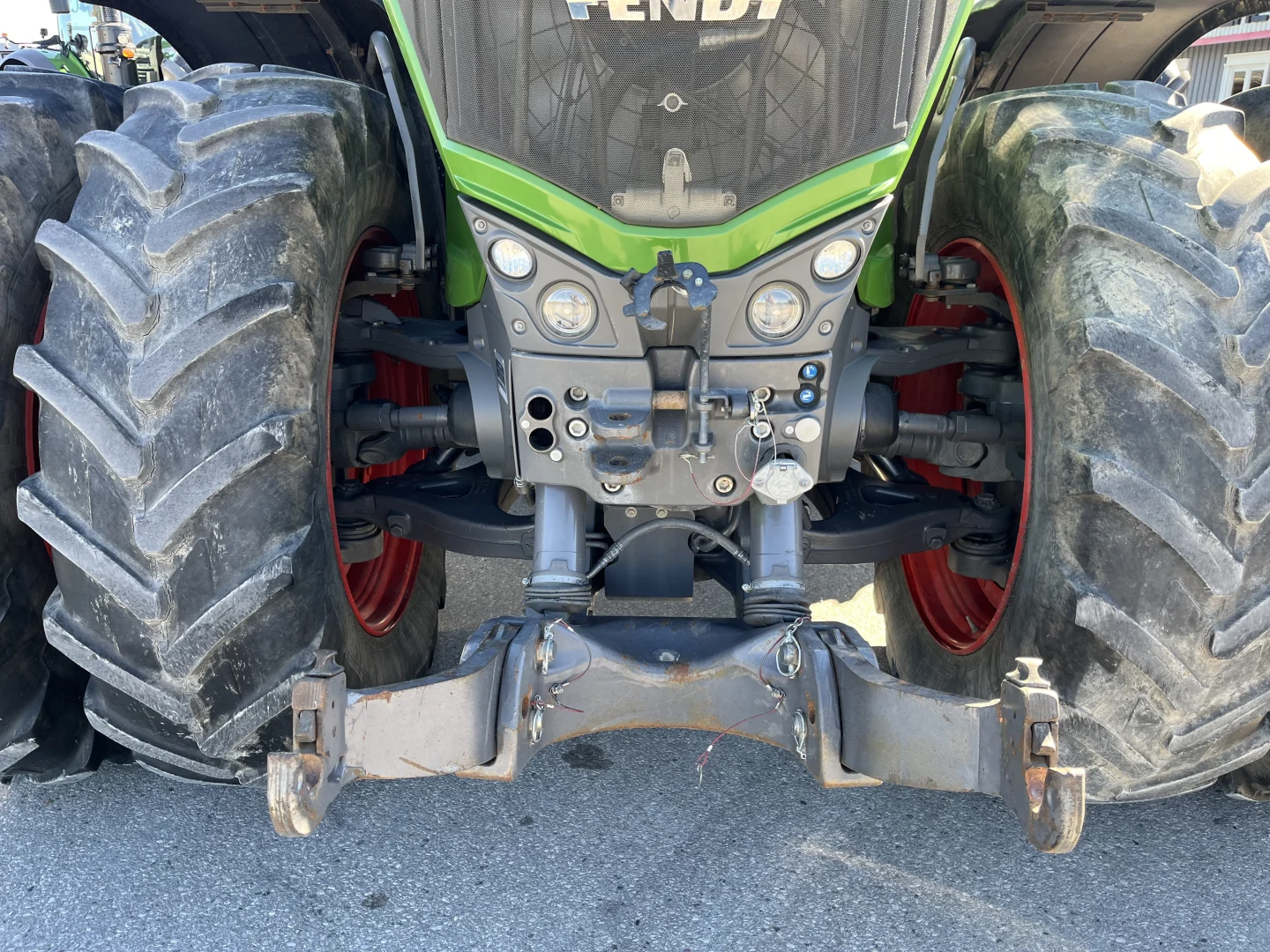

| Front Hitch | FD 1000 Front | |
| Category | Category 2 | |
| Capacity at Pins | 12553.12lb. (5694kg) 5694kg 12553.12lb. | |

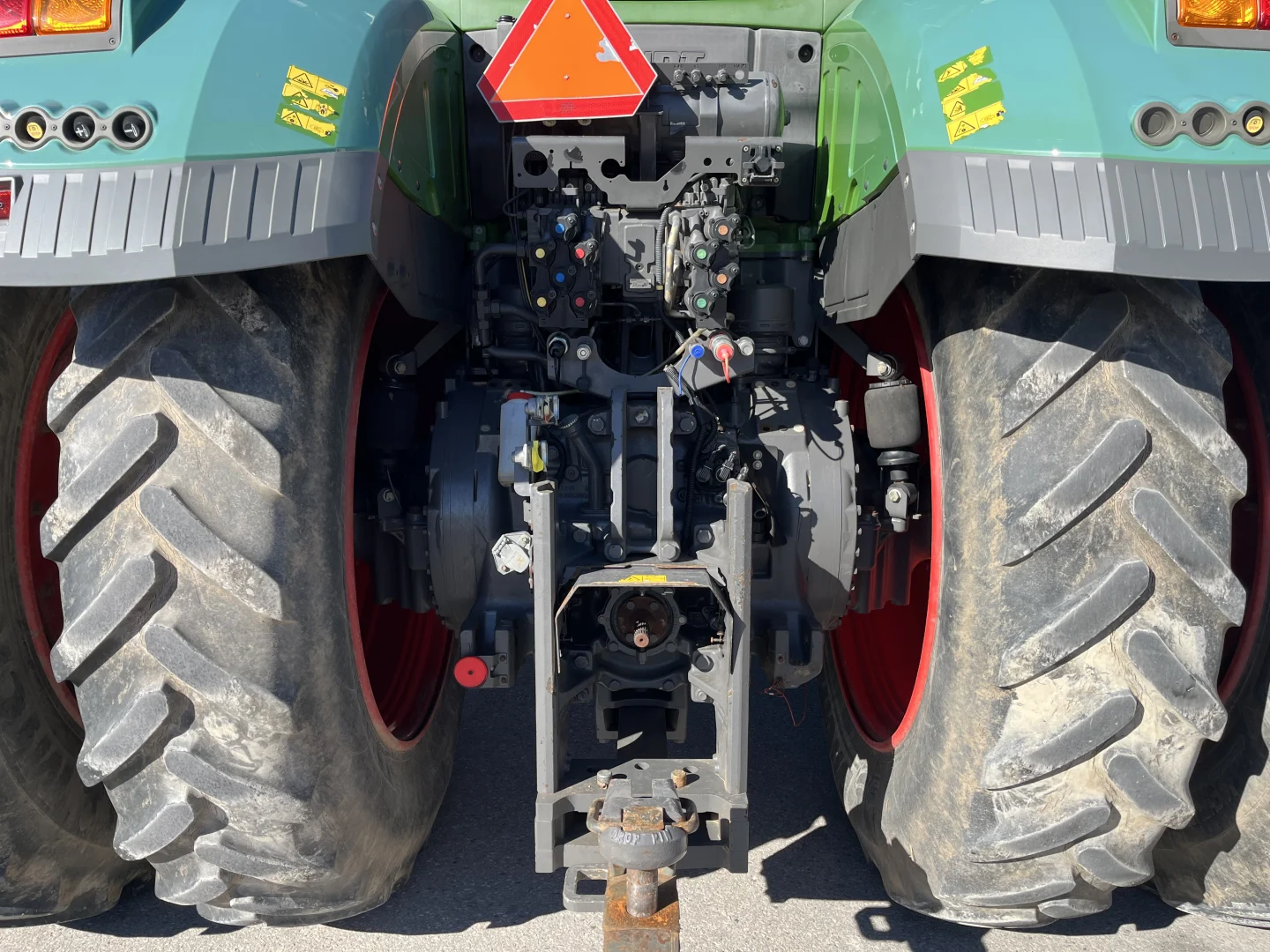

| Rear Drawbar | Category 4 | |
| PTO | ||
|---|---|---|
| Rear Speed | 1000, 1000E | |
| Type | Independent | |
| Technology | ||
|---|---|---|

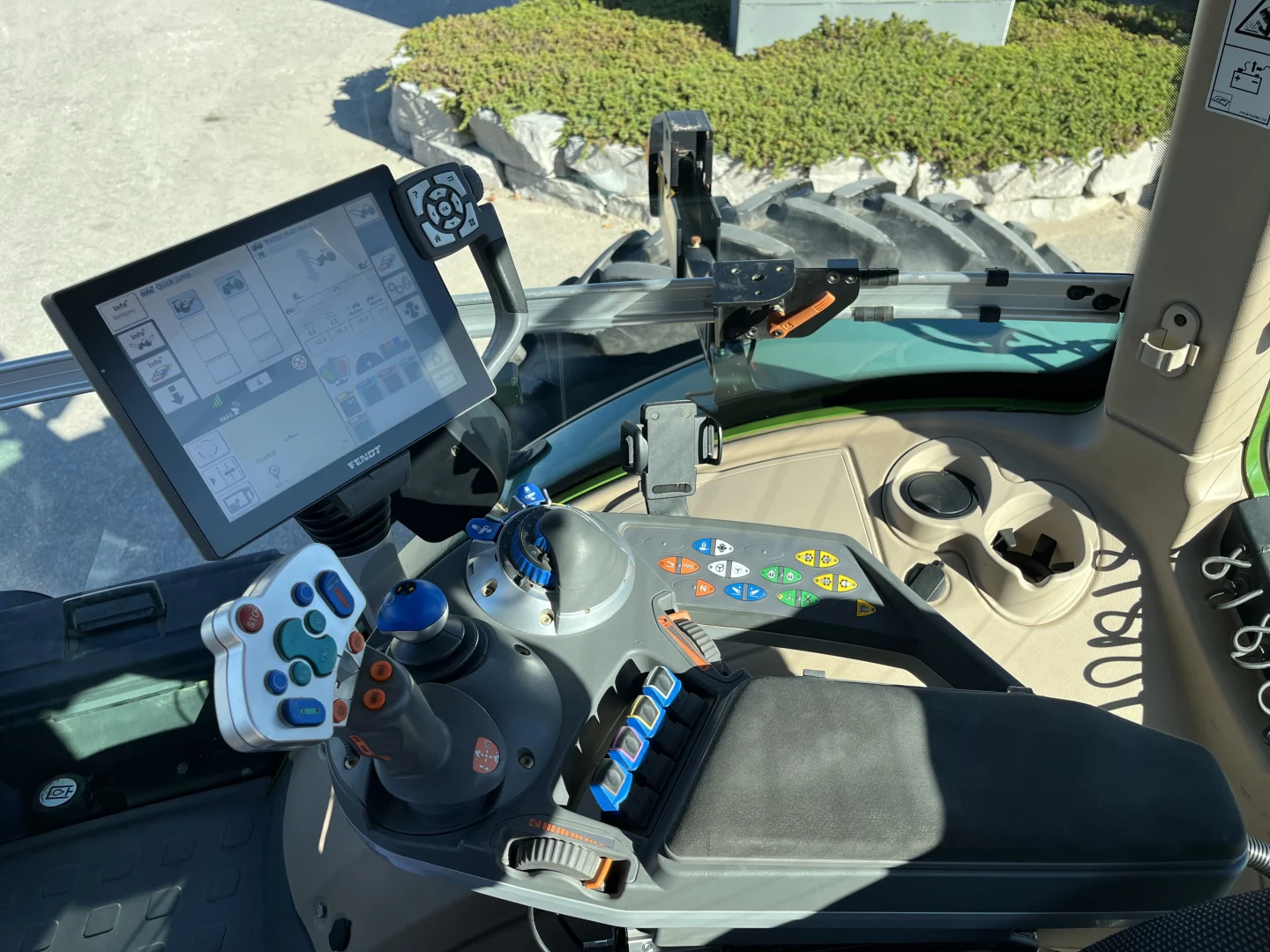

| Display | 10.4" Varioterminal | |

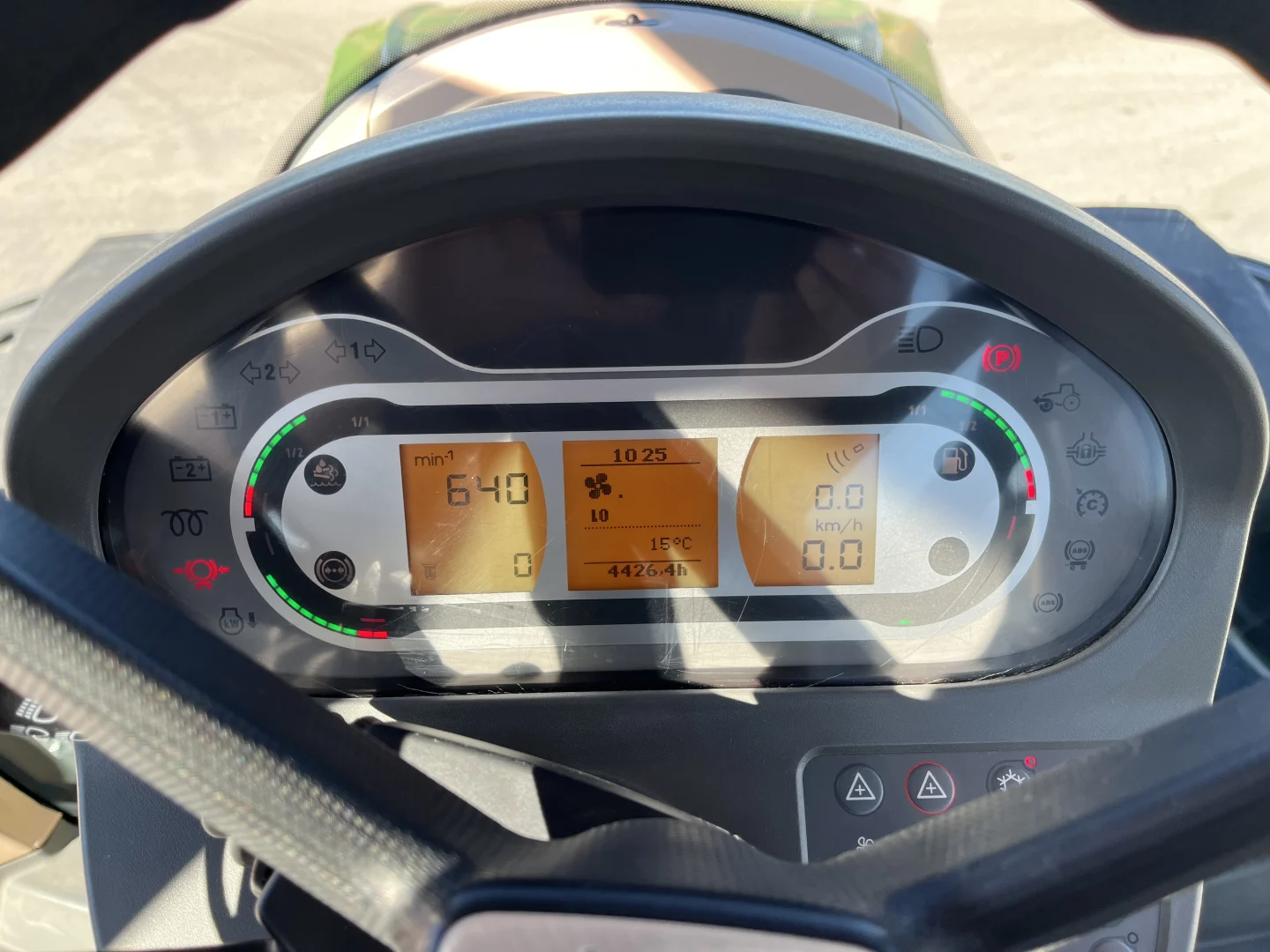

| Instrument Display | Digital Dash Display | |
| Integration | ISO BUS Implement Control | |
| Guidance | Guidance Ready | |
| Headland Management | Variotronic TI | |
| Data Transfer | TaskDoc Pro | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 20 | |
| Rear Lights | 6 | |
| Worklight Type | LED | |
| Rotating Beacon | Left, Right | |
| Alternator | 160A | |
| Alternator Count | 2 | |
| Battery | 1475CCA | |

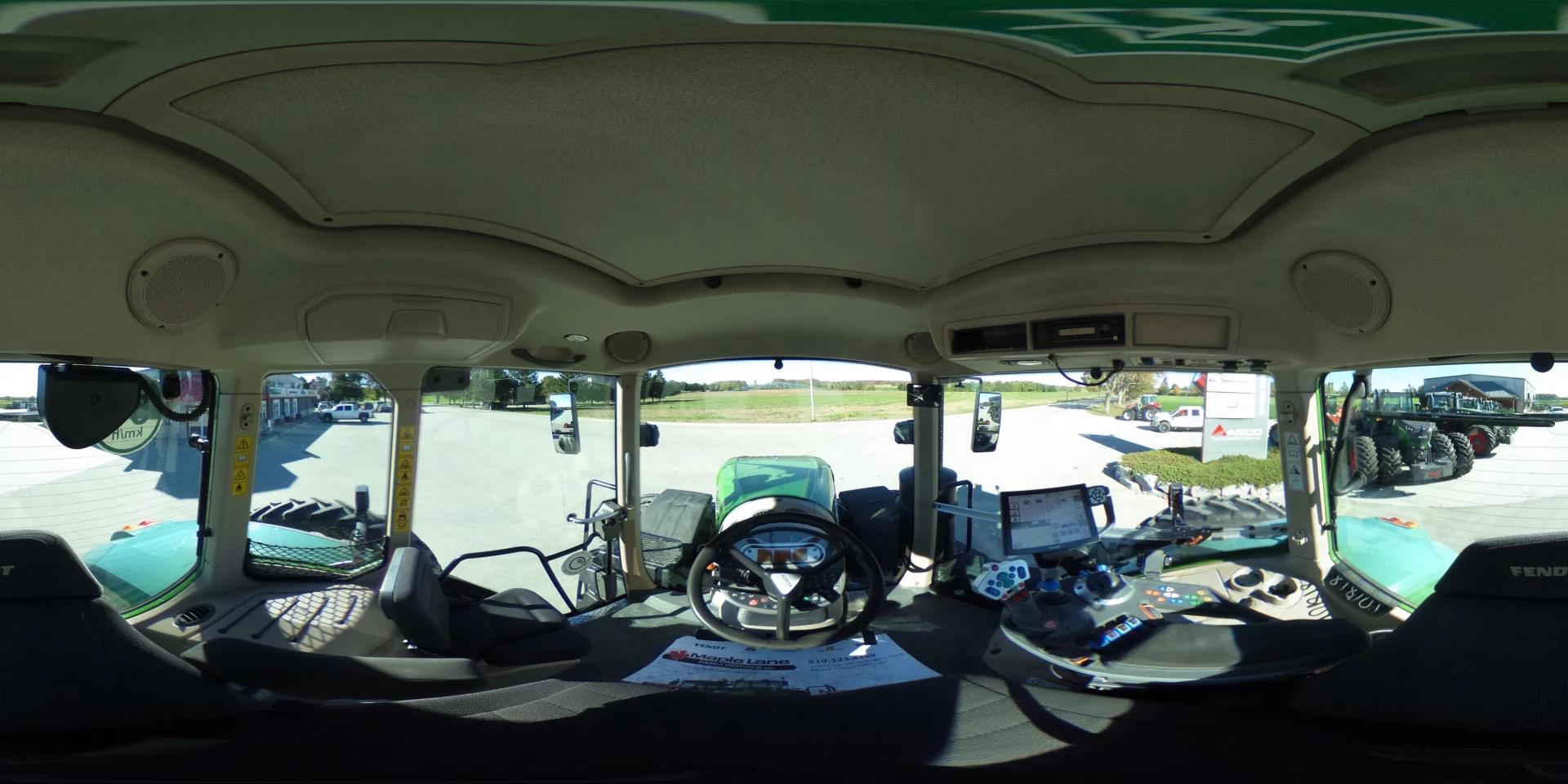

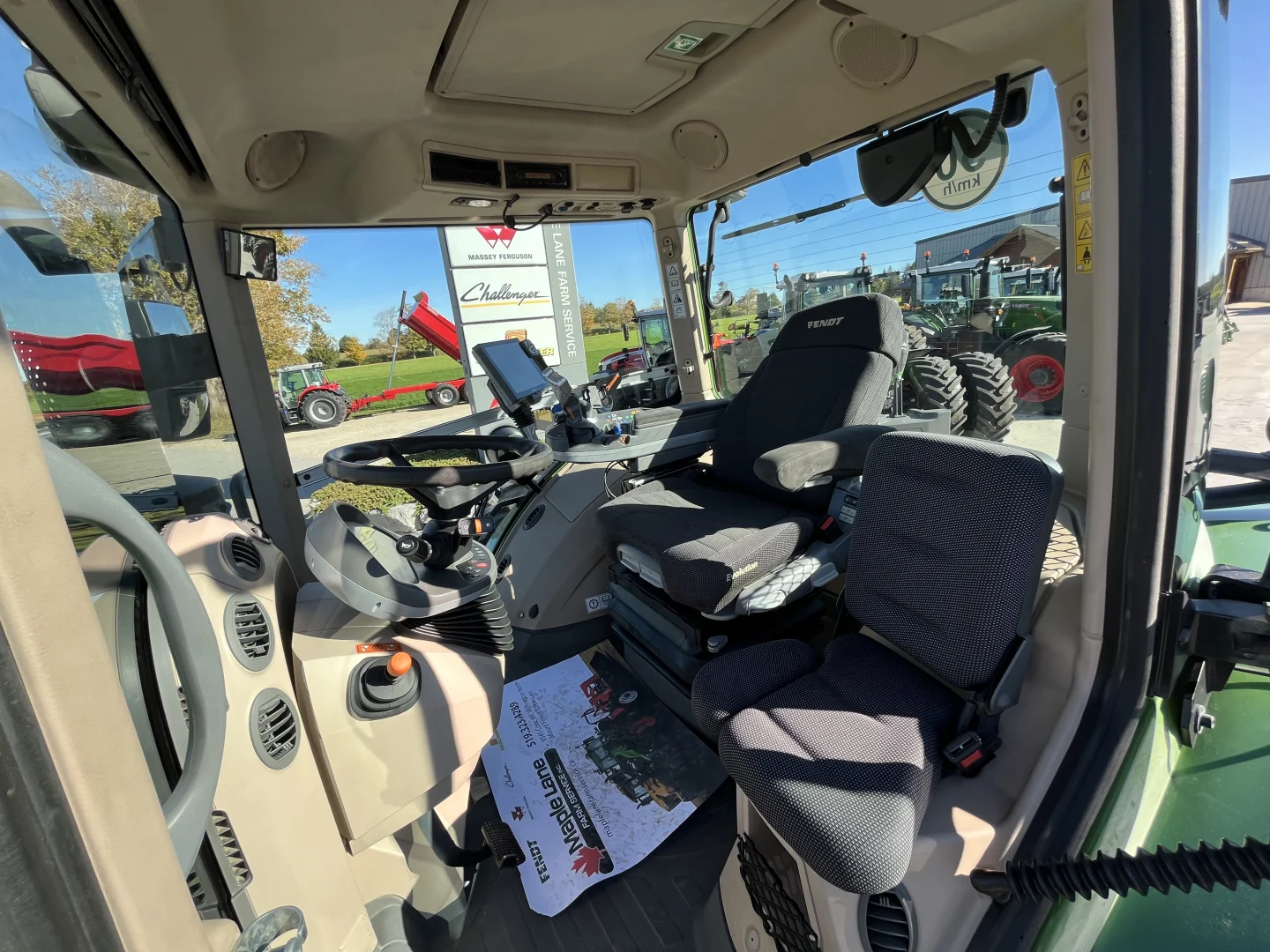

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Access | Left Hand Door | |
| Climate | Heater, Air Conditioning | |
| Cab Suspension | 2 Point Air | |
| Steering Controls | Steering Wheel | |
| Operator Seat | FD Super Comfort EVO Adaptive | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline, Adaptive (swivel) | |
| Headrest | Extend, Adaptive (swivel) | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
| Rotation | Segments | |
| Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | 300° Front, Rear, Side | |
| Sunshade | Rear, Right Side | |
| Mirrors | Powered, Telescoping, Heated | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |

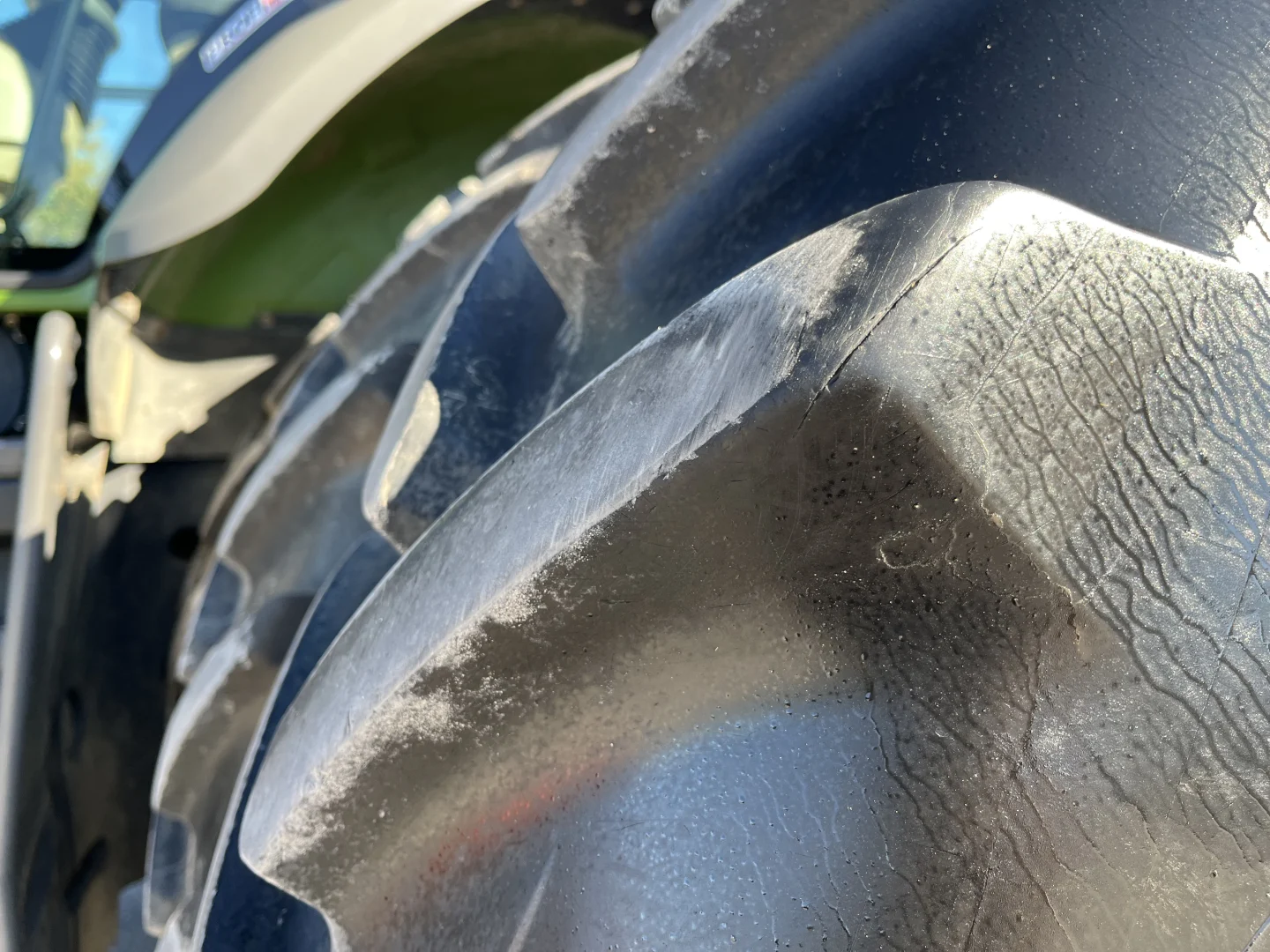

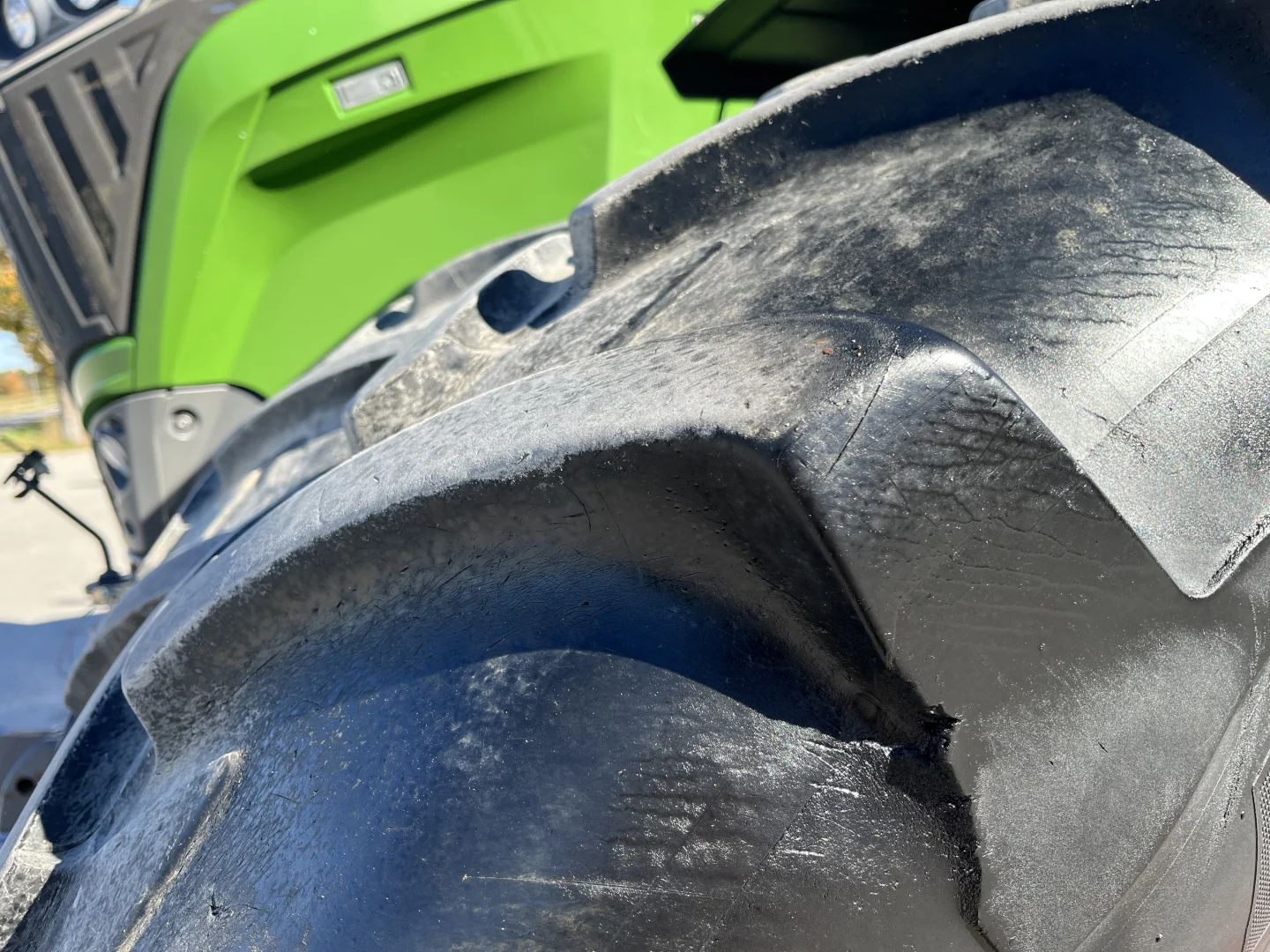

| Wheels | ||
|---|---|---|
| Front | MICHE 18.4R38 Agribib | |
| Size | 18.4R38 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 7-7/16" (494mm) 494mm 1' 7-7/16" | |
| Overall Diameter | 5' 9-11/16" (1770mm) 1770mm 5' 9-11/16" | |
| Static Loaded Radius | 2' 7-13/16" (808mm) 808mm 2' 7-13/16" | |
| Rolling Circumference | 17' 3-3/8" (5267mm) 5267mm 17' 3-3/8" | |
| Tread Thickness | 2-1/8" (54mm) 54mm 2-1/8" | |
| Weight | 308.65lb. (140kg) 140kg 308.65lb. | |
| Rear | MICHE VF480/95R50 | |
| Weights | ||
|---|---|---|
| Front Weights | FD 870 kg Ballast | |
| Mount | Hitch | |
| Type | Block | |
| Weight | 1918.02lb. (870kg) 870kg 1918.02lb. | |
| Dimensions | ||
|---|---|---|
| Length | 20' 10" (6350mm) 6350mm 20' 10" | |
| Wheelbase | 10' 9-15/16" (3300mm) 3300mm 10' 9-15/16" | |
| Width | 9' 1/4" (2750mm) 2750mm 9' 1/4" | |
| Height | 11' 9-15/16" (3606mm) 3606mm 11' 9-15/16" | |
| Minimum Ground Clearance | 1' 11-5/8" (600mm) 600mm 1' 11-5/8" | |
| Turning Radius | 24' 9/16" (7330mm) 7330mm 24' 9/16" | |
| Weight | 30864.72lb. (14000kg) 14000kg 30864.72lb. | |
