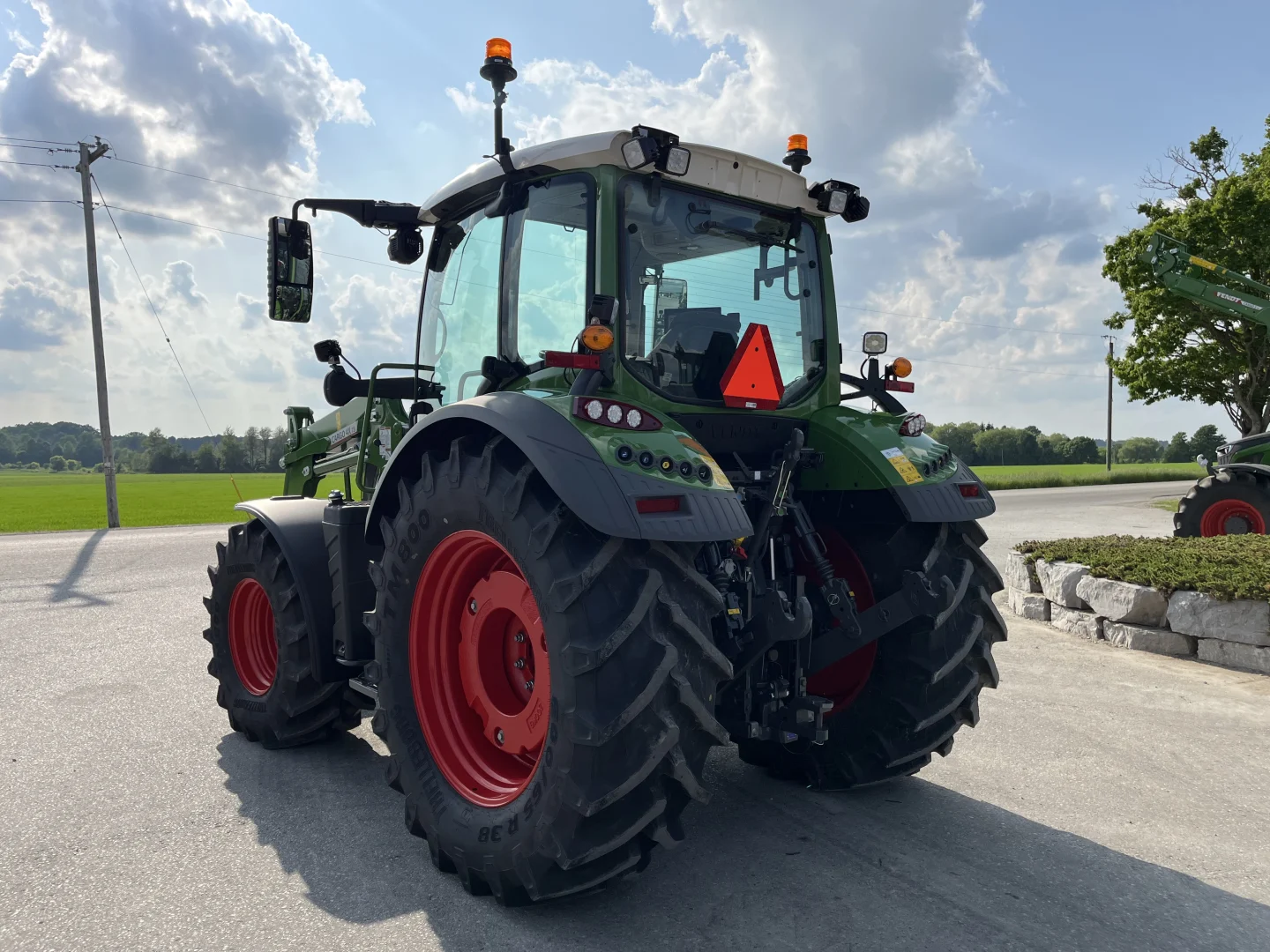

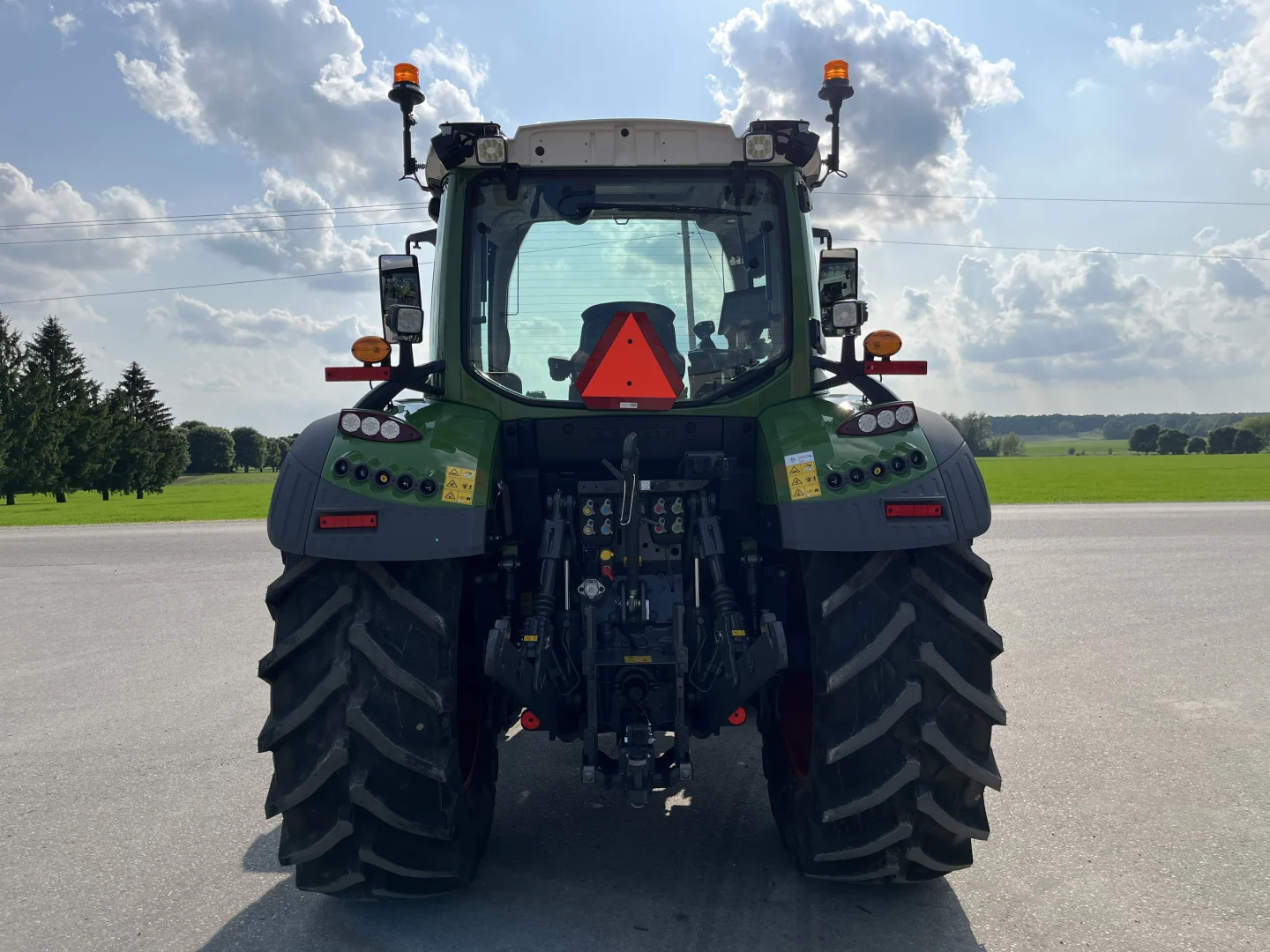

New 2025 Fendt 314 Gen4
| Description | |
|---|---|

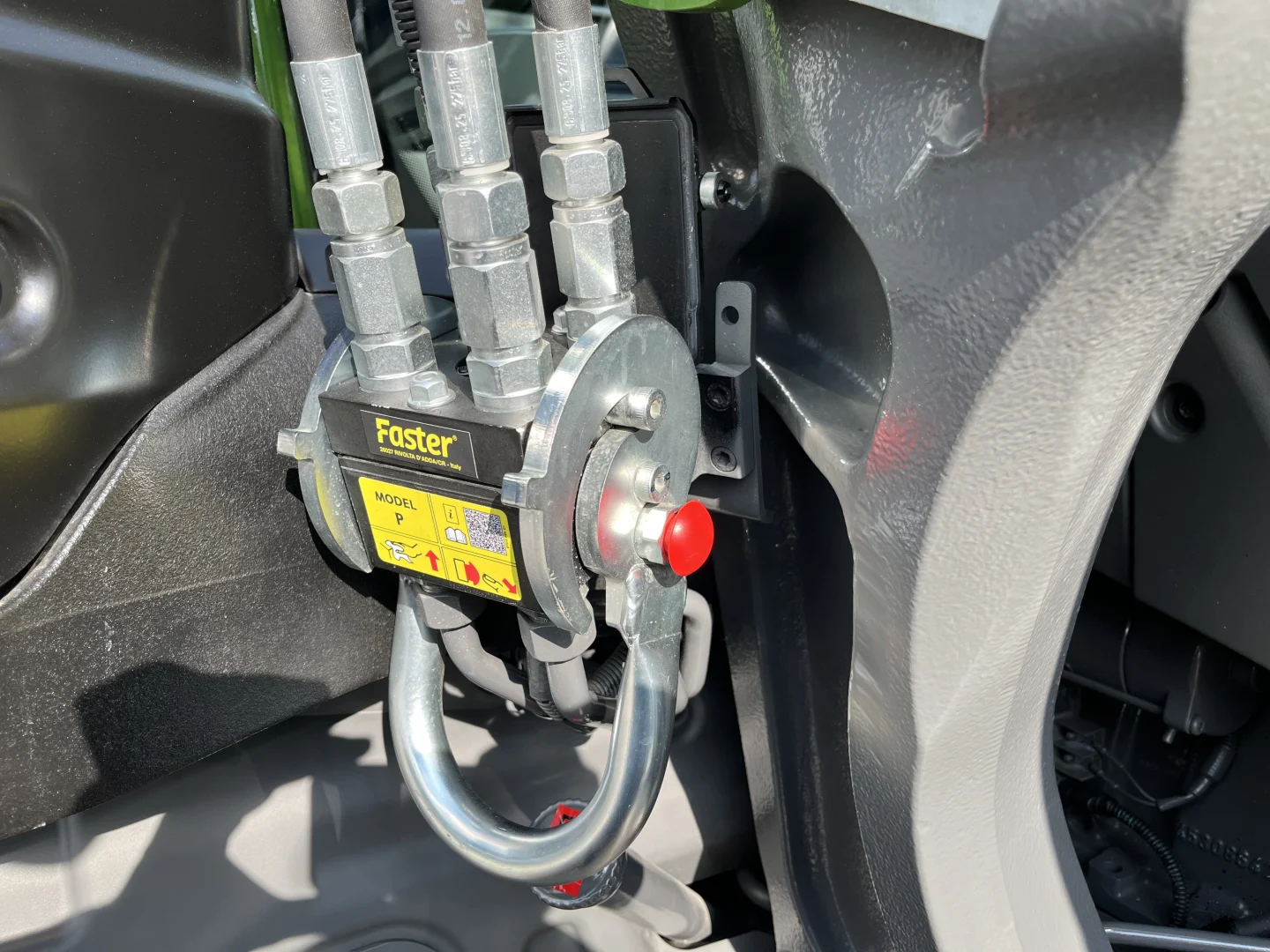

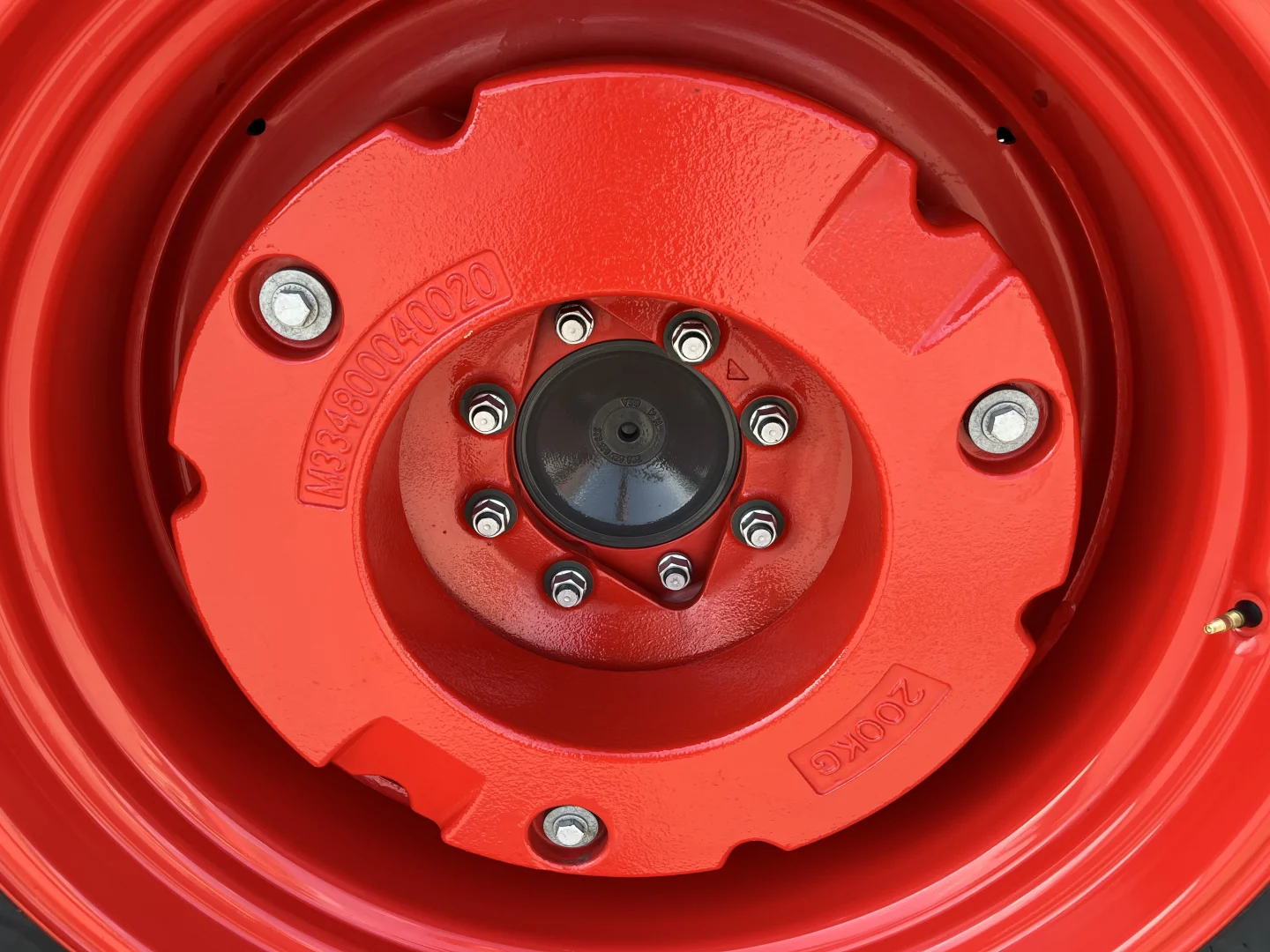

| New 2025 MY, Profi+, 40KPH Vario transmission, front hitch, 4 rear remotes, 110 LPM hydraulic pump, hydraulic trailer brakes, mechanical cab suspension, 12″ terminal, heated rear window, powered mirrors, full LED lighting, 200 KG rear wheel weights, 4×75 loader with suspension and 3rd function, hydraulic bucket lock, 540/65R24 fronts, 600/65R38 rears. We gladly serve customers in southern Ontario. If you’re located outside southern Ontario, we would be grateful if you contacted your local Fendt dealer about a new 314 instead of us. | |
| Categories | Mid Range |
| Unit Number | 24017W |
| Condition | New |
| Usage | 20 Hours |
| Year | 2025 |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 98.43kW (132hp) 132hp 98.43kW | |
| PTO Power | 85.01kW (114hp) 114hp 85.01kW | |
| Rated Engine Speed | 2100r/min | |
| Make | AGPWR 44 MBTN-D5 | |
| Displacement | 1.16gal. (4.4L) 4.4L 1.16gal. | |
| Number of Cylinders | 4 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 55.48gal. (210L) 210L 55.48gal. | |
| DEF Tank Capacity | 5.81gal. (22L) 22L 5.81gal. | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 24.85mph (40km/h) 40km/h 24.85mph | |
| Name | CVT ML 75 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Trailer Brakes | Air, Hydraulic | |
| Suspension | Front Axle | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 300 Gen 4 29 GPM | |
| System Capacity | 13.21gal. (50L) 50L 13.21gal. | |
| Maximum Operating Pressure | 3335.87psi (230bar) 230bar 3335.87psi | |
| Maximum Available Hydraulic Oil | 11.36gal. (43L) 43L 11.36gal. | |
| Rear Remote Valves | 3 | |
| Front Remote Valves | 1 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|

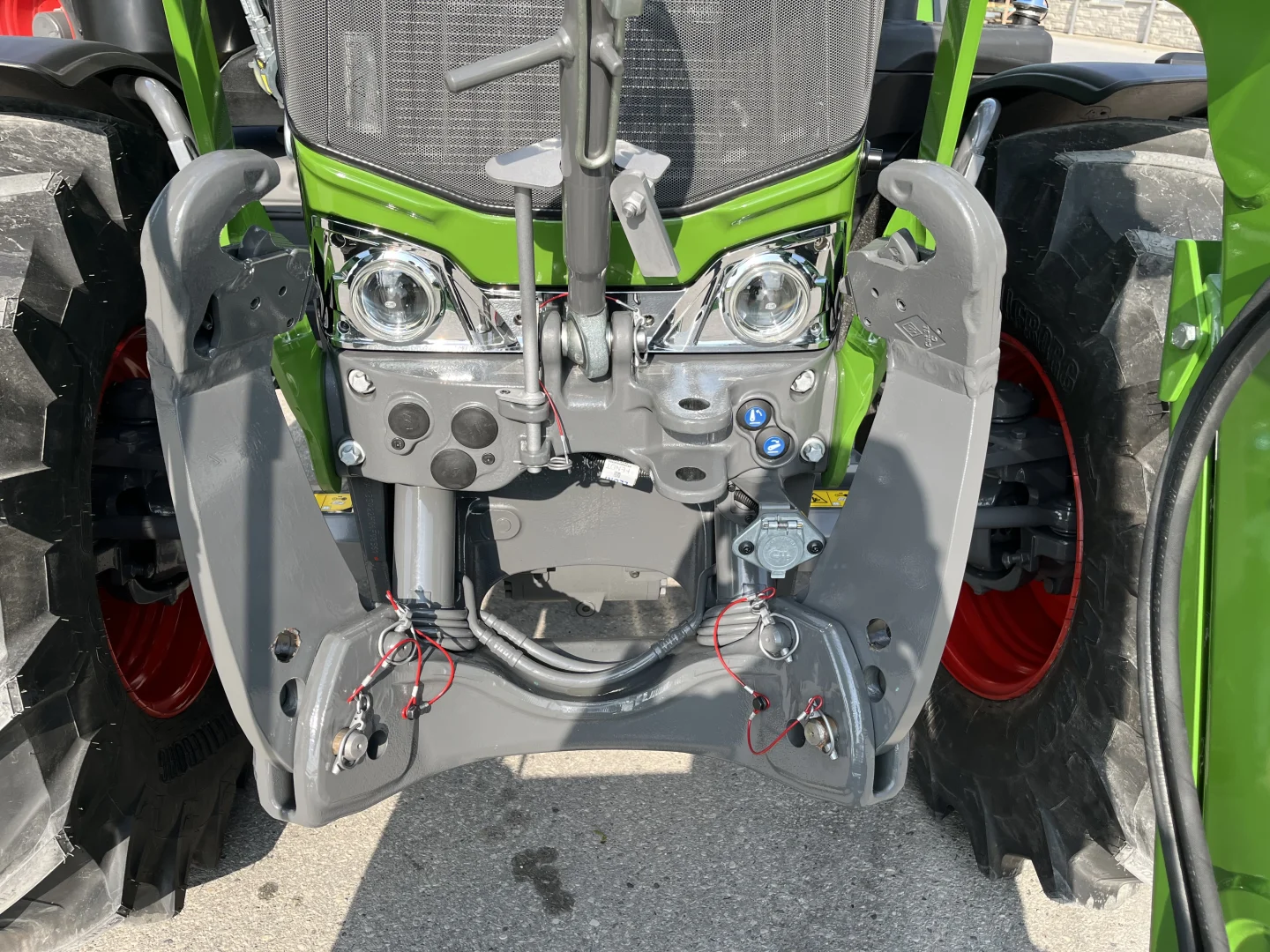

| Front Hitch | FD 300 Gen4 | |
| Category | Category 2 | |
| Capacity at Pins | 7037.16lb. (3192kg) 3192kg 7037.16lb. | |

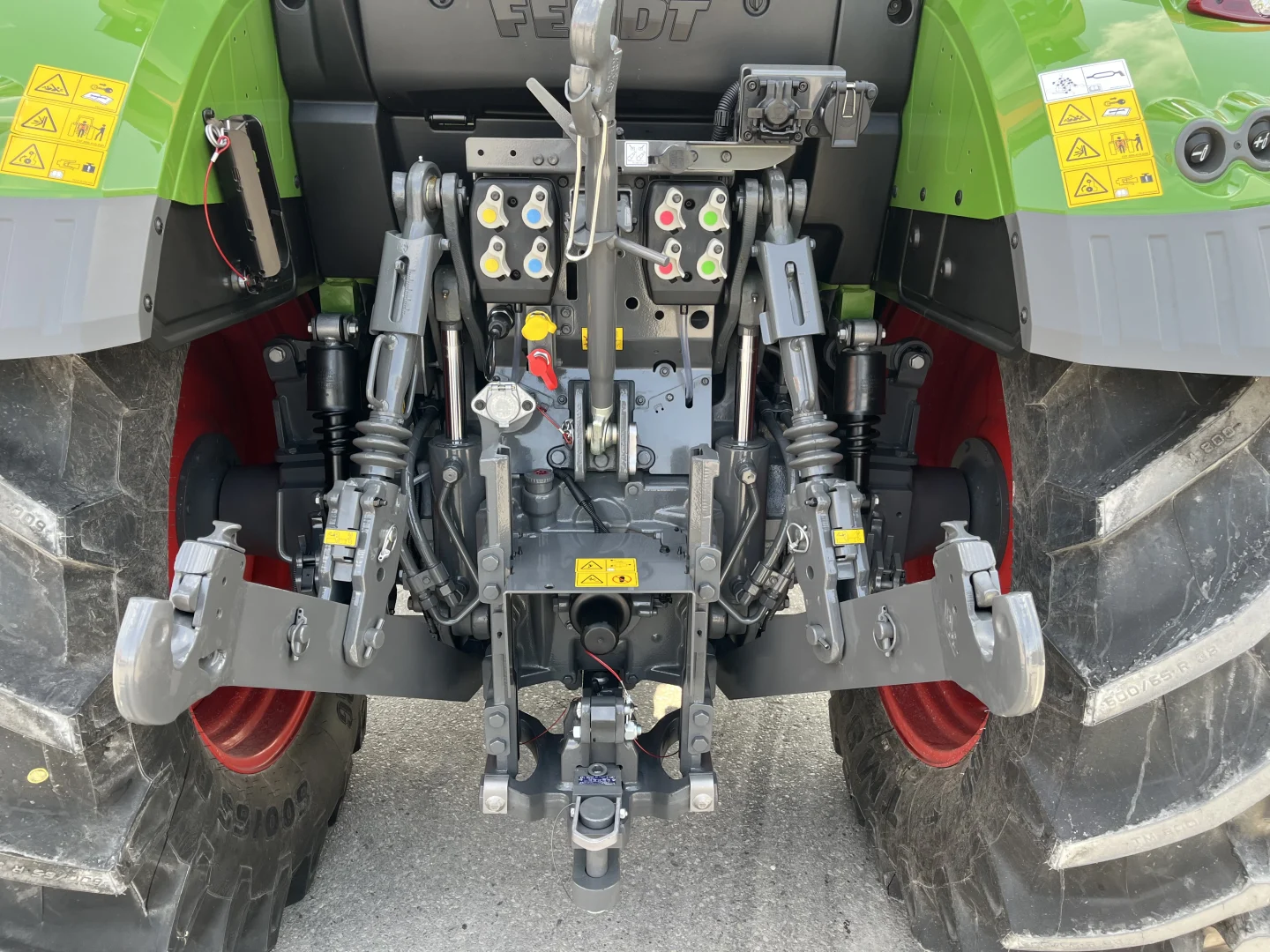

| Rear Hitch | FD 300 Gen4 | |
| Lift Capacity at Pins | 13399.7lb. (6078kg) 6078kg 13399.7lb. | |
| PTO | ||
|---|---|---|
| Rear | 540, 540E, 1000 | |
| Type | Independent | |
| Technology | ||
|---|---|---|

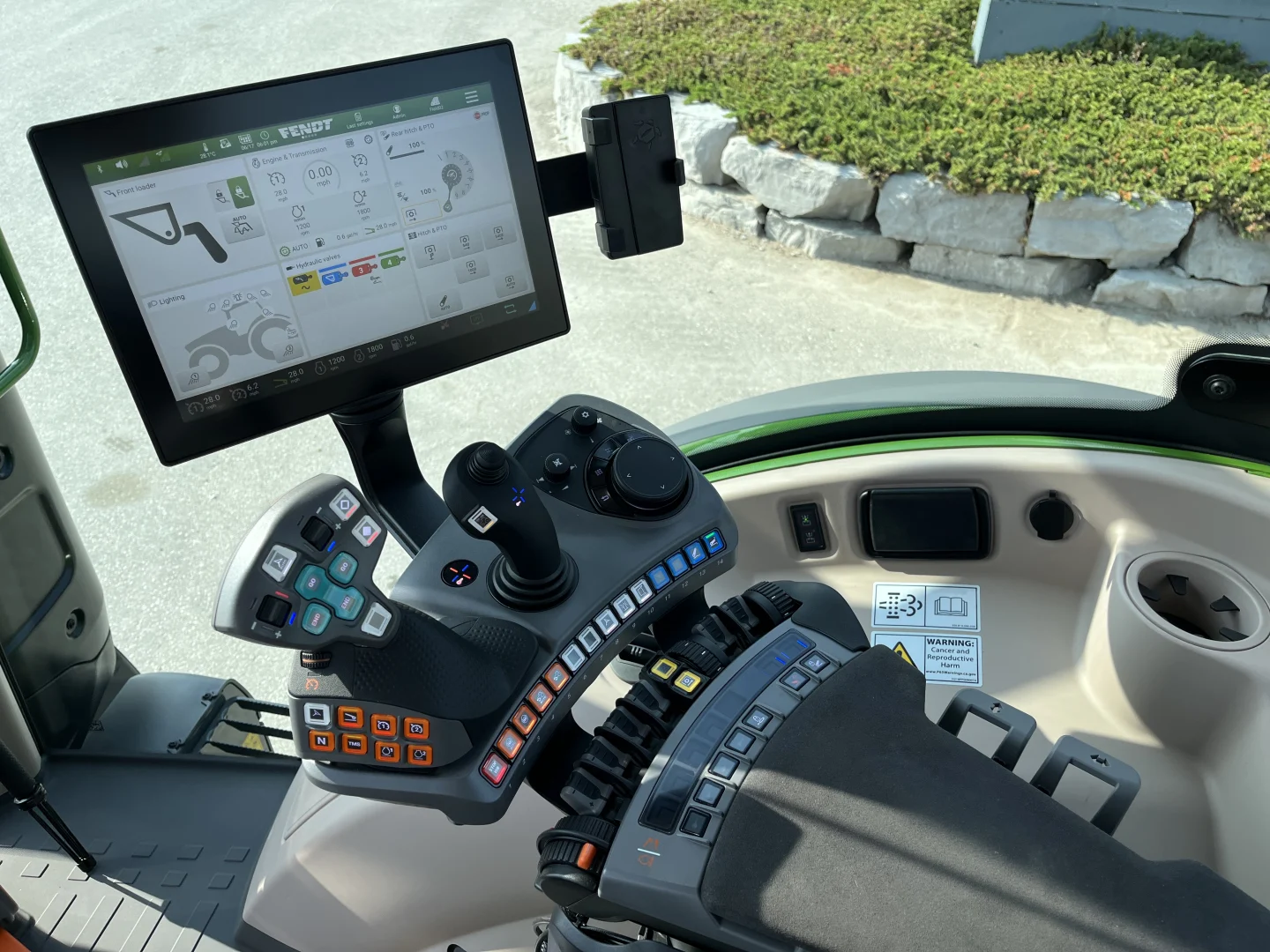

| Display | 12" Armrest Mounted Terminal, 12" Roof Mounted Terminal | |
| Instrument Display | 10" Dash Screen | |
| Entertainment | USB, Bluetooth, Mic | |
| Integration | ISO BUS Implement Control | |
| Antenna | Trimble, Novatel | |
| Guidance | Guidance Ready | |
| Headland Management | Variotronic TI | |
| Auto Headland Turn | Variotronic TI Auto | |
| Data Transfer | TaskDoc Pro | |
| Section Control | SectionControl | |
| Variable Rate Control | Variable Rate Control | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 10 | |
| Rear Lights | 6 | |
| Worklight Type | Halogen | |
| Alternator | 150A | |
| Battery | 850CCA | |

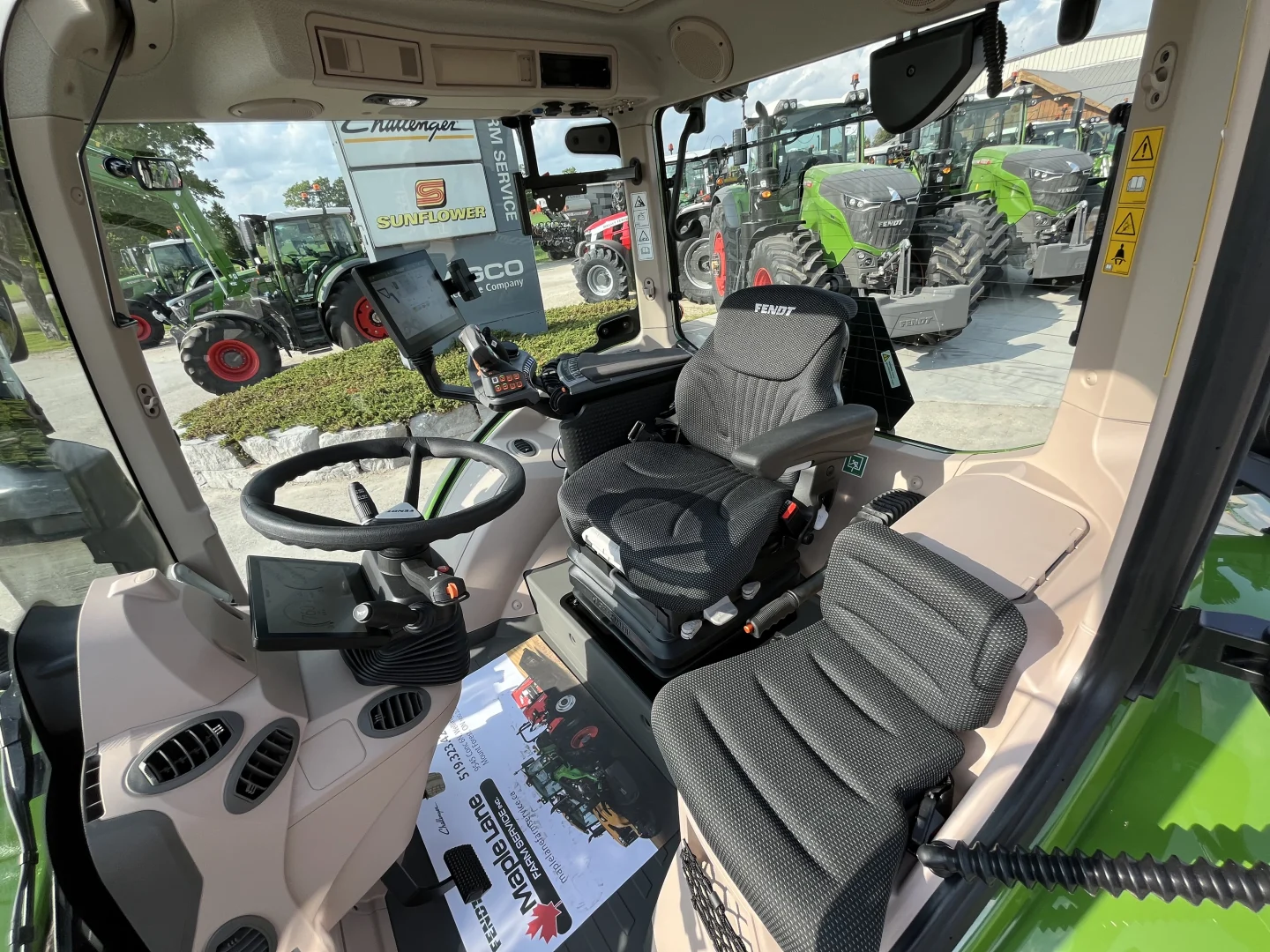

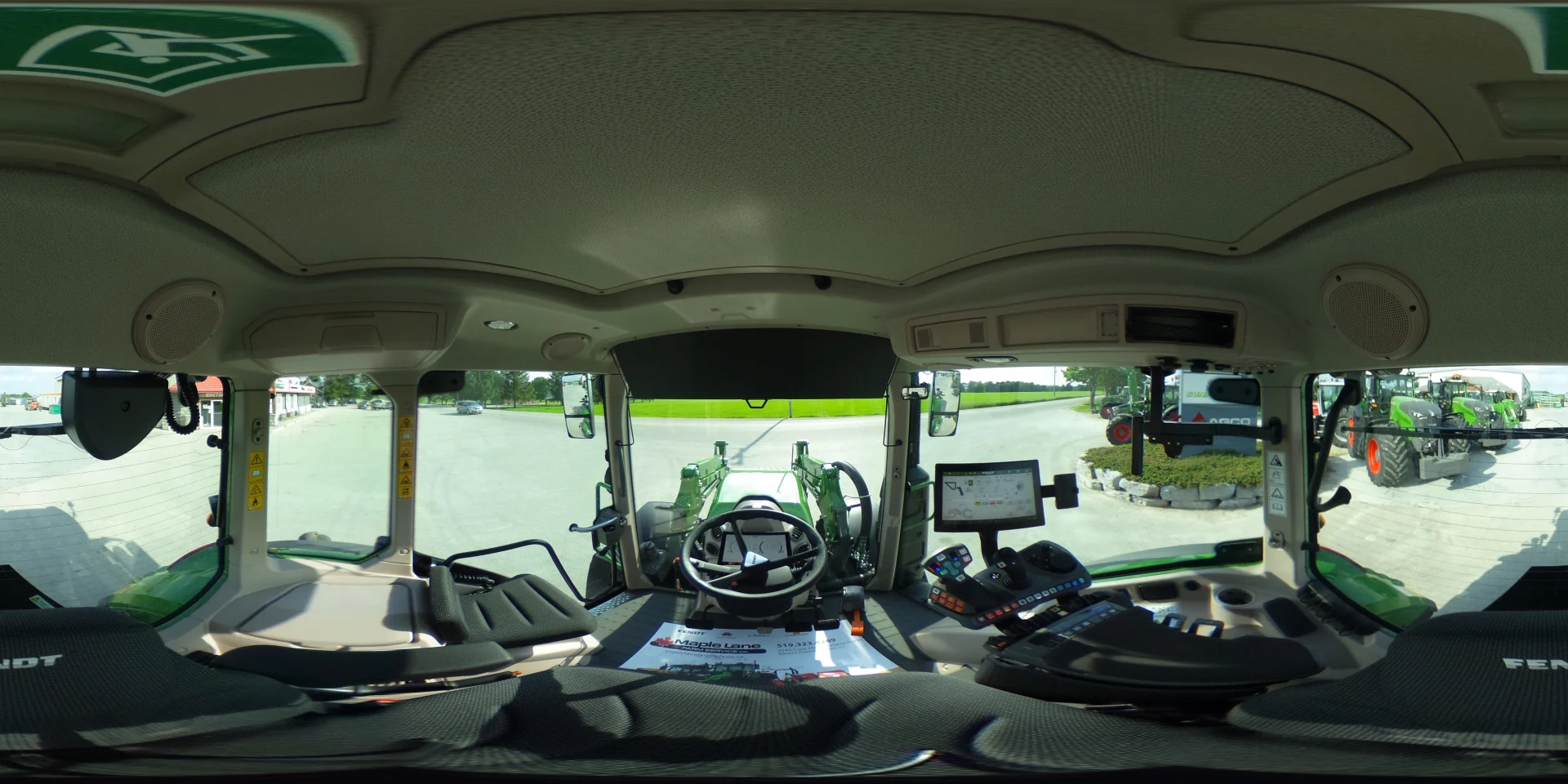

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Climate | Air Conditioning | |
| Cab Suspension | 2 Point Mechanical | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Joystick | |
| Operator Seat | FD Super Comfort | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline | |
| Headrest | Extend | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Air (built in compressor), Forward/Reverse Horizontal, Low Frequency | |
| Rotation | Segments | |
| Comfort | Heat, Automatic Weight Adjustment, Automatic Height Adjustment | |
| Wiper | Front, Rear | |
| Sunshade | Windshield | |
| Spec Level | ProfiPlus | |
| Windows | Heated Rear | |
| Wheels | ||
|---|---|---|
| Front | TRELL 540/65R24 TM800 | |
| Size | 540/65R24 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 9-1/16" (535mm) 535mm 1' 9-1/16" | |
| Overall Diameter | 4' 3-5/8" (1312mm) 1312mm 4' 3-5/8" | |
| Static Loaded Radius | 1' 11-7/16" (595mm) 595mm 1' 11-7/16" | |
| Rolling Circumference | 12' 11-1/8" (3940mm) 3940mm 12' 11-1/8" | |
| Tread Thickness | 1-15/16" (50mm) 50mm 1-15/16" | |
| Weight | 251.99lb. (114.3kg) 114.3kg 251.99lb. | |
| Rear | TRELL 600/65R38 TM800 | |
| Size | 600/65R38 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 11-1/4" (590mm) 590mm 1' 11-1/4" | |
| Overall Diameter | 5' 8-11/16" (1745mm) 1745mm 5' 8-11/16" | |
| Static Loaded Radius | 2' 6-7/8" (785mm) 785mm 2' 6-7/8" | |
| Rolling Circumference | 17' 1-1/8" (5210mm) 5210mm 17' 1-1/8" | |
| Tread Thickness | 2-3/16" (55mm) 55mm 2-3/16" | |
| Weight | 440.26lb. (199.7kg) 199.7kg 440.26lb. | |
| Dimensions | ||
|---|---|---|
| Length | 14' 2-11/16" (4336mm) 4336mm 14' 2-11/16" | |
| Wheelbase | 7' 11-1/4" (2420mm) 2420mm 7' 11-1/4" | |
| Width | 7' 3-3/8" (2220mm) 2220mm 7' 3-3/8" | |
| Height | 9' 5" (2870mm) 2870mm 9' 5" | |
| Minimum Ground Clearance | 1' 8-1/16" (510mm) 510mm 1' 8-1/16" | |
| Turning Radius | 13' 1-3/16" (3993mm) 3993mm 13' 1-3/16" | |
| Weight | 10692.42lb. (4850kg) 4850kg 10692.42lb. | |
| Loader | ||
|---|---|---|

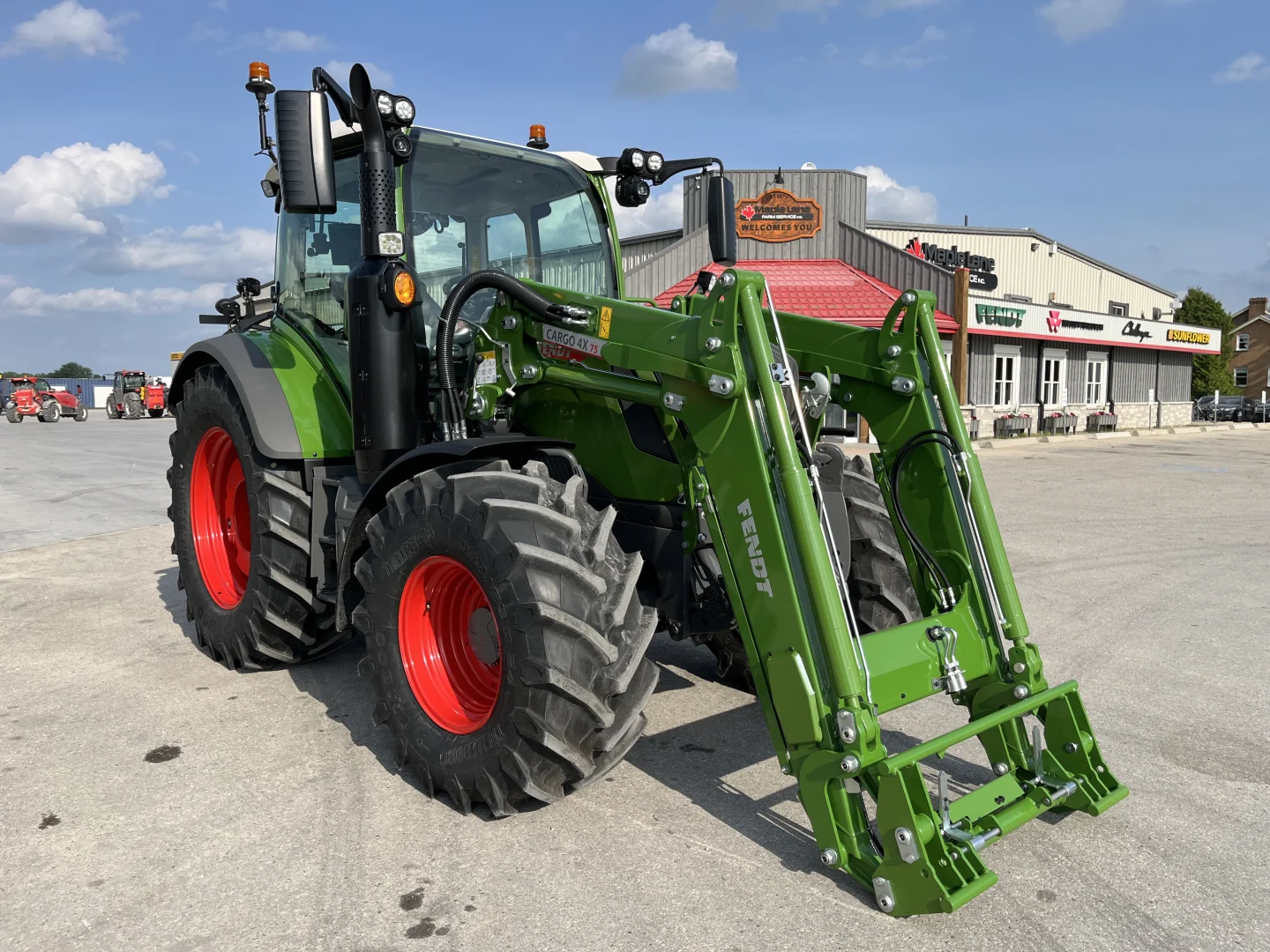

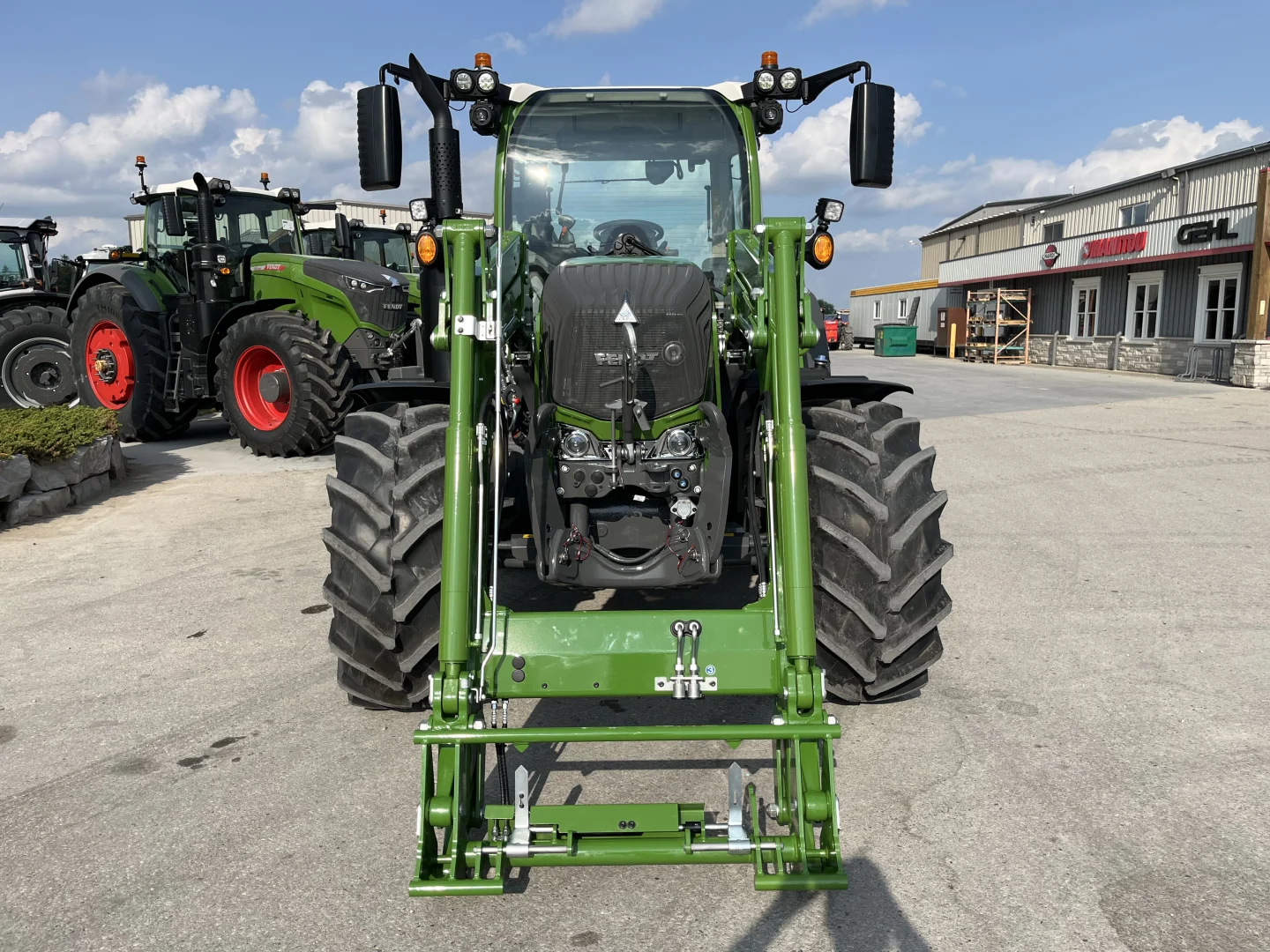

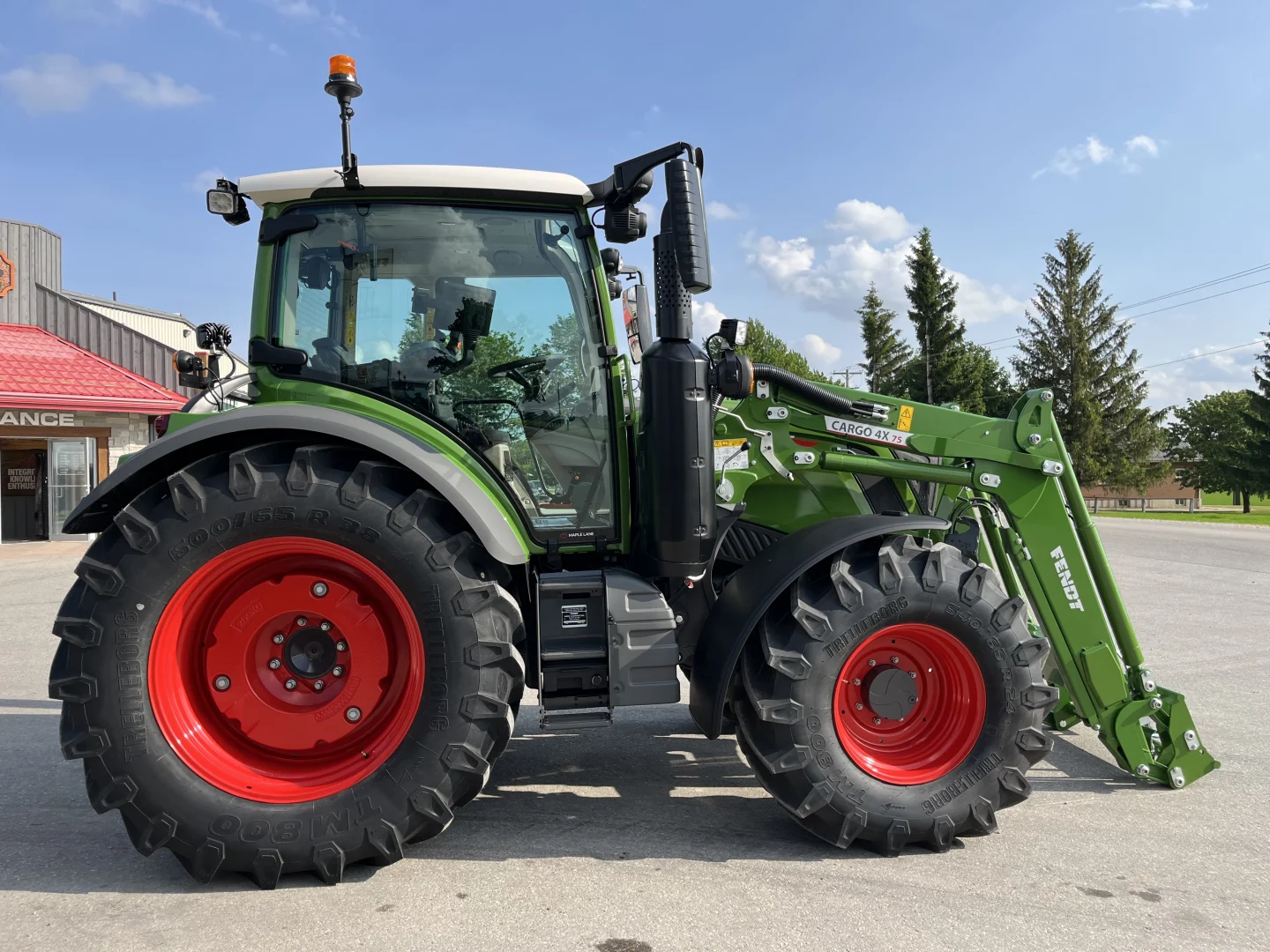

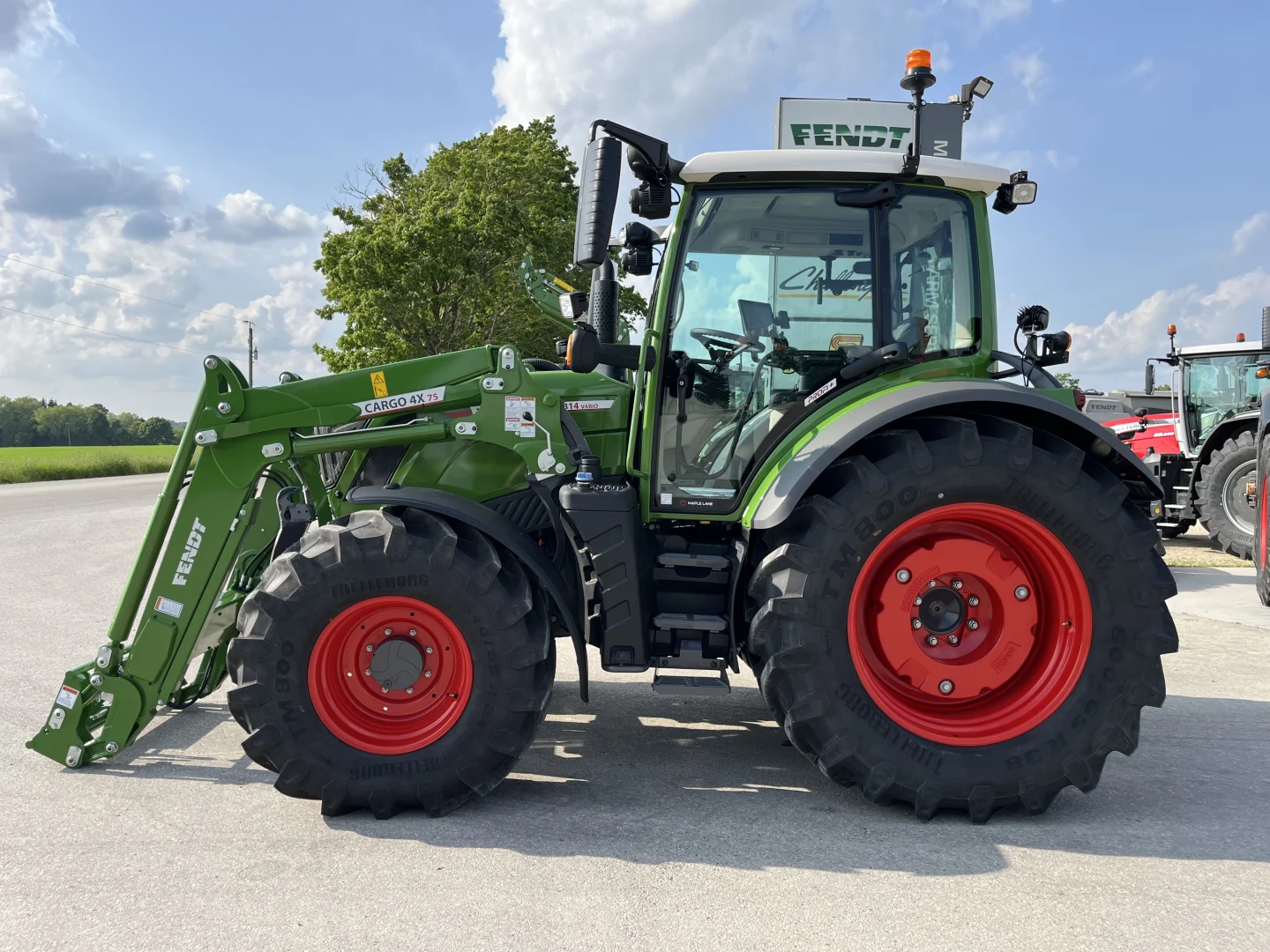

| Loader | FD Cargo 4X/75 | |
| Maximum Lift Height – Pivot Pin | 13' 7-9/16" (4155mm) 4155mm 13' 7-9/16" | |
| Digging Depth | 5-7/8" (150mm) 150mm 5-7/8" | |

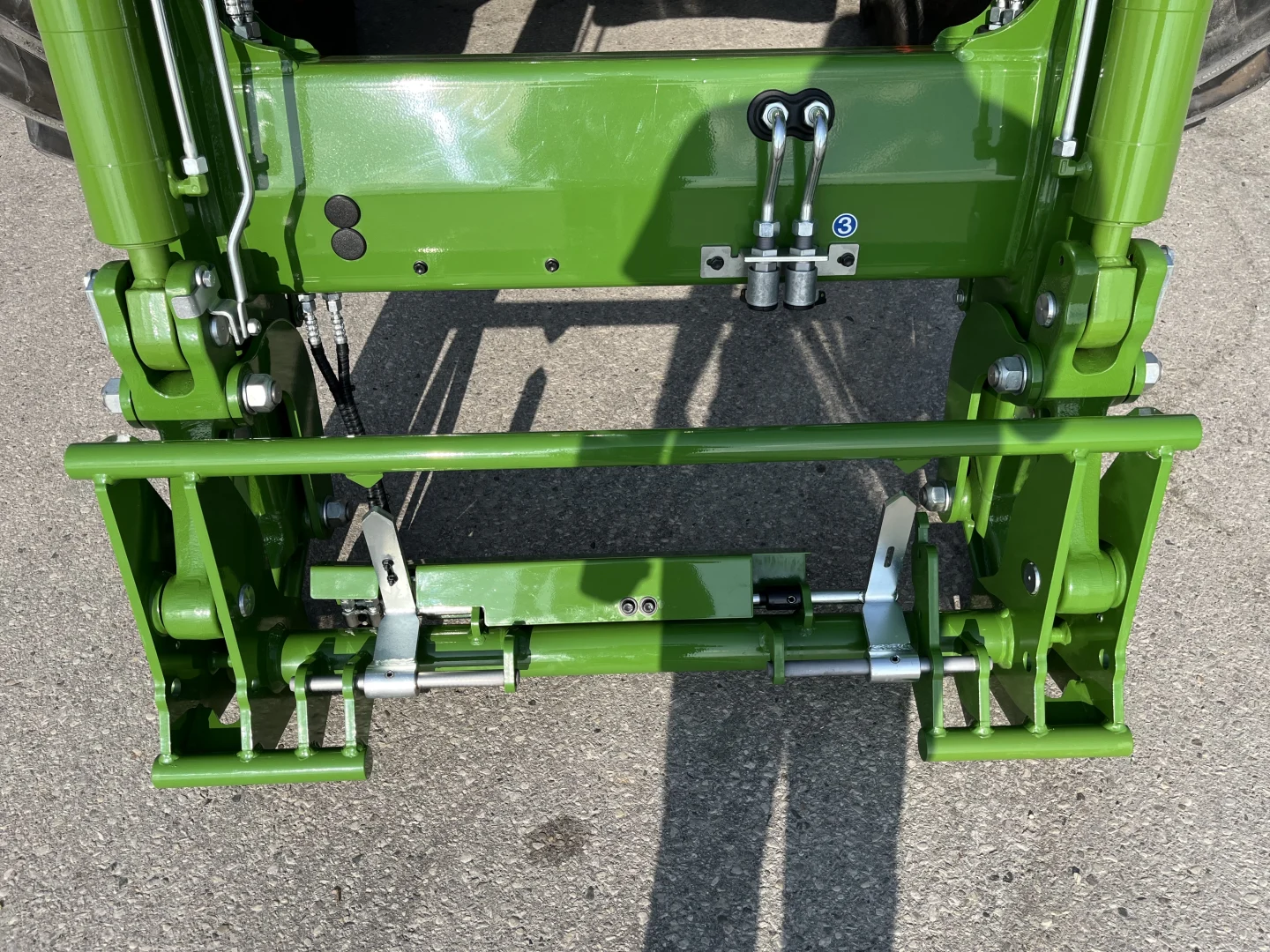

| Tool Carrier | Euro Quick Attach | |
| Self-Leveling | Hydraulic | |
| Lift Path | Radial | |
