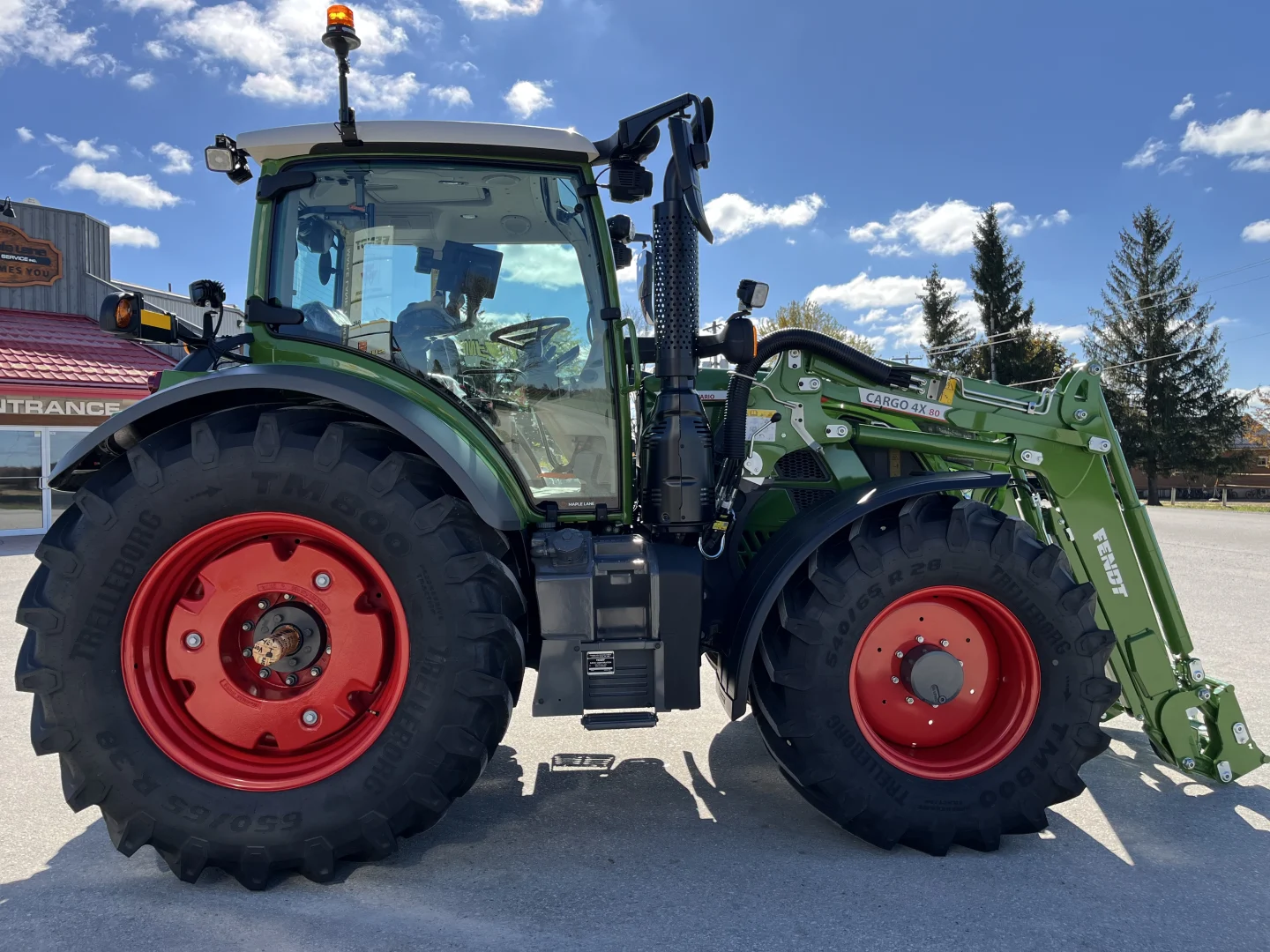

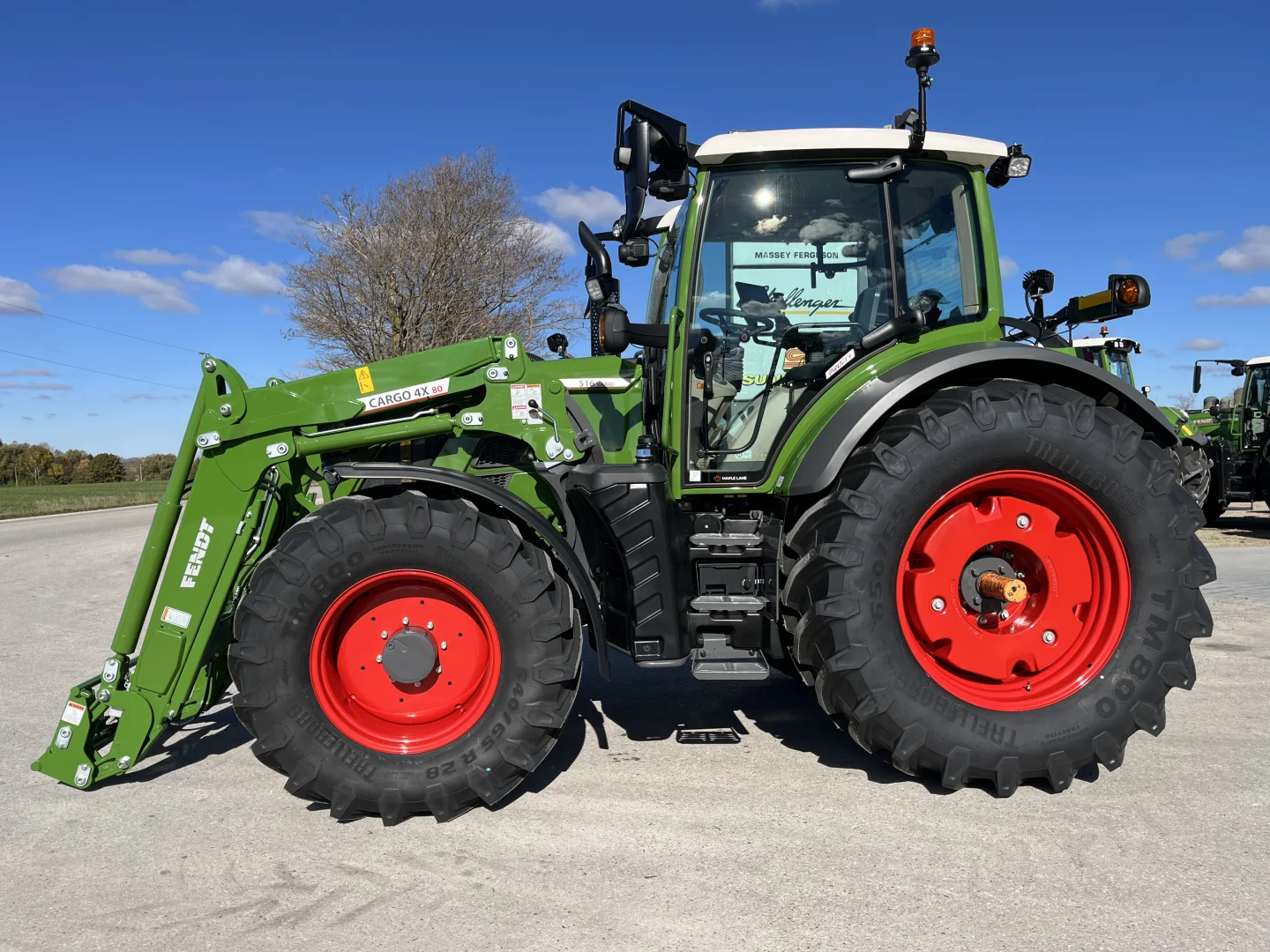

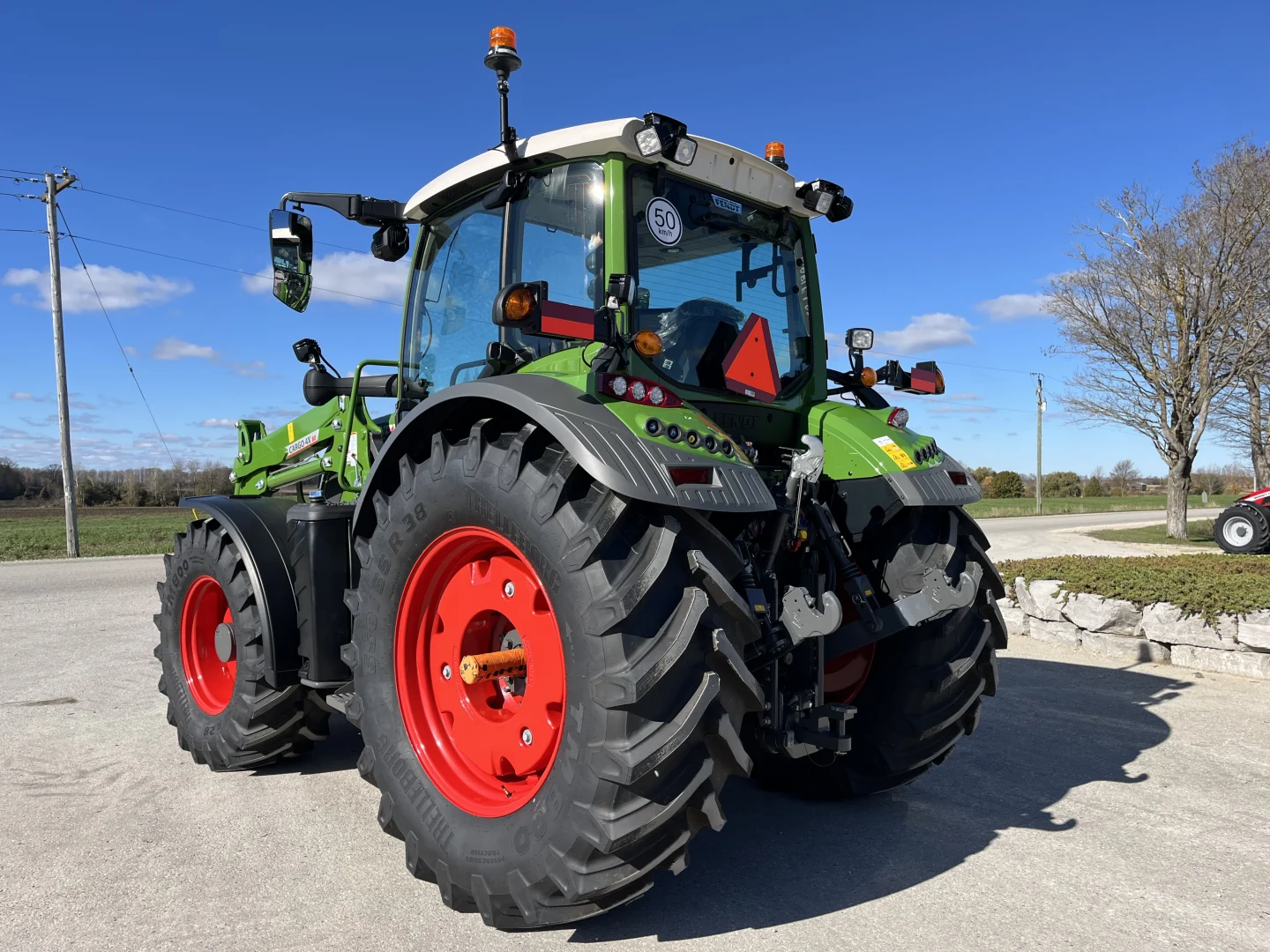

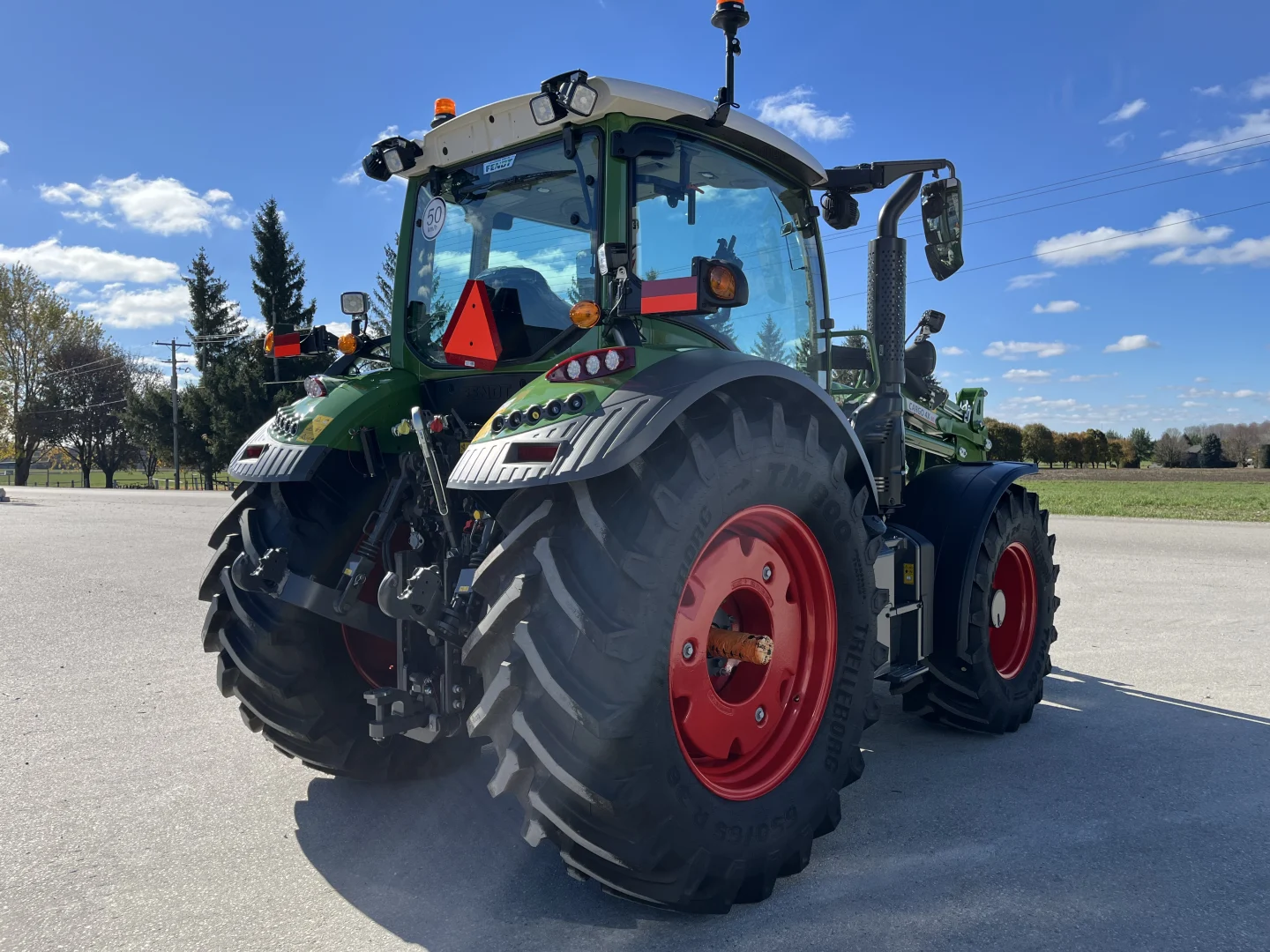

New 2025 Fendt 516 Gen3
| Description | |
|---|---|
| New 2025 MY, Profi+, 50KPH Vario transmission, 158LPM hydraulic pump, 5 rear remotes, hydraulic & air trailer brakes, power beyond, mechanical cab suspension, LED lighting, cloth Super Comfort seat, heated rear window, infotainment, 12″ terminal, automatic climate control, 4X80 Cargo loader with suspension, 3rd function, hydraulic bucket lock, 300KG rear wheel weights, 120KG front weight, 540/65R28 front, 650/65R38 rear, 3 year/3000 hour Fendt Goldstar warranty. We gladly serve customers in southern Ontario. If you’re located outside southern Ontario, we would be grateful if you contacted your local Fendt dealer about a new 516 instead of us. | |
| Categories | High Horsepower |
| Unit Number | 24468W |
| Condition | New |
| Usage | 10 Hours |
| Year | 2025 |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 121.55kW (163hp) | |
| PTO Power | 102.16kW (137hp) | |
| Rated Engine Speed | 2,100r/min | |
| Make | DZ TCD 4.1 L4F 4 V | |
| Displacement | 1.07gal. (4.04L) | |
| Number of Cylinders | 4 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 78.72gal. (298L) | |
| DEF Tank Capacity | 8.19gal. (31L) | |
| Warming | Block Heater | |
| Transmission | ||
|---|---|---|
| Maximum Road Speed | 31.07mph (50km/h) | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Wet Disc | |
| Trailer Brakes | Air, Hydraulic | |
| Suspension | Front Axle | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 500 Gen3 42 GPM | |
| Pump Type | Variable Displacement Piston | |
| Maximum Flow | 158.99L/min (42GPM) | FD 500 Gen3 29 GPM |
| Pump Type | Variable Displacement Piston | |
| Maximum Flow | 109.78L/min (29GPM) | |
| System Capacity | 18.23gal. (69L) | |
| Maximum Operating Pressure | 2,900.75psi (200bar) | |
| Maximum Available Hydraulic Oil | 14.53gal. (55L) | |

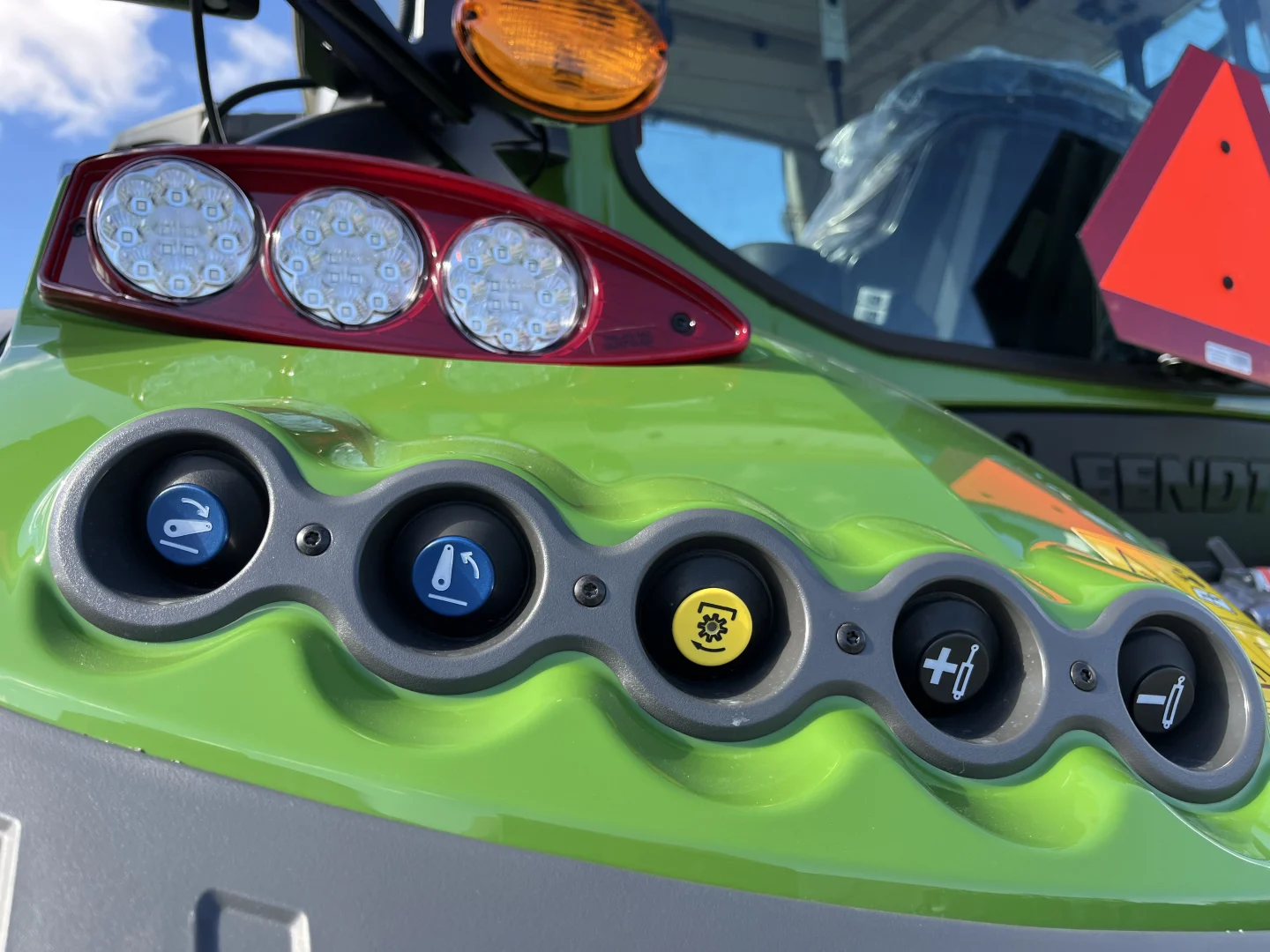

| Rear Remote Valves | 5, 3 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|
| Front Hitch | FD 500 Gen3 | |
| Category | Category 2, Category 3 | |
| Capacity at Pins | 3.40T. | |

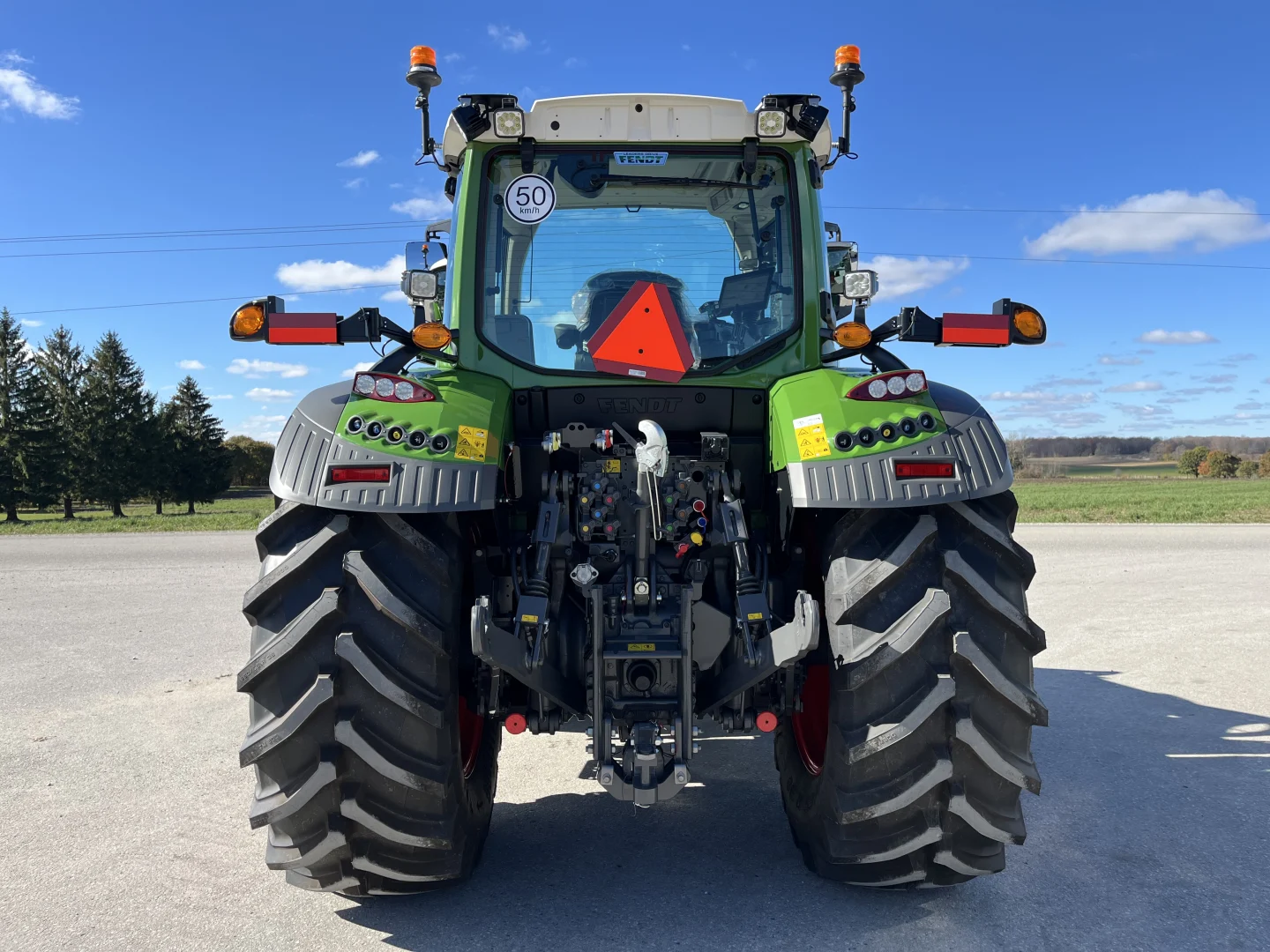

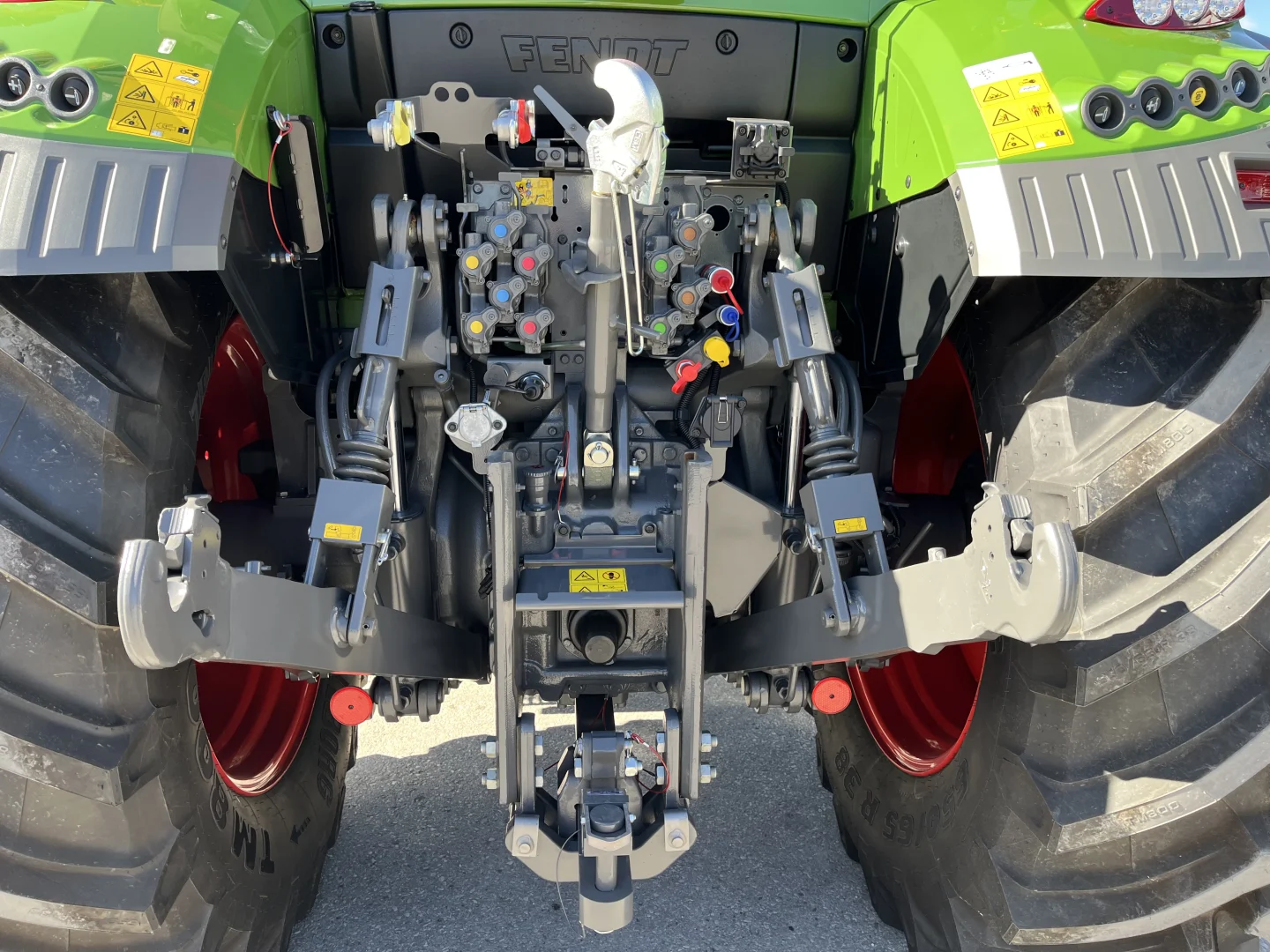

| Rear Hitch | FD 500 Gen3 | |
| Hitch Category | Category 3, Category 2 | |
| Lift Capacity at Pins | 7,198.96kg (15,871lb.) | |
| Comfort | Draft Control | |
| PTO | ||
|---|---|---|
| Front Speed | 1000 | |
| Rear Speed | 540, 1000 | |
| Type | Independent | |
| Technology | ||
|---|---|---|

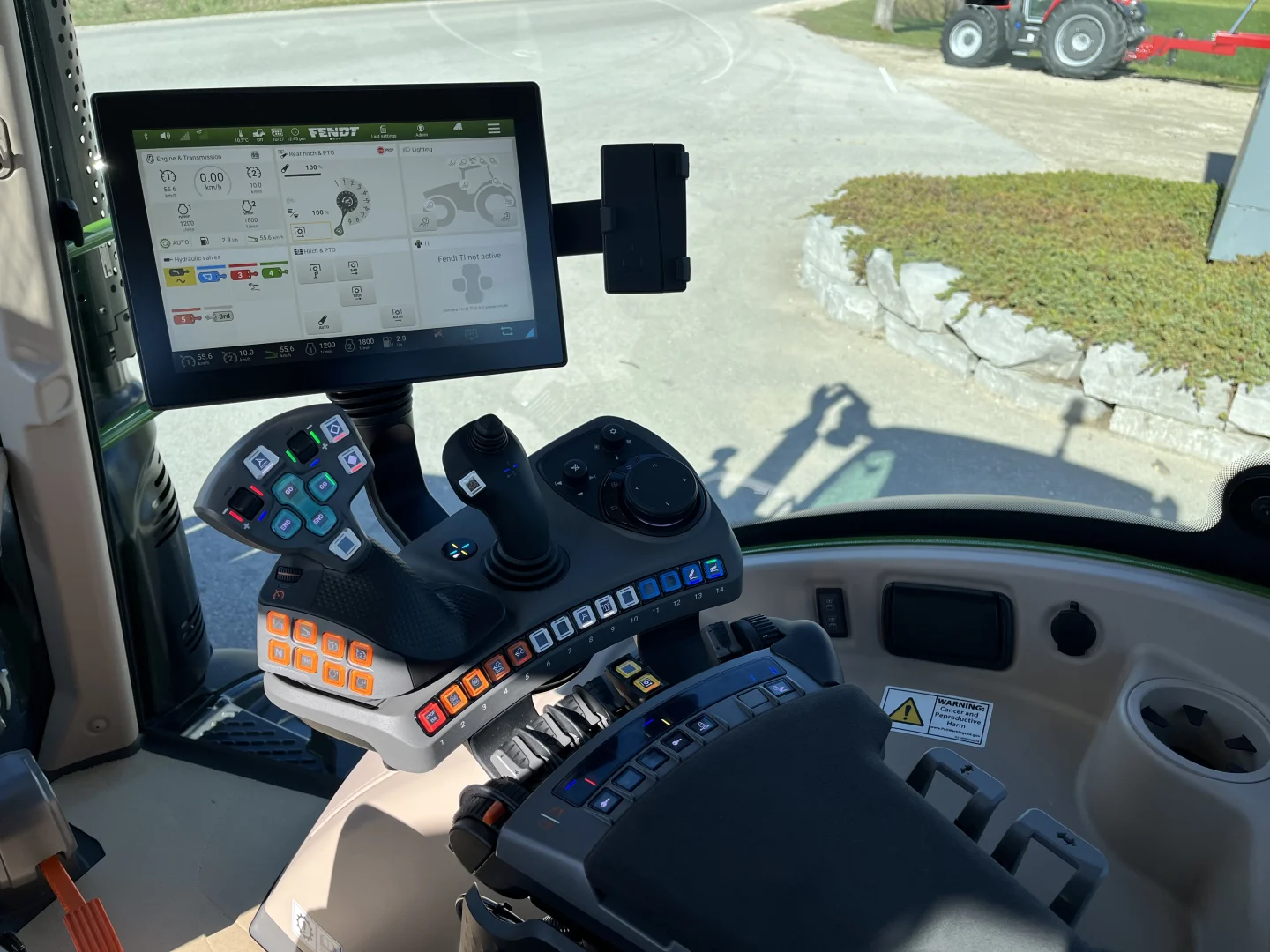

| Display | 12" Armrest Mounted Terminal | |

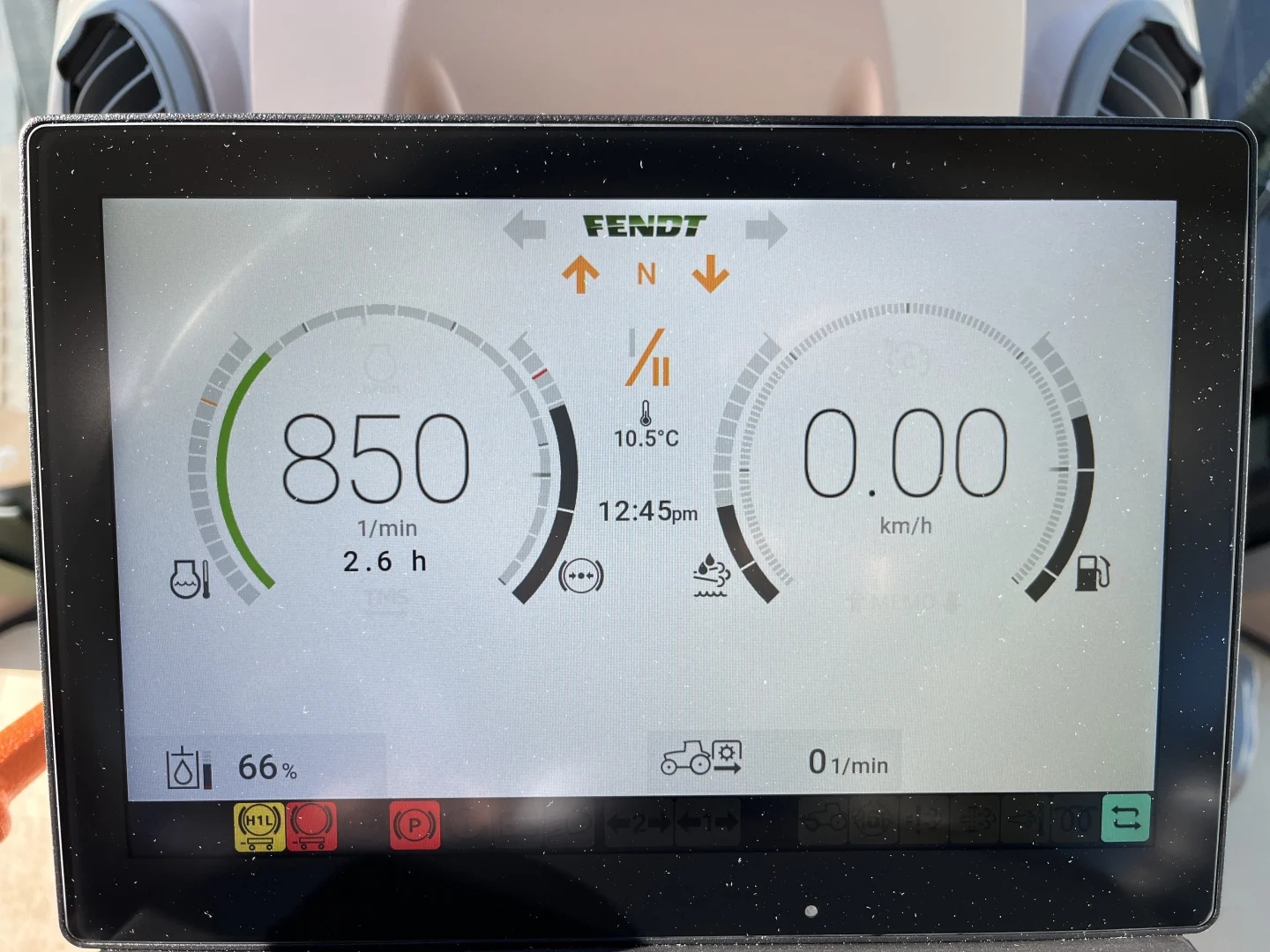

| Instrument Display | 10" Dash Screen | |
| Entertainment | Infotainment | |
| Integration | ISO BUS Implement Control | |
| Antenna | Trimble, Novatel | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 6 | |
| Rear Lights | 6 | |
| Worklight Type | LED | |
| Rotating Beacon | Left, Right | |
| Alternator | 200A | |
| Battery | 850CCA | |

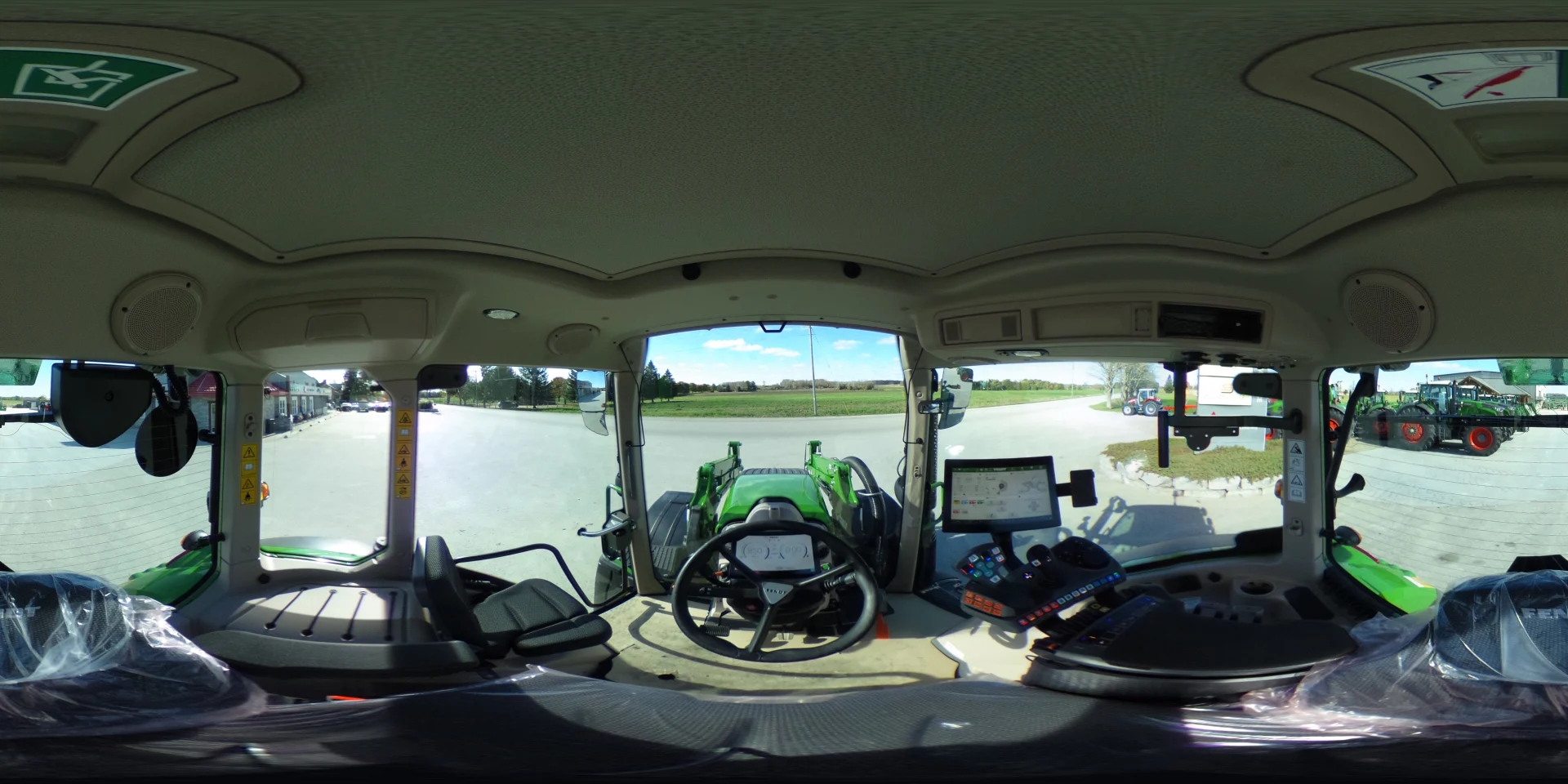

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |

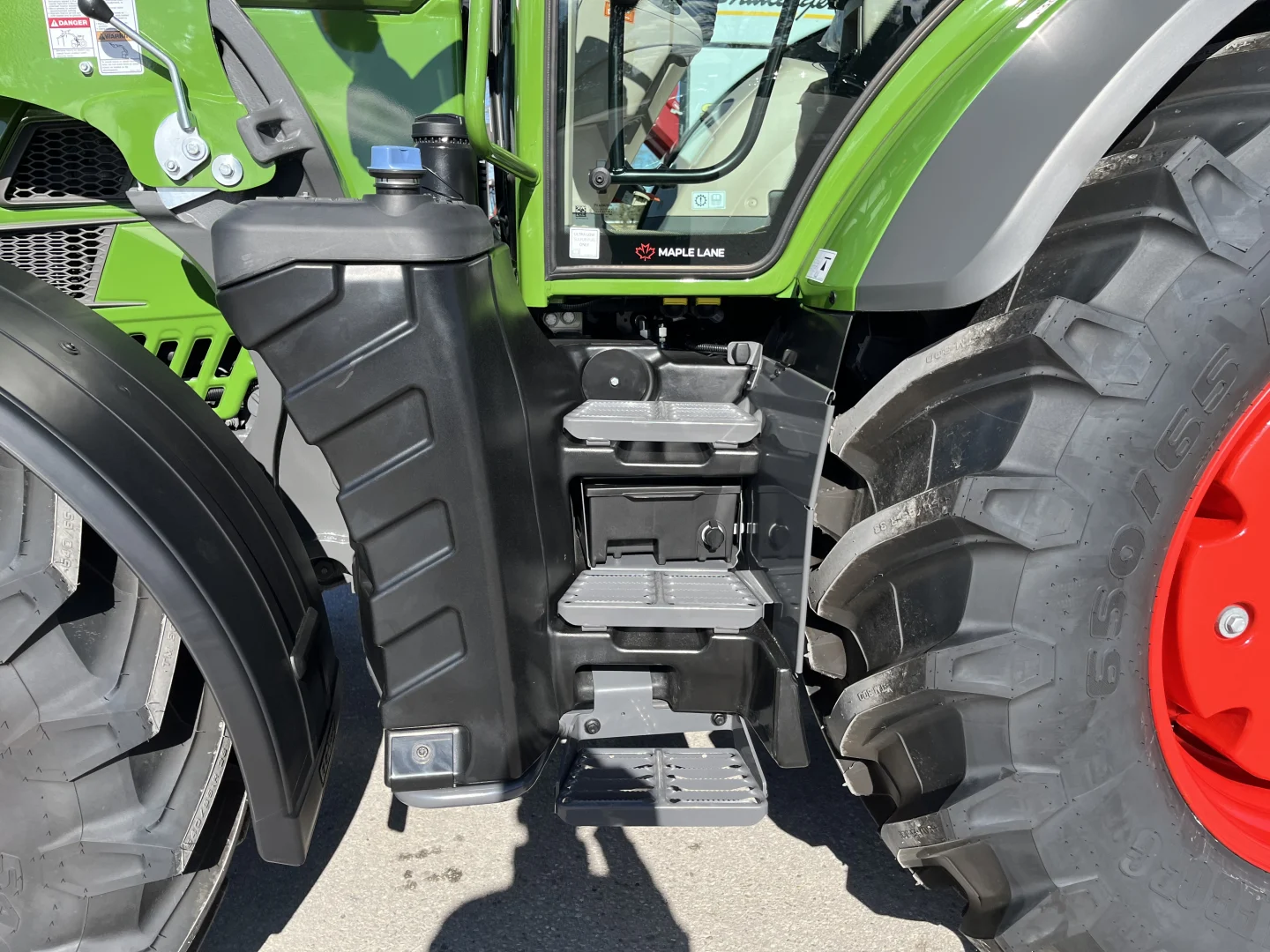

| Access | Left Hand Door, Rear Window | |
| Climate | Heater, Air Conditioning, Automatic | |
| Cab Suspension | 2 Point Mechanical, 2 Point Air | |
| Steering Column | Tilting, Telescoping | |
| Steering Controls | Steering Wheel | |

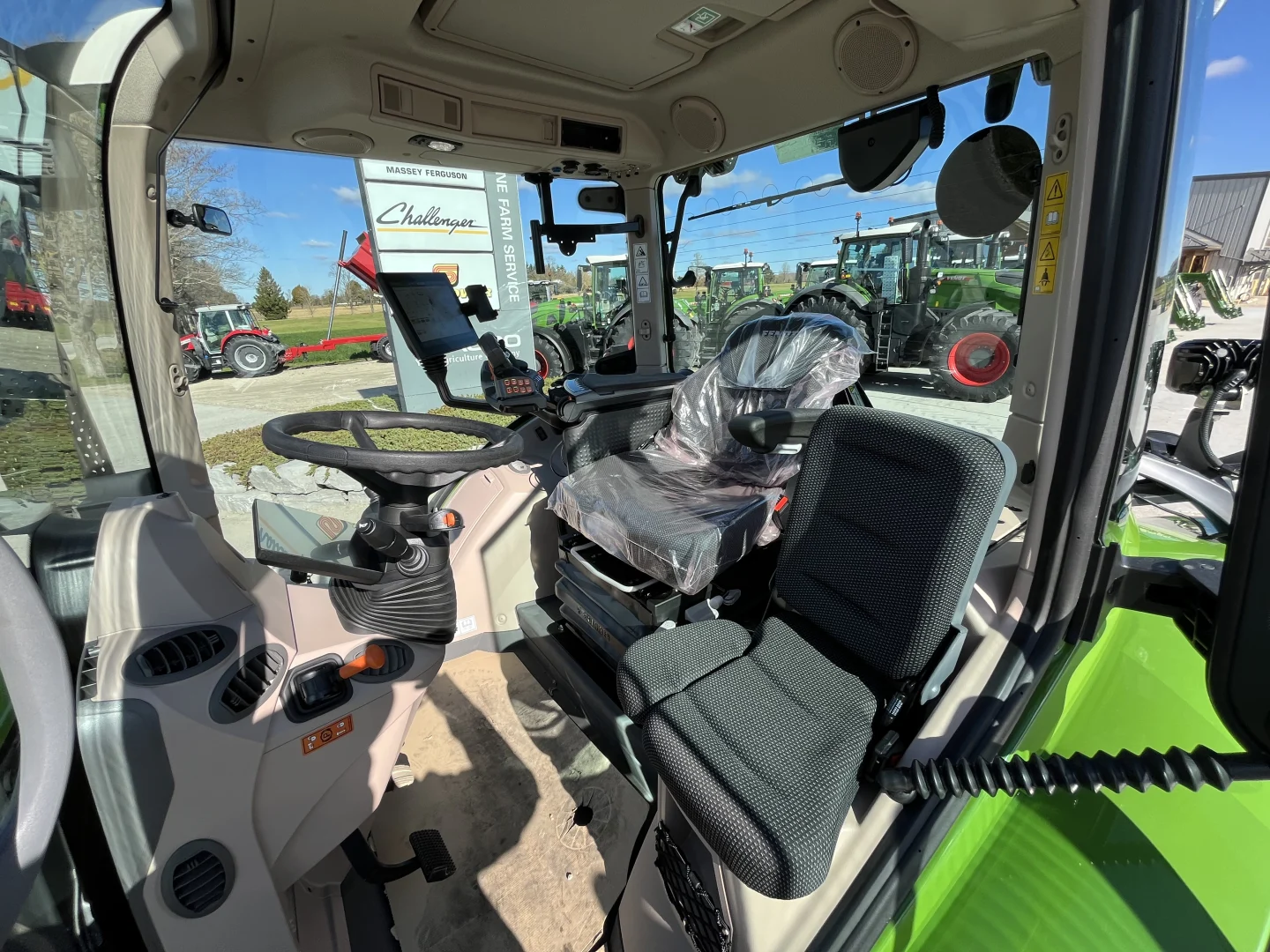

| Operator Seat | FD Super Comfort | |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Recline | |
| Headrest | Extend | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Air (built in compressor), Forward/Reverse Horizontal, Low Frequency | |
| Rotation | Segments | |
| Comfort | Heat, Automatic Weight Adjustment, Automatic Height Adjustment | FD Comfort |
| Material | Cloth | |
| Safety Arrest | 2pt Belt | |
| Armrest | Height Adjustable | |
| Backrest | Recline | |
| Headrest | Extend | |
| Lumbar Support | Mechanical | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Air (built in compressor), Forward/Reverse Horizontal | |
| Wiper | 300° Front, Front, Rear | |
| Sunshade | Windshield | |
| Spec Level | ProfiPlus, Power | |
| Windows | Heated Rear | |
| Wheels | ||
|---|---|---|

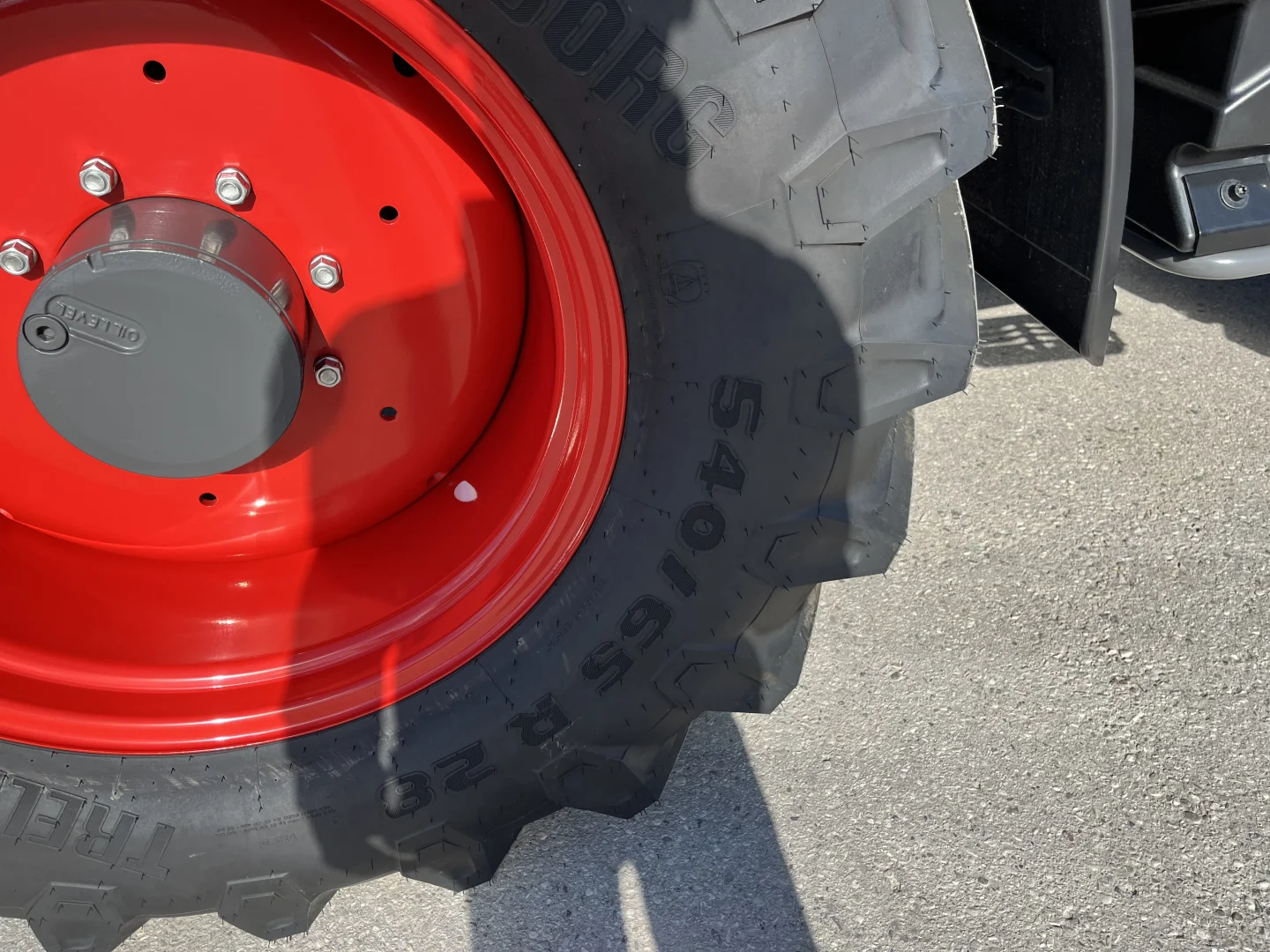

| Front | TRELL 540/65R28 TM800 | |
| Size | 540/65R28 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 53.09cm (1' 8-7/8") | |
| Overall Diameter | 141.22cm (4' 7-5/8") | |
| Static Loaded Radius | 63.75cm (2' 1-1/8") | |
| Rolling Circumference | 421.89cm (13' 10-1/8") | TRELL 380/85R30 TM600 |
| Size | 380/85R30 | |
| Ply | 8PR | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 3-3/8" (390mm) | |
| Overall Diameter | 4' 7-7/16" (1,408mm) | |
| Static Loaded Radius | 2' 1" (635mm) | |
| Rolling Circumference | 13' 10-7/8" (4,238mm) | |
| Weight | 173.72lb. (78.80kg) | |

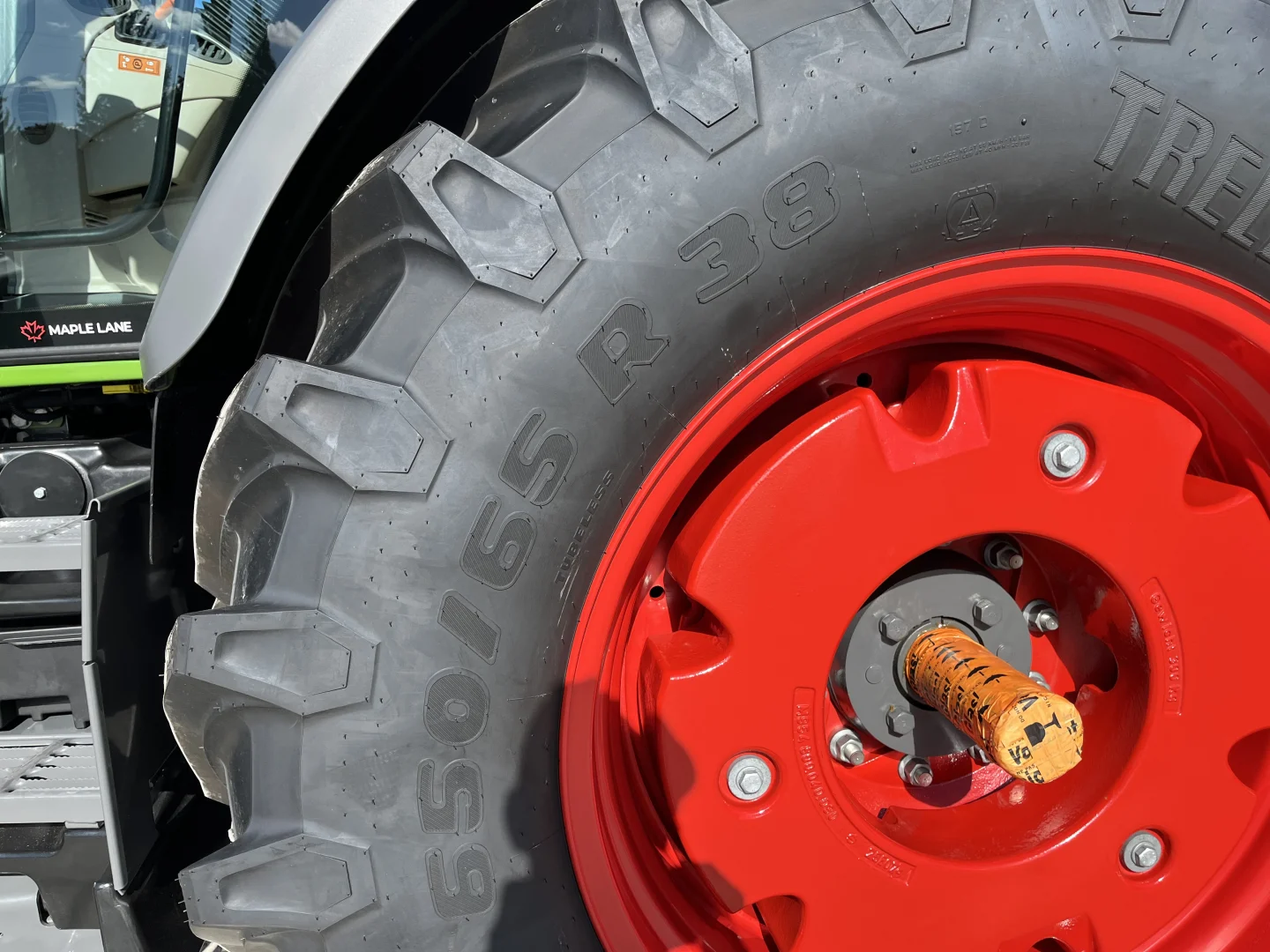

| Rear | TRELL 650/65R38 TM800 | |
| Size | 650/65R38 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 64.52cm (2' 1-3/8") | |
| Overall Diameter | 181.10cm (5' 11-5/16") | |
| Rolling Circumference | 539.50cm (17' 8-3/8") | |
| Weight | 222.71kg (491lb.) | TRELL 480/80R42 TM600 |
| Size | 480/80r42 | |
| Tread Pattern | R1 (Ag) | |
| Section Width | 1' 7-1/2" (495mm) | |
| Overall Diameter | 6' 13/16" (1,850mm) | |
| Static Loaded Radius | 2' 8-13/16" (833mm) | |
| Rolling Circumference | 18' 2-1/2" (5,550mm) | |
| Weight | 376.99lb. (171kg) | |
| Dimensions | ||
|---|---|---|
| Length | 14' 11-7/8" (4,569mm) | |
| Wheelbase | 8' 4-13/16" (2,560mm) | |
| Width | 8' 2-7/16" (2,501mm) | |
| Height | 9' 10-11/16" (3,015mm) | |
| Minimum Ground Clearance | 1' 9-7/16" (545mm) | |
| Turning Radius | 1' 9-5/8" (550mm) | |
| Weight | 14,109.59lb. (6,400kg) | |
| Weights | ||
|---|---|---|

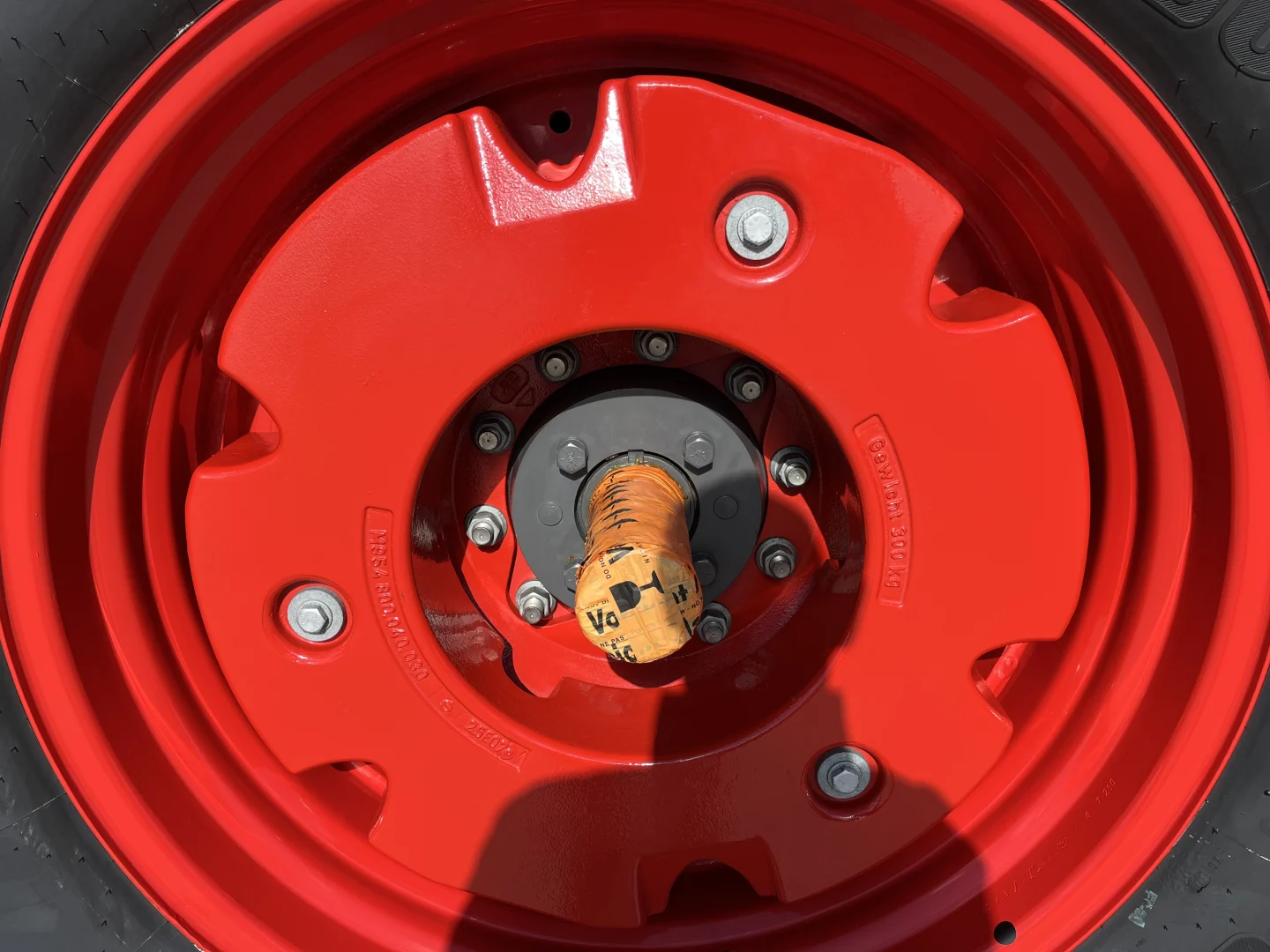

| Wheel Weights | FD 300 kg Wheel Weight Pair | |
| Mount | Bolt | |
| Type | Wheel Disc | |
| Weight | 661.39lb. (300kg) | |

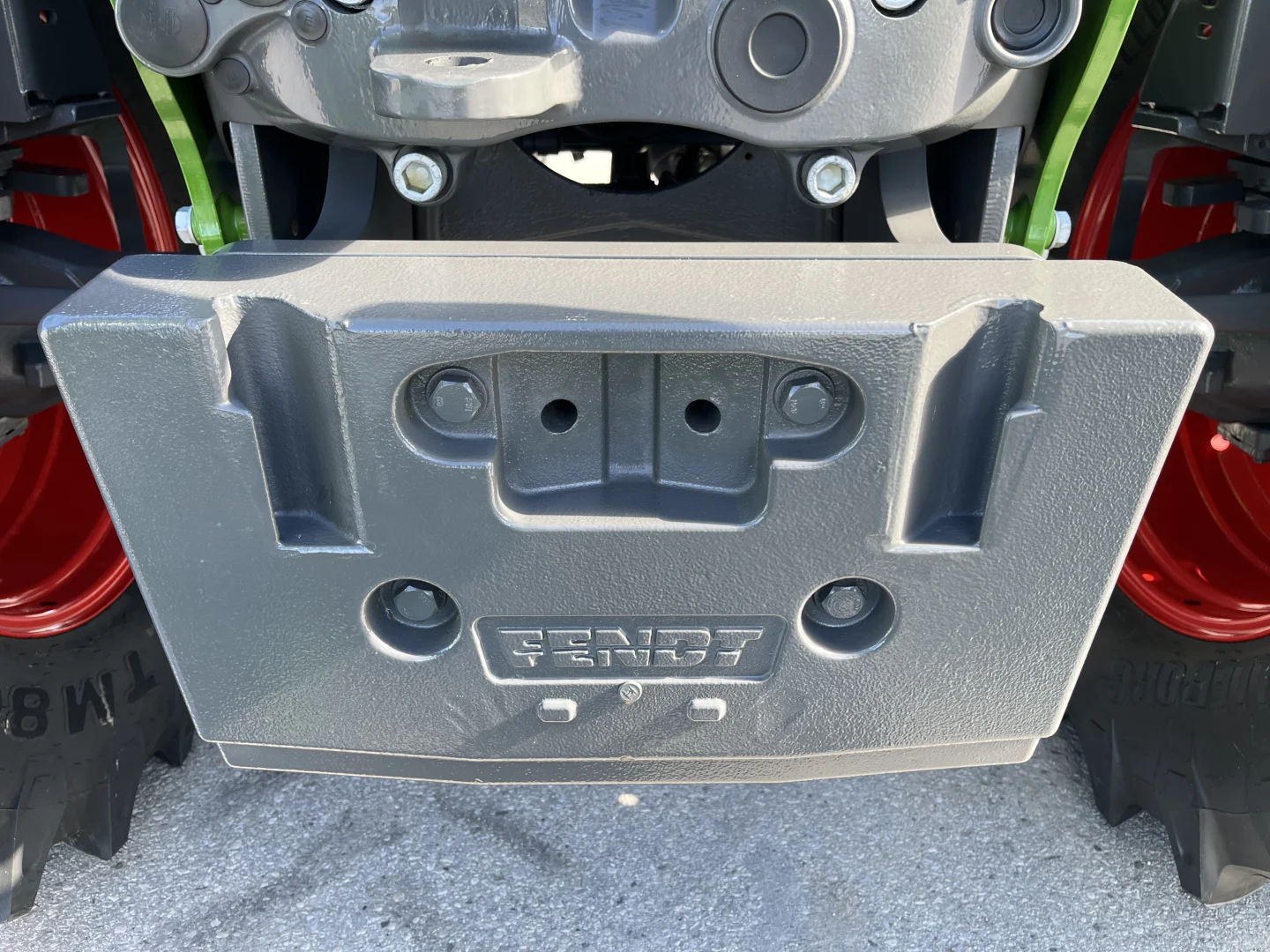

| Front Weights | FD 117 kg Nose Mount | |
| Mount | Bolt, Nose | |
| Type | Block | |
| Weight | 257.94lb. (117kg) | |
| Loader | ||
|---|---|---|

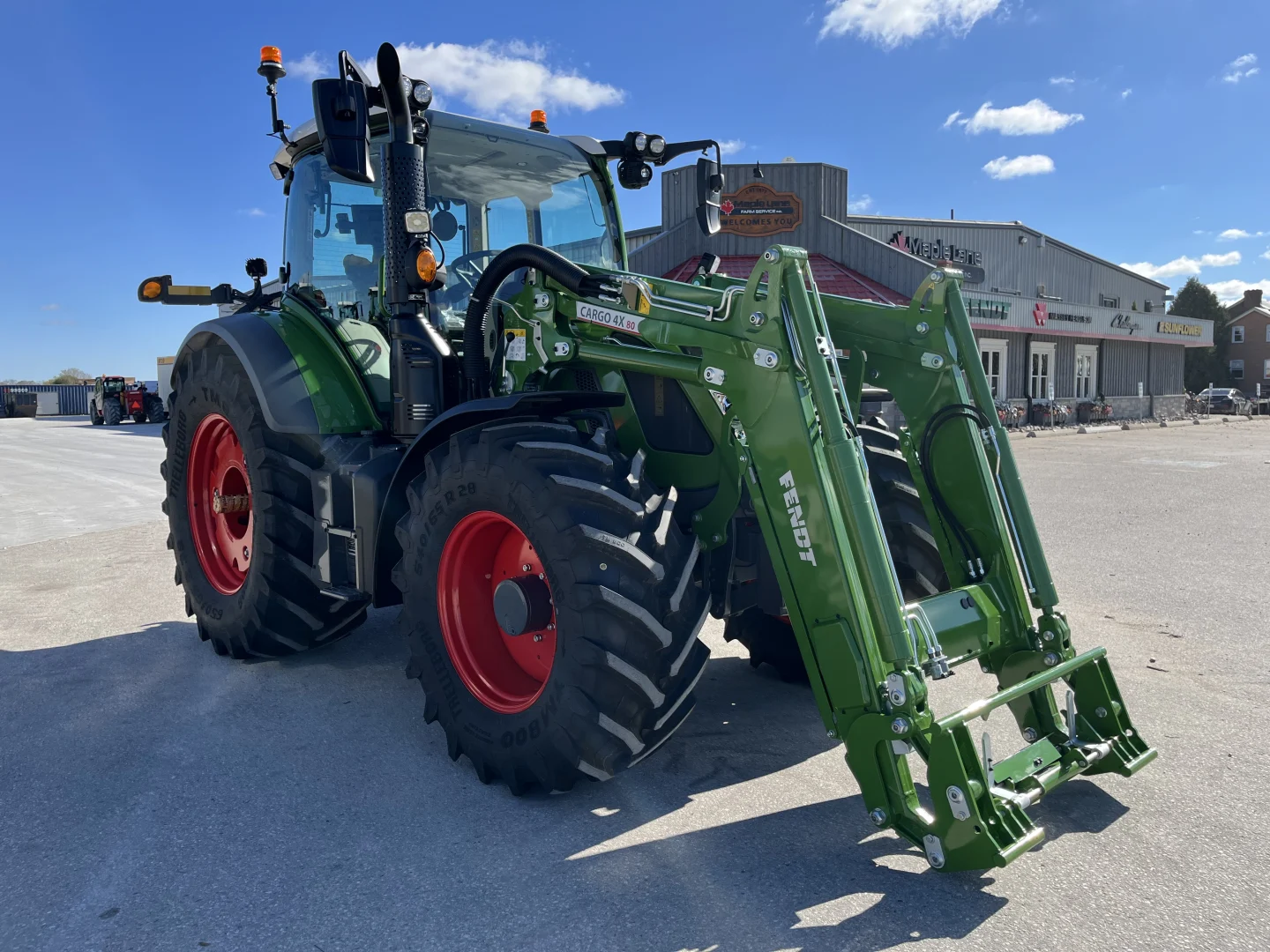

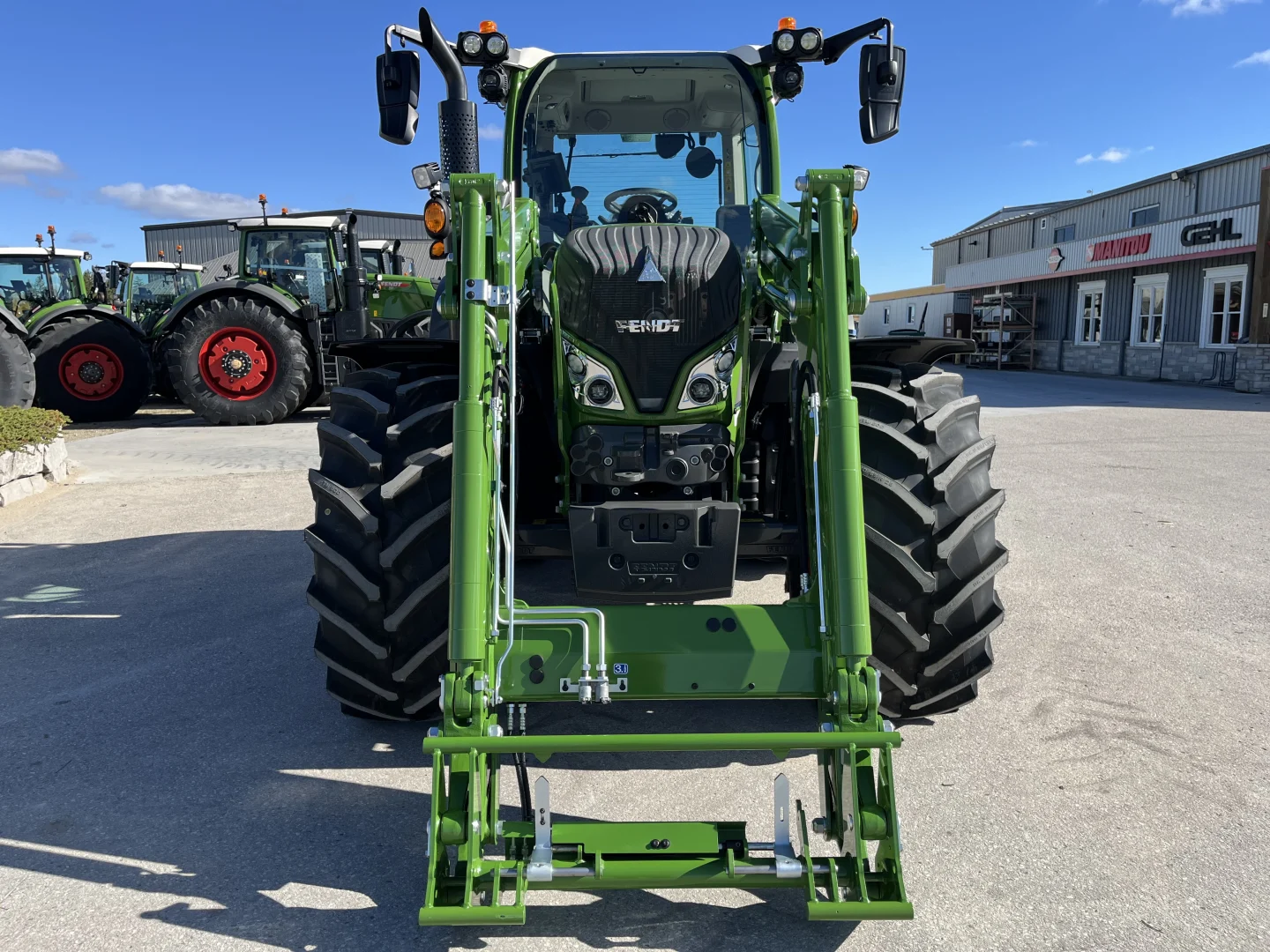

| Loader | FD Cargo 4X/80 | |
| Maximum Lift Height – Pivot Pin | 13' 7-9/16" (4,155mm) | |
| Digging Depth | 5-7/8" (150mm) | |

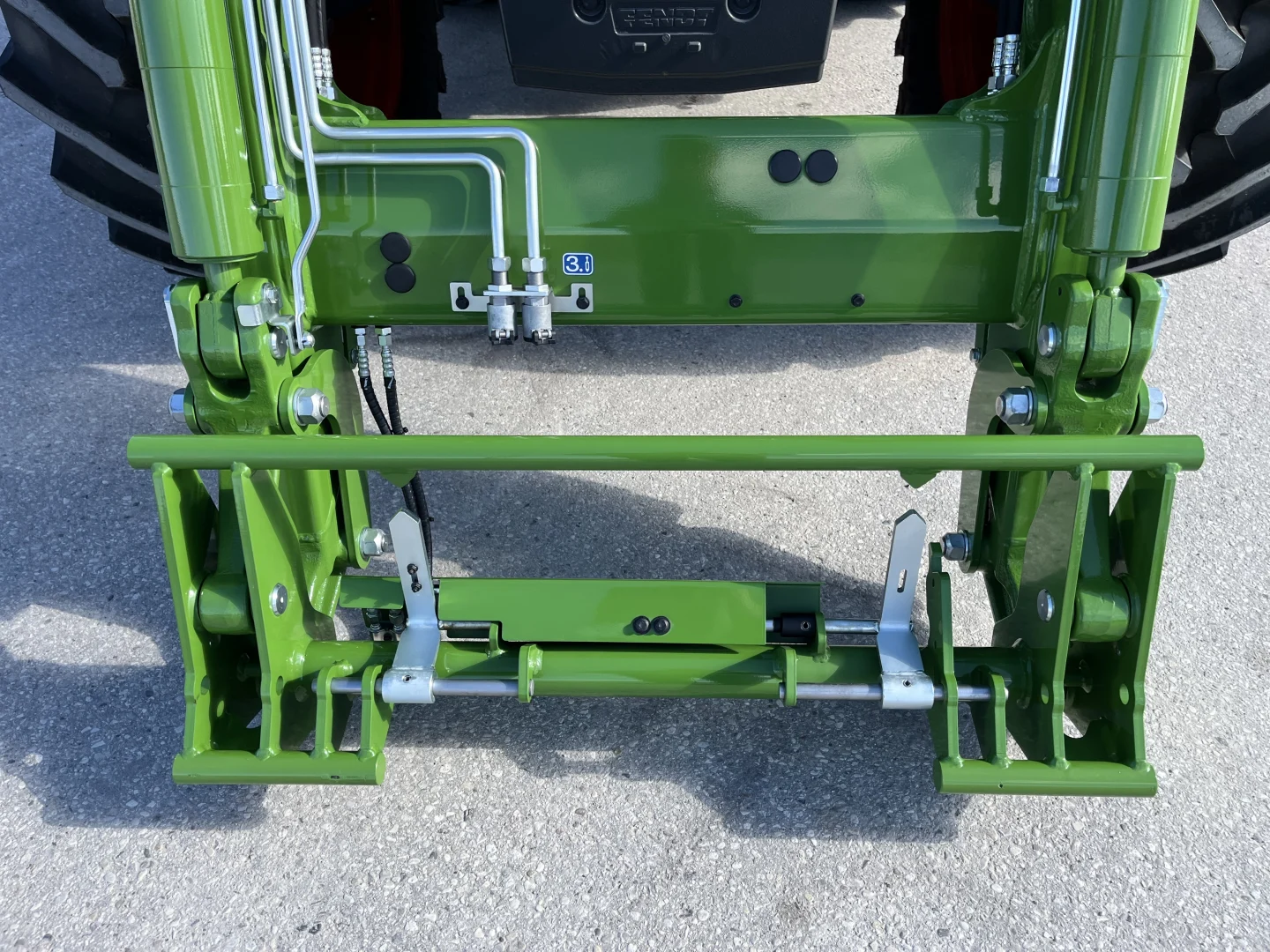

| Tool Carrier | Euro Quick Attach | |
