MLT Series Telehandlers

Models | Resources | Gallery
Manitou

Models

MLT 420

4,400lbs x 14'-3" reach

  • Lift Capacity
    |
    4,400 lbs
  • Lift Height
    |
    14'-3"
  • Max Reach
    |
    8'-7"
  • Engine HP
    |
    57
  • Turning Radius
    |
    10'-0"
  • Length
    |
    11'-11"
  • Width
    |
    4'-10"
  • Height
    |
    6'-7"
  • Weight
    |
    9,237 lbs
  • Frame Leveling
    |
    N/A

MLT 625

5,500lbs x 19'-3" reach

  • Lift Capacity
    |
    5,500 lbs
  • Lift Height
    |
    19'-3"
  • Max Reach
    |
    11'-1"
  • Engine HP
    |
    74.3
  • Turning Radius
    |
    10'-10"
  • Length
    |
    12'-9"
  • Width
    |
    5'-11"
  • Height
    |
    6'-4"
  • Weight
    |
    10,850 lbs
  • Frame Leveling
    |
    N/A

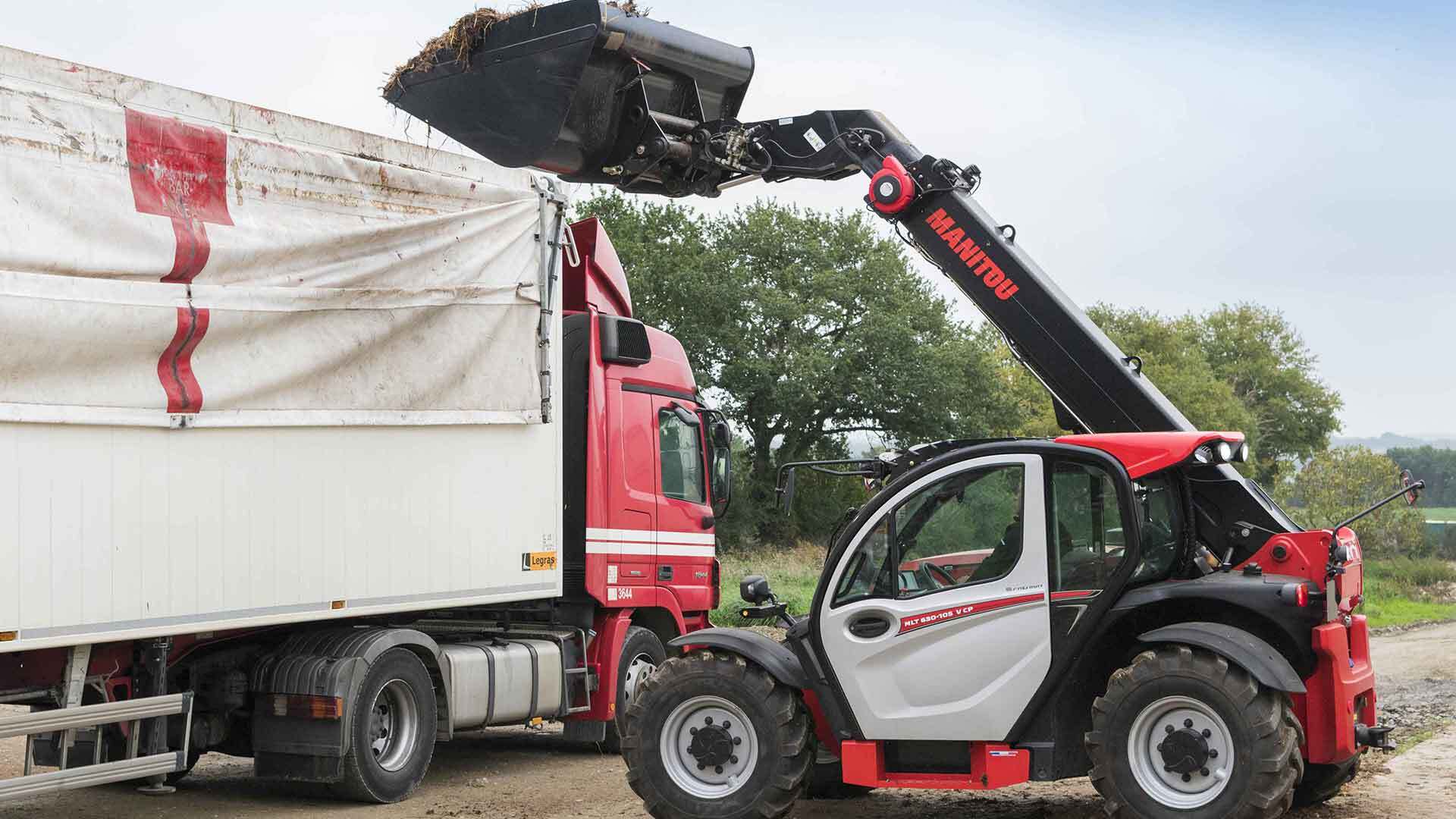

MLT 630 NewAG

6,600lbs x 19'-3" reach

  • Lift Capacity
    |
    6,600 lbs
  • Lift Height
    |
    19'-3"
  • Max Reach
    |
    10'-11"
  • Engine HP
    |
    101
  • Turning Radius
    |
    12'-1"
  • Length
    |
    15'-8"
  • Width
    |
    6'-11"
  • Height
    |
    7'-9"
  • Weight
    |
    14,903 lbs
  • Frame Leveling
    |
    N/A

MLT 733 NewAG

7,200lbs x 22'-7" reach

  • Lift Capacity
    |
    7,200 lbs
  • Lift Height
    |
    22'-7"
  • Max Reach
    |
    12'-9"
  • Engine HP
    |
    101
  • Turning Radius
    |
    12'-10"
  • Length
    |
    15'-8"
  • Width
    |
    7'-10"
  • Height
    |
    7'-9"
  • Weight
    |
    15,465 lbs
  • Frame Leveling
    |
    N/A

MLT 737 NewAG

8,100lbs x 22'-7" reach

  • Lift Capacity
    |
    8,100 lbs
  • Lift Height
    |
    22'-7"
  • Max Reach
    |
    12'-9"
  • Engine HP
    |
    101
  • Turning Radius
    |
    12'-10"
  • Length
    |
    16'-3"
  • Width
    |
    7'-10"
  • Height
    |
    7'-9"
  • Weight
    |
    16,976 lbs
  • Frame Leveling
    |
    N/A

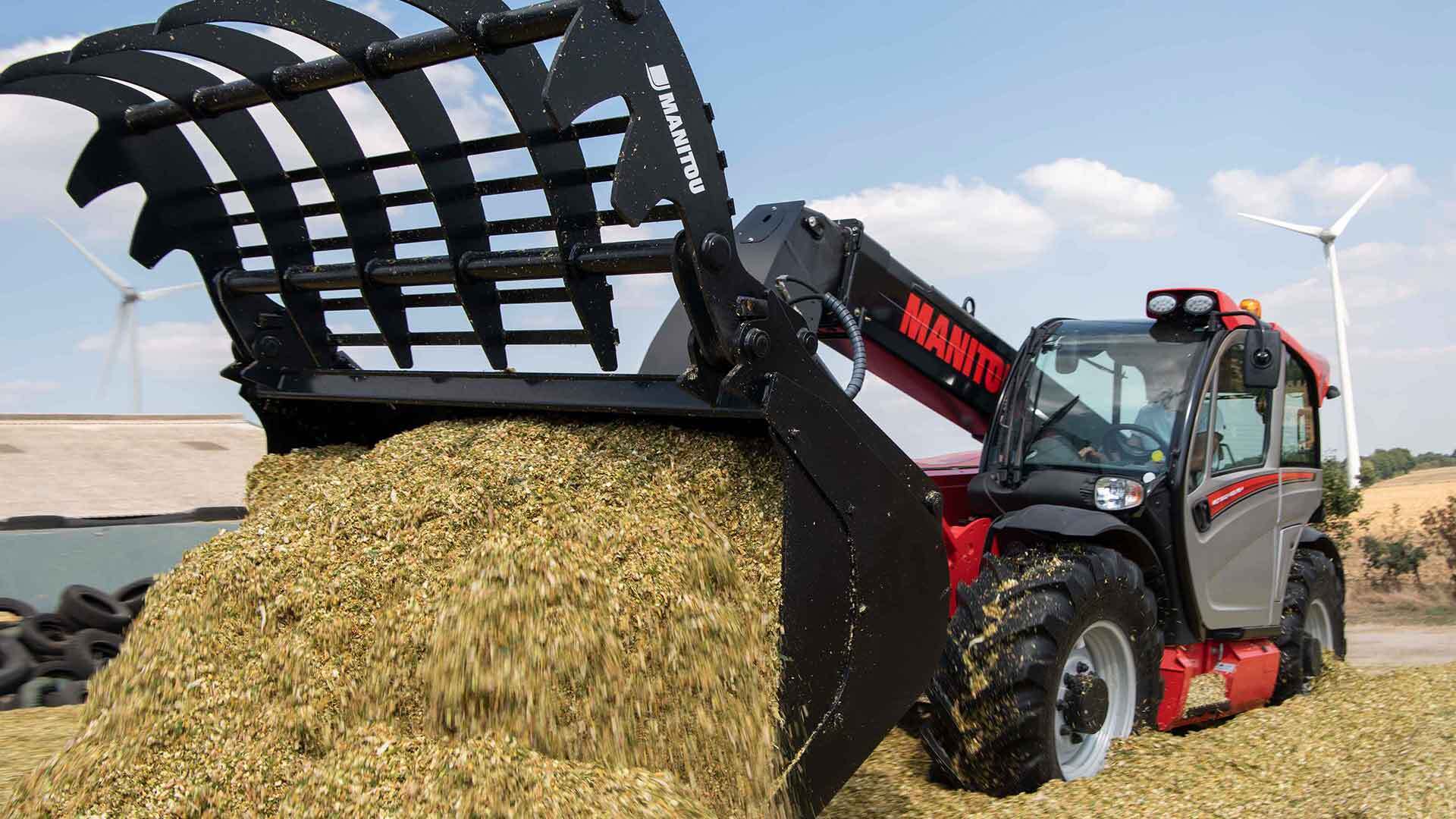

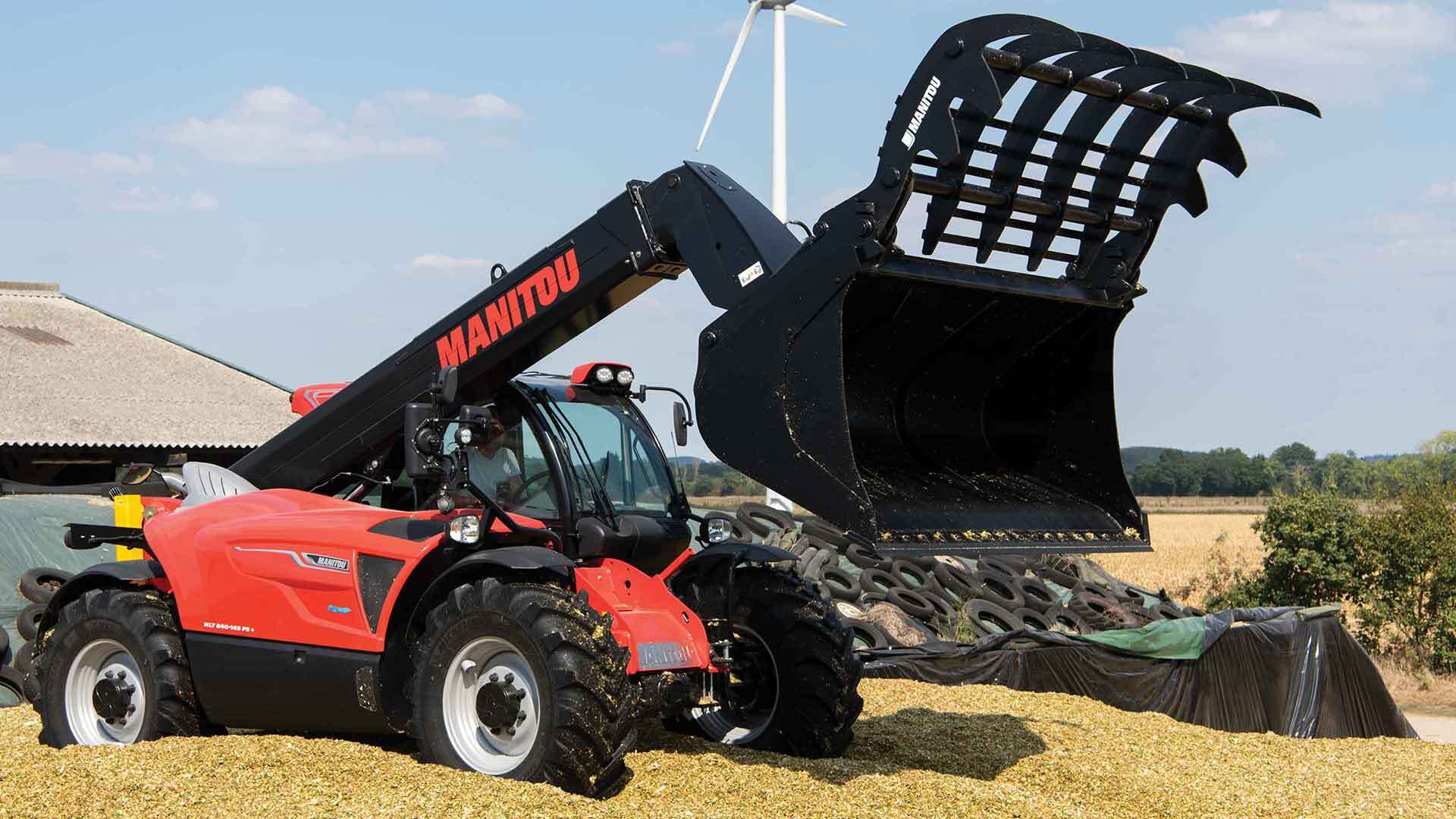

MLT 840

9,000lbs x 24'-9" reach

  • Lift Capacity
    |
    9,000 lbs
  • Lift Height
    |
    24'-9"
  • Max Reach
    |
    14'-7"
  • Engine HP
    |
    141
  • Turning Radius
    |
    12'-3"
  • Length
    |
    17'-7"
  • Width
    |
    7'-10"
  • Height
    |
    7'-10"
  • Weight
    |
    18,541 lbs
  • Frame Leveling
    |
    N/A

MLT 961

13,000lbs x 29'-6" reach

  • Lift Capacity
    |
    13,000 lbs
  • Lift Height
    |
    29'-6"
  • Max Reach
    |
    17'-5"
  • Engine HP
    |
    141
  • Turning Radius
    |
    14'-1"
  • Length
    |
    20'
  • Width
    |
    8'-2"
  • Height
    |
    8'-4"
  • Weight
    |
    26,015 lbs
  • Frame Leveling
    |
    ±8°

MLT 1040

8,800lbs x 31'-7" reach

  • Lift Capacity
    |
    8,800 lbs
  • Lift Height
    |
    31'-7"
  • Max Reach
    |
    21'-6"
  • Engine HP
    |
    141
  • Turning Radius
    |
    12'-3"
  • Length
    |
    17'
  • Width
    |
    7'-10"
  • Height
    |
    7'-10"
  • Weight
    |
    20,227 lbs
  • Frame Leveling
    |
    ±7°
Manitou

Resources

Specs Download
View Manitou MLT 625 Spec Sheet
Specs Download
View Manitou MLT 630 Spec Sheet
Specs Download
View Manitou MLT 733 Spec Sheet
Specs Download
View Manitou MLT 737 Spec Sheet
Specs Download
View Manitou MLT 840 Spec Sheet
Specs Download
View Manitou MLT 961 Spec Sheet
Specs Download
View Manitou MLT 1040 Spec Sheet
