Manitou MLT Series Telehandlers
The Manitou MLT Series telehandlers are excellent for agriculture. The MLT is a space and time saving piece of equipment, that can perform many functions within small spaces. You can implement them in your feeding process, material handling, transport, and so many other areas. The Manitou MLT will benefit you greatly.

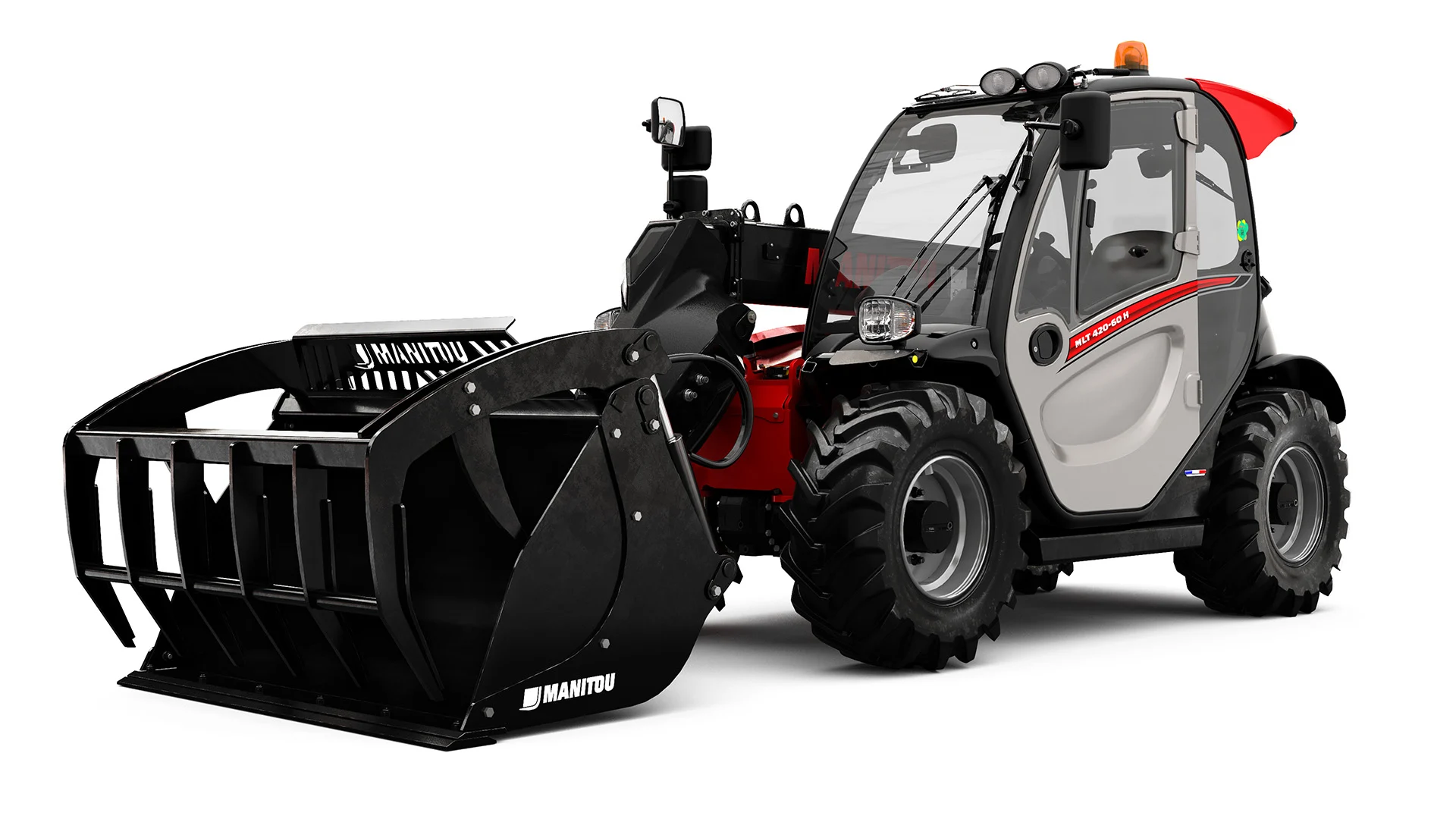

MLT 420
4,400lbs x 14′-3″ reach
- Lift Capacity | 4,400 lbs
- Lift Height | 14′-3″
- Max Reach | 8′-7″
- Engine HP | 57
- Turning Radius | 10′-0″
- Length | 11′-11″
- Width | 4′-10″
- Height | 6′-7″
- Weight | 9,237 lbs

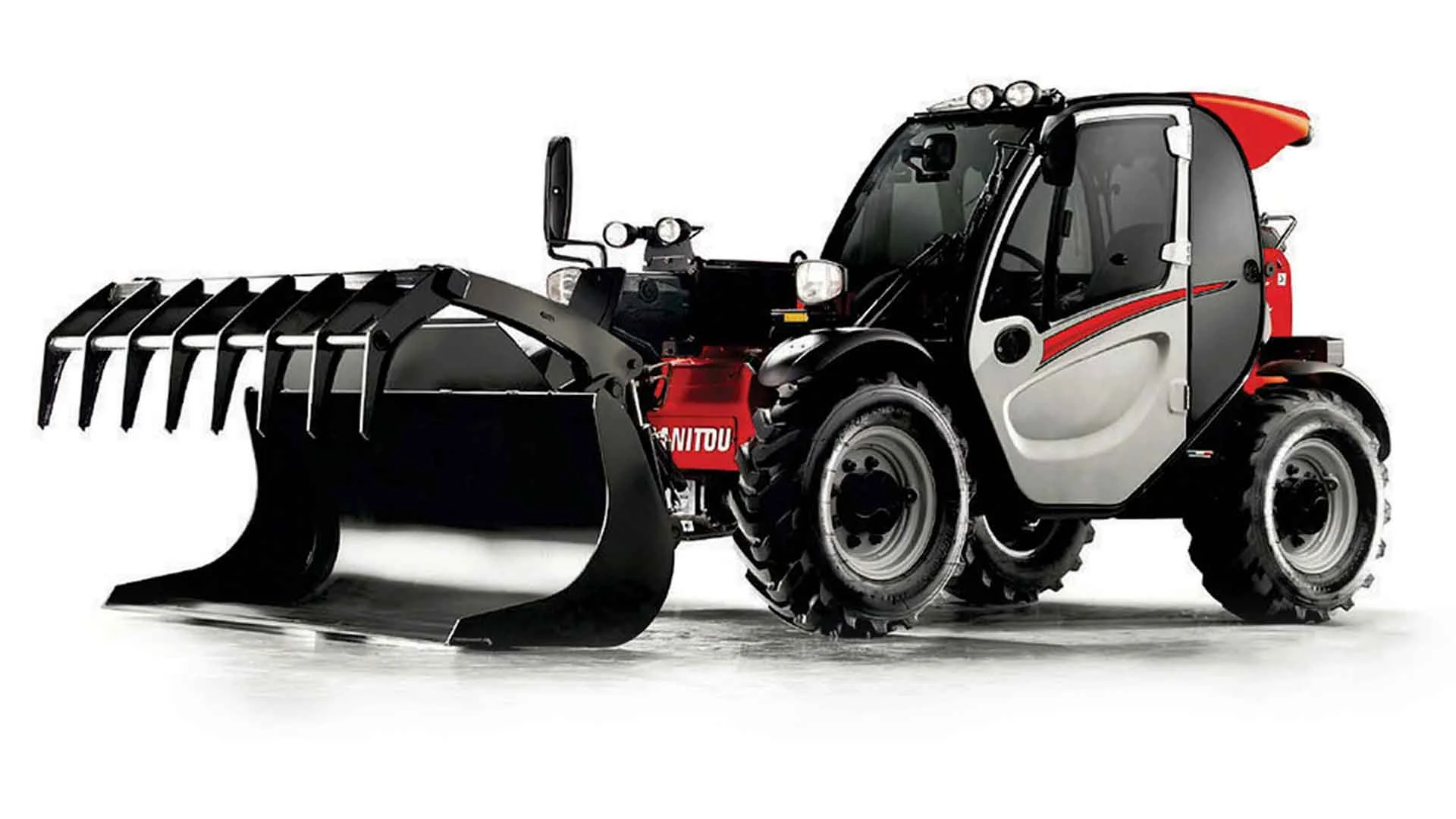

MLT 625
5,500lbs x 19′-3″ reach
- Lift Capacity | 5,500 lbs
- Lift Height | 19′-3″
- Max Reach | 11′-1″
- Engine HP | 74.3
- Turning Radius | 10′-10″
- Length | 12′-9″
- Width | 5′-11″
- Height | 6′-4″
- Weight | 10,850 lbs

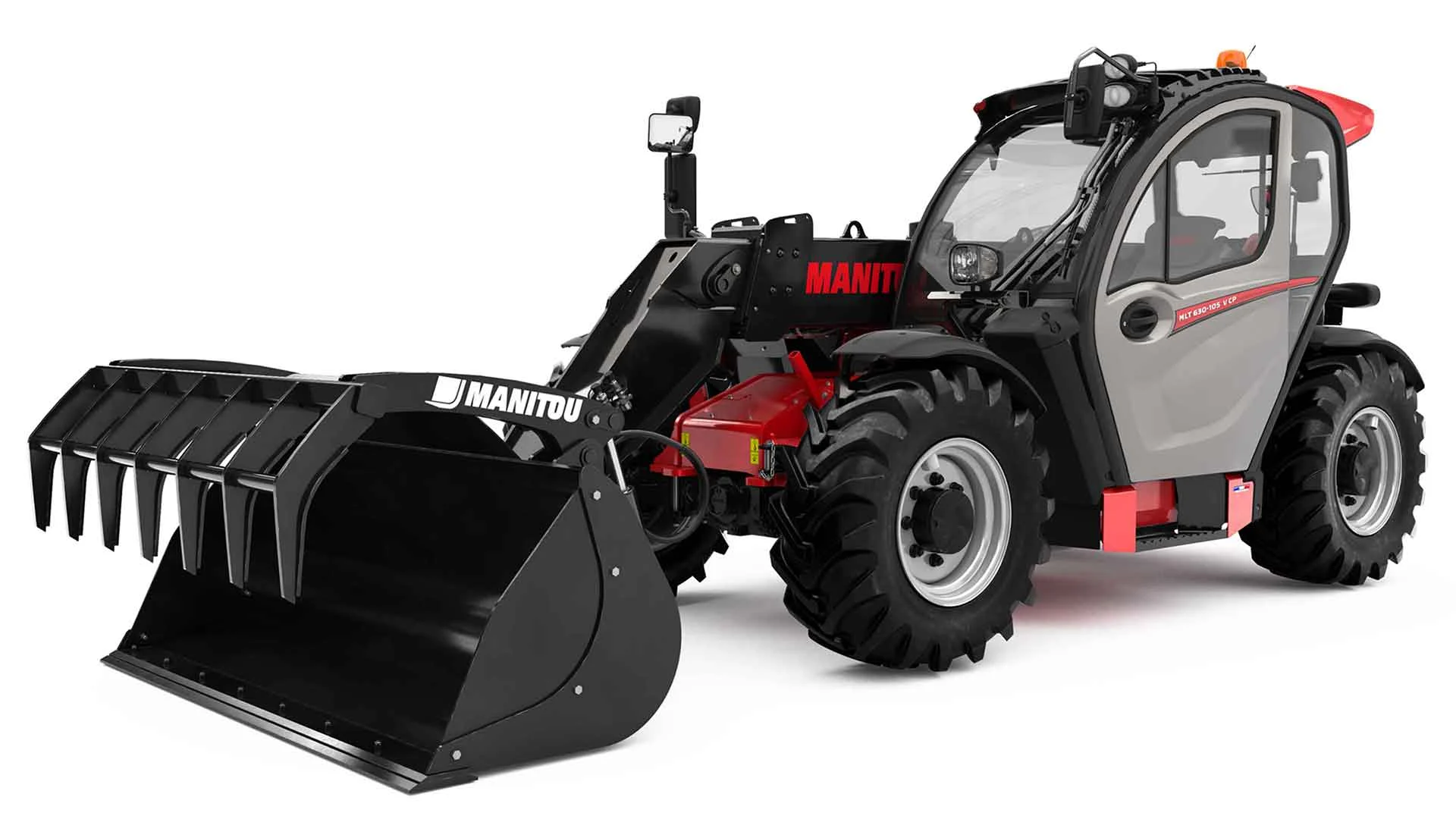

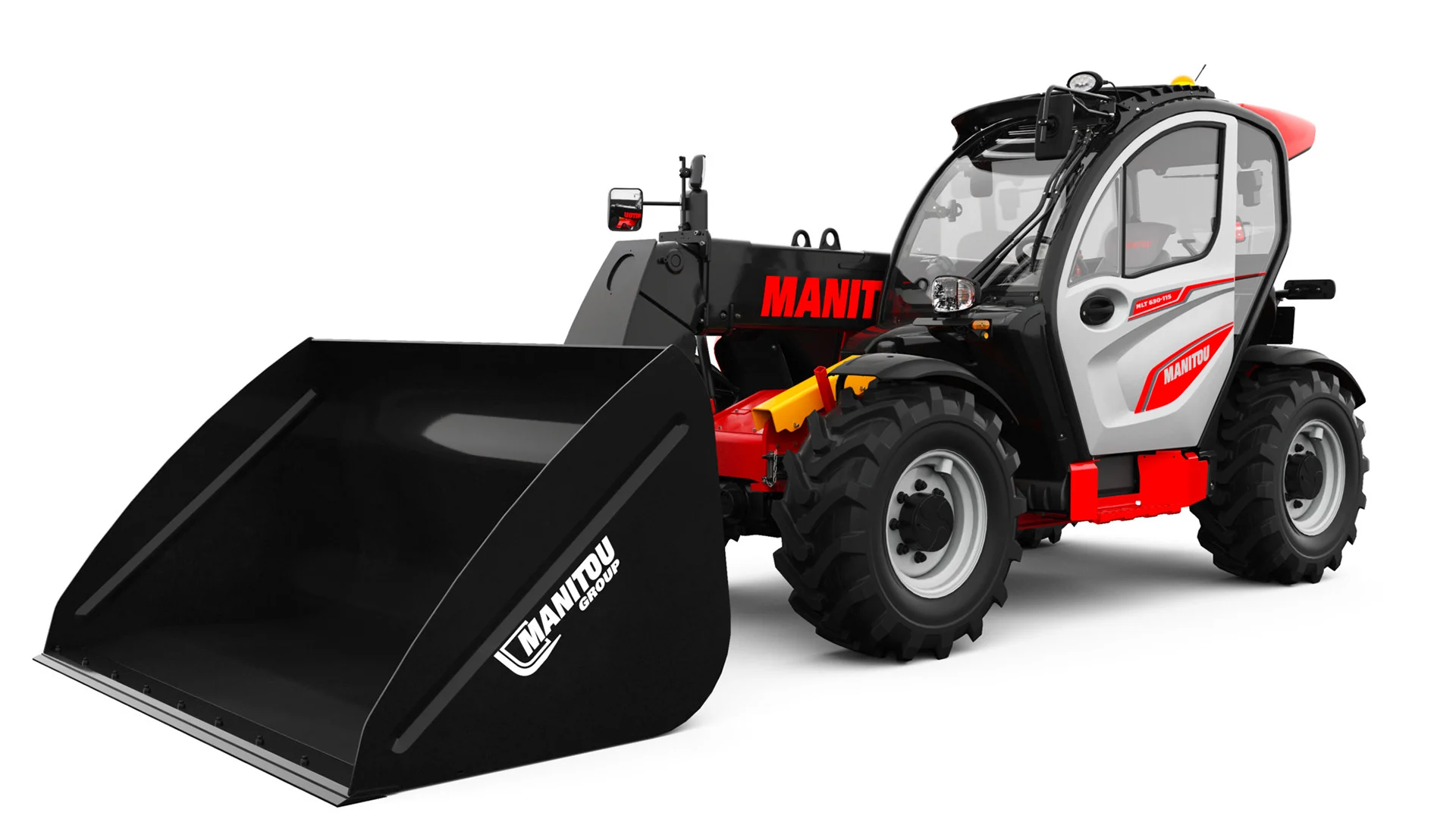

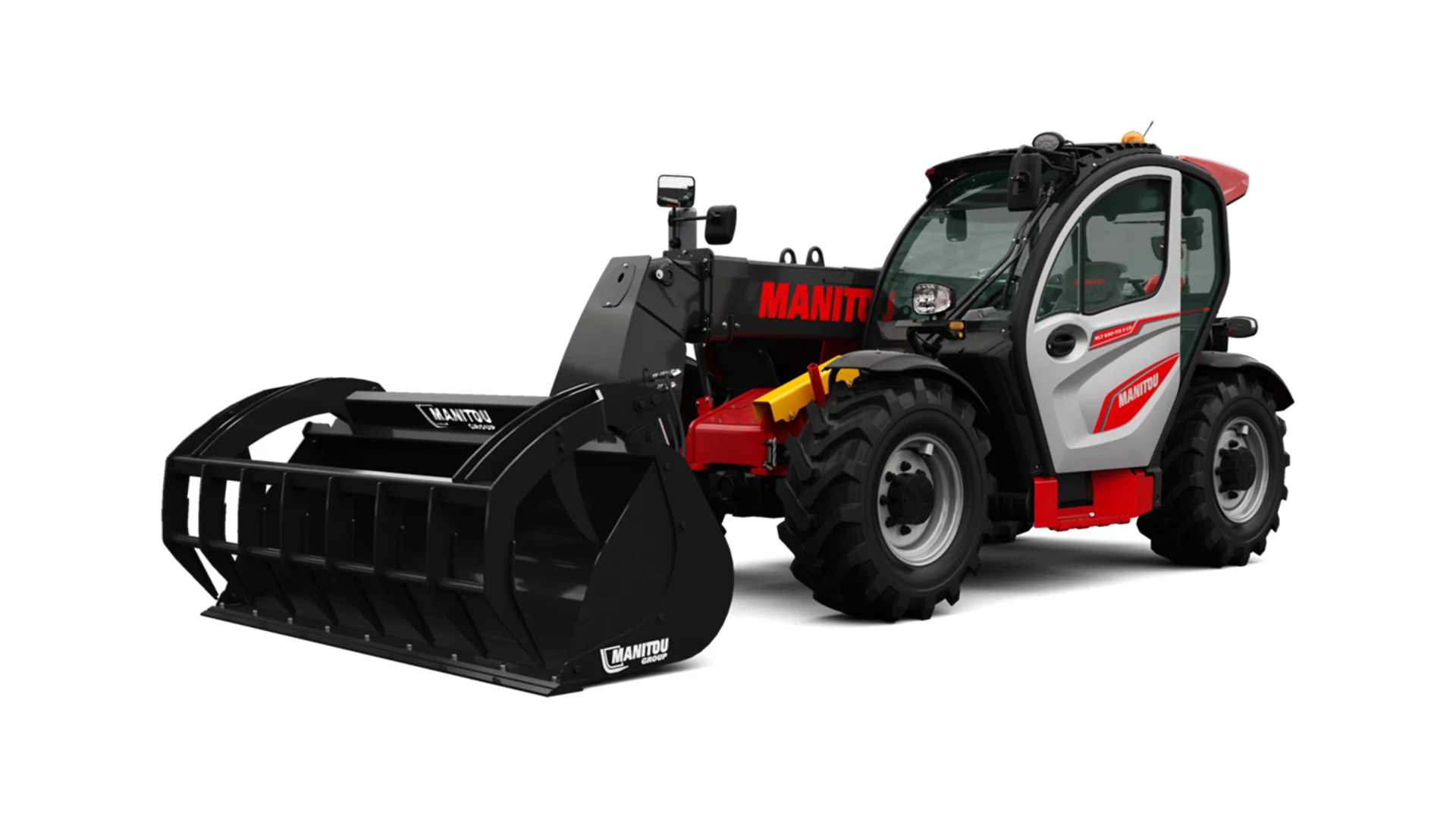

MLT 630 NewAG
6,600lbs x 19′-3″ reach
- Lift Capacity | 6,600 lbs
- Lift Height | 19′-3″
- Max Reach | 10′-11″
- Engine HP | 101
- Turning Radius | 12′-1″
- Length | 15′-8″
- Width | 6′-11″
- Height | 7′-9″
- Weight | 14,903 lbs

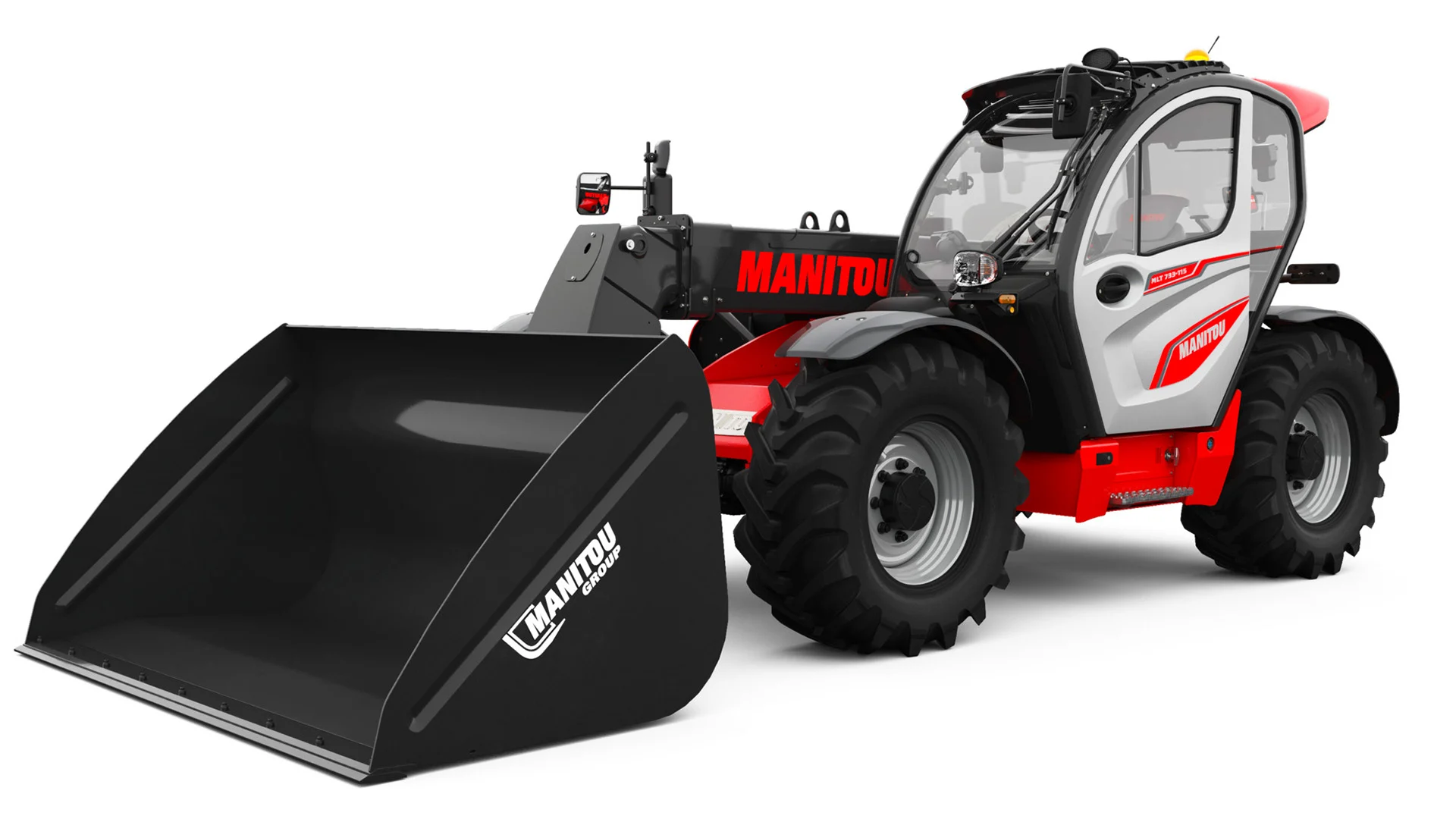

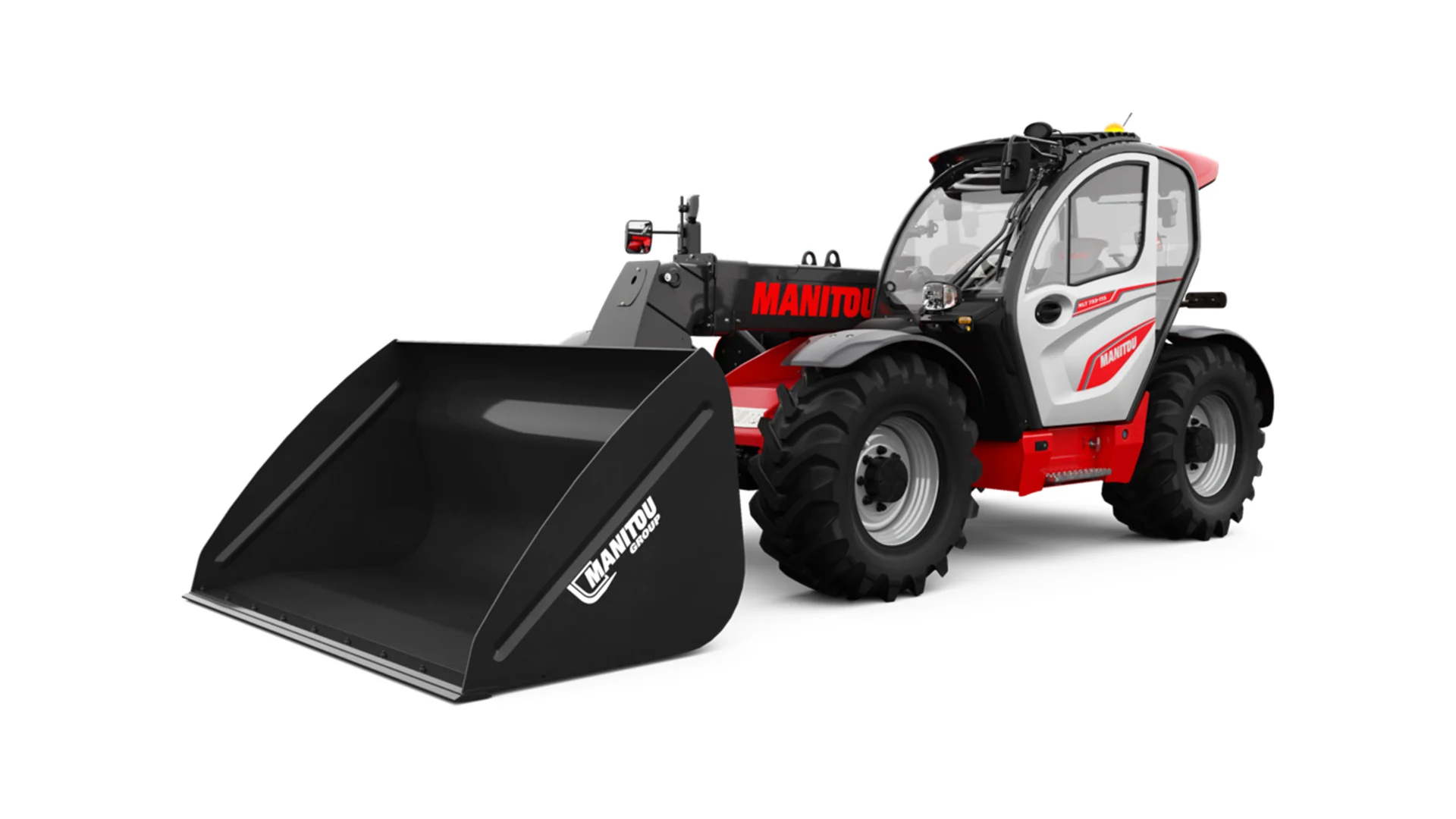

MLT 733 NewAG
7,200lbs x 22′-7″ reach
- Lift Capacity | 7,200 lbs
- Lift Height | 22′-7″
- Max Reach | 12′-9″
- Engine HP | 101
- Turning Radius | 12′-10″
- Length | 15′-8″
- Width | 7′-10″
- Height | 7′-9″
- Weight | 15,465 lbs

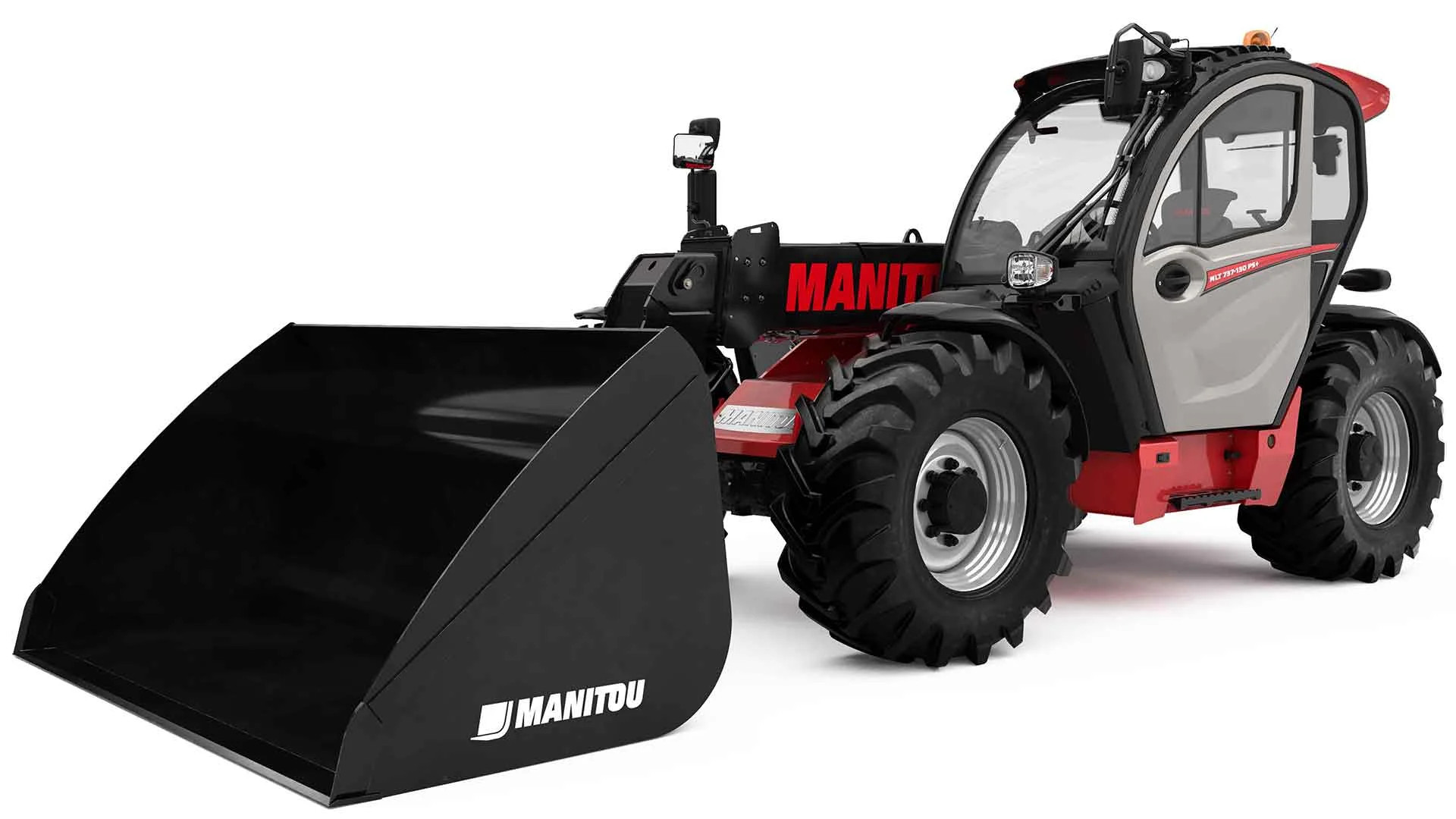

MLT 737 NewAG
8,100lbs x 22′-7″ reach
- Lift Capacity | 8,100 lbs
- Lift Height | 22′-7″
- Max Reach | 12′-9″
- Engine HP | 101
- Turning Radius | 12′-10″
- Length | 16′-3″
- Width | 7′-10″
- Height | 7′-9″
- Weight | 16,976 lbs
MLT 840
9,000lbs x 24′-9″ reach
- Lift Capacity | 9,000 lbs
- Lift Height | 24′-9″
- Max Reach | 14′-7″
- Engine HP | 141
- Turning Radius | 12′-3″
- Length | 17′-7″
- Width | 7′-10″
- Height | 7′-10″
- Weight | 18,541 lbs

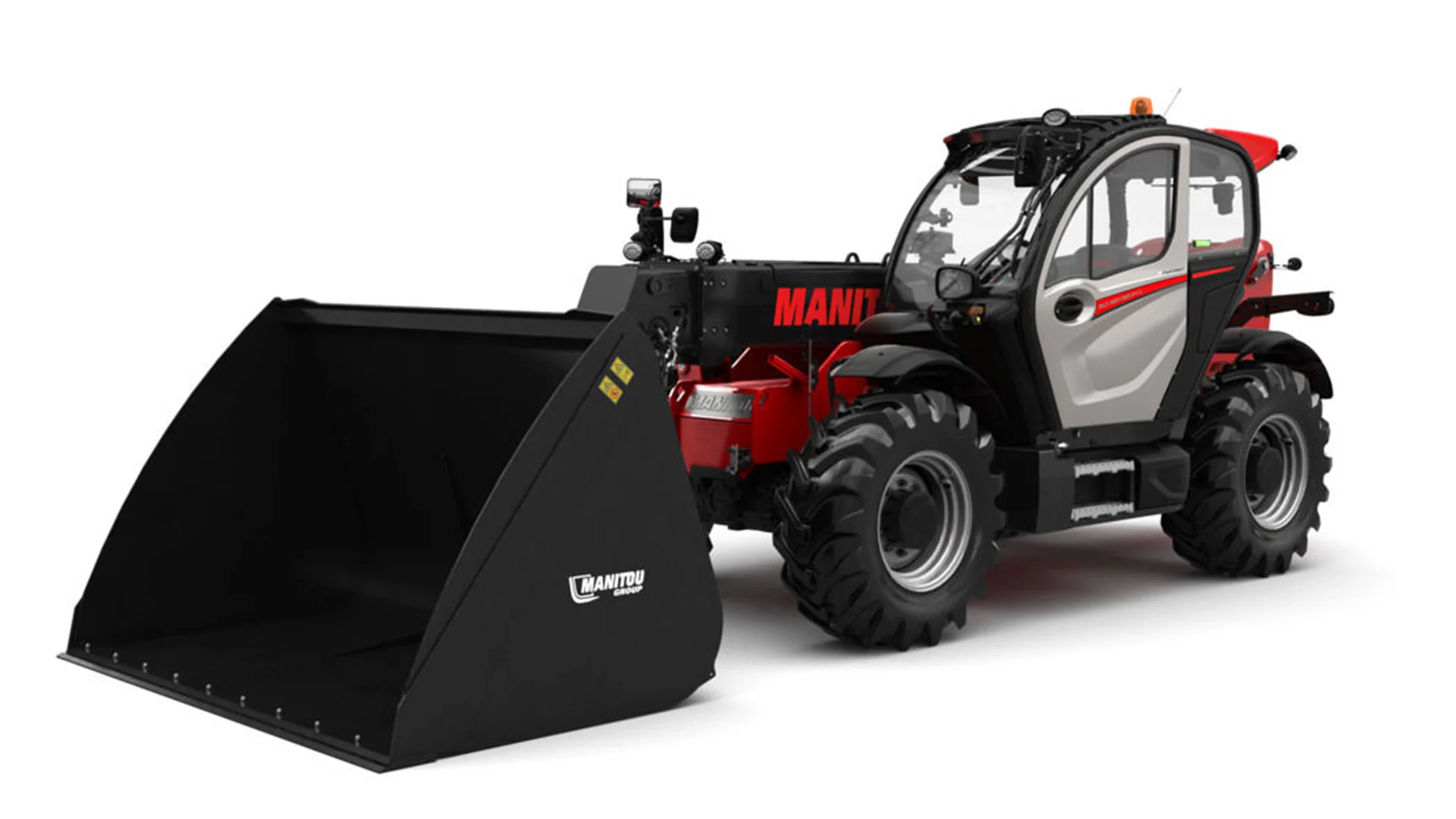

MLT 961
13,000lbs x 29′-6″ reach
- Lift Capacity | 13,000 lbs
- Lift Height | 29′-6″
- Max Reach | 17′-5″
- Engine HP | 141
- Turning Radius | 14′-1″
- Length | 20′
- Width | 8′-2″
- Height | 8′-4″
- Weight | 26,015 lbs
- Frame Leveling | ±8°

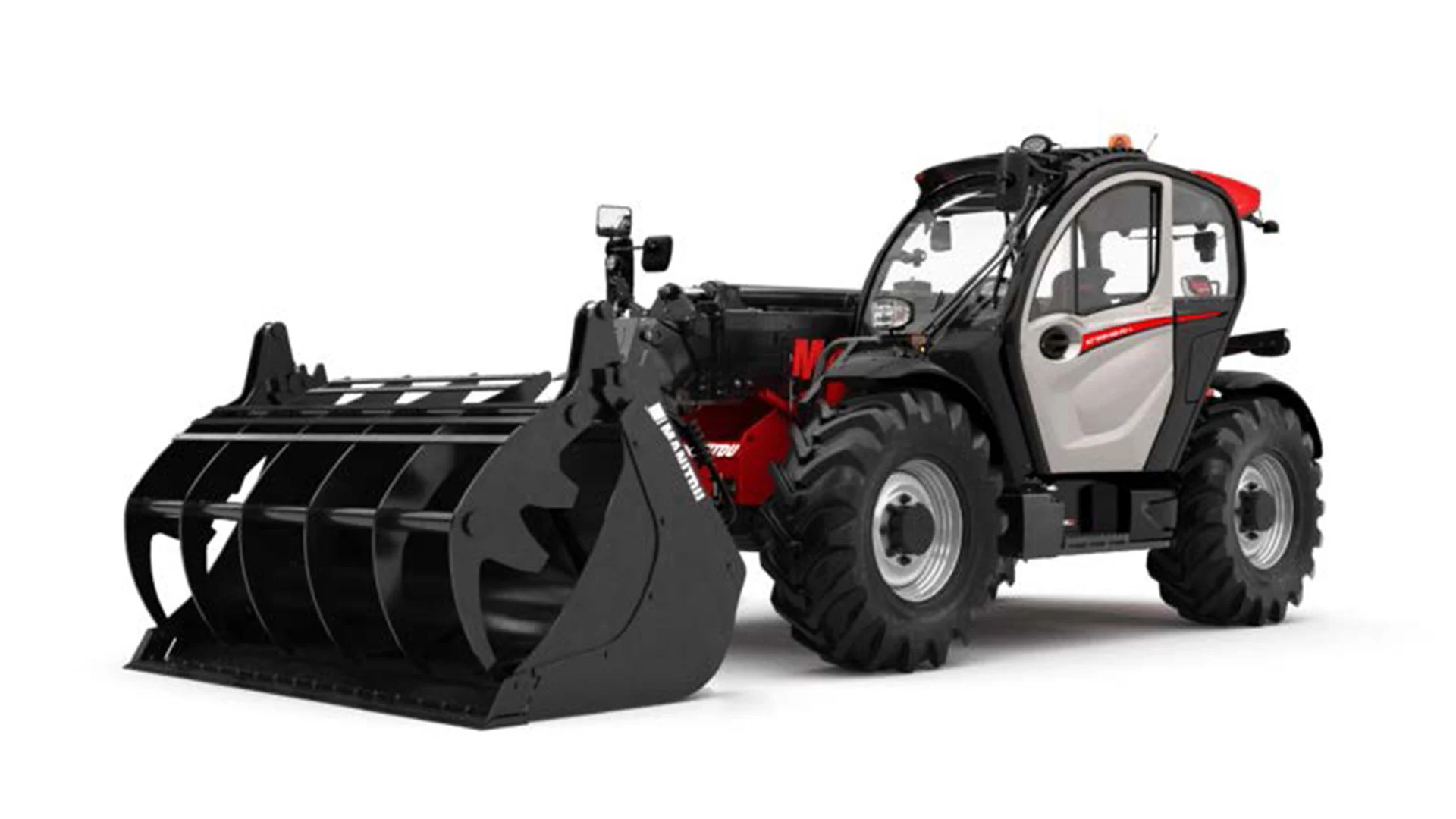

MLT 1040
8,800lbs x 31′-7″ reach
- Lift Capacity | 8,800 lbs
- Lift Height | 31′-7″
- Max Reach | 21′-6″
- Engine HP | 141
- Turning Radius | 12′-3″
- Length | 17′
- Width | 7′-10″
- Height | 7′-10″
- Weight | 20,227 lbs
- Frame Leveling | ±7°
