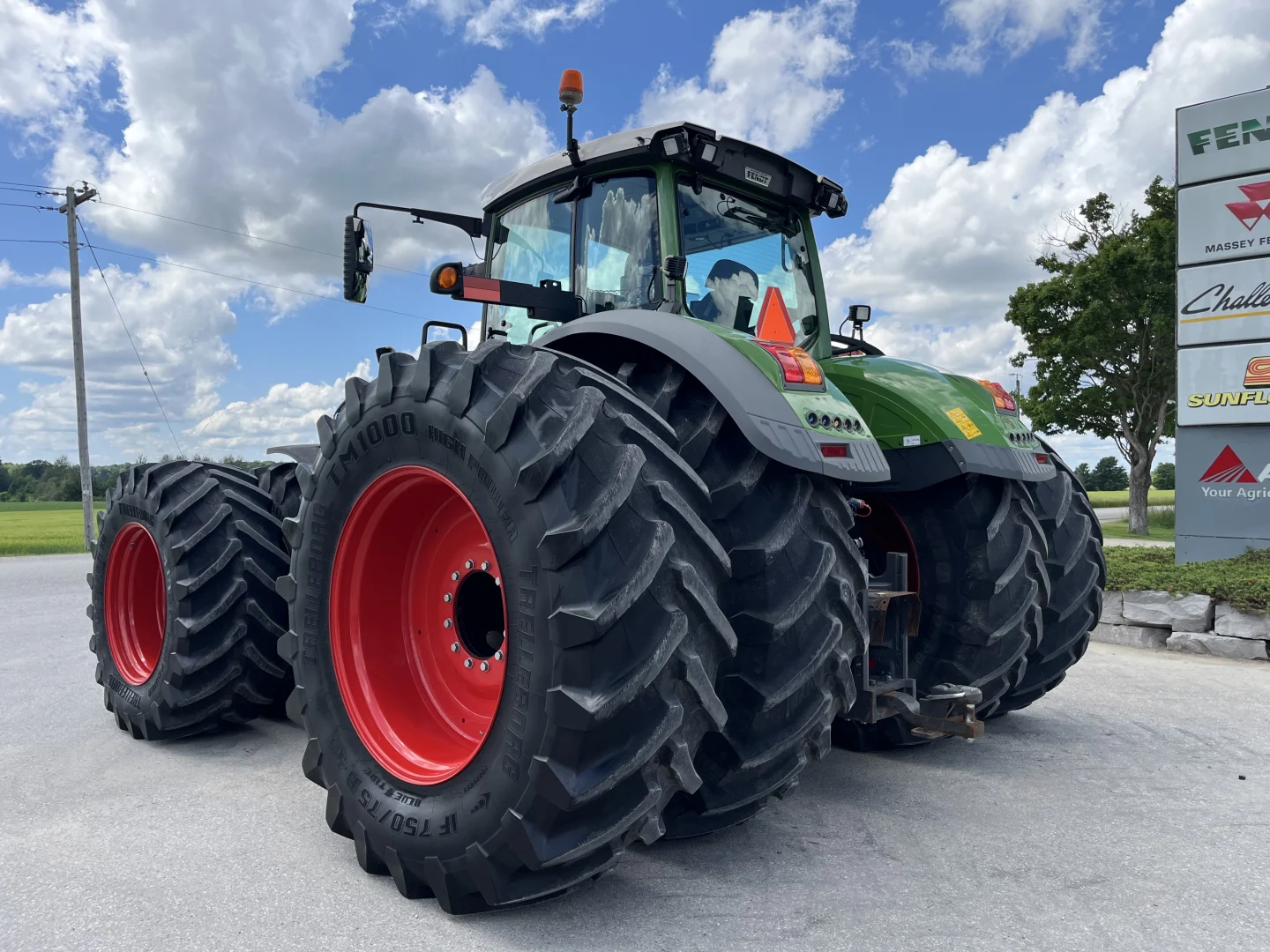

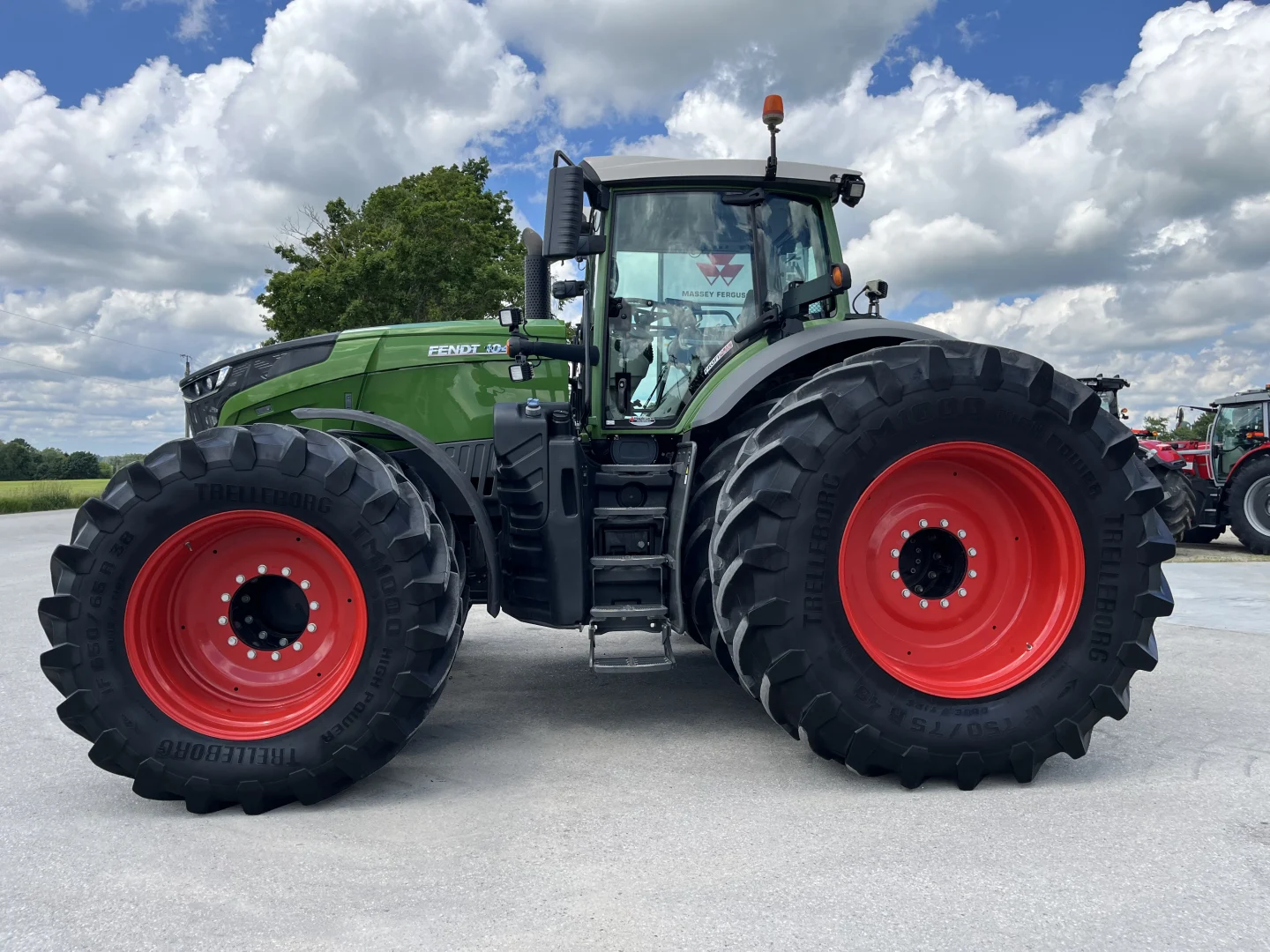

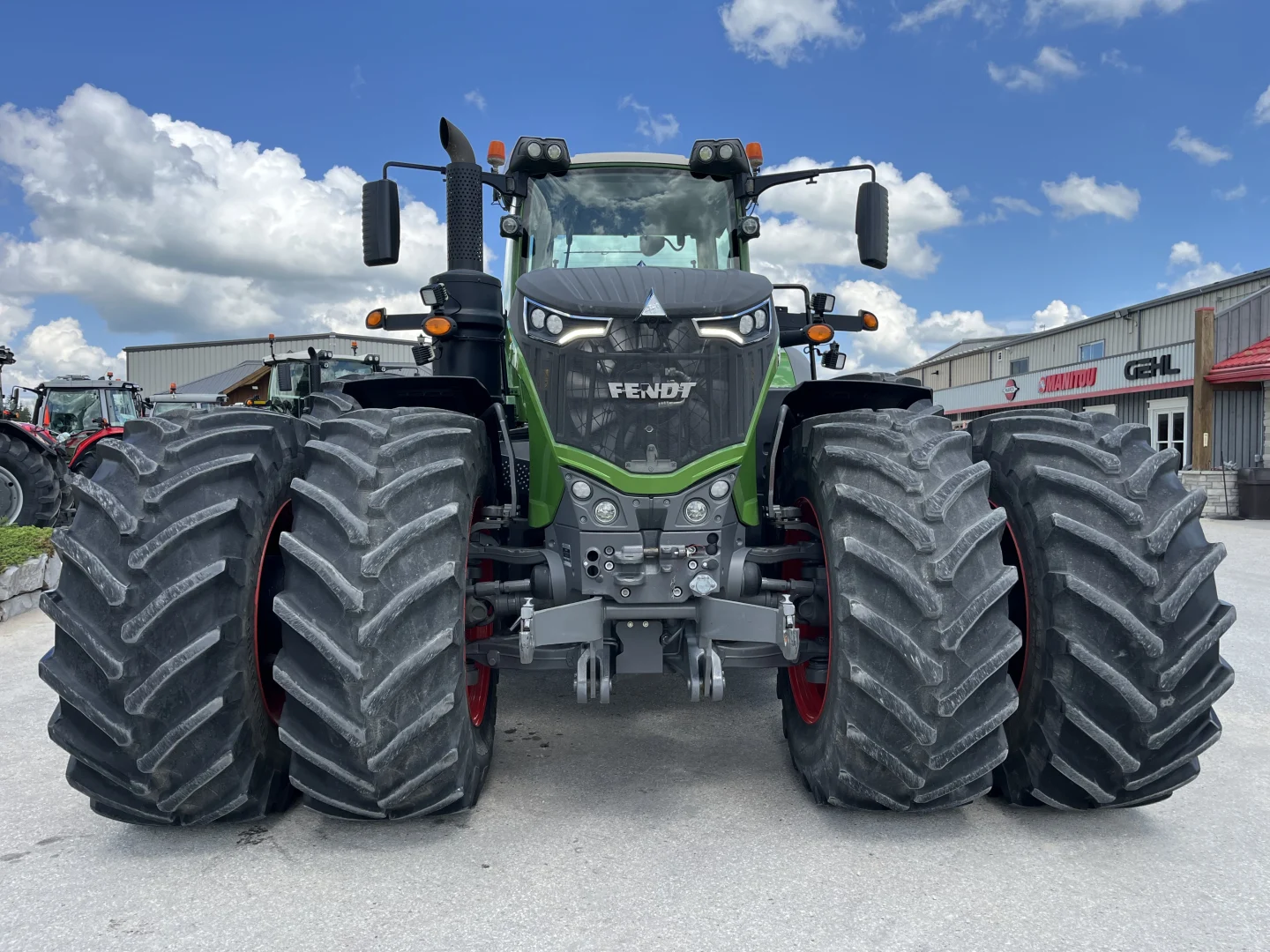

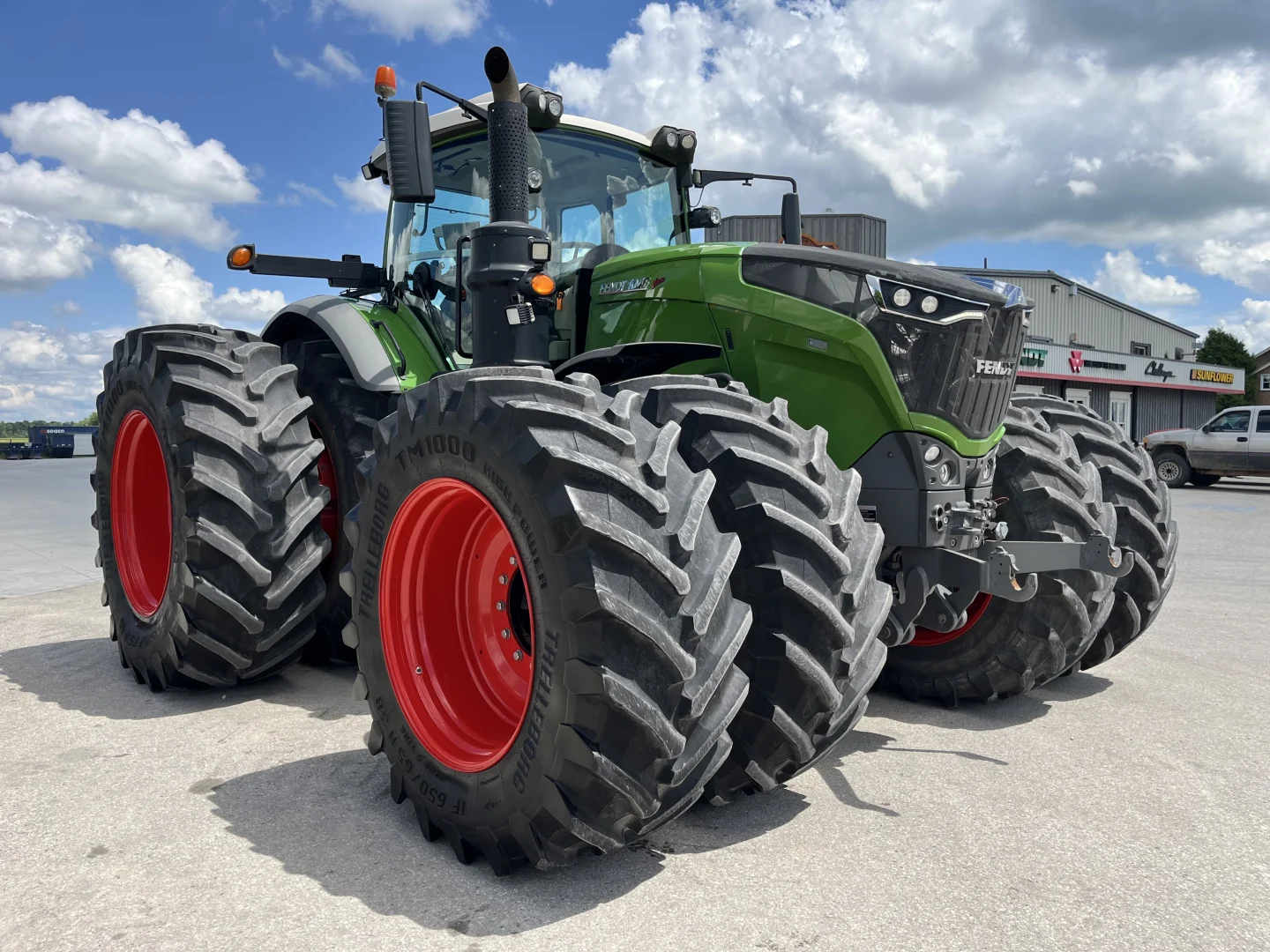

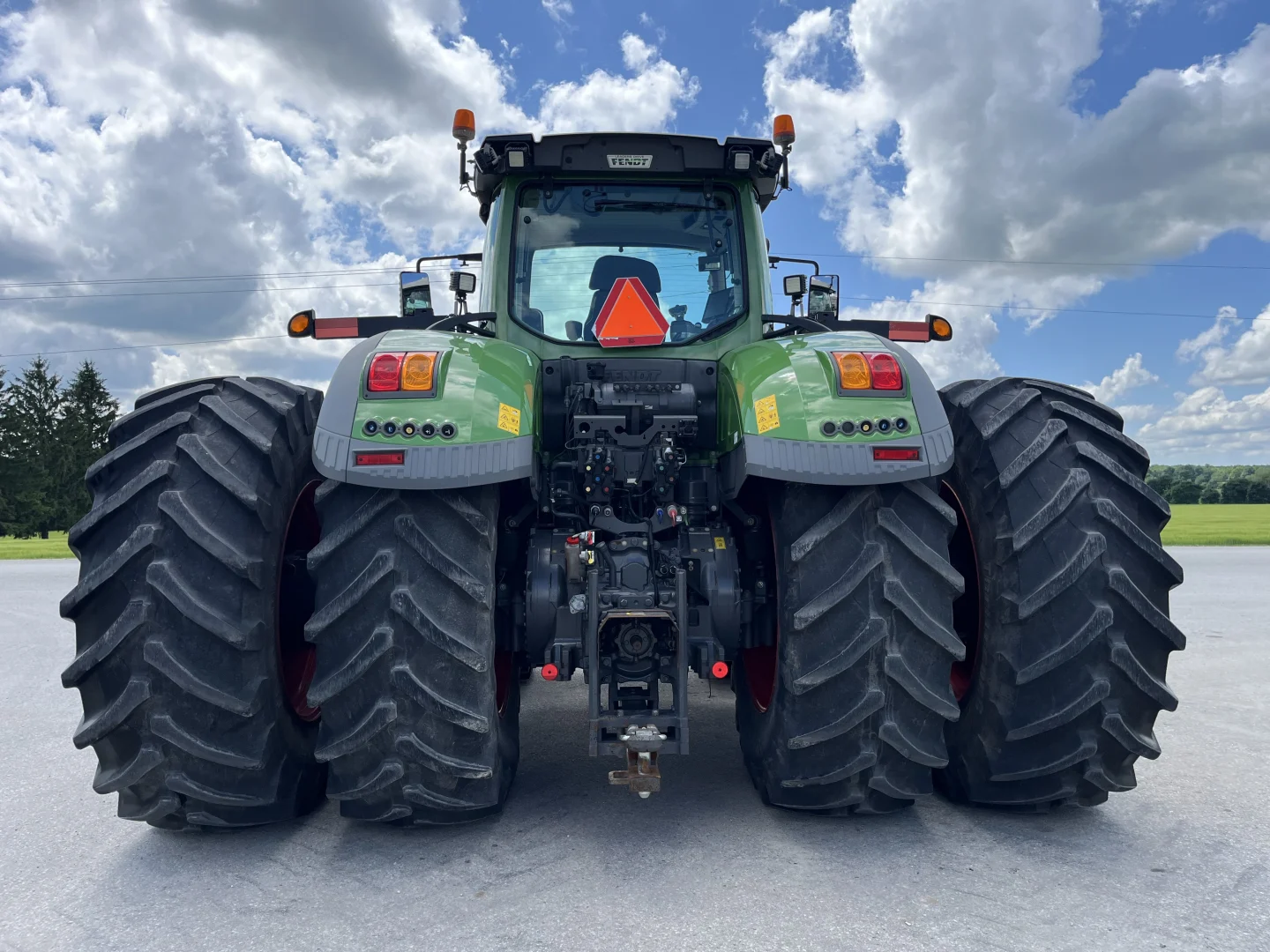

23327J | Used 2017 Fendt 1046 S4
| Description | |
|---|---|

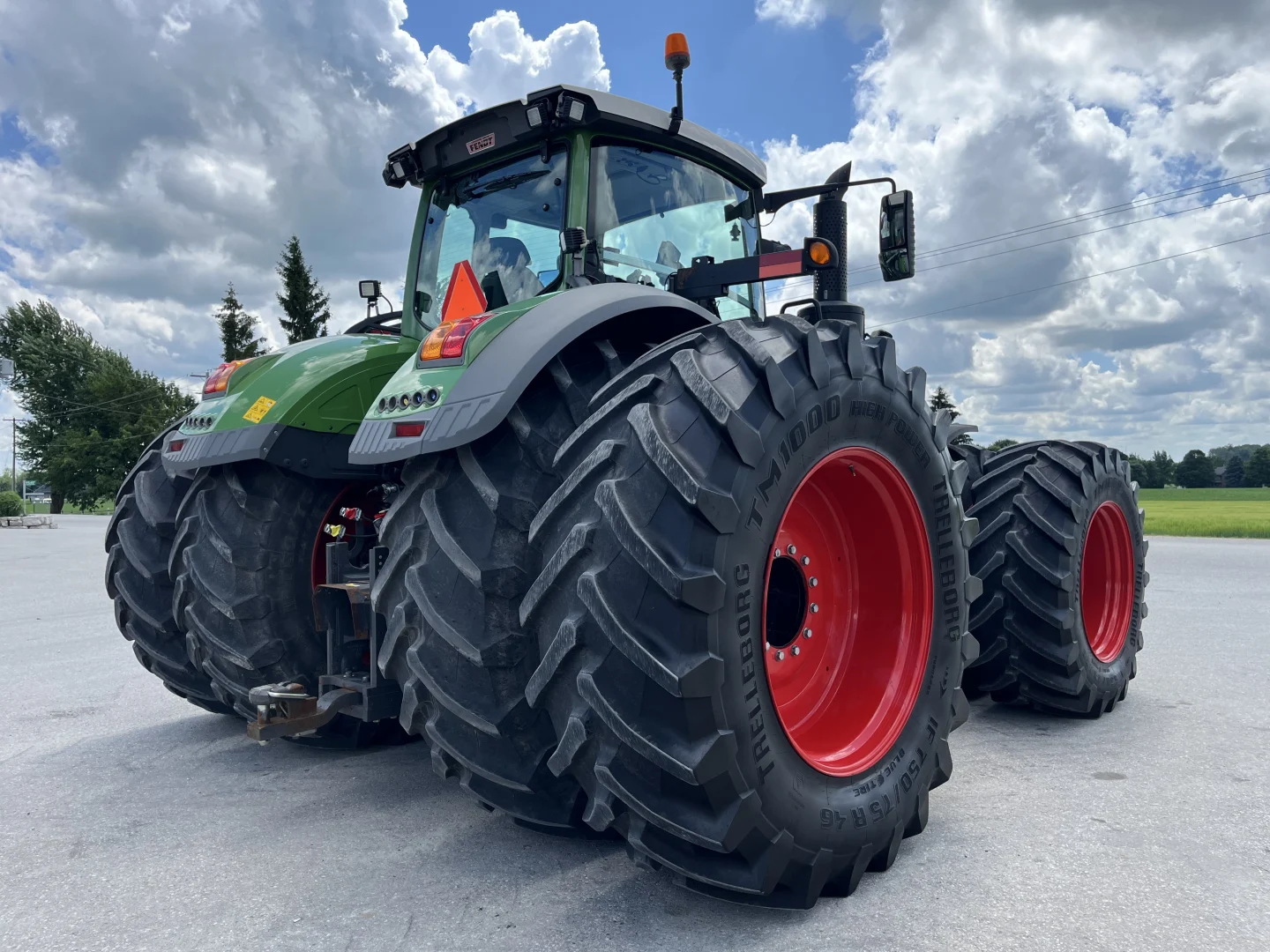

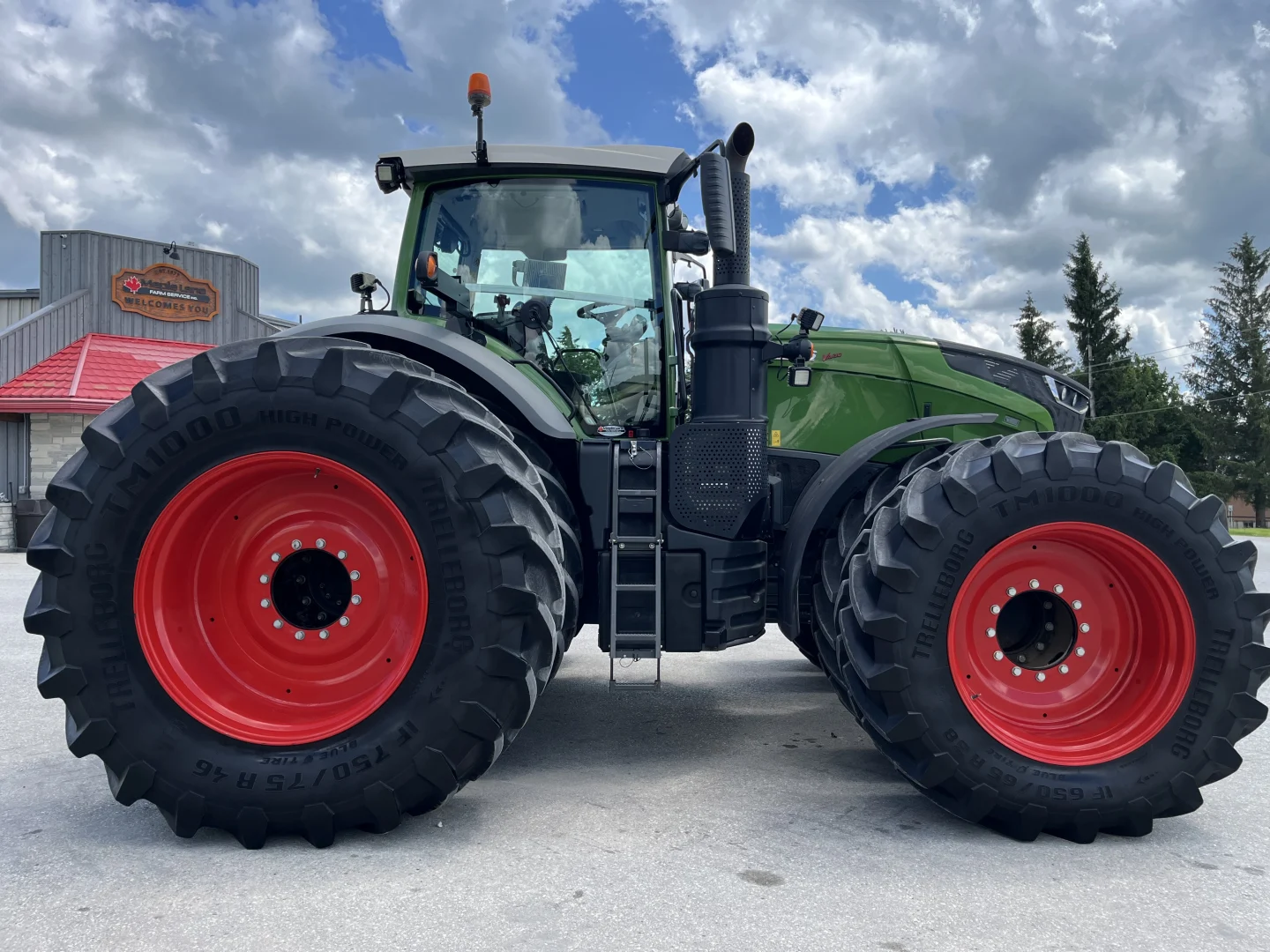

| Profi Plus, Fendt Guide complete- WAAS, 50 km/h Vario transmission, suspended front axle, 58 GPM pump, 5 rear valves, IF750/75R46 rear duals, IF650/65R38 front duals, hydraulic and air trailer brakes, exhaust brake, Leather Evolution seat, full LED lighting package, powered and heated mirrors, air cab suspension. | |
| Unit Number | 23327J |
| Condition | Used |

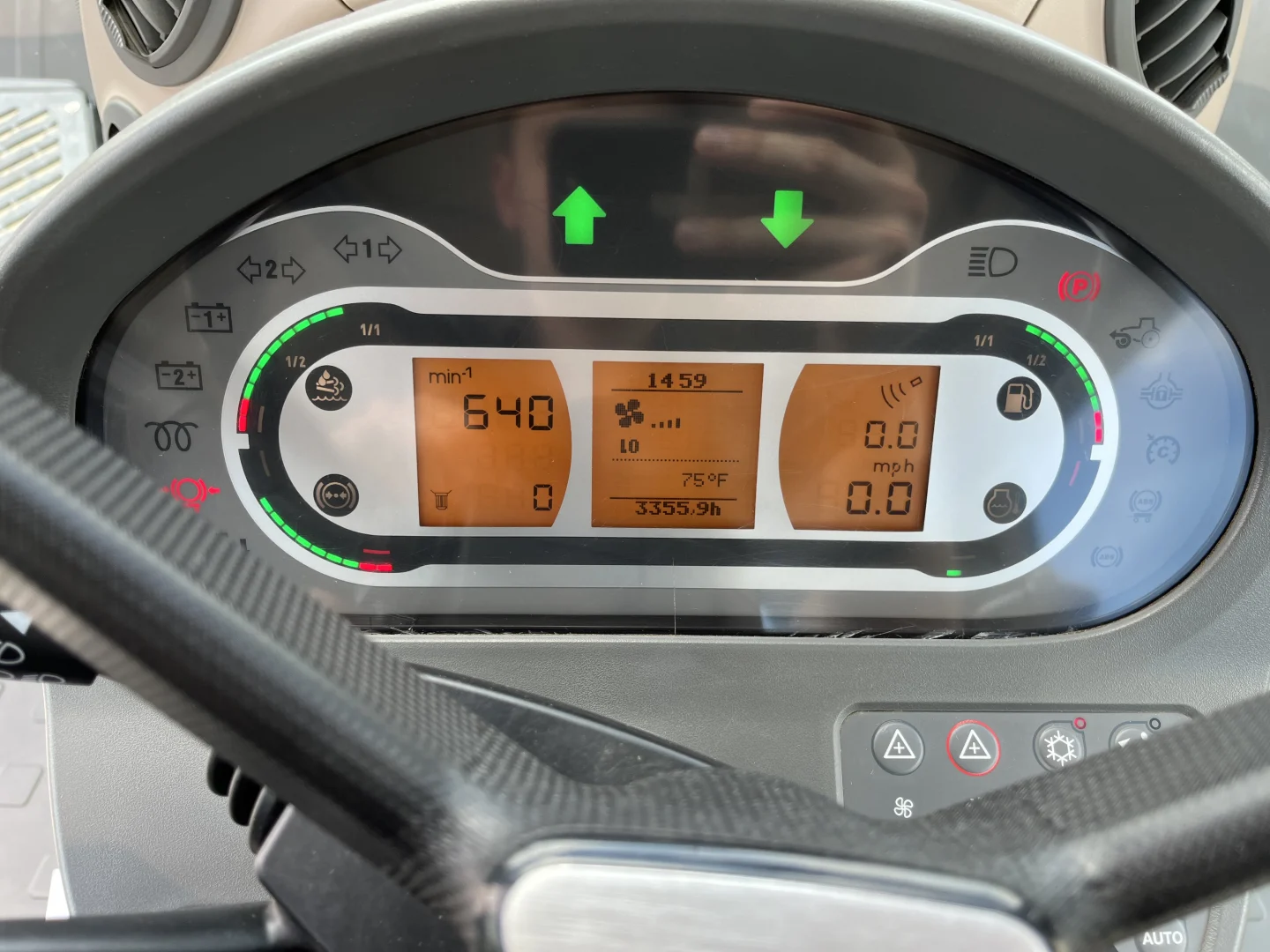

| Hours Used | 3300 hours |
| Year | 2017 |
| Cost | $458,900.00 CAD |
Specifications
| Engine | ||
|---|---|---|
| Engine Power | 354kW (476hp) 476hp 354kW | |
| PTO Power | 343kW (460hp) 460hp 343kW | |
| Rated Engine Speed | 1700r/min | |
| Make | MAN D2676 LE121 | |
| Displacement | 757.9cu. in. (12.4L) 12.4L 757.9cu. in. | |
| Number of Cylinders | 6 | |
| Fuel Type | Diesel | |
| Fuel Injection | Direct Injection | |
| Cooling | Liquid Cooled | |
| Fuel Tank Capacity | 211gal. (800.0L) 800.0L 211gal. | |
| DEF Tank Capacity | 22gal. (85.0L) 85.0L 22gal. | |
| Warming | Block Heater | |
| Fan | Reversing | |
| Transmission | ||
|---|---|---|
| Maximum Speed | 31mph (50km/h) 50km/h 31mph | |
| Name | CVT TA 400 | |
| Type | Variable | |
| Speed Control | Cruise | |
| Drive | 4WD | |
| Differential | Locking | |
| Additional Drivetrain | ||
|---|---|---|
| Brakes | Exhaust, Wet Disc | |
| Trailer Brakes | Hydraulic, Air | |
| Suspension | Front Axle | |
| Rear Axle Length | 9' 10-1/8" (3000mm) 3000mm 9' 10-1/8" | |
| Steering Mode | front wheel steer | |
| Hydraulics | ||
|---|---|---|
| Pump | FD 1000 Series Gen3 58.1 GPM | |
| Pump Type | Variable Displacement Piston | |
| Hydraulic Flow | 58.1GPM (220L/min) 220L/min 58.1GPM | |
| System Capacity | 36gal. (139.0L) 139.0L 36gal. | |
| Maximum Operating Pressure | 2900psi (20000kPa) 20000kPa 2900psi | |
| Maximum Available Hydraulic Oil | 24gal. (93.0L) 93.0L 24gal. | |
| Rear Remote Valves | 4 | |
| Steering | Hydraulic Power | |
| Hitching | ||
|---|---|---|

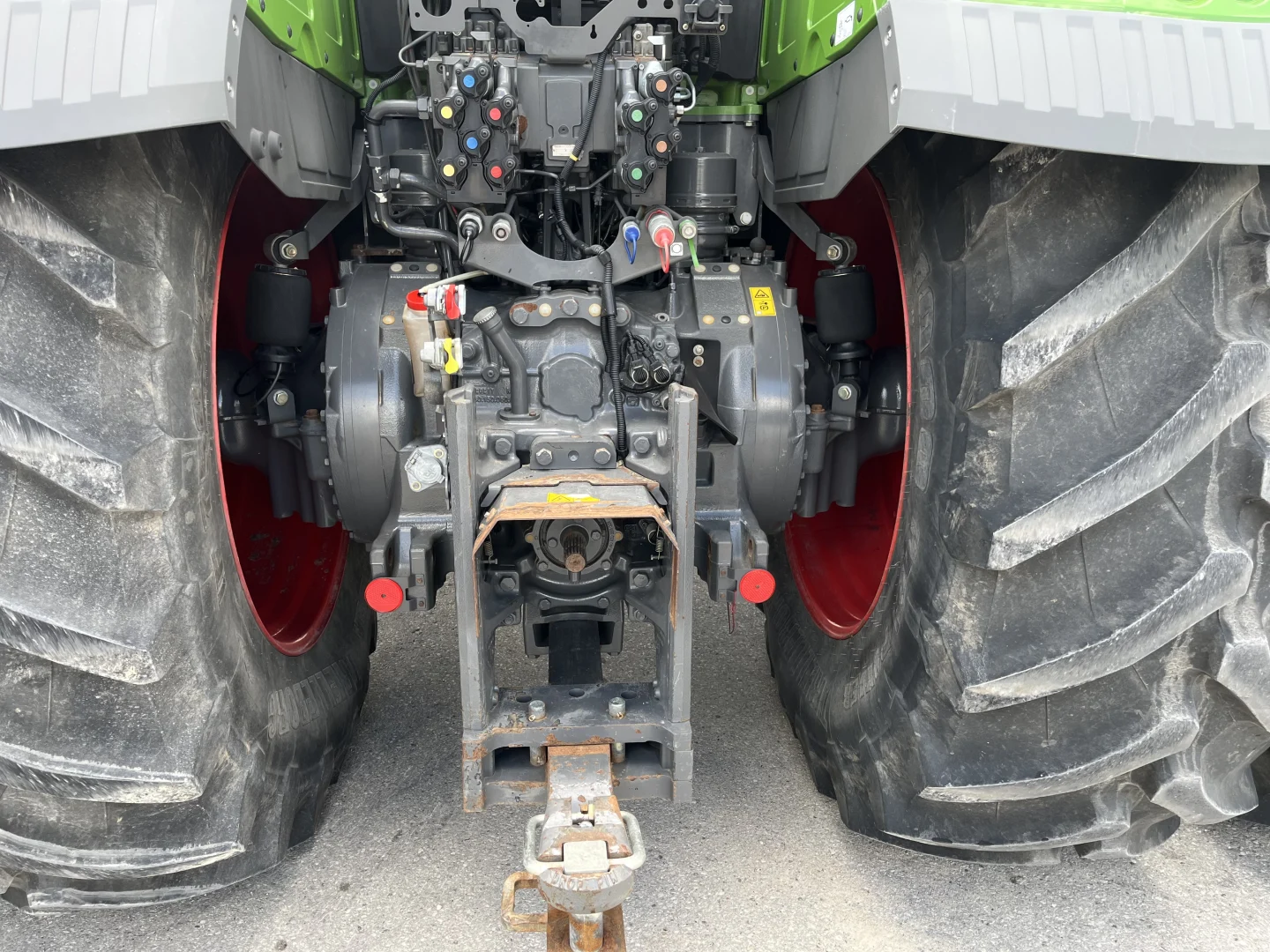

| Drawbar | Category 4 | |
| PTO | ||
|---|---|---|
| Rear | 1000E, 1000 | |
| Type | Independent | |
| Technology | ||
|---|---|---|

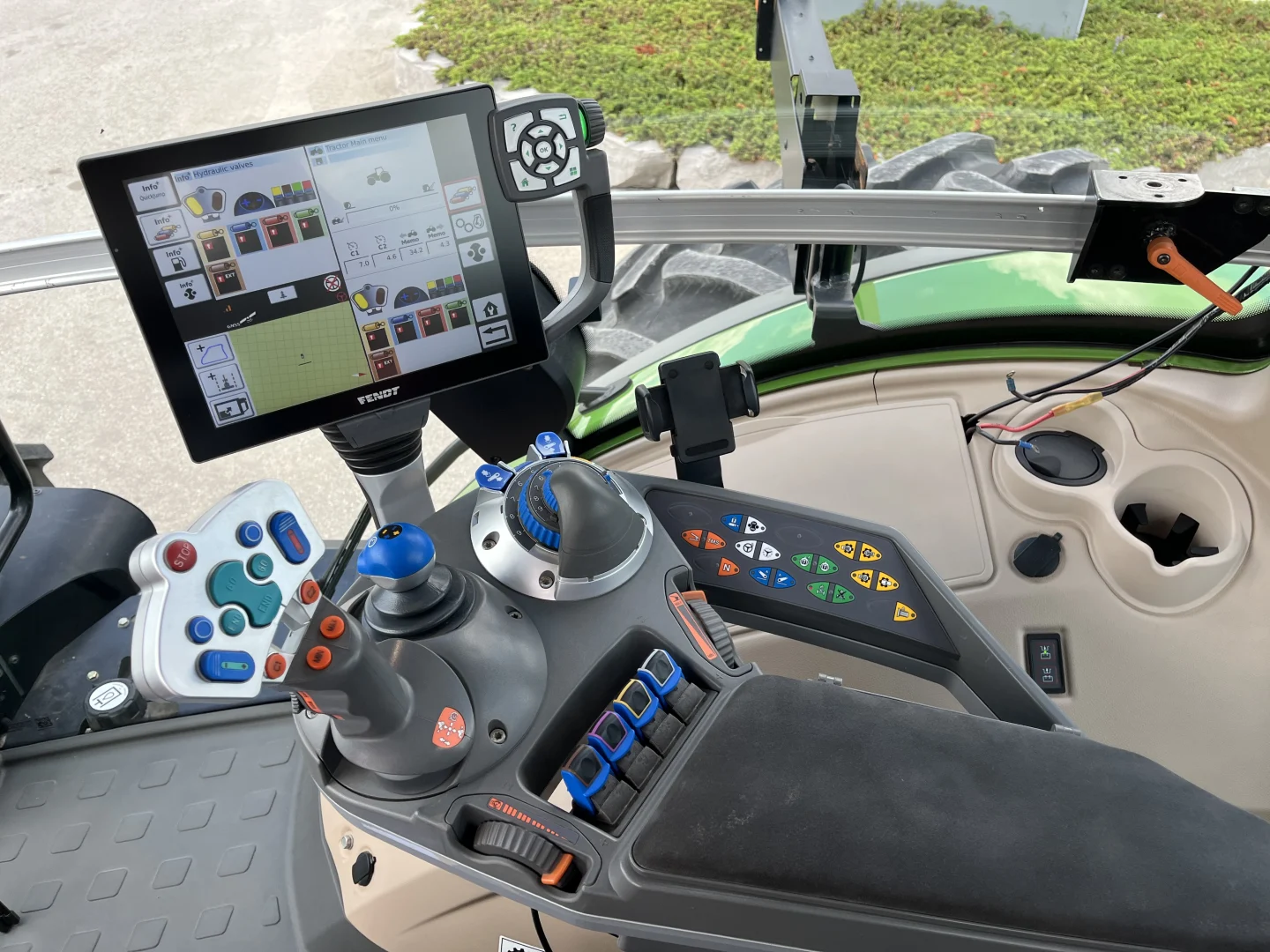

| Display | 10.4" Varioterminal | |
| Instrument Display | Digital Dash Display | |
| Integration | ISO BUS Implement Control | |
| Antenna | Trimble | |
| Guidance | Fendt Guide Standard | |
| Guidance Precision | WAAS | |
| Headland Management | Variotronic TI | |
| Auto Headland Turn | Variotronic TI Auto | |
| Data Transfer | Fendt TaskDoc Pro | |
| Section Control | SectionControl | |
| Variable Rate Control | Variable Rate Control | |
| Telemetry | 3 Year Fendt Connect Subscription | |
| Electrical | ||
|---|---|---|
| Front Lights | 20 | |
| Rear Lights | 6 | |
| Worklight Type | Halogen | |
| Rotating Beacon | Left, Right | |
| Alternator | 160A | |

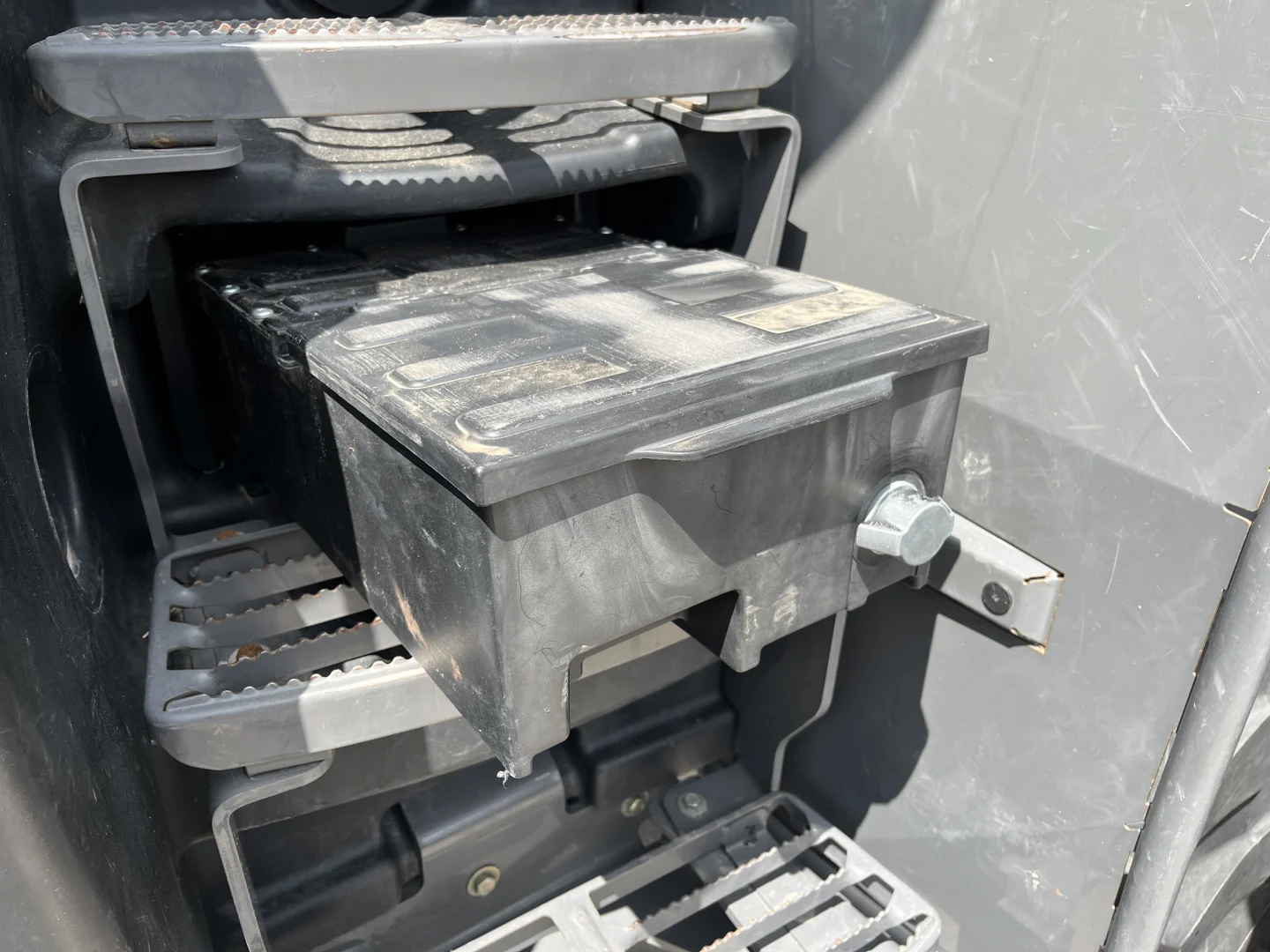

| Battery | 1475CCA | |
| Alternator Count | 2 | |

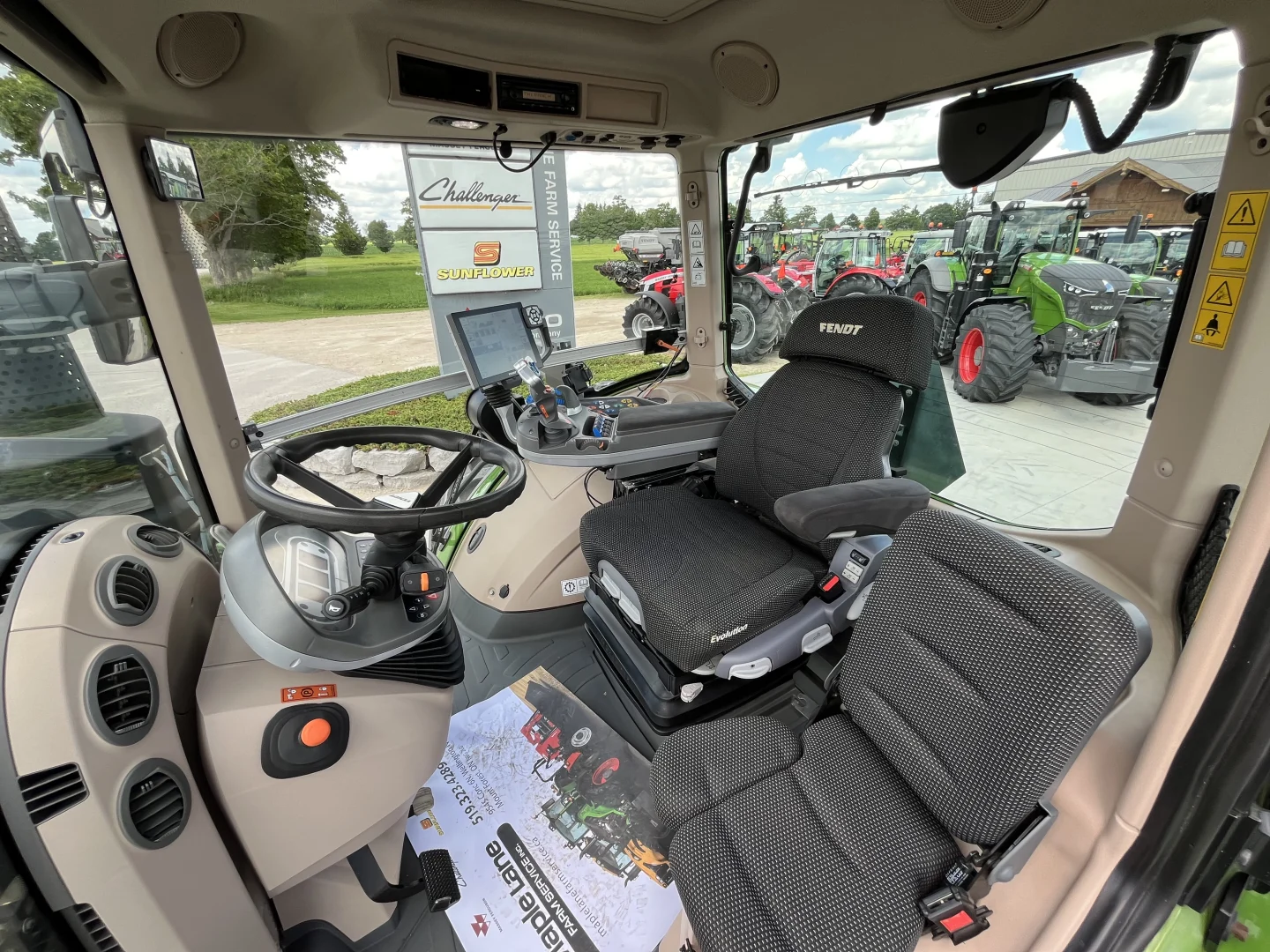

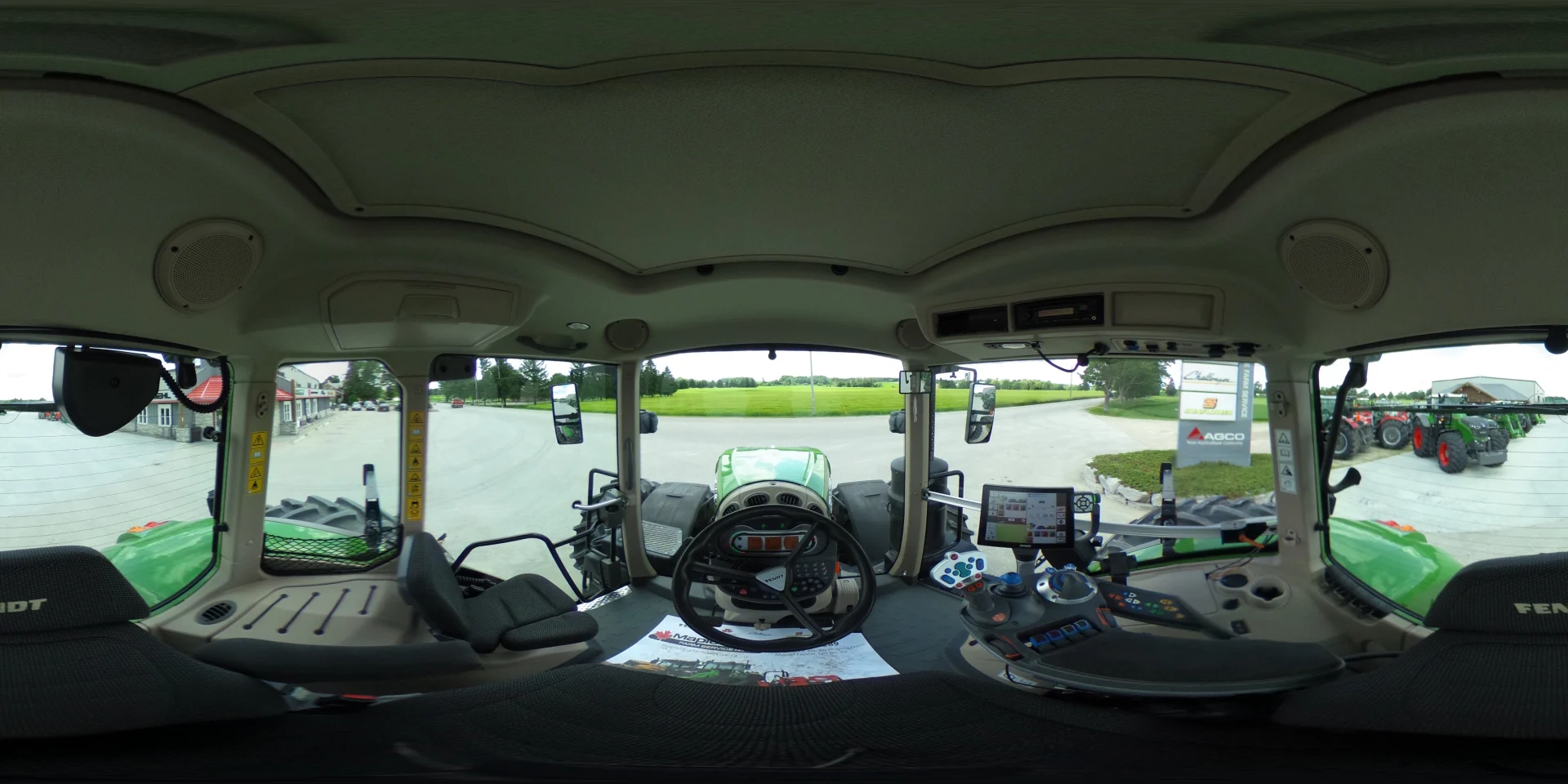

| Operator Station | ||
|---|---|---|
| Configuration | Cab | |
| Access | Left Hand Door | |
| Climate | Air Conditioning, Heater | |
| Cab Suspension | 2 Point Mechanical | |
| Steering Controls | Steering Wheel | |
| Storage | Cool Box | |
| Operator Seat | FD Super Comfort EVO Leather | |
| Material | Leather | |
| Safety Arrest | 2pt Belt | |
| Armrest | Multi-Function Adjustable | |
| Backrest | Adaptive (swivel), Recline | |
| Headrest | Adaptive (swivel), Extend | |
| Lumbar Support | Pneumatic | |
| Seat Cushion | Depth Adjustment, Tilt Adjustment | |
| Seat | Forward/Reverse Adjustment | |
| Suspension | Compressed Air System (no compressor), Dynamic Dampening, Low Frequency, Left/Right Horizontal, Forward/Reverse Horizontal | |
| Rotation | Segments | |
| Comfort | Automatic Height Adjustment, Heat, Cool, Automatic Weight Adjustment | |
| Windows | Heated Rear | |
| Wiper | Side, Rear, 300° Front | |
| Sunshade | Rear | |
| Mirrors | Powered, Heated, Telescoping | |
| Spec Level | ProfiPlus | |
| Paint | ||
|---|---|---|
| Wheels | Terra Red | |
| Body | Nature Green | |
| Wheels | ||
|---|---|---|

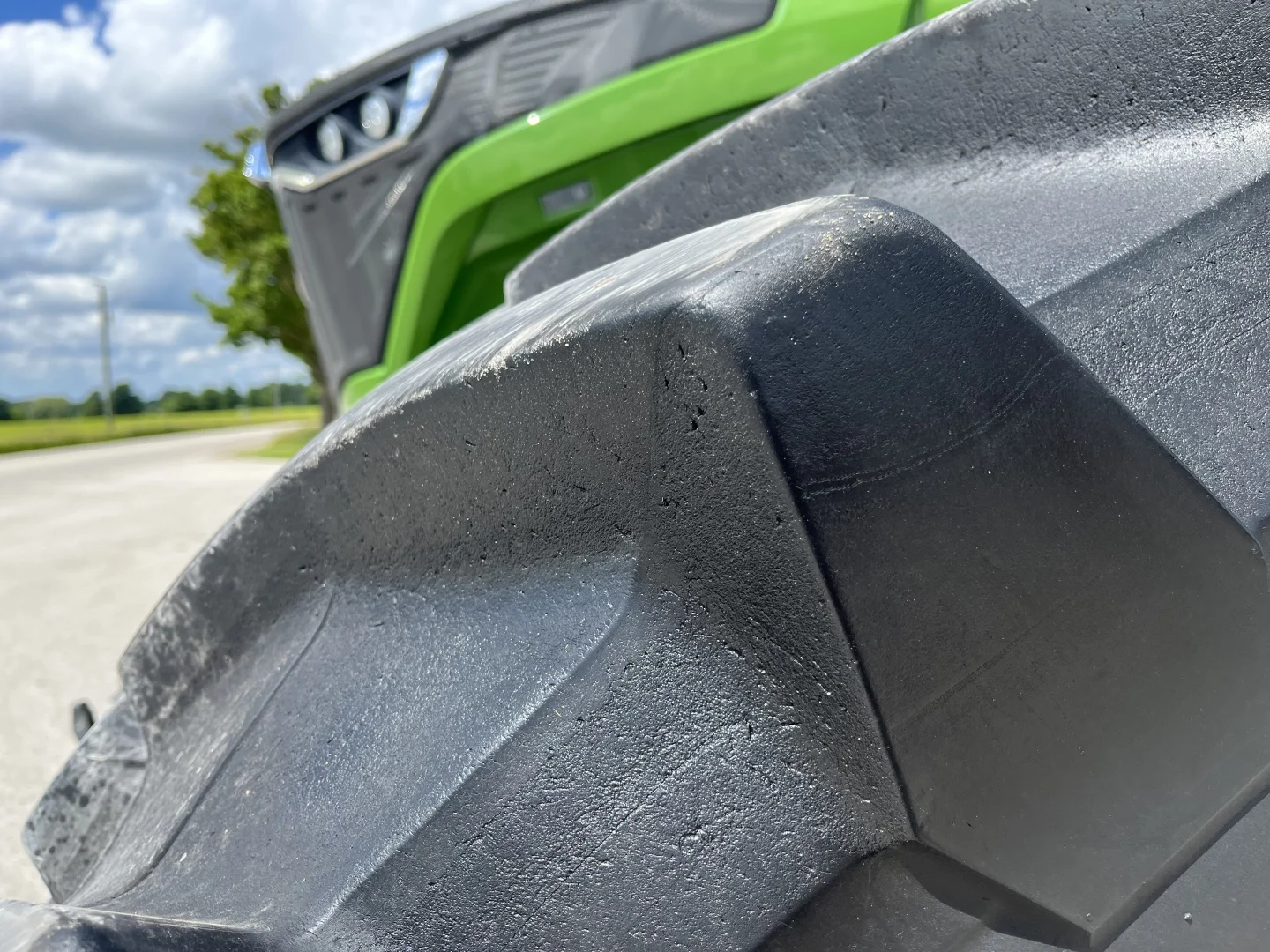

| Front | TRELL IF 650/65R38 TM1000 | |
| Size | IF 650/65R38 | |
| Tread Pattern | TM1000 HP, R1 (Ag) | |
| Section Width | 2' 2" (660mm) 660mm 2' 2" | |
| Overall Diameter | 6' 7/16" (1840mm) 1840mm 6' 7/16" | |
| Static Loaded Radius | 2' 8-11/16" (830mm) 830mm 2' 8-11/16" | |
| Rolling Circumference | 18' 15/16" (5510mm) 5510mm 18' 15/16" | |
| Tread Thickness | 2-3/8" (60mm) 60mm 2-3/8" | |
| Weight | 570lb. (259kg) 259kg 570lb. | |

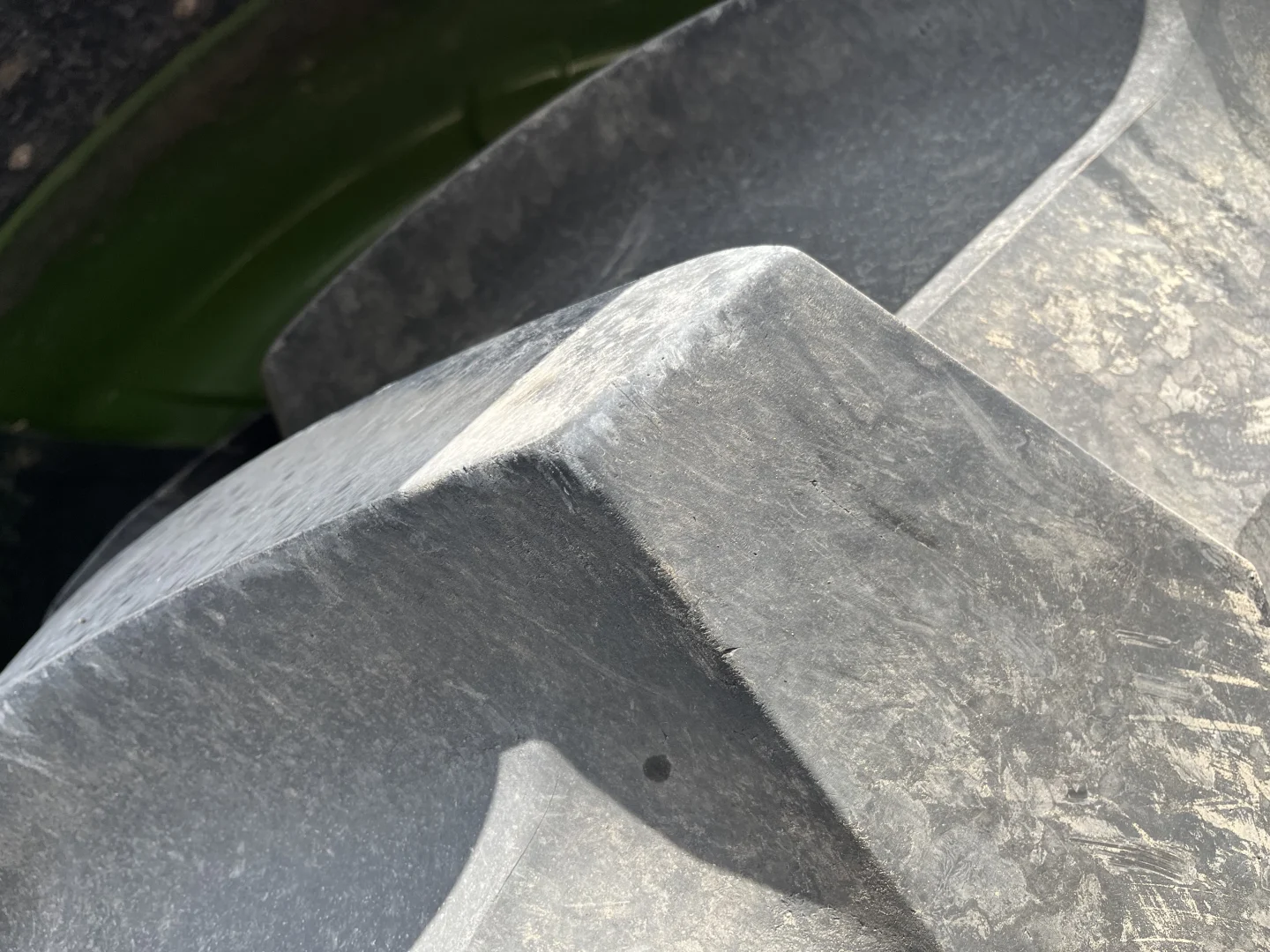

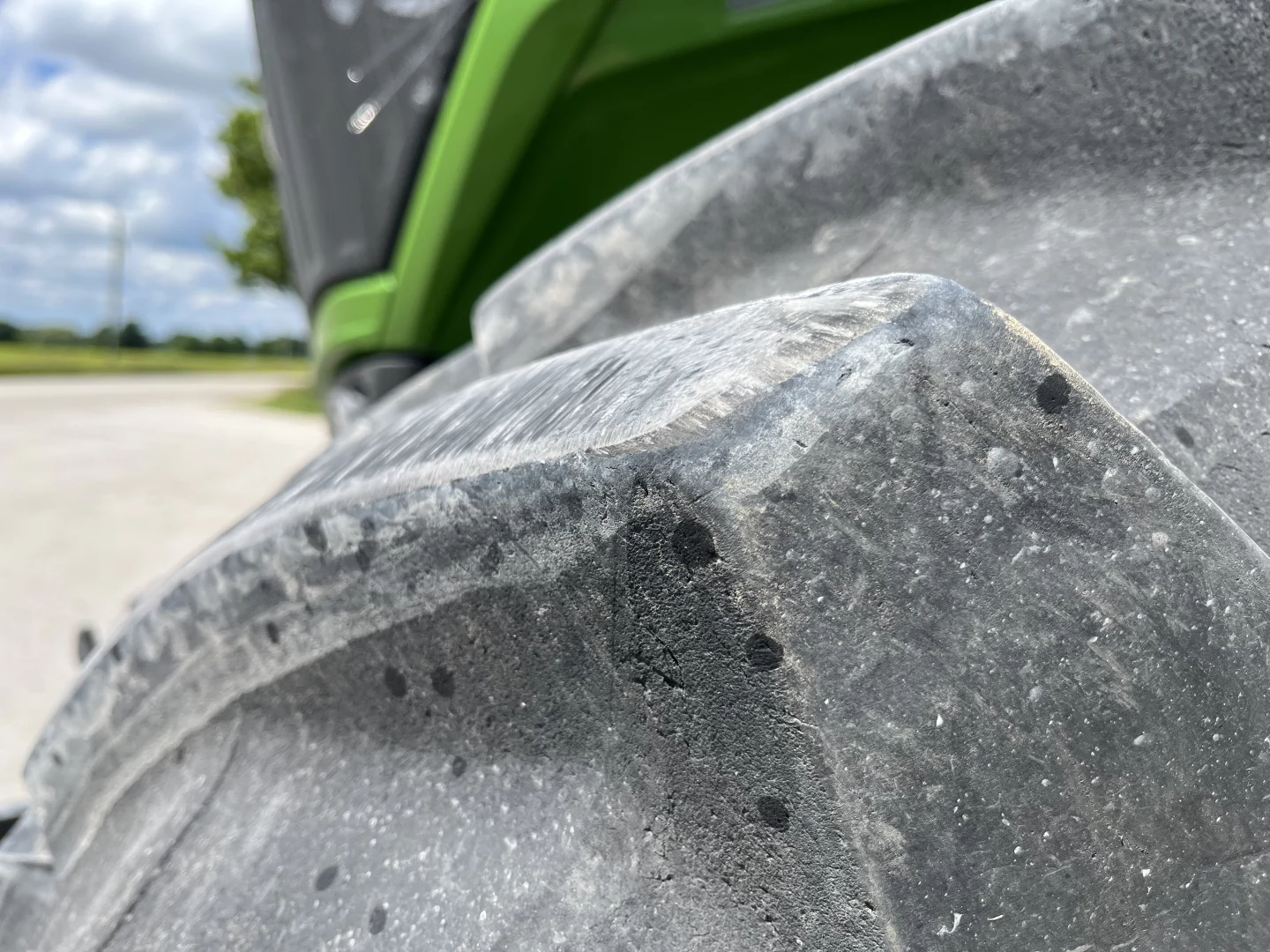

| Rear | TRELL IF 750/75R46 TM1000 | |
| Size | 750/75R46 | |
| Tread Pattern | TM1000 HP, R1 (Ag) | |
| Section Width | 2' 5-1/2" (750mm) 750mm 2' 5-1/2" | |
| Overall Diameter | 7' 6-3/4" (2305mm) 2305mm 7' 6-3/4" | |
| Static Loaded Radius | 3' 4-9/16" (1030mm) 1030mm 3' 4-9/16" | |
| Rolling Circumference | 22' 8-1/4" (6915mm) 6915mm 22' 8-1/4" | |
| Tread Thickness | 2-5/8" (67mm) 67mm 2-5/8" | |
| Weight | 996lb. (452kg) 452kg 996lb. | |
| Dimensions | ||
|---|---|---|
| Length | 20' 10" (6350mm) 6350mm 20' 10" | |
| Wheelbase | 10' 9-15/16" (3300mm) 3300mm 10' 9-15/16" | |
| Width | 9' 1/4" (2750mm) 2750mm 9' 1/4" | |
| Height | 11' 10" (3606mm) 3606mm 11' 10" | |
| Minimum Ground Clearance | 1' 11-5/8" (600mm) 600mm 1' 11-5/8" | |
| Turning Radius | 24' 9/16" (7330mm) 7330mm 24' 9/16" | |
| Weight | 30864lb. (14000kg) 14000kg 30864lb. | |
