Description | |
---|---|
Ideal for scrapers, Profi Plus, Fendt Guide complete- WAAS, 50 km/h Vario transmission, suspended front axle, 58 GPM pump, 5 rear valves, IF750/75R46 rear duals, IF650/65R38 front duals, hydraulic and air trailer brakes, exhaust brake, Evolution seat, LED lights, powered and heated mirrors, air cab suspension,1000 kg wheel weights, Includes extended warranty and maintenance package. Would make a great scraper tractor. | |
Categories | High Horsepower |
Unit Number | 23271R |
Condition | Used |
Usage | 2600 Hours |
Year | 2021 |
Cost | $514,900.00 CAD |
Engine | ||
---|---|---|
Engine Power | 354.95kW (476hp) 476hp 354.95kW | |
PTO Power | 343.02kW (460hp) 460hp 343.02kW | |
Rated Engine Speed | 1700r/min | |
Make | MAN D2676 LE121 | |
Displacement | 3.28gal. (12.42L) 12.42L 3.28gal. | |
Number of Cylinders | 6 | |
Fuel Type | Diesel | |
Fuel Injection | Direct Injection | |
Cooling | Liquid Cooled | |
Fuel Tank Capacity | 211.34gal. (800L) 800L 211.34gal. | |
DEF Tank Capacity | 22.45gal. (85L) 85L 22.45gal. | |
Warming | Block Heater | |
Fan | Reversing |
Transmission | ||
---|---|---|
Maximum Speed | 31.07mph (50km/h) 50km/h 31.07mph | |
Name | CVT TA 400 | |
Type | Variable | |
Speed Control | Cruise | |
Drive | 4WD | |
Differential | Locking |
Additional Drivetrain | ||
---|---|---|
Brakes | Wet Disc | |
Trailer Brakes | Air | |
Suspension | Front Axle | |
Steering Mode | front wheel steer | |
Rear Axle Length | 8' 2-7/16" (2500mm) 2500mm 8' 2-7/16" |
Hydraulics | ||
---|---|---|
Pump | FD 1000 Series Gen3 43.6 GPM | |
Pump Type | Variable Displacement Piston | |
Hydraulic Flow | 43.59GPM (165L/min) 165L/min 43.59GPM | |
System Capacity | 36.72gal. (139L) 139L 36.72gal. | |
Maximum Operating Pressure | 2900.76psi (20000kPa) 20000kPa 2900.76psi | |
Maximum Available Hydraulic Oil | 24.57gal. (93L) 93L 24.57gal. | |
Rear Remote Valves | 5 | |
Steering | Hydraulic Power |
Hitching | ||
---|---|---|
Rear Drawbar | Category 4 |
PTO | ||
---|---|---|
Rear | 1000, 1000E | |
Type | Independent |
Technology | ||
---|---|---|
Display | 10.4" Varioterminal | |
Instrument Display | Digital Dash Display | |
Integration | ISO BUS Implement Control | |
Guidance | Guide Standard, Guidance Ready | |
Guidance Precision | WAAS | |
Headland Management | Variotronic TI | |
Auto Headland Turn | Variotronic TI Auto | |
Data Transfer | TaskDoc Pro | |
Section Control | SectionControl | |
Variable Rate Control | Variable Rate Control | |
Telemetry | 5 Year Fendt Connect Subscription |
Electrical | ||
---|---|---|
Front Lights | 20 | |
Rear Lights | 6 | |
Worklight Type | LED | |
Rotating Beacon | Left, Right | |
Alternator | 160A | |
Alternator Count | 2 | |
Battery | 1475CCA |

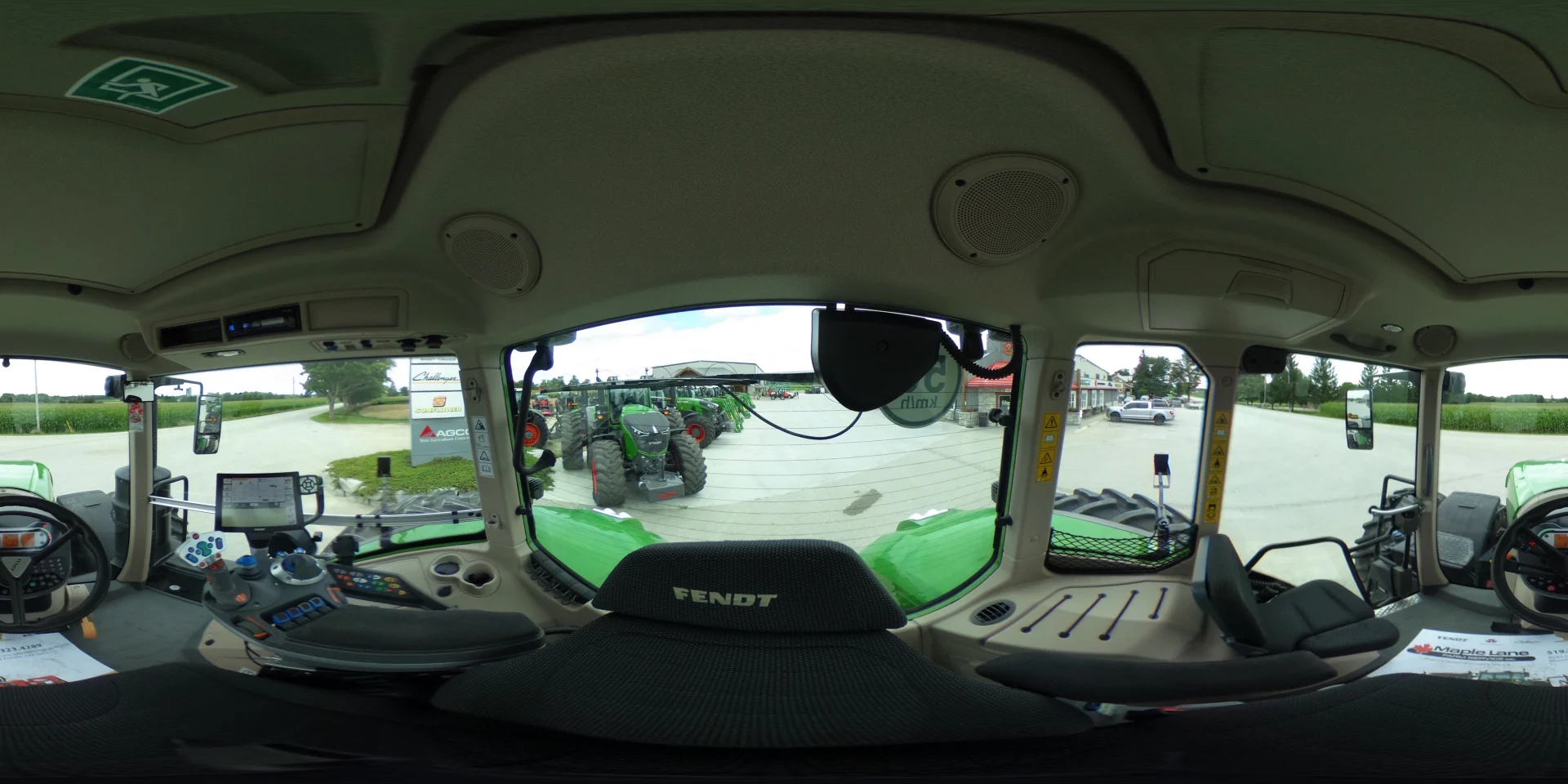

Operator Station | ||
---|---|---|
Configuration | Cab | |
Access | Left Hand Door | |
Climate | Heater, Air Conditioning | |
Cab Suspension | 2 Point Air | |
Steering Column | Tilting, Telescoping | |
Steering Controls | Steering Wheel | |
Operator Seat | FD Super Comfort EVO Adaptive | |
Material | Cloth | |
Safety Arrest | 2pt Belt | |
Armrest | Multi-Function Adjustable | |
Backrest | Recline, Adaptive (swivel) | |
Headrest | Extend, Adaptive (swivel) | |
Lumbar Support | Pneumatic | |
Seat Cushion | Depth Adjustment, Tilt Adjustment | |
Seat | Forward/Reverse Adjustment | |
Suspension | Compressed Air System (no compressor), Forward/Reverse Horizontal, Low Frequency, Left/Right Horizontal, Dynamic Dampening | |
Rotation | Segments | |
Comfort | Heat, Cool, Automatic Weight Adjustment, Automatic Height Adjustment | |
Wiper | 300° Front, Rear, Side | |
Mirrors | Powered, Telescoping, Heated | |
Spec Level | ProfiPlus | |
Windows | Heated Rear |
Paint | ||
---|---|---|
Wheels | Terra Red | |
Body | Nature Green |
Wheels | ||
---|---|---|
Front | TRELL IF 650/65R38 TM1000 | |
Size | IF 650/65R38 | |
Tread Pattern | TM1000 HP, R1 (Ag) | |
Section Width | 2' 2" (660mm) 660mm 2' 2" | |
Overall Diameter | 6' 7/16" (1840mm) 1840mm 6' 7/16" | |
Static Loaded Radius | 2' 8-11/16" (830mm) 830mm 2' 8-11/16" | |
Rolling Circumference | 18' 15/16" (5510mm) 5510mm 18' 15/16" | |
Weight | 571lb. (259kg) 259kg 571lb. | |
Tread Thickness | 2-3/8" (60mm) 60mm 2-3/8" | |
Rear | TRELL IF 750/75R46 TM1000 | |
Size | 750/75R46 | |
Tread Pattern | TM1000 HP, R1 (Ag) | |
Section Width | 2' 5-1/2" (750mm) 750mm 2' 5-1/2" | |
Overall Diameter | 7' 6-3/4" (2305mm) 2305mm 7' 6-3/4" | |
Static Loaded Radius | 3' 4-9/16" (1030mm) 1030mm 3' 4-9/16" | |
Rolling Circumference | 22' 8-1/4" (6915mm) 6915mm 22' 8-1/4" | |
Tread Thickness | 2-5/8" (67mm) 67mm 2-5/8" | |
Weight | 996.49lb. (452kg) 452kg 996.49lb. |
Weights | ||
---|---|---|
Wheel Weights | FD 1000 kg Wheel Weight Pair | |
Mount | Bolt | |
Type | Wheel Disc | |
Weight | 2204.62lb. (1000kg) 1000kg 2204.62lb. |
Dimensions | ||
---|---|---|
Length | 20' 10" (6350mm) 6350mm 20' 10" | |
Wheelbase | 10' 9-15/16" (3300mm) 3300mm 10' 9-15/16" | |
Width | 9' 1/4" (2750mm) 2750mm 9' 1/4" | |
Height | 11' 9-15/16" (3606mm) 3606mm 11' 9-15/16" | |
Minimum Ground Clearance | 1' 11-5/8" (600mm) 600mm 1' 11-5/8" | |
Turning Radius | 24' 9/16" (7330mm) 7330mm 24' 9/16" | |
Weight | 30864.72lb. (14000kg) 14000kg 30864.72lb. |
